Installation and Servicing

Instructions

Alpha CD50

Wall Mounted, Fan Assisted, Room Sealed, Gas Fired,

High Efficiency, Condensing Combination Boiler with

Unvented Hot Water Storage

For Technical help or for Service call ...

ALPHA HELPLINE

T el: 0870 3001964

Nepicar House, London Road,

Wrotham Heath, Sev enoaks ,

K ent TN15 7RS

*HEJEID/=I

Service Listed

Alpha CD50 G.C. No. 47 532 24

For use with Natural Gas only

Leave these instructions with the User

CONTENTS

1 Introduction ....................................... 2

2 Technical data...................................3

3 General boiler information..................7

4 Installation......................................... 14

5 Commissioning ................................. 20

6 Boiler operation ................................. 23

7 Routine servicing...............................24

8 Component replacement ................... 26

9 Wiring diagrams ................................ 33

10 Fault Finding ..................................... 35

11 Short parts list ................................... 39

12 Service history .................................. 40

1 INTRODUCTION

The Alpha CD50 is a wall mounted, high efficiency, fan assisted, room-sealed, condensing combination boiler - incorporating a 52 litre unvented hot water storage cylinder. The burner is lit electronically and the heat output is controlled by a modulating fan and gas valve.

The boiler, providing both central heating and domestic hot water at mains pressure, is designed for use with a fully pumped, sealed and pressurised heating system using only Natural Gas.

The boiler is supplied with a pump, diverter valve, pressure relief valve, expansion vessel and pressure gauge fully assembled and tested.

As supplied, the boiler will automatically modulate to provide central heating outputs between 6.3 and 29.7 kW (21 500 and 101 430 Btu/h).

The maximum output available for domestic hot water is 32.0 kW (109 200 Btu/h) and provides hot water at temperatures of up to 65°C and flow rates of up to 18 litres/min (4 gal/min).

IMPORTANT

This boiler has been approved to the Building Regulations for unvented hot water storage systems and the Local Authority must be notified of the intention to install. Therefore the installation must be carried out by a person competent to install unvented hot water systems.

It is the law that all gas appliances are installed by a competent person, ie CORGI registered personnel, in accordance with the following recommendations:-

Gas Safety (Installation and Use) Regulations 1984 (as amended) All current Building Regulations issued by the Department of the Environment, i.e. Approved Document L1 Building Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development Department Local Water Bye Laws Health & Safety Document No. 635 (The Electricity At Work Regulations 1989) The installation should also be in accordance with the following British Standard Codes of Practice:BS 5440:1:2000 Flues

BS 5449:1990 Forced circulation hot water systems BS 5546:2000 Installation of hot water supplies for domestic purposes BS 6700:1997 Design, installation, testing and maintenance of services supplying water BS 6798:2000 Installation of gas fired hot water boilers BS 6891:1998 Gas installation BS 7593:1992 Code of Practice for treatment of water in heating systems BS 7671:2001 Requirements for electrical installations, IEE Wiring Regulations

If installation is in a timber framed building, refer to the Institute of Gas Engineers document IGE/UP/7. This appliance meets the requirements of IPX4D, ie degree of protection against moisture. Failure to install this appliance correctly could lead to prosecution. It is in your own interest and that of safety to ensure that the

law is complied with. Manufacturer's instructions must NOT be taken in anyway as over-riding statutory obligations.

Notes: 1. Ensure that the Benchmark Log Book has been completed after the boiler has been installed and commissioned.

2. Ensure that the appliance has been supplied with an Alpha CD flue system.

Alpha CD50 - Contents/Introduction

2 TECHNICAL DATA

2.1 PERFORMANCE - NATURAL GAS (CAT: 2H-G20-20 mbar)

Central Heating

Heat Input (H

)kW

(Gross) Btu/h Heat Input (Hi)kW (Net) Btu/h Heat Output (Hs condensing) kW (50°C/30°C) Btu/h Heat Output (Hi non-condensing) kW (80°C/60°C) Btu/h Differential Burner mbar Pressure in wg

Room sealed chamber panel fitted

Gas Rate m³/h

ft³/h

MAX.

31.0

105 770

28.0

95 230

29.7

101 430

27.6

94 130

2.91

1.16

2.95

104.1

2.2 SYSTEM

Central Heating (Sealed System)

Max. Working System Pressure Min. System Pressure Max. System temperature Pressure Relief Valve Setting Expansion Vessel Size (pre-charge press.) Flow Connection Return Connection Relief Valve Connection Recommended System Pressure (cold) CH Water Temp. (Approx. max.)

2.5 bar

0.5 bar 82°C

3 bar (44 PSI)

8 L at 0.8 bar

22 mm 22 mm 15 mm

1.0 bar

82°C (180°F)

MIN.

7.4

25 360

6.6

22 830

7.0

23 980

6.5

21 500

0.27

0.11

0.71

25.1

Domestic Hot Water

Heat Input (H

)kW

(Gross) Btu/h Heat Input (Hi)kW (Net) Btu/h Output to Water (Hs)kW (modulating) Btu/h Differential Burner mbar Pressure in wg

Room sealed chamber panel fitted

Gas Rate m³/h

ft³/h

Flow Rate L/min

G.P.M.

Outlet Water Temp. (Approx.) °C

°F

MAX.

36.1

123 190

32.6

110 910

32.0

109 200

3.70

1.48

3.44

121.4

18.0

4.0 65

149 Time to raise water store by 50°C Reheat time for 70% of store

(boiler ON) (boiler OFF)

MIN.

25 360

22 830

21 500

0.27

0.11

0.71

25.1

0.22

7 minutes 3 minutes 5 minutes

Domestic Hot Water

Max. Hot Water Working Pressure Max. Mains Inlet Pressure (inlet of pressure reducing valve) Min. Mains Water Pressure Mains Inlet Connection DHW Outlet Connection DHW Water Storage Expansion Vessel Size (pre-charge press.) Pressure Reducing Valve Setting Temperature and Pressure Relief Valve Expansion Relief Valve Setting

5.5 bar 12 bar

0.1 bar

15 mm 15 mm

52 L

4 L at 2.5 bar

2.5 bar

90°C/7 bar

6 bar

7.4

6.6

6.3

1.0

2.3 COMPONENTS 2.4 ELECTRICAL

Burner Main Heat Exchanger DHW Storage Cylinder Main Burner Injector Flue - Outer Duct Flue - Inner Duct

2.5 INSTALLATION

Min. Clearances for Servicing Top (from casing) Bottom

Flue Terminal Size Flue Terminal Protruding Hole Size Required For Flue Assy. Lift Weight Weight Full and Operational

Stainless steel Stainless steel

Stainless Steel

Sides Front

6.6 mm White

Plastic

220 mm 250 mm

10 mm

450 mm

100 mm Dia.

100 mm

110 mm Dia.

70 kg

130 kg

Supply External Fuse Power Consumption Internal Fuse Electrode Spark Gap

2.6 GENERAL

Case Dimensions Height

Gas Connection Primary Water Content Air Duct Diameter Flue Duct Diameter

230/240 V ~ 50 Hz

3 A

140 W

F2 A

3 - 4 mm

900 mm Width Depth

600 mm

450 mm

22 mm

3.2 L

100 mm

60 mm

Alpha CD50 - Technical Data

2.7 FLUE LENGTHS

CD Easy-Flue 500 mm with terminal and 90° bend. A CD Easy-Flue 1000 mm with terminal and 90° bend is also available. CD 750 mm flue extensions are available. Length of Flue Required:-

Rear Flue = wall thickness + 170 mm (includes terminal) Side Flue = wall thickness + distance between wall and side of boiler + 230 mm (includes terminal) Vertical Flue = distance from top of boiler side panel to required roof position minus 1 m for vertical terminal assembly

Maximum horizontal flue length = 12 m. Maximum vertical flue length including terminal is 15 m. Each additional CD 90° Bend is equivalent to 1.3 m of flue length. Each CD 45° Bend is equivalent to 0.9 m of flue length. The CD Vertical Flue terminal assembly is equivalent to 1 m of flue length.

2.8 AVAILABLE PUMP HEAD FOR CENTRAL HEATING

Output (50/30°C) Available pump head

25.40

18.70

15.60

12.35

5.30

Btu/h

86 700 64 000 53 000 42 200 18 100

20°C 20°C

metres

2.3

3.5

3.8

4.0

4.6

feet

7.6

11.6

12.6

13.2

15.2

Flow rate

litre/min

16.6

12.6

10.5

8.3

3.2

gal/min

3.7

2.8

2.3

1.8

0.7

This information is based on 20°C system design temperature difference. Note: For outputs upto 30 kW refer to section 3.7.

2.9 ELECTRICAL CONNECTIONS

Note: This Appliance Must Be Earthed

An optional integral Clock kit is available if required.

Blue

Red

Wire

Brown

Wire

12345

Red

Not

Wire

Used

Internal Clock Terminals

WARNING

1. Ensure wires are connected correctly

2. Only fit the Alpha recommended clock. Other clocks could cause damage.

Clock connections

Alpha CD50 - Technical Data

Boiler terminal block

Fig. 1

2.10 BOILER SCHEMATIC

1 Flue sampling point 2 Flue thermostat 3 Injector 4 Gas valve 5 Primary temperature sensor 6 Venturi 7 Main burner 8 Primary/condensing heat exchanger 9 Room sealed chamber 10 Fan 11 Pressure differential test points 12 Flue hood 13 Overheat thermostat 14 CH Expansion vessel

15 Automatic air vent 16 Pump 17 Drain point 18 Pressure gauge 19 Primary pressure switch 20 Ignition electrodes 21 Flame sensing electrode 22 Venturi negative point 23 Venturi positive point 24 Gas service cock 25 On/off valve (2 off) 26 Automatic by-pass 27 Cyclone separator 28 Condensate trap

Fig. 2

29 CH Pressure Relief Valve 30 DHW Expansion Vessel 31 DHW Storage Temperature Sensor 32 DHW Temperature/Pressure Relief Valve 33 Storage Cylinder 34 Secondary Heat Exchanger 35 DHW Drain Point 36 DHW Expansion Relief Valve 37 Mains Inlet Filter 38 Check Valve 39 Mains Inlet Valve 40 Pressure Reducing Valve with Filter 41 Automatic Flow Regulator 42 Tundish 43 Diverter Valve

Alpha CD50 - Technical Data

3 GENERAL BOILER INFORMATION

3.1 GAS SUPPLY

The Alpha CD50 boiler requires a gas rate of 3.44 m³/h (121.4 ft³/h). The meter and supply pipes must be capable of delivering this quantity of gas in addition to the demand from any other

appliances in the house. The boiler requires at least a 22 mm gas supply pipe. The complete installation, including the meter, must be tested for gas soundness and purged as described in BS 6891.

3.2 ELECTRICAL SUPPLY

The boiler requires a 230/240 V ~ 50 Hz mains supply, fused at 3 A

The boiler must be earthed.

There must only be one common isolator, providing complete electrical isolation, for the boiler and any external controls. This boiler has been fitted with a supply cable, however, if it is necessary to fit a cable use PVC insulated cable not less than

0.75 mm² (24 x 0.2 mm) to BS 6500 Table 16. The boiler should be connected to a fused three pin plug and unswitched shuttered socket outlet (both complying with BS 1363), or a fused double pole switch with a contact separation of at least 3 mm in both poles.

Wiring external to the boiler must be in accordance with the current IEE Wiring Regulations (BS 7671). Note: If a room thermostat is fitted, it must be suitable for 230/240 V switching.

3.3 AIR SUPPLY

The boiler does not require any air vents for cooling in the room in which it is installed or when installed in a cupboard or compartment. The minimum clearances for servicing must always be maintained.

Note: A cupboard or compartment used to enclose the boiler must be designed and constructed specifically for the purpose, i.e. comply with the Building Regulations.

3.4 FLUE SYSTEM - Fig. 3

The flue system must be installed in accordance with BS 5440:1. For horizontal flues ensure the flue assembly is horizontal and the inner duct is sloping downwards towards the boiler. Flue components are available as follows:CD Easy-Flue 500 mm (includes 90° bend and terminal) - Part No. 6.2000500.

CD Easy-Flue 1000 mm (includes 90° bend and terminal) - Part No. 6.20001000. CD 0.75 m flue extension - Part No. 6.2000750. CD 90° bend - Part No. 6.2000590. CD 45° bend - Part No. 6.2000545. CD Vertical flue terminal assembly. Refer to the separate installation instructions supplied with the assembly.

The following methods determine the correct length of flue required.

For rear exit flue (including terminal) L = B + 240 mm For side exit flue (including terminal) L = B + C + X (L/H side X = 185 mm, R/H side X = 425 mm) For vertical flue L = H minus 1000 mm for vertical terminal assembly Where L = Required flue length

B = Finished wall thickness C = Distance from the inside wall to the side of the boiler H = Distance from top of boiler side panel to top of terminal

Note: 1. If an extra 90° bend is used, this reduces the maximum flue length by 1.3 m. Each 45° bend used reduces the maximum

flue length by 0.9 m.

2. Under no circumstances must the flue length (including allowances for extra bends) exceed 12 metres horizontally and only 15 metres vertically.

3. Failure to use Alpha CD flue components with the boiler will invalidate the boilers CE approval, guarantee and may be unsafe.

Alpha CD50 - General Boiler Information

HORIZONTAL FLUE OPTIONS

Lmax = 12 metres (L/H side X = 185 mm, R/H side X = 425 mm)

L = B + C + X

L = B + E + F + X + (90° bend = 1.3 metre)

L = B + C + E + X

VERTICAL FLUE OPTIONS

L = B + C + X + (2 x 45° bends = 1.8 metre)

max = 15 metres Hmax = 13.2 metres

Fig. 3

Alpha CD50 - General Boiler Information

3.5 FLUE TERMINAL LOCATION - Fig. 4

Fig. 4

Terminal position

A Directly below an opening, air brick, windows, etc. B Below gutters, soil pipes or drain pipes C Below eaves D Below balconies or car port roof E From a vertical drain pipe or soil pipe F From an internal or external corner G Above ground, roof or balcony level H From a surface facing the terminal I From a terminal facing the terminal J From an opening in the car port (e.g. door, window) into dwelling K Vertically from a terminal on the same wall L Horizontally from a terminal on the same wall M Horizontally from an opening, air brick, window etc.

Min. distance

300 mm

75 mm 25 mm 25 mm 25 mm

25 mm 300 mm 600 mm

1200 mm 1200 mm 1500 mm

300 mm 300 mm

Note: In certain weather conditions the terminal will emit a plume of steam. If possible avoid positioning the terminal where this may cause a nuisance, i.e. positions A, D, H, J and M in the above table.

The flue terminal must be exposed to the external air and the position must allow the free passage of air across it at all times. If the terminal is fitted within 850 mm of a plastic or painted gutter or 450 mm of painted eaves or 300 mm of a plastic car port

roof, an aluminium shield at least 1 m long should be fitted to the underside of the gutter or painted surface. If the terminal is fitted less than 2 m above a surface to which people have access, the terminal must be protected by a terminal guard. A suitable guard is available from you local boiler merchant.

3.6 BOILER LOCATION

The boiler is not suitable for external installation. The boiler must be installed on a flat vertical wall which is capable of supporting the weight of the boiler, i.e. 130 kg. The boiler can

be fitted to or adjacent to a wall comprising of a combustible material without the need for a special thermal insulation barrier. If the boiler is to be fitted in a timber framed building, it should be fitted in accordance with the British Gas publication 'Guide for

Gas Installations in Timber Frame Housing', reference DM2. The boiler may be installed in any room or internal space, although particular attention is drawn to the requirements of the

current IEE Wiring (BS7671) Regulations, and in Scotland, the electrical provisions of the Building Regulations applicable in Scotland, with respect to the installation of the boiler in a room or internal space containing a bath or shower. Where a roomsealed boiler is installed in a room containing a bath or shower, it must not be possible for a person using the bath or shower to touch any electrical switch or boiler control utilising mains electricity.

The boiler may be installed in a cupboard or compartment, provided it is correctly designed for that purpose, i.e. complies with the Building Regulations and the requirements of BS 6798.

Alpha CD50 - General Boiler Information

3.7 CENTRAL HEATING SYSTEM - Fig. 5

The boiler is designed for use in a sealed central heating system in accordance with the requirements of BS 5449 and BS 6798. The system should be designed to operate with flow temperatures of up to 82°C. When designing the system, the pump head, expansion

vessel size, mean radiator temperature, etc. must all be taken into account. Refer to the pump performance table for guidelines. System volume - The expansion vessel incorporated into the boiler is suitable for a sealed heating system with a maximum

water content of 80 litres (18 gal). For guidance on water contents contact Alpha Therm Ltd. for Technical Data Sheet 15. Above 80 litres, consideration should be given to fitting an additional expansion vessel fitted in the position shown in Fig. 5. To check correct operation of the expansion vessel(s) the system pressure should not be more than 2.5 bar when the system is at maximum operating temperature (for further guidance refer to BS 7074:1).

The boiler is supplied with the following components built in:Pressure relief valve - complying with BS 6759 and set to operate at 3 bar. The discharge pipe must be routed clear of the boiler and terminated in such a manner that it can be seen, but cannot cause injury to persons or property.

Pressure gauge - To indicate the system pressure to be maintained. Expansion vessel - Conforming to BS 4814 with a capacity of 8 litres and pre-charged to a pressure of 0.8 bar. By-pass - The boiler incorporates a by-pass, however where all radiators are fitted with thermostatic radiator valves it is

recommended a system by-pass, preferably automatic is fitted.

Cyclone - This is a device fitted in the heating return within the boiler to remove any foreign or solid matter etc. from the system.

Fig. 5

3.8 FILLING THE CENTRAL HEATING SYSTEM - Figs. 6, 7

The system design pressure (cold) should be set to 1.0 bar. This pressure is equivalent to a static head (see Fig. 5) of 10.2 metres of water. Provision should be made to replace water lost from the system. This can be by manual or automatic means, as shown in Figs.

6 and 7. The position for connecting an automatic make-up vessel is indicated in Fig. 5. A double check valve assembly must be used, as shown in Fig. 7.

Filling of the system must be carried out in a manner approved by the local Water Undertaking. Where allowed, the system may be filled via a temporary connection as shown in Fig. 6. After filling, always disconnect the flexible hose of the filling loop.

All fittings used in the system must be able to withstand pressures up to 3 bar. Drain taps (to BS 2879) must be used to allow the system to be completely drained.

Mains water supply

Feed cistern to be located above highest point in the system

Heating circuit

return

Stop valve

temporarily connected

Hose

unions

Filling loop

Double check

valve assembly

Test cock

Stop valve

Mains water supply

Heating circuit

return

Double check

valve assembly

Test cock

Overflow

Stop valve

Fig. 6 Fig. 7

Alpha CD50 - General Boiler Information

3.9 FLUSHING THE HEATING SYSTEM

It is essential that the central heating system is thoroughly cleaned and flushed when fitting an Alpha CD boiler. Failure to do so will invalidate the warranty.

The primary and condensing heat exchanger is constructed in stainless steel and therefore is compatible with most materials used in a heating system.

If a cleaning agent and inhibitor are used, they must be applied in accordance with their manufacturers instructions. Only products from Fernox and Sentinel are acceptable for use with the Alpha CD boilers. Further information can be obtained from Fernox (Tel: 0179 9521133) or Sentinel (Tel: 0151 4209563).

Although the Cyclone is fitted in the heating return on the boiler, the heating system should still be thoroughly flushed as detailed below. The Cyclone collection point should be emptied via it's drain point (see Fig. 13) after flushing has been completed.

The system should be flushed in accordance with BS 7593 and BS 5449. The following procedures are recommended:

1. Installing onto a new system:a.Fill the system, vent at high points, at pump and radiators. b.Check for leaks. c.Rapidly drain the system. d.If required, chemically clean the system as instructed by the recommended cleaner manufacturer.

Note: Ensure that the system is flushed to remove any remains of the cleaner.

e.If chemical cleaner is not used to clean the system:-

i) Refill the system. ii) Switch on the boiler and allow the system to heat up to the normal operating temperature. iii) Rapidly drain the system while the water is still hot.

iv) Refill the system. f. As required, add the recommended inhibitor to the system as instructed by the inhibitor manufacturer. g.Recheck for leaks.

2. Installing onto an existing system, clean the system before fitting the new boiler:a.If the old boiler is still working:-

i) Switch on the boiler and allow the system to heat up to the normal operating temperature. ii) Rapidly drain the system while the water is still hot. iii) Refill and chemically clean the system as instructed by the recommended cleaner manufacturer. iv) Ensure the system is flushed to remove any remains of the cleaner. v) Fit the new boiler.

b.If the old boiler is not working:-

i) Rapidly drain the system. ii) Remove the old boiler. iii) Flush the system through. iv) Fit the new boiler. v) Refill and chemically clean the system as instructed by the recommended cleaner manufacturer.

vi) Ensure the system is flushed to remove any remains of the cleaner. c.As required, add the recommended inhibitor to the system as instructed by the inhibitor manufacturer. d.Check for leaks.

3.10 DISPOSAL OF CONDENSATE

Provision must be made for the safe disposal of condensate produced by the flue gases of the Alpha CD boilers. The boilers incorporate a condensate trap which has a seal of 75 mm, therefore no additional trap is required. The condensate should ideally be discharged internally into an internal waste pipe (washing machine/sink waste) or soil pipe to

avoid the possible risk of freezing. The pipework must be in 22 mm pipe. External pipe runs should be avoided, but if it is necessary, the pipework should be protected from the risk of freezing with a

waterproof insulation and the length should be kept to a maximum of 3 m. Termination should be into an external gulley or soakaway as shown in Figs. 8 and 9.

Note: All pipework must have a continuous fall (see Figs. 8 and 9) from the boiler and must be of an acid resistant material such as plastic waste pipe. (copper or steel is not suitable).

It should be noted that the connection of a condensate pipe to a drain may be subject to local building control requirements.

Alpha CD50 - General Boiler Information

Fig. 8 - External gully

Fig. 9 - External soakaway

3.11 DOMESTIC HOT WATER SYSTEM

The mains water supply must be first connected to the pressure reducing valve (supplied with the boiler) which will regulate the water supply to 2.5 bar. However, all taps and mixing valves used with the hot water system must be suitable for operating at a pressure of up to 5.5 bar.

To ensure economic use, the pipe runs between the boiler and taps should be in 15 mm copper pipe and be as short as possible. Where possible the pipework should be insulated to reduce heat loss.

Showers - A shower may be used with the boiler if required. If a loose or flexible head type shower is used it may require the fitting of a double check valve, to comply with Water Bye Law 17.

Bidets - No anti-syphonage arrangements are necessary, provided the outlets are shrouded and it is not possible to attach a temporary hand held spray. A supply of direct mains fed hot and cold water is permitted provided the appliance is of the over-rim flushing type.

Before the mains water supply pipe is connected to the boiler, it should be thoroughly flushed out to avoid the danger of dirt or foreign matter entering the boiler and the filter incorporated within the pressure reducing valve cleaned.

The stored water temperature is adjustable to a maximum of 65°C. In hard water areas this should avoid possible scale build-up, although it is still advisable to reduce the DHW thermostat setting in such areas. However, if descaling is necessary contact Alpha Therm Ltd. for guidance.

Alpha CD50 - General Boiler Information

3.12 UNVENTED HOT WATER STORAGE SYSTEM

The installation is subject to Building Regulations approval and the Local Authority must be notified of the intention to install. The CB50 boiler is supplied with all the components required for an unvented hot water system, i.e. temperature/pressure and

expansion relief valves, expansion vessel, check valve and tundish. All these components are factory fitted, except for the tundish which must be installed as follows:-

Discharge pipe - The discharge pipes from the temperature/pressure and expansion relief valves must be routed to the tundish supplied and in 15 mm pipe. The discharge pipework from both relief valves may be joined together in the same sized pipe, providing at least 22 mm pipework is connected downstream of the tundish.

Stop valve

Cold water supply

2.5 bar pressure reducing valve

(supplied)

Filter

Mains

water

supply

Temperature/pressure

4L DHW expansion vessel

6 bar expansion

Check

valve

relief valve

Tundish

22 mm discharge

relief valve

pipe

Hot

water

Storage cylinder

Diverter

valve

Heating

Primary

Pump

Boiler

flow

Primary return

Fig. 10

Tundish - The tundish must be positioned within 500 mm of the appliance, so that it is visible to the User and away from electrical

devices. The minimum size of the discharge pipe downstream of the tundish is given in the following table.

Sizing of copper discharge pipe 'D2' - refer also to Fig. 11Table 1

Valve

outlet size

G½

Minimum size of discharge

pipe 'D1' to tundish

15 mm

Minimum size of discharge

pipe 'D2' from tundish

22 mm 28 mm 35 mm

Maximum resistance allowed,

expressed as a length of straight

pipe (i.e. no elbows or bends)

up to 9 m up to 18 m up to 27 m

Resistance created

by each elbow

or bend

0.8 m

1.0 m

1.4 m

The discharge pipework from the tundish:-

1. Shall fall continuously through its length.

2. Shall be of a heat resistant material, e.g. metal.

3. Shall not be fitted with any valves or taps.

4. Shall discharge to a safe visible position, e.g. onto the surface of an external wall or into a gulley.

5. Shall have a minimum of 300 mm straight pipework directly from the tundish.

Note: Where children may play or otherwise come into contact with discharges, a wire cage or similar guard must be positioned to prevent contact whilst maintaining visibility.

Alpha CD50 - General Boiler Information

Refer to Fig. 11 for suggested methods of terminating the discharge pipe safely. Where a single pipe serves a number of discharges, such as in blocks of flats, the number served should be limited to not more

than 6 systems so that any installation can be traced reasonably easily. The single common discharge pipe should be at least one pipe size larger than the largest individual discharge pipe to be connected.

If the system is installed where discharges from safety devices may not be apparent, i.e. in dwellings occupied by blind, infirm or disabled people, consideration should be given to the installation of an electronically operated device to warn when discharge takes place.

LOW LEVEL TERMINATION

Temperature/pressure

relief valve

Metal discharge pipe (D1)

from relief valve to tundish

To expansion

relief valve

500 mm max.

300 mm

minimum

Metal discharge pipe (D2) from

tundish with continuous fall

Tundish

300 mm

minimum

Pipe close to wall to allow water to fan out safely

100 mm max.

70 mm min.

Ground level

Gulley if available

HIGH LEVEL TERMINATION

At high level, discharge onto a roof is acceptable providing the roof is capable of withstanding high temperatures and there is a distance of 3 m from any plastic guttering systems that would collect such discharge.

Note: The discharge will consist of scalding water and steam. Asphalt, roofing felt and non-metallic rainwater goods may be damaged by such discharges.

TERMINATION INTO A HOPPER

300 mm

minimum

Tundish

Type 'A'

air gap

End of pipe to be clearly visible

Worked example:-

The example below is for a G½ temperature relief valve with a discharge pipe (D2) having four elbows and a length of 7 m from the tundish to the point of discharge.

From Table 1 (page 10):-

Maximum resistance allowed for a straight length of 22 mm copper discharge pipe (D2) from a G½ temperature relief valve is 9 m.

Subtract the resistance for four 22 mm elbows of 0.8 m each = 3.2 m. Therefore the maximum permitted length equates to 9 - 3.2 = 5.8 m

5.8 m is less than the actual length of 7 m therefore calculate the next largest size. Maximum resistance allowed for a straight length of 28 mm pipe (D2) from a G½

temperature relief valve equates to 18 m. Subtract the resistance for four 28 mm elbows at 1.0 m each = 4 m. Therefore the maximum permitted length equates to 18 - 4 = 14 m As the actual length is 7 m, a 28 mm (D2) copper pipe will be satisfactory.

Fig. 11

Alpha CD50 - General Boiler Information

4 INSTALLATION

4.1 UNPACKING

1. The boxes required when the boiler is installed with a horizontal flue are as follows:Box 1 Cased boiler fitted with water and gas valves, filling loop, union bends and washers

Mounting bracket plus screws and wall plugs Pressure reducing valve and Tundish Literature pack and Wall template

Box 2 CD Easy-Flue 500 mm or CD Easy-Flue 1000 mm. Both include 90° bend and horizontal flue terminal

Note: NOT required for vertical flue

Notes: a. All flues must be suitable for CD condensing boilers.

b. CD 750 mm flue extensions are available, if required.

2. Unpack boiler and remove the loose items packs and mounting bracket. Note: The boiler can be stood in an upright position, (to allow this, the union bends have been turned upwards so that

they do not protrude beneath the bottom - check this before standing the boiler upright).

4.2 CLEARANCES REQUIRED - Fig. 12

220 mm

450 mm

900 mm

4.3 PREPARE THE WALL - Figs. 12, 13

1. Decide upon the position of the boiler taking into account the clearances required for servicing and the flue terminal position.

2. Tape the template to the wall (ensure it is level and the right way up) and mark the position of the holes for the boiler mounting bracket and bottom fixings. If rear exit flue is used, mark the position of the hole for the flue.

3. Side exit flue - Continue the horizontal centre line of the flue across the wall to the side wall, then along the side wall 235 mm (ensure the lines are horizontal). This will give the position of the centre of the hole for the flue.

4. Cut the 110 mm diameter hole (or use a 107 mm core drill) in the wall for the flue.

Notes: a. Ensure the hole is horizontal.

b. For internal fitting of the flue, using the flue

sealing collar supplied, cut a 130 mm dia. flue hole using a 127 mm core drill.

5. Drill the fixing holes (10 mm dia.) to accept the No.10 plugs supplied. Using the screws supplied, fit the mounting bracket.

10 mm

Minimum clearance of 450 mm from front of boiler

Fig. 12

140 mm

Fixing

holes

Rear exit hole 110 mm dia.

180 mm

Boiler

outline

600 mm

250 mm

Ensure line is level

420 mm

Template

10 mm

Side wall

Wall mounting bracket

Fig. 13

235 mm

Position of 110 mm hole to be cut for side exit flue

4.4 FIT THE BOILER - Refer to Fig. 13

1. Lift the boiler and locate it on the mounting bracket.

Alpha CD50 - Installation

Pour water into flue duct

Fig. 14

4.5 CONNECT THE PIPEWORK - Fig. 15

1. Thoroughly flush out all the water pipework. Refer to section 3.9.

2. The valves/fittings have been factory fitted, however, check that all the connections underneath the boiler have been tightened, especially the union bends.

Note: When soldering to the boiler union bends, ensure the bends are not connected to the valves, otherwise the internal seals may be damaged.

3. Connect the cold water supply pipework to the pressure reducing valve (supplied) and then to the boiler. Refer to Domestic Hot Water System, section 3.11. Note: Ensure that the pressure reducing valve is connected correctly, i.e. flow is in the direction of the arrow on the valve body.

4. Connect the system pipework to the boiler. Note: Do not forget that the pressure relief valve discharge pipe must be routed clear of the boiler to a drain in such a manner that it may be seen, but cannot cause injury to persons or property.

5. Connect the 22 mm condensate trap drain pipe to the condensate discharge pipe. Ensure that the condensate discharge pipe is as required in section 3.12. Pour at least 0.5 litre of water into the flue duct, as shown in Fig. 14, and check the condensate discharge pipe for soundness.

5. Ensure that all the valves are closed (spindle flats at right angles to valve) and do not turn on the water or gas supplies at this stage.

6. Connect the discharge pipework to the temperature/pressure relief and expansion relief valves via the tundish supplied.

This pipework must be installed as recommended in Unvented Hot Water Storage System, section 3.12.

A - Hot water outlet (15 mm) B - Cold water inlet (15 mm) C - Heating return (22 mm) D - Heating flow (22 mm) E - Gas inlet (22 mm) F - Heating pressure relief valve (15 mm) G - Heating drain point H - DHW expansion relief valve (15 mm) I - Drain point for DHW store J - Cold water inlet filter K - Check valve L - Automatic flow regulator valve M - Temperature/pressure relief valve discharge pipe N - Condensate discharge pipe O - Condensate trap P - Cyclone

Fig. 15

Alpha CD50 - Installation

4.6 FIT THE FLUE - Figs. 16, 17

The following procedure applies to fitting an Alpha CD Easy-Flue to both rear or side exit flue - horizontally only.

1. The CD Easy-Flues are suitable for use in the flue length ranges shown in the tables below. Note: Where the length is less than the minimum or more than the maximum, refer to section 4.7.

CD Easy-Flue

500 mm

1000 mm

B (mm)

Max 455 855

Min 210 610

CD Easy-Flue

500 mm L/H flue

500 mm R/H flue

1000 mm L/H flue

1000 mm R/H flue

Fig. 16 Fig. 17

2. Determine the overall length (L) of flue required, (see Fig. 18) as follows:-

Rear flue L = wall thickness (B) + 240 mm Side flue L = wall thickness (B) + distance between boiler and wall (C) + X (L/H side X = 185 mm, R/H side X = 425 mm)

B + C (mm)

Max

Min

510

265

270

910

665

670

425

Fig. 18

3. Adjust the telescopic section of the flue to the distance 'L', ensuring that the two labels marked 'TOP' are aligned, then seal and secure the joint between the ducts with the sealing tape supplied.

4. Pass the flue assembly through the wall (from inside or outside). Note: Internal fitting - If there is no access to make good the outside wall, locate the flue sealing collar onto the outer duct of the flue immediately before the terminal grille onto the location provided. Push the flue assembly through the 130 mm flue hole, so that the collar completely passes through the wall. Then pull the flue assembly back into the correct position. Visually check that the collar is sealing the outside wall and that it is not restricting any of the openings of the flue terminal.

Fig. 19 - Fitting the flue from inside

Alpha CD50 - Installation

5. Position the seal and clamp (two screws) supplied, over the bend. Fit the bend to the boiler and rotate to the correct position. Secure in position using the seal and clamp, ensuring the seal is located centrally over both the bend and boiler adaptor.

6. Fit the inside flue sealing collar over the Easy-Flue. Fit the outside flue sealing collar onto the flue immediately before the terminal grille onto the location provided.

7. Slide the clamp (three screws) over the outer duct and pull the flue assembly towards the bend, locating the inner duct into the seal joint on the bend. Ensure the labels marked 'TOP' are positioned at the top before securing the flue assembly to the bend with the clamp (three screws) located centrally over the joint.

Note: Check the flue terminal protrudes 100 mm out of the wall and the inner duct of the terminal is positioned correctly (see Fig. 20).

8. Make good the inside wall by pushing the inside flue sealing collar up to the wall.

Fig. 20 - Rear flue

4.7 EXTENDING THE FLUE - Fig. 21

Note: The maximum horizontal flue assembly length must not exceed a length of 12 metres.

1. When the flue length required is more than the maximum or less than the minimum stated in section 4.6, paragraph 1, refer to the table below.

Flue Length

Up to maximum:-

Between:-

Less than:-

Rear Flue (B)

11.76 m

610 - 855 mm

455 - 610 mm

210 - 455 mm

210 mm

Side Flue (B + C)

Left hand

11.815 m

665 - 910 mm

510 - 665 mm

265 - 510 mm

265 mm

Right hand

11.575 m

425 - 670 mm

270 - 425 mm

25 - 270 mm

N/A

Comments

Alpha CD 750 mm flue extension (Part No. 6.2000750) is required to extend the range of telescopic flue. Refer to section 4.7 for instructions on how to extend the flue. Note: A 130 mm flue hole (127 mm core drill) is required in the wall.

Within the standard Easy-Flue 1000 mm (Part No. 6.20001000) telescopic range.

Use an Easy-Flue 1000 mm (Part No. 6.20001000) and the terminal may protrude somewhat from the outside wall.

Within standard Easy-Flue 500 mm (Part No. 6.2000500) telescopic range.

Terminal may protrude somewhat from the outside wall.

2. Use the template (supplied with the boiler) to mark the required flue position and cut a 130 mm diameter hole for the flue (use a 127 mm core drill). The size of the hole provides sufficient clearance for the clamps on the flue extension to pass through the hole.

3. Determine the overall flue length as described in section 4.6, paragraph 2 to determine the number of Alpha CD 750 mm flue extensions required.

Alpha CD50 - Installation

4. Assemble the flue extensions together by locating the inner duct into the seal joint and secure each extension together with the clamps supplied (three screws). Ensure that the clamps are positioned centrally over the joints.

Note: If it is required to cut an extension, DO NOT cut the end of the inner duct that incorporates the seal joint. Ensure the inner duct end without the seal joint is cut so that it is 15 mm longer than the outer duct.

5. Adjust the telescopic section of the Easy-Flue to the required length and secure the Easy-Flue with the sealing tape supplied. Fit the Easy-Flue to the extensions by locating the inner duct into the seal joint and secure with the clamp (three screws), ensuring it is located centrally over the joint.

6. Mark the end of the flue assembly 'TOP' where it is connected to the boiler, so that the 'TOP' of the flue terminal is aligned with the 'TOP' at the boiler end of the flue assembly.

7. Pass the complete flue assembly through the wall.

8. Position the seal and clamp (two screws) supplied, over the bend. Fit the bend to the boiler and rotate to the correct position and secure in position using the seal and clamp, ensuring that the seal is positioned centrally over both the bend and adaptor.

9. Slide the clamp (three screws) over the outer duct and pull the flue assembly towards the bend, locating the inner duct into the seal joint on the bend.

10. Secure the flue assembly to the bend with the clamp (three screws) ensuring it is positioned centrally over the joint, ensuring the 'TOP' marked on the outer duct is positioned at the top.

Note: Check the flue terminal protrudes 100 mm out of the wall and that the inner duct of the terminal is positioned correctly, i.e. the inner duct within the terminal is at the top. See Fig. 21.

11. Make good the outside wall by fitting a flue sealing collar onto the location provided immediately behind the flue terminal grille. Make good the inside wall as required.

Note: If flue sealing collars are being used to make good the inside wall, then they will need to be fitted before assembling the flue.

Alpha CD50 - Installation

Fig. 21 - Side flue

4.8 CONNECT THE MAINS SUPPLY - Fig. 22

1. Gain access to the boiler terminal block by releasing the two fixing screws (one each side) securing the control panel and lowering the panel. Refer to Technical Data, section 2.9 for connection details.

2. Note: This boiler has been fitted with a mains supply cable. However, if it is necessary to fit an alternative supply cable, ensure the cable clamp that has been fitted is removed and connect as follows:Remove the two screws securing the terminal block cover from the back of the control box (see Fig. 22). Pass the mains supply cable through the cable clamp and connect as follows:- Brown to L, Blue to N and

Green/Yellow to Note: Ensure that the length of the earth wire is such that if the supply cable is pulled out of its clamp the live and neutral wires become taut before the earth wire. The main terminal block can be removed by pulling it off the pins to give easy access to the terminals. Do not switch on the electrical supply at this stage.

3. If an external control, i.e. room thermostat or external clock is to be fitted, remove the terminal block cover and remove the link between terminals 1 and 2. Pass the cable through the cable clamp and connect it to terminals 1 and 2. Replace the terminal block cover. (Refer to section 2.9).

4. Replace the terminal block, ensuring it is located correctly on the plastic pins and replace the cover.

5. Ensure that there is sufficient free cable to allow the control panel to be raised and lowered then tighten the cable clamp screws.

6. Leave the control panel open until commissioning procedures have been completed.

7. Carry out electrical system checks - Short circuit, Polarity, Earth continuity and Resistance to earth with a suitable multimeter.

. Ensure correct polarity.

Fig. 22

4.9 FIT THE CLOCK KIT - Fig. 23

Ensure the electrical supply to the boiler is isolated.

1. Remove the two screws securing the clock cover at the rear of the control panel.

2. Remove and discard the clock blanking panel.

3. Insert the clock into the opening and secure in place with the screws supplied.

4. Disconnect the clock wiring from the terminal block and connect it to the clock as follows:Blue wire to terminal 1, Brown wire to terminal 2 and Red wires to terminals 3 and 4, (or as per the instructions supplied with the clock). Ensure wiring is correct.

5. Replace the clock cover. Do not overtighten the fixing screws.

6. Leave the control panel open until commissioning procedures have been completed.

Fig. 23

Alpha CD50 - Installation

5 COMMISSIONING

When commissioning the boiler, ensure the Benchmark Log Book is completed.

5.1 FILL THE SYSTEM

1. The boiler is fitted with an automatic air vent positioned on the pump (see Fig. 2). The vent is always open and has no sealing cap.

2. Open the central heating flow and return valves (slot in-line with valve) (see Fig. 15).

3. Open the fill point valve on the filling loop until water is heard to flow. To aid venting, the boiler drain point (see Fig. 2) may be opened until water flows out. Close the drain point as soon as water appears.

4. To remove the air - Vent each radiator in turn, starting with the lowest in the system.

5. It is important that the pump is properly vented to avoid it running dry and damaging its bearings. Unscrew and remove the cap from the centre of the pump. Using a suitable screwdriver rotate the exposed spindle about half a turn, then replace the cap.

6. Check the operation of the pressure relief valve (see Fig. 2) by turning the head anti-clockwise until it clicks. The click is the valve lifting off its seat allowing water to escape from the system - check that this is actually happening.

7. Continue to fill the system until the pressure gauge indicates 1.0 bar. Close the fill point valve and check the system for water soundness, rectifying where necessary. Disconnect the filling loop from the mains supply. Water may be released from the system by manually operating the drain point (see Fig. 2) until the system design pressure is obtained. The system design pressure (cold) should be between 0.75 and 1.25 bar.

Refer to sections 3.7 and 3.8. System volume, Flushing and Filling the system.

8. Open the mains water inlet valve (see Fig. 15). Thoroughly flush out the hot water system by turning on all hot water taps and allow water to flow until no air is present, this will automatically vent the store of air. Turn off taps and close the mains.

9. Ensure that the condensate trap has been filled with water. Refer to section 4.5, paragraph 5.

10. Drain the store, using the drain point (I in Fig. 15), to flush any debris that may have collected in the store. Refill and vent the system as described above.

Note: When draining the system ensure all electrical components are protected from water.

5.2 BOILER CONTROLS - Fig. 24

Fig. 24

5.3 TEST FOR GAS SOUNDNESS AND PURGE THE SUPPLY

1. With the boiler gas service cock closed (slot at right angles to valve). Pressure test the gas supply and inlet pipework connection to the boiler gas service cock for soundness in accordance with BS 6891.

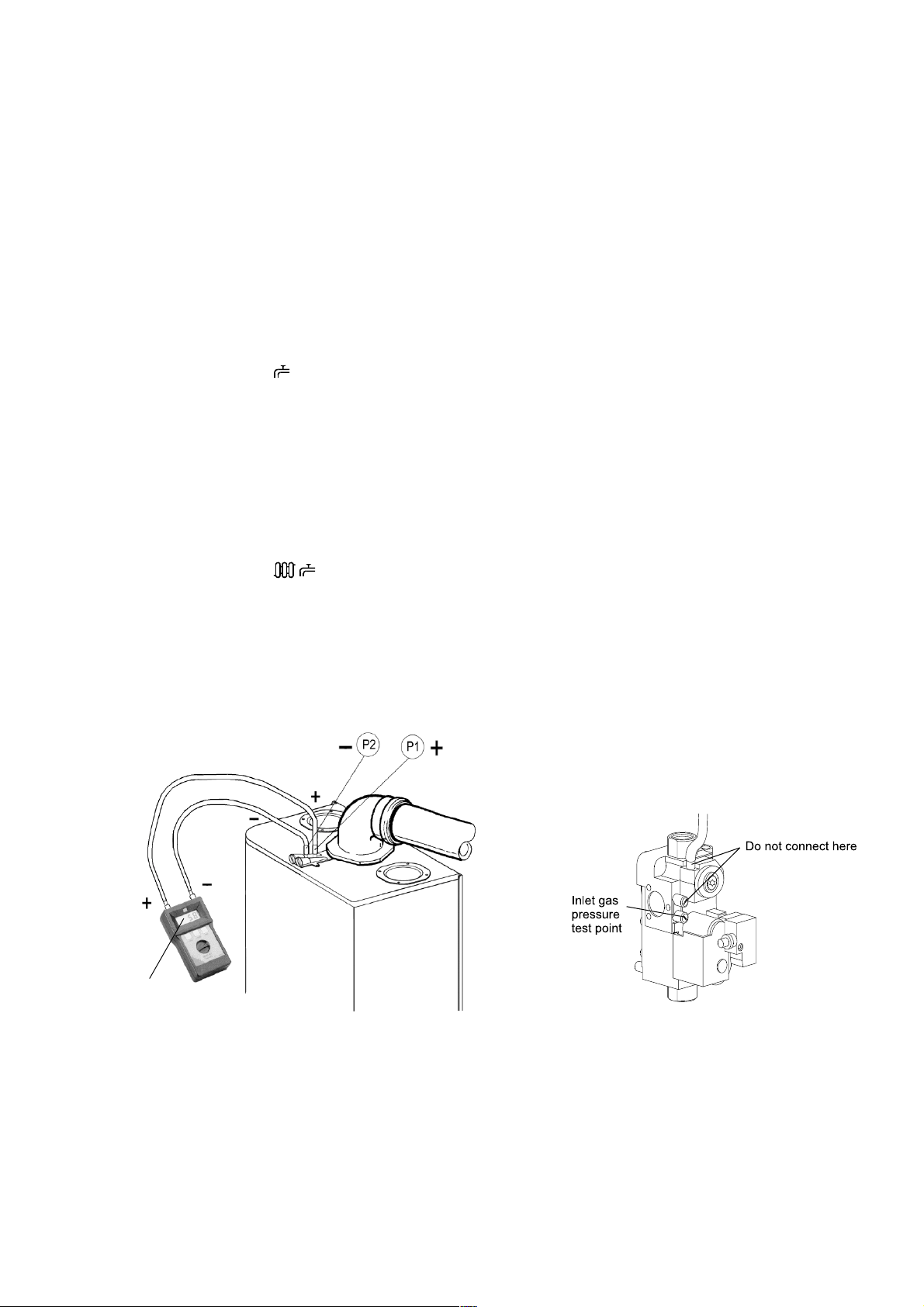

2. Loosen the gas inlet pressure test point screw on the gas valve (see Fig. 26). Ensure the gas supply is on and open the boiler service cock to purge in accordance with BS 6891.

3. Retighten the test point screw and test for gas soundness. Close the boiler gas service cock.

Alpha CD50 - Commissioning

5.4 INITIAL LIGHTING - Refer to Fig. 24

1. Ensure that the gas and electrical supplies to the boiler are off and that the mains water inlet valve and the central heating flow and return valves are open.

2. Turn on the gas and electrical supplies to the boiler.

3. Ensure all external controls are calling for heat. If the optional Clock is fitted, refer to the User's instructions, set the time and ensure the Clock is in an 'on' mode.

4. Set the hot water and central heating thermostats to maximum.

5.5 CHECK THE BURNER PRESSURES - Figs. 25, 26

Turn the boiler off. Remove the two pressure test point screws at the top of the boiler and connect a differential pressure gauge to P1 and P2 as shown in Fig 25. Check the differential burner pressures.

Hot water mode

1. Set the selector switch to

2. The burner will light at the ignition rate and the burner pressure will increase to maximum.

3. The burner will stay at maximum output for approximately 3 minutes and then the burner pressure will decrease slowly to its minimum, until the hot water store obtains a temperature of 65°C.

4. Check the burner pressures and that the burner goes out when the store is satisfied. Note: The burner pressure settings have been factory set and do not require adjusting. If incorrect, check that the inlet gas

pressure is 20 mbar. If the inlet gas pressure is not 20 mbar, either the pipework is too small or the gas supply to the house is insufficient, in which case contact your gas supplier.

Central heating mode

1. Set the selector switch to

2. The burner will light at the ignition rate and will increase to the factory preset maximum output after 1 minute.

3. Turn off the boiler. Disconnect the pressure gauge and tighten the test point screws.

Test for gas soundness using suitable leak detection fluid.

Note: Refer to Technical Data, section 2.1 for the required differential burner pressures.

(DHW only).

(DHW and CH).

Differential Burner pressure

Fig. 25

Fig. 26

Alpha CD50 - Commissioning

5.6 FINAL COMMISSIONING

1. Allow the heating system to heat up, then balance the system to achieve the necessary temperature difference across the heating flow and return pipes at the boiler and check the system volume and pressure. (Refer to Technical Data, sections

2.2 and 2.8).

2. Turn off the boiler.

3. Thoroughly flush out the water pipework (refer to section 3.9) and with no pressure in the boiler heating circuit, empty the cyclone at it's drain point (see Fig. 15) of any debris. Clean the filters at the check valve and pressure reducing valve. (Refer to section

2.10).

4. Re-pressurise the system as described in section 5.1.

5.7 FINAL ASSEMBLY

1. Raise the control panel and secure in position with the screws previously removed. Place the front casing in position and secure in position at the bottom using the screws previously removed.

2. If the boiler is to be left in service with the User, set the controls, clock (if fitted, see User's Operating manual) and room thermostat (if fitted) to the User's requirements.

3. If the boiler is not to be handed over immediately, close the boiler gas service cock and switch off the electrical supply.

4. If there is any possibility of the boiler being left during frost conditions, then the boiler and system should be drained (refer to section

8.2). It is recommended that a label is attached to the boiler drawing attention to the fact that the system has been drained.

5. Complete the details of the installation on the back page of this manual and the Benchmark log book.

5.8 USER INFORMATION

The User must be advised (and demonstrated if necessary) of the following important points:-

1. How to light and turn off the boiler and how to operate the system controls.

2. The importance of annual servicing of the boiler to ensure safe and efficient operation.

3. That any servicing or replacement of parts must only be carried out by CORGI registered personnel.

4. Ensure that the boiler controls and room thermostat (if fitted) are set to the User's requirements. Note: The DHW (

opened.

5. Tell the User about the sealed system pressure.

6. Tell the User that if the electrical supply is on and the boiler has not operated for 24 hours for heating or hot water, the pump will automatically operate for 5 minutes.

7. Explain to the User that an internal frost thermostat is fitted in the boiler, and that the electrical supply to the boiler must be left on for the thermostat to operate.

8. Explain to the User that in certain weather conditions the terminal will emit a plume of steam, i.e. water vapour. This is safe and quite normal.

9. Show the User the position of the pressure relief valve and condensate discharge pipes.

10. Hand the User's instructions and the Benchmark Log Book to the User.

11. Leave these Installation and Servicing instructions with the User for use on future calls.

) thermostat must be set between 7 and 9 to ensure maximum flow rate when a hot water tap is

Alpha CD50 - Commissioning

6 BOILER OPERATION

The boiler operating mode is controlled by the selector switch on the facia panel. When set to , the boiler will only operate in the Domestic Hot Water mode. When set to Note: The clock (if fitted) only controls the operating times of the central heating, not domestic hot water - DHW is available continuously. Domestic hot water supply always takes priority over central heating. If a demand for hot water is required during a central

heating period, the boiler will automatically switch to the hot water mode until the demand is satisfied i.e. storage water is to the required temperature. This interruption in the central heating is only when the demand for hot water is present and should not be noticed by the User.

6.1 CENTRAL HEATING MODE

If there is a call for heat, the pump will start to circulate the central heating water. The fan will run and the pre-mix burner will light. The burner output then automatically adjusts to suit the system demand; as the temperature of the water in the boiler approaches that set by the adjustable temperature thermostat, the burner output is reduced. When the set temperature is reached, the burner is turned off. The fan continues to run for 50 seconds and the pump continues to run until the temperature within the boiler reduces to the set temperature before allowing the burner to relight. If the primary sensor has not registered the preset temperature but the room thermostat is satisfied the burner is turned off. The fan continues to run for 50 seconds and the pump continues to run for 60 seconds. In this instance there is no delay before the burner will relight.

If there is a demand for DHW during the burner delay, the boiler will operate to satisfy the domestic hot water demand. The boiler will then immediately revert to provide CH if there is a demand.

Note: If the system pressure is very low, the primary pressure switch will prevent the boiler from operating.

6.2 DOMESTIC HOT WATER MODE

When there is a demand for hot water (temperature of stored hot water is below that set by the thermostat), the pump will start to circulate the primary heating water. The fan will run and the burner will light. The burner output then automatically adjusts to suit the demand required to raise the temperature of the domestic hot water within the store to the temperature set by the adjustable domestic hot water thermostat. When this set temperature is reached the burner is turned off and the fan continues to run for 50 seconds. When the hot water temperature falls below approximately 48°C, the flow regulator valve automatically reduces the flow of hot water supplied. Hot water is then allowed to be supplied continuously (at a reduced rate) until the stored water has reheated.

When the hot water demand has been satisfied, the 3-way diverter valve operates to divert the primary heating water to the central heating, if there is a demand.

, it will operate in the Domestic Hot Water and Central Heating mode.

6.3 FROST THERMOSTAT

The boiler incorporates a built in frost thermostat which automatically turns on the boiler and pump if the water in the boiler falls below 8°C, providing the electrical supply is on and the selector switch is set to position (1) or position (2). The boiler will operate until the water temperature in the system reaches approximately 40°C.

6.4 PUMP

If the electrical supply is on and the boiler has not operated for 24 hours for heating or hot water, the pump will operate automatically for five minutes every 24 hours.

6.5 INDICATOR NEONS

When neons A (red), B (red), C (yellow), D (green) are illuminated, the following conditions apply:-

Neon

D Illuminated continuously - Electricity supply to the boiler is on. C Illuminated continuously - Burner is alight. A Flashing on and off - Temperature sensor fault. B Flashing on and off - Overheat thermostat has operated. Rotate selector switch to the reset position (3) to reset. B Illuminated continuously - Burner has failed to light. Rotate selector switch to the reset position (3) and the ignition

sequence will restart after a delay of about 30 seconds.

A and B Flashing on and off at the same time - Blocked flue or fan fault. A and B Flashing on and off alternately - System pressure is very low and re-pressurisation is required. A Flashing and B Illuminated continuously - Pump fault or restricted flow.

Alpha CD50 - Boiler Operation

7 ROUTINE SERVICING

To ensure efficient operation of the boiler it is recommended that it is checked and serviced as necessary at regular intervals. The frequency of servicing will depend upon the particular installation conditions and usage, but in general once per year should be adequate.

It is the law that any service work must be carried out by a competent person, i.e. CORGI registered personnel. Warning: Before servicing the boiler, isolate the electrical supply and close the boiler gas service cock. Allow the boiler to cool.

The data label is positioned on the inside of the left hand side panel. Always test for gas soundness after servicing any gas carrying components. Always carry out electrical system checks i.e. Earth Continuity, Resistance to Earth, Short Circuit and Polarity with a suitable

meter after servicing.

7.1 IMPORTANT NOTES PRIOR TO SERVICING

1. Check the flue terminal outside and ensure it is not blocked.

2. Run the boiler and check the operation of its controls.

3. Refer to Fig. 2 or 3 for location of flue sampling point.

4. Ensure that all system connections and fittings are sound. Remake any joints and check the tightness of any fittings that may be leaking.

5. It is recommended that the operation of the heating pressure relief valve is checked by turning the head anti-clockwise until it clicks. The click is the valve lifting off its seat allowing water to escape from the system - check that this is actually happening.

6. Refill, vent and re-pressurise the system as necessary. (Refer to Commissioning, section 5.1). If the system pressure exceeds 2.5 bar when operating at maximum temperature, the central heating expansion vessel's charge should be checked and re-pressurised, if necessary.

Note: Check the expansion vessel charge only when the system pressure is zero.

7. Check that the condensate trap drain pipe is connected and all joints are sound.

8. Inspect and clean, if required, the filter and cartridge in the pressure reducing valve and cartridge in the expansion relief valve fitted to the store.

9. Check the operation of the expansion and temperature pressure relief valves by turning the head anti-clockwise until it clicks. The click is the valve lifting off its seat allowing water to escape to the discharge pipe - check that this is happening and that the valves are not leaking after they have been operated.

10. Check the charge in the domestic hot water expansion vessel and re-pressurise, if necessary. Note: Only check the expansion vessel charge when the system pressure is zero.

11. Record details of the service in the Service History section on the back page of this manual and in the Benchmark Log Book.

Room sealed panel fixing screws and clips

Combustion chamber front assembly

Gas pipe union

Viewing

window

Fan

assembly

Fan assembly

fixing screws

Fig. 27

Six nuts and washers securing combustion chamber front assembly

Expansion vessel support strap

Pressure tube connections

Ignition generator

Alpha CD50 - Routine Servicing

7.2 PREPARE FOR SERVICING - Fig. 27

1. Ensure the electrical supply is isolated and the gas supply is off.

2. Remove the two screws securing the bottom of the front casing. Pull the bottom forwards and remove.

3. Remove the six screws securing the front casing top bracket to both side panels and the room sealed chamber. Remove the screw securing the CH expansion vessel.

4. Remove the two bottom screws securing the left hand side panel, lift the panel up slightly and remove.

5. Remove the three screws and release two clips securing the room sealed chamber panel and remove the panel, taking care not to damage the seal.

6. Remove the two fixing screws (one each side) securing the control panel and hinge it forward.

7. Disconnect the gas supply pipe union.

8. Remove the two screws securing the fan assembly to the combustion chamber front.

9. Remove the two pressure tubes, noting their positions.

10. Disconnect the electrode lead from the ignition generator and the in-line connector to the flame sensing electrode.

11. Remove the six nuts and washers securing the combustion chamber front assembly and remove the assembly.

7.3 CLEANING THE BOILER

1. Remove any deposits from heat exchanger using a suitable soft brush. Do not use a brush with metallic bristles.

2. Check the condition of the combustion chamber insulation panels. Any damaged panels must be replaced. (Refer to Component Replacement, section

8.18).

3. Check the condition of the burner injector on the combustion chamber front assembly, carefully clean them with a soft brush if necessary. Do not use a brush with metallic bristles as this might damage the injector.

4. Remove any deposits from the heat exchanger coils. This can be done by suction or water sprayed onto the coils. Ensure all electrical components are protected from water. Any water used to clean the heat exchanger will drain to the condensate trap.

5. Unscrew and replace the injector if it appears damaged.

6. Remove the four screws securing the burner (see Fig. 28) and remove the burner. Clean the burner with a soft brush and check that the flame ports are clear. Blockages may be removed with a stiffer brush. Tap the burner, open end down, to remove any deposits from inside.

7. Check the condition of the electrodes.

9. Check the spark gap, positioning and height of the electrodes. See Fig. 28.

10. Unscrew the condensate trap drain cap (see Fig. 15) to remove any deposits. Note: Before removing the cap, ensure that the water released from the trap can be contained to avoid spillage. The trap will contain no more than 200 cc of condensate water. Replace the drain cap.

Fig. 28

7.4 RE-ASSEMBLE THE BOILER

1. Replace the burner, ensuring it is located correctly and secure it in position using the four screws previously removed. Important: Before replacing the combustion chamber front assembly, pour at least 200 cc of water into the coils of the

heat exchanger. This is to ensure the condensate trap is full of water before operating the boiler.

2. Replace the combustion chamber front assembly, ensuring it is correctly located.

3. Ensure the electrode lead is connected and the seal is in position in the bottom of the room sealed chamber.

4. Test the connections for gas soundness and re-commission, sections 5.4 and 5.5.

5. Ensure that the room sealed chamber panel seal is intact and in position, replace the panel and secure it in position with the clips and screws previously removed. Ensure the panel is correctly located at the rear left hand side. Replace the left hand side case panel, securing it in place with the screws previously removed.

6. Raise the control panel and secure in position with the screws previously removed.

7. Place the front casing in position over the boiler and secure in position at the bottom using the screws previously removed.

8. Check the operation of the boiler. (Refer to Boiler Operation, section 6).

9. Return all controls to their original settings.

Alpha CD50 - Routine Servicing

8 COMPONENT REPLACEMENT

It is the law that any service work must be carried out by a competent person, i.e. CORGI registered personnel. Warning: Before replacing any boiler components, set the selector switch to 0, isolate the electrical supply and close the boiler

gas service cock. Allow the boiler to cool. Always test for gas soundness after replacing any gas carrying components or disturbing any gas connections. Check the operation of the boiler. (Refer to Boiler Operation, section 6). Ensure that all the controls are returned to their original settings.

The replacement of components in sections 8.3 to 8.17 does not require draining of the boiler.

8.1 GENERAL ACCESS - Fig. 27

Ensure the electrical supply is isolated and the gas supply is off. Remove the two screws securing the bottom of the front casing. Pull the bottom forwards, then upwards and remove the casing.

1. If access is required behind the control panel - Remove the two fixing screws (one each side) securing the control panel and hinge it forward.

2. To gain access to the combustion chamber - Remove the front casing top bracket by removing the six screws securing it to both side panels and the room sealed chamber. Remove the two bottom screws securing the left hand side panel, lift the panel up slightly and remove. Remove the three screws and release the two clips securing the room sealed chamber panel and remove the panel, taking care not to damage the seal. When replacing the panel, ensure the seal is intact and in position.

3. To gain access to the control panel components - Remove the five screws securing the rear cover and carefully raise the cover from the front. When replacing the cover, ensure no wires are trapped and all wiring grommets are in position. Secure with five screws - do not overtighten.

8.2 DRAINING THE BOILER - Refer to Fig. 15

Set the selector switch to 0, isolate the electrical supply and close the boiler gas service cock (see Fig. 15). Allow the boiler to cool. Remove the two screws securing the bottom of the front casing. Pull the bottom forwards and remove. Remove the two fixing screws (one each side) securing the control panel and hinge it forward.

1. Heating circuit (refer to Fig. 15) Close the central heating flow and return valves and drain the heating circuit via the drain point (G in Fig. 15).

2. Hot water circuit (refer to Fig. 15) Close the mains water supply valve and drain the hot water storage cylinder via the store drain tap (I in Fig. 15). Open any hot tap below the level of the boiler to allow as much draining as possible.

Note: Some water will remain in the components and care must be taken when removing them.

8.3 ELECTRODES - Refer to Fig. 28

Gain access behind the room sealed chamber panel as in section 8.1.

1. Ignition electrode and lead Disconnect the lead from the ignition generator, noting its position.

Remove the two screws securing the electrode to the front of the combustion chamber and carefully withdraw the electrode.

2. Flame sensing electrode and lead Remove the grommet in the bottom of the chamber, disconnect the flame sensing electrode in-line connector and

withdraw the lead. Remove the two screws securing the electrode to the front of the combustion chamber and carefully withdraw the electrode.

3. Ignition electrode Remove the two screws securing the electrode to the front of the combustion chamber and carefully withdraw the electrode.

Re-assemble in reverse order

8.4 MAIN BURNER - Refer to Fig. 28

1. Remove the burner assembly as described in Routine Servicing, section 7.2.

2. Remove the four screws securing the burner to the combustion chamber front assembly.

3. Re-assemble with a new burner as described in Routine Servicing, section 7.4.

8.5 BURNER INJECTOR - Refer to Fig. 27

1. Gain access behind the room sealed chamber panel as described in section 8.1.

2. Undo the gas inlet union to the combustion chamber front to gain access.

3. Unscrew the damaged injector and screw in a replacement.

4. Re-assemble in reverse order.

Alpha CD50 - Component Replacement

8.6 FAN - Fig. 29

1. Gain access behind the room sealed chamber panel as described in section 8.1 and remove the combustion chamber front assembly as described in section 7.2.

2. Disconnect the fan wiring.

3. Remove the inlet duct by removing one screw.

4. Remove the inlet and outlet flanges from the fan. Fit the new fan and re-assemble in reverse order. Ensure that the pressure tubes are connected correctly.

5. Re-assemble and test the boiler as described in Routine Servicing, section 7.4 paragraphs 5 to 9.

8.7 IGNITION GENERATOR - Fig. 29

1. Gain access behind the room sealed chamber panel as described in section 8.1.

2. Disconnect all the wiring from the ignition generator.

3. Remove the two screws securing the generator and remove.

4. Secure the new generator in position and reconnect the wiring.

5. Re-assemble in reverse order.

8.8 TRANSFORMER - Fig. 29

1. Gain access behind the room sealed chamber panel as described in section 8.1.

2. Remove the fan as described in section 8.6.

3. Remove the two screws securing the transformer and remove the transformer.

4. Disconnect all of the wiring noting their position.

5. Fit the new transformer and re-assemble in reverse order.

Flue thermostat

Ignition electrodes

Flame sensing

electrode

Primary

temperature

sensor

Inlet duct

Fan assembly

Transformer

Overheat thermostat

Ignition generator

Fig. 29

8.9 OVERHEAT THERMOSTAT - Fig. 29

1. Gain access behind the room sealed chamber panel as described in section 8.1.

2. Disconnect the wiring from the overheat thermostat.

3. Unscrew and remove the overheat thermostat from the heat exchanger.

4. Fit the new overheat thermostat taking care not to cross thread it and re-assemble in reverse order.

8.10 FLUE THERMOSTAT - Fig. 29

1. Gain access behind the room sealed chamber panel as described in section 8.1.

2. Remove the thermostat from the spring clip at the top rear of the heat exchanger.

3. Disconnect the wiring.

4. Fit the new thermostat and re-assemble in reverse order.

8.11 GAS VALVE - Fig. 30

1. Gain access behind the casing as in section 8.1.

2. Disconnect the positive pressure tube from the gas valve.

3. Loosen the one screw (see Fig. 30) securing the electrical plug and disconnect the plug.

4. Disconnect the burner manifold union and the gas inlet pipe union.

5. Remove the two manifold screws from beneath the boiler.

6. Push the valve towards the rear of the boiler and lift out the valve assembly.

7. Remove the inlet and outlet flanges and fit them to the new valve.

8. Fit the new assembly and re-assemble in reverse order.

9. Light the boiler and test for gas soundness. (Refer to Commissioning, section 5.4) and the instructions supplied with the replacement valve for adjustment of the valve.

10. Complete re-assembly as described in Routine Servicing, section 7.4 paragraphs 5 to 9.

Fig. 30

Alpha CD50 - Component Replacement

8.12 VIEWING WINDOW - Refer to Fig. 27

1. Gain access behind the casing as in section 8.1.

2. Remove the rubber window frame and remove the damaged glass.

3. Re-assemble in reverse order with a new glass. Ensure the rubber frame is located correctly in the front panel.

8.13 TERMINAL BLOCK FUSE - Refer to Fig. 22

The fuse is located in the boiler terminal block.

1. Gain access as described in Installation, section 4.8.

2. Lift out the fuse holder and remove the fuse. Fit a fast blow 2 A fuse as a replacement, ensuring that the holder snaps into position.

3. Re-assemble in reverse order, ensuring the terminal block is located correctly on the plastic pins.

8.14 PCB - Fig. 31

1. Gain access behind the control panel as described in section 8.1.

2. Disconnect all the wiring connectors from the PCB.

3. Remove the five fixing screws and carefully withdraw the board from the switch spindles.

4. Re-assemble in reverse order. Refer to the wiring diagram in section 9.1 for connections.

5. Light the boiler and adjust the PCB as described in the instructions supplied with the replacement PCB.

PCB fuse

PCB

Fig. 31

8.16 CLOCK (if fitted) - Refer to Fig. 23

1. Gain access behind the control panel as described in section 8.1.

2. Remove the two screws securing the clock cover at the rear of the control panel.

3. Disconnect the wiring from the clock.

4. Remove the clock retaining screws and withdraw the clock from the control panel.

5. Fit the new clock, and connect the wires as follows:Blue to terminal 1, Brown to terminal 2 and Red wires to terminals 3 and 4, (or as per the instructions supplied with the clock).

6. Re-assemble in reverse order. Refer to the User's instructions and the boiler's control cover to set the clock.

8.17 DIVERTER VALVE MOTOR - Refer to Fig. 33

1. Gain access as described in section 8.1.

2. Remove the two screws securing the motor assembly to the valve body and remove the motor assembly. These screws are accessible from underneath the boiler.

3. Remove the two screws securing the motor cover and remove cover.

4. Disconnect the motor's wiring from the terminal block (noting their positions) and remove the motor.

5. Re-assemble in reverse order. Connect the wiring as follows:- Black wire to terminal N, Red wire to terminal R and Orange wire to terminal A.

Alpha CD50 - Component Replacement

8.18 PRIMARY HEAT EXCHANGER - Fig. 32

1. Gain access behind the room sealed chamber panel as described in section 8.1 and drain the boiler heating circuit as described in sections 8.1 and 8.2.

2. Disconnect the gas inlet union from the combustion chamber front.

3. Remove the two screws and six nuts and washers securing the combustion chamber front burner assembly and remove.

4. Remove the overheat thermostat (section 8.9), flue thermostat (section

8.10) and the primary temperature sensor (section 8.20).

5. Disconnect the condensate drain union.

6. Remove the two clips from the heat exchanger flow and return pipes and disconnect the unions at the pump and diverter valve.

7. Remove the four screws securing the heat exchanger retaining brackets.

8. Lift up the heat exchanger off the pipes and remove it by carefully withdrawing it out of the boiler.

9. Re-assemble in reverse order, ensuring that new seals are used. Lubricating the seals with the grease supplied will aid assembly.

10. Refill and pressurise the system. (Refer to Commissioning, section 5.1).

8.19 COMBUSTION CHAMBER INSULATION

Gain access to the combustion chamber as described in section 8.1.

Front insulation - refer to Fig. 28

1. Remove the electrodes from the combustion chamber front as described in section 8.3.

2. Remove the four screws securing the burner.

3. Carefully remove the insulation.

Back insulation - refer to Fig. 32

1. Remove the combustion chamber front/burner assembly.

2. Remove the centre screw retaining the insulation.

3. Carefully remove the insulation, suction applied to the centre of the insulation will aid this.

Fit a new panel and re-assemble in reverse order. Refill and pressurise the system. (Refer to Commissioning, section 5.1).

Fig. 32

8.20 PRESSURE GAUGE - Fig. 33

1. Gain access as described in section 8.1.

2. Drain the boiler heating circuit as described in section 8.2.

3. Remove the nut securing the pressure gauge sensor to the return manifold and withdraw the sensor.

4. Remove the gauge from the control panel by depressing the plastic lugs on the gauge.

5. Fit the new gauge using a new washer to seal the sensor connection.

6. Refill and pressurise the system. (Refer to Commissioning, section 5.1).

Store temperature sensor

Automatic air vent

Pump

Pressure gauge sensor behind diverter valve

Pressure gauge

DHW expansion vessel

Primary pressure switch Pressure relief valve

Fig. 33

Alpha CD50 - Component Replacement

8.21 TEMPERATURE SENSORS - Refer to Figs. 29 and 33

The temperature sensors fitted to the hot water storage (dry pocket) and primary heat exchanger (wet pocket) are both the same.

1. Gain access as described in section 8.1. When replacing the primary sensor, drain the boiler as described in section 8.2.

2. Disconnect the wiring and unscrew the sensor. Re-assemble in reverse order with a new sensor.

8.22 AUTOMATIC AIR VENT - Refer to Fig. 33

1. Drain the boiler heating circuit as described in section 8.2.

2. Unscrew the automatic air vent from the pump outlet. Fit a new one using a new 'O' ring.

3. Re-assemble in reverse order.

4. Refill and pressurise the system. (Refer to Commissioning, section 5.1).

8.23 PUMP - Refer to Fig. 33

Drain the boiler heating circuit as described in section 8.2.

Pump Head

1. Remove the four socket head screws securing the pump head to the body. Withdraw the head, remove the wiring cover and disconnect the wiring.

2. Connect the wiring to the new head as follows:Brown to L, Blue to N, Green/yellow to . Ensure the pump is set to maximum (3) and re-assemble in reverse order.

3. Refill and pressurise the system. (Refer to Commissioning, section 5.1).

Complete pump

1. Disconnect the pump unions and withdraw the pump, remove the wiring cover and disconnect the wiring.

2. Unscrew the automatic air vent from the pump outlet.

3. Connect the wiring as described above, ensure that pump is set to maximum and re-assemble using new sealing washers.

4. Refill and pressurise the system. (Refer to Commissioning, section 5.1).

8.24 DIVERTER VALVE ASSEMBLY - Refer to Figs. 33 and 34

1. Drain the boiler heating circuit as described in section 8.2.

2. Remove the diverter valve motor as described in section

8.17.

3. Remove the two 4 mm allen screws and pull the plastic housing from the manifold.

4. Fit the new valve assembly in reverse order using new seals.

5. Refill and pressurise the system. (Refer to Commissioning, section 5.1).

Diverter valve motor

8.25 HEATING PRESSURE RELIEF VALVE

Refer to Fig. 2

1. Drain the boiler heating circuit as described in section 8.2.

2. Disconnect the relief valve outlet fitting. Undo the screw securing the relief valve and pull out the valve.

3. Re-assemble in reverse order using a new 'O' ring seal.

4. Refill and pressurise the system. (Refer to Commissioning, section 5.1).

Cover screws

4 mm Allen screws

Diverter valve housing

Diverter valve manifold

Motor securing screws

Fig. 34

Alpha CD50 - Component Replacement

8.26 HEATING EXPANSION VESSEL - Refer to Fig. 2

1. Drain the boiler heating circuit as described in section 8.2.

2. Disconnect the pipe from the expansion vessel and remove the re-usable support strap (see Fig. 27) by inserting a small screwdriver into the clip on the strap.

3. Remove the screw securing the vessel to the front casing top bracket.

4. Remove the nut and washers securing the vessel to the hot water storage cylinder and lift the vessel out of the boiler.

5. Re-assemble in reverse order using a new seal.

6. Refill and pressurise the system. (Refer to Commissioning, section 5.1).

8.27 DHW EXPANSION VESSEL - Refer to Fig. 12

1. Close the mains water supply valve and ensure that all hot water taps are closed. Release the pressure from the hot water circuit.

2. Disconnect the expansion vessel union and remove the re-usable support strap (see Fig. 27) by inserting a small screwdriver into the clip on the strap.

3. Remove the expansion vessel.

4. Re-assemble in reverse order. Refill and pressurise the hot water circuit by opening the mains water supply valve.

8.28 PRIMARY PRESSURE SWITCH - Refer to Fig. 25

1. Drain the boiler heating circuit as described in section 8.2.

2. Disconnect the wiring from the pressure switch.

3. Remove the switch by unscrewing it from the manifold.

4. Re-assemble in reverse order using the new washer supplied.

5. Refill and pressurise the system.

8.29 DHW TEMPERATURE/PRESSURE RELIEF VALVE - Refer to Fig. 2

1. Partially drain the hot water circuit, so that the water in the hot water storage cylinder is below the relief valve connection and drain the boiler heating circuit, as described in section 8.2.

2. Remove the CH expansion vessel as described in section 8.26.

3. Remove the valve from the storage cylinder.

4. Re-assemble in reverse order.

5. Refill the storage cylinder by opening the mains water supply valve and opening a hot water tap.

8.30 DHW STORAGE CYLINDER

1. Drain the boiler heating and hot water circuits as described in section 8.2.

2. Remove the heating and domestic hot water expansion vessels as described in sections and 8.26 and 8.27.

3. Remove the DHW temperature/pressure relief valve as described in section 8.29.

4. Remove the storage temperature sensor as described in section 8.21 and the automatic flow regulator as described in section 8.34.

5. Remove the six screws securing the front casing top bracket to both side panels and the room sealed chamber. Remove the bracket.

6. Disconnect and remove all the pipework from the cylinder and the pipework to the combustion chamber/primary heat exchanger from the flow and return manifolds.

7. Remove the cylinder retaining screw, positioned beneath the cylinder on the backplate.

8. Lift the cylinder upwards to disengage it from the top of the boiler's backplate. Pull the cylinder forward and out of the boiler.

9. Re-assemble in reverse order using new seals.

10. Refill and pressurise the heating and hot water circuits. (Refer to Commissioning, section 5.1).

8.31 PRESSURE REDUCING VALVE FILTER/CARTRIDGE - Refer to Fig. 15

1. Close the mains water supply valve and ensure that all hot water taps are closed. Release the pressure from the hot water circuit.

2. Unscrew the cartridge from the valve body.

3. Clean or replace the filter/cartridge and re-assemble in reverse order.

4. Refill and pressurise the hot water circuit by opening the mains water supply valve.

Alpha CD50 - Component Replacement

8.32 CHECK VALVE - Refer to Fig. 15

1. Close the mains water supply valve and ensure that all hot water taps are closed. Release the pressure from the hot water circuit.

2. Disconnect the automatic flow regulator (L in Fig. 12) unions and remove.

3. Unscrew the check valve housing (K in Fig. 12) and push the check valve out of its housing.

4. Re-assemble in reverse order. Refill and pressurise the hot water circuit by opening the mains water supply valve.

8.33 EXPANSION RELIEF VALVE - Refer to Fig. 12

1. Close the mains water supply valve and ensure that all hot water taps are closed. Release the pressure from the hot water circuit.

2. Disconnect the relief valve union and discharge pipe and remove the valve.

3. Fit a new valve using new sealing washers and re-assemble in reverse order.

4. Refill and pressurise the hot water circuit by opening the mains water supply valve.

8.34 AUTOMATIC FLOW REGULATOR VALVE - Refer to Fig. 12

1. Close the mains water supply valve and ensure that all hot water taps are closed. Release the pressure from the hot water circuit.

2. Disconnect the two flow regulator unions and remove the valve from the boiler.

3. Re-assemble in reverse order using new washers.

8.35 CYCLONE - Refer to Fig. 15

1. Gain access behind the casing and drain the boiler heating circuit as described in sections 8.1 and 8.2.

2. Disconnect the unions from the cyclone and re-assemble with a new cyclone.

3. Pressurise the system. (Refer to Commissioning, section 5.1).

8.36 CONDENSATE TRAP - Refer to Fig. 15

1. Gain access behind the casing and drain the trap as described in sections 8.1 and 7.3, paragraph 10.

2. Disconnect the top and drain connection of the condensate trap.

3. Lift the trap out and re-assemble with a new condensate trap.

Note: Before fitting the new trap, pour 100 cc of water into the trap.

Alpha CD50 - Component Replacement

9 WIRING DIAGRAMS

9.1 ILLUSTRATED WIRING DIAGRAM

Alpha CD50 - Wiring Diagrams

9.2 FUNCTIONAL FLOW WIRING DIAGRAM

Alpha CD50 - Wiring Diagrams

10 FAULT FINDING

10.1 CARRY OUT INITIAL FAULT FINDING CHECKS

1. Check that gas, water and electrical supplies are available at the boiler. i.e. Inlet gas pressure = 20 mbar

Electrical supply = 230/240 V ~ 50 Hz CH water system pressurised to between 0.75 and 1.25 bar DHW flow rate is more than 2.5 litre/min

2. Carry out electrical system checks, i.e. Earth Continuity, Resistance to Earth, Short Circuit and Polarity with a suitable meter. Note: These checks must be repeated after any servicing or fault finding.

3. Ensure all external controls are calling for heat and check all external and internal fuses.

4. Check that the gas and water pipework has been connected to the correct connections on the boiler and all valves are open.

However, before any servicing or replacement of parts ensure the gas and electrical supplies are isolated.

10.2 CENTRAL HEATING - Follow operational sequence

Alpha CD50 - Fault Finding

10.3 DOMESTIC HOT WATER - Follow operational sequence

Alpha CD50 - Fault Finding

10.4 FAULT FINDING SOLUTIONS A to E

Alpha CD50 - Fault Finding

10.5 FAULT FINDING SOLUTIONS F to L

Alpha CD50 - Fault Finding

11 SHORT PARTS LIST

Reference

Fig. 28

Fig. 2, item 3

Fig. 32 Fig. 30 Fig. 33

Fig. 2, item 33

Fig. 34 Fig. 34

Fig. 33 Fig. 2, item 32 Fig. 2, item 40 Fig. 2, item 36 Fig. 2, item 41 Fig. 2, item 38 Fig. 2, item 14

Fig. 33 Fig. 2, item 26

Fig. 29

Fig. 33

Fig. 31

Fig. 29

Figs. 29 and 33

Fig. 22

Fig. 31

Fig. 29

Fig. 33

Fig. 29

Fig. 28

Description British Gas GC No.

Burner Main injector 6.6 mm Primary heat exchanger Gas valve - Honeywell VK4115V Pump DHW storage cylinder and seals Diverter valve motor assembly Diverter valve DHW expansion vessel - 4 litre Temperature/pressure relief valve - 90°C/7 bar Pressure reducing valve - 2.5 bar Expansion relief valve - 6 bar Automatic flow regulator valve Check valve CH expansion vessel - 8 litre CH pressure relief valve - 3 bar By-pass assembly Fan assembly Primary pressure switch PCB Flue thermostat Ignition generator Transformer Temperature sensor Fuse F2A PCB fuse F315mA Overheat thermostat Automatic air vent Pressure gauge Ignition electrode and lead Ignition electrode Flame sensing electrode and lead Combustion chamber insulation panel front

Qty.

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1

Alpha Pt. No.

1.018956

1.019247

1.017410

1.011846

1.015610

3.015327

3.011991

3.014018

1.015433

1.8244

1.017936

1.018091

3.014852

1.8251

1.014655

1.011126

3.013081

1.016623

1.017496

1.020182

1.012067

1.018162

1.012477

1.015970

1.6098

1.013931

1.018031

1.010771

1.016151

3.013626

1.016779

1.019293

1.014732

E96-565 E96-566 H19-750 E94-410 E57-666 H19-754 E85-123 E85-126 E85-127 E85-128 E85-129 E85-130 H03-489 E85-136 E85-138 E57-703 E65-222 E96-569 E76-320 H19-758 E94-413 E94-414 E94-415 E76-317 E76-378 E96-571 E94-416 E57-709 E57-710 E94-417 E94-418 E96-572 E94-420

Alpha CD50 - Short Parts List

12 SERVICE HISTORY

DETAILS OF BOILER INSTALLATION

Date of Installation: ......................................................................

Name of Installer:.........................................................................

Address: ......................................................................................

....................................................................................................

Postcode: ....................................................................................

Telephone No: .............................................................................

Boiler Serial Number:...................................................................

(see data label on inside of left hand case panel)

DETAILS OF BOILER SERVICE HISTORY

Date of Service Details of Service Service Engineer

................................

.............................................................................................

.......................................

Alpha Therm Limited. Nepicar House, London Road, Wrotham Heath, Sevenoaks, Kent TN15 7RS Tel: 0870 3001964

email: info@alphatherm.co.uk website: www.alpha-boilers.com

Manual compiled and designed by Publications 2000 - Tel: (01670) 356211 07/04/D178

These instructions have been carefully prepared but we reserve the right to alter the specification at any time in the interest of product improvement. © Alpha Therm Limited 2004.

Part No. 1.021217

alpha CD50 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
