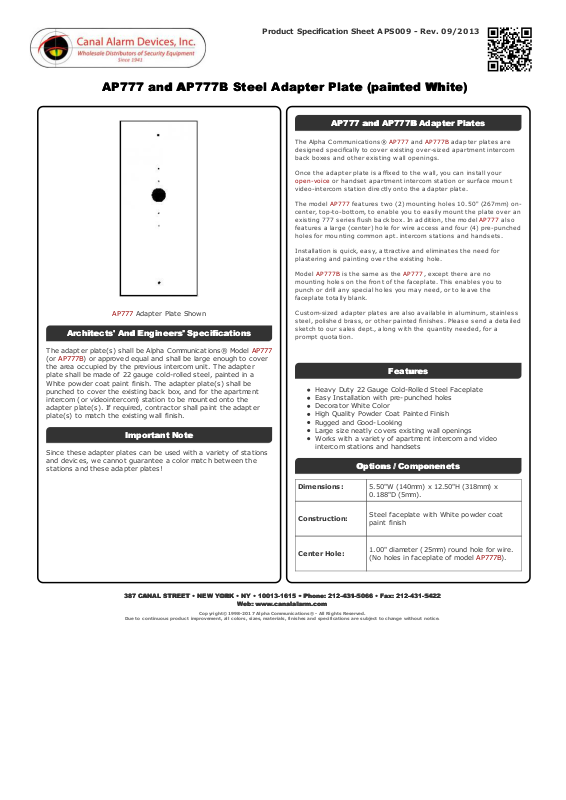

Alpha AP777, AP777B Specsheet

Product Specification Sheet APS009 - Rev. 09/2013

AP777 and AP777B Steel Adapter Plate (painted White)AP777 and AP777B Steel Adapter Plate (painted White)

387 CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone] CANAL STREET • NEW YORK • NY • 10013-1615 • Phone: [phone] • Fax: [phone]

Web: www.canalalarm.comWeb: www.canalalarm.com

Copyright © 1998-2 017 Alpha Communication s® - All Righ ts Reserved.

Due to c ontinuo us product i mprovement, all col ors, sizes, materials, finishes and sp ecifications are subject to change witho ut not ice.

AP777 Adapter Plate Shown

Architects' And Engineers' SpecificationsArchitects' And Engineers' Specifications

The adapter plate(s) shall be Alpha Communications® Model AP777
(or AP777B) or approved equal and shall be large enough to c over
the area occupied by t he previous intercom unit. The adapter
plate shall be made of 22 gauge c old-rolled steel, painted in a
White powder c oat paint finish. The adapter plate(s) shall be
punched to c over the existing back box, and for t he apartment
intercom (or videointerc om) st ation t o be mounted onto the
adapter plate(s). If required, contractor shall paint the adapter
plate(s) t o match the existing wall finish.

Important NoteImportant Note

Since t hese adapter plates can be used with a variety of stat ions
and devices, we cannot guarantee a c olor matc h between the
stat ions and these adapter plates!

AP777 and AP777B Adapter PlatesAP777 and AP777B Adapter Plates

The Alpha Communica tio ns ® AP 7 77 an d AP7 77 B a da pte r pla te s a re
de s ign ed s pe cifica lly to cover existin g ove r-s ize d apa rtme nt intercom
ba ck b oxes a nd o ther e xis tin g w a ll o pe nings.

On ce the a d ap te r p lat e is a ffixe d t o t he w a ll, you ca n in st all yo ur

op e n-vo ice or ha nd set ap a rtme nt interco m s ta tio n o r s urfa ce mount

vide o -inte rco m s ta tio n d irectly o nto the a da pte r pla te .

The mode l AP 77 7 fe a tures tw o (2) mou nt ing ho le s 1 0.5 0" (267mm) on­cen te r, to p -to-bo tto m, to e na ble yo u to eas ily mount th e pla te over an
existing 777 s eries flus h ba ck b ox. In a dd itio n, the mode l AP 77 7 a lso
fea ture s a la rg e (cen te r) ho le for w ire acces s an d fou r (4) p re-punched
ho les fo r mo un ting co mmon apt. inte rco m st at ion s an d h a nd set s.

Ins ta lla tion is qu ick, eas y, a ttract ive an d e limina tes th e ne e d fo r
pla ste ring and pa int ing ov er the e xis ting hole .

Mode l AP 77 7B is th e sa me as the AP 77 7, e xce pt there a re no
mou nt ing ho les o n t he fro nt of t he fa cepla te . This e na bles yo u t o
pu nch or drill a ny s p ecial hole s you ma y ne e d, or to le a ve the
face p lat e to ta lly bla nk.

Cu stom-siz ed a da p te r plates a re als o availa ble in alu minu m, stain les s
st ee l, p olis he d bra s s, or o th er pa int ed finish es. P leas e se n d a d etailed
sket ch to o ur sa le s d e pt ., alo ng w ith the q ua n tity n e ede d, for a
pro mpt qu o ta tio n.

FeaturesFeatures

Heavy Duty 22 Gauge Cold-Rolled Steel Faceplate
Easy Installation with pre-punched holes
Decorator White Color
High Quality Powder Coat Painted F inish
Rugged and Good-Looking
Large size neatly covers existing wall openings
Works with a variety of apartment intercom and video
intercom stat ions and handsets

Options / ComponenetsOptions / Componenets

Dimensions: 5.50"W (140mm) x 12.50"H (318mm) x

0.188"D (5mm).

Construction:

Steel faceplate with White powder coat
paint finish

Center Hole:

1.00" diameter (25mm) round hole for wire.
(No holes in faceplate of model AP777B).
