SwitchBlade x3106
Access Edge Chassis Switch
AT-SBx3106 Chassis
AT-SBx31GT24 Line Card

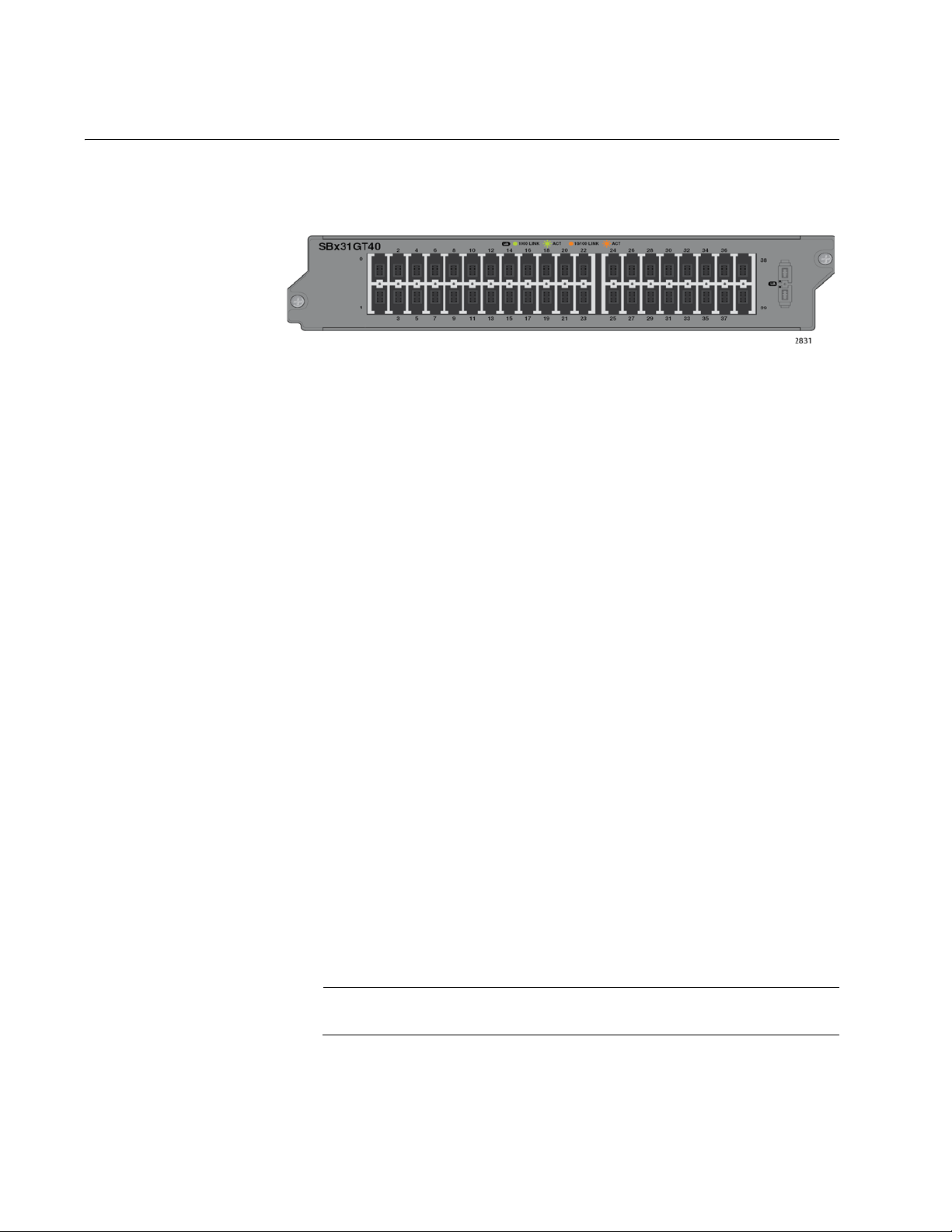

AT-SBx31GT40 Line Card
AT-SBx31GP24 PoE Line Card
AT-SB x31GS24 SFP Line Car d
AT-SBx31GC40 SFP BiDi Line Card
AT-SBx31XZ4 XFP Line Card
AT-SBx31XS6 SFP+ Line Card
AT-SBx31CFC Controller Fabric Card
AT-SBxPWRSYS1 AC System Power Supply
AT-SBxPWRSYS1 DC System Power Supply
AT-SBxPWRPOE1 PoE Power Supply
Installation Guide
AT-SB xFAN0 6 M od ul e
613-001786 Rev. A
Copyright 2013 Allied Telesis, Inc.
All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesis,
Inc.
Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names,
company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective
owners.
Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document
without prior written notice. The information provided herein is subject to change without notice. In no event shall Allied
Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited
to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has
been advised of, known, or should have known, the possibility of such damages.
Electrical Safety and Emissions Standards
Laser Safety EN60825
This product meets the following standards.
U.S. Federal Communications Commission
Radiated Energy
Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15
of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with this instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Note: Modifications or changes not expressly approved of by the manufacturer or the FCC, can void your right to operate
this equipment.
Industry Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
European Union Restriction of the Use of Certain Hazardous Substances
(RoHS) in Electrical and Electronic Equipment
This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of the Use of Certain Hazardous
Substances (RoHS) in Electrical and Electronic Equipment. Allied Telesis ensures RoHS conformance by requiring
supplier Declarations of Conformity, monitoring incoming materials, and maintaining manufacturing process controls.
EMI/RFI Emissions: FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, CISPR Class A,
VCCI Class A, AS/NZS Class A
Warning: In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
Immunity: EN55024
Electrical Safety: EN60950-1 (TUV), UL 60950-1 (
Safety Agency Approvals:
CULUS
, TUV, C-TICK, CE
CULUS
), EN60825
3
Translated Safety Statements
Important: The indicates that a translation of the safety statement is available in a PDF
document titled “Translated Safety Statements” on our web site at
http://www.alliedtelesis.com/support.
4
Contents
Preface ............................................................................................................................................................15
Safety Symbols Used in this Document ...........................................................................................................16
Contacting Allied Telesis ..................................................................................................................................17
Chapter 1: Overview ......................................................................................................................................19
Introduction....................................................................................................................................................... 20
AT-SBx3106 Chassis .......................................................................................................................................23
Ethernet Line and Control Cards Slots....................................................................................................... 24
Power Supply Slots .................................................................................................................................... 25
AT-SBx31GT24 Line Card................................................................................................................................ 27
AT-SBx31GT40 Line Card................................................................................................................................ 28
AT-SBx31GP24 PoE Line Card........................................................................................................................29
AT-SBx31GS24 SFP Line Card ....................................................................................................................... 30
AT-SBx31GC40 Line Card ...............................................................................................................................31
AT-SBx31XZ4 XFP Line Card ..........................................................................................................................33
AT-SBx31XS6 SFP+ Line Card........................................................................................................................ 34
10/100/1000Base-T Twisted Pair Ports............................................................................................................ 35
Connector Type..........................................................................................................................................35
Speed.........................................................................................................................................................35
Duplex Mode .............................................................................................................................................. 35
Maximum Distance.....................................................................................................................................36
Cable Requirements ..................................................................................................................................36
Automatic MDIX Detection .........................................................................................................................37
Straight-through or Crossover Cabling....................................................................................................... 37
Port Pinouts................................................................................................................................................38
Power over Ethernet on the AT-SBx31GP24 Line Card...................................................................................39
Powered Device Classes ........................................................................................................................... 39
Power Budgeting........................................................................................................................................ 40
PoE Wiring ................................................................................................................................................. 40
Port Numbers on the AT-SBx31GC40 Line Card .............................................................................................42
Port LEDs on the Ethernet Line Cards .............................................................................................................44
AT-SBx31GT24 Line Card .........................................................................................................................44
AT-SBx31GT40 Line Card .........................................................................................................................45
AT-SBx31GP24 Line Card ......................................................................................................................... 46
AT-SBx31GS24 Line Card ......................................................................................................................... 48
AT-SBx31GC40 Line Card......................................................................................................................... 49
AT-SBx31XZ4 Line Card............................................................................................................................ 51
AT-SBx31XS6 Line Card ...........................................................................................................................51
AT-SBx31CFC Central Fabric Controller Card................................................................................................. 53
SYS Status LEDs ....................................................................................................................................... 54
SBx STATUS LEDs....................................................................................................................................55
eco-friendly Button ..................................................................................................................................... 56
Reset Button .............................................................................................................................................. 57
NET MGMT Port ........................................................................................................................................58
NET MGMT LED ........................................................................................................................................ 60
5
Contents
Console (RS-232) Port .............................................................................................................................. 60
SD Card Slot.............................................................................................................................................. 61
SD Status LED .......................................................................................................................................... 61
USB Port.................................................................................................................................................... 62
Power Supplies ................................................................................................................................................ 63
LEDs.......................................................................................................................................................... 64
AT-SBxFAN06 Module..................................................................................................................................... 66
LED............................................................................................................................................................ 66
Power Supply Interfaces (Opto-couplers) ........................................................................................................ 67
LED............................................................................................................................................................ 67
Module Names in the Management Software .................................................................................................. 68
Management Software Releases for the Hardware Components.................................................................... 69
Chapter 2: Safety Precautions and Site Preparation ................................................................................. 71
Reviewing Safety Precautions ......................................................................................................................... 72
Selecting a Site for the SwitchBlade x3106 ..................................................................................................... 76
Installation Tools and Material ......................................................................................................................... 78
Chapter 3: Installing the Chassis on a Table or in an Equipment Rack .................................................. 79
Unpacking the AT-SBx3106 Chassis ............................................................................................................... 80
Installing the Chassis on a Table ..................................................................................................................... 82
Installing the Chassis in an Equipment Rack ................................................................................................... 83
Required Tools and Material ..................................................................................................................... 83
Preparing the Equipment Rack.................................................................................................................. 83
Removing the Rubber Feet ....................................................................................................................... 85
Adjusting the Equipment Rack Brackets ................................................................................................... 86
Installing the Chassis in the Equipment Rack ........................................................................................... 89
Removing the Shipping Brace ......................................................................................................................... 92
Installing the Chassis Grounding Lug .............................................................................................................. 93
Chapter 4: Installing the Power Supplies ................................................................................................... 95
Protecting Against Electrostatic Discharge (ESD) ........................................................................................... 96
Installing the AT-SBxPWRSYS1 AC System Power Supply............................................................................ 97
Installing the AT-SBxPWRPOE1 AC Power Supply ...................................................................................... 103
Installing the AT-SBxPWRSYS1 DC Power Supply....................................................................................... 108
Chapter 5: Installing the AT-SBx31CFC Card and Ethernet Line Cards ................................................ 115
Guidelines to Handling the Controller and Line Cards ................................................................................... 116
Installing the AT-SBx31CFC Controller Fabric Card..............................................................................
........ 118
Installing the Ethernet Line Cards .................................................................................................................. 124
Installing the Blank Slot Covers ..................................................................................................................... 128
Chapter 6: Installing the Transceivers and Cabling the Ports ................................................................ 131
Guidelines to Cabling the Twisted Pair Ports on the AT-SBx31GP24, AT-SBx31GT24, and
AT-SBx31GT40 Line Cards ........................................................................................................................... 132
Connecting Cables to the AT-SBx31GT40 Line Card ............................................................................. 133
Guidelines to Installing SFP, SFP+, CSFP, and XFP Transceivers............................................................... 135
Installing SFP Transceivers in the AT-SBx31GS24 Line Card ...................................................................... 136
Installing SFP and CSFP Transceivers in the AT-SBx31GC40 Line Card..................................................... 140
Installing SFP+ Transceivers in the AT-SBx31XS6 Line Card.......................................................................145
Installing AT-SP10TW Cables in the AT-SBx31XS6 Line Card ..................................................................... 149
Installing XFP Transceivers in the AT-SBx31XZ4 Line Card ......................................................................... 152
Cabling the NET MGMT Port on the AT-SBx31CFC Card............................................................................. 156
Chapter 7: Powering On the Chassis ........................................................................................................ 159
Verifying the Installation................................................................................................................................. 160
Powering On the AT-SBxPWRSYS1 AC Power Supply ................................................................................ 161
Powering on the AT-SBxPWRPOE1 AC Power Supply................................................................................. 164
6
SwitchBlade x3106 Installation Guide
Powering On the AT-SBxPWRSYS1 DC System Power Supply ...................................................................167
Choosing a Method for Attaching the Grounding Wire............................................................................. 169
Connecting the Grounding Wire with the Grounding Terminal................................................................. 169
Connecting the Grounding Wire with Bare Wire ......................................................................................172
Choosing a Method for Attaching the Power Wires .................................................................................173
Connecting the DC Power Wires with the Straight Terminals..................................................................174
Connecting the DC Power Wires with the Right Angle Terminals............................................................181
Connecting Bare DC Power Wires...........................................................................................................186
Monitoring the Initialization Process ...............................................................................................................191
Using the LEDs to Monitor the Initialization Process ............................................................................... 192
Using the Console Port to Monitor the Initialization Process ...................................................................193
Chapter 8: Verifying the Hardware Operations of the Chassis ...............................................................195
Using the LEDs to Verify the Chassis.............................................................................................................196
Using Local Management to Verify the Chassis.............................................................................................198
Starting a Local Management Session .................................................................................................... 198
Entering the Management Software Commands ..................................................................................... 199
Chapter 9: Troubleshooting .......................................................................................................................203
AT-SBxPWRSYS1 and AT-SBxPWRPOE1 AC Power Supplies ................................................................... 204
AT-SBxPWRSYS1 DC Power Supply ............................................................................................................ 205
Ethernet Line Cards........................................................................................................................................207
Twisted Pair Ports .......................................................................................................................................... 209
Power Over Ethernet ......................................................................................................................................211
Fiber Optic Transceivers ................................................................................................................................ 213
AT-SBx31CFC Controller Fabric Card ...........................................................................................................215
AT-SBxFAN06 Fan Module ............................................................................................................................216
Local (Out-of-Band) Management Session ....................................................................................................217
Power Supply Interfaces (Opto-couplers).......................................................................................................218
Chapter 10: Replacing Modules .................................................................................................................219
Replacing AT-SBxPWRSYS1 AC and AT-SBxPWRPOE1 Power Supplies ..................................................220
Replacing the AT-SBxPWRSYS1 DC Power Supply .....................................................................................226
Replacing Ethernet Line Cards.......................................................................................................................238
Replacing the AT-SBx31CFC Controller Fabric Card .................................................................................... 241
Replacing the AT-SBxFAN06 Fan Module .....................................................................................................244
Removing the AT-SBxFAN06 Fan Module ..............................................................................................244
Installing a New AT-SBxFAN06 Fan Module ...........................................................................................247
Appendix A: Technical Specifications ..........................................................................................
............251
Physical Specifications ................................................................................................................................... 251
Environmental Specifications .........................................................................................................................253
Power Specifications ...................................................................................................................................... 254
Safety and Electromagnetic Emissions Certifications ....................................................................................257
Port Pinouts ....................................................................................................................................................258
7
Contents
8
Figures
Figure 1: AT-SBx3106 Chassis ....................................................................................................................... 20
Figure 2: Ethernet Line Cards and AT-SBx31CFC Central Fabric Controller Card......................................... 20
Figure 3: Ethernet Line Cards and AT-SBx31CFC Central Fabric Controller Card (Continued) ..................... 21
Figure 4: Power Supply Units .......................................................................................................................... 21
Figure 5: Fan Module ...................................................................................................................................... 22
Figure 6: Front View of the AT-SBx3106 Chassis ........................................................................................... 23
Figure 7: Rear View of the AT-SBx3106 Chassis............................................................................................ 24
Figure 8: AT-SBx3106 Chassis with Line Cards, Control Cards, and Power Supplies ................................... 24
Figure 9: Slots for the Ethernet Line and Control Cards.................................................................................. 25
Figure 10: Power Supply Slots ........................................................................................................................ 25
Figure 11: AT-SBx31GT24 Line Card ............................................................................................................. 27
Figure 12: AT-SBx31GT40 Line Card ............................................................................................................. 28
Figure 13: AT-SBx31GP24 PoE Line Card ..................................................................................................... 29
Figure 14: AT-SBx31GS24 SFP Line Card ..................................................................................................... 30
Figure 15: AT-SBx31GC40 Line Card ............................................................................................................. 31
Figure 16: AT-SBx31XZ4 XFP Line Card........................................................................................................ 33
Figure 17: AT-SBx31XS6 Line Card................................................................................................................ 34
Figure 18: Port Numbers for Slots with CSFP Transceivers ........................................................................... 42
Figure 19: Port Numbers for Slots with Standard SFP Transceivers .............................................................. 43
Figure 20: Port LEDs on the AT-SBx31GT24 Line Card ................................................................................. 44
Figure 21: Port LEDs on an RJ Point 5 Cable Connector for the AT-SBx31GT40 Line Card ......................... 45
Figure 22: Port LEDs on an RJ Point 5 Cable Connector for the AT-SBx31GT40 Line Card ......................... 45
Figure 23: Port LEDs on the AT-SBx31GP24 PoE Line Card ......................................................................... 46
Figure 24: Port LEDs on the AT-SBx31GS24 SFP Line Card......................................................................... 48
Figure 25: LEDs for the AT-SBx31GC40 Line Card ........................................................................................ 49
Figure 26: LEDs for the AT-SBx31GC40 Line Card, with CSFP Transceivers ............................................... 49
Figure 27: LEDs for the AT-SBx31GC40 Line Card, with SFP Transceivers .................................................. 50
Figure 28: Transceiver Slot LEDs on the AT-SBx31XZ4 XFP Line Card ........................................................ 51
Figure 29: SFP+ Slot LEDs on the AT-SBx31XS6 Line Card.......................................................................... 51
Figure 30: AT-SBx31CFC Central Fabric Controller Card............................................................................... 54
Figure 31: AT-SBxFAN06 Module ................................................................................................................... 66
Figure 32: Power Supply Interfaces (Opto-couplers) ...................................................................................... 67
Figure 33: 100 - 125 VAC 125 V NEMA 5-20 Plug and Receptacle................................................................ 77
Figure 34: AT-SBx3106 Chassis Items ........................................................................................................... 80
Figure 35: AT-SBx3106 Chassis Items (Continued)........................................................................................ 81
Figure 36: Reserving Vertical Rack Space...................................................................................................... 84
Figure 37: Rack Mounting Hole Locations....................................................................................................... 85
Figure 38: Turning the Chassis Upside Down ................................................................................................. 86
Figure 39: Removing the Rubber Feet ............................................................................................................ 86
Figure 40: Rack Mounting Bracket Locations .................................................................................................. 88
Figure 41: Rack Bracket Locations for Reverse Position of Chassis .............................................................. 88
Figure 42: Lifting the AT-SBx3106 Chassis into the Equipment Rack ............................................................ 90
Figure 43: Installing the Rack Mount Screws .................................................................................................. 90
Figure 44: Tightening the Rack Mount Screws................................................................................................ 91
Figure 45: Removing the Shipping Brace........................................................................................................ 92
9
List of Figures
Figure 46: Stripping the Grounding Wire ......................................................................................................... 93
Figure 47: Removing the Grounding Lug ......................................................................................................... 93
Figure 48: Attaching the Grounding Wire to the Grounding Lug ...................................................................... 94
Figure 49: Installing the Grounding Lug and Wire ........................................................................................... 94
Figure 50: ESD Socket and Wrist Strap........................................................................................................... 96
Figure 51: Power Supply Slots......................................................................................................................... 97
Figure 52: Removing the Blank Slot Cover from Power Supply Slot C............................................................ 98
Figure 53: Items Included with the AT-SBxPWRSYS1 Power Supply Module ................................................ 99
Figure 54: Verifying the AT-SBxPWRSYS1 AC Power Supply...................................................................... 100
Figure 55: Raising the Handle on the AT-SBxPWRSYS1 AC Power Supply ................................................ 100
Figure 56: Inserting the AT-SBxPWRSYS1 AC Power Supply ...................................................................... 101
Figure 57: Lowering the Handle on the AT-SBxPWRSYS1 AC Power Supply.............................................. 102
Figure 58: Removing the Blank Slot Cover from Power Supply Slot A .......................................................... 103
Figure 59: Items Included with the AT-SBxPWRPOE1 Power Supply Module.............................................. 104
Figure 60: Verifying the AT-SBxPWRPOE1 AC Power Supply ..................................................................... 105
Figure 61: Raising the Handle on the AT-SBxPWRPOE1 AC Power Supply ................................................ 105
Figure 62: Inserting the AT-SBxPWRPOE1 AC Power Supply...................................................................... 106
Figure 63: Locking the Handle on the AT-SBxPWRPOE1 AC Power Supply................................................ 107
Figure 64: Removing the Blank Slot Cover from Power Supply Slot C.......................................................... 109
Figure 65: Items Included with the AT-SBxPWRSYS1 DC Power Supply Module........................................ 110
Figure 66: Loosening the Handle locking Screw on the AT-SBxPWRPOE1 DC Power Supply .................... 111
Figure 67: Raising the Handle on the AT-SBxPWRPOE1 DC Power Supply ................................................ 111
Figure 68: Inserting the AT-SBxPWRSYS1 DC Power Supply...................................................................... 112
Figure 69: Locking the Handle on the AT-SBxPWRSYS1 Power Supply ...................................................... 113
Figure 70: Aligning Card in Slot ..................................................................................................................... 117
Figure 71: Slots 4 and 5 for the AT-SBx31CFC Card .................................................................................... 118
Figure 72: Items Included with the AT-SBx31CFC Controller Fabric Card .................................................... 119
Figure 73: Removing the AT-SBx31CFC Controller Fabric Card from the Anti-static Bag ............................ 119
Figure 74: Opening the Locking Handles on the AT-SBx31CFC Controller Fabric Card............................... 120
Figure 75: Removing the Battery Insulator .................................................................................................... 120
Figure 76: Aligning the AT-SBx31CFC Card in the Chassis Slot................................................................... 121
Figure 77: Closing the Locking Levers on the AT-SBx31CFC Controller Fabric Card................................... 122
Figure 78: Tightening the Thumb Screws on the AT-SBx31CFC Card.......................................................... 123
Figure 79: Removing an Ethernet Line Card from the Anti-static Bag ........................................................... 125
Figure 80: Aligning an Ethernet Line Card in a Chassis Slot ......................................................................... 125
Figure 81: Seating an Ethernet Line Card on the Backplane Connector ....................................................... 126
Figure 82: Tightening the Thumb Screws on an Ethernet Line Card ............................................................. 127
Figure 83: Installing a Blank Slot Cover ......................................................................................................... 128
Figure 84: Tightening the Thumbscrews on a Blank Slot Cover .................................................................... 129
Figure 85: RJ Point 5 Cable Connector for AT-SBx31GT40 Line Card ......................................................... 133
Figure 86: Connecting Cables to Ports on the AT-SBx31GT40 Line Card .................................................... 134
Figure 87: Removing the Dust Cover from an SFP Slot in the AT-SBx31GS24 Line Card ........................... 136
Figure 88: Handle on SFP Transceiver.......................................................................................................... 137
Figure 89: Inserting an SFP Transceiver in the AT-SBx31GS24 Line Card .................................................. 137
Figure 90: Removing the Dust Cover from the SFP Transceiver in the AT-SBx31GS24 Line Card.............. 138
Figure 91: Attaching a Fiber Optic Cable to an SFP Transceiver in the AT-SBx31GS24 Line Card ............. 139
Figure 92: Removing the Dust Cover from a Transceiver Slot....................................................................... 140
Figure 93: Labels on SFP and CSFP Transceivers ....................................................................................... 141
Figure 94: Inserting an SFP or a CSFP Transceiver...................................................................................... 141
Figure 95: Removing the Dust Cover from an SFP or a CSFP Transceiver .................................................. 142
Figure 96: Attaching a Fiber Optic Cable ....................................................................................................... 143
Figure 97: Removing a Dust Cover From an SFP+ Slot in the AT-SBx31XS6 Line Card ............................. 145
Figure 98: Handle on SFP+ Transceiver........................................................................................................ 146
Figure 99: Installing an SFP+ Transceiver in the AT-SBx31XS6 Line Card .................................................. 146
Figure 100: Removing the Dust Cover from an SFP+ Transceiver in the AT-SBx31XS6 Line Card ............. 147
10
SwitchBlade x3106 Installation Guide
Figure 101: Attaching a Fiber Optic Cable to an SFP+ Transceiver in the AT-SBx31XS6 Line Card........... 148
Figure 102: Removing the Dust Cover From an SFP+ Slot in the AT-SBx31XS6 Line Card ........................ 149
Figure 103: Release Tab on the AT-SBx31XS6 Line Card ........................................................................... 150
Figure 104: Installing the AT-SP10TW Cable in the AT-SBx31XS6 Line Card ............................................. 150
Figure 105: Removing the Dust Cover From an XFP Slot on the AT-SBx31XZ4 Line Card ......................... 152
Figure 106: Handle on the XFP Transceiver ................................................................................................. 153
Figure 107: Installing an XFP Transceiver in the AT-SBx31XZ4 Line Card .................................................. 153
Figure 108: Removing the Protective Cover from an XFP Transceiver in the AT-SBx31XZ4 Line Card ...... 154
Figure 109: Attaching a Fiber Optic Cable to an XFP Transceiver in the AT-SBx31XZ4 Line Card ............. 155
Figure 110: AC Sockets on the AT-SBx3106 Chassis Rear Panel ............................................................... 161
Figure 111: Connecting the AC Power Cord for the AT-SBxPWRSYS1 Power Supply................................ 162
Figure 112: Securing the Power Cord for the AT-SBxPWRSYS1 Power Supply to an Anchor .................... 163
Figure 113: Connecting the AC Power Cord for the AT-SBxPWRPOE1 Power Supply ............................... 164
Figure 114: Securing the Power Cord for the AT-SBxPWRPOE1 Power Supply to an Anchor .................... 165
Figure 115: Dress and Secure AC Power Cords........................................................................................... 166
Figure 116: Components of the AT-SBxPWRSYS1 DC Power Supply......................................................... 168
Figure 117: Grounding Wire Terminal ........................................................................................................... 169
Figure 118: Stripping the Stranded Grounding Wire ..................................................................................... 169
Figure 119: Attaching the Stranded Grounding Wire to the Grounding Terminal .......................................... 169
Figure 120: Removing the Nut and Washer from the Grounding Post .......................................................... 170
Figure 121: Installing the Grounding Wire ..................................................................................................... 171
Figure 122: Stripping the solid or Stranded Grounding Wire......................................................................... 172
Figure 123: Attaching the Bare Grounding Wire to the Grounding Post........................................................ 172
Figure 124: Securing the Bare Grounding Wire to the Grounding Post ........................................................ 173
Figure 125: Power Wire Terminals ................................................................................................................ 173
Figure 126: Stripping the Power Wires.......................................................................................................... 174
Figure 127: Attaching the Power Wires to the Power Terminal Lugs ............................................................ 175
Figure 128: On/Off Switch On the AT-SBxPWRSYS1 DC Power Supply ..................................................... 175
Figure 129: Opening the Plastic Cover.......................................................................................................... 176
Figure 130: Removing the Terminal Screws ................................................................................................. 176
Figure 131: Connecting the Positive (+) Power Wire with a Straight Terminal.............................................. 177
Figure 132: Connecting the Negative (-) Power Wire with a Straight Terminal ............................................. 178
Figure 133: Closing the Plastic Cover over the Terminal Connectors ........................................................... 179
Figure 134: Tightening the Handle Locking Screw................................................................................
........ 180
Figure 135: Stripping the Power Wires.......................................................................................................... 181
Figure 136: Attaching the Power Wires to the Right Angle Terminals........................................................... 181
Figure 137: Removing the Plastic Cover ....................................................................................................... 182
Figure 138: Removing the Terminal Screws ................................................................................................. 183
Figure 139: Connecting the Positive (+) Power Wire with a Right Angle Terminal........................................ 184
Figure 140: Connecting the Negative (-) Power Wire with a Right Angle Terminal ....................................... 185
Figure 141: Tightening the Handle Locking Screw........................................................................................ 186
Figure 142: Stripping Solid or Stranded DC Power Wires ............................................................................. 187
Figure 143: Connecting the Positive Wire ..................................................................................................... 188
Figure 144: Connecting the Negative Lead Wire........................................................................................... 189
Figure 145: Switch Initialization Messages.................................................................................................... 193
Figure 146: Switch Initialization Messages (Continued)................................................................................ 194
Figure 147: Connecting the Management Cable to the Console RS-232 Port .............................................. 198
Figure 148: SHOW SYSTEM Command ....................................................................................................... 199
Figure 149: SHOW PSU Command .............................................................................................................. 200
Figure 150: SHOW FANMODULE Command ............................................................................................... 200
Figure 151: SHOW CARD Command ........................................................................................................... 201
Figure 152: Disconnecting the AC Power Cord from the AC Socket on the Back Panel .............................. 221
Figure 153: Lifting the Locking Handle on the Power Supply ........................................................................ 222
Figure 154: Removing the Power Supply from the Chassis .......................................................................... 223
Figure 155: Installing a Blank Power Supply Slot Cover ............................................................................... 224
11
List of Figures
Figure 156: Lowering the Locking Handle on the Power Supply Slot Cover.................................................. 225
Figure 157: Loosening the Screw on the Locking Handle ............................................................................. 227
Figure 158: Opening the Plastic Window on the Terminal Block ................................................................... 228
Figure 159: Removing the Negative Lead Wire ............................................................................................. 229
Figure 160: Removing the Positive Lead Wire from the Terminal Block........................................................ 230
Figure 161: Reinstalling the Screws on the Positive and Negative Terminals ............................................... 231
Figure 162: Closing the Plastic Cover............................................................................................................ 232
Figure 163: Removing the Grounding Wire ................................................................................................... 233
Figure 164: Reinstalling the Nut and Washer on the Grounding Post ........................................................... 234
Figure 165: Lifting the Locking Handle and Removing the Power Supply ..................................................... 235
Figure 166: Installing a Blank Power Supply Slot Cover................................................................................ 236
Figure 167: Lowering the Locking Handle on the Power Supply Slot Cover.................................................. 237
Figure 168: Loosening the Screw on the AT-SBxFAN06 Fan Module........................................................... 245
Figure 169: Loosening the AT-SBxFAN06 Fan Module from the Backplane Connector ............................... 245
Figure 170: Withdrawing the AT-SBxFAN06 Fan Module 25 mm (1 in.) from the Chassis ........................... 246
Figure 171: Removing the AT-SBxFAN06 Fan Module from the Chassis ..................................................... 247
Figure 172: Installing a New AT-SBxFAN06 Fan Module .............................................................................. 248
Figure 173: Securing the AT-SBxFAN06 Fan Module on the Backplane Connector..................................... 249
Figure 174: Tightening the Screw on the AT-SBxFAN06 Fan Module........................................................... 249
Figure 175: Pin Numbers for RJ-45 and RJ Point 5 Ports ............................................................................. 258
12
Tab les
Table 1. Twisted Pair Cable for the AT-SBx31GT24 and AT-SBx31GT40 Line Cards .................................. 36
Table 2. Twisted Pair Cable for the AT-SBx31GP24 Line Card ..................................................................... 37
Table 3. IEEE802.3af and IEEE802.3at Powered Device Classes ................................................................ 39
Table 4. Maximum Number of Powered Devices ........................................................................................... 40
Table 5. Port LEDs on the AT-SBx31GT24 Line Card ................................................................................... 44
Table 6. Port LEDs on the AT-SBx31GT40 Line Card ................................................................................... 46
Table 7. Port LEDs on the AT-SBx31GP24 PoE Line Card ........................................................................... 47
Table 8. Port LEDs on the AT-SBx31GS24 SFP Line Card ........................................................................... 48
Table 9. Transceiver Slot LEDs on the AT-SBx31GC40 Line Card ............................................................... 50
Table 10. Transceiver Slot LEDs on the AT-SBx31XZ4 XFP Line Card ........................................................ 51
Table 11. SFP+ Slot LEDs on the AT-SBx31XS6 Line Card .......................................................................... 52
Table 12. SYS (System) Status LEDs ............................................................................................................ 55
Table 13. SBx STATUS LEDs ........................................................................................................................ 56
Table 14. Features that Use the NET MGMT Port ......................................................................................... 58
Table 15. NET MGMT Port LED ..................................................................................................................... 60
Table 16. SD Status LED ............................................................................................................................... 62
Table 17. LEDs on the AT-SBxPWRSYS1 AC Power Supply ........................................................................ 64
Table 18. LEDs on the AT-SBxPWRSYS1 DC Power Supply ....................................................................... 65
Table 19. LEDs on the AT-SBxPWRPOE1 AC Power Supply ....................................................................... 65
Table 20. AT-SBxFAN06 Module LED ........................................................................................................... 66
Table 21. Power Supply Interface LED .......................................................................................................... 67
Table 22. Card Types in the Management Software ...................................................................................... 68
Table 23. Management Software Releases for the Hardware Components .................................................. 69
Table 24. Front Panel to Rack Rail Dimensions ............................................................................................. 87
Table 25. Switch Initialization Phases .......................................................................................................... 192
Table 26. Product Dimensions ..................................................................................................................... 251
Table 27. Product Weights ........................................................................................................................... 251
Table 28. Environmental Specifications ....................................................................................................... 253
Table 29. Acoustic Noise Test Components ................................................................................................ 253
Table 30. AC Voltage and Frequency Requirements ................................................................................... 254
Table 31. DC Voltage Requirement .............................................................................................................. 254
Table 32. Typical Power Savings in eco-friendly Mode ................................................................................ 254
Table 33. Maximum Power Consumption ..................................................................................................... 254
Table 34. Maximum Power Efficiency .......................................................................................................... 255
Table 35. Heat Dissipation ........................................................................................................................... 255
Table 36. Available Power Over Ethernet with One PoE Power Supply ...................................................... 256
Table 37. Available Power Over Ethernet with Two PoE Power Supplies ................................................... 256
Table 38. PoE Mode ..................................................................................................................................... 256
Table 39. Safety and Electromagnetic Emissions ........................................................................................ 257
Table 40. Quality and Reliability ................................................................................................................... 257
Table 41. MDI Pin Signals (10Base-T or 100Base-TX) ................................................................................ 258
Table 42. MDI-X Pin Signals (10Base-T or 100Base-TX) ............................................................................ 258
Table 43. 1000Base-T Connector Pinouts ................................................................................................... 259
13
List of Tables
14
Preface
Note
This guide contains the hardware installation instructions for the
SwitchBlade x3106 switch. This preface contains the following sections:
“Safety Symbols Used in this Document” on page 16
“Contacting Allied Telesis” on page 17
This version of the installation guide applies to release 17.0 of the
SwitchBlade x3106 Management Software. The latest release of the
management software is available from the Restricted Software
Downloads web page on the Allied Telesis web site, at
www.alliedtelesis.com/support/software/restricted.
15
Preface
Note
Caution
Warning
Warning
Warning
Safety Symbols Used in this Document
This document uses the following conventions.
Notes provide additional information.
Cautions inform you that performing or omitting a specific action
may result in equipment damage or loss of data.
Warnings inform you that performing or omitting a specific action
may result in bodily injury.
Laser warnings inform you that an eye or skin hazard exists due to
the presence of a Class 1 laser device.
Fan warnings inform you of danger from hazardous moving fan
blades.
16
Contacting Allied Telesis
If you need assistance with this product, you may contact Allied Telesis
technical support by going to the Support & Services section of the Allied
Telesis web site at www.alliedtelesis.com/support. You can find links for
the following services on this page:
24/7 Online Support — Enter our interactive support center to
search for answers to your product questions in our knowledge
database, to check support tickets, to learn about RMAs, and to
contact Allied Telesis technical experts.
USA and EMEA phone support — Select the phone number that
best fits your location and customer type.
Hardware warranty information — Learn about Allied Telesis
warranties and register your product online.
Replacement Services — Submit a Return Merchandise
Authorization (RMA) request via our interactive support center.
SwitchBlade x3106 Installation Guide
Documentation — View the most recent installation and user
guides, software release notes, white papers, and data sheets for
your products.
Software Downloads — Download the latest software releases for
your managed products.
For sales or corporate information, go to www.alliedtelesis.com/
purchase.
17
Preface
18
Chapter 1
Note
Overview
This chapter describes the SwitchBlade x3106 product in the following
sections:
“Introduction” on page 20
“AT-SBx3106 Chassis” on page 23
“AT-SBx31GT24 Line Card” on page 27
“AT-SBx31GT40 Line Card” on page 28
“AT-SBx31GP24 PoE Line Card” on page 29
“AT-SBx31GS24 SFP Line Card” on page 30
“AT-SBx31GC40 Line Card” on page 31
“AT-SBx31XZ4 XFP Line Card” on page 33
“AT-SBx31XS6 SFP+ Line Card” on page 34
“10/100/1000Base-T Twisted Pair Ports” on page 35
“Power over Ethernet on the AT-SBx31GP24 Line Card” on page 39
“Port Numbers on the AT-SBx31GC40 Line Card” on page 42
“Port LEDs on the Ethernet Line Cards” on page 44
“AT-SBx31CFC Central Fabric Controller Card” on page 53
“Power Supplies” on page 63
“AT-SBxFAN06 Module” on page 66
“Power Supply Interfaces (Opto-couplers)” on page 67
“Module Names in the Management Software” on page 68
“Management Software Releases for the Hardware Components” on
page 69
This version of the installation guide applies to release 17.0 of the
SwitchBlade x3106 Management Software. The latest release of the
management software is available from the Restricted Software
Downloads web page on the Allied Telesis web site, at
www.alliedtelesis.com/support/software/restricted.
19
Chapter 1: Overview
Slots for four Ethernet line cards and two
controller cards or five Ethernet line cards
and one controller card. Slots for two system
power supplies and two Power over Ethernet
Plus (PoE+) power supplies.
AT-SBx31GT24 Ethernet Line Card with 24
10/100/1000Base-T twisted pair ports.
AT-SBx31GP24 Ethernet Line Card with 24
10/100/1000Base-T twisted pair ports, with
PoE+.
AT-SBx31GS24 Ethernet Line Card with 24
slots for 100 or 1000Mbps, fiber optic or
twisted pair SFP transceivers.
AT-SBx31GT40 Ethernet Line Card with 40
10/100/1000Base-T twisted pair ports, with
RJ point 5 connectors.
Introduction
The SwitchBlade x3106 product is a modular Gigabit and 10 Gigabit
Ethernet switch. The main components are the AT-SBx3106 Chassis,
Ethernet line cards, a controller card, a system power supply, a Power
over Ethernet Plus (PoE+) power supply, and a fan module. The ATSBx3106 Chassis is shown in Figure 1.
Figure 1. AT-SBx3106 Chassis
The Ethernet line cards and AT-SBx31CFC Central Fabric Controller card
are shown in Figure 2 here and Figure 3 on page 21.
Figure 2. Ethernet Line Cards and AT-SBx31CFC Central Fabric
Controller Card
20
SwitchBlade x3106 Installation Guide
AT-SBx31XZ4 Ethernet Line Card with four
slots for 10 Gbps, fiber optic XFP
transceivers.
AT-SBx31XS6 Ethernet Line Card with six
slots for 10 Gbps, fiber optic SFP+
transceivers or Twinax direct connect
cables.
AT-SBx31CFC Central Fabric Controller
Card
AT-SBx31GC40 Ethernet Line Card with 20
slots for 1000Mbps standard SFP or
compact SFP (CSFP) BiDi transceivers.
AT-SBxPWRSYS1 AC Power Supply for the
Ethernet line cards, controller modules, and
fan module.
AT-SBxPWRPOE1 AC Power Supply with
1200 W PoE budget for the ports on the ATSBx31GP24 PoE Ethernet Line Card.
AT-SBxPWRSYS1 DC Power Supply for the
Ethernet line cards, controller modules, and
fan module.
Figure 3. Ethernet Line Cards and AT-SBx31CFC Central Fabric
Controller Card (Continued)
The three power supplies are shown in Figure 4.
Figure 4. Power Supply Units
21
Chapter 1: Overview
AT-SBxFAN06 Module, the cooling unit for
the chassis
The fan module is shown in Figure 5.
Figure 5. Fan Module
22
AT-SBx3106 Chassis
Note
Shipping Brace
Slots for Ethernet
Line Cards and
Controller Cards
PoE Power
Supply Slots
System Power
Supply Slots
Slots for Ethernet
Line Cards and
Controller Cards
AT-SBxFAN06
Module
ESD Wrist
Strap Plug
The AT-SBx3106 Chassis is a 4RU unit with slots for four Ethernet line
cards and two controller cards or five Ethernet line cards and one
controller card. There are also slots for two system power supply modules
and two PoE power supply modules. The chassis components are
identified in Figure 6 here and Figure 7 on page 24.
SwitchBlade x3106 Installation Guide
Figure 6. Front View of the AT-SBx3106 Chassis
Do not remove the shipping brace from the front of the chassis until
after the unit is installed in the equipment rack. You might bend the
chassis and cause misalignment of the slots and card guides if you
lift the chassis into the equipment rack without the shipping brace.
23
Chapter 1: Overview
Grounding
Lug
AC Power
Cord Sockets
Power Supply
Interfaces
(Opto-couplers)
Figure 7. Rear View of the AT-SBx3106 Chassis
Ethernet Line
and Control
Cards Slots
Figure 8 is an example of a chassis with Ethernet line and controller cards.
Figure 8. AT-SBx3106 Chassis with Line Cards, Control Cards, and Power
Supplies
The chassis has slots for four Ethernet line cards and two AT-SBx31CFC
Central Fabric Controller cards or five Ethernet line cards and one ATSBx31CFC Central Fabric Controller card. The slot definitions are
predefined and may not be changed. Figure 9 on page 25 identifies the
slots, which are numbered starting with 0.
24
SwitchBlade x3106 Installation Guide
Slot 0 - Line Card
Slot 2 - Line Card
Slot 4 - Controller
Slot 1 - Line Card
Slot 3 - Line Card
Slot 5 - Line or
Controller Card
Card
Slot A
AT-SBxPWRPOE1
Power Supply
Slot B
AT-SBxPWRPOE1
Power Supply
Slot C
AT-SBxPWRSYS1
Power Supply
Slot D
AT-SBxPWRSYS1
Power Supply
Figure 9. Slots for the Ethernet Line and Control Cards
Slots 0 to 3 are for Ethernet line cards. The cards may be installed in any
order or variety in the slots.
Slot 4 is for the AT-SBx31CFC Central Fabric Controller card. The chassis
must have at least one controller card.
Slot 5 may be used with either an Ethernet line card or a second controller
card. A second controller card adds management redundancy and
increases the available traffic bandwidth of the chassis.
Power Supply
The chassis has four power supply slots, labelled A to D, across the top of
Slots
the front panel of the chassis, as shown in Figure 10.
The two right hand slots are for the AT-SBxPWRSYS1 Power Supply,
which supplies power to the Ethernet line cards, controller cards, and fan
module. The only chassis component not powered by the module is the
PoE feature on the twisted pair ports on the AT-SBx31GP24 PoE Line
Card.
Figure 10. Power Supply Slots
There are AC and DC versions of the AT-SBxPWRSYS1 Power Supply.
Refer to Figure 4 on page 21 for illustrations of the modules.
25
Chapter 1: Overview
Note
A single AT-SBxPWRSYS1 Power Supply has enough power to support a
fully populated chassis. However, you may install two power supplies to
add power redundancy to the chassis.
The two left hand slots are for the AT-SBxPWRPOE1 Power Supply. This
unit provides PoE for the ports on the AT-SBx31GP24 Line Card. (It
should be noted that the line card also needs the AT-SBxPWRSYS1
Power Supply to operate its switching functions.) You may install two ATSBxPWRPOE1 Power Supplies in the chassis to increase the amount of
available PoE power or to add PoE redundancy.
The AT-SBxPWRSYS1 DC Power Supply is not compatible with the
AT-SBxPWRSYS1 AC or AT-SBxPWRPOE1 AC Power Supply.
You should not operate the chassis with both AC and DC power
supplies. You may, however, operate the chassis for a short period
of time with AC and DC power supplies if you are converting it from
one type of power supply to another, such as from AC to DC. This
allows you to transition the chassis without having to power it off.
26
AT-SBx31GT24 Line Card
The AT-SBx31GT24 Line Card, shown in Figure 11, is a Gigabit Ethernet
switch.
Here are the main features of the line card:
24 10/100/1000Base-T ports
RJ-45 connectors
100 meters (328 feet) maximum operating distance per port
SwitchBlade x3106 Installation Guide
Figure 11. AT-SBx31GT24 Line Card
Auto-Negotiation for speed and duplex mode
Automatic MDIX detection for ports operating at 10/100Base-TX,
(Automatic MDIX detection does not apply to 1000Base-T
operation.)
Port Link/Activity (L/A) LEDs
16K entry MAC address table
12 Mb buffer memory
Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
Non-blocking full-wire speed switching on all packet sizes, with two
AT-SBx31CFC Central Fabric Controller cards
Hot swappable
The cable requirements for the ports on the AT-SBx31GT24 Line Card are
listed in Table 1 on page 36.
27
Chapter 1: Overview
Note
AT-SBx31GT40 Line Card
The AT-SBx31GT40 Line Card, shown in Figure 12, is a Gigabit Ethernet
switch.
Here are the main features of the line card:
40 10/100/1000Base-T ports
RJ point 5 connectors
100 meters (328 feet) maximum operating distance per port
Figure 12. AT-SBx31GT40 Line Card
Auto-Negotiation for speed
Full-duplex mode only
Automatic MDIX detection for ports operating at 10/100Base-TX,
(Automatic MDIX detection does not apply to 1000Base-T
operation.)
Port Link/Activity (L/A) LEDs
32K entry MAC address table
32 Mb buffer memory
Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
Non-blocking full-wire speed switching on all packet sizes, with two
AT-SBx31CFC Central Fabric Controller cards
Hot swappable
The ports on the line card do not support half-duplex operation.
The cable requirements for the ports on the AT-SBx31GT40 Line Card are
listed in Table 1 on page 36.
28
AT-SBx31GP24 PoE Line Card
The AT-SBx31GP24 PoE Line Card, shown in Figure 13, is a Gigabit
Ethernet switch with Power over Ethernet Plus (PoE+) on all the ports.
Figure 13. AT-SBx31GP24 PoE Line Card
Here are the main features of the line card:
24 10/100/1000Base-T ports
RJ-45 connectors
SwitchBlade x3106 Installation Guide
100 meters (328 feet) maximum operating distance per port
Auto-Negotiation for speed and duplex mode
Automatic MDIX detection for ports operating at 10/100Base-TX,
(Automatic MDIX detection does not apply to 1000Base-T
operation.)
Port Link/Activity (L/A) and PoE+ LEDs
16K entry MAC address table
12 Mb buffer memory
PoE+ on all the ports
Up to 30W per port for PoE+
PoE device classes 0 to 4
Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
Non-blocking full-wire speed switching on all packet sizes, with two
AT-SBx31CFC Central Fabric Controller cards
Hot swappable
The cable requirements of the PoE ports on the AT-SBx31GP24 Ethernet
Line Card are given in Table 2 on page 37.
29
Chapter 1: Overview
AT-SBx31GS24 SFP Line Card
The AT-SBx31GS24 SFP Line Card, shown in Figure 14, is a Gigabit
Ethernet switch.
Figure 14. AT-SBx31GS24 SFP Line Card
Here are the main features of the line card:
24 slots for small form-factor pluggable (SFP) transceivers
Supports 100Base-FX or 1000Base-SX/LX fiber optic transceivers
Supports 100Base-BX or 1000Base-LX bidirectional (BiDi) fiber
optic transceivers
Supports 10/100/1000Base-T or 1000Base-T twisted pair
transceivers
Port Link/Activity (L/A) LEDs
32K entry MAC address table
24 Mb buffer memory
Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
Non-blocking full-wire speed switching on all packet sizes, with two
AT-SBx31CFC Central Fabric Controller cards.
Hot swappable
Contact your Allied Telesis sales representative for a list of supported
transceivers.
30
AT-SBx31GC40 Line Card
Note
The AT-SBx31GC40 Line Card, shown in Figure 15, is a Gigabit Ethernet
switch.
Here are the main features of the line card:
Twenty slots for 1000 Mbps, standard SFP or compact SFP
(CSFP) bidirectional (BiDi) transceivers
SwitchBlade x3106 Installation Guide
Figure 15. AT-SBx31GC40 Line Card
Adheres to the CSFP Multi-Source Agreement (MSA) standard,
Option 2, which defines support for both SFP and CSFP
transceivers
Supports 1000Base-LX, BiDi compact SFP (CSFP), transceivers
Supports 1000Base-SX/LX, fiber optic SFP transceivers
Supports 10/100/1000Base-T twisted pair SFP transceivers
Standard 10/100/1000Base-T twisted pair SFP transceivers are only
supported at 1000 Mbps.
Port Link/Activity (L/A) LEDs
32K entry MAC address table
32 Mb buffer memory
Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
Non-blocking full-wire speed switching on all packet sizes, with two
AT-SBx31CFC Central Fabric Controller cards
Hot swappable
31
Chapter 1: Overview
Note
The AT-SBx31GC40 Line Card does not support 10 or 100 Mbps
transceivers.
The AT-SBx31GC40 Line Card has twenty slots for standard SFP or
CSFP transceivers, and supports twenty or forty networking ports,
depending on the types of transceivers. The line card has twenty ports
when the slots have standard SFP transceivers, because each SFP
transceiver functions as one port. In contrast, the line card has forty ports
when the twenty slots have CSFP transceivers, because the two fiber
connectors on a CSFP transceiver function as independent, bidirectional
networking ports that can be connected to different network devices.
You do not have to install the same type of transceiver in all twenty slots in
the line card. You may install a combination of SFP and CSFP
transceivers.
Contact your Allied Telesis sales representative for the list of supported
transceivers.
32
AT-SBx31XZ4 XFP Line Card
The AT-SBx31XZ4 XFP Line Card, shown in Figure 16, is a 10 Gigabit
Ethernet switch.
Here are the main features of the line card:
Four slots for 10Gbps XFP transceivers
Supports 10GBase-SR/LR/ER fiber optic transceivers
SwitchBlade x3106 Installation Guide
Figure 16. AT-SBx31XZ4 XFP Line Card
Port Link/Activity (L/A) LEDs
32K entry MAC address table
24 Mb buffer memory
Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
Non-blocking full-wire speed switching on all packet sizes, with two
AT-SBx31CFC Controller Cards
Hot swappable
Contact your Allied Telesis sales representative for the list of supported
transceivers.
33
Chapter 1: Overview
AT-SBx31XS6 SFP+ Line Card
The AT-SBx31XS6 Line Card, shown in Figure 17, is a 10 Gigabit
Ethernet switch.
Here are the main features of the line card:
Six slots for 10 Gbps SFP+ transceivers
Supports 10GBase-SR/LR fiber optic transceivers
Figure 17. AT-SBx31XS6 Line Card
Supports AT-SP10TW direct connect twisted pair cables with
SFP+ transceiver-style connectors
Port Link/Activity (L/A) LEDs
32K entry MAC address table
24 Mb buffer memory
Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
Hot swappable
Contact your Allied Telesis sales representative for the list of supported
transceivers.
34
SwitchBlade x3106 Installation Guide
Note
Note
Note
10/100/1000Base-T Twisted Pair Ports
This section applies to the 10/100/1000Base-T ports on the ATSBx31GT24, AT-SBx31GT40, and AT-SBx31GP24 PoE Ethernet Line
Cards.
Connector Type The ports on the AT-SBx31GT24 and AT-SBx31GP24 Line Cards have 8-
pin RJ-45 connectors. The ports on the AT-SBx31GT40 Line Card have 8pin RJ point 5 connectors.The ports use four pins at 10 or 100 Mbps and
all eight pins at 1000 Mbps. The pin assignments are listed in “Port
Pinouts” on page 258.
Speed The ports can operate at 10, 100, or 1000 Mbps. The speeds can be set
automatically through Auto-Negotiation, the default setting, or manually
with the SwitchBlade x3106 Management Software.
Twisted-pair ports have to be set to Auto -negotiation to operate at
1000 Mbps. You cannot manually set twisted-pair ports to 1000
Mbps.
Duplex Mode The twisted-pair ports on the AT-SBx31GT24 and AT-SBx31GP24 Line
Cards can operate in either half- or full-duplex mode at 10 or 100 Mbps.
Ports operating at 1000 Mbps can only operate in full-duplex mode. The
twisted-pair ports are IEEE 802.3u-compliant and Auto-Negotiate the
duplex mode setting.
You can disable Auto-Negotiation on the ports and set the duplex mode
manually.
Switch ports that are connected to 10 or 100 Mbps end nodes that
are not using Auto-Negotiation should not use Auto-Negotiation to
set their speed and duplex mode settings, because duplex mode
mismatches might occur. You should disable Auto-Negotiation and
set the speed and duplex mode settings manually with the
SwitchBlade x3106 Management Software.
The ports on the AT-SBx31GT40 Line Card support only full-duplex
mode.
35
Chapter 1: Overview
Note
Maximum
Distance
Cable
Requirements
The ports have a maximum operating distance of 100 meters (328 feet).
The cable requirements for the ports on the AT-SBx31GT24 and ATSBx31GT40 Line Cards are listed in Table 1.
Table 1. Twisted Pair Cable for the AT-SBx31GT24 and AT-SBx31GT40
Line Cards
Cable Type 10Mbps 100Mbps 1000Mbps
Standard TIA/EIA 568-Bcompliant Category 3 shielded
or unshielded cabling with 100
ohm impedance and a
frequency of 16 MHz.
Standard TIA/EIA 568-Acompliant Category 5 or TIA/
EIA 568-B-compliant Enhanced
Category 5 (Cat 5e) shielded or
unshielded cabling with 100
ohm impedance and a
frequency of 100 MHz.
Yes Yes No
Yes Yes Yes
Standard TIA/EIA 568-Bcompliant Category 6 or 6a
shielded cabling.
Patch cables for the AT-SBx31GT40 Line Card, in lengths of 1
meter and 3 meters with RJ point 5 and RJ-45 connectors, are
available from Allied Telesis. Contact your Allied Telesis sales
representative for information.
The cable requirements for the PoE ports on the AT-SBx31GP24 Ethernet
Line Card are given in Table 2 on page 37.
Yes Yes Yes
36
SwitchBlade x3106 Installation Guide
Table 2. Twisted Pair Cable for the AT-SBx31GP24 Line Card
10Mbps 100Mbps 1000Mbps
Cable Type
Standard TIA/EIA 568B-compliant Category 3
shielded or unshielded
cabling with 100 ohm
impedance and a
frequency of 16 MHz.
Standard TIA/EIA 568A-compliant Category 5
shielded or unshielded
cabling with 100 ohm
impedance and a
frequency of 100 MHz.
Standard TIA/EIA 568B-compliant Enhanced
Category 5 (Cat 5e)
shielded or unshielded
cabling with 100 ohm
impedance and a
frequency of 100 MHz.
Non-
PoE
Yes No No Yes No No No No No
Yes Ye s No Yes Ye s No Yes N o No
Yes Ye s Yes Ye s Yes Ye s Yes Ye s Yes
PoE PoE+
Non-
PoE
PoE PoE+
Non-
PoE
PoE PoE+
Standard TIA/EIA 568B-compliant Category 6
or 6a shielded cabling.
Automatic MDIX
Detection
Straight-through
or Crossover
Cabling
Yes Ye s Yes Ye s Yes Ye s Yes Ye s Yes
The 10/100/1000 Mbps twisted-pair ports on the AT-SBx31GT24, ATSBx31GT40, and AT-SBx31GP24 Line Cards are IEEE 802.3ab compliant
and feature automatic MDIX detection when operating at 10 or 100 Mbps.
(Automatic MDIX detection does not apply to 1000 Mbps.) This feature
automatically configures the ports to MDI or MDI-X depending on the
wiring configurations of the end nodes.
You may not disable automatic MDIX detection on the ports. For automatic
MDIX detection to work properly, it must also be present on the network
devices. Ports connected to network devices that do not support automatic
MDIX detection default to MDIX.
Here are the guidelines to using straight-through or crossover cables to
connect network devices to the line cards:
You may use straight-through cables on ports that are connected
to network devices that operate at 1000 Mbps.
37
Chapter 1: Overview
Port Pinouts Refer to Table 41 on page 258 for the port pinouts of twisted-pair ports
You may use straight-through or crossover cables on ports that are
connected to network devices that support automatic MDIX
detection and that operate at 10 or 100 Mbps.
You must use straight-through cables on ports that are connected
to network devices that have a fixed wiring configuration of MDI
and that operate at 10 or 100 Mbps.
You must use crossover cables on ports that are connected to
network devices that have a fixed wiring configuration of MDIX and
that operate at 10 or 100 Mbps.
operating at 10 or 100 Mbps in the MDI configuration and Table 42 on
page 258 for the MDI-X configuration. For port pinouts for twisted-pair
ports operating at 1000 Mbps, refer to Table 43 on page 259.
38
SwitchBlade x3106 Installation Guide
Power over Ethernet on the AT-SBx31GP24 Line Card
The twisted-pair ports on the AT-SBx31GP24 PoE Line Card support
Power over Ethernet (PoE). PoE is a mechanism by which the ports
supply power to network devices over the twisted pair cables that carry the
network traffic. This feature can simplify network installation and
maintenance because it allows you to use the switch as a central power
source for other network devices.
Devices that receive their power over Ethernet cables are called powered
devices (PD), examples of which include wireless access points, IP
telephones, web cams, and even other Ethernet switches. A PD
connected to a port on the switch receives both network traffic and power
over the same twisted-pair cable.
The AT-SBx31GP24 Line Card automatically determines whether a device
connected to a port is a PD. A PD has a signature resistor or signature
capacitor that the line card can detect over the Ethernet cabling. If the
resistor or capacitor is present, the switch assumes that the device is a
PD.
Powered Device
Classes
A port connected to a network node that is not a PD (that is, a device that
receives its power from another power source) functions as a regular
Ethernet port, without PoE. The PoE feature remains enabled on the port
but no power is delivered to the device.
The IEEE 802.3af and 802.3at standards define five powered device
classes. The classes are defined by the power requirements of the
powered devices. The classes are shown in Table 3. The AT-SBx31GP24
Line Card supports all five classes.
Table 3. IEEE802.3af and IEEE802.3at Powered Device Classes
Maximum
Class Usage
0 Default 15.4W 0.44W to
1 Optional 4.0W 0.44W to 3.84W
2 Optional 7.0W 3.84W to 6.49W
Power Output
on the PoE
Port
PD Power
Range
12.95W
3 Optional 15.4W 6.49W to
12.95W
4 Optional 30.0W 12.95W to
25.9W
39
Chapter 1: Overview
Note
Note
Power Budgeting The power for PoE on the ports of the AT-SBx31GP24 Line Cards is
provided by the AT-SBxPWRPOE1 Power Supply, which can provide up
to 1200 watts of power. You may install up to two power supplies in the
chassis for a total of 2400 watts for the powered devices.
The number of powered devices the chassis can support at one time
depends on the number of AT-SBxPWRPOE1 Power Supplies in the
chassis and the power requirements of the powered devices in your
network. Table 4 lists the maximum number of powered devices by class,
for one or two power supplies. The numbers assume that the powered
devices require the maximum amount of power for their classes.
The maximum number of PoE ports in the SwitchBlade x3106
Switch is 120 ports.
Table 4. Maximum Number of Powered Devices
Maximum Number of
Class
0 77 120
1 120 120
2 120 120
3 77 120
44080
Ports with
One PoE PSU
(1200 W)
Maximum Number of
Ports with
Two PoE PSU’s
(2400 W)
PoE Wiring The IEEE 802.3af and 802.3at standards define two methods for
delivering power to powered devices over the four pairs of strands that
comprise a standard Ethernet twisted-pair cable. The methods are called
Alternatives A and B. In Alternative A, power is supplied to powered
devices on strands 1, 2, 3, and 6, which are the same strands that carry
the 10/100Base-TX network traffic. In Alternative B, power is delivered on
strands 4, 5, 7, and 8. These are the unused strands.
1000BASE-T cables carry the network traffic on all eight strands of
the Ethernet cable.
The PoE implementation on the AT-SBx31GP24 Line Card is Alternative
A, in which power is transmitted over strands 1, 2, 3, and 6.
40
SwitchBlade x3106 Installation Guide
PDs that comply with the IEEE 802.3af and 802.3at standards typically
support both power delivery methods. However, some legacy PDs support
only one power delivery method. Legacy devices are nodes manufactured
before the IEEE 802.3af and 802.3at standards were completed and,
consequently, may not adhere to the standards. Legacy devices that only
support Alternative B will not work with the AT-SBx31GP24 PoE Line
Card.
41
Chapter 1: Overview
Port 0 Port 2
Port 1 Port 3
Port Numbers on the AT-SBx31GC40 Line Card
The AT-SBx31GC40 Line Card has two port numbers for each transceiver
slot. The numbers are displayed on the front panel alongside and above
the slots in the top row and alongside and below the slots in the bottom
row. For instance, the first transceiver slot in the top row has the port
numbers 0 and 2 and the slot beneath it has the port numbers 1 and 3.
(The port numbers 2 and 4 are omitted from the first two slots in the top
row on the faceplate to allow for the model name.)
A transceiver uses either one or both port numbers of a slot, depending on
whether its a SFP or an CSFP transceiver. A CSFP transceiver is
assigned two port numbers because its two fiber optic connectors function
as independent network connections. You may use the two port numbers
of a transceiver to configure the ports independently. The left-hand fiber
connector is assigned the lower number of a slot and the right-hand
connector is given the higher port number. For example, the left-hand fiber
connector of an CSFP transceiver in the first top slot is assigned the port
number 0 and the right-hand connector is given the port number 2.
Figure 18 illustrates the port numbers for the first two slots when they
contain CSFP transceivers.
Figure 18. Port Numbers for Slots with CSFP Transceivers
In contrast, the two connectors on an SFP transceiver function as a single
port, not as individual ports. Consequently, the switch assigns that type of
module one port number instead of two.
42
The port number of an SFP module depends on whether the module is
installed in a slot in the top or bottom row of the line card. An SFP module
in a slot in the top row is assigned the lower of the two port numbers of a
slot. For example, the port number of an SFP module installed in the first
SwitchBlade x3106 Installation Guide
Port 0 Port 4
Port 3 Port 7
slot in the top row is port number 0 because it is the lower of the two port
numbers of the slot. To configure the transceiver, you have to specify port
0 in the management software. The switch marks the unused port number
of the slot, in this case port number 2, as masked or eclipsed to prevent
you from using it to manage the transceiver.
In contrast, an SFP module in a slot in the bottom row is assigned the
higher number of the slot’s two numbers. For instance, an SFP transceiver
installed in the first slot in the bottom row is assigned the port number 3 by
the switch. Port 1, the unused port number of the slot, is marked as
masked by the switch and cannot be used to configure the device.
Figure 19 illustrates the port numbers for the first four slots when they
contain standard SFP transceivers.
Figure 19. Port Numbers for Slots with Standard SFP Transceivers
43
Chapter 1: Overview
Port LEDs on the Ethernet Line Cards
The following sections describe the port LEDs on the Ethernet line cards.
AT-SBx31GT24
Line Card
Each port on the AT-SBx31GT24 Line Card has two LEDs, but only one of
them is used. The LEDs are shown in Figure 20 and described in Table 5.
Figure 20. Port LEDs on the AT-SBx31GT24 Line Card
Table 5. Port LEDs on the AT-SBx31GT24 Line Card
LED State Description
Solid Green The port has established an 1000 Mbps link
to a network device.
Flashing
Green
L/A
Right LED - This LED is not used.
Solid Amber The port has established a 10 or 100 Mbps
Flashing
Amber
Off The port has not established a link with
The port is transmitting or receiving data at
1000 Mbps.
link to a network device.
The port is transmitting or receiving data at
10 or 100.
another network device or the LEDs are
turned off. To turn on the LEDs, use the
eco-friendly button on the controller card.
44
SwitchBlade x3106 Installation Guide
LEDs
L/A LEDs
AT-SBx31GT40
Line Card
The LEDs for a port on the AT-SBx31GT40 Line Card are found on the
cable connector, shown in Figure 21.
Figure 21. Port LEDs on an RJ Point 5 Cable Connector for the AT-
SBx31GT40 Line Card
Only the left LED is active. Refer to Figure 23. It displays link and activity
status information about a port, as described in Table 6 on page 46. The
right LED is not used.
Figure 22. Port LEDs on an RJ Point 5 Cable Connector for the AT-
SBx31GT40 Line Card
45
Chapter 1: Overview
Table 6. Port LEDs on the AT-SBx31GT40 Line Card
LED State Description
Solid Green The port has established an 1000 Mbps link
to a network device.
AT-SBx31GP24
Line Card
Flashing
Green
L/A
Right LED - This LED is not used.
Each port on the AT-SBx31GP24 PoE Line Card has two LEDs. The LEDs
are shown in Figure 23 and described in Table 7 on page 47.
Solid Amber The port has established a 10 or 100 Mbps
Flashing
Amber
Off The port has not established a link with
The port is transmitting or receiving data at
1000 Mbps.
link to a network device.
The port is transmitting or receiving data at
10 or 100.
another network device or the LEDs are
turned off. To turn on the LEDs, use the
eco-friendly button on the controller card.
46
Figure 23. Port LEDs on the AT-SBx31GP24 PoE Line Card
SwitchBlade x3106 Installation Guide
Table 7. Port LEDs on the AT-SBx31GP24 PoE Line Card
LED State Description
Solid Green The port has established an 1000 Mbps link to a
network device.
L/A
PoE
Flashing
Green
The port is transmitting or receiving data at 1000
Mbps.
Solid Amber The port has established a 10 or 100 Mbps link to
a network device.
Flashing
Amber
The port is transmitting or receiving data at 10 or
100 Mbps.
Off The port has not established a link with another
network device or the LEDs are turned off. To turn
on the LEDs, use the eco-friendly button on the
controller card.
Green The switch is detecting a powered device (PD) on
the port and is delivering power to it.
Solid Amber The switch has shutdown PoE+ on the port
because of a fault condition.
Flashing
Amber
The switch is detecting a PD on the port but is not
delivering power to it because the maximum power
budget has been reached.
PoE Off This LED state can result from the following
conditions:
The port is not connected to a PD.
The PD is powered off.
The port is disabled in the management
software.
PoE is disabled on the port.
The LEDs on the Ethernet line cards are
turned off. To turn on the LEDs, use the
eco-friendly button.
47
Chapter 1: Overview
AT-SBx31GS24
Line Card
The SFP slots on the AT-SBx31GS24 SFP Line Card have one LED each,
as shown in Figure 24 and described in Table 8.
Figure 24. Port LEDs on the AT-SBx31GS24 SFP Line Card
Table 8. Port LEDs on the AT-SBx31GS24 SFP Line Card
LED State Description
Solid Green
The SFP transceiver in the slot has established a
link to a network device.
Blinking Green
Off
The SFP transceiver is transmitting and/or
receiving data.
This LED state can result from the following
conditions:
The transceiver slot is empty.
The SFP transceiver has not established a
link to a network device.
The LEDs on the Ethernet line cards are
turned off. To turn on the LEDs, use the
eco-friendly button.
48
SwitchBlade x3106 Installation Guide
Second LED
Top Slot
Fourth LED
Top Slot
First LED
Bottom Slot
Third LED
Bottom Slot
Port 0
L/A LED
Port 2
L/A LED
Port 1
L/A LED
Port 3
L/A LED
AT-SBx31GC40
Line Card
The AT-SBx31GC40 Line Card has two LEDs for each slot. The LEDS,
which display link and activity information, are located between the slots,
in sets of four. The first and third LEDs of each set are for the bottom slot
and the second and fourth LEDs are for the top slot, as shown in
Figure 25.
Figure 25. LEDs for the AT-SBx31GC40 Line Card
When a slot contains a CSFP transceiver, both slot LEDS are active. Each
LED displays link and activity status information for its respective BiDi
connector on a transceiver. As an example, if the first top and bottom slots
of the line card contain CSFP transceivers, the first LED between the slots
displays link and activity status for port 1, which is the left-hand fiber
connector on the bottom transceiver. The second LED displays the same
information for port 0, the left-hand fiber connector on the top transceiver.
The third and fourth LEDs display the same information for ports 3 and 2,
the right-hand connectors on the bottom and top transceivers,
respectively. See Figure 26.
Figure 26. LEDs for the AT-SBx31GC40 Line Card, with CSFP
Transceivers
49
Chapter 1: Overview
Port 0
L/A LED
Not used
Not Used
L/A LED
Port 3
When a slot has a standard SFP, only one LED of a pair is active. The
other LED is not used. The active LED depends on whether the slot
containing the transceiver is in the top or bottom row. When an SFP
transceiver is installed in a slot in the top row, the first LED is active and
the second inactive. When an SFP transceiver is installed in a slot in the
bottom row, the first LED is inactive and the second active. See Figure 27.
Figure 27. LEDs for the AT-SBx31GC40 Line Card, with SFP Transceivers
The LED states are described in Table 9.
Table 9. Transceiver Slot LEDs on the AT-SBx31GC40 Line Card
LED State Description
Solid Green The SFP transceiver or CSFP transceiver fiber
port has established a link with a network device.
L/A
Flashing
Green
Off
The SFP transceiver or CSFP transceiver fiber
port is transmitting or receiving data.
This LED state can result from the following
conditions:
The transceiver slot is empty.
The SFP transceiver or CSFP fiber port
has not established a link to a network
device.
The LEDs on the Ethernet line cards are
turned off. To turn on the LEDs, use the
eco-friendly button.
50
SwitchBlade x3106 Installation Guide
AT-SBx31XZ4
Line Card
Each XFP slot on the AT-SBx31XZ4 XFP Line Card has one LED. The
LED is shown in Figure 28 and described in Table 10.
Figure 28. Transceiver Slot LEDs on the AT-SBx31XZ4 XFP Line Card
Table 10. Transceiver Slot LEDs on the AT-SBx31XZ4 XFP Line Card
LED State Description
Solid Green The XFP module has established a link with a
network device.
L/A
Flashing
Green
The XFP module is transmitting or receiving data
at 10 Gbps.
AT-SBx31XS6
Line Card
Off
The AT-SBx31XS6 Line Card has one LED for each SFP+ slot. The LED
is shown in Figure 29 and described in Table 11 on page 52.
This LED state can result from these conditions:
The transceiver slot is empty.
The transceiver has not established a link
to a network device.
The LEDs on the Ethernet line cards are
turned off. To turn on the LEDs, use the
eco-friendly button.
Figure 29. SFP+ Slot LEDs on the AT-SBx31XS6 Line Card
51
Chapter 1: Overview
Table 11. SFP+ Slot LEDs on the AT-SBx31XS6 Line Card
LED State Description
Solid Green The transceiver has established a link with a
network device.
L/A
Flashing
Green
Off
The transceiver is transmitting or receiving data at
10 Gbps.
This LED state can result from the following
conditions:
The transceiver slot is empty.
The transceiver has not established a link
to a network device.
The LEDs on the Ethernet line cards are
turned off. To turn on the LEDs, use the
eco-friendly button.
52
AT-SBx31CFC Central Fabric Controller Card
The AT-SBx31CFC Central Fabric Controller card has three primary
functions:
Chassis Management — The controller card is used to monitor
and configure the Ethernet line cards in the chassis. You may
manage the chassis locally through the Console RS-232 port on
the controller card or remotely using Telnet, Secure Shell (SSH),
and SNMP clients from workstations on your network.
Configuration Settings — The controller card stores the
configuration settings of the Ethernet line cards and downloads the
settings to the cards when the chassis is powered on or new line
cards are installed. The settings are stored in a database file in
nonvolatile memory so that they are retained even when the
chassis is reset or powered off.
Backplane Control — The controller card manages the backplane
of the chassis. The backplane is used by line cards to forward
traffic to each other, which occurs when the ingress and egress
ports of packets are located on different cards.
SwitchBlade x3106 Installation Guide
The amount of backplane bandwidth depends on the number of
controller cards in the chassis. If the chassis has only one
controller card and the card is installed in slot 4, line card slots 0 to
3 each have 20 Gbps of backplane bandwidth, while slot 5 has 40
Gbps, making that slot a good choice for a high speed uplink card,
such as the AT-SBx31XZ4 XFP Line Card. If the chassis has two
controller cards, line card slots 0 to 3 each have 40 Gbps of
backplane bandwidth.
Here are the guidelines for the controller card:
The chassis must have at least one controller card. The line cards
do not forward traffic without a controller card in the chassis.
The chassis may have either one or two controller cards.
Two controller cards are recommended for redundancy and to
increase the backplane bandwidth for the Ethernet line cards.
The controller cards must be installed in slots 4 and 5. If you are
installing only one controller card, Allied Telesis recommends
installing it in slot 4 so that you can use slot 5 for an additional
Ethernet line card.
Here are other features of the controller card:
LEDs for monitoring the status of the Ethernet line cards.
Power-saving eco-friendly button for turning the port and status
LEDs on and off on the line cards and controller cards.
53
Chapter 1: Overview
Reset switch for resetting the chassis.
SD card slot for data storage and retrieval.
Console RS-232 for local management.
NET MGMT port and inband interface for remote Telnet, SSH, and
SNMP management.
Hot swappable.
The components on the card are identified in Figure 30.
Figure 30. AT-SBx31CFC Central Fabric Controller Card
SYS Status LEDs The SYS (System) Status LEDs on the AT-SBx31CFC Central Fabric
Controller card display general status information about the controller
card, power supplies, and fan module. The LEDs are defined in Table 12
on page 55.
54
SwitchBlade x3106 Installation Guide
Table 12. SYS (System) Status LEDs
LED State Description
Solid Green The AT-SBx31CFC Central Fabric Controller
card is the active master controller card in the
chassis.
M/S
Solid Amber The controller card is the inactive master card or
was disabled with the management software.
PSU
FAN
Flashing
Amber
The controller card is initializing its management
software or synchronizing its database with the
active master card.
Solid Green The power supplies are operating properly.
Flashing
Amber
A power supply is experiencing a problem.
Possible causes are:
The input AC voltage from a power source is
not within the normal operating range of a
power supply module.
The output DC voltage from a power supply
module to the line cards is not within the
normal operating range.
A power supply is experiencing high
temperature.
A power supply has failed.
Check the status LEDs on the individual power
supply modules to determine which module has a
fault condition.
Solid Green The fan module is operating properly.
Flashing
Amber
The fan module has a problem. A fan is operating
below the normal operating range or has
stopped.
SBx STATUS
LEDs
The SBx STATUS LEDs display general status information about the
Ethernet line cards and controller cards, as described in Table 13 on
page 56. There are twelve LEDs, number 0 to 11. However, only LEDs 0
to 5 are active because the AT-SBx3106 Chassis has only six slots. LEDs
6 to 11 are not used. If the chassis has two controller cards, the SBx
Status LEDs on both cards are active.
55
Chapter 1: Overview
Table 13. SBx STATUS LEDs
LEDs State Description
Solid Green The Ethernet line or controller card is
operating normally.
0 to 11
Flashing Green Indicates that the card is booting up, in test
mode, or loading the configuration settings.
Solid Amber Indicates that the card is in an off-line,
reset, or disabled state. You may remove
the card from the chassis when it is in this
state. If the LED is solid amber for an
0 to 11
Ethernet line card, it may indicate that the
card cannot boot up because the controller
card does not have the appropriate load file
and needs to be updated to the most recent
release of management software.
eco-friendly
Button
Flashing Amber Indicates that the card is reporting a fault
condition. Use the management commands
to determine the specific problem.
Off
This LED state can result from the following
conditions:
The slot is empty.
The LEDs are turned off. To turn on
the LEDs, use the eco-friendly
button.
LEDs 6 to 11 are not used and are always
off.
You use the eco-friendly button on the controller card to turn the LEDs on
or off and test the LEDs. You may turn off the LEDs when you are not
using them to monitor the control and Ethernet line cards, to conserve
electricity. When the LEDs are off, the overall power consumption of the
chassis is slightly reduced, approximately 3 watts in a system with 240
active copper ports.
The button controls all the port LEDs on the Ethernet line cards and the
LEDs on the controller card, except for the M/S (Master/Slave) LED, which
is always on. The button does not control the LEDs on the fan module and
the power supply systems.
56
The eco-friendly button is also used to test the LEDs. The LEDs perform a
lamp test, flashing in alternating colors for three seconds, when you press
the button.
SwitchBlade x3106 Installation Guide
Caution
Note
Reset Button You may use the Reset button to reset either the controller card or all the
cards in the chassis. The action depends on the number of AT-SBx31CFC
Central Fabric Controller cards in the chassis and, if the chassis has two
controller cards, whether you press the button on the active or inactive
master card.
The possible actions are described here:
If the chassis has only one controller card, pressing the Reset
button resets the controller card and all the Ethernet line cards in
the chassis. You may perform this function if the chassis and line
cards are experiencing a problem.
The controller and Ethernet line cards do not forward network traffic
for a minimum of two minutes while they initialize their management
software and configure their parameter settings. Some network
traffic may be lost.
If the chassis has two controller cards, pressing the Reset button
on the active master card resets the controller card, but not the
Ethernet line cards. The inactive master controller card
immediately becomes the new active master card and the Ethernet
line cards continue to forward traffic. The reset controller card is
unavailable for about two minutes while it initializes its
management software, after which it becomes the inactive master
card in the chassis.
The backplane bandwidth for each Ethernet line card slot is reduced
from 40 to 20 Gbps for about two minutes while the reset controller
card initializes its management software. This may reduce network
performance.
If you want the active and inactive master controller cards to
exchange roles without having to reset the active card, use the
SWAP ACTIVITY command in the management software. Refer to
the Software Reference for SwitchBlade x3100 Series Switches for
information.
If the chassis has two controller cards, pressing the Reset button
on the inactive master controller card resets that card, but not the
active master controller card or the Ethernet line cards.
57
Chapter 1: Overview
Note
Note
The backplane bandwidth for each Ethernet line card is reduced
from 40 to 20 Gbps for about two minutes while the inactive master
controller card initializes its management software and synchronizes
its database with the active master controller card. This may reduce
network performance.
To reset individual line cards in the chassis, use the RESTART
CARD command in the management software.
NET MGMT
Port
The NET MGMT port is used by the controller card to support the features
in Table 14. The controller card uses the port to access your network to
communicate with network devices, such as TFTP servers and Telnet and
SSH client workstations.
An alternative to using the NET MGMT port is to configure the inband
interface on the controller card. The inband interface allows the card to
communicate with your network over the backplane and line cards in the
chassis.
You may use either the NET MGMT port or inband interface to give the
controller card access to your network, but you may not use both. For
instructions on how to configure the NET MGMT port and inband interface,
refer to the Software Reference for SwitchBlade x3100 Series Switches.
Table 14. Features that Use the NET MGMT Port
Feature Description
Ping Used to test the NET MGMT port
for network connectivity.
FTP client Used with an FTP server on your
network to download files to or
upload files from the controller
card.
RADIUS client Used for remote management
authentication and 802.1x portbased network access control.
RMON with SNMP Used with the RMON portion of
the MIB tree on an SNMP
workstation to remotely monitor
the switch.
Secure Shell server Used to remotely manage the
chassis with a Secure Shell client.
58
SwitchBlade x3106 Installation Guide
Table 14. Features that Use the NET MGMT Port (Continued)
Feature Description
SNMPv1 and v2c Used to remotely manage the
chassis with SNMP.
SNTP client Used to set the date and time on
the controller card, from an NTP or
SNTP server on your network or
the Internet.
Syslog client Used to send the event messages
from the controller card to syslog
servers on your network for
storage.
TACACS+ client Used with a TACACS+ server on
your network for remote
management authentication.
Telnet server Used to remotely manage the
chassis with a Telnet client.
TFTP client Used with a TFTP server on your
network to download files to or
upload files from the controller
card.
TRACEROUTE Used to determine the
intermediate nodes (or hops) of
network paths.
The NET MGMT port has a standard RJ-45 8-pin connector and operates
at 10, 100, or 1000 Mbps in either half- or full-duplex mode. The cable
requirements for this port are the same as the ports on the ATSBx31GT24 Line Card, given in Table 1 on page 36. For the port pinouts,
refer to “Port Pinouts” on page 258.
The port uses Auto-Negotiation to set its speed. You may not disable AutoNegotiation. To avoid a speed or duplex mode mismatch, you should
connect the port only to a device that also uses Auto-Negotiation. If
connected to a network device that does not support Auto-Negotiation, it
defaults to 10 Mbps, half-duplex mode.
The wiring configuration of the NET MGMT port is set automatically with
automatic MDIX detection. You may not disable automatic MDIX
detection. For automatic MDIX detection to work successfully, the network
device you connect to the port must also support the feature. If it does not,
the NET MGMT port defaults to MDIX. This may require the use of a
crossover cable.
59
Chapter 1: Overview
Here are the guidelines to choosing straight-through or crossover cabling
for the port:
You may use a straight-through cable to connect the port to a
network device that operates at 1000 Mbps.
You may use a straight-through or crossover cable to connect the
port to a network device that supports automatic MDIX detection
and that operates at 10 or 100 Mbps.
You must use a straight-through cable to connect the port to a
network device that operates at 10 or 100 Mbps and has a fixed
wiring configuration of MDI.
You must use a crossover cable to connect the port to a network
device that operates at 10 or 100 Mbps and has a fixed wiring
configuration of MDIX.
NET MGMT
LED
Console (RS-232)
Port
The Network Management (NET MGMT) port on the AT-SBx31CFC
Central Fabric Controller card has one Status LED. The states of the LED
are described in Table 15.
Table 15. NET MGMT Port LED
LED State Description
Solid Green The port has a valid 1000 Mbps link.
Flashing
L/A
The Console Port is used to conduct local management sessions with the
switch. Local management sessions are established with a terminal or PC
with a terminal emulation program, and the management cable that comes
with the card.
Local management is referred to as out-of-band management because it
is not conducted over a network. Consequently, the AT-SBx31CFC
Central Fabric Controller card does not need an Internet Protocol (IP)
address for this type of management.
Green
Solid Amber The port has a valid 10 or 100 Mbps link.
Flashing
Amber
The port is transmitting or receiving data at
1000 Mbps.
The port is transmitting or receiving data at
10 or 100 Mbps.
60
Your initial management session with the switch must be a local
management session. For instructions on how to start a local
management session, refer to “Using Local Management to Verify the
Chassis” on page 198 or the Software Reference for SwitchBlade x3100
Series Switches.
SwitchBlade x3106 Installation Guide
Note
SD Card Slot The secure digital (SD) memory slot is used for these management
functions:
Store backup copies of the master configuration and database files
on the AT-SBx31CFC Central Fabric Controller card to an SD card
so that you can restore the current configuration or a previous
configuration, if needed.
Transfer master configuration files between controller cards in
different chassis that are to have similar configurations.
Transfer application load files between controller cards.
Store streaming log files.
An SD card is optional. The AT-SBx31CFC Central Fabric Controller card
can operate without a memory card.
The following SD flash memory cards are officially supported in this
release.
SanDisk 2GB Flash card
SanDisk 4GB SDHC Flash card
Other brands can be used but are not guaranteed to work.
For ordering information, contact your Allied Telesis sales representative
or visit our web site.
SD Status LED The SD Status LED on the AT-SBx31CFC Central Fabric Controller card is
described in Table 16 on page 62.
61
Chapter 1: Overview
Caution
Table 16. SD Status LED
LEDs State Description
Off The SD slot is empty, the SD card is
improperly installed, or the SD slot was
deactivated in the SwitchBlade x3106
Management Software.
SD
Solid Green The SD card is properly installed in the
slot and ready to transfer data.
Flashing Green The AT-SBx31CFC Central Fabric
Controller card is retrieving or storing data
on the SD card.
Flashing Amber The controller card is detecting a problem
with the SD card. The card may be
installed improperly in the slot or there
may be a problem with the card itself.
To avoid losing data, do not remove an SD card when the SD status
LED is flashing green. Use the DEACTIVATE MEDIA command in
the SwitchBlade x3106 Management Software to disable the SD
card slot and wait for the SD status LED to turn off before removing
an SD card.
USB Port The USB port is not supported at this time.
62
Power Supplies
SwitchBlade x3106 Installation Guide
There are three power supplies:
AT-SBxPWRSYS1 AC Power Supply: This module supports all the
hardware components in the chassis, except for the PoE feature
on the ports on the AT-SBx31GP24 Line Cards. A single power
supply can support a fully populated chassis, but you may install
two power supplies for power redundancy.
AT-SBxPWRSYS1 DC Power Supply: This module has the same
function as the AC version, but is intended for DC power
applications.
AT-SBxPWRPOE1 Power Supply: This module provides the PoE
power for the ports on the AT-SBx31GP24 PoE Line Cards. The
module provides 1200 watts of power for PoE. You may install two
PoE power supplies in the chassis, for a total of 2,400 watts of
power.
See Figure 4, “Power Supply Units” on page 21 for illustrations of the
power supplies.
Here are the power supply guidelines:
Power supply modules are not included with the chassis and must
be purchased separately.
The AT-SBxPWRSYS1 AC and DC Power Supplies are hot
swappable. If the chassis has two power supplies and one of them
fails, you do not have to power off the operational module to
replace the failed unit.
The AT-SBxPWRPOE1 AC Power Supply is also hot swappable.
The AT-SBxPWRSYS1 AC and DC Power Supplies are installed in
slots C and D on the front panel. If you are installing just one power
supply, you may install it in either slot. See Figure 4 on page 21.
AT-SBxPWRPOE1 Power Supplies are installed in slots A and B.
The total number of powered devices the chassis can support on
the ports on AT-SBx31GP24 PoE Line Cards depends on the
number of AT-SBxPWRPOE1 Power Supplies in the chassis and
the power requirements of the devices. For instance, a chassis can
support 40 ports of Class 4, PoE+ (IEEE 802.3at) powered devices
with one power supply or 80 ports with two power supplies. For
further information, refer to Table 4 on page 40.
63
Chapter 1: Overview
Note
Note
The AT-SBxPWRSYS1 DC Power Supply is not compatible with the
AT-SBxPWRSYS1 AC and AT-SBxPWRPOE1 AC Power Supplies.
Consequently, the chassis should not contain both AC and DC
power supplies. You may, however, operate the chassis for a short
period of time with AC and DC power supplies if you are converting
it from one type of power supply to another, such as from AC to DC.
This allows you to transition the chassis without having to power it
off.
Given that the AT-SBxPWRSYS1 DC Power Supply is not
compatible with the AT-SBxPWRPOE1 AC Power Supply, a chassis
that contains one or more AT-SBx31GP24 PoE Line Cards should
use the AT-SBxPWRSYS1 AC Power Supply, and not the DC
module, as the system power unit.
LEDs The LEDs on the AT-SBxPWRSYS1 Power Supply are described in
Table 17.
Table 17. LEDs on the AT-SBxPWRSYS1 AC Power Supply
LED State Description
Solid Green The power supply is receiving AC power that is
within the normal operating range.
AC
DC
Fault
Off The power supply is not receiving power from the
AC power source.
Solid Green The DC power that the module is providing to the
chassis components is within the normal
operating range.
Off The power supply is not generating DC power or
the power is outside the normal operating range.
Solid Amber The power supply has detected a fault condition,
such as an under-voltage, or over-temperature
condition.
Off The power supply is operating normally or is
powered off.
The LEDs on the AT-SBxPWRSYS1 DC Power Supply are described in
Table 18 on page 65.
64
SwitchBlade x3106 Installation Guide
Table 18. LEDs on the AT-SBxPWRSYS1 DC Power Supply
LED State Description
Solid Green The power supply is receiving DC power that is
DC
within the normal operating range.
IN
Off The power supply is not receiving power from the
DC power source.
Solid Green The DC power that the module is providing to the
DC
OUT
chassis components is within the normal
operating range.
Off The power supply is not generating DC power or
the power is outside the normal operating range.
Solid Amber The power supply has detected a fault condition,
such as an under-voltage or over-temperature
Fault
condition.
Off The power supply is operating normally or is
powered off.
The LEDs on the AT-SBxPWRPOE1 AC Power Supply are described in
Table 19.
Table 19. LEDs on the AT-SBxPWRPOE1 AC Power Supply
LED State Description
Solid Green The power supply is receiving AC power that is
within the normal operating range.
AC
Off The power supply is not receiving power from the
AC power source.
Solid Green The DC power provided by the module over the
backplane to the AT-SBx31GP24 PoE Line Cards
and the powered devices is within the normal
DC
operating range.
Off The power supply is not providing any DC power
or the power is not within the normal operating
range.
Fault
Solid Amber The power supply has detected a fault condition,
such as an under-voltage or over-temperature
condition.
Off The power supply is operating normally or is
powered off.
65
Chapter 1: Overview
Warning
AT-SBxFAN06 Module
The AT-SBxFAN06 Module is the cooling unit for the chassis. It is a fieldreplaceable assembly that is factory installed and shipped with the ATSBx3106 Chassis. See Figure 31.
The module is controlled by the AT-SBx31CFC Central Fabric Controller
card. The fan speeds are automatically adjusted according to the internal
operating temperature of the switch. The fans are at their lowest speed
when the ambient temperature coming into the fan is approximately 20° C.
The fan speeds increase to provide additional cooling as the ambient
temperature rises.
Figure 31. AT-SBxFAN06 Module
The AT-SBxFAN06 Fan Module has hazardous moving parts. Keep
fingers away from moving fan blades.
LED The POWER LED on the AT-SBxFAN06 Module is described in Table 20.
Table 20. AT-SBxFAN06 Module LED
LED State Description
Solid Green The AT-SBxFAN06 Module is receiving
Power
Off The AT-SBxFAN06 Module is not receiving
power.
power or has failed.
66
Power Supply Interfaces (Opto-couplers)
The chassis has two power supply interfaces, also referred to as optocouplers, in the lower right corner of the rear panel. The active master
controller card uses the interfaces to obtain status information from the
power supplies. The interfaces are shown in Figure 32. The controller card
uses the top interface to communicate with the power supplies in slots A
and C, and the bottom interface to communicate with the power supplies in
slots B and D.
SwitchBlade x3106 Installation Guide
Figure 32. Power Supply Interfaces (Opto-couplers)
The power supply interfaces are not hot swappable and can only be
serviced by an authorized service technician.
LED Each interface has one LED, labeled Power, described in Table 21.
Table 21. Power Supply Interface LED
LED State Description
Solid Green The interface is operating normally.
Power
Off Here are the possible conditions of this LED
state:
The corresponding power supply
slots of the interface are empty.
The power supplies in the power
supply slots are powered off or have
failed.
The power supplies in the power
supply slots are powered on and
functioning normally, but the power
supply interface has failed.
67
Chapter 1: Overview
Module Names in the Management Software
The line cards, controller card, and fan module are referred to in the
management software by the card types in Table 22.
Table 22. Card Types in the Management Software
Model Number Card Type
AT-SBx31GT24 GE24RJ
AT-SBx31GT40 GE40RJ
AT-SBx31GP24 GE24POE
AT-SBx31GS24 GE24SFP
AT-SBx31GC40 GE40CSFP
AT-SBx31XZ4 XE4
AT-SBx31XS6 XE6SFP
AT-SBx31CFC CFC200
AT-SBxFAN06 FM2
68
SwitchBlade x3106 Installation Guide
Note
Management Software Releases for the Hardware Components
Table 23 lists the management software releases for the hardware
components of the SwitchBlade x3106 product.
Table 23. Management Software Releases for the Hardware
Components
Model Number Initial Release
AT-SBx31GT24 17.0
AT-SBx31GT40 17.0
AT-SBx31GP24 17.0
AT-SBx31GS24 17.0
AT-SBx31GC40 17.0
AT-SBx31XZ4 17.0
AT-SBx31XS6 17.0
AT-SBx31CFC 17.0
AT-SBxPWRSYS1 AC 17.0
AT-SBxPWRPOE1 AC 17.0
AT-SBxPWRSYS1 DC 17.0
AT-SBxFAN06 17.0
Earlier versions of the management software do not work on the ATSBx3106 Chassis.
69
Chapter 1: Overview
70
Chapter 2
Safety Precautions and Site Preparation
This chapter contains the safety precautions and guidelines for selecting a
site for the chassis. The chapter contains the following sections:
“Reviewing Safety Precautions” on page 72
“Selecting a Site for the SwitchBlade x3106” on page 76
“Installation Tools and Material” on page 78
71
Chapter 2: Safety Precautions and Site Preparation
Note
Warning
Warning
Warning
Warning
Warning
Warning
Reviewing Safety Precautions
Please review the following safety precautions before you begin to install
the switch.
The indicates that a translation of the safety statement is
available for viewing in the “Translated Safety Statements”
document on our web site at
http://www.alliedtelesis.com/support.
Class 1 Laser product. L1
Do not stare into the laser beam. L2
To prevent electric shock, do not remove the cover. No userserviceable parts inside. This unit contains hazardous voltages and
should only be opened by a trained and qualified technician. To
avoid the possibility of electric shock, disconnect electric power to
the product before connecting or disconnecting the LAN cables.
E1
Do not work on equipment or cables during periods of lightning
activity. E2
Power cord is used as a disconnection device. To de-energize
equipment, disconnect the power cord. E3
72
Class I Equipment. This equipment must be earthed. The power
plug must be connected to a properly wired earth ground socket
outlet. An improperly wired socket outlet could place hazardous
voltages on accessible metal parts. E4
SwitchBlade x3106 Installation Guide
Note
Caution
Warning
Note
Warning
Caution
Caution
Pluggable Equipment. The socket outlet shall be installed near the
equipment and shall be easily accessible. E5
Air vents must not be blocked and must have free access to the
room ambient air for cooling. E6
Operating Temperature. This product is designed for a maximum
ambient temperature of 40° degrees C. E7
All Countries: Install product in accordance with local and National
Electrical Codes. E8
When installing this equipment, always ensure that the frame ground
connection is installed first and disconnected last. E11
Circuit Overloading: Consideration should be given to the
connection of the equipment to the supply circuit and the effect that
overloading of circuits might have on over current protection and
supply wiring. Appropriate consideration of equipment nameplate
ratings should be used when addressing this concern. E21
Risk of explosion if battery is replaced by an incorrect type. Replace
only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
Attention: Le remplacement de la batterie par une batterie de type
incorrect peut provoquer un danger d’explosion. La remplacer
uniquement par une batterie du même type ou de type équivalent
recommandée par le constructeur. Les batteries doivent être
éliminées conformément aux instructions du constructeur. E22
73
Chapter 2: Safety Precautions and Site Preparation
Warning
Warning
Warning
Warning
Warning
Note
Caution
Mounting of the equipment in the rack should be such that a
hazardous condition is not created due to uneven mechanical
loading. E25
The AT-SBxFAN06 Fan Module has hazardous moving parts. Keep
fingers away from moving fan blades.
Remove all metal jewelry, such as rings and watches, before
installing or removing a line card from a powered-on chassis.
E26
The chassis may be heavy and awkward to lift. Allied Telesis
recommends that you get assistance when mounting the chassis in
an equipment rack. E28
This unit might have more than one power cord. To reduce the risk
of electric shock, disconnect all power cords before servicing the
unit. E30
If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than
the room ambient temperature. Therefore, consideration should be
given to installing the equipment in an environment compatible with
the manufacturer’s maximum rated ambient temperature (Tmra).
E35
74
Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not
compromised. E36
SwitchBlade x3106 Installation Guide
Warning
Warning
Warning
Caution
Warning
Warning
Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than
direct connections to the branch circuits (e.g., use of power strips).
E37
To reduce the risk of electric shock, the PoE ports on this product
must not connect to cabling that is routed outside the building where
this device is located. E40
This product may have multiple AC power cords installed. To deenergize this equipment, disconnect all power cords from the device.
E43
An Energy Hazard exists inside this equipment. Do not insert hands
or tools into open chassis slots or sockets. E44
This equipment shall be installed in a Restricted Access location.
E45
High Leakage Current exists in this chassis. Connect external
ground wire before connecting AC power supply(s). E46
75
Chapter 2: Safety Precautions and Site Preparation
Selecting a Site for the SwitchBlade x3106
Please perform the following procedure to determine the suitability of the
site for the chassis:
1. If you are installing the chassis in an equipment rack, check that the
rack is safely secured so that it will not tip over. You should install
devices starting at the bottom of the rack, with the heavier devices
near the bottom.
2. If you are installing the chassis on a table, check that the table is level
and stable and that it can safely handle the weight of the device. A fully
loaded chassis can weight more than 30 kg (66.1 lb).
3. Verify that the power outlets for the chassis are located near the unit
and are easily accessible.
4. Verify that the power sources are on different A/C circuits to protect
the unit from a power circuit failure.
5. Verify that the site has dedicated power circuits or power conditioners
to supply reliable electrical power to the network devices.
6. Verify that the site allows for easy access to the ports on the front of
the chassis so that you can easily connect and disconnect the network
cables, as well as view the unit’s LEDs.
7. Verify that the site allows for adequate air flow around the unit and
through the cooling vents. The ventilation direction for the main section
of the chassis is from left to right (when facing the front of the chassis),
with the fan module drawing air out of the chassis. The power supplies
have fans that draw air from the front to the back.
8. Verify that the site has a reliable and earth (grounded) power supply
source, preferably dedicated and filtered.
9. Verify that the twisted pair cabling is not exposed to sources of
electrical noise, such as radio transmitters, broadband amplifiers,
power lines, electric motors, and fluorescent fixtures.
10. Verify that the site protects the chassis from moisture, water, and dust.
Here are other guidelines to consider:
76
Switch ports are suitable for intra-building connections, or where
non-exposed cabling is required.
Do not place objects on top of the chassis.
The power cords provided with the AT-SBxPWRSYS1 and AT-
SBxPWRPOE1 Power Supplies for some regions, including North
SwitchBlade x3106 Installation Guide
America, have 20 Amp, 125 V NEMA 5-20P plugs. The plug is only
compatible with a NEMA 5-20R receptacle. See Figure 33.
Figure 33. 100 - 125 VAC 125 V NEMA 5-20 Plug and Receptacle
77
Chapter 2: Safety Precautions and Site Preparation
Installation Tools and Material
Here is a list of tools and material you need to supply to install the product:
Here are the required items for installing the chassis in an equipment rack:
#2 Phillips-head screwdriver
Six equipment rack screws
Flat-head screwdriver
#2 Phillips-head 10 inch-lbs torque screwdriver (optional)
Here are the required items for installing the grounding wire:
#2 Phillips-head screwdriver
Crimping tool (not provided)
10 AWG stranded grounding wire
#2 Phillips-head 20 inch-lbs torque screwdriver (optional)
Here are the items for installing the AT-SBxPWRSYS1 DC Power Supply:
Two 8 AWG power wires
One 10 AWG stranded grounding wire
8 mm wrench
#1 Phillips-head screwdriver
#3 Phillips-head screwdriver
#3 Phillips-head 30 to 40 inch-lbs torque screwdriver (optional)
Here are the items for installing the AT-SBx31CFC Central Fabric
Controller card and Ethernet line cards:
#2 Phillips-head screwdriver
#2 Phillips-head, 5 inch-lbs torque screwdriver (optional)
78
Chapter 3
Installing the Chassis on a Table or in an Equipment Rack
This chapter describes how to install the AT-SBx3106 Chassis on a table
or in an equipment rack. This chapter contains the following sections:
“Unpacking the AT-SBx3106 Chassis” on page 80
“Installing the Chassis on a Table” on page 82
“Installing the Chassis in an Equipment Rack” on page 83
“Removing the Shipping Brace” on page 92
“Installing the Chassis Grounding Lug” on page 93
79
Chapter 3: Installing the Chassis on a Table or in an Equipment Rack
One AT-SBx3106 Chassis
One AT-SBxFAN06 Module preinstalled in the vertical slot on
the right side of the front panel
Four blank line card slot covers
Three blank power supply slot
covers pre-installed in power
supply slots A to C on the front
panel
One grounding lug pre-installed
on the left side on the back
panel
Unpacking the AT-SBx3106 Chassis
To unpack the AT-SBx3106 Chassis, perform the following procedure:
1. Remove all components from the shipping package.
2. Verify the contents of the shipping container by referring to Figure 34
here and Figure 35 on page 81. If any item is missing or damaged,
contact your Allied Telesis sales representative for assistance.
Figure 34. AT-SBx3106 Chassis Items
80
SwitchBlade x3106 Installation Guide
Two equipment rack brackets
pre-installed on the sides of the
chassis
One shipping brace pre-installed
diagonally across the line card
slots on the front panel
One wrist strap
Figure 35. AT-SBx3106 Chassis Items (Continued)
3. Do one of the following:
To install the unit on a table, go to “Installing the Chassis on a
Table” on page 82.
To install the unit in an equipment rack, go to “Installing the
Chassis in an Equipment Rack” on page 83
81
Chapter 3: Installing the Chassis on a Table or in an Equipment Rack
Note
Note
Warning
Warning
Installing the Chassis on a Table
This section contains the procedure for installing the chassis on a table.
The rubber feet on the bottom of the chassis should be left on for
table installation.
Do not remove the shipping brace from the front of the chassis until
after the unit is placed on the table. You might bend the chassis and
cause misalignment of the slots and card guides if you lift the
chassis without the shipping brace.
Do not stack chassis on top of one another on a table because that
could present a personal safety hazard if you need to move or
replace units.
This procedure requires a #2 Phillips-head screwdriver.
To install the chassis on a table, perform the following procedure:
1. Review the procedure in “Selecting a Site for the SwitchBlade x3106”
on page 76 to verify that the selected site is suitable for the unit.
2. Check to be sure that the table is strong enough to support the weight
of the chassis. A fully loaded chassis can weigh more than 30 kg (67.1
lb).
3. Lift the chassis onto the table.
The chassis may be heavy and awkward to lift. Allied Telesis
recommends that you get assistance when placing the chassis on
the table. E30
82
4. Using a #2 Phillips-head screwdriver, remove the rack mount brackets
from the sides of the chassis. The brackets are not required for table
installation. This step is optional.
After placing the chassis on the table, go to “Removing the Shipping
Brace” on page 92.
Installing the Chassis in an Equipment Rack
Warning
Caution
The following sections contain the procedures for installing the unit in an
equipment rack:
“Required Tools and Material” on page 83
“Preparing the Equipment Rack” on page 83
“Removing the Rubber Feet” on page 85
“Adjusting the Equipment Rack Brackets” on page 86
“Installing the Chassis in the Equipment Rack” on page 89
SwitchBlade x3106 Installation Guide
Required Tools
and Material
Preparing the
Equipment Rack
You need the following tools and material to install the product in an
equipment rack:
#2 Phillips-head screwdriver
Six equipment rack screws
Flat-head screwdriver
#2 Phillips-head 10 inch-lbs torque screwdriver (optional)
The chassis may be heavy and awkward to lift. Allied Telesis
recommends that you get assistance when mounting the chassis in
an equipment rack. E30
To prepare the equipment rack for the installation of the AT-SBx3106
Chassis, perform the following procedure:
The chassis is heavy and should be mounted as low as possible in
the equipment rack to maximize vertical stability.
1. Reserve 190.0 mm (7.5“) of vertical rack space for the installation of
the AT-SBx3106 Chassis, as shown in Figure 36 on page 84.
2. Do not mount any other equipment within 152.4 mm (6”) above this
space during installation. This additional vertical space is temporary
and allows you enough room to lift and tilt the chassis into its position
in the equipment rack without hitting other equipment, as shown in
Figure 42 on page 90. You may use this additional space for other
network equipment after the chassis is installed.
83
Chapter 3: Installing the Chassis on a Table or in an Equipment Rack
190.0 mm (7.5“)
152.4 mm (6”0)
342.4 mm (13.5”)
84
Figure 36. Reserving Vertical Rack Space
3. Identify the lowest 1/2” screw hole pattern on the rack mounting rails
within the space reserved for the AT-SBx3106 Chassis.
4. Install one rack mount screw in each vertical rail, at the same height in
the top screw hole of the lowest 1/2” hole pattern, as shown in Figure
37 on page 85. The screws are used to support the chassis while you
secure it to the rack. Do not fully tighten the screws at this time. The
screw heads should protrude from the rack approximately 6.4 mm (.25
in).
SwitchBlade x3106 Installation Guide
Warning
Note
6.4 mm (.25 in)
Screw head
Top screw hole of the lowest 1/2” hole pattern
away from rack
Removing the
Rubber Feet
Figure 37. Rack Mounting Hole Locations
5. After installing the two screws in the equipment rack, go to the next
procedure, ”Removing the Rubber Feet”.
The rubber feet on the bottom of the chassis are for tabletop installation
and should be removed when installing the chassis in an equipment rack.
To remove the rubber feet, perform the following procedure:
The chassis may be heavy and awkward to lift. Allied Telesis
recommends that you get assistance when lifting the chassis.
Do not remove the shipping brace from the front of the chassis until
after the unit is installed in the equipment rack. You might bend the
chassis and cause misalignment of the slots and card guides if you
lift the chassis without the shipping brace.
1. Place the unit upside down on a level, secure surface, as shown in
Figure 38 on page 86.
85
Chapter 3: Installing the Chassis on a Table or in an Equipment Rack
Figure 38. Turning the Chassis Upside Down
2. Using a flat-head screwdriver, pry the rubber feet from the bottom of
the chassis, as shown in Figure 39.
Adjusting the
Equipment Rack
Brackets
Figure 39. Removing the Rubber Feet
3. Turn the chassis over.
Go to the next procedure, ”Adjusting the Equipment Rack Brackets”.
You may change the positions of the two pre-installed equipment rack
brackets so that the front of the chassis is flush with, extends beyond, or is
recessed behind the front of the equipment rack. You may also install the
chassis so that the rear panel is flush with the front of the equipment rack.
The different bracket positions are listed in Table 24 on page 87 and
illustrated in Figure 40 on page 88 and Figure 41 on page 88. Please
review the following information before moving the brackets:
Position A, the default position, positions the chassis so that the
front of the unit is flush with the front of the equipment rack.
Position B recesses the front of the chassis by 27.39 mm (1.1 in).
Positions C to E extend the front of the chassis beyond the front of
the rack from 27.39 mm (1.1 in) to 140.85 mm (5.545 in).
86
SwitchBlade x3106 Installation Guide
Position F installs the chassis with the rear panel flush with the
front of the equipment rack.
To install the rack mount brackets in position “E,” you have to
remove the two chassis screws from the bottom-middle section of
the chassis and re-install them in front where the rack mount
bracket screws were originally, as shown in Figure 40 on page 88.
The dimension (X) between the front panel and the rack rails is
given for each rack mounting bracket position in Table 24.
Table 24. Front Panel to Rack Rail Dimensions
Figure # Front Panel Position
40 A
3.69 mm (0.145 in)
Dimension X
Front Panel to Rack Rail
(Factory Installed - Flush)
40 B
-27.39 mm (-1.078 in)
(Recessed)
40 C 27.39 mm (1.078 in)
40 D 47.71 mm (1.878 in)
40 E 140.85 mm (5.545 in)
41 F
374.16 mm (14.731 in)
(Reverse Position)
87
Chapter 3: Installing the Chassis on a Table or in an Equipment Rack
Factory Installed - Flush with Rack Rails
A
B
C
D E
“Dim X”
“Dim X”
“Dim X”
“Dim X”
Front panel facing
towards the rear
of the rack
F
After adjusting the brackets, go to “Installing the Chassis in the Equipment
Rack” on page 89.
88
Figure 40. Rack Mounting Bracket Locations
Figure 41. Rack Bracket Locations for Reverse Position of Chassis
SwitchBlade x3106 Installation Guide
Caution
Warning
Warning
Installing the
Chassis in the
Equipment Rack
The procedure in this section explains how to install the chassis in the
equipment rack. The procedure requires the following items:
#2 Phillips-head screwdriver
Four equipment rack screws
#2 Phillips-head 10 inch-lbs torque screwdriver (optional)
Do not remove the shipping brace from the front of the AT-SBx3106
Chassis until after the unit is securely mounted in the rack. The plate
prevents twisting of the chassis frame and mechanical misalignment
of the line card slots during shipping and installation.
The chassis may be heavy and awkward to lift. Allied Telesis
recommends that you get assistance when mounting the chassis in
an equipment rack. E30
Allied Telesis recommends having a minimum of three people lift
and secure the chassis in the equipment rack.
Before installing the chassis in the rack, review the following checklist:
Did you reserve sufficient space in the equipment rack for the
chassis and install two screws in the rack on which to rest the
chassis while securing it to the rack? If not, then perform
“Preparing the Equipment Rack” on page 83.
Did you adjust the brackets so that the front of the chassis is
positioned correctly for your installation? If not, then perform
“Adjusting the Equipment Rack Brackets” on page 86.
To install the AT-SBx3106 Chassis in the equipment rack, perform the
following procedure:
1. While facing the front of the chassis, tilt the top of the chassis toward
you, as shown in Figure 42 on page 90.
2. Lift the AT-SBx3106 Chassis into the equipment rack and set the
bottom of the equipment rack brackets firmly on the two equipment
rack screws installed in “Preparing the Equipment Rack” on page 83.
89
Chapter 3: Installing the Chassis on a Table or in an Equipment Rack
Screws
Screws
Figure 42. Lifting the AT-SBx3106 Chassis into the Equipment Rack
3. With the bottom of the rack mount ears resting on the two rack mount
screws, tilt the top of the chassis back until both rackmount brackets
are flush and parallel with the vertical rack rails.
4. Install four rack mount screws (not provided) to secure the chassis to
the equipment rack, as shown in Figure 43.
90
Figure 43. Installing the Rack Mount Screws
SwitchBlade x3106 Installation Guide
Screws
Screws
5. Tighten all six screws shown in Figure 44 to secure the chassis to the
equipment rack, Allied Telesis recommends tightening the screws to
10 inch-lbs.
Figure 44. Tightening the Rack Mount Screws
6. Go to “Removing the Shipping Brace” on page 92.
91
Chapter 3: Installing the Chassis on a Table or in an Equipment Rack
Shipping Brace Screws
Removing the Shipping Brace
Now that the chassis is installed on the table or in the equipment rack, you
may remove the shipping brace from the front of the unit. To remove the
shipping brace, remove the six mounting screws with a #2 Phillips-head
screwdriver (not provided). See Figure 45.
92
Figure 45. Removing the Shipping Brace
After removing the shipping plate, go to “Installing the Chassis Grounding
Lug” on page 93.
Installing the Chassis Grounding Lug
This procedure explains how to connect a ground wire to the chassis. The
chassis, line cards, and power supplies require a permanent connection to
a good earth ground. The procedure requires the following items:
Grounding lug (pre-installed on the rear panel of the chassis)
#2 Phillips-head screwdriver (not provided)
Crimping tool (not provided)
10 AWG stranded grounding wire (not provided)
#2 Phillips-head 20 inch-lbs torque screwdriver (optional — not
provided)
To connect the chassis to an earth ground, perform the following
procedure:
1. Prepare an adequate length of stranded grounding wire (10 AWG) for
the ground connection by stripping it as shown in Figure 46.
SwitchBlade x3106 Installation Guide
Figure 46. Stripping the Grounding Wire
2. Remove the two screws that secure the grounding lug to the rear panel
of the chassis, as shown in Figure 47.
Figure 47. Removing the Grounding Lug
93
Chapter 3: Installing the Chassis on a Table or in an Equipment Rack
3. Insert one end of the grounding wire into the grounding lug, as shown
in Figure 48, and use a crimping tool to secure the wire to the
grounding lug.
Figure 48. Attaching the Grounding Wire to the Grounding Lug
4. Install the grounding lug on the chassis, as shown in Figure 49. Allied
Telesis recommends tightening the screws to 20 inch-lbs.
94
Figure 49. Installing the Grounding Lug and Wire
5. Connect the other end of the grounding wire to the building protective
earth.
6. Go to Chapter 4, “Installing the Power Supplies” on page 95.
Chapter 4
Installing the Power Supplies
This chapter explains how to install the power supplies. It has the following
sections:
“Protecting Against Electrostatic Discharge (ESD)” on page 96
“Installing the AT-SBxPWRSYS1 AC System Power Supply” on
page 97
“Installing the AT-SBxPWRPOE1 AC Power Supply” on page 103
“Installing the AT-SBxPWRSYS1 DC Power Supply” on page 108
95
Chapter 4: Installing the Power Supplies
Caution
Protecting Against Electrostatic Discharge (ESD)
To protect the equipment from damage by Electrostatic Discharge (ESD)
during the installation procedure, observe proper ESD protection when
handling the SwitchBlade x3106 line cards and power supplies. You
should be properly grounded with a wrist or foot strap.
Electrostatic Discharge (ESD) can damage the components on the
SwitchBlade x3106 line cards and power supplies. Be sure to follow
proper ESD procedures during the installation.
To guard against ESD, perform this procedure:
1. Verify that the chassis is electrically connected to earth ground.
2. Connect the wrist strap that comes with the chassis to the ESD socket
below the AT-SBxFAN06 Fan Module, shown in Figure 50. This
ensures that ESD voltages safely flow to ground.
96
Figure 50. ESD Socket and Wrist Strap
3. When you put on the ESD-preventive wrist strap, be sure it makes
good contact with your skin.
SwitchBlade x3106 Installation Guide
Warning
Caution
Slot A
AT-SBxPWRPOE1
Power Supply
Slot B
AT-SBxPWRPOE1
Power Supply
Slot C
AT-SBxPWRSYS1
Power Supply
Slot D
AT-SBxPWRSYS1
Power Supply
Installing the AT-SBxPWRSYS1 AC System Power Supply
For background information on the AT-SBxPWRSYS1 AC Power Supply,
refer to “Power Supplies” on page 63. The chassis must have at least one
AT-SBxPWRSYS1 AC or DC Power Supply.
The electronic components in the AT-SBxPWRSYS1 AC Power
Supply can be damaged by electro-static discharges (ESD). Follow
the procedure in “Protecting Against Electrostatic Discharge (ESD)”
on page 96 to guard against ESD damage when unpacking and
installing the power supply.
To install the AT-SBxPWRSYS1 AC Power Supply, perform the following
procedure:
1. Choose a slot for the AT-SBxPWRSYS1 AC Power Supply in the
chassis.
You may install it in either slot C and D, shown in Figure 51. The first
AT-SBxPWRSYS1 AC Power Supply should be installed in slot D,
because the slot does not have a blank power supply panel.
The AT-SBxPWRSYS1 AC Power Supply will not work in slot A or B.
Figure 51. Power Supply Slots
2. If the chassis already has a power supply in slot D, remove the blank
power supply panel from slot C by lifting the blank panel handle and
sliding it out of the slot, as shown in Figure 52 on page 98.
97
Chapter 4: Installing the Power Supplies
Figure 52. Removing the Blank Slot Cover from Power Supply Slot C
3. Remove the new AT-SBxPWRSYS1 AC Power Supply from the
shipping package and verify the package contents, listed in Figure 53
on page 99.
If any item is missing or damaged, contact your Allied Telesis sales
representative for assistance.
98
SwitchBlade x3106 Installation Guide
Note
Note
One AT-SBxPWRSYS1 AC
Power Supply Module
One regional AC power cord
One tie wrap
Figure 53. Items Included with the AT-SBxPWRSYS1 Power Supply
Module
Store the packaging material in a safe location. You must use the
original shipping material if you need to return the unit to Allied
Telesis.
The tie wrap is used to secure the power cord to the chassis, as
explained in “Powering On the AT-SBxPWRSYS1 AC Power
Supply” on page 161.
4. Check the power supply for its model name, shown in Figure 54 on
page 100, to verify the module.
If you received the AT-SBxPWRPOE1 PoE Power Supply instead, do
not continue with this procedure. Instead, perform “Installing the ATSBxPWRPOE1 AC Power Supply” on page 103.
99
Chapter 4: Installing the Power Supplies
Figure 54. Verifying the AT-SBxPWRSYS1 AC Power Supply
5. Move the locking handle on the AT-SBxPWRSYS1 AC Power Supply
to the unlocked or up position. See Figure 55.
Figure 55. Raising the Handle on the AT-SBxPWRSYS1 AC Power
Supply
6. Align and insert the AT-SBxPWRSYS1 AC Power Supply into the
power supply slot. Figure 56 on page 101 shows the power supply
being installed in slot D.
100
