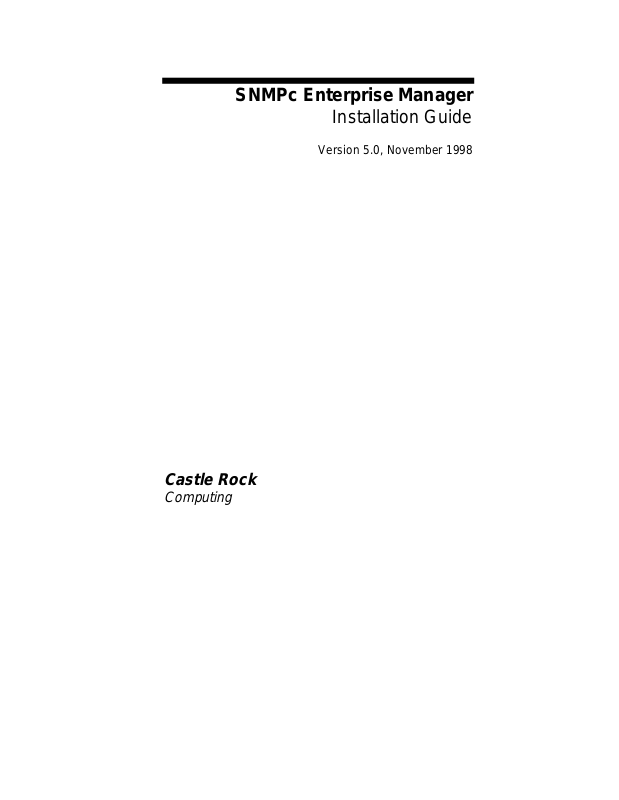

Allied Telesis SNMPc User Manual

SNMPc Enterprise Manager
Installation Guide
Version 5.0, November 1998
Castle Rock
Computing
Castle Rock Computin g 12930 Saratoga Ave Saratoga, CA 95070 USA
Phone: 408-366-6540 Fax: 408-252-2370 Email: support@castlerock.com WEB: www.castlerock.com
The information in this document is subject to change without notice and should not be construed as a commitment by Castle Rock Computing. Castle Rock Computing as sumes no liability for any errors that may appear in this document.
The software described in this document is furnished under a license and may be used or copied only in accordance with the terms of such license. It is against the law to copy the software on any medium except as specifically allowed in the license. Copyright © 1989-1998 by Castle Rock Computing. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the express written consent of Castle Rock Computing.
SNMPc, SNMPc WorkGroup and SNMPc Enterprise are trademarks of Castle Rock Computin g. IBM, IBM PC, and IBM AT are registered trademarks of International Business Machines Corpor ation. Ethernet is a trademark of Xerox Corporation. Microsoft, MS-DOS, Microsoft Excel, Windows, Windows 95, and Windows NT are registered trademarks of Microsoft Corporation. UNIX is a trademark of AT&T. Apple and Macintosh are registered trademarks of Apple Computer, Inc. Sniffer is a trademark of Network General Corp. OpenView is a trademark of Hewlett Packard Corp. Notify!Connect is a trademark of ExMachina Corporation.
Printed in the United States of America
Contents
CONTENTS .................................................................................................I
OVERVIEW................................................................................................ 1
GETTING STARTED................................................................................3
YSTEM REQUIREMENTS
S
NSTALLING NOTIFY!CONNECT
I
NSTALL ING A BASIC SYSTEM
I
SING A BASIC SYSTEM
U
............................................................................3
.................................................................3
....................................................................4
............................................................................5
Login to the Server................................................................................5
Console Control Windows....................................................................5
Common Map Commands..................................................................... 6
Common MIB Commands.....................................................................7
Enhancing the Discovery Process.........................................................7
IGRATING FROM
M
SNMPC 4.0..................................................................8
CREATING A DISTRIBUTED SYSTEM ............................................... 9
NSTALLING
I
NSTALLING
I
SING A DISTRIBUTED SYSTEM
U
IEWING TREND REPORTS WITH A
V
NTERCONNECTING MULTIPLE SERVERS
I
EMOTE CONSOLE
A R
EMOTE POLLER
A R
.............................................................9
..............................................................10
...............................................................11
WEB B
ROWSER
................................12
..................................................13
CCESSING FROM APPLE AND
A
UNIX
SYSTEMS
.......................................13
GETTING SUPPORT..............................................................................15
i
Overview
SNMPc 5.0 Enterprise is a general-purpose Distributed Network Manager offering the following major benefits over a standalone product:
• By using polling and ser ver co mponents that run on multiple
computers, SNMPc 5.0 Enterprise can be scaled to manage very large networks.
• By using multiple remote login consoles, SNMPc 5.0 Enterprise
encourages sharing of management information by many people.
• SNMPc 5.0 Enterprise is cost-effective because a collection of SNMPc
5.0 Enterprise components costs much less than an equivalent number of standalone ma nagers.
SNMPc 5.0 Enterprise uses the popular SNMP management protocol to poll and configure devices, workstations and serves over IP or IPX networks. Along with all the features you expect in any SNMP management station, SNMPc 5.0 Enterprise also includes the following advanced features:
• Scaleable to 25,000 managed devices.
• Custom MIB Tables with Derived MIB Expressions.
• Long term statistics polling.
• Scheduled WEB and Printed Trend Reports
• Automatic statistic baselines and threshold alarms.
• GUI Device support for dozens of vendors.
• Event forward i ng email/pager notifications.
• Full RMON-I user interface application.
SNMPc 5.0 Enterprise also includes a simple DLL based programming interface that you can use to develop vendor-specific applications.
Use this installation booklet to help you install SNMPc 5.0 Enterprise and use some of its basic features. For more comprehensive information on SNMPc 5.0 Enterprise, please refer to the online Help.
1
Getting Started
System Requirements
Before installing any SNMPc 5.0 Enterprise components you must verify that the following hardware and software components are installed and properly configured:
• IBM PC/AT compatible Pentium Pro 166MHz with 64MB memory.
• At least 100MB free hard disk space.
• CD-ROM Disk Drive.
• Minimum 800X600 Color Adapter and Monitor
• Mouse.
• Microsoft Windows NT 4.0 or greater for Basic System/Poller
• Microsoft Windows 95, 98, or NT40 for Remote Console
• Microsoft TCP/IP Transport Protocol.
• Microsoft WinSock2.
• Internet Explorer Version 4.0
• Dial-up or LAN network interface.
In addition, you must make sure that the following software is not running on your computer:
• Any SNMP network manage ment software (e.g., HP OpenView,
SNMPc 4.0). Agent software is OK.
• Any software that receives SNMP traps on the SNMP UDP Trap Port.
For example, the Microsoft SNMP Agent Service can be configured to receive SNMP Traps.
Installing Notify!Connect
SNMPc 5.0 Enterprise includes a copy of Notify!Connect from ExMachina Corporation. SNMPc 5.0 Enterprise can use Notify!Connect to send a message to your pager when an important event occurs. If you plan to use this feature then you should install Noti fy!Connect before installing SNMPc
5.0 Enterprise.
3
Installing a Basic System
In a Basic System configuration, all SNMPc 5.0 Enterprise components (poller, server, and console) run on the same workstation. This section describes how to install a Basic System. After you have completed t he basic system installation, refer to Creating a Distributed System for instructions on extending your system to include remote polling agents and remote consoles.
Perform the following steps to install a Basic System:
• Place the SNMPc 5.0 Enterprise CD-ROM in the CD-ROM drive.
• From the Windows NT Start menu, select Run and enter d:\setup.exe
(replace d with the drive letter for your CD-ROM drive). Press OK.
• Several following dialog screens will prompt you for your name, your
organization name, a software license number, and an installation directory. The software license number is printed on your Basic System license card.
• A dialog will prompt you for a Discovery Seed and Community Name.
Enter the IP address and community name for any SNMP device (usually the d efault gateway) on your network.
The setup program will proceed to install the SNMPc 5.0 Enterprise Basic System on your system. After it is complete you should logo ff from Windows NT and then logon again. The server and polling agents will be started automatically. Please refer to Using a Basic System for instructions on using SNMPc 5.0 Enterprise.
4
Using a Basic System
After installing a Basic System, the SNMPc 5.0 Enterprise server and polling agents will start automatically when you log on to Windows NT. Your network will be automatically discovered and added to the server map. SNMP and IP devices will be polled using IP Ping polling and device status will be added to the map and event log file.
Login to the Server
Locate the SNMPc 5.0 Enterprise icon in the Windows NT Task Bar and click on it to bring the SNMPc 5.0 Enterprise server to the foreground. Use the SNMPc 5.0 Enterprise File/Login command to logi n to the server. Press the OK button at the displayed login dialog.
At this point you should see some of your network devices displayed on the top-level submap view window. Most probably, the router and top-level icons will be shown in green, indicating t hat they are responding properly.
Console Control Windows
SNMPc 5.0 Enterprise includes a Selection Tool window for selecting objects from one of several databases. The selection tool is a tabbed dialog box that occupies the left side of the main frame window. The selection tool has five tabs, as described in the following table:
Selection Tab Description
Map Database Map object database, including devices, submaps,
links and networks.
MIB Database Compile SNMP MIBs, Custom Tables and
Custom MIB Expressions.
Trend Reports Report profiles that define long term polling
procedures and scheduled reports.
Event Action Filters Event filters used to determine what happens
when an event is received.
Custom Menus Custom menus that appear in the Manage, Tools,
and Help SNMPc 5.0 Enterprise menus.
After selecting an object in one of the selection trees, you can perform actions on that object using SNMPc 5.0 Enterprise frame menus or using a right-click popup menu.
5
SNMPc 5.0 Enterprise includes an Event Log Tool window for viewi n g several filtered instances of the Event Log database. This is a tabbed dialog box that occupies the lower portion of the frame window. Current events are shown in the first tab of this tool window.
The SNMPc 5.0 Enterprise MDI frame occupies the remainder of the console. This frame is used to show submap views, MIB Tables and MIB Graphs.
Common Map Commands
• Double-click on a submap name in the Map Selection Tree to show an
MDI submap view for that submap.
• Use the right mouse button instead of scroll bars to drag the submap
view.
• Use the View/ShowAll button to make all submap view objects visible.
Use the 1:1 button to return to normal mode.
• Use the View/Pan-Zoom button to zoom into a selected rectangle. Use
the mouse to select the zoom region. Keep selecting rectangles until you are at the desired zoom level. Use the back-arrow and forward- arrow to go back and forth in the set of zoomed views. Use the Pan­Zoom button again to turn off the Pan-Zoom mode.
• Double-click on a device icon to run the hubview device GUI
application.
6
Common MIB Commands
• Select a MIB Table from the MIB Selection Tree. Select a device icon
from a submap view. Press the View/MIB Table button to show a MIB table for the device. Press the View/MIB Graph button to show a graph.
• Select the Trend Reports Selection Tree. Select a device icon from a
submap view. Use the Insert/trend Report to create a scheduled report. Enter a report name and press OK. A summary report will be exported to the default printer every day.
• Select a device icon from a submap view. Use the Tools/MIB
Browser menu to view and edit individual MIB variables for the
selected device.
• Use any of the Custom Menus in the Manage menu to view and modify
standard MIB tables for the selected device.
Enhancing the Discovery Process
Discovery tries to locate network devices using broadcast requests, and downloads Routing and ARP tables from any found SNMP devices. You can speed up this process and make it more reliable by using Starting Addresses, or Seeds. A seed address is normally the address of an accessible SNMP router. To add one or more seeds, use the Config/Discovery Agents menu and perform the following steps:
• Select the agent IP address from the Agents list box.
• Select the Seeds property page.
• Enter the IP or IPX address of the seed device (usually an accessible
SNMP router).
• Press the Add button to add the seed to the lis t of seeds.
• Repeat the above two steps for any more seed addresses.
When you are done adding seeds for all agents, press the OK button to save your changes. In most cases, discovery will soon locate more devices and add them to your network map.
7
Migrating from SNMPc 4.0
SNMPc 5.0 Enterprise is a completely new management product and does not share any of the underlying da tabase formats or mechanisms with the SNMPc 4.0 standalone manager. Therefore you can not upgrade directly from SNMPc 4.0 to SNMPc 5.0 Enterprise. In fact, the SNMPc 5.0 Enterprise installation will not allow you to install over an existing SNMPc
4.0 installation.
SNMPc 5.0 Enterprise does include an import mechanism for SNMPc 4.0 map files. This feature will import the map file but it will not i mport any History definitions, Event Action Filters, custom menus, custom MIB tables, or MIB source files. This feature also does not copy over any background bitmaps or icons that you may have added to the \snmpcnt\bitmaps directory.
Use the File/Import command to import an SNMPc 4.0 map.
If you have installed any vendor specific SNMPc 4.0 applications, please contact your vendor or Castle Rock Computing for up-to-date information about vendor support for SNMPc 5.0 Enterprise.
8
Creating a Distributed System
Installing A Remote Console
Once you have accustomed yourself to using SNMPc 5.0 Enterprise in a standalone configuration, t he fir st level of extension is to login from a remote workstation. You can login from any workstation that is running TCP/IP and is connected to your network in some way (e.g., over the Internet, leased line, LAN, etc.). However, the SNMPc 5.0 Enterprise console has fairly heavy bandwidth requirements and will not perform adequately on low-speed dial-up lines. We recommend that you only login remotely over LAN or T1 speed lines.
Perform the following steps to install an SNMPc 5.0 Enterprise console on a computer.
• Place the SNMPc 5.0 Enterprise CD-ROM in the CD-ROM drive.
• From the Windows Start menu, select Run and enter d:\setup.exe
(replace d with the drive letter for your CD-ROM drive). Press OK.
• Several following dialog screens will prompt you for your name, your
organization name, a software license number, and an installation directory. The software license number is printed on the Remote Console license card.
The setup program will proceed to install the SNMPc 5.0 Enterprise Remote Console on your system. Once the installation is complete you can login to a running SNMPc 5.0 Enterprise server. From the Windows Start menu, select the Programs/SNMPc 5.0/Login to Remote Server menu. Enter the IP Address of the server computer and press OK. You are now logged in to the server and can perform any console operations remotely.
9
Installing A Remote Poller
Remote Polling Agents are sold separately
You can add a remote Polling Agent to another computer on your net work. This computer could be on the same LAN or in another city. Unlike the Console computer, you can add a Polling Agent on the other side of a low­speed line because it does not have high bandwidth requirements.
Adding one or more remote Polling Agents solves the following problems:
• A polling agent on the other side of a slo w or expensive line can poll
devices inde pendently, notifying you only when a change occurs. This saves money and frees up the remote line for other uses.
• If you have many devices in your network, or if you want to poll many
devices for long-term statistics, your server computer may become overburdened and response times will decrease. Using a remote Polling Agent offloads the polling tasks from the server computer.
Perform the following steps to install an SNMPc 5.0 Enterprise Polling Agent:
• Place the SNMPc 5.0 Enterprise CD-ROM in the CD-ROM drive.
• From the Windows NT Start menu, select Run and enter d:\setup.exe
(replace d with the drive letter for your CD-ROM drive). Press OK.
• Several following dialog screens will prompt you for your name, your
organization name, a software license number, and an installation directory. The software license number is printed on the Remote Poller license card.
• A dialog will prompt you for a Discovery Seed and Community Name.
Enter the IP address and community name for any SNMP device (usually the d efault gateway) on your network.
• A dialog will prompt you for the IP address of the SNMPc 5.0
Enterprise Server workstation and the Remote Poller password. The password is initially blank.
10
The setup program will proceed to install the Polling Agent on your system. After the installation is complete, logoff from Windows NT and then logon again. T he Polling Agent will be started and it will automatically connect to the SNMPc 5.0 Enterprise server.
Using a Distributed System
There are two main differences in a distributed system:
1. You can login to the server from any workstation by using the Programs/SNMPc 5.0 Enterprise/Login to Remote Server command from the Windows NT Start menu. You must enter the Server IP Address at the login prompt.
2. You will need to reconfigure discovery for the origi nal (local) polling agent, and configure the new polling agent, so that each agent will discover and poll an independent subset of your network.
To set the discovery and polling domain for each agent, use the
Config/Discovery Pollers menu to edit polling agent pro perties. Select the Filters property page tab. For each agent, select the agent IP address from
the Agents list and perform the following steps:
• Press the Add button to add an IP or IPX addr ess filter.
• Enter an IP or IPX address pattern. A pattern contains numbers,
characters, and asterisk wild card characters.
• Select the IP radio button for an IP address, or select the IPX radio
button for an IPX address.
• Select the Include radio button to include ad dresses that match the pattern, or select the Exclude radio button to exclude addresses that match the pattern.
After you have entered the filters for each agent, select both agents and press the Reset Discovery button. This will cause both agents to d iscard their local data and discover their respectively assigned management domains. If some devices have already been added to the map, they will not be automatically reassigned to a different agent. You must either delete those devices or manually modify their Polling Agent attribute.
11
Viewing Trend Reports with a WEB Browser
To automatically export a Scheduled Trend Report to a WEB server, first use the Config/Trend Reports menu to set the WEB output directory. Enter the directory where you want the WEB reports to be placed in the Root WEB Directory edit box. This must be a path name that is accessible on the SNMPc 5.0 Enterprise server computer.
You can now create a router Interface Statistics Daily Trend Report, using the following steps:
• Select a discovered router device from the Map Selection Tree.
• Use the Insert/Trend Report menu to create a new Trend Report.
• Enter a name for the report in the Report Name edit box.
• Press the OK button to save the new Trend Report.
The new trend report will be polled every 10 minutes. All entries (instances) for the default Interface table will be saved. A Daily Summary report will be generated as a WEB page in the Root WEB directory specified in the Config/Trend Reports dialog.
To view the WEB report, wait one or more days to generate some reports. If you have a WEB server running on the SNMPc 5 .0 Enterprise server computer, run a WEB browser from any computer on your network and enter the following URL: \\ServerIpAddr\snmpcpro\reportframe.html. The daily reports will be displayed. You can also open the reportframe.html file directly by double clicking on it.
Trend Reports can also be configured to display graphs, charts, and distribution charts on an hourly, weekly or monthly basis. Reports can be exported to a printer or file and you can export only the most active device ports. Please refer to Creating Scheduled Trend Reports in the online Help documentation, to learn more about Trend Reports.
12
Interconnecting Multiple Servers
A distributed management configuration that allows communication between multiple server systems is sometimes called a Manager of Managers. In this scenario there are multiple management domains but each domain has management personnel who need to use a local server. These servers all report to one or more super-servers that incorporate topology for all management domains.
In this release of SNMPc 5.0 Enterprise, intercommunication between multiple servers is not supported. Server-to-server communication is under development will be available in the next major release (early 1999).
Accessing From Apple and UNIX systems
Although the SNMPc 5.0 Enterprise server can be accessed remotely from any Windows NT system, there is no general mechanism for accessing the server from non-Windows systems, such as Apple or UNIX systems. Recognizing that this is a significant customer requirement, we are currently developing a completely JAVA based platform-independent console application. This application is scheduled for release in 1999 and will replace the SNMPc 5.0 Enterprise console.
13
14
Getting Support
SNMPc 5.0 Enterprise includes free End User support for a period of 60 days after purchase. With End User Support, you can get help when installing or using SNMPc 5.0 Enterprise and you can download product updates from o ur WEB site. After 6 0 days, you may extend your End User support for an additional annual fee.
You can contact us using one of the following methods:
Telephone: 408-366-6540 Fax: 408-252-2670 Support Email: support@castlerock.com Sales Email: sales@castlerock.com WEB: www.castlerock.com
15
Loading...
