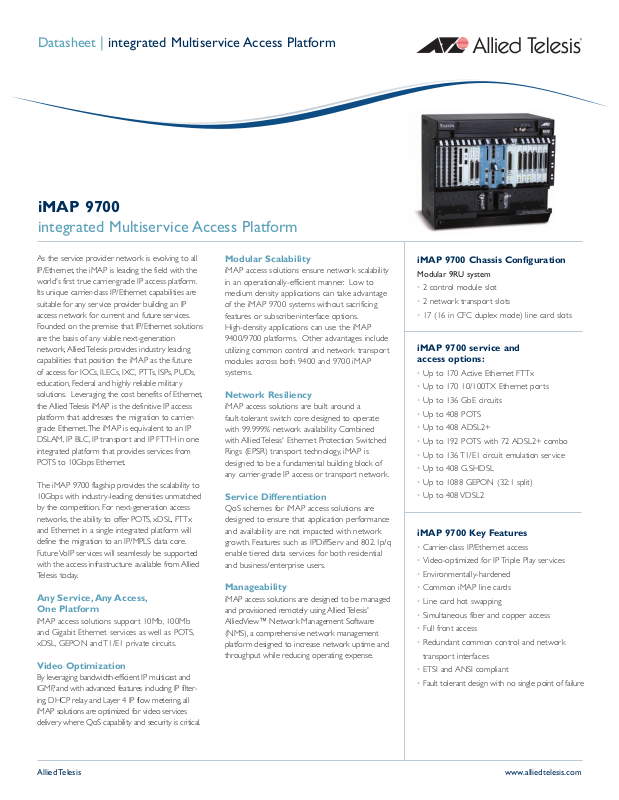

Datasheet | integrated Multiservice Access Platform

iMAP 9700

integrated Multiservice Access Platform

As the service provider network is evolving to all
IP/Ethernet, the iMAP is leading the field with the
world's first true carrier-grade IP access platform.
Its unique carrier-class IP/Ethernet capabilities are
suitable for any service provider building an IP
access network for current and future ser vices.
Founded on the premise that IP/Ethernet solutions
are the basis of any viable next-generation

k, Allied Telesis provides industry leading

or

netw
capabilities that position the iMAP as the future
of access for IOCs, ILECs, IXC, PTTs, ISPs, PUDs,
education, Federal and highly reliable military
solutions. Leveraging the cost benefits of Ethernet,
the Allied Telesis iMAP is the definitive IP access
platform that addresses the migration to carrier­grade Ethernet. The iMAP is equivalent to an IP
DSLAM, IP BLC, IP transpor
integrated platform that provides services from
POTS to 10Gbps Ethernet.

The iMAP 9700 flagship provides the scalability to
10Gbps with industry-leading densities unmatched

y the competition. For next-generation access

b
networks, the ability to offer POTS, xDSL, FTTx
and Ethernet in a single integrated platform will
define the migration to an IP/MPLS data core.
Future VoIP services will seamlessly be supported
with the access infr

elesis toda

T

y.

t and IP FTTH in one

astr

ucture available from Allied

Any Service, Any Access,
One Platf

iMAP access solutions support 10Mb, 100Mb
and Gigabit Ethernet services as well as POTS,
xDSL,

orm

GEPON and T1/E1 private circuits.

Video Optimization

By leveraging bandwidth-efficient IP multicast and
IGMP, and with advanced features including IP filter­ing, DHCP relay and Layer 4 IP flow metering, all
iMAP solutions are optimized for video services
delivery where QoS capability and security is critical.

Modular Scalability

iMAP access solutions ensure network scalability
in an oper
medium density applications can take advantage
of the iMAP 9700 systems without sacrificing
features or subscriber-interface options.
High-density applications can use the iMAP
9400/9700 platforms. Other advantages include
utilizing common control and network transpor t
modules across both 9400 and 9700 iMAP
systems.

ationally-efficient manner. Low to

Network Resiliency

iMAP access solutions are built around a
fault-tolerant switch core designed to operate
with 99.999% network availability. Combined
with Allied Telesis' Ethernet Protection Switched
Rings (EPSR) transport technology, iMAP is
designed to be a fundamental building block of

y carrier-grade IP access or transpor t network.

an

Service Differentiation

QoS schemes for iMAP access solutions are
designed to ensure that application performance

k

vailability are not impacted with netw

and a
growth. Features such as IPDiffServ and 802.1p/q
enable tiered data services for both residential

ise users.

and b

usiness/enter

pr

or

Manageability

iMAP access solutions are designed to be managed

elesis'

T

Allied

visioned remotel

and pro
AlliedView™ Network Management Software

a comprehensive network management

(NMS),

m designed to increase netw

or

platf
throughput while reducing operating expense.

y using

k uptime and

or

iMAP 9700 Chassis Configuration

Modular 9RU system

2 control module slot

•

• 2 network transpor t slots

• 17 (16 in CFC duplex mode) line card slots

iMAP 9700 service and
access options:

• Up to 170 Active Ethernet FTTx

• Up to 170 10/100TX Ethernet ports

• Up to 136 GbE circuits

• Up to 408 POTS

• Up to 408 ADSL2+

• Up to 192 POTS with 72 ADSL2+ combo

• Up to 136 T1/E1 circuit emulation service

• Up to 408 G.SHDSL

• Up to 1088 GEPON (32:1 split)

• Up to 408

VDSL2

iMAP 9700 Key Features

• Carrier-class IP/Ethernet access

• Video-optimized for IP Triple Play services

• Environmentally-hardened

• Common iMAP line cards

• Line card hot swapping

• Simultaneous fiber and copper access

• Full front access

• Redundant common control and network

transport interfaces

• ETSI and ANSI compliant

• Fault tolerant design with no single point of failure

Allied Telesis www.alliedtelesis.com

iMAP 9700 | integrated Multiservice Access Platform

Specifications:

Physical Characteristics

Dimensions: 44cm x 30cm x 40cm

17.4” x 11.9” x 15.75”

(W x D x H)
Weight: 31 lbs
Rack Unit: 9 Rack Unit
Access: Full Frontal Access

P

ower Characteristics

Dual -48v DC, -36v DC to -57.7v DC

C power kits available

A

Environmental Specifications

Operating Temp: -40C to 65C
Storage Temp: -40C to 85C
Relative Humidity: 5% to 95%, non-condensing

Regulatory Approvals

FCC Part 15 Class A/ANSI C63.4
EN 300 386 V1.3.1:2001-09/EN 55022:1998, Class A
VCCI Class A; ITE/ CISPR 22:1997 Class A
EN 300 386 V1.3.1:2001-09/EN 55022:1998, Class A
EN 300 386 V1.3.1:2001-09/EN 61000-4-3:1998
EN 300 386 V1.3.1:2001-09/EN 6100-4-6:1996
EN 300 386 V1.3.1:2001-09/EN 61000-4-4:1995
EN 300 386 V1.3.1:2001-09/EN 61000-4-5:1995
EN 300 386 V1.3.1:2001-09/EN 61000-4-2:1999
UL/cUL 60950: IEC60950
NEBS Level 3, GR-1089 Issue 3, GR63 Issue 2
USDA RUS

Standards and Compliance

IEEE 802.1d,w Rapid Spanning Tree
IEEE 802.1q MEV (Double Tagging)
IEEE 802.1p Traffic Class Expediting
IEEE 802.3ad Link Aggregation
IEEE 802.3ah Ethernet First Mile (EFM)
IETF RFC 1112 IP Multicasting/IGMP Snooping v1
IETF RFC 2236 IP Multicasting/IGMP Snooping v2
IETF RFC 3619 EAPS w/ATI Extensions for EPSR
IETF RFC 2131 DHCP
IETF RFC 1350 TFTP

iMAP 9700 Ordering Information

iMAP Chassis

Model Description Part #

i

MAP 9700

1

7-slot chassis with DC power without filler plates

A

T-TN-250G

iMAP Common Control

Model Description Part #

CFC24 24GbE switch controller card AT-TN-401

GE3 3x GbE WAN interface card AT-TN-301

CFC56 56 GbE switch controller card AT-TN-407

XE1 10 GbE WAN interface card AT-TN-308

iMAP Line Cards

Model Description Part #

ADSL24A 24-port ADSL line card (Annex A) AT-TN-121

ADSL24B 24-port ADSL line card (Annex B) AT-TN-124

CES8 8-port CES8 T1 line card AT-TN-119

FE10 10-port 10/100TX line card AT-TN-102

FTTX (MM) 10-port 100Mbps multimode fiber line card AT-TN-104

FTTX (SM, Dual Fiber) 10-port 100Mbps singlemode fiber line card AT-TN-107

FTTX (SM, Single Fiber) 10-port 100Mbps singlemode, single fiber line card AT-TN-109

GE8 8-port GbE line card AT-TN-117

GEPON2 2-port GEPON line card AT-TN-118

NTE8 8-port NxT1 MLPPP line card AT-TN-125

PAC24 24-port POTS ADSL combo line card (Annex A) AT-TN-123

POTS24 24-port POTS line card AT-TN-113

SHDSL24 24-port SHDSL line card AT-TN-127

VDSL24A 24-port VDSL2 line card (Annex A) AT-TN-130

VDSL24B 24-port VDSL2 line card (Annex B) AT-TN-128

ADSL48A 48-port ADSL2+ Annex A line card AT-TN-131

Annex B line card

ADSL48B 48-por

iller

F

Full size ser

ADSL2+

t

vice slot filler plate

-TN-132

T

A

-TN-M000

T

A

iMAP P

ower Options

Model Description Part #

AC Starter iMAP 9700 AC starter kit AT-TN-R113-xx*

Adder

AC

Where XX = 10 for U.S

*

Allied Telesis’ iMAP family of integrated
Multiservice Access Platforms

USA Headquarters | 19800 North Creek Parkway | Suite 200 | Bothell | WA 98011 | USA | T: [phone] | F: [phone]
European Headquarters | Via Motta 24 | 6830 Chiasso | Switzerland | T: +41 91 69769.00 | F: +41 91 69769.11
Asia-Pacific Headquarters | 11 Tai Seng Link | Singapore | 534182 | T: [phone] | F: [phone]

iMAP 9700

= 20 for no power cord
= 30 for U.K.
= 40 for
= 50 for Europe power cord

AC adder kit

er cord

w

po

.

er cord

w

po

Australia po

wer cord

T-TN-R114-xx

A

www.alliedtelesis.com

© 2006 Allied Telesis Inc.All r ights reserved. Information in this document is subject to change without notice. All company names, logos,and product designs that are tr ademarks or registered trademarks are the proper ty of their respective owner s. 617-0055400 Rev. G
