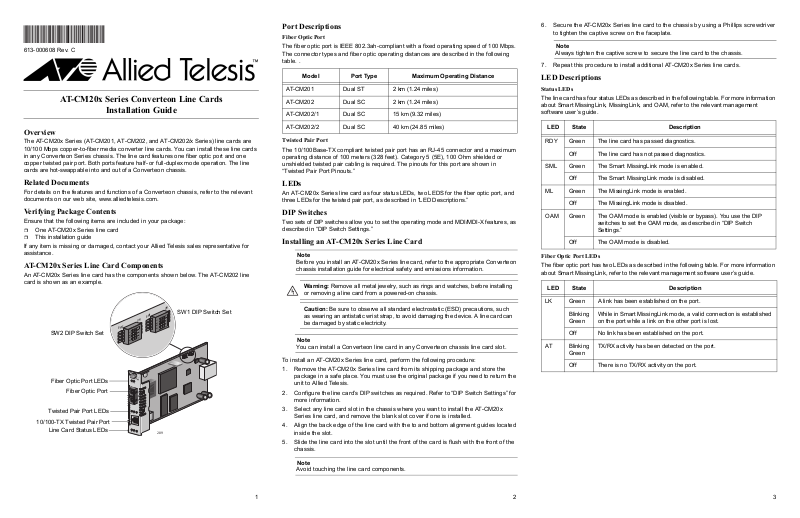

Page 1
613-000608 Rev C*
613-000608 Rev. C
AT-CM20x Series Converteon Line Cards
Installation Guide
Port Descriptions
Fiber Optic Port
The fiber optic port is IEEE 802.3ah-compliant with a fixed operating speed of 100 Mbps.
The connector types and fiber optic operating distances are described in the following
table. .
Model Port Type Maximum Operating Distance
AT-CM201 Dual ST 2 km (1.24 miles)
AT-CM202 Dual SC 2 km (1.24 miles)
AT-CM202/1 Dual SC 15 km (9.32 miles)
6. Secure the AT-CM20x Series line card to the chassis by using a Phillips screwdriver
to tighten the captive screw on the faceplate.
Note
Always tighten the captive screw to secure the line card to the chassis.
7. Repeat this procedure to install additional AT-CM20x Series line cards.
LED Descriptions
Status LEDs
The line card has four status LEDs as described in the following table. For more information
about Smart MissingLink, MissingLink, and OAM, refer to the relevant management
software user’s guide.
Overview
The AT-CM20x Series (AT-CM201, AT-CM202, and AT-CM202/x Series) line cards are
10/100 Mbps copper-to-fiber media converter line cards. You can install these line cards
in any Converteon Series chassis. The line card features one fiber optic port and one
copper twisted pair port. Both ports feature half- or full-duplex mode operation. The line
cards are hot-swappable into and out of a Converteon chassis.
Related Documents
For details on the features and functions of a Converteon chassis, refer to the relevant
documents on our web site, www.alliedtelesis.com.
Verifying Package Contents
Ensure that the following items are included in your package:
One AT-CM20x Series line card
This installation guide
If any item is missing or damaged, contact your Allied Telesis sales representative for
assistance.
AT-CM20x Series Line Card Components
An AT-CM20x Series line card has the components shown below. The AT-CM202 line
card is shown as an example.
ON
SW1 DIP Switch Set
1 2 3 4
1 2 3 4
SW2 DIP Switch Set
Fiber Optic Port LEDs
Fiber Optic Port
Twisted Pair Port LEDs
10/100-TX Twisted Pair Port
Line Card Status LEDs
SW2
1 2 3 4
A
T
-CM20
LK
A
LK
A
T
X
R
D
Y
SML
ML
T
T FD
O
SW1
1 2 3 4
ON
2
T
X
M
M
R
X
A
M
289
AT-CM202/2 Dual SC 40 km (24.85 miles)
Twisted Pair Port
The 10/100Base-TX compliant twisted pair port has an RJ-45 connector and a maximum
operating distance of 100 meters (328 feet). Category 5 (5E), 100 Ohm shielded or
unshielded twisted pair cabling is required. The pinouts for this port are shown in
“Twisted Pair Port Pinouts.”
LEDs
An AT-CM20x Series line card as four status LEDs, two LEDS for the fiber optic port, and
three LEDs for the twisted pair port, as described in “LED Descriptions.”
DIP Switches
Two sets of DIP switches allow you to set the operating mode and MDI/MDI-X features, as
described in “DIP Switch Settings.”
Installing an AT-CM20x Series Line Card
Note
Before you install an AT-CM20x Series line card, refer to the appropriate Converteon
chassis installation guide for electrical safety and emissions information.
Warning: Remove all metal jewelry, such as rings and watches, before installing
or removing a line card from a powered-on chassis.
Caution: Be sure to observe all standard electrostatic (ESD) precautions, such
as wearing an antistatic wrist strap, to avoid damaging the device. A line card can
be damaged by static electricity.
Note
You can install a Converteon line card in any Converteon chassis line card slot.
To install an AT-CM20x Series line card, perform the following procedure:
1. Remove the AT-CM20x Series line card from its shipping package and store the
package in a safe place. You must use the original package if you need to return the
unit to Allied Telesis.
2. Configure the line card’s DIP switches as required. Refer to “DIP Switch Settings” for
more information.
3. Select any line card slot in the chassis where you want to install the AT-CM20x
Series line card, and remove the blank slot cover if one is installed.
4. Align the back edge of the line card with the to and bottom alignment guides located
inside the slot.
5. Slide the line card into the slot until the front of the card is flush with the front of the
chassis.
LED State Description
RDY Green The line card has passed diagnostics.
Off The line card has not passed diagnostics.
SML Green The Smart MissingLink mode is enabled.
Off The Smart MissingLink mode is disabled.
ML Green The MissingLink mode is enabled.
Off The MissingLink mode is disabled.
OAM Green The OAM mode is enabled (visible or bypass). You use the DIP
switches to set the OAM mode, as described in “DIP Switch
Settings.”
Off The OAM mode is disabled.
Fiber Optic Port LEDs
The fiber optic port has two LEDs as described in the following table. For more information
about Smart MissingLink, refer to the relevant management software user’s guide.
LED State Description
LK Green A link has been established on the port.
Blinking
Green
While in Smart MissingLink mode, a valid connection is established
on the port while a link on the other port is lost.
Off No link has been established on the port.
AT Blinking
TX/RX activity has been detected on the port.
Green
Off There is no TX/RX activity on the port.
Note
Avoid touching the line card components.
1 2 3
Page 2
Twisted Pair Port LEDs
The twisted pair port has three LEDs as described in the following table. For more
information about Smart MissingLink, refer to the relevant management software user’s
guide.
LED State Description
LK Green A link has been established on the port.
Blinking
Green
While in Smart MissingLink mode, a valid connection is established
on the port while a link on the other port is lost.
Off No link has been established on the port.
AT Blinking
TX/RX activity has been detected on the port.
Green
Off There is no TX/RX activity on the port.
FD Green The port is operating in full-duplex mode.
Off The port is operating in half-duplex mode.
DIP Switch Settings
SW 1 DIP Switches
The DIP switches in the SW 1 DIP switch set described in the table below allow you to set
the operating mode of the line card. For information about the operating modes as well as
Smart MissingLink, MissingLink, and OAM, refer to the relevant management software
user’s guide.
Twisted Pair Port Pinouts
The pinouts for the RJ-45 twisted pair port are shown in the following illustration.
8
1
8
1
The following table lists the RJ-45 pin signals when a twisted pair port is operating in the
MDI or MDI-X mode.
MDI Mode MDI-X Mode
Pin Signal Pin Signal
1TX+1RX+
2TX-2RX-
3RX+3TX+
6RX-6TX-
Warranty Information
The AT-CM20x Series (AT-CM201, AT-CM202, and AT-CM202/x Series) line cards have a
limited warranty of five years. Go to www.alliedtelesis.com/warranty for the specific terms
and conditions of the warranty and for warranty registration.
Electrical Safety and Emissions Statements
This product meets the following standards when installed in compliant host equipment.
U.S. Federal Communications Commission
Radiated Energy
Note: This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with this instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Note: Modifications or changes not expressly approved of by the manufacturer or the FCC, can void
your right to operate this equipment.
Industry Canada
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Emissions FCC Class A, EN55022 Class A, VCCI Class A, C-TICK, CE
Warning: In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Immunity EN55024
Electrical Safety UL60950 (
), EN60950 (TUV), CSA22.2 No. 950
cULus
Operating Mode DIP 1 DIP 2 DIP 3 DIP 4
Smart MissingLink (SML) OFF ON ON X
MissingLink (ML) OFF OFF ON X
OAM Bypass ON OFF OFF X
OAM Visible ON ON OFF X
Link Test (default) OFF OFF OFF X
Manufacturing Default Settings OFF OFF OFF OFF
“X” means that the DIP switch position can be ON or OFF.
SW 2 DIP Switches
The DIP switches in the SW 2 DIP switch set described in the table below allow you to
configure the MDI/MDI-X feature on the twisted pair port.
Operating Mode DIP 1 DIP 2 DIP 3 DIP 4
Auto MDI-X Enabled (default) X OFF X X
Auto MDI-X Disabled X ON X X
Manufacturing Default Settings OFF OFF OFF OFF
Specifications
Physical, Environmental, and Electrical Ratings
Dimensions (H x W x L) (2.2 cm x 7.3 cm x 13.0 cm)
.855 in. x 2.89 in. x 5.1 in.
Weight 0.27 kg (0.60 lbs.)
Operating Temperature 0° C to 40° C (32° F to 104° F)
Storage Temperature -25° C to 70° C (-13° F to 158° F)
Operating Relative Humidity 5% to 90% (non-condensing)
Storage Relative Humidity 5% to 95% (non-condensing)
Operating Altitude Range Up to 3,048 m (10,000 feet)
MTBF (Telcordia SR332) 1,200,000 hours
Power Consumption 3.0 Watts
Optical Output Power (dBm)
Line Card Minimum Maximum Wavelength
AT-CM201, AT-CM202 -20 dBm -14 dBm 1310 nm
AT-CM202/1 -15 dBm -5 dBm 1310 nm
AT-CM202/2 -15 dBm 0 dBm 1310 nm
Receiver Power Sensitivity (dBm)
Line Card Minimum Maximum
“X” means that the DIP switch position can be ON or OFF.
AT-CM201, AT-CM202 -31 dBm -11 dBm
AT-CM202/1, AT-CM202/2 -34 dBm -3 dBm
