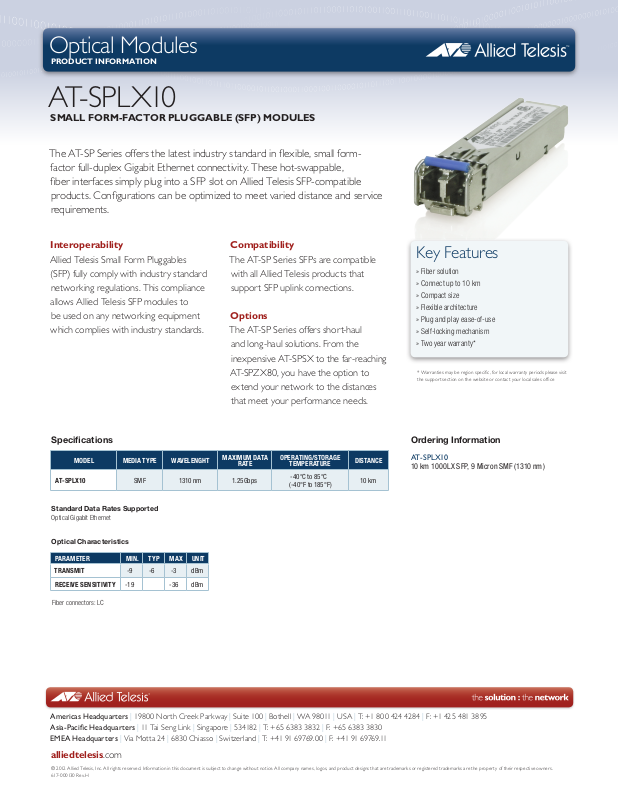

Allied AT-SPLX10 Product Data Sheet

Optical Modules

PRODUCT INFORMATION

AT-SPLX10

SMALL FORM-FACTOR PLUGGABLE (SFP) MODULES

The AT-SP Series offers the latest industry standard in exible, small form-

factor full-duplex Gigabit Ethernet connectivity. These hot-swappable,
ber interfaces simply plug into a SFP slot on Allied Telesis SFP-compatible
products. Congurations can be optimized to meet varied distance and service
requirements.

Interoperability

Allied Telesis Small Form Pluggables

(SFP) fully comply with industry standard
networking regulations. This compliance
allows Allied Telesis SFP modules to
be used on any networking equipment
which complies with industry standards.

Specifications

MODEL MEDIA TYPE WAVELENGHT

AT-sPLx10

Standard Data Rates Supported

Optical Gigabit Ethernet

SMF 1310 nm 1.25Gbps

Compatibility

The AT-SP Series SFPs are compatible

with all Allied Telesis products that
support SFP uplink connections.

Options

The AT-SP Series offers short-haul

and long-haul solutions. From the
inexpensive AT-SPSX to the far-reaching

AT-SPZX80, you have the option to

extend your network to the distances
that meet your performance needs.

MAxIMuM DATA

rATE

OPErATING/sTOrAGE

TEMPErATurE

-40°C to 85°C

(-40°F to 185°F)

DIsTANcE

10 km

Key Features

» Fiber solution

» Connect up to 10 km

» Compact size

» Flexible architecture

» Plug and play ease-of-use

» Self-locking mechanism

» Two year warranty*

* Warranties may be region spec ic, for local warra nty periods plea se visit
the suppor t section on the website or contac t your local sales ofce

Ordering Information

AT-SPLX10

10 km 1000LX SFP, 9 Micron SMF (1310 nm)

Optical Characteristics

PArAMETEr MIN. TYP MAx uNIT

TrANsMI T

rEcEIVE sENsIT IVITY

Fiber connectors: LC

Americas Headquarters | 19800 North Creek Parkway | Suite 100 | Bothell | WA 98011 | USA | T: [phone] | F: [phone]
Asia-Pacic Headquarters | 11 Tai Seng Link | Singapore | 534182 | T: [phone] | F: [phone]
EMEA Headquarters | Via Motta 24 | 6830 Chiasso | Switzerland | T: +41 91 69769.00 | F: +41 91 69769.11

-9 -6 -3 dBm

-19 -36 dBm
