Operating instructions
electronic timer
micro 20
Manual
Part No. D1056R1
Code: 249/00377/10
November 2008
Contents
1
Safety and Environmental Informations ...................................................... 4
Safety .......................................................................................................... 4
Environmental ..............................................................................................5
Explanation of Safety Messages .................................................................6
Important Safety Instructions ....................................................................... 7
Operator Safety ...........................................................................................9
2
Operating instructions ................................................................................ 12
Machine with start button ...........................................................................12
Machine with coin or token operation ........................................................20
3
Standard programs ......................................................................................26
4
Error messages ............................................................................................27
5
Contact Information .....................................................................................29
Nameplate ................................................................................................. 29
6
Repair and after-sales service .................................................................... 31
3
Contents
4
Safety and Environmental Informations
Safety
CAUTION LABELS
Please familiarize yourself with the following standard warning symbols. They are
used throughout this manual and on the equipment to alert you to possible hazards.
Anyone operating or servicing this equipment must understand these symbols and
must follow all safety rules in this manual.
ELECTRICAL HAZARD
This symbol alerts you to the presence of a dangerous voltage, which could cause a
serious shock resulting in personal injury or death.
CONSULT MANUAL
This symbol warns you to consult the manual for important instructions concerning
the machine and possible hazards.
MOVING PARTS HAZARD
This symbol alerts you to the presence of possible dangerous moving parts within the
machine. Guards should always be in place when the machine is in operation.
Be very careful when servicing the drive system.
1
PINCHING HAZARD
This warning symbol indicates the presence of a pinch point on the machine. This is
a place where your hand might be pinched or crushed, resulting in a severe injury.
Make sure you understand these hazards and keep all body parts clear of them.
HOT SURFACE HAZARD
This symbol indicates the presence of a potentially hot surface. Some machine
surfaces and parts may become extremely hot during normal operation and should
not be touched.
ATTENTION
This symbol identies information about practices or circumstances that can lead to
personal injury or death, property damage, or economic loss.
5
Environmental
Disposal of Unit
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The recycling of
materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local
distributor resources.
1
6
Explanation of Safety Messages
Throughout this manual and on machine decals, you will nd precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specic instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and those maintaining the machine.
DANGER
Indicates an imminently hazardous situation that, if not
avoided, will cause severe personal injury or death.
WARNING
Indicates a hazardous situation that, if not avoided, could
cause severe personal injury or death.
CAUTION
Indicates a hazardous situation that, if not avoided, may
cause minor or moderate personal injury or property
damage.
1
Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specic instructions.
IMPORTANT: The word “IMPORTANT” is used to inform the reader of specic procedures where
minor machine damage will occur if the procedure is not followed.
NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing
information that is important but not hazard related.
7
Important Safety Instructions
WARNING
To reduce the risk of re, electric shock, serious injury or
death to persons when using your washer, follow these
basic precautions:
Read all instructions before using the washer.1.
Refer to the GROUNDING INSTRUCTIONS in the installation Manual for the proper grounding of the 2.
washer.
Do not wash textiles that have been previously cleaned, washed, soaked, or spotted with gasoline, 3.
dry-cleaning solvents, or other ammable or explosive substances as they give off vapors that could
ignite or explode.
Do not add gasoline, dry-cleaning solvents, or other ammable or explosive substances to the wash 4.
water. These substances give off vapors that could ignite or explode.
Under certain conditions, hydrogen gas may be produced in a hot water system that has not been 5.
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been
used for such a period, before using a washing machine or combination washer-dryer, turn on all hot
water faucets and let the water ow from each for several minutes. This will release any accumulated
hydrogen gas. The gas is ammable, do not smoke or use an open ame during this time.
Do not allow children to play on or in the washer. This appliance is not intended for use by young 6.
children or inrm persons without supervision. Young children should be supervised to ensure that
they do not play with the appliance.
Before the washer is removed from service or discarded, remove the door to the washing 7.
compartment.
Do not reach into the washer if the wash drum is moving. This is an imminently hazardous situation 8.
that, if not avoided, will cause severe personal injury or death.
Do not install or store the washer where it will be exposed to water and/or weather.9.
Do not tamper with the controls.10.
Do not repair or replace any part of the washer, or attempt any servicing unless specically 11.
recommended in the user-maintenance instructions or in published user-repair instructions that the
user understands and has the skills to carry out.
To reduce the risk of an electric shock or re, DO NOT use an extension cord or an adapter to connect 12.
the washer to an electrical power source.
Use a washer only for its intended purpose, washing textiles.13.
ALWAYS disconnect the washer from the electrical supply before attempting any service. Disconnect 14.
the power cord by grasping the plug, not the cord.
Install the washer according to the INSTALLATION INSTRUCTIONS. All connections for water, drain, 15.
electrical power and grounding must comply with local codes and be made by licensed personnel
when required.
To reduce the risk of re, textiles which have traces of any ammable substances such as vegetable 16.
oil, cooking oil, machine oil, ammable chemicals, thinner, etc., or anything containing wax or
chemicals such as in mops and cleaning cloths, must not be put into the washer. These ammable
substances may cause the fabric to catch on re.
Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of 17.
the fabric softener or product.
Keep washer in good condition. Bumping or dropping the washer can damage safety features. If this 18.
occurs, have washer checked by a qualied service person.
Replace worn power cords and/or loose plugs.19.
Be sure water connections have a shut-off valve and that ll hose connections are tight. CLOSE the 20.
shut-off valves at the end of each wash day.
1
1
8
Loading door MUST BE CLOSED any time the washer is to ll, tumble, or spin. DO NOT bypass the 21.
loading door switch by permitting the washer to operate with the loading door open.
Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. 22.
Heed all warnings or precautions. To reduce the risk of poisoning or chemical burns, keep them out of
the reach of children at all times (preferably in a locked cabinet).
Always follow the fabric care instructions supplied by the textile manufacturer.23.
Never operate the washer with any guards and/or panels removed.24.
DO NOT operate the washer with missing or broken parts.25.
DO NOT bypass any safety devices.26.
Failure to install, maintain, and/or operate this washer according to the manufacturer’s instructions 27.
may result in conditions which can produce bodily injury and/or property damage.
It is recommended that the machine be installed by qualied technicians.28.
Before starting repairs or maintenance, shut off all power and water supplies.29.
To prevent re and explosion: 30.
Keep the area around the machine free from inammable or combustible products.
NOTE: The WARNINGS and IMPORTANT SAFETY INSTRUCTIONS appearing in this manual are not
meant to cover all possible conditions and situations that may occur. Common sense, caution, and
care must be exercised when installing, maintaining, or operating the washer.
Any problems or conditions not understood should be reported to the dealer, distributor, service agent, or
the manufacturer.
SAVE THESE INSTRUCTIONS
1
9
Operator Safety
WARNING
NEVER insert hands or objects into basket until it has
completely stopped. Doing so could result in serious
injury.
To ensure the safety of machine operators, the following maintenance checks must be performed daily:
1. Prior to operating the machine, verify that all warning signs are present and legible. Missing or illegible
signs must be replaced immediately. Make certain that spares are available.
2. Check door interlock before starting operation of the machine:
a. Attempt to start the machine with the door open. The machine should not start with the door open.
b. Close and lock the door and start a cycle. Attempt to open the door while the cycle is in progress.
The door should not open.
If the door lock and interlock are not functioning properly, call a service technician.
3. Do not attempt to operate the machine if any of the following conditions are present:
a. The door does not remain securely locked during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly grounded circuit.
Do not bypass any safety devices in the machine.
WARNING
Never operate the machine with a bypassed or disconnected balance system. Operating the machine with
severe out-of-balance loads could result in personal
injury and serious equipment damage.
SAVE THESE INSTRUCTIONS
1
10
11
12
Operating instructions
Machine with start button
2
Opening the door
Fill the drum
Close the door
Select program
I
Open the door.
Sort the linen according to the type and required temperature of the linen.
Empty all pockets of the garments so that no garments can be damaged and no
left articles can cause damage to the machine. Turn sleeves of shirts, blouses
inside out. It is recommended to mix small and large items to enhance the drop of
the linen during the wash cycle and hence improve the wash quality. Wash loads
of below 80% of machine capacity can obstruct the proper functioning of the
machine and can damage the machine. Overloading the machine can also lead
to a bad wash result.
Close the doorClose the door

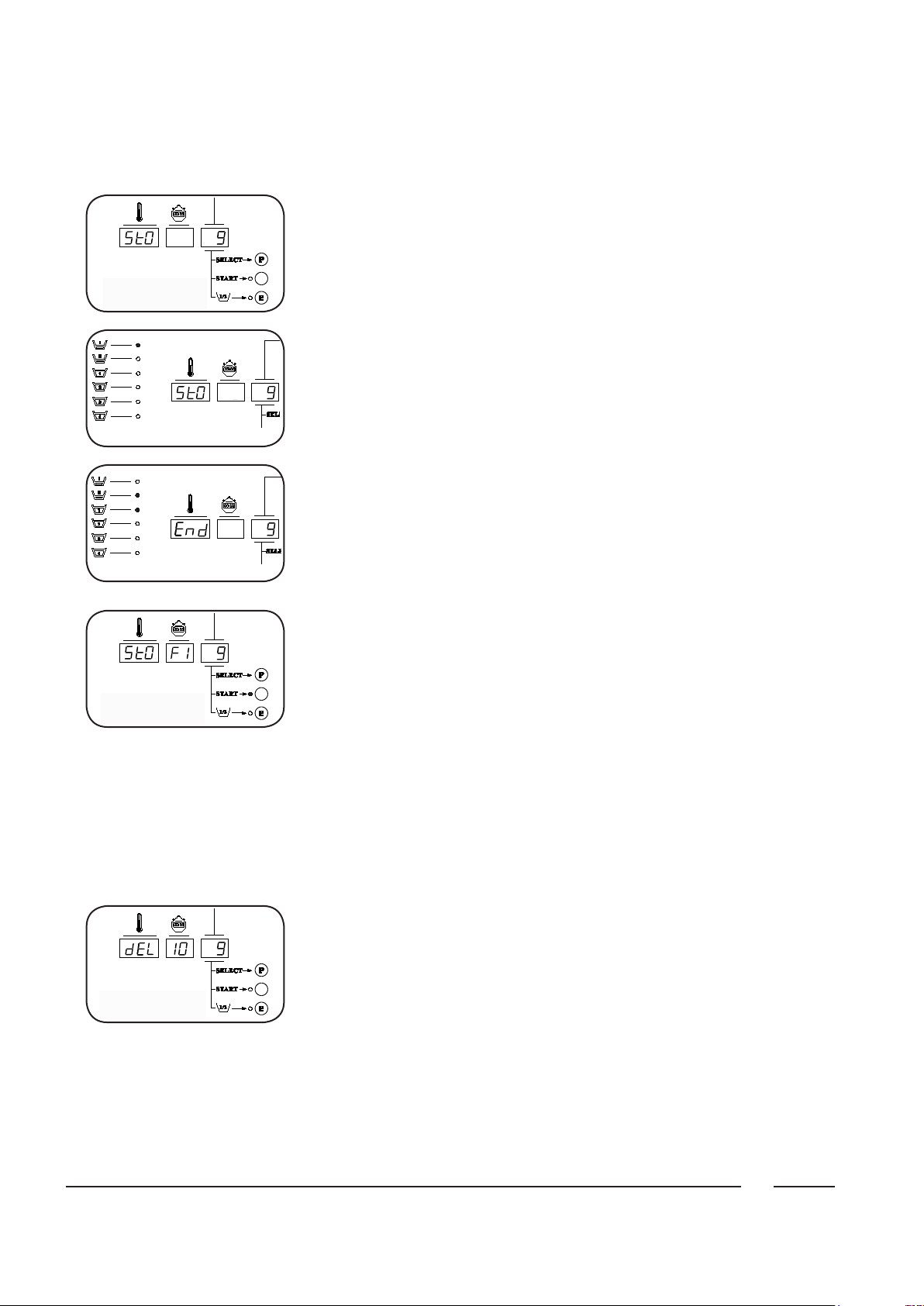

On machines with a start button, the programmer can contain up to 100 programs
(0-99). The program number is displayed on the right display.
By pressing the SELECT button (P), the next program will be displayed.
By pressing the ECO button (E), the previous program will be displayed.
By keeping this button pressed, this function will be accelerated.
Remark
Select program “0” by keeping the SELECT button pressed continuously for more
than 5 seconds.
Add detergent
Economy Wash
It is recommended to only use detergents with a “foam-breaker”. These are often
found in the launderette or laundry or can easily be found in retail stores.
Recommended doses are mentioned on the detergent packing.
Overdosing of detergents can lead to reduced wash results and “overfoaming”
which can damage the machine.
Left compartment A: Prewash (1st wash)
Central compartment B: Main wash (2nd wash)
Right compartment C: Final rinse (fabric softener)
Bottom compartment D: Direct access to tub
Moderately soiled linen can be washed using the Economy Wash function, which
reduces the water level of washes and rinses by 20%, allowing savings of water
and energy.
Press the ECO button during the wash cycle to activate the economy wash
I
function. The ECO LED will light up.
At the end of the program the ECO function will be automatically eliminated. If
the ECO function is required in the following wash cycle, as well, reactivate this
function by repeating the actions described above.
13
Start the machine
I
2
Start the wash-cycle by pressing the START button (I) and releasing it
immediately. The door is locked and the cycle LED lights up.
During the rst 2 minutes after starting, the program number is blinking and you
can change the program in case of a possible wrong selection.
To do so, select another program with the SELECT button (P). This new program
will start immediately.
Indications of program
sequence
Display information
The left display will indicate the temperature of the wash bath - in °C or °F (on machines where this function has been selected).
The central display shows the remaining time to the end of the wash cycle.
For programs which are being run for the rst time, the machine will take a
theoretical time estimate. If this time indication does not correspond to the real
cycle time, the cycle time will be corrected from the second cycle onwards
(Self-Teaching function of the machine).
This correction will have to be preprogrammed and is not activated on
program numbers higher than 20. The corrected time will also be lost when
the power has been cut from the machine for more than 24 hours.
The right display will continue to show the selected program number.
If a Level-stop was programmed (which halts the programmer during the lling
of the cylinder) and/or a Heat-stop (which stops the programmer during the
heating up of the wash bath, then the respective LEDs light up in the display.
Once the required water level and/or temperature has been reached, the LED is
turned off and the internal programmer advances again.
Wash cycle LEDs
Each program segment has a corresponding LED. Each of these 6 LEDs light up
when the appropriate segment is executed. This way, the program sequence can
be accurately followed.
When a LED blinks, the machine is taking up water.
When a LED blinks slowly, the machine is heating up the water.
Spin LEDs
When the water is drained at the end of a program segment and the machine
spins if so desired, the left spin LED (intermediate spin) will light up together with
the cycle LED.
- Functioning of the spin LEDs during intermediate spin:
Led drain/distribution low spin coast
Interm. spin blinking rapidly continuously continuously
- Functioning of the spin LEDs during gentle-intermediate spin:.
Led drain/distribution low spin coast
Interm. spin blinking rapidly blinking slowly blinking slowly
2
14
During nal spin, both the left spin LED (intermediate spin) will light up together
with the right spin LED (nal spin).
- Functioning of the spin LEDs during nal spin:
Led drain/distribution low spin high spin coast tumble
Interm. spin. blinking rapidly continuously blinking slowly continuously off
Final spin continuously continuously blinking slowly continuously blinking rapidly
- Functioning of the spin LEDs during gentle-nal spin:
Led drain/distribution low spin high spin coast tumble
Interm. spin blinking rapidly slowly ----- slowly off
Final spin continuously continuously ----- continuously rapidly
Manual interventions during
the program
Following functions can be activated during the program:
F1 = Time stop
To increase the duration of a program segment beyond its originally
programmed duration
F2 = Soak
To soak heavily soiled linen
F3 = Reduced wash action
To avoid wear of delicate garments
F4 = Execute high spin as low spin
To avoid creasing delicate linen
F5 = Rapid advance
To skip certain program segments
F6 = No spin
To give total protection to delicate garments
F7 = on the left display, the number of revolutions of the drum appears
F8 = changing the number of revolutions at nal spin. In order to limit the rpm for
delicate linen
Selecting a function
1. Push and hold the SELECT button (P).
2. Push and release the START button (I).
3. Then release the SELECT button (P).
I
The central display now shows F1 and this function is now active.
By pressing the SELECT button (P), the next function will appear on the central
display. And so on up to F8.
To return to normal operation, press the START button (I) and release.
A function is also terminated by selecting another function. Functions are also
automatically ended and switched off at the end of each program.
15
Description of the functions
I
I
2
Function F1 (Time stop)
During the wash cycle:
The wash time is stopped. The temperature, water level and wash action
remain the same as programmed.
During the wash cycle, this function remains active until the START button (I) is
pressed again.
During intermediate spin :
The intermediate spin normally lasts 1 minute.
By activating function F1, the machine will spin for nine minutes unless the
START button (I) is pressed earlier.
During nal spin :
At nal spin, you have high spin after low spin.
By activating F1 during low spin, this low spin will be extended to 15 minutes
unless the START button (I) is pressed earlier.
If the 15 minutes of low spin have been completed, the high spin is automatically
cancelled.
By activating F1 after the preprogrammed low spin, you will have a maximum of
14 minutes of high spin unless the START button (I) is pressed earlier.
Adjustable stop time :
Here you can program a certain stop time. The display shows the countdown of
this extra time. When this time has expired, the function will appear automatically
and the program will continue.
Select F1 (see above).
The stop time can be programmed by means of the ECO button (E). By pressing
it once, the stop time is programmed for 10 minutes. From now onwards, “F1” and
“10” appear alternately on the middle display.
By pressing the ECO button (E) once more, you add 10 minutes each time.
After 50 minutes, 1.0, 1.1, 1.2, etc... appear with a maximum of 4.0 hours.
By means of the START button (I), you can reduce 10 minutes each time.
Note
The programmed stop time is executed after the decimal point in the right
display has extinguished.
The stop time cannot be programmed during spin.
Function F2 (soak)
This function can only be chosen during prewash, main wash and rst rinse.
The cycle time is stopped. The bath is lled till high water level and heated up
to 40°C (if a higher temperature was programmed, this will be followed).
As long as this temperature is not reached, the machine makes a reduced wash
action (shorter action time and longer pause time). When the bath has reached
its temperature, the drum will make one left/right rotation every 4 minutes.
I
Should the temperature fall, the water will be heated again, during which the
action will be reduced again.
This function remains active until the START button (I) is pressed again.
Programmable soak time :
In the same way as for the stop time, you can program the soak time
(see programmable stop time).
2
16
Function F3 (reduced wash action):
By selecting F3, the wash action time and pause time will be reversed; unless
the wash action time was programmed to be shorter than the pause time.
Example: 12 sec. action/3 sec. pause becomes: 3 sec. action/12 sec. pause
6 sec. action/9 sec. pause remains: 6 sec. action/9 sec. pause
This function does not inuence the cycle time - the program continues normally
- and remains active until the START button (I) is pressed
Function F4 (execute high spin as low spin):
By activating this function, high spin will be automatically replaced by low
spin.
This function does not inuence the cycle time - the program continues normally
- and remains active until the START button (I) is pressed.
Function F5 (rapid advance):
This function is mostly used by technicians and maintenance staff. It allows to
skip some steps in the chosen program.
By pressing and releasing the ECO button (E), the program skips to the next
segment.
Important
If F5 is activated during nal spin, this segment of the program will be
I
skipped as described above. It is, however, followed by a coast and tumble
time to disentangle the linen. This special function prevents the user from
opening the machine while the drum is still rotating and represents an
important safety feature.
To return to normal operation, press the START button (I).
Function F6 (no spin):
This function eliminates all spin action.
Intermediate spin is replaced by a regular wash action. During nal spin, only the
programmed low spin time will be completed as regular wash action. High spin is
skipped in its entirety.
This function inuences the cycle time - the program continues normally - and
remains active until the START button (I) is pressed.
Function F7 (indication of the rpm)
By using F7, the number of revolutions of the drum (rpm) appears on the right
display.
Function F8 ( changing the number of revolutions (rpm) at nal spin)
By means of F8, the number of revolutions can be changed at high spin. The
programmed number of revolutions appears on the left display.
Each time you press the ECO button (E), the spin decreases with
25 rpm (min. 500).
Each time you press the START button (I), the spin increases with 25 rpm
(max. 999).
Note
This function has to be selected before nal spin has started.
2
17
End of a program
At the end of a program, while the door is being released, the left display shows
End; and the Start LED is switched off.
After that, only the right display will continue to show the program number.
This is the end of the program.
Premature ending of the program
By pressing the START button (I) during the program, the Start LED is switched
off and the water is drained from the machine. As long as the water has not
reached the safety level, the door will remain sealed and the display will show
“SLE” (Safety Level) on the left display. Afterwards the display will temporarily
show “End” on the same display and the Start LED will be switched off.
After that, only the right display will continue to show the program number.
This is the end of the program.
Important
If any attempt is made to interrupt the program prematurely during a spin
phase of the program, all functions on the display will be replaced
temporarily by blinking horizontal dashes. After that, only the right display
will continue to show the program number and the door will be released.
This is the end of the program.
2
18
Remarks
I
I
Freely programmable stop-function
Before starting a program, it is possible to preprogram a time stop in every
program segment. This function permits special additional functions like adding
bleach or extra detergent to the wash bath.
Programming:
1. After selecting the program, press the ECO button (E) and keep it depressed.
2. Now push the START button (I) simultaneously and release it again.
3. Only now release the ECO button (E).
The left display now shows “StO” (Stop) and the right display shows the program
number. The rst program sequence LED is switched on.
Conrm by pressing the START button (I) if a time stop is required in this phase
of the program. If no time stop is needed, press the ECO button (E) to move on to
the next segment of the program. Run through the entire program in this way.
If needed, return to previous segments by pressing the SELECT button (P).
Errors can be corrected by returning to the erroneously programmed time stop in
the segment and correcting by pressing the START button (I).
After the nal program segment, all programmed time stops will be displayed and
the left display will show “End”. Conrm this program by pressing the START
button (I) again. Now start the program.
Operation:
When a stop is reached during the run of the program, the time will be stopped.
The wash bath will be lled to the appropriate level and temperature and the
programmed wash action is executed.
The left display will alternately show temperature and “StO”, while the central
display is showing “F1”. Now, if so desired, additional detergents can be added.
When this has been done, press the START button (I) to continue the run of the
program. To remove any possible remains of corrosive products in the tub, the
machine will rinse additional 2 seconds.
Programmable automatic start
By using this function, a program can be started up to 99 hours later.
Programming:
1. After selecting the program, press the SELECT button (P) again and keep it
depressed.
2. Now push the START button (I) simultaneously and release it again.
3. Only now, release the SELECT button (P).
The left display now shows “DEL” (Delay). The central display shows “10”
(minutes). Every push on the SELECT button (P) will add 10 minutes to the
delayed start time. Hours and minutes are separated by a decimal point: 1.5
stands for 1 hour and 50 minutes. After 10, the counting is done by hours.
I
By pressing the ECO button (E), the delay time can be counted down.
Operation:
After having set the desired delay time, the countdown can be started by pressing
the START button (I). During the countdown, the displays blink and the
remaining time is counted down. In the last hour, the displays blink faster.
When the delay time has elapsed, the program is started automatically.
2
19
Linking 2 programs
It is possible to run 2 programs automatically in sequence. This can be handy to
perform very special functions (like waterproong outerwear) and add these to the
wash program.
Programming:
First, select the program that will be run at the end.
Now, press the START button (I) and keep it depressed for at least 5 seconds.
The left display now shows “Add”. Now, select the program that will be run rst.
I
The right display now shows both linked programs alternately: the program to be
run rst during the longer time span alternating with the following program
displayed during the shorter time span.
This function is cancelled by pressing the START button (I) again for at least 5
seconds.
This function can be combined with an economy wash, with the functions F1 to
F6 and with a programmed start. The freely programmable stop-function can,
however, only be executed during the rst program.
Operation:
Press the START button (I) to start the programs. The central display will show
the remaining time per program. The total time of both programs together is not
displayed.
The right display alternately shows the program in operation (during a longer
time span) and the second program to be executed (during the shorter time
span). After the rst program has been run, only the second program number will
be displayed.
Cool-down
This function allows for gradually lowering the temperature of the wash bath to
prevent creasing of the linen.
During a cool-down, the remaining program time on the central display will be
replaced by “cd”.
Power Failure
Should the power fall out during the program, the water will be drained and the
door can be opened after maximum 3 minutes. When the door remains locked,
and the power comes back up within 24 hours, the program will continue from
where it was at the time of the power failure.
If due to breakdown, the door is not unlocked automatically, you have to remove
the service panel (A) below and pull the ring (B), suspended on the left side, while
opening the door.
B
A
Before opening the door, check if all the water has been
drained from the tub and that the cylinder has come to a
complete stop.
Remote stop function
By means of this function, no cycles can be selected anymore during a certain
period of time (e.g. between 10 p.m. and 7 a.m.). This time is determined by an
external timer. As soon as the last cycle is nished,
“ OFF “ (blinking) appears on the left display as long as this function is activated.
CAUTION
20
Machine with coin or token operation
2
Opening the door
Fill the drum
Close the door
Select program
Add detergent
Open the door.
Sort the linen according to the type and required temperature of the linen.
Empty all pockets of the garments so that no garments can be damaged and no
left articles can cause damage to the machine. Turn sleeves of shirts, blouses
inside out. It is recommended to mix small and large items to enhance the drop of
the linen during the wash cycle and hence improve the wash quality. Wash loads
of below 80% of the machine capacity can obstruct the proper functioning of
the machine and can damage the machine. Overloading the machine can also
lead to a bad wash result.
Close the door
On machines with a coin or token meter, the programmer can contain up to 20
programs (0-19). The program number is displayed on the right display.
By pressing the SELECT button (P), the next program will be displayed.
It is recommended to only use detergents with a “foam-breaker”. These are often
found in the launderette or laundry or can easily be found in retail stores.
Recommended doses are mentioned on the detergent packing.
Overdosing of detergents can lead to reduced wash results and “overfoaming”,
which can damage the machine.
Start the machine
Left compartment A: Prewash (1st wash)
Central compartment B: Main wash (2nd wash)
Right compartment C: Final rinse (fabric softener)
Bottom compartment D: Direct access to tub
The price will be displayed on the left display. The display will count down every
time a coin is introduced into the coin meter. When the total price has been introduced into the machine, the display will be switched off and the machine will start.
During the rst 2 minutes after starting, the program number is blinking and you
can change the program in case of a possible wrong selection.
To do so, select another program with the SELECT button (P). The new program
will be started immediately.
If a more expensive program has been selected, the price difference with the
previous program will be displayed. The new program will only start after this
price difference has been introduced. If this has not been done within two minutes
after having selected the new program, the machine will switch back to the
original program and continue operating.
2
21
Indications of program
sequence
Display information
The left display will indicate the temperature of the wash bath - in °C or °F (on machines where this function has been selected).
The central display shows the remaining time to the end of the wash cycle.
For programs which are being run for the rst time, the machine will take a
theoretical time estimate. If this time indication does not correspond to the real
cycle time, the cycle time will be corrected from the second cycle onwards
(Self-Teaching function of the machine).
This function has to be specied during preprogramming.
The right display will continue to show the selected program number.
If a "Level-stop" was programmed (which halts the programmer during the
lling of the cylinder) and/or a "Heat-stop" (which stops the programmer
during the heating up of the wash bath), then the respective LEDs light up
in the display. Once the required water level and/or temperature has been
reached, the LED is turned off and the internal programmer advances again.
Wash cycle LEDs
Each program segment has a corresponding LED. Each of these 6 LEDs light up
when the appropriate segment is executed. This way, the program sequence can
accurately be followed.
When a LED blinks, the machine is taking up water.
When a LED blinks slowly, the machine is heating up the water.
Spin LEDs
When the water is drained at the end of a program segment and the machine
spins if so desired, the left spin LED (intermediate spin) will light up together with
the cycle LED.
- Functioning of the spin LEDs during intermediate spin:
Led drain/distribution low spin coast
Interm. spin blinking rapidly continuously continuously
- Functioning of the spin LEDs during gentle-intermediate spin:.
Led drain/distribution low spin coast
Interm. spin blinking rapidly blinking slowly blinking slowly
During nal spin, both the left spin LED (intermediate spin) will light up together
with the right spin LED.
- Functioning of the spin LEDs during nal spin:
Led drain/distribution low spin high spin coast tumble
Interm. spin. blinking rapidly continuously blinking slowly continuously off
Final spin continuously continuously blinking slowly continuously blinking rapidly
- Functioning of the spin LEDs during gentle-nal spin:
Led drain/distribution low spin high spin coast tumble
Interm. spin blinking rapidly slowly ----- slowly off
Final spin continuously continuously ----- continuously rapidly
2
22
End of a program
Remarks
Hidden buttons
At the end of a program, while the door is being released, the left display shows
End and the Start LED is switched off. After that, only the right display will
continue to show the program number. This is the end of the program.
Rapid advance
This function allows to skip the rest or certain segments of the program.
This function has to be specied during preprogramming and is mostly used
by technicians and maintenance personnel.
Selection
1. Push the SELECT button (P) at the time the special function needs to be
activated and keep the button depressed.
2. Now push the upper hidden button simultaneously and release it again.
3. Only now release the SELECT button (P).
The central display now shows F5 and this function is now active.
Operation
By pressing and releasing the lower hidden button and releasing it again, the
program skips to the next segment (if necessary, the program can be advanced to
the end).
To return to the original wash program, press the upper hidden button.
Attention!
If F5 is activated during nal spin, this segment of the program will be skipped as
described above. It is, however, followed by a coast and tumble time to
disentangle the linen. This special function prevents the user from opening the
machine while the drum is still rotating and represents an important safety
feature.
Premature ending of the program
By using the rapid advance function during the program, a program can
prematurely be ended. When the end of a program is reached using this function,
and as long as the water has not reached the safety level, the door will remain
sealed and the display will show “SLE” (Safety Level) on the left display.
Afterwards, the display will temporarily show “End” on the same display.
After that, only the right display will continue to show the program number.
This is the end of the program.
Important
If any attempt is made to interrupt the program prematurely during a spin phase
of the program, all functions on the display will temporarily be replaced by
blinking horizontal dashes. After that, only the right display will continue to show
the program number and the door will be released. This is the end of the
program.
2
23
Cool-down
This function allows for gradually lowering the temperature of the wash bath to
prevent creasing of the linen.
During a cool-down, the remaining program time on the central display will be
replaced by “cd”.
Power Failure
Should the power fall out during the program, the water will be drained and the
door can be opened after maximum 3 minutes. When the door remains locked,
and the power comes back up within 24 hours, the program will continue from
where it was at the time of the power failure.
If due to breakdown, the door is not unlocked automatically, you have to remove
the service panel (A) below and pull the ring (B), suspended on the left side, while
opening the door.
B
A
Important
Before opening the door, check if all the water has been drained from the
tub and that the cylinder has come to a complete stop.
Central panel control (Option)
Here, payment is done through the central panel and not directly into the
machine. As soon as the payment is done, and a machine has been selected
normally, “STA” appears blinking on the left display. The machine can be
started by pressing the START button or the special START button, which has
been built in on the spot of the coin meter (option).
Note
This option can only be used when it has actually been programmed in the
technical menu.(REMOTE START).
For certain versions, PAY can appear on the left display when this operation is not
active.
Therefore, “Remote PAY” was programmed in the technical menu.
2
24
Setting the price
The price is set according to the specications at the time of ordering the
machine. If no prices were specied, some standard amounts have been preset.
Every program can be priced differently. These prices can also be modied easily.
Accessing the price setting mode
Remove the coin box. Certain machines have a press button inside the coin vault
at the left upper part. Access to the price setting mode is obtained by using this
button.
If there is no press button, remove the top panel of the machine.
At the back of the coin meter, a switch-lever can be found. Access is obtained
using this switch-lever.
If the machine is equipped with a double coin meter, access is obtained by using
the left switch-lever.
Press the button or pull the switch-lever down for 5 seconds.
The central display will show the letter “c”. Release the button or switch.
Hidden buttons
When the letter “o” appears on the display, press the button or pull the
switch-lever back down again for 5 seconds.
Now the display will show the letters “co”. From now on, the price can be set.
Setting the prices
The right display will show the program number “0” while the left display will show
the price for this program.
To increase the price: push the upper hidden button.
To decrease the price: push the lower hidden button.
When the price has been adjusted to requirements and no more adjustments are
necessary to this program price, press the SELECT button (P) again.
The machine moves automatically onto the next program.
Repeat the previous actions if the price of this program has to be modied, as
well. When all program prices have been set properly, exit the price setting mode
by pressing the button or pushing the coin meter switch-lever back down again
once more.
25
After programming the price for the last program, there are still the following
parameters:
A: Eco price
This is the decrease in value of the price for economical wash. In other words, the
amount that the customer is saving by using economic wash.
B: Number of coin insertions COIN 1 (up to 60.000)
This parameter is only indicated if it has been programmed in the technical menu
(COIN COUNT).
C: Number of coin insertions COIN 2 (up to 60.000)
This parameter is only indicated if it has been programmed in the technical menu
(COIN COUNT).
D: Info manufacturer or technician
TMP T/N : Info manufacturer or technician.
Here you can program the temperature to appear on display in case this has not
been done at the technical menu.
2
When all desired programs are provided with the right price, end the operation by
pressing the push button or pulling over the coin meter switch-lever.
26
Standard programs
3
The machine is standard equipped with 10 programs (0+9). These have been
designed in cooperation with specialized detergent manufacturers to obtain the
best possible wash results using the most frequently used detergents.
Program 0 (starching) is mostly used in very special applications and is
therefore not displayed on the front panel.
0. Starching 1 RINSE COLD COLD
1. HOT WASH 2 BATHS 40°/90°C 104°/194°F
2. HOT WASH 1 BATH 90°C 194°F
3. COLOURED 2 BATHS 40°/60°C 104°/140°C
4. COLOURED 1 BATH 60°C 140°C
5. SYNTHETIC 2 BATHS 40°C/40°C 104°/104°C
6. SYNTHETIC 1 BATH 40°C 104°C
7. WOOL 2 BATHS 30°/30°C 86°/86°F
8. WOOL 1 BATH 30°C 86°F
9. CURTAINS 1 BATH COLD COLD
27
Error messages
4
When one of the following malfunctions occurs during a program, the central
display will communicate the appropriate error message at the end of the cycle.
E3 (Eprom)
The Eprom is wrong, replace it by another.
Important
For coin machines, it is possible that a program number appears on the
right display in combination with E3.
This indicates a wrong price adjustment for this program. A coin value “0” or
bigger than “1000” was programmed.
Example : wrong price adjustment for program 5.
E4 (water level)
The appropriate water level was not reached after 15 minutes.
E5 (Heating)
The wash bath did not reach the required temperature after 80 minutes of
heating.
E6 (door lock)
The door lock was released during the wash cycle.
E7 (safety level)
The water was insufciently drained, the machine did not spin and the water is
possibly still inside the tub.
E8 (temperature sensor)
The temperature sensor is probably broken or malfunctioning.
4
28
E9 (motor protection)
The thermo-magnetic protection was activated 5 times.
EA (tilt)
The tilt switch was activated 15 times during nal spin and the nal spin was
therefore skipped.
Eb (tilt switch)
The tilt switch is blocked.
Mot 2 (rotation sensor)
The speed detection is not operating properly. The speed meter is probably out
of order or disconnected.
LEV
Lev
The water level was not reached.
Important
When a malfunction occurs during a program, the central display will
communicate the appropriate error message at the end of the cycle. When this
malfunction has been removed and a new program has been selected, this
error message also disappears.
When malfunctions E3, E6, E7, E9 or Eb are detected at the start of the wash
cycle, the program will not be started and the error message will remain on
the display.
29
Contact Information
Nameplate
Nameplate Location
The nameplate is located at the rear of the machine. Always provide the machine’s serial
number and model number when ordering parts or when seeking technical
assistance. (See Label 1 and 2)
5
Label 1
Label 2
30
Position of the Serialplate
5
Replacement Parts
If literature or replacement parts are required, contact the source from which the
machine was purchased or contact the phone numbers or websites shown on the
nameplate.
31
Repair and after-sales service
In case of important malfunctions and deciencies, which you cannot resolve
yourself, contact your distributor.
6
Distributor :
Machine :
Alliance Laundry Systems
Shephard Street, PO BOX 990
Ripon, WI 54971-0990
United States
Tel: 001 920 748 3121 - Fax: 001 920 748 1645
www.comlaundry.com
Name: ....................................................................................
Address: ................................................................................
Tel.: ........................................................................................
Type: ......................................................................................
Program: ................................................................................
Date of installation: ................................................................
Installed by: ...........................................................................
Serial number: .......................................................................
Operation voltage and frequency: .........................................
Alliance International bvba
Nieuwstraat 146 - B-8560 Wevelgem (Belgium)
Tel. +32 56 41 20 54 - Fax +32 56 41 86 74
info@alliancels.eu - www.alliancels.eu
Loading...
