Allflex USA 800962 User Manual

Model AXIZ SB-1™ User Manual
Release: Revision B1 Draft
Software Version: 1.00
South St. Paul, Minnesota 55075 • 1-800-328-0118
Deleted: A
Deleted:
Destron Fearing User Manual
Copyright
© Copyright 2007 Destron Fearing Corporation. All rights reserved. This manual contains
valuable proprietary information. It should not be published, copied, or communicated to any
person without prior authorization from Destron Fearing.
Trademarks
AXIZ SB-1 and Destron Fearing are trademarks of Digital Angel Corporation.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks, trade names, or images mentioned herein belong to their respective
owners.
Document History
Release Date Doc Version Software Version Comments
January 2, 2009 B1 Draft 1.00 Add FCC and IC Compliance Statements
September 3 B Draft 1.00 Add FCC Labels and Documentation
March 12, 2008 Revision A 1.00 Cleanup and corrections.
October 19, 2007 Preliminary Draft 1.00 Initial release of this manual.
READ THROUGH THIS ENTIRE MANUAL BEFORE INSTALLING AND OPERATING YOUR UNIT. FOLLOW ALL STEPS EXACTLY.
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 2
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
2) This device must accept any interference received including interference that may cause undesired
P8F
<sp>
Destron Fearing Corporation
So. St. Paul, MN 55075-2443
Phone: 1-800-328-0118 Fax: 1-800-328-4565
FCC ID: WMQ800962
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and,
operation.
Industry Canada Registration ID IC: 4284A-800962
.
This product has been tested and complies with the specifications for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used according to the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which is found by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment or devices
Connect the equipment to an outlet other than the receiver’s
Consult a dealer or an experienced radio/TV technician for assistance
15.21 Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 3
Deleted:
Deleted:
Formatted: Line spacing: single
Deleted:
Deleted:
Deleted: <sp><sp>
<sp>
Deleted:
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
Table of Contents
PRODUCT DESCRIPTION ........................................................................................................................... 4
Main Features............................................................................................................................ 4
Specifications............................................................................................................................. 7
ASSEMBLY INSTRUCTIONS ......................................................................................................................8
OPERATING INSTRUCTIONS ..................................................................................................................... 9
SCREEN DISPLAY DESCRIPTIONS......................................................................................................... 10
Main Screen ..................................................................................................................................10
View Tags Screens.................................................................................................................. 11
Status Screens ........................................................................................................................ 12
User Setup Screens................................................................................................................. 13
File Screens ..................................................................................................................................14

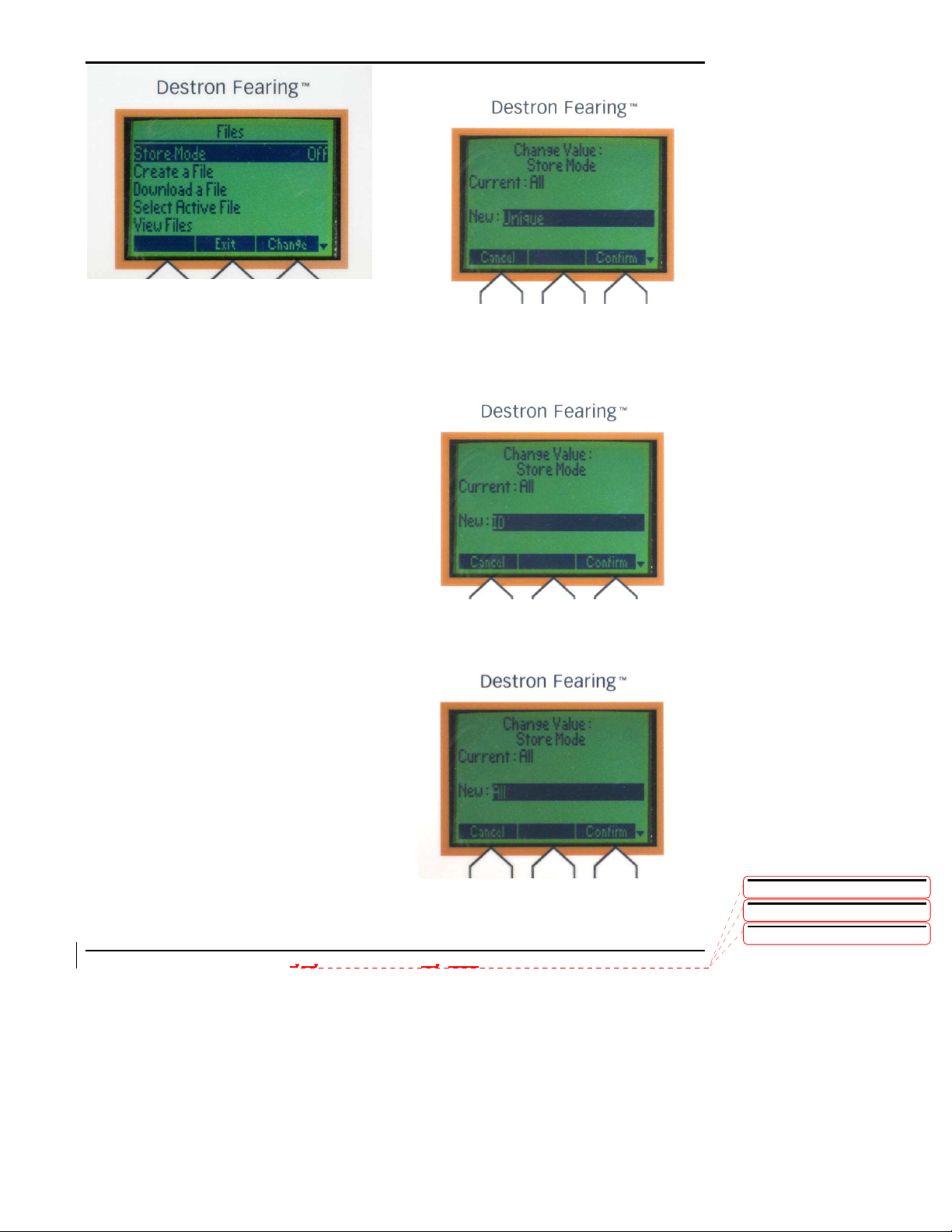

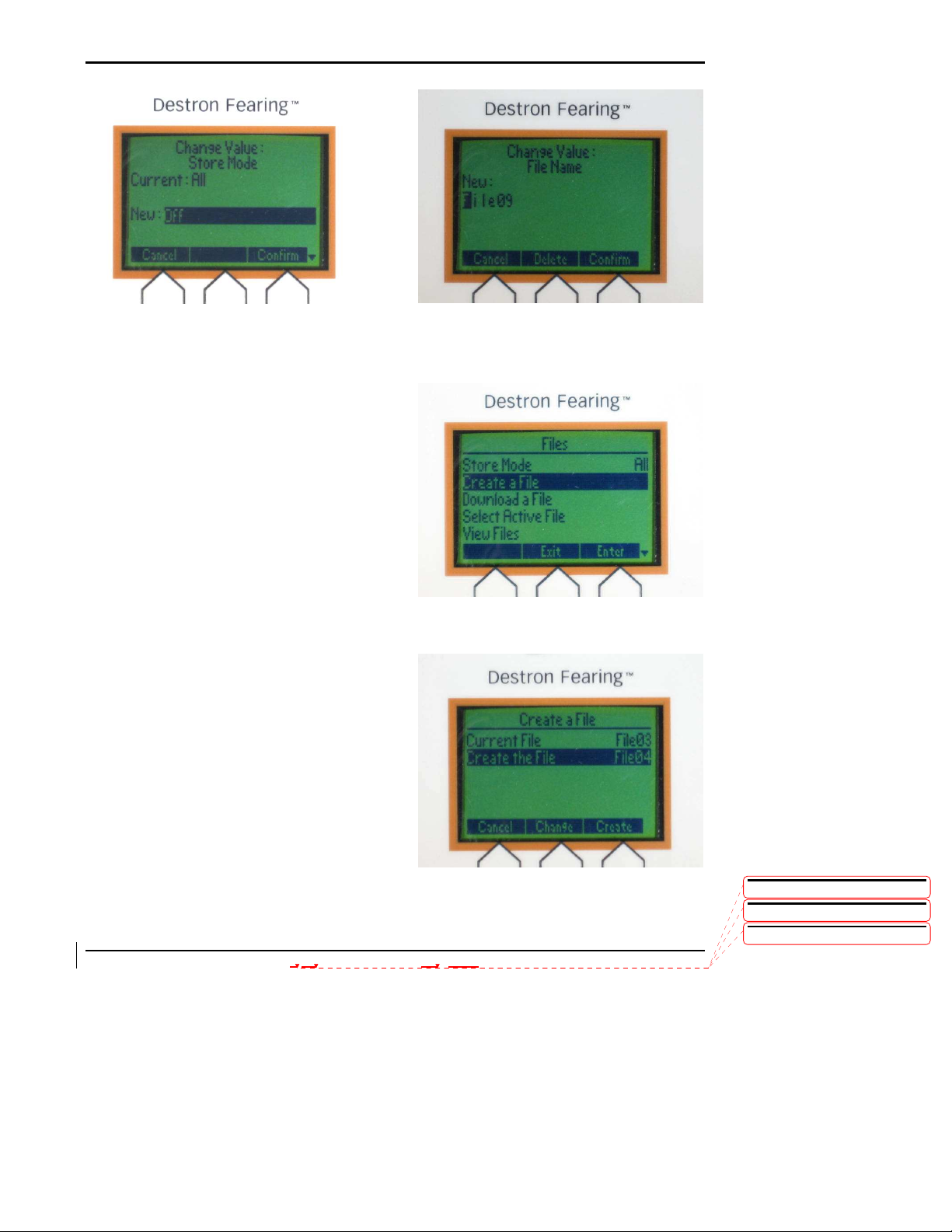

Store Mode Screens ................................................................................................................ 15

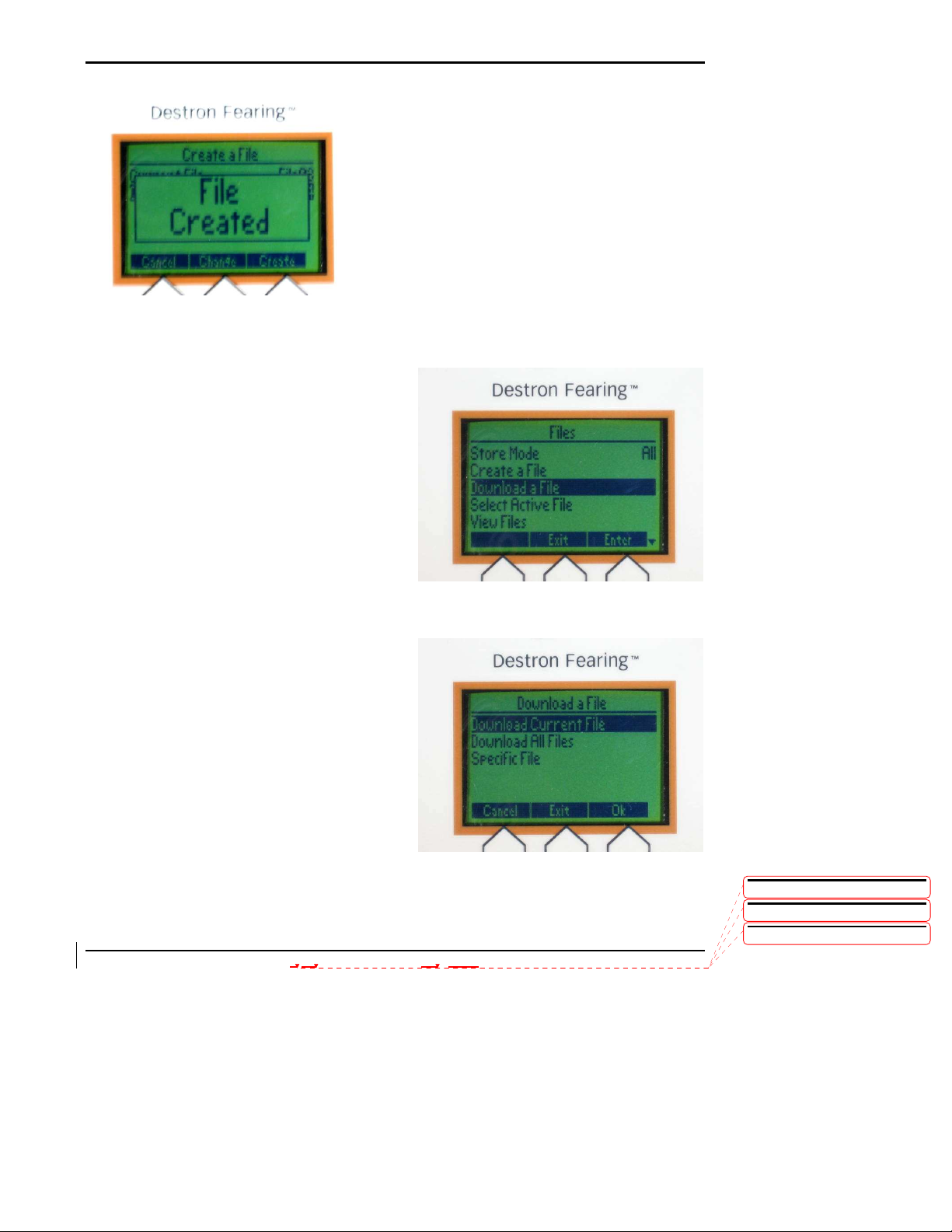

Create A File Screens.............................................................................................................. 16

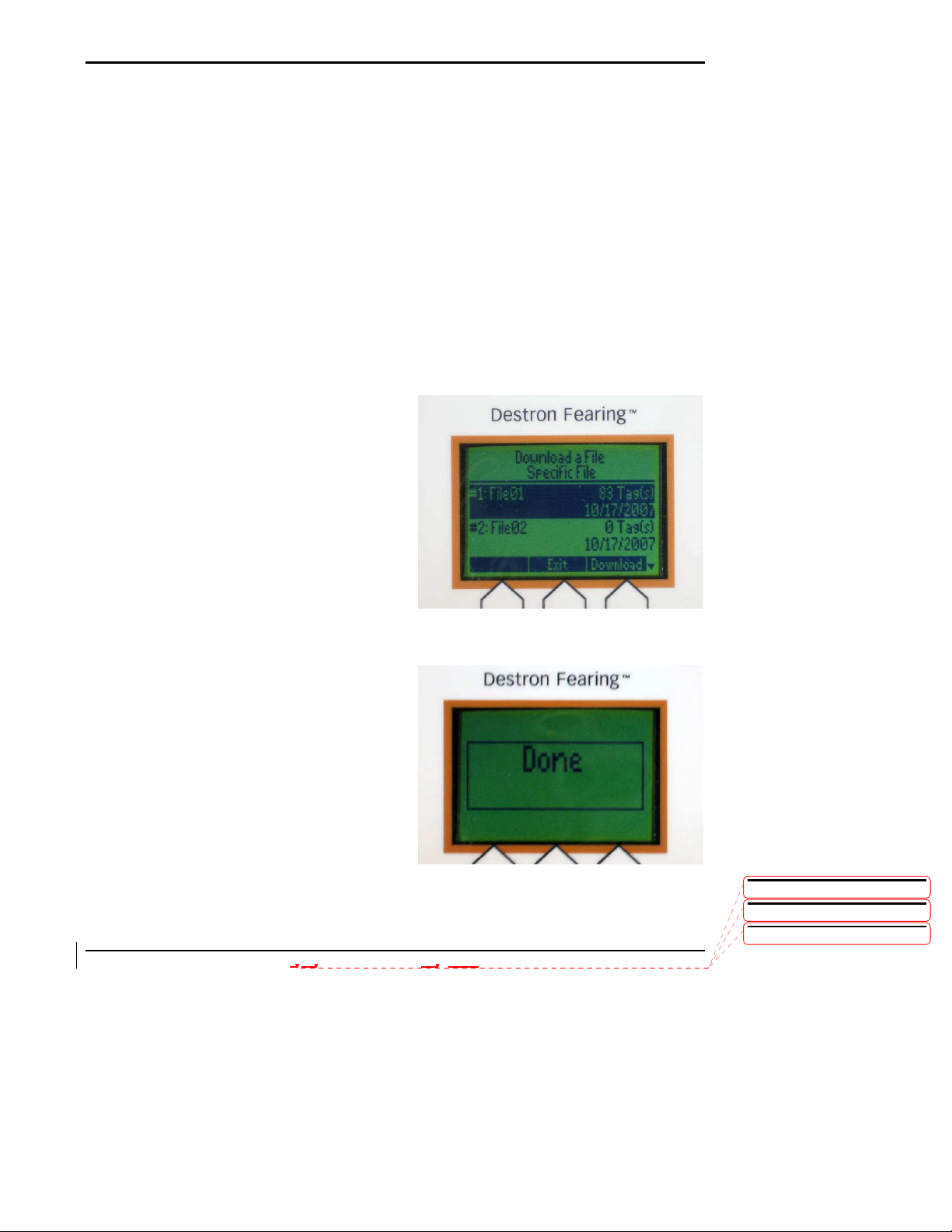

Download File Screens............................................................................................................ 17

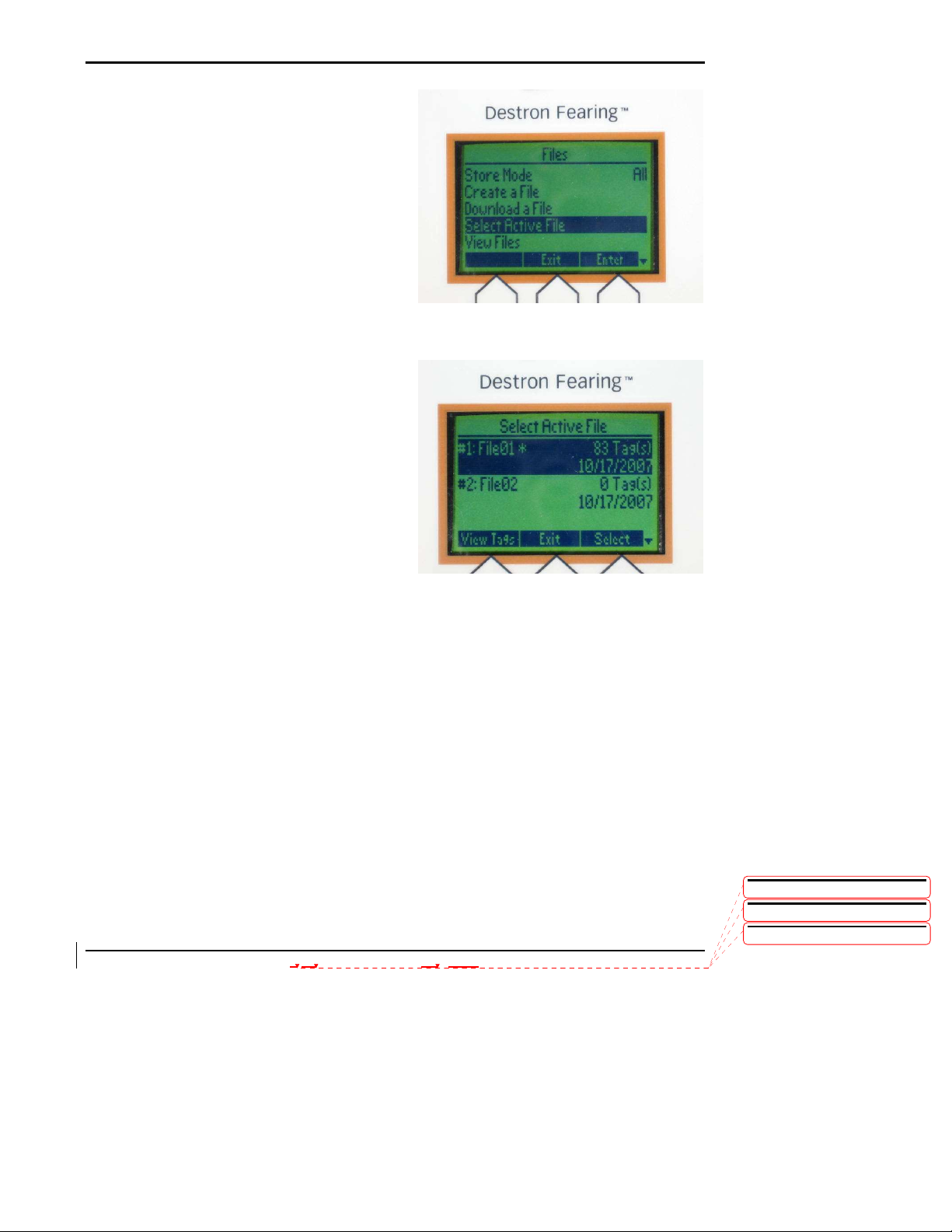

Select Active File Screens ....................................................................................................... 19
View File Screens .................................................................................................................... 20

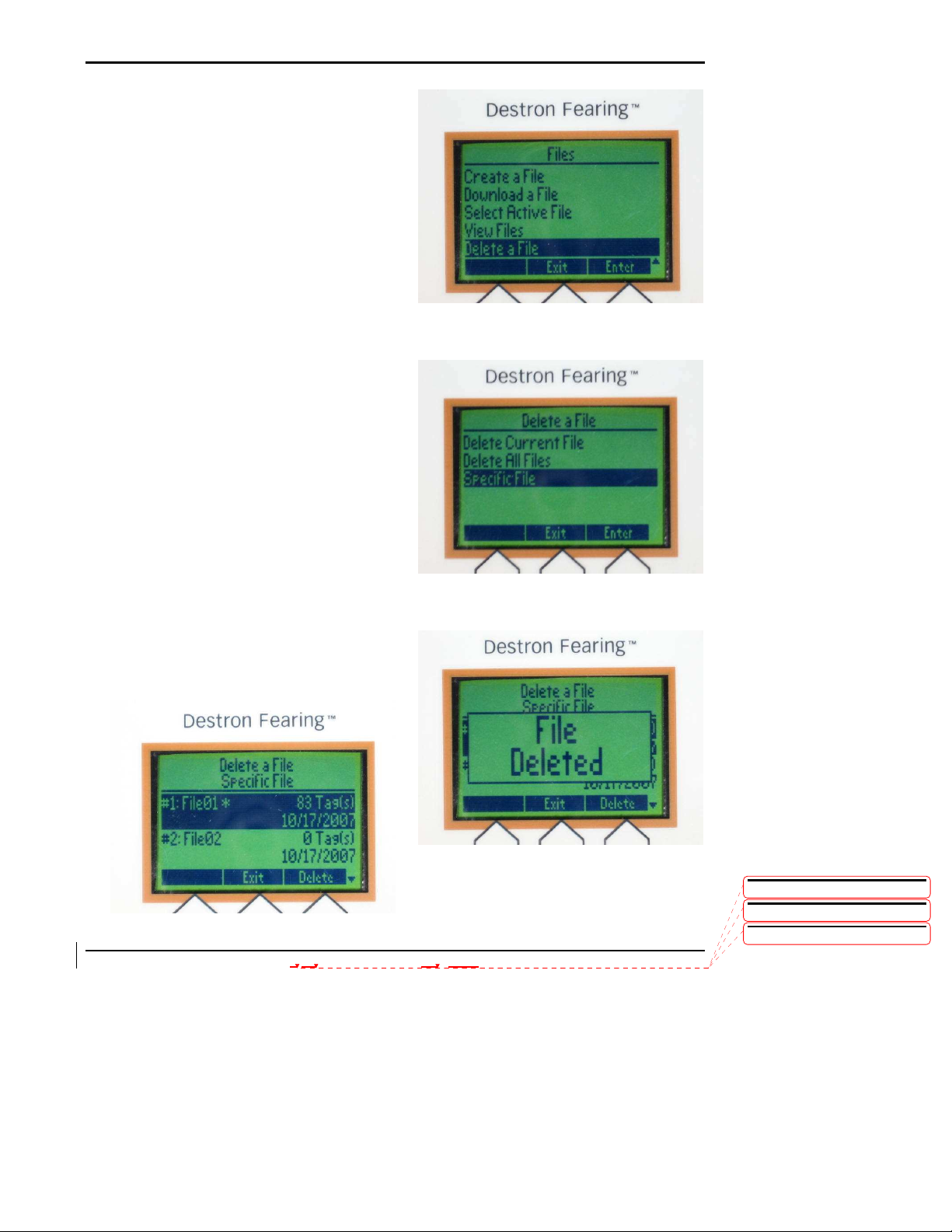

Delete A File Screens .............................................................................................................. 21

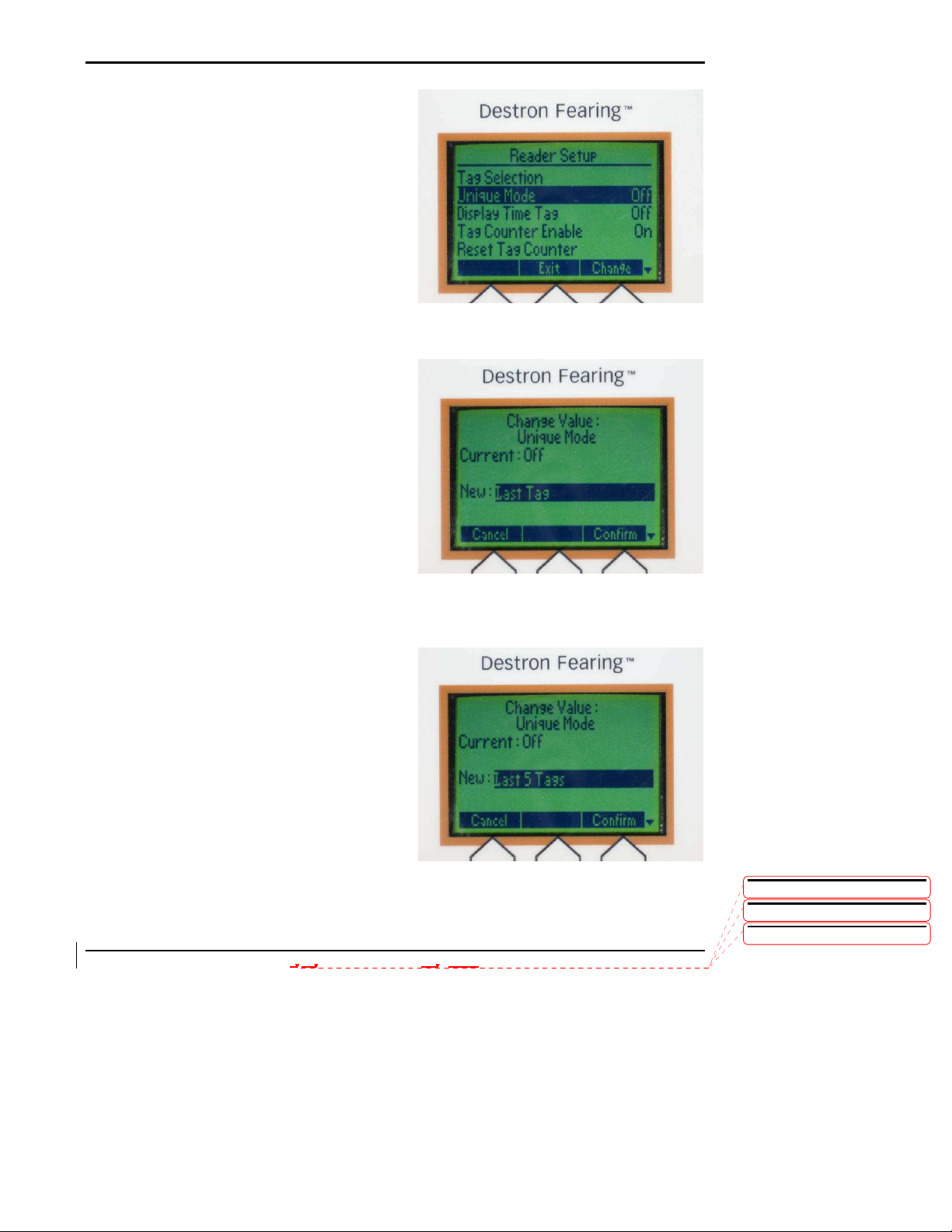

Reader Set Up Screens ................................................................................................................ 22
Tags Selection Screens........................................................................................................... 23

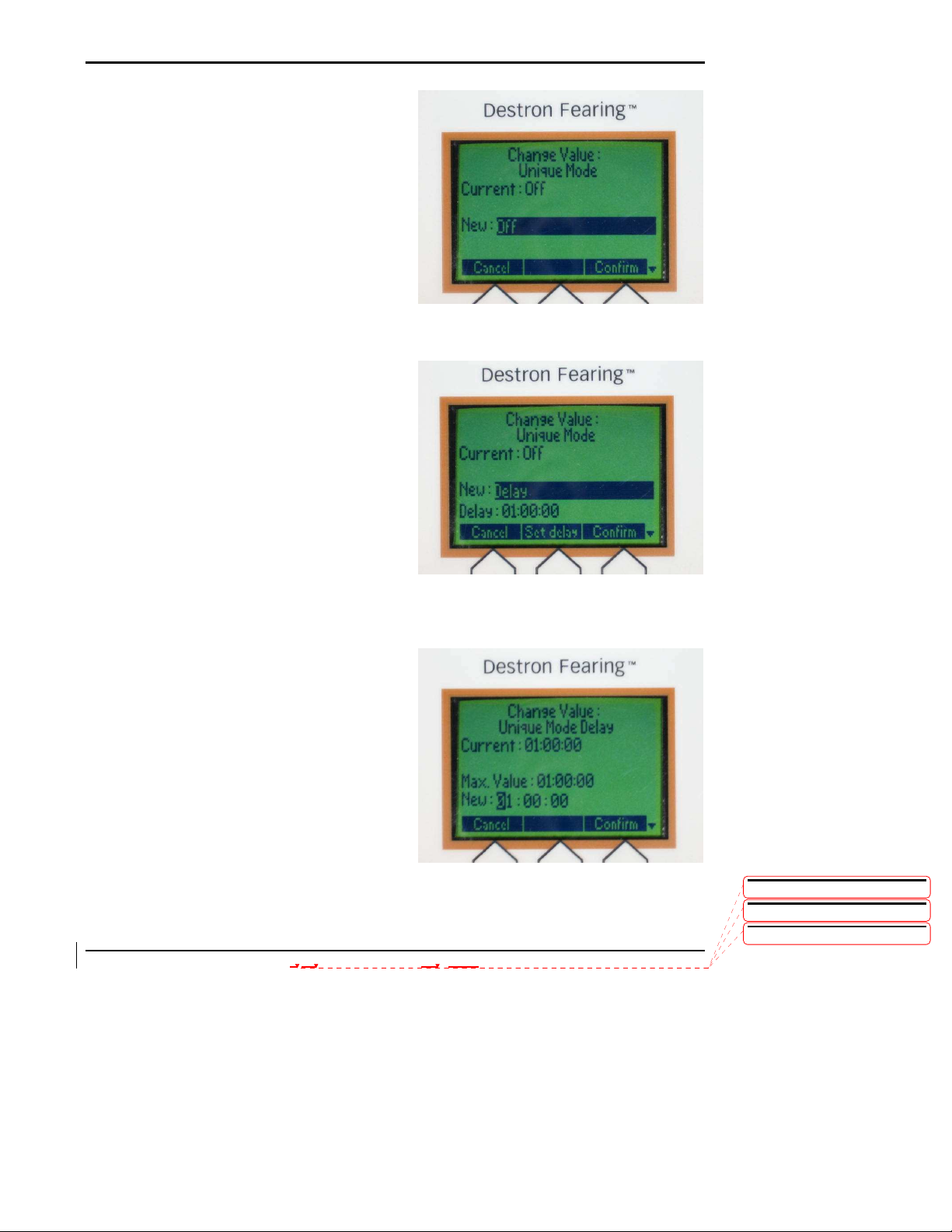

Unique Mode Screens ............................................................................................................. 24

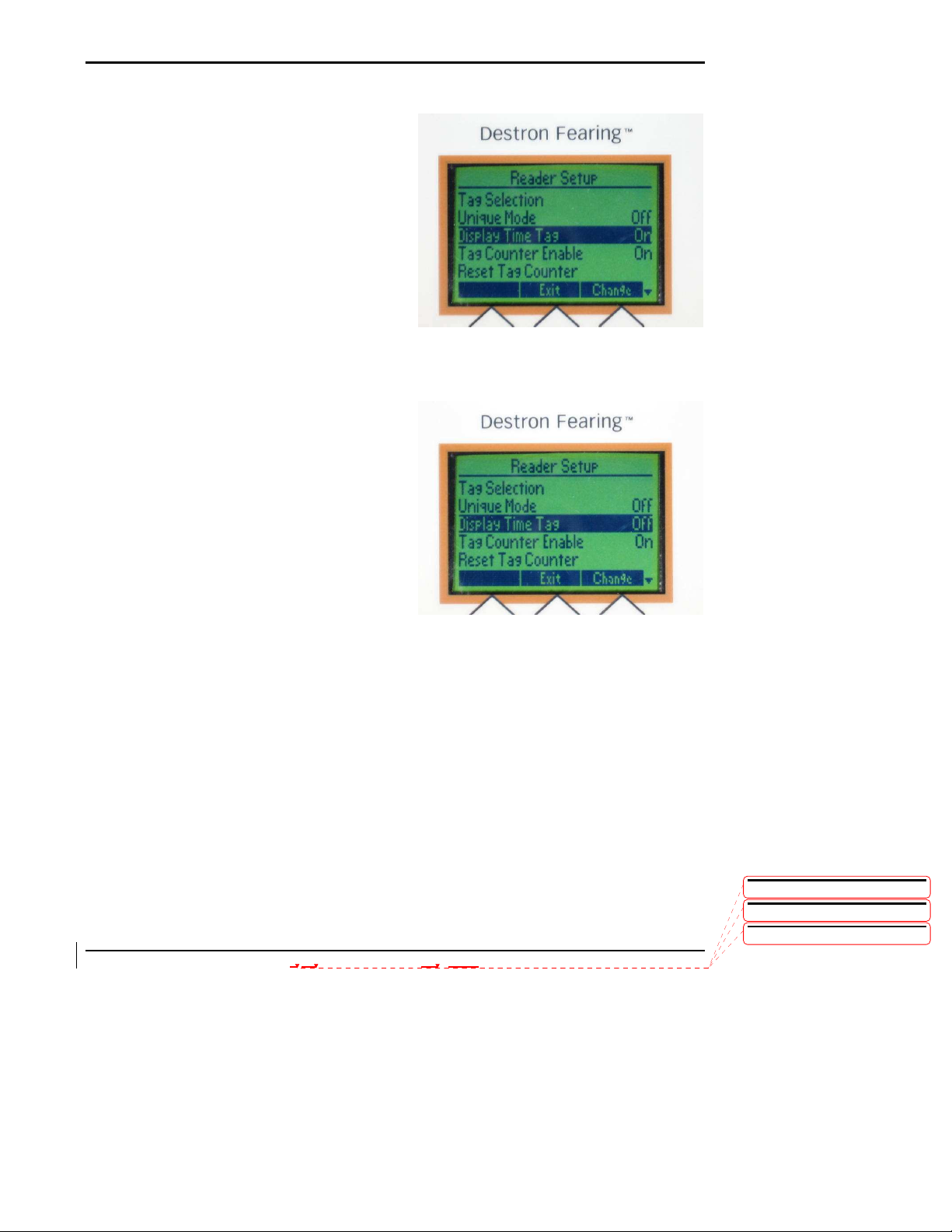

Display Time Tag Screens....................................................................................................... 26

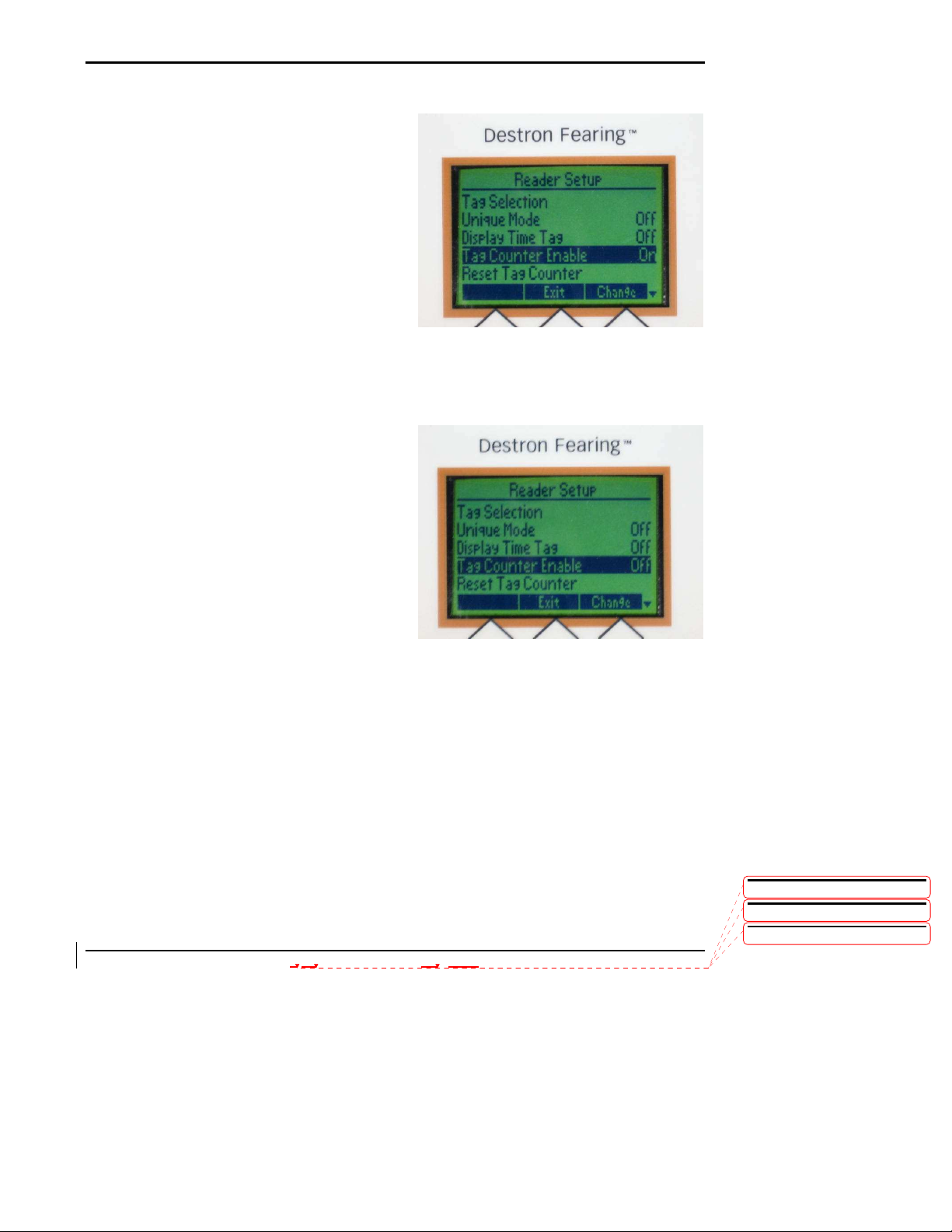

Tag Counter Enable Screens .................................................................................................. 27
Reset Tag Counter Screens .................................................................................................... 28

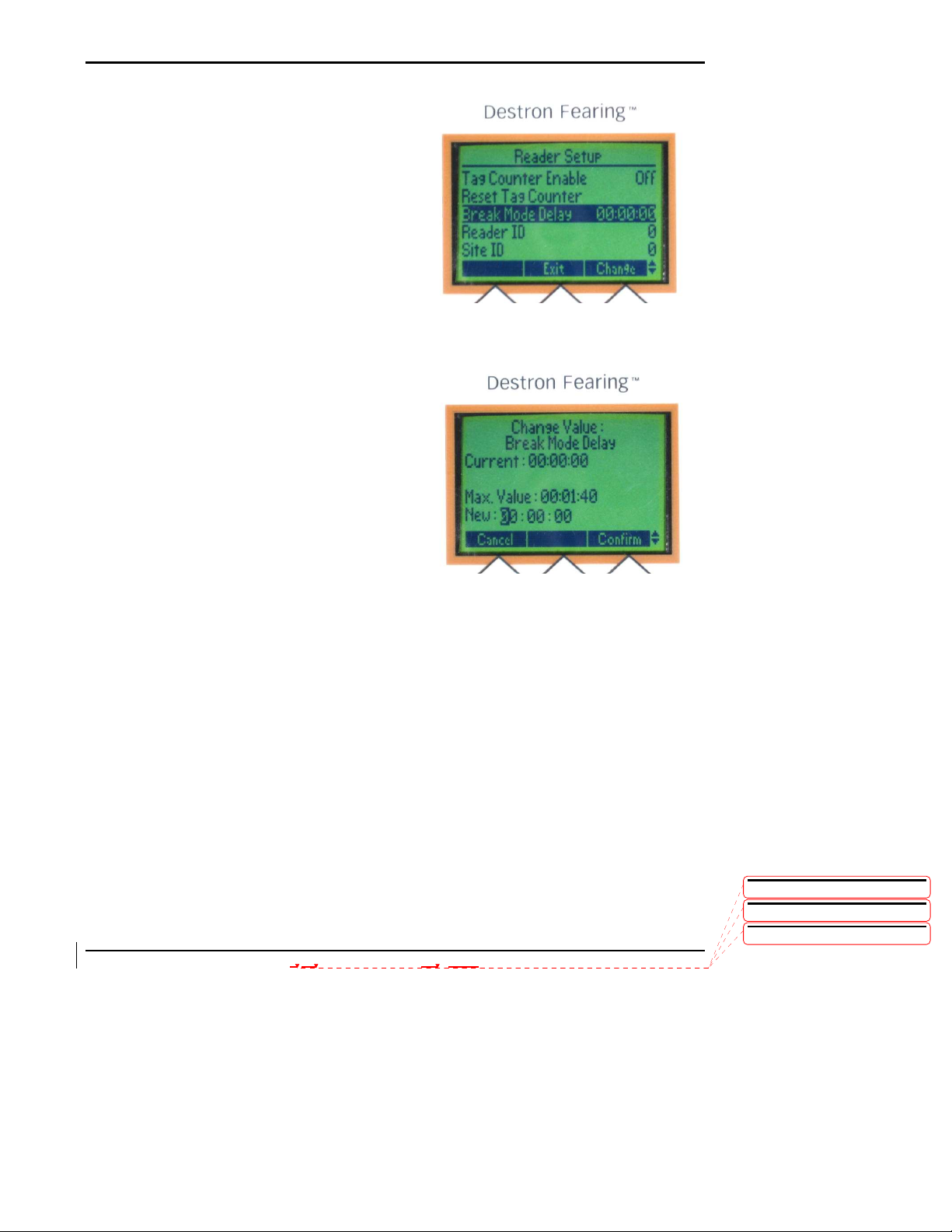

Break Mode Delay Screen....................................................................................................... 29

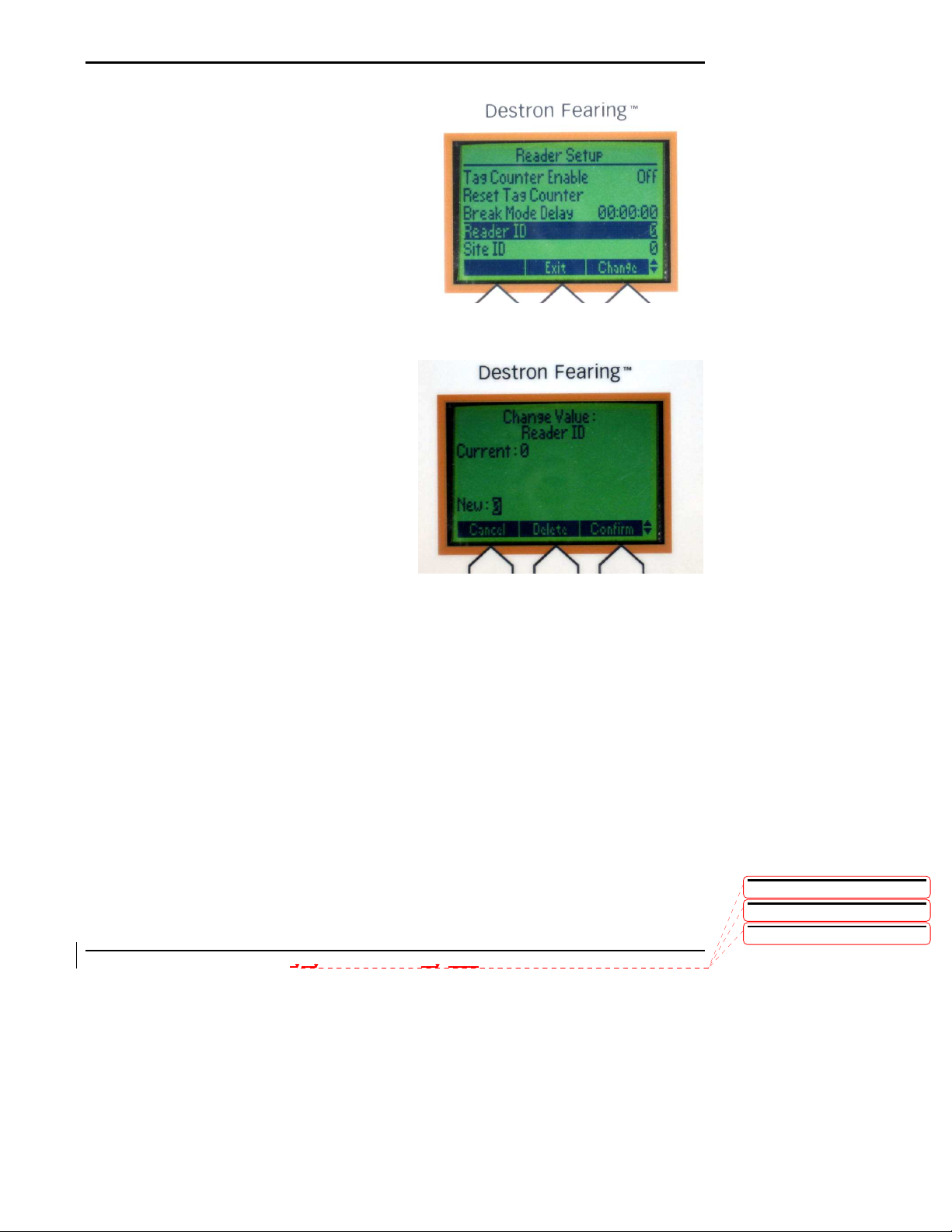

Reader ID Screens .................................................................................................................. 30

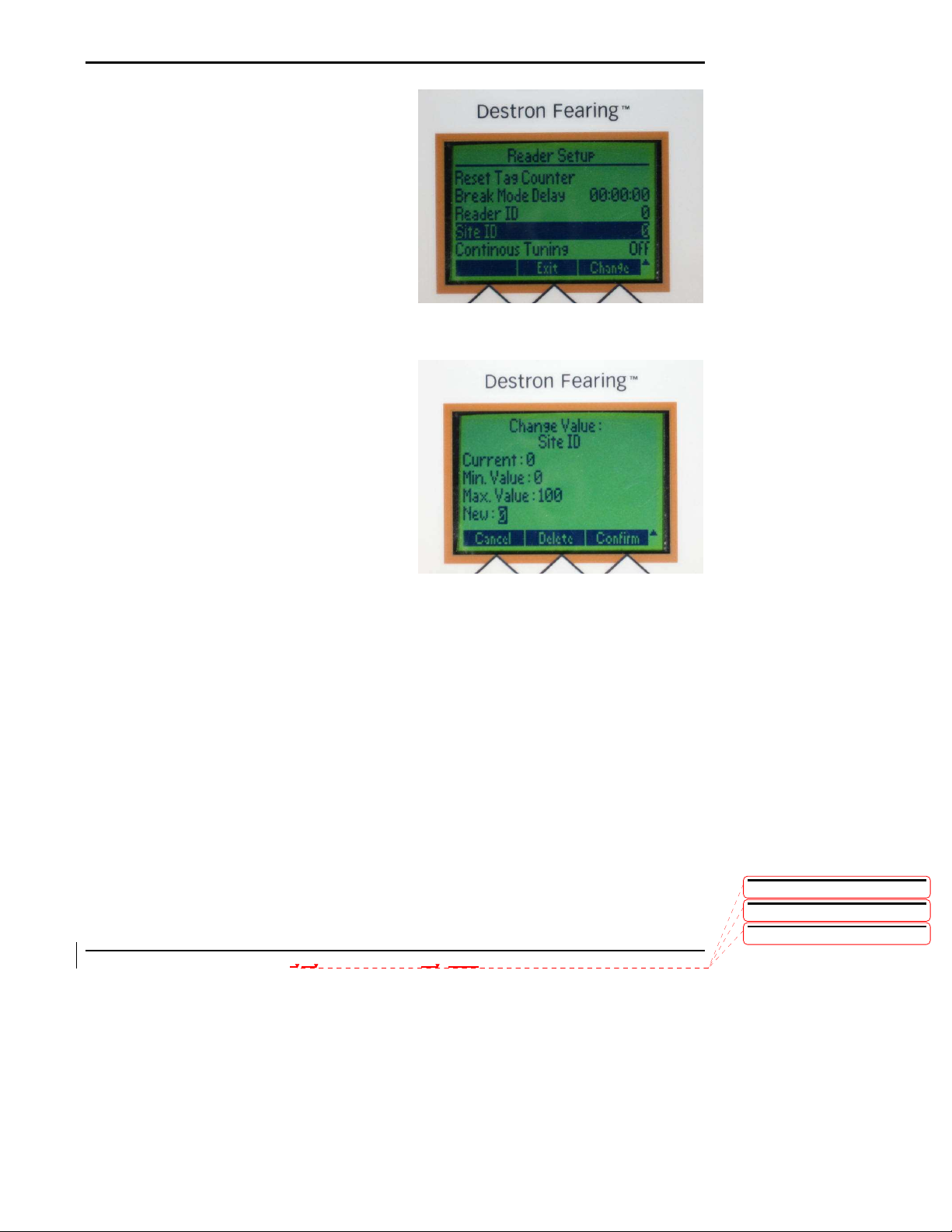

Site ID Screens........................................................................................................................ 31

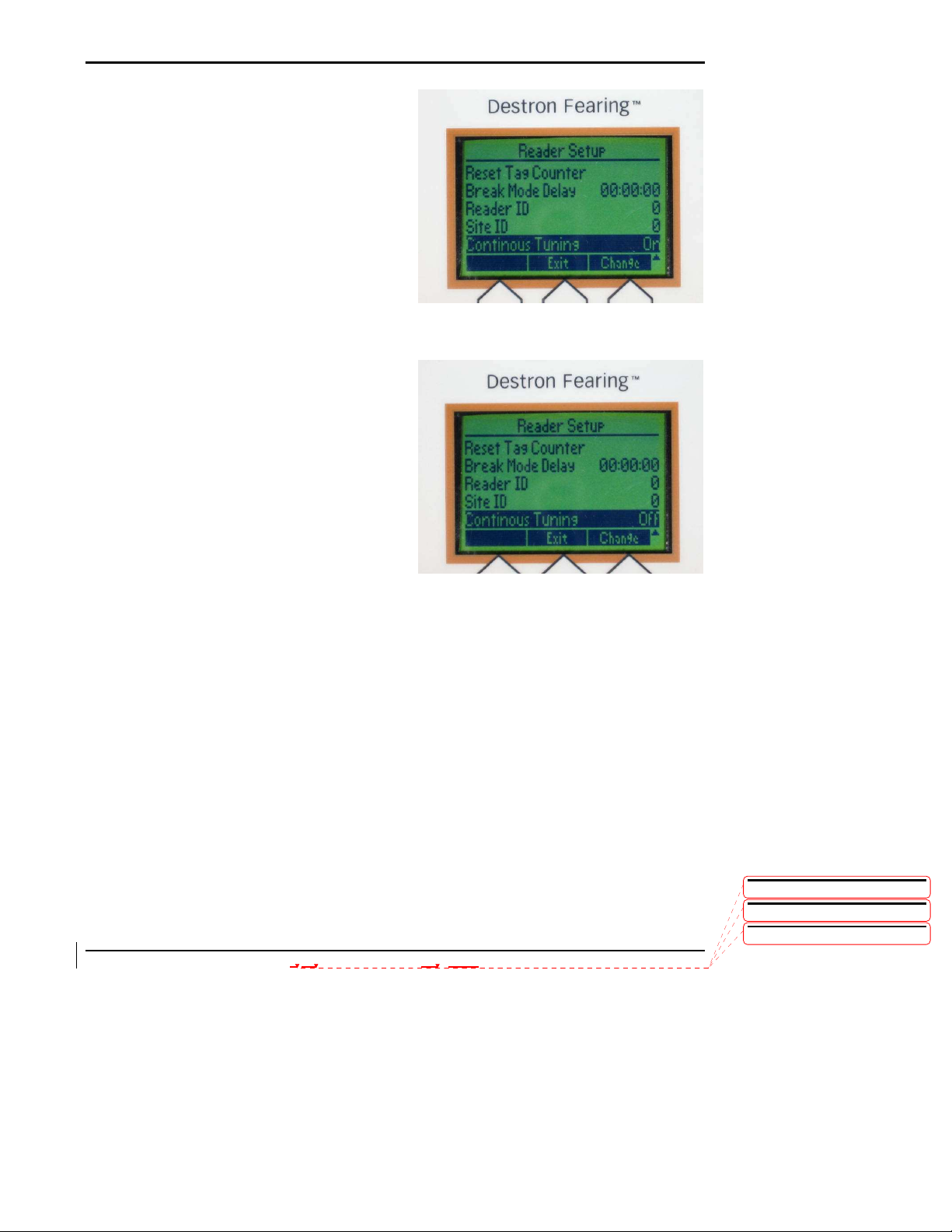

Continuous Tuning Screens .................................................................................................... 32

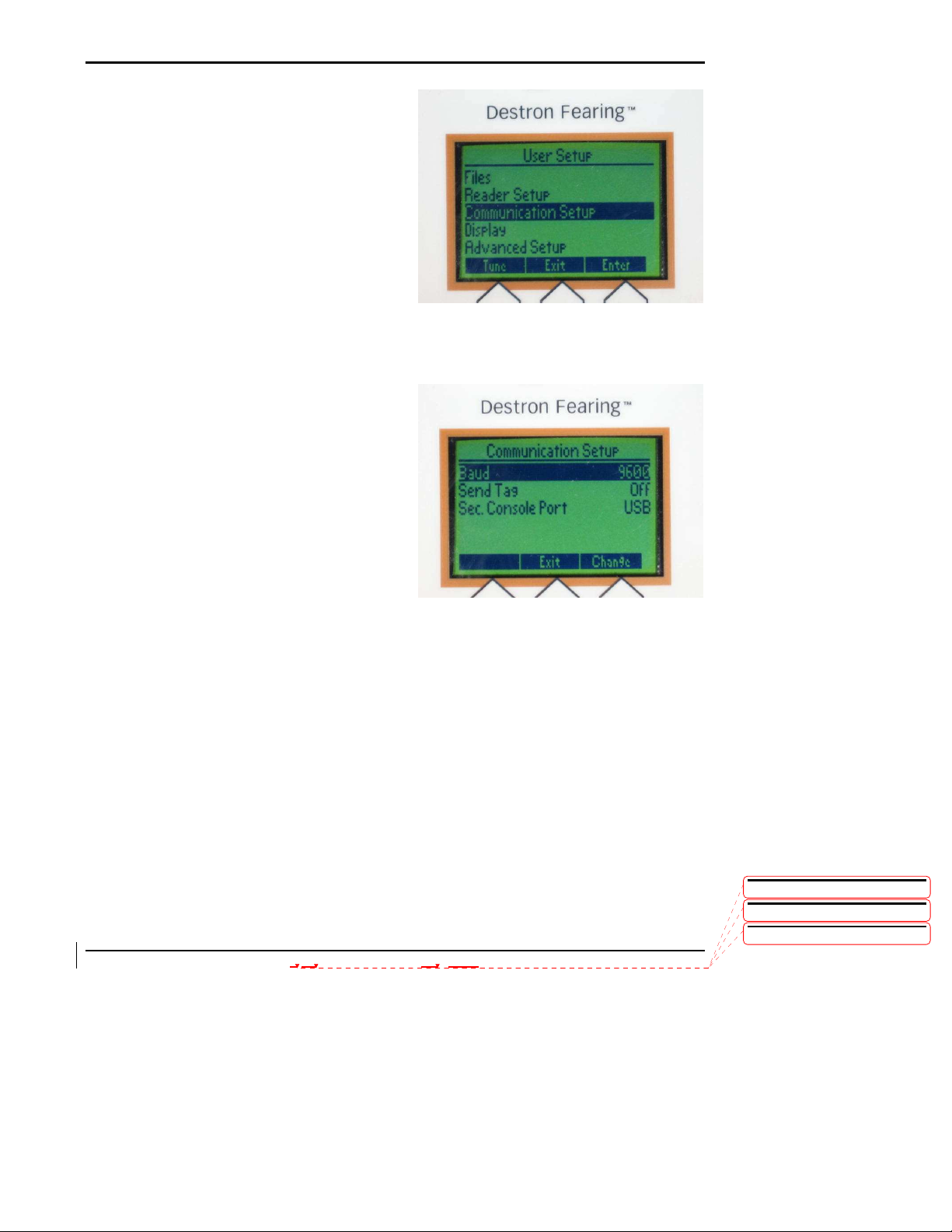

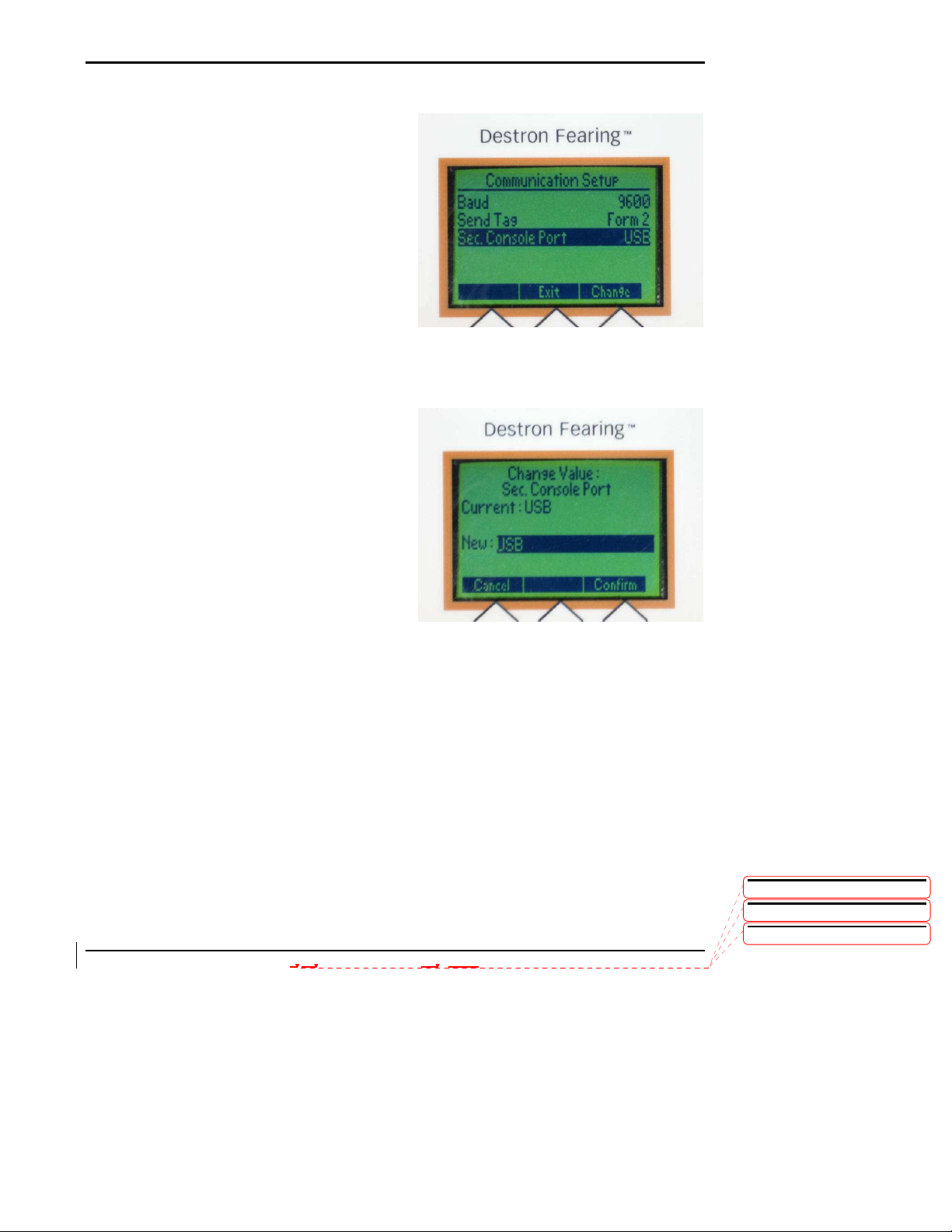

Communication Setup Screens ..................................................................................................33
Baud Rate Screen ................................................................................................................... 34

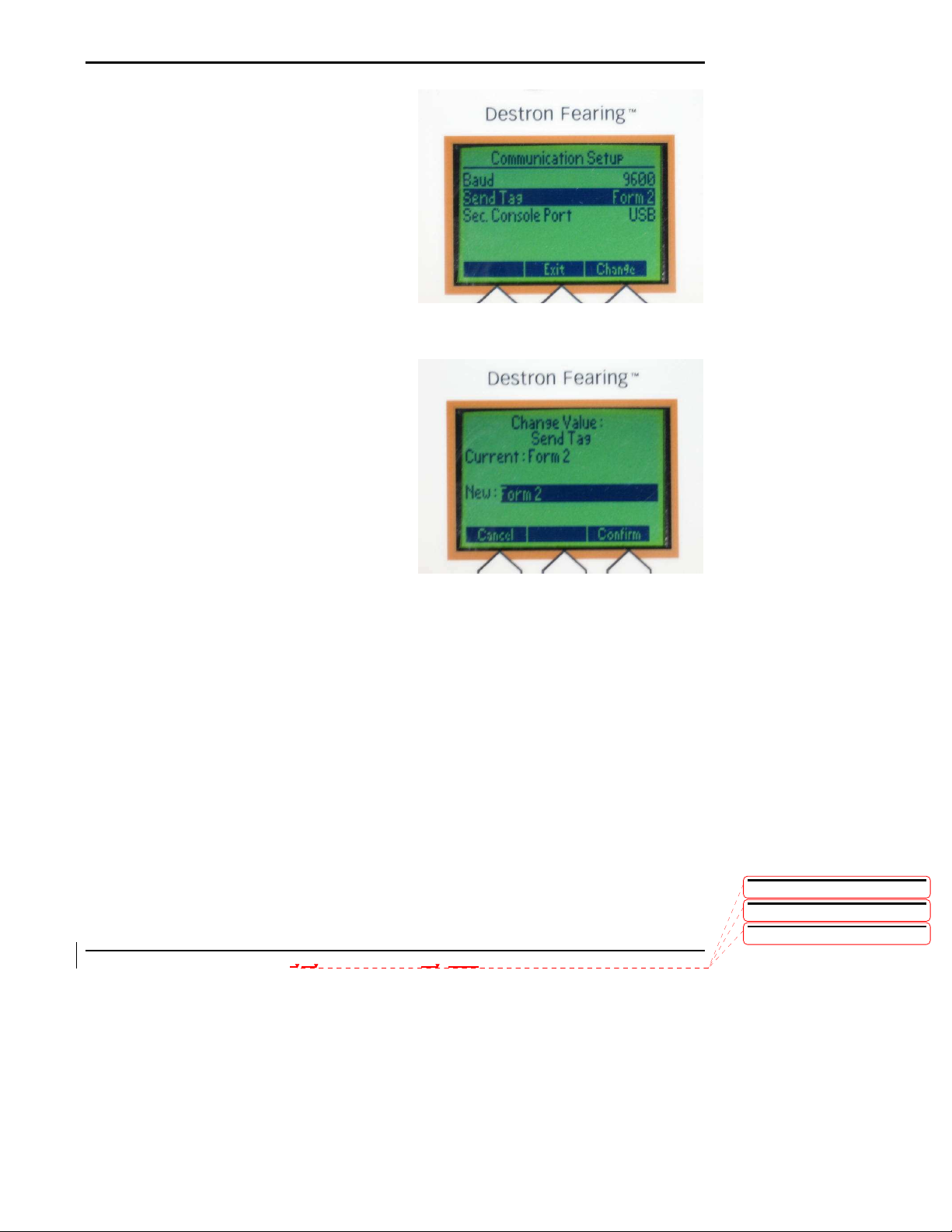

Send Tag Screen..................................................................................................................... 35
Sec. Console Screen ............................................................................................................... 36

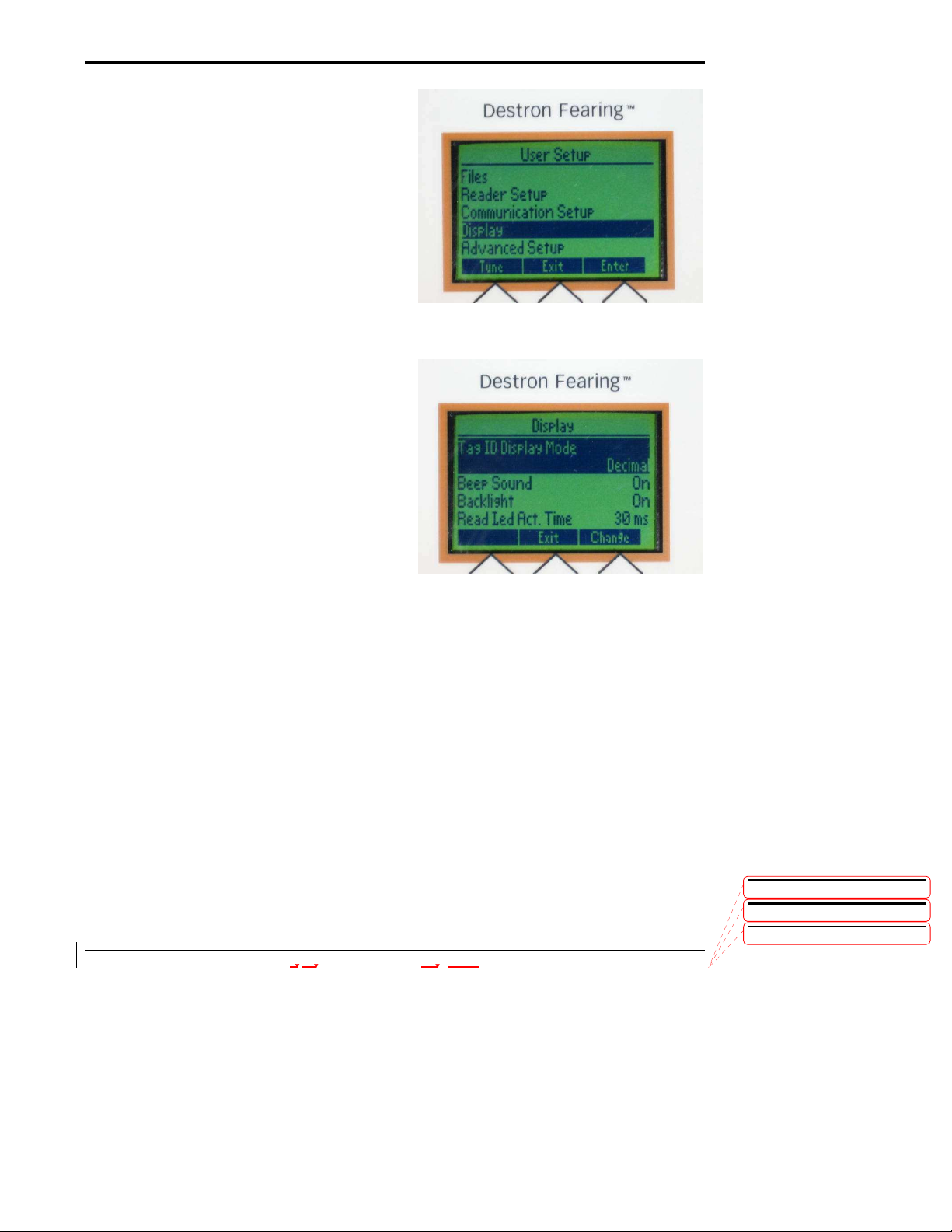

Display Screens............................................................................................................................ 37

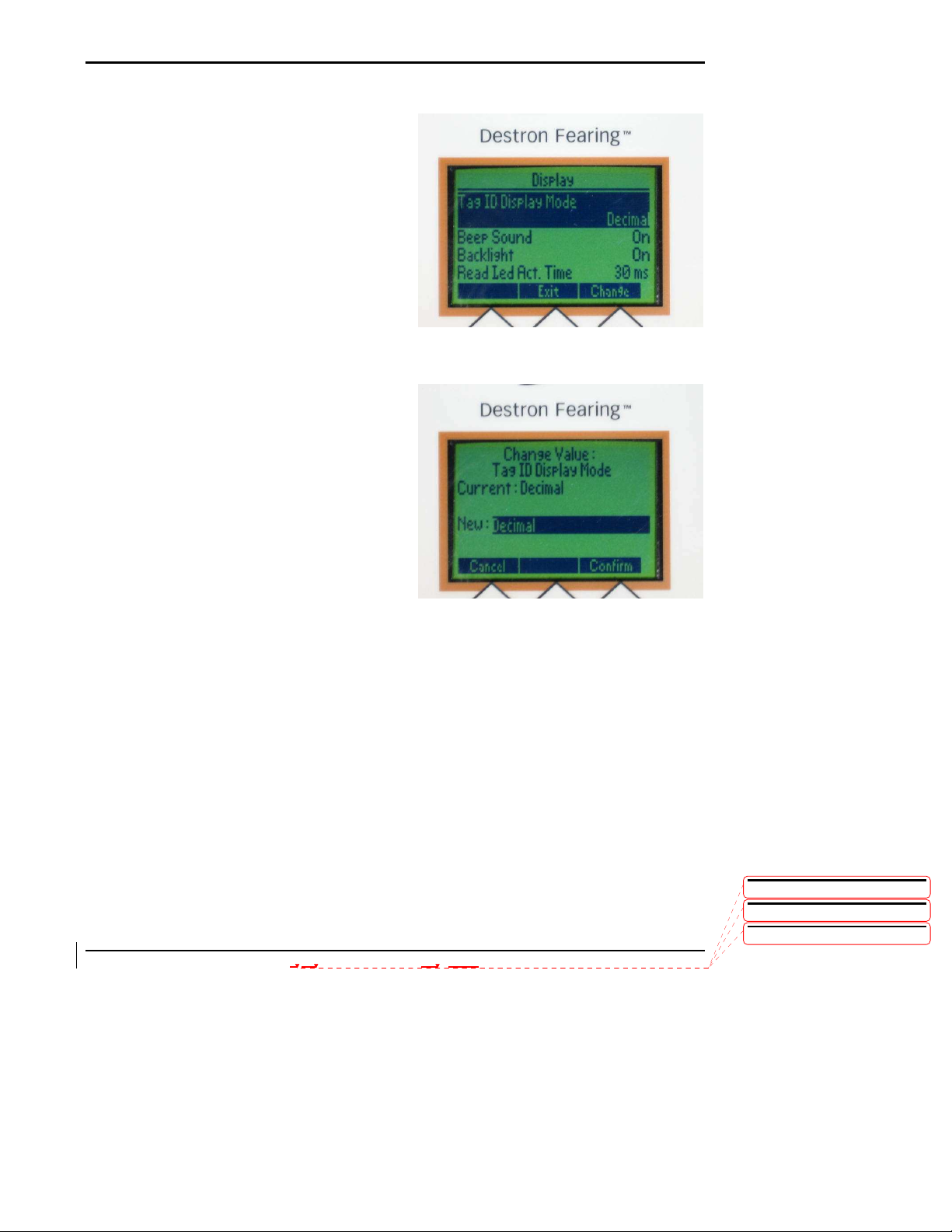

Tag Mode ID Screen................................................................................................................ 38

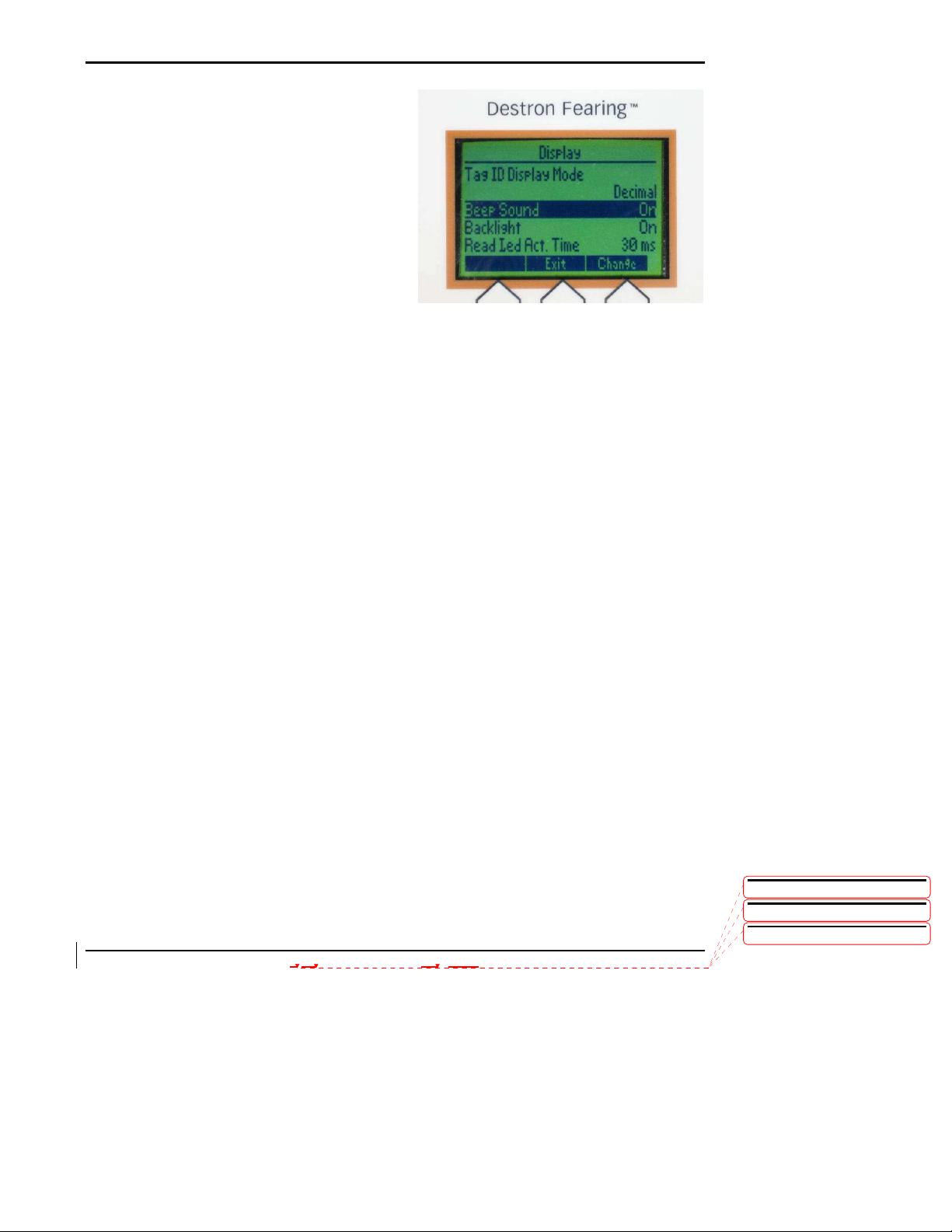

Beep Sound Screen................................................................................................................. 39
Back Light Screen.................................................................................................................... 40
Read LED ACT Time Screen .................................................................................................. 41

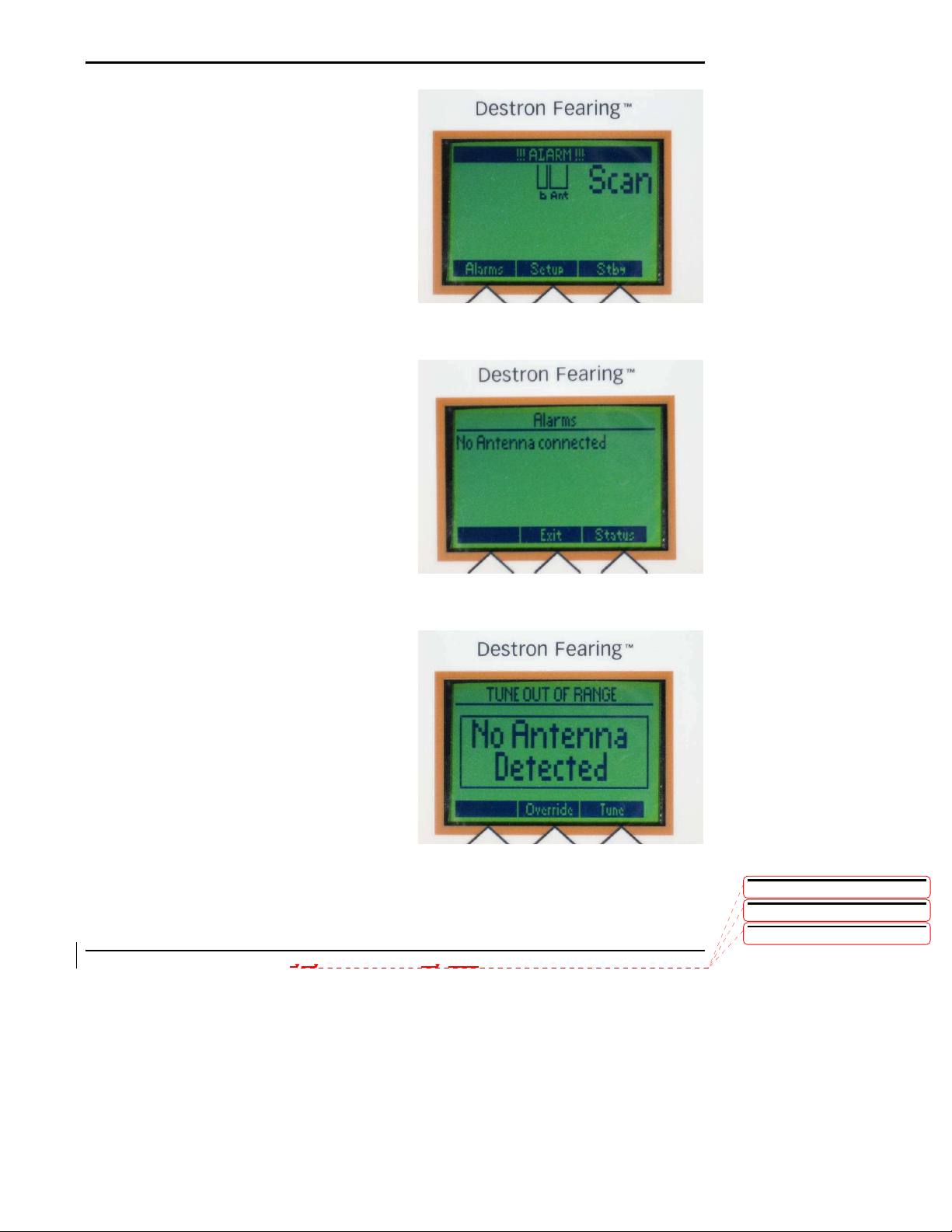

ALARMS ..................................................................................................................................................... 42
SERIAL PORT COMMANDS...................................................................................................................... 43
INDEX .........................................................................................................................................................47
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 4
Deleted: ¶ ¶ ¶ ¶
Deleted:
Deleted:
Formatted: Normal, Space Before:
0 pt, After: 0 pt
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
Fold Out Menu Tree
To aid you in learning the screens, an 11” x 17” fold out Menu Tree is located on the last page of this manual. You are encouraged to refer to it while you are paging through the manual and learning to navigate the screens of your Reader. Continue referring to it until you are familiar with all screen locations.
MAIN FEATURES
Compatible with FDX and HDX RFID tags
LCD display
Back Key moves display to previous screen
This LED indicator glows amber when the Reader has power
Power Reset Key, resets Reader in the constant ON mode
This LED indicator slowly flashes green as system powers up and then flickers rapidly when system is operating
This LED indicator flashes red each time a tag is detected
PRODUCT DESCRIPTION
The AXIZ SB-1™ is a powerful, high speed ISO compliant stationary Reader designed for harsh environments where read speed and distance are critical. It is ideal for electronically scanning moving animals in a walk-way design. The Reader may be used to drive multiple antenna configurations, such as pass-by panel arrays and walk-through antennas. It uses master/slave synchronization to allow multiple readers to be connected at a single facility. Dual port communication allows for two separate systems to monitor without interfering with data capture software.
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 5
Fold out Menu tree
Simple “1-2-3”
keyboard
Up/Down/Left/Right
Arrow Keys move
display cursor in 4
directions
Door latch
Figure 1: External View of the Model AXIZ SB-1™
Deleted:
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
1) Display
2) Status Key
Deleted:
¶ ¶ ¶
6.) Back Key
7.) ON/OFF Indicator
8.) Power/Reset Key
9.) System Ready Indicator
10.) Tag Detected Indicator
3) Setup Key
4) Standby Key
5) Up/Down/Left/Right Arrow Keys
FIG. 2: Control Panel Component Identification
CONTROL PANEL COMPONENT IDENTIFICATION
1. Display: LCD Display.
2. Status Key: Pressing this key enables the operator to check the status of current reader settings.
3. Setup Key: Pressing this key enables the operator to change current reader parameters.
4. Standby Key: Pressing this button moves the reader into a standby mode.
5. Up/Down/Left/Right Arrow Keys: Moves the cursor around the display.
6. Back Key: Moves the display to the previous screen.
7. On/Off Indicator: This LED glows solid amber when power is turned on to the unit.
8. Power/Reset Key: Pressing this key turns the unit on or resets the Reader when it’s in constant ON mode.
9. System Ready Indicator: This LED indicator slowly flashes green as the system powers up, then flickers rapidly when the system is up and operational.
10. Tag Detected Indicator: This LED indicator flashes red each time a tag is detected.
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 6
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
Spare
Connection
Point
Power Cord
Antenna
Cable
FIG. 3: Component Identification
USB Connection
(inside box)
Antenna
Connections
Spare
Connection
Point
RS232 Communication
Port
Sync
Connection
Port
COMPONENT IDENTIFICATION
Antenna Connection/Cable: Two antenna connections are located in the center, on the
bottom of the Reader.
RS232 Communication Port: A RS232 communication port is located on the bottom of the Reader in the right corner.
Power Cord Connection Point: The power cord attaches at this connection point.
Sync Connection Port: A mini USB connection is located inside the Reader’s housing in the
lower left corner. Contact Destron Fearing for assistance in installing cable.
Spare Connection Points: Two spare connection points are included for additional applications. Contact Destron Fearing for assistance in installing cable.
(CONTINUED)
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 7
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
SPECIFICATIONS
Item Description
Approvals
Construction
RFID Acquisition
Read range
Memory
Display
Tuning
Temperature Range
Humidity
Power
Interface
Weight
Dimensions
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 8
FCC approval pending
AC power supply is UL approved
NEMA 4x, IP66 rated aluminum box
All ISO-compliant FDX, & HDX technologies
Up to 4 feet. at optimal tag orientation. User environment and antenna configuration may affect read range
Ability to create up to 99 individual files (depending on the software version) and to store up to 16,500 RFID tag numbers
Internal high intensity lamps that display reader power, scan mode, and successful tag read
Internal LCD backlight display
Automatic or Manual
Operating: -22F to +158F (-30C to70C)
10%-90% non-condensing
100-240 VAC, 47-63 Hz, Optional 12VDC external battery connection
Individual RS232, RS485, serial ports, and USB ports
Optional Bluetooth wireless communication
Communications port speed adjustable from 2400bps to 57,600bps
11 lbs. (4.99kg )
12”L x 8”W x 4”D (30cm x 20cm x 9cm )
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
Upper
Mounting
Bracket
Lower
Mounting
Bracket
(Not Shown
See Fig. 5)
Upper
Mounting
Bracket
Lower
Mounting
Bracket
(Not Shown
See Fig. 5)
FIG. 4: Mounting Brackets
ASSEMBLY / INSTALLATION
1. Remove Reader and all items from the shipping carton.
2. Check for correct shipment of items.
3. Locate area to mount the Reader. Locate the four mounting brackets on each corner of the Reader.
See Fig. 4 and 5. The Reader should be mounted on a vertical surface within 12 feet of a grounded power source. NOTE: The power cord is 12 ft. long.
4. Install the power cord and plug power cord into power source. See Fig. 5. NOTE: The power cord
plugs into the mounting socket at first, then screws to lock in place.
5. Install the antenna cable. See Fig. 5. NOTE: The antenna cable plugs into the mounting socket at
first, then screws to lock in place. There are two identical antenna sockets on the bottom of the Reader. NOTE: It does not matter which socket you use.
6. Mount the antenna.
7. If desired, a computer can be connected to the Reader using a RS232 cable. The RS232 connector
point is located on the bottom right corner of the Reader. See Fig. 5. The RS232 connection also has a powered #9 pin for powering a Bluetooth wireless device if desired.
Deleted: Mounting Bracket
Spare Connection
Point
Power Cord
Mounting Bracket
Antenna Cable
Antenna Ports
Spare Connection
Point
RS232
Communication
Port
Mounting Bracket
FIG. 5: Cable Connections
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 9
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
Power/Reset Key
FIG. 6: Power/Reset Key
OPERATING INSTRUCTIONS
1. Insure that the antenna cable is connected.
2. Insure that the RS232 or USB cable is connected as needed.
3. Press the POWER/RESET Key.
4. Use display as required for the following functions:
Scan tags. See page 10.
View tags. See page 11.
Check miscellaneous status items of Reader. See page 12.
Create, download, store, delete and view files. See page 14-21.
Reader set up. See page 22-32.
Communication ports set up. See page 33-36.
Change display, beep sound, display, backlighting, and Tag ID.
See page 37-41.
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 10
Deleted: 3
Deleted: 13
Deleted: A
MAIN SCREEN
The reader defaults to the Main Screen. See Fig. 10.
When the unit is is Scan Mode, the word “Scan” appears in the upper right corner of the screen.
Press the STANDBY Key to move the unit into a Standby Mode. See Fig. 11.
When a tag is detected, the screen appears as shown in Fig. 12, exibiting the animals tag number.
The second line contains bins showing received signal levels and antenna current.
FIG. 10: Main Screen
FIG. 11: Standby Screen
Destron Fearing User Manual
FIG. 12: Tag Detected Screen
MAIN SCREEN
(continued)
VIEW TAGS
Use this function to view the stored tags within the file.
Complete this as follows from the Main Screen:
1. Press the STATUS Key and the “Status 1 Screen” will appear. See Fig.13.
2. Press the VIEW TAGS Key and the files will show the tag numbers stored. See Fig. 14.
Note: Tags may also be viewed in the
FIG. 13: Status 1 Screen
Status 2 Screen by pressing the VIEW TAGS Key.
3. Press the BACK Key to return to the previous screen.
4. Press the EXIT Key to return to the Main Screen.
FIG. 14: View Tags Screen
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 12
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
FIG. 17: View Tags Screen
MAIN SCREEN
STATUS SCREENS
1. Pressing the Status Key on the Main Screen displays the Status 1 Screen. See Fig. 15.
2. The Status 1 Screen lists current status information on the Reader. See Fig. 16.
3. Pressing the PAGE 2 Key displays the Status 2 Screen showing additional status information on the Reader. See Fig. 18.
4. Pressing the BACK Key displays the previous screen.
5. Pressing the EXIT Key returns the display to Main Screen.
VIEW TAGS
1. In either the Status 1 or 2 screens, pressing the VIEW TAGS Key displays a list of recent tags. See Fig. 17.
2. Pressing the BACK Key displays the previous screen.
3. Pressing the EXIT Key returns the display to Main Screen. See Fig. 15.
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 13
(continued)
FIG. 15: Main Screen
FIG. 16: Status 1 Screen
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
FIG. 18: Status 2 Screen
MAIN SCREEN
(continued)
USER SET UP SCREENS
Press the SET UP Key on the Main Screen to display the User Set Up Screen. See Fig. 22-23.
In the User Set Up Screen you have the following five options.
Note: These screens will be discussed in detail on the following pages:
1. Files – Accessing this area allows you to store, create, download and view files.
2. Reader Set Up – Accessing this area allows you to change current Reader settings.
FIG. 22: Main Screen
3. Communication Set Up – Accessing this
area allows you to change current communication settings.
4. Display – Accessing this area allows you to change current display settings.
5. Advanced Set Up - This area is access guarded. Contact Destron Fearing to gain access to the Advanced Setup Menu.
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 14
FIG. 23: Set Up Screen
Deleted: 3
Deleted: 13
Deleted: A
Destron Fearing User Manual
USER SET UP SCREENS
FILES SCREEN
Use this function to store, create, download, select active files, delete files and view files. Complete this as follows:
1. Press the SET UP Key on the Main Screen. See Fig. 24.
2. Select FILES using the UP/DOWN Keys. See Fig. 25.
3. Press the ENTER Key. The Files Screen will appear. On this screen you have 6 areas that can be accessed. See Fig. 26
FIG. 24: Main Screen
Store Mode
Create a File
Download a File
Select Active File
View Files
Delete a File
These functions will be discussed in detail on the following pages.
FIG. 25: User Set up Screen
Model AXIZ SB-1 User Manual - 01-02-2008 – Revision B1 Draft 15
Deleted: 3
Deleted: 13
Deleted: A
Loading...
+ 34 hidden pages
