RS420
Portable Stick Reader
USER MANUAL
Version 1.0
Item
features
Description
Part Number
1

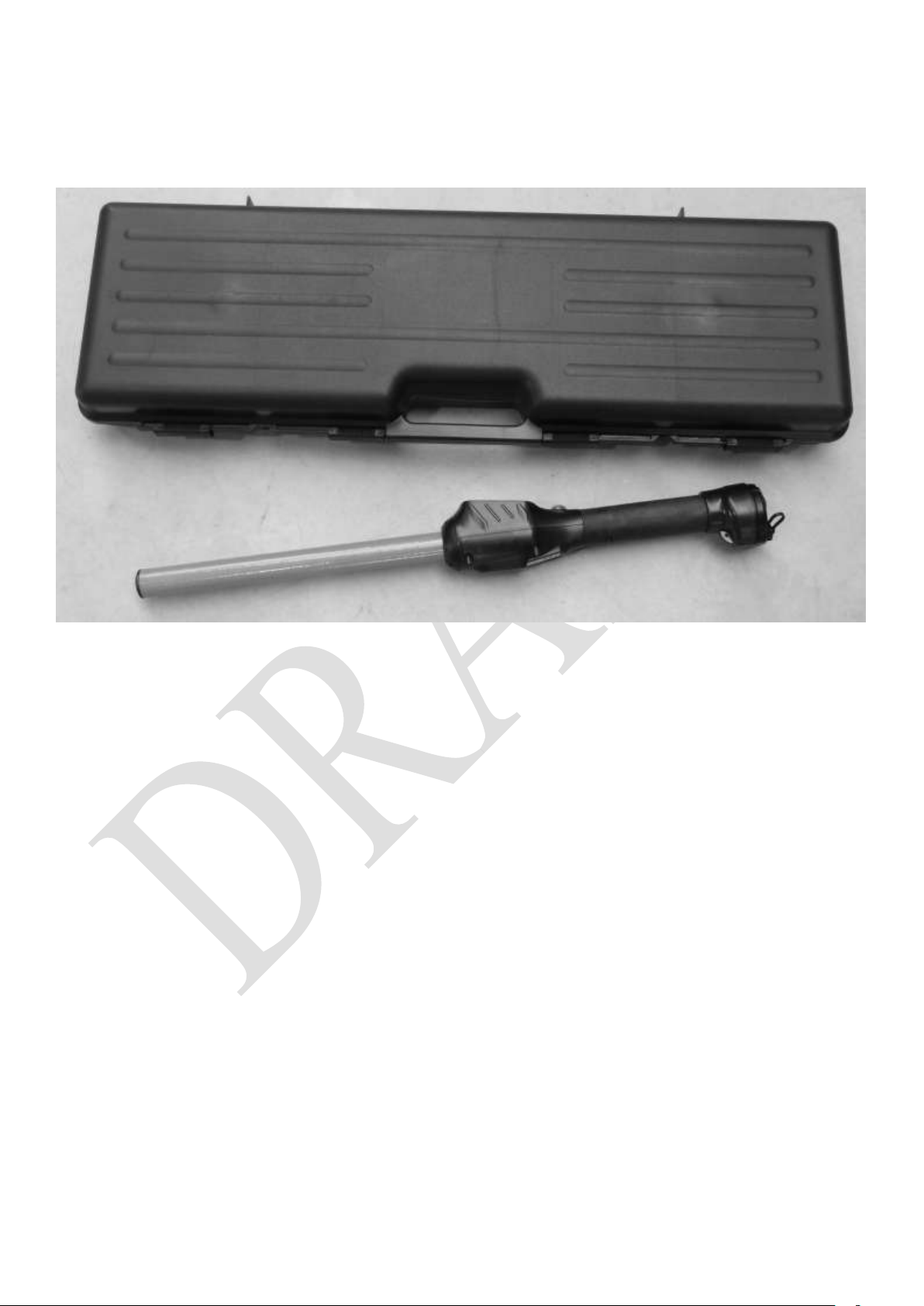

Cardboard
Use to transport the reader
2
Reader
-
3
IEC cable
Supply cable to power the external adapter
4
CD-ROM
Support for user manual and reader datasheets
5
Data-Power
Cable
Conveys external power to reader and serial data to and
from reader.
6
External Power
Adapter
Power the reader and charge the battery.
7
USB flash drive
adapter
Allows the user to connect an USB stick to upload or to
download data to or from reader.
8
User Manual
-
9
Ear Tags
2 ear tags to demonstrate and test FDX and HDX reading
capabilities.
10
Rechargeable LiIon battery
Supplies the reader. Adds expected battery life
6
2
1 3 5
4
10
7
9
8
Description
The RS420 reader is a rugged portable hand-held scanner and telemeter for RFID tags
specifically designed for livestock applications. The reader fully complies with ISO
standards ISO11784 / ISO11785 for FDX-B and HDX technologies.
In addition to its tag reading functions, the reader can store up to 100,000 IDs in different
work sessions, each associated with a time/date stamp, in its internal memory and transmit
hem to a personal computer via an USB interface, a RS232 interface or a Bluetooth®
interface.
The device has a large display window which allows you to view the “Main Menu” and
configures the reader to your specifications.
Packaging list
2
Item
Feature
Description of use
1
Antenna
Emits activation signal and receives transponder signal.
2
Fiberglass Tube Enclosure
Rugged and watertight enclosure.
3
Audible beeper
Beeps once on first transponder reading and 2 short beeps for repeat.
4
Large graphical readout with
backlight
Displays information about current reader status.
5
Green indicator
Illuminates whenever a transponder data has been stored.
6
Red indicator
Illuminates whenever antenna is emitting activation signal.
7
black MENU button
Navigates in the reader menu to manage or to configure it.
8
green READ button
Applies power and causes activation signal to be emitted for reading
transponder
9
Vibrator
Vibrates once on first transponder reading and short vibrates for
repeat.
10
Handle grip
Rubber anti-slip griping surface
11
Cable connector
Electrical interface for attaching Data/Power cable or USB stick
adapter.
12
Bluetooth®
Wireless interface to communicate data to and from reader (not
pictured)
Figure 1 - Reader features and user interface.
Table 1 – Reader features and description of use
3
1

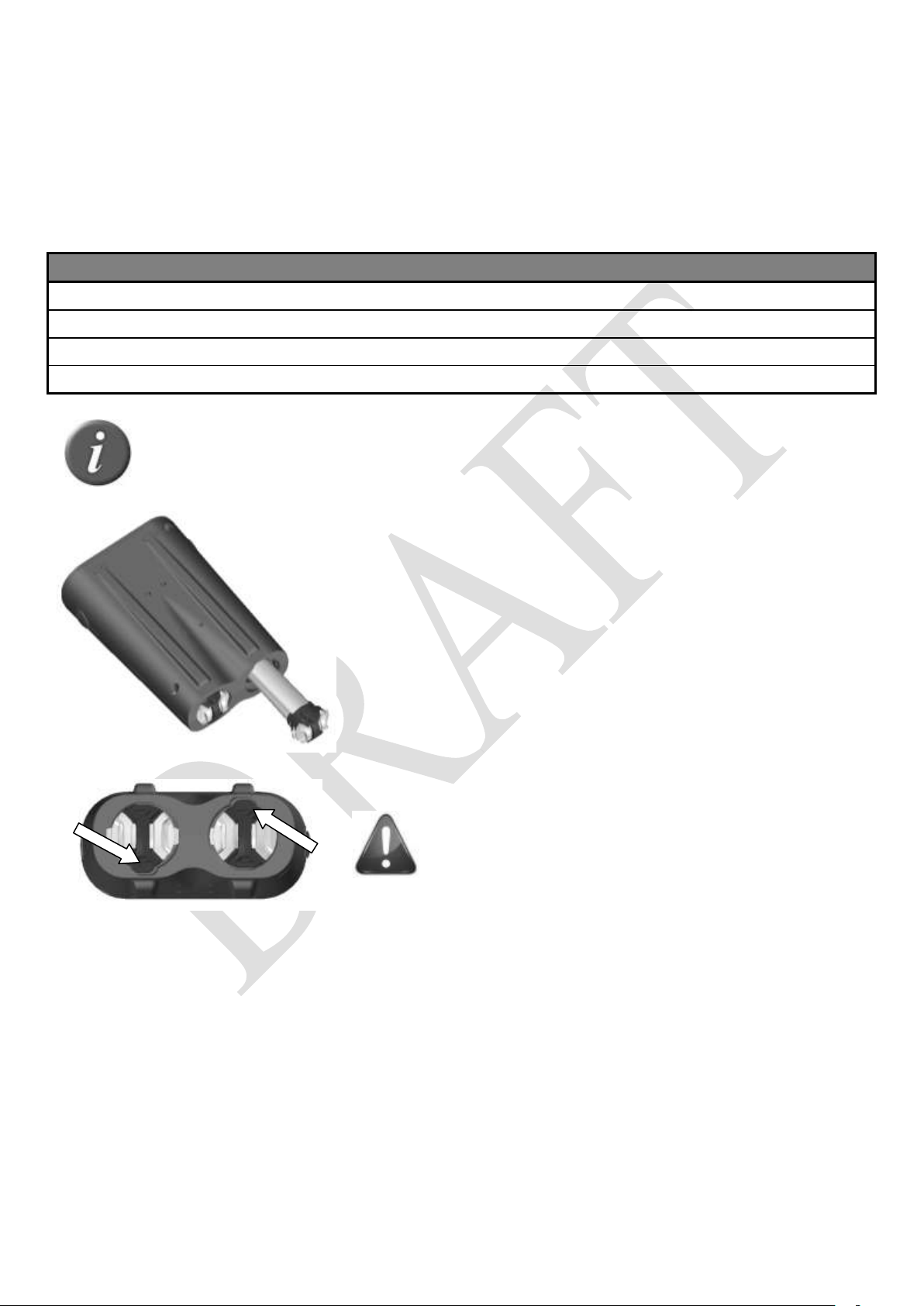

Insert the battery in the reader. The pack is keyed for proper
installation.
2
The stationary key should be up towards the display. The
battery pack will “snap” into place when it is properly
inserted. DO NOT FORCE the battery into the reader. If the
battery does not insert smoothly, verify it is properly
orientated.
1

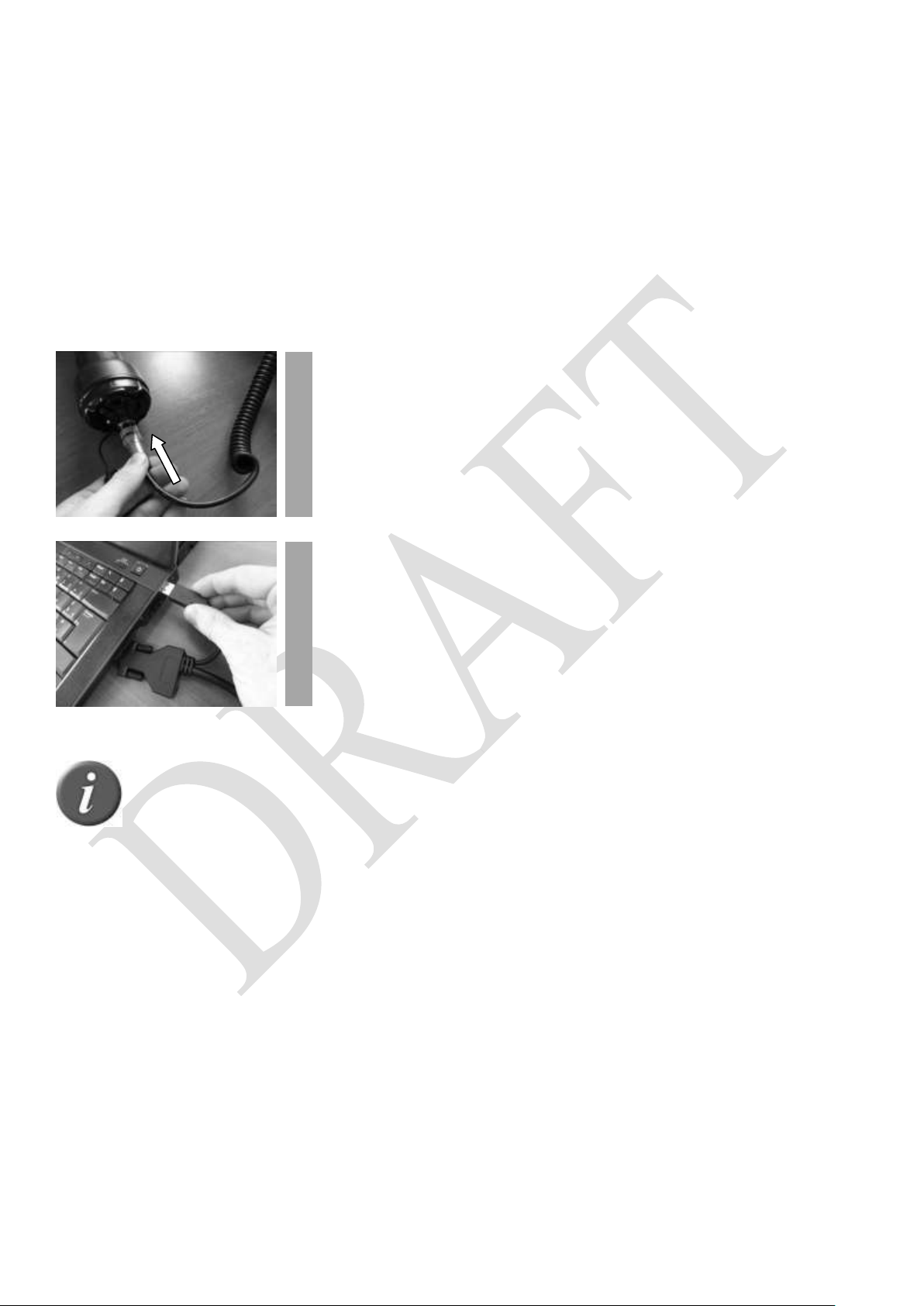

Unscrew the protective cap which guards against foreign
material contamination.
Insert the data-power cable by engaging the connector and
rotating the lock-ring.
Operation
Getting Started
It is necessary first to fully charge the Battery Pack as described below and to have a few
electronic identification ear tags or implants available for testing. It is very important to
carry out the three steps described in this section before using the reader (see “Battery
handling instructions” section for more information)
Step 1: Installing the battery pack in the device.
Step 2: Charging the battery pack.
4
2

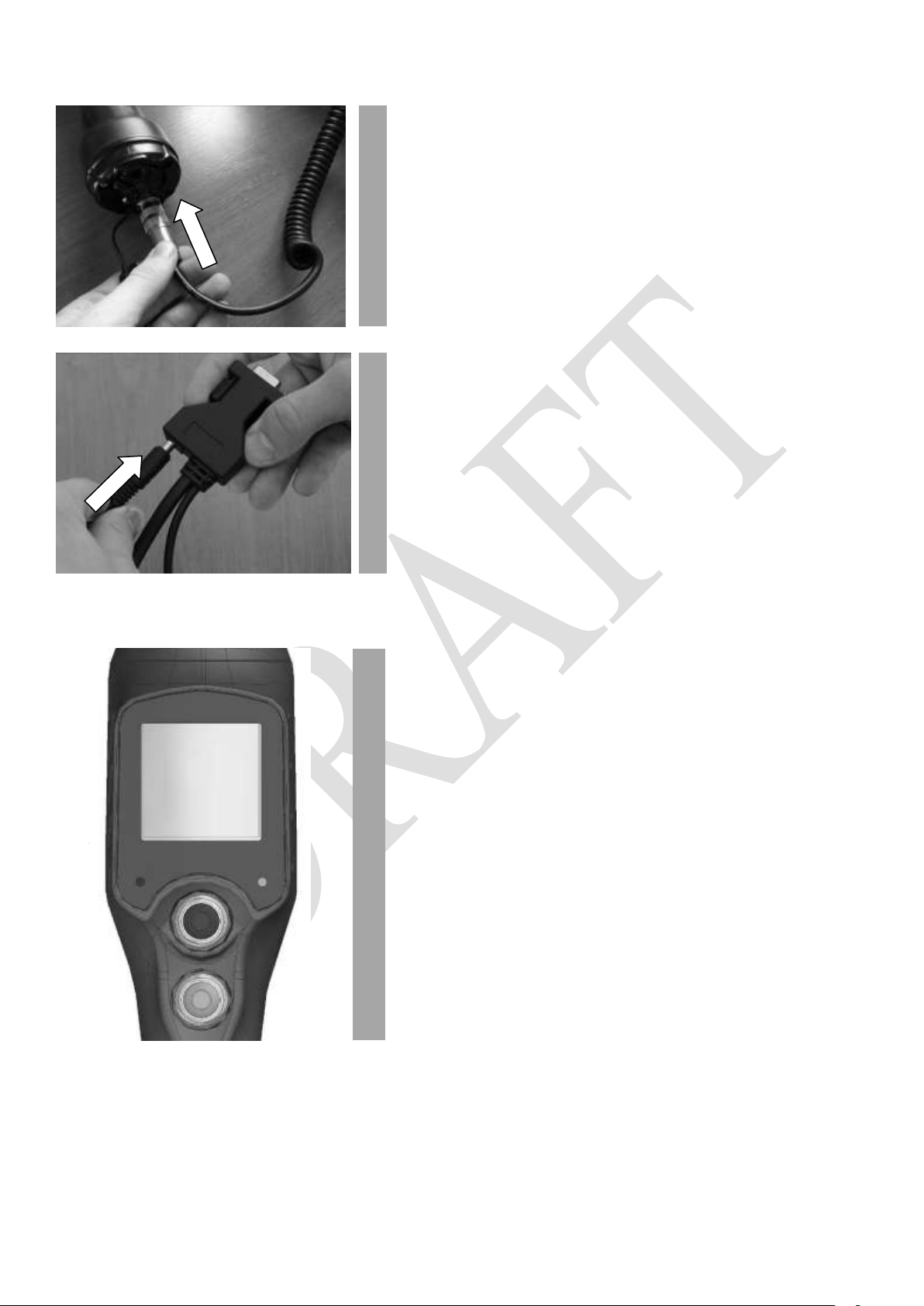

Plug the power cord into the cable socket located at the end of
the data-power cable.
3
Plug the adapter into a power outlet. The icon of the battery
level indicates that the battery pack is in charge (the level bars
flash inside the icon) and gives the battery charge level.
4
The icon of the battery level will be when charging has
finished. Charging takes approx. 3 hours.
Remove the power cord.
Unplug the adapter from the power outlet, and remove the
data-power cable inserted in the reader.
5
Item
Feature
Description of use
1
Battery level
The battery level shows the fully charged level as well as the
charge level during the charge mode.
2
USB connection
Appears when the reader is connected to a computer via USB port.
NOTE: The reading mode is disabled if there is no battery and no
external power supply. Therefore it is not possible to read a
transponder although the other functions are fully active.
3
Current number
of ID codes
Number of read and saved ID codes in the current session.
4
Clock
Clock time in 24 hour mode.
5

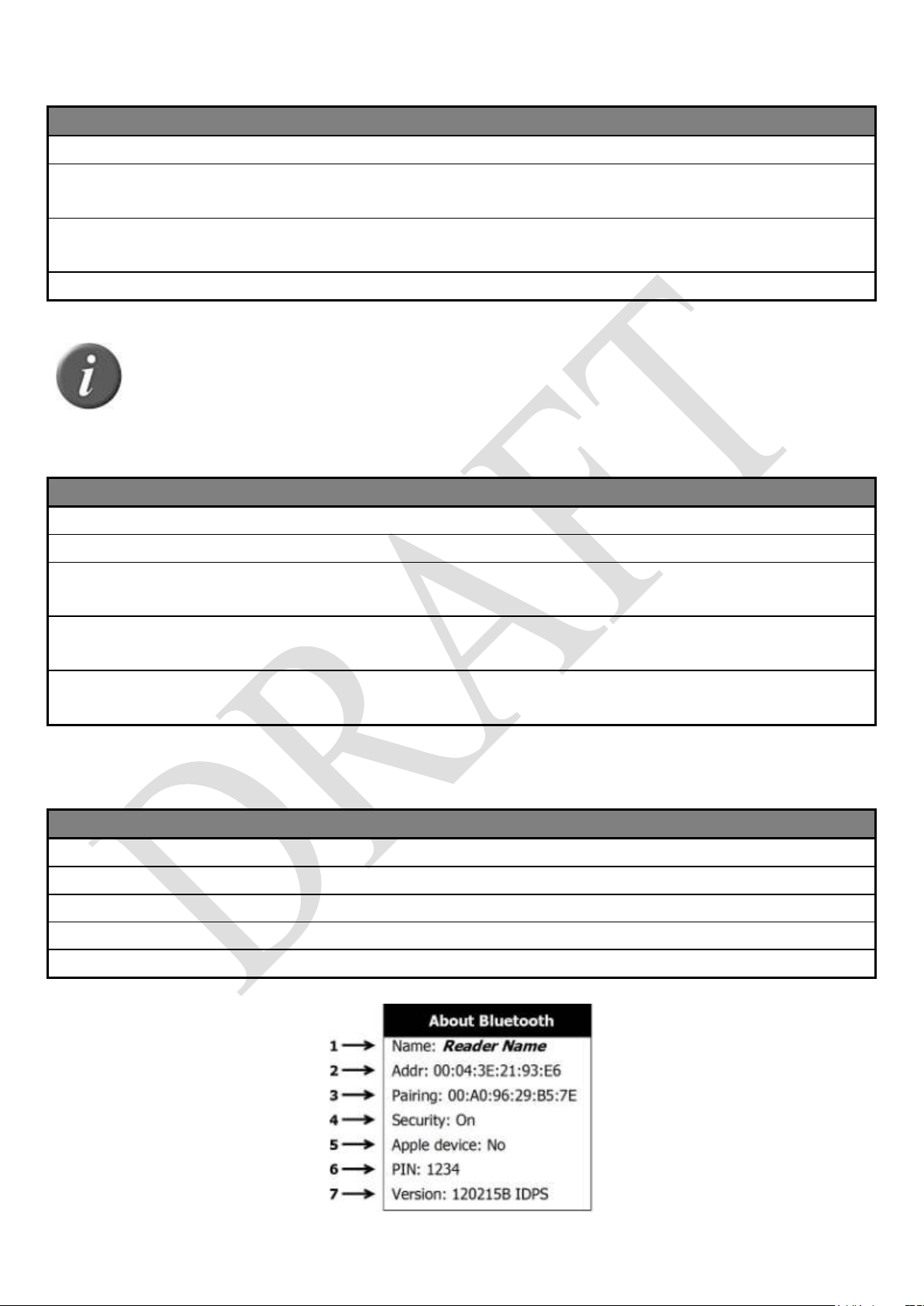

Bluetooth
connection
Check the Bluetooth® status and connection (see section
“Bluetooth® management” for more details).
6
Reader name
Display the reader name. It appears only upon power on and until
a tag is read.
7
Number of ID
codes
Total number of read and saved ID codes in all recorded sessions.
Note 1 - Once activated, the reader will remain activated for 5 minutes by default,
if it is powered only by its battery pack.
Power on instructions
Press the green button on the reader handle to power on the reader. The main screen will
appear on the display:
6
Item
Legend
Comments
1
Reading zone
Area in which the ear tags and the implants can be read.
2
RFID Ear tag
-
3
RFID Implant
- 4 Best orientation
Best orientation of the ear tags regarding the reader antenna
5
Antenna
-
6
Reader
-
Read Range Performance
Figure 2 illustrates the reading zone of the reader, within which tags can be successfully
detected and read. Optimum read distance occurs depending upon the orientation of the tag.
Tags and implant read best when positioned as shown below.
Figure 2 - Optimum Read Distance Tag Orientation
Typical read distances will vary when reading different types of ear tags, in the optimum tag
orientation at the end of the reader (as shown in Figure 2), the reader will read up to 42cm
depending tag type and orientation.
Power off instructions
The reader can be powered off by simultaneously depressing BOTH buttons for
approximately 3 seconds
7
Item
Feature
Description of use
1
Transponder type
ISO standard 11784/5 has approved 2 technologies for animal
identification: FDX-B and HDX. When the reader displays the
word “IND” as transponder type, it means that its transponder
is not coded for animals.
2
Country code /
Manufacturer
code
The country code is according the ISO 3166 and ISO 11784/5 in
numeric or in alpha coding. Manufacturer code is according to
ICAR assignment.
3
First digits of ID
code
First digits of the identify code is according the ISO 11784/5.
4
Last digits of ID
code
Last digits of the identify code is according the ISO 11784/5. The
user can select the number of last bold digits (between 3 and 8
digits).
Read a RFID transponder
Scanning animals
Place the device near the animal identification tag to be read, then press the green button in
order to activate the reading mode. The screen backlight switches on and the red light is
flashing.
During the reading mode, move the reader along the animal to scan the transponder ID. The
reading mode remains activated during a programmed duration. If the user is always pressing
the green button, the reading mode remains activated. If the device is programmed in
continuous reading mode, the reading mode remains indefinitely activated up to the user stop
it by pressing again the green button.
The following picture shows the result of a successful reading session:
When a new EID transponder is successfully read, the green light flashes and the reader
stores the ID code in its internal memory after its first reading (and if the option “duplicate
search” is activated) with the current date and time (if the option is activated).
The number of read ID codes in the current session is increased.
The buzzer and the vibrator will sound and/or vibrate with every scan.
8
Note 2 –The ‘Date and Time Stamp’, and the sound/vibration features are options
that can be turned on or off according to your specific applications.
Each time a tag is scanned, the identification code is transmitted automatically via the USB
cable, the RS232 cable or Bluetooth®.
Tips for efficient reading
Tag reader efficiency is often linked with reading distance. The device's read distance
performance is affected by the following factors:
1. Transponder orientation: to obtain maximum reading distance, the axes of the
transponder and reader antenna coils must be optimally orientated as shown in Figure
2.
2. Transponder quality: Each transponder manufacturer uses their own unique
manufacturing process. Consequently, it is normal to find that many common
transponders from different manufacturers have different read range performance
levels.
3. Animal movement: If the animal moves too quickly, the transponder may not be
located in the read zone long enough for the ID code information to be obtained.
4. Transponder type: HDX and FDX-B transponders generally have similar reading
distances, but tag manufacturers and environmental factors such as RF interferences
may affect overall tag performances.
5. Nearby metal objects: Metal objects located near a transponder or reader may
attenuate and distort the magnetic fields generated in RFID systems and therefore,
reduce reading distance. An example, an ear tag against a squeeze chute significantly
reduces the read distance.
6. Electrical noise interference: The operating principle of RFID transponders and
readers is based on electromagnetic signals. Other electromagnetic phenomena, such
as radiated electrical noise from other RFID tag readers, or computer screens may
interfere with RFID signal transmission and reception, therefore, reduce the read
distance.
7. Transponder/reader interference: Several transponders in the reception range of the
reader, or other readers that emit excitation energy close by may adversely affect
reader performance or even prevent the reader from operating.
8. Discharged battery pack: As the battery pack discharges, the power available to
activate the field becomes weaker, which in turn reduces the read range field.
9
Item
Legend
Comments
1
Activation signal
of reader 1
-
2
Reader 1
reader 1 in transmitting mode.
3
Activation signal
from reader 1
-
4
Reader 2
reader 2 in listening mode.
Note 3 – Activate the wireless synchronization feature only with readers which
complied with the ISO11785 timings.
Wireless synchronization
A reader which is in the vicinity of a second reader is very likely to transmit its activation
signal during the listening pause of the second reader and vice versa. The result is that
neither reader will be able to receive the HDX telegram.
Wireless synchronization can be used to control the coordination of readers. The proviso is
that the electrical noise in the environment is low and the RFI noise is constant, for the type
of readers in use.
“A mobile transceiver by nature cannot directly be connected to other transceivers. To
prevent a mobile transceiver interfering with the interrogation protocol of other
transceivers, it must be able to detect the presence of additional active transceivers through
the reception of activation signals.
If no activation signal is detected within 30 ms, the transceiver is out of reach of other active
transceivers and its activation signal will not interfere with other interrogation processes.
The transceiver can therefore safety use the protocols defined in clause 6 of this
International Standard. If the mobile transceiver detects an activation signal it must wait for
the rising edge of the next activation signal and activate during a fixed period of 50ms.” (cf.
ISO1185 – Annex C chapter 3)
10
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Session
Enter into the session management sub-menu.
3
Bluetooth
Enter into the Bluetooth management sub-menu.
4
Settings
Enter into the device settings sub-menu.
5

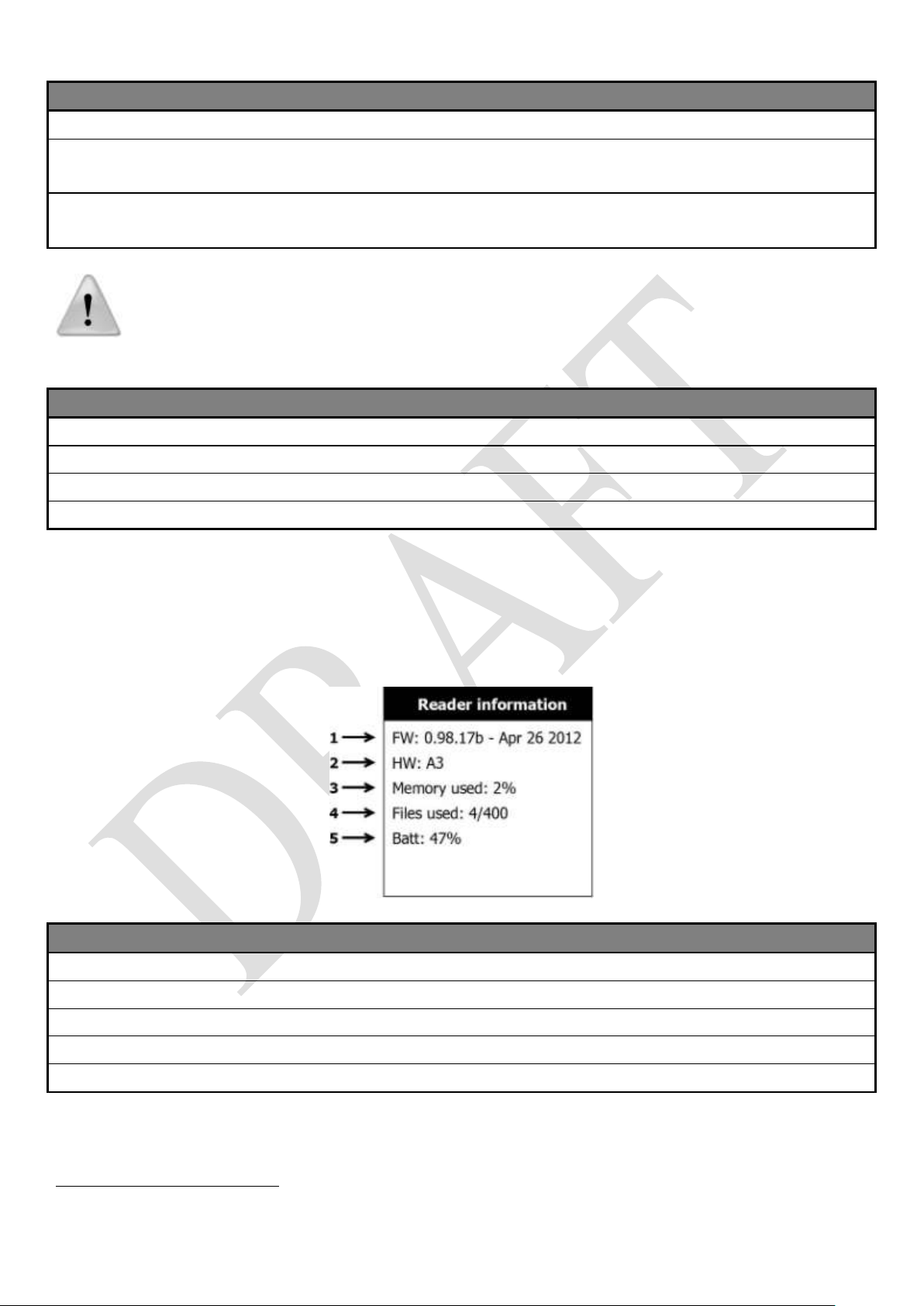

Reader information
Gives information about the reader.
Note 4 – To enter into a sub-menu, move the horizontal lines by pressing the green
button and press the black button to select it.
Note 5 - The reader automatically closes the menu if no action occurs for 8
seconds.
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
New session
Create a new work session after validation by the user. This new
session becomes the current one and the previous one is closed.
3
Open
existing
List all stored sessions and indicates the number of saved ID codes per
each session.
4
Compare
session
Enter into the compare sub-menu.
5
Clear all
session
Erase all stored sessions.
Note 6 – Each ID Code is stored internally in the reader’s memory until the user
erases the stored ID codes after downloading them to a PC or other recording
device, such as an USB stick. Up to 100,000 ID codes (10,000 ID codes per
sessions) can be stored and retrieved later at the user’s convenience.
Note 7 – If enabled, the reader provides a time and date stamp for each ID number
stored.
The user can enable the date and time through a communication interface (USB,
Serial or Bluetooth® port) and the software program.
Managing the menu
Using the menu
With the reader powered on, press the black button for over 3 seconds.
The device lists on the screen, the following features:
Session management
Once, the sub-menu “session” is selected, the device lists on the screen, the following
options:
11
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Select
compare
List all sessions saved inside the reader and select the comparison
session used to compare the read ID codes.
3
Disable
compare
Disable the comparison.
4
Alerts
Enter into the alert sub-menu.
Note 8 – When a tag is read and compared successfully to an ID code stored in a
selected comparison session, supplementary information stored in the comparison
session, is displayed on the reader’s screen (ex: visual id code, supplementary
data…)
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Disabled
Disable the alert management.
3
On animal found
Produce an alert signal when the read ID code is found in the
comparison session.
4
Sort animals
Produce an alert signal when the read ID code is NOT found in
the comparison session.
5
From secondary
data
Produce an alert message is associated to the read ID code in the
comparison list.
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
On/Off
Enable or Disable the Bluetooth® feature.
3
Search device
Scan and list all Bluetooth® devices in the reader proximity.
4
Cancel Pairing
Cancel the current pairing and put the reader in SLAVE mode.
5
About
Provide information about the Bluetooth® features (see below).
Once, the sub-menu “compare session” is selected, the device lists the following options:
Once, the compare session sub-menu is selected, the device lists the following options:
Bluetooth® management
Once, the sub-menu “Bluetooth®” is selected, the device lists the following options:
12
Item
Feature
Description of use
1
Name
Name of the reader.
2
Addr
Address of the Bluetooth® module.
3
Pairing
Device address with which the reader is paired (reader is in master
mode) or SLAVE when the reader is in slave mode.
4
Security
On/Off – the Bluetooth® connection is secure or not.
5
Apple device
Yes/No – the Apple’s compatibility is enabled or disabled.
6
PIN
Pin code
7
Version
Version of the Bluetooth® stack.
Note 9 – Understanding the Bluetooth® icon:
When the Bluetooth® module is enabled, an icon is displayed.
If the icon doesn’t blink, that means the device is in slave mode and NOT
paired with a device.
If the icon flashes between and , the device is in master mode and it is
trying to established a connection with a slave device.
If the icon is displayed, once a connection has been established (in slave or
in master mode).
Note 10 – 1 beep is emitted and 1 message is displayed when the Bluetooth®
connection is established and 3 beeps are emitted when the connection is
removed.
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Profiles
Allow to store, to recall or to erase profiles
3
Quick action
Attribute a second feature to the black button.
4
Read time
Manage the time of reading.
5
Vibrator
Manage the vibrator.
6
Buzzer
Manage the audible beeper.
7
RFID Power Mode
Manage the power consumption of the device.
8
Protocol
Select the protocol used by the communication
interfaces.
9
Language
Select the language used by the device.
10
Load defaults
Erase the current settings and load the default settings.
Settings
Once, the sub-menu “settings” is selected, the device lists the following options:
13
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Store profile
Store a profile. When the profile is saved, a message “Profile X
saved!” is displayed. If there is no free profile, the message “no
free profile” is displayed.
3
Recall profile
Recall a saved profile
4
Erase a profile
Erase a saved profile. A confirmation message is displayed.
5
Erase all profiles
Erase all profiles. A confirmation message is displayed.
Note 11 – A profile corresponds to the current settings of the reader. The user can
save up to 4 profiles.
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Disabled
No feature attributed to the black button
3
Enter menu
Fast access to the menu.
4
New session
Fast creation of a new session.
5
Re-send last tag
Last read tag is re-sent on the communication interfaces.
Note 12 – a quick action is a second feature attributed to the black button. The
reader performs the selected action after a short keystroke of the black button.
Note 13 – If the user holds the black button for over 3 seconds, the device displays
the menu and the quick action is not performed.
Note 14 – the symbol “>” is in front of the current selected option.
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
3 seconds
The reader will scan for tags for 3 seconds.
3
5 seconds
The reader will scan for tags for 5 seconds.
4
10 seconds
The reader will scan for tags for 10 seconds.
5
Continuous
The reader will scan for tags continuously.
Once, the sub-menu “profile” is selected, the device lists the following options:
Once, the sub-menu “quick action” is selected, the device lists the following options:
Once, the sub-menu “read time” is selected, the device lists the following options:
14
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Disabled
Disable the vibrator
3
Enabled
Enable the vibrator
Note 15
- A short vibration indicates that the reader has previously read the tag during
the current session.
- A vibration of medium-duration means that the reader has read a new tag
which has NOT been previously read during the current session.
- A long vibration means that there is an alert regarding the tag which has
been read.
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Disabled
Disable the audible beeper.
3
Enabled
Enable the audible beeper.
Note 16
- A short beep indicates that the reader has switched on or that the Bluetooth®
connection is established.
- Two short beeps mean that the reader has previously read the tag during the
current session.
- Three short beeps mean that the Bluetooth® connection is removed.
- A beep of medium-duration means that the reader has read a new tag which
has NOT been previously read during the current session
- A long beep means that there is an alert regarding the tag which has been
read.
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Save power
Puts the device in low power consumption with shorter reading
distances.
3
Full power
Puts the device in high power consumption
Note 17 – When the reader is in low consumption, the reading distances are
reduced.
Once, the sub-menu “vibrator” is selected, the device lists the following options:
Once, the sub-menu “buzzer” is selected, the device lists the following options:
Once, the sub-menu “RFID power mode” is selected, the device lists the following options:
15
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
Standard protocol
Select the standard protocol defined for this reader (see
specifications Protocol_Document_V1.0).
3
Allflex RS320 /
RS34
Select the protocol used by ALLFLEX’S readers RS320 and
RS340.
Note 18 – All commands of ALLFLEX’S reader are implemented but all
functionalities are not implemented (see specifications Protocol_Document_V1.0).
Item
Sub-Menu
Definition
1
Back
Return to the main screen
2
English
Select the English language
3
French
Select the French language
4
Spanish1
Select the Spanish language
Item
Feature
Description of use
1
FW
Indicates the firmware version of the reader
2
HW
Indicates the hardware version of the reader
3
Memory used
Indicates the percentage of the memory used.
4
Files used
Indicates the number of files saved in the reader.
5
Batt
Indicates the battery charge level in percentage.
1
Once, the sub-menu “protocol” is selected, the device lists the following options:
Once, the sub-menu “language” is selected, the device lists the following options:
About the reader
Once, the sub-menu “Reader information” is selected, the device displays the following
information:
Not implemented in the reader.
16
1
Remove the protective cap which covers the reader’s cable
connector, and guards the reader against foreign material
contamination.
Install the data-power cable by engaging the connector and
rotating the lock-ring.
2
Plug the USB extension into a USB port on your computer.
Note 19 – Once the USB cable is connected, the reader is automatically powered
on and it will remain activated until the cable is disconnected. The reader will be
able to read a tag if a sufficient charged battery is inserted. With a depleted battery,
the reader will not be able to read a tag, but will remain on and can only
communicate with computer.
Connect the reader to a PC
This section is meant to describe how to connect the reader to hand held computer (PDA) or
to a personal computer (PC). The device can be connected to a PC in 3 ways: a wired USB
connection, a wired RS-232 connection or by wireless Bluetooth® connection.
Using USB interface
The USB port allows the device to send and receive data via an USB connection.
To make USB operate, connect the reader to a PC or a PDA with the data-power cable.
When connecting to a PDA or a PC, you may need to install specific drives supplied by its
manufacturer. When connecting to a Windows PC, the operating systems start the Device
Manager (more details provided by the manufacturer on the CDROM).
17
Note 20 - The RS232 interface is wired as a DCE (data communications
equipment) type that connects directly to the serial port of a PC or any other
device that is designated as a DTE (data terminal equipment) type. When the
device is connected to other equipment that is wired as DCE (such as a PDA), a
“null modem” adapter is required in order to properly cross-wire transmit and
receive signals so that communications can occur.
Note 21 - The reader’s serial data connection can be extended using a standard
DB9M to DB9F extension cable. Extensions longer than 20 meters (~65 feet) are
not recommended for data. Extensions longer that 2 meters (~6 feet) are not
recommended for data and power.
2
Using serial interface
The serial port allows the device to send and receive data via an RS-232 connection.
To make RS-232 operate, you need to connect the reader with a PC or a PDA with the datapower cable.
The RS232 serial interface comprises a 3-wire arrangement with a DB9F connector, and
consists of transmit (TxD/pin 2), receive (RxD/pin 3), and ground (GND/pin 5). This
interface is factory configured with the default settings of 9600 bits/second, no parity, 8
bits/1 word, and 1 stop bit (“9600N81”). These parameters can be changed from PC
software.
Serial output data appears on the device’s TxD/pin 2 connection in ASCII format.
Using Bluetooth® interface
Bluetooth® works on a premise that one end of the communication will be a MASTER and
the other a SLAVE. The MASTER initiates communications and looks for a SLAVE device
to connect to. When the reader is in SLAVE mode it can be seen by other devices such as a
PC or PDA. PDAs and computers usually behave as MASTERS with the reader configured
as a SLAVE device.
When the reader is configured as a MASTER it cannot be seen by other devices other then
the device it is paired to. Readers are typically used in a MASTER mode configuration when
it only needs to be paired with a single device such as a scale head, PDA or Bluetooth printer
The reader is equipped with a Class 12 Bluetooth® module and is compliant with the
Bluetooth® Serial Port Profile (SPP) and the Apple’s iPod® Accessory Protocol (iAP). The
connection can be in slave mode or in master mode.
When the module is enabled, the icon is displayed and once the communication is
established between the reader and another device, the icon is replaced by the icon .
Operating distance of communication is around 100 m (330 ft).
18
Note 22 - We advise that to achieve successful Bluetooth® connection with your
reader, simply follow the implementation methods listed (see the following).
Note 23 - If these implementation methods are not followed, the connection may
become inconsistent, thus causing other reader related errors.
If you are using a PDA, it will require software (Not supplied by the manufacturer). Your
software supplier will explain how to connect the PDA.
Bluetooth® – Known Successful Methods
There are 2 scenarios to correctly implement the Bluetooth® connection. These are:
1. Reader to a Bluetooth® adapter connected to a PC, or to a Bluetooth® enabled PC or
PDA.
2. Reader to a Bluetooth® adapter connected to a scale head, or to a Bluetooth® enabled
device, such as scale head or printer.
These options are discussed in further details below.
Reader to a Bluetooth® adapter connected to a PC, or to a Bluetooth®
enabled PC or PDA
This scenario requires that a process called « Pairing » be undertaken. On the reader, go to
the menu “Bluetooth”, and then select the sub-menu “Cancel Pairing” to remove the previous
pairing and allow the reader to return to SLAVE mode.

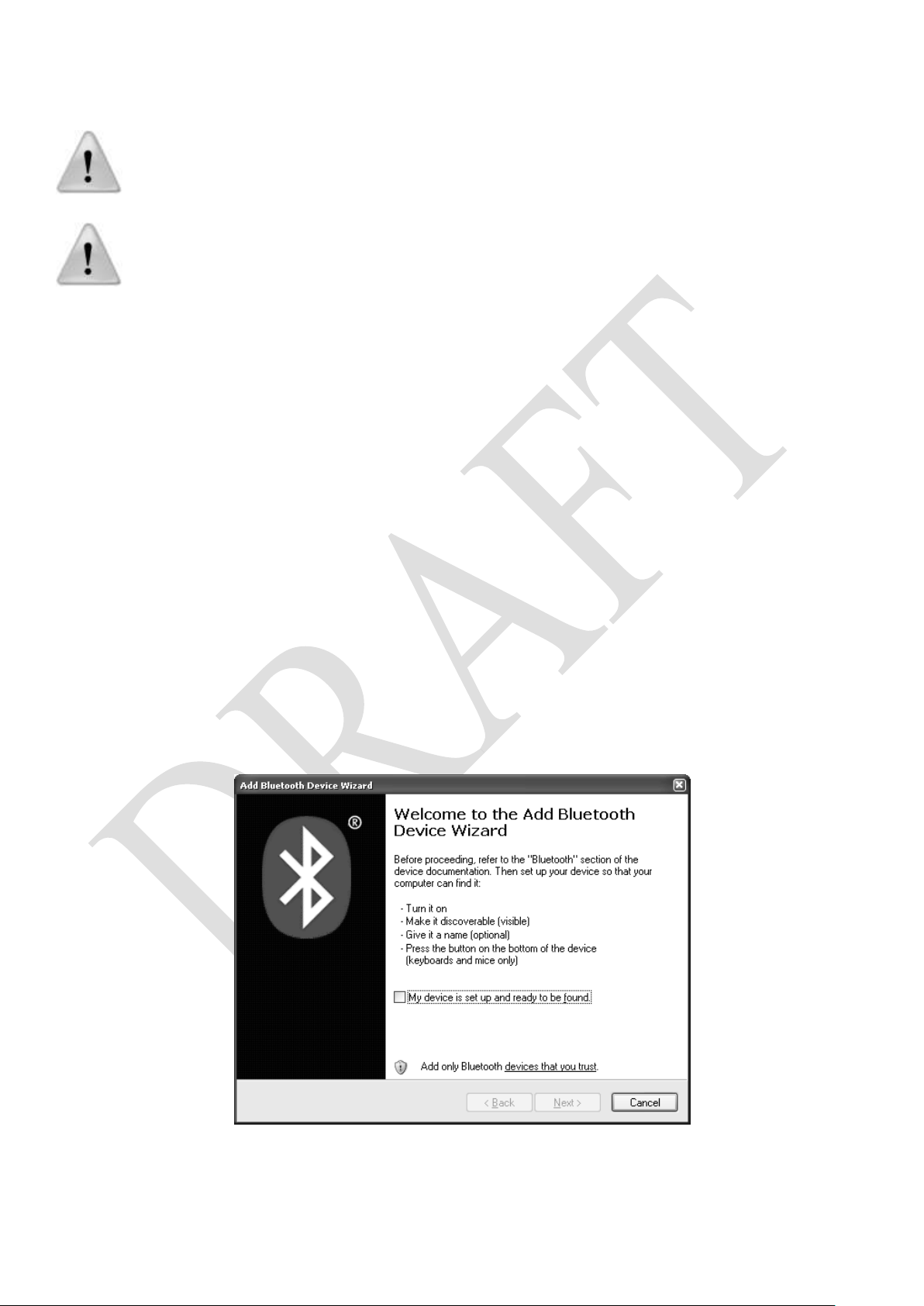

Start your PC Bluetooth® Manager program or PDA Bluetooth® services,
Depending on which Bluetooth device your PC is using the Bluetooth Manager may vary in
how it pairs a device. As a general rule you the program should have the option to “Add a
Device” or “Discover a Device”.
19
READER NAME
Passkey enabled

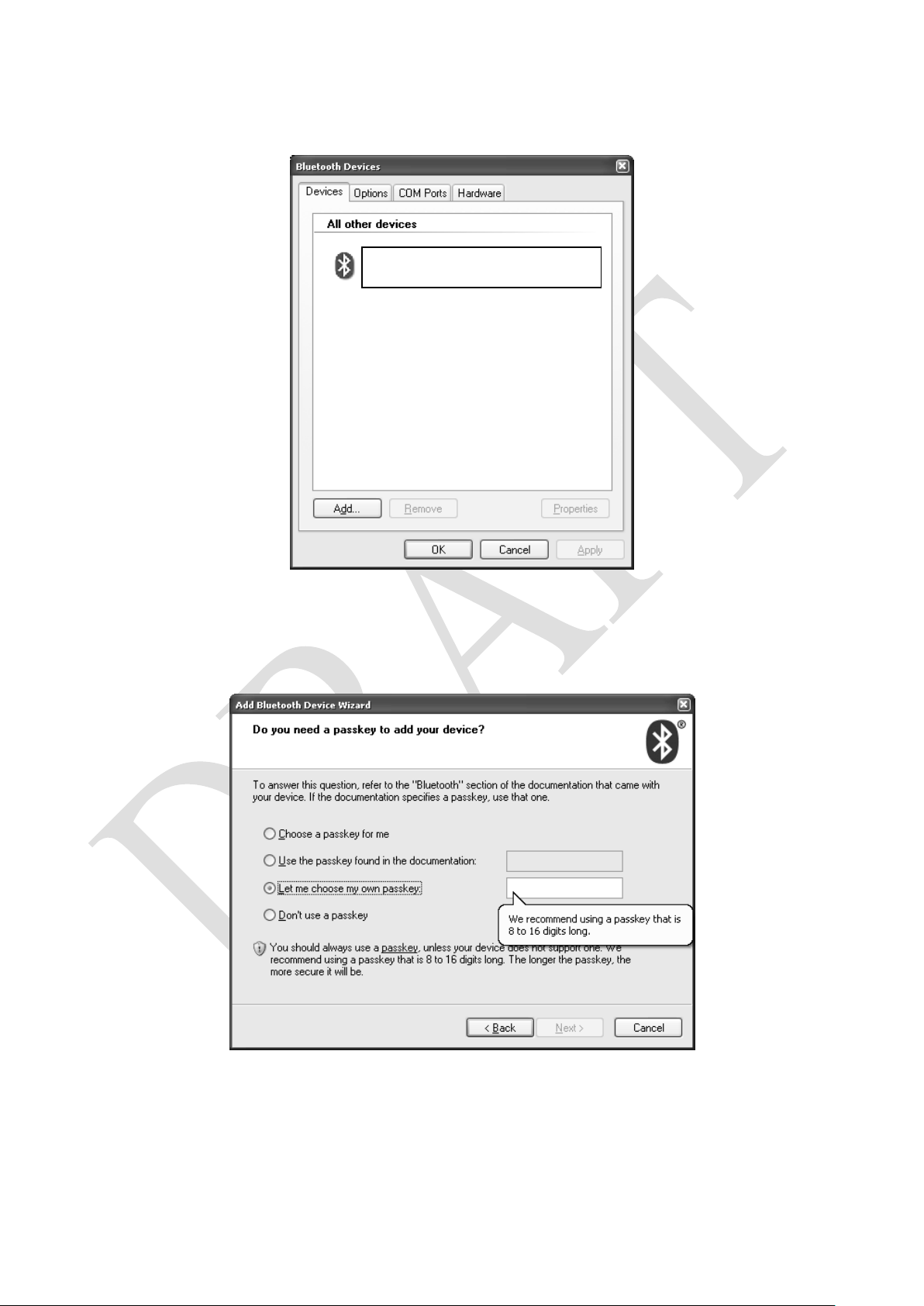

With the reader turned on, select one of these options. The Bluetooth® program should open
a window within one minute showing all Bluetooth enabled devices in the area. Click on the
reader you want to connect to and follow the steps provided by the program.
The program may ask you to provide a “Pass Key” for the device. As noted in the following
example, select the option “Let me choose my own passkey” The default passkey for the
reader is: 1234
The program will assign 2 communication ports for the reader. Most applications will use the
outgoing port. Make note of this port number for use when connecting to a software program
20
Note 24 - Sometimes, a PIN code is required to connect the reader to the PC,
PDA… In such case, the PIN code to use is 1234.
Note 25 - Sometimes, the security features and checking have to be disabled on
the reader to established the connection with a printer. So use PC software provided
with the reader, to configure the reader’s Bluetooth® security (refer to PC software
documentation).
3
If this fails use the following links, search the reader in the peripheral list and connect it. You
have to add an outgoing port that makes a connection to the device. Follow the steps
described in the links below.
For Windows XP: http://support.microsoft.com/kb/883259/en-us
For Windows 7: http://windows.microsoft.com/en-
US/windows7/Connect-to-Bluetooth-and-other-wireless-or-
network-devices
Reader to a Bluetooth® adapter connected to a scale head, or to a
Bluetooth® enabled device, such as scale head or printer.
This scenario requires that the reader lists the Bluetooth® peripherals. Go to the menu
“Bluetooth”, then the sub-menu “Search device” which launches the Bluetooth® scanning.
The device you want to connect to will be displayed on the reader. Use the green button to
scroll to the desired device. Select the device by depressing the black button on the reader.
The reader will now connect in “slave’ mode.
To connect the reader in ‘Master” mode the reader will need to be configured using the Tag
Manager program. In the “Reader setup” section of the Tag Manager Program, the user can
enter the 12 character address of the device they want to connect to. Once this is done the
reader will be in Master mode when it connects to that device.
Connect the reader to an USB flash drive3
The reader can be equipped with an USB stick. To connect this USB flash drive, the reader is
provided with an adapter cable which allows the user to connect an USB flash drive to the
reader.
With this stick, the user can import and/or export sessions. The sessions can be some
working sessions stored in the reader or some comparison sessions which contain details and
information about each animal ID code.
Not implemented in the reader.
21
1
Connect the black alligator clip to the negative
terminal (-). Connect the red alligator clip to the
positive terminal (+).
4
Power Management
Reader Power Sources
The reader contains a 7.4VDC – 2600mAh Li-Ion rechargeable battery pack, which serves as
its primary power source. Add expected hours/scans of a fully charged battery.
Alternately, the reader can be powered by the following methods:
1. From its AC Adapter. Once the external AC adapter is connected, the reader is
powered-up, it will remain on until the AC adapter is disconnected and the Battery
Pack is charged. The reader can be powered regardless of the charge state of the
Battery Pack. The AC Adapter can be used as a power source even if the Battery Pack
has been removed from the device. If the AC Adapter has been connected, the user
may proceed with configuration and performance testing while the Battery Pack is
charging. This configuration could affect reading performances.
2. From its USB cable but it cannot read transponders without a charged battery. During
the USB connection, the reader charges the battery pack.

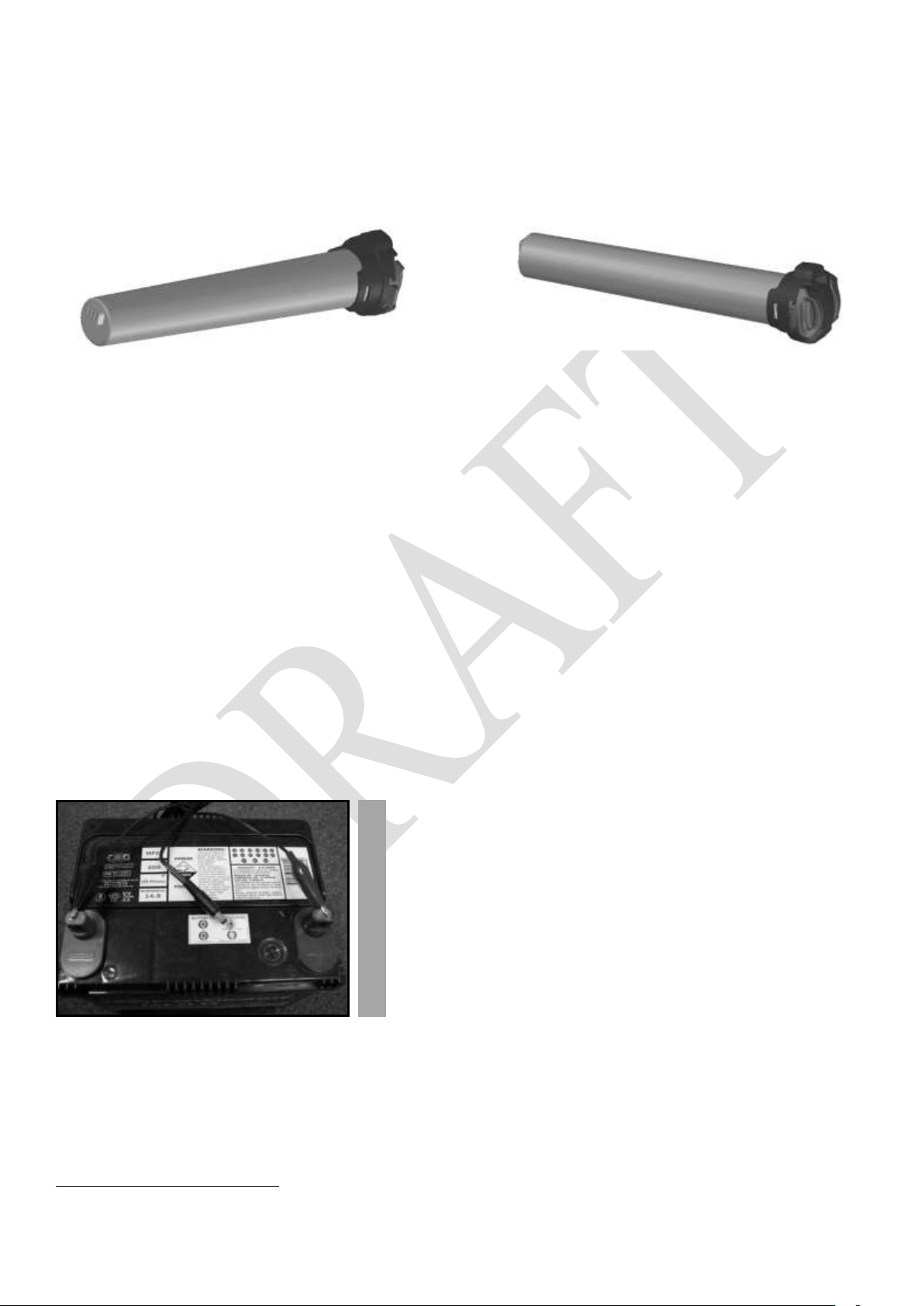

3. From its DC power supply cable with alligator clips4: You can connect your reader to
any DC power supply (between minimum 12V DC and maximum 28V DC) such as a
car, truck, tractor, or battery. The reader is connected through the socket located on the
back of the reader data-power cable as shown in step 2 (see chapter “Getting Started”).
Step 1: Connect to a battery
Not proposed for sale in Europe
22
1
Remove the protective cap which covers the reader’s
cable connector, and which guards the reader
against foreign material contamination.
Install the data-power cable by engaging the
connector and rotating the lock-ring.
2
Then connect the other end of the battery cable into
the power socket located at the end of the reader’s
data-power cable
1
Once you are connected to a power source, the
reader display’s backlight will turn on.
Press the green button momentarily and notice the
flashing red light. This indicates that the reader is
receiving power.
Step 2: Connect to the reader
Step 3: Checking the reader
23
Display
Summary
Good.
Quite good.
Slightly depleted, but sufficient
Depleted. Recharge the battery.
“LOW BATTERY”
Depleted. Recharge the battery.
Note 26 - The reader is designed to operate only with the Battery Pack provided.
The reader will not operate with individual battery cells of either disposable or
rechargeable variety.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Note 27 - Do not use this reader near water when connected to the AC/DC adapter.
Note 28 - Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus that produce heat.
Note 29 - Do not charge the battery pack from AC main sources during electrical
storms or when unused for long periods of time.
Note 30 - The reader is protected for reverse polarity connections.
At the top of the screen, the icon of the battery level shows the discharge level as well as the
charge level during the charge mode.
Reader power instructions
Battery handling instructions
Please read and follow the handling instructions for the battery before use. Improper use of
the battery may cause heat, fire, rupture, and damage or capacity deterioration of the battery.
24
Caution
Warning
Notice
1. Do not use or leave the battery in high heat environments (for example, at strong direct
sunlight or in a vehicle in extremely hot weather). Otherwise, it can overheat ignite or
battery performances will be degraded, thus shortening its service life.
2. Do not use it in a location where static electricity is rich, otherwise, the safety devices
may be damaged, causing a harmful situation.
3. In case the electrolyte gets into the eyes due to the leakage of battery, do not rub the eyes!
Rinse the eyes with clean running water, and seek medical attention immediately.
Otherwise, it may injure eyes or cause a loss of sight.
4. If the battery gives off an odour, generates heat, becomes discoloured or deformed, or in
any way appear abnormal during use, recharging or storage, immediately remove it from
the device and place it in a contained vessel such as a metal box.
5. Power or charge failure may occur due to the poor connection between the battery and the
reader if the terminals are dirty or corroded.
6. In case the battery terminals are corroded, clean the terminals with a dry cloth before use.
7. Be aware that discarded batteries may cause fire. Tape the battery terminals to insulate
them before disposal.
1. Do not immerse the battery in water.
2. Keep the battery in a cool dry environment during storage periods.
3. Do not use or leave the battery near a heat source such as fire or heater.
4. When recharging, use only the battery charger from manufacturer.
5. The battery charge can be realized at a temperature between 0° and +45°C.
6. Do not let the battery terminals (+ and -) contact any metal (like ammunition, coins, metal
necklace or hairpin). When carried or stored together this may cause short-circuit, or
severe bodily damage.
7. Do not strike or puncture the battery with other objects, or use in any way other than its
intended use.
8. Do not disassemble or alter the battery.
1. The battery should only be charged and discharged using the proper charger supplied with
the reader.
2. Do not replace the battery with other manufacturer's batteries, or different types and /or
models of batteries such as dry batteries, nickel-metal hydride batteries, or nickelcadmium batteries, or a combination of old and new lithium batteries together.
3. Do not leave the battery in a charger or equipment if it generates an odor and/or heat,
changes color and/or shape, leaks electrolyte, or cause any other abnormality.
4. Do not discharge the battery continuously when it is not charged.
5. It is necessary first to fully charge the Battery Pack as described in the section “Getting
Started” before using the reader
25
Green light
Red light
Charger status
Off
Off
Not Charging – Standby or Shutdown
Off
On
Bad-Battery fault
On
Off
Normal Charging
On
On
Temperature fault
Note 31 – the lights switch off when the batteries are fully charged.
The battery charger can be placed horizontally
or vertically on a table.
Make sure the battery orientation is correct
before insertion into the charger.
Accessories for the reader
Battery pack fast charger
The fast charger is used to charge up to 2 Battery Packs simultaneously in 3 hours. A light
indicates the status of each battery charging.
26
Plastic Carry Case
Durable Plastic Carry Case is available as an optional extra or is included in the “Premium
Kit” Package.
27
General
Norms:
ISO 11784 and full ISO 11785 for FDX-B and HDX tags
IP67
User interface:
Graphical display 128x128 dots
2 keys
Buzzer and Vibrator
Serial port, USB port and Bluetooth® module
USB interface:
CDC class (Serial emulation) and HID class.
Bluetooth® interface:
Class 1 (up to 100m)
Serial Port Profile (SPP) and iPod Accessory Protocol (iAP)
Serial interface
RS-232 (9600N81 by default)
Memory:
>100,000 animal IDs (10,000 animal IDs per session)
Battery:
7.4VDC – 2600mAh Li-Ion rechargeable.
Typical operating time:
X hours @ 20°C
Date/Time autonomy:
3 months without reader usage @ 20°C
Battery charge duration:
3 hours
Mechanical and physical
Dimensions:
Weight:
Material
ABS-PC and fiberglass tube
Operating temperature
-20°C to +55°C (+14°F to +104°F)
Storage temperature
-30°C to +70°C (-22°F to +158°F)
Humidity:
80%
Reading
Distance for ear tags (cattle):
Up to 42 cm (16.5 in) depending on tag type and
orientation.
Distance for implants:
Up to 20 cm (8 in) for 12-mm FDX-B ear tags.
Distance for ear tags (sheep):
Up to 30 cm (12 in) depending on tag type and orientation.
Specifications
28
Reader physical integrity
The device has been built from rugged and durable materials to withstand use in harsh
environments for long periods of time. However, the reader contains electronic components
that can be damaged if they are deliberately exposed to extreme abuse. This damage can
adversely affect, or stop the reader's operation. The user must avoid deliberately striking
other surfaces and objects with the device. Damage that results from such handling is not
covered by the warranty described below.
Limited Product Warranty
Manufacturer guarantees this product against all defects due to faulty materials or
workmanship for a period of one year following the date of purchase. The warranty does not
apply to any damage resulting from an accident, misuse, modification or an application other
than that described in this manual and for which the device was designed.
If the product develops a malfunction during the warranty period, manufacturer will repair or
replace it free of charge. The cost of shipment is at the customer's expense, whereas return
shipment is paid by manufacturer.
Refer all servicing to qualified service personnel. Servicing is required when the reader has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
29
Regulatory information
USA-Federal Communications Commission (FCC)
This device complies with part 15 of FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not installed and
used in accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by tuning the equipment off and on, the user is encouraged to try and correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Connect the equipment to outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The user must be at 20 cm of the reader antennas.
Notice to Consumers:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Canada – Industry Canada (IC)
This device complies with RSS 210 of Industry Canada. Operation is subject to the following
two conditions: (1) This device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of this device.”
L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) Il ne doit
pas produire d’interférence et (2) l’utilisateur du dispositif doit être prêt à accepter toute
interférence radioélectrique reçu, même si celle-ci est susceptible de compromettre le
fonctionnement du dispositif.
Avis aux consommateurs:
Toutes modifications non expressément approuvées par la partie responsable de la
conformité peuvent annuler le droit de l'utilisateur à utiliser cet équipement.
L’utilisateur doit se tenir à 20 cm des antennes du lecteur.
30
ISO 11784 & 11785
FCC NQY-30002
IC 4246A-30002

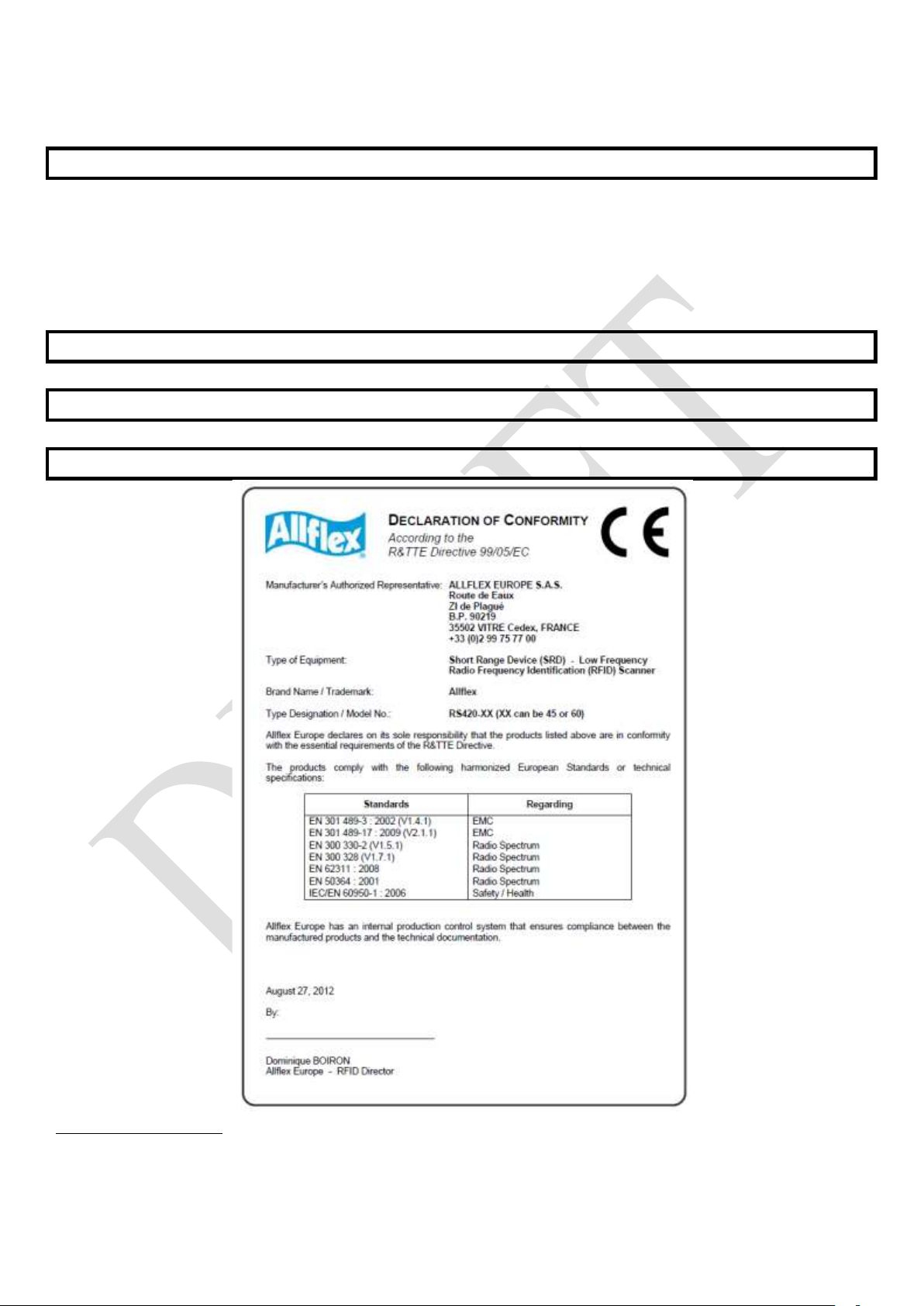

CE Marking
Regulatory Compliance
This device complies with the standards set forward by the International Standardization
Organization. Specifically with standards:
11784: Radio frequency identification of animals -- Code Structure
11785: Radio frequency identification of animals -- Technical Concept.
Trademark Notices
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
31
Allflex UK Ltd.
Unit 6 - 8 Galalaw Business Park
HAWICK
United Kingdom
TD9 8PZ
Phone: 44 (0) 1450 364120
Fax: 44 (0) 1450 364121
www.allflex.co.uk
Allflex Europe S. A.
ZI DE Plague
Route des Eaux
35502 Vitre, France
Téléphone/Phone: 33 (0)2 99 75 77 00.
Télécopieur/Fax: 33 (0)2 99 75 77 64
www.allflex-europe.com
Allflex USA, Inc.
P.O. Box 612266
2805 East 14th Street
Dallas Ft. Worth Airport, Texas 752612266
United States of America
(800) 989-TAGS [8247]
(972) 456-3686
(972) 456-3882/FAX
www.allflexusa.com
Allflex International Do Brasil Ltda.
Rua Monte serrat, 1097
CEP 03312-001
Tatuape, SP, Brazil
Phone/Fax: (55) 11 6942-7008
www.allflex.com.br
Allflex Argentina S.A.
Las Heras 1588
1641 Martinez
Buenos Aires, Argentina
Phone/Fax: 54 11 4792 3488
Allflex Beijing Plastics
No. 3 Heng Qu Tiao Dong
Tie Jiang Ying Feng Tai District
Beijing, China 100078
Phone: 861 762 9541
Fax: 861 762 9514
Allflex Australia
33-35 Neumann Road
Capalaba
Queensland 4157 Australia
Phone: 61 7 3245 9100
Fax: 61 7 3245 9110
www.allflex.com.au
Allflex New Zealand
Private Bag 11003
17 El Prado Drive
Palmerston North
Phone: 64 6 3567199
Fax: 64 6 3553421
www.allflex.co.nz
Allflex Canada
Corporation Allflex Inc.
4135, Bérard
St-Hyacinthe, Québec J2S 8Z8 Canada
Téléphone/Phone: (450) 261-8008
Télécopieur/Fax: (450) 261-8028
Allflex Offices
32
Loading...
