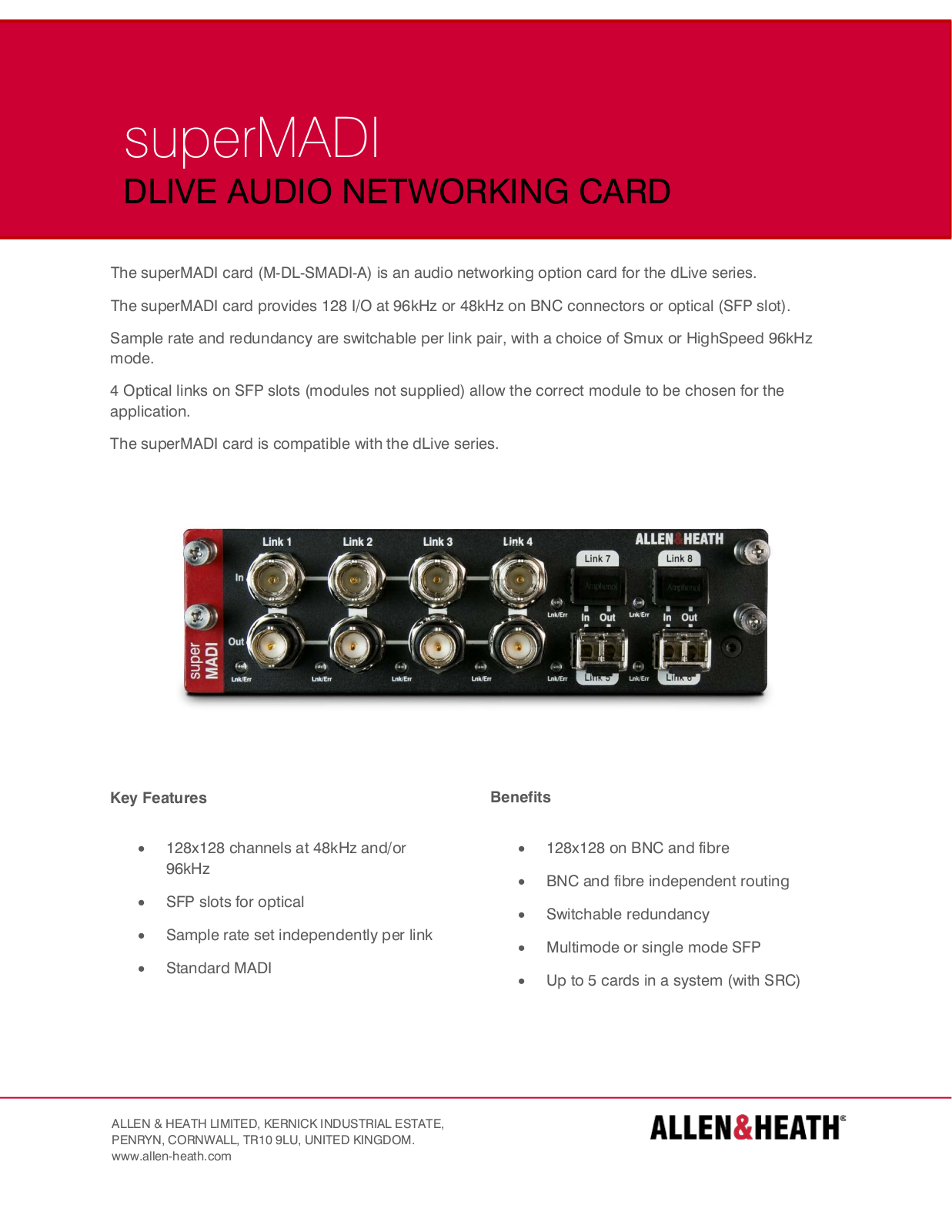

superMADI

Key Features

Benefits

The superMADI card (M-DL-SMADI-A) is an audio networking option card for the dLive series.

DLIVE AUDIO NETWORKING CARD

The superMADI card provides 128 I/O at 96kHz or 48kHz on BNC connectors or optical (SFP slot).

Sample rate and redundancy are switchable per link pair, with a choice of Smux or HighSpeed 96kHz
mode.

4 Optical links on SFP slots (modules not supplied) allow the correct module to be chosen for the
application.

The superMADI card is compatible with the dLive series.

• 128x128 channels at 48kHz and/or

ALLEN & HEATH LIMITED, KERNICK INDUSTRIAL ESTATE,
PENRYN, CORNWALL, TR10 9LU, UNITED KINGDOM.
www.allen-heath.com

96kHz

• SFP slots for optical

• Sample rate set independently per link

• Standard MADI

• 128x128 on BNC and fibre

• BNC and fibre independent routing

• Switchable redundancy

• Multimode or single mode SFP

• Up to 5 cards in a system (with SRC)
