Design for Live
Firmly established at the leading edge of the new wave of digital
consoles, dLive has rapidly earned its reputation for superior
audio quality, next generation workflows, stunning FX and faithful
processing emulations.
dLive’s phenomenally powerful XCVI Core, DEEP processing suite
and Harmony UI make the most sophisticated mixing challenges
feel elegantly simple. From seasoned audio professionals to new
recruits, dLive has been crafted to allow the operator to keep their
focus on the live mixing experience, not on the mixer.
For professional touring, broadcast and prestige installations, dLive
S Class offers ultimate robustness and routing capability, addressing
the most complex and demanding scenarios.
dLive C Class presents the same processing core and sound
performance in a compact, portable format, making it the smart
choice for corporate AV, multi-purpose venues, houses of worship,
theatres and regional rental companies.
With a thriving ecosystem of apps, software, remote controllers and
more, dLive is fully equipped to become the centrepiece of your next
show or project.
CDM32
• 32 mic/line inputs, 16 line outputs
• 160x64 XCVI Core
• 1x 128ch I/O Port
C1500
• 19” rack-mountable
• 12 faders, 72 fader strips
• 12” capacitive touchscreen
• 19 assignable SoftKeys
• 1x 128ch I/O Port
CDM48
• 48 mic/line inputs, 24 line outputs
• 160x64 XCVI Core
• 1x 128ch I/O Port
C2500
• 20 faders, 120 fader strips
• 12” capacitive touchscreen
• 19 assignable SoftKeys
• 1x 128ch I/O Port
C3500CDM64
• 64 mic/line inputs, 32 line outputs
• 160x64 XCVI Core
• 1x 128ch I/O Port
• 24 faders, 144 fader strips
• Dual 12” capacitive touchscreens
• 19 assignable SoftKeys
• 1x 128ch I/O Port
S3000
DM32
• 20 faders, 120 fader strips
• 12” capacitive touchscreen
• 26 assignable SoftKeys
• 2x 128ch I/O Port
• Redundant, hot swappable power supply
• 3 Year warranty
• 32 mic/line inputs, 16 line outputs
• 160x64 XCVI Core
• 3x 128ch I/O Port
• Redundant, hot swappable power supply
• 3 Year warranty
DM48
• 48 mic/line inputs, 24 line outputs
• 160x64 XCVI Core
• 3x 128ch I/O Port
• Redundant, hot swappable power supply
• 3 Year warranty
S5000
• 28 faders, 168 fader strips
• Dual 12” capacitive touchscreens
• 26 assignable SoftKeys
• 2x 128ch I/O Port
• Redundant, hot swappable power supply
• 3 Year warranty
DM64
S7000
• 64 mic/line inputs, 32 line outputs
• 160x64 XCVI Core
• 3x 128ch I/O Port
• Redundant, hot swappable power supply
• 3 Year warranty
• 36 faders, 216 fader strips
• Dual 12” capacitive touchscreens
• 26 assignable SoftKeys
• 2x 128ch I/O Port
• Redundant, hot swappable power supply
• 3 Year warranty
DM0
The most compact dLive MixRack, DM0 is a mix engine
for distributed audio scenarios, or for digital split
applications such as Front of House and Monitors sharing the same inputs.
• Only 4U
• 160x64 XCVI Core
• 3x 128ch I/O Port
• Redundant power supply
• 3 Year warranty
XCVI
The power of dLive emanates from the XCVI Core
– pioneered by the Allen & Heath R&D team using
next generation FPGA technology, with 36 parallel
virtual processing cores generating enough power
for 160×64 channels of processing at 96kHz
sampling rate. Six parallel mixing engines within
the Core calculate over 10,000 cross points per
sample, while the FPGA router has capacity for
3,000 x 3,000 audio paths. The massive power of
XCVI (25 billion operations per second) allows dLive
to deliver 128 full processing inputs and 16 stereo
FX returns, a configurable 64 bus architecture,
variable bit depth for ultimate precision and noise
performance, a virtually infinite mix headroom
thanks to a 96bit accumulator, and class-leading
latency at an ultra-low 0.7ms.
DEEP Processing

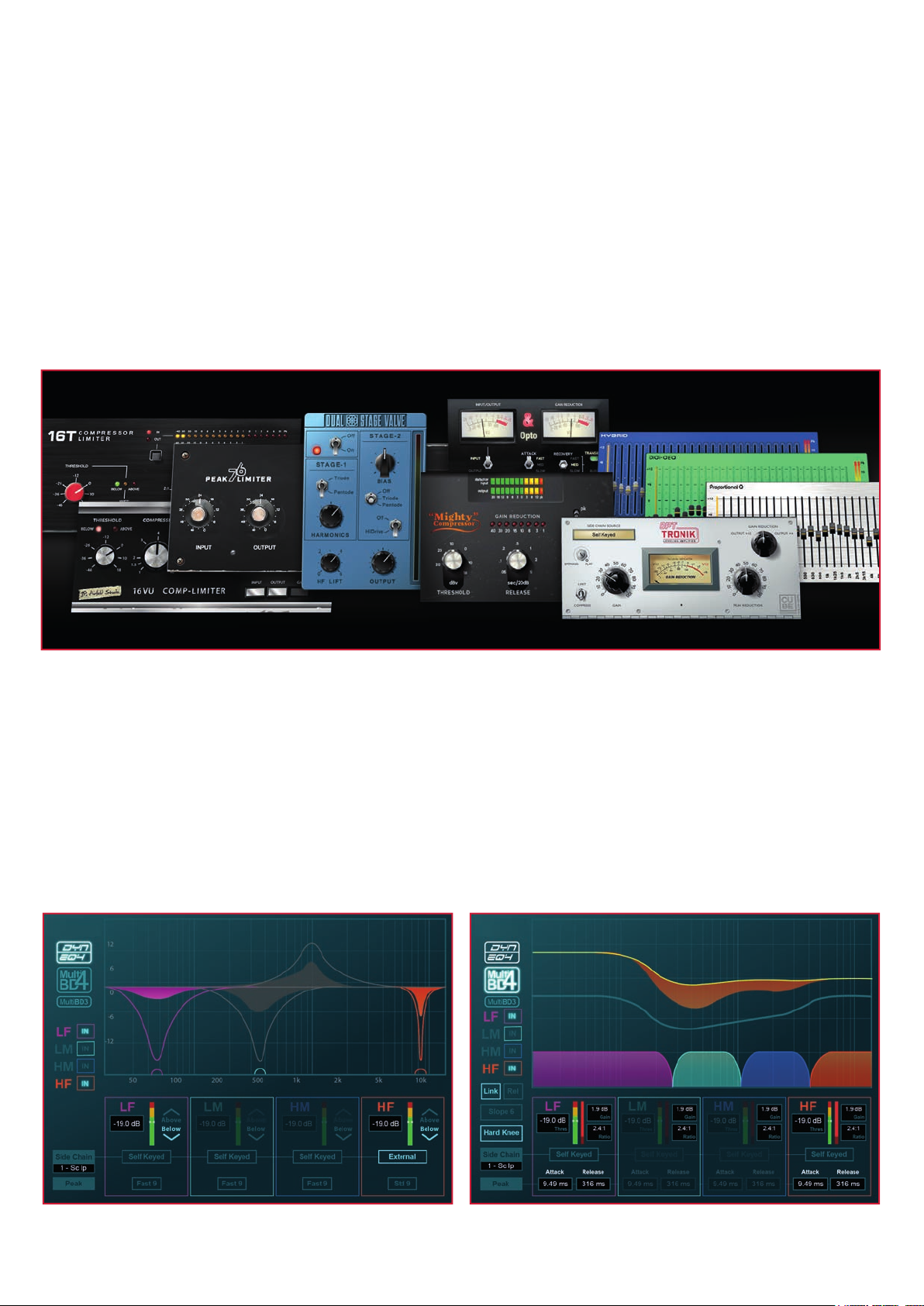

Our DEEP processing architecture embeds highly
acclaimed processing emulations directly within
dLive’s input and mix channels with zero latency. An
array of bespoke algorithms including graphic EQs,
preamp and compressor models can be inserted
on the fly without burning FX slots and without the
setup, latency, phase coherency and licence hassles
associated with external plug-ins – they’re right there,
where you need them, whenever you need them.
The models capture the nuances and non-linear
characteristics of industry classics, ranging from opto
compressors to dual-stage valve designs.

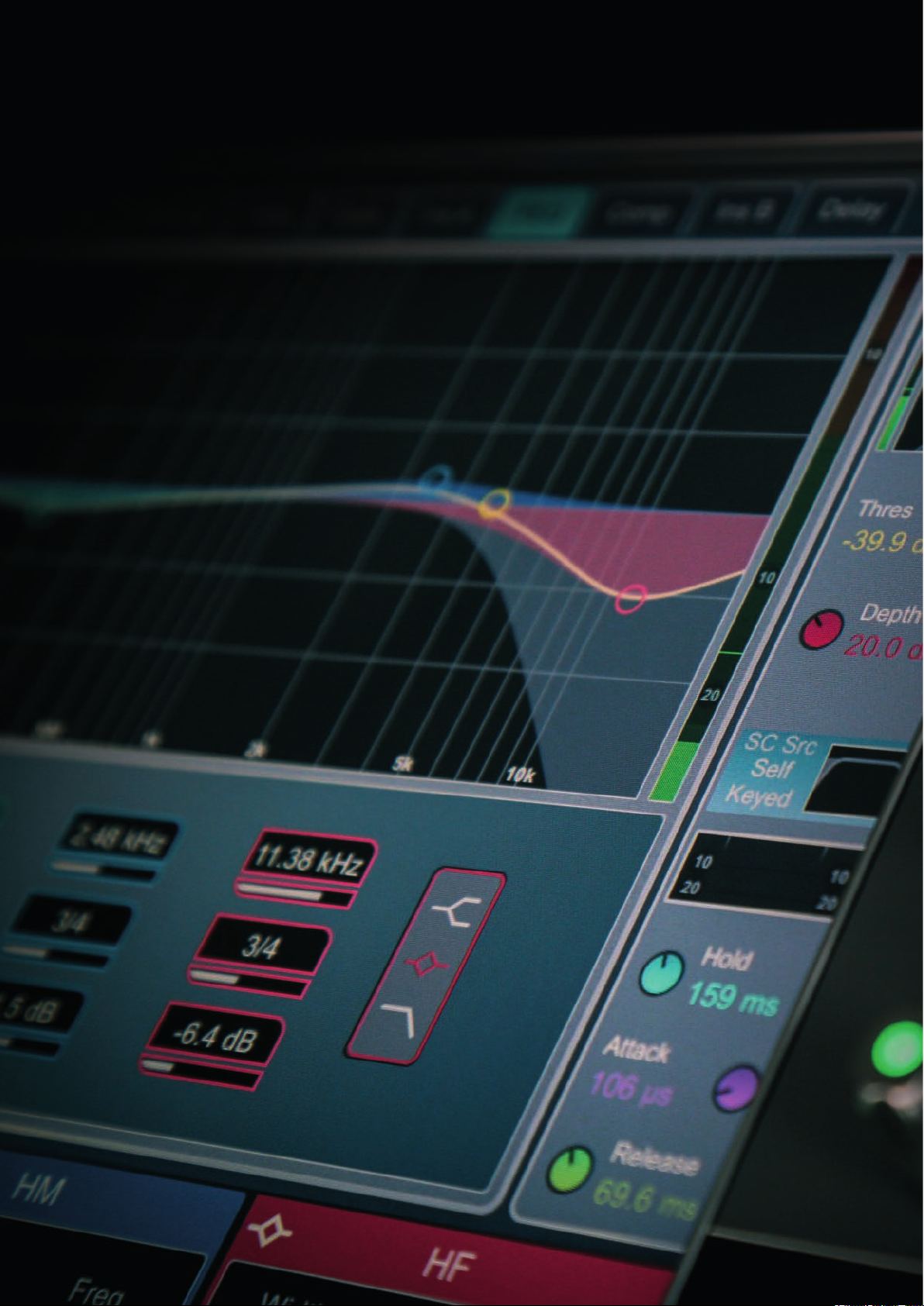

Dyn8
In addition to the array of channel-based processing
choices, dLive offers Dyn8, a powerful and
sophisticated processor boasting 4 bands of dynamic
EQ and 4 bands of multiband compression. With
endless applications including taming vocals,
mastering, tightening or gluing mixes, Dyn8 changes
the way we think about dynamic processing. No less
than 64 Dyn8 engines are available for inserting on
Input and Mix channels.
RackExtra FX
The RackExtra FX portfolio combines the pristine
quality and wide choice offered by boutique plugins with the convenience and low latency of onboard
processing. It’s no secret that we have a passion
bordering on obsession for crafting painstakingly
faithful emulations of the most revered outboard
equipment. Each of the 16 FX slots has a dedicated
stereo return and can access our proven library of
reverb, delay and modulator algorithms.
Harmony User Interface
Where many digital consoles are still trying to
recreate the experience of using an analogue mixer,
dLive is a true digital native, drawing on our familiarity
with the ubiquitous smartphones and tablets that
we all use without thinking. The single or twin 12”
capacitive touchscreens on the dLive Surface feel
instantly familiar, responding to every pinch, swipe,
drag and drop exactly how you’d expect them to.
Bespoke ‘widget’ areas can also be set up on the
screens to keep track of scenes, meters, FX and
other custom controls.
The screen is complemented by a set of rotary
controls, allowing the creativity and immediacy
of tactile control over key processing functions,
working in harmony with the visual feedback
displayed on the screen. The high-grip rotary knobs
offer precision control, and feature RGB illumination,
with colours mapped to functions for instant visual
orientation.
Transparent Workflow
The dLive layout is fully customisable, allowing the
user to create a mixing interface that reflects their own
mental map of the show, or for an installer to set up the
surface to match the venue and the experience levels
of the operators. Throughout the dLive journey our
guiding aim has been to create fast and transparent
workflows that allow the operator to focus on the mix,
not the mixer. Every input or mix can be assigned
to any and every bank and / or layer, virtual scribble
strips allow inputs and mixes to be clearly named and
colour coded for at-a-glance navigation, and there are
many assignable SoftKeys, plus 3 pages of assignable
rotaries.
DLIVE FOR INSTALLATION
Distributed
dLive frees you to deploy audio wherever it’s
needed. The system is capable of providing
dozens of audio points and hundreds of system
inputs and outputs via a family of AudioRacks.
These AudioRacks range from portable stageboxes
to fixed format wall panels to fit a wide variety of
applications. AudioRacks can be deployed in Star
and Cascade topologies. Connections are Ethernet
Layer 2, allowing up to 100m of CAT cable between
each AudioRack, and can be converted to fibre
optic.
Integrated
With up to five 128 channel I/O ports, support
for all major industry standard protocols, GPIO
interfaces and a comprehensive TCP/IP control
protocol, dLive is the most integrated mixing
system on the market. dLive is fully equipped to
meet modern venues’ demands for sophisticated
audio networking and integration capabilities,
including Dante integration, broadcast feeds,
multitrack recording, fibre links, third party control
and more.
Accessible
A dLive system is designed around the user, not
the technology. Configurable IP remote controllers
give tailored access to essential elements such as
volume control, music source selection or preset
recall. Director software and iPad apps make it
easy to access settings on the move. With an
extensive set of user permissions for up to 10 user
profiles, access can be restricted to protect critical
settings and make life easier for non-technical
operators.
Versatile
dLive is uniquely capable of handling every aspect
of a venue’s audio world, from simple background
audio or boardroom tasks to a full scale live music
or theatre show.
Unrivalled
dLive is not just another sound management
system. Built on our acclaimed XCVI 96kHz
FPGA processing and boasting a system latency
of <0.7ms, dLive’s audio quality has no equal in
its class.
Scalable
A dLive system can provide anything from 0 to
800+ total system inputs and outputs, with over
half a million crosspoints. Add support for up to
96 remote controllers, and you can see why dLive
is the solution for any venue; from single rooms to
the largest and most demanding of spaces.
dLive is a distributed, integrated, scalable and accessible audio mixing solution, designed to
Control
I/O
Audio Networking
Control Sur
floor expander
meet the complex needs of today’s multi-purpose venues. From education facilities and houses
of worship to conference centres and visitor attractions, dLive provides the tools to manage every
aspect of the audio life of these venues, becoming part of the fabric of the building.
Engines
Hardware Third Party Software DX Expanders Dante I/O
faces
12-36 faders
GPIO
I/0 interface
fader controller
IP8
IP6
rotary contoller
IP1
wallplate
Extron
AMX
Crestron
MixPad
wireless control
OneMix
wireless monitoring
Director
online control /
offline editor
Custom Control
BYOD app
CDM 32 / 48 / 64
DM 32 / 48 / 64
DM0
DX168
portable stagebox
DX164-W
wallmount /
floor expander
modular expander
DX32
DX Hub
portable stagebox
DT168
DT164-W
wallmount /
MADI
AES3
Waves SG
gigaACE /
fibreACE
Dante
AES67
Laptop & Tablet Control
dLive Director is a multi-platform editor and control
software for dLive, allowing you to configure the
system offline, check and edit Show files from guest
engineers, and control the mix live using a laptop or
touch tablet.
dLive Director has a touch-friendly interface, with
scalable fader banks to suit different resolutions from
pro tablets to large touch screens / all-in-ones.
Wireless Mixing From Your iPad
A Touchscreen view replicates every aspect of the
dLive Surface GUI for instant familiarity.
Compatible with Mac and Windows OS (including
Windows Surface Pro), dLive Director offers the same
great experience across different devices.
dLive MixPad is an engineer’s mixing tool providing
wireless mobile control for the dLive digital mixing
system.
It gives you the freedom to walk the room or stage
and control the sound right where it’s needed. dLive
MixPad and the dLive Surface can work together
to provide simultaneous control of independent
functions, for example one engineer using the Surface
to mix front-of-house sound, and another using the
iPad to mix monitors on stage. Several iPads can be
connected, each providing independent control.
dLive Wings
Compact Touring Takes Off
For fly-dates, bus tours and support slots – wherever the scale of the audio requirements conflicts
with space and weight constraints, dLive lets you take the system you trust wherever you may roam,
so you’ll never need to gamble on house consoles again. We’ve created some suggested systems
below, but the sky’s the limit – you decide which MixRack you need and what expansion and control
to take with it.
The Aviator
The C1500 is everything you love about the dLive Surface in
a slimmed-down format – pair it up with a modern, lightweight
flightcase and the C1500 can weigh in at a mere 26kg. The
DM32 is the smallest dLive S Class MixRack, with 32 XLR inputs
and a trio of audio networking slots for Dante, Waves and more.
The Navigator
Take a dLive MixRack, an off-the-shelf mini-PC running dLive
Director, plus a couple of touchscreens and you’re cleared
for takeoff. This slick system folds down for easy transport and
storage, and adding in an IP-8 remote controller retains that tactile
control for the key mixes.
The Frequent Flyer
The ultimate travel light / mix hard solution, dLive MixPad lets you run
the show straight from your iPad. Add an IP-8 for the reassuring feel
of faders on the key mixes.
Personal Mixing
dLive offers a choice of hardware and glass screen
personal mixing solutions, all aimed at empowering
the performers and taking pressure off the engineer.
dLive is fully compatible with our 40 channel ME-1 and
16 channel ME-500 personal mixers. ME-1’s 16 rubber
keys can be assigned to a single source or Group from
the dLive system, with all the convenience of pressing
a single button no matter what you want to control –
the main vocal mic, a stereo pair or the whole drumkit.
ME-500 provides simplified setup and control, making
it a cost-effective alternative for festivals and other
time-pressured scenarios.
dLive OneMix is a personal mixing app for dLive,
allowing performers to take control of their own monitor
mixes from their iPads. Multiple iPads may be set up
by the Admin user to give each musician customised
personal monitor control via Wi-Fi connection to dLive
without the risk of affecting the other monitors or front
of house mix. dLive OneMix can be configured to
provide as much or as little control as needed.
dLive also has a unique solution for personal mixing
for IEMS in the shape of the IP6 remote controller,
which can be set up to control the Send levels, Pans
and assignments of multiple channels to a specific
dLive mix.
Remote Controllers
The IP series of next generation remote controllers are ideal for many install applications
and greatly enhance the dLive system’s flexibility in live sound. They interface with the dLive mixing
system via standard TCP/IP Network connections and can be networked with other controllers,
computers and third party devices using a standard Ethernet infrastructure. Controls and functions
are programmed using a dLive Surface or dLive Director software for PC/Mac.
IP1 is a simple yet powerful programmable wallplate, giving the nontechnical user convenient, easy control.
• Music source selection, level control, or preset recall
• Push ‘n’ turn rotary + LCD display
• TCP/IP, PoE compliant
• Up to 16 + 16 on a dLive system
• US (Decora) or EU/UK (Honeywell/MK) variants, black or white
IP6 is perfect for giving inexperienced operators safe, simple control
over an installed dLive system.
• 6 Push ‘n’ Turn Rotary encoders
• 6x Layers
• PoE or external 12V PSU (supplied)
• Optional mic stand bracket available (AB8999)
• Optional headphone holder (AB8705)
With its 8 motorised faders, IP8 provides additional hands-on control
e.g. as a sidecar to a dLive surface, or in a surfaceless mixing
system. It’s also another great option for simplified control in an
installation, such as controlling mics and music sources in a room.
• 8 Motorised faders
• 6x Layers
• PoE+ or external 12V PSU (supplied)
• Use freestanding or mount in a plinth, podium or furniture
Audio Networking Hub
dLive is a networking hub, scaling up to
hundreds of system inputs and outputs
and catering for all major audio networking
protocols and technologies. Each I/O Port
provides 128 inputs and 128 outputs,
all independently assigned. The tieline
function allows any input to be routed to
any output offering true system matrix
capability, with seamless format and sample
rate conversion, and without impacting on
channel count or mix resources.
dLive S Class MixRack
dLive S Class Surface
dLive C Class MixRack
dLive C Class Surface
Option Cards
fibreACE
A fibre optic solution for large scale events and long
cable runs up to 500m.
• 128 I/O, 96kHz
• Dual redundancy
• Converter mode enables fibre optic link beween Surface and MixRack
• Switchable Control Network Bridge
gigaACE
A cost-effective and plug ‘n play solution for digital
splits, point-to-point connections and multi-surface systems.
• 128 I/O, 96kHz
• Ultra-low transport latency – 5 samples (52 us)
• Dual redundancy
• Switchable Control Network Bridge
superMADI
A swiss-army knife of broadcast connectivity. Multiformat to
address requirements of broadcast/recording feeds + OB Vans.
• 128 I/O on coaxial BNC
• Up to 128 I/O on multimode/single mode SFP modules
• Switchable 48/96kHz sample rate and redundancy per link pair
• Choice of Smux or HighSpeed 96kHz mode
Waves V3
An interface to the Waves SoundGrid networking platform, for
plugin processing, multitrack recording and
audio distribution.
• 128 I/O
• Switchable 48/96kHz sample rate
• Waves SG networking
• Multitrack recording and playback
AES3
• Choice of 4in / 6out, 0in / 10out, 6in / 4out and 2in / 8out versions
• Switchable sample rate (96kHz, 88.2kHz, 48kHz and 44.1kHz)
• Input SRC 32kHz to 192kHz
• Option to sync from first AES input
Dante
Designed to help integrate dLive into a wide range of live, install
and broadcast scenarios, the Dante 64×64 and Dante 128x128
audio networking cards offer low latency, high channel count
connectivity to Dante networks and devices using standard
networking cabling and hardware.
• 128 or 64 bidirectional channels of Dante I/O at 96kHz or 48kHz
• Primary and Secondary audio ports for redundancy or switched operation
• Dedicated Control Network port for configuration
• AES67 compatible
• Dante Domain Manager (DDM) ready
Features
System
Distributed system with separate MixRack and Surface
DX & DT expansion racks for flexible I/O
DEEP processing – powerful embedded plugins
Up to 5 audio networking ports, 128 I/O each
Compatible with ME personal mixing system
dLive MixRacks
Choice of 7 models from 0 to 64 mic preamps
• XCVI 160x64 FPGA core
• 96kHz sample rate
• Variable bit-depth for ultimate precision and noise performance
• Virtually infinite mix headroom thanks to 96bit accumulator
• Class leading, ultra-low latency < 0.7ms
• 128 Input Channels with full processing
• 64 Mix Outputs with full processing
• Configurable 64 bus architecture (group, FX, aux, matrix, mains) LR, LCR and up to 5.1 mains mode
• 16 RackFX with dedicated stereo returns
• 64 Dyn8 dynamic EQ and multiband compression engines
• Active pad preamp design for extra transparency
• Dual redundant audio connections throughout (S Class)
• Redundant hot swappable power supplies (S Class)
dLive Surfaces
Choice of 6 models, from 12 to 36 faders
• Fully assignable layout – up to 216 fader strips
• Harmony UI integrates screen and wrap-around controls
• Single or twin 12” capacitive touchscreen
• Gesture control – pinch, swipe, drag ‘n drop
• Configurable widget areas for Scenes, meters, FX and more
• 3 pages of 6 assignable rotaries
• Assignable SoftKeys (19 on C Class, 26 on S Class)
• Comprehensive multipoint metering
• Up to 4 surfaces controlled at once
Control
• Networked wired or wireless control
• PC/Mac Director Software for online control / offline editing
• dLive MixPad and OneMix apps
• IP range of PoE remote controllers
• TCP/IP protocol for third party integration and show automation
• Extensive User Permissions and Profiles
• Comprehensive Scene management with Cue List, multiple Scene Update,
Crossfades, Recall Filters, Embedded Recalls, Auto Store, Recall Undo
• Customisable Control App and Editor
Expanders
DX168
The DX168 is a rugged stagebox format expander for adding remote I/O to a
dLive system. Weighing in at just 4.8kg and featuring a sturdy carry handle and
rubber bumpers, DX168 offers the portability and convenience needed in rental,
education, houses of worship and many other environments.
• 16 dLive mic preamps, 4 line outputs
• Cascade mode allows daisy-chaining of 2 DX168 Expanders for additional I/O
• Redundant DX connection to dLive S Class hardware
• Optional 19-inch rack mount kit available
• Connects to DX Ports, DX Link card or DX Hub
DX32
The DX32 Expander adds remote, modular I/O to a dLive system. It
provides 4x 8 channel slots to fit a selection of analogue or digital
I/O. Multiple Expanders can be connected to the MixRack, and a
further DX32 can be connected to a dLive system.
• 4x 8ch modular design
• Redundant, hot swappable power supply
• Dual redundant Cat5 link to Surface or MixRack
• Rack-mounted or shelf / floor operation
• 3 Year warranty
DX164-W
The DX164-W is a wall box format expander for adding
remote I/O in fixed installations.
• 16 dLive mic preamps, 4 line outputs
• Cascade or redundant mode
• Connects to DX Ports, DX Link card or DX Hub
DT168 & DT164-W
The DT168 Dante I/O expander is ideal for portable applications thanks
to its rubber bumpers and handle. It can be deployed on stage or used
as a drop-in expander in any dLive Dante network.
• Dante audio expander, 96kHz / 48kHz
• Portable stagebox design
• 16 mic preamps on XLR with Phantom Power status LEDs
• 8 XLR Line Outs
DT164-W is a versatile wall-mount Dante I/O expander for permanent
installation. The unit can be mounted in-wall or on-wall, or in a floor pocket
for stage use.
• Dante audio expander, 96kHz / 48kHz
• Wall mount or dip trap installation
• 16 mic preamps on XLR with Phantom Power status LEDs
• 4 XLR Line Outs
AP11271_2
Allen & Heath reserves the right to alter any information supplied in this document
or any other document supplied hereafter. E&OE
ALLEN&HEATH
WWW.ALLEN-HEATH.COM/DLIVE
Loading...
