Alinco XE972 User manual

05-Jun-2007

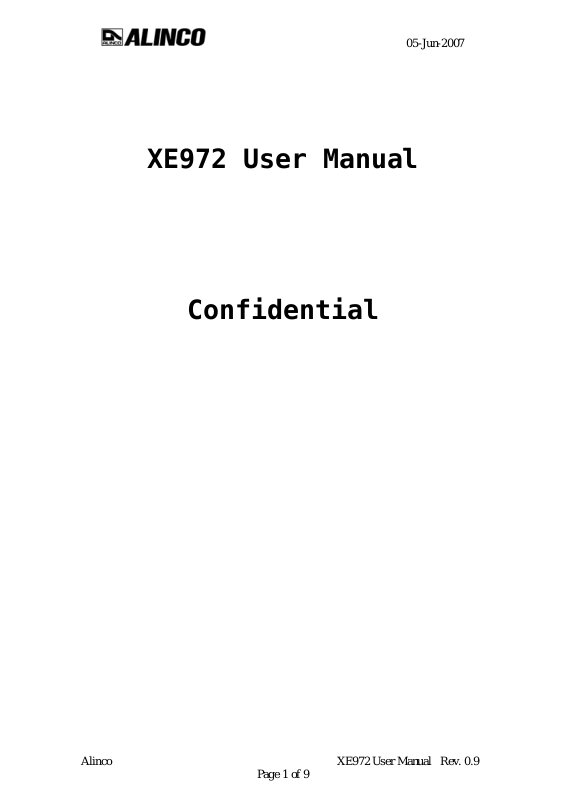

XE972 User Manual

Confidential

Alinco XE972 User Manual Rev. 0.9
Page 1 of 9

List of Contents

1. General

1.1 Overview

1.2 Features

1.3 Application

1.4 Interface connecter pin assignment

1.5 Outline View

1.6 Package Dimensions

2. Characteristics

2.1 Electrical Characteristics

2.2 RF Characteristics

3. Notes

05-Jun-2007

Alinco XE972 User Manual Rev. 0.9
Page 2 of 9

1. General

1.1 Overview

This specification covers XE972 Data Radio Unit,
which complies with
ARIB STD T-66, FCC Part 15 247 RSS-210 and ETSI EN
300 400.

This unit consist of Texas CC2500 radio IC and
Renesas CPU R8C19 for
Radio Data communication in 2.4GHz band.

All detailed specification may be changed without
notice.

2.4GHz
Antenna

05-Jun-2007

CC2500
TEXAS
RADIO IC

R8C19
RENESAS
CPU

UART
Interface

Alinco XE972 User Manual Rev. 0.9
Page 3 of 9

05-Jun-2007

1.2 Features

• Radio Data rate up to 32kbps.

• Support Slow Hopping 22channels in 2.401GHz ~

2.4115GHz

• Ultra Low Power Consumption

• RoHS Compliant

• Support USART connection speed up to 115.2kbps

• Small Package Size (38.8 x 23.8 x 6.5)

• Integrated 26MHz TCXO

1.3 Application

• Radio Data Modem

• Wireless Controller

• Wireless Data Logger

• Wireless Security Sensor

1.4 Interface connecter pin assignment

Back Side View of XE972

1

10

135

1. +B (Power In)   2. +3V REF

(Reference

Voltage Out)

3.GND (Power GND) 4. CS
(Carrier Sense)

5. PWR CONT (Unit Power Control) 6.PTT
(Transmit Switch)

7.GD_MONI (Not Used) 8. RTS (UART RTS)

9. CTS (UART CTS) 10. RXD (UART RXD)

11. TXD (UART TXD) 12. MODE (Not Used)

13. RESET (Unit Reset)

Alinco XE972 User Manual Rev. 0.9
Page 4 of 9

05-Jun-2007

1.5 Outline View

Antenna Connector

Interface Connector

1.6 Package Dimensions

6.5

10

23.8

1135

Right Side View

Left Side View

38.8

Top View

Side View

Weight 8 g

Alinco XE972 User Manual Rev. 0.9
Page 5 of 9

4. Characteristics

4.1 Electrical Characteristics

Absolute Maximum Rating

Rating

05-Jun-2007

Minimum Typical Maximum Unit

Supply Voltage

Operating
Temperature Range

RX Current
consumption

TX Current
consumption

3.1

-20

3.5

25

6.5

55

50

80

V

C

mA

mA

4.2 RF Characteristics

Transmitter

Specification Condition Min. Typ. Max.
Output Transmit Power Normal 9dBm

Frequency Range Normal

GHz

20dB Bandwidth Normal

MHz

Modulation Characteristics Normal

MHz

Carrier Frequency Drift -20 ~ +50

C

Receiver
Specification Condition Min. Typ. Max.

Sensitivity BER 0.1%

Maximum Input Level Normal -20dBm

Adjacent Channel rejection Normal 18dB

2.401 2.4115

0.1

0.05

2.5ppm

-

105dBm

Alinco XE972 User Manual Rev. 0.9
Page 6 of 9

05-Jun-2007

3. Notes

FCC Statements:

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT

CAUTION: This device and its antenna(s) must not be co-

located or operating in conjunction with any
other antenna or transmitter. End user cannot
modify this transmitter device. Any unauthorized
modification made on the device could avoid the
user's authority to operate this device.

CAUTION: To comply with FCC RF exposure compliance

requirements, a separation distance of at least
20cm must be maintained between the antenna of
this device and all persons.

The following sentence has to be displayed on the outside
of the device in which the transmitter module is installed:
“Contains FCC ID:PH3XE972

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may
cause harmful interference to radio communications.

Alinco XE972 User Manual Rev. 0.9
Page 7 of 9

05-Jun-2007

However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference
by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and

receiver.

- Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician

for help.

Alinco XE972 User Manual Rev. 0.9
Page 8 of 9

05-Jun-2007

IC Statements:

The term “IC:” before the radio certification number only

signifies that Industry Canada technical specifications

were met.
This device complies with RSS 210 of Industry Canada “IC”.
“Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including

interference that may cause undesired operation of
the device.”

"The installer of this radio equipment must ensure that the

antenna is located or pointed such that it does
not emit RF field in excess of Health Canada
limits for the general population; consult Safety
Code 6, obtainable from Health Canada’s website
www.hc-sc.gc.ca/rpb"

L’ utililisation de ce dispositif est autorisée

seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l’ utilisateur du dispositif doit étre prêt

à accepter tout brouillage radioélectrique
reçu, même si ce brouillage est susceptible de
compromettre le fonctionnement du dispositif.

"The installer of this radio equipment must ensure that the

antenna is located or pointed such that it does
not emit RF field in excess of Health Canada
limits for the general population; consult Safety
Code 6, obtainable from Health Canada’s website
www.hc-sc.gc.ca/rpb"

“To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not
more than that permitted for successful communication.”

The following sentence has to be displayed on the outside
of the device in which the transmitter module is installed:

“Contains IC:3070C-XE972
