Alinco DJ-A446 User Manual

ALINCO, INC.

Yodoyabashi Dai-bldg 13F
4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan
Phone: [phone] Fax: [phone]
http://www.alinco.com

E-mail:[e-mail]

A1.0-13/04

UHF FM transceiver 8 PMR446 channels.
Use of this device is authorized in all EU and EFTA member
states (CH/ICE/LI/NOR).

Copyright Alinco, Inc. PS0664/FNEG-NI
Printed in China

PRIVATE MOBILE RADIO

DJ-A446

Instruction Manual

Thank you for purchashing your new Alinco transceiver.Please read this manual
carefully before using the product to ensure full performance, and keep this
manual for future reference as it contains information on after-sales service.
In case addendum or errata sheets are included with this product,please read
those materials and keep them together with this instruction manual for future
reference.

Introduction

Thank you very much for purchasing this excellent Alinco transceiver. Our products are ranked among
the finest in the world. This radio has been manufactured with state of the art technology and it has been
tested carefully at our factory. It is designed to operate to your satisfaction for many years under normal
use.

Please read this manual completely from the first page to the last, to learn all the functions the product
offers. It is important to note that some of the operations may be explained in relation to information in
previous chapters. By reading just one part of the manual, you may risk not understanding the complete
explanation of the function.

Before transmitting

There are many radio stations operating in to the frequency ranges this product covers. Be careful not to
cause interference when transmitting around such radio stations.

■

Lightning

Any person is not safe outdoor during thunderstorm and lightning. This condition is getting worse if
somebody keeps a hand-held radio; chances of being hit by lightning are doubled since lightning
may hit a radio antenna as well. At this time, there is no hand-held radio having any kind of protection
against lightning current (which is higher than10 kA.). Note also that no car provides adequate protection
of its passengers or drivers against lightning as well. Therefore, Alinco will not take responsibility for any
danger associated with using its hand-held radios outdoor or inside the car during lightning.

■

About IP54 rating / Dust and splash resistant

About IP54 rating

5: Dust protected /Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to

interfere with the satisfactory operation of the equipment; complete protection against contact.

4: Splashing water / Water splashing against the enclosure from any direction shall have no harmful

effect. Test duration: 5 minutes / Water volume: 10 litters per minute /Pressure: 80~100 kN/m

The IP54 designation provides for limited dust and splash proofing of the radio per specified above. This
compatibility is factory guaranteed for a period of one year provided all the jack covers are securely in
place, any accessories connected must be specified genuine Alinco accessories and the radio has not
been disassembled by the customer. The factory has tested and made the equipment compatible to IP54
certification during engineering. However, please understand that this equipment is NOT certified IP54
compliant but is designed to remain operational when used in hard conditions and is in no way stating
that you should attempt to wash the radio for cleaning. Warranty will not cover radios that are water/dust
damage due to negligence or misuse of the product.

The warranty period of dust and splash resistance is the same as the period of the product warranty.

■

Covering ranges

You may expect a range of approx.1.5km/1 miles or more when located on a flat, noise-free place like
on a beach.However,it may vary drastically depending on how to wear and carry the radios, surrounding
locations/conditions and static noise levels (below or near power transmission lines), etc. In urban areas
with many buildings or inside a building, such covering range will become drastically short even to
several tens of meters.

²

Features

■ Li-Ion battery pack and stand-charger as standard accessories

■ FM broadcasting 76-108MHz receiver built-in

■ Sub-tone (CTCSS/DCS) Encode/ Decode and DTMF/ANI

■ Inversion Scramble(Analog encryption)

Conformity Symbols

Tested to comply MIL-STD-810G

-Shock: Method 514.6/I,IV -Vibration: Method 516.6/I

Alert

Environment and condition of use

Use of this product may be prohibited or illegal outside of your country. Be informed in advance when you
travel.

It is recommended that you check local traffic regulations regarding the use of a radio equipment while

driving. Some countries prohibit or apply restrictions for the operation of radios and mobile- phones while
driving.

Do not use this product in close proximity to other electronic devices, especially medical ones. It may cause
interference to those devices.

Keep the radio out of the reach of children.

In case a liquid leaks from the product, do not touch it. It may damage your skin.Rinse with plenty of cold
water if the liquid contacted your skin.

Never operate this product in facilities where radio products are prohibited for use such as aboard aircraft,
in airports, in ports, within or near the operating area of business wireless stations or their relay stations.

The manufacturer declines any responsibilities against loss of life and/or a property due to a failure of this
product when used to perform important tasks like life-guarding, surveillance, and rescue.

Do not use multiple radios in very close proximity. It may cause interference and/or dam age to the
product(s).

Risk of explosion if battery is replaced with an incorrect type.

The manufacturer declines any responsibilities against loss of life and property due to a failure of this product
when used with or as a part of a device made by third parties.

Use of third party accessory may result in damage to this product. It will void our warranty for repair.

Handling this product

Be sure to reduce the audio output level to minimum before using an earphone or a headset. Excessive audio
may damage hearing.

Do not open the unit without permission or instruction from the manufacturer. Unauthorized modification or
repair may result in electric shock, fire and/or malfunction and voids warranty.

Do not operate this product in a wet place such as in a shower room. It may result in electric shock, fire and/

or malfunction, This product is splash-proof but not a complete water-proof.

Do not place the product in a container carrying conductive materials, such as water or metal in close

proximity. A short-circuit to the product may result in electric shock, fire and/or malfunction.

About chargers

Do not use adapters other than having the specified voltage. It may result in electric shock, fire and/or
malfunction,Never turn on the radio while charging.

Do not plug multiple devices using an adapter into a single wall outlet. It may result in overheating and/or fire.

Do not handle adapter with a wet hand. It may result in electric shock.

Securely plug the adapter into the wall outlet. Insecure installation may result in short-circuit, electronic shock

and/or fire.

Do not use the adapter if the plug or socket contacts are dirty. Overheating and/or short-circuiting may result

in fire, electric shock and/or damage to the product.

In case of emergency

In case of the following situation(s), please turn off the product, switch off the source of power,
then remove or unplug the power-cord. Please contact your local dealer of this product for service
and assistance. Do not use the product until the trouble is resolved. Do not try to troubleshoot the
problem by yourself.

●

When a strange sound, smoke and/or strange odor comes out of the product.

●

When the product is dropped or the case is broken or cracked.

●

When a liquid penetrated inside.

●

When a power cord (including DC cables, AC cables and adapters) is damaged

For your safety, turn off then remove all related AC lines to the product and its accessories from the wall outlet
if a thunderstorm is likely.

Maintenance

Do not open the unit and its accessories. Please consult with your local dealer of this product for service and
assistance

Alert

Environment and condition of use

Do not use the product in proximity to a TV or a radio. It may cause interference or receive interference.

Do not install in a humid, dusty or insufficiently ventilated place. It may result in electric shock, fire and/or

malfunction.

Do not install in an unstable or vibrating position. It may result in electric shock, fire and/or malfunction when/

if the product falls to the ground.

Do not install the product in proximity to a source of heat and humidity such as a heater or a stove. Avoid
placing the unit in direct sunlight.

Be cautious of a dew formation. Please completely dry the product before use when it happens.

About transceiver

Be cautious of the whip antenna when carried in your shirt-pocket etc. It may make contact with your eye and
cause injury.

Do not connect devices other than specified ones to the jacks and ports on the product. It may result in
damage to the devices.

Turn off and remove the power source (AC cable, DC cable, battery, cigar cable, charger adapter etc.) from
the product when the product is not in use for extended period of time or in case of maintenance.

Never pull the cord alone when you unplug AC cable form the wall outlet.

Use a clean, dry cloth to wipe off dirt and condensation from the surface of the product. Never use thinner or
benzene for cleaning.

Check with your local waste officials for details on recycling or proper disposal of the electronics product,

battery-packs and accessories in your area.

PC PROGRAMMING

NOTE: The utility software may be available to distributors/dealers only. USB programming cable is required. The

manufacturer will not release the software to unauthorized party so please contact your dealer for details.

CONTENTS

STANDARD ACCESSORIES/OPTIONAL ACCESSORIES ............................................... 1

Standard Accessories .........................................................................................................................1

BATTERY INFORMATION .................................................................................................. 2

Charging Operation .............................................................................................................................2

Battery Charger Type ..........................................................................................................................2

Notice for Charging Battery .................................................................................................................2

How to Charge the battery pack .........................................................................................................4

INSTALLATION & CONNECTION ...................................................................................... 6

How to Store the Battery ..................................................................................................................... 6

Installing / Removing the Li-ion Battery ..............................................................................................6

Installing / Removing the Belt Clip ...................................................................................................... 7

Accessories .........................................................................................................................................7

Installing the Hand Strap .....................................................................................................................8

GETTING ACQUAINTED .................................................................................................... 9

LCD Display........................................................................................................................................9

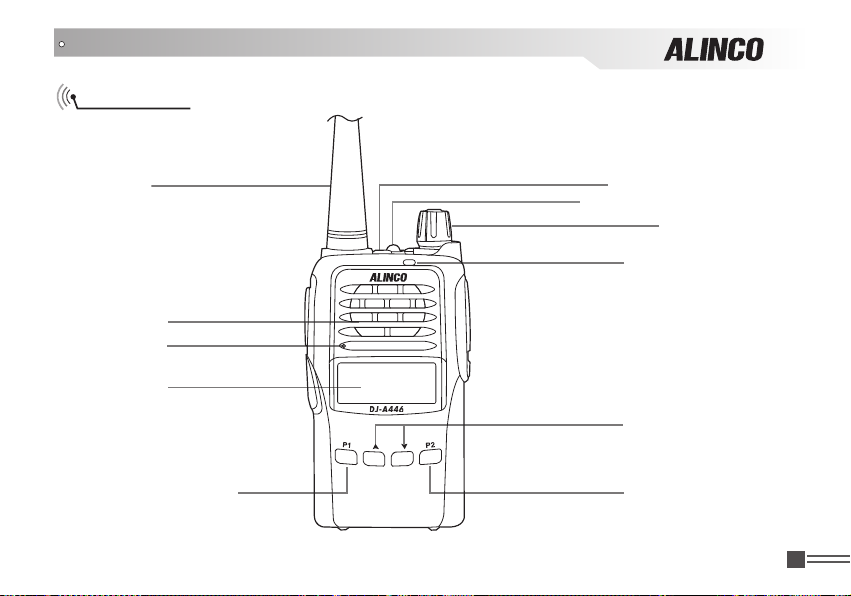

Front Panel .........................................................................................................................................10

Side Panel .......................................................................................................................................... 11

BASIC OPERATIONS ......................................................................................................... 12

Professional

FM Transceiver

I

CONTENTS

Power On and off ................................................................................................................................ 12

Adjusting Audio output level ................................................................................................................12

Emergency Alarm Function..................................................................................................................13

Adjusting Channel ............................................................................................................................... 13

Side Key[PF1](Jacklight Switch) ......................................................................................................... 13

Side Key[PF2](Keypad lock) ............................................................................................................... 13

Squelch Off .........................................................................................................................................13

Receiving ............................................................................................................................................14

Transmitting ........................................................................................................................................14

Resetting ............................................................................................................................................. 14

P1 KEY OPERATIONS.........................................................................................

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS) Encode/Decode tones synchronized setup ............................15

Inversion scrambling (Encryption) .......................................................................................................15

P2 KEY OPERATIONS.........................................................................................

Turn On/ Off FM Radio receiver ..........................................................................................................16

Squelch Level .....................................................................................................................................16

OPTIONAL ACCESSORIES.................................................................................

Recommended installation of earphone microphone.................................................... 18

Professional

II

FM Transceiver

15

16

17

CONTENTS

AUXILIARY FUNCTIONSSTARTING TAKES ...................................................................19

Key programming................................................................................................................................19

TECHNICAL SPECIFICATIONS ......................................................................................... 20

ATTACHED CHART ............................................................................................................ 23

Channel Frequency Chart ................................................................................................................... 23

CTCSS Frequency Chart .................................................................................................................... 23

1024 groups DCS frequency chart .....................................................................................................24

Professional

FM Transceiver

III

STANDARD ACCESSORIES/OPTIONAL ACCESSORIES

Standard Accessories

Battery

Instruction

Charger AC Adaptor

Hand Strap

Belt Clip

Manual

NOTE: Accessories may differ depending on the version you have purchased. Please contact your local
dealer for details of standard accessories and the warranty-policy before purchase.

Professional

1

FM Transceiver

BATTERY INFORMATION

Charging Operation

The battery is not charged at the factory, so please charge it before use. Charge the battery for the

first time after purchase or extended storage (more than 2 months) may not bring the battery to its

normal operating capacity. After repeating fully charge/ discharge cycle, the operating capacity will
reach the best performance. The battery life is over when its operating time decreases even though
it is fully and correctly charged, and it must be replace to new one.

Battery Charger Type

Please use Alinco's designated charger, other models may cause explosion and injury. After installing
the battery, when the radio displays low battery, please charge the battery.

Notice for Charging Battery

Do not shortcircuit the charger. Never attempt to remove the casing from the battery, otherwise ▼
the warranty is void and you risk serious damage to yourself and properties.

The ambient temperature should be between 5 ▼ ºC and 40ºC in charging. Charging outside this
range may not fully charge the battery.

Always switch off the transceiver equipped with a battery before charging. Otherwise, it will ▼
interfere with correct charging.

To avoid interfering the charging procedure, please do not cut off the power or take out the ▼
battery during charging.

Do not recharge the battery if it is already fully charged. This may shorten the life of the battery. ▼
Do not charge the battery or transceiver when wet. Dry it before charging to avoid danger. ▼

Professional

FM Transceiver

2

BATTERY INFORMATION

Caution

• Risk of explosion, generation of heat or leak of chemicals inside if the battery is replaced by an

incorrect type or reverse polarity. Use always the recommended types of batteries in this manual
only.

• The battery pack isn't fully charged when shipped. It must be charged before use.

• Charging should be conducted in a temperature range of +5ºC to +40ºC (+41ºF to +104ºF).

• Don't modify, dismantle, incinerate or immerse the battery pack in the water as this can be

dangerous.

• Never short-circuit the battery pack terminals, as this can cause damage to the equipment or lead

to heating of the battery which may cause burns.

• Unnecessary prolonged charging (overcharging) can deteriorate battery performance.

• The battery pack should be stored in a dry place where temperature is in -10ºC to +45ºC (+14ºF
to +113ºF) range. Temperatures outside this range can cause the battery liquid to leak. Exposure to

prolonged high humidity can cause corrosion of metal components.

• Battery-packs are a consuming part. When its operating time becomes considerably short after a

normal charge, please consider that the pack is exhausted and replace it with a new one.

• The battery pack is recyclable.Check with your local waste officials for details on recycling options

or proper disposal in your area.

• Use specified genuine chargers only to charge battery packs. Use of other chargers may cause

damage to products, you and your property.

• Never carry battery packs together with conductive articles such as metals in a same bag to

prevent from short-circuiting. Put the packs only in nylon bags to carry them safely.

Professional

3

FM Transceiver

BATTERY INFORMATION

How to Charge the battery pack

1.Plug the AC adaptor into the AC outlet, then plug into
the DC jack, the indicator lights orange for 1 second and
goes out---waits to charge.

2.Slide the battery or transceiver with battery into the
charger; make sure the battery terminals are in contact
with the charging terminals. LED turns into twinkling RED

---pre-charging begins.

3.Pre-charging for about 5 minutes, LED stop blinking then
charging begins.

4.It takes up to 4 hours to fully charge the battery, and LED
turns to green when the charge is complete.

Warning: Never charge while the radio is turned on. When turned on, the charger can't detect the
charging voltage properly and LED fails to indicate charge status correctly.

5. LED Indicator:

STATUS

LED

self-examine
when power on

Orange
(for 1 second)

(No battery) Pre-charging

None

Red blinks
for 5 minutes

Charge
normally

Fully
Charged

Red Green

Trouble

Red blinks
alternatively

Professional

FM Transceiver

4

BATTERY INFORMATION

NOTE:

▲ Trouble means battery heating, short-circuit or charger malfunction. Remove the battery pack from
the charger immediately and contact to your local dealer for services.

▲ The max trickle pre-charging time is 30 minutes. In case the red indicator continues to blink longer,
please stop charging and consult with your local dealer for services.

▲ It is known that Li-Ion battery packs heat up over 400℃ by itself when kept in a temperature of over
80℃ for extended period of time. Although the packs are protected against overheating with a protective
circuit, never leave the battery packs in a car or similar locations in hot seasons.

▲ Li-ion packs may deteriorate by over 30% regardless of conditions after 3 years. This is a nature of
Li-ion pack and not a defect of the product.

▲ The charger is to charge the battery pack only. It is not an AC adapter to operate the radio. Never
attempt to transmit the radio with using the charger as it will cause the damage to the charger and a
repair/replace may become necessary.

▲ The charge should be conducted in an ambient temperature with a minimum proper air-conditioning
in an extremely hot or cold seasons.

▲ Try charging the battery pack only when having trouble charging with the radio.In case the radio may
have troubles,the charge can't be conducted properly.If the battery pack can be charged alone, please
take the radio to your local dealer for services.

Professional

5

FM Transceiver

INSTALLATION & CONNECTION

How to Store the Battery

1.The battery should be kept in the status of 50% discharge when storing.

2.Remove the battery pack from the radio and keep it in a cool, dry place.

3.Keep away from source of heat and direct sunlight.

Incorrect storage will damage both the battery pack and the radio. Please always remove the

Note:

battery pack from the radio when not in use.

Installing / Removing the Li-ion Battery

1.Match the three grooves of the battery pack with the corresponding
guides on the back of the transceiver, then push it.

2. Pr ess the bat tery and t ran sceiv er firml y tog eth er until t he
release latch on the top of the transceiver locks. After hearing
a“click”sounds, the battery has been locked.

3.To remove the battery, slide up the release latch and remove the
pack away from the transceiver.

Professional

FM Transceiver

6

INSTALLATION & CONNECTION

Installing / Removing the Belt Clip

Installing the Belt Clip:

1. Put the belt clip on the back of the unit, and the screw clockwise

until it stops.

2. Confirm that the belt clip is securely attached.

* Tighten up the screw occasionally.

Removing the Belt Clip:

Turn the screw counter-clockwise to remove the belt clip.

Caution: Use the screws of specified size only. Others may cause
damage to the product. (screws size PM Φ 2.5mm x 3mm)

Accessories

Open the jack cover and insert the accessory plug

into the jack,as shown.

When the accessory is not used, please be sure to

close the cover securely.

Professional

7

FM Transceiver

K

C

O

L

N

U

INSTALLATION & CONNECTION

NOTE:

1.To keep the radio dust and splash resistant, the cover must be closed properly with the original
supplied cover.

2.The radio is not dust and splash resistant while using the optional accessory risking that the water
may penetrate inside through the plug.

Installing the Hand Strap

Attach the hand strap as shown.

Professional

FM Transceiver

8

DCS

CTCSS

FM radio

Busy Channel

Scramble (Encryption)

Battery Capacity

Channel No.

Keypad Lock

GETTING ACQUAINTED

LCD Display

Following are the meaning of the icons and signs shown on the display.
Some icons may not appear while operating this product due to pre-programming status by your dealer.

NOTE:

Battery capacity indicator(full) No power,replace battery pack or charge battery

Professional

9

FM Transceiver

Battery capacity remnant Real time display receiving signal

strength/Power Indicator

GETTING ACQUAINTED

Front Panel

Antenna

Speaker

Microphone

LCD

Short press: Tone/DCS squelch

Long press: lnversion scrambling

P1 key

PRIVATE MOBILE RAD IO

Emergency Alarm

Jacklight

LED indicator,
green light when
receiving , red light
when transmitting

Up/Down adjusting key

P2 key
Short press: FM radio

Long press: Squelch Level

Power/volume switch

Professional

FM Transceiver

10

GETTING ACQUAINTED

Side Panel

Professional

11

FM Transceiver

PTT key

PF1 key

PF2 key

PTT

MIC/SP

Left Panel Right Panel

Acce ssor y and P C
programming port

Belt Clip

Battery

BASIC OPERATIONS

Power On and off

Turn【POWER】/【VOLUME】dial clockwise to power on.
Turn it counterclockwise to power off.

Adjusting Audio output level

Press PF2 key to monitor white noise to refer to the current audio level.
Turn【POWER】/【VOLUME】clockwise to increase the audio level,
counterclockwise to decrease.

CAUTION:
NEVER USE EARPHONE while adjusting audio level. The max audio output is 1W, and it's loud
enough to hurt your eardrums.
You may feel a static shock when wearing an earphone in a dry atomosphere but it's not a defect of
product but a cause of nature.It is the same shock you feel typically when opening a door of a car in
certain conditions.

Professional

FM Transceiver

12

BASIC OPERATIONS

Emergency Alarm Function

While Stand-by state, press this key for 3 seconds to enable the emergency
alarm function. When activated the function, the radio will sound an alarm beep

and start transmitting the alarm beep.

Adjusting Channel

Press key/ key to choose the desired channel. Press key once to enter the downward
channel while press key to enter the upward channel.

Side Key【PF1】(Jacklight Switch)

Long press this key to switch on or off the jacklight.

Side Key【PF2】(Keypad lock)

Long press this key to start keypad lock function. Repeat to cancel the key lock function.

Squelch Off

Press the【PF2】 key, squelch opens and the background noise is heard. Press this key again, it

beeps twice, and the squelch closes. By using this function you can monitor weaker signals.

Professional

13

FM Transceiver

BASIC OPERATIONS

Receiving

Select the channel that you wish to operate.

When a signal is received on the channel that you selected, and S-meter is displayed on the LCD,

then the received signal can be heard. The RX indicator also lights green at this time.

NOTE: Please be aware of the squelch level and selective-calling settings such as CTCSS and DCS as
you may risk not hearing the receiving signal.

Transmitting

1. Select the channel by using the keypad.

【

】

2. Press the

3. While holding down the

4. Release the

Before transmitting, it is recommended to monitor the channel you are going to use to ensure it is not
busy by pressing and holding

Resetting

When you reset the unit, all settings are returned to the initial factory settings. The reset deletes the
programmed memory channels also.

1. Turn on the unit with the

PTT

key. The red TX indicator turns on while transmitting.

【

】

PTT

key, speak into the unit at normal voice from the distance of 5cm (2").

【

】

PTT

key to receive.

【

】

PF2

key.

【

】

and

【P2】

keys pressed together.

PF1

Professional

FM Transceiver

14

BASIC OPERATIONS

2. All the icons appear on the display.

3. Release the keys.

NOTE: THE RESET DELETES ALL THE MEMORIES.
Please take notes of the important data and keep it for future reference.

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS)

Encode/Decode tones synchronized setup

Short press

Available CTCSS tones: 67Hz- 254.1Hz, 50 tones in total, Deafault is OFF.

DCS:

Press

Inversion scrambling (Encryption)

NOTE: This is an analog encryption and decoding is possible by using commonly available receivers.
Alinco does not warranty the confidentiality of the communications.

Professional

15

FM Transceiver

【P1】

key to choose the desired CTCSS / DCS encode tone.

017N-765I, 232 codes, "N" stands for positive, "I" stands for inverse codes. Default is OFF.

【

】

PF2

key to confirm and exit.

BASIC OPERATIONS

An analog voice inversion scrambler is equipped and such audio processing can offer an advanced
confidentiality to your business communications.

【

】

Lomg press the
Repeat the operations to turn off.

Turn On/ Off FM Radio receiver

Short pressing【P2】key, FM Radio is enabled.
LCD displays 'FM' and starts receiving FM broadcasting frequency. Repeat the operations to turn off.

While listening to the FM broadcasting, press key or key to start scanning. When a signal is
received, LCD displays current frequency and stops scanning.

Squelch Level

Squelch is a function that eliminates the noise when no signals are being received.
Setting the higher squelch level allows you to monitor only stronger signals.
Usu ally start from level zero (the squelch is o pen and hear the noise),

increasing the level and when the noise is gone, set just 1 level higher than
the current level. For example the noise is cut at level 3, set the level to 4 and
exit.
Long press【P2】key then press
that is from 00 to 09 in 10 levels.
Press【PF2】key to confirm and exit.

PF2

key, Scramble is enabled.

key or key to choose the parameter,

Professional

FM Transceiver

16

OPTIONAL ACCESSORIES

EBC-34 Belt Clip

EBP-87 Li-ion Battery Pack (DC 7.4V 1500mAh)

EBP-88 Li-ion Battery Pack (DC 7.4V 1700mAh)

EDC-189 Li-ion Battery Charger

EDC-191E AC Adaptor (220V)

EME-56A Earphone Microphone

EMS-76 Speaker microphone

Professional

17

FM Transceiver

Recommended installation of earphone microphone

Earphone

Use a clip to fix with collar.

Clip the PTT unit closer to your mouth.

Carry the radio on the side or the back of your body,

and the cable should go around the back as shown.

Clamp the excessive length of cable at your waist.

Professional

FM Transceiver

18

AUXILIARY FUNCTIONSSTARTING TAKES

Key programming

The【PF1】, 【PF2】,【P1】and【P2】keys are programmable.

NOTE: The keys can be programmed of long press and short press, if program of short press, the
function will be activated when press the programmed key, if program of long press, the function
will be activated when press and hold the key for programmed time.

Professional

19

FM Transceiver

TECHNICAL SPECIFICATIONS

General

Frequency Range 446.00625–446.09375 MHz

Channel Capacity 128 channels

Operating Voltage 7.4V DC ±20%

Battery Life

Frequency Stability ±2.5ppm

Temperature range

Size

Weight 240 g (with battery pack, antenna)

Receiving Part(ETSI EN 300 086 Standard Test)

Sensitivity(12dB
SINAD)

Adjacent Channel
Selectivity

Intermodulation ≥60dB

Spurious Rejection ≥70dB

More than 14 Hours (1500mAh), by
5-5-90 work cycle

~

Operating:-10
Charging:+5

+45°C(+14~113°F) /

~

+40°C(+41~104°F)

240×56×30mm (with battery pack,
antenna)

≤0.35μV

≥60dB

Audio Response

Hum & Noise

+1~-3dB(0.3~2.55KHz)

45dB

≥

Audio Distortion ≤5%

Audio Power
Output

1000mW/10%

Transmitting Part(ETSI EN 300 086 Standard Test)

Power Output 0.5W

Modulation 8K50F3E (FM)

Adjacent Channel
Power

≥65B

Hum & Noise ≥36dB

Spurious Emission ≤-36dB

Audio Response

+1~-3dB
(0.3~2.25KHz)

Audio Distortion ≤5%

Professional

FM Transceiver

20

TECHNICAL SPECIFICATIONS

Problem Corrective Action

A.The battery may be exhausting. Recharge or replace the battery.

No power

Battery power dies shortly after
charging.

All band noisy after programmed Adjust squelch level.

No sound when using earphone.

Communication distance
becomes short, and Low
sensitivity

Cannot talk or hear other
members in your group

Can not power on or frequent
power off

Professional

21

FM Transceiver

B.The battery may not be installed correctly. Remove the battery
and install it again.
C.The power switch is broken; send it to local dealers to repair.
D.Battery life is end; contact to local dealers to replace.

The battery is exhausted. Replace the battery pack with a new one.

Earphone or the jack is broken. Please contact with local dealers
for inspection.

A.Check whether the antenna is in good conduction and the
antenna base do not come adrift.
B.Antenna may be broken. Consult your local dealer for services.

A.Different channel, please change it.
B.Different CTCSS / DCS /DTMF, please reset it.
C.Out of communication range.

Check if the battery pack is securely attached.

TROUBLE SHOOTING GUIDE

The receiving sound level is low
or intermittent

Consult with local dealers for inspection.

A.Out of communication range or obstruct by walls, buildings etc.

Receiving signal is intermittent.

Change position to transmit.
B.4Internal components may be in trouble, please contact with
local dealers to repair.

Loudspeaker sounds lower
or with dry noise after certain
time of usage.(Speaker magnet

Check whether the loudspeaker is broken, Iron powder or dusts is
in the loudspeaker. Please contact with local dealers to repair.

attracts iron powders)
Receive voice from the other

parties and can not transmit

Interference is being received. BCLO activated.

A.Low volume, increase the audio level.

Receiving indicator with green
light but no sound

B.Volume switch or loudspeaker is broken, please contact with
local dealers to repair.
C.Earphone jack is broken, please contact with local dealers to
repair.

NOTE: Alinco guarantees the supply of minimum-necessary spare parts such as battery-packs, components
and mechanical parts for at least 5 years after the production of this product is terminated except in case of
accidents beyond control.

Professional

FM Transceiver

22

ATTACHED CHART

Channel Frequency Chart

1 446.00625 5 446.05625

2 446.01875 6 446.06875
3 446.03125 7 446.08125
4 446.04375 8 446.09375

CTCSS Frequency Chart

1 67.0 11 94.8 21 131.8 31 171.3 41 203.5

2 69.3 12 97.4 22 136.5 32 173.8 42 206.5

3 71.9 13 100.0 23 141.3 33 177.3 43 210.7

4 74.4 14 103.5 24 146.2 34 179.9 44 218.1

5 77.0 15 107.2 25 151.4 35 183.5 45 225.7

6 79.7 16 110.9 26 156.7 36 186.2 46 229.1

7 82.5 17 114.8 27 159.8 37 189.9 47 233.6

8 85.4 18 118.8 28 162.2 38 192.8 48 241.8

9 88.5 19 123.0 29 165.5 39 196.6 49 250.3

10 91.5 20 127.3 30 167.9 40 199.5 50 254.1

Professional

23

FM Transceiver

ATTACHED CHART

1024 groups DCS frequency chart

000 001 002 003 004 005 006 007
010 011 012 013 014 015 016 017
020 021 022 023 024 025 026 027
030 031 032 033 034 035 036 037
040 041 042 043 044 045 046 047
050 051 052 053 054 055 056 057
060 061 062 063 064 065 066 067
070 071 072 073 074 075 076 077
100 101 102 103 104 105 106 107
110 111 11 2 11 3 114 115 11 6 11 7
120 121 122 123 124 125 126 127
130 131 132 133 134 135 136 137
140 141 142 143 144 145 146 147
150 151 152 153 154 155 156 157
160 161 162 163 164 165 166 167
170 171 172 173 174 175 176 177
200 201 202 203 204 205 206 207
210 211 212 213 214 215 216 217
220 221 222 223 224 225 226 227
230 231 232 233 234 235 236 237
240 241 242 243 244 245 246 247
250 251 252 253 254 255 256 257

Professional

FM Transceiver

24

ATTACHED CHART

260 261 262 263 264 265 266 267
270 271 272 273 274 275 276 277
300 301 302 303 304 305 306 307
310 311 312 313 314 315 316 317
320 321 322 323 324 325 326 327
330 331 332 333 334 335 336 337
340 341 342 343 344 345 346 347
350 351 352 353 354 355 356 357
360 361 362 363 364 365 366 367
370 371 372 373 374 375 376 377
400 401 402 403 404 405 406 407
410 411 412 413 414 415 416 417
420 421 422 423 424 425 426 427
430 431 432 433 434 435 436 437
440 441 442 443 444 445 446 447
450 451 452 453 454 455 456 457
460 461 462 463 464 465 466 467
470 471 472 473 474 475 476 477
500 501 502 503 504 505 506 507
510 511 512 513 514 515 516 517
520 521 522 523 524 525 526 527
530 531 532 533 534 535 536 537

Professional

25

FM Transceiver

ATTACHED CHART

540 541 542 543 544 545 546 547
550 551 552 553 554 555 556 557
560 561 562 563 564 565 566 567
570 571 572 573 574 575 576 577
600 601 602 603 604 605 606 607
610 611 612 613 614 615 616 617
620 621 622 623 624 625 626 627
630 631 632 633 634 635 636 637
640 641 642 643 644 645 646 347
650 651 652 653 654 655 656 657
660 661 662 663 664 665 666 667
670 671 672 673 674 675 676 677
700 701 702 703 704 705 706 707
710 711 712 713 714 715 716 717
720 721 722 723 724 725 726 727
730 731 732 733 734 735 736 737
740 741 742 743 744 745 746 747
750 751 752 753 754 755 756 757
760 761 762 763 764 765 766 767
770 771 772 773 774 775 776 777

Professional

FM Transceiver

26
