Alinco DJ-A10 User Manual

ALINCO, INC.

Yodoyabashi Dai-bldg 13F 4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan Phone: +81-6-7636-2362 Fax: +81-6-6208-3802 http://www.alinco.com E-mail:export@alinco.co.jp

VHF FM Transceiver / 136.000-173.995MHz All EU and EFTA member states. Operator license is required.

Printed in China

A1.0-12/08

VHF FM Transceiver

Instruction Manual

Thank you for purchasing your new Alinco transceiver. Please read this manual care fully befo re using the prod uct to ensur e ful l performa nce, and keep thi s manual for future reference as it contains information on after-sales service. In case addendum or errata sheets are included with this product, please read those materials and keep them together with this instruction manual for future reference.

Introduction

Thank you very much for purchasing this excellent Alinco transceiver. Our products are ranked among the

nest in the world. This radio has been manufactured with state of the art technology and it has been tested

carefully at our factory. It is designed to operate to your satisfaction for many years under normal use.

Please read this manual completely from the rst page to the last, to learn all the functions the

product offers. It is important to note that some of the operations may be explained in relation

to information in previous chapters. By reading just one part of the manual, you may risk not understanding the complete explanation of the function.

Before transmitting

There are many radio stations operating in proximity to the frequency ranges this product covers. Be careful not to cause interference when transmitting around such radio stations.

■

Lightning

Any person is not safe outdoor during thunderstorm and lightning. This condition is getting worse if somebody keeps a hand-held radio; chances of being hit by lightning are doubled since lightning may hit a radio antenna as well. At this time, there is no hand-held radio having any kind of protection against lightning current (which is higher than10 kA.). Note also that no car provides adequate protection of its passengers or drivers against lightning as well. Therefore, Alinco will not take responsibility for any danger associated with using its hand-held radios outdoor or inside the car during lightning.

■

About IP54 rating / Dust and splash resistant

About IP54 rating

5: Dust protected /Ingress of dust is not entirely prevented, but it must not enter in sufcient quantity to

interfere with the satisfactory operation of the equipment; complete protection against contact.

4: Splashing water / Water splashing against the enclosure from any direction shall have no harmful effect.

Test duration: 5 minutes / Water volume: 10 litters per minute /Pressure: 80~100 kN/m²

The IP54 designation provides for limited dust and splash proong of the radio per specied above. This

compatibility is factory guaranteed for a period of one year provided all the jack covers are securely in

place, any accessories connected must be specied genuine Alinco accessories and the radio has not

been disassembled by the customer. The factory has tested and made the equipment compatible to IP54

certication during engineering. However, please understand that this equipment is NOT certied IP54

compliant but is designed to remain operational when used in hard conditions and is in no way stating that you should attempt to wash the radio for cleaning. Warranty will not cover radios that are water/dust damage due to negligence or misuse of the product.

The warranty period of dust and splash resistance is the same as the period of the product warranty.

■

Covering ranges

You may expect a range of approx.3km/2 miles or more at high-power when located on a at, noise-free

place like on a beach.However,it may vary drastically depending on how to wear and carry the radios, surrounding locations/conditions and static noise levels (below or near power transmission lines), etc. In urban areas with many buildings or inside a building, such covering range will become drastically short even to several tens of meters.

Features

■ Output power selectable 5W/2W/0.5W

■ 128 PC-programmable channels

■ Li-Ion battery pack and stand-charger as standard accessories

■ Alphanumeric name tags

■ FM broadcasting 76-108MHz receiver built-in

■ Selectable Battery-save parameters

■ Busy Channel Lockout

■ Voice Compander (Reduce Noise & enhance audio clarity)

■ Inversion Scramble(Analog encryption)

■ Sub-tone (CTCSS/DCS) Encode/ Decode and DTMF/ANI

■ VOX built-in

■ Voice prompt in English, Emergency Kill/Stun/Waken, Alarm signal, Various scan modes, Key lock, Wide/Narrow operations and more at NO extra costs.

Conformity Symbols

Tested to comply MIL-STD-810G

-Shock: Method 514.6/I,IV -Vibration: Method 516.6/I

SAFETY TRAINING INFORMATION

Warning: Please Read Carefully

A transceiver generates RF (Radio Frequency) electromagnetic energy while transmitting. This Alinco

transceiver is designed for and classied as “Occupational Use Only", meaning it must be used minimum

necessary only during the course of employment by employees aware of the hazards, and the ways

to minimize such hazards. This transceiver is NOT intended for use by the “General Population” in an uncontrolled environment. This transceiver has been required “SAR-Standard” tested and complies with the FCC RF exposure limits for “Occupational Use Only”.

To ensure that your expose to RF electromagnetic energy is within the allowable limits for occupational use, always adhere to the following guidelines:

DO NOT operate the transceiver without a proper antenna attached, as it may damage the transceiver

•

and may also cause you to exceed FCC RF exposure limits. A proper antenna is the genuine antenna

supplied with this transceiver by Alinco or ones specically authorized by the antenna manufacturer for

use with this transceiver.

DO NOT tran smit for m ore than 50% durin g the time of em ployment (50% du ty cycle or less).

•

Transmitting excess ive amount of time can cause RF exposure compliance requirements to be exceeded. Please carefully read this instruction manual to learn how to transmit and stop transmitting before starting to use it.

ALWAYS keep the antenna at least 3 cm (1 inch) away from your body when transmitting and only use

•

the original belt clips when attaching the transceiver to your body (Unauthorized attachment devices may help radiating more electromagnetic energy). To obtain the best sound quality during communications, hold the antenna at least 6 cm (2 inches) from your mouth, and slightly off to one side.

Use only the genuine Alinco accessories listed in this instruction manual for RF safety. Third party

•

accessories are not guaranteed for RF safety by Alinco. The above provides the information needed to make users of this transceiver aware of RF exposure, and what to do to assure that this transceiver operates with the FCC RF exposure limits.

Electromagnetic Interference/Compatibility

•

During transmissions, a transceiver generates RF energy that can possibly cause interference with other devices and/or systems. To avoid such interference, turn off the transceiver in areas where signs are posted to do so. NEVER operate transceivers in areas that are sensitive to electromagnetic radiation such as hospitals, blasting sites, aboard aircraft and similar advanced vehicles etc. Do not expose magnetic cards such as credit cards in a very close vicinity to a transceiver; it may erase the magnetic data. A person using medical devices such as a pacemaker MUST NOT use this transceiver, as interference may cause malfunction to such medical devices.

Occupational/Controlled Use

•

This product is used in situations that users are exposed to RF as consequence of their employment provided those users are fully aware of the potential RF hazards and can exercise control over their exposure.

This transceiver is NOT ATEX approved and NOT intended for the use in hazardous explosive

•

atmospheres.

California residents only: Please note per Proposition 65 that Li-Ion battery pack in this product

•

may contain chemicals known to the State of California to cause cancer and birth defects or other

reproductive harm.

FCC INFORMATION

FOR CLASS B UNINTENTIONAL RADIATORS:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. ● ncrease the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. ●

FOR CUSTOMERS IN CANADA :

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'EXPLOITATION EST AUTORISéE AUX DEUX CONDITIONS SUIVANTES :

(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d'en compromettre le fonctionnement.

Alert

Environment and condition of use

It is recommended that you check local trafc regulations regarding the use of a radio equipment while

driving. Some countries prohibit or apply restrictions for the operation of radios and mobile- phones while driving.

Do not use this product in close proximity to other electronic devices, especially medical ones. It may cause interference to those devices.

Keep the radio out of the reach of children.

In case a liquid leaks from the product, do not touch it. It may damage your skin. Rinse with plenty of cold water if the liquid contacted your skin.

Never operate this product in facilities where radio products are prohibited for use such as aboard aircraft, in airports, in ports, within or near the operating area of business wireless stations or their relay stations.

Use of this product may be prohibited or illegal outside of your country. Be informed in advance when you travel.

The manufacturer declines any responsibilities against loss of life and/or a property due to a failure of this product when used to perform important tasks like life-guarding, surveillance, and rescue.

Do not use multiple radios in very close proximity. It may cause interference and/or damage to the product(s).

Risk of explosion if battery is replaced with an incorrect type. Dispose of, or recycle used batteries according to your local regulations.

The manufacturer declines any responsibilities against loss of life and property due to a failure of this product when used with or as a part of a device made by third parties.

Use of third party accessory may result in damage to this product. It will void our warranty for repair.

Handling this product

Be sure to reduce the audio output level to minimum before using an earphone or a headset. Excessive audio may damage hearing.

Do not open the unit without permission or instruction from the manufacturer. Unauthorized modication or repair may result in electric shock, re and/or malfunction and voids warranty.

Do not operate this product in a wet place such as in a shower room. It may result in electric shock, re and/

or malfunction, This product is splash-proof but not a complete water-proof.

Do not place the product in a container carrying conductive materials, such as water or metal in close

proximity. A short-circuit to the product may result in electric shock, re and/or malfunction.

About chargers

Do not use adapters other than having the specified voltage. It may result in electric shock, fire and/or malfunction,Never turn on the radio while charging.

Do not plug multiple devices using an adapter into a single wall outlet. It may result in overheating and/or re.

Do not handle adapter with a wet hand. It may result in electric shock.

Securely plug the adapter into the wall outlet. Insecure installation may result in short-circuit, electronic shock

and/or re.

Do not use the adapter if the plug or socket contacts are dirty. Overheating and/or short-circuiting may result

in re, electric shock and/or damage to the product.

In case of emergency

In case of the following situation(s), please turn off the product, switch off the source of power, then remove or unplug the power-cord. Please contact your local dealer of this product for service and assistance. Do not use the product until the trouble is resolved. Do not try to troubleshoot the problem by yourself.

When a strange sound, smoke and/or strange odor comes out of the product. ● When the product is dropped or the case is broken or cracked. ● When a liquid penetrated inside. ● When a power cord (including DC cables, AC cables and adapters) is damaged ●

For your safety, turn off then remove all related AC lines to the product and its accessories from the wall outlet if a thunderstorm is likely.

Maintenance

Do not open the unit and its accessories. Please consult with your local dealer of this product for service and assistance

Alert

Environment and condition of use

Do not use the product in proximity to a TV or a radio. It may cause interference or receive interference.

Do not install in a humid, dusty or insufciently ventilated place. It may result in electric shock, re and/or

malfunction.

Do not install in an unstable or vibrating position. It may result in electric shock, re and/or malfunction when/

if the product falls to the ground.

Do not install the product in proximity to a source of heat and humidity such as a heater or a stove. Avoid placing the unit in direct sunlight.

Be cautious of a dew formation. Please completely dry the product before use when it happens.

About transceiver

Be cautious of the whip antenna when carried in your shirt-pocket etc. It may make contact with your eye and cause injury.

Do not connect devices other than specified ones to the jacks and ports on the product. It may result in damage to the devices.

Turn off and remove the power source (AC cable, DC cable, battery, cigar cable, charger adapter etc.) from the product when the product is not in use for extended period of time or in case of maintenance.

Never pull the cord alone when you unplug AC cable form the wall outlet.

Use a clean, dry cloth to wipe off dirt and condensation from the surface of the product. Never use thinner or benzene for cleaning.

Check with your local waste ofcials for details on recycling or proper disposal in your area.

PC PROGRAMMING

NOTE: The utility software may be available to distributors/dealers only. USB programming cable is required. The manufacturer will not release the software to unauthorized party so please contact your dealer for details.

TABLE OF CONTENTS

STANDARD ACCESSORIES .........................................................................................................................................01

Standard Accessories ................................................................................................................................................01

OPERATION MODE (VFO mode and Channel mode) ................................................................................................02

KEY OPERATIONS / QUICK CHART ...........................................................................................................................04

BATTERY INFORMATION .............................................................................................................................................11

Charging Operation .................................................................................................................................................... 11

Battery Charger Type ................................................................................................................................................. 11

Notice for Charging Battery ........................................................................................................................................ 11

How to Charge the battery pack .................................................................................................................................13

INSTALLATION & CONNECTION .................................................................................................................................15

How to Store the Battery ............................................................................................................................................15

Installing / Removing the Li-ion Battery ......................................................................................................................15

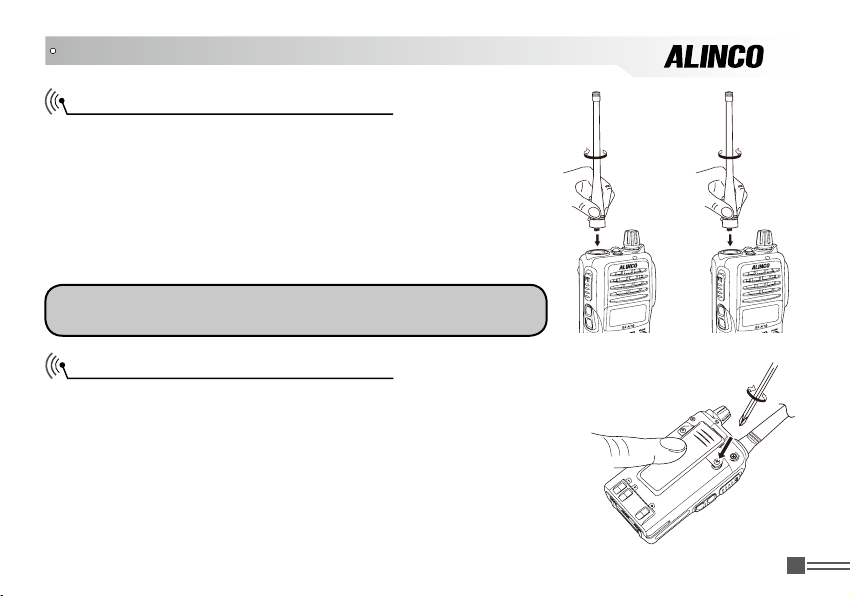

Installing / Removing the Antenna ..............................................................................................................................16

Installing / Removing the Belt Clip .............................................................................................................................16

Accessories ................................................................................................................................................................17

Installing the Hand Strap ............................................................................................................................................17

GETTING ACQUAINTED ...............................................................................................................................................18

LCD Display ...............................................................................................................................................................18

Front Panel .................................................................................................................................................................19

Side Panel ..................................................................................................................................................................20

BASIC OPERATIONS ....................................................................................................................................................21

Power On and off .......................................................................................................................................................21

Adjusting Audio output level .......................................................................................................................................21

Emergency Alarm Function ........................................................................................................................................22

Change between Main Channel and FM Radio .........................................................................................................22

FM radio station scanning ..........................................................................................................................................22

Frequency Input by Keypad .......................................................................................................................................23

Professional

FM Transceiver

TABLE OF CONTENTS

Channel Input by Keypad ...........................................................................................................................................23

Adjusting Channel / Frequency By "

Alarm ..........................................................................................................................................................................24

Monitor / Squelch Off .................................................................................................................................................24

Receiving ...................................................................................................................................................................25

Transmitting................................................................................................................................................................25

Side Key【PF1】Function Instruction ........................................................................................................................25

Side Key【PF2】Function Instruction ........................................................................................................................26

Switch between VFO and Frequency+Channel Mode ...............................................................................................26

ADVANCED OPERATIONS ...........................................................................................................................................27

Editing Channels ........................................................................................................................................................27

Deleting Channels ......................................................................................................................................................27

Turn On/ Off FM Radio receiver .................................................................................................................................27

Enable /Disable Beeping ............................................................................................................................................28

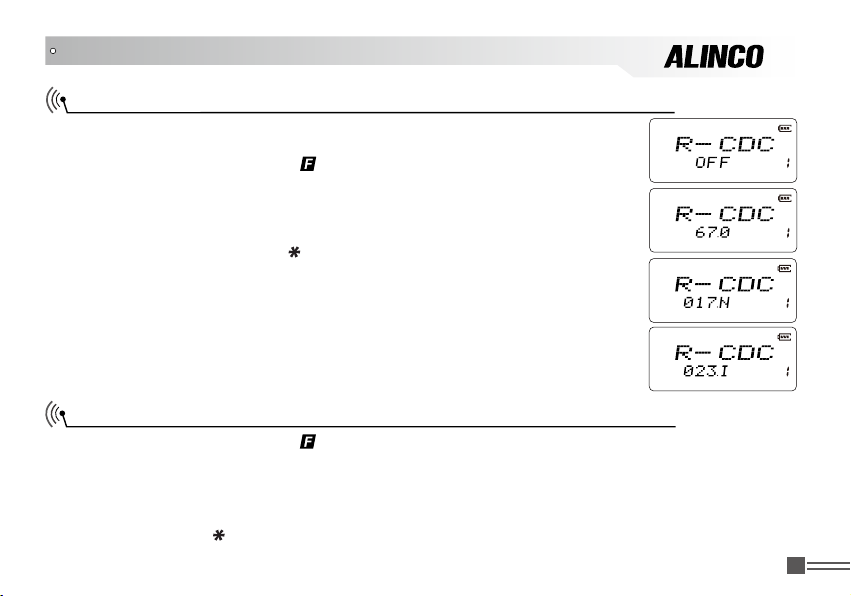

CTCSS / DCS Scan ...................................................................................................................................................28

Offset Frequency Direction Setup ..............................................................................................................................28

Frequency/Channel Scan ...........................................................................................................................................29

Channel Scan Skip .....................................................................................................................................................30

Priority Scan ...............................................................................................................................................................30

TX Power Selection ....................................................................................................................................................31

DTMF Code Enquiry and Setup .................................................................................................................................31

Manually Transmitting DTMF Tones ...........................................................................................................................31

Remotely Kill / Waken ................................................................................................................................................33

Remotely Stun / Waken..............................................................................................................................................33

Frequency Reverse / Talk Around ON/OFF ...............................................................................................................34

Keypad Lock ..............................................................................................................................................................35

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Decode Tone Setup ..........................................................36

【B】

" Key & "

【C】

" Key ..............................................................................24

Professional

FM Transceiver

TABLE OF CONTENTS

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Encode Tone Setup ..........................................................36

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS)Encode/Decode tones synchronized setup ........................37

Offset Frequency ........................................................................................................................................................38

Wide/ Narrow Channel-spacing Selection ..................................................................................................................38

Frequency Reverse or Talk Around ............................................................................................................................39

Inversion scrambling (Encryption) ..............................................................................................................................39

Voice Compander (Reduce noise & enhance audio clarity) .......................................................................................40

Busy Channel Lockout ...............................................................................................................................................40

Turn On/Off Optional Signaling function .....................................................................................................................41

Signaling Relations ....................................................................................................................................................42

PTT ID ........................................................................................................................................................................43

TX OFF (Transmission Prohibited) ...........................................................................................................................43

Whisper ......................................................................................................................................................................44

SET MODE OPERATIONS ............................................................................................................................................45

Set Mode Setting ........................................................................................................................................................45

Voice Prompt ..............................................................................................................................................................45

Time-Out-Timer(TOT).................................................................................................................................................46

Voice Operated Transmission (VOX) .........................................................................................................................46

VOX Delay ................................................................................................................................................................47

VOX Beep .................................................................................................................................................................47

Frequency Step Size Setup .......................................................................................................................................48

Squelch Level .............................................................................................................................................................48

Battery Save ..............................................................................................................................................................49

LCD Backlight operation ............................................................................................................................................49

LCD Backlight Color Setup ........................................................................................................................................50

Scan Resume Time ....................................................................................................................................................50

Frequency/Channel Display Mode .............................................................................................................................51

Professional

III

FM Transceiver

TABLE OF CONTENTS

Tone Burst Tone ........................................................................................................................................................51

DTMF Transmitting Time ............................................................................................................................................52

Beep Volume level .....................................................................................................................................................52

Priority Channel Setup ...............................................................................................................................................53

Current Battery Voltage Display .................................................................................................................................53

Resume Factory Default (RESET) .............................................................................................................................54

DEFAULT SETTINGS ...................................................................................................................................................55

OPTIONAL ACCESSORIES ..........................................................................................................................................56

RECOMMENDED INSTALLATION OF EARPHONE MICROPHONE...........................................................................57

TECHNICAL SPECIFICATIONS ....................................................................................................................................58

TROUBLE SHOOTING GUIDE ......................................................................................................................................60

ATTACHED CHART .......................................................................................................................................................62

CTCSS Frequency Chart ...........................................................................................................................................62

DCS Chart ..................................................................................................................................................................63

Professional

FM Transceiver

STANDARD ACCESSORIES

Standard Accessories

Antenna Battery

Belt Clip Instruction

Charger AC Adaptor

Hand Strap

Manual

NOTE: Accessories may differ depending on the version you have purchased. Please contact your local dealer for details of standard accessories and the warranty-policy before purchase.

Professional

FM Transceiver

OPERATION MODE (VFO mode and Channel mode)

You may set the radio as VFO mode and Channel mode. There are also different setting parameters to properly set functions as per your operating comfort.

1. By programming software:

In PC programming utility software, "General Setting" menu, choose "Display Mode" to select VFO

mode or Channel mode.

2. By manual setup:

Please refer to "Display Mode" in Page 51. VFO Mode: In this mode, press

A.Frequency + Channel mode: At this mode, when set display as "

it enters into Frequency + Channel mode. Once the radio is turned off or switched to another channel, the temporary setting will be erased and back to initial settings. (As pic 1)

B.Channel + Name Tag Mode: When set display as "

Channel +Name Tag Mode. At this mode, it will display corresponding channel name when the current channel is edited with name in advance. Otherwise, it will display frequency and channel number. Its operations are the same as frequency + channel mode. (As pic 2)

C.VFO Mode（Frequency mode): This mode shows only frequency on the

display. Set mode operation and Channel setting are stored as the latest value. Once the radio is turned off or changed to new frequency using VFO, the value remains until next change. (As pic 3)

【D】

key to switch between Channel mode and VFO.

NAME

", it enters into

FREQ

(Pic 1)

(Pic 2)

(Pic 3)

Professional

FM Transceiver

OPERATION MODE (VFO mode and Channel mode)

3.Commercial radio Mode:

When set display mode as "CH", it enters into Commercial radio mode. At this

mode, except scanning, talk around/frequency reverse, DTMF encode or editing, BEEP on/off and keypad lock, all other functions should be set by PC software in advance to the operation (As pic 4). If name tag is programmed, the LCD will display current channel and name tag. (As pic 5)

NOTE: In Commercial radio mode, you can't switch the mode to VFO or channel manually, but you must use PC utility software.

4. In each operating mode, access to the set mode is possible.

Professional

FM Transceiver

(Pic 4)

(Pic 5)

KEY OPERATIONS / QUICK CHART

Function Key Operation Parameter Instruction Page

FM Radio On/Off Beep Setup CTCSS/DCS Scan CTCSS/DCS Scan

Offset Frequency Direction Setup

Scan Channel Scan Skip

Priority Scan

TX Power Selection Frequency Reverse / Talk Around Frequency Reverse / Talk Around

DTMF Code Enquiry

Keypad Lock

【A】【1】【A】【2】【A】【3】【A】【3】

【A】【4】

【A】【5】【A】【6】

【A】【7】

【A】【9】【A】【】【A】【】

【A】【0】

【A】【#】

Activate FM broadcasting receiver Beep sound ON/OFF CTCSS Scan DCS Scan (+):Transmitting frequency higher than

receiving frequency (-):Transmitting frequency lower than

receiving frequency Channel or Frequency Scan S: Scan without current channel PRI: Check priority channel one time when

scan each 10 channels H: High Power 5 W R: Frequency Reverse T: Talk Around Displaying “-” when no data

Displaying data when being with data All keys locked, except PTT/PF1/ PF2

Professional

FM Transceiver

27 28 28 28

29 30

31 34 34

KEY OPERATIONS / QUICK CHART

Function Key Operation Function Option Display

【

】【8】【B】/【C】

Sub tone (CTCSS / DCS) Decode Setup

Sub tone (CTCSS / DCS) Encode Setup Sub tone (CTCSS / DCS) Encode/Decode

Synchronous Setup Offset Frequency

Wide/ Narrow Band Selection

Frequency Reverse/Talk Around

Scramble Setup( Encryption)

Voice Compander Function

Busy Channel Lockout

Add Optional Signaling

Signaling Relations

PTT ID Setup

TX Off Function

Whisper

Professional

FM Transceiver

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

【

】【8】【B】/【C】

KEY OPERATIONS / QUICK CHART

Key Operation Parameter Instruction Enter and exit Page

Sub-tone setting: Op er at io ns are common to Deco de (R-CDC) , Encode (T-CDC) and Synchronous (C-CDC). Press

【

】

Key to move cursor to the menu, Press Key to choose CTCSS/DCS/OFF, Press Key to choose the value , DCS inverted and positive code.

Offset frequency shift value:

【

】

Press

【B】/【C】

Bandwidth setting: Press

【B】/【C】

Frequency reverse / Talk-around: Press

【B】/【C】

Inversion scrambling: Press Press

Voice Compander: Press

【B】/【C】

N o t e : Do no t activate th is f u n c t i o n wh il e communicating with Non-Compander radios.

Key to move cursor to the menu, Press

Key to choose the value.

【

】

Key to move cursor to the menu, Press

Key to choose the value.

【

】

Key to move cursor to the menu, Press

Key to choose the value.

【

】

Key to move cursor to the value of menu,

【B】/【C】

【

】

Key to move cursor to the menu, Press

Key to choose the value.

【#】

Key to choose the value.

【B】/【C】

Key to choose correct

CTCSS (50 Groups in total): 67Hz-254.1Hz

【1】

DCS (232Groups in total): 017N-765I

Available parameters are 0-70Mhz.

Wide band: 25K Middle band:20K Narrow band:12.5K

REV : Frequency Reverse TA : Talk Around

OFF: Disable scramble ON: Enable scramble

ON: Enable compander OFF: Disable compander

【D】/【#】

Professional

FM Transceiver

KEY OPERATIONS / QUICK CHART

Key Operation Parameter Instruction Enter and exit Page

Busy-Channel-Lockout (BCL): Press【A】Key to move cursor to the menu, Press 【B】/【C】Key to choose the value.

Adding Optional Signaling tones: Press【A】Key to move cursor to the menu, Press 【B】/【C】Key to choose the value. DCS (232Groups in total):017N-765I

Signaling relations: Press【A】Key to move cursor to the menu, Press 【B】/【C】Key to choose the value.

PTT ID Setup (DTMF encoding): Press【A】Key to move cursor to the menu, Press 【B】/【C】Key to choose the value.

TX OFF (PTT lock): Press【A】Key to move cursor to the menu, Press 【B】/【C】Key to choose the value.

Wh is pe r (En hanc e voice lev el while ta lk in g in undertones): Press【A】Key to move cursor to the menu, Press 【B】/【C】Key to choose the value.

Professional

FM Transceiver

OFF: Disable BCL: Prohibit transmitting when receiving a carrier and squelch is open. BTL: Prohibit transmitting when receiving a carrier with unmatched signaling.

CTCSS (50 Groups in total):67Hz-254.1Hz

AND: The other parties' traffics can be heard as long as the matched CTCSS / DCS signal AND optional signal are received. OR: The other parties' traffics can be heard as long as the matched CTCSS / DCS signal OR optional signal is received.

OFF: Disable PTT ID BOT: Press PTT key to transmit DTMF tones EOT: Release PTT key to transmit DTMF tones BOTH: Pr ess an d Releas e PTT key ca n both transmit DTMF tones

ON: Enable TX Off function OFF: Disable TX Off function

ON: Enable whisper function OFF: Disable whisper function

【D】/【#】

KEY OPERATIONS / QUICK CHART

Function Menu Entry Function Option Display

Voice Prompting Selection Press PF2 and hold this key for 3 seconds

Time-Out Timer (TOT) Press PF2 and hold this key for 3 seconds

Voice Operated Transmission (VOX) Setup Press PF2 and hold this key for 3 seconds

Voice Operated Transmission (VOX) Delay Press PF2 and hold this key for 3 seconds

Voice Operated Transmission (VOX) Beep Press PF2 and hold this key for 3 seconds

Frequency Step Setup Press PF2 and hold this key for 3 seconds

Squelch level Setup Press PF2 and hold this key for 3 seconds

Battery Save Setup Press PF2 and hold this key for 3 seconds

LCD Backlight Setup Press PF2 and hold this key for 3 seconds

LCD Backlight Color Press PF2 and hold this key for 3 seconds

Scan Dwell Time Setup Press PF2 and hold this key for 3 seconds

Display Mode Setup Press PF2 and hold this key for 3 seconds

Tone Pulse Frequency Setup Press PF2 and hold this key for 3 seconds

DTMF Transmitting Time Setup Press PF2 and hold this key for 3 seconds

Beep Volume Control Press PF2 and hold this key for 3 seconds

Priority Channel Setup Press PF2 and hold this key for 3 seconds

Current Battery Voltage Enquiry Press PF2 and hold this key for 3 seconds

Resume Factory Default Press PF2 and hold this key for 3 seconds

【B】/【C】

Professional

FM Transceiver

KEY OPERATIONS / QUICK CHART

Parameter Adjustment Parameter Instruction Confirm to back Page

Voice prompt: ENG: Activate English Voice-guide OFF: OFF

Time-out-timer setting: Selectable parameter: 15 seconds to 240 seconds OFF: TOT Off

VOX activation and its operational audio level: Audio level parameter: 1, 2, 3 OFF: VOX OFF

VOX delay time (Time delay from end of TX to switch to RX) 10 parameters between 0.5 seconds to 5 seconds

ON: Enable VOX beep OFF: Disable VOX beep

VFO frequency step: Available Steps: 5KHz/ 6.25KHz/ 10KHz/ 12.5KHz/ 15KHz/ 20KHz/ 25KHz/ 30KHz/ 50KHz

Squelch level setting: Available level settings : 0 (opens squelch) to 9

Battery-save ratio: 4 different ratios (1:1 to 1:4) are available. 1:4 to obtain the best battery save effort but your risk to miss initial part of receiving signals becomes higher. OFF: Disable Battery-save function

LCD backlight operation OFF: Turned off always ON: Turned on always (consumes battery much faster) AUTO: Turns on with the key operation then turns off automatically

【D】/【#】

Press Press

【

】

Key to move cursor to the menu

【B】/【C】

【【B】/【C】

Professional FM Transceiver

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

KEY OPERATIONS / QUICK CHART

Press Press

【

】

Key to move cursor to the menu

【B】/【C】

【【B】/【C】

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

】

Key to move cursor to the menu

key to choose the value

LCD backlight color selection: BLUE: Blue backlight ORG: Orange backlight PUR: Purple backlight

Scan resume time setting: 3 parameters: 5 seconds / 10 seconds / 15 seconds

Display mode: (May be preprogrammed by dealer and locked) FREQ: Frequency and Channel display CH: Channel display NAME: Channel number with name-tag display if programmed

Tone-Burst tones: 4 tones available: 1750Hz / 2100Hz / 1000Hz / 1450Hz

DTMF tone encoding time: 10 parameters including 50Microseconds, 100Ms, 150Ms, 200Ms, 250Ms,300Ms, 350Ms, 400Ms, 450Ms, and 500Ms

Beep sound audio levels: 5 levels from 1 to 5

Priority scan channel setup: Select one from available programmed channels OFF: Disable Priority Channel

Battery-voltage display (approx) Display current battery voltage

Perform RESET FACT? : Resume Factory Default, erasing the memory channels INIT? : Resume General Setting, keeping memory channel programming OFF: Cancels reset

【D】/【#】

Professional

FM Transceiver

BATTERY INFORMATION

Charging Operation

The battery is not charged at the factory, so please charge it before use. Charge the battery for the rst

time after purchase or extended storage (more than 2 months) may not bring the battery to its normal operating capacity. After repeating fully charge/ discharge cycle for two or three times, the operating capacity will reach the best performance. The battery life is over when its operating time decreases even though it is fully and correctly charged.and it must be replace to new one.

Battery Charger Type

Please use Alinco's designated charger, other models may cause explosion and injure people. After installing the battery, when the radio displays low battery, please charge the battery.

Notice for Charging Battery

▲Do not shortcircuit the charger. Never attempt to remove the casing from the battery, otherwise the

warranty is void and you risk serious damage to yourself and properties.

▲The ambient temperature should be between 5℃ and 40℃ in charging. Charging outside this range

may not fully charge the battery.

▲Always switch off the transceiver equipped with a battery before charging. Otherwise, it will interfere

with correct charging.

▲To avoid interfering the charging procedure, please do not cut off the power or take out the battery

during charging.

▲Do not recharge the battery if it is already fully charged. This may shorten the life of the battery or

damage the battery.

Professional

FM Transceiver

BATTERY INFORMATION

▲Do not charge the battery or transceiver when wet. Dry it before charging to avoid danger.

Caution

• Risk of explosion, generation of heat or leak of chemicals inside if the battery is replaced by an

incorrect type or reverse polarity. Use always the recommended types of batteries in this manual only.

• The battery pack isn't fully charged when shipped. It must be charged before use.

• Charging should be conducted in a temperature range of +5ºC to +40ºC (+41ºF to +104ºF).

• Don't modify, dismantle, incinerate or immerse the battery pack in the water as this can be dangerous.

• Never short-circuit the battery pack terminals, as this can cause damage to the equipment or lead to

heating of the battery which may cause burns.

• Unnecessary prolonged charging (overcharging) can deteriorate battery performance.

• The battery pack should be stored in a dry place where temperature is in -10ºC to +45ºC (-14ºF to +113ºF) range. Temperatures outside this range can cause the battery liquid to leak. Exposure to

prolonged high humidity can cause corrosion of metal components.

• Battery-packs are a consuming part. When its operating time becomes considerably short after a

normal charge, please consider that the pack is exhausted and replace it with a new one.

• The battery pack is recyclable. Check with your local waste ofcials for details on recycling options or

proper disposal in your area.

• Use specified genuine chargers only to charge battery packs. Use of other chargers may cause

damage to products, you and your property.

• Never carry battery packs together with conductive articles such as metals in a same bag to prevent

from short-circuiting. Put the packs only in nylon bags to carry them safely.

• Even if you do not use the battery pack for a long time, charge it at least once every three months to

prevent deterioration.

Professional

FM Transceiver

BATTERY INFORMATION

How to Charge the battery pack

1.Plug the AC adaptor into the AC outlet, then plug into the DC jack ，the indicator lights orange for 1 second and goes out---waits to charge.

2.Slide the battery or transceiver with batt er y into th e charger; make sure the battery terminals are in contact with the charging terminals . LED turns into twinkling RED

---pre-charging begins.

3.Pre-charging for about 5 minutes, LED twinkles stop then charging begins.

4.It takes about 4 hours to fully charge the battery, and LED turns to green when the charge is complete.

Warning: Never charge while the radio is turned on. When turned on, the charger can't detect the charging voltage properly and LED fails to indicate charge status correctly.

5. Charging Process:

Status LED

Stand-by (self-examine orange lights 1second when power on) ---------------------- Pre-charging (pre-charging stage) ---------------- Red light twinkles for about 5 minutes Charging (charge in constant current.) ------------- RED light lightens for about 4 hours Fully charged (charge in constant voltage) ----------- Green light

Professional

FM Transceiver

None

BATTERY INFORMATION

6. LED Indicator:

STATUS

LED

self-examine when power on

Orange (for 1 second)

(No battery) Pre-charging

None

Red light twinkles for 5 minutes

NOTE: ▲ Trouble means battery heating, short-circuit or charger malfunction. Remove the battery pack from the charger immediately and contact to your local dealer for services. ▲ The max trickle pre-charging time is 30 minutes. In case the red indicator continues to blink longer, please stop charging and consult with your local dealer for services. ▲ It is known that Li-Ion battery packs heat up over 400℃ by itself when kept in a temperature of over 80℃ for extended period of time. Although the packs are protected against overheating with a protective circuit, never leave the battery packs in a car or similar locations in hot seasons. ▲ Li-ion packs may deteriorate by over 30% regardless of conditions after 3 years. This is a nature of Liion pack and not a defect of the product. ▲ The charger is to charge the battery pack only. It is not an AC adapter to operate the radio. Never attempt to transmit the radio with using the charger as it will cause the damage to the charger and a repair/replace may become necessary. ▲ The charge should be conducted in an ambient temperature with a minimum proper air-conditioning in an extremely hot or cold seasons. ▲ Try charging the battery pack only when having trouble charging with the radio.In case the radio may have troubles,the charge can't be conducted properly.If the battery pack can be charged alone, please take the radio to your local dealer for services.

Charge

normally

Fully Charged

Red Green

Trouble

Red twinkles alternatively

Professional

FM Transceiver

INSTALLATION & CONNECTION

How to Store the Battery

1.The battery should be kept in the status of 50% discharge when storing.

2.It should be kept in cool, dry environment and remove it from the transceiver.

3.Keep away from source of heat and direct sunlight.

WARNING Do notshort-circuit battery terminals. Never attempt to remove the casing from the battery pack. Never assemble the battery hazardous in explosive atmosphere as, spark may cause explosion. Do not put the battery in hot environment or throw it into fire, it may also cause explosion.

NOTE: Battery pack discharges faster when it is attached to the radio. Please always remove it from the radio when not in use.

Installing / Removing the Li-ion Battery

1.Match the three grooves of the battery pack with the corresponding guides on the back of the transceiver, then push it.

2.Press the battery and transceiver firmly together until the release latch on the top of the transceiver locks. After hearing a“click”sounds, the battery has been locked.

3.To remove the battery, slide up the release latch and remove the pack away from the transceiver.

Professional

FM Transceiver

INSTALLATION & CONNECTION

Installing / Removing the Antenna

Installing the Antenna:

1. Hold the antenna by its base.

2. Align the grooves at the base of the antenna with the protrusions on the antenna connector.

3. Slide the antenna down and turn it clockwise until it stops.

4. Conrm that the antenna is securely connected.

Removing the Antenna:

Turn the antenna counter-clockwise to disconnect the antenna.

NOTE: Do not use third-party antenna as it may radiate more RF that exceeds SAR limit guidances.

Installing / Removing the Belt Clip

Installing the Belt Clip:

1. Put the belt clip on the back of the unit, and the screw clockwise until it stops.

2. Conrm that the belt clip is securely attached.

* Tighten up the screw occasionally.

Removing the Belt Clip:

Turn the screw counter-clockwise to remove the belt clip. Caution: Use the screws of specified size only. Others may cause

damage to the product. screws (+PM2.5x3)

Professional

FM Transceiver

INSTALLATION & CONNECTION

Accessories

Open the jack cover and insert the accessory plug into the jack,as shown.

When the accessory is not used, please be sure to close the cover securely.

NOTE:

1.To keep the radio dust and splash resistant, the

cover must be closed properly with the original supplied cover.

2.The radio is not dust and splash resistant while

using the optional accessory risking th at the water may penetrate inside through the plug.

Installing the Hand Strap

Attach the hand strap as shown.

Professional

FM Transceiver

GETTING ACQUAINTED

LCD Display

Following are the meaning of the icons and signs shown on the display. Some icons may not appear while operating this product due to pre-programming status by your dealer.

Frequency Reverse

Offset direction

DCS

Talk Around

CTCSS

FUNC Icon

FM radio

TX Power

Priority Scan VOX Function

Scan Skip

Narrow band

Scramble (Encryption)

Battery Capacity

Function Menu Serial No. / Main Channel No. serial No.

Busy Channel

Keypad Lock

NOTE:

Battery capacity indicator(full) No power,replace battery pack or charge battery

Battery power consuming Real time display receiving signal

strength/Power Indicator

Professional

FM Transceiver

GETTING ACQUAINTED

Front Panel

Emergency Alarm

Professional

FM Transceiver

Antenna

Speaker

Microphone

LCD

Numeric keys

Jacklight

Power / Volume Switch

LED Indicator, green light when transmitt ing, red light when receiving

A key/Function key

B key / Up key

C key / Down key

D key, Exit key or channel/VFO Exchange key

GETTING ACQUAINTED

Side Panel

PTT key

PF1 key (1 Primary Function key)

PF2 key (2 Primary Function key)

PTT

MIC/SP

Left Panel Right Panel

Accessory and PC programming port

Belt Clip

Battery

Professional

FM Transceiver

BASIC OPERATIONS

Power On and off

Turn【POWER】/【VOLUME】dial clockwise to power on. Turn it counterclockwise to power off.

Adjusting Audio output level

Press and hold PF2 key to monitor white noise to refer to the current audio level.

Turn【POWER】/【VOLUME】cl ock w ise to inc rea s e t he audi o l eve l, counterclockwise to decrease.

CAUTION: NEVER USE EARPHONE while adjusting audio level. The max audio output is 1W, and it’s loud enough to hurt your eardrums. You may feel a static shock when wearing an earphone in a dry atomosphere but it's not a defect of product but a cause of nature.It is the same shock you feel typically when opening a door of a car in certain conditions.

Professional

FM Transceiver

BASIC OPERATIONS

Emergency Alarm Function

While Stand-by state, press this key for 3 seconds to enable the emergency alarm function. When activated the function, the radio will sound an alarm beep and start transmitting the alarm beep. The alarming lasts 1 minute, then the radio will return to Stand-by, or you may press this key again to stop alarming.

Change between Main Channel and FM Radio

】

【

Press receiver. When switching to FM radio, the radio will automatically start receiving both FM radio frequency and Main Channel. An arrow directs the current operational channel.

NOTE: While receiving FM radio, only the following functions are supported: Channel editing, channel deletion, keypad lock and beeping on/off. Other functions are available only for main channel.

key and then press

FM radio station scanning

While listening to the FM broadcasting, press received, LCD displays current frequency and stops scanning.

Repeat the key operation to exit the FM radio station receiving.

【1】

key to switch between Main Channel and FM broadcasting

】

【

key or

【C】

key to start scanning. When a signal is

Professional

FM Transceiver

BASIC OPERATIONS

Frequency Input by Keypad

In VFO mode or FM radio receiver, You may directly enter frequency through numeric keys.

【

】

1.Press

2.Enter the desired frequency in 6-digit by numeric keys.

Example: To enter 155.125, press [1][5][5][1][2][5].By pressing the last [5], a dot appears after the MHz unit and the radio is ready to operate. When an invalid frequnecy is entered, the display will return to the current display.

NOTE: In Frequency + Channel mode, it shows current channel number on the right of main frequency display. The direct input is relevant to the stepping and transceiver frequency scope. If entering frequency is beyond scope or not matching with step size, the input is invalid. In the FM receiver mode, the frequency step size input by numeric keys is 50KHz

Channel Input by Keypad

In Frequency + Channel or Channel + Name Tag mode, you may select the channel by entering three channel digits (001-128). If the entered channel has not been preprogrammed, the radio will make a beep to alert you that input is wrong and then return to current channel.

Professional

FM Transceiver

to switch to VFO.

BASIC OPERATIONS

Adjusting Channel / Frequency By "

】

In VFO mode, you may use

【B】

Press channel step.

NOTE: Available channel steps: 5K, 6.25K, 10K, 12.5K, 15K, 20K, 25K, 30K and 50KHz in total 9 for option. Please refer to stepping frequency setup in the SET-MODE chapter.

In Channel mode, press enter the downward channel while press

to increase,

【C】

【

】

【C】

key/

key to decrease the frequency. Every press moves frequency by a

【C】

key/

【B】

" Key & "

key as up/down keys to change the operating frequency.

key to choose the desired channel. Press

【C】

key to enter the upward channel..

【C】

" Key

【B】

key once to

Alarm

While【PF1】key has been assigned to alarm function, press this key. An alarm beeps and starts transmitting. Press again this key or turn off the radio to exit.

NOTE: This function is available only by PC preprogramming.

Monitor / Squelch Off

Assign【PF2】key to Squelch Off function. In case the receiving signal is weak and the audio is intermittently cut off by the squelch, press and hold【PF2】key. As long as this key is pressed, the squelch including TSQ/DCS unmutes making the audio easier to hear. Just press and release【PF2 to unmute the squelch, press it again to close.

NOTE: This function is available only by PC preprogramming.

Professional

FM Transceiver

】

BASIC OPERATIONS

Receiving

Select the operating mode and frequency or channel that you wish to operate. When a signal is received on the frequency that you selected, and S-meter is displayed on the LCD,

then the received signal can be heard. The RX indicator also lights green at this time.

NOTE: Please be aware of the squelch level and selective-calling settings such as CTCSS and DCS as you may risk not hearing the receiving signal.

Transmitting

1. Select the frequency by using the dial or keypad.

2. Press the PTT key. The red TX indicator turns on while transmitting.

3. While holding down the PTT key, speak into the unit at normal voice from the distance of 5cm (2").

4. Release the PTT key to receive.

Before transmitting, it is recommended to monitor the channel you are going to use to ensure it is not busy by pressing and holding【PF2】key.

Side Key【PF1】Function Instruction

【

PF1】Key can be programmed to achieve the following functions:

Default setting: Press this key once to turn on/ off jacklight.

1. DTMF code TX: In stand-by conditions, press this key to transmit pre-stored DTMF tones.

2. Alarm: Press this key to start alarm function as described in advance.

Professional

FM Transceiver

BASIC OPERATIONS

3. Alarm Off: In the alarm mode, press this key to stop the alarm.

4. Jacklight Switch: In stand-by, press this key to switch on or off the jacklight.

5. Tone-burst tone transmitting: While transmitting, press and hold this key to send the selected tone burst tone.

Side Key【PF2】Function Instruction

Default setting: Monitor function

1. Monitor function: In stand-by state, press and hold this key to open the squelch and monitor the channel. Release the key to Exit.

2. Squelch Off: In stand-by state, press this key once to monitor, press it again to exit.

3. Press this key to turn on transceiver and hold it for 3 seconds to come into general setting setup.

Switch between VFO and Frequency+Channel Mode

】

【

Press Channel+Name Tag mode.

NOTE: When the channel hasn’t been preprogrammed, this operation is unavailable.

key to switch between frequency mode (VFO) and Frequency + Channel mode or

Professional

FM Transceiver

ADVANCED OPERATIONS

Editing Channels

1.In VFO mode, enter the frequency and set the operating parameters as you desire. After pressing corner, press and hold displays the channel No. icon.

【

】/【C】

2.Press

3.After pressing and holding

"- - - - - -" if current channel name is not preprogrammed.

completes the operation.

Deleting Channels

In the Channel mode, select the channel to be deleted. After pressing While

2 seconds. A beep sounds "DU" and skips to another channel. The channel is

deleted and completes the operation.

icon is displayed on the top left corner, press and hold

Turn On/ Off FM Radio receiver

In Stand-by conditions, after pressing the top left corner, press broadcasting frequency. Repeat the operations to turn off.

Professional

FM Transceiver

【

】

key, While

【

】

key for 2 seconds. A beep sounds "DU" and LCD

key to select desired channel number. LCD will display

【

】

key for 2 seconds, a beep sounds "DU" and

】

【

key. LCD displays 'FM' and starts receiving FM

icon is displayed on the top left

】

【

key, While

icon is displayed on

【

】

key,

key for

ADVANCED OPERATIONS

Enable /Disable Beeping

Beep sounds to conrm or alert the operation status.

】

【

In Stand-by conditions, after pressing the top left corner, press sounds.

】

【

key to turn off the beep. Repeat it to enable beep

key, While

CTCSS / DCS Scan

】

【

In Stand-by conditions, after pressing top left corner, press

【C】

key or with the radio’s signaling setting, it will stay tuned for 15 seconds and resumes scanning. Press any key except

NOTE: This function is not available in Commercial radio mode and no sub tone is received in current channel. In current channel, if signaling sets as CTCSS, it will scan CTCSS, if signaling sets as DCS, it will scan DCS.

key to change the scan direction. When the matched tone is detected

】

【

key to activate CTCSS / DCS Scanning. Press

【A】,【】,【#】

key, While

Offset Frequency Direction Setup

In VFO mode, frequency + channel mode or channel + name tag mode, after

icon is displayed on

icon is displayed on the

【B】

keys to exit.

Professional

FM Transceiver

ADVANCED OPERATIONS

】

【

pressing

key, while

icon is displayed on the top left corner, press key to choose positive offset direction (+), minus offset direction (-) or exit setting (no icons displayed).

1.(+)Positive offset: Indicates the frequency is higher than receiving frequency.

When ena ble reverse f unction, the rec eiving frequen cy is h igher than transmitting frequency.

2.(-)Minus offset: Indicates the frequency is lower than receiving frequency.

When enabl e rev ers e fun ction , the recei ving frequenc y is low er tha n transmitting frequency.

3. None: Indicates the radio is in the simplex mode.

NOTE:This function is unavailable in commercial radio mode.

Frequency/Channel Scan

】

【

While receiving, after pressing

】

【

top left corner, press

key to begin frequency scan or channel scan.

1.Frequency Scan

In VFO mode, it scans in accordance with the channel step. Press numeric

】

【

key or

key to stop scanning.

2.Channel Scan

In channel mode, it scans in accordance with preprogrammed channels.

】

【

Press numeric key or

Professional

FM Transceiver

key to stop scanning.

key, while

icon is displayed on the

】

【

ADVANCED OPERATIONS

NOTE: Frequency scan checks all bands allocated to the VFO. When channel scanning, the skipped channel is excluded from the scanning. While scanning, change the direction upward/downward by pressing

【C】

key or

key. When a signal is being received, the scan stops for 15 seconds and resume scanning.

Channel Scan Skip

】

【

In Channel+Name Tag mode or Frequency+Channel mode, after pressing press

】

【

icon is displayed on the top left corner, press

【6】

key to set the current channel to be

key, while

skipped while channel-scanning, and ‘S’ icon appears to indicate the channel is set as the skip. Repeat the operations to cancel channel scan skip setting.

NOTE: This feature is available only in the Channel modes.

Priority Scan

】

【

In channel mode, after pressing

】

【

left corner, press

key to activate the priority scan. In priority scan state, it monitors priority channel once every 10 channel scanning. When the priority channel receives a matching signal, transceiver will stay tuned to the priority channel until current signal disappear.

NOTE: To activate this feature, it is required to set and select the priority channel in advance. In VFO mode, priority scanning is unavailable

key, while

icon is displayed on the top

【

】

and then

Professional

FM Transceiver

ADVANCED OPERATIONS

TX Power Selection

】

【

After pressing output power. When the bottom left corner of screen displays 'H' the power is 5W/high power.‘L’ for 0.5W.

When nothing is displayed, the output power is middle/2W.

key, while

icon is displayed on the top left corner, press

DTMF Code Enquiry and Setup

】

【

key or

key, while

【C】

【

PF2

icon is displayed on the top left corner, press

key to choose the desired Auto-dialer group. If it is not

【

】

key, while

【

】

key for 2 seconds.

】

key to sound DTMF tones then to save and exit the

icon is

After pressing

】

【

key to show the DTMF Auto-dialer group setting (16 groups in total). You should preprogram the DTMF auto-dialer group in advance to activate this feature

【

】

1.Press

2.When current group is displayed as “__”, press

3.After editing, press

been edited in advance, it displays the current group number and “__”.

displayed on the top left corner, press and holding A beep sounds “DU” and enters to DTMF code edit mode. Now you can enter the DTMF data using keypad.

edit mode.

Manually Transmitting DTMF Tones

Method 1: Press and hold【PTT】key to transmit. Wh ile tran smitt ing enter the desired DTMF

Professional

FM Transceiver

】

【

key to set the

ADVANCED OPERATIONS

characters using corresponding keys.

Method 2: Press and hold【PTT】key to enter the first DTMF character, then release【PTT】key. It will remain transmitting for 2 seconds. You can keep entering the desired DTMF characters using keypad and don't need to always press and hold【PTT key while operating. When transmitting DTMF tones, you can monitor the tone sounds from a speaker.

Using DTMF codes for Selective Call, Group Call and All Call, this radio allots ID for each channel, and

can be programmed 16 different DTMF auto-dialer group code by the utility software or manually.

1.ANI: When receive a matching ANI calling, the LCD will display the caller's ID, then recognize who is the caller.

2.PTT ID: Set available channel as PTT ID, press or release PTT key to send ID code.

3.By programming software, you can set group call wildcard for each group(DTMF character: A. B. C. D."*" or "#"). The caller can call different group by sending different group call code. After receiving

a matching ID from caller, carry out selective call, group call and all call function. Meanwhile, one or all of character of receiver's ID will be replaced by wildcard character. Also, Press PTT to input ID code by numeric keys in keypad to carry out selective call, group call and all call function. It is more convenient and flexible.

Professional

FM Transceiver

】

ADVANCED OPERATIONS

For example: Group code as

“C”

(Radio A) (Radio B) (Radio C) (Radio D) Receiver self ID 123 223 235 355 Caller press and hold PTT to input 123 223 235 or 355, A or B or C or D will receive selective calling. Caller press and hold PTT to input C23 , A and B will receive group calling. Caller press and hold PTT to input CC5, C and D will receive group calling. Caller press and hold PTT to input CCC, all radios receive all calling.

Remotely Kill / Waken

For security reasons, it is possible to make radios of your user group blocked by sending a preprogrammed remotely sends the kill code, the kill code +

“#”

. For example, if

wake up the radios. When wakening,

“kill”

“KILL”

code. When the user group manager

is shown on the display. To recover, send

“1234”

is the kill code, sending

“WAKE”

is showed on LCD.

“1234#”

can

Remotely Stun / Waken

For security reasons, it is possible to make radios of your user group all keys and performance temporarily completely unavailable except for receiving by sending a preprogrammed remotely sends the code, the stun code +

“1234#”

Professional

FM Transceiver

“#”.

For example, if

can wake up the radios. When wakening,

“Stun”

“STUN”

code. When the user group manager

is shown on the display. To recover, send

“1234”

is remotely stun code, sending

“WAKE”

is showed on LCD.

ADVANCED OPERATIONS

NOTE: Remotely kill/stun codes should be preprogrammed using the programming software. The maximum available digit for the kill/stun codes is16. When awaken, radios return to normal operation

Frequency Reverse / Talk Around ON/OFF

【

After pressing to start frequency reverse or talk around. Repeat the above operations to exit.

】key, while

icon is displayed on the top left corner, press

NOTE: This operation is available only when the channel has been set with shift setting.

【

】key for 1 second

When it displays

“R”

icon on screen, it means that current channel is in the frequency reversion function. Now the transmitting frequency and receiving fr eq uency a re i nterc hanged, n amely, rec ei ving frequ ency switc he s to

transmitting frequency while transmitting frequency switches to receiving frequency. If CTCSS/ DCS signaling is set, it will also interchange.

When it displays

“T”

icon on screen, it means that current channel is in the talk

around function. Under these conditions, transceiver will transmit as receiving frequency. If CTCSS /DCS signaling is set, it will interchange decoding CTCSS

as encoding.

Professional

FM Transceiver

ADVANCED OPERATIONS

Keypad Lock

Keypad lock function is useful to prevent from wrong operation, In stand-by state, after pressing and hold

【

the key lock function.

NOTE: When keypad is locked, only PTT / PF1 / PF2 / A key are usable.

You may change currently set functions in channel mode temporary. Once the radio is turned off or switched to another channel, such temporarily parameters are erased. In frequency+channel mode, channel+Name Tag mode or VFO mode,

1 after pressing

【8】

key to enter function menu.

【B】/【C】

2.Press

【A】

3 Press

【B】

4.Press

【D】

5.Press

NOTE: This function is not available in the commercial radio mode. In VFO mode, once the radio is turned off or

changed to new VFO frequency, the channel operation setting will remain until next change.

Professional

FM Transceiver

】

key, while

【

】

key for 2 seconds to start keypad lock function. Repeat to cancel

【A】

key, while

icon is displayed on the top left corner, press

key to choose the desired function to be set.

key to enter into function menu setup.

【C】

key or to return to upward menu. Press

key to choose the desired parameters to be set.

【#】

key to set it and to exit.

ADVANCED OPERATIONS

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Decode Tone Setup

This function enables the selective-calling and speaker sounds only when a signal with matching encoded CTCSS/DCS tone being received.

1. after pressing

【8】

key to enter into function menu.

【B】/【C】

2. Press

【A】

3. Press

signaling is selected, press

【A】

4. Press

5. Available CTCSS tones: 67Hz- 254.1Hz, 50 tones in total, Default is OFF.

6. DCS: 017N-765I, 232 codes,

codes. Default is OFF.

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Encode Tone Setup

1. after pressing into function menu.

2. Press

3. Press selected, press

【A】

key, while

icon is displayed on the top left corner, press

key to choose Menu 1 and display “

【

then press

】key to choose CTCSS, DCS or OFF. When DCS

【

】

key to choose DCS positive or inverse code.

key to choose the desired CTCSS / DCS decode tone

[N]

stands for positive,

【A】

key, while icon is displayed on the top left corner, press

【A】

key to choose Menu 2 and display "

【A】

then press

【1】

key to choose CTCSS, DCS or OFF. When DCS signaling is

【

】

key to choose DCS positive or inverse code.

T-CDC

R-CDC

” .

[I]

stands for inverse

” .

【8】

key to enter

Professional

FM Transceiver

ADVANCED OPERATIONS

4. Press

【B】

key or

【C】

key to choose the desired CTCSS / DCS encode tone.

5.Available CTCSS tones: 67Hz- 254.1Hz, 50 tones in total, Deafault is OFF.

6.DCS: 017N-765I, 232 codes,

[N]

stands for positive,

[I]

stands for inverse codes. Default is OFF

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS) Encode/Decode tones synchronized setup

1.after pressing

【8】

key to enter into function menu.

2.Press

3. Press signaling is selected, press

4. Press

5. Available CTCSS tones: 67Hz- 254.1Hz, 50 tones in total, Deafault is OFF.

6. DCS: 017N-765I, 232 codes, codes. Default is OFF.

Professional

FM Transceiver

【A】

key, while icon is displayed on the top left corner, press

【A】

key to choose Menu 3 and display "

【A】

then press

【A】

key to choose the desired CTCSS / DCS encode tone.

【1】

key to choose CTCSS, DCS or OFF. When DCS

【

】

key to choose DCS positive or inverse code.

stands for positive,

C-CDC

" .

"I"

stands for inverse

ADVANCED OPERATIONS

Offset Frequency

In conventional repeater systems, a signal received on one frequency is retransmitted on another frequency. The difference between these two frequencies is called the offset frequency. The selectable offset frequency of this unit is from 0 to 70.00MHz.

1. after pressing

【A】

key, while

function menu.

【B】/【C】

2. Press

3. Press

【A】

key to choose Menu 4 and display “

key then press

frequency. Available frequency range is 00-70MHz, and default is 0.000MHz.

Wide/ Narrow Channel-spacing Selection

Set the proper channel-spacing value allocated to the radio services in your area. This is not a Channelstep setting, but to determine the deviation width of the modulation.

1.after pressing

【8】

key to enter into function menu.

2.Press

3.Press 25K (wide band), 20K (middle band), 12.5K (narrow band). Default value is 25K (KHz).

【A】

【B】/【C】

【A】

key then press

key, while

key to choose Menu 5 and display "

icon is displayed on the top left corner, press【8】key to enter into

”.

【B】

key or

OFFSET

【C】

ke y t o choose the off set

icon is displayed on the top left corner, press

” .

W/N

【B】

key or

【C】

key to choose the channel-spacing:

Professional

FM Transceiver

ADVANCED OPERATIONS

Frequency Reverse or Talk Around

1.after pressing

【A】

key, while

function menu.

【B】/【C】

2.Press

3.Press

【A】

key to choose Menu 6 and display “

key then press

parameter.

REV:

The frequency reverse function is selected.

TA:

The talk around function is selected.

Press

【A】

and hold

【

】

Inversion scrambling (Encryption)

NOTE:This is an analog encryption and decoding is possible by using commonly available receivers. Alinco does not warranty the confidentiality of the communications.

An analog voice inversion scrambler is equipped and such audio processing can offer an advanced

condentiality to your business communications.

1.after pressing

【8】

2.Press

3.Press

Professional

FM Transceiver

key to enter into function menu.

【A】

【B】/【C】

【A】

key then press

key, while

key to choose Menu 7 and display “

icon is displayed on the top left corner, press【8】key to enter into

”.

【B】

key or

REV/TA

【C】

key to choose the desired

key while receiving to activate the selected function.

icon is displayed on the top left corner, press

”.

SCRM

【B】

key or

【C】

key to choose the desired parameter.

ADVANCED OPERATIONS

ON:

Scramble is enabled.

OFF:

Scramble is disabled. Default setting is OFF.

Voice Compander (Reduce noise & enhance audio clarity)

Enabling this function to reduce background noise and enhance audio clarity. It is recommended to activate this function if all radios in your group are equipped with Voice Compander otherwise worse the clarity of communications.

1.after pressing

【8】

key to enter into function menu.

2.Press

3.Press parameter.

ON:

Compander is enabled.

OFF:

Compander is disabled. Default is OFF.

Busy Channel Lockout

BCLO is to restrict transmitting while RX signal is received. When Busy Channel Lockout is set to on,

transmission is possible only in the specic conditions (and isn't possible otherwise).The alarm beep

sounds if the PTT key is pressed when transmission is prohibited.

1. after pressing

【A】

【B】/【C】

【A】

key then press

【A】

key, while icon is displayed on the top left corner, press

key to choose Menu 8 and display “

key, while

【B】

icon is displayed on the top left corner, press

key or

【C】

key to choose the desired

COMP

”

【8】

key to enter into

Professional

FM Transceiver

ADVANCED OPERATIONS

function menu.

【B】/【C】

2.Press

【A】

3.Press parameter.

BCL:

Enable BCL, carrier wave lockout, transmitting is prohibited when

receives any carrier.

BTL:

Enable BTL, transmitting is prohibited when current channel receives

a carrier signal that CTCSS/DCS tones are different from your group's.

OFF:

Busy channel lockout is disabled. Default is OFF.

Turn On/Off Optional Signaling function

Optional signaling function is similar to CTCSS/DCS. Without receiving corresponding tone signals, the speaker will remain mute. Optional signaling can be applied for other advanced features such as ANI, PTT ID, group call, individual call, remotely stun, remotely kill, waken etc.

1. after pressing

【8】

key to enter into function menu.

【B】/【C】

2.Press

【A】

3.Press parameter.

ON:

Optional signaling DTMF is enabled.

OFF:

Optional signaling DTMF is disabled. Default is OFF

Professional

FM Transceiver

key to choose Menu 9 and display “

key then press

【A】

key, while

【B】

icon is displayed on the top left corner, press

key or

【C】

key to choose Menu 10 and display “

key then press

【B】

key or

【C】

”.

BUSY

key to choose the desired

OPTSIG

”.

key to choose the desired

ADVANCED OPERATIONS

NOTE: DTMF signaling is applied as an optional signaling to this product.

Signaling Relations

Select how to operate the Selective-calling(Signaling) function.

1. after pressing

【8】

key to enter into function menu.

2.Press

3.Press parameter.

OR:

As long as receiving a matching CTCSS / DCS tones OR any one of optional signaling, the squelch

unmutes and receives audio. Default if OR.

AND:

As long as receiving a matching CTCSS / DCS signaling AND optional signaling at the same time,

the squelch unmutes and receives audio.

Note:

DTMF signaling is used as an optional signaling to this product.

NOTE:

The optional signaling of this transceiver is DTMF signaling.

【A】

【B】/【C】

【A】

key then press

key, while icon is displayed on the top left corner, press

key to choose Menu 11 and display “

【B】

key or

【C】

key to cho ose the de sired

SIGNAL

”.

Professional

FM Transceiver

ADVANCED OPERATIONS

PTT ID

1. after pressing

【8】

key to enter into function menu.

2.Press

3.Press parameter.

OFF:

PTT ID is disabled. Default is OFF.

BOT:

Press

beginning of transmission.

TX OFF (Transmission Prohibited)

1. after pressing

Professional

FM Transceiver

【A】

【B】/【C】

【A】

key then press

【

】

PTT

【A】

key, while icon is displayed on the top left corner, press

key to choose Menu 12 and display “

【B】

key to send a preprogrammed DTMF code as PTT ID at the

key, while

【8】

2.Press

3.Press

icon is displayed on the top left corner, press

key to enter into function menu.

【B】/【C】

【A】

key then press

parameter.

ON:

TX Off is enabled. PTT operation is disabled. Default setting is OFF.

OFF:

TX Off is disabled. PTT operation is possible.

”.

key or

PTT-ID

【C】

key to c hoose the desired

key to choose Menu 13 and display “

【B】

key or

【C】

TX-IHB

”.

key to choose the desired

ADVANCED OPERATIONS

Whisper

This function is to increase your voice level while talking in low voice. Do not activate this function while you can talk normally otherwise the voice may be distorted.

1. after pressing

【8】

key to enter into function menu.

【B】/【C】

2.Press

3.Press

【A】

key then press

key to choose Menu 14 and display “

parameter.

ON:

Whisper on

OFF:

Whisper off. Default is OFF.

key, while

icon is displayed on the top left corner, press

”.

【B】

key or

WHISPE

【C】

key to choose the desir ed

Professional

FM Transceiver

SET MODE OPERATIONS

Set Mode Setting

The Set mode is used to customize the various operational parameters of DJ-A10. The Set Mode parameters are stored and remain until next change regardless of power on/off operation. Set Mode Setting operation is as follows and common to all available menus:

【

】

1.Press and hold

PF2

key while turning on the radio, and keep pressing【

to enter into the Set Mode operations.

【B】/【C】

2.Press

3.Press

4.Press

5.Press

【A】

【B】【D】

key to choose the menu.

key to enter to the setup mode.

【C】

key or

key to choose the desired parameter.

【#】

key to confirm and exit.

Voice Prompt

English Voice-guidance is available. Key touch and some other major operations are assisted with English voice.

【

】

1.Press and hold

【

PF2

2.Press

3.Press

OFF:

Voice prompting is disabled.

ENG:

English guidance activated. Default is OFF.

Professional

FM Transceiver

】

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】【A】

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 1 and display “

key then press

【B】

key or

【C】

”.

VOICE

key to choose the parameter.

PF2

】key for 3 seconds

SET MODE OPERATIONS

Time-Out-Timer(TOT)

This func ti on stops the tr an sm ission automatically when the continuous transmission time exceeds the set time and alerts it with a beep.

1.Press and hold

【

】

PF2

【B】/【C】

2.Press

【A】

3.Press is from 15 to 240 seconds (4 minutes) in 15 seconds step.

OFF:

TOT is OFF and default is 180s.

Voice Operated Transmission (VOX)

After enabling this function, you can directly start transmitting by voice instead of pressing

1.Press and hold

【

】

PF2

【B】/【C】

2.Press

【A】

3.Press

Available parameters are 3 levels of VOX sensitivity in 1, 2 or 3. 1 is most

sensitive, 3 is less sensitive that requires more voice level to activate VOX.

OFF:

VOX transmitting is disabled. Default is OFF.

NOTE:

1.VOX is not usable in noisy areas as it may start transmitting by the back noise.

2.An optional headset is necessary to use VOX function.

【

】

PF2

key while turning on the radio, and keep pressing

key for 3 seconds to enter into the Set Mode operations.

key to choose the Menu 2 and display “

key then press

【

】

PF2

key while turning on the radio, and keep pressing

【B】

key or

【C】

key to choose the parameter, that

TOT

key for 3 seconds to enter into the Set Mode operations.

key to choose the Menu 3 and display “

key then press

【B】

key or

【C】

key to choose the parameter

VOX

”.

[PTT]

key.

Professional

FM Transceiver

SET MODE OPERATIONS

VOX Delay

This is to make a time delay at the end of VOX transmission. When you stop speaking to take breath, the radio still holds the transmission for the time you set in this menu.

【

】

1.Press and hold

【

】

PF2

2.Press

3.Press

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

seconds in 0.5 seconds step. Default is 2 seconds.

VOX Beep

After enabling this function, beginning transmitting by VOX, the transceiver will beep.

1.Press and hold

【

】

PF2

2.Press

3.Press

ON:

OFF:

Professional FM Transceiver

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

VOX beeping is enabled.

VOX beeping is disabled. Default setting is OFF.

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 4 and display “

key then press

【

】

PF2

key while turning on the radio, and keep pressing

【B】

key or

【C】

key to choose the Menu 5 and display “

key then press

【B】

key or

【C】

VOXDEY

”.

key to choose the parameter, that is from 0.5 to 5

VOXTON

”.

key to choose the parameter.

SET MODE OPERATIONS

Frequency Step Size Setup

Tuning step can't be changed in the Channel modes but usable only in VFO mode. Frequency input and frequency scan are both affected by tuning step setting.

1.Press and hold

【

】

PF2

【B】/【C】

2.Press

【A】

3.Press

Available steps are 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 /30 / 50KHz. Default is 12.5k.

Squelch Level

Squelch is a function that eliminates the noise when no signals are being received. Setting the higher squelch level allows you to monitor only stronger signals. Usually start from level zero (the squelch is open and hear the noise), increasing the level and when the noise is gone, set just 1 level higher than the current

level. For example the noise is cut at level 3, set the level to 4 and exit.

1.Press and hold

【

】

PF2

【B】/【C】

2.Press

【A】

3.Press is from 00 to 09 in 10 levels. Default is 3.

【

】

PF2

key while turning on the radio, and keep pressing

key for 3 seconds to enter into the Set Mode operations.

key to choose the Menu 6 and display “

key then press

【

】

PF2

key while turning on the radio, and keep pressing

【B】

key or

【C】

key to choose the parameter.

STEP

key for 3 seconds to enter into the Set Mode operations.

key to choose the Menu 7 and display “

key then press

【B】

key or

【C】

key to choose the parameter, that

SQL

”.

Professional

FM Transceiver

SET MODE OPERATIONS

Battery Save

This function prevents useless battery consumption by switching the power ON/OFF at a xed ratio if

there is no key operation or receiving signal for a continuous period of 5 seconds or more. Higher OFF time (1:4 setting) saves more amount of battery but may cause slight delay on receiving. The Battery Save function is temporarily suspended when a key is operated or a signal is received. The display remain unchanged even the BS function is in the OFF cycle.

【

】

1.Press and hold

【

】

PF2

2.Press

3.Press

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

3 ratios.1:1 / 1:2 / 1:4

OFF:

Battery saving is disabled. Not recommended for normal operations. Default setting is 1:2.

LCD Backlight operation

Always lit, turned off and automatic are available as LCD illumination operation mode.

1.Press and hold

【

】

PF2

【B】/【C】

2.Press

【A】

3.Press

AUTO:

Automatic, turns on and off automatically. Default is AUTO.

Professional

FM Transceiver

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 8 and display “

key then press

【

】

PF2

【B】

key while turning on the radio, and keep pressing

key or

【C】

key to choose the parameter from

SAVE

key for 3 seconds to enter into the Set Mode operations.

key to choose the Menu 9 and display “

key then press

【B】

key or

【C】

key to choose the parameter.

LIGHT

”.

SET MODE OPERATIONS

ON:

Always lit, not recommended as it considerably consumes battery.

OFF:

Remain turned off always.

LCD Backlight Color Setup

There are three backlight colors available to suit your preference.

【

】

1.Press and hold

【

】

PF2

2.Press

3.Press

ORG:

BLUE:

PUR:

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

Orange and default.

Blue

Purple

Scan Resume Time

There are three time setting available for scan resume condition.

1.Press and hold

【

】

PF2

2.Press

3.Press

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 10 and display “

key then press

【

】

PF2

key while turning on the radio, and keep pressing

【B】

key or

【C】

key to choose the parameter.

key to choose the Menu 11 and display “

key then press

【B】

key or

【C】

key to choose the parameter.

COLOR

SCANTM

”.

Professional

FM Transceiver

SET MODE OPERATIONS

5ST:

When receives signal, scan stops for 5 seconds and resume.

10ST:

Same, 10 seconds.

15ST:

Same, 15 seconds and default is 10s.

Frequency/Channel Display Mode

There are 3 different display modes available, Frequency + Channel mode, Channel mode and Channel+Name Tag modes.

1.Press and hold

【

】

PF2

2.Press【B】/【C】key to choose the Menu 12 and display “

【A】

3.Press

FREQ:

Frequency + Channel mode (VFO mode). Press

VFO mode.

CH:

Channel mode. Note that manual setting is not available when the radio has

been preprogrammed by the dealer using software.

NAME:

Channel+Name Tag mode(VFO mode). Press VFO mode. Default setting is FREQ.

Tone Burst Tone

Especially in Europe, Tone-burst tone operated repeaters are popular. To access to those repeaters,

Professional

FM Transceiver

【

】

PF2

key while turning on the radio, and keep pressing

key for 3 seconds to enter into the Set Mode operations.

DSP

key then press

【B】

key or

【C】

key to choose the parameter.

【D】

key to switch into

【D】

key to switch into

”.

SET MODE OPERATIONS

certain audible tone is required. DJ-A10 offers 4 major tones.

【

】

1.Press and hold

【

】

PF2

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

2.Press

【A】

3.Press

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 13 and display “

key then press

【B】

key or

【C】

key to choose the parameter.

TBST

”.

1000Hz / 1450Hz / 1750Hz / 2100Hz Default is 1750Hz.

DTMF Transmitting Time

1.Press and hold

PF2

key while turning on the radio, and keep pressing【

PF2

【

】

to enter into the Set Mode operations.

【B】/【C】

2.Press

3.Press

【A】

key to choose the Menu 14 and display “

key then press

【B】

key or

【C】

key to choose from 10 different parameters.

DTMFSD

”.

50MS/100MS/150MS/200MS/250MS/300MS/350MS/400MS/450MS/500MS ( Unit: milliseconds) This is the time for sending each DTMF signal and an interval between each

DTMF being sent. Default is 100MS.

Beep Volume level

【

】

1.Press and hold

PF2

key while turning on the radio, and keep pressing

to enter into the Set Mode operations.

【B】/【C】

2.Press

key to choose the Menu 15 and display “

VOL-BP

”.

【

PF2

】key for 3 seconds

】

key for 3 seconds

Professional

FM Transceiver

SET MODE OPERATIONS

3.Press

【A】

key then press

【B】

key or

【C】

key to choose parameters, that is

1 to 5. Higher the louder. Default is 2.

Priority Channel Setup

【

】

1.Press and hold

PF2

key while turning on the radio, and keep pressing【PF2】key for 3 seconds

to enter into the Set Mode operations.

2.Press

3.Press

【B】/【

【A】

】key to choose the Menu 16 and display “

key then press

【B】

key or

【C】

key to choose the channel you

PRI-CH

”.

wish to use for Priority Scan operation from any one of 128 available channels.

OFF:

Priority channel is disabled. Default is OFF.

NOTE: This function is only to set the channel used for the priority scan monitoring. At least one channel must be preprogrammed to activate priority scanning. Scan skip channel or channel without being programmed cannot be selected.

Current Battery Voltage Display

【

】

1.Press and hold

【

】

PF2

2.Press

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

At this state, the approximate battery voltage is displayed on the LCD. Please note that the voltage is approximate and Alinco does not guarantee the accuracy.

Professional

FM Transceiver

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 17 and display “

V-BATT

”.

SET MODE OPERATIONS

Resume Factory Default (RESET)

You can make all the settings of transceiver return to the factory default settings when it has troubles, can't work properly or simply you wish to change settings.

【

】

1.Press and hold

【

】

PF2

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

2.Press

【A】

3.Press

FACT?:

Resume Factory default. Frequency, signaling tones and function

settings will return to the factory default.

INIT?:

Resume Set mode setting parameters to default. Frequency, signaling tones and function

settings remain unchanged.

【#】

4. Press

NOTE: Once the reset is performed, previous programming data are gone and can’t recall. Please be sure

to manually record major parameters such as frequency and signaling settings used in your group to manually restore the data after reset.

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 18 and display “

key then press

【B】

key or

【C】

key to choose the reset mode.

key to confirm and perform the reset.

RESET

”.

Professional

FM Transceiver

DEFAULT SETTINGS

VFO Frequency 155.000MHz

Memory Channel

PF1 long press key Call

PF1 short press key Light Switch

PF2 key Squelch Open

Voice Prompting OFF

Time-Out Timer 180s

VOX Setup OFF

VOX Delay 2.0s

VOX Beep OFF

Frequency Step 12.5kHz

Squelch level 3

Battery Save 1:2

LCD Backlight Auto

LCD Backlight Color Orange

Scan Dwell Time 10s

Display Mode Frequency

Tone Pulse Frequency 1750Hz

DTMF Transmitting Time 100ms

Beep Volume 2

Priority Channel OFF

Professional

FM Transceiver

1ch:155.000MHz

2~128ch: Blank

FM Radio OFF

Key Beep ON

Offset Frequency Setup OFF

Channel Scan Skip NO

TX Power Selection High

Reverse / Talk Around Reverse

DTMF Code None

Keylock OFF

CTCSS/DCS Decode/Encode None

Offset Frequency 0.000

Channel Spacing 25K

Scramble OFF

Voice Compander OFF

Busy Channel Lockout OFF

Optional Signaling OFF

Signaling Relation OR

PTT ID OFF

TX Off Function OFF

Whisper OFF

OPTIONAL ACCESSORIES

EA-211 VHF & FM radio Antenna

EBC-34 Belt Clip

EBP-87 Li-ion Battery Pack (DC 7.4V 1500mAh)

EBP-88 Li-ion Battery Pack (DC 7.4V 1700mAh)

EDC-189 Li-ion Battery Charger

EDC-190E AC Adaptor (220V Linear type)

EDC-191E AC Adaptor (220V)

EDC-191T AC Adaptor (120V)

EME-56A Earphone Microphone

Professional

FM Transceiver

RECOMMENDED INSTALLATION OF EARPHONE MICROPHONE

Earphone

Use a clip to fix with collar.

Clip the PTT unit closer to your mouth.

Carry the radio on the side or the back of your body,

and the cable should go around the back as shown.

Clamp the excessive length of cable at your waist

Professional

FM Transceiver

TECHNICAL SPECIFICATIONS

General

Frequency range

Modulation Programmable channels Frequency stability ±2.5ppm Power supply

Current drain

Temperature range

Dimensions (Projections not included/approx.)

Weight *approx 227g or 8.01oz (with battery pack and antenna)

TX/RX 136.000-173.995MHz

FM radio

F3E(16K0F3E/11K0F3E / RX only WFM)

128 channels

DC7.4V (Battery only)

TX(5W)

Stand-by

Battery save on

Operating:-20～+55℃(-4～131°F) / Charging:+5～+40℃(+41～104°F) 59(W) x 98(H) x 35(D) mm

2.32"(W) x 3.86"(H) x 1.38"(D)

76-108MHz (RX only)

≤1.4A

≤300mA

≤70mA

≤30mA

Professional

FM Transceiver

TECHNICAL SPECIFICATIONS

Transmitter

high 5W

Output power (Approx.)

Modulation Variable reactance FM Spurious emissions －60dB or less Max.deviation(Wide/Narrow) ±5kHz / ±2.5kHz

Receiver

Receive system Double coversation superheterodyne Intermediate frequencies 38.85MHz (1st) / 450kHz (2nd) Sensitivity(12dB SINAD) wide -12dBu, Narrwo -9dBu Selectivity －6dB : 12kHz or more /－60dB :30kHz or less Audio output power 1W (10% distortion)

* All specications are subject to change without notice or obligation.

* ALINCO and Alinco logo are registered trademarks of Alinco,Inc in many countries including USA, Russia, EU states

and China.

Professional

FM Transceiver

middle 2W low 0.5W

TROUBLE SHOOTING GUIDE

Problem Corrective Action

A.The battery may be exhausting. Recharge or replace the battery.

No power

Battery power dies shortly after charging.

Transceiver cannot scan The channels are not programmed.

All band noisy after programmed Adjust squelch level.

No sound when using earphone.

Communication distance becomes short, and Low sensitivity

Cannot talk or hear other members in your group

Can not power on or frequent power off

B.The battery may not be installed correctly. Remove the battery and install it again. C.The power switch is broken; send it to local dealers to repair. D.Battery life is end; contact to local dealers to replace.

The battery is exhausted. Replace the battery pack with a new one.

Earphone or the jack is broken. Please contact with local dealers for inspection.

A.Check whether the antenna is in good conduction and the antenna base do not come adrift. B.Antenna may be broken. Consult your local dealer for services.

A.Different frequency or channel, please change it. B.Different CTCSS / DCS /DTMF, please reset it. C.Out of communication range.

Check if the battery pack is securely attached.

Professional

FM Transceiver

TROUBLE SHOOTING GUIDE

The receiving sound level is low or intermittent

Consult with local dealers for inspection.

A.Out of communication range or obstruct by walls, buildings etc.

Receiving signal is intermittent.

Change position to transmit. B.4Internal components may be in trouble, please contact with local dealers to repair.

Loudspeaker sounds lower or with dry noise after certain time of usage.(Speaker magnet attracts

Check whether the loudspeaker is broken, Iron powder or dusts is in the loudspeaker. Please contact with local dealers to repair.

iron powders) Receive voice from the other

parties and can not transmit

Interference is being received. BCLO activated.

A.Low volume, increase the audio level.

Receiving indicator with green light but no sound

B.Volume switch or loudspeaker is broken, please contact with local dealers to repair. C.Earphone jack is broken, please contact with local dealers to repair.

NOTE: Alinco guarantees the supply of minimum-necessary spare parts such as battery-packs, components and mechanical parts for at least 5 years after the production of this product is terminated except in case of accidents beyond control.

Professional

FM Transceiver

ATTACHED CHART

CTCSS Frequency Chart

1 67.0 11 94.8 21 131.8 31 171.3 41 203.5

2 69.3 12 97.4 22 136.5 32 173.8 42 206.5

3 71.9 13 100.0 23 141.3 33 177.3 43 210.7

4 74.4 14 103.5 24 146.2 34 179.9 44 218.1

5 77.0 15 107.2 25 151.4 35 183.5 45 225.7

6 79.7 16 110.9 26 156.7 36 186.2 46 229.1

7 82.5 17 114.8 27 159.8 37 189.9 47 233.6

8 85.4 18 118.8 28 162.2 38 192.8 48 241.8

9 88.5 19 123.0 29 165.5 39 196.6 49 250.3

10 91.5 20 127.3 30 167.9 40 199.5 50 254.1

Professional

FM Transceiver

ATTACHED CHART

DCS Chart

1 017 18 073 35 165 52 261 69 356 86 464 103 632 2 023 19 074 36 172 53 263 70 364 87 465 104 645 3 025 20 114 37 174 54 265 71 365 88 466 105 651 4 026 21 115 38 205 55 266 72 371 89 503 106 662 5 031 22 116 39 212 56 271 73 411 90 506 107 664 6 032 23 122 40 217 57 274 74 412 91 516 108 703 7 036 24 125 41 223 58 305 75 413 92 523 109 712 8 043 25 131 42 225 59 306 76 423 93 526 110 723

9 047 26 132 43 226 60 311 77 425 94 532 111 731 10 050 27 134 44 243 61 315 78 431 95 534 112 732 11 051 28 135 45 244 62 325 79 432 96 546 113 734 12 053 29 143 46 245 63 331 80 445 97 565 114 743 13 054 30 145 47 246 64 332 81 446 98 606 115 754 14 055 31 152 48 251 65 343 82 452 99 612 116 765 15 065 32 155 49 252 66 345 83 454 100 624 16 071 33 156 50 254 67 346 84 455 101 627 17 072 34 162 51 255 68 351 85 462 102 631

Professional

FM Transceiver

Alinco DJ-A10 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
