Alinco DJ A10 User manual

A1.0-12/07

Alinco Incorporated, Electronics Division

Yodoyabashi Dai-bldg 13F
4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan
Phone: [phone] Fax: [phone]
http://www.alinco.com
E-mail:[e-mail]

Copyright Alinco, lnc. PS0662/FNEF-NJ

Introduction

Thank you very much for purchasing this excellent Alinco transceiver. Our products are ranked among the

nest in the world. This radio has been manufactured with state of the art technology and it has been tested

carefully at our factory. It is designed to operate to your satisfaction for many years under normal use.

Please read this manual completely from the rst page to the last, to learn all the functions the

product offers. It is important to note that some of the operations may be explained in relation

to information in previous chapters. By reading just one part of the manual, you may risk not
understanding the complete explanation of the function.

Before transmitting

There are many radio stations operating in proximity to the frequency ranges this product covers. Be
careful not to cause interference when transmitting around such radio stations.

■

Lightning

Any person is not safe outdoor during thunderstorm and lightning. This condition is getting worse if
somebody keeps a hand-held radio; chances of being hit by lightning are doubled since lightning may
hit a radio antenna as well. At this time, there is no hand-held radio having any kind of protection against
lightning current (which is higher than10 kA.). Note also that no car provides adequate protection of its
passengers or drivers against lightning as well. Therefore, Alinco will not take responsibility for any danger
associated with using its hand-held radios outdoor or inside the car during lightning.

■

About IP54 rating / Dust and splash resistant

About IP54 rating

5: Dust protected /Ingress of dust is not entirely prevented, but it must not enter in sufcient quantity to

interfere with the satisfactory operation of the equipment; complete protection against contact.

4: Splashing water / Water splashing against the enclosure from any direction shall have no harmful effect.

Test duration: 5 minutes / Water volume: 10 litters per minute /Pressure: 80~100 kN/m²

The IP54 designation provides for limited dust and splash proong of the radio per specied above. This

compatibility is factory guaranteed for a period of one year provided all the jack covers are securely in

place, any accessories connected must be specied genuine Alinco accessories and the radio has not

been disassembled by the customer. The factory has tested and made the equipment compatible to IP54

certication during engineering. However, please understand that this equipment is NOT certied IP54

compliant but is designed to remain operational when used in hard conditions and is in no way stating
that you should attempt to wash the radio for cleaning. Warranty will not cover radios that are water/dust
damage due to negligence or misuse of the product.

SAFETY TRAINING INFORMATION

WARNING

Your radio generates RF electromagnetic energy during transmit mode. This radio is designed for and

classied as “Occupational Use Only”, meaning it must be used only during the course of employment by

individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for

use by the“General Population” in an uncontrolled environment.

This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. In
addition, your radio complies with the following Standards and Guidelines with regard to RF energy and

electromagnetic energy levels and evaluation of such levels for exposure to humans:

FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for ●
Human Exposure to Radio Frequency Electromagnetic Fields.

American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to ●

Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.

American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement ●
of Potentially Hazardous Electromagnetic Fields– RF and Microwave.

The following accessories are authorized for use with this product. Use of accessories other than those ●
specied may result in RF exposure levels exceeding the FCC requirements for wireless RF exposure.;

Belt Clip (MB-94), Rechargeable Li-Ion Battery Pack (BP-230N/BP-232N) and Speaker-microphone
(HM-131L).

CAUTION

To ensure that your expose to RF electromagnetic energy is within th e FCC allowable limits for
occupational use, always adhere to the following guidelines:

DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may ●
also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this

radio by the manufacturer or antenna specically authorized by the manufacturer for use with this radio.
DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). “50% duty cycle” is also ●

applicable to VOX/PTT mode. Transmitting more than 50% of the time can cause FCC RF exposure

compliance requirements to be exceeded. The radio is transmitting when the “LED indicator” lights red.
You can cause the radio to transmit by pressing the “PTT” switch or VOX function.

ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use ●
the belt-clip which is listed on page 33 when attaching the radio to your belt, etc., to ensure FCC RF
exposure compliance requirements are not exceeded. To provide the recipients of your transmission
the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off to one
side.

The information listed above provides the user with the information needed to make him or her aware of
RF exposure, and what to do to assure that this radio operates with the FCC RF exposure limits of this
radio.

Electromagnetic Interference/Compatibility

During transmissions, your radio generates RF energy that can possibly cause interference with other
devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.

DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals,
aircraft, and blasting sites.

Alert

Environment and condition of use

It is recommended that you check local traffic regulations regarding the use of aradio equipment while
driving. Some countries prohibit or apply restrictions for the operation of radios and mobile- phones while
driving.

Do not use this product in close proximity to other electronic devices, jespecially medical ones. It may
cause interference to those devices.

Keep the radio out of the reach of children.

In case a liquid leaks from the product, do not touch it. It may damage your jskin. Rinse with plenty of cold
water if the liquid contacted your skin.

Never operate this product in facilities where radio products are prohibited for juse such as aboard aircraft,
in airports, in ports, within or near the operating area of business wireless stations or their relay stations.

Use of this product may be prohibited or illegal outside of your country. Be jinformed in advance when you

travel.

The manufacturer declines any responsibilities against loss of life and/or aproperty due to a failure of this
product when used to perform important tasks like life-guarding, surveillance, and rescue.

Do not use multiple radios in very close proximity. It may cause interference and/or damage to the
product(s).

Risk of explosion if battery is replaced with an incorrect type. Dispose of, or recycle use d batteries
according to your local regulations.

The manufacturer declines any responsibilities against loss of life and property due to a failure of this product
when used with or as a part of a device made by third parties.

Use of third party accessory may result in damage to this product. It will void our warranty for repair.

Handling this product

Be sure to reduce the audio output level to minimum before using an earphone or a headset. Excessive
audio may damage hearing.

Do not open the unit without permission or instruction from the manufacturer. Unauthorized modication or
repair may result in electric shock, re and/or malfunction.

Do not operate this product in a wet place such as shower room. It may result in electric shock, re and/or

malfunction.

Do not place the product in a container carrying conductive materials, such as water or metal in close

proximity to the product. A short-circuit to the product may result in electric shock, re and/or malfunction.

About chargers

Do not use adapters other than having the specified voltage. It may result in electric shock, fire and/or
malfunction.

Do not plug multiple devices using an adapter into a single wall outlet. It may result in overheating and/or re.

Do not handle adapter with a wet hand. It may result in electric shock.

Securely plug the adapter into the wall outlet. Insecure installation may result in short-circuit, electronic shock

and/or re.

Do not use the adapter if the plug or socket contacts are dirty. Overheating and/or short-circuiting may result

in re, electric shock and/or damage to the product.

In case of emergency

In case of the following situation(s), please turn off the product, switch off the source of power,
then remove or unplug the power-cord. Please contact your local dealer of this product for service
and assistance. Do not use the product until the trouble is resolved. Do not try to troubleshoot the
problem by yourself.

When a strange sound, smoke and/or strange odor comes out of the product. ●
When the product is dropped or the case is broken or cracked. ●
When a liquid penetrated inside. ●
When a power cord (including DC cables, AC cables and adapters) is damaged ●

For your safety, turn off then remove all related AC lines to the product and its accessories from the wall outlet
if a thunderstorm is likely.

Maintenance

Do not open the unit and its accessories. Please consult with your local dealer of this product for service and
assistance

Alert

Environment and condition of use

Do not use the product in proximity to a TV or a radio. It may cause interference or receive interference.

Do not install in a humid, dusty or insufciently ventilated place. It may result in electric shock, re and/or

malfunction.

Do not install in an unstable or vibrating position. It may result in electric shock, re and/or malfunction when/

if the product falls to the ground.

Do not install the product in proximity to a source of heat and humidity such as a heater or a stove. Avoid
placing the unit in direct sunlight.

Be cautious of a dew formation. Please completely dry the product before use when it happens.

About transceiver

Be cautious of the whip antenna when carried in your shirt-pocket etc. It may make contact with your eye and
cause injury.

Do not connect devices other than specified ones to the jacks and ports on the product. It may result in
damage to the devices.

Turn off and remove the power source (AC cable, DC cable, battery, cigar cable, charger adapter etc.) from
the product when the product is not in use for extended period of time or in case of maintenance.

Never pull the cord alone when you unplug AC cable form the wall outlet.

Use a clean, dry cloth to wipe off dirt and condensation from the surface of the product. Never use thinner or

benzene for cleaning.

Maintenance

Use only reliable power supply of specic DC output range and be mindful of the polarity of the cable and DC-

jack.

Always turn off the power supply when connecting or disconnecting the cables.

When using an external antenna, make sure that the antenna ground is not common with the ground of the
power supply.

European users: When a unit is powered from an external DC power source (adapter, power supply, cigar­plug etc.), make sure that this power supply has approval to the level of IEC/EN 60950.

TABLE OF CONTENTS

STANDARD ACCESSORIES ����������������������������������������������������������������������������������������������������������������������������������������������������������������������01

Standard Accessories ................................................................................................................................................01

OPERATION MODE (VFO mode and Channel mode) ���������������������������������������������������������������������������������������������������������������������02
FIRST LEVEL MENU:SHORTCUT OPERATIONS ������������������������������������������������������������������������������������������������������������������������������04
SECOND LEVEL MENU: CHANNEL OPERATIONS �������������������������������������������������������������������������������������������������������������������������05
THIRD LEVEL MENU:BACKGROUND OPERATIONS ���������������������������������������������������������������������������������������������������������������������08
BATTERY INFORMATION ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 11

Charging Operation .................................................................................................................................................... 11

Battery Charger Type ................................................................................................................................................. 11

Notice for Charging Battery ........................................................................................................................................ 11

How to Charge the battery pack .................................................................................................................................13

Charging Prompt ........................................................................................................................................................14

INSTALLATION & CONNECTION �������������������������������������������������������������������������������������������������������������������������������������������������������������15

How to Store the Battery ............................................................................................................................................15

Installing / Removing the Li-ion Battery ......................................................................................................................15

Installing / Removing the Antenna ..............................................................................................................................16

Installing / Removing the Belt Clip .............................................................................................................................16

Accessories ................................................................................................................................................................17

Installing the Hand Strap ............................................................................................................................................17

GETTING ACQUAINTED ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 18

LCD Display ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������18
Front Panel ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������19

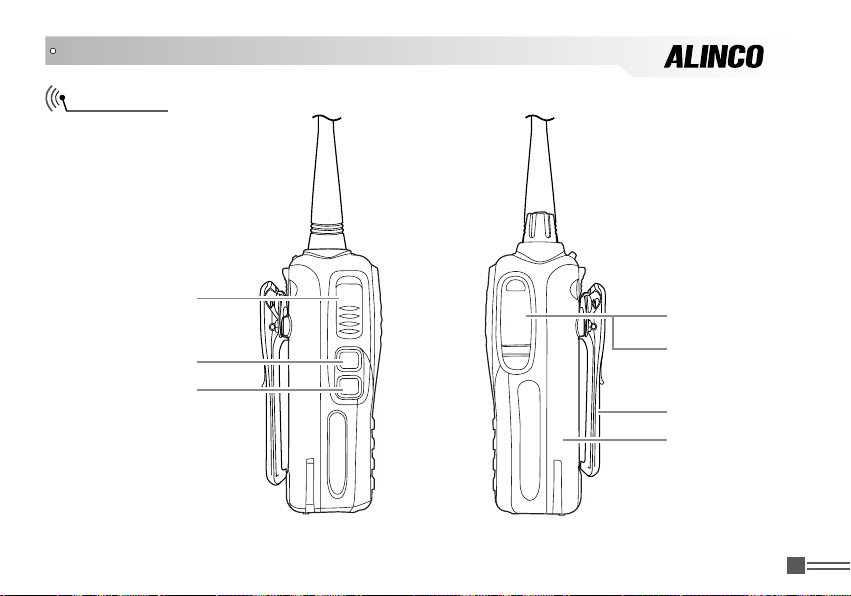

Side Panel ..................................................................................................................................................................20

BASIC OPERATIONS ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 21

Power On and off .......................................................................................................................................................21

Adjusting Audio output level .......................................................................................................................................21

Emergency Alarm Function ........................................................................................................................................22

Professional

I

FM Transceiver

TABLE OF CONTENTS

Change between Main Channel and FM Radio .........................................................................................................22

FM radio station scanning ..........................................................................................................................................22

Frequency Input by Keypad .......................................................................................................................................23

Channel Input by Keypad ...........................................................................................................................................23

Adjusting Channel / Frequency By "

Alarm ..........................................................................................................................................................................24

Monitor / Squelch Off .................................................................................................................................................24

Receiving ...................................................................................................................................................................25

Transmitting................................................................................................................................................................25

Side Key【PF1】Function Instruction ........................................................................................................................25

Side Key【PF2】Function Instruction ........................................................................................................................26

Switch between VFO and Frequency+Channel Mode ...............................................................................................26

SHORTCUT OPERATIONS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������27

Editing Channels ........................................................................................................................................................27

Deleting Channels ......................................................................................................................................................27

Turn On/ Off FM Radio receiver .................................................................................................................................27

Enable /Disable Beeping ............................................................................................................................................28

CTCSS / DCS Scan ...................................................................................................................................................28

Offset Frequency Direction Setup ..............................................................................................................................28

Frequency/Channel Scan ...........................................................................................................................................29

Channel Scan Skip .....................................................................................................................................................30

Priority Scan ...............................................................................................................................................................30

TX Power Selection ....................................................................................................................................................31

DTMF Code Enquiry and Setup .................................................................................................................................31

Manually Transmitting DTMF Tones ...........................................................................................................................31

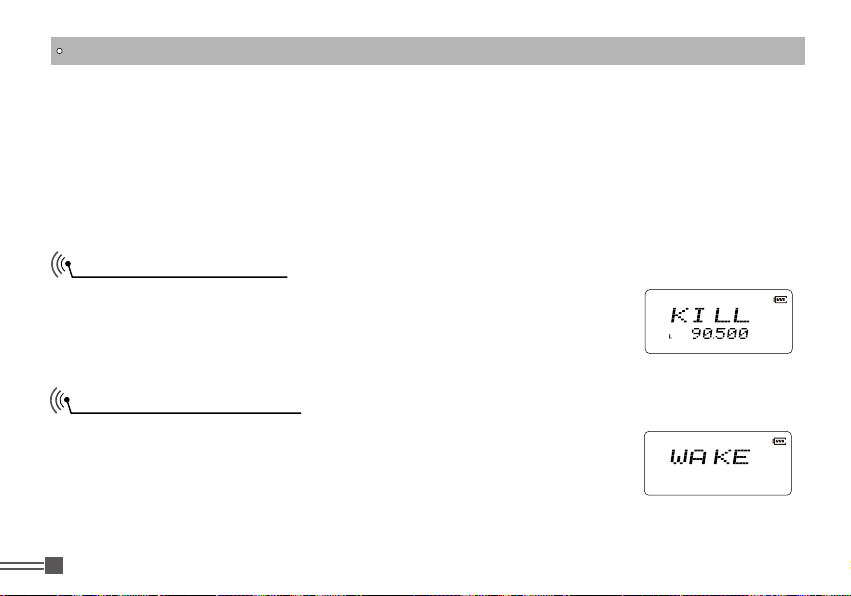

Remotely Kill / Waken ................................................................................................................................................33

Remotely Stun / Waken..............................................................................................................................................33

【B】

" Key & "

【C】

" Key ..............................................................................24

Professional

FM Transceiver

II

TABLE OF CONTENTS

Frequency Reverse / Talk Around ON/OFF ...............................................................................................................34

Frequency Reverse. Or else,it is as enable and disable Talk Around. .......................................................................34

Keypad Lock. .............................................................................................................................................................35

CHANNEL OPERATIONS ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������36

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Decode Tone Setup ..........................................................36

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Encode Tone Setup ..........................................................36

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS) Encode/Decode tones synchronized setup .......................37

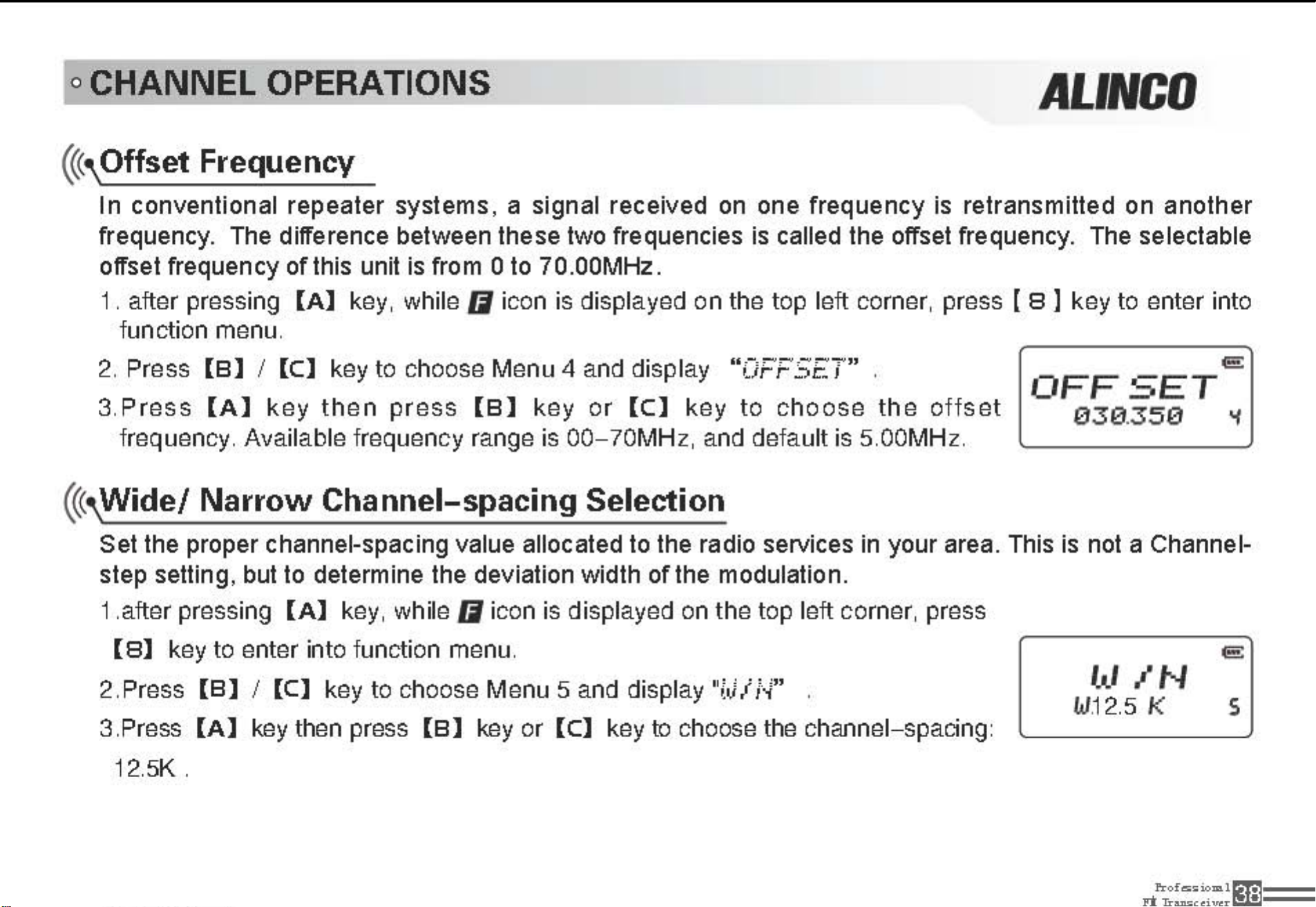

Offset Frequency ........................................................................................................................................................38

Wide/ Narrow Channel-spacing Selection ..................................................................................................................38

Frequency Reverse or Talk Around ............................................................................................................................39

Inversion scrambling (Encryption) ..............................................................................................................................39

Voice Compander (Reduce noise & enhance audio clarity) .......................................................................................40

Busy Channel Lockout ...............................................................................................................................................40

Turn On/Off Optional Signaling function .....................................................................................................................41

Signaling Relations ....................................................................................................................................................42

PTT ID ........................................................................................................................................................................43

TX OFF (Transmission Prohibited) ...........................................................................................................................43

Whisper ......................................................................................................................................................................44

Set Mode Setting ........................................................................................................................................................44

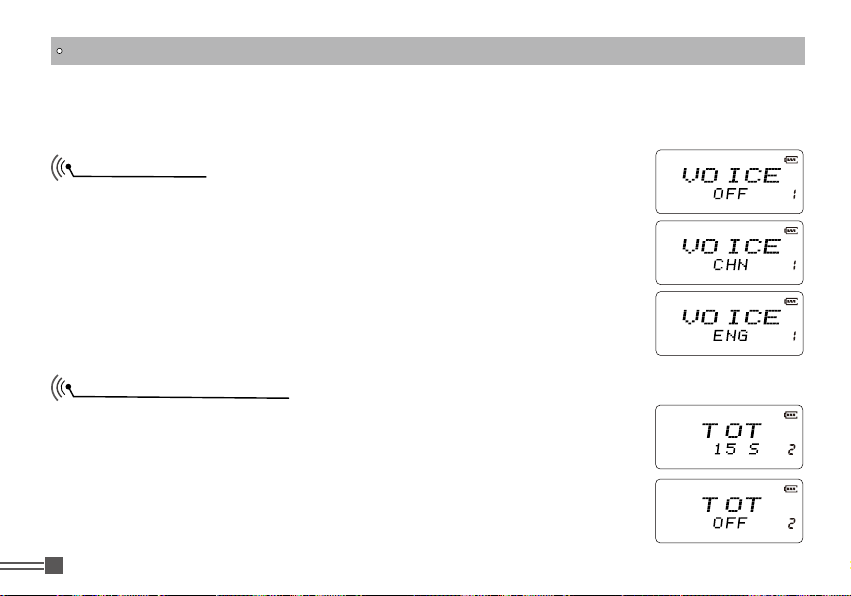

Voice Prompt ..............................................................................................................................................................45

Time-Out-Timer(TOT).................................................................................................................................................45

Voice Operated Transmission (VOX) ........................................................................................................................46

VOX Delay ................................................................................................................................................................46

VOX Beep .................................................................................................................................................................47

Frequency Step Size Setup .......................................................................................................................................47

Squelch Level .............................................................................................................................................................48

Battery Save ..............................................................................................................................................................48

Professional

III

FM Transceiver

TABLE OF CONTENTS

LCD Backlight operation ............................................................................................................................................49

LCD Backlight Color Setup ........................................................................................................................................50

Scan Resume Time ....................................................................................................................................................50

Frequency/Channel Display Mode .............................................................................................................................51

Tone Burst Tone ........................................................................................................................................................51

DTMF Transmitting Time ............................................................................................................................................52

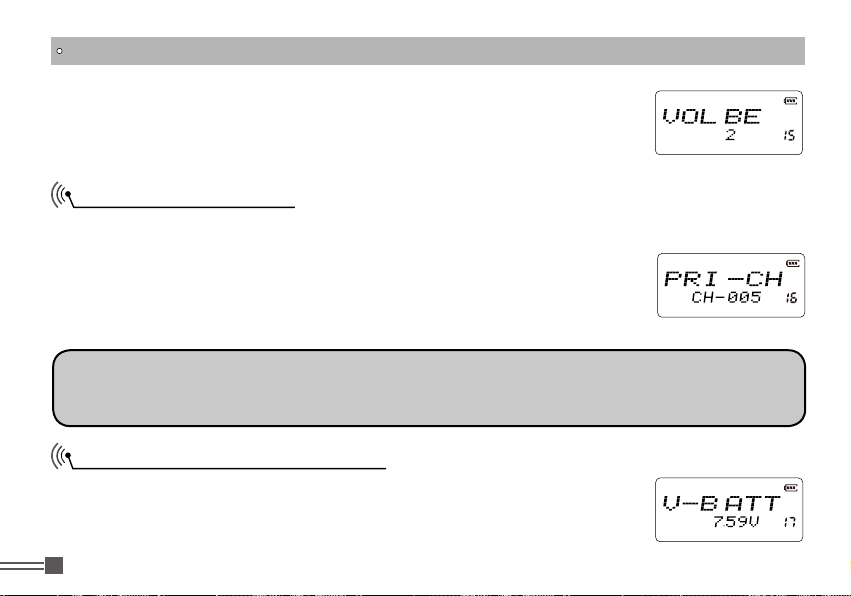

Beep Volume level .....................................................................................................................................................52

Priority Channel Setup ...............................................................................................................................................53

Current Battery Voltage Display .................................................................................................................................53

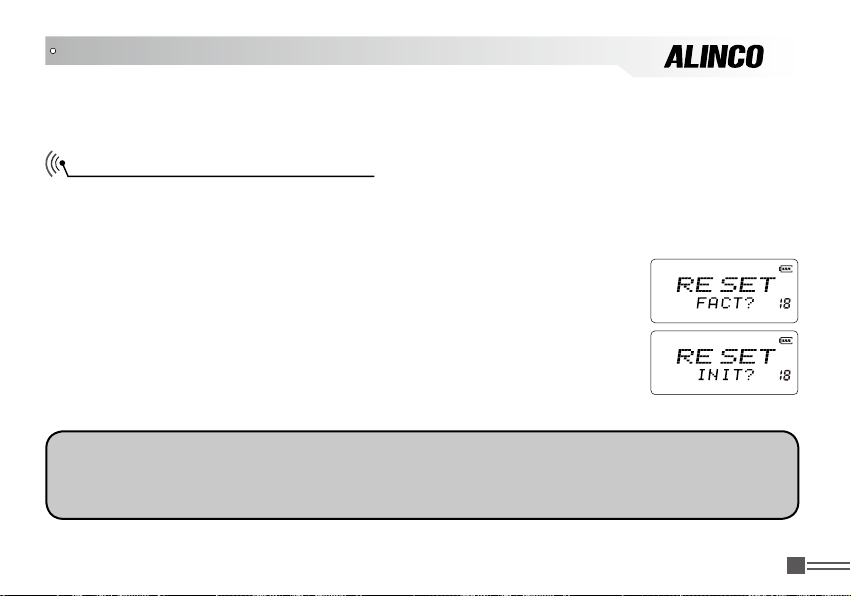

Resume Factory Default (RESET) .............................................................................................................................54

PC PROGRAMMING ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 55

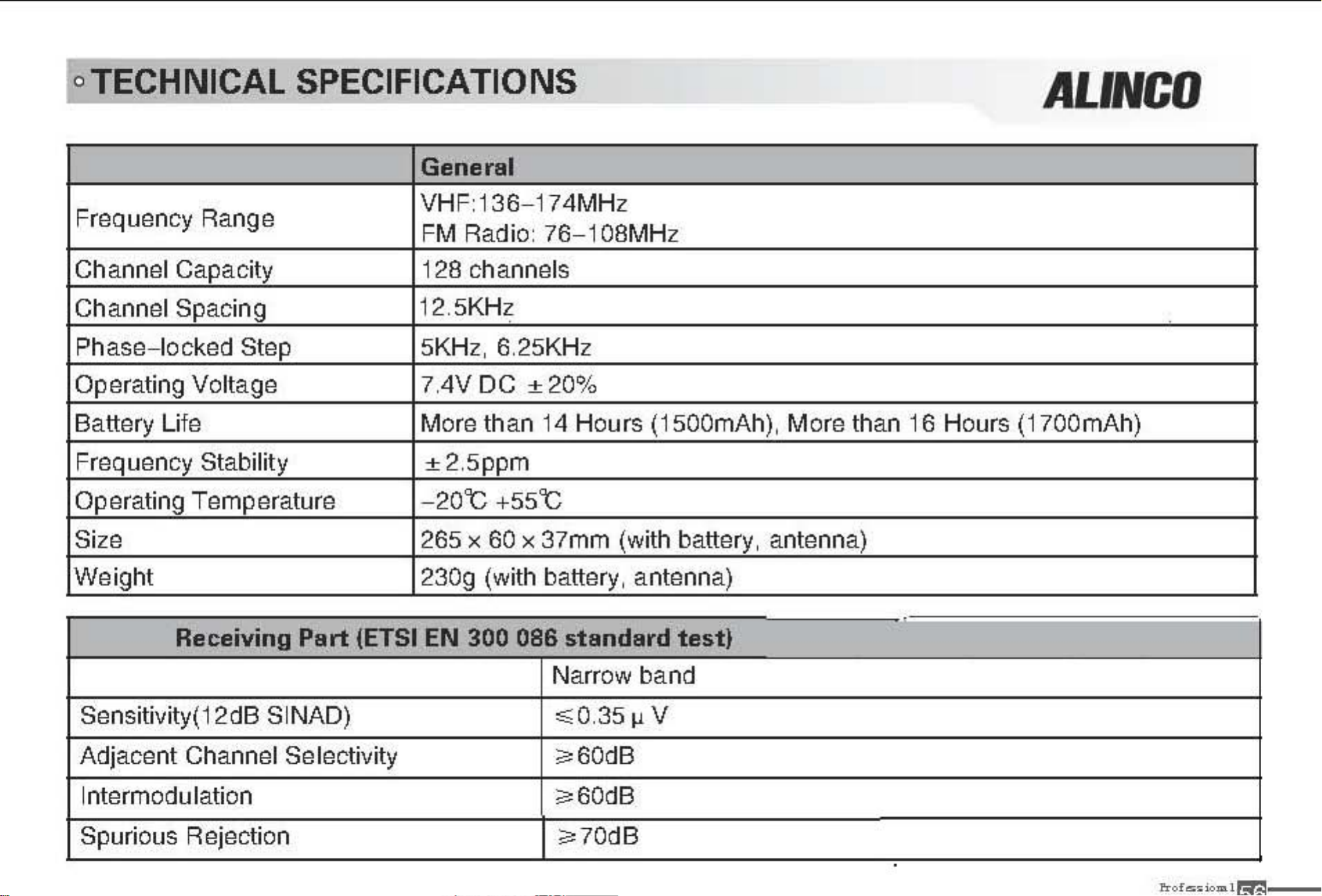

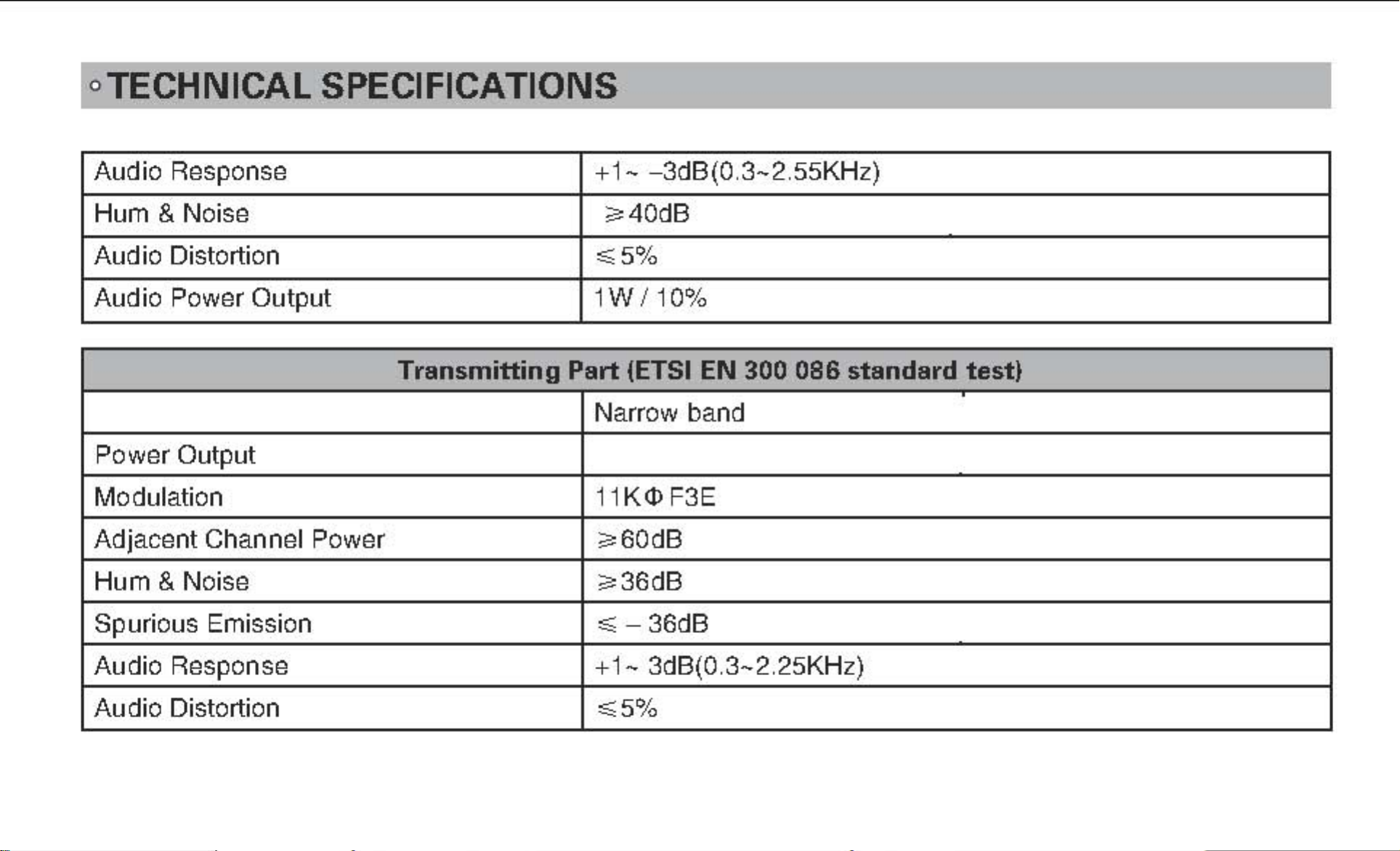

TECHNICAL SPECIFICATIONS �����������������������������������������������������������������������������������������������������������������������������������������������������������������56
TROUBLE SHOOTING GUIDE ������������������������������������������������������������������������������������������������������������������������������������������������������������������� 58
ATTACHED CHART����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������60

CTCSS Frequency Chart ...........................................................................................................................................60

DCS Chart ..................................................................................................................................................................61

Professional

FM Transceiver

IV

STANDARD ACCESSORIES

Standard Accessories

01

Antenna Battery

Belt Clip Instruction

Professional
FM Transceiver

Charger AC Adaptor

Hand Strap

Manual

OPERATION MODE (VFO mode and Channel mode)

You may set the radio as VFO mode and Channel mode. There are also different setting parameters to
properly set functions as per your operating comfort.

1. By programming software:

In PC programming utility software, "General Setting" menu, choose "Display Mode" to select VFO

mode or Channel mode.

2. By manual setup:

Please refer to "Display Mode" in Page 51.
VFO Mode: In this mode, press

A.Frequency + Channel mode: At this mode, when set display as "

it enters into Frequency + Channel mode. Once the radio is turned off or
switched to another channel, the temporary setting will be erased and back to
initial settings. (As pic 1)

B.Channel + Name Tag Mode: When set display as "

Channel +Name Tag Mode. At this mode, it will display corresponding channel
name when the current channel is edited with name in advance. Otherwise,
it will display frequency and channel number. Its operations are the same as
frequency + channel mode. (As pic 2)

C.VFO Mode（Frequency mode): This mode shows only frequency on the

display. Set mode operation and Channel setting are stored as the latest
value. Once the radio is turned off or changed to new frequency using VFO,
the value remains until next change. (As pic 3)

【D】

key to switch between Channel mode and VFO.

NAME

", it enters into

FREQ

",

(Pic 1)

(Pic 2)

(Pic 3)

Professional

02

FM Transceiver

OPERATION MODE (VFO mode and Channel mode)

3.Commercial radio Mode:

When set display mode as "CH", it enters into Commercial radio mode. At this
mode, except scanning, talk around/frequency reverse, DTMF encode or editing,
BEEP on/off and keypad lock, all other functions should be set by PC software
in advance to the operation (As pic 4). If name tag is programmed, the LCD will
display current channel and name tag. (As pic 5)

Note: In Commercial radio mode, you can't switch the mode to VFO or channel
manually, but you must use PC utility software.

4. In each operating mode, access to the set mode is possible.

Professional

03

FM Transceiver

(Pic 4)

(Pic 5)

FIRST LEVEL MENU:SHORTCUT OPERATIONS

Function Setup Entry Parameter Instruction Page

FM Radio On/Off
Beep Setup
CTCSS/DCS Scan
CTCSS/DCS Scan

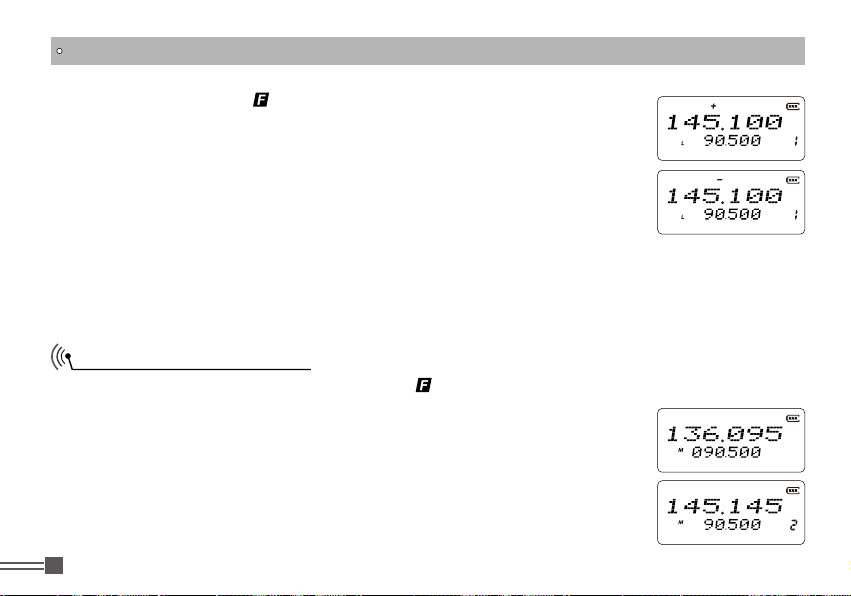

Offset Frequency Direction Setup

Offset Frequency Direction Setup

Scan
Channel Scan Skip

Priority Scan

TX Power Selection
Frequency Reverse / Talk Around
Frequency Reverse / Talk Around

DTMF Code Enquiry

Keypad Lock

【A】 【1】
【A】 【2】
【A】 【3】
【A】 【3】

【A】 【4】

【A】 【4】

【A】 【5】
【A】 【6】

【A】 【7】

【A】 【9】
【A】 【 】
【A】 【 】

【A】 【0】

【A】 【#】

Activate FM broadcasting receiver
Beep sound ON/OFF
CTCSS Scan
DCS Scan
(+):Transmitting frequency higher than

receiving frequency
(-):Transmitting frequency lower than

receiving frequency
Channel or Frequency Scan
S: Scan without current channel
PRI: Check priority channel one time when

scan each 10 channels
H: High Power 5 W
R: Frequency Reverse
T: Talk Around
Displaying “-” when no data

Displaying data when being with data
All keys locked, except PTT/PF1/ PF2

Professional

FM Transceiver

27
28
28
28

28

29

29
30

30

31
34
34

31

35

04

SECOND LEVEL MENU: CHANNEL OPERATIONS

Function Setup Entry Function Option Display

【

】 【8】 【B】/【C】

Sub tone (CTCSS / DCS) Decode Setup

Sub tone (CTCSS / DCS) Encode Setup
Sub tone (CTCSS / DCS) Encode/Decode

Synchronous Setup
Offset Frequency

Wide/ Narrow Band Selection

Frequency Reverse/Talk Around

Scramble Setup( Encryption)

Voice Compander Function

Busy Channel Lockout

Add Optional Signaling

Signaling Relations

PTT ID Setup

TX Off Function

Whisper

Professional

05

FM Transceiver

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

】 【8】 【B】/【C】

【

A

SECOND LEVEL MENU: CHANNEL OPERATIONS

Parameter Adjustment Parameter Instruction Enter and exit Page

Busy-Channel-Lockout (BCL):
Press【A】Key to move cursor to the menu, Press
【B】/【C】Key to choose the value.

Adding Optional Signaling tones:
Press【A】Key to move cursor to the menu, Press
【B】/【C】Key to choose the value.
DCS (232Groups in total):017N-765I

Signaling relations:
Press【A】Key to move cursor to the menu, Press
【B】/【C】Key to choose the value.

PTT ID Setup (DTMF encoding):
Press【A】Key to move cursor to the menu, Press
【B】/【C】Key to choose the value.

TX OFF (PTT lock):
Press【A】Key to move cursor to the menu, Press
【B】/【C】Key to choose the value.

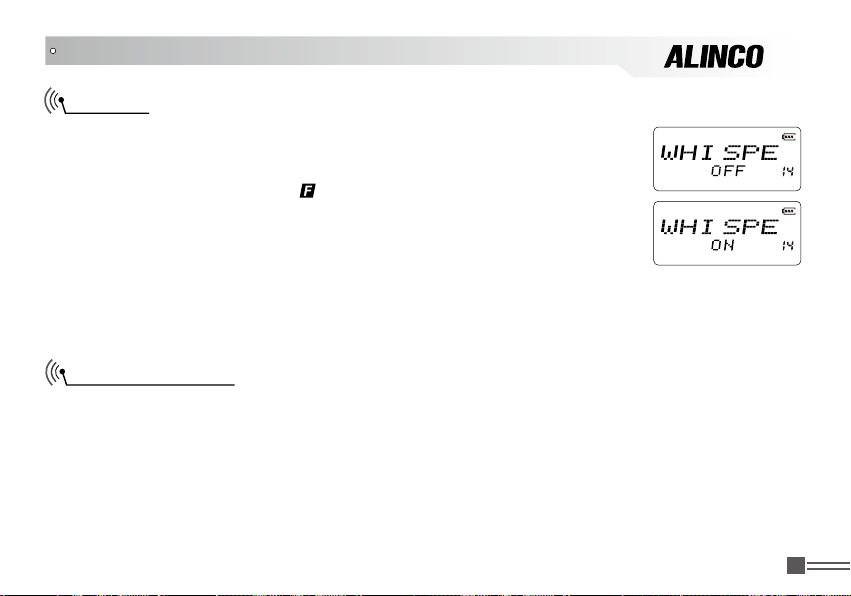

Wh isper (Enha nc e voi ce level whil e tal king in
undertones):
Press【A】Key to move cursor to the menu, Press
【B】/【C】Key to choose the value.

Professional

07

FM Transceiver

OFF: Disable
BCL: Prohibit transmitting when receiving a carrier
and squelch is open.
BTL: Prohibit transmitting when receiving a carrier
with unmatched signaling.

CTCSS (50 Groups in total):67Hz-254.1Hz

AND: The other parties' traffics can be heard as
long as the m atched CTCSS / DCS signal AND
optional signal are received.
OR: The other parties' traffics can be heard as long
as the matched CTCSS / DCS signal OR optional
signal is received.

OFF: Disable PTT ID
BOT: Press PTT key to transmit DTMF tones
EOT: Release PTT key to transmit DTMF tones
BOTH: P res s and Rel eas e PTT key c an bot h
transmit DTMF tones

ON: Enable TX Off function
OFF: Disable TX Off function

ON: Enable whisper function
OFF: Disable whisper function

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

40

41

42

43

43

44

THIRD LEVEL MENU:BACKGROUND OPERATIONS

Function Menu Entry Function Option Display

Voice Prompting Selection Press PF2 and hold this key for 3 seconds

Time-Out Timer (TOT) Press PF2 and hold this key for 3 seconds

Voice Operated Transmission (VOX) Setup Press PF2 and hold this key for 3 seconds

Voice Operated Transmission (VOX) Delay Press PF2 and hold this key for 3 seconds

Voice Operated Transmission (VOX) Beep Press PF2 and hold this key for 3 seconds

Frequency Step Setup Press PF2 and hold this key for 3 seconds

Squelch level Setup Press PF2 and hold this key for 3 seconds

Battery Save Setup Press PF2 and hold this key for 3 seconds

LCD Backlight Setup Press PF2 and hold this key for 3 seconds

LCD Backlight Color Press PF2 and hold this key for 3 seconds

Scan Dwell Time Setup Press PF2 and hold this key for 3 seconds

Display Mode Setup Press PF2 and hold this key for 3 seconds

Tone Pulse Frequency Setup Press PF2 and hold this key for 3 seconds

DTMF Transmitting Time Setup Press PF2 and hold this key for 3 seconds

Beep Volume Control Press PF2 and hold this key for 3 seconds

Priority Channel Setup Press PF2 and hold this key for 3 seconds

Current Battery Voltage Enquiry Press PF2 and hold this key for 3 seconds

Resume Factory Default Press PF2 and hold this key for 3 seconds

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

【B】/【C】

Professional

FM Transceiver

08

THIRD LEVEL MENU:BACKGROUND OPERATIONS

Parameter Adjustment Parameter Instruction Confirm to back Page

Voice prompt:
ENG: Activate English Voice-guide
OFF: OFF

Time-out-timer setting:
Selectable parameter: 15 seconds to 240 seconds
OFF: TOT Off

VOX activation and its operational audio level:
Audio level parameter: 1, 2, 3
OFF: VOX OFF

VOX delay time (Time delay from end of TX to switch to
RX)
10 parameters between 0.5 seconds to 5 seconds

ON: Enable VOX beep
OFF: Disable VOX beep

VFO frequency step:
Available Steps: 5KHz/ 6.25KHz/ 10KHz/ 12.5KHz/ 15KHz/
20KHz/ 25KHz/ 30KHz/ 50KHz

Squelch level setting:
Available level settings : 0 (opens squelch) to 9

Battery-save ratio:
4 different ratios (1:1 to 1:4) are available. 1:4 to obtain the
best battery save effort but your risk to miss initial part of
receiving signals becomes higher.
OFF: Disable Battery-save function

LCD backlight operation
OFF: Turned off always
ON: Turned on always (consumes battery much faster)
AUTO: Turns on with the key operation then turns off
automatically

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

09

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

】

【

A

Key to move cursor to the menu

【B】/【C】

【
【B】/【C】

【
【B】/【C】

【
【B】/【C】

【
【B】/【C】

【
【B】/【C】

【
【B】/【C】

【
【B】/【C】

【
【B】/【C】

Professional
FM Transceiver

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

45

45

46

46

47

47

48

48

49

THIRD LEVEL MENU:BACKGROUND OPERATIONS

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

Press
Press

】

【

A

Key to move cursor to the menu

【B】/【C】

【
【B】/【C】

【A】
【B】/【C】

【A】
【B】/【C】

【
【B】/【C】

【
【B】/【C】

【
【B】/【C】

【
【B】/【C】

【
【B】/【C】

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

Key to move cursor to the menu

key to choose the value

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

】

A

Key to move cursor to the menu

key to choose the value

LCD backlight color selection:
BLUE: Blue backlight
ORG: Orange backlight
PUR: Purple backlight

Scan resume time setting:
3 parameters: 5 seconds / 10 seconds / 15 seconds

Display mode: (May be preprogrammed by dealer and
locked)
FREQ: Frequency and Channel display
CH: Channel display
NAME: Channel number with name-tag display if
programmed

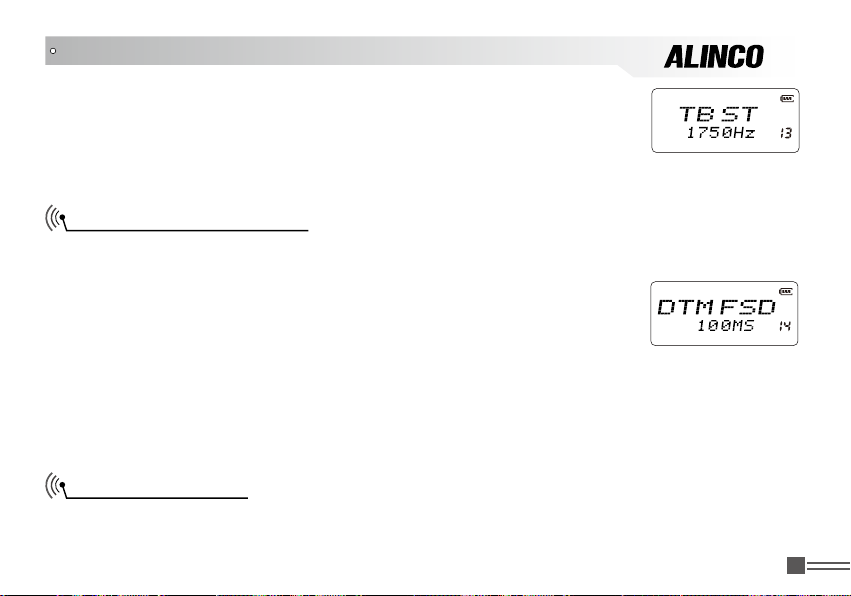

Tone-Burst tones:
4 tones available: 1750Hz / 2100Hz / 1000Hz / 1450Hz

DTMF tone encoding time:
10 parameters including 50Microseconds, 100Ms, 150Ms,
200Ms, 250Ms,300Ms, 350Ms, 400Ms, 450Ms, and 500Ms

Beep sound audio levels:
5 levels from 1 to 5

Priority scan channel setup:
Select one from available programmed channels
OFF: Disable Priority Channel

Battery-voltage display (approx)
Display current battery voltage

Perform RESET
FACT? : Resume Factory Default, erasing the memory
channels
INIT? : Resume General Setting, keeping memory channel
programming
OFF: Cancels reset

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

【D】/【#】

50

50

51

51

52

52

53

53

54

Professional

FM Transceiver

10

BATTERY INFORMATION

Charging Operation

The battery is not charged at the factory, please charge it before use. Charge the battery for the rst

time after purchase or extended storage (more than 2 months) may not bring the battery to its normal
operating capacity. After repeating fully charge/ discharge cycle for two or three times, the operating
capacity will reach the best performance. The battery life is over when its operating time decreases
even though it is fully and correctly charged. Replace the battery.

Battery Charger Type

Please use our company's designated charger, other models may cause explosion and injure people.
After installing the battery, if the radio displays low battery, please charge the battery.

Notice for Charging Battery

▲Do not shortcircuit our company designated charger. Never attempt to remove the casing from the

battery, we show no responsibility on the faulty caused by modifying freely without permission of our
factory.

▲The ambient temperature should be between 5℃ and 40℃ in charging. Charging outside this range

may not fully charge the battery.

▲Always switch off the transceiver equipped with a battery before charging. Otherwise, it will interfere

with correct charging.

▲To avoid interfering the charging procedure, please do not cut off the power or take out the battery

during charging.

▲Do not recharge the battery if it is already fully charged. This may shorten the life of the battery or

damage the battery.

Professional

11

FM Transceiver

BATTERY INFORMATION

▲Do not charge the battery or transceiver if it is damp. Dry it before charging to avoid danger.

Caution

• Risk of explosion, generation of heat or leak of chemicals inside if the battery is replaced by an
incorrect type. Use always the recommended types of batteries in this manual only.

• The battery pack isn't fully charged when shipped. It must be charged before use.

• Charging should be conducted in a temperature range of 0ºC to +40ºC (+32ºF to +104ºF).

• Don't modify, dismantle, incinerate or immerse the battery pack in the water as this can be dangerous.

• Never short-circuit the battery pack terminals, as this can cause damage to the equipment or lead to

heating of the battery which may cause burns.

• Unnecessary prolonged charging (overcharging) can deteriorate battery performance.

• The battery pack should be stored in a dry place where temperature is in -10ºC to +45ºC (-14ºF to
+113ºF) range. Temperatures outside this range can cause the battery liquid to leak. Exposure to

prolonged high humidity can cause corrosion of metal components.

• Battery-packs are a consuming part. When its operating time becomes considerably short after a

normal charge, please consider that the pack is exhausted and replace it with a new one.

• The battery pack is recyclable. Check with your local waste ofcials for details on recycling options or

proper disposal in your area.

• Use specified genuine chargers only to charge battery packs. Use of other chargers may cause

damage to products, you and your property.

• Li-ion battery packs can't be charged using DC-jack on the unit (Only Ni-MH battery packs can be

charged).

• Even if you do not use the battery pack for a long time, charge it at least once every three months to

prevent deterioration.

Professional

FM Transceiver

12

BATTERY INFORMATION

How to Charge the battery pack

1.Plug the AC adaptor into the AC outlet, then plug the cable

of AC adaptor into the DC jack ，the indicator lights orange
for 1 second and goes out---waits to charge.

2.Sli de the batt ery or tran sceiver with battery into the

charger; make sure the battery terminals are in contact with
the charging terminals well. LED turns into twinkling RED

---pre-charging begins.

3.Pre-charging for about 5 minutes, LED twinkles stop then

charging begins.

4.It takes about 4 hours to fully charge the battery, and LED turns to green when the charge is complete.

Warning: Never charge the radio while it's turned on. When the radio is turned on, the charger can't
detect the charging voltage properly and LED fails to indicate charge status correctly.

5. Charging Process:

Status LED

Standby (self-examine orange lights
1second when power on) ----------------------­ Pre-charging (pre-charging stage) ---------------- Red light twinkles for about 5 minutes
Charging (charge in constant currency) ------------- RED light lightens for about 4 hours
Full charged (charge in constant voltage) ----------- Green light

Professional

13

FM Transceiver

None

BATTERY INFORMATION

6. LED Indicator:

STATUS

LED

self-examine
when power on

Orange
(for 1 second)

(No battery) Pre-charging

None

Red light twinkles
for 5 minutes

NOTE: Trouble means battery heating, battery short-circuit or charger short-circuit. Remove the
battery pack immediately from the charger and contect to your local service bench.

Charging Prompt

1.Self- examination: When charging, ORANGE light twinkles for 1 second and turns off. That means the
charger has passed its self-examination and it can charge the battery normally. If the light remains
orange or the red light twinkles, which means the charge has a failure and can't charge. Please
consult with your dealer for services.

2.Trickle pre-charging: when the battery is inserted into the charger and red light twinkles, which
means the voltage is low, the charger trickle charge the battery (pre-charging status), until the battery
reaches a certain condition, then charger automatically turns into normal charging. And if the red light
stop twinkling, which means the voltage meets a charging condition and the charger will charge the
battery normally.

Note: The max time trickle pre-charging is 30 min. Incase the red indicator continues to blink, consult
your local dealer for services.

Charge
normally

Full
Charged

Red Green

Trouble

Red twinkles
alternatively

Professional

FM Transceiver

14

INSTALLATION & CONNECTION

How to Store the Battery

1.The battery should be kept in the status
of 50% discharge when storing.

2.It should be kept in cool, dry environment
and remove it from the transceiver.

3.Keep away from source of heat and
direct sunlight.

WARNING
Do not short circuit battery terminals.
Never attempt to remove the casing from the battery
pack.
Never assemble the battery in dangerous surroundings,
spark may cause explosion.
Do not put the battery in hot environment or throw it
into fire, it may also cause explosion.

Installing / Removing the Li-ion Battery

1.Match the three grooves of the battery pack with the
corresponding guides on the back of the transceiver,
then push it.

2.Press the battery and transceiver firmly together until the
release latch on the top of the transceiver locks. After
hearing a“click”sounds, the battery has been locked.

3.To remove the battery, slide up the release latch and
remove the pack away from the transceiver.

Professional

15

FM Transceiver

INSTALLATION & CONNECTION

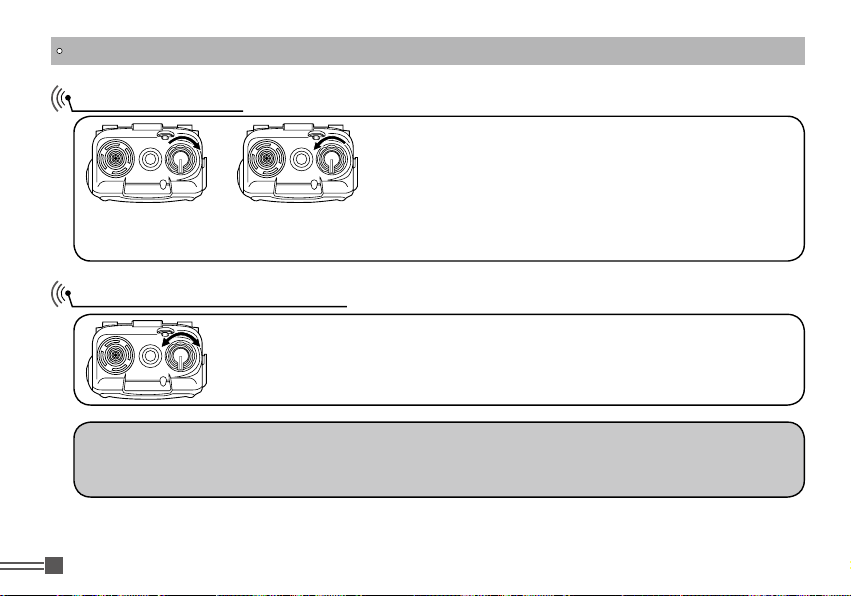

Installing / Removing the Antenna

Installing the Antenna:

1. Hold the antenna by its base.

2. Align the grooves at the base of the antenna with the protrusions
on the antenna connector.

3. Slide the antenna down and turn it clockwise until it stops.

4. Conrm that the antenna is securely connected.

Removing the Antenna:

Turn the antenn a coun ter-c lockw ise to disconn ect the
antenna.

Installing / Removing the Belt Clip

Installing the Belt Clip:

1. Put the belt clip on the back of the unit, and the screw clockwise
until it stops.

2. Conrm that the belt clip is securely attached.

* Tighten up the screw occasionally.

Removing the Belt Clip:

Turn the screw counter-clockwise to remove the belt clip.

K

C
O
L

N

U

Professional

16

FM Transceiver

INSTALLATION & CONNECTION

Accessories

Open the jack cover and insert the accessory
plug into the jack.

When the accessory is not used, please be
sure to close the cover securely.

NOTE:

1.To keep the radio dust and splash resistant, the
cover must be closed properly with the original
supplied cover.

2.The radio is not dust and splash resistant while
using the optional accesso ry risking that the
water may penetrate inside through the plug.

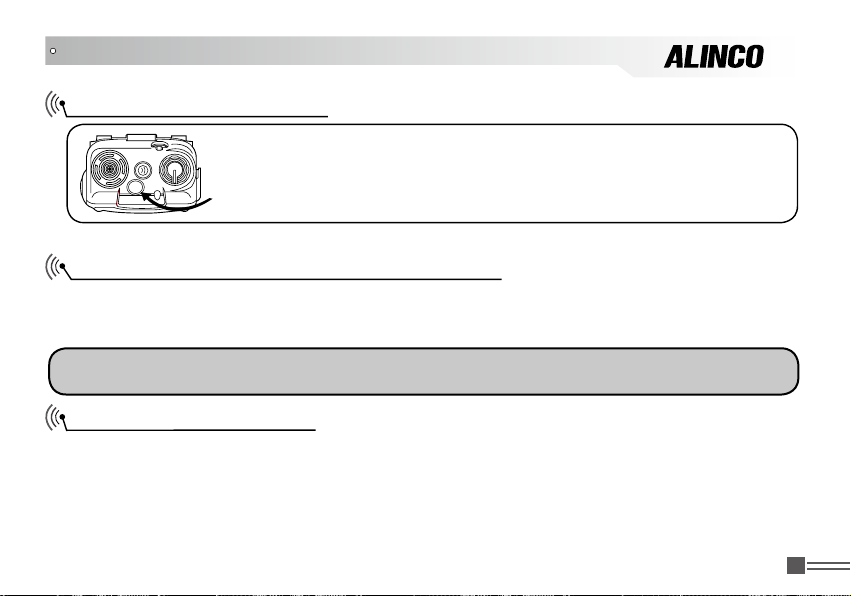

Installing the Hand Strap

Attach the hand strap as shown.

Professional

17

FM Transceiver

GETTING ACQUAINTED

LCD Display

Following are the meaning of the icons and signs shown on the display.

Frequency Reverse

Offset direction

DCS

Talk Around

CTCSS

FUNC Icon

FM radio

TX Power

Busy Channel

Priority Scan
VOX Function

Scan Skip

Narrow band

Scramble (Encryption)

Battery Capacity

Function Menu Serial
No. / Main Channel
No. serial No.

Keypad Lock

NOTE:

Battery capacity indicator(full) No power,replace battery pack or charge battery

Battery power consuming Real time display receiving signal

strength/Power Indicator

Professional

FM Transceiver

18

GETTING ACQUAINTED

Front Panel

Emergency Alarm

Professional

19

FM Transceiver

Antenna

Speaker

Microphone

LCD

Numeric keys

Jacklight

Power / Volume
Switch

LED Indicator, green light
when tra nsmi tting , red
light when receiving

A

B

C

D

A key/Function key

B key / Up key

C key / Down key

D key, Exit key
or channel/VFO
Exchange key

GETTING ACQUAINTED

Side Panel

PTT key

PF1 key (1 Primary
Function key)

st

PF2 key (2 Primary
Function key)

nd

PTT

MIC/SP

Left Panel Right Panel

Accessory port
(PC programming
connection port)

Reading/Writing
Programming Software
Jack

Belt Clip

Battery

Professional

FM Transceiver

20

BASIC OPERATIONS

Power On and off

Turn【POWER】/【VOLUME】dial clockwise to power on.
Turn it counterclockwise to power off.

Adjusting Audio output level

Press and hold PF2 key to monitor white noise to refer to the current audio
level.

Turn【POWER】/【VOLUME】cl ockwi se t o incr ea se t he a udio lev el,
counterclockwise to decrease.

NOTE:
NEVER USE EARPHONE while adjusting audio level. The max audio output is 1W, and it’s loud
enough to hurt your eardrums.

Professional

21

FM Transceiver

BASIC OPERATIONS

Emergency Alarm Function

While Stand-by state, press this key for 3 seconds to enable the emergency
alarm function. When activated the function, the radio will sound an alarm
beep and start transmitting the alarm beep. The alarming lasts 1 minute, then
the radio will exit and return to Stand-by. You may press this key again to stop
alarming.

Change between Main Channel and FM Radio

】

【

A

Press
receiver. When switching to FM radio, the radio will automatically start receiving both FM radio
frequency and Main Channel. An arrow directs the current operational channel.

NOTE: While receiving FM radio, only the following functions are supported: Channel editing, channel
deletion, keypad lock and beeping on/off. Other functions are available only for main channel.

key and then press

FM radio station scanning

While listening to the FM broadcasting, press
received, LCD displays current frequency and stops scanning.

【1】

key to switch between Main Channel and FM broadcasting

】

【

B

key or

【C】

key to start scanning. When a signal is

Professional

FM Transceiver

22

BASIC OPERATIONS

Frequency Input by Keypad

In VFO mode or FM radio receiver, You may directly enter frequency through numeric keys.

【

】

1.Press

2.Enter the desired frequency by numeric keys.

NOTE:
In Frequency + Channel mode, it shows current channel number on the right of main frequency display.
The direct input is relevant to the stepping and transceiver frequency scope. If entering frequency is
beyond scope or not matching with step size, the input is invalid.
In the FM receiver mode, the frequency step size input by numeric keys is 50KHz

Channel Input by Keypad

In Frequency + Channel or Channel + Name Tag mode, you may select the channel by entering three
channel digits (001-128). If the entered channel has not been preprogrammed, the radio will make a
beep to alert you that input is wrong and then return to current channel.

Professional

23

FM Transceiver

D

to switch to VFO.

BASIC OPERATIONS

Adjusting Channel / Frequency By "

】

B

key/

key/

【C】

【C】

【C】

In VFO mode, you may use
Press and hold
by a channel step.

NOTE: Channel step: 5K, 6.25K, 10K, 12.5K, 15K, 20K, 25K, 30K and 50KHz in total 9 for option.
Please refer to stepping frequency setup.

In Channel mode, press
enter the downward channel while press

【B】

【

to increase,

】

【

B

【B】

" Key & "

key as up/down keys to change the operating frequency.

key to decrease the frequency. Every press can add or reduce

key to choose the desired channel. Press

【C】

key to enter the upward channel..

【C】

" Key

【B】

key once to

Alarm

While side key【PF1】has been assigned to alarm function, press this key. An alarm beeps and starts
transmitting. Press again this key or turn off the radio to exit.

NOTE: This function is available only by PC preprogramming.

Monitor / Squelch Off

Assign【PF2】key to Squelch Off function. In case the receiving signal is weak and the audio is
intermittently cut off by the squelch, press and hold【PF2】key. As long as this key is pressed, the
squelch including TSQ/DCS unmutes making the audio easier to hear. Just press and release【PF2
to unmute the squelch, press it again to close.

NOTE: This function is available only by PC preprogramming.

Professional

FM Transceiver

】

24

BASIC OPERATIONS

Receiving

Select the operating mode and frequency or channel that you wish to operate.
When a signal is received on the frequency that you selected, and S-meter are displayed on the LCD,

then the received signal can be heard. The green RX indicator also lights green at this time.

NOTE: Please be aware of the squelch level and selective-calling settings as you may risk not hearing
the receiving signal.

Transmitting

1. Select the frequency by using the dial or keypad.

2. Press the PTT key. The red TX indicator turns on while transmitting.

3. While holding down the PTT key, speak into the unit at normal voice from the distance of 5cm (2").

4. Release the PTT key to receive.

Before transmitting, it is recommended to monitor the channel you are going to use to ensure it is not
busy by pressing and holding【PF2】side key.

Side Key【PF1】Function Instruction

Side Key【PF1】 can be programmed to achieve the following functions:
Default setting: Press this key once to turn on/ off jacklight. Press and hold this key to turn on/off the alarm.

1. DTMF code TX: In standby conditions, press this key to transmit pre-stored DTMF tones.

2. Alarm: Press this key to start alarm function as described in advance.

Professional

25

FM Transceiver

BASIC OPERATIONS

3. Alarm Off: In the alarm mode, press this key to stop the alarm.

4. Jacklight Switch: In standby, press this key to switch on or off the jacklight.

5. Tone-burst tone transmitting: While transmitting, press and hold this key to send the selected tone­ burst tone.

Side Key【PF2】Function Instruction

Default: Monitor function

1. Monitor function: In standby state, press and hold this key to open the squelch and monitor the
channel. Release the key to Exit.

2. Squelch Off: In standby state, press this key once to monitor, press it again to exit.

3. Press this key to turn on transceiver and hold it for 3 seconds to come into general setting setup.

Switch between VFO and Frequency+Channel Mode

】

【

D

Press
Channel+Name Tag mode.

NOTE: When the channel hasn’t been preprogrammed, this operation is unavailable.

key to switc h between frequency mode (VFO) and Frequency + Channel mode or

Professional

FM Transceiver

26

SHORTCUT OPERATIONS

Editing Channels

1.In VFO mode, enter the frequency and set the operating parameters as you
desire. After pressing
corner, press and hold
displays the channel No. icon.

【

】/【C】

2.Press

3.After pressing and holding

B

"- - - - - -" if current channel name is not preprogrammed.

completes the operation.

Deleting Channels

In the Channel mode, select the channel to be deleted. After pressing
While

2 seconds. A beep sounds "DU" and skips to another channel. The channel is

deleted and completes the operation.

icon is displayed on the top left corner, press and hold

Turn On/ Off FM Radio receiver

In Standby conditions, after pressing
the top left corner, press
broadcasting frequency. Repeat the operations to turn off.

Professional

27

FM Transceiver

】

【

A

key, While

】

【

D

key for 2 seconds. A beep sounds "DU" and LCD

key to select desired channel number. LCD will display

【

】

D

key for 2 seconds, a beep sounds "DU" and

】

【

key. LCD displays 'FM' and starts receiving FM

1

icon is displayed on the top left

】

【

A

key, While

icon is displayed on

【

【

D

A

】

key for

】

key,

SHORTCUT OPERATIONS

Enable /Disable Beeping

Beep sounds to conrm or alert the operation status.

】

【

A

In Standby conditions, after pressing
the top left corner, press
sounds.

】

【

2

key to turn off the beep. Repeat it to enable beep

key, While

CTCSS / DCS Scan

】

【

A

In Standby conditions, after pressing
top left corner, press

【C】

key or
with the radio’s signaling setting, it will stay tuned for 15 seconds and resumes
scanning. Press any key except

NOTE: This function is not available in Commercial radio mode and no sub tone
is received in current channel. In current channel, if signaling sets as CTCSS, it
will scan CTCSS, if signaling sets as DCS, it will scan DCS.

key to change the scan direction. When the matched tone is detected

】

【

3

key to activate CTCSS / DCS Scanning. Press

【A】,【 】,【#】

key, While

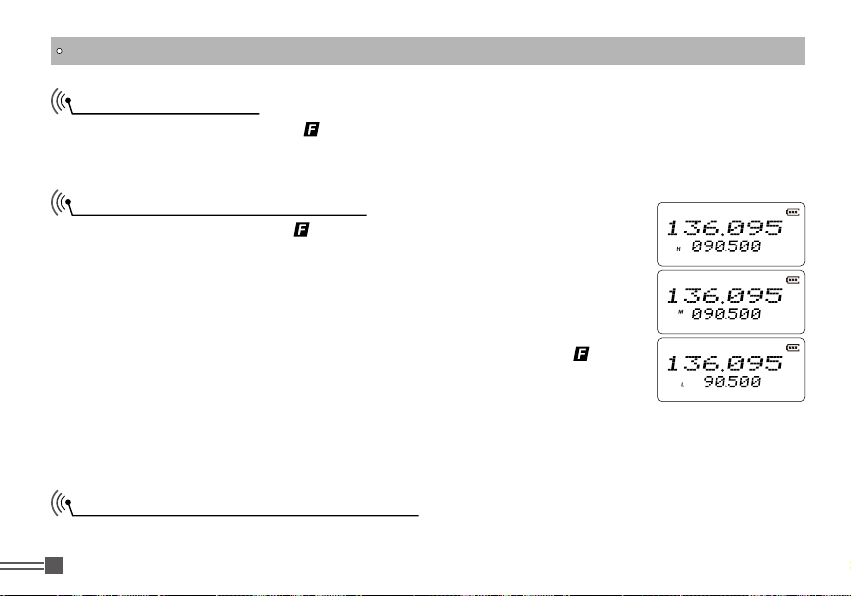

Offset Frequency Direction Setup

In VFO mode, frequency + channel mode or channel + name tag mode, after

icon is displayed on

icon is displayed on the

【B】

keys to exit.

Professional

FM Transceiver

28

SHORTCUT OPERATIONS

】

【

A

pressing

key, while

icon is displayed on the top left corner, press
key to choose positive offset direction (+), minus offset direction (-) or exit setting
(no icons displayed).

1.(+)Positive offset: Indicates the frequency is higher than receiving frequency.

When enable reverse function , the receiving frequency is higher than
transmitting frequency.

2.(-)Minus offset: Indicates the frequency is lower than receiving frequency.

When enable reverse function, the rece iv in g frequency is lower than
transmitting frequency.

3. None: Indicates the radio is in the simplex mode.

NOTE:This function is unavailable in commercial radio mode.

Frequency/Channel Scan

】

【

A

While receiving, after pressing

】

【

5

top left corner, press

key to begin frequency scan or channel scan.

1.Frequency Scan

In VFO mode, it scans in accordance with the channel step. Press numeric

【

】

D

key or

key to stop scanning.

2.Channel Scan

In channel mode, it scans in accordance with preprogrammed channels.

【

】

Press numeric key or

Professional

29

FM Transceiver

D

key to stop scanning.

key, while

icon is displayed on the

】

【

4

SHORTCUT OPERATIONS

NOTE:
Frequency scan checks all bands allocated to the VFO. When channel scanning, the skipped channel is
excluded from the scanning. While scanning, change the direction upward/downward by pressing

【C】

key or

key. When a signal is being received, the scan stops for 15 seconds and resume scanning.

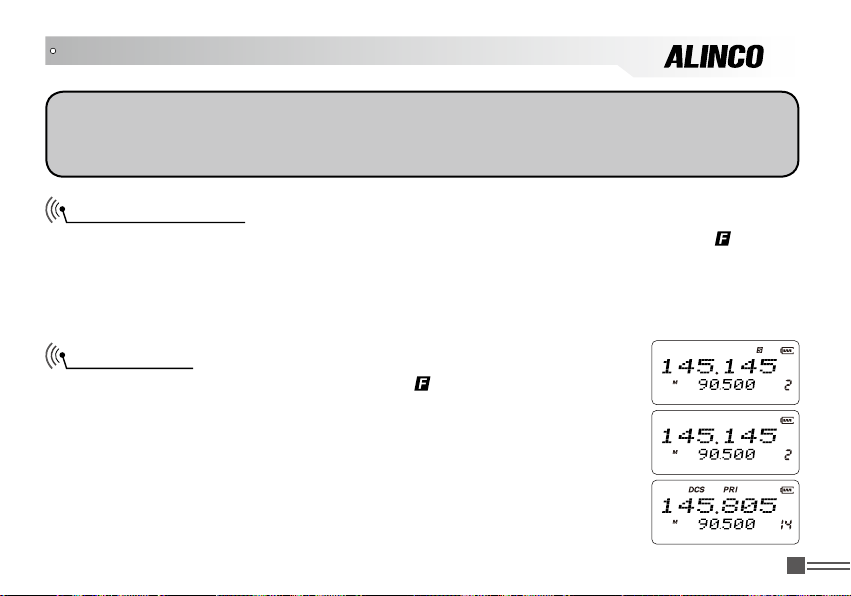

Channel Scan Skip

】

【

A

In Channel+Name Tag mode or Frequency+Channel mode, after pressing
press

】

【

6

icon is displayed on the top left corner, press

【6】

key to set the current channel to be

key, while

skipped while channel-scanning, and ‘S’ icon appears to indicate the channel is set as the skip. Repeat
the operations to cancel channel scan skip setting.

NOTE: This feature is available only in the Channel modes.

Priority Scan

】

【

A

In channel mode, after pressing

】

【

7

left corner, press

key to activate the priority scan. In priority scan state, it
monitors priority channel once every 10 channel scanning. When the priority
channel receives a matching signaling, transceiver will stay tuned to the priority
channel until current signal disappear.

NOTE: To activate this feature, it is required to set and select the priority channel.
In VFO mode, priority scanning is unavailable

key, while

icon is displayed on the top

】

【

B

and then

Professional

FM Transceiver

30

SHORTCUT OPERATIONS

TX Power Selection

】

【

A

After pressing
output power. When the bottom left corner of screen displays 'H' the power is 5W/high power.

key, while

icon is displayed on the top left corner, press

DTMF Code Enquiry and Setup

】

【

A

key or

key, while

【C】

icon is displayed on the top left corner, press

key to choose the desired Auto-dialer group. If it’s

【

】

A

key, while

】

【

0

key for 2 seconds.

【

】

to sound DTMF tones then to save and

PF2

icon is

After pressing

】

【

0

key to show the DTMF Auto-dialer group setting (16 groups in total).

You should preprogram the DTMF auto-dialer group in advance to activate this

.

feature

】

【

1.Press

2.When current group is displayed as “__”, press

3.After editing, press side key

B

not been edited in advance, it displays the current group number and “__”.

displayed on the top left corner, press and holding
A beep sounds “DU” and enters to DTMF code edit mode. Now you can
enter the DTMF data using keypad.

exit the edit mode.

Manually Transmitting DTMF Tones

Method 1: Press and hold【PTT】key to transmi t. While transmitting enter the desired DTMF

Professional

31

FM Transceiver

】

【

9

key to set the

SHORTCUT OPERATIONS

characters using corresponding keys.
Method 2: Press and hold【PTT】key to enter the first DTMF character, then

release【PTT】key. It will remain transmitting for 2 seconds. You can keep
entering the desired DTMF characters using keypad and don't need to always
press and hold【PTT】key while operating. When transmitting DTMF tones, you can monitor the tone

sounds from a speaker. Using DTMF codes for Selective Call, Group Call and All Call, this radio allots

ID for each channel, and can be programmed 16 different DTMF auto-dialer group code by the utility
software or manually.

1.ANI: When receive a matching ANI calling, the LCD will display the caller's ID, then recognize who is
the caller.

2.PTT ID: Set available channel as PTT ID, press or release PTT key to send ID code.

3.By programming software, you can set group call wildcard for each group(DTMF character: A. B. C.

D."*" or "#"). The caller can call different group by sending different group call code. After receiving
a matching ID from caller, carry out selective call, group call and all call function. Meanwhile, one or
all of character of receiver's ID will be replaced by wildcard character. Also, Press PTT to input ID
code by numeric keys in keypad to carry out selective call, group call and all call function. It is more
convenient and flexible.

Professional

FM Transceiver

32

SHORTCUT OPERATIONS

For example: Group code as

“C”

(Radio A) (Radio B) (Radio C) (Radio D)
Receiver self ID 123 223 235 355
Caller press and hold PTT to input 123 223 235 or 355, A or B or C or D will receive selective calling.
Caller press and hold PTT to input C23 , A and B will receive group calling.
Caller press and hold PTT to input CC5, C and D will receive group calling.
Caller press and hold PTT to input CCC, all radios receive all calling.

Remotely Kill / Waken

For security reasons, it is possible to make radios of your user group blocked
by sending a special
kill code,

“KILL”

For example, if
radios. When wakening,

“kill”

code. When the user group manager remotely sends

is shown on the display. To recover, send the kill code +

“1234”

is remotely kill code, sending

“WAKE”

is showed on LCD.

“1234#”

can wake up the

“#”

.

Remotely Stun / Waken

For security reasons, it is possible to make radios of your user group all keys
and performance temporarily completely unavailable except for receiving by
sending a special
the code,
For example, if
the radios. When wakening,

Professional

33

FM Transceiver

“Stun”

“STUN”

“1234”

code. When the user group manager remotely sends

is shown on the display. To recover, send the stun code +

is remotely stun code, sending

“WAKE”

is showed on LCD.

“1234#”

can wake up

“#”.

SHORTCUT OPERATIONS

NOTE:
Remotely kill/stun codes should be preprogrammed using the programming software. The maximum
available digit for the kill/stun codes is16. When awaken, radios return to normal operation

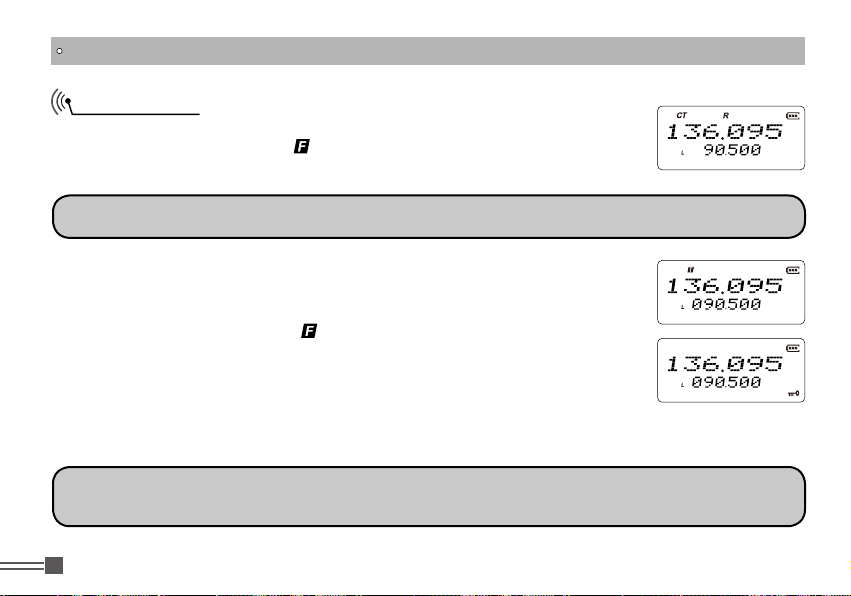

Frequency Reverse / Talk Around ON/OFF

【

After pressing
to start frequency reverse or talk around. Repeat the above operations to exit.

A

key, while

】

icon is displayed on the top left corner, press

NOTE:
This operation is available only when the channel has been set with shift setting.

Frequency Reverse. Or else,it is as enable and disable Talk Around.

When it displays
frequency reversion function. Now the transmitting frequency and receiving
fr equency are in terchanged, namely, rece iv in g frequency switches to

transmitting frequency while transmitting frequency switches to receiving
frequency. If CTCSS/ DCS signaling is set, it will also interchange.

When it display

around function. Under these conditions, transceiver will transmit as receiving

frequency. If CTCSS /DCS signaling is set, it will interchange decoding CTCSS
/as encoding.

“R”

icon on screen, it means that current channel open the

“T”

icon on screen, it means that current channel start talk

【

key for 1 second

】

Professional

FM Transceiver

34

SHORTCUT OPERATIONS

Keypad Lock

Keypad lock function is useful to prevent from wrong operation, In standby state,
after pressing
and hold

【

the key lock function.

NOTE:
When keypad is locked, only PTT / PF1 / PF2 / A key are usable.

You may change currently set functions in channel mode temporary. Once the
radio is turned off or switched to another channel, such temporarily parameters are
erased.
In frequency+channel mode, channel+Name Tag mode or VFO mode,

1 after pressing

【8】

key to enter function menu.

【B】/【C】

2.Press

【A】

3 Press

【B】

4.Press

【D】

5.Press

NOTE:
This function is not available in the commercial radio mode. In VFO mode, once the radio is turned off or

changed to new VFO frequency, the channel operation setting will remain until next change.

Professional

35

FM Transceiver

】

A

key, while

【

】

#

key for 2 seconds to start keypad lock function. Repeat to cancel

【A】

key, while

icon is displayed on the top left corner, press

icon is displayed on the top left corner, press

key to choose the desired function to be set.

key to enter into function menu setup.

【C】

key or
to return to upward menu. Press

key to choose the desired parameters to be set.

【#】

key to set it and to exit.

CHANNEL OPERATIONS

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Decode Tone Setup

This function enables the selective-calling and speaker sounds only when a
signal with matching encoded CTCSS/DCS tone being received.

1. after pressing

【8】

key to enter into function menu.

【B】/【C】

2. Press

【A】

3. Press

signaling is selected, press

【A】

4. Press

5. Available CTCSS tones: 67Hz- 254.1Hz, 50 tones in total, Default: 67Hz.

6. DCS: 017N-765I, 232 codes,

codes. Default is 017N.

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Encode Tone Setup

1. after pressing
into function menu.

2. Press

3. Press
selected, press

【A】

key, while

icon is displayed on the top left corner, press

key to choose Menu 1 and display “

【

then press

1

】key to choose CTCSS, DCS or OFF. When DCS

【

】

key to choose DCS positive or inverse code.

key to choose the desired CTCSS / DCS decode tone

[N]

stands for positive,

【A】

key, while icon is displayed on the top left corner, press

【A】

key to choose Menu 2 and display "

【A】

then press

【1】

key to choose CTCSS, DCS or OFF. When DCS signaling is

【

】

key to choose DCS positive or inverse code.

T-CDC

R-CDC

” .

[I]

stands for inverse

” .

【8】

key to enter

Professional

FM Transceiver

36

CHANNEL OPERATIONS

4. Press

【B】

key or

【C】

key to choose the desired CTCSS / DCS encode tone.

5.Available CTCSS tones: 67Hz- 254.1Hz, 50 tones in total, Default: 67Hz.

6.DCS: 017N-765I, 232 codes,

[N]

stands for positive,

[I]

stands for inverse codes. Default is 017N

Tone Squelch / DCS squelch (Sub tone CTCSS / DCS)
Encode/Decode tones synchronized setup

1.after pressing

【8】

key to enter into function menu.

2.Press

3. Press
signaling is selected, press

4. Press

5. Available CTCSS tones: 67Hz- 254.1Hz, 50 tones in total, Default: 67Hz.

6. DCS: 017N-765I, 232 codes,
codes. Default is 017N.

Professional

37

FM Transceiver

【A】

key, while icon is displayed on the top left corner, press

【A】

key to choose Menu 3 and display "

【A】

then press

【A】

key to choose the desired CTCSS / DCS encode tone.

【1】

key to choose CTCSS, DCS or OFF. When DCS

【

】

key to choose DCS positive or inverse code.

"

"

stands for positive,

N

C-CDC

" .

"I"

stands for inverse

CHANNEL OPERATIONS

Frequency Reverse or Talk Around

1.after pressing

【A】

key, while

function menu.

【B】/【C】

2.Press

3.Press

【A】

key to choose Menu 6 and display “

key then press

parameter.

REV:

The frequency reverse function is selected.

TA:

The talk around function is selected.

Press

【A】

and hold

【

】

Inversion scrambling (Encryption)

An analog voice inversion scrambler is equipped and such audio processing can offer an advanced

condentiality to your business communications.

1.after pressing

【8】

key to enter into function menu.

2.Press

3.Press
parameter.

ON:

Scramble is enabled.

OFF:

Scramble is disabled. Default setting is OFF.

Professional

39

FM Transceiver

【A】

【B】/【C】

【A】

key then press

key, while

key to choose Menu 7 and display “

icon is displayed on the top left corner, press【8】key to enter into

”.

【B】

key or

REV/TA

【C】

key to choose the desired

key while receiving to activate the selected function.

icon is displayed on the top left corner, press

”.

SCRM

【B】

key or

【C】

key to choose the desire d

CHANNEL OPERATIONS

Note:
All radios in your group must use the same setting to communicate properly.

Voice Compander (Reduce noise & enhance audio clarity)

Enabling this function to reduce background noise and enhance audio clarity. It is recommended to
activate this function if all radios in your group are equipped with Voice Compander otherwise worse the
clarity of communications.

1.after pressing

【8】

key to enter into function menu.

2.Press

3.Press
parameter.

ON:

Compander is enabled.

OFF:

Compander is disabled. Default is OFF.

Busy Channel Lockout

BCLO is to restrict transmitting while RX signal is received. When Busy Channel Lockout is set to on,

transmission is possible only in the specic conditions (and isn't possible otherwise).The alarm beep

sounds if the PTT key is pressed when transmission is prohibited.

1. after pressing

【A】

【B】/【C】

【A】

key then press

【A】

key, while

icon is displayed on the top left corner, press

key to choose Menu 8 and display “

key, while

【B】

icon is displayed on the top left corner, press

key or

【C】

key to choose the desired

COMP

”

【8】

key to enter into

Professional

FM Transceiver

40

CHANNEL OPERATIONS

function menu.

【B】/【C】

2.Press

【A】

3.Press
parameter.

BCL:

Enable BCL, carrier wave lockout, transmitting is prohibited when

receives any carrier.

BTL:

Enable BTL, transmitting is prohibited when current channel receives

a carrier signal that CTCSS/DCS tones are different from your group's.

OFF:

Busy channel lockout is disabled. Default is OFF.

Turn On/Off Optional Signaling function

Optional signaling function is similar to CTCSS/DCS. Without receiving correspondent tone signaling,
the speaker will remain mute. Optional signaling can be applied for other advanced features such as
ANI, PTT ID, group call, individual call, remotely stun, remotely kill, waken etc.

1. after pressing

【8】

key to enter into function menu.

【B】/【C】

2.Press

【A】

3.Press
parameter.

ON:

Optional signaling DTMF is enabled.

OFF:

Optional signaling DTMF is disabled. Default is OFF

Professional

41

FM Transceiver

key to choose Menu 9 and display “

key then press

【A】

key, while

【B】

icon is displayed on the top left corner, press

key or

【C】

key to choose Menu 10 and display “

key then press

【B】

key or

”.

BUSY

key to choose the desired

OPTSIG

【C】

key to choose the desired

”.

CHANNEL OPERATIONS

Note:
DTMF signaling is applied as an optional signaling to this product.

Signaling Relations

Select how to operate the Selective-calling(Signaling) function.

1. after pressing

【8】

key to enter into function menu.

【B】/【C】

2.Press

3.Press
parameter.

OR:

As long as receiving a matching CTCSS / DCS tones OR any one of optional signaling, the squelch

unmutes and receives audio. Default if OR.

AND:

As long as receiving a matching CTCSS / DCS signaling AND optional signaling at the same time,

the squelch unmutes and receives audio.

Note:

DTMF signaling is used as an optional signaling to this product.

NOTE:

The optional signaling of this transceiver is DTMF signaling.

【A】

【A】

key then press

key, while icon is displayed on the top left corner, press

key to choose Menu 11 and display “

【B】

key or

【C】

key to choose th e desired

SIGNAL

”.

Professional

FM Transceiver

42

CHANNEL OPERATIONS

PTT ID

1. after pressing

【8】

key to enter into function menu.

2.Press

3.Press

parameter.

OFF:

PTT ID is disabled. Default is OFF.

BOT:

Press

beginning of transmission.

TX OFF (Transmission Prohibited)

1. after pressing

Professional

43

FM Transceiver

【A】

【B】/【C】

【A】

key then press

【

】

PTT

【A】

key, while icon is displayed on the top left corner, press

key to choose Menu 12 and display “

【B】

key to send a preprogrammed DTMF code as PTT ID at the

key, while

【8】

2.Press

3.Press

icon is displayed on the top left corner, press

key to enter into function menu.

【B】/【C】

【A】

key then press

parameter.

ON:

TX Off is enabled. PTT operation is disabled. Default setting is OFF.

OFF:

TX Off is disabled. PTT operation is possible.

”.

key or

PTT-ID

【C】

key to choose the desired

key to choose Menu 13 and display “

【B】

key or

【C】

TX-IHB

”.

key to choose the desired

CHANNEL OPERATIONS

Whisper

This function is to increase your voice level while talking in low voice. Do not
activate this function while you can talk normally otherwise the voice may be
distorted.

1. after pressing

【8】

key to enter into function menu.

【B】/【C】

2.Press

3.Press
parameter.

ON:

Whisper on

OFF:

Whisper off. Default is OFF.

Set Mode Setting

The Set mode is used to customize the various operational parameters of DJ-A10. The Set Mode
parameters are stored and remain until next change regardless of power on/off operation. Set Mode
Setting operation is as follows and common to all available menus:

1.Press and hold
to enter into the Set Mode operations.

【B】/【C】

2.Press

【A】

3.Press

【A】

key, while

key to choose Menu 14 and display “

【A】

key then press

【

PF2

【B】

】

key while turning on the radio, and keep pressing【

key to choose the menu.

key to enter to the setup mode.

icon is displayed on the top left corner, press

”.

key or

WHISPE

【C】

key to choose th e desired

PF2

】key for 3 seconds

Professional

FM Transceiver

44

CHANNEL OPERATIONS

4.Press

5.Press

【B】
【D】

key or
key or

【C】

key to choose the desired parameter.

【#】

key to confirm and exit.

Voice Prompt

English Voice-guidance is available. Key touch and some other major operations
are assisted with English voice.

【

】

1.Press and hold

【

】

PF2

2.Press

3.Press

OFF:
ENG:

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】
【A】

Voice prompting is disabled.
English guidance activated. Default is ENG.

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 1 and display “

key then press

【B】

key or

【C】

”.

VOICE

key to choose the parameter.

Time-Out-Timer(TOT)

This function sto ps the transmi ssion au tomat icall y when th e cont inuous
transmission time exceeds the set time and alerts it with a beep.

1.Press and hold

【

】

PF2

【B】/【C】

2.Press

【A】

3.Press
is from 15 to 240 seconds (4 minutes) in 15 seconds step.

Professional

45

FM Transceiver

【

】

PF2

key while turning on the radio, and keep pressing

key for 3 seconds to enter into the Set Mode operations.

key to choose the Menu 2 and display “

key then press

【B】

key or

【C】

key to choose the parameter, that

TOT

”.

BACKGROUND OPERATIONS

OFF:

TOT is OFF and default is OFF.

Voice Operated Transmission (VOX)

After enabling this function, you can directly start transmitting by voice instead of pressing

【

】

1.Press and hold

【

】

PF2

2.Press

3.Press

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 3 and display “

key then press

【B】

key or

【C】

”.

VOX

key to choose the parameter

Available parameters are 3 levels of VOX sensitivity in 1, 2 or 3. 1 is most

sensitive, 3 is less sensitive that requires more voice level to activate VOX.

OFF:

VOX transmitting is disabled. Default is OFF

VOX Delay

This is to make a time delay at the end of VOX transmission. When you stop speaking to take breath,
the radio still holds the transmission for the time you set in this menu.

【

】

1.Press and hold

【

】

PF2

2.Press

3.Press

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

seconds in 0.5 seconds step. Default is 2 seconds.

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 4 and display “

key then press

【B】

key or

【C】

VOXDEY

”.

key to choose the parameter, that is from 0.5 to 5

[PTT]

key.

Professional

FM Transceiver

46

BACKGROUND OPERATIONS

VOX Beep

After enabling this function, beginning transmitting by VOX, the transceiver will voice beeping.

【

】

1.Press and hold

【

】

PF2

2.Press

3.Press

ON:

OFF:

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

VOX beeping is enabled.

VOX beeping is disabled. Default setting is OFF

Frequency Step Size Setup

Tuning step can't be changed in the Channel modes but usable only in VFO
mode.

Frequency input and frequency scan are both affected by tuning step setting.

1.Press and hold

【

】

PF2

2.Press

3.Press

Available steps are 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 /30 / 50KHz.
Default is 5KHz

Professional

47

FM Transceiver

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 5 and display “

key then press

【

】

PF2

key while turning on the radio, and keep pressing

【B】

key or

【C】

key to choose the Menu 6 and display “

key then press

【B】

key or

【C】

VOXTON

”.

key to choose the parameter.

”.

STEP

key to choose the parameter.

BACKGROUND OPERATIONS

Squelch Level

Squelch is a function that eliminates the noise when no signals are being received.
Setting the higher squelch level allows you to monitor only stronger signals.
Usually start from level zero (the squelch is open and hear the noise), increasing
th e level and when the noise is gon e, set just 1 level higher than the

currentstatus. For example the noise is cut at level 3, set the level to 4 and exit.

【

】

1.Press and hold

【

】

PF2

2.Press

3.Press

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

is from 00 to 09 in 10 levels. Default is 04

Battery Save

This function prevents useless battery consumption by switching the power ON/OFF at a xed ratio if

there is no key operation or receiving signal for a continuous period of 5 seconds or more. Higher OFF
time (1:4 setting) saves more amount of battery but may cause slight delay on receiving. The Battery
Save function is temporarily suspended when a key is operated or a signal is received. The display
remain unchanged even the BS function is in the OFF cycle.

1.Press and hold

【

】

PF2

key for 3 seconds to enter into the Set Mode operations.

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 7 and display “

key then press

【

】

PF2

key while turning on the radio, and keep pressing

【B】

key or

【C】

”.

SQL

key to choose the parameter, that

Professional

FM Transceiver

48

BACKGROUND OPERATIONS

【B】/【C】

2.Press

【A】

3.Press
3 ratios.1:1 / 1:2 / 1:4

OFF: Battery saving is disabled. Not recommended for normal operations.

Default setting is 1:2.

LCD Backlight operation

Normally open, normally closed, automatic, these three modes in total of transceiver backlight to be
optional.

1.Press and hold
to enter into the Set Mode operations.

【B】/【C】

2.Press

【A】

3.Press

AUTO:

Automatic, turns on and off automatically. Default is AUTO.

ON:

Always lit, not recommended as it considerably consumes battery.

OFF:

Remain turned off always.

Professional

49

FM Transceiver

key to choose the Menu 8 and display “

key then press

【

】

PF2

【B】

key while turning on the radio, and keep pressing

key or

【C】

key to choose the Menu 9 and display “

key then press

【B】

key or

【C】

”.

SAVE

key to choose the parameter from

【

PF2

”.

LIGHT

key to choose the parameter.

】

key for 3 seconds

BACKGROUND OPERATIONS

LCD Backlight Color Setup

There are three backlight colors available to suit your preference.

【

】

1.Press and hold

【

】

PF2

2.Press

3.Press

ORG:

BLUE:

PUR:

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

Orange and default.

Blue

Purple

Scan Resume Time

There are three time setting available for scan resume condition.

1.Press and hold

【

】

PF2

2.Press

3.Press

5ST:

10ST:

15ST:

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

【A】

When receives signal, scan stops for 5 seconds and resume.

Same, 10 seconds.
Same, 15 seconds and default is 15ST.

PF2

key while turning on the radio, and keep pressing

key to choose the Menu 10 and display “

key then press

【

】

PF2

key while turning on the radio, and keep pressing

【B】

key or

【C】

key to choose the parameter.

key to choose the Menu 11 and display “

key then press

【B】

key or

【C】

key to choose the parameter.

COLOR

SCANTM

”.

”.

Professional

FM Transceiver

50

BACKGROUND OPERATIONS

Frequency/Channel Display Mode

There are 3 different display modes available, Frequency + Channel mode, Channel mode and
Channel+Name Tag modes.

【

】

1.Press and hold

【

】

PF2

key for 3 seconds to enter into the Set Mode operations.

2.Press【B】/【C】key to choose the Menu 12 and display “

【A】

3.Press

FREQ:

Frequency + Channel mode (VFO mode). Press

VFO mode.

CH:

Channel mode. Note that manual setting is not available when the radio has

been preprogrammed by the dealer using software.

NAME:

Channel+Name Tag mode(VFO mode). Press
VFO mode.
Default setting is FREQ.

Tone Burst Tone

Especially in Europe, Tone-burst tone operated repeaters are popular. To access to those repeaters,
certain audible tone is required. DJ-A10 offers 4 major tones.

1.Press and hold

to enter into the Set Mode operations.

Professional

51

FM Transceiver

PF2

key while turning on the radio, and keep pressing

key then press

【

】

PF2

”.

DSP

【B】

key or

【C】

key to choose the parameter.

【D】

key to switch into

【D】

key to switch into

key while turning on the radio, and keep pressing

【

】

PF2

key for 3 seconds

BACKGROUND OPERATIONS

【B】/【C】

2.Press

【A】

3.Press
1000Hz / 1450Hz / 1750Hz / 2100Hz
Default is 1750Hz.

DTMF Transmitting Time

1.Press and hold
seconds to enter into the Set Mode operations.

【B】/【C】

2.Press

【A】

3.Press
parameters.

50MS/100MS/150MS/200MS/250MS/300MS/350MS/400MS/450MS/500MS
( Unit: milliseconds)
This is the time for sending each DTMF signal and an interval between each DTMF being sent.

Default is 100MS.

Beep Volume level

1.Press and hold
to enter into the Set Mode operations.

key to choose the Menu 13 and display “

key then press

【

】

PF2

【B】

key while turning on the radio, and keep pressing【

key or

【C】

key to choose the parameter.

key to choose the Menu 14 and display “

key then press

【

】

PF2

key while turning on the radio, and keep pressing

【B】

key or

【C】

”.

TBST

DTMFSD

”.

key to choose from 10 different

【

PF2

PF2

】key for 3

】

key for 3 seconds

Professional

FM Transceiver

52

BACKGROUND OPERATIONS

【B】/【C】

2.Press

【A】

3.Press
1 to 5. Higher the louder. Default is 2.

Priority Channel Setup

1.Press and hold
seconds to enter into the Set Mode operations.

【B】/【

2.Press

【A】

3.Press
wish to use for Priority Scan operation from any one of 128 available channels.

OFF:

Priority channel is disabled. Default is OFF

NOTE:
This function is only to set the channel used for the priority scan monitoring. At least one channel
must be preprogrammed to activate priority scanning. Scan skip channel or channel without being
programmed cannot be selected.

Current Battery Voltage Display

1.Press and hold

【

】

PF2

53

2.Press

Professional
FM Transceiver

key for 3 seconds to enter into the Set Mode operations.

【B】/【C】

key to choose the Menu 15 and display “

key then press

【

C

】key to choose the Menu 16 and display “

key then press

【

PF2

【B】

】

PF2

key while turning on the radio, and keep pressing【PF2】key for 3

【B】

】

key while turning on the radio, and keep pressing

key or

key or

【C】

key to choose parameters, that is

【C】

key to choose the channel you

key to choose the Menu 17 and display “

VOL-BP

PRI-CH

V-BATT

”.

”.

”.

BACKGROUND OPERATIONS

At this state, the approximate battery voltage is displayed on the LCD.
Please note that the voltage is approximate and Alinco doesn’t guarantee the accuracy.

Resume Factory Default (RESET)

You can make all the settings of transceiver return to the factory default settings when transceiver
cannot work normally because of wrong operation or error setup.

【

】

1.Press and hold

PF2

key while turning on the radio, and keep pressing

to enter into the Set Mode operations.

【B】/【C】

2.Press

【A】

3.Press

FACT?:

Resume Factory default. Frequency, signaling tones and function

key to choose the Menu 18 and display “

key then press

【B】

key or

【C】

key to choose the reset mode.

RESET

settings will return to the factory default.

INIT?:

Resume Set mode setting parameters to default. Frequency, signaling

tones and function settings remain unchanged.

【#】

4. Press

key to confirm and perform the reset.

NOTE:
Once the reset is performed, previous programming data are gone and can’t recall. Please be sure to

manually write major setting such as frequency and signaling settings used in your group to manually
restore the data after reset.

”.

【

】

PF2

key for 3 seconds

Professional

FM Transceiver

54

PC PROGRAMMING

Utility software may be available for distributors/dealers only. USB programming cable is required. Please consult with

your local importer/dealer for availability.

Professional

55

FM Transceiver

TROUBLE SHOOTING GUIDE

Problem Corrective Action

A.The battery may be exhausting. Recharge or replace the battery.

No power

Battery power dies shortly after
charging.

Transceiver cannot scan The channels are not programmed.

All band noisy after programmed Adjust squelch level.
No sound when using earphone.

for a while

Communication distance
becomes short, and Low
sensitivity

Cannot talk or hear other
members in your group

Can not power on or frequent
power off

B.The battery may not be installed correctly. Remove the battery
and install it again.
C.The power switch is broken; send it to local dealers to repair.
D.Battery life is end; contact to local dealers to replace.

The battery life is finished. Replace the battery pack with a new one.

Earphone or the jack is broken. Please contact with local dealers for
inspection.

A.Check whether the antenna is in good conduction and the antenna
base do not come adrift.
B.Antenna connector may be broken. Consult your local dealer
for services.

A.Different frequency or channel, please change it.
B.Different CTCSS / DCS /DTMF, please reset it.
C.Out of communication range.

Check if the battery pack is securely attached.

Professional

FM Transceiver

58

TROUBLE SHOOTING GUIDE

The receiving sound level is low
or intermittent

Receiving signal is intermittent.

Loudspeaker sounds lower or
with dry noise after certain time of
usage.(Speaker magnet attracts
iron powders)

Receive voice from the other
parties and can not transmit

Receiving indicator with green
light but no sound

Professional

59

FM Transceiver

Consult with local dealers for inspection.

A.Out of communication range or obstruct by walls, buildings etc.
Change position to transmit.
B.450 filter may be in trouble, please contact with local dealers to
repair.

Check whether the loudspeaker is broken, Iron powder or dusts is in
the loudspeaker. Please contact with local dealers to repair.

Interference is being received. BCLO activated.

A.Low volume, increase the audio level.
B.Volume switch or loudspeaker is broken, please contact with local
dealers to repair.
C.Earphone jack is broken, please contact with local dealers to
repair.

ATTACHED CHART

CTCSS Frequency Chart

1 67.0 11 94.8 21 131.8 31 171.3 41 203.5

2 69.3 12 97.4 22 136.5 32 173.8 42 206.5

3 71.9 13 100.0 23 141.3 33 177.3 43 210.7

4 74.4 14 103.5 24 146.2 34 179.9 44 218.1

5 77.0 15 107.2 25 151.4 35 183.5 45 225.7

6 79.7 16 110.9 26 156.7 36 186.2 46 229.1

7 82.5 17 114.8 27 159.8 37 189.9 47 233.6

8 85.4 18 118.8 28 162.2 38 192.8 48 241.8

9 88.5 19 123.0 29 165.5 39 196.6 49 250.3

10 91.5 20 127.3 30 167.9 40 199.5 50 254.1

Professional

FM Transceiver

60

ATTACHED CHART

DCS Chart

1 017 18 073 35 165 52 261 69 356 86 464 103 632
2 023 19 074 36 172 53 263 70 364 87 465 104 645
3 025 20 114 37 174 54 265 71 365 88 466 105 651
4 026 21 115 38 205 55 266 72 371 89 503 106 662
5 031 22 116 39 212 56 271 73 411 90 506 107 664
6 032 23 122 40 217 57 274 74 412 91 516 108 703
7 036 24 125 41 223 58 305 75 413 92 523 109 712
8 043 25 131 42 225 59 306 76 423 93 526 110 723

9 047 26 132 43 226 60 311 77 425 94 532 111 731
10 050 27 134 44 243 61 315 78 431 95 534 112 732
11 051 28 135 45 244 62 325 79 432 96 546 113 734
12 053 29 143 46 245 63 331 80 445 97 565 114 743
13 054 30 145 47 246 64 332 81 446 98 606 115 754
14 055 31 152 48 251 65 343 82 452 99 612 116 765
15 065 32 155 49 252 66 345 83 454 100 624
16 071 33 156 50 254 67 346 84 455 101 627
17 072 34 162 51 255 68 351 85 462 102 631

NOTE: 1. N stands for positive code. I stands for inverted code. 232 groups of DCS in total.

2. Overstriking marks are non-standard DCS.

Professional

61

FM Transceiver

SAFETYTRAININGINFORMATION

You r  Alinco Incorporated, Electronics Division radio generates RF electromagnetic energy

during transmitmode.Thisradio is designed for and classified as “Occupational Use Only”,

meaningitmust beused only duringthe course of employmentby individualsawareof the

hazards,and the waystominimizesuch hazards. This radio is

 NOTintended for use by the

“GeneralPopulation”inanuncontrolledenvironment.

ThisradiohasbeentestedandcomplieswiththeFCCRFexposurelimitsfor“OccupationalUseOnly”.Inaddition,

your Alinco Incorporated, Electronics Division radio complies with the following StandardsandGuidelines with

regardtoRFenergyand

 FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to

Radio Frequency Electromagnetic Fields.

 American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure

to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.

American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially



Hazardous Electromagnetic Fields– RF and Microwave.

The following accessories are authorized for use with this product. Use of accessories other than those (listed in the



instruction) specified may result in RF exposure levels exceed the FCC requirements for wireless RF exposure.

electromagneticenergylevelsandevaluationofsuchlevelsforexposuretohumans:



ToensurethatyourexposetoRFelectromagneticenergyiswithintheFCCallowablelimitsfor

occupationaluse,alwaysadheretothefollowingguidelines:





DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you

to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or

antenna specifically authorized by the manufacturer for use with this radio.



DO NOT transmits for more than 50% of total radio use time (“50%duty cycle”). Transmitting more than 50% of the time

can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator”

lights red. You can cause the radio to transmit by pressing the “PTT” switch.



ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the HYT belt-clip

which is listed in instructions when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance

requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna

at least 5 cm (2 inches) from your mouth, and slightly off to one side.

TheinformationlistedaboveprovidestheuserwiththeinformationneededtomakehimorherawareofRF

exposure,andwhattodotoas‐surethatthisradiooperateswiththeFCCRFexposurelimitsofthisradio.



ElectromagneticInterference/Compatibility

Duringtransmissions,your Alinco Incorporated,Electronics Divisionradio generates

cause interferencewith other devicesor systems. Toavoid such interference, turn off theradio in areas where

signsarepostedtodoso.DONOToperatethetransmitterinareasthataresensitivetoelectromagneticradiation

suchashospitals,aircraft,andblastingsites.



Occupational/Controlled

Use

The radio transmitter is used in situations in which persons are exposed as consequence of their employment

providedthosepersonsarefullyawar eofthepotentialforexposureandcanexercisecontrolovertheirexposure.

RFenergy thatcanpossibly
