USER GUIDE

Aleratec

1:11 USB Copy Cruiser SA™

Part No. 330107

The content of this manual is for informational purposes only and is subject to change without notice.

This manual is copyright with all rights reserved. Under copyright laws, this manual and the software described within may not be copied, except in the normal use of the product(s) described within or to make a backup copy.

www.aleratec.com

Aleratec® is a registered trademark and 1:11 USB Copy Cruiser SA™ is a trademark of Aleratec, Inc.

Please record the following information to help expedite any warranty claim:

Model No. _____________________ Serial No. _____________________

Date Purchased ________________________________________________

Place of Purchase ______________________________________________

www.aleratec.com

Radio/TV Interference Statement

The equipment described in this guide emits radio frequency energy. If it is not installed in accordance with the manufacturer’s instructions, it may cause interference with radio or television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, this equipment may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be veried by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an electrical outlet on a circuit that is different from the circuit to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

This equipment has been certied to comply with the limits for a Class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and/or modications made to this equipment, without the approval of manufacturer, could void the user’s authority to operate this equipment.

www.aleratec.com

Safety Regulations

To prevent re or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to authorized personnel only.

WARNING

www.aleratec.com

Table of Contents

Introduction .......................................................................................1

Product Features .....................................................................................1

Key Items – 1:11 USB Copy Cruiser SA ................................................ 1

1:11 USB Copy Cruiser SA Display Panel .............................................2

Precautions .......................................................................................3

Installation ..............................................................................................3

Operation ................................................................................................3

Transportation ......................................................................................... 3

Overview ............................................................................................4

Main Menu ..............................................................................................4

Subfunctions of Main Menu Items 5, 6, and 7 .......................................5

Using the USB Duplicator ................................................................7

Synchronous and Asynchronous .............................................................7

Main Menu ..............................................................................................8

Copy ...............................................................................................8

Compare ........................................................................................ 11

Copy+Compare ..............................................................................14

Capacity Check .............................................................................. 18

Information ....................................................................................19

Utility ............................................................................................. 20

Setup ..............................................................................................27

Speciﬁcations .................................................................................33

Technical Support ..........................................................................34

Service and Support .......................................................................35

Technical Support FAX Back Form ...............................................38

www.aleratec.com

Introduction

Thank you for purchasing this 1:11 USB Copy Cruiser SA. Please read this User Guide thoroughly before using this product.

• Page 2 shows the 1:11 USB Copy Cruiser SA Display Panel.

Product Features

• Stand Alone, no computer required.

• Copy to, Compare, or Erase up to 11 drives simultaneously.

• Backlighted LCD display shows function selected and job progress.

• Compatible with popular drive capacities and formats.

• Fast Synchronous and Asynchronous copying.

Key Items – 1:11 USB Copy Cruiser SA

Controller and

Display Panel

Power Switch

Source USB Port

Target USB Ports

(11)

Note: Choose a Good Location

1. Do not place near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.

2. Good care will help assure maximum product life. Improper operating environment and misuse may void the warranty.

www.aleratec.com

Introduction

1:11 USB Copy Cruiser SA Display Panel

2 4

1 Display shows all functions and messages

2 ENT button is used to execute a selected function

3 ESC button is used to cancel a selected function

4 UP arrow is used to scroll up through functions or menus

5 DOWN arrow is used to scroll down through functions or menus

www.aleratec.com

Precautions

Before installing your 1:11 USB Copy Cruiser SA, please read the following.

Installation

Avoid placing the 1:11 USB Copy Cruiser SA in a location subject to:

• High humidity

• High temperature

• Excessive dust

• Mechanical vibration

• Direct sunlight

• Electromagnetic radiation

Operation

Avoid exposing the duplicator to sudden changes in temperature as condensation may form on the lens inside the duplicator. Operating the duplicator immediately after a sudden increase in temperature may result in a malfunction during playback or writing operations.

Transportation

Keep the original packing materials for future moving or shipping of the 1:11 USB Copy Cruiser SA.

www.aleratec.com

Overview

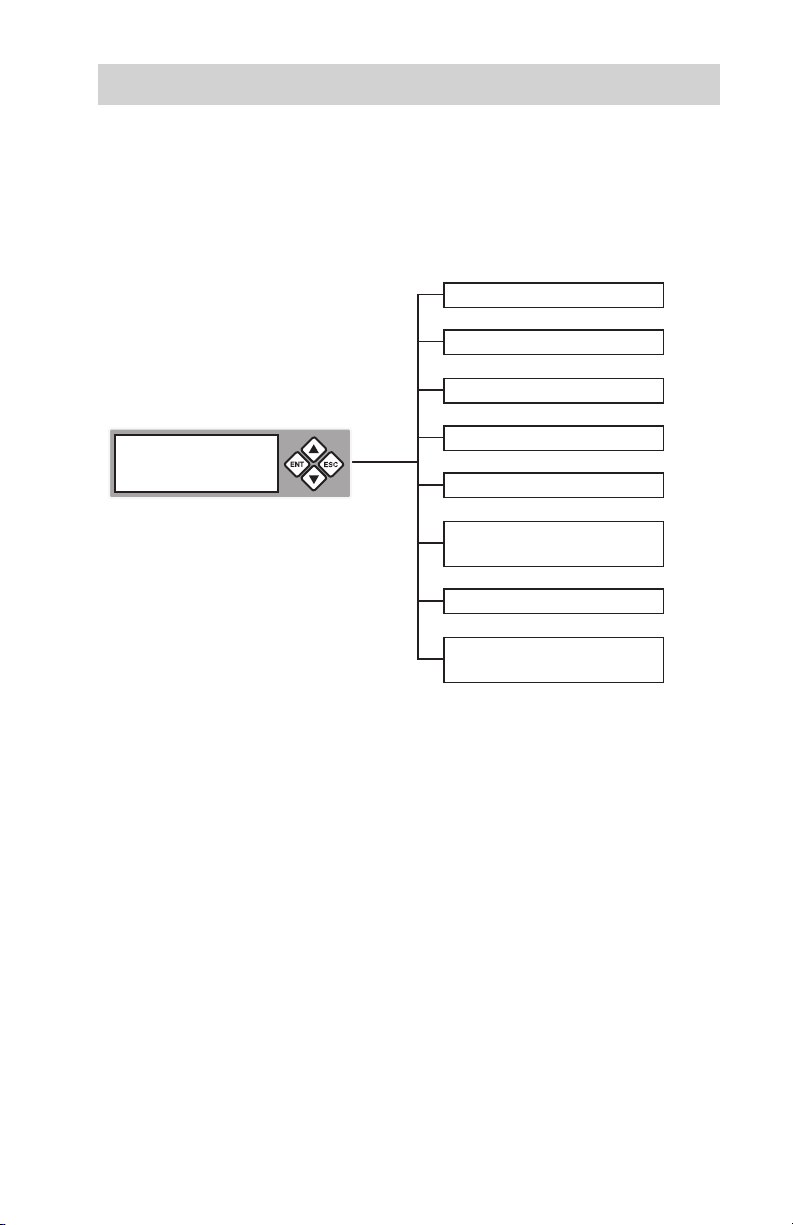

Main Menu

This section provides a listing of the functions of the 1:11 USB Copy Cruiser SA. Detailed descriptions of each function are given in the next section. The functions are numbered for easy reference; these numbers are also used in the next section.



USB Duplicator

1. Copy

USB Duplicator

2. Compare

USB Duplicator

3. Copy+Compare

USB Duplicator

4. Capacity Check

USB Duplicator

5. Information



ENT

ESC



ENT

ESC



ENT

ESC



ENT

ESC



ENT

ESC



USB Duplicator

6. Utility

USB Duplicator

7. Setup



ENT

ESC



ENT

ESC



www.aleratec.com

Overview

Subfunctions of Main Menu Items 5, 6, and 7

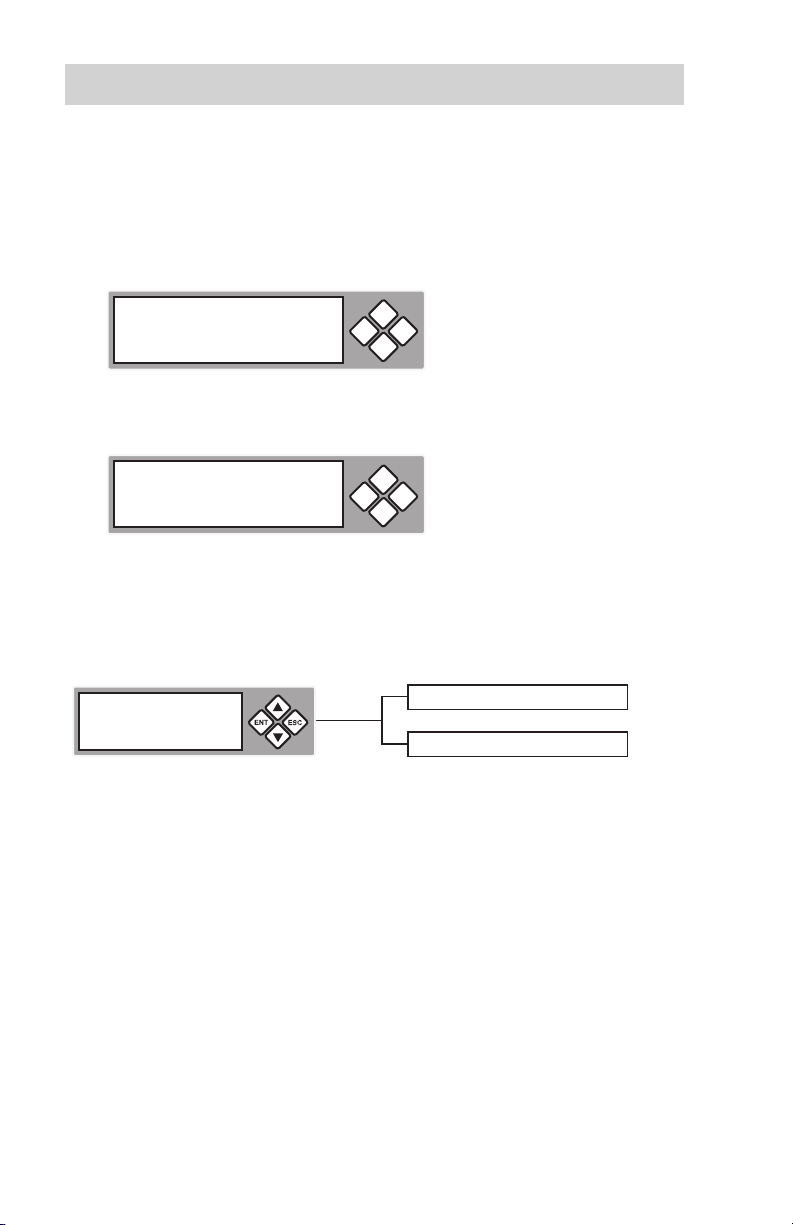

The main menu “Information” function has 2 subfunctions. These are:

USB Duplicator

5. Information



ENT

ESC



5.1 USB Info

5.2 System Info

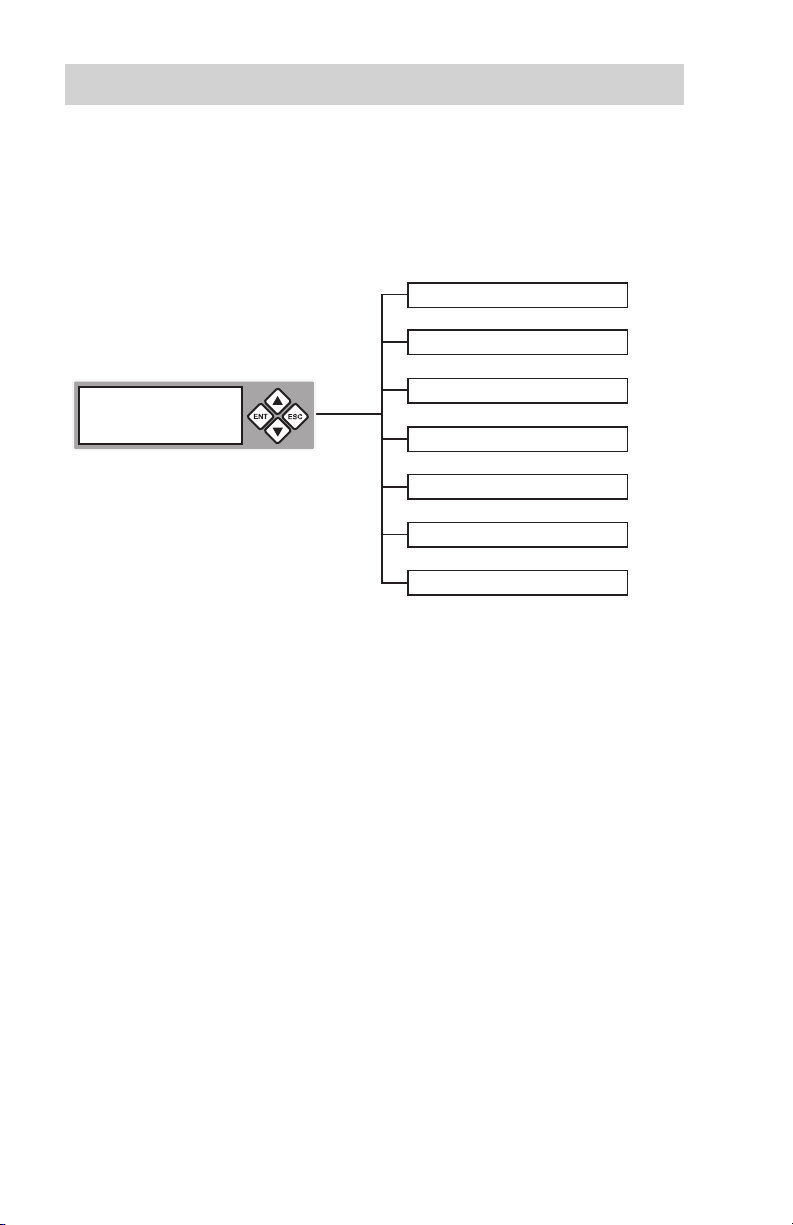

The main menu “Utility” function has 6 subfunctions. These are:

6.1 Format FAT

6.2 Measure Speed

USB Duplicator

6. Utility



ENT

ESC



6.3 Media Check

6.4 Quick Erase USB

6.5 Full Erase USB

6.6 System Update

6.7 Calc. Checksum

www.aleratec.com

Overview

Subfunctions of Main Menu Items 5, 6, and 7 - continued

The main menu “Setup” function has 8 subfunctions. These are:

7.1 Start-up Menu

7.2 Copy Area

7.3 Button Beep

USB Duplicator

7. Setup



ENT

ESC



7.4 Asyn Hold Time

7.5 Ignore Size

7.6 Asynchronous Enable/Disable

7.7 Language

7.8 Working Mode Normal/Turbo

www.aleratec.com

Using the USB Duplicator

Synchronous and Asynchronous

The 1:11 USB Copy Cruiser SA supports two copying methods:

• Synchronous

• Asynchronous

Synchronous Copying

Synchronous Copying means that all ash drives begin copying together. Synchronous Copying is used when the source data is larger than the system buffer (256MB).

You can check the size of the data source drive by inserting the source drive into the USB Duplicator and using the arrow keys to rst select “Information”, then select “USB Info”.

Plug in one source and up to 11 target USB ash drives. The display will read out the number of USB ash drives that are ready for copying and the content size. When you have nished loading the target drives use the arrow keys to select “Copy” and then select OK.

Asynchronous Copying

Asynchronous Copying is used when the data les are the same as or less than the systems buffer memory (256MB). If the source data content is less than the systems buffer memory you can copy ash drives continuously by taking out the drive which has nished copying, and replacing it with another blank. Asynchronous Copying will start immediately after loading the rst target drive.

When this process is used the source data is read into systems buffer rst. You can check the size of the data source USB ash drive by inserting it into the USB Duplicator and using the arrow keys to rst select “Information”, then select “USB Info”.

www.aleratec.com

Using the USB Duplicator

Main Menu

Functions are selected with the arrow keys. The numbers correspond to the Function listing in the previous section.

Copy

This function makes USB ash copies. The duplicator auto detects and supports Synchronous, and Asynchronous methods of Copy.

Synchronous Copying

In Synchronous Copying all USB ash drives are copied simultaneously. Synchronous Copying is used when the source data is larger than the system buffer (256MB).

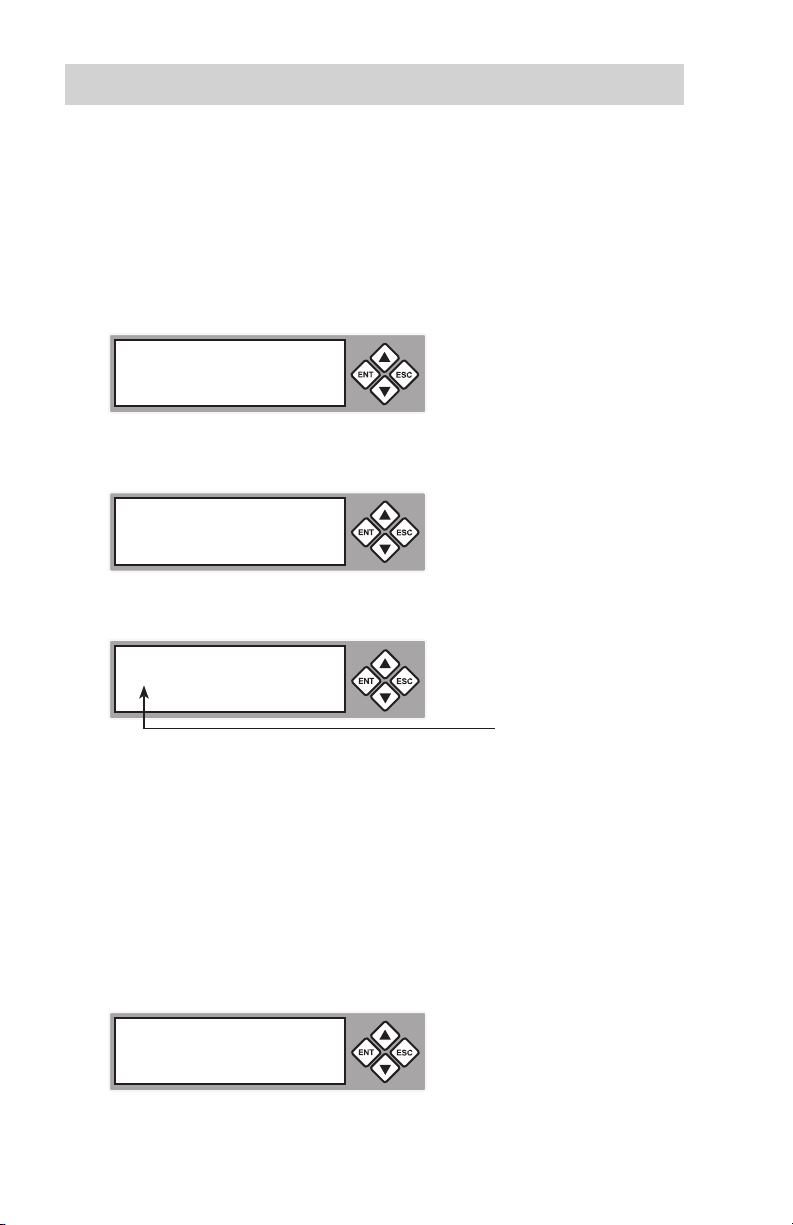

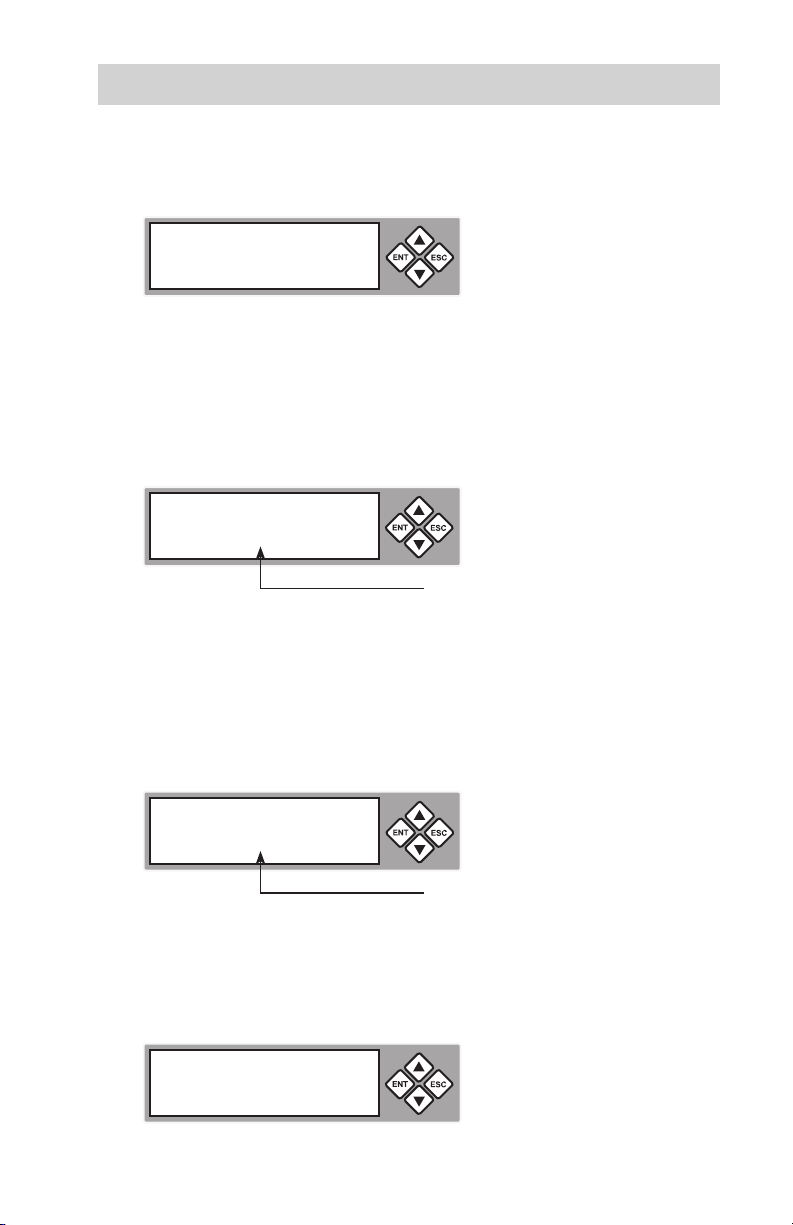

1. Load the source ash drive into the USB Duplicator. Use the UP or DOWN arrow to scroll through the menu until Copy is displayed on the LCD screen.



USB Duplicator

1. Copy

ENT

ESC



2. Press the OK button on the display panel. The LCD will display the following status:



USB(963M) 450M 0 ready

ENT

ESC



Note: The number beside “USB” is the capacity of the USB ﬂash drive in megabytes. The number to the right is the size occupied by ﬁles or images.

3. Load the blank target ash drives into the USB Duplicator. The LCD will display the number of blank media loaded and ready for copying.



USB(963M) 450M 3 ready

www.aleratec.com

ENT

ESC



Using the USB Duplicator

Synchronous Copying - continued

4. Finish loading the blank target ash drives, then press the OK button on the

display panel.

5. The LCD will display the status of the copying process.

Total MBytes

on source



Copy 450M 15% 0:32 68M

6. When Copy is complete LCD will display the following status:



Total OK: 5 OK: 5 NG: 0 1:03 OK: 5 NG: 0

ENT

ESC



If the Copy fails, the LCD will display the number of ash drives that failed and passed.

ENT

ESC



MBytes copiedTime elapsedPercent Complete

Note: When copying is in process the Green LED on the front panel is blinking. Do not take out the drive while it is copying. When copying is ﬁnished the Green LED stays on (no blinking). If an error occurs during the copy process a Red LED will display.

Asynchronous Copying

Asynchronous Copy is used only when the source content is the same as or less than the system buffer (256MB). With the source content read into the systems buffer you can copy ash drives continuously by taking out the drive which has nished copying, and replacing it with another blank. This process is repeated until the copying job is complete.

1. Load the source ash drive into the USB Duplicator. Use the UP or DOWN

arrow to scroll through the menu until Copy is displayed on the LCD screen.



USB Duplicator

1. Copy

www.aleratec.com

ENT

ESC



Using the USB Duplicator

2. Press the OK button on the display panel. The USB Duplicator will start to read the source content into the system’s buffer and immediately start copying any loaded target USB ash drives.



USB(58M) 450M Reading...

3. Load the blank target ash drives into the USB Duplicator. The LCD will display the number of blank media loaded and copying.

Pass: 0 Working Fail: 0 3

Note: When copying is in process the Green LED on the front panel is

blinking. Do not take out the drive while it is copying. When copying is ﬁnished the Green LED stays on (no blinking). If an error occurs during the copy process a Red LED will display.

4. As nished drives are removed, and new blanks inserted, the display will show the number of copies completed and the number of USB ash drives still in the copying process. If the Copy fails, the LCD will display the number of ash drives that failed and passed.

ENT

ESC



ENT

ESC



Pass: 5 Working Fail: 0 2

ENT

ESC



Note: During Asynchronous Copying you can use the UP and DOWN arrow keys to check each ﬂash drives copying status.

www.aleratec.com

Using the USB Duplicator

Main Menu

Compare

This function will compare the nished target USB ash drives to the source USB ash drive after copying is complete. The USB Duplicator supports Compare in both Synchronous, and Asynchronous modes.

Synchronous Compare

In Synchronous Compare all USB ash drives are compared simultaneously.

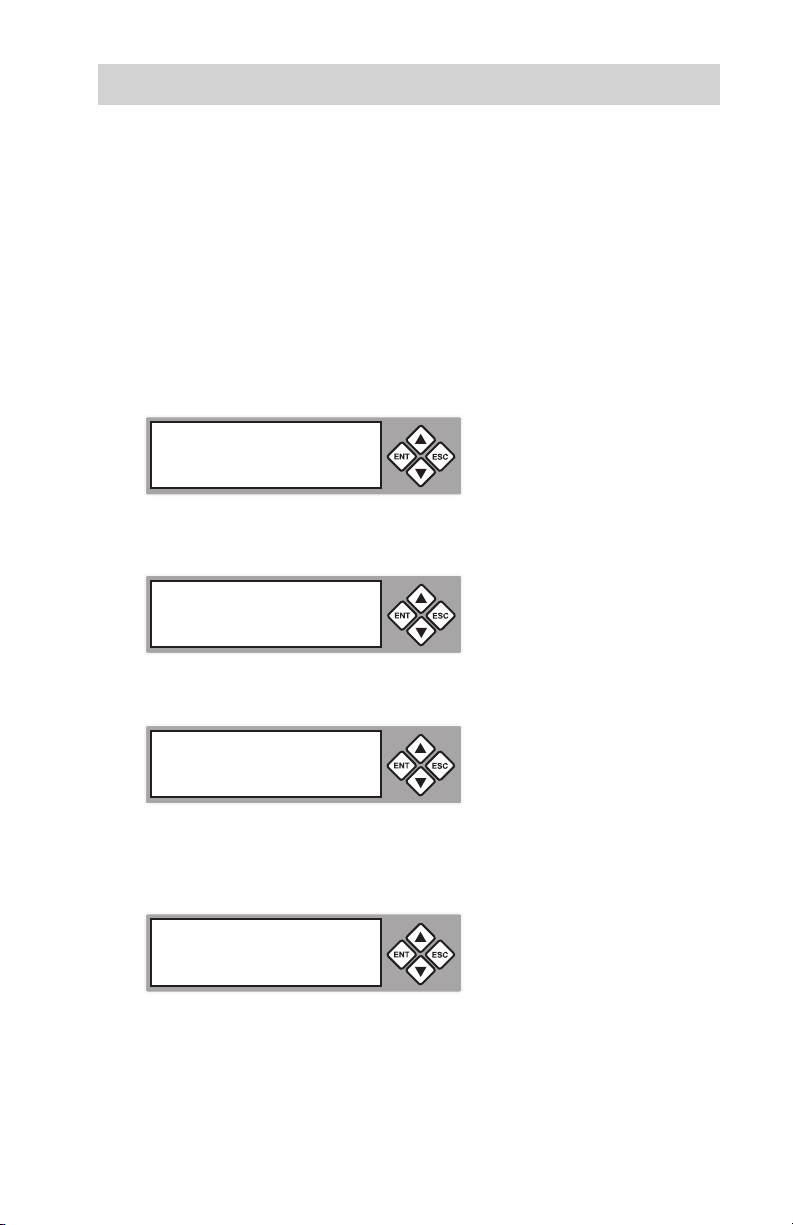

1. When copying is complete and with the data source drive and the target

USB ash drives still loaded in the USB Duplicator, use the UP or DOWN arrow to scroll through the menu until Compare is displayed on the LCD screen.



USB Duplicator

2. Compare

2. Press the OK button on the display panel to select Compare. The LCD

will display the following status:

ENT

ESC



USB (953M) 925M 3 ready

ENT

ESC



3. Press OK again and the Compare will start as shown in the display below.



Compare 925M 15% 0:18 226M

Note: When Compare is in process the Green LED on the front panel

is blinking. Do not take out the drive while it is running a comparison. When Compare is ﬁnished the Green LED stays on (no blinking). If an error occurs during the copy process a Red LED will display.

www.aleratec.com

ENT

ESC



Using the USB Duplicator

4. When Compare is complete the display will show the total, and the number that pass and fail.



Total OK: 5 OK: 5 NG: 0 1:03 OK: 5 NG: 0

Asynchronous Compare

Asynchronous Compare is used only when the source content is the same as or less than the system buffer (256MB). With the source content read into the systems buffer you can compare ash drives continuously by taking out the drive which has nished comparing, and replacing it with another ash drive. This process is repeated until the comparison job is complete.

1. Load the source ash drive into the USB Duplicator. Use the UP or DOWN arrow to scroll through the menu until Compare is displayed on the LCD screen.

USB Duplicator

2. Compare

ENT

ESC



ENT

ESC



2. Press the OK button on the display panel. The USB Duplicator will start to read the source content into the system’s buffer and immediately start comparing any loaded target USB ash drives.



USB(58M) 450M Reading...

ENT

ESC



3. Load the target ash drives to be compared into the USB Duplicator. The LCD will display the number of ash drives loaded and comparing.



Pass: 0 Working Fail: 0 3

Note: When compare is in process the Green LED on the front panel

is blinking. Do not take out the drive while it is comparing. When comparing is ﬁnished the Green LED stays on (no blinking). If an error occurs during the process a Red LED will display.

www.aleratec.com

ENT

ESC



Using the USB Duplicator

Asynchronous Compare - continued

4. As nished drives are removed, and new ash drives inserted, the

display will show the number of comparisons completed and the number of USB ash drives still in the comparison process. If the Compare fails, the LCD will display the number of ash drives that failed and passed.



Pass: 5 Working Fail: 0 2

Note: During Asynchronous Compare you can use the UP and DOWN

arrow keys to check each ﬂash drives comparison status.

ENT

ESC



www.aleratec.com

Using the USB Duplicator

Main Menu

Copy+Compare

This function will Copy and Compare USB ash drives. The duplicator auto detects and supports Synchronous, and Asynchronous methods of Copy+Compare.

Synchronous Copy+Compare

In Synchronous Copy+Compare all USB ash drives are copied and compared simultaneously. Synchronous Copy+Compare is used when the source data is larger than the system buffer (256MB).

1. Load the source ash drive into the USB Duplicator. Use the UP or DOWN arrow to scroll through the menu until Copy+Compare is displayed on the LCD screen.



USB Duplicator

3. Copy+Compare

2. Press the OK button on the display panel. The LCD will display the following status:

ENT

ESC



USB(963M) 450M 0 ready

ENT

ESC



Note: The number beside “USB” is the capacity of the USB ﬂash drive in megabytes. The number to the right is the size occupied by ﬁles or images.

3. Load the blank target ash drives into the USB Duplicator. The LCD will display the number of media loaded and ready for Copy+Compare.



USB(963M) 450M 3 ready

www.aleratec.com

ENT

ESC



Using the USB Duplicator

Synchronous Copy+Compare - continued

4. Finish loading the blank target ash drives, then press the OK button

on the display panel.

5. The LCD will display the status of the copying process.



Copy 450M 15% 0:32 68M

6. When Copy is complete LCD will display the following status:

Total: 11/0 Pass 11 Fail 0

If the Copy fails, the LCD will display the number of ash drives that failed and passed.

7. When Copy is complete the Compare portion will automatically begin.

The LCD will display the status of the copying process.

ENT

ESC



ENT

ESC



Compare 925M 15% 0:18 226M

ENT

ESC



8. When Compare is complete the display will show the total, and the

number that pass and fail.



Total OK: 5 OK: 5 NG: 0 1:03 OK: 5 NG: 0

ENT

ESC



Note: When Copy+Compare is in process the Green LED on the front panel is blinking. Do not take out the drive while it is working. When Copy+Compare is ﬁnished the Green LED stays on (no blinking). If an error occurs during the process a Red LED will display.

www.aleratec.com

Main Menu

Asynchronous Copy+Compare

Asynchronous Copy+Compare is used only when the source content is the same as or less than the system buffer (256MB). With the source content read into the systems buffer you can copy and compare ash drives continuously by taking out the drive which has nished its Copy+Repair cycle, and replacing it with another blank. This process is repeated until the Copy+Compare job is complete.

1. Load the source ash drive into the USB Duplicator. Use the UP or DOWN arrow to scroll through the menu until Copy+Compare is displayed on the LCD screen.



USB Duplicator

3. Copy+Compare

2. Press the OK button on the display panel. The USB Duplicator will start to read the source content into the system’s buffer and immediately start copying any loaded target USB ash drives.

USB(58M) 450M Reading...

ENT

ESC



ENT

ESC



3. Load the blank target ash drives into the USB Duplicator. The LCD will display the number of blank media loaded and copying.



Pass: 0 Working Fail: 0 3

Note: When copying is in process the Green LED on the front panel is

blinking. Do not take out the drive while it is copying. When copying is ﬁnished the Green LED stays on (no blinking). If an error occurs during the copy process a Red LED will display.

www.aleratec.com

ENT

ESC



Using the USB Duplicator

Asynchronous Copy+Compare - continued

4. If the Copy fails, the LCD will display the number of ash drives that

failed and passed.



Pass: 5 Working Fail: 0 2

Note: During Asynchronous Copying you can use the UP and DOWN

arrow keys to check each ﬂash drives copying status.

5. When Copy is complete the Compare portion will automatically begin.

The LCD will display the status of the copying process.

Compare 925M 15% 0:18 226M

6. When Compare is complete the display will show the total, and the

number that pass and fail.

ENT

ESC



ENT

ESC



Total OK: 5 OK: 5 NG: 0 1:03 OK: 5 NG: 0

ENT

ESC



When Copy+Compare is nished with any of the target drives you can take out the nished drive and put another blank ash drive for Copy+Compare.

www.aleratec.com

Using the USB Duplicator

Main Menu

Capacity Check

This function will check the capacity of each ash drive inserted. When nished the following screen will appear.



Pass: 12 Capacity Fail: 0 0

Using the UP and DOWN arrows, you can scroll thru each drive loaded to display capacity.

[#01] SIZE: 953M Capacity OK

Information

This function includes 2 subfunctions. These are:

ENT

ESC



ENT

ESC



USB Duplicator

5. Information



ESC



www.aleratec.com

5.1 USB Info

5.2 System Info

Using the USB Duplicator

5.1 USB Info.

USB Info is a function that displays the USB ash drives basic information such as ash type, content size, and available space.

1. Use UP or DOWN arrow to scroll through the menu until Information

is displayed on the LCD screen.



5. Information

1. USB Info

Press the OK button to select or press ESC to go to the next setting.

2. Press OK to get USB Info. You can scroll through each drive with

the arrow keys. Press ESC when nished. The LCD will display the following status:

01 USB 953M FAT 16 925M

5.2 System Info.

ESC



ESC



1. Use UP or DOWN arrow to scroll through the menu until System

Information is displayed on the LCD screen.



5. Information

2. System Info

ESC



2. Press the DOWN arrow to get to System Info. and press OK.

Press ESC twice to return to the Main Menu.

www.aleratec.com

Using the USB Duplicator

Main Menu

Utility

The main menu Utility function has 6 subfunctions. These are:

6.1 Format FAT

6.2 Measure Speed

USB Duplicator

6. Utility



ESC



6.3 Media Check

6.4 Quick Erase USB

6.5 Full Erase USB

6.6 System Update

6.7 Calc. Checksum

www.aleratec.com

Using the USB Duplicator

Main Menu

6.1 Format FAT

This function is used to format ash drives with the duplicator. If the original format is FAT, then the format operation will not change the format, but will write over any data on the ash drive.

If the format is not FAT (e.g. NTFS, Linux, or FAT multi-partition) the controller will check the capacity of the ash drive. If the capacity is greater than 2GB, it will automatically use FAT 32 format. If the capacity is less than 2GB, it will use FAT 16.

1. Load the ash drives into the USB Duplicator. Use the UP or DOWN

arrow to scroll through the menu until Utility is displayed on the LCD screen.



USB Duplicator

6. Utility

2. Use the UP and DOWN arrow keys to check the status of any of the

ash drives loaded in the machine. Drives inserted in the rst port (source) will not be formatted.

ESC



[Utility]

1. Format FAT

Do FORMAT

Conﬁrm?



ESC



ESC



www.aleratec.com

Using the USB Duplicator

6.2 Measure Speed

This function will measure the read and write speeds of drives loaded in the ports.

1. Load drives. Use UP or DOWN arrow to scroll through the menu until Utility is displayed on the LCD screen. Press the OK button to select or press ESC to go to the next setting.



USB Duplicator

6. Utility

2. Press OK and scroll to Measure Speed. The LCD will display the following status:

[Utility]

2. Measure Speed

3. Use the UP and Down arrow keys to check each drive.

[#2] Read: 21.7MB Write: 10.7 MB

ESC



ESC



ESC



Port position

6.3 Media Check

This function is used to check ash drives with the controller. There are 2 types of checks that can be performed. Safe and Normal. The area to be examined can be set for each check.

1. Load drives. Use UP or DOWN arrow to scroll through the menu until Utility is displayed on the LCD screen. Press the OK button to select or press ESC to go to the next setting.



USB Duplicator

6. Utility

www.aleratec.com

ESC



Using the USB Duplicator

2. Press OK and scroll to Media Check. The LCD will display the

following status:



[Utility]

3. Media Check

3. Use UP or DOWN arrow to scroll through the available options:

6.3.1 Safe Check

This function will read all the data on the ash drive with no writing so as to preserve all of the data and format on the drive. Use the UP and Down arrow keys to check the results on all of the drives loaded.

[Media Check]

1. Safe 100%

6.3.2 Normal Check

The controller will read and write in each area of the drive. If one of the areas cannot be written to or read, the display will show an error. Use the

UP and Down arrow keys to check the results on all of the drives loaded.

ESC



ESC



(percentage of drive tested)

Note: All data and formats will be destroyed with the Normal Check.



[Media Check]

2. Normal 100%

ESC



(percentage of drive tested)

6.3.3 Setup Range

This function will adjust the percentage of the drive tested in the Safe and Normal Checks. Use the Up and Down arrow keys to change the percentage tested.



[Media Check]

3. Setup Range

ESC



www.aleratec.com

Using the USB Duplicator

6.4 Quick Erase USB

Quick Erase USB is a function that can quickly erase the target USB ash drive.

Note: The Quick Erase USB function will only erase the FAT table index of each target ﬂash drives.

1. Use UP or DOWN arrow to scroll through the menu until Utility is displayed on the LCD screen. Press the OK button to select or press ESC to go to the next setting.



USB Duplicator

6. Utility

2. Press OK and scroll to Quick Erase USB. The LCD will display the following status:

6. Utility

4. Quick Erase USB

ESC



ESC



3. Press OK to select. The LCD will display the following status:



Do Erase All

Conﬁrm?

ESC



Press OK for Yes or ESC for No.

4. LCD display will show the following screen when nished.



Pass: 2 Working Fail: 0 0

Note: This function will erase the ﬂash drive’s data content. It will not

erase the ﬂash drive’s FAT 16/32 format. If the format of the target drive is not FAT 16/32, the Quick Erase won’t execute.

www.aleratec.com

ESC



Using the USB Duplicator

6.5 Full Erase USB

Full Erase USB is a function what will erase all data on the target USB ash drive.

Note: The Full Erase USB will completely erase data of each of the target ﬂash drives This function will also clear the FAT table in the ﬂash drive. You will not be able to read the ﬂash drive on PC until it is re-formatted.

1. Use UP or DOWN arrow to scroll through the menu until Utility is

displayed on the LCD screen. Press the OK button to select or press ESC to go to the next setting.



USB Duplicator

6. Utility

2. Press OK and scroll to Full Erase USB. The LCD will display the

following status:

6. Utility

5. Full Erase USB

ESC



ESC



3. Press OK to select. The LCD will display the following status:



Do Erase All

Conﬁrm?

ESC



Press OK for Yes or ESC for No.

4. LCD display will show the following screen when nished.



Pass: 2 Working Fail: 0 0

ESC



6.6 System Update

This function is used to update your systems rmware. (Contact Aleratec Technical Support for the latest version.)

www.aleratec.com

Using the USB Duplicator

6.7 Calc. Checksum

The Calculate Checksum function computes a checksum for the contents of the source drive. This alphanumeric can be used to ensure that no minor changes due to alteration or virus have occurred on the source drive since its last use.

1. Use UP or DOWN arrow to scroll through the menu until Utility is displayed on the LCD screen. Press the OK button to select or press ESC to go to the next setting.



USB Duplicator

6. Utility

2. Press OK and scroll to Calc. Checksum. The LCD will display the following status:

6. Utility

7. Calc. Checksum

ESC



ESC



3. Press OK to select. Depending on content, some time will be spent calculating the Checksum. Once done, the LCD will display the calculated Checksum.



ESC



Checksum=

AE5277D9

www.aleratec.com

Using the USB Duplicator

Main Menu

Setup

This function includes 8 subfunctions. These are:

7.1 Start-up Menu

7.2 Copy Area

7.3 Button Beep

USB Duplicator

7. Setup



ESC



7.4 Asyn Hold Time

7.5 Ignore Size

7.6 Asynchronous Enable/Disable

7.7 Language

7.8 Working Mode Normal/Turbo

www.aleratec.com

Using the USB Duplicator

7.1 Startup Menu

Startup Menu allows you to select which function displays rst when the USB Duplicator is turned on.

This function selects the menu item that will be the rst item shown on the display when you turn on the duplicator. The default setting is Copy.

1. Use the UP or DOWN arrow to scroll through the menu until Setup is displayed on the LCD screen. Press OK.



USB Duplicator

7. Setup

2. Use the UP or Down arrow to scroll through the Setup options until Startup Menu is displayed on the LCD screen.

7. Setup:

1. Startup Menu

Startup Menu

1. Copy

ESC



ESC



ESC



7.2 Copy Area

This function supports the selection of Quick Copy or Copy whole area of the source.

7.2.1 Only Data area – Quick Copy If the controller system can verify FAT 16, 32, NTFS, Linux Ext 2, Ext

3 format for the source, the system will copy just the data area when this function is selected. If it cannot verify the format, the system will automatically copy the whole area of the source. For example, if a 2GB source is FAT 32 and it has 50MB of data, the system will copy only the 50MB of data.

7.2.2 Whole area – Controller will copy whole area of the source. If the source is not FAT 16, 32, NTFS, Linux Ext 2, Ext 3 format, the

system will copy the entire media, even the blank area. When this function is selected, Quick Copy will not be used. The copy process takes longer.

www.aleratec.com

Using the USB Duplicator

7.3 Button Beep

This setting controls the button sound.

1. Use the UP or DOWN arrow to scroll through the menu until Setup is

displayed on the LCD screen. Press the OK.



USB Duplicator

7. Setup

2. Use the UP or Down arrow to scroll through the Setup options until

Button Beep is displayed on the LCD screen.

7. Setup:

3. Button Beep

ESC



ESC



3. Default setting is ON.

or OFF.

Press the OK button to change, or ESC to exit.

Button Beep On

Use the UP or DOWN arrows to select either ON



ESC



www.aleratec.com

Using the USB Duplicator

7.4 Asyn Hold Time

This function allows you to set the time to exit Asynchronous Copying when you pull all the USB ash drives out of the duplicator. The default setting is 30 seconds. If after 30 seconds no new drives are plugged into the USB Duplicator the LCD will ask to exit Asynchronous or to stay in Asynchronous mode. Press OK to exit Asynchronous Copying or press ESC to keep this status.

To change the default setting for Asyn Hold Time use the following procedure:

1. Use the UP or DOWN arrow to scroll through the menu until Setup is displayed on the LCD screen. Press the OK button to select.



USB Duplicator

7. Setup

2. Use the UP or Down arrow to scroll through the Setup options until

Asyn Hold Time is displayed on the LCD screen. Press OK.

7. Setup:

4. Asyn Hold Time

ESC



ESC



3. Default setting is 30 seconds; press the arrow keys to change. Press ESC to exit.



Asyn Hold Time

30sec.

ESC



7.5 Ignore Size

To make sure the FAT table of each ash drive was copied correctly all source and target ash drives should be the same capacity. Each ash drive potentially has some capacity difference due to the manufacturing process. To ensure both the source and target ash drives are at the same capacity you can set the capacity tolerance. This function is used to set the tolerance % of ash capacity difference between source and targets.

www.aleratec.com

Using the USB Duplicator

7.5 Ignore Size - continued

1. Use the UP or DOWN arrow to scroll through the menu until Setup is

displayed on the LCD screen. Press the OK button to select or press ESC to go to the next setting.



USB Duplicator

7. Setup

2. Use the UP or Down arrow to scroll through the options until Ignore

Size is displayed on the LCD screen. Press OK.

7. Setup:

5. Ignore Size

3. Default setting is 3% ; press the arrow keys to change and press OK.

Ignore Size

ESC



ESC



ESC



Note: Source ﬂash drive and blank drives need to be the same capacity for two reasons.

1. During the copy process the source ﬂash drive “index sector” is copied to

the target ﬂash drive. The index sector of a ﬂash drive contains the drives speciﬁcations, size and FAT table. Different drive sizes will have different index sectors. For example if your are copying a 2G source ﬂash drive to a 4G target ﬂash drive without performing data transforming, the index sector of the 2G source would be copied to the 4G target ﬂash drive effectively changing it to a 2G ﬂash drive because of the copied 2G index sector.

2. If you allow the system to execute data transforming from a source ﬂash drive to

multiple target ﬂash drive in addition to longer copying time there is a potential for data loss during data transforming.

Note: If you need to copy a source ﬂash to a target with a big capacity difference there are two ways to avoid potential problems.

1. Use the Setup function Ignore Size to increase the tolerance % of the source and

target.

2. Turn the Setup function Analyze Source to OFF.

www.aleratec.com

Using the USB Duplicator

7.6 Asynchronous (Enable/Disable)

This function allows the user to enable/disable asynchronous copying. Use Up and Down arrow keys to toggle between and push OK to select, or ESC to exit.

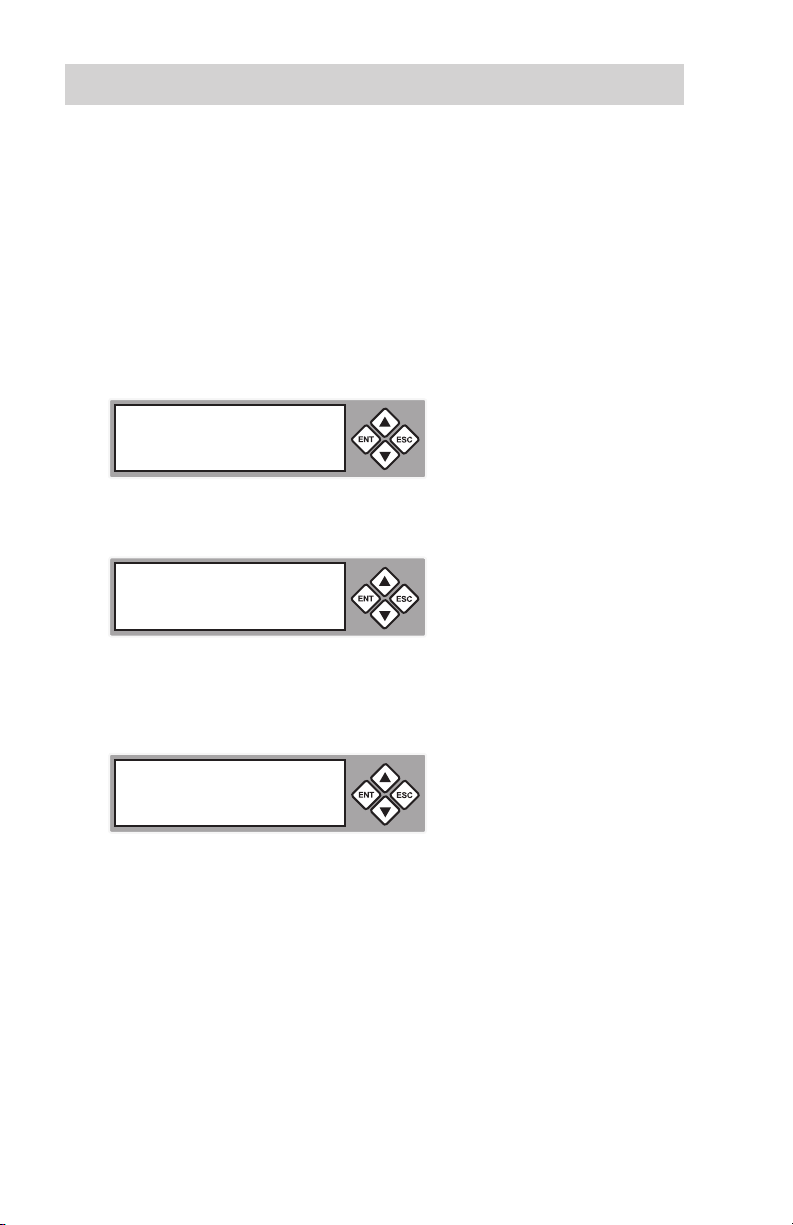

7.7 Language

This function selects the language shown on the display (English, Traditional Chinese, Simplied Chinese, and Japanese).

To change the default setting for Asyn Hold Time use the following procedure:

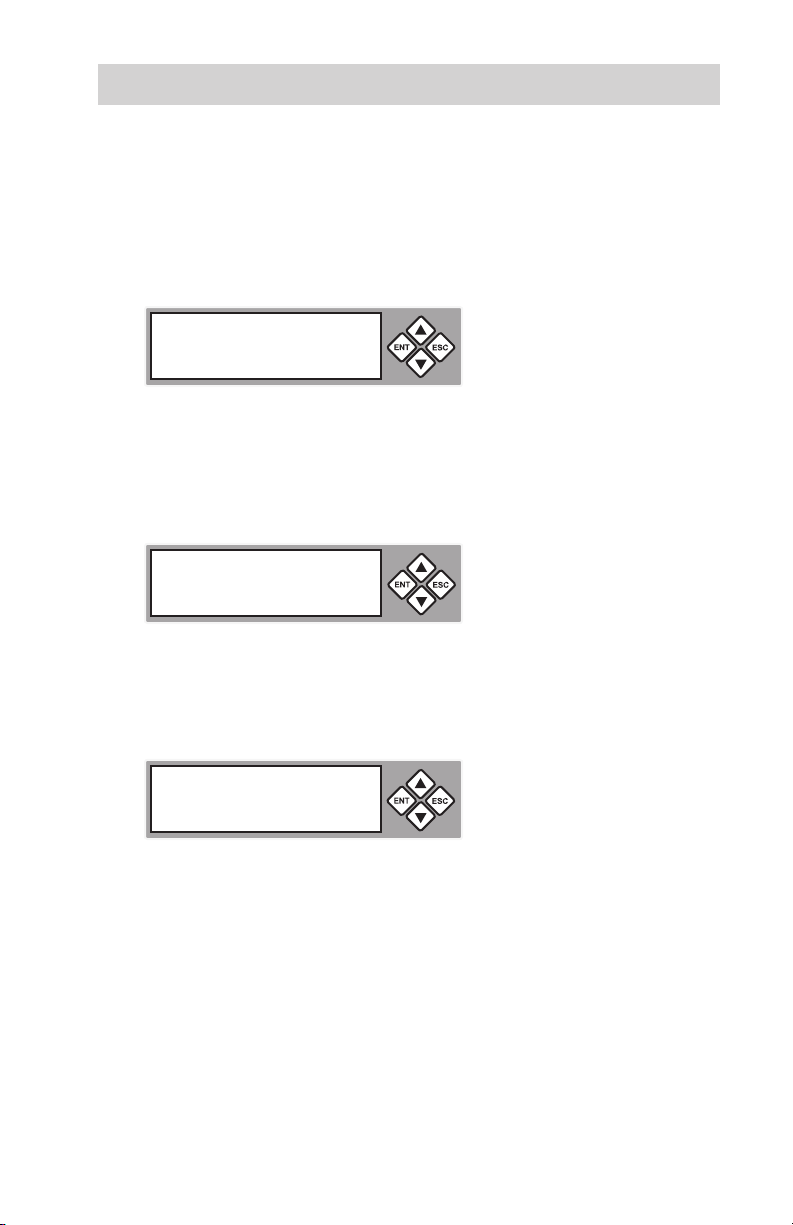

1. Use the UP or DOWN arrow to scroll through the menu until Setup is displayed on the LCD screen. Press the OK button to select or press ESC to go to the next setting.



USB Duplicator

7. Setup

2. Use the UP or Down arrow to scroll through the options until Language is displayed on the LCD screen.

ESC



7. Setup:

7. Language

ESC



3. To select, press the OK button, or ESC to exit.

7.8 Working Mode (Normal/Turbo)

This function allows the user to select between Normal and Turbo working modes. Select using the Up and Down arrow keys and push OK.

Note: Turbo Mode is faster but it will copy errors. Normal speed is safer.

www.aleratec.com

Speciﬁcations

Operating Type • Stand-alone (No PC Required)

Number of Targets • 11

Supported Media • USB Flash/Pen Drive requiring less than 500mA

from USB Port

Transfer Speed • 128MB/min Typical

Copy Mode • Synchronous or Asynchronous

LCD Display • 2 x 16 Backlit

Power Requirements • 115V or 230V

Operating Temperature • 41°F - 122°F

Operating Humidity • 15% - 90%

www.aleratec.com

Technical Support

After reading this User Guide, if you need additional assistance with this product, please contact Aleratec Technical Support. Our technical staff will be happy to assist you, but they may need your help to better assist you. Calling Aleratec Technical Support without all the necessary information can be both time consuming and frustrating. Therefore, please try to have the following information ready before calling:

1. Part Number - the part number is located on the bottom of the 1:11 USB Copy Cruiser SA.

2. Serial Number - the serial number is located on the bottom of the 1:11 USB Copy Cruiser SA.

3. Troubles - your questions about the 1:11 USB Copy Cruiser SA. Please provide enough information about your problems so our technical staff can recreate and diagnose it.

Technical Support Addresses and Phone Numbers

X By e-mail: support@aleratec.com

X By Telephone: 1-818-678-0484

Technical Support Group can be reached 8:00 AM to 5:00 PM, Pacic Time, Monday through Friday, excluding U.S. holidays.

Please try to call from a phone near your computer system.

X Access is available 24 hours a day, 365 days a year, via:

The World Wide Web at: www.aleratec.com

FAX at: 1-818-678-0483

www.aleratec.com

Service and Support

Aleratec, Inc., Limited Warranty

This Limited Warranty covers defects encountered in the course of normal use of this product and does not apply to damage from improper use, abuse, accidents, unauthorized service, or inadequate packaging when shipping the product to Aleratec, Inc.

Aleratec, Inc. provides the following limited warranty for this product only if the product was originally purchased for use, not re-sale, from Aleratec, Inc., an Aleratec, Inc. authorized dealer or distributor, or any other Aleratec, Inc. approved reseller for this product. This product is warranted to be free from defects in workmanship and material for a period of one year from the date of your original purchase.

If the product fails during normal and proper use within the warranty period, Aleratec, Inc. will, at its option, repair or replace the product at no cost (except shipping and insurance). This limited warranty does not include service to repair damage from improper installation, accident, disaster, misuse, abuse, or modications to the subsystem, or by any other causes unrelated to defective materials or workmanship.

www.aleratec.com

Service and Support

Please Note:

This Warranty is valid only within the United States and Puerto Rico, and applies only to products that are new and unopened on the date of purchase. For areas outside the United States and Puerto Rico, contact the authorized dealer from whom you purchased this product to determine which warranty, if any, applies.

THIS LIMITED WARRANTY CONSTITUTES YOUR SOLE AND EXCLUSIVE REMEDY, AND THE SOLE AND EXCLUSIVE LIABILITY OF ALERATEC, INC., AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OF ITEMS FOR A PARTICULAR PURPOSE.

Your sole remedy shall be repair or replacement, with new or refurbished components, as provided in this Limited Warranty. Aleratec, Inc. shall not be liable for any direct, indirect, special incidental products or consequential damages, including, but not limited to, any loss of data or loss of prots or business, regardless of the form of action or theory of liability resulting from any defect in, or use of, this product (even if Aleratec, Inc. has been advised of the possibility of such damages).

In any event, the liability of Aleratec, Inc. under this Limited Warranty, for damages to you or any third party, regardless of the form of action or theory of liability, shall not exceed the purchase price you paid for this product.

Some states do not allow limitations of the disclaimer of implied warranties, the period an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the exclusions and limitations stipulated in this Limited Warranty may not apply to you. This Limited Warranty gives you specic legal rights, and you may have other rights which vary from state to state.

www.aleratec.com

Service and Support

To Obtain Warranty Service:

You must ship your subsystem to the authorized dealer where your subsystem was purchased within the one year warranty period and no later than thirty days after discovery of claimed defect, whichever occurs rst. In either case, you must provide proof of original purchase before any warranty service can be performed. Products and parts provided as a result of warranty service may be other than new but will be in good working order and become your property at the time of exchange. At the same time, the exchanged products or parts become the property of Aleratec, Inc.

When shipping the subsystem for service, you agree to insure the Duplicator, to prepay shipping charges, and to use the original shipping container or equivalent. Any service outside the scope of this limited warranty shall be at Aleratec, Inc.’s or its Authorized Service Provider’s rates and terms then in effect.

This warranty gives you specic legal rights; you may also have other rights which vary from state to state.

www.aleratec.com

Technical Support FAX Back Form

Aleratec, Inc. Technical Support Fax Back Form

Please record the following information to help expedite any warranty claim:

Model No.: _____________ Serial No.: ____________________________

Date Purchased ________________________________________________

Place of Purchase: ______________________________________________

To: Technical Support Group FAX: 1-818-678-0483

FROM: _____________________FAX: ____________________________

E-MAIL ________________________

RE: ________________________TEL: ____________________________

DATE: _______________# OF PAGES: ____________________________

I am experiencing the following problems with my USB Duplicator:

_____________________________________________________________

By answering these questions, your problem will be solved more rapidly. Make copies as necessary. You can reach us electronically at: www.aleratec. com on the internet.

www.aleratec.com

Speciﬁcations subject to change without notice.

Aleratec, Inc.

9851 Owensmouth Avenue

Chatsworth, CA 91311 U.S.A.

www.aleratec.com

Aleratec 330107 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
