Aleratec 310108 User Manual
USER GUIDE
Aleratec
DVD/CD Flash Copy Tower™
Part No. 310108
Copyright/Model Identication
The content of this manual is for informational purposes only and is subject to
change without notice.
This manual is copyright with all rights reserved. Under copyright laws, this manual
and the software described within may not be copied, except in the normal use of the
product(s) described within or to make a backup copy.
Copyright© 2013
Aleratec, Inc.
9851 Owensmouth Avenue
Chatsworth, CA 91311 U.S.A.
Aleratec® is a registered trademark, and DVD/CD Flash Copy Tower™ is a
trademark of Aleratec, Inc
Check out Aleratec Online!
• Blog.Aleratec.com
• Facebook.com/Aleratec
• Twitter.com/Aleratec
• YouTube.com/Aleratec
Please record the following information to help expedite any warranty claim:
Model No. _________________________ Serial No.________________________
Date Purchased _______________________________________________________
Place of Purchase _____________________________________________________
www.aleratec.com
Radio/TV Interference Statement
The equipment described in this guide emits radio frequency energy. If it is
not installed in accordance with the manufacturer’s instructions, it may cause
interference with radio or television reception.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instruction manual, this equipment may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be veried
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an electrical outlet on a circuit that is different from
the circuit to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
This equipment has been certied to comply with the limits for a Class B computing
device, pursuant to FCC Rules. In order to maintain compliance with FCC
regulations, shielded cables must be used with this equipment. Operation with nonapproved equipment or unshielded cables is likely to result in interference to radio
and TV reception. The user is cautioned that changes and/or modications made to
this equipment, without the approval of manufacturer, could void the user’s authority
to operate this equipment.
www.aleratec.com
Safety Regulations
To prevent re or shock hazard, do not expose the unit
to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to authorized personnel only.
Makesurethatthemanuallyswitchablepower
supplyissettothepropervoltageforyourregion.
As the laser beam in these DVD/CD Flash Copy Tower
is harmful to the eyes, do not attempt to disassemble
the cabinet. Refer servicing to authorized personnel
only.
The use of optical instruments with this product will
increase eye hazard.
This DVD/CD Duplicator is classied as a CLASS 1
LASER PRODUCT.
WARNING
CAUTION
The CLASS 1 LASER PRODUCT label is located on
top of the internal drive enclosure.
CLASS 1
LASER PRODUCT
LASER KLASSE 1
PRODUKT
www.aleratec.com
Table of Contents
Introduction ...................................................................................................1
Product Features ...................................................................................................1
Key Items .............................................................................................................2
DVD/CD Flash Copy Tower: Display Panel and Buttons ...................................2
Function List ........................................................................................................3
Precautions ...................................................................................................5
Installation ............................................................................................................5
Operation ..............................................................................................................5
Transportation ......................................................................................................5
Overview........................................................................................................6
Main Menu ...........................................................................................................6
Subfunctions ........................................................................................................7
Using the DVD/CD Flash Copy Tower ......................................................10
Checking the Device Information .....................................................................10
Disc Spanning ....................................................................................................12
Multi-Session Backup ........................................................................................13
Function Overview: 1. Copy ..............................................................................14
Function Overview: 2. Compare ........................................................................17
Function Overview: 3. Information ..................................................................20
Function Overview: 4. Utility ............................................................................22
Function Overview: 5. Setup ............................................................................23
Specications .............................................................................................25
Technical Support Addresses and Phone Numbers ............................... 26
Service and Support...................................................................................27
Technical Support FAX Back Form ..........................................................30
www.aleratec.com
www.aleratec.com
Introduction
Thank you for purchasing the Aleratec DVD/CD Flash Copy Tower. Please read this
User Guide thoroughly before using this product.
Product Features
The DVD/CD Flash Copy Tower is a Memory Card/USB ash drive to disc copier.
No PC needed, no limitation of Memory Card size, just a very simple key button,
you can easily backup from Memory Cards or USB ash drive to DVD or CD disc.
DVD/CD Flash Copy Tower can do both multi-session backup and disc spanning.
Multi-session allows you to copy several Memory Cards or USB ash drives to one
DVD or CD disc. Disc spanning can split backup a big content size Memory Card to
several discs. In addition, the DVD/CD Flash Copy Tower can also support disc to
disc copying.
• Memory Card or USB ash drive copy backup to DVD/CD disc.
▪ Multisession Technology: Allows all different types of Memory Cards to
backup to one DVD/CD disc.
▪ Disc Spanning Technology: A big capacity Memory Cards can copy to
several DVD/CD discs.
• DVD/CD to DVD/CD disc duplicator.
• No PC needed.
www.aleratec.com
1
Introduction
Key Items
Control Buttons
Card Reader
DVD/CD Writer
Power Button
Note: Choose a Good Location
1. Allow adequate clearance for moving parts.
2. Do not place near heat sources such as radiators or air ducts, or
in a place subject to direct sunlight, excessive dust, mechanical
vibration or shock.
3. Good care will help assure maximum product life. Improper
operating environment and misuse may void the warranty.
DVD/CD Flash Copy Tower: Display Panel and Buttons
(View may vary from picture)
Function Firmware Version Up Arrow
Confirm/Execute
Aleratec V.1.05
1.Copy
USB CF I/II
USB CF MS/MS Pro SD/MMC
2
MS/MS Pro
www.aleratec.com
OK
SD/MMC
Escape/Cancel
Down Arrow
Introduction
Function List
Function Sub-function Description
1. Copy 1.1 Memory Card to Disc Copy one Memory Card to DVD/CD disc
1.2 USB to Disc Copy USB ash drive to DVD/CD disc
1.3 Disc to Disc DVD to DVD copy CD to CD copy
2. Compare 2.1 Memory Card to Disc Bit by bit compare between copied disc and
2.2 USB to Disc Bit by bit compare between USB ash drive
2.3 Disc to Disc Bit by bit compare between source disc and
3. Information 3.1 USB Info Check USB ash drive’s content size
3.2 Memory Card Info
3.3 Disc Info Check disc’s content size information
3.4 Drive Info Check DVD/CD drives manufacturer and
3.5 System Info Check the machine’s rmware and model
4. Utility 4.1 System Update
4.2 Demo I/O
5. Set Up 5.1 Copy+Compare
5.2 Multi-session
5.3 Disc Spanning
5.4 Burn Multidisc
5.5 Burn Speed
5.6 Beep Sound
5.7 Advance Setup
Memory Card
and copied disc
copied disc
information
Check Memory Card’s content size
information
model information
information
Can upgrade system rmware via USB ash
drive or disc
Simulates operation by ejecting and retracting
drive doors
According to your request select “enable” or
“disable”
According to your request select “enable” or
“disable” multi-session function
According to your request select “enable” or
“disable” disc spanning function
Set the duplication from one ash media to
multiple blank discs
Set the burning speed of DVD/CD writing
Set “ON” or “Off” of the beep sound function
Set disc space that will not be used and back
light time
www.aleratec.com
3
Introduction
Note: Flash media (Memory Card and USB) will be recognized by the
DVD/CD Flash Copy Tower only when the format is FAT 12, 16, or 32.
Note: Use only one source at a time. ONLY ONE Memory Card or
ONLY ONE USB flash drive may be plugged in at a time.
Note: When the system is in process, do not pull out the card.

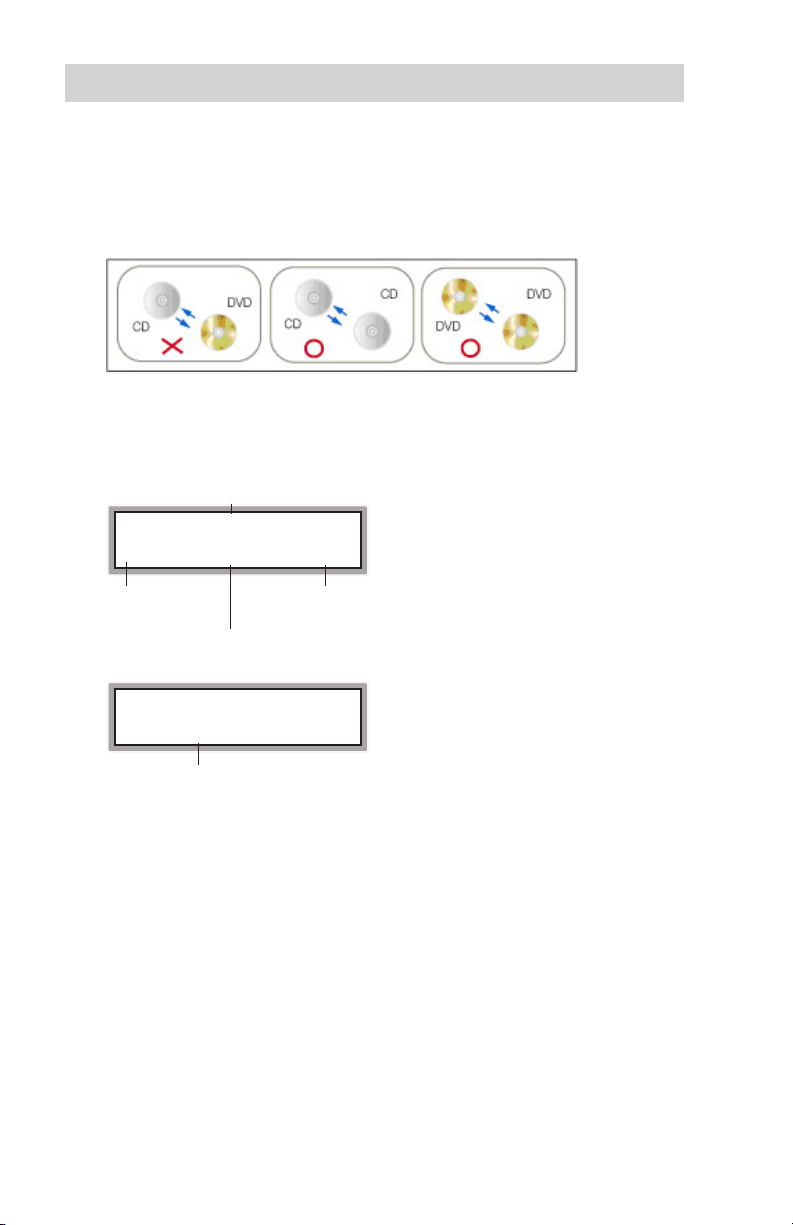

Note: CD will copy only to CD. DVD will only copy to DVD.
4
www.aleratec.com
Precautions
Before installing your DVD/CD Flash Copy Tower, please read the following.
Installation
Avoid placing the DVD/CD Flash Copy Tower in a location subject to:
• High humidity
• High temperature
• Excessive dust
• Mechanical vibration
• Direct sunlight
• Electromagnetic radiation
Power
This product has a manually switchable power supply. Make sure that the power
supply is set to the proper voltage for your region.
Operation
Do not move the DVD/CD Flash Copy Tower during operation. This may cause it to
malfunction during operations.
Avoid exposing the unit to sudden changes in temperature as condensation may
form inside the DVD/CD Flash Copy Tower. Should the surrounding temperature
suddenly rise while the DVD/CD Flash Copy Tower is on, wait at least one hour
before turning off the power. Operating the duplicator immediately after a sudden
increase in temperature may result in a malfunction during playback or writing
operations.
Transportation
Keep the original packing materials for future moving or shipping of the DVD/CD
Flash Copy Tower.
www.aleratec.com
5
Overview
Main Menu
There are 5 main menu items that will display in the DVD/CD Flash Copy Tower
Display Panel. These are:
1. Copy
1.
2. Compare
2.
3. Information
3.
4. Utility
4.
5.
5. Set Up
6
www.aleratec.com
