CAR
BATTERY CHARGER
User Guide
After Sales Support
Specially made for ALDI Stores to our stringent quality sp ecific ations. If you are not entirely tisfied with this product, please return it to your nearest ALDI store within 60 days from the date of purchase for a full refund or replacement, or take advantage of our after sales support by calling the Customer Service Hotline.
Guarantee conditions
Dear customer,
What your 1 year warranty means
Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly.
In the event of product failure within its intended use over the course of the first 1 year after the date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention.
In the unlikely event of such an occurrence, or if you require any information about the product please contact us via our sales support services, details of which can be found in this manual and on the product itself.
AFTER SALES SUPPORT
Aus |
Aldi.aftersales@axima.com.au |
CPL-2054 |
Contents
I.Guarantee conditions
II. |
Contents |
02 |
II. |
Scope of supply |
02 |
1 |
Part description |
03 |
2 |
Safety instructions |
04 |
2.1 |
Correct use |
04 |
2.2 |
General safety instructions |
04 |
2.3 |
Special safety instructions |
05 |
2.4 |
Working environment |
05 |
2.5 |
Use of rechargeable batteries |
06 |
3 |
Operation |
07 |
3.1 |
Operation |
07 |
3.2 |
Connecting the charger |
07 |
3.3 |
Starting the charging process |
09 |
3.4 |
Charging process |
11 |
3.5 |
Disconnecting the charger |
13 |
3.6 |
Special functions of charger |
14 |
4 |
Technical specification |
15 |
5 |
Cleaning and maintenance |
15 |
III. |
Guarantee Card |
|
Scope of supply
•Battery charger CPL-2054
•Operating Instructions with warranty information
AFTER SALES SUPPORT
Aus |
Aldi.aftersales@axima.com.au |
CPL-2054 |
02 |

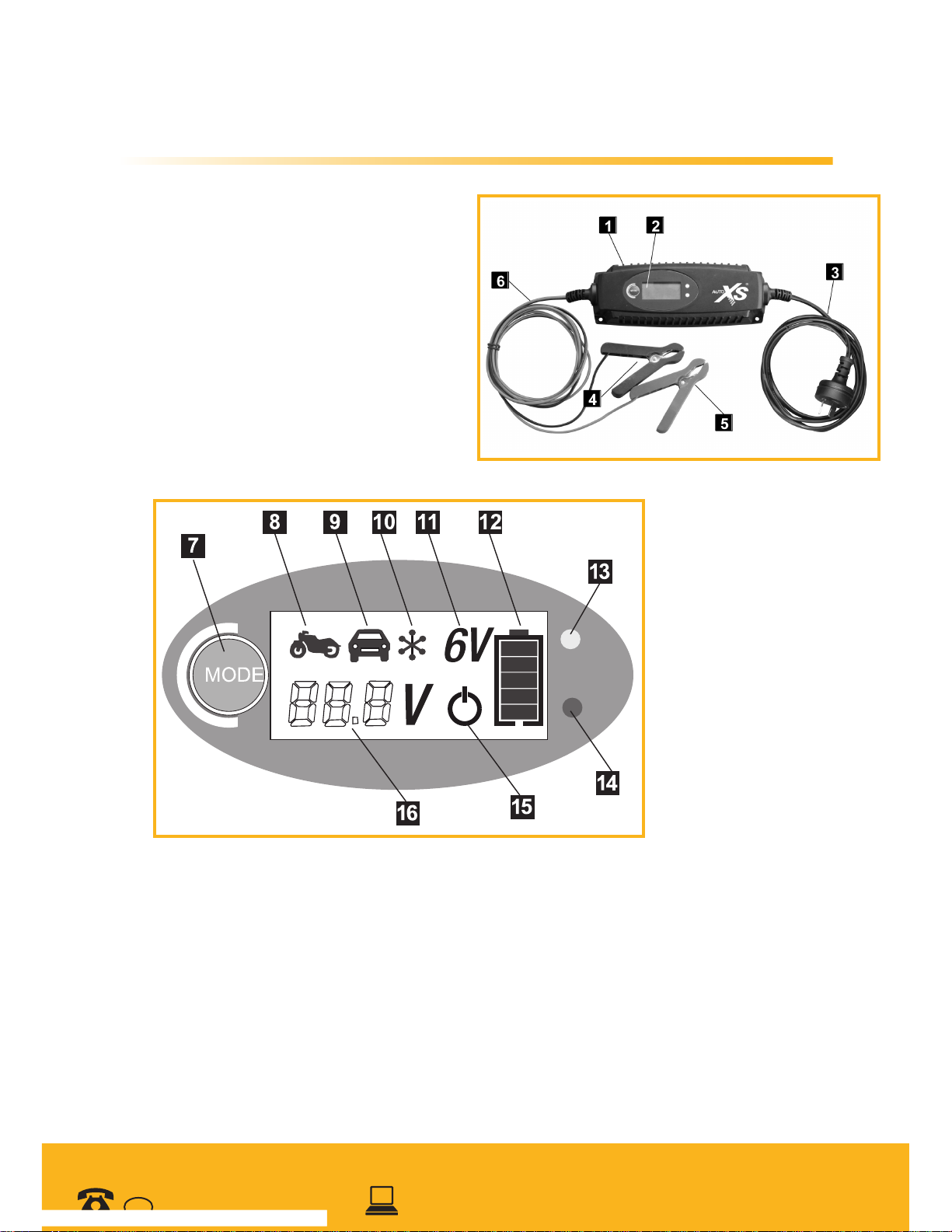

Part description |
1 |
1.Vehicle battery charger CPL-2054
2.Operating panel
3.Mains cable
4.Battery clamp
black / negative terminal (-)
5.Battery clamp
red /positive terminal (+)
6.Charging cable
7.Mode key for selecting the charging program (except for 6 V as it is automatically detected)
8.Motorcycle charging program: for batteries 12 V, 1.2 Ah-14 Ah
9.Car charging program: for 12 V, 14 Ah-120 Ah
10.Cold weather charging program: for batteries 12 V, 14 Ah-120 Ah
11.6 V charging program: for batteries 6 V, 1.2 Ah-14 Ah

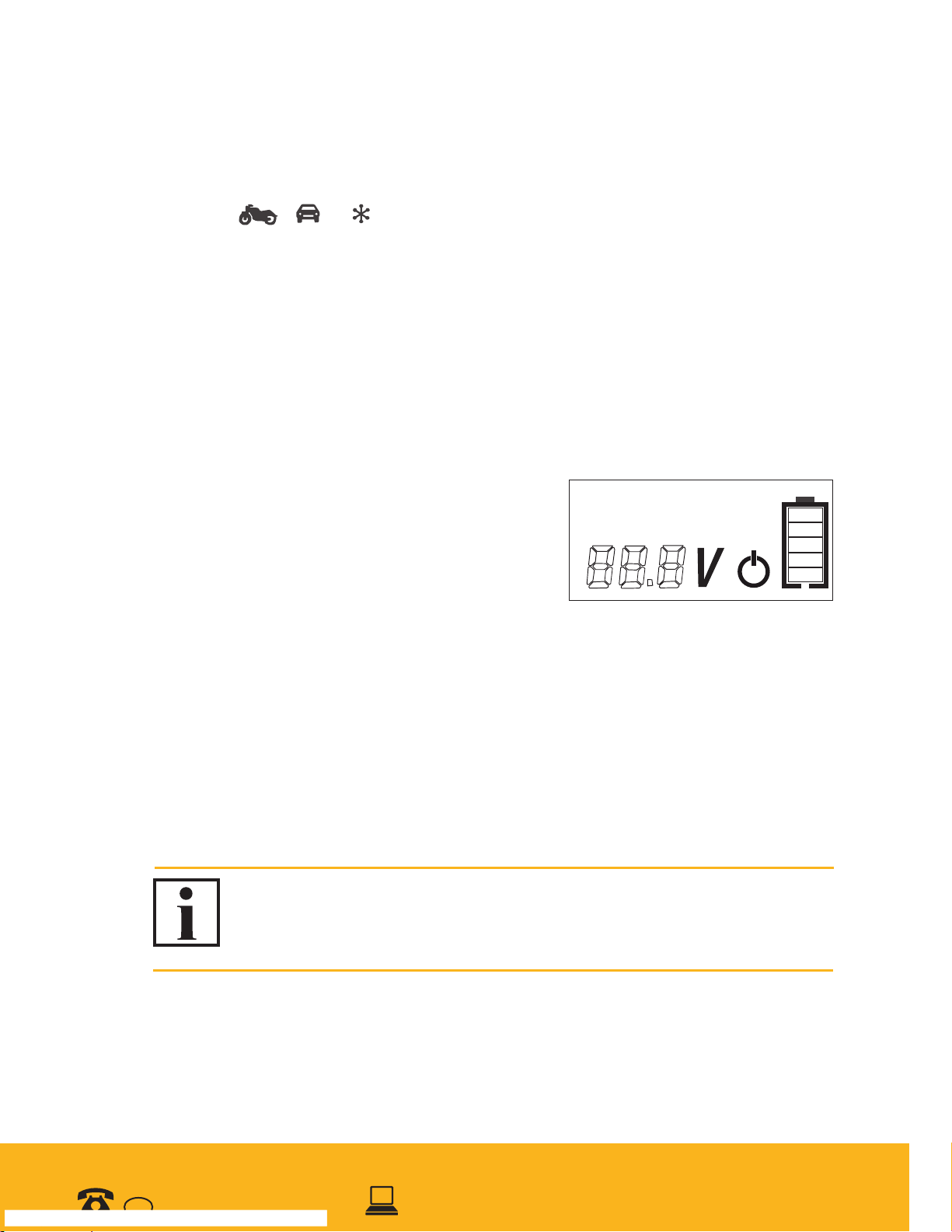

12.Battery charging status display (charging: bars partially filled, frame flashing; fully charged: bars filled, frame lit permanently)
13.Mains light: green light lit when connected to mains
14.Fault light: lights up red in case of incorrect polarity, short-circuit and overheating.
15.Symbol for standby mode
16.Battery voltage display: shows current voltage of connected battery.
AFTER SALES SUPPORT
Aus |
Aldi.aftersales@axima.com.au |
CPL-2054 |
03 |
Safety instructions |
2 |
The warning triangle identifies all instructions important for ensuring safe use. Always follow these Instructions as failure to do so may result in injuries or may damage the charger.
The information symbol highlights useful information
2.1Correct use
•This charger is only intended for use with lead-acid batteries (vehicle batteries) with 6V and 12V rated voltage (see details in Technical Specification). The charger may not be used for other types of batteries as high charging currents can cause a hazard.
•The charger may not be used as a starting aid. Prior to starting the vehicle, always fully charge the battery of the vehicle and disconnect the charger as described in these Instructions.
•The charger is designed for use in a dry and protected environment at temperatures of -5 to +40 °C.
2.2General Safety Instructions
•The charger is not designed to be used by persons (including children) with impaired physical, sensory or mental ability, lack of experience and/or lack of know-how, unless they are supervised by another person responsible for their safety or unless they have been instructed in how to use the charger.
•Children must be supervised to prevent them from playing with the charger.
•Only connect the charger to a correctly installed socket. The voltage must correspond to the one specified on the rating plate of the charger.
•Ensure that the mains cable is not damaged and keep away from sharp edges, humidity, heat or oil.
•Do not connect the charger if the mains cable is damaged. A damaged mains cable must be replaced immediately by central Service Centre staff or similar qualified persons, in order to prevent any hazards.
•Do not operate charger or unplug from mains immediately if the charger is damaged or if you suspect that the charger is faulty. In these cases have the charger repaired by our Service Engineers.
•Remove plug from mains if charger is not in use.
•Keep packaging material and, in particular foil and foil bag, away from children – danger of suffocation.
•Prior to starting the charger, remove all protective foil from the charger.
•Install the mains cable in such a way that it does not cause an obstruction and nobody can pull on the cable accidently.
AFTER SALES SUPPORT
Aus |
Aldi.aftersales@axima.com.au |
CPL-2054 |
04 |
2.3 Special safety instructions
•Store the charger and accessories out of children´s reach.
•Only connect the charger to an easily accessible 240 V socket so that you can take quick action in the case of a fault.
•Do not cover the charger as it could overheat and thus be damaged.
•Where the battery is installed in a vehicle, ensure that the vehicle is switched off and
is secured in a stationary position . Switch off the ignition and make sure the vehicle is parked – applied handbrake (e.g. car) or secured cable.
Avoid electric short-circuiting when connecting the charger to the battery.
•Only connect the negative terminal cable to the negative terminal of the battery or to the chassis. Only connect the positive terminal cable to the positive terminal of the battery.
•Only touch the insulated area of the terminal clamps (positive terminal and negative terminal.
•Prior to installation, maintenance or repair disconnect charger from mains.
•Do not expose charger to open fire, heat or prolonged high temperatures of +40°C. At higher temperatures, the output of the charger is automatically reduced.
2.4 Working environment
•Never expose the charger to rain or humidity. The device must not come into contact with water, not even dripping or spray water.
•Only use the charger at an ambient temperature of between -5 to +40 °C.
•Do not expose the charger to strong sunlight for a longer period of time.
•CAUTION: Avoid explosive gasses, flames and sparks. Ensure adequate ventilation during charging. The battery can emit gaseous hydrogen during charging and discharging. Contact with a naked flame can lead to a highly explosive reaction.
•Carry out the charging operation in a well-ventilated, weather-protected room.
•Ensure that explosive or combustible substances such as fuel or solvents cannot be set alight when using the charger.
