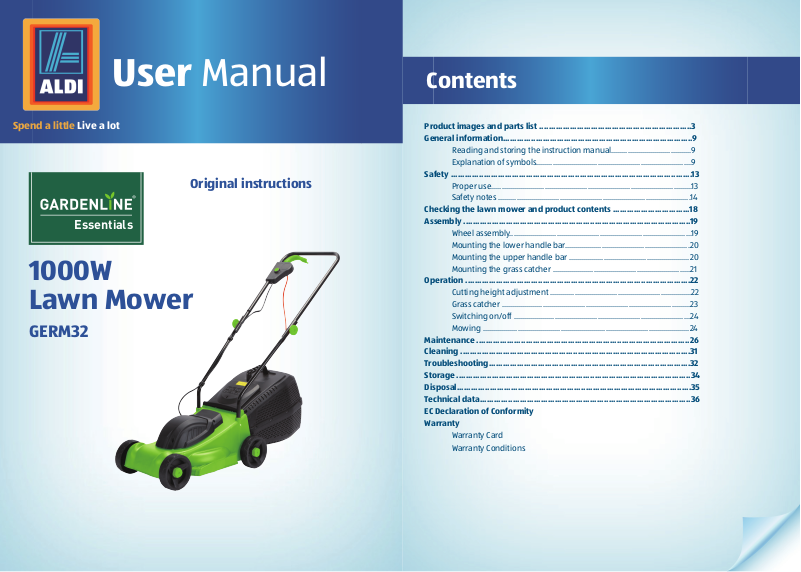

Aldi GERM32 User Manual
User Manual
Contents
Spend a little Live a lot
Essentials
1000W
Lawn Mower
GERM32
Original instructions
Product images and parts list .................................................................3
General information.................................................................................9
Reading and storing the instruction manual.......................................9
Explanation of symbols............................................................................9
Safety .......................................................................................................13
Proper use..................................................................................................13
Safety notes ..............................................................................................14
Checking the lawn mower and product contents .................................18
Assembly .................................................................................................19
Wheel assembly.........................................................................................19
Mounting the lower handle bar.............................................................20
Mounting the upper handle bar ...........................................................20
Mounting the grass catcher ...................................................................21
Operation ................................................................................................22
Cutting height adjustment .....................................................................22
Grass catcher ............................................................................................23
Switching on/off ......................................................................................24
Mowing .....................................................................................................24
Maintenance ...........................................................................................26
Cleaning ..................................................................................................31
Troubleshooting......................................................................................32
Storage ....................................................................................................34
Disposal....................................................................................................35
Technical data..........................................................................................36
EC Declaration of Conformity
Warranty
Warranty Card
Warranty Conditions
A
GB IREIRE GB
3
15
Product images and parts list
1
Product images and parts list
1
Upper handle
Knob with bolt x 2
2
4
14
13
12
11
10
Lower handle
3
Transportation handle
2
3
9
8
19
7
6
4
5
18
4
5
Air vents
Wheel x 4
6
Hand knob x 4
7
8
Screw x 2
9
Deflector guard
Grass catcher handle
10
Grass catcher
11
12
Cord
Cord clip x2
13
14
Lock-off button
15
Start lever
16
Blade
16
Bolt
17
18
Hook
Mounting plates
19
17
GB IREIRE GB
5
Product images and parts list
Product images and parts list
6
B
C
On the right hand side of the deck:
SILVER BOLTS tighten
clockwise to secure
D
On the left hand side of the deck:
BLACK BOLTS tighten
ANTI-clockwise to secure
F
G
H
E
I J
GB IREIRE GB
7
Product images and parts list
Product images and parts list
8
K
M
L
P
N O
GB
IRE
IRE
GB
General informationGeneral information
1000W Lawn Mower1000W Lawn Mower
Reading and storing the instruction manual
This instruction manual accompanies this lawn mower.
It contains important information on assembly, start-up
and handling. Before using the lawn mower, read the
instruction manual carefully. This particularly applies
to the safety notes. Failure to heed this instruction
manual may result in severe injury or damage to the
lawn mower. The instruction manual is based on the
standards and rules in force in the European Union.
Store the instruction manual for future use. If you pass
the lawn mower on to third parties, please be absolutely
sure to include this instruction manual.
You can request an electronic version of these
instructions from our customer service.
You must always wear safety goggles to guard your
eyes from flying debris, ear plugs or similar ear
defenders to protect your hearing and respiratory
protection to protect breathing.
IMPORTANT! Wear gloves to protect your hands.
Wear safety boots to protect your feet.
Guaranteed sound power level value in dB.
The product complies with the applicable European
directives and an evaluation method of conformity for
these directives was carried out.
Explanation of symbols
The following symbols and signal words are used in this
instruction manual, on the lawn mower or on the packaging.
Read the user manual before using the machine.
Warning! Danger!
9 10
www.coreservice.co.uk www.coreservice.co.uk
AFTER SALES SUPPORT AFTER SALES SUPPORT
IRE
0124 751 50
GB
01904 727506
WEEE symbol. Waste electrical products should not be
disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or local
store for recycling advice.
Do not expose the product to rain or wet conditions.
IRE
0124 751 50
GB
01904 727506
GB
IRE
IRE
GB
General informationGeneral information
1000W Lawn Mower1000W Lawn Mower
This product is constructed using protection class II.
That means it is equipped with enhanced or double
insulation and does not need to be earthed.
Objects thrown by the product could hit the user or
other bystanders. Always ensure that other people and
pets remain at a safe distance from the product when it
is in operation. In general, children must not come near
the area where the product is in operation.
Beware of sharp blades. Blades continue to rotate after
the motor is switched off. Remove the plug from the
mains before maintenance or if the cord is damaged.
Cutting device continues to rotate after the product is
WARNING!
This appliance should be connected to your mains
supply using an RCD (Residual Current Device). The
operating current of this device must be less than
30mA. Contact an electrician if you are unsure of how to
proceed.
For safety reasons, this lawnmower is not to be used
by children, young people under 16 years of age, or
any other persons who are not acquainted with these
operating instructions.
switched off. Wait until all components have completely
stopped before touching the product.
Switch the product off and disconnect it from the
power supply before assembly, cleaning, adjustments,
maintenance, storage and transportation.
11 12
www.coreservice.co.uk www.coreservice.co.uk
AFTER SALES SUPPORT AFTER SALES SUPPORT
IRE
0124 751 50
GB
01904 727506
IRE
0124 751 50
GB
01904 727506
GB
IRE
IRE
GB
SafetySafety
1000W Lawn Mower1000W Lawn Mower
Safety
Proper use
1. Operate the product only in daylight or in good artificial light.
2. Avoid operating the product in wet grass.
3. Always be sure of your footing on slopes.
4. Walk, never run.
5. Do not use this appliance in wet conditions, e.g., rain etc.
6. Mow across the face of slopes, never up and down.
7. Exercise extreme caution when changing direction on slopes.
8. Do not mow excessively steep slopes.
9. Use extreme caution when reversing or pulling the product
towards you.
10. Stop the blades if the product has to be tilted for
transportation when crossing surfaces other than grass, and
when transporting the product to and from the area to be
used.
11. Switch on the motor carefully according to the instructions
and with your feet well away from the blades.
running.
15. Stop the product, and remove the plug from the socket. Make
sure that all moving parts have come to a complete stop:
− Whenever you leave the product.
− Before clearing blockages or unclogging the chute.
− Before checking, cleaning or working on the product.
− After striking a foreign object. Inspect the product for
damage and replace or repair any damaged parts before
restarting and operating the product.
16. If the product starts to vibrate abnormally (check
immediately):
− Inspect for damage.
− Replace or repair any damaged parts.
− Check for and tighten any loose parts.
Safety notes
WARNING!
DO NOT TOUCH THE ROTATING BLADES.
12. Do not tilt the product when switching on the motor except if
the product has to be tilted for starting. In this case do not tilt
it more than absolutely necessary and lift only the part which
is away from the operator.
13. Do not put hands or feet near or under rotating parts. Keep
clear of the discharge opening at all times.
−This machine can cause serious injuries. Read the instruction
manual carefully for the correct handling, preparation,
maintenance and starting and stopping of the appliance. Be
familiar with the controls and the proper use of the appliance.
Read and understand the operator’s manual and observe the
warnings and instruction labels affixed to the appliance.
14. Do not transport the product while the power source is
13 14
www.coreservice.co.uk www.coreservice.co.uk
AFTER SALES SUPPORT AFTER SALES SUPPORT
IRE
0124 751 50
GB
01904 727506
IRE
0124 751 50
GB
01904 727506
