ALDI CKT718A Instruction Manual

Xfinity Li-ION 20V

7PC CORDLESS KIT

Instruction Manual

1300 889 028

[e-mail]

05/2019

2323CKT718A

MODEL NUMBER

Version number: 004

CKT718A

2

The contents of all Instruction Manual

20V Battery And Battery Charger 01

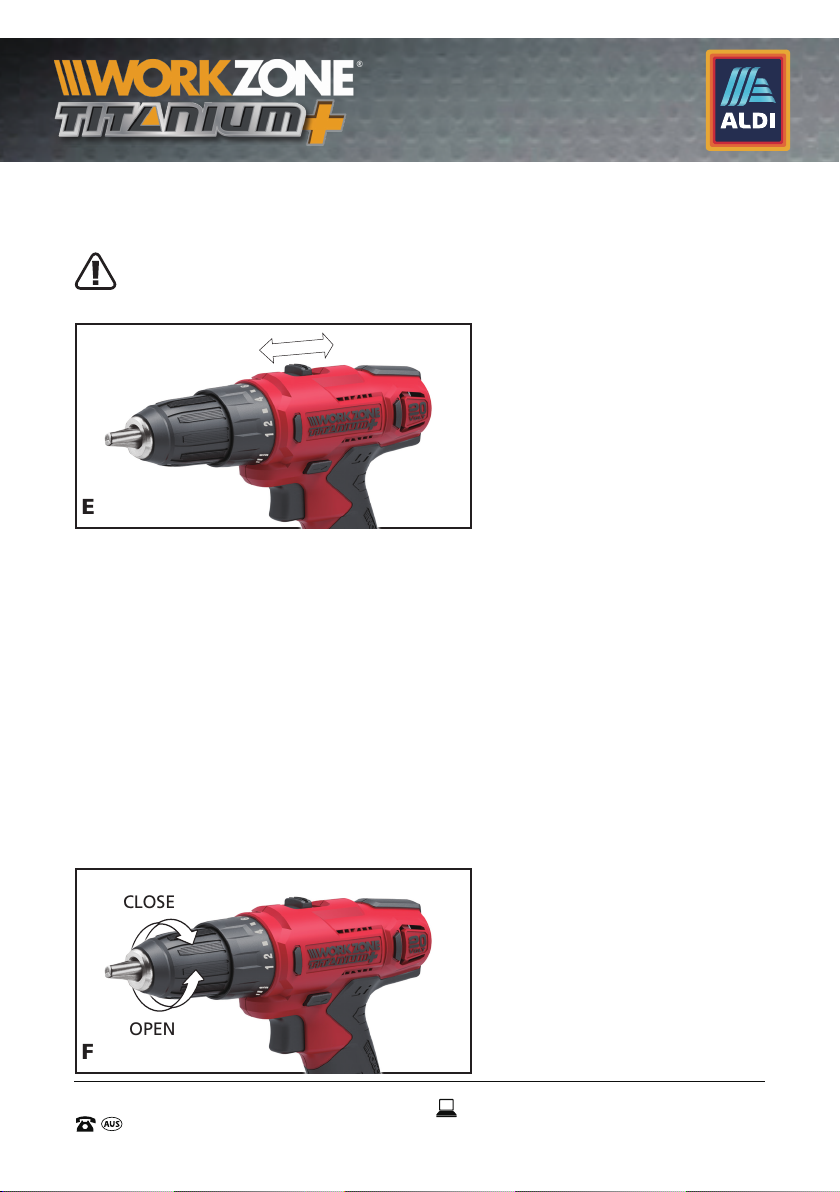

20V Drill/Driver 02

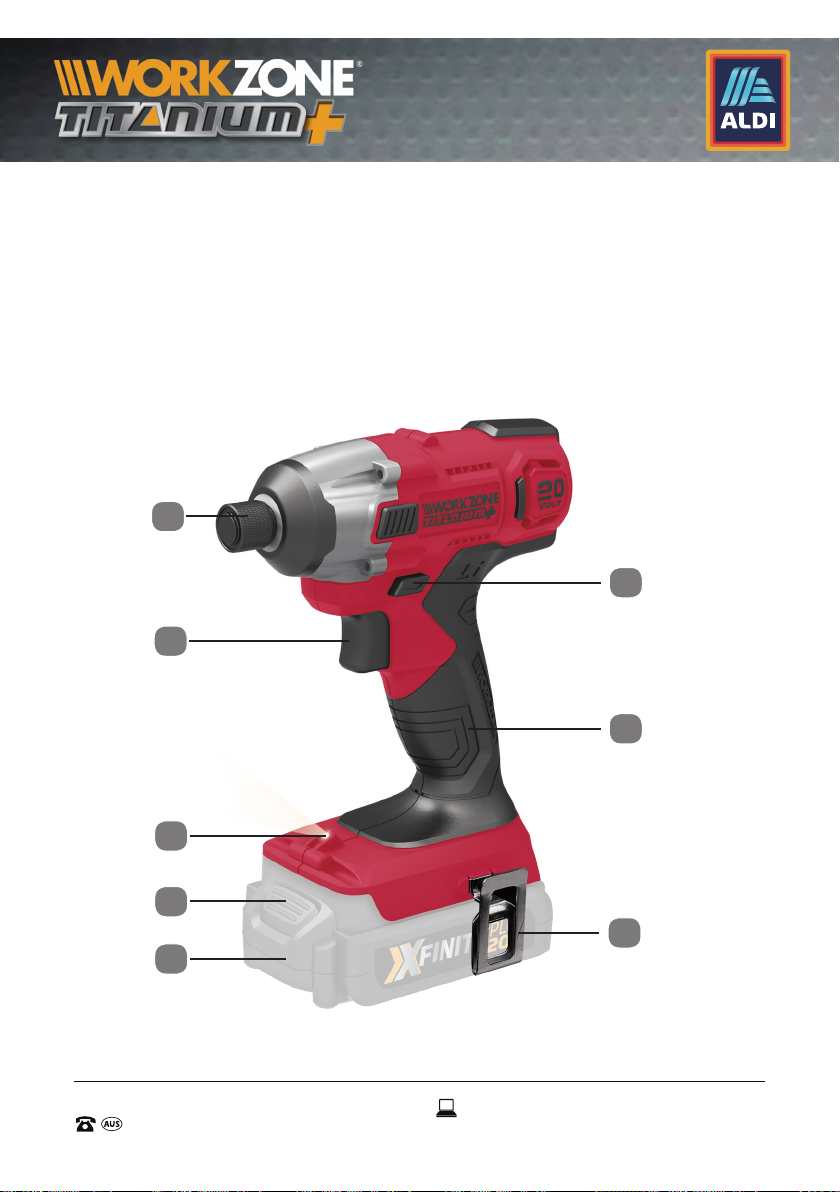

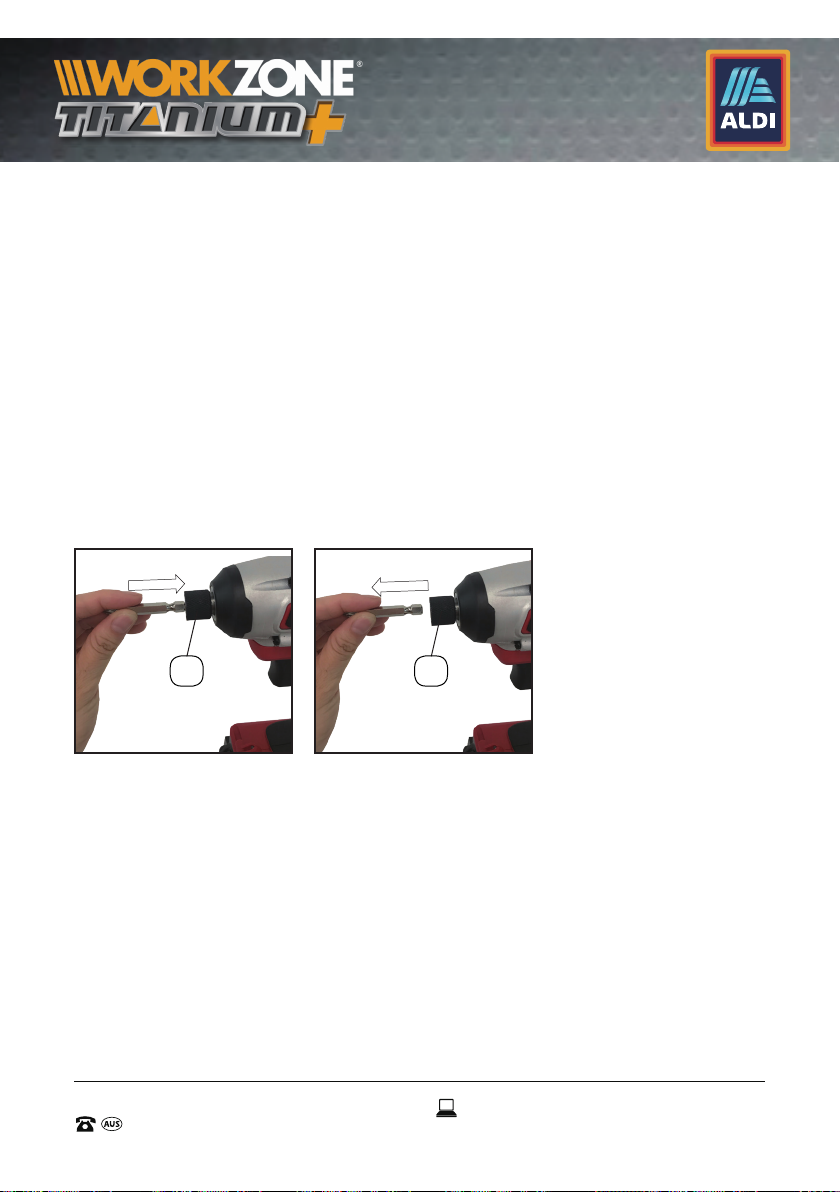

20V Impact Driver 03

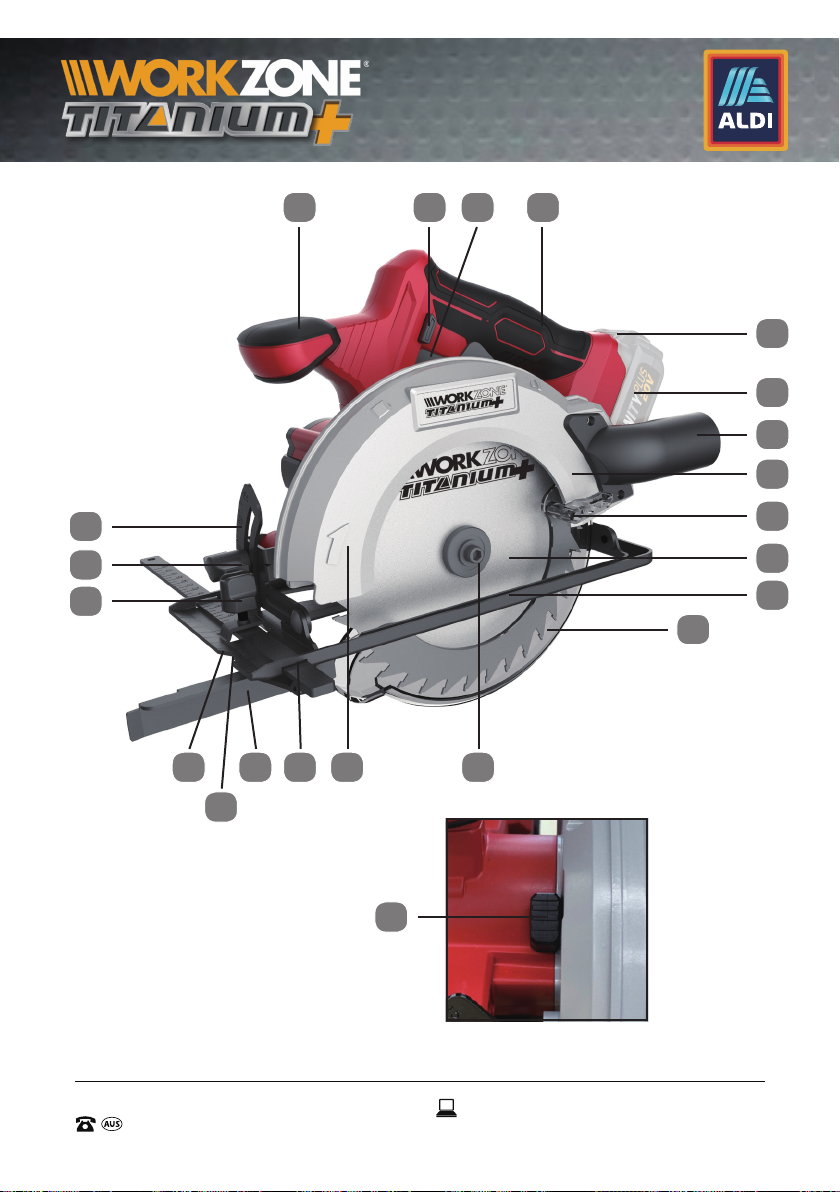

20V Circular Saw 04
20V Detail Sander 05
20V LED Torch 06
20V Bluetooth Speaker 07
20V USB Charger 08

Xfinity Li-ION 20V

Battery And Battery Charger

Instruction Manual

IMPORTANT

Read carefully before use

Keep for future reference

01

MODEL NUMBER

JLH122200370S&
Z10&ABP1815MA

Version number: 004

2

Welcome

Congratulations in choosing to buy a Workzone® Titanium Xnity Plus
20V Li-ion Battery and Battery Charger

All products bought to you by Workzone® Titanium are manufactured
to the highest standards of performance and safety and, as part of our
philosophy of customer service and satisfaction, are backed by our
comprehensive 1 Year Warranty. We hope you will enjoy your purchase
for many years to come.

When you open your packaging, rst remove all items and check there
are no parts damaged or missing. If you nd anything wrong, do not
operate the product until the parts have been replaced or the fault has
been rectied. Failure to do so could result in serious personal injury.

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

2

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

20V Battery And Battery Charger

Warranty Details

REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION

The product is guaranteed to be free from defects in workmanship and par rom the
date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion. T
remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.

conferred by this warranty are in addition to all rights and

ts for a period of 60 months f

3

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

3

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

4

Contents

Application 5
Package Content List 5
Parts description 6
Description of symbols 7
General safety warnings 8
Operation 11
Maintenance 13
Warranty 13
Environmental protection 15
Accessories and After Sales Parts 15
FAQ/Troubleshooting 15
Technical Specications 16

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

4

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

Xnity Plus 20V Li-ion Battery and Battery Charger–
JLH122200370S&Z10&ABP1815MA

1. Application

First time users or inexperienced operators pay particular attention to the
operation of the Xnity Plus 20V Li-ion Battery and Battery Charger , including
details of starting and stopping and correct use of the Xnity Plus 20V Li-ion
Battery and Battery Charger on pages 11-13, as well as the maintenance
instructions on pages 13.

NOTE: This product is for private domestic DIY use only. It is not suitable for
commercial or trade use.
This Xnity Plus 20V Li-ion Battery and Battery Charger is used for charging

and supplying power to the products enclosed in this 20V Cordless Kit.

The batteries and charger are to be used only for its prescribed purpose. Any
other use is deemed to be a case of misuse.

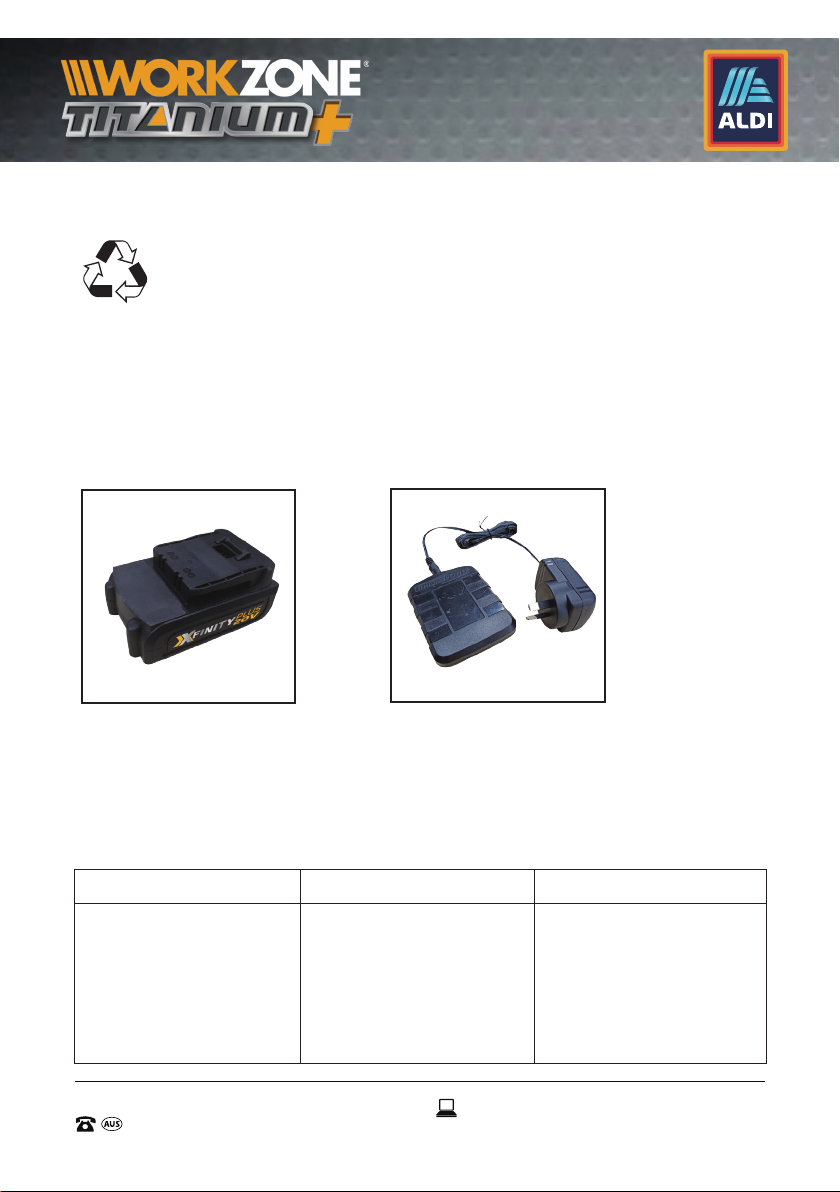

2. Package Content List

2 x 20V Li-Ion Batteries
1 x Battery Charger Adaptor
1 x Plug Pack Charger
1 x Instruction Manual
1 x Warranty Card & Certicate

• Remove all packing
materials

• Ensure all parts on the
contents list are present

• Check the appliance,
and all accessories for
transportation damages

5

WARNING! Please read and understand this instruction manual
before use and keep it for your future reference. Your power tool
should only be passed on together with this instruction manual.
WARNING! To reduce risk of injury, only use the supplied battery and
charger or any ALDI Xnity Plus 20V Li-ion Battery or Battery Charger.
Other type of battery packs may burst causing personal injury and
damage. The battery pack must be recharged only with the supplied
battery charger adaptor and plug pack charger or any ALDI Xnity
Plus 20V Battery or Battery Charger.

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

5

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

6

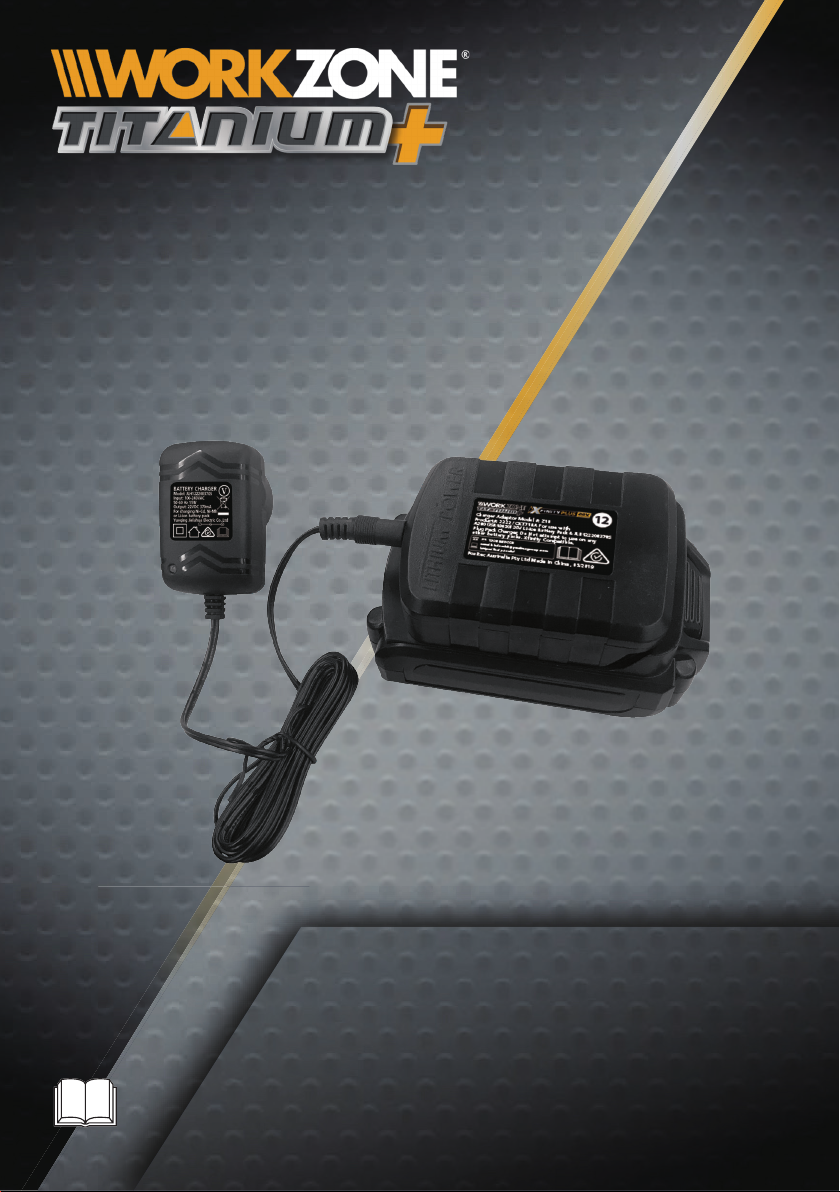

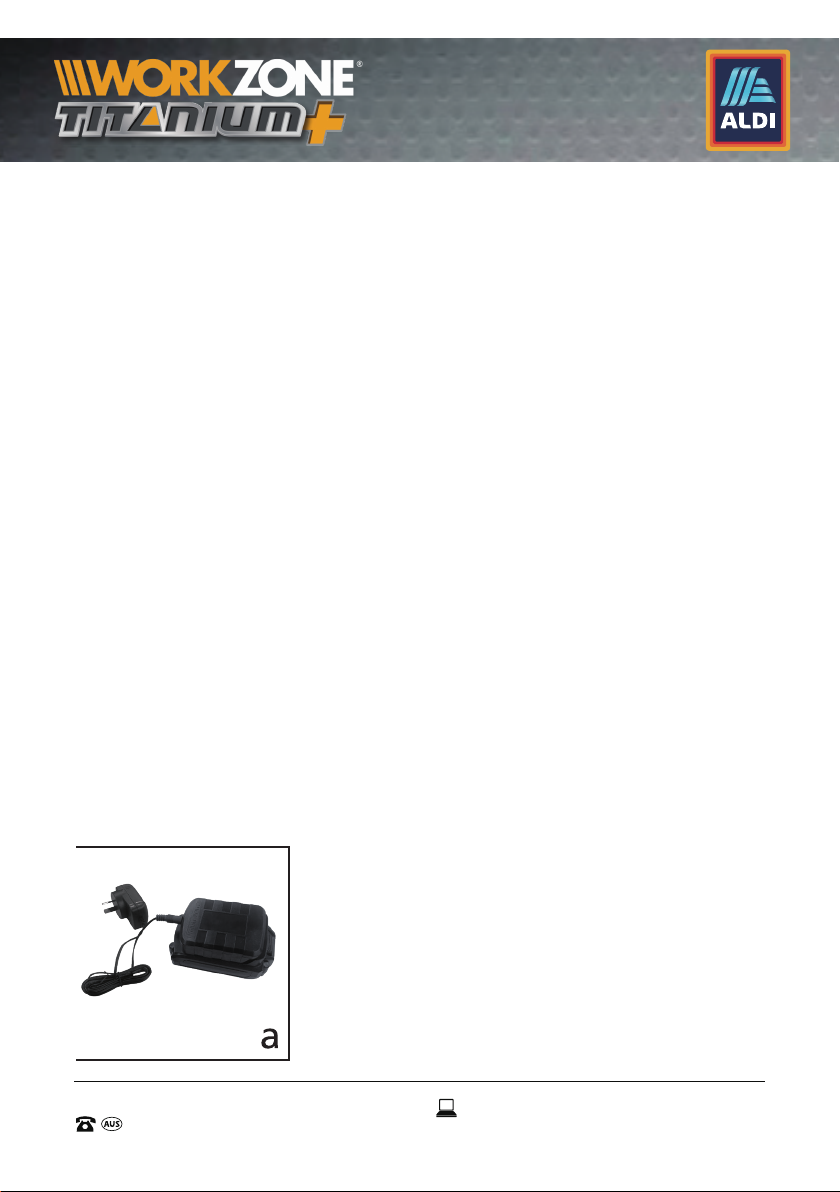

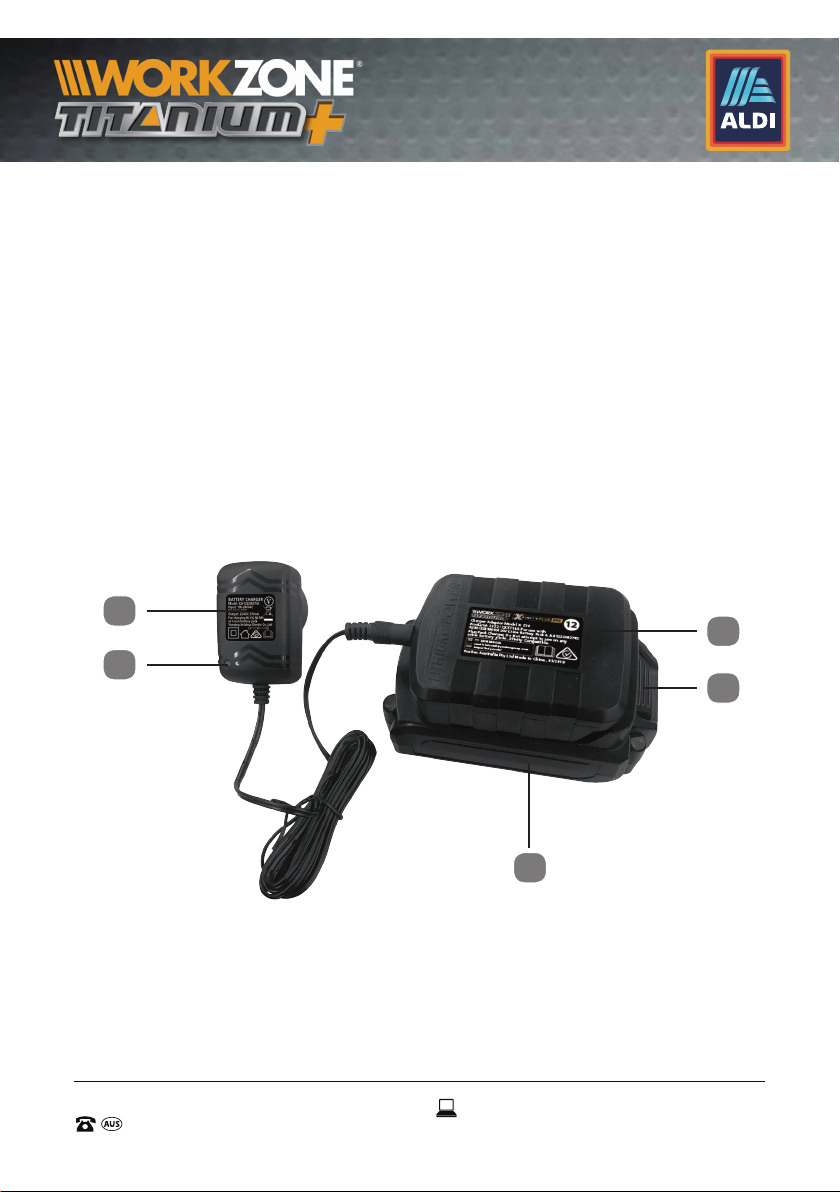

3. Parts description

1. Battery Charger Adaptor

2. Plug Park Charger

3. Charging indicator light

4. Battery pack

5. Battery pack release button

2

3

1

5

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

4

6

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

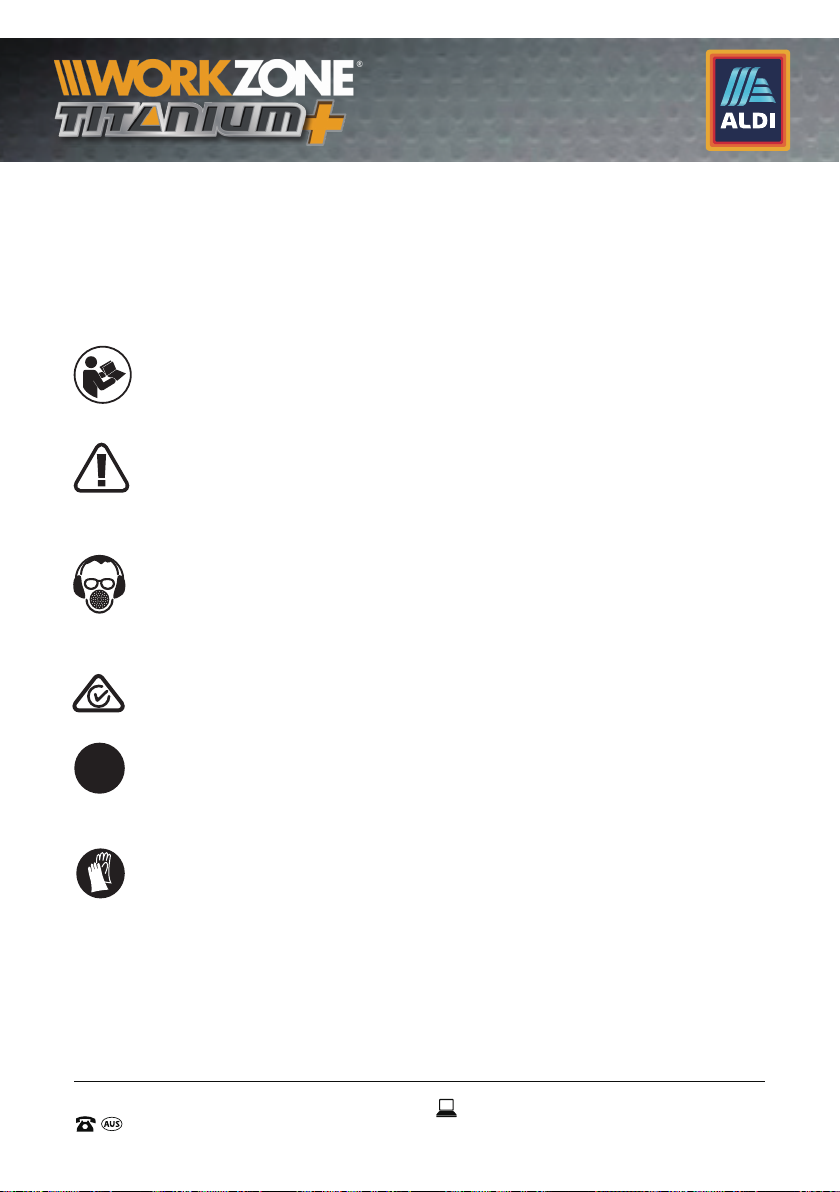

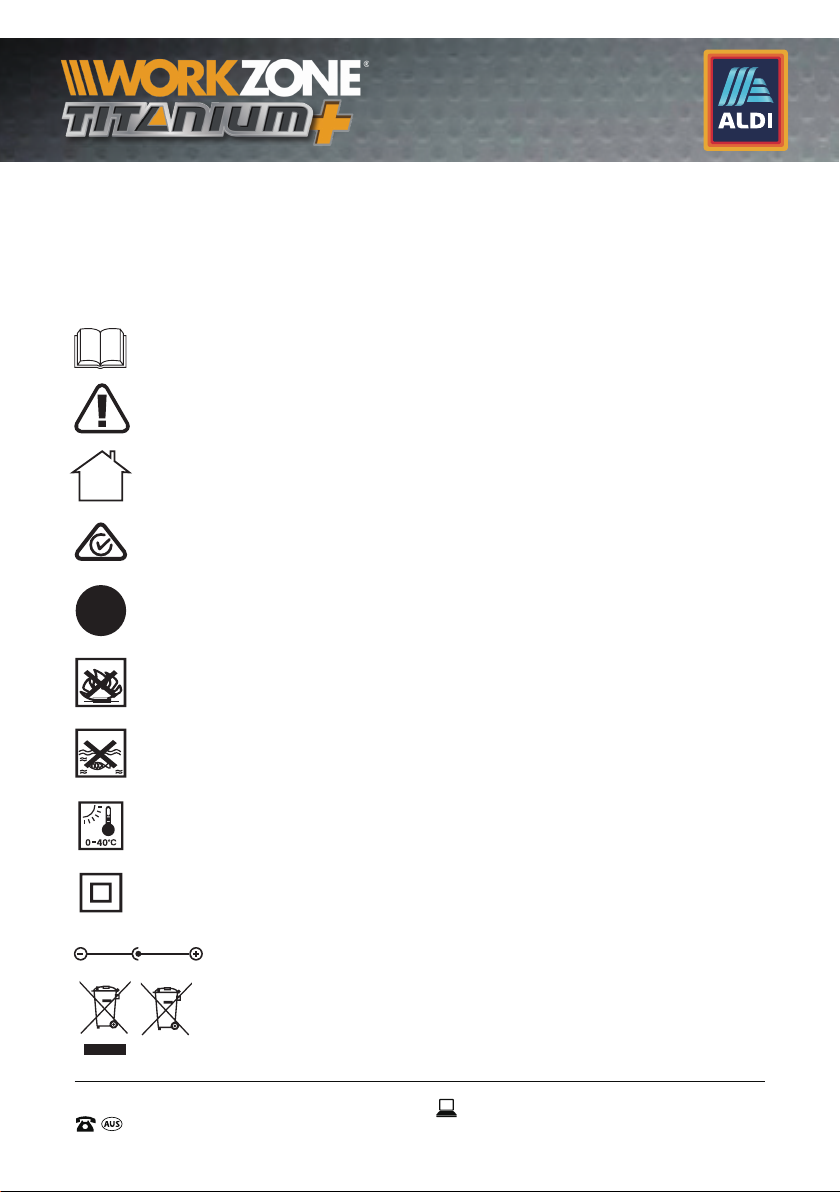

4. Description of symbols

The instruction manual, rating plate, or on the product itself, may
show these symbols. These represent important information about
the product or instructions on its use.

To reduce the risk of injury, user must read instruction manual

Warning

For indoor use only

Conforms to relevant standards for electrical safety and
electromagnetic compatibility

7

12

12 Month Warranty Period

Do not crush, disassemble, short terminals or dispose in re;
there is a risk of burns explosion or re.

Do not put in water.

Do not charge the battery pack if the ambient temperature is
less then 0°C or greater than 40°C.

Double Insulation. There are two independent barriers of insulation
to protect you from the possibility of electrical shock.

Polarity.

Li-Ion

AFTER SALES SUPPORT

1300 889 028 (toll free)

Waste electrical products should not be disposed of
with household waste.

7

e-mail:

[e-mail]

MODEL No.:

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

8

5. General safety warning

General Safety Warnings

WARNING Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in

electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

- This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.

- Children should be supervised to ensure that they do not play
with the appliance.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.

Additional safety instructions for your Battery Charger

1. Before charging, read the instructions.

2. For charge Li-ion battery pack only.

3. Do not charge a leaking battery.

4. Do not use chargers for works other than those for which they
are designed.

5. Before charging, ensure your charger is matching the local AC
supply.

6. The charging device must be protected from moisture.

7. Do not use the charging device in the open.

8. Do not short out the contacts of battery or charger.

9. Respect the polarity “+/-“ when charging.

10. Do not open the unit and keep out of the reach of children.

11. Do not charge the batteries of other manufactures or ill-suited
models.

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

8

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

12. Ensure that the connection between the battery charger and
battery is correctly positioned and is not obstructed by foreign
bodies.

13. Ensure battery charger slots are free of foreign objects and
protected against dirt and humidity. Store in a dry and frost-free
place.

14. When charging batteries, ensure that the battery charger is in
a well-ventilated area and away from inflammable materials.
Batteries can get hot during charging. Do not overcharge
any batteries. Ensure that batteries and chargers are not left
unsupervised during charging.

15. Do not recharge non-rechargeable batteries, as they can
overheat and break.

16. Longer life and better performance can be obtained if
the battery pack is charged when the air temperature is
between 18°C and 24°C. Do not charge the battery pack in air
temperatures below 0°C, or above 40°C. This is important as it
can prevent serious damage to the battery pack.

17. Charge only battery pack/s of the same model provided by the
manufacturer and of models recommended by manufacturer.

9

Safety Warnings for battery pack

a) Do not dismantle, open or shred cells of the battery pack.
b) Do not short-circuit a battery pack. Do not store battery

packs haphazardly in a box or drawer where they
may short-circuit each other or be short-circuited by
conductive materials. When the battery pack is not in use,

keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage

in direct sunlight.

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

9

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

10

d) Do not subject battery pack to mechanical shock.
e) In the event of the battery leaking, do not allow the

liquid to come into contact with the skin or eyes. If
contact has been made, wash the affected area with
copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack

has been swallowed.

g) Keep battery pack/s clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if

they become dirty.

i) Battery pack/s need to be charged before use. Always

refer to the instructions and use the correct charging
procedure.

j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary

to charge and discharge the battery pack several times to
obtain maximum performance.

l) Battery pack gives its best performance when it is

operated at normal room temperature (20 °C ± 5 °C).

m) When disposing of battery packs, keep battery packs of

different electrochemical systems separate from each
other.

n) Recharge only with the charger supplied or any ALDI

Xfinity Plus 20V Chargers. Do not use any charger
other than that specifically provided for use with the
equipment.

pack may create a risk of fire when used with another battery
pack.

o) Do not use any battery packs which are not designed for

use with the equipment.

p) Keep battery packs out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.

A charger that is suitable for one type of battery

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

10

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

s) Dispose of properly.
t) Do not mix cells of different manufacture, capacity, size

or type within a device.

u) Do not remove battery pack from its original packaging

until required for use.

v) Observe the plus (+) and minus (–) polarity markings
on the battery and ensure correct use.

6. Important information – Product care

This Battery uses Lithium Ion Battery Cells. Care must be taken to
ensure both the safety and life of the pack is maintained. Ensure you
have read all of the safety notes in the previous pages before using
the Battery, Charger Adaptor or Plug Pack Charger.
Treat the Battery, Charger Adaptor & Plug Pack Charger with care
and within the guidelines of this manual.
If the Battery, Charger Adaptor & Plug Pack Charger becomes
immersed in water or any fluids, or is subject to a severe drop or it
does not operate within the guidelines of this manual immediately
STOP using it and have it checked.

11

7. Operation

7.1 Charging the battery

WARNING: The charger and battery are specially designed to

work together so do not attempt to use any other devices. The
only other battery or chargers that these components are
compatible with is any ALDI Xfinity Plus 20V Li-ion Battery or Battery
Charger. Never insert or allow metallic objects into your charger or
battery connections because an electrical failure and hazard will occur.

NOTE:

a) Do not use any charger other than that specifically provided

for use with the equipment, or any ALDI Xfinity Plus 20V Li-ion

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

11

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

12

Battery and Battery Charger.

b) If the battery is very hot, remove the battery from the charger

adaptor and allow time for the battery to cool down before
recharging.

c) The battery in your new tool is not charged when it leaves the

manufacturer. Therefore it must be fully charged before using
for the first time.

d) Charge the battery to reach full or no less than half charge

before storage. If the tool will not be used for long periods of
time, charge the battery every 3-6 months.

7.2 How to charge your battery pack (see fig a)
Charging procedure

1. Connect the battery charger adaptor (1) into the plug pack

charger (2).

2. Connect the plug pack charger (2) in to the 240V mains power

outlet and turn on. A “green” light indicates power.

3. Slide the battery charger adaptor (1) onto the battery (4) by

aligning the guiding rails. A click indicates the battery is fitted.

4. The plug pack charger (2) light will change to “red”. The battery

is now in the charging process. When the light returns to
“green”, the battery (4) is fully charged.

NOTE: The power to the charger should be turned off when
unattended, with or without a battery inserted.

Ambient temperature ranges

The ambient temperature range for tool,

o

battery use and storage is 0

C-45oC.
The recommended ambient temperature
range for the charging system during

o

C-40oC.

12

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

AFTER SALES SUPPORT

1300 889 028 (toll free)

charging is 0

MODEL No.:

WARNING: When battery charge runs out after continuous use
or exposure to direct sunlight or heat, allow time for the

battery to cool down before re-charging to achieve the full charge.

CHARGING INDICATOR

Light Status

13

Red on

Green on

Charging

Fully Charged

8. Maintenance

WARNING Remove the plug from the socket before
carrying out any adjustment, servicing or maintenance.

Your battery / charger adaptor & Plug Pack Charger require no
additional lubrication or maintenance. Never use water or chemical
cleaners to clean them. Wipe clean with a dry cloth. Always store in
a dry place.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.

9. Warranty

Your new WORKZONE® TITANIUM Xfinity Plus 20V Li-ion Battery and
Battery Charger will more than satisfy your expectations.
It has been manufactured under stringent WORKZONE
Quality Standards to meet superior performance criteria.
You will find your new Xfinity Plus 20V Li-ion Battery and Battery
Charger easy and safe to operate, and, with proper care, it will give
you many years of dependable service.
CAUTION. Carefully read through this entire instruction manual

®

TITANIUM

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

13

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

14

before using your new WORKZONE® TITANIUM Xfinity Plus 20V
Li-ion Battery and Battery Charger. Take special care to heed the
Cautions and Warnings.
Your WORKZONE
Battery Charger has many features that will make your job faster
and easier. Safety, performance, and dependability have been given
top priority in the development of this Xfinity Plus 20V Li-ion Battery
and Battery Charger , making it easy to maintain and operate.
Use only WORKZONE
product. Non-conforming parts or modifications made to parts will
void your warranty.

What your 1 year warranty means

Great care has gone into the manufacture of this product and it
should therefore provide you with years of good service when used
properly.
In the event of product failure within its intended use over the
course of as quickly as possible once it has been brought to our
attention. In the unlikely event of such an occurrence, or if you
require any information about the product please contact us via
our after sales support services, details of which can be found in this
manual and on the product itself. After Sales Support
TEL: [phone]

®

TITANIUM Xfinity Plus 20V Li-ion Battery and

®

TITANIUM replacement parts for your

Service Support

If you have any issues with the operation of your Battery or Charger,
please call us on 1300 889 028 for advice, or email us at
[e-mail]

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

14

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

10.Environmental protection

Recycle unwanted materials instead of disposing of them
as waste. All tools, hoses and packaging should be sorted,
taken to the local recycling centre and disposed of in an

environmentally safe way.

11.Accessories and After Sales Parts

The following is available for purchase by visiting https://help.tools/
or calling our customer service hotline on: 1300 889 028

15

1. 2323-BAT: 20V
Lithium Ion Battery

2. 2323-CH: 20V
Charger

12. FAQ/Troubleshooting

Fault Cause Remedy

The Battery pack
gets warm when
charging.

AFTER SALES SUPPORT

1300 889 028 (toll free)

It’s a result of the
stepping down of the
chemical reactions
inside the batteries
during the charging
process.

15

e-mail:

MODEL No.:

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

This is normal.

[e-mail]

16

Undiagnosable Fault. The battery / charger

needs to be repaired

Contact Customer
Service.

or replaced.

For further inquiries or issues associated with your Battery or
Charger, call our Customer Service on 1300 889 028 or email us at
[e-mail]

13. Technical Specifications

Charger

Plug Pack Charger Model JLH122200370S

Charger Adapter Model Z10

Charger input 100-240VAC~50-60Hz 15W

Charger output 22VDC 370mA

Charging time

Protection class /II

Charger weight 0.49 kg

Other Compatible Charger Models All ALDI Xfinity Plus 20V

Ready for use in 4-6 Hours

Lithium-Ion Chargers

Battery

Voltage

20V Max.

Battery capacity 1.5Ah, Li-Ion

Battery Model Number ABP1815MA

Battery weight 0.38 kg

Other Compatible Battery Models All ALDI Xfinity Plus 20V

Lithium-Ion Batteries

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

16

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

This Xfinity Plus 20V Li-ion Battery and Battery Charger complies
with the following Standards:

1. Charger:
Safety: IEC60335-1
IEC60335-2-29
AS/NZS 60335.1
AS/NZS 60335.2.29

EMC: EN55014-1
EN55014-2
EN61000-3-2
EN61000-3-3

2. Battery:
IEC 62133-2: 2017

17

AFTER SALES SUPPORT

1300 889 028 (toll free)

MODEL No.:

17

e-mail:

[e-mail]

JLH122200370S&Z10&ABP1815MA • 2323 • 05/2019

Xfinity Li-ION 20V

Cordless drill / driver

Instruction Manual

IMPORTANT

Read carefully before use

Keep for future reference

02

MODEL NUMBER

Version number: 004

CDT218XA.9

2

Welcome

Congratulations in choosing to buy a Workzone® Titanium 20V Li-ion
Cordless Drill / Driver.
All products bought to you by Workzone® Titanium are manufactured
to the highest standards of performance and safety and, as part of our
philosophy of customer service and satisfaction, are backed by our
comprehensive 5 Year Warranty. We hope you will enjoy your purchase
for many years to come.
When you open your packaging, rst remove all items and check there
are no parts damaged or missing. If you nd anything wrong, do not
operate the product until the parts have been replaced or the fault has
been rectied. Failure to do so could result in serious personal injury.

AFTER SALES SUPPORT

1300 889 028 (toll free)

2

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

20V Li-Ion Cordless Drill / Driver

Warranty Details

REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION

The product is guaranteed to be free from defects in workmanship and parts for a period of 60 months from the
date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion. T
remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.

conferred by this warranty are in addition to all rights and

3

AFTER SALES SUPPORT

1300 889 028 (toll free)

3

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

4

Contents

Application 5
Package Content List 5
Parts description 6
Description of symbols 7
General Safety Warnings 8
Important information – Product care 14
Assembly 15
Operation 16
Maintenance 23
Warranty 24
Environmental protection 25
FAQ/Troubleshooting 26
Technical Specications 28

AFTER SALES SUPPORT

1300 889 028 (toll free)

4

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

20V Li-ion Cordless Drill / Driver

1. Application

First time users or inexperienced operators pay particular attention to the
operation of the 20V Li-ion Cordless Drill / Driver, including details of starting
and stopping and correct use of the 20V Li-ion Cordless Drill / Driver on pages
15-22, as well as the maintenance instructions on page 23.

Intended use of 20V Li-ion Cordless Drill / Driver
NOTE: This product is for private domestic DIY use only. It is not suitable for

commercial or trade use.

This 20V Li-ion Cordless Drill / Driver is used for driving in and loosening screws
as well as for drilling in wood, metal and plastic.

The tool is to be used only for its prescribed purpose. Any other use is deemed to
be a case of misuse.

2. Package Content List

5

1 x 20V Li-Ion Cordless Drill / Driver
1 x Belt clip
1 x Double ended bit
1 x Instruction manual
1 x Warranty Card & Certicate

WARNING! Please read and understand this instruction manual
before use and keep it for your future reference. Your product
should only be passed on together with this instruction manual.
WARNING! To reduce risk of injury, only use the supplied 20V Li-Ion
battery or charger or any ALDI Xnity Plus range of 20V Li-Ion battery
packs. Other type of battery packs may burst causing personal injury
and damage. The battery pack must be charged using with ALDI
Xnity Plus 20V Li-Ion battery chargers.

AFTER SALES SUPPORT

1300 889 028 (toll free)

5

• Remove all packing materials

• Ensure all parts on the contents
list are present

• Check the appliance, and all
accessories for transportation
damages

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

6

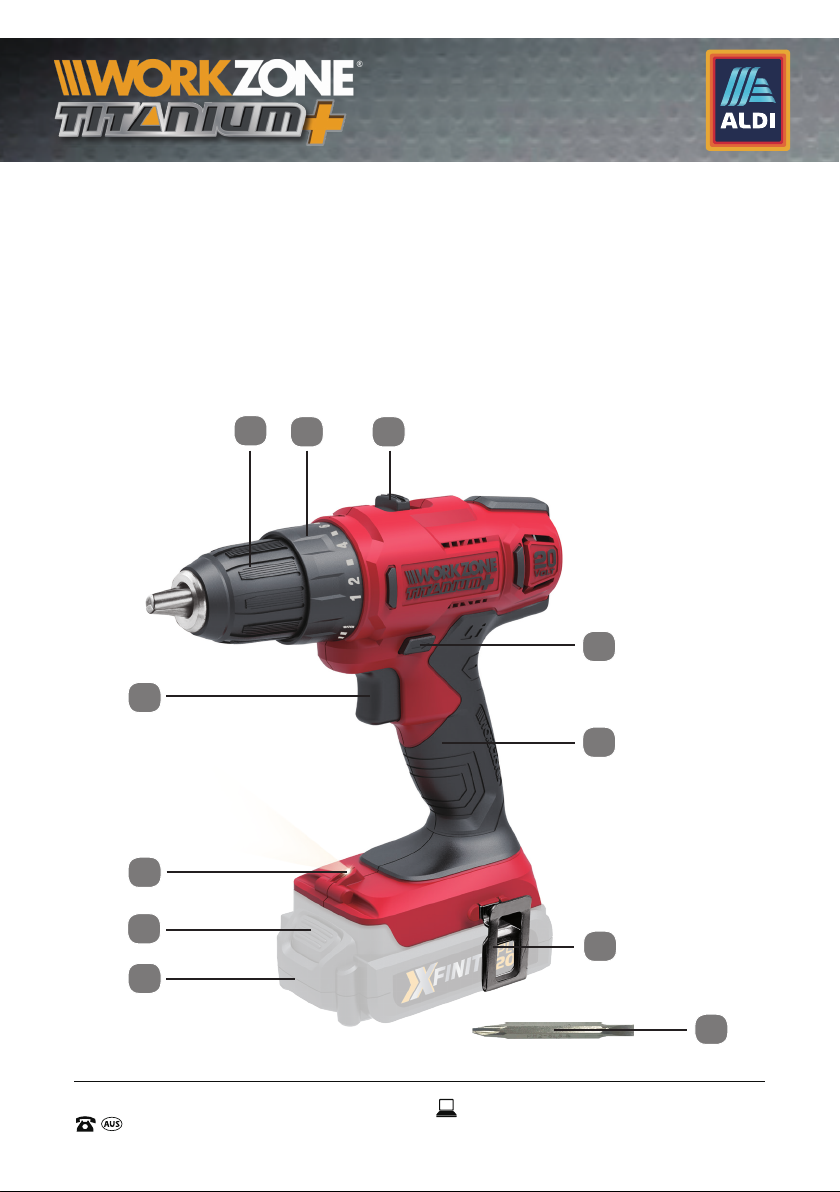

3. Parts description

1. Keyless chuck

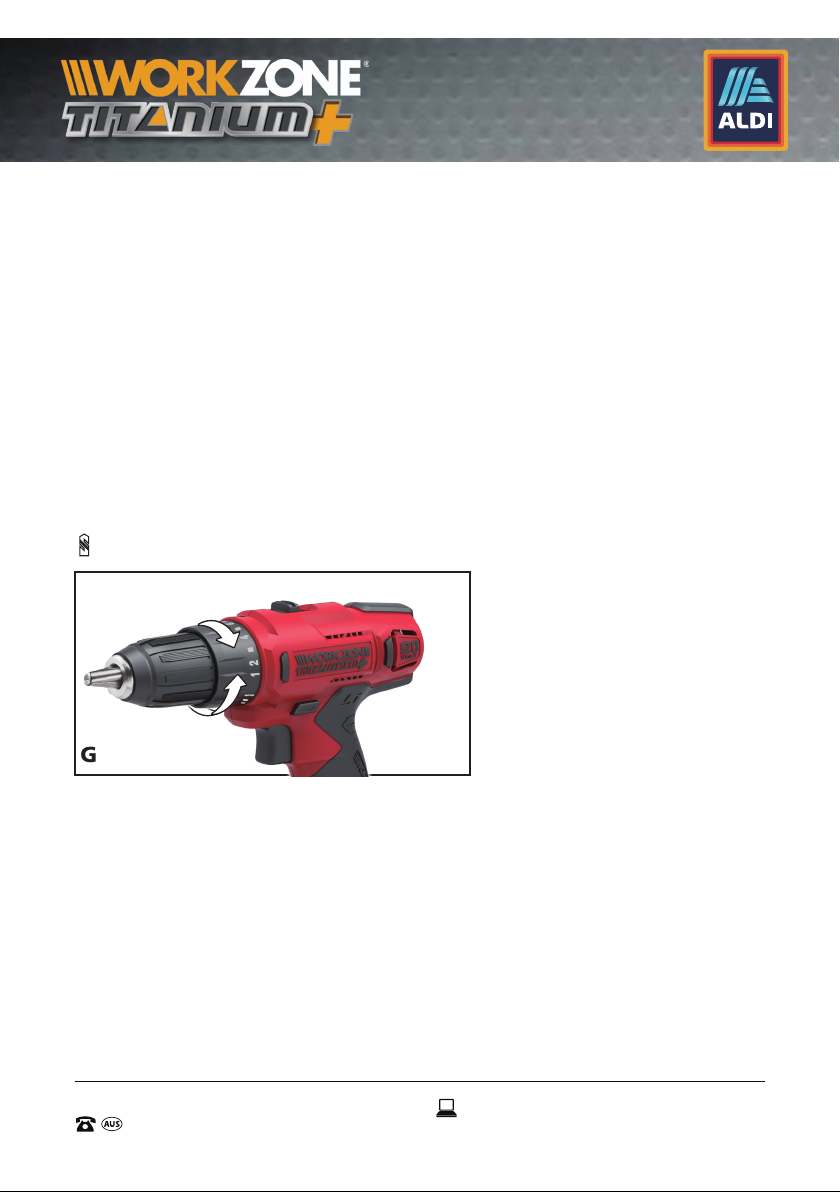

2. Torque setting / collar

3. Two-speed gear selector

4.

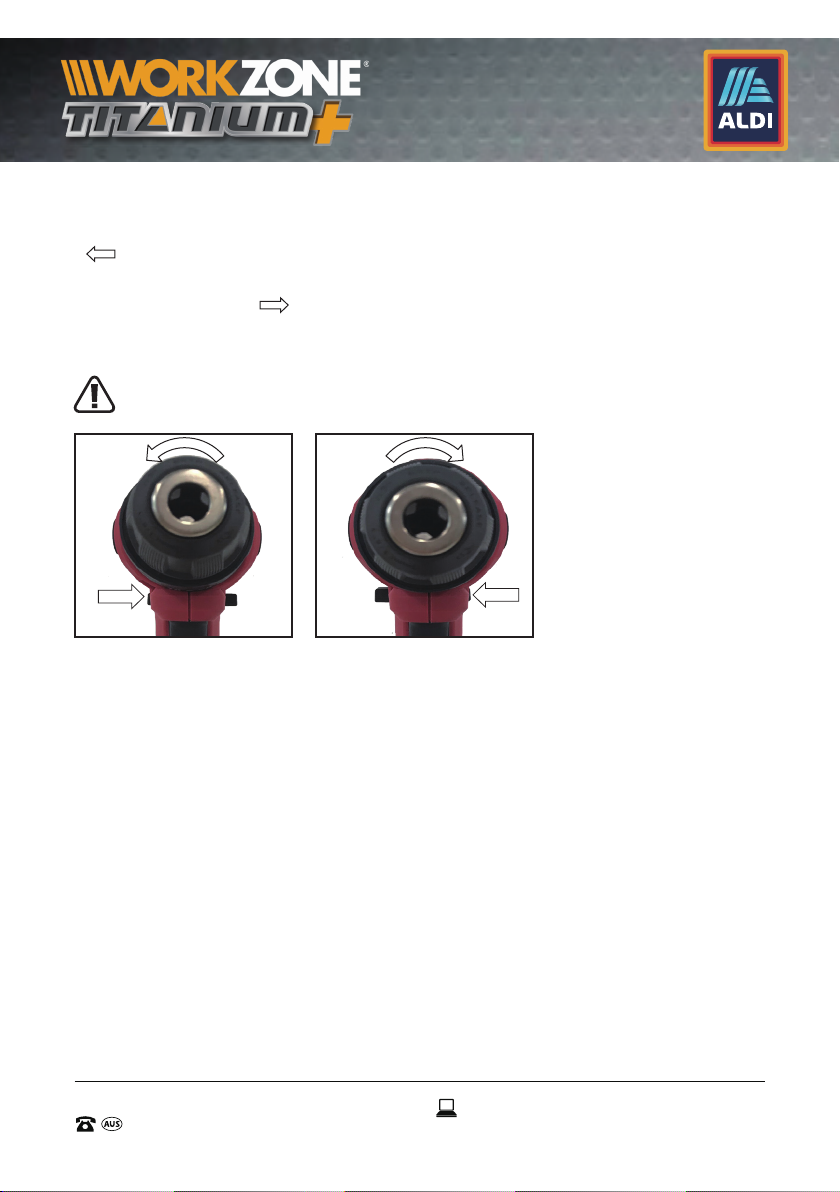

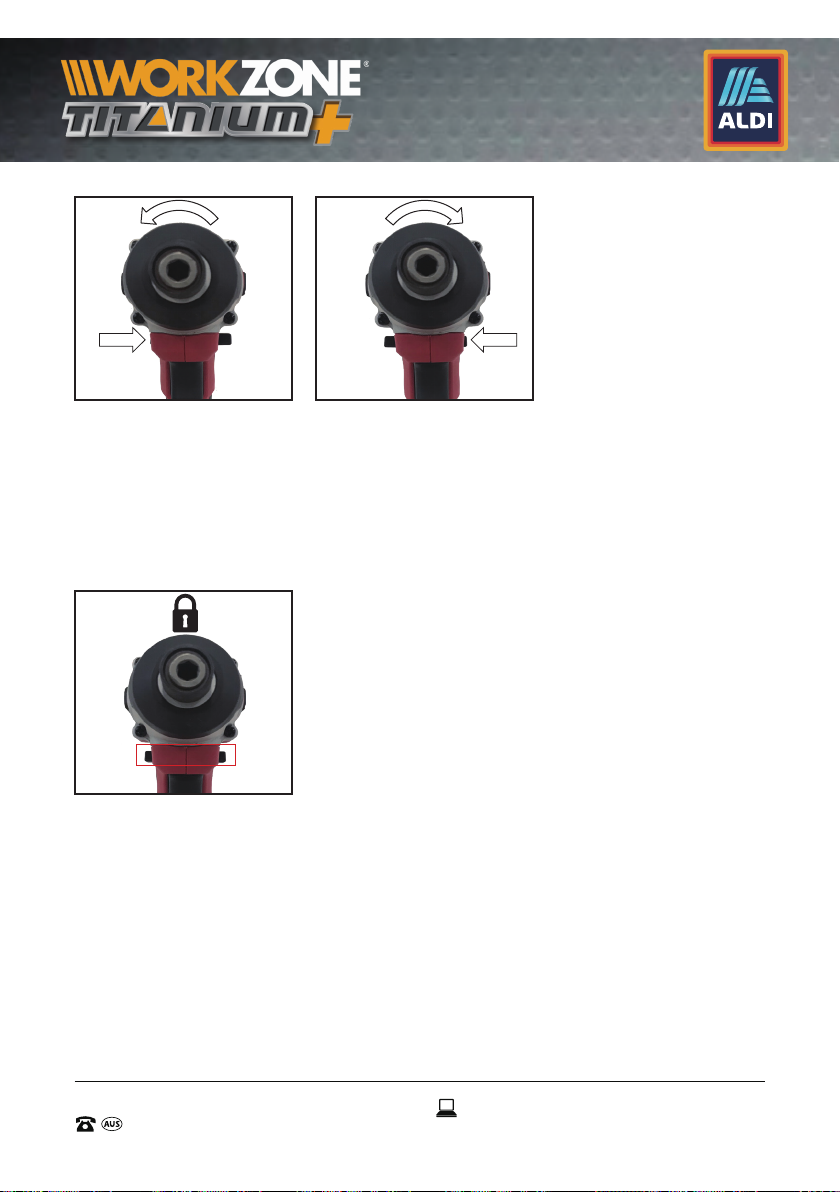

Forward/Reverse rotation control

5. Soft grip handle

6. Belt clip

1

2 3

10

7. Battery pack

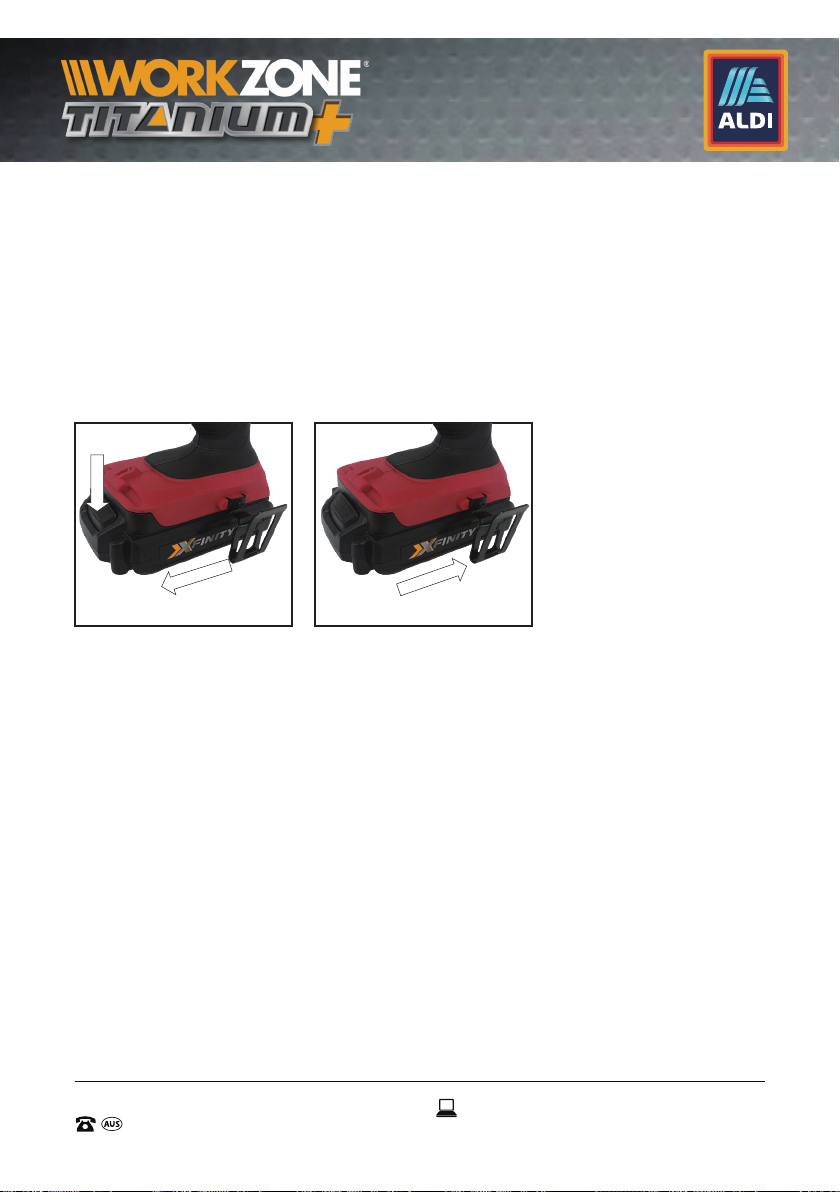

8. Battery pack release button

9. LED light

10. Trigger switch

11. Double ended bit

4

5

9

8

7

AFTER SALES SUPPORT

1300 889 028 (toll free)

6

6

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

11

4. Description of symbols

The instruction manual, rating plate, or on the product itself, may
show these symbols. These represent important information about
the product or instructions on its use.

To reduce the risk of injury, user must read instruction manual

Warning

Wear ear protection
Wear eye protection
Wear breathing protection

Conforms to relevant standards for electrical safety and
electromagnetic compatibility.

7

60

AFTER SALES SUPPORT

60 Months Warranty

1300 889 028 (toll free)

7

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

8

5. General safety warning

General Power Tool Safety Warnings

WARNING Read all safety warnings, instructions,
illustrations and specifications provided with this power

Failure to follow all instructions listed below may result in

tool.

electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains­operated (corded) power tool or battery-operated (cordless) power
tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas

invite accidents.

b) Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or

fumes.

c) Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

2) Electrical safety
a) Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges and refrigerators. There

is an increased risk of electric shock if your body is earthed or
grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric

AFTER SALES SUPPORT

1300 889 028 (toll free)

8

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

shock.

d) Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool. Keep cord away from

heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension

cord suitable for outdoor use. Use of a cord suitable for

outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is

unavoidable, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety
a) Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while

operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask, non­skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying

power tools with your finger on the switch or energising power
tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the

power tool on. A wrench or a key left attached to a rotating

part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

9

AFTER SALES SUPPORT

1300 889 028 (toll free)

9

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

10

f) Dress properly. Do not wear loose clothing or jewellery.

Keep your hair and clothing away from moving parts. Loose

clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can

reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools

allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within a

fraction of a second.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the job

better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled with the

switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/

or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools

are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for

misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power
tool’s operation. If damaged, have the power tool repaired

before use. Many accidents are caused by poorly maintained

AFTER SALES SUPPORT

1300 889 028 (toll free)

10

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

power tools.

f) Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind and
are easier to control.

g) Use the power tool, accessories and tool bits etc. in

accordance with these instructions, taking into account
the working conditions and the work to be performed.

Use of the power tool for operations different from those
intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free

from oil and grease. Slippery handles and grasping surfaces

do not allow for safe handling and control of the tool in
unexpected situations.

5) Battery tool use and care
a) Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of battery

pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery

packs. Use of any other battery packs may create a risk of injury

and fire.

c) When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals

together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the

battery; avoid contact. If contact accidentally occurs, flush

with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged

or modified. Damaged or modified batteries may exhibit

unpredictable behaviour resulting in fire, explosion or risk of

11

AFTER SALES SUPPORT

1300 889 028 (toll free)

11

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

12

injury.

f) Do not expose a battery pack or tool to fire or excessive

temperature. Exposure to fire or temperature above 130 °C

may cause explosion.

g) Follow all charging instructions and do not charge the

battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at

temperatures outside the specified range may damage the
battery and increase the risk of fire.

6) Service
a) Have your power tool serviced by a qualified repair

person using only identical replacement parts. This will

ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery

packs should only be performed by the manufacturer or
authorized service providers.

AFTER SALES SUPPORT

1300 889 028 (toll free)

12

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

Drill safety warnings
1 ) Safety instructions for all operations
a) Hold the power tool by insulated gripping surfaces, when

performing an operation where the cutting accessory
or fasteners may contact hidden wiring or its own cord.

Cutting accessory or fasteners contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give the
operator an electric shock.

2) Safety instructions when using long drill bits
a) Never operate at higher speed than the maximum speed

rating of the drill bit. At higher speeds, the bit is likely to
bend if allowed to rotate freely without contacting the
workpiece, resulting in personal injury.

b) Always start drilling at low speed and with the bit tip

in contact with the workpiece. At higher speeds, the
bit is likely to bend if allowed to rotate freely without
contacting the workpiece, resulting in personal injury.

c) Apply pressure only in direct line with the bit and do not

apply excessive pressure. Bits can bend causing breakage
or loss of control, resulting in personal injury.

13

Screwdriver and impact wrench safety warning

1. Hold power tool by insulated gripping surfaces, when
performing an operation where the fastener may contact
hidden wiring. Fasteners contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock

AFTER SALES SUPPORT

1300 889 028 (toll free)

13

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

14

6. Important information – Product care

NOTE: For any issuses related directly to your purchased ALDI Xfinity

Battery / charger, contact the Customer Service of the manufacturer
as listed on the battery / charger packaging, manual or on the label
on the battery / charger.

This drill / driver uses Lithium Ion Battery Cells. Care must be taken
to ensure both the safety and life of the pack is maintained. Ensure
you have read all of the safety notes in the previous pages before
using the drill / driver.

Treat the battery pack with care and within the guidelines of this
manual.

If the battery pack does become immersed in water or any fluids,
or is subject to a severe drop or it does not operate within the
guidelines of this manual or the supplied manual, immediately stop
using the battery pack and have it checked.

Use only the batteries and charger included with this kit, or any
ALDI Xfinity Plus 20V Li-Ion range of batteries and chargers.

AFTER SALES SUPPORT

1300 889 028 (toll free)

14

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

7. Assembly

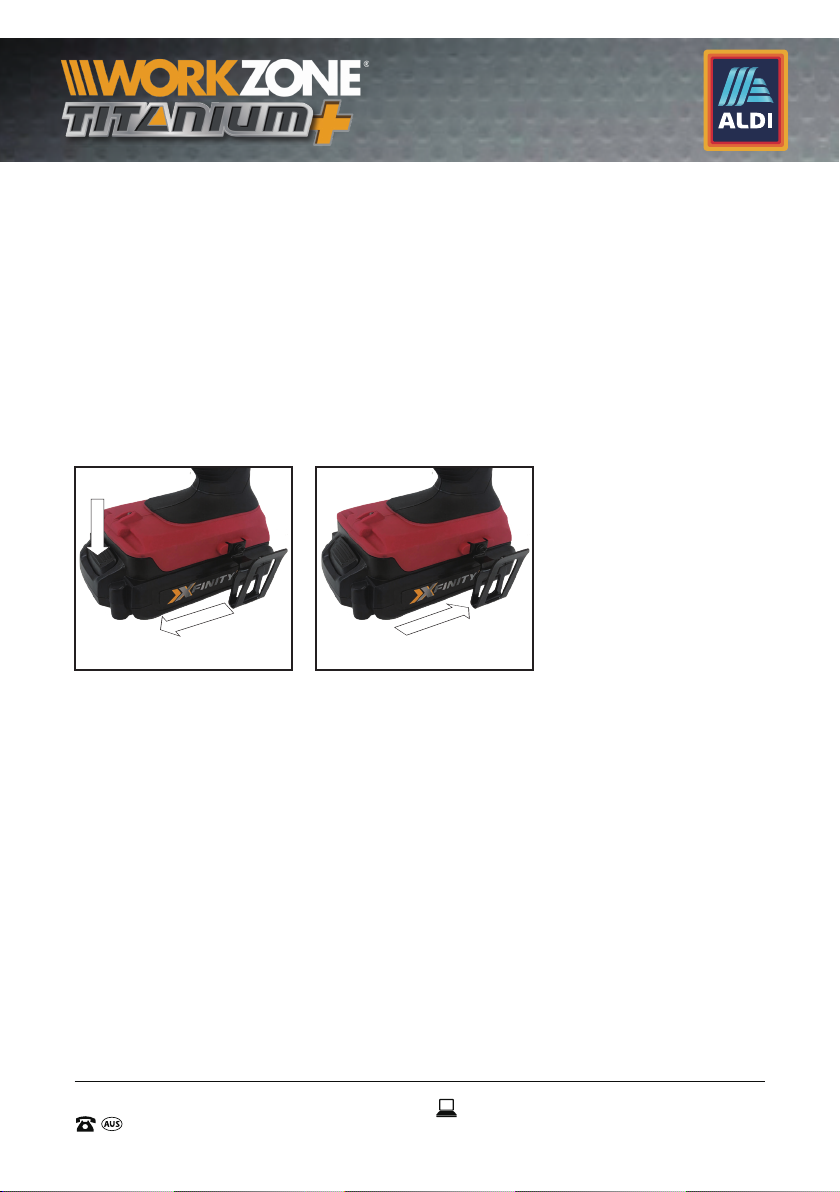

7.1 Installing and Removing the Battery Pack(7)

a) To Remove the Battery Pack (7) (See Fig. A1)

Depress the battery pack release button (8) firmly first and then slide
the battery pack (7) out and away from the drill / driver.

b) To Install the Battery Pack (7) (See Fig. A2)

Slide the fully charged battery pack (7) onto the drill / driver with
sufficient force until it clicks into position.

1

2

A1 A2

15

AFTER SALES SUPPORT

1300 889 028 (toll free)

15

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

16

8. Operation

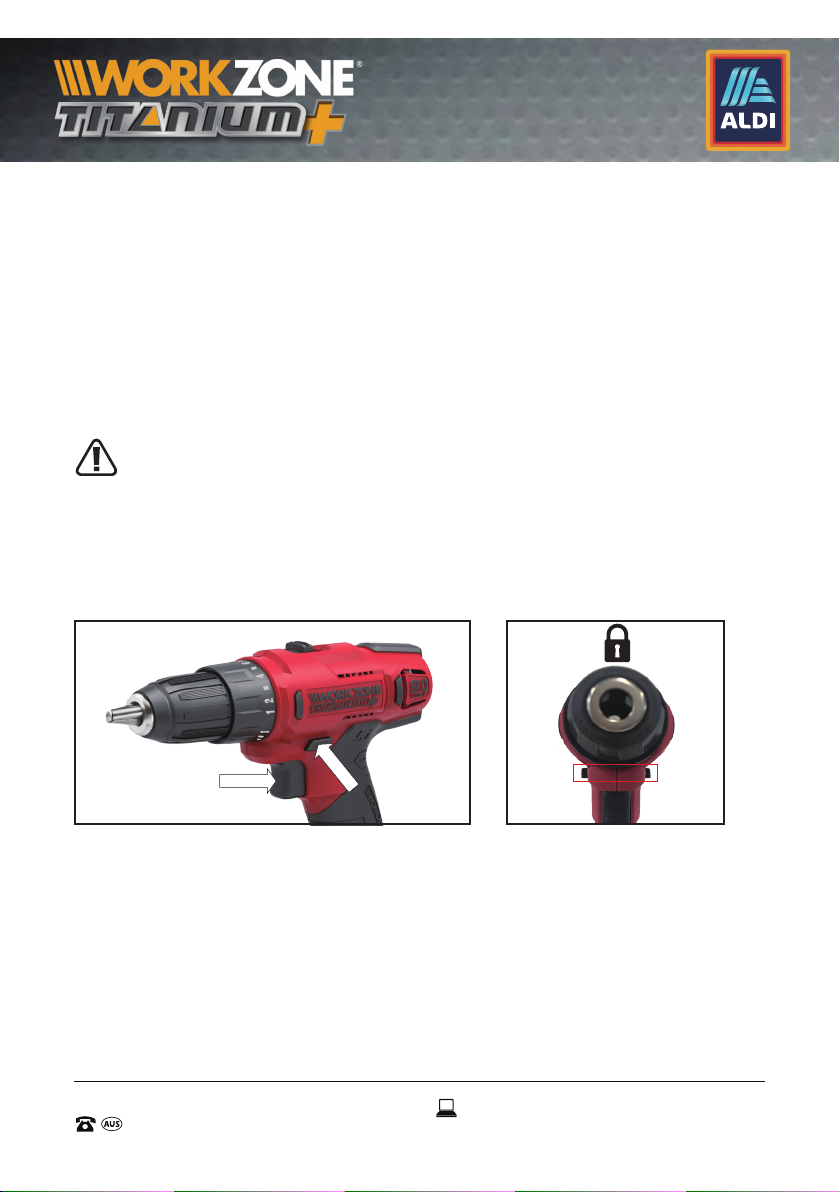

8.1 Trigger Switch (10) (See Fig. B)

Press in the trigger switch (10) to start the drill / driver. Fully release
pressure from the trigger switch (10) to stop the drill / driver.
The trigger switch (10) is fitted with a brake function which stops your
chuck immediately when you quickly release the trigger switch (10).
It is also a variable speed switch that delivers higher speed and
torque with increased trigger pressure. Speed is controlled by the
amount of pressure on the trigger switch (10).

WARNING: Do not operate for long periods at low speed
as excess heat can be produced internally.

NOTE: The variable speed control fitted to this drill/driver is not

intended to be used for long periods of time during the operation
of the task being performed. Use the variable speed to start drill/
driving and screwing tasks, and then fully depress the trigger once
the task has started.

B C

8.2 Switch Lock (See Fig. C)

The trigger switch (10) can also be locked into an OFF position with
the use of the forward/reverse rotational control (4). This helps to
reduce the possibility of accidental starting when not in use. To lock
the trigger switch (10), push the forward/reverse rotating control
(4) into the center position.In this position, the trigger switch (10)
cannot be activated.

AFTER SALES SUPPORT

1300 889 028 (toll free)

16

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

8.3 Forward / Reverse Rotational Selector (See Fig. D1, D2)

For drilling and screw driving use the forward rotation marked
“ ” (forward/reverse rotating control (4) is moved to the right
when looking at the drill from the front) (See D1). Only use reverse
rotation marked “ ” (forward/reverse rotating control (4) is
moved to the left when looking at the drill from the front) (See D2)
to remove screws or releasing a jammed drill bit.

WARNING: Never change the direction of rotation when
the chuck is rotating, wait until it has stopped!

D1 D2

17

8.4 Two-Speed Gear Selector (3) (See Fig. E)

The two-speed gearbox allows you to select a gear with the
optimum speed and torque to suit the application.
NOTE: When changing the two speed high / low gear selector (3),
ensure the drill/driver is not operating.

1. To select the LOW gear (low speed, high torque setting), push the

two-speed gear selector (3) backward,towards the back of the drill/
driver. The number “1” will be displayed.

2. To select the HIGH gear (high speed, low torque setting), push the

two-speed gear selector (3) towards the chuck.The number “2” will
be displayed.

Gear 1

Low speed range: for screwdriving or working with large drilling
diameter

AFTER SALES SUPPORT

1300 889 028 (toll free)

17

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

18

Gear 2

High speed range: for working with small drilling diameter

WARNING: To prevent gear damage, always allow the
chuck to come to a complete stop before changing the

direction of rotation or the two-speed gear selector.

E

8.5 Chuck Adjustment (See Fig. F)

1. Open the keyless chuck (1) by unscrewing it in an anti-clockwise
direction, holding the drill/driver as shown in Fig F. Do this sufficiently
enough to allow the drill/driver bit to enter the jaws of the chuck.

2. Ensure the drill/driver bit is fully inserted, so that the chuck jaws
grip the straight section of the bit.Rotate the keyless chuck (1) clock­wise until the jaws tighten on the drill/driver bit.The collar of the
chuck needs to be tightened firmly to ensure the drill/driver bit is held
securely.
To remove the drill/driver bit, rotate sharply the chuck in an
anticlockwise direction, sufficiently enough to allow the drill/driver
bit to be removed.

CLOSE

OPEN

F

AFTER SALES SUPPORT

1300 889 028 (toll free)

18

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

8.6 Torque Adjustment (See Fig. G)

(Screw driving force of your drill / driver)
The torque is adjusted by rotating the torque setting / collar (2).
The torque is greater when the torque setting / collar (2) is set on a
higher setting. The torque is less when the torque setting / collar (2)
is set on a lower setting.

Make the setting as follows:
1 - 4 for driving small screws
5 - 9 for driving screws into soft material
10 - 14 for driving screws into soft and hard material
15 - 19 for driving screws into hard wood
20 - 21 for driving larger screws
for heavy drilling

19

G

AFTER SALES SUPPORT

1300 889 028 (toll free)

19

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

20

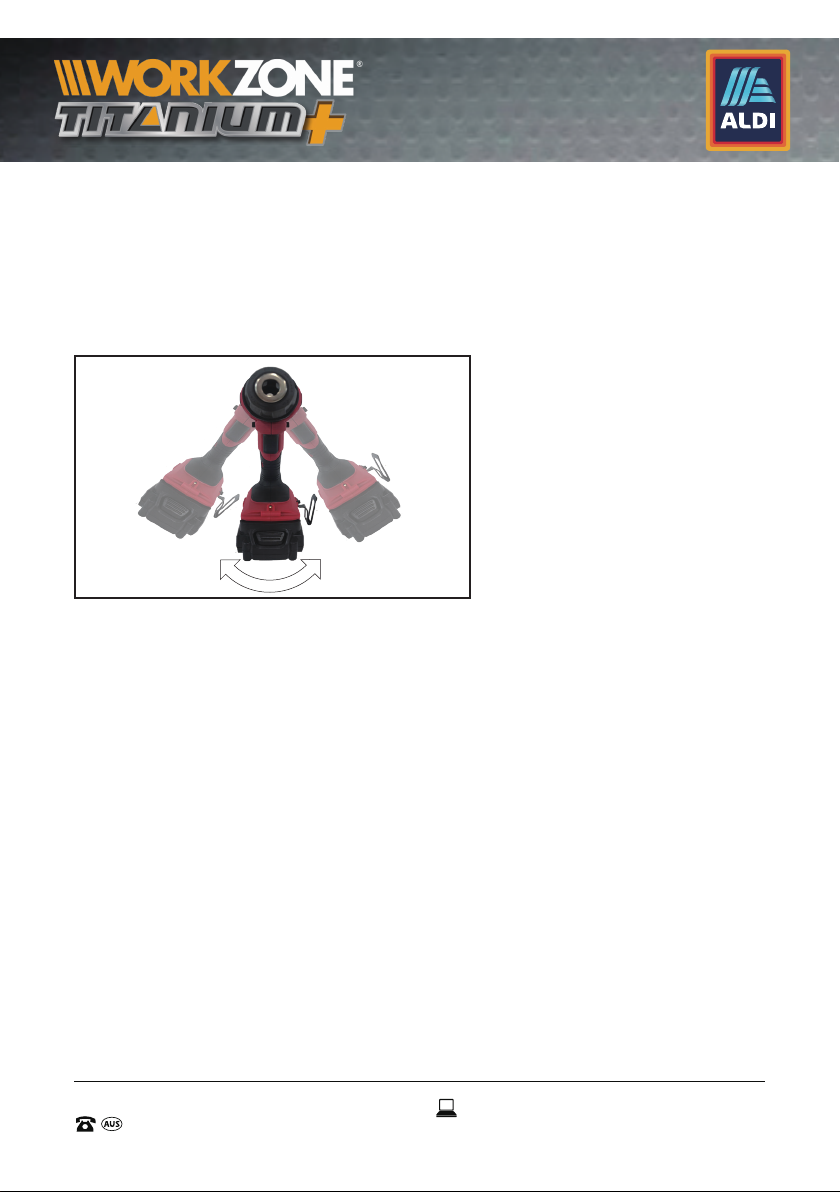

8.7 Automatic Spindle Lock (See Fig. H)

The automatic spindle lock allows you to use it as a regular
screwdriver. You can give an extra twist to firmly tighten a screw,
loosen a very tight screw or continue working when the battery
energy has expired. For manual screwdriver purposes, the chuck is
automatically locked when the tool is off.

H

8.8 Using The LED Light (9)

To turn on the LED light (9), press the trigger switch (10). When you
release the trigger switch (10), the LED light (9) will turn off.LED
lighting (9) increases visibility-great for dark or enclosed areas.

AFTER SALES SUPPORT

1300 889 028 (toll free)

20

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

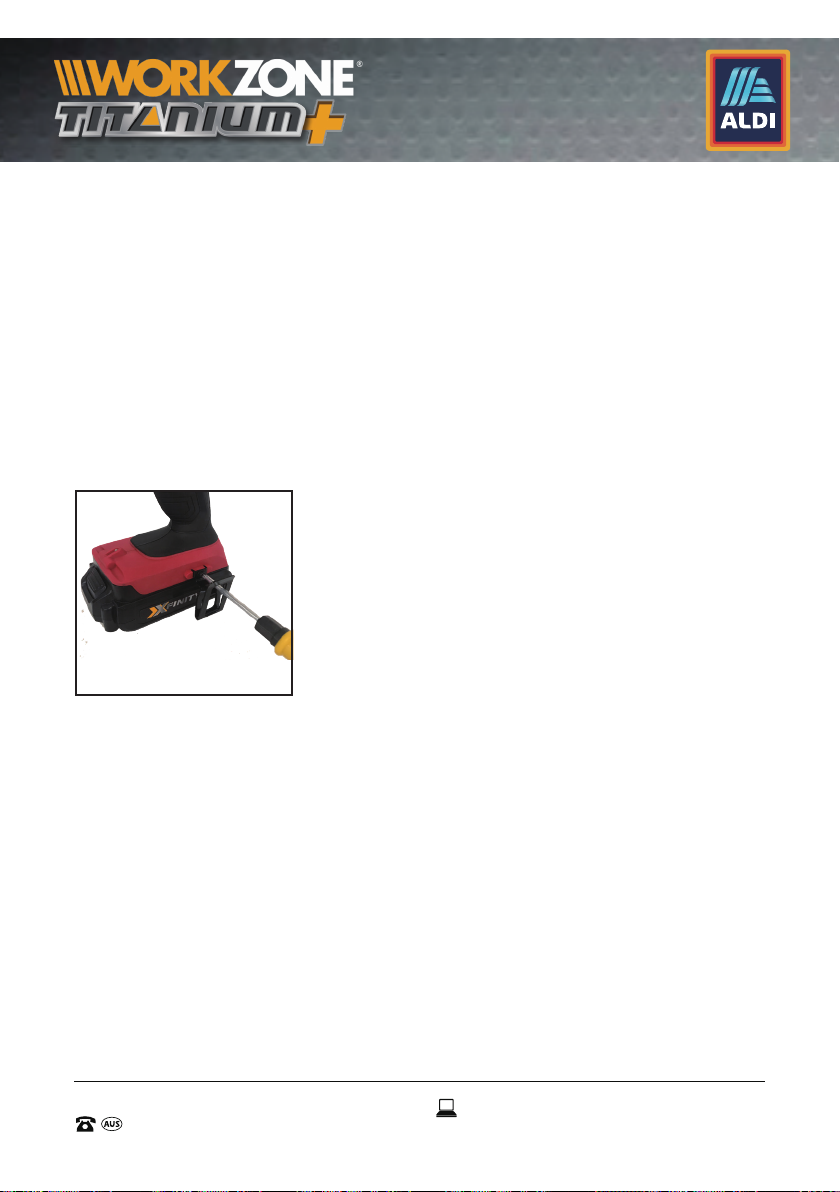

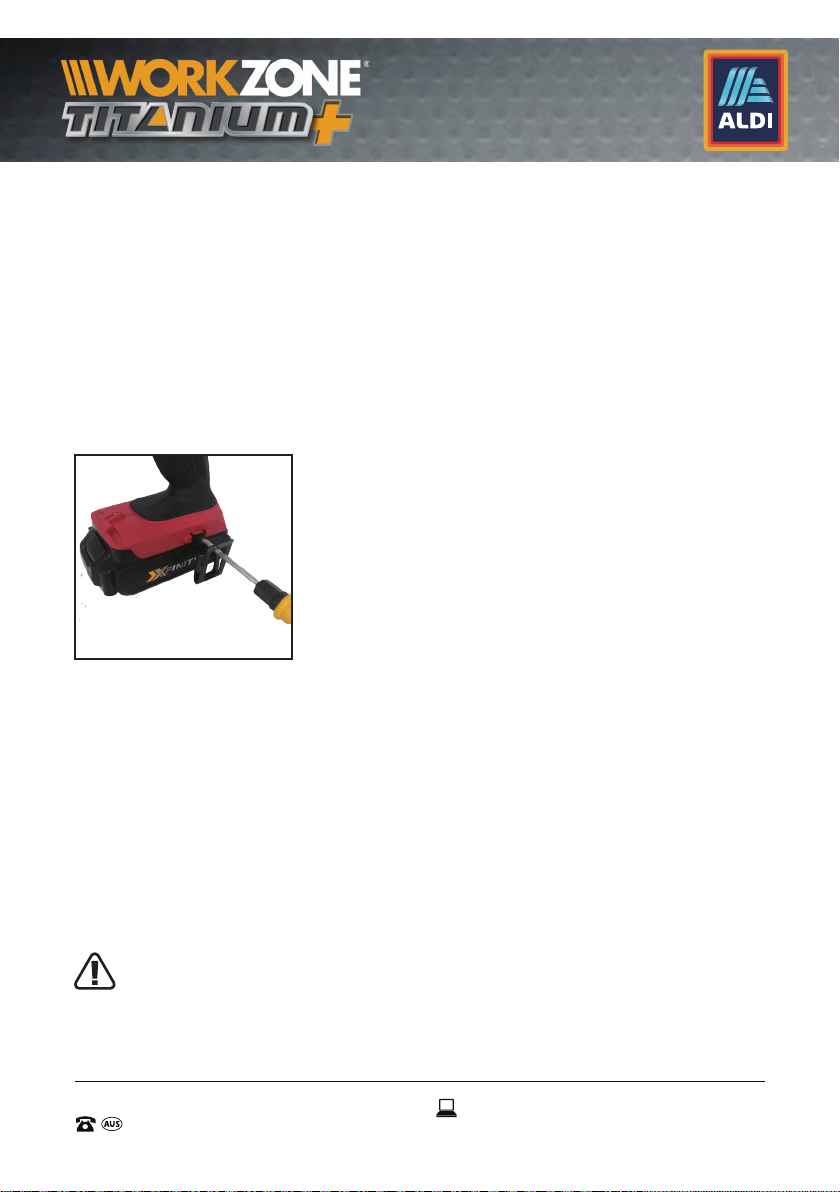

8.9 Belt Clip (6) (See Fig. I)

The side belt clip (6) is used to assist to clip the drill / driver to your
waist belt while working. To install, insert the assembly screw
through the belt clip screw hole into the retaining hole on the drill
/ driver, and using a philips head screwdriver (not supplied), tighten
the screw by turning in a clockwise direction.

NOTE: The belt clip (6) can be assembled onto either side of the drill.
IMPORTANT: When attaching or replacing the belt clip (6), use only

the assembly screw that is provided. Be sure to securely tighten screw.

I

21

8.10 Drilling

When drilling into a hard smooth surface, use a center punch to
mark the desired hole location. This will prevent the drill bit from
slipping off center as the hole is started.
Hold the drill / driver firmly and place the tip of the bit at the point
to be drilled.
Depress the trigger switch (10) to start the drill / driver.
Move the drill bit into the workpiece, applying only enough
pressure to keep the bit cutting. Do not force or apply side pressure
to elongate a hole.

When drilling in metal, only use HSS drill bits in good

condition. Always use a magnetic bit holder when using

short screwdriver bits (These bits not included).

AFTER SALES SUPPORT

1300 889 028 (toll free)

21

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

22

8.11 Overload Protection

When overloaded, the motor comes to a stop. Relieve the load on
the machine immediately and allow cooling for approx. 30 seconds
at the highest no-load speed.

8.12 Temperature cut out

If the drill/driver is constantly overloaded, or the drill/driver is used
constantly at maximum rating in high ambient conditions, the battery
cells may overheat causing the battery pack to shut down.
When this occurs you will need to allow the battery cells to cool.
NOTE: The drill/driver will not restart until the battery pack has cooled.
To reduce the temperature of the cells remove the battery pack from
the drill/driver and place the battery pack in a free air environment, out
of direct sunlight or any other heat source.
DO NOT force cool the pack in any way. Do not place in refrigerators or
freezers.When the battery pack has cooled down it can again be used
to operate the drill/driver, as long as the load or the conditions causing
the original excessive temperature has been corrected.

8.13 Low voltage cut out

The battery pack used on this tool is fitted with a low voltage cut out
feature within the circuitry.The low voltage cut out feature operates
when the voltage drops below a preset value. This feature automatically
stops the drill/driver from operating (similar to that of the overload
condition). When this condition occurs you will need to either insert
another battery into the drill/driver or recharge the existing battery.The
low voltage cut out feature has been added to maximise the life of the
battery cells in the battery. When this occurs, recharge the battery pack
by following the battery charging section in this manual.
NOTE: Attempting to restart the tool without either recharging the
battery or installing another battery (with charge) will lead to drill/
driver restarting and then stopping again, after only a few seconds of
operation.

AFTER SALES SUPPORT

1300 889 028 (toll free)

22

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

9. Maintenance

WARNING: Remove the battery pack from the driver
before carrying out any adjustment, servicing or

maintenance.

Your drill / driver requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool.
Never use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth.
Always store your power tool in a dry place.
Keep the motor ventilation slots clean.
Keep all working controls free of dust.
Occasionally you may see sparks through the ventilation slots. This is
normal and will not damage your power tool.

For battery tools

The ambient temperature range for tool and battery use and
storage is 0
The recommended ambient temperature range for the charging
system during charging is 0

o

C-45oC.

o

C-40oC.

23

AFTER SALES SUPPORT

1300 889 028 (toll free)

23

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

24

10. Warranty

Your new WORKZONE® TITANIUM 20V Li-ion Cordless Drill / Driver
will more than satisfy your expectations.
It has been manufactured under stringent WORKZONE
Quality Standards to meet superior performance criteria.
You will find your new 20V Li-ion Cordless Drill / Driver easy and
safe to operate, and, with proper care, it will give you many years of
dependable service.
CAUTION. Carefully read through this entire instruction manual

®

before using your new WORKZONE

TITANIUM 20V Li-ion Cordless

Drill / Driver. Take special care to heed the Cautions and Warnings.

®

Your WORKZONE

TITANIUM 20V Li-ion Cordless Drill / Driver has
many features that will make your job faster and easier. Safety,
performance, and dependability have been given top priority in the
development of this 20V Li-ion Cordless Drill / Driver, making it easy
to maintain and operate.

®

Use only WORKZONE

TITANIUM replacement parts for your
product. Non-conforming parts or modifications made to parts will
void your warranty.

®

TITANIUM

AFTER SALES SUPPORT

1300 889 028 (toll free)

24

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

What your 5 year warranty means

Great care has gone into the manufacture of this product and it
should therefore provide you with years of good service when used
properly. In the event of product failure within its intended use over
the course of the first 5 years after the date of purchase, we will
remedy the problem as quickly as possible once it has been brought
to our attention. In the unlikely event of such an occurrence, or if
you require any information about the product please contact us via
our after sales support services, details of which can be found in this
manual and on the product itself.
After Sales Support TEL: [phone]

Service Support

If you have any issues with the operation of your product, please call
us on 1300 889 028 for advice, or email us at
[e-mail]

25

11.Environmental protection

Recycle unwanted materials instead of disposing of them
as waste. All tools, hoses and packaging should be sorted,
taken to the local recycling centre and disposed of in an
environmentally safe way.

AFTER SALES SUPPORT

1300 889 028 (toll free)

25

e-mail:

MODEL No.:

[e-mail]

CDT218XA.9 • 2323 • 05/2019

26

12.FAQ/Troubleshooting

1. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a battery pack
for a prolonged time will reduce the battery pack working time. This
can be corrected after several charge and discharge operations by
charging & working with your drill. Heavy working conditions such as
large screws into hard wood will use up the battery pack energy faster
than lighter working conditions. Do not re-charge your battery pack
below 0

2. WHY DOES THE DRILL NOT TURN ON WHEN I PRESS THE
TRIGGER SWITCH (10)?

The forward/reverse rotation control (4) may be positioned in the lock
function position. Unlock the forward/reverse rotation control (4) by
putting it into the required rotation position – forward or reverse.
Push the trigger switch (10) and the drill / driver will start to rotate.

o

C and above 40oC as this will affect performance.

3. HOW DO I SELECT DIFFERENT TORQUE POSITIONS?

Verify the torque position of the torque adjustment ring (2). You can
find the torque adjustment ring (2) between the chuck (1) and the
drill body. Rotate the torque adjustment ring (2) to align the numbers
(screw driving force) with the triangular indicator on the top of the
drill / driver. To adjust the torque setting, rotate the torque adjustment
ring (2). The higher the number, the higher the output torque.

4. HOW DO I ADJUST THE TORQUE?

To adjust the torque setting, rotate the torque adjustment ring (2).
Position 1 is the lowest torque (screw driving force) and position 21 is
the highest torque (screw driving force).
Controlling the torque allows for better control when using the
drill / driver on specific screwing tasks and assists in preventing over­fastening and over-tightening.

AFTER SALES SUPPORT

1300 889 028 (toll free)

26

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

27

For setting the torque position, first select a low setting on the torque
adjustment ring (2) and align the selected number with the triangular
indicator on the top of the drill / driver.
Slowly increase the torque setting to the desired level. It is suggested to
test the setting on scrap material first.

5. HOW DO I SELECT DRILL FUNCTION?

When using the drilling function the torque control has no effect to the
output of the drill. The drill function is used when using the drill to drill
holes in metal, non ferrous material, wood, plastic and similar materials.
Rotate the torque adjustment ring (2) so the symbol of the drill bit
aligns with the triangular indicator on the top of the drill / driver.

6. HOW DO I USE THE 2 GEARS ON THE DRILL?

To select LOW speed (mark is 1) (e.g. low speed, high torque setting),
push the gear selector forward, towards the chuck. The number “1” will
be displayed.
To select the HIGH speed (mark is 2) (e.g. high speed, low torque
setting), push the gear selector backwards. The number “2” will be
displayed.
NOTE: The gears cannot be changed if the on off switch (10) is
depressed.

7. WHAT IS THE FUNCTION OF THE FORWARD/REVERSE SWITCH?

Forward/Reverse rotation control (4) allows you to change the direction
of the motor while the trigger switch (10) is not depressed.
Drill / driving uses the forward mode. The reverse mode is intended for
the removal of screws and assisting to remove jammed drill/driver bits.

8. WHAT DO I DO IF I HAVE AN ISSUE WITH MY DRILL?

If you have any issues with your drill / driver, please contact our
Customer Service line on 1300 889 028.

AFTER SALES SUPPORT

1300 889 028 (toll free)

27

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

28

13. Technical Specifications

Voltage 20V d.c.

No load speed 0-400/0-1500/min

Number of clutch positions 21+1

Max torque 28 N.m

Chuck capacity 10 mm

Steel 10 mm

Max. drilling capacity

Wood 25 mm

Machine weight 0.9 Kg

Product Dimensions (L x W x H): 190x75x225 mm

This 20V Li-ion Cordless Drill / Driver complies with the
following Standards:

MD: EN62841-1
EN62841-2-1
AS/NZS62841-1
AS/NZS62841-2-1

EMC: EN55014-1
EN55014-2

AFTER SALES SUPPORT

1300 889 028 (toll free)

28

e-mail:

[e-mail]

MODEL No.:

CDT218XA.9 • 2323 • 05/2019

Xfinity Li-ION 20V

Impact Driver

Instruction Manual

IMPORTANT

Read carefully before use

Keep for future reference

03

MODEL NUMBER

Version number: 004

CID180XA.9

2

Welcome

Congratulations in choosing to buy a Workzone® Titanium 20V Li-ion
Cordless Impact Driver.
All products bought to you by Workzone® Titanium are manufactured
to the highest standards of performance and safety and, as part of our
philosophy of customer service and satisfaction, are backed by our
comprehensive 5 Year Warranty. We hope you will enjoy your purchase
for many years to come.
When you open your packaging, rst remove all items and check there
are no parts damaged or missing. If you nd anything wrong, do not
operate the product until the parts have been replaced or the fault has
been rectied. Failure to do so could result in serious personal injury.

AFTER SALES SUPPORT

1300 889 028 (toll free)

2

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

20V Li-Ion Cordless Impact driver

Warranty Details

REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION

The product is guaranteed to be free from defects in workmanship and parts for a period of 60 months from the
date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion. T
remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.

conferred by this warranty are in addition to all rights and

3

AFTER SALES SUPPORT

1300 889 028 (toll free)

3

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

4

Contents

Application 5
Package Content List 5
Parts description 6
Description of symbols 7
General Safety Warnings 8
Important information – Product care 13
Assembly 14
Operation 16
Maintenance 20
Warranty 21
Environmental protection 22
FAQ/Troubleshooting 23
Technical Specications 24

AFTER SALES SUPPORT

1300 889 028 (toll free)

4

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

20V Li-ion Cordless Impact driver

1. Application

First time users or inexperienced operators pay particular attention to the
operation of the 20V Li-ion Cordless Impact Driver, including details of
starting and stopping and correct use of the 20V Li-ion Cordless Impact

Driver on pages 14-19, as well as the maintenance instructions on page 20.

Intended use of 20V Li-ion Cordless Impact Driver

NOTE: This product is for private domestic DIY use only. It is not suitable for

commercial or trade use.
This 20V Li-ion Cordless Impact Driver is used for fastening and loosening of bolts,
nuts and various threaded fasteners. This tool is not intended for use as a drill.
The tool is to be used only for its prescribed purpose. Any other use is deemed to
be a case of misuse.

5

2. Package Content List

1 x 20V Li-Ion Cordless Impact Driver
1 x Belt clip + assembly screw (not tted)
1 x 50mm drill bit
1 x Instruction manual
1 x Warranty Card & Certicate

WARNING! Please read and understand this instruction manual
before use and keep it for your future reference. Your product
should only be passed on together with this instruction manual.
WARNING! To reduce risk of injury, only use the supplied 20V Li­Ion battery and charger included in this kit or any 20V Li-Ion ALDI
Xnity Plus range of 20V Li-Ion battery packs. Other type of battery
packs may burst causing personal injury and damage. The battery
pack must be charged using with ALDI Xnity Plus 20V Li-Ion battery
chargers.

AFTER SALES SUPPORT

1300 889 028 (toll free)

5

• Remove all packing materials

• Ensure all parts on the
contents list are present

• Check the appliance, and all
accessories for transportation
damages

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

6

3. Parts description

1. Forward/Reverse Selector

2. Trigger Switch

3. Soft Grip Handle

4. Belt Clip

8

2

5. Battery Pack

6. Battery Pack Release Button

7. LED light

8. Hex Drive

1

3

7

6

5

AFTER SALES SUPPORT

1300 889 028 (toll free)

6

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

4

4. Description of symbols

The instruction manual, rating plate, or on the product itself, may
show these symbols. These represent important information about
the product or instructions on its use.

To reduce the risk of injury, user must read instruction manual

Warning

Wear ear protection
Wear eye protection
Wear breathing protection

7

Conforms to relevant standards for electrical safety and
electromagnetic compatibility.

60

AFTER SALES SUPPORT

60 Months Warranty

1300 889 028 (toll free)

7

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

8

5. General safety warning

General Power Tool Safety Warnings

WARNING Read all safety warnings, instructions,
illustrations and specifications provided with this power

Failure to follow all instructions listed below may result in

tool.

electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains­operated (corded) power tool or battery-operated (cordless) power
tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas

invite accidents.

b) Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or

fumes.

c) Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

2) Electrical safety
a) Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges and refrigerators. There

is an increased risk of electric shock if your body is earthed or
grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric

AFTER SALES SUPPORT

1300 889 028 (toll free)

8

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

shock.

d) Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool. Keep cord away from

heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension

cord suitable for outdoor use. Use of a cord suitable for

outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is

unavoidable, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety
a) Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while

operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask, non­skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying

power tools with your finger on the switch or energising power
tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the

power tool on. A wrench or a key left attached to a rotating

part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

9

AFTER SALES SUPPORT

1300 889 028 (toll free)

9

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

10

f) Dress properly. Do not wear loose clothing or jewellery.

Keep your hair and clothing away from moving parts. Loose

clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can

reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools

allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within a

fraction of a second.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the job

better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled with the

switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/

or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools

are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for

misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power
tool’s operation. If damaged, have the power tool repaired

before use. Many accidents are caused by poorly maintained

AFTER SALES SUPPORT

1300 889 028 (toll free)

10

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

power tools.

f) Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind and
are easier to control.

g) Use the power tool, accessories and tool bits etc. in

accordance with these instructions, taking into account
the working conditions and the work to be performed.

Use of the power tool for operations different from those
intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free

from oil and grease. Slippery handles and grasping surfaces

do not allow for safe handling and control of the tool in
unexpected situations.

5) Battery tool use and care
a) Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of battery

pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery

packs. Use of any other battery packs may create a risk of injury

and fire.

c) When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals

together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the

battery; avoid contact. If contact accidentally occurs, flush

with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged

or modified. Damaged or modified batteries may exhibit

unpredictable behaviour resulting in fire, explosion or risk of

11

AFTER SALES SUPPORT

1300 889 028 (toll free)

11

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

12

injury.

f) Do not expose a battery pack or tool to fire or excessive

temperature. Exposure to fire or temperature above 130 °C

may cause explosion.

g) Follow all charging instructions and do not charge the

battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at

temperatures outside the specified range may damage the
battery and increase the risk of fire.

6) Service
a) Have your power tool serviced by a qualified repair

person using only identical replacement parts. This will

ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery

packs should only be performed by the manufacturer or
authorized service providers.

General Power Tool Safety Warnings

1. Hold power tool by insulated gripping surfaces, when
performing an operation where the fastener may contact
hidden wiring. Fasteners contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give the
operator an electric shock.

AFTER SALES SUPPORT

1300 889 028 (toll free)

12

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

6. Important information – Product care

NOTE: For any issuses related directly to your purchased ALDI Xfinity

battery / charger, contact the customer service of the manufacturer
as listed on the battery / charger packaging, manual or on the label
on the battery / charger.
This Impact Driver uses Lithium Ion battery cells. Care must be taken to
ensure both the safety and life of the pack is maintained. Ensure you
have read all of the safety notes in the previous pages before using the
Impact Driver.
Treat the battery pack with care and within the guidelines of this
manual.
If the battery pack does become immersed in water or any fluids, or is
subject to a severe drop or it does not operate within the guidelines of
this manual or the supplied manual, immediately stop using the battery
pack and have it checked.
Use only the batteries and charger included with this kit, or any ALDI
Xfinity Plus 20V Li-Ion range of batteries and chargers.

13

AFTER SALES SUPPORT

1300 889 028 (toll free)

13

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

14

7. Assembly

7.1 Inserting A Bit Holder, Socket Or Screwdriver Bit
(See Fig. A)

Pull the hex drive (8) sleeve (a) forward. Fully insert the desired bit
into the hex drive (8) and release the sleeve (a).
NOTE: To ensure the bit is secure, try pulling the bit after releasing

the sleeve (a) to make sure the bit is fully locked in the hex drive (8).

7.2 Removing A Bit Holder, Socket Or Screwdriver Bit
(See Fig. B)

Pull the hex drive (8) sleeve (a) forward. Remove the bit out of the
hex drive (8) and release the sleeve (a).

A B

a a

AFTER SALES SUPPORT

1300 889 028 (toll free)

14

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

7.3 Installing and Removing the Battery Pack

a) To Remove the Battery Pack (5) (See Fig. C1)

Depress the battery pack release button (6) firmly, then slide the
battery pack (5) out away from the tool.

b) To Install The Battery Pack (5) (See Fig. C2)

Slide the fully charged battery pack (5) onto the tool with sufficient
force until it clicks into position.

1

2

C1 C2

15

AFTER SALES SUPPORT

1300 889 028 (toll free)

15

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

16

8. Operation

8.1 Trigger Switch (2) (See Fig. D)

Press in the trigger switch (2) to start the Impact Driver, and fully
release pressure off the trigger switch (2) to stop the Impact Driver.
The trigger switch (2) is fitted with a brake function which stops the
chuck / hex drive immediately when you quickly release the trigger
switch (2).

The trigger switch (2) also operates the variable speed by applying
various pressure to the trigger. Higher speed and torque results with
increased trigger pressure. Speed is controlled by the amount of
pressure applied to the trigger switch (2).

WARNING: Do not operate for long periods at low speed
as excess heat can be produced internally in the motor.

D

8.2 Forward / Reverse Selector (See Fig. E1, E2)

For fastening bolts or nuts, press the forward / reverse selector (1) as
marked “ ” (forward/reverse selector (1) is moved to the right as
shown in Fig. E1). For reverse rotation marked “ ” the forward/
reverse selector (1) is moved to the left as shown in Fig. E2, to loosen
or remove bolts or nuts fullstop.

WARNING: Never change the direction of rotation when
the chuck is rotating, wait until it has stopped!

AFTER SALES SUPPORT

1300 889 028 (toll free)

16

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

17

E1

E2

8.3 Trigger Switch (2) Lock (See Fig. F)

The trigger switch (2) can be locked into the OFF position. This helps
to reduce the possibility of accidental starting when not in use. To
lock the trigger switch (2), push the forward/reverse selector (1) into
the centre position.

F

8.4 Using The LED Light (7)

To turn on the LED light (7), press the trigger switch (2). When you
release the trigger switch (2), the LED light (7) will turn off.LED
lighting (7) increases visibility - great for dark or enclosed areas.

AFTER SALES SUPPORT

1300 889 028 (toll free)

17

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

18

8.5 Belt Clip (4) (See Fig. G)

The side belt clip (4) is used to assist to clip the Impact Driver to
your waist belt while working. To install, insert the assembly screw
through the belt clip screw hole into the retaining hole on the
Impact Driver, and using a philips head screwdriver (not supplied),
tighten the screw by turning in a clockwise direction
NOTE: The belt clip (4) can be assembled onto either side of the
Impact Driver.
IMPORTANT: When attaching or replacing the belt clip (4), use only
the assembly screw that is provided. Be sure to securely tighten
screw.

G

8.6 Overload Protection

When in overload condition, the motor will come to a stop. Reduce
the load on the machine immediately and allow to cool for approx.
30 seconds at the highest no-load speed.

8.7 Temperature Cut Out

If the Impact Driver is constantly overloaded, or the Impact Driver is
used constantly at maximum rating in high ambient conditions, the
battery cells may overheat causing the battery pack to shut down.
When this occurs you will need to allow the battery cells to cool.
NOTE: The Impact Driver will not restart until the battery pack has
cooled.
To reduce the temperature of the cells remove the battery pack
from the Impact Driver and place the battery pack in a free air

AFTER SALES SUPPORT

1300 889 028 (toll free)

18

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

environment, out of direct sunlight or any other heat source.
DO NOT force cool the pack in any way. Do not place in refrigerators
or freezers.
When the battery pack has cooled down it can again be used to
operate the Impact Driver, as long as the load or the conditions
causing the original excessive temperature has been corrected.

8.8 Low Voltage Cut Out

The battery pack used on this tool is fitted with a low voltage cut
out feature within the circuitry.
The low voltage cut out feature operates when the voltage drops
below a preset value. This feature automatically stops the Impact
Driver from operating (similar to that of the overload condition).
When this condition occurs you will need to either insert another
battery into the Impact Driver or recharge the existing battery.
The low voltage cut out feature has been added to maximise the
life of the battery cells in the battery. When this occurs, recharge
the battery pack by following the battery charging section in this
manual.
NOTE: Attempting to restart the tool without either recharging
the battery or installing another battery (with charge) will lead to
Impact Driver restarting and then stopping again, after only a few
seconds of operation.

19

AFTER SALES SUPPORT

1300 889 028 (toll free)

19

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

20

9. Maintenance

WARNING: Remove the battery pack from the driver
before carrying out any adjustment, servicing or

maintenance.

Your power tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool.
Never use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth.
Always store your power tool in a dry place.
Keep the motor ventilation slots clean.
Keep all working controls free of dust.
Occasionally you may see sparks through the ventilation slots. This is
normal and will not damage your power tool.

For battery tools

The ambient temperature range for tool and battery use and
storage is 0
The recommended ambient temperature range for the charging
system during charging is 0

o

C-45oC.

o

C-40oC.

AFTER SALES SUPPORT

1300 889 028 (toll free)

20

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

10. Warranty

Your new WORKZONE® TITANIUM 20V Li-ion Cordless Impact Driver
will more than satisfy your expectations.
It has been manufactured under stringent WORKZONE
Quality Standards to meet superior performance criteria.
You will find your new 20V Li-ion Cordless Impact Driver easy and
safe to operate, and, with proper care, it will give you many years of
dependable service.
CAUTION. Carefully read through this entire instruction manual

®

before using your new WORKZONE

TITANIUM 20V Li-ion Cordless

Impact Driver. Take special care to heed the Cautions and Warnings.

®

Your WORKZONE

TITANIUM 20V Li-ion Cordless Impact Driver has
many features that will make your job faster and easier. Safety,
performance, and dependability have been given top priority in the
development of this 20V Li-ion Cordless Impact Driver, making it easy
to maintain and operate.

®

Use only WORKZONE

TITANIUM replacement parts for your
product. Non-conforming parts or modifications made to parts will
void your warranty.

®

TITANIUM

21

AFTER SALES SUPPORT

1300 889 028 (toll free)

21

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

22

What your 5 year warranty means

Great care has gone into the manufacture of this product and it
should therefore provide you with years of good service when used
properly. In the event of product failure within its intended use over
the course of the first 5 years after the date of purchase, we will
remedy the problem as quickly as possible once it has been brought
to our attention. In the unlikely event of such an occurrence, or if
you require any information about the product please contact us via
our after sales support services, details of which can be found in this
manual and on the product itself.
After Sales Support TEL: [phone]

Service Support

If you have any issues with the operation of your product, please call
us on 1300 889 028 for advice, or email us at
[e-mail]

11.Environmental protection

Recycle unwanted materials instead of disposing of them
as waste. All tools, hoses and packaging should be sorted,
taken to the local recycling centre and disposed of in an
environmentally safe way.

AFTER SALES SUPPORT

1300 889 028 (toll free)

22

e-mail:
MODEL No.:

[e-mail]

CID180XA.9 • 2323 • 05/2019

23

12.FAQ/Troubleshooting

1. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a battery
pack for a prolonged time will reduce the battery pack working time.
This can be corrected after several charge and discharge operations
by charging & working with your driver. Heavy working conditions
such as large screws into hard wood will use up the battery pack
energy faster than lighter working conditions. Do not re-charge
your battery pack below 0
performance.

2. WHY DOES THE DRIVER NOT TURN ON WHEN I PRESS THE
TRIGGER SWITCH (2)?

The forward/reverse selector (1) is positioned in the lock function.
Unlock the forward/reverse selector (1) by putting it into the required
rotation position. Push the trigger switch (2) and the driver will start
to rotate.

o

C and above 40oC as this will affect

3. WHAT IS THE FUNCTION OF THE FORWARD/REVERSE
SELECTOR (1)?

Forward/reverse selector (1) allows you to change the direction of the
motor while the trigger switch (2) is not depressed.
Driving uses the forward mode. The reverse mode is intended for the
removal of bolts, nuts and various threaded fasteners.

4. WHAT DO I DO IF I HAVE AN ISSUE WITH MY DRIVER?
If you have any issues with your driver, please contact our Customer
Service line on 1300 889 028.

AFTER SALES SUPPORT

1300 889 028 (toll free)

23

e-mail:

[e-mail]

MODEL No.:

CID180XA.9 • 2323 • 05/2019

24

13. Technical Specifications

Rated voltage 20V d.c.

Rated no-load speed 0-2600/min

Impact rate 3400 bpm

Max torque 110 N.m

Chuck size 1/4” hex

Machine weight 0.91 kg

Product Dimensions (L x W x H): 155x80x225 mm

This 20V Li-ion Cordless Impact Driver complies with the
following Standards:

Safety: EN62841-1
EN62841-2-2
AS/NZS62841.1
AS/NZS62841.2.2

EMC: EN55014-1
EN55014-2

AFTER SALES SUPPORT

1300 889 028 (toll free)

24

e-mail:
MODEL No.:

[e-mail]

CID180XA.9 • 2323 • 05/2019

Xfinity Li-ION 20V

165mm Circular Saw

Instruction Manual

IMPORTANT

Read carefully before use

Keep for future reference

04

MODEL NUMBER

Version number: 004

CSC165XA.9

2

Welcome

Congratulations in choosing to buy a Workzone® Titanium Xnity Plus
20V Li-Ion 165mm Circular Saw.

All products bought to you by Workzone® Titanium are manufactured
to the highest standards of performance and safety and, as part of our
philosophy of customer service and satisfaction, are backed by our
comprehensive 5 Year Warranty. We hope you will enjoy your purchase
for many years to come.

When you open your packaging, rst remove all items and check there
are no parts damaged or missing. If you nd anything wrong, do not
operate the product until the parts have been replaced or the fault has
been rectied. Failure to do so could result in serious personal injury.

AFTER SALES SUPPORT

1300 889 028 (toll free)

2

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

20V Li-Ion 165mm Cordless Circular Saw

Warranty Details

REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION

The product is guaranteed to be free from defects in workmanship and parts for a period of 60 months from the
date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion. T
remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.

conferred by this warranty are in addition to all rights and

3

AFTER SALES SUPPORT

1300 889 028 (toll free)

3

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

4

Contents

Application 5
Package Content List 5
Parts description 6
Description of symbols 8
Product Safety 9
Safety instructions for all saws 13
Important information – Product care 16
Assembly 17
Operation 18
Maintenance 23
Warranty 23
Environmental protection 24
FAQ/Troubleshooting 25
Technical Specications 28

AFTER SALES SUPPORT

1300 889 028 (toll free)

4

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

20V Li-Ion 165mm Cordless Circular Saw

1. Application

First time users or inexperienced operators pay particular attention to
the operation of the 20V Li-Ion 165mm Circular Saw, including details of
starting and stopping and correct use of the 20V Li-Ion 165mm Circular Saw
on pages 18-22, as well as the maintenance instructions on page 23.

Intended use of 20V Li-Ion 165mm Circular Saw

NOTE: This product is for private domestic DIY use only. It is not suitable for

commercial or trade use.
The 20V Li-Ion 165mm Circular Saw is intended for light use around the
home and domestic applications. It is particularly useful for trimming
plywood and similar sheet material. It is NOT suitable for metal cutting
blades or discs.

2. Package Content List

5

1 x 20V Li-Ion 165mm Circular Saw
1 x 5mm Hex key
1 x Saw blade
1 x Parallel guide
1 x Dust Extraction adapter
1 x Instruction manual
1 x Warranty Card & Certicate

WARNING! Please read and understand this instruction manual
before use and keep it for your future reference. Your product
should only be passed on together with this instruction manual.
WARNING! To reduce risk of injury, only use the ALDI Xnity Plus
range of 20V Li-Ion battery packs. Other type of battery packs may
burst causing personal injury and damage. The battery pack must be
charged using with ALDI Xnity Plus 20V Li-Ion battery chargers.

AFTER SALES SUPPORT

1300 889 028 (toll free)

5

• Remove all packing materials

• Ensure all parts on the contents
list are present

• Check the appliance, and all
accessories for transportation
damages

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

6

3. Parts description

1. Lock-O Button

2. Trigger Switch

3. Front Handle

4. Spindle Lock Button

5. Base Plate Angle Scale

6. Base Plate Bevel Lock Knob

7. Parallel Guide Lock Knob

8. Cutting Mark - 45°

9. Cutting Mark - 0°

10. Parallel Guide

11. Base Plate

12. Lower Guard Lever

13. Lower Blade Guard

14. Fixed Guard

15. Dust Extraction Adapter

16. Battery Pack

17. Battery Pack Release Button

18. Inner Flange (See Fig. B3)

19. Saw Blade

20. Outer Flange (See Fig. B3)

21. Blade Bolt (See Fig. B3)

22. Cutting Depth Scale (See Fig. C)

23. Cutting Depth Lock Knob (See Fig. C)

24. Hex key (See Fig. K)

25. Blade rotation indicator

26. Main handle

27. Spindle

28. Parallel guide notches

AFTER SALES SUPPORT

1300 889 028 (toll free)

6

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

1 263 2

7

17

16

15

14

5

6

7

8 10

AFTER SALES SUPPORT

1300 889 028 (toll free)

12

19

11

13

272528

9

4

7

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

8

4. Description of symbols

The instruction manual, rating plate, or on the product itself, may
show these symbols. These represent important information about
the product or instructions on its use.

To reduce the risk of injury, user must read instruction
manual

Warning

Wear ear protection
Wear eye protection
Wear breathing protection

Conforms to relevant standards for electrical safety and
electromagnetic compatibility.

60

60 Months Warranty

Wear protective gloves when handling the saw blade.
The blade has sharp edges.

AFTER SALES SUPPORT

1300 889 028 (toll free)

8

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

5. Product Safety

General safety warnings

WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with this power

Failure to follow all instructions listed below may result in

tool.

electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas

invite accidents.

b) Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or

fumes.

c) Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

9

2) Electrical safety
a) Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges and refrigerators. There

is an increased risk of electric shock if your body is earthed or
grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric
shock.

AFTER SALES SUPPORT

1300 889 028 (toll free)

9

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

10

d) Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool. Keep cord away from

heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension

cord suitable for outdoor use. Use of a cord suitable for

outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is

unavoidable, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety
a) Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while

operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask, non­skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying

power tools with your finger on the switch or energising power
tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the

power tool on. A wrench or a key left attached to a rotating

part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery.

AFTER SALES SUPPORT

1300 889 028 (toll free)

10

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

Keep your hair and clothing away from moving parts. Loose
clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can

reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools

allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within a

fraction of a second.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the job

better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled with the

switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/

or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools

are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for

misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power
tool’s operation. If damaged, have the power tool repaired

before use. Many accidents are caused by poorly maintained
power tools.

11

AFTER SALES SUPPORT

1300 889 028 (toll free)

11

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

12

f) Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind and
are easier to control.

g) Use the power tool, accessories and tool bits etc. in

accordance with these instructions, taking into account
the working conditions and the work to be performed.

Use of the power tool for operations different from those
intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free

from oil and grease. Slippery handles and grasping surfaces

do not allow for safe handling and control of the tool in
unexpected situations.

5) Battery tool use and care
a) Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of battery

pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery

packs. Use of any other battery packs may create a risk of injury

and fire.

c) When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals

together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the

battery; avoid contact. If contact accidentally occurs, flush

with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged

or modified. Damaged or modified batteries may exhibit

unpredictable behaviour resulting in fire, explosion or risk of
injury.

AFTER SALES SUPPORT

1300 889 028 (toll free)

12

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

f) Do not expose a battery pack or tool to fire or excessive

temperature. Exposure to fire or temperature above 130 °C

may cause explosion.

g) Follow all charging instructions and do not charge the

battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at

temperatures outside the specified range may damage the
battery and increase the risk of fire.

6) Service
a) Have your power tool serviced by a qualified repair

person using only identical replacement parts. This will

ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery

packs should only be performed by the manufacturer or
authorized service providers.

13

Safety instructions for all saws
a) DANGER: Keep hands away from cutting area and the

blade. Keep your second hand on auxiliary handle, or
motor housing. If both hands are holding the saw, they cannot

be cut by the blade.

b) Do not reach underneath the workpiece. The guard cannot

protect you from the blade below the workpiece.

c) Adjust the cutting depth to the thickness of the

workpiece. Less than a full tooth of the blade teeth should be

visible below the workpiece.

d) Never hold workpiece in your hands or across your leg

while cutting. Secure the workpiece to a stable platform. It

is important to support the work properly to minimise body
exposure, blade binding, or loss of control.

e) Hold the power tool by insulated gripping surfaces only,

when performing an operation where the cutting tool

AFTER SALES SUPPORT

1300 889 028 (toll free)

13

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

14

may contact hidden wiring or its own cord. Contact with a
“live” wire will also make exposed metal parts of the power tool
“live” and could give the operator an electric shock.

f) When ripping always use a rip fence or straight edge guide.

This improves the accuracy of cut and reduces the chance of blade
binding.

g) Always use blades with correct size and shape (diamond

versus round) of arbour holes. Blades that do not match the

mounting hardware of the saw will run off-centre, causing loss of
control.

h) Never use damaged or incorrect blade washers or bolt. The

blade washers and bolt were specially designed for your saw, for
optimum performance and safety of operation.

Further safety instructions for all saws
Kickback causes and related warnings

— kickback is a sudden reaction to a pinched, bound or misaligned

saw blade, causing an uncontrolled saw to lift up and out of the
workpiece toward the operator;

— when the blade is pinched or bound tightly by the kerf closing

down, the blade stalls and the motor reaction drives the unit
rapidly back toward the operator;

— if the blade becomes twisted or misaligned in the cut, the teeth

at the back edge of the blade can dig into the top surface of the
wood causing the blade to climb out of the kerf and jump back

toward the operator.
Kickback is the result of saw misuse and/or incorrect operating
procedures or conditions and can be avoided by taking proper
precautions as given below.

a) Maintain a firm grip with both hands on the saw and

position your arms to resist kickback forces. Position your

body to either side of the blade, but not in line with the

blade. Kickback could cause the saw to jump backwards, but

AFTER SALES SUPPORT

1300 889 028 (toll free)

14

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

kickback forces can be controlled by the operator, if proper
precautions are taken.

b) When blade is binding, or when interrupting a cut for any

reason, release the trigger and hold the saw motionless
in the material until the blade comes to a complete stop.
Never attempt to remove the saw from the work or
pull the saw backward while the blade is in motion or
kickback may occur. Investigate and take corrective actions to

eliminate the cause of blade binding.

c) When restarting a saw in the workpiece, centre the

saw blade in the kerf and check that saw teeth are not
engaged into the material. If saw blade is binding, it may

walk up or kickback from the workpiece as the saw is restarted.

d) Support large panels to minimise the risk of blade

pinching and kickback. Large panels tend to sag under their

own weight. Supports must be placed under the panel on both
sides, near the line of cut and near the edge of the panel.

e) Do not use dull or damaged blades. Unsharpened or

improperly set blades produce narrow kerf causing excessive
friction, blade binding and kickback.

f) Blade depth and bevel adjusting locking levers must be

tight and secure before making cut. If blade adjustment

shifts while cutting, it may cause binding and kickback.

g) Use extra caution when sawing into existing walls or

other blind areas. The protruding blade may cut objects that

can cause kickback.

15

Safety instructions for circular saw with inner pendulum guard
Lower guard function
a) Check lower guard for proper closing before each use. Do

not operate the saw if lower guard does not move freely
and close instantly. Never clamp or tie the lower guard
into the open position. If saw is accidentally dropped, lower

guard may be bent. Raise the lower guard with the retracting

AFTER SALES SUPPORT

1300 889 028 (toll free)

15

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

16

handle and make sure it moves freely and does not touch the
blade or any other part, in all angles and depths of cut.

b) Check the operation of the lower guard spring. If the

guard and the spring are not operating properly, they
must be serviced before use. Lower guard may operate

sluggishly due to damaged parts, gummy deposits, or a build-up
of debris.

c) Lower guard may be retracted manually only for special

cuts such as “plunge cuts” and “compound cuts.” Raise

lower guard by retracting handle and as soon as blade enters
the material, the lower guard must be released. For all other
sawing, the lower guard should operate automatically.

d) Always observe that the lower guard is covering the

blade before placing saw down on bench or floor.

An unprotected, coasting blade will cause the saw to walk
backwards, cutting whatever is in its path. Be aware of the time
it takes for the blade to stop after switch is released.

ADDITIONAL SAFETY RULES FOR YOUR CIRCULAR SAW

1. Only use saw blades recommended in the specification.

2. Do not use any abrasive wheels.

3. Use only blade diameter(s) in accordance with the markings.

4. Identify the correct saw blade to be used for the material to be cut.

5. Use only saw blades that are marked with a speed equal or
higher than the speed marked on the tool.

6. Important information – Product care

NOTE: For any issues related directly to your 20V Li-Ion 165mm

Circular Saw, contact the Customer Service of the manufacturer
as listed on the packaging, manual or on the label on the cordless
circular saw.
This 20V Li-Ion 165mm Circular Saw uses Lithium Ion Battery Cells.
Care MUST be taken to ensure both the safety and life of the pack
is maintained. Ensure you have read all of the safety notes in the

AFTER SALES SUPPORT

1300 889 028 (toll free)

16

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

previous pages before using the 20V Li-Ion 165mm Circular Saw.
Treat the battery pack with care and within the guidelines of this
manual.
If the battery pack does become immersed in water or any fluids,
or is subject to a severe drop or it does not operate within the
guidelines of this manual or the supplied manual, immediately STOP
using the battery pack and have it checked.

7. Assembly

NOTE: Before using the tool, read the instruction manual

carefully.

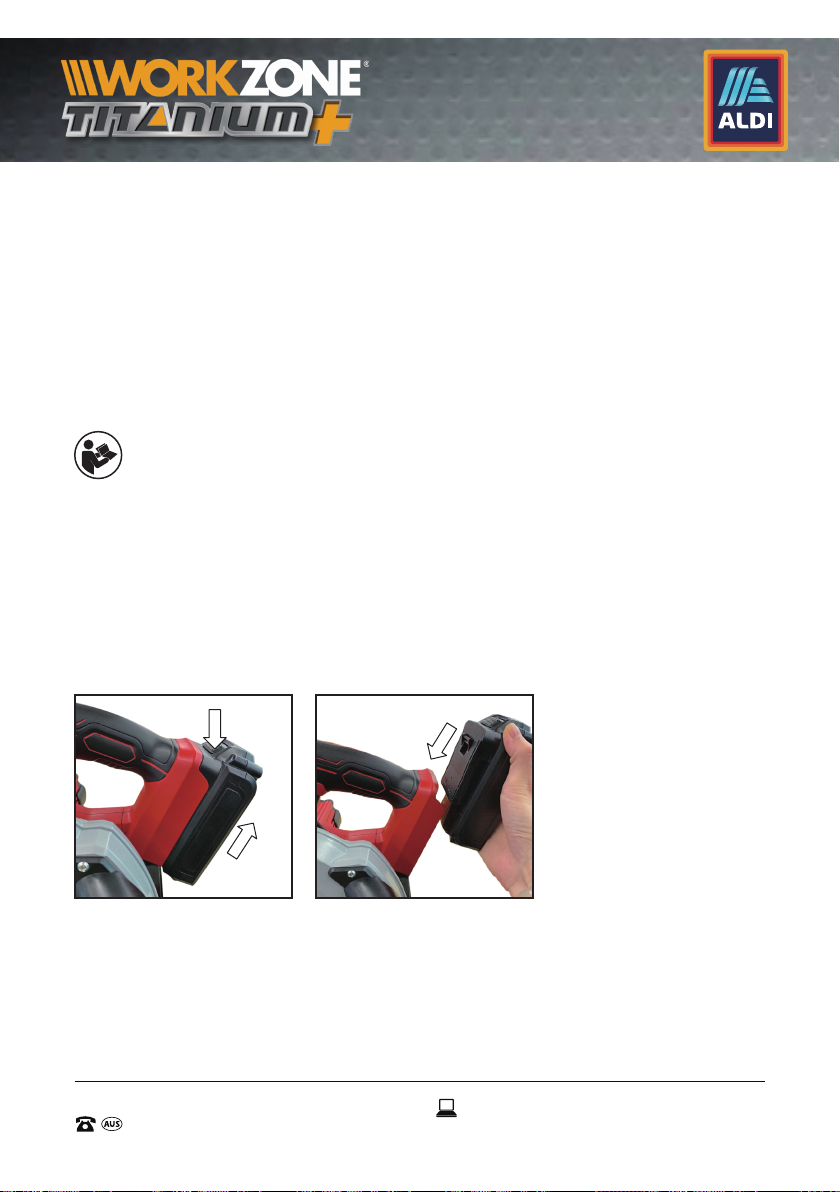

7.1 To remove the battery pack (See Fig. A1)

Depress the battery pack release button (17) firmly, then slide the
battery pack (16) out away from the tool.

7.2 To install the battery pack (See Fig. A2)

Slide the fully charged battery pack (16) onto the tool with
sufficient force until it clicks into position.

A1 A2

17

AFTER SALES SUPPORT

1300 889 028 (toll free)

17

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

18

8. Operation

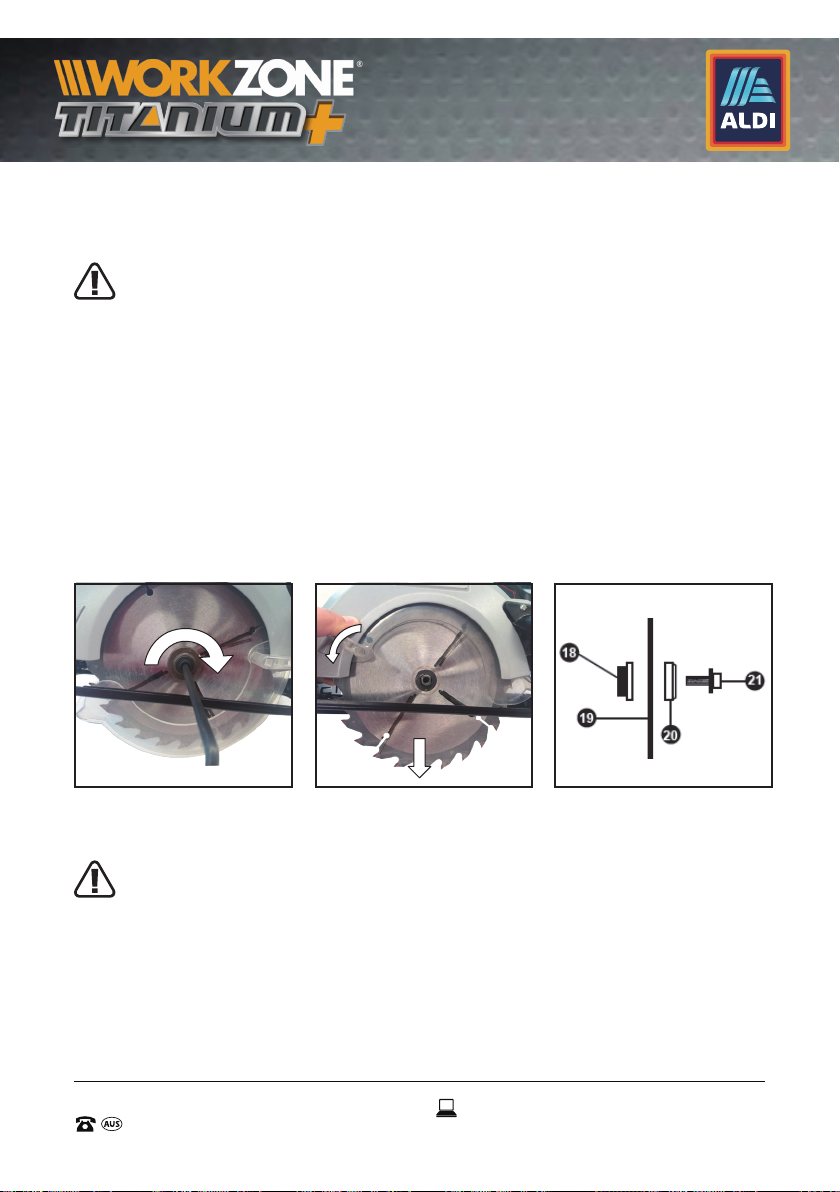

8.1 Changing The Saw Blade (See Fig. B1, B2, B3)

WARNING: Before undertaking any maintenance or

adjustment, ensure the battery is removed.
Wear protective gloves when mounting the saw blade.
Danger of injury when touching the saw blade.
Only use saw blades that correspond with the technical
specification data for this tool.
Do not under any circumstances use grinding discs as the
cutting tool.

For changing the saw blade, it is best to place the machine on with
the motor end cap on a flat surface with the blade and blade guard
area facing upwards.

B1 B2 B3

Removing the saw blade

WARNING: Always ensure that the saw is switched of and the

battery pack (16) is removed before making any adjustments.

Press the spindle lock button (4) and keep it depressed.
The spindle lock button (4) may be activated only when the saw
blade (19) is at a standstill.
Loosen the blade bolt (21) in a clockwise direction using the
supplied hex key (24). Remove the outer flange (20). Using the lower

AFTER SALES SUPPORT

1300 889 028 (toll free)

18

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

guard lever (12), tilt back the lower blade guard (13) and hold it
firmly in this position. Remove the saw blade (19).(See Fig.B1,B2)

Mounting the saw blade

WARNING: Always ensure that the saw is switched off and the

battery pack (16) is removed before making any adjustments.

Clean the saw blade (19) inner flange (18), outer flange (20) and the
blade bolt (21). Using the lower guard lever (12), tilt back the lower
blade guard (13) and hold it firmly in this position. Place the saw
blade (19) onto the inner flange (18). Ensuring that the direction of
the cutting teeth on the saw blade match the direction of the blade
rotation indicator (25), place the blade over the outer flange (20)
then insert the blade bolt (21). Press in the spindle lock button (4) to
lock the spindle (27), then use the supplied hex key (24) to tighten
the blade bolt (21) in an anti-clockwise direction with 1/4 turn more
than finger tight.

NOTE: Take care that the mounting positions of the inner
flange and outer flange are correct.( See Fig.B3)
NOTE: When mounting: Ensure that the cutting direction of
the teeth (direction of arrow on saw blade) and the blade
rotation indicator (25) on the blade guard match.

8.2 Adjusting the cutting depth (See Fig. C)
WARNING: Always ensure that the saw is switched off and the

battery pack (16) is removed before making any adjustments.

Turn the cutting depth lock knob (23) in an anti-clockwise direction,
and raise the saw body away from the base plate (11). Set the depth
of cut using the cutting depth scale (22) and then turn the cutting
depth lock knob (23) in a clockwise direction to lock. Always add
3mm to your depth of cut so that the blade can cut through the
material.

19

AFTER SALES SUPPORT

1300 889 028 (toll free)

19

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

20

8.3 Base plate angle adjustment (See Fig. D1, D2)
WARNING: Always ensure that the saw is switched off and the

battery pack (16) is removed before making any adjustments.

Turn the base plate bevel bevel lock knob (6) in an anti-clockwise
direction to loosen the angle scale. Tilt the base plate (11) away
from the machine until the required cutting angle is adjusted on the
base plate angle scale (5). Tighten the base plate bevel lock knob (6)
by turning it in a clockwise direction. Do not use the cutting depth
scale (22) when making bevel cuts due to possible inaccuracy.

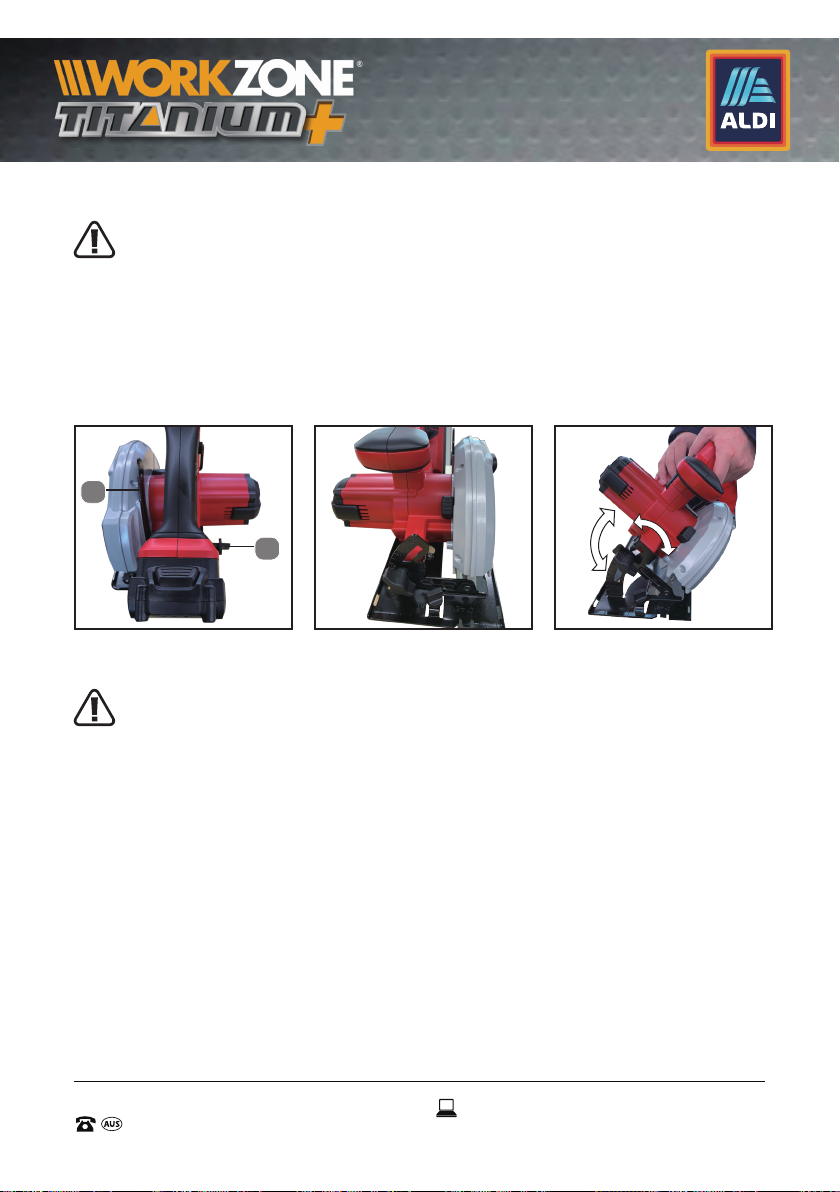

C D1 D2

22

23

8.4 Dust/chip extraction (See Fig. E)
WARNING: Always ensure that the saw is switched off and the

battery pack (16) is removed before making any adjustments.

To attach the dust extraction adapter (15), place over the dust
extraction port recess area, lining up the screw holes on the adapter
and the holes on the recess. Insert the assembly screws and tighten
in a clockwise direction using a philips head screwdriver (not
supplied). Ensure the fit is secure.
To remove the dust extraction adapter (15), loosen the assembly
screws using a philips head screwdriver (not supplied) in an
anticlockwise direction. Remove the screws, and remove the dust
extraction adapter (15) from the recess.
Directly connect a suitable vacuum hose to the adapter.
NOTE: There is an arrow on the surface of the adapter which shows
which direction to tighten on the hose.

AFTER SALES SUPPORT

1300 889 028 (toll free)

20

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

The dust extraction adapter (15) must not be mounted when
there is no external dust extraction connected. Otherwise

there is danger of the extraction system becoming clogged.
Clean the dust extraction adapter (15) regularly to ensure optimum
dust extraction. The vacuum cleaner / dust extraction device must be
suitable for the material to be worked.

8.5 Hand grip position (See Fig. F)

Always hold your saw firmly with both hands when operating.

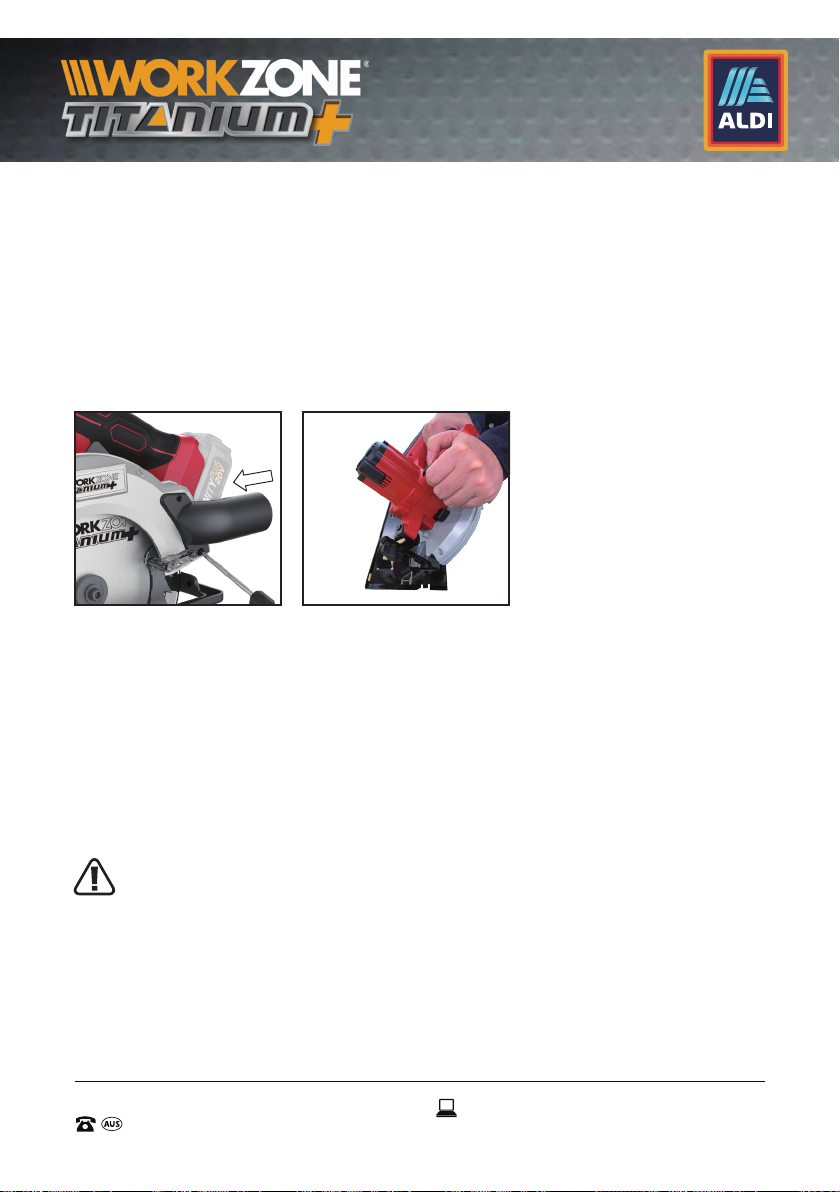

E F

8.6 Switching on and off (See Fig. G)

Your switch is locked off to prevent accidental starting. Depress the
lock off button (1) then press in the trigger switch (2) and release
the lock off button (1). The power is now locked on. To switch off,
just release the trigger switch (2).
The blade may continue to rotate after switching off. Wait until the
machine comes to a complete stop before setting down.

8.7 Cutting guide (See Fig. H1, H2)
WARNING: Always ensure that the saw is switched of and the

battery pack (16) is removed before making any adjustments.

There are 2 x cutting mark notches (8 -45°, 9 - 0°) on the front of the
base plate for use with the parallel guide (10). For straight cuts, use
the 0º cutting mark (9) to align with your parallel guide scale. For a
45º bevel cut, use the 45º cutting mark (8) to align the the parallel
guide scale. Always make a trial cut to check the setting.

21

AFTER SALES SUPPORT

1300 889 028 (toll free)

21

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

22

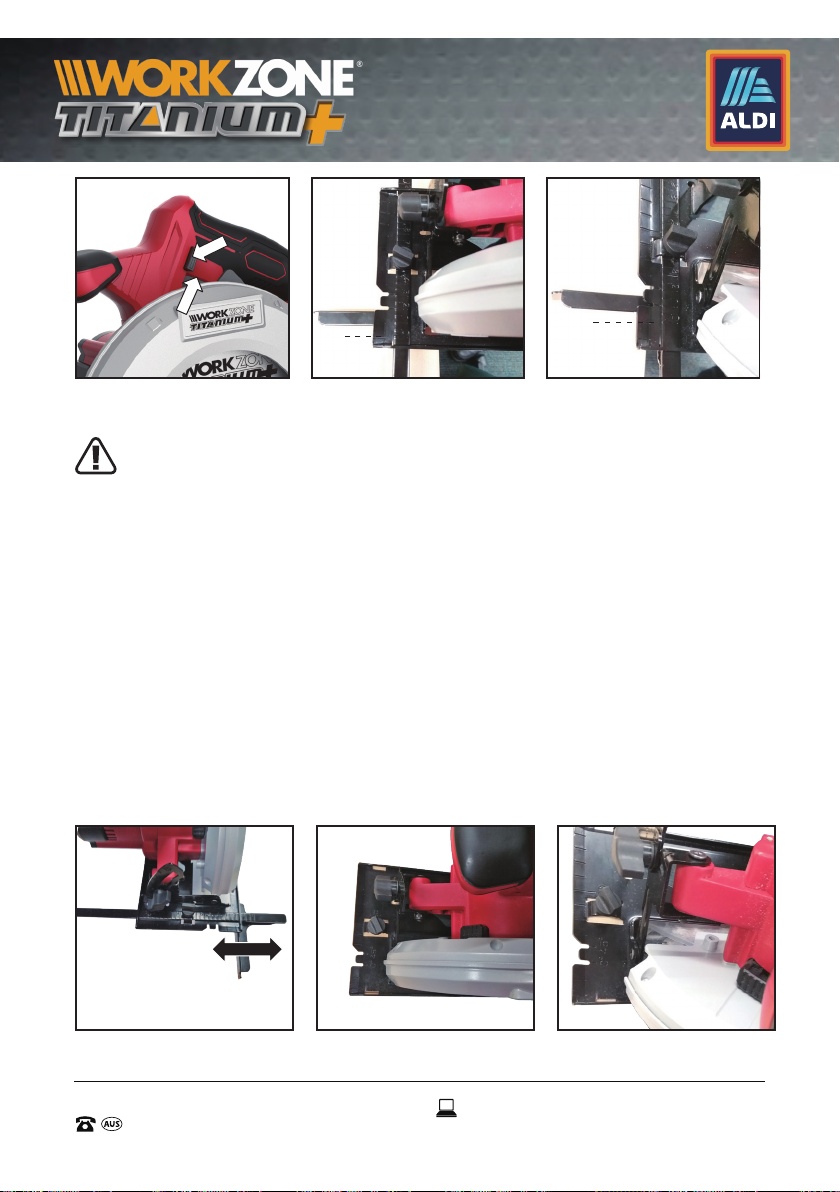

G H1 H2

o

o

0

8.8 Parallel guide adjustment (See Fig. I)
WARNING: Always ensure that the saw is switched off and the

battery pack (16) is removed before making any adjustments.

This is used for making cuts parallel to a workpiece edge at a chosen
distance. Slide the parallel guide (10) arm through the fixture to
achieve the required cutting distance then tighten the parallel guide
locking knob (7) in a clockwise direction to clamp. It can be used from
both sides of the base plate (11). For straight cuts, use the 0° guide
mark to align with the parallel guide scale. For a 45° bevel cut, use the
45° cutting mark (8) to align with your parallel guide scale. Securely
clamp the parallel guide (10).

NOTE: It is best to carry out a trial cut before cutting your work piece.

8.9 Bevel cuts (See Fig. J1, J2)

Set the required bevel angle between 0° and 45°. Do not use the
depth of cut scale when making bevel cuts due to possible inaccuracy.

45

I

AFTER SALES SUPPORT

1300 889 028 (toll free)

J1 J2

22

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

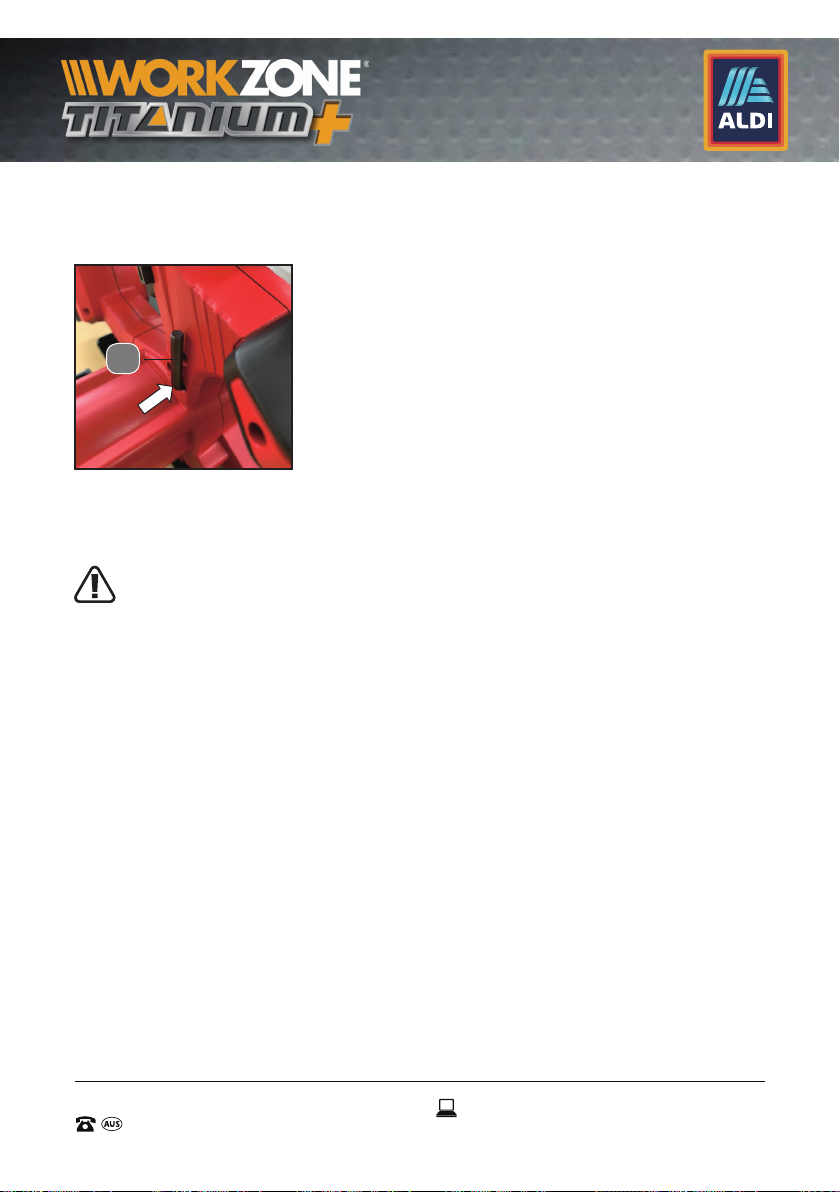

8.10 Hex key storage (See Fig. K)

The supplied hex key (24) provided can be placed in the area under
the machine motor.

K

24

9. Maintenance

WARNING! Always ensure that the cordless circular saw

is switched off and the battery pack is removed before

making any adjustment.

Your power tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use
water or chemical cleaners to clean your power tool. Wipe clean
with a dry cloth. Always store your power tool in a dry place. Keep
the motor ventilation slots clean. Keep all working controls free of
dust. Occasionally you may see sparks through the ventilation slots.
This is normal and will not damage your power tool.

23

10. Warranty

Your new WORKZONE® TITANIUM 20V Li-Ion 165mm Circular Saw
will more than satisfy your expectations.
It has been manufactured under stringent WORKZONE
Quality Standards to meet superior performance criteria.
You will find your new 20V Li-Ion 165mm Circular Saw easy and safe

AFTER SALES SUPPORT

1300 889 028 (toll free)

23

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

®

TITANIUM

24

to operate, and, with proper care, it will give you many years of
dependable service.
CAUTION. Carefully read through this entire instruction manual

®

before using your new WORKZONE

TITANIUM 20V 165mm Circular

Saw. Take special care to heed the Cautions and Warnings.

®

Your WORKZONE

TITANIUM 20V Li-Ion 165mm Circular Saw has
many features that will make your job faster and easier. Safety,
performance, and dependability have been given top priority in the
development of this 20V Li-Ion 165mm Circular Saw, making it easy
to maintain and operate.

®

Use only WORKZONE

TITANIUM replacement parts for your
product. Non-conforming parts or modifications made to parts will
void your warranty.

11. Environmental protection

Recycle unwanted materials instead of disposing of them
as waste. All tools, hoses and packaging should be sorted,
taken to the local recycling centre and disposed of in an
environmentally safe way.

What your 5 year warranty means

Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly.
In the event of product failure within its intended use over the
course of as quickly as possible once it has been brought to our
attention. In the unlikely event of such an occurrence, or if you
require any information about the product please contact us via
our after sales support services, details of which can be found in this
manual and on the product itself.
After Sales Support TEL: [phone]

AFTER SALES SUPPORT

1300 889 028 (toll free)

24

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

Service Support

If you have any issues with the operation of your product, please call us
on 1300 889 028 for advice, or email us at [e-mail]

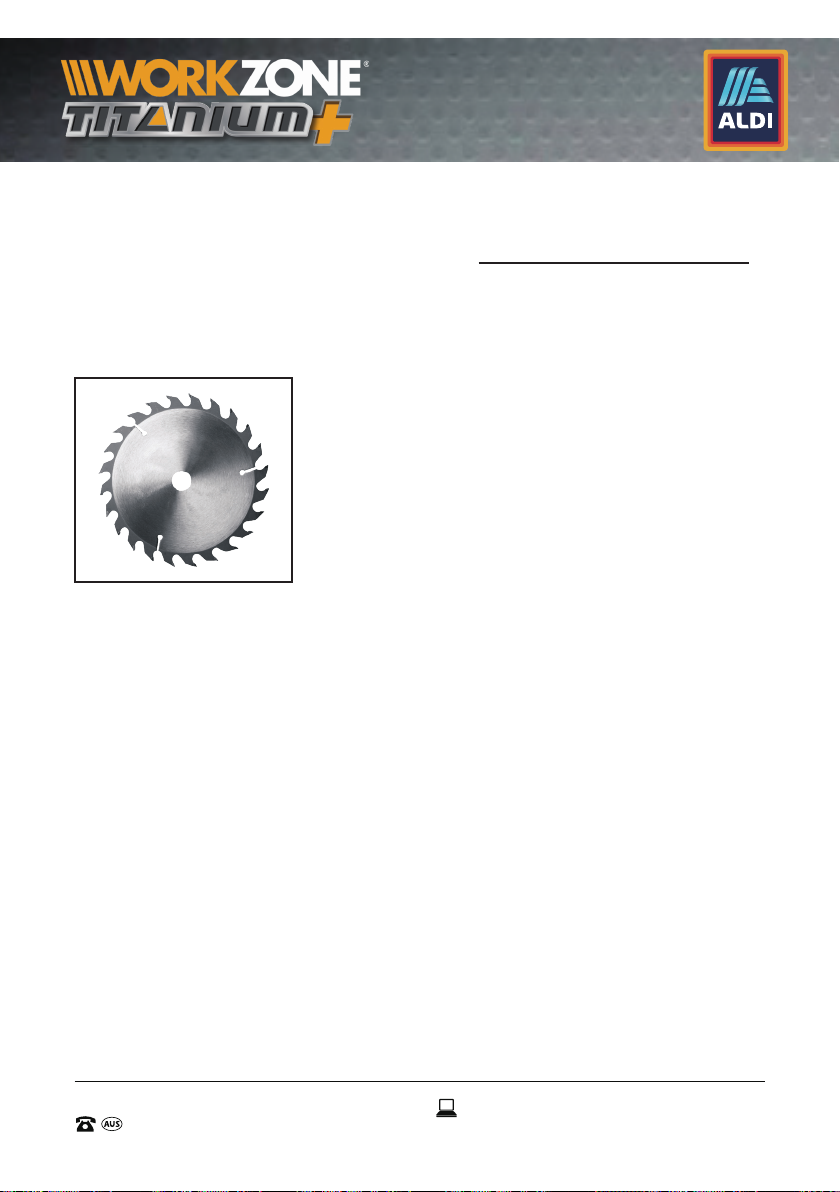

Accessories and After Sales Parts

The following is available for purchase by visiting https://help.tools/
or calling our customer service hotline on: 1300 889 028

1. CSC165XA.9-BL: 165mm Blade

25

12. FAQ/Troubleshooting

Working Hints For Your Cordless Circular Saw

• Always use a blade suited to the material and material thickness

to be cut.

The quality of cut will improve as the number of blade teeth

increase.

• Always ensure the work-piece is firmly held or clamped to prevent

movement.

• Support large panels close to the cut line. Any movement of the

material may affect the quality of the cut.
The blade cuts on the upward stroke and may chip the uppermost
surface or edges of your work piece when cutting,

• Ensure the upper surface is a non visible surface of your work

piece.

AFTER SALES SUPPORT

1300 889 028 (toll free)

25

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

26

Troubleshooting

Fault Cause Remedy

The Battery pack gets
warm when charging.

Undiagnosable Fault.

The machine does
not start up when
operating the on/off
switch.

Cutting depth is less
than is set.

Blade spins or slips

Blade does not cut a
straight line.

Blade kicks back
when beginning a
cut.

It’s a result of the stepping
down of the chemical
reactions inside the

This is normal.
batteries during the
charging process.

Return the tool to a
The tool needs to be
repaired.

service centre for repair

or contact Customer

Service.

Low battery. Charge the battery.

Defective motor.

Contact Customer

Service.

Shake out sawdust.
Sawdust accumulated at
the rear of the base.

Consider connecting

a vacuum for dust

collection.

Blade is not tightly
engaged with the spindle.

Blade is dull.

Blade is not mounted
properly.

Saw is not being guided
properly.

Re-assemble the blade as

described in ASSEMBLY

section.

Mount a new, sharp

blade on the saw.

Check that blade is

properly mounted.

Use a parallel guide.

Allow the saw blade to
Blade is not spinning fast
enough.

reach full speed prior to

beginning a cut in the

material.

AFTER SALES SUPPORT

1300 889 028 (toll free)

26

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

Low battery. Charge the battery.

Significantly reduced
cutting efficiency.

The machine is
blocked frequently.

Blade guard cannot
open or rebound.

During use, the
machine cannot push
forward.

Worn blade. Replace a new blade.

Defective motor.

Large size of iron piece in
the workpiece (eg nail).

Contact Customer

Service.

Check the workpiece.

Low battery. Charge the battery.

Defective motor.

Defective guard.

Workpiece is blocking the
machine.

Contact Customer

Service.

Contact Customer

Service.

Check the workpiece.

For further inquiries or issues associated with your tool, call our
Customer Service on 1300 889 028 or email us at
info. [e-mail]

27

AFTER SALES SUPPORT

1300 889 028 (toll free)

27

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

28

13. Technical specifications

Voltage 20V d.c.

No load speed 4000/min

Blade size 165mm

Cutting capacity:

- Max. Cutting depth at 90° 53mm

- Max. Cutting depth at 45° 36mm

Blade Teeth 24T

Blade Bore 20mm

Blade – Width of cut 1.6mm

Bevel capacity 0-45

o

Machine weight 2.54kg

Product Dimensions (L x W x H)

340 x230 x255mm

This 20V 165mm Circular Saw complies with the following
Standards:

Safety:
EN62841-1
EN62841-2-5
AS/NZS62841.1
AS/NZS62841.2.5
EMC:
EN55014-1
EN55014-2

AFTER SALES SUPPORT

1300 889 028 (toll free)

28

e-mail:

[e-mail]

MODEL No.:

CSC165XA.9 • 2323 • 05/2019

Xfinity Li-ION 20V

Cordless Sander

Instruction Manual

IMPORTANT

Read carefully before use

Keep for future reference

05

MODEL NUMBER

Version number: 004

CPS18WA.9
