User Manual
Original Instruction
63524
24V LITHIUM-ION
CORDLESS DRILL
WITH HAMMER
ACTION &
2 X BATTERIES
Product
Info
https://help.tools/
Read all safety warnings and all instructions
thoroughly before operating this product.
IM Ed3 09/2020
QR codes take you where you want to go
quicky and easily
Whether you require product information, spare parts or accessories,
details on warranties or aftersales service, or if you want to watch
a product demonstration video, our QR codes will take you there in
no time at all.
What is a QR code?
A QR-code (QR=Quick Response) is a type of matrix that can be read
with a smartphone camera and that contains a link to a website or
contact details, for example.
Advantage: You are not required to manually enter a website address
or contact details.
How it works
To scan the QR code, all you need is a smartphone with QR codes reader
software and an Internet connection*. This type of software can be
downloaded for free from your smartphone’s app store.
Try it out now
Just scan the QR code with your smartphone and
nd out more about the Aldi product you have
purchased*.
* Depending on your tari you may be charged for the connection.
Product
Info
Warranty details
REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION.
The product is guaranteed to be free from defects in workmanship and parts for a period of 60 months from the
date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion. The benets conferred by this warranty are in addition to all rights and
remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
AFTER SALES SUPPORT
(toll free)
e-mail: info.aldi@positecgroup.com1300 889 028
Contents
Pack contents / parts 2
Description of symbols 3
General Power Tool Safety Warnings 4

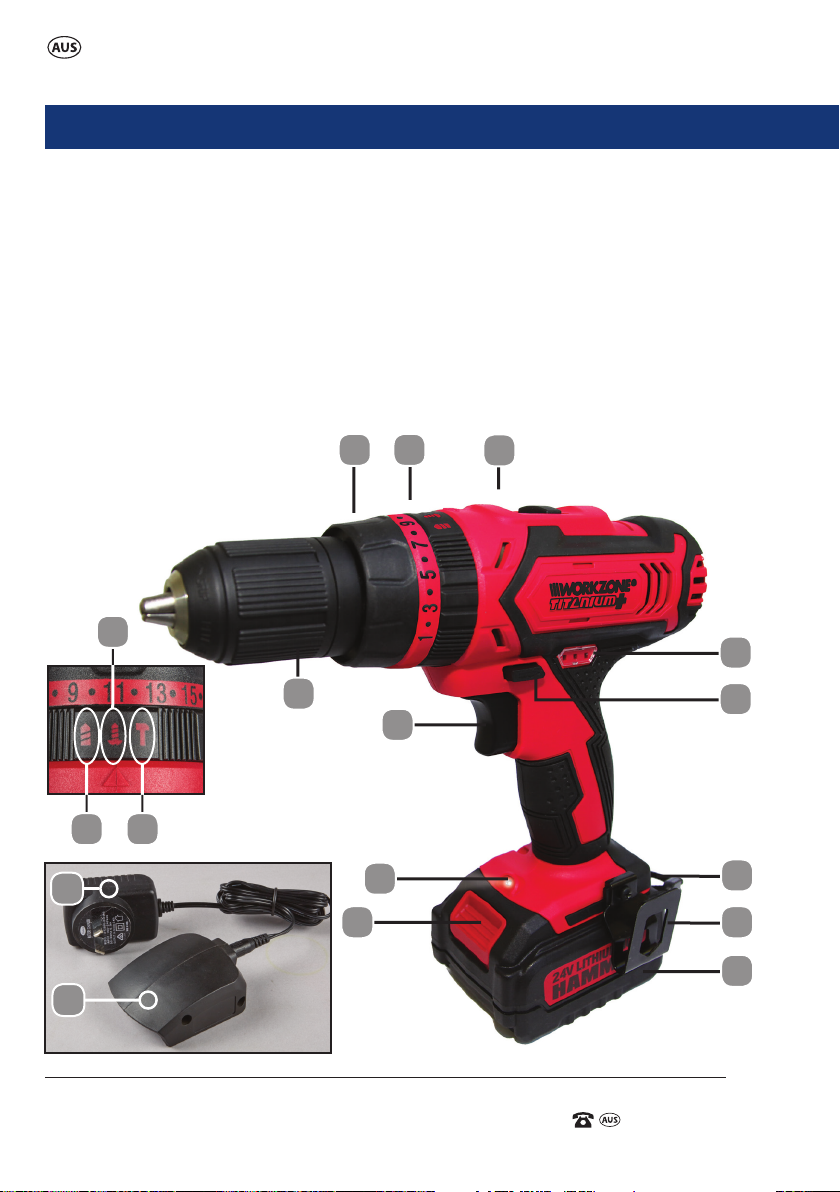

Parts List 12
Using the drill/driver 13
Important information – Product care 13

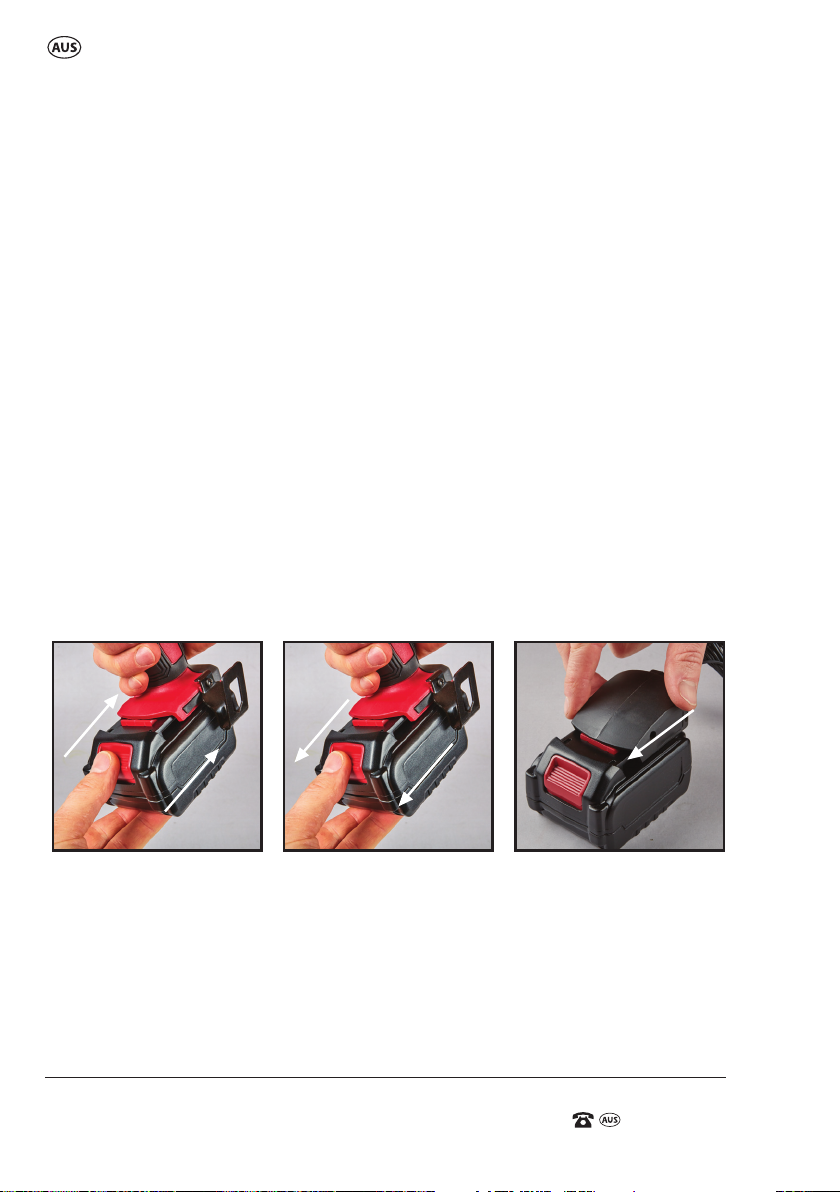

Fitting and removing the battery pack 14
Battery charging 14
Rechargeable Battery Display 16
2 Speed Gearbox 16
Trigger switch 16

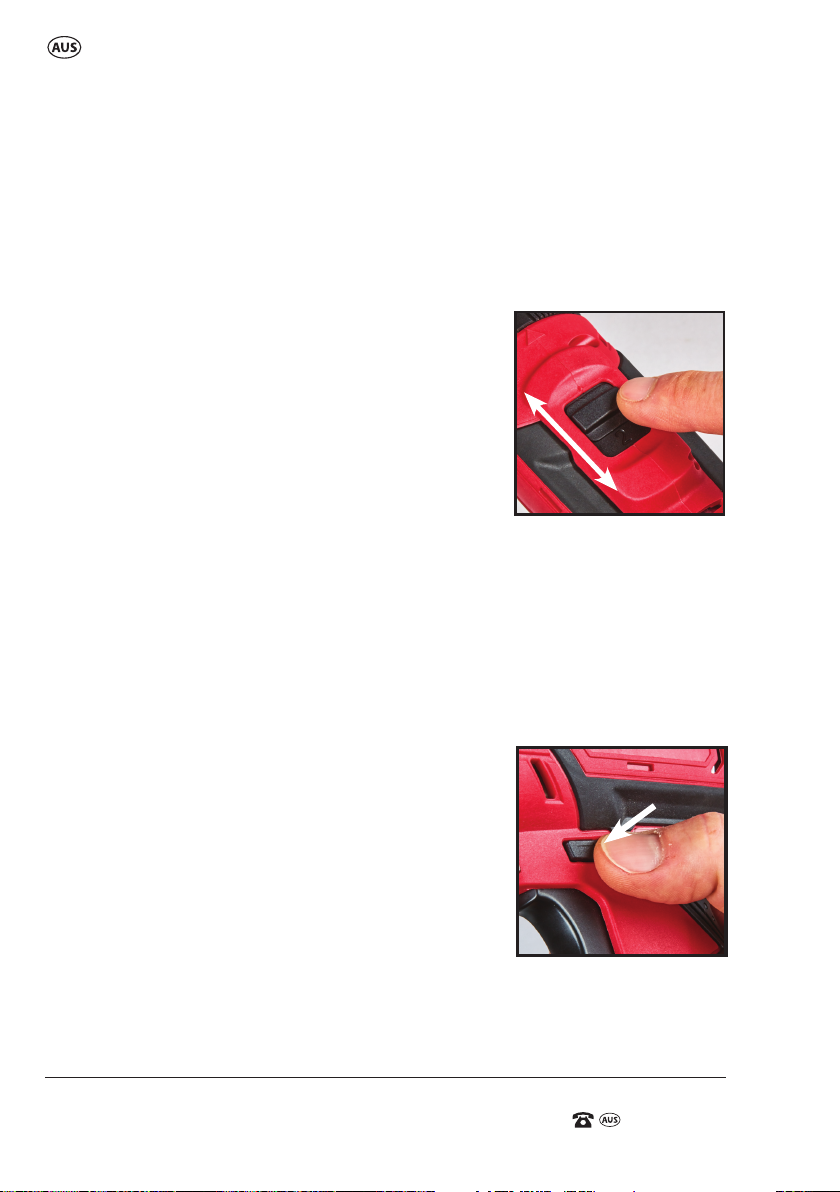

Forward/reverse switch 17
Adjustable torque 17

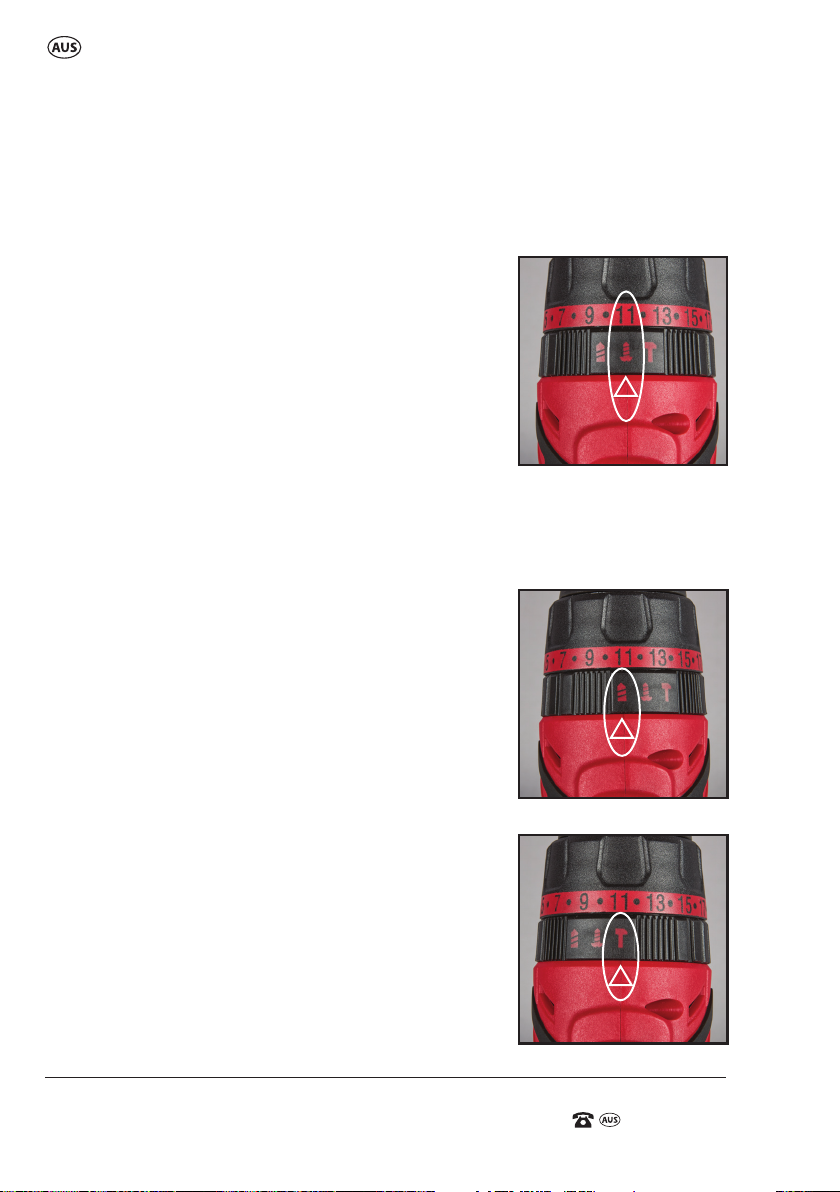

When using the drill/driver for screwdriving 18
When using the drill/driver for drill/driving 18
When using the drill/driver for hammer drilling 18

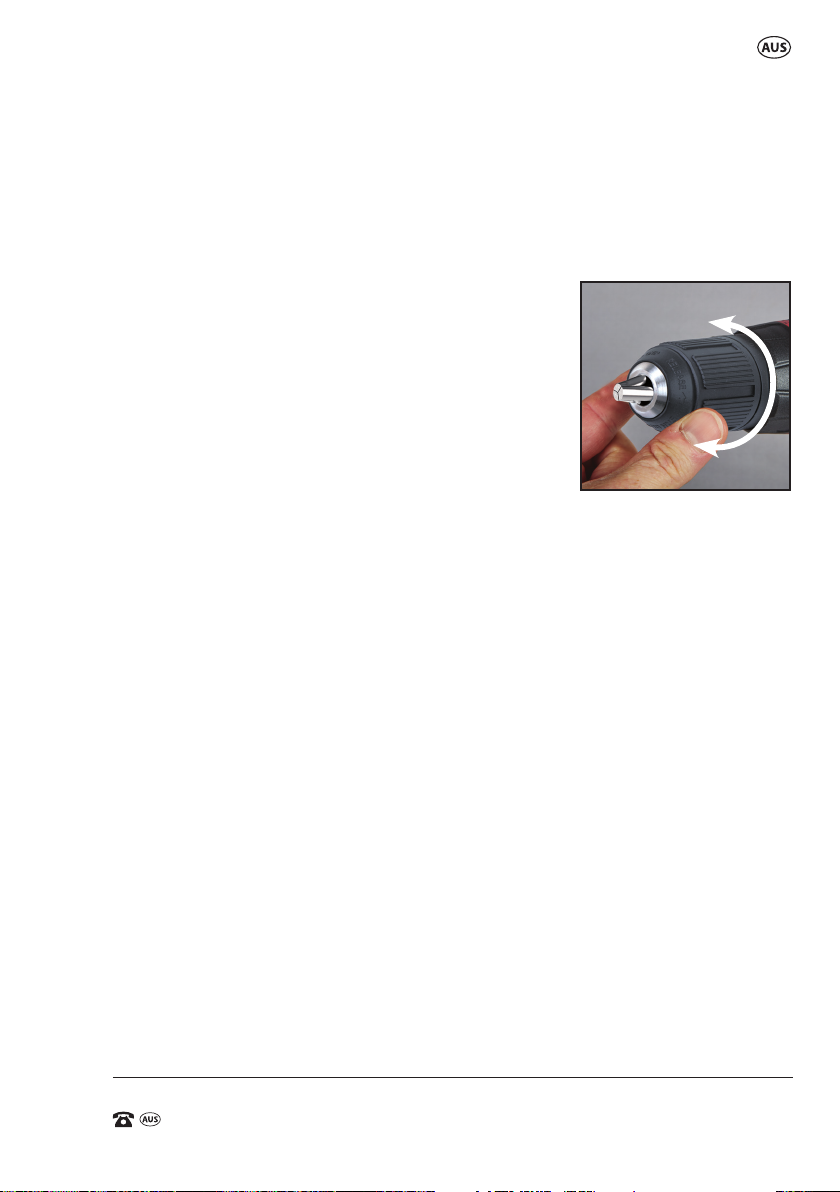

Inserting and removing bits 19
Drill/driver overload 20
Temperature cut out 20
Low voltage cut out 20
Drill/driving 21
Drill/driving plastics and plastic coated chipboard 21
Drill/driving wood 21
Hammer drill operations 21
All drill/driving operations 22
LED Work Light 22
Chuck replacement 22
Side belt clip 22
Carry strap 22
Cleaning 22
Maintenance 23
Warranty 23
Environmental protection 24
What your 5 year warranty means 24
Service Support 24

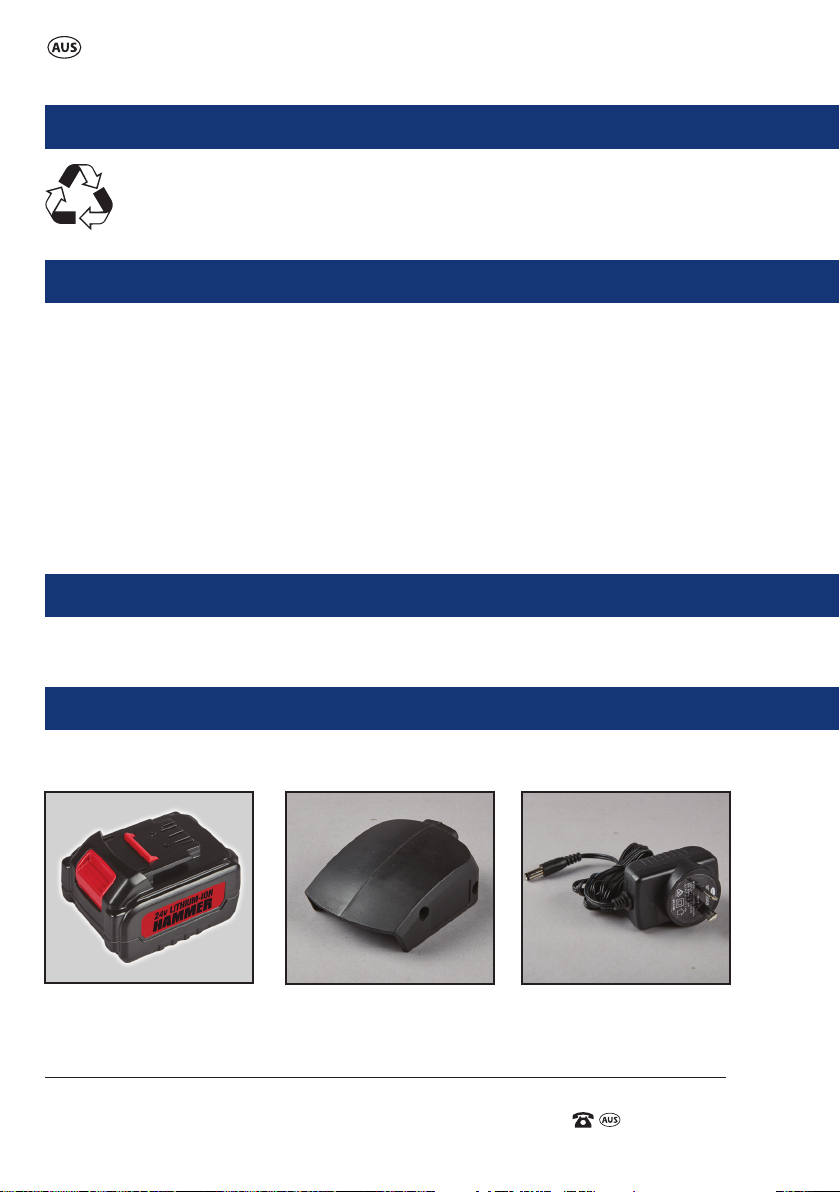

Accessories & After Sales Parts 24
FAQ/Troubleshooting 25-26
Specications 27
24V Lithium-ion Cordless Drill with Hammer Action
Pack contents / parts
Congratulations on the purchase of your Workzone® Titanium 24V
Lithium-Ion Cordless Hammer Drill. When you open your packaging, rst
remove all items and check there are no parts damaged or missing. If you
nd anything wrong, do not operate the product until the parts have
been replaced or the fault has been rectied. Failure to do so could result
in serious personal injury.
NOTE: First time users or inexperienced operators pay particular attention
to the operation of the Cordless Hammer Drill, including details of starting
and stopping and correct use of the Cordless Hammer Drill on pages 1619, as well as the maintenance instructions on pages 22.
Intended use of the 24V Lithium-Ion Cordless Hammer Drill
NOTE: This product is for private domestic DIY use only.
It is not suitable for commercial or trade use.
This drill/driver is mainly used for drill/driving in wood or metal sheet,
hammer drilling into non aggregate concrete, and screwdriving. Use the
tool and accessories only for intended applications.
Contents of carton
1 x 24V Lithium-Ion Hammer
Drill/driver
2 x 24V Lithium-Ion Batteries
1 x Charger Adaptor
1 x Plug Pack Charger
4
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
1 x Side Belt Clip (tted)
1 x Carry Strap (tted)
1 x Instruction manual
1 x Warranty Card & Certicate
1 x Quick Start Guide
AFTER SALES SUPPORT
1300 889 028
(toll free)
2

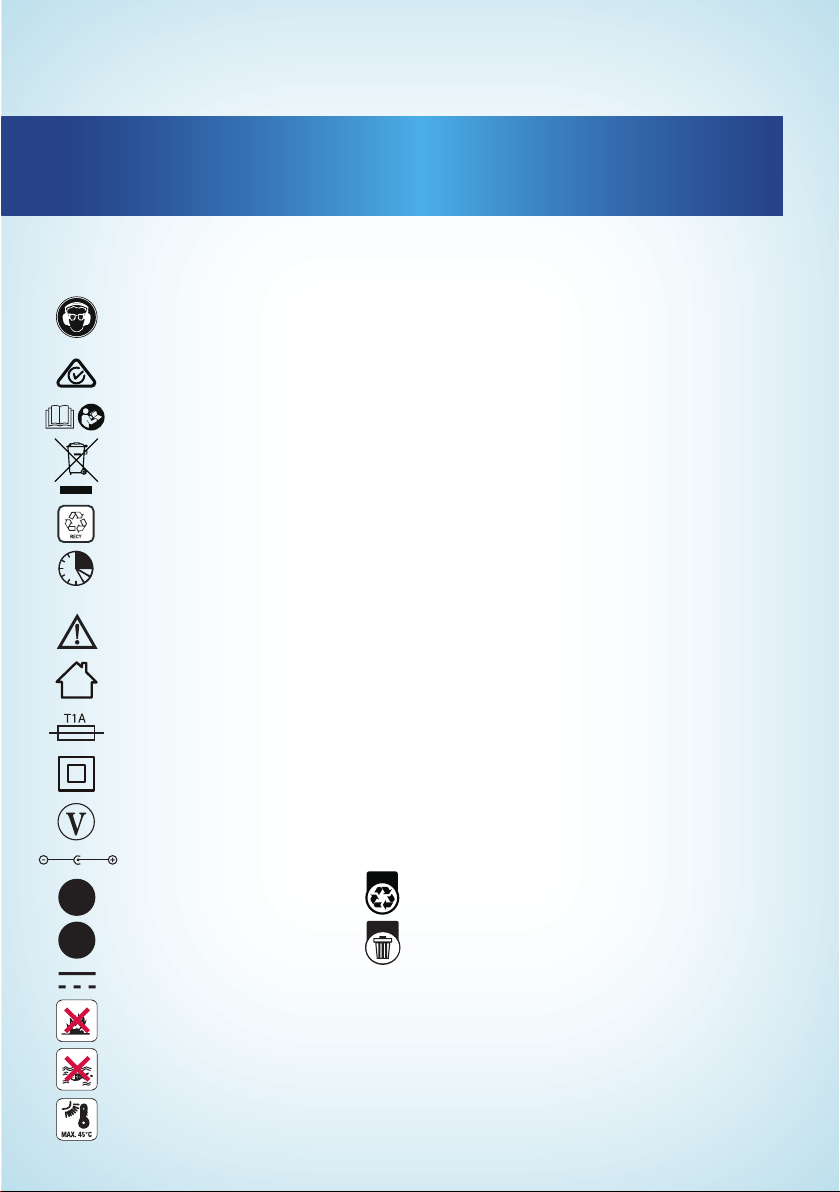

Description of symbols
The instruction manual, rating plate, or on the product itself, may show these symbols.
These represent important information about the product or instructions on its use.
Wear eye protection.
Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
Regulatory Compliance Mark. Appliance complies with
requirements of electrical approval & EMC in Australia.
Read the instruction manual.
Waste electrical products should not
be disposed of with household waste.
Li ion Battery recycle.
Ready for use in 3-5 Hours.
3-5 hrs
Caution/Warning:
Read all safety warnings and all instructions.
Indoor use.
1A Fuse.
Double Insulation. There are two independent barriers of insulation
to protect you from the possibility of electric shock.
MEPS.
Polarity.
60
60 Month Warranty Period.
12
12 Month Warranty Period.
Direct Current.
Do not crush, disassemble, short terminals or dispose in re;
there is a risk of burns explosion or re
Do not put in water
Do not charge the battery pack if the ambient temperature
3
is less then 0°C or greater than 45°C.
Box
The box is recyclable at the kerbside.
Insert
The insert is not recyclable at kerbside,
and should be placed in the general
waste bin.
General Power Tool Safety Warnings
WARNING. Read all safety warnings, instructions, illustrations and
specications provided with this power tool. Failure to follow all instructions
listed below may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of ammable liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied
plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
4
current device (RCD) protected supply. Use of an RCD reduces the risk of electric
shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the o-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your nger on the switch or energising
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and
clothing away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate for
which it was designed.
b) Do not use the power tool if the switch does not turn it on and o. Any power
tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery
pack, if detachable, from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
5
tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding
of moving parts, breakage of parts and any other condition that may
aect the power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to
be performed. Use of the power tool for operations dierent from those intended
could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and
grease. Slippery handles and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
5. Battery tool use and care
a) Recharge only with the charger specied by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of re when used with
another battery pack.
b) Use power tools only with specically designated battery packs. Use of any
other battery packs may create a risk of injury and re.
c) When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects,
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a re.
d) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modied. Damaged
or modied batteries may exhibit unpredictable behaviour resulting in re,
explosion or risk of injury.
f) Do not expose a battery pack or tool to re or excessive temperature.
Exposure to re or temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or
tool outside the temperature range specied in the instructions. Charging
improperly or at temperatures outside the specied range may damage the
battery and increase the risk of re.
6. Service
a) Have your power tool serviced by a qualied repair person using only
6
identical replacement parts. This will ensure that the safety of the power tool is
maintained.
b) Never service damaged battery packs. Service of battery packs should only be
performed by the manufacturer or authorized service providers.
Drill safety warnings
1) Safety instructions for all operations
a) Wear ear protectors when impact drilling. Exposure to noise can cause
hearing loss.
b) Hold the power tool by insulated gripping surfaces, when performing an
operation where the cutting accessory or fasteners may contact hidden
wiring. Cutting accessory or fasteners contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the operator an electric shock.
c) This appliance must be used with a residual current device with a rated
residual current of 30mA or less.
2) Safety instructions when using long drill bits
a) Never operate at higher speed than the maximum speed rating of the
drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely
without contacting the workpiece, resulting in personal injury.
b) Always start drilling at low speed and with the bit tip in contact with the
workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely
without contacting the workpiece, resulting in personal injury.
c) Apply pressure only in direct line with the bit and do not apply excessive
pressure. Bits can bend causing breakage or loss of control, resulting in personal
injury.
7
Safety Warnings for battery pack
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs
haphazardly in a box or drawer where they may short-circuit each
other or be short-circuited by conductive materials. When battery pack
is not in use, keep it away from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals together may cause burns or a
re.
c) Do not expose battery pack to heat or re. Avoid storage in direct
sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into
contact with the skin or eyes. If contact has been made, wash the aected
area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been
swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become
dirty.
i) Battery pack needs to be charged before use. Always refer to this
instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge
and discharge the battery pack several times to obtain maximum
performance.
l) Battery pack gives its best performance when it is operated at normal
room temperature (20 °C ± 5 °C).
m) When disposing of battery packs, keep battery packs of dierent
electrochemical systems separate from each other.
n) Recharge only with the charger specied by POSITEC. Do not use any
charger other than that specically provided for use with the equipment.
A charger that is suitable for one type of battery pack may create a risk of re
when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the
equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
8
r) Remove the battery from the equipment when not in use.
24V Lithium-ion Cordless Drill with Hammer Action
s) Dispose of properly.
t) Do not mix cells of dierent manufacture, capacity, size or type within a
device.
u) Do not remove battery pack from its original packaging until required for
use.
v) Observe the plus (+) and minus (–) marks on the battery and ensure
correct use.
AFTER SALES SUPPORT
e-mail: info.aldi@positecgroup.com1300 889 028
9
(toll free)
MODEL: №.CDI224 • 09/2020 • 63524
11
General Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
- This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the
appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
Additional safety instructions for your Battery Charger
1. Before charging, read the instructions.
2. For charge 2024001-BAT battery pack only.
3. Do not charge a leaking battery.
4. Do not use chargers for works other than those for which they are designed.
5. Before charging, ensure your charger is matching the local AC supply.
6. The charging device must be protected from moisture.
7. Do not use the charging device outdoors.
8. Do not short out the contacts of battery or charger.
9. Respect the polarity “+/-“ when charging.
10. Do not open the unit and keep it out of the reach of children.
11. Do not charge the batteries of other manufactures or ill-suited models.
12. Ensure that the connection between the battery charger and battery is
correctly positioned and is not obstructed by foreign bodies.
13. Keep battery charger’s slots free of foreign objects and protect against dirt
and humidity. Store in a dry and frost-free place.
14. When charging batteries, ensure that the battery charger is in a well-ventilated
area and away from inammable materials. Batteries can get hot during
charging. Do not overcharge any batteries. Ensure that batteries and chargers
are not left unsupervised during charging.
15. Do not recharge non-rechargeable batteries, as they can overheat and break.
16. Longer life and better performance can be obtained if the battery pack
10
is charged when the air temperature is between 18oC and 24oC. Do not
24V Lithium-ion Cordless Drill with Hammer Action
charge the battery pack in air temperatures below 0oC, or above 40oC. This is
important as it can prevent serious damage to the battery pack.
17. Charge only battery pack of the same model provided by the manufacturer.
and of models recommended by the manufacturer..
11
AFTER SALES SUPPORT
(toll free)
13
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL: №.CDI224 • 09/2020 • 63524
Parts List
24V Lithium-ion Cordless Drill with Hammer Action
1. Drill/Driver chuck
2. Torque setting/ collar
3. Function selection collar
4. Two speed high /low gear selector
5. Belt Clip
6. Forward/Reverse switch
7. Rechargeable battery display
8. Variable speed, On/O trigger switch
for drill, brake, light control,
and battery display
2 3
14
1
9. Battery pack
10. Charger Adaptor
11. Plug Pack Charger
12. LED work light
13. Hammer Drill function symbol
14. Screw function symbol
15. Drill function symbol
16. Battery release tab
17. Carry Strap
4
7
6
8
15 13
11
10
12
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
16
12
17
5
9
AFTER SALES SUPPORT
1300 889 028
(toll free)
24V Lithium-ion Cordless Drill with Hammer Action
Use the drill/driver
Important information – Product care
This drill/driver uses Lithium Ion Battery Cells. Care MUST be taken to ensure
both the safety and life of the pack is maintained. Ensure you have read all of
the safety notes in the previous pages before using the drill/driver.
Treat the battery pack with care and within the guidelines of this manual.
If the pack does become immersed in water or any uids, or is subject to
a severe drop or it does not operate within the guidelines of this manual,
immediately STOP using the battery pack and have it checked.
During operation avoid overloading the drill/driver. If the drill/driver is
overloaded it will automatically STOP. Overloading may occur for a number
of reasons including when the drill/driver is pushed too hard or when using
a drill/driver bit or attachment greater than what is specied. If you do
overload the drill/driver during operation refer to the “Overload” section in
this manual.
NOTE: When the battery of the drill/driver is at the lower end of the charge,
the drill/driver is more susceptible to the overload condition.
Running the drill/driver at close to maximum load, or continual resetting
of the overload will cause the battery pack to overheat. When a preset cell
temperature is detected, the battery pack will automatically STOP operating
and will not restart until the battery pack has cooled to a safe level.
In this condition, DO NOT force cool the pack by placing in a freezer or
similar device. Refer to the “Overload” section in this manual.
Another feature of the drill/driver/battery pack is the low voltage cut out
feature. This feature operates when the voltage drops below a preset value.
When this occurs the tool will automatically stop operating. To correct the
situation you need to either insert another charged battery into the drill/
driver or recharge the existing battery, and then proceed with the drill/
driving application.
NOTE: Attempting to restart the tool in this condition without either
recharging the battery or installing a battery with charge will lead to drill/
driver restarting and then stopping again after only a few seconds of
operation.
These safety devices have been tted for the safety, reliability and life of the
tool.
AFTER SALES SUPPORT
(toll free)
13
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL: №.CDI224 • 09/2020 • 63524
24V Lithium-ion Cordless Drill with Hammer Action
Fitting and removing the battery pack
1. To install the battery pack (9) to the tool, align the raised portion of the
battery pack (9) with the grooves on the bottom of the drill/driver, and
with your thumb on the battery release tab (16), slide it rmly into the
handle until the battery is secure in position (Fig A). Release your thumb
from the battery release tab (16).
2. To remove the battery pack from the tool, press the battery release tab
(16) and slide the battery pack completely out of tool handle
(Fig B).
3. When applying the charger adaptor (10) onto the battery pack (9), slide
the charger adaptor (10) onto the battery pack (9), whilst aligning the
tabs on the battery pack (9) with the tabs on the charger adaptor (10)
(Fig C).
The charger adaptor (10) will make a snap / click noise when it is
securely aligned.
4. To remove the battery pack (9) from the charger adaptor (10), press
the battery release tab (16) and slide the charger adaptor backwards
/ outwards, opposite to the direction it was installed into the charger
adaptor (10).
A. C.
B.
Battery charging
IMPORTANT. Before attempting to charge the battery, check the charger
adaptor (10), plug pack charger (11), and the battery pack to ensure the
charging equipment matches the battery supplied. The components are all
labelled with component numbers.
Check the input voltage on the charger label and ensure the input voltage
indicates 100-240V ac 50-60 Hz.
14
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
AFTER SALES SUPPORT
1300 889 028
(toll free)
24V Lithium-ion Cordless Drill with Hammer Action
CAUTION! The rechargeable battery may not be fully charged on leaving
the factory. Charge the rechargeable battery for approx 3-5 hours before rst
use, or until fully charged.
If the battery pack (9) does not accept a charge when rst plugged in and
connected, ie the red light does not come on, the battery pack is most likely
fully charged from the factory.
In this case it is suggested to use or run the drill for a few minutes and then re
connect to the charger. The red charging light should come on showing the
charging cycle is working correctly.
CAUTION! The working temperature of the charging operation is 0°C to 45°C.
1. Connect the power supply from the plug pack charger (11) to the charger
adaptor (10) via plugging the plug from the plug pack charger (11) into the
charger adaptor (10) housing.

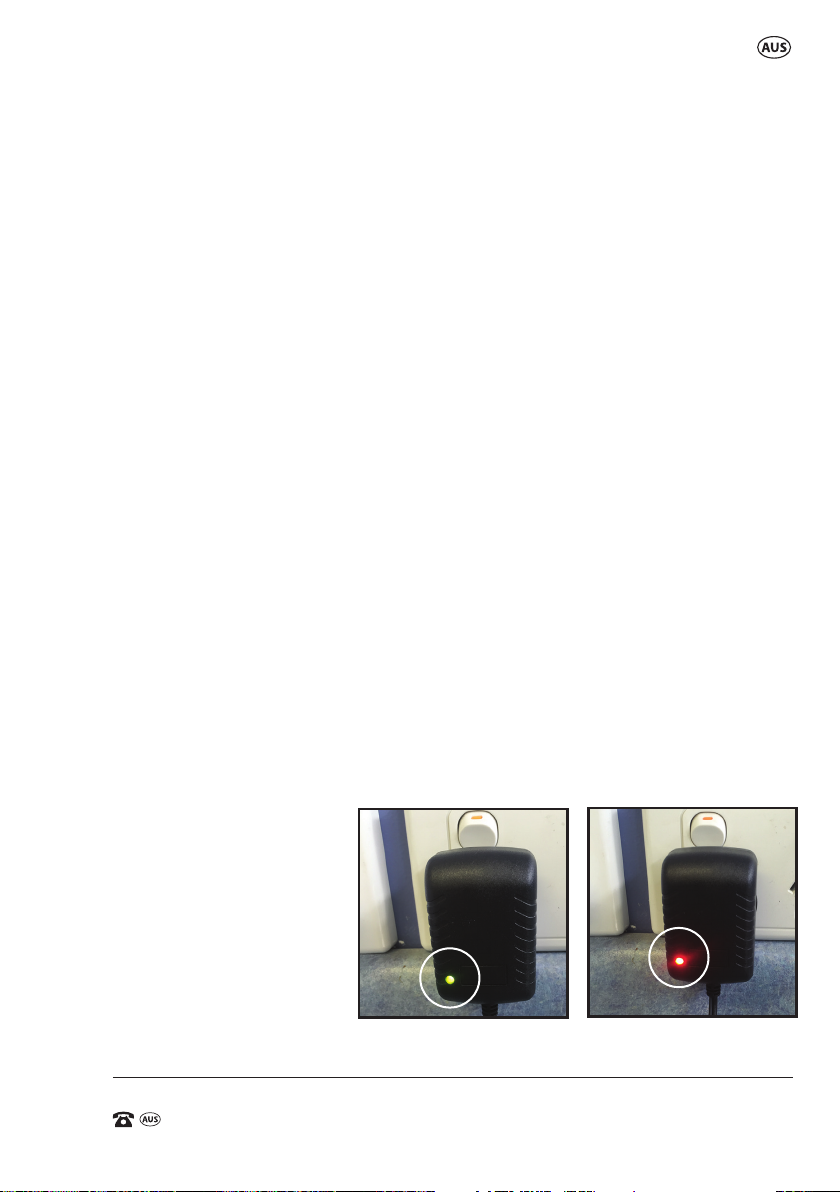

Plug in the plug pack charger (11) and switch on at the power supply. The
light on the plug pack charger (11) will highlight “green” to indicate there is
power (Fig D).
2. Align the battery pack (9) with the charger adaptor (10). Insert the battery
pack and slide it rmly into position (Fig C). The light on the plug pack
charger will highlight “red” to indicate the battery is being charged (Fig E).
The battery will be ready for use up to approximately 3-5 hours.
When the battery is charged to the correct voltage the red changes to
GREEN indicating the plug pack is still connected to the turned on power
but is NOT charging
NOTE: The power to the charger should be turned o when unattended, with
or without a battery inserted.
AFTER SALES SUPPORT
(toll free)
D.
E.
15
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL: №.CDI224 • 09/2020 • 63524
24V Lithium-ion Cordless Drill with Hammer Action
Rechargeable Battery Display
1. The rechargeable battery display (7) indicates the level of power left in the
battery pack (9). To check the power of the battery, press on the trigger
switch (8) to activate the drill, and the lights will be activated.
2. When all 3 lights are lit up, the battery is fully charged. When 2 lights are
lit up, the battery is at approx 50-60%. When only 1 light is lit up, there is
approx 20% power left in the battery pack (9).
F.
2 Speed gearbox
The 2 Speed Gearbox allows you to select a gear
with the optimum speed and torque to suit the
application.
NOTE: When changing the two speed high /
low gear selector (4), ensure the drill/driver is not
operating.
1. To select the LOW gear (low speed, high torque
setting), push the two speed high / low gear
selector (4) backward, towards the back of the drill/
driver. The number “1” will be displayed (Fig F).
2. To select the HIGH gear (high speed, low torque
setting), push the two speed high / low gear selector (4) forward, towards the
chuck. The number “2” will be displayed (Fig F).
1
2
The picture here shows the
gear selector forward so
the drill/driver is in High
speed, with the number 2
displayed.
Trigger switch

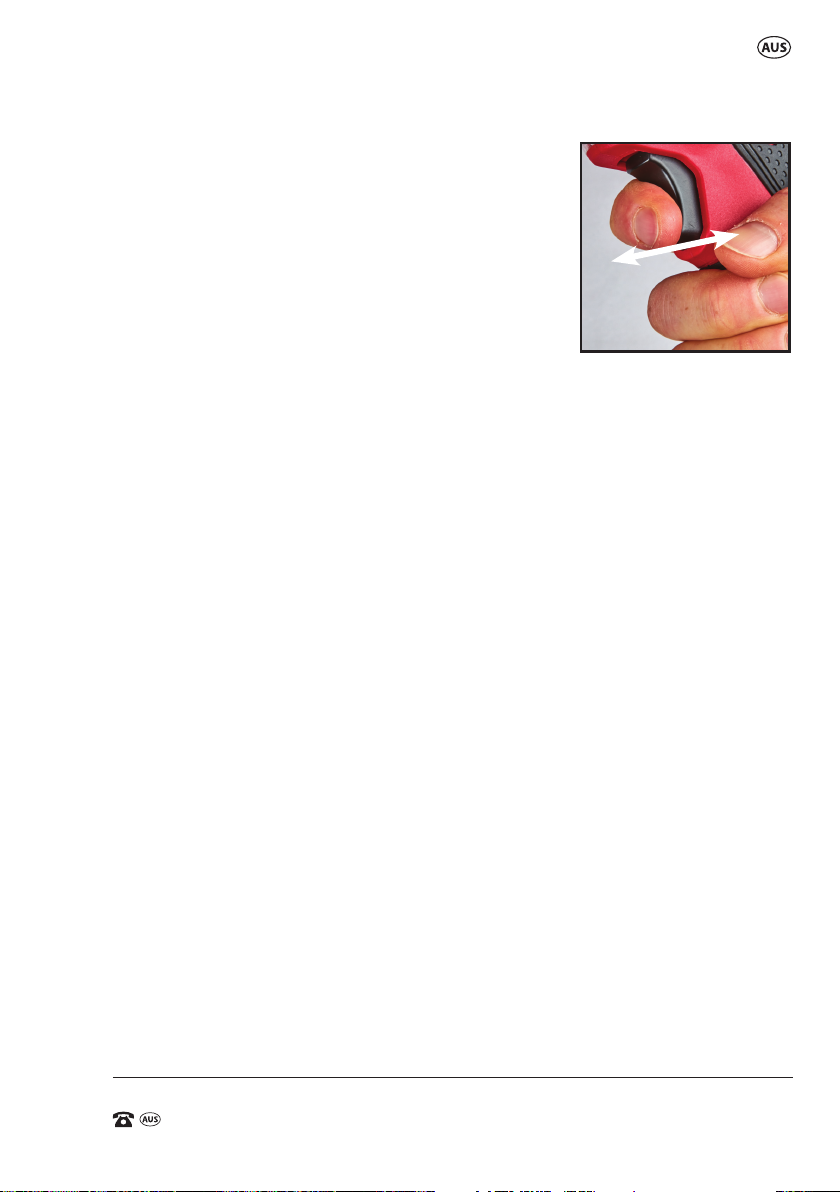

1. Use the forward/reverse switch (6) to select the
direction of rotation (Fig G), then pull the trigger
(8) (Fig H). This trigger switch is an electronic
variable speed control which enables the user
to vary the speed continuously.
The speed varies according to how far the
trigger switch is depressed.
The further it is depressed the faster the chuck
will rotate and the lighter it is depressed, the
slower it will rotate.
16
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
G.
AFTER SALES SUPPORT
1300 889 028
(toll free)
24V Lithium-ion Cordless Drill with Hammer Action
2. To stop the drill/driver, release the trigger
switch (8).
H.
Note. The variable speed control tted to this
drill/driver is NOT intended to be used for long
periods of time during the operation of the task
being performed. Use the variable speed to start
drill/driving and screwing tasks, and then fully
depress the trigger once the task has started.
CAUTION. Extended use of the variable speed
under load will overload and then permanently damage the speed control.
Forward/reverse switch
NOTE: You can only change the direction of rotation of the drill/driver using
the forward/reverse switch (6) when the trigger (8) is NOT depressed.
This switch will allow you to change the direction of the motor while the
trigger switch is not depressed.
1. To put in reverse mode, push in the forward/reverse switch on the side of
the drill where the arrow on the switch is pointing to the rear end of the
drill. The chuck will rotate in an anti-clockwise direction.
2. To put in forward mode, push in the forward/reverse switch on the side of
the drill where the arrow on the switch is pointing to the front end of the
drill. The chuck will rotate in an clockwise direction.
Drill/driving uses the forward mode. The reverse mode is intended for the
removal of screws and assisting to remove jammed drill/driver bits.
3. When the forward/reverse switch is in the middle position, not engaged
in either the forward or reverse position, the drill is in a locked state and
will not engage.
Adjustable torque
This drill/driver is equipped with 25 torque settings plus 1 x drill setting,
1 x screw setting and 1 x hammer setting.
The torque settings are controlled and adjusted by the torque setting / collar
(2), but only aects the output when the screw function (14) is selected.
The screw function (14), the drill function (15) and the hammer drill function
(13) are all selected using the second collar, the function selection collar (3).
AFTER SALES SUPPORT
(toll free)
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL: №.CDI224 • 09/2020 • 63524
17
When using the drill/driver
for screwdriving
24V Lithium-ion Cordless Drill with Hammer Action
When using the drill/driver for screwdriving
1. Rotate the function selection collar (3) so to align the screw symbol with
the triangular indicator on the top of the drill housing (Fig I). Function
setting is screw function (14).
2. To adjust the torque setting, rotate the torque
setting / collar (2). The higher the number, the
higher the output torque. Align the required
torque setting number with the triangular
indicator on the top of the drill (Fig I). Torque
setting is 11 in the example in Fig I.
Controlling the torque allows better control
when applying screws in the screw function (14)
and assists in the prevention of over tightening
if the torque is correctly set.
For setting the torque position, always start o with a low torque setting
and build up to the required higher torque setting after testing on
a test piece rst.
I.
When using the drill/driver for drilling
1. When using the drilling function the torque
control has no eect to the output of the drill.
The drill function (15) is used to drill holes in
metal, non ferrous material, wood, plastic and
similar materials.
Rotate the function selection collar (3) so the
symbol of the drill bit aligns with the triangular
indicator on the top of the drill housing (Fig J).
When using the drill/driver for
hammer drilling
1. When using the hammer drilling function (13),
the torque control has no eect to the output of
the drill. The hammer drill function (13) is used to
drill holes in non red, and non aggregate, but
cement based material or similar materials. The
action of the hammer is for drilling and not for
chiseling.
18
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
J.
K.
AFTER SALES SUPPORT
1300 889 028
(toll free)
24V Lithium-ion Cordless Drill with Hammer Action
Inserting//Removing bits
When tting the drill bit, ensure to use a masonry drill bit suitably
designed for the application.
Rotate the function selection collar (3) so the symbol of the hammer drill
function (13) aligns with the triangular indicator on the top of the drill
housing (Fig K).
Inserting and removing bits
This drill/driver has a keyless chuck, which
L.
OPEN
means that a chuck key is not needed to secure
a bit in the drill/driver.
1. Open the chuck (1) by unscrewing it in an
anti-clockwise direction, holding the drill/driver
as shown (Fig L).
Do this suciently enough to allow the drill/
CLOSE
driver bit to enter the jaws of the chuck.
2. Ensure the drill/driver bit is fully inserted, so that the chuck jaws grip the
straight section of the bit.
Rotate the chuck clock-wise until the jaws tighten on the drill/driver bit.
The collar of the chuck needs to be tightened rmly to ensure the drill/
driver bit is held securely.
To remove the drill/driver bit, rotate sharply the chuck in an anti-
clockwise direction, suciently enough to allow the drill/driver bit to be
removed.
NOTE: This device is tted with spindle lock and the chuck is a one
handed operation.
AFTER SALES SUPPORT
(toll free)
19
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL: №.CDI224 • 09/2020 • 63524
Drill / driver Overload
24V Lithium-ion Cordless Drill with Hammer Action
Drill/driver Overload
This drill/driver is tted with an overload protection. If the drill/driver is
excessively forced, or the task being performed is too great for the drill/
driver, the drill/driver will automatically go into an overload mode. When
the drill/driver goes into overload, the drill/driver will automatically and
suddenly STOP. To reset the overload, simply release the trigger. When the
trigger is pressed again, the drill/driver will restart. Resume work after the
overload has been reset, but reduce the load by using a smaller drill/driver
bit or re-sharpen the existing drill/driver bit and reduce the amount of force
placed on the drill/driver. If the drill/driver is set to High speed on the gear
selector, consider changing to low speed selection.
CAUTION. Do not continue to overload the drill/driver and constantly reset
the overload. Doing this will cause the battery cells to over heat.
Temperature cut out
If the drill/driver is constantly overloaded, or the drill/driver is used
constantly at maximum rating in high ambient conditions, the battery cells
may overheat causing the battery pack to shut down.
When this occurs you will need to allow the battery cells to cool.
NOTE: The drill/driver will not restart until the battery pack has cooled.
To reduce the temperature of the cells remove the battery pack from the
drill/driver and place the battery pack in a free air environment, out of direct
sunlight or any other heat source.
DO NOT force cool the pack in any way. Do not place in refrigerators or
freezers.
When the battery pack has cooled down it can again be used to operate
the drill/driver, as long as the load or the conditions causing the original
excessive temperature has been corrected.
Low voltage cut out
The battery pack used on this tool is tted with a low voltage cut out feature
within the circuitry.
The low voltage cut out feature operates when the voltage drops below a
preset value. This feature automatically stops the drill/driver from operating
(similar to that of the overload condition). When this condition occurs you
will need to either insert another battery into the drill/driver or recharge the
existing battery.
20
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
AFTER SALES SUPPORT
1300 889 028
(toll free)
24V Lithium-ion Cordless Drill with Hammer Action
Drill / driving
The low voltage cut out feature has been added to maximise the life of the
battery cells in the battery pack (9). When this occurs, recharge the battery
pack by following the battery charging section in this manual.
NOTE: Attempting to restart the tool without either recharging the battery
or installing another battery pack (with charge) will lead to drill/driver
restarting and then stopping again, after only a few seconds of operation.
Drill/driving metals
• Always clamp sheet metal.
• Support thin metal with a block of wood to avoid distorting it.
• Use a punch to mark the centre of the hole.
• Use a suitable lubricant for the material you are working on：
USE: FOR:
Oil Steel
Turpentine or paran Aluminium
Do not lubricate Brass, copper or cast iron
Do not Lubricate Concrete based material
Drill/driving plastics and plastic coated chipboard
• Use high speed drill/driver bits
• See drill/driving wood below
Drill/driving wood
• Clamp a piece of scrap wood to the back of your work to prevent
splintering.
Hammer drill operations.
• Where possible, use High speed.
• Select the hammer position on the function selection collar (3).
• Use drill bits specically for masonary applications.
• Ensure to wear safety glasses.
AFTER SALES SUPPORT
e-mail: info.aldi@positecgroup.com1300 889 028
(toll free)
MODEL: №.CDI224 • 09/2020 • 63524
21
All drill / driving operations
24V Lithium-ion Cordless Drill with Hammer Action
All drill/driving operations
• Mark o the centre of the hole using a centre punch or nail
(Do not use centre punch in Masonry applications).
• Don’t force the drill/driver, let it work at its own pace
• Keep the drill/driver bit sharp.
• Reduce pressure, as the drill/driver is about to break through the item
being drill/drivered.
LED work light
When the unit is switched on, the LED work light (12) also comes on to
ensure better vision and to make working in dark areas more safe.
The working light goes out when the On/O trigger (8) is released.
CAUTION! LED is laser class 1!
Do not look directly into the laser as this may result in damage to the eyes.
Chuck replacement
The chucks of reversible drill/drivers are always xed by a screw with a lefthand thread. The screw, which is located in the centre of the chuck, must
be removed before the chuck can be removed. To remove the screw, turn it
in a clockwise direction. The chuck can now be removed by unscrewing it
anti-clockwise. If you have trouble removing the chuck take the drill/driver
to your nearest authorised service centre for chuck replacement.
CAUTION. Always ensure that the drill/driver is switched o and the battery
pack is removed before making any adjustments.
Side Belt Clip
The belt clip (5) is used to assist to clip the tool to your waist belt while
working.
Carry strap
A carry strap (17) is included on the drill and is already tted for convenience.
Cleaning
Clean the case only with a damp cloth. DO NOT use solvents when cleaning
plastic parts. Plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use a clean cloth to
remove dirt, dust, oil, grease etc, then dry well.
22
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
AFTER SALES SUPPORT
1300 889 028
(toll free)
24V Lithium-ion Cordless Drill with Hammer Action
Maintenance
Maintenance
To maintain capacity, recharge the battery pack every two months. Store
only fully charged batteries.
They should therefore be recharged from time to time. The place of storage
must be dry; the ambient temperature must not fall below 0°C or rise
above 45°C.
CAUTION! Electrical and battery operated units that no longer work
should not be disposed of in the household waste! They are to be collected
separately, in accordance with your local waste disposal regulations.
ATTENTION! Battery packs must be removed from battery powered tools
and disposed of separately in accordance with relevant waste battery
regulations.
Battery packs must never be disposed of with domestic waste!
Please discard power tools no longer usable at a local collection point.
Collection and disposal of packaging materials separately by types
complying with local rules and regulations. For details, please contact
your local council.
Warranty
Your new Workzone® Titanium 24V Lithium-Ion Cordless Drill will more than
satisfy your expectations.
It has been manufactured under stringent Workzone® Quality Standards to
meet superior performance criteria.
You will nd your new 24V Lithium-Ion Cordless Drill easy and safe to
operate, and, with proper care, it will give you many years of dependable
service.
CAUTION. Carefully read through this entire instruction manual before
using your new Workzone® Titanium 24V Lithium-Ion Cordless Drill.
Take special care to heed the Cautions and Warnings.
Your Workzone® Titanium 24V Lithium-Ion Cordless Drill has many
features that will make your job faster and easier. Safety, performance, and
dependability have been given top priority in the development of this 24V
Lithium-Ion Cordless Drill, making it easy to maintain and operate.
Use only Workzone® Titanium replacement parts for your product.
Non-conforming parts or modications made to parts will void your warranty.
AFTER SALES SUPPORT
(toll free)
23
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL: №.CDI224 • 09/2020 • 63524
24V Lithium-ion Cordless Drill with Hammer Action
Environmental protection
Recycle unwanted materials instead of disposing of them as waste.
All tools, hoses and packaging should be sorted, taken to the local
recycling centre and disposed of in an environmentally safe way.
What your 5 year * warranty means
Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly.
In the event of product failure within its intended use over the course of
the rst 5 years * after the date of purchase, we will remedy the problem as
quickly as possible once it has been brought to our attention. In the unlikely
event of such an occurrence, or if you require any information about the
product please contact us via our after sales support services, details of
which can be found in this manual and on the product itself.
After Sales Support TEL: 1300 889 028
* 5 year warranty on drill. 1 year warranty on battery and charger.
Service Support
If you have any issues with the operation of your product, please call us on
1300 889 028 for advice, or email us at info.aldi@positecgroup.com
Accessories and After Sales Parts
The following accessories are available for purchase by visiting
https://help.tools/ or calling our customer service hotline on: 1300 889 028
1. 2024001-BAT - 24V
1.5Ah Battery
(63524)
24
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
2. 2024001-CBA - 24V
Charger Adaptor
(63524)
3. IVP 2600-0450WS
Plug Pack Charger
(63524)
AFTER SALES SUPPORT
1300 889 028
(toll free)
24V Lithium-ion Cordless Drill with Hammer Action
FAQ/Troubleshooting
Do I need to charge the battery before use?
Yes, new battery packs are shipped in a low charge condition and must be fully charged
before use. It takes approximately 3-5 hours to fully charge your new battery.
Follow the full section “Battery Charging “ in this manual on page 14-15.
Charging of Battery packs should not be undertaken casually. Through the charging cycle
the condition of the battery pack should be monitored and the charge cycle turned o at
completion or at the end of the recommended time.
How do I obtain the best life for the battery?
- Never allow the battery packs to run completely empty before recharging. The battery packs
should be placed on charge whenever the battery packs is noticeably running down or the
drill no longer performs a task it previously performed.
- Avoid allowing lose items like screws or nails etc. to be stored with battery packs as these or
similar items can short battery packs and cause a re or explosion.
- Always unplug the plug pack charger when not in use and store in a dry secure place.
- Avoid charging or storing your battery packs in temperatures below 0ºC and above 45ºC.
How do I use the 2 gears on the drill?
To select the LOW gear (low speed, high torque setting), push the gear selector backward,
towards the back of the drill/driver. The number “1” will be displayed.
To select the HIGH gear (high speed, low torque setting), push the gear selector forward,
towards the chuck. The number “2” will be displayed.
NOTE: The gears cannot be changed if the variable speed / on o trigger (8) is depressed.
How do I adjust the torque?
The torque function will only operate when the screw function (14) is selected by rotating the
function selection collar (3) and aligning the screw symbol with the triangular indicator on the
top of the drill.
To adjust the torque setting you rotate the torque setting / collar (2). The higher the number,
the higher the torque setting collar.
Controlling the torque allows for better control when using the drill/driver on specic add
screwing tasks and assists in preventing over-fastening and over-tightening.
For setting the torque position, rst select a low setting on the torque setting / collar (2) and
align the selected symbol with the triangular indicator on the top of the drill/driver.
Slowly increase the torque setting to the desired level. It is suggested to test the setting on
scrap material rst.
How do I select hammer function?
Rotate the function selection collar (3) until the hammer drill symbol aligns with the triangular
AFTER SALES SUPPORT
(toll free)
25
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL: №.CDI224 • 09/2020 • 63524
24V Lithium-ion Cordless Drill with Hammer Action
indicator.
How do I select drill function (Non Hammer)?
When using the drilling function the torque control has no eect to the output of the
drill. The drill function (15) is used when using the drill to drill holes in metal, non ferrous
material, wood, plastic and similar materials. Rotate the function selection collar (3) so
the symbol of the drill bit (15) aligns with the triangular indicator on the top of the drill
housing.
How do I select screw / driver function?
Rotate the function selection collar (3) so to align the screw symbol (14) with the triangular
indicator on the top of the drill housing. To adjust the torque setting, rotate the torque
setting /collar (2). The higher the number, the higher the output torque. Align the required
torque setting number with the triangular indicator on the top of the drill.
Torque setting is 11.
What is the function of the Forward / Reverse switch?
This forward / reverse swicth (6) will allow you to change the direction of the motor while
the trigger switch is not depressed.
Drill/driving uses the forward mode. The reverse mode is intended for the removal of
screws and assisting to remove jammed drill/driver bits.
What do I do if I have an issue with my drill?
If you have any issues with your drill/driver, please contact our Customer Service line on
1300 889 028.
26
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
AFTER SALES SUPPORT
1300 889 028
(toll free)
24V Lithium-ion Cordless Drill with Hammer Action
Specications
Motor: 24 V
Low speed: n0-Lo = 0 – 400 min-1
High speed: n0-Hi = 0 – 1550 minImpact Frequency: 0-6,000 / 0-22,500 BPM
Drill/driver diam Ø: - Wood 30 mm
- Steel 13 mm
- Non aggregate materials 13mm
Chuck: 13 mm Keyless
Battery 2024001-BAT: 24 V 1.5Ah/Li-Ion
Plug Pack Charger: Model: IVP 2600-0450WS
Input: 100-240V~ 50-60Hz 0.5A
Output: 26.0 V , 0.45A
Charger Adapter: Model#: 2024001-CBA
Charging time: Ready for use in 3-5 Hours
Product Dimensions: 235mm x 245mm x 75mm (L x W x H)
(Drill/driver with battery pack tted)
Your 24V Lithium-Ion Drill with Hammer Function product complies
with the following Standards:
1
1. Charger:
IEC60335-1
IEC60335-2-29
AS/NZS60335.1
AS/NZS60335.2.29
EMC
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
AFTER SALES SUPPORT
(toll free)
2. Drill:
IEC 62841-1
IEC 62841-2-1
AS/NZS 62841.1
AS/NZS 62841.2.1
EMC:
EN 55014-1
EN 55014-2
3. Battery:
IEC62133-2:2017
27
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL: №.CDI224 • 09/2020 • 63524
24V Lithium-ion Cordless Drill with Hammer Action
ALDI guarantees that our exclusive brand products are developed to
our stringent quality specications. If you are not entirely satised with this
product, please return it to your nearest ALDI store, within 60 days from
the date of purchase, for a full refund or replacement, or take advantage of
our after sales support by calling the supplier’s Customer Service Hotline.
Made in China
Workzone® Titanium is a registered trademark of ALDI Stores
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
www.aldi.com.au
1300 889 028 (toll free)
28
e-mail: info.aldi@positecgroup.com
MODEL: №. CDI224 • 09/2020 • 63524
e-mail: info.aldi@positecgroup.com
MODEL: CDI224 • 09/2020 • 63524
5
AFTER SALES SUPPORT
1300 889 028
(toll free)
Loading...
