Page 1
Printed in Vietnam
Description

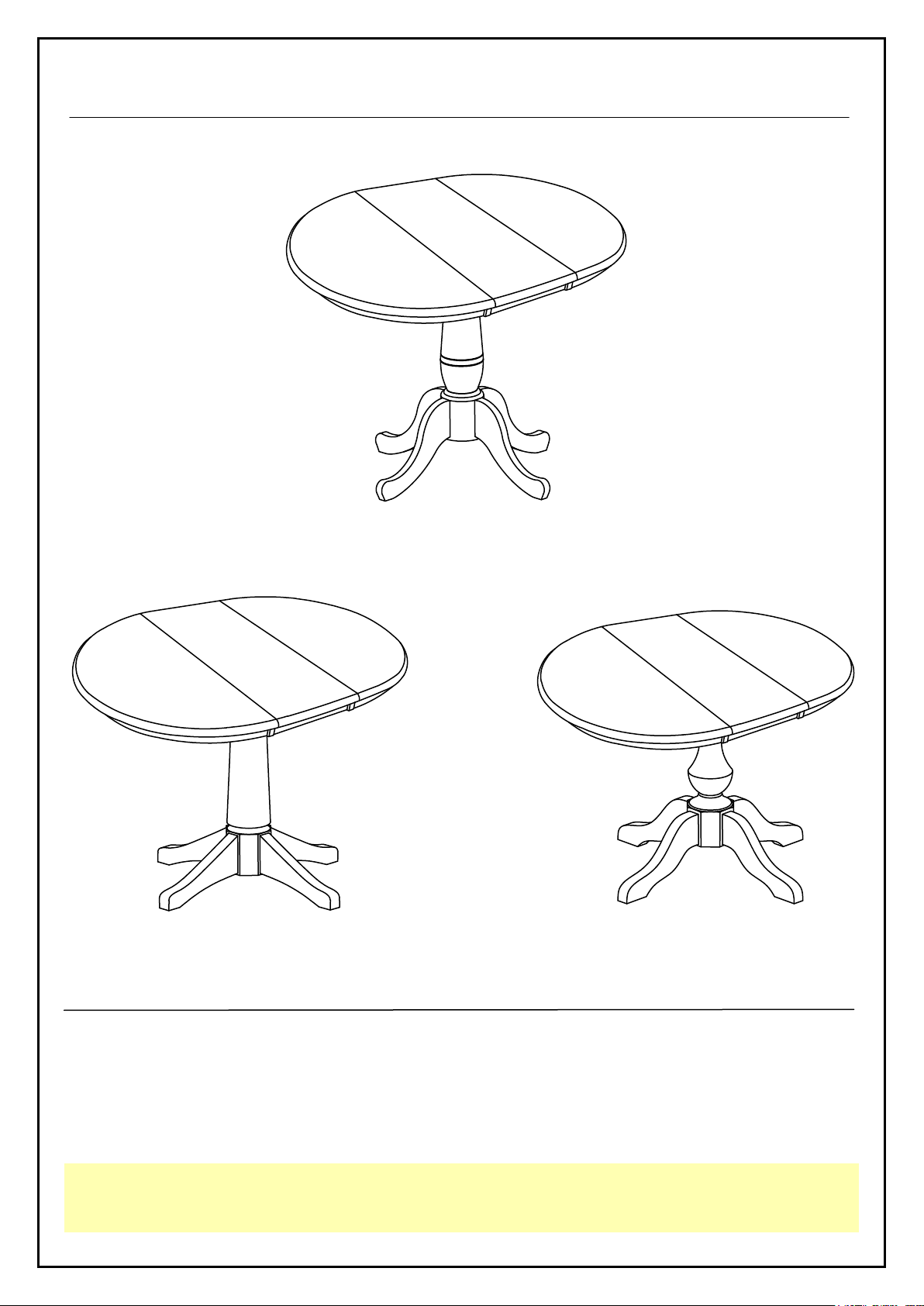

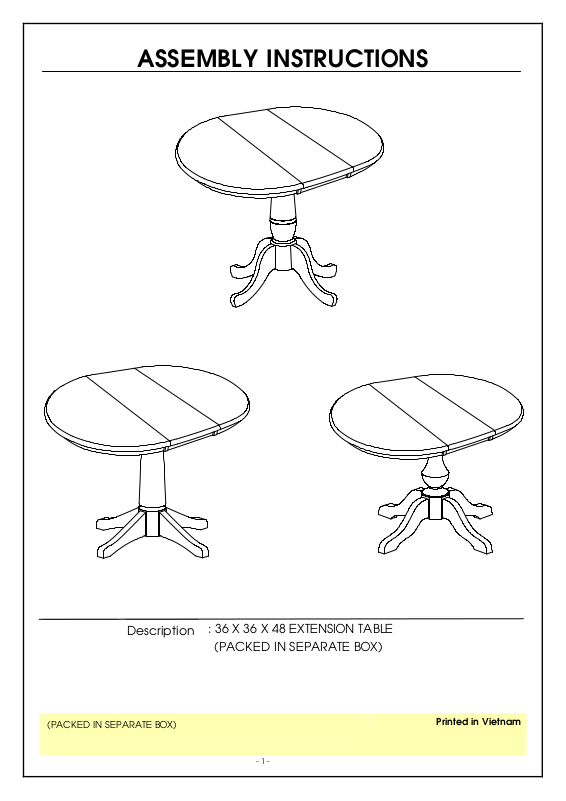

: 36 X 36 X 48 EXTENSION TABLE
(PACKED IN SEPARATE BOX)
ASSEMBLY INSTRUCTIONS
(PACKED IN SEPARATE BOX)
- 1 -
Page 2
Printed in Vietnam
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly
and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to
beginning assembly, however, make sure all parts and hardware are included and free of obvious
defect. If a part is missing or defective, please contact the store where purchased. If hardware is
missing, or you need help with assembly, please call us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the
parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to
assemble.
- DO NOT tighten all screws, bolts until completely assembled.
- Keep all hardware parts out of reach of children.
WARNING:
- Long exposure to rubber or soft plastic may cause a chemical reaction and damage the
finish of your table. Protect the surface of the table with cloth if you are using any product
with rubber feet or base.
(PACKED IN SEPARATE BOX)
- 2 -
Page 3
Printed in Vietnam
PART LIST
NO
Description
Qty
Sketch
A
Top
1
HARDWARE LIST
NO
Description
Qty
Sketch
NO
Description
Qty
Sketch
1
Bolt
(M6 x 35mm)
4
2
Lock washer
(6.5x11mm)
4
3
Flat washer
(6.5 x 13mm)
4
4
Allen Key
(M4 x 30mm x 110mm)
1
STEP 1

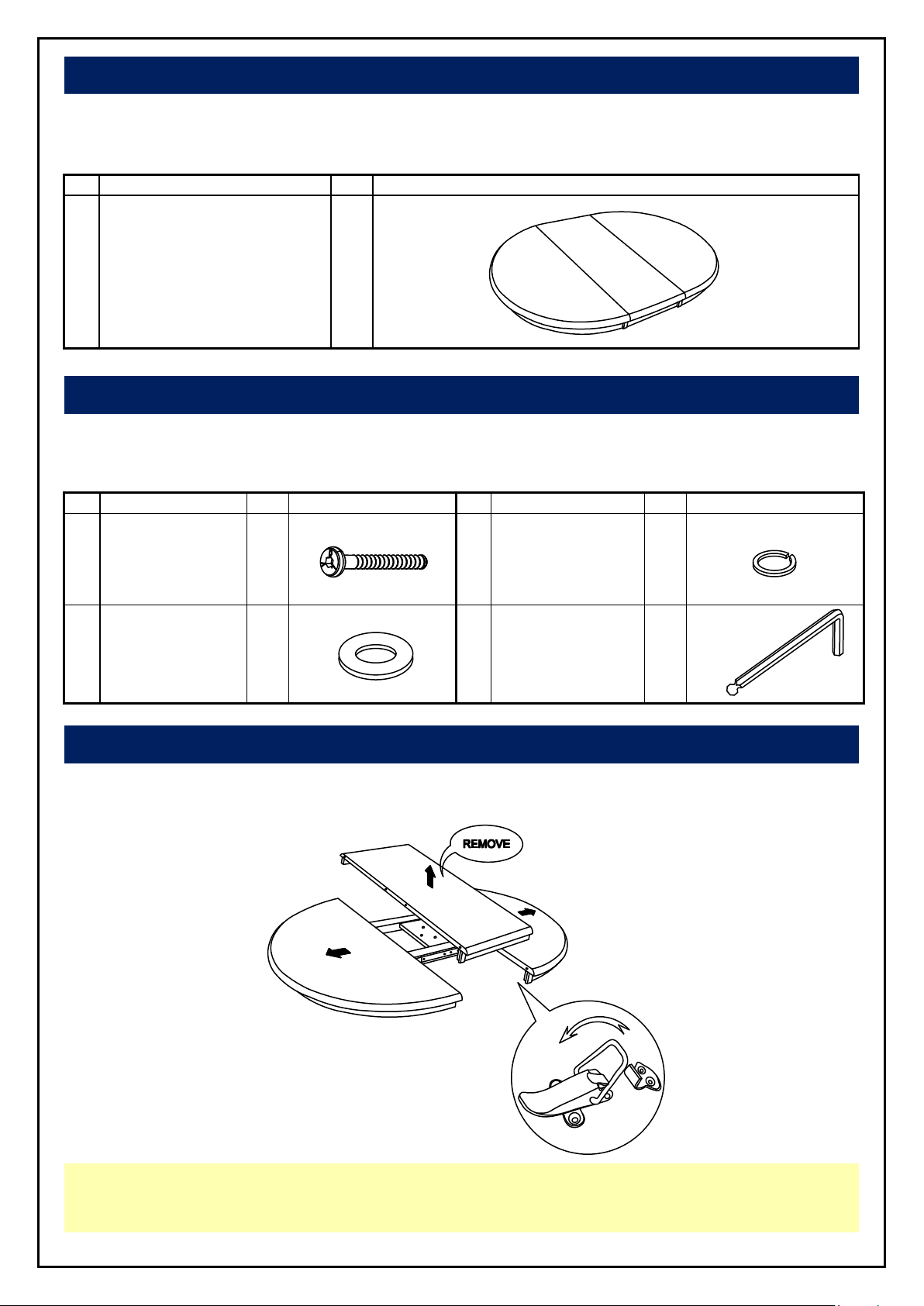

When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have the following parts:
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have all of the following hardware:
Unlock the table top on both sides from underneath the top. Pull the 2 parts of the table top apart
and remove the leaf as shown below.
(PACKED IN SEPARATE BOX)
- 3 -
Page 4
Printed in Vietnam
STEP 2

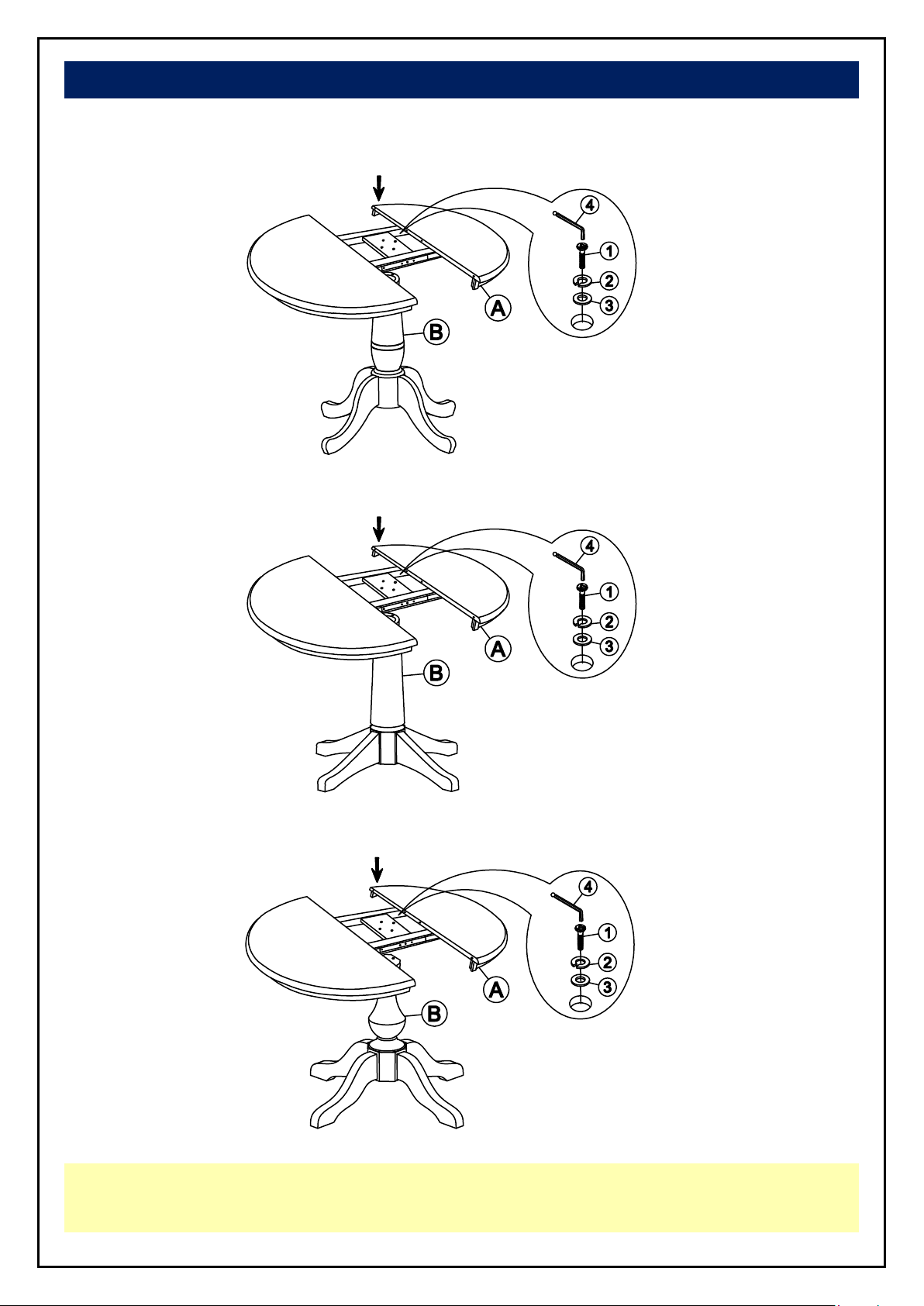

Attach top (A) to the base (B) with bolts (1), and washers (2) and (3) as shown below. Tighten with
Allen key (4).
(PACKED IN SEPARATE BOX)
- 4 -
Page 5
Printed in Vietnam
STEP 3

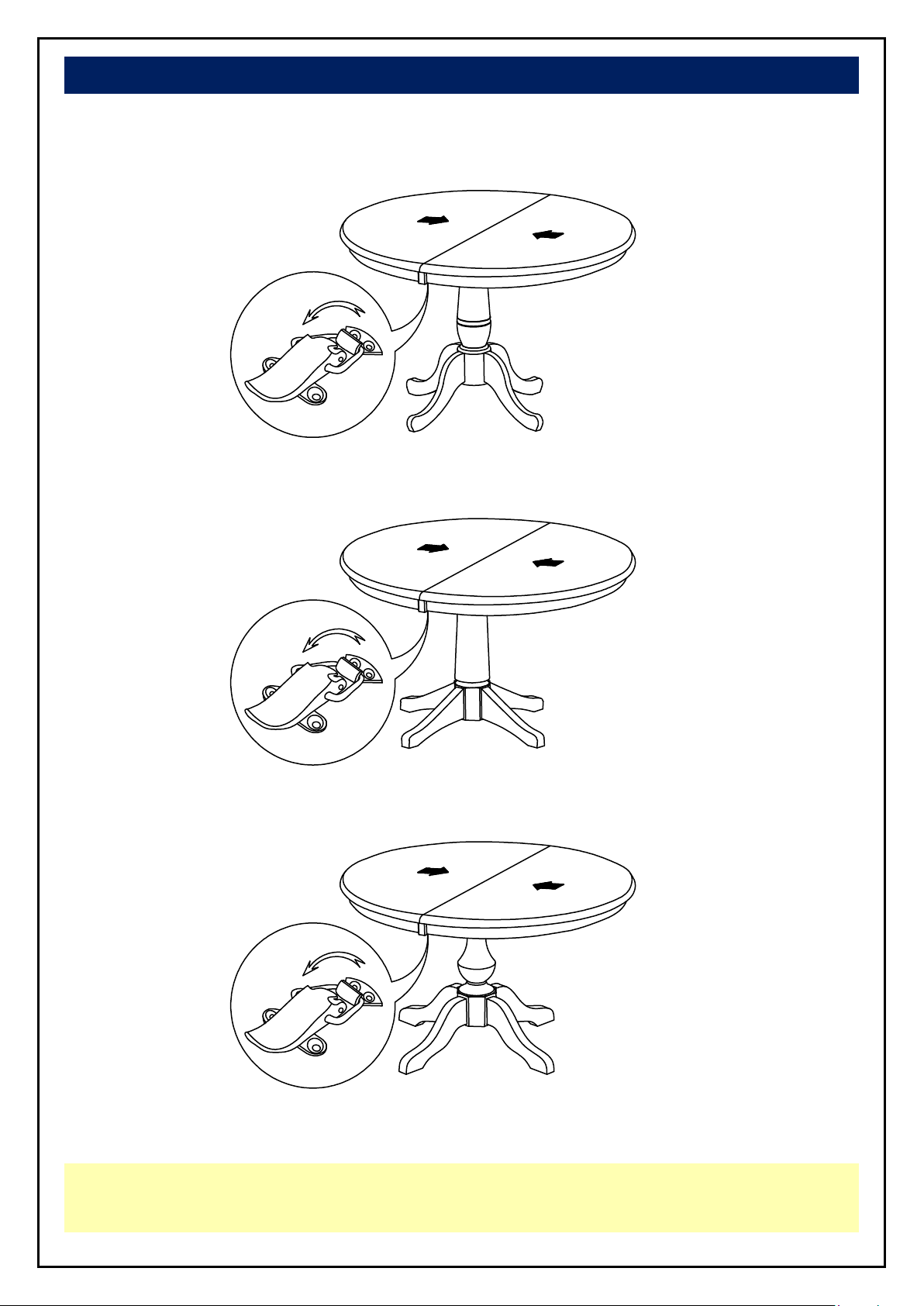

Unlock the table top from both sides underneath of the top as shown below.
Pull the 2 parts of the table top apart.
(PACKED IN SEPARATE BOX)
- 5 -
Page 6
Printed in Vietnam
STEP 4

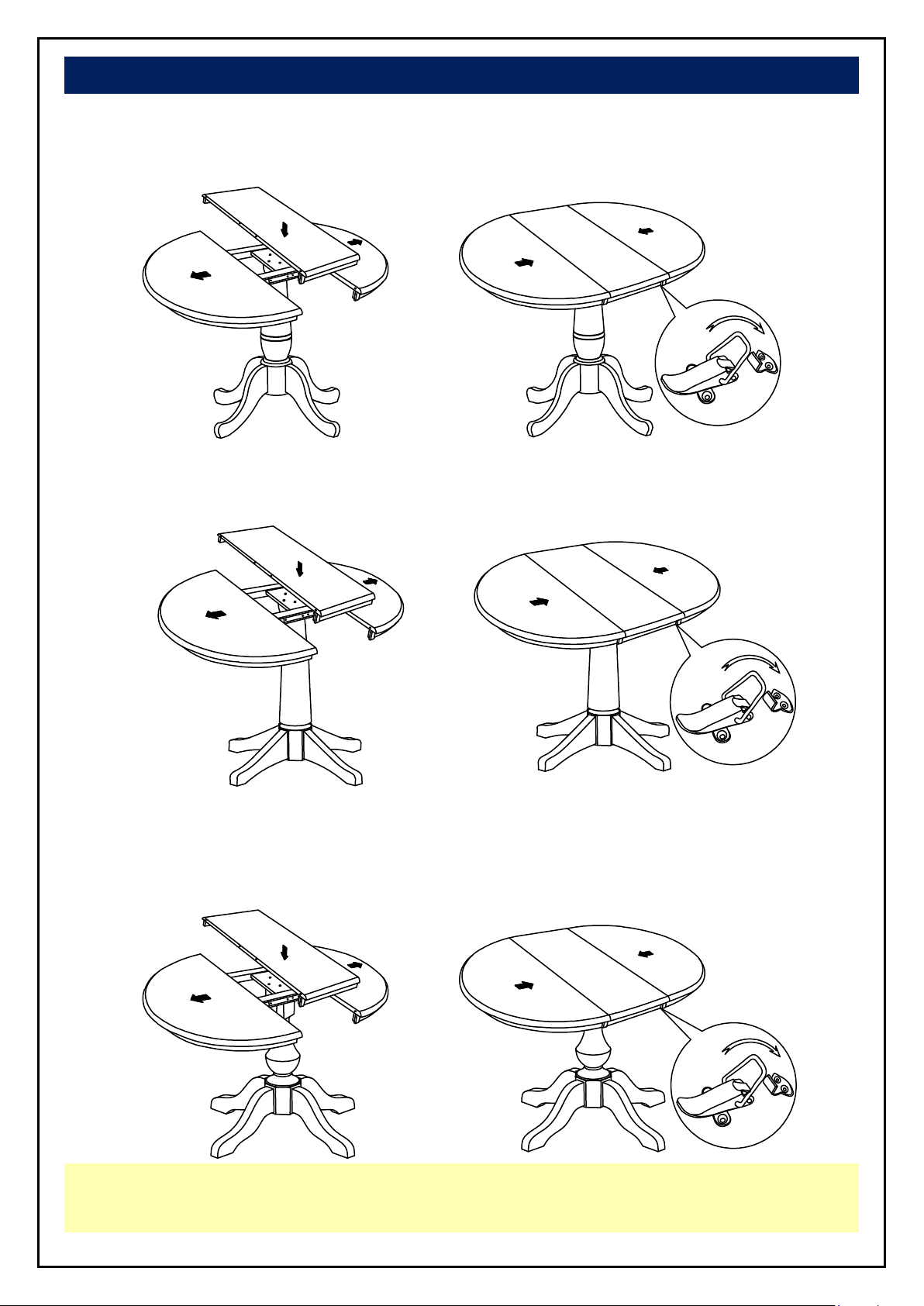

Place the leaf in the center of the open table top. Push the table top closed. Lock the mechanism
underneath 2 sides of the table top as shown below.
(PACKED IN SEPARATE BOX)
- 6 -
