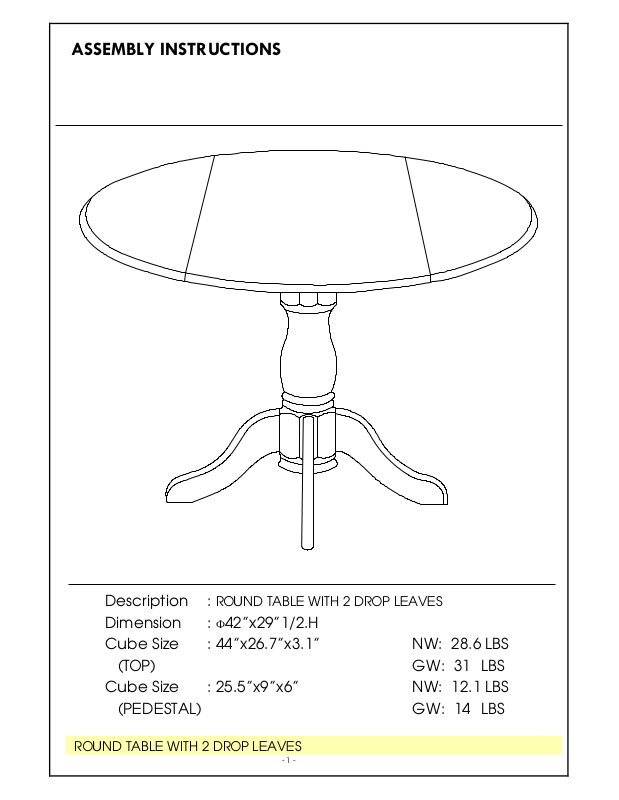

ASSEMBLY INSTRUCTIONS
Description :
ROUND TABLE WITH 2 DROP LEAVES
Dimension : Ф42”x29”1/2.H
Cube Size : 44”x26.7”x3.1” NW: 28.6 LBS
(TOP) GW: 31 LBS
Cube Size : 25.5”x9”x6” NW: 12.1 LBS
(PEDESTAL) GW: 14 LBS
ROUND TABLE WITH 2 DROP LEAVES
- 1 -
BEFORE ASSEMBLY
Small f
lat
Small l
ock
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for
durability. Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
Please separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being
scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have the following parts:
NO Description Qty Sketch NO Description Qty Sketch
A Top 1
B Leg 4
C Pedestal 1
D
Mounting
plate
1
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have all of the following hardware:
NO Description Qty Sketch NO Description Qty Sketch
Large flat
1
( Φ8.5xΦ19mm)
Hexagon nut
3
(M8x13mm)
5
( Φ6.5xΦ13mm)
7
(M6x48mm)
washer
washer
Bolt
4
4
4
12
Large lock
2
( Φ8.5xΦ11mm)
4
6
( Φ6.5xΦ9mm)
Medium flat
8
( Φ6.5xΦ16mm)
washer
Wrench
(M13mm)
washer
washer
4
1
12
8
Allen key
9
11
(M4)
Plastic
1
2
ROUND TABLE WITH 2 DROP LEAVES
- 2 -
10
Screw
M3.5x20
4
STEP
1
Attach legs (B) to the pedestal (C) with washers (1), (2) and nuts (3). Tighten with wrench (4).
B
x4
1
2
3
4
C
STEP 2
Put the Mounting plate (D) on top of the pedestal, and attach with bolts (7), washers (5), (6). Tighten
with Allen key (9).
9
D
7
6
5
x4
ROUND TABLE WITH 2 DROP LEAVES
- 3 -
EP 3
STEP 3
Attach plastic(11) to the top (A). use the screw driver to tighten the screws (10) as shown below.
X4
10
11
A
STEP 4
Carefully place the frame (from Step 2) on bottom side of the table top (A), with bolts (7), washers
(8), (6). Tighten with Allen key (9).
9
7
6
x8
8
A
ROUND TABLE WITH 2 DROP LEAVES
- 4 -
