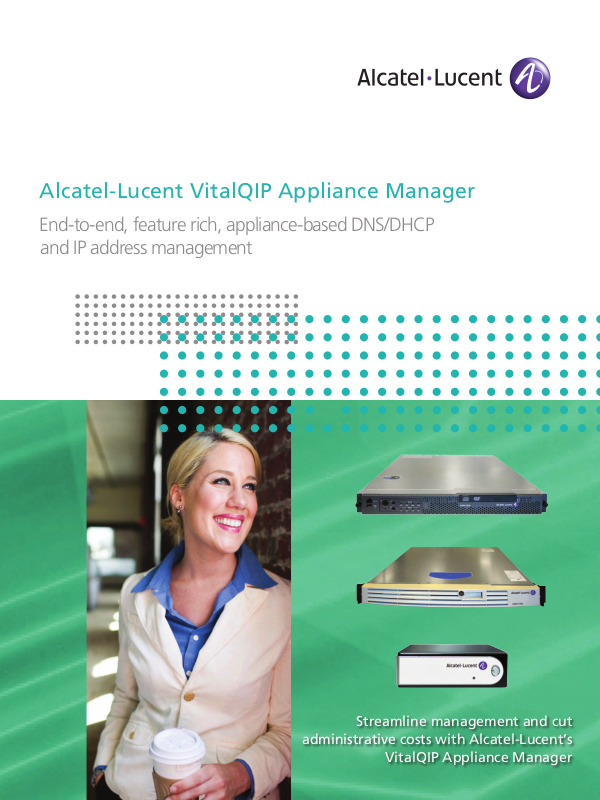

Alcatel-Lucent VitalQIP Appliance Manager
End-to-end, feature rich, appliance-based DNS/DHCP
and IP address management
Streamline management and cut
administrative costs with Alcatel-Lucent’s
VitalQIP Appliance Manager
VitalQIP is a next generation solution for
automating address management services
across IPv4 and IPv6 networks.
In today’s complex networking world, it is critical to
have reliable, secure low cost address allocation and
management software that keeps an enterprise network
running smoothly every day.
The VitalQIP Appliance Manager provides a
seamless, cost effective way to deploy and
maintain VitalQIP DNS/DHCP and IP Address
Management software on an integrated
appliance platform that includes customized
remotes and automated software upgrade
and monitoring
BENEFITS
Fully integrated with the market leading VitalQIP software:
n Everything that’s needed for a fully-integrated, end-to-end appliance solution for VitalQIP software
n Automated deployment of critical IP name and address services
n Simplified software upgrades and centralized deployment and monitoring of IPAM, DNS, DHCP, TFTP,
NTP, and other services
n Secure services with hardened OS (RedHat Linux) preloaded onto the appliances
n Streamlined management which cuts administrative costs
2 Alcatel-Lucent l VitalQIP Appliance Manager
Alcatel-Lucent is a proven global provider
of market leading IT management
solutions. Our solutions can maximize
profitability and productivity and help you
leverage IT investment for a competitive
advantage. Alcatel-Lucent’s award-winning
VitalQIP software is used today by more
than 850 customers worldwide, including
over 50% of the Fortune 100 companies.
Alcatel-Lucent l VitalQIP Appliance Manager 3
AUTOMATES DEPLOYMENT OF SERVICES
IP name and address services are essential to
service availability and end user performance
capabilities. If end users are unable to obtain an
IP address, they can’t communicate or complete
tasks essential to your business success. If
application host names are not quickly resolved
by programs in end users’ PCs, connecting to
these applications and other services is difficult
if not impossible.
Consolidating all IP address information in a
single location ensures that your geographically
dispersed network administrators can access the
same IP database. This eliminates duplication
of administrative effort and allows you to
maintain a consistent IP inventory network-
wide. Administrative efficiency is also increased
from hosting IP address management services
such as DNS and DHCP on specialized hardware
appliance platforms while improving security
and uptime.
The VitalQIP Appliance Manager offers the latest
multi-core Intel-based architecture combined with
the hardened Red Hat Linux® operating system as
well as a web-based graphical user interface (GUI)
that is used to seamlessly manage deployment,
apply patches and upgrades, and monitor IPAM,
DNS, DHCP and other services.
VITALQIP APPLIANCE MANAGEMENT SOFTWARE
The centralized VitalQIP Appliance Management
Software (AMS) maintains an inventory of
software packages and appliances and is easily
launched from the VitalQIP web-based GUI. Also
included for security is a token-based appliance
authentication process.
Deployment, upgrades and maintenance is
simplified by configuring services on the AMS
GUI before deployment and by logically grouping
the appliances. Remote services, such as DNS
and DHCP, can also be upgraded to the latest
software version across many appliances with
a few simple clicks. If there are issues with an
upgrade, an administrator can roll back to a
previous version of the service since a record
of upgrades is maintained in the AMS for each
appliance.
Administrators have centralized access and a
view of the entire appliance network via the
monitoring section of AMS.This centralized
control gives administrators quick and easy access
to all log and configuration files, remote start and
stop of services on appliances, and the ability to
quickly take any appliance offline for suspicious
behavior as well as reboot appliances from a
central location, saving travel costs and time.
4 Alcatel-Lucent l VitalQIP Appliance Manager
ENHANCES ADMINISTRATOR EFFECTIVENESS
Internet
Building 1
Building 2
DNS/DHCP
ESM 5000
AMS
VitalQIP
DNS/DHCP
DNS/DHCP
Remote Services Running
on Appliances or Servers
Remote Services Running
on Appliances or Servers
Small Office
Building
Building 3
Building 4
DNS/DHCP
DNS/DHCP
AMM 5000 Running
Remote Services
VitalQIP Enterprise Services, Appliance
Management Software and Remote Services
Running on Appliances and/or Servers
AMM 500 Running
Remote Services
Retail
Store
DNS/DHCP
AMM 500 Running
Remote Services
The Alcatel-Lucent VitalQIP Appliance Manager:
n Centralizes the definition of IP addresses and distributed network services such as DNS and DHCP
via a single system. This is key to effectively managing network-wide IP information.
n Configures remote DNS and DHCP appliances using centralized data, improving administrator
productivity while reducing errors.
n Prevents administrators from having to individually access each and every remote machine.
n Performs appliance management using the central console that includes the Appliance
Management Software (AMS).
HARDWARE/SOFTWARE OPTIONS
The VitalQIP Appliance Manager is offered on redundant/high-performance, standard and desktop hardware configurations
to meet the specific requirements of your network. The VitalQIP Appliance Manager 5000 Platform is targeted for demanding
environments and provides NEBS compliance while the VitalQIP Appliance Manager 1000 Platform is designed for typical
enterprise applications. The VitalQIP Appliance Manager 500 Platform is ideally suited for retail and small office applications
where cost, noise and size are important considerations.
5000 Platform
Powered by two 64-bit multi-core Intel®
Xeon® processors in a NEBS-3 compliant
1U form factor platform with mirrored
RAID 1 and dual power supplies.
1000 Platform
Powered by a high performance Intel®
Core™2 Duo processor on a 1U form
Example VitalQIP Appliance Configuration
factor platform.
500 Platform
Powered by an Intel 64-bit Atom
processor in a compact desktop chassis
Alcatel-Lucent l VitalQIP Appliance Manager 5
Summary of Features and Benefits
PLATFORMS
n Integration with the market leading VitalQIP software
n Centralized appliance management data store to keep track of services and status of remote appliances
n Automated software upgrade capability with rollback options
n Highly secure communication between AMS and appliances with unique appliance key generation
n Logical grouping of appliances for ease of upgrades
n Software version history maintained per appliance in AMS
n Remote start/stop/initialize of services
n High availability DNS using heartbeat and virtual address mechanism
n Retrieval of log/config files from appliances
n Connect, configure and go model for appliance activation
SERVICES
n VitalQIP Enterprise Services with Sybase database -- provides appliance-based
IP Address Management
n Industry’s highest performance DHCP server – enabling rapid IP address
assignment for the delivery of robust IP services
n VitalQIP DNS server (BIND 9 based) – enabling rapid address resolution
n VitalQIP SNMP Service
n TFTP Service for file transfer services
n NTP Service for time synchronization among appliances
n VitalQIP Auto Discovery -- discovers network devices quickly and efficiently
SECURITY
n Security hardened version of Red Hat Linux OS
n Limited port access
n Unique secret key exchanged between centralized software and each appliance for authentication
n Authorized appliance access is granted by centralized AMS administrator
VitalQIP Appliance Performance – A Price Performance Leading Solution
AMM 5000:
NEBS compliant with
RAID 1 and dual
power supplies
Leases per second 6,455 3,258 1,000
AMM 1000:
Standard appliance
AMM 500:
Remote Appliance
Queries per second 93,850 43,225 9,000
6 Alcatel-Lucent l VitalQIP Appliance Manager
The VitalQIP Appliance Manager includes the Appliance Management Software (AMS), the Enterprise Server Module
(ESM) and the Appliance Management Module (AMM). The AMS is used to manage the appliances in the network.
The ESM provides the VitalQIP Enterprise Services, such as the IP Address Management functions, user interface and
centralized database support. The AMM provides VitalQIP Remote Services, including DNS, DHCP, SNMP and other
services. The AMS is available on an appliance and can also be downloaded and installed on existing hardware.
The hardware/software configuration options are summarized in the table below:
Name Full Name Function Appliance Hardware Platform
AMS VitalQIP Appliance
Management Software
VitalQIP Appliance
AMS 500
Management Software
500
VitalQIP Appliance
AMS 1000
Management Software
1000
ESM 1000 VitalQIP Enterprise
Server Module 1000
ESM 5000 VitalQIP Enterprise
Server Module 5000
VitalQIP Appliance
AMM 500
Management Module
500
VitalQIP Appliance
AMM 1000
Management Module
1000
Management Station
Software
N/A – see below for
appliance-based AMS
Linux-based, provided
by customer
Management Station Model 500
Management Station Model 1000
Standard Enterprise
Model 1000
Server
NEBS compliant
Enterprise Server
Model 5000
(AC or DC power)
Desktop remotes Model 500
Standard remotes Model 1000
AMM 5000
VitalQIP Appliance
Management Module
5000
NEBS compliant remotes
(AC or DC power)
Alcatel-Lucent leverages innovations from Bell Labs and experience and expertise from
Worldwide Services to provide high performing and highly scalable solutions that increase
IT staff productivity by enabling user technology, and ensure network and applications
performance for improved service availability.
To learn more about these and other management solutions, contact your Alcatel-Lucent
sales representative, authorized reseller or sales agent. You can also visit our web site at
http://www.alcatel-lucent.com/vitalqip.
Alcatel-Lucent l VitalQIP Appliance Manager 7
Model 5000
Alcatel-Lucent VitalQIP Appliance Manager
Alcatel, Lucent, Alcatel-Lucent, Alcatel-Lucent logo and VitalQIP are trademarks of Alcatel-Lucent. All other trademarks are the
property of their respective owners. The information presented is subject to change without notice. Alcatel-Lucent assumes no
responsibility for inaccuracies contained herein. © 2008 Alcatel-Lucent. All rights reserved. P/N 031951-00 Rev. E 9/08
