Note:

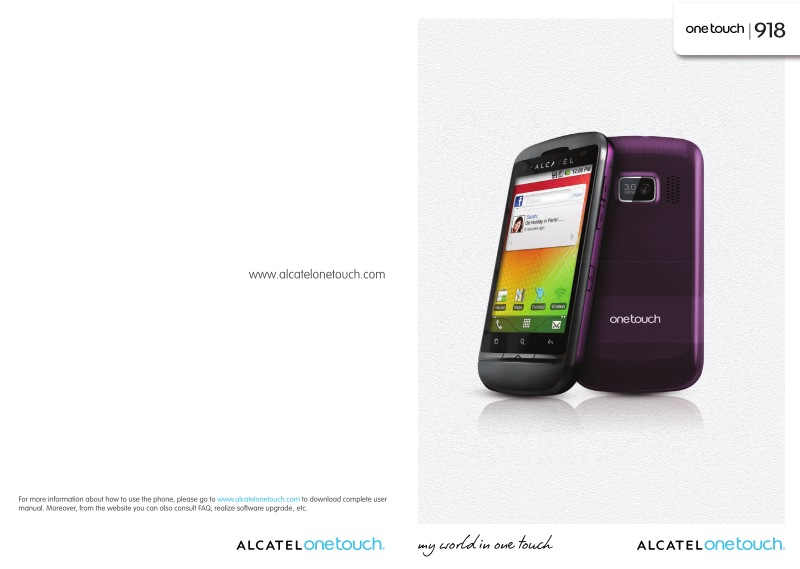

This is a shared user manual for one touch 918/one touch 918N/one touch
918D specifying Dual SIM information where relevant.
Table of Contents
Safety and use ......................................................................4
General information ........................................................... 9
1 Your mobile .......................................................................12
1.1 Keys and connectors ................................................................................12
1.2 Getting started ..........................................................................................14
1.3 Home screen ..............................................................................................19
2 Text input ...........................................................................29
2.1 Using Onscreen Keyboard ...................................................................... 29
2.2 Text editing .................................................................................................30
3 Phone call, Call log and Contacts ....................................31
3.1 Phone ...........................................................................................................31
3.2 Call log .........................................................................................................37
3.3 Contacts ......................................................................................................38
4 Google Messaging, Gmail/Email, Google Talk ................46
4.1 Google Messaging .....................................................................................46
4.2 Gmail/Email .................................................................................................52
4.3 Google Talk ................................................................................................. 57
5 Google Calendar & Clock & Calculator & News & Weather 61
5.1 Google Calendar ....................................................................................... 61
5.2 Clock ............................................................................................................63
5.3 Calculator ....................................................................................................64
5.4 News & Weather .......................................................................................66
1 2
6 Getting connected ............................................................ 68
6.1 Connecting to the Internet .................................................................... 68
6.2 Browser .......................................................................................................72
6.3 Connecting to Bluetooth devices ........................................................81
6.4 Connecting to a computer via USB ......................................................83
6.5 Sharing your phone's mobile data connection ................................... 85
6.6 Connecting to virtual private networks ..............................................86
6.7 Configuring Internet (SIP) calling ...........................................................88
7 Android Market ................................................................90
7.1 Locate the item you want to download and install .......................... 90
7.2 Download and install ................................................................................91
7.3 Manage your downloads ..........................................................................93
8 Multimedia applications ................................................... 95
8.1 Camera ........................................................................................................95
8.2 Gallery ......................................................................................................... 98
8.3 YouTube .....................................................................................................101
8.4 Music ..........................................................................................................102
9 Google Maps ....................................................................105
9.1 Get My Location .....................................................................................105
9.2 Search for a location ..............................................................................106
9.3 Star a location ..........................................................................................107
9.4 Get driving, public transport or walking directions ........................108
9.5 Arrangement of Layers ..........................................................................110
9.6 Join Latitude to see your friends' locations and share yours with them 111
10 Others ..............................................................................115
10.1 File Manager .............................................................................................115
10.2 Sound Recorder ......................................................................................116
10.3 FM Radio ...................................................................................................116
10.4 Battery Saver ............................................................................................117
10.5 Setup Wizard ...........................................................................................117
10.6 Traffic Manager.........................................................................................118
10.7 Alcatel Help ..............................................................................................118
10.8 Other applications .................................................................................118
11 Settings ............................................................................119
11.1 SIM management .....................................................................................119
11.2 Wireless & networks .............................................................................120
11.3 Call settings ..............................................................................................123
11.4 Audio profiles ...........................................................................................126
11.5 Display ........................................................................................................127
11.6 Location .....................................................................................................128
11.7 Applications ..............................................................................................131
11.8 Accounts & sync ......................................................................................134
11.9 Privacy ........................................................................................................135
11.10 SD card & phone storage ......................................................................136
11.11 Language & keyboard .............................................................................137
11.12 Voice input & output ..............................................................................141
11.13 Accessibility .............................................................................................143
11.14 Date & time ..............................................................................................143
11.15 Schedule power on/off ...........................................................................144
11.16 About phone ............................................................................................144
12 Making the most of your phone .................................... 146
12.1 Android Manager.....................................................................................146
12.2 One Touch Upgrade................................................................................147
13 Telephone warranty ........................................................ 148
14 Accessories .....................................................................150
15 Troubleshooting ..............................................................151
16 Specifications ................................................................... 156
This product meets applicable national SAR limits of 2.0 W/kg.
The specific maximum SAR values can be found on page 7 of this
user guide.
When carrying the product or using it while worn on your
www.sar-tick.com
body, either use an approved accessory such as a holster or
otherwise maintain a distance of 1.5 cm from the body to
ensure compliance with RF exposure requirements. Note that
the product may be transmitting even if you are not making
a phone call.
3 4
Safety and use ..............................
We recommend that you read this chapter carefully before using your phone. The manufacturer
disclaims any liability for damage, which may result as a consequence of improper use or use
contrary to the instructions contained herein.
TRAFFIC SAFETY:•
Given that studies show that using a mobile phone while driving a vehicle constitutes a real risk,
even when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using
their mobile when the vehicle is not parked.
When driving, do not use your phone and headphone to listen to music or to the radio. Using a
headphone can be dangerous and forbidden in some areas.
When switched on, your phone emits electromagnetic waves that can interfere with the vehicle’s
electronic systems such as ABS anti-lock brakes or airbags. To ensure that there is no problem:
- do not place your phone on top of the dashboard or within an airbag deployment area,
- check with your car dealer or the car manufacturer to make sure that the dashboard is adequately
shielded from mobile phone RF energy.
CONDITIONS OF USE:•
You are advised to switch off the telephone from time to time to optimise its performance.
Switch the phone off before boarding an aircraft.
Switch the phone off when you are in health care facilities, except in designated areas. As with many
other types of equipment now in regular use, mobile telephones can interfere with other electrical
or electronic devices, or equipment using radio frequency.
Switch the phone off when you are near gas or flammable liquids. Strictly obey all signs and
instructions posted in a fuel depot, petrol station, or chemical plant, or in any potentially explosive
atmosphere.
When the phone is switched on, it should be kept at least 15 cm from any medical device such as
a pacemaker, a hearing aid or insulin pump, etc. In particular when using the phone, you should hold
it against the ear on the opposite side to the device, if any.
To avoid hearing impairment, pick up the call before holding your phone to your ear. Also move
the handset away from your ear while using the “hands-free” mode because the amplified volume
might cause hearing damage.
Do not let children use the phone and/or play with the telephone and accessories without
supervision.
When replacing the cover please note that your phone may contain substances that could create
an allergic reaction.
Always handle your phone with care and keep it in a clean and dust-free place.
Do not allow your phone to be exposed to adverse weather or environmental conditions
(moisture, humidity, rain, infiltration of liquids, dust, sea air, etc). The manufacturer’s recommended
operating temperature range is -10°C to +55°C.
At over 55°C the legibility of the phone’s display may be impaired, though this is temporary and
not serious.
Emergency call numbers may not be reachable on all cellular networks. You should never rely only
on your phone for emergency calls.
Do not open, dismantle or attempt to repair your mobile phone yourself.
Do not drop, throw or bend your mobile phone.
Do not use the phone if the glass made screen, is damaged, cracked or broken to avoid any injury.
Do not paint it.
Use only batteries, battery chargers, and accessories which are recommended by TCT Mobile
Limited and its affiliates and are compatible with your phone model. TCT Mobile Limited and its
affiliates disclaim any liability for damage caused by the use of other chargers or batteries.
Remember to make back-up copies or keep a written record of all important information stored
in your phone.
Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when
playing video games. These seizures or blackouts may occur even if a person never had a previous
seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of
such occurrences, please consult your doctor before playing video games on your phone or enabling
a flashing-lights feature on your phone.
Parents should monitor their children’s use of video games or other features that incorporate
flashing lights on the phones. All persons should discontinue use and consult a doctor if any of
the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary
movements, or disorientation. To limit the likelihood of such symptoms, please take the following
safety precautions:
- Do not play or use a flashing-lights feature if you are tired or need sleep.
- Take a minimum of a 15-minute break hourly.
- Play in a room in which all lights are on.
- Play at the farthest distance possible from the screen.
- If your hands, wrists, or arms become tired or sore while playing, stop and rest for several hours
before playing again.
- If you continue to have sore hands, wrists, or arms during or after playing, stop the game and
see a doctor.
When you play games on your phone, you may experience occasional discomfort in your hands,
arms, shoulders, neck, or other parts of your body. Follow the instructions to avoid problems such
as tendinitis, carpal tunnel syndrome, or other musculoskeletal disorders.
Prolonged exposure to music at full volume on the music player may damage the listener's
hearing.
Set your phone volume safely. Use only headphones recommended by TCT Mobile Limited and
its affiliates.
PRIVACY:•
Please note that you must respect the laws and regulations in force in your jurisdiction or other
jurisdiction(s) where you will use your mobile phone regarding taking photographs and recording
sounds with your mobile telephone. Pursuant to such laws and regulations, it may be strictly
forbidden to take photographs and/or to record the voices of other people or any of their personal
attributes, and duplicate or distribute them, as this may be considered to be an invasion of privacy.
It is the user's sole responsibility to ensure that prior authorisation be obtained, if necessary, in
order to record private or confidential conversations or take a photograph of another person;
the manufacturer, the seller or vendor of your mobile phone (including the operator) disclaim any
liability which may result from the improper use of the mobile phone.
BATTERY:•
Before removing the battery from your phone, please make sure that the phone is switched off.
Observe the following precautions for battery use:
- Do not attempt to open the battery (due to the risk of toxic fumes and burns).
- Do not puncture, disassemble or cause a short-circuit in a battery,
- Do not burn or dispose of a used battery in household rubbish or store it at temperatures
above 60°C.
Batteries must be disposed of in accordance with locally applicable environmental regulations. Only
use the battery for the purpose for which it was designed. Never use damaged batteries or those
not recommended by TCT Mobile Limited and/or its affiliates.
This symbol on your telephone, the battery and the accessories means that these
products must be taken to collection points at the end of their life:
- Municipal waste disposal centres with specific bins for these items of equipment
- Collection bins at points of sale.
They will then be recycled, preventing substances being disposed of in the environment,
so that their components can be reused.
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or
your region has suitable recycling and collection facilities; instead they are to be taken to collection
points for them to be recycled.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
CHARGERS•
Mains powered chargers will operate within the temperature range of: 0°C to 40°C.
The chargers designed for your mobile phone meet with the standard for safety of information
technology equipment and office equipment use. They are also compliant to the ecodesign directive
2009/125/EC. Due to different applicable electrical specifications, a charger you purchased in one
jurisdiction may not work in another jurisdiction. They should be used for this purpose only.
5 6
RADIO WAVES:•
Proof of compliance with international standards (ICNIRP) or with European Directive 1999/5/
EC (R&TTE) is required of all mobile phone models before they can be put on the market. The
protection of the health and safety for the user and any other person is an essential requirement
of these standards or this directive.
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for
exposure to radio waves (radio frequency electromagnetic fields) recommended by international
guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and
include a substantial safety margin designed to assure the safety of all persons, regardless of age
and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit for mobile devices is 2 W/kg.
Tests for SAR are conducted using standard operating positions with the device transmitting at its
highest certified power level in all tested frequency bands. The highest SAR values under the ICNIRP
guidelines for this device model are:
Maximum SAR for this model and conditions under which it was recorded.
Head SAR UMTS 2100 + Wi-Fi + Bluetooth
Body-worn
SAR
During use, the actual SAR values for this device are usually well below the values stated above.
This is because, for purposes of system efficiency and to minimize interference on the network, the
operating power of your mobile device is automatically decreased when full power is not needed
for the call. The lower the power output of the device, the lower its SAR value.
Body-worn SAR testing has been carried out at a separation distance of 1.5 cm. To meet RF
exposure guidelines during body-worn operation, the device should be positioned at least this
distance away from the body. If you are not using an approved accessory ensure that whatever
product is used is free of any metal and that it positions the phone the indicated distance away
from the body.
Organizations such as the World Health Organization and the US Food and Drug Administration
have stated that if people are concerned and want to reduce their exposure they could use a
hands-free device to keep the phone away from the head and body during phone calls, or reduce
the amount of time spent on the phone.
For more information you can go to www.alcatelonetouch.com
Additional information about electromagnetic fields and public health are available on the following
site: http://www.who.int/peh-emf.
GSM 900 + Wi-Fi + Bluetooth
1.12 W/kg (one touch 918)
1.12 W/kg (one touch 918N)
1.12 W/kg (one touch 918D)
0.603 W/kg (one touch 918)
0.677 W/kg (one touch 918N)
0.603 W/kg (one touch 918D)
Your telephone is equipped with a built-in antenna. For optimal operation, you should avoid touching
it or degrading it.
As mobile devices offer a range of functions, they can be used in positions other than against your
ear. In such circumstances the device will be compliant with the guidelines when used with headset
or usb data cable. If you are using another accessor y ensure that whatever product is used is free
of any metal and that it positions the phone at least 1.5 cm away from the body.
LICENCES •
microSD Logo is a trademark.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and
any use of such marks by TCT Mobile Limited and its affiliates is under license.
Other trademarks and trade names are those of their respective owners.
one touch 918/one touch 918N/
one touch 918D Bluetooth QD ID
B018542
TouchPal™ and CooTek™ are trademarks of Shanghai HanXiang (CooTek)
Information Technology Co., Ltd. and/or its Affiliates.
The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance .
Your device uses non-harmonised frequency and is intended for use in all
European countries. The WLAN can be operated in the EU without restriction
indoors, but cannot be operated outdoors in France.
Google, the Google logo, Android, the Android logo, Google Search
MapsTM, Gmail TM, YouTube, Android Market, Google Latitude TM and Google Talk
are trademarks of Google Inc.
TM
, Google
TM
7 8
General information ...................
Internet address:• www.alcatelonetouch.com
Hot Line Number:• see “TCT Mobile Services” leaflet or go to our
website.
On our website, you will find our FAQ (Frequently Asked Questions)
section. You can also contact us by e-mail to ask any questions you may
have.
An electronic version of this user guide is available in English and other
languages according to availability on our server:
www.alcatelonetouch.com
Your telephone is a transceiver that operates on GSM/GPRS/EDGE in
quad-band with 850/900/1800/1900 MHz or UMTS in dual-band with
900/2100MHz (one touch 918/one touch 918D); 850/2100MHz (one touch
918N).
This equipment is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC. The
entire copy of the Declaration of Conformity for your telephone
can be obtained through our website: www.alcatelonetouch.com.
This equipment may be operated in: AT BE
CY CZ DK EE FI FR
DE GR HU IE IT LV
LT LU MT NL PL PT
SK SI ES SE GB IS
LI NO CH BG RO TR
9 10
Protection against theft
Your telephone is identified by an IMEI (phone serial number) shown on
the packaging label and in the phone’s memory. We recommend that you
note the number the first time you use your telephone by entering * # 0
6 # and keep it in a safe place. It may be requested by the police or your
operator if your telephone is stolen. This number allows your mobile
telephone to be blocked preventing a third person from using it, even with
a different SIM card.
(1)
Disclaimer
There may be certain differences between the user manual description
and the phone’s operation, depending on the software release of your
telephone or specific operator services.
TCT Mobile shall not be held legally responsible for such differences, if any,
nor for their potential consequences, which responsibility shall be borne
by the operator exclusively.
(1)
Contact your network operator to check service availability.
This handset may contain materials, including applications and software
in executable or source code form, which is submitted by third parties
for inclusion in this handset (“Third Party Materials”). All third party
materials in this handset are provided “as is”, without warranty of any
kind, whether express or implied, including the implied warranties
of merchantability, fitness for a particular purpose or use/third party
application, interoperability with other materials or applications of the
purchaser and non-infringement of copyright. The purchaser undertakes
that TCT Mobile has complied with all quality obligations incumbent upon
it as a manufacturer of mobile devices and handsets in complying with
Intellectual Property rights. TCT Mobile will at no stage be responsible
for the inability or failure of the Third Party Materials to operate on this
handset or in interaction with any other devices of the purchaser. To
the maximum extent permitted by law, TCT Mobile disclaims all liability
for any claims, demands, suits or actions, and more specifically – but not
limited to – tort law actions, under any theory of liability, arising out of the
use, by whatever means, or attempts to use, such Third Party Materials.
Moreover, the present Third Party Materials, which are provided free of
charge by TCT Mobile, may be subject to paid updates and upgrades in
the future; TCT Mobile waives any responsibility regarding such additional
costs, which shall be borne exclusively by the purchaser. The availability of
the applications may vary depending on the countries and the operators
where the handset is used; in no event shall the list of possible applications
and software provided with the handsets be considered as an undertaking
from TCT Mobile; it shall remain merely as information for the purchaser.
Therefore, TCT Mobile shall not be held responsible for the lack of
availability of one or more applications wished for by the purchaser, as
its availability depends on the country and the operator of the purchaser.
TCT mobile reserves the right at any time to add or remove Third Party
Materials from its handsets without prior notice; in no event shall TCT
Mobile be held responsible by the purchaser for any consequences that
such removal may have on the purchaser regarding the use or attempt to
use such applications and Third Party Materials.
Your mobile
1
Keys and connectors1.1
Volume up
Volume down
Power key
LED light
Search key
Menu key
...........................
Headset connector
Front camera
(1)
Touchscreen
Back key
Home key
micro-USB
connector
(1)
Depending on your model.
11 12
On Home screen, press to quickly access • Settings
menu or Notification panel; to launch quick search; to
manage applications; to customize your Home screen by
adding applications or changing wallpaper.
On other screens, press to view options list.•
Short press: Light up the screen
Return to the Home screen or back to the
central Home screen if it is extended.
Long press: Enter the recently used applications list.
Go back to the previous menu or screen.
Short press: Lock the screen
Light up the screen
Long press: When phone is off, power on the phone.
When phone is on, enter Phone options:
Silent mode, Airplane mode, Power off.
Press to adjust the Volume (in call/media playing mode)
Getting started1.2
Set-up1.2.1
Removing or installing the back cover
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power off your
phone and remove battery before inserting or removing the SIM card.
one touch 918
(1)
Open Search bar for searching within an application, the
phone or web.
13 14
one touch 918N/918D
Place the SIM card with SIM1 chip facing downwards and SIM2 chip facing
upwards, and then slide it into its housing. Make sure that it is correctly
inserted. To remove the card, press and slide it out.
(1)
Check with your network operator to make sure that your SIM card is 3V or
1.8V compatible. The old 5 volt cards can no longer be used.
For dual SIM model, the SIM1 slot can support both 2G and 3G
network, while the SIM2 slot can only support a 2G network.
Installing and removing the microSD card
one touch 918
one touch 918N/918D
To release the microSD card holder, slide it in the direction of the
arrow and lift it. Then insert the microSD card with the golden contact
downward. Finally, turn down the microSD holder and slide it in the
opposite direction to lock it.
Installing or removing the battery
Insert and click the battery into place, then close the phone cover.•
Unclip the cover, then remove the battery.•
Charging the battery
Standard charger
UK charger
Connect the battery charger to your phone and mains socket
respectively.
The LED light will be lit up during battery charging.•
Be careful not to force the plug into the socket.•
Make sure the battery is correctly inserted before connecting the •
charger.
15 16
The mains socket must be near to the phone and easily accessible (avoid •
electric extension cables).
When using your telephone for the first time, charge the battery fully •
(approximately 4 hours).
You are advised to fully charge the battery (
). Charging status is indicated
by the depth of water on the lock screen. The depth increases as the phone
is charged.
To reduce power consumption and energy waste, when battery
is fully charged, disconnect your charger from the plug; switch off
Wi-Fi, GPS, Bluetooth or background-running applications when not
in use; reduce the backlight time, etc.
Power on your phone1.2.2
Hold down the Power key until the phone powers on, type in your PIN
code if necessary and then confirm. The Home screen is displayed.
If you do not know your PIN code or if you have forgotten it, contact your
network operator. Do not leave your PIN code with your telephone. Store
this information in a safe place when not in use.
Set up your phone for the first time
The first time you power on the phone, you're are prompted to set up your
phone in multiple ways: language, input method, mobile data connection,
account setup and synchronization, system update, etc. You are required to
sign into your Google account to synchronize email, contacts, calendar and
other Google applications
(1)
.
Enter your user name and password, then touch • Sign in. If you forget
your password, you can go to http://www.google.com/ to retrieve it. If
you don’t own a Google Account, you are prompted to create one by
touching Create.
Read the setup information on the screen.•
Mark/Unmark the check box to choose whether you want to take •
advantage of Google's location service, then touch Next.
Mark/Unmark the check box to choose whether you want to back up •
data with your Google account, then touch Next.
Touch • Finish setup.
This initial set up can be skipped and enabled via Settings\
Accounts & sync.
In power on screen without SIM card inserted, you can also connect to
a Wi-Fi network (refer to section 6.1.2 Wi-Fi) to sign into your Google
account and to use some features.
The first time you insert a new SIM card, you are given the option to
change the default SIM settings (refer to section 11.1 SIM management).
Power off your phone1.2.3
Hold down the Power key from the Home screen until the phone options
appear, select Power off.
(1)
Application availability depends on country and operator.
17 18
Home screen1.3
You can bring all the items (applications, shortcuts, folders and widgets) you
love or use most frequently to your Home screen for quick access. Press
Home key to switch to Home screen.
Status bar
Status/Notification indicators •
Touch to access Call log if you have missed call(s).
Home screen is provided in an extended format to allow more space for
adding applications, shortcuts etc. Slide the Home screen horizontally left
and right to get a complete view of the Home screen. Small dots at the
lower left and right of the screen indicate which screen you are viewing.
Using the touchscreen1.3.1
Touch
To access an application, touch it with your finger.
Touch and Drag down to open •
notification panel.
Search bar
Touch to enter Search options: All,
Web, Apps, Contacts, etc.
Touch to enter text search screen.
Touch to enter voice search screen.
Touch an icon to open an application,
folder, etc.
Touch to access Messaging
Application tab
Touch to open applications list.
Long press to display thumbnails.
Touch and Hold
To enter the available options for an item, touch and hold the item. For
example, select a contact in Contacts, touch and hold this contact, options
list will then appear on screen.
Drag
Place your finger on the screen to drag an object to another location.
Slide/Swipe
Slide the screen to scroll up and down the applications, images, web
pages… at your convenience. You could slide the screen horizontally too.
Flick
Similar to swiping, but flicking makes it move quicker.
Pinch/Spread
Place your fingers of one hand on the screen surface and draw them apart
or together to scale an element on the screen.
Rotate
Automatically change the screen orientation from portrait to landscape by
turning the phone sideways to have a better screen view.
Status bar1.3.2
From status bar, you can view both phone status (to the right side) and
notification information (to the left side). When the status bar is full, “
will appear, touch to display hidden icons.
” icon
19 20
Status icons
For dual SIM model, status icons referring to either SIM1 or SIM2 will be
identified by a colour which you have defined.
GPRS connected
GPRS in use Speakerphone is on
EDGE connected Roaming
EDGE in use No signal
3G connected
3G in use
HSPA (3G+) connected
HSPA (3G+) in use
Connected to a Wi-Fi network Battery is low
Bluetooth is on Battery is partially drained
Connected to a Bluetooth
device
Airplane mode Battery is charging
Alarm is set Headset connected
Receiving location data from
GPS
Vibrate mode
Ringer is silenced
Phone microphone is mute
Battery is very low
Battery is full
Notification icons
New Gmail message Call in progress (green)
New text or multimedia
message
Problem with text or
multimedia message delivery
New Google Talk message Call on hold
New voicemail Call forwarding is on
Upcoming event Uploading data
Data is synchronizing Downloading data
Problem with sign-in or
synchronization
microSD card is full
Connected to or disconnected
from VPN
Song is playing System update available
USB tethering is on Portable Wi-Fi hotspot is on
Both USB tethering and
portable hotspot are on
More notifications are hidden
Call in progress using
Bluetooth headset (blue)
Missed call
An open Wi-Fi network is
available
Phone is connected via USB
cable
Radio is on
Application update available
GPS is on Signal strength
21 22
Notification panel
Touch and drag down the Status bar or press Menu key and touch
Notifications to open the notification panel. Touch and drag up to close
it. From the Notification panel, you can open some functions by touch
(GPS, Bluetooth, etc.), reminders indicated by notification icons, or view
wireless service information.
Touch to clear all event–based notifications (other ongoing
notifications will remain).
Search bar1.3.3
The phone provides a Search function which can be used to locate
information within applications, the phone or the web.
Touch to enter targets of Search: All, Web, Apps, Contacts, etc.
Touch to search by text
Touch to search by voice
Touch to enter the suggested text for quick search
Touch to search the web
Search by text
Touch Search bar from Home screen or press • Search key from other
applications screen.
Enter the text/phrase you want to search for. A list of search results will •
be displayed for you to select from.
Touch •
to search the web.
Search by voice
Touch •
from Search bar to display a dialog screen.
Speak the word/phrase you want to search for. A list of search results •
will display for you to select from.
Lock/Unlock your screen1.3.4
To protect your phone and privacy, you can lock the phone screen by
creating a variety of patterns, PIN or password etc.
To create a screen unlock pattern (refer to section11.6.3 for detailed
settings)
Press • Menu key from the home screen, touch Settings, then touch
Security\Set up screen lock\Pattern.
Draw your own pattern, you can also press • Menu key for help.
23 24
Draw your unlock pattern
Touch to confirm by drawing
pattern again
To create a screen unlock PIN/Password
Press • Menu key from the home screen, touch Settings, then touch
Security\Set up screen lock\PIN or Password.
Set your PIN or password.•
To lock phone screen
Press Power key once to lock the screen.
To unlock phone screen
Draw the unlock pattern you have created or enter PIN or password to wake
up the screen. If you did not set the unlock screen, drag down the lock icon
to unlock it.
Personalize your home screen1.3.5
Add
Touch and hold an empty area or press Menu key and touch Add on the
Home screen. The Add to Home screen will appear, offering a range of
options.
Shortcuts• To add a shortcut to Home screen, such as
applications, bookmark, contact, etc.
Widgets• To add a widget to Home screen, such as clock,
music player, etc.
Folders• To add a folder to Home screen, such as new
folder, contact folder, etc.
To improve the organization of the Home screen items (shortcuts,
widgets), you can add them to a folder by touching and dragging them onto
the folder of your choice. To rename a folder, open it, touch and hold the
folder’s title bar to open the Rename folder dialog box, then enter the new
folder name and confirm with OK.
Reposition
Touch and hold the item to be repositioned to activate the Move mode,
drag the item to the desired position and then release. Hold the icon on
the left or right edge of the screen to drag the item to another Home
screen page.
Remove
Touch and hold the item to be removed to activate the Move mode, drag
the item to the bottom trash can, which will then turn red, and release.
25 26
Wallpaper customization
Touch and hold an empty area or press Menu key and touch Wallpaper
on the Home screen, a popup window named Select wallpaper from
will appear, offering a range of options. Gallery includes pictures you
have taken, cropped or downloaded. Live wallpapers include a scrolling
list of animated wallpapers to choose from. Wallpaper gallery includes
all preset wallpapers in the phone. Slide left and right to locate a desired
image, touch Set wallpaper to confirm.
Application tab1.3.6
Touch
To return to the Home screen, press Home key.
Consult recently-used applications
To consult recently-used applications, you can press and hold the Home
key from Home screen. Touch an icon in the window to open the related
application.
on Home screen to enter applications list.
Volume adjustment1.3.7
Using volume key
Press Volume up/down key to adjust the volume. While in the lowest
volume level, your phone will be switched to Silent mode.
Using Settings menu
Press Menu key from Home screen, then touch Settings\Audio profiles,
you can set alarm, media and phone ringtone volume to your preference.
(1)
(1)
The phone setting will vary depending on the changes made to the default
settings in Settings\Audio profiles\Silent.
27 28
Text input
2
..............................
Using Onscreen Keyboard2.1
Onscreen keyboard will display automatically when a program requires
entering text or numbers.
Onscreen keyboard settings
Press Menu key from Home screen, select Settings\Language &
keyboard\TouchPal keyboard or Android keyboard, a series of
settings are available for your selection.
TouchPal keyboard2.1.2
: TouchPal settings
: Edit panel
: Voice input
Touch to hide keyboard.
Long press to enter multiple choice
mode.
Adjust the onscreen keyboard orientation
Turn the phone sideways or upright to adjust the onscreen keyboard
orientation. You can also adjust it by settings (Press Menu key on Home
screen\Settings\Display).
Android keyboard2.1.1
Touch to enter text or numbers, touch again to select input
method.
Hold and slide to select a character, such as an
accented letter, number, etc.
Touch to enter Voice input.
Touch to switch to symbol and numeric keyboard.
Touch twice to lock in capital letter input mode.
29 30
Touch to enter numbers and symbols, etc.
Touch and hold to change input language.
Touch to activate Word prediction.
Text editing2.2
You can edit the text you have entered.
Touch the text you have entered twice. Touch and hold a text field to •
zoom in on the text with a magnifying glass.
Touch • Select all/Select word in the pop up button.
The selected text is now highlighted in orange. Drag a selection tab •
adjust the range of selected text.
Touch • Cut/Copy/Paste
(1)
'Paste' option will not appear unless copy or cut operation has been made.
(1)
in the pop up button.
to
Phone call, Call log
3
and Contacts .........................
Phone3.1 ...........................................................
Placing a call3.1.1
The user can easily start a call using Phone.
Enter this menu using one of the following two ways:
Touch •
Touch •
from Home screen.
from Home screen and select Phone.
Scroll up or down to
view matched results
International call
To dial an international call, touch and hold
the international country prefix followed by the full phone number and
finally touch .
Emergency call
If your phone has network coverage, dial emergency number and touch
to make an emergency call. This works even without a SIM card and
without typing the PIN code.
Internet (SIP) call
If you have configured your phone to use an Internet calling account, you
can place a voice call via a Wi-Fi network. For more details about adding
or configuring an account, refer to section 6.7 Configuring Internet (SIP)
calling.
You can initiate an Internet call from the Quick Contact bar or Phone
tab.
to enter “+”, then enter
Touch and hold to
access voicemail
Touch to add to Contacts
Enter the desired number from the keyboard directly or select a contact
from Contacts, Call log or Favourites by touching tabs, then touch
/ to place a voice call/video call. The number you entered can be saved
to Contacts by touching .
If you make a mistake, you can delete the incorrect digits by touching
To hang up a call, touch End.
31 32
Touch to switch call
connection method
.
Answering or rejecting a call3.1.2
Indicates the
SIM card
you're using
When you receive an incoming call, drag down the green phone icon to
answer. Hang up the call by touching End.
When you receive an incoming call, but don’t want to answer, you may
decline it by dragging up the red phone icon. The caller is sent directly to
your voicemail box to leave a message. Or to reject a call with an SMS, by
pressing the Menu key and touching Send message.
To mute the ringtone volume of an incoming call, press Volume up/
down key.
Calling your voicemail 3.1.3
Your voicemail is provided by your network to avoid missing calls. It works
like an answering machine that you can consult at any time.
To access your voicemail, touch and hold
To set your voicemail number, enter Settings\Call settings\Voice call\
Voicemail.
If you receive a voicemail, a voicemail icon
Open the Notification panel, touch New voicemail.
on Phone tab.
appears on the Status bar.
During a voice call3.1.4
When a call is in progress, press Menu key to open the call options.
Touch Bluetooth to switch between headset and phone or touch Start
recording to record the call. To adjust the volume during a call, press
Volume up/down key.
Touch to hold the current call. Touch this icon again to retrieve
the call.
Touch to mute the current call. Touch this icon again to
unmute the call.
Touch to activate the speaker during the current call. Touch
this icon again to deactivate the speaker.
Touch to access Contacts or call a contact.
Touch to add a caller by entering their phone number.
Touch to display Dialpad.
Touch to end the current call.
To avoid misoperation on touchscreen during call, screen will be
locked automatically when user put the phone close to ear, and it
will be unlocked when put the phone away.
Managing multiple voice calls3.1.5
With this phone you can handle multiple voice calls at the same time.
Swap calls
When you have accepted two calls, touch Swap to alternate between
them. You can now switch between two lines. The current call is put on
hold and you have joined in the other call.
33 34
Conference calls
(1)
You can set up a conference call.
Place a call to the first participant of the conference call. •
Touch •
to add another call.
Enter the phone number of the person you want to add to conference •
and touch icon
. You can also add participants from Contacts, Call
log or Favourites.
Touch • Merge calls to start the conference call.
During a conference call, touch • Manage to drop a participant or to talk
privately to one of the participants. Touch End to drop the participant
from the conference, touch Private to talk privately to the participant
and hold on other participants.
Touch •
to end the conference call and disconnect all callers.
During a video call 3.1.6
(1)
When a call is in progress, press Menu key to open the call options.
Touch to take a picture.
Touch to switch between front camera and back camera.
Touch to turn off local video.
Touch to mute the current call. Touch this icon again to
unmute the call.
Touch to activate the speaker during the current call. Touch
this icon again to deactivate the speaker.
Touch to end the current call.
(1)
Depending on your network operator.
(1)
Depending on your model and network operator.
35 36
Call log3.2 .........................................................
You can access your call memory by touching from the Home screen
and touching Call log. Touch contact/number to place a call directly. Touch
for communicating with that contact in other ways. There are three
kind of calls in Call log:
Missed calls
Incoming calls
Outgoing calls
Touch
Missed calls, Outgoing calls or Incoming calls. You can also touch
view calls sorted by All resources, SIM1, SIM2 or Internet.
Touch or touch & hold a contact or number to view information or further
operations.
You can view detailed information of a call, launch a new call or send
message to a contact or number, or add number to Contacts (only
available for phone numbers), etc.
To clear the entire call memory, press Menu key then touch Clear call
log.
, , , to view the call types sorted by: All calls,
to
Contacts3.3 ........................................................
Contacts enables quick and easy access to the people you want to
reach.
You can view and create contacts on your phone or either SIM and
synchronize these with your Gmail contacts or other applications on the
web or on your phone.
Consult your Contacts3.3.1
To access the Contacts, touch Application tab on the Home screen, then
select Contacts.
Touch to display contacts by either group
or SIM card.
Touch to view the contact’s detailed
information.
Touch icon to open Quick Contact panel.
Touch to search for contacts by initial.
Touch to view your favourite contacts.
Touch and hold a contact to display its option menu.
You can also press Menu key to display contacts list option menu.
37 38
Following actions are enabled:
Search• Touch to search for a contact.
Group• Assign contacts to groups so that one SMS/MMS
or email can easily be sent to all members.
Setting speed dial• Add a contact’s phone number as a speed dial
number. Digits 2 to 9 are available.
New contact• Add new contact to phone.
Delete contact• Select and delete unwanted contacts.
More\Display •
options
Choose contacts to display, for example only
contacts with phones, other application contacts
if any, etc.
More\Accounts• Manage the synchronization settings for different
accounts.
More\Import/•
Export
More\Share visible •
contacts
Import or export contacts between phone, SIM
card, and microSD card.
Share contacts with others by sending the
contact's vCard to them via Bluetooth, SMS,
Email, etc.
Adding a contact3.3.2
Press Menu key from contacts list screen and touch New contact. You're
required to select the location (Phone/SIM1/SIM2) to save the contact.
You are required to enter the contact's name and other contact information.
By scrolling up and down the screen, you can move from one field to another
easily.
Touch to select a picture for the contact.
Touch to unfold the other predefined labels of this category.
Touch to delete the selected label.
Touch to add other new labels to this category.
Touch to add to a group.
Touch to open a menu with preset labels.
When finished, touch Save.
Add to/remove from Favourites
To add a contact to favourites, touch and hold a contact to display the
contact’s option menu, then touch Add to Favourites. Or you can also
touch a contact to view details then touch
favourites (the star will turn gold in color).
To remove a contact from favourites, select Remove from Favourites on
the contact’s option menu or touch gold star
to add the contact to
on contact details screen.
39 40
Editing your contacts3.3.3
To edit contact information, touch and hold the contact whose information
is to be edited, then touch Edit contact. When finished, touch Save.
Change a contact’s default phone number
The default phone number (the number which has priority when making a
call or sending a message) will always be displayed under the contact name.
To change the default phone number, touch and hold the number you
want to set as the default number from the contact's details screen, then
select Make default number. A
Block incoming calls/Set ringtone for a contact
On the contact's detail screen, press Menu key to display contacts list option
menu, and touch Options, then select Incoming calls or Ringtone.
When one contact has been set to block incoming calls directly, if he/she
calls, your phone doesn’t ring and the caller will be sent directly to your
voicemail.
Delete a contact
To delete a contact, press Menu key and touch Delete contact from
contact details screen or directly touch & hold a contact from Contacts
screen to display contacts list option menu then touch Delete contact.
Touch OK to confirm.
The contact you have deleted will also be removed from other
applications on phone or web the next time you synchronize your
phone. A contact deleted from SIM1/SIM2 cannot be reinstated.
appears after the number.
Communicating with your contacts3.3.4
From the contacts list, you can communicate with your contacts by making
a call or exchanging messages.
To launch a call to a contact, locate the contact or number you want to
call, then touch
Call contact.
To send a message to a contact, touch & hold the contact or number you
want to send a message to, then touch Text contact. You can also touch
to the right side of the contact from contact details screen.
Use Quick contact for Android
Touch a contact’s picture to open Quick Contact for Android, you can
touch the icon for the way you want to connect.
The icons available on Quick Contact bar depend on the information you
have for the contact and the applications and accounts on your phone.
. You can also touch & hold the number, then touch
41 42
Contacts importing, exporting and sharing3.3.5
This phone enables you to import contacts from SIM card/microSD card
and export contacts to a microSD card which can then be used to back
up your information.
From Contacts screen, press Menu key to open the contacts list
option menu,touch More\Import/Export. From here you can exchange
contacts between Phone and SD card; Phone and SIM card; and SIM1 and
SIM2, using the following steps:
Select the location that you want to copy the contacts from, then touch •
Next.
Select the location that you want to copy the contacts to, then touch •
Next.
Touch the contact you want to copy, or mark the • Select all check box,
then touch Copy to confirm.
You can share a single contact or contacts with others by sending the
contact's vCard to them via Bluetooth, SMS, Email, etc.
Touch a contact you want to share, press Menu key and touch Share from
contact details screen, then select the application to perform this action.
Displaying contacts3.3.6
You can configure which groups of contacts, for each account, you want to
display in the Contacts list. To hide/display contacts that don’t have phone
numbers, press Menu key from contacts list screen, touch More\Display
options, then activate or deactivate Only contacts with phones by
touching it. Finally, touch Done to save. The same operation for other two
options: Phone Contacts, SIMs Contacts, Sort list by, View contact
names as.
Joining/Separating contacts3.3.7
To avoid duplication, you can add any new contact information to existing
contacts in a single action.
Touch the contact which you want to add information to, press Menu key
and touch Edit contact, then press Menu key again and touch Join.
At this time, you are required to select the contact whose information
you want to join with the first contact. The information from the second
contact is added to the first one, and the second contact will on longer be
displayed in the Contacts list.
To separate contact information, touch the contact whose information you
want to separate, press Menu key and touch Edit contact, then press
Menu key again and touch Separate.
Accounts3.3.8
Contacts, data or other information can be synchronized from multiple
accounts, depending on the applications installed on your phone.
To add an account, press Menu key from Contacts list, touch More\
Accounts, then touch Add account tab; or access it by pressing Menu
key from Home screen, touch Settings, then selecting Accounts & Sync
and finally touching Add account tab.
You are required to select the kind of accounts to add, like Google,
Facebook, etc.
As with other account set-ups, you need to enter detailed information, like
username, password, etc.
You can remove an account to delete it and all associated information
from the phone.
43 44
Open the Accounts & sync settings screen, touch the account you
want to delete, then press Menu key and touch Remove account and
confirm.
Useful icons:
Indicates that the account is configured to synchronize
automatically with your phone.
Indicates that the account is not configured to synchronize
automatically with your phone.
Background data
Activate or deactivate Background data to control whether applications
or services data can be transmitted when they are running in the background.
Applications can synchronize, send, and receive data at any time if activated.
For example, if deactivated, Gmail will stop receiving new emails until you
touch the Refresh or send an email.
Google Messaging, Gmail/
4
Email, Google Talk ................
Google Messaging4.1 ........................................
You can create, edit and receive SMS and MMS with this mobile phone.
To access this feature, touch Application tab from Home screen, then select
Messaging.
All messages you receive or send out can be saved in phone
memory or SIM card. To consult messages stored in SIM card, press
Menu key from Messaging screen, then touch Settings\Manage
SIM card messages.
Auto-sync
When activated, all changes to information on the phone or online will be
automatically synchronized to each other.
Sync manually
You can synchronize an account manually on Accounts & sync settings
screen, and you must touch an account in the list on this screen, touch
Sync now.
45 46
Write message4.1.1
On message list screen, touch Compose new message to write text/
multimedia messages.
Touch to create new message
Touch to view the whole message thread
Sending a text message
Enter mobile phone number of the recipient on To bar or touch
recipients, touch Type to compose bar to enter the text of the message.
When finished, touch to send the text message. For dual SIM model,
touch
An SMS message of more than 160 characters will be charged as several
SMS. A counter will always appear on the top right corner of the text box
to remind you how many characters are allowed to be entered in one
message.
Sending a multimedia message
MMS enables you to send video clips, images, photos, animations, slides and
sounds to other compatible mobiles and e-mail addresses.
An SMS will be converted to MMS automatically when media files (image,
video, audio, slides, etc.) are attached or Subject or email addresses
added.
To send a multimedia message, enter the recipient's phone number in the
To bar, touch Type to compose bar to enter the text of the message.
Press Menu key to open the option menu, touch Add subject to insert
a subject, and touch Attach to attach picture, video, audio or slide. When
finished, touch
touch
to select the SIM card for sending.
Specific letters (accent) will increase the size of the SMS, this may
cause multiple SMS to be sent to your recipient.
to select the SIM card for sending.
to send the multimedia message. For dual SIM model,
to add
Attach options:
Pictures• Access Gallery application to select a picture as
attachment.
Capture picture• Access Camera to capture a new picture for
attaching.
Videos• Access Gallery application to select a video as
attachment.
Capture video• Access Camcorder to record a new video for
attaching.
Audio• Access to select an audio file as attachment.
Record audio • Enter voice message recorder to record a voice
message for attaching.
Slideshow• Enter Edit slide show screen, touch Add slide to
create a new slide, and touch currently existing
slide to edit it (see following picture). Press Menu
key to get more actions, like setting the slide
duration, adding music, etc.
Touch to go to previous or next slide.
Touch to preview the current slide.
47 48
Touch to edit the title of this slide.
Manage messages4.1.2
When receiving a message, an icon will appear on status bar as
notification. Drag down the status bar to open Notification panel, touch
the new message to open and read it. The SIM name on the lower right
corner indicates which SIM card received/sent the message. You can also
access the Messaging application and touch the message to open.
Messages are displayed in conversational order.
To reply to a message, touch the current message to enter messagecomposing screen, enter the text, then touch
touch to select the SIM card for sending.
To return to the message list from a text message thread, press Menu key
and then touch More\All threads.
Touch and hold a message in message details screen. The following message
options are available for selection:
Forward
Lock/Unlock
message
View message
details
Delete message
Copy message text
Save message to
SIM card
Touch to forward the message to another recipient.
Touch to lock/unlock the message so it can/can’t
be deleted if you reach maximum number of
stored messages.
Touch to view details of the message.
Delete the current message.
Copy the current message content. You can paste
it to the enter bar of the new message you are
going to compose.
Touch to save the SMS to the SIM card.
. For dual SIM model,
Adjust message settings4.1.3
You can adjust a set of message settings. From Messaging application
screen, press Menu key and touch Settings.
Storage settings
Delete old •
messages
Text message limit• Touch to set number of text messages to save.
Multimedia •
message limit
Text message (SMS) settings
Delivery reports• Select to request a delivery report for each text
Manage SIM card •
messages
Edit quick text• Touch to add custom quick text.
SMS Service •
center
SMS storage •
location
Select to delete old messages when the maximum
number of stored messages is reached.
Touch to set number of multimedia messages to
save.
message you send.
Touch to manage text messages stored on your
SIM card.
Touch to view service center number.
Touch to set SMS storage location in Phone or
SIM card.
49 50
Multimedia message (MMS) settings
Delivery reports• Select to activate it, then you can touch Menu
Read reports• Select to request a report on whether each recipient
Auto-retrieve • Select to download the full MMS message (including
Roaming auto-•
retrieve
Creation mode• Touch to set MMS creation mode when
Size limit• Touch to set maximum message size.
Priority• Touch to set MMS priority.
Notification settings
Notifications• Select to display message notifications in status
Select ringtone• Touch to select a ringtone as a new message
Service message setting
Enable service •
message
key from a multimedia message thread, and touch
View report to check delivery status.
has or has not read a multimedia message sent by
you.
message body and attachment) automatically to
your phone. Otherwise, download only the MMS
message header.
Select to download the full MMS message (including
message body and attachment) automatically
when roaming. Otherwise, download only the
MMS message header to avoid extra charges.
composing message.
bar.
notification tone.
Select to enable to receive service message.
Gmail/Email4.2
The first time you set up your phone, you can select to use an existing
Gmail or to create a new Email account.
Gmail4.2.1 ................................................................
As Google's web-based email service, Gmail is configured when you first
set up your phone. Gmail on your phone can be automatically synchronized
with your Gmail account on the web. Unlike other kinds of email account,
each message and its replies in Gmail are grouped in your inbox as a single
conversation; all emails are organized by labels but not by folders.
To access Gmail
From Home screen, touch the Application tab to enter the applications list,
then touch Gmail.
Gmail displays messages and conversations from one single Gmail account
at a time, if you own more than one account, you can switch to another by
pressing Menu key from Inbox screen, touching Accounts, then touching
the account you want to view.
To create and send emails
Press • Menu key from Inbox screen, and touch Compose.
Enter recipient(s)’s email address in • To field, and if necessary, press
Menu key and touch Add Cc/Bcc to include a copy or a blind copy
to the message.
Enter the subject and content of the message.•
Press • Menu key, touch Attach to send an attachment to the receiver.
Finally, touch •
If you do not want to send the mail out right away, you can touch • to
save copy. To view the draft, press Menu key and touch Go to labels,
then select Drafts.
.
51 52
If you do not want to send or save the mail, you can press • Menu key
and then touch Discard.
To add a signature to emails, press Menu key from inbox screen, and touch
More\Settings, then select Signature.
To receive and read your emails
When a new email arrives, you will be notified by a ringtone or vibration,
and an icon
Touch and drag down the Status bar to display the Notification panel, touch
the new email to view it. Or you can also access the Gmail Inbox label and
touch the new mail to read it.
If you want to go back to the Inbox label while reading a new message, you
can press Back key or press Menu key and touch Go to inbox.
You can search for an email by sender, by subject, by label, etc.
from inbox screen, press • Menu key and then touch Search
enter the keyword you want to search for in the searching box and touch •
search icon.
To reply or forward emails
When viewing an email, touch
further options.
Reply/•
Reply all
Forward• Touch to forward the message to another person.
will appear on Status bar.
to expand hidden icons that offer
Touch to enter text-inputting mode, enter the
message you want to reply, then touch
send this message to one single recipient or all
people in a mail loop.
You are required to enter the new recipient’s
email address and then touch
to
.
Managing Gmails by Label
To conveniently manage conversations and messages, you can organize
them using a Label.
To label a conversation when reading a conversation’s messages, press
Menu key and touch Change Labels and select the label to assign to
the conversation.
To view conversations by label when viewing your inbox or another
conversation list, press Menu key and touch Go to labels. Touch a label
to view a list of conversations with that label.
Touch and hold an email to produce the following options:
Read • To view the email message.
Archive• To archive the email message. To display the
Mute• To mute the entire conversation. When muted,
Mark read/Mark •
unread
Delete• To delete the email message.
Add star/Remove •
star
Report spam• To report the email message/conversation as spam.
Change labels• To add or change the label of the email message
archived messages, you can press Menu key in
inbox screen and touch View labels, then All
mail.
new mails related to this conversation will not be
displayed in Inbox, but archived.
To mark an email message as read or unread.
To assign a star or remove the star from the
conversation.
or conversation.
53 54
Gmail settings
To manage Gmail settings, press Menu key in Inbox screen and touch
More\Settings.
General preferences
Message Actions• Select to activate an action.
Clear search •
history
Clear "Show •
pictures"
General settings
Signature• To add a signature text to the end of each mail
Confirm actions• Select to activate a query when deleting a message
Reply all• Mark the check box to reply to all people in a mail
Auto-advance• Touch to select a screen after deleting or archiving
Message text size• Touch to select text font.
Batch operations• Select to add conversation to a batch for further
Sync inboxes and •
labels
Notification settings
Email •
notifications
Labels to notify• Touch to set notification preferences for synced
Touch to remove the search history.
Touch to restore default for all senders.
you send.
or conversation, for double confirmation.
loop by default.
a conversation.
operation, like archive, delete, change label, etc.
Select to set synchronization frequency.
Select to activate notification when a new email
arrives.
labels.
55 56
Email4.2.2 ...................................................................
Besides your Gmail account, you can also set-up external POP3 or IMAP
email accounts in your phone.
To access this function, touch Application tab from Home screen, then
select Email.
An email wizard will guide you through the steps to set-up an email account.
Enter the email address and password of the account you want to set-up.•
Touch • Next. If the account you entered is not provided by your service
provider in the phone, you will be prompted to go to the email account
settings screen to enter settings manually. Or you can touch Manual
setup to directly enter the incoming and outgoing settings for the email
account you are setting up.
Enter the account name and display name in outgoing emails.•
Touch • Done.
To add another email account, you can press • Menu key and touch
Accounts to access Email account screen. Press Menu key and touch
Add account to create.
To create and send emails
Press • Menu key from Inbox screen, and touch Compose.
Enter recipient(s)’s email address in • To field, and if necessary, press
Menu key and touch Add Cc/Bcc to include a copy or a blind copy to
the message.
Enter the subject and content of the message.•
Press • Menu key, touch Add attachment to send an attachment to
the receiver.
Finally, touch • Send.
If you do not want to send the mail right away, you can touch • Save as
draft or press Back key to save a copy.
Google Talk4.3 ...............................................
Google's instant messaging service, Google Talk, lets you communicate
with your friends whenever they are connected to this service.
To access this feature and sign in, touch Application tab from Home
screen, then touch Talk. All friends added by using Google Talk from the
web or phone will be displayed in your friends list.
Touch your own name at the top of your Friends list to set your online
status, post a status message, etc. Touch
Available
Busy
Away
Signed out
Invisible
to set your online status.
Chatting with your friends4.3.1
To start a chat, touch the name of a friend in your Friends list, then enter
your message and finally touch Send.
You can invite other friends to join in a group chat by pressing Menu key,
touching Add to chat and then select the friend you want to add.
When chatting with more than one friend, you can switch screens by
pressing Menu key, then touching Switch chats.
To return to Friends list screen, press Menu key, then touch Friends
list.
To add a new friend4.3.2
From Friends list, press Menu key to open options list and touch Add
Friend to add a new friend. Enter the Google Talk ID or Gmail address of
the friend you want to add, and then touch Send invitation.
A notification with this invitation will be received by the friend. By touching
the invitation, the friend can select Accept or Cancel in response.
You can also check all invitations you have sent or received by pressing
Menu key from Friends list and touching More\Invites.
To sign out, press Menu key from Friends list to display options, touch
Sign out.
57 58
To close a chat4.3.3
When you want to end a chat, the following two ways are available:
From Friends list screen, touch and hold the friend you want to stop •
chatting with to open Option menu, touch End chat.
Press • Menu key from chatting screen directly, and then touch End
chat.
To manage your friends4.3.4
Besides adding new friends to your friends list, the following actions are
available for your choice:
To view all friends/•
most popular
friends
To make a friend •
popular
To block a friend• To block a friend from exchanging messages and
By default, only friends that you frequently
communicate with are displayed in Friends list.
To view all friends, press Menu key, then touch
All friends. To return to displaying most popular
friends screen, press Menu key again, then touch
Most popular.
To ensure a friend is always displayed in your Most
popular list, touch and hold the friend’s name until
the options menu pops up, then touch Always
show friend. To remove a friend from Always
show friend, touch and hold the friend, and touch
Auto show friend.
remove them from your friends list, touch and hold
the friend, then touch Block friend. All blocked
friends can be viewed by pressing Menu key and
touching More\Blocked. To unblock a friend,
touch the name of this friend and touch OK when
prompted.
Settings4.3.5
A series of settings are available for your selection by pressing Menu key
from Friends list screen, and touch Settings.
Mobile indicator• Select to display an indicator icon along with your
Sign in •
automatically
Automatic away •
status
Clear search •
history
Invitation •
notifications
Notifications• Select to activate the notification function when
Ringtone• Select to set a notification ringtone.
Vibrate• Select to activate a vibration alert for this
name in other people’s Friends list.
Select to sign in to your Google Talk account
automatically every time you turn on your phone.
Select to set status as Away when the screen is
turned off.
Touch to clear previous chat searches history
from showing up in the Search box.
Select to activate the status bar’s notification
function when receiving friend invitations.
a new text chat or invitation to a video/voice
chat arrives.
service.
59 60
Google Calendar & Clock
5
& Calculator & News &
Weather .................................
Google Calendar5.1 .......................................
Use Google Calendar to keep track of important meetings, appointments,
etc.
To access this function, touch Application tab from Home screen, then
touch Calendar.
Multimode view5.1.1
You can display the Calendar in daily, weekly, monthly, or agenda view.
To change your Calendar view, press Menu key, then touch Day, Week,
Month or Agenda.
Agenda view
Day view
Week view
Month view
In Agenda, Day or Week view touch
an event to view its detalls.
Touch a day in Month view to open
that day's events.
To create new events5.1.2
You can add new events from any Calendar view.
Press • Menu key from Calendar screen, and touch More\New event to
access new event edit screen.
Fill in all required information for this new event. If it is a whole-day •
event, you can select All day.
Invite guests to the event. Enter the email addresses of the guests •
you want to invite with commas to separate. If the guests use Google
Calendar, they will receive an invitation from Calendar and email.
When finished, touch • Done from the end of the screen.
To quickly create an event from Day, Week or Month view screen, touch and
hold an empty spot or an event to open Option menu, then touch New event
to enter the event details screen of the time you have previously selected.
To delete or edit event5.1.3
To delete or edit an event, touch the event to enter details screen, press
Menu key, touch Edit event, or Delete event.
Event reminder5.1.4
If a reminder is set for an event, the upcoming event icon appears on
Status bar as a notification when the reminder time arrives.
Touch and drag down the status bar to open notification panel, touch event
name to view Calendar notification list.
Touch Snooze all to turn off all event reminders for 5 minutes.
Touch Dismiss all to delete all reminders from the list.
Press Back key to keep the reminders pending in the status bar and
notification panel.
Important options by pressing Menu key from Calendar main screen:
61 62
New event To add a new event
Calendars Touch to show or hide, sync or not sync
More
Settings To set a series of Calendar settings
the calendars.
Clock5.2 ...........................................................
Your mobile phone has a built-in clock.
To access this function, touch the Application tab from Home screen, then
touch Clock.
Touch
alarm. Touch Set to save.
icon at the bottom of the screen. Touch Add alarm to set the
Touch to dim the screen.
Touch to play a slideshow of the
pictures in Gallery.
Touch to access Music
Touch to go back to Home screen.
Touch to add or set an alarm.
63 64
To set an alarm5.2.1
From Clock screen, touch a currently existing alarm or press Menu key
and touch Add alarm to enter the alarm editing screen.
Turn alarm on• Select to enable alarm.
Time• Touch to set time.
Repeat• Touch to select days you want alarm to sound
Ringtone• Touch to select a ringtone for the alarm
Vibrate• Select to activate vibration
Label• Touch to set a name for the alarm
When finished, touch Done to confirm.
To adjust alarm settings5.2.2
Press Menu key from Alarms screen, then touch Settings. The following
options can now be adjusted:
Alarm in silent •
mode
Alarm volume• Touch to set volume of alarms
Snooze duration• Touch to set temporary turn off time of an alarm
Side button •
behavior
Select to play alarm with sound or vibration even
when the phone is in Silent mode
Touch to set side Volume up/down key behaviors
when alarm sounds: None, Snooze or Dismiss
Calculator5.3 ..................................................
With Calculator, you can solve many mathematical problems.
To access this function, touch Application tab from Home screen, then
touch Calculator.
There are two panels available: Basic panel and Advanced panel.
To switch between panels, select one of the following two ways:
Touch and drag the basic screen to the left to open the Advanced •
panel.
Or press • Menu key from basic panel to open option menu and touch
Advanced panel.
Enter a number and the arithmetic operation to be performed, and enter
the second number, then touch “=” to display the result. Touch CLEAR
to delete digits one by one, touch and hold CLEAR to delete all at one
time.
When some number or operations have been entered, touch and hold the
entering bar to open a menu offering these further operations:
Select all• To select all entered text
Select words• To select what you want to select from entered text
Cut• To delete selected text
Copy• To copy selected text
Input method• To select your preferred input method
(1)
Paste •
To paste what you have previously copied to the
entering bar
News & Weather5.4 ......................................
Use News & Weather to check the weather and top news stories.
To access this function, touch the Application tab from Home screen, then
touch News & Weather.
To get details about weather and the news5.4.1
Touch Weather tab to get a one week forecast for the city you set.
Touch for a more detailed forecast.
Slide left or right across the screen to view top stories by category. It
allows customization showing/hiding various news categories and even
creating your own.
To get the latest information while viewing the weather or new headlines,
press Menu key and touch Refresh.
To adjust settings5.4.2
Press Menu key from News & Weather screen, then touch Settings. The
following options can now be adjusted:
Weather settings
Use my •
location
Set location• Touch to set location by entering a city or postal
Use metric• Check to use metric instead of imperial units.
Check to set location by using the phone’s location
service.
code.
(1)
Option will not appear unless copy or cut operation has been made.
65 66
News settings
Select news •
topics
Prefetch articles•
Prefetch•
News terms of •
service
Mobile privacy •
policy
Refresh settings
Auto-refresh• Check to update News & Weather information
Refresh interval•
Refresh status•
images
Check the boxes of news categories which most
interest you to include them in the scrolling list of
News & Weather tabs. You can also add your own
topic by touching Custom topic.
Check to download news articles for faster access.
Check to download news images for faster access.
Opens a screen with details about the terms of
service for Google News.
Opens a screen with details about Google Mobile
privacy policy.
automatically, at the frequency you set with Refresh
interval.
Touch to set how often news and weather
automatically update.
Displays the date and time of the last refresh of news
and weather.
Getting connected
6
To connect to the internet with this phone, you can use GPRS/EDGE/3G
networks or Wi-Fi, whichever is most convenient.
................
Connecting to the Internet6.1
GPRS/EDGE/3G6.1.1
The first time you turn on your phone with SIM card inserted, it will
automatically configure network service: GPRS, EDGE or 3G.
To check the network connection you are using, press Menu key on Home
screen, then touch Settings\Wireless & networks\Mobile networks\
Network operators or Access Point Names.
To create a new access point
A new GPRS/EDGE/3G network connection can be added to your phone
with the following steps:
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Mobile networks\Access
Point Names.
For dual SIM model, select the SIM name in the screen that opens.•
Then press • Menu key again and the touch New APN.
Enter the required APN information.•
When finished, press • Menu key and touch Save.
67 68
To activate/deactivate Data roaming
When roaming, you can decide to connect/disconnect to a data service.
Press • Menu key from Home screen.
Touch • Settings\SIM management\Roaming\Data roaming.
Mark/Unmark the SIM card checkbox to activate or deactivate data •
roaming.
When Data roaming is deactivated, you can still perform data exchange •
with a Wi-Fi connection (refer to section 6.1.2 Wi-Fi).
To limit your data connection to 2G networks only
To save battery and extend battery life, you can set to activate 2G
networks (GPRS or EDGE) only.
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Mobile networks\Network
mode.
Touch • 2G only in the dailog that opens.
Wi-Fi6.1.2
Using Wi-Fi, you can connect to the Internet when your phone is within
range of a wireless network. Wi-Fi can be used on phone even without a
SIM card inserted.
To turn Wi-Fi on and connect to a wireless network
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Wi-Fi.
Mark/Unmark the checkbox to turn on/off Wi-Fi.•
Touch • Wi-Fi settings. The detailed information of detected Wi-Fi
networks is displayed in the Wi-Fi networks section.
Touch a Wi-Fi network to connect. If the network you selected is secured, •
you are required to enter a password or other credentials (you may
contact network operator for details). When finished, touch Connect.
To activate notification when a new network is detected
When Wi-Fi is on and network notification is activated, the Wi-Fi icon
will appear on the status bar whenever the phone detects an available
wireless network within range. The following steps activate the notification
function:
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Wi-Fi settings\Network
notification.
Mark/Unmark the checkbox to activate/deactivate this function.•
To add a Wi-Fi network
When Wi-Fi is on, you may add new Wi-Fi networks according to your
preference.
Press • Menu key from Home screen.
69 70
Touch • Settings\Wireless & networks\Wi-Fi settings\Add Wi-Fi
network.
Enter the name of the network and any required network information.•
Touch • Save.
When successfully connected, you phone will be connected automatically
the next time you are within range of this network.
To forget a Wi-Fi network
The following steps prevent automatic connection to networks which you
no longer wish to use.
Turn on Wi-Fi, if it’s not already on.•
In the Wi-Fi settings screen, touch & hold the name of the network.•
Touch • Forget network in the dialog that opens.
To add a WPS network
WPS (Wi-Fi Protected Setup) is an easy way for users to access Wi-Fi
network by entering PIN or using push button.
Press • Menu key from Home screen.
Touch • Settings\Wireless&networks\Wi-Fi settings\WPS connect.
Enter PIN number or use push button.•
Touch • Start to get access to a WPS network.
To enable proxy
When Wi-Fi is on, you may set up a proxy to make indirect network
connections to other network services.
Touch • Settings\Wireless & networks\Wi-Fi settings\Enable proxy.
Touch • Proxy settings to enter host and port.
Touch • OK.
Browser6.2 ......................................................
Using Browser, you can enjoy surfing the Web.
To access this function, touch Application tab from Home screen, then
touch Browser.
To go to a web page
On Browser screen, touch the URL box at the top, enter the address of the
web page, then touch
the screen, but you can slide the page down to bring it into view.
To set home page
Press • Menu key from Browser screen to display option menu, touch
More\Settings\Set home page.
Enter the URL of the website you want to set as your home page.•
Finally touch • OK to confirm.
Viewing web pages6.2.1
When opening a website, you can navigate on web pages by sliding your
finger on the screen in any direction to locate the information you want
to view.
To zoom in/out of a web page
Zoom controls
your finger. Touch the plus or minus to the side of the Zoom control to
zoom in or out.
To quickly zoom into a section of a web page, double-tap on the section
you want to view. To return to normal zoom level, double-tap again. You can
also pinch current web pages.
. Some web sites scroll the URL box off the top of
will be activated when scrolling the screen using
71 72
To find text on a web page
Press • Menu key from web page screen, then touch More\Find on
page.
Enter the text or phrase you want to find.•
The first word with matching characters will be highlighted on the •
screen, and subsequent matches are boxed.
Touch the left or right arrow to switch to the previous or next matching •
items.
When finished, you can touch •
To copy text on a web page
You can copy text from a web page and paste it into emails or SMS/MMS
messages.
Press • Menu key from web page screen, then touch More\Select text.
Place your finger at the start of the text you want to copy and then drag •
it to the end of the text.
Raise your finger. Selected text is highlighted in color. Touch the selected •
text to copy.
To paste the copied text into an email or SMS/MMS message, touch and
hold the enter box and then touch Paste on the options menu.
To open new window/switch between windows
Multiple windows can be opened at the same time for your convenience.
To view all currently open windows, press • Menu key then touch
Windows.
Touch • New window to open a new window.
Touch a window you want to view.•
To close a window, touch on the window you want to close.
to close the search bar.
Other options:
Close• To close all tabs or minimize the web page. (press Menu
key on web page screen, then touch Close).
Page info• To view more information about the current page (press
Menu key on web page screen, then touch More\Page
info).
Forward• To forward the pages you have opened (press Menu key
on web page screen, then touch More\Forward).
Backward• To review the pages you have opened (press Menu key on
web page screen, then touch Backward).
Share page• To share the current page with your friends via various
ways, like Message, Email, Bluetooth, etc. (press Menu key
on web page screen, then touch More\Share page).
73 74
Manage links, history6.2.2
Manage downloads6.2.3
To manage a link, phone number or address displayed on a web
page
Link• Touch the link to open the web page.
Touch and hold the link to open options for
further operation, like open in new window, save
link, share link, copy link, etc.
Phone number• Touch to call the phone number.
Address• Touch to open Google Maps and locate the
address
To view Browser history
Press • Menu key from Browser screen
Touch • More\History tab to view browser history.
To view your most frequently visited pages
Press • Menu key from Browser screen
Touch • More\History
Touch • Most visited tab to view your most frequently visited pages.
To access Downloads
Downloads gives you easy access to any file downloaded from the
browser, email or another application, and you can manage and store your
download more conveniently.
Enter this menu by either:
Touching the Application tab from Home screen and selecting •
Downloads.
Or:
Touching the Application tab from Home screen and selecting • Browser.
Then press Menu key and touch More\Downloads.
75 76
To download a web application/view your downloads
Before downloading a web application, you need to enable your phone to
download web applications (press Menu key from Home screen, touch
Settings\Applications, mark check box of Unknown sources, finally
touch OK to confirm).
To download a file, touch and hold the item you want to download, then
touch Save on the menu that opens.
To cancel a download, press Menu key and touch More\Downloads, then
touch Menu key again and finally touch Cancel all downloads.
To view items you have downloaded, press Menu key and touch More\
Downloads. You can clear the downloaded item list by pressing Menu key
and touching Clear list.
Manage bookmarks6.2.4
To bookmark a web page
Open the web page you want to bookmark.•
Press • Menu key and touch Bookmarks.
Touch • Add bookmark
Enter the name and location if needed and touch • OK to confirm.
To open a bookmark
Press • Menu key and touch Bookmarks.
On the • Bookmarks tab, touch the bookmark you want to open.
You can also touch and hold to display the options screen, then touch •
Open or Open in new window.
To edit a bookmark
Press • Menu key and touch Bookmarks.
On the • Bookmarks tab, touch and hold the bookmark you want to
edit.
Touch • Edit bookmark.
Enter your changes.•
When finished, touch • OK to confirm.
Touch and hold a bookmark in the bookmark list to view these
additional options:
Share link• To share the bookmark.
Copy link URL• To copy the bookmark link.
Add shortcut to •
Home
Delete bookmark• To delete a bookmark.
To add a bookmark shortcut to the Home
screen.
77 78
Settings6.2.5
A series of settings are available for your adjustment. To access Browser
settings, press Menu key from Browser screen, and touch More\
Settings.
Page content settings
Text size• Touch to select the size of the text display: Tiny,
Default zoom• Touch to select the magnification level by default.
Open pages •
in overview
Text encoding• Touch to select the character-encoding standard.
Block pop-up •
windows
Load images• Mark to display images on web pages.
Auto-fit pages• Mark to format web pages to fit the screen.
Landscape –•
only display
Enable JavaScript• Mark to enable JavaScript.
Enable plug-ins• Mark to enable plug-ins.
Open in •
background
Set home page• Touch to set home page.
Small, Normal, Large, or Huge.
Mark the checkbox to open web pages zoomed
out, in an overview.
Mark the checkbox to prevent pop-up windows.
Mark to display pages only in landscape screen
orientation.
Mark to open new windows behind the current
one.
Privacy settings
Clear cache• Touch to clear locally cached content and
Clear history• Touch to clear the browser history.
Accept cookies• Mark to allow sites to save and read cookie data.
Clear all cookie •
data
Remember form •
data
Clear form data• Touch to clear all the saved form data.
Enable location• Mark to allow sites to request access to your
Clear location •
access
Security settings
Remember •
passwords
Clear passwords• Touch to clear all saved passwords.
Show security •
warnings
databases.
Touch to clear all browser cookies.
Mark to remember data in forms for later use.
location.
Touch to clear location access for all websites.
Mark to remember username and passwords for
websites.
Mark to show warning if there is a problem with
a site’s security.
79 80
Advanced settings
Set search engine• Touch to select a web search engine, which will
be used when you enter search terms in the
URL box.
Website settings• Touch to view advanced settings for individual
websites.
Reset to default• Touch to clear all browser data and reset all
settings to default.
Connecting to Bluetooth devices 6.3
(1)
Bluetooth is a short-range wireless communications technology that you
can use to exchange data, or connect to other Bluetooth devices for
various uses.
To access this feature, press Menu key from Home screen, touch Settings\
Wireless & Networks\Bluetooth or Bluetooth settings.
To turn on Bluetooth
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Bluetooth or Bluetooth
settings.
Mark/Unmark the checkbox to activate/deactivate this function.•
(1)
You are recommended to use Alcatel Bluetooth headsets, which have been
tested and proved compatible with phone. You can go to www.alcatelonetouch.
com for more information about Alcatel Bluetooth headset.
81 82
To change device name
To make your phone more recognizable, you can change your phone name
which is visible to others.
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Bluetooth settings\Device
name.
Enter a name, and touch • OK.
To make device visible
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Bluetooth settings\
Discoverable.
Mark/Unmark the checkbox to activate/deactivate this function.•
To pair/connect your phone with a Bluetooth device
To exchange data with another device, you need to turn Bluetooth on
and pair your phone with the Bluetooth device with which you want to
exchange data.
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Bluetooth settings
Touch • Scan for devices
Select a Bluetooth device you want to be paired with in the list.•
Read Bluetooth pairing request, and then touch • Pair.
If the pairing is successful, your phone connects to the device.•
To disconnect/unpair from a Bluetooth device
Touch & hold the device name in the Bluetooth settings screen.•
Touch • Unpair or Disconnect & Unpair in the menu that opens.
Connecting to a computer via USB6.4
With the USB cable, you can transfer media files and other files between
your phone’s microSD card and the computer.
To connect/disconnect your phone to/from the computer
To connect your phone to the computer:
Use the USB cable that came with your phone to connect the phone •
to a USB port on your computer. You will receive a notification that the
USB is connected.
Open the Notifications panel and touch • USB connected.
Touch • Turn on USB storage in the dialog that opens to confirm that
you want to transfer files.
To disconnect:
Unmount the microSD card on your computer.•
Open the Notifications panel and touch • Turn off USB storage.
Touch • Turn off USB storage in the dialog that opens.
To safely remove the microSD card from your phone
The microSD card can be removed from your phone any time the phone
is powered off.
Press • Menu key from Home screen.
Touch • Settings\SD card & phone storage.
Touch • Unmount SD card.
You can now safely remove the microSD card from the phone.
To format a microSD card
Press • Menu key from Home screen.
Touch • Settings\SD card & phone storage.
Touch • Unmount SD card. You can format a microSD card only when
it is unmounted.
Touch • Erase SD card. On the screen that warns you that formatting the
microSD card will erase its contents, touch
.
83 84
Sharing your phone's mobile data connection6.5
You can share your phone's mobile data connection with a single computer
via a USB cable (USB tethering) or with up to eight devices at once by
turning your phone into a portable Wi-Fi hotspot.
The functions below may incur additional network charges from
your network operator. Extra fees may also be charged in roaming
areas.
To share your phone's data connection via USB
Use the USB cable that along with your phone to connect the phone to a
USB port on your computer.
Press • Menu key from Home screen.
Touch• Settings\Wireless & networks\Tethering & portable
hotspot.
Mark\unmark the check box of • USB tethering to activate/deactivate
this function.
To rename or secure your portable hotspot
When Portable Wi-Fi hotspot is activated, you could change the name of
your phone's Wi-Fi network (SSID) and secure its Wi-Fi network.
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Tethering & portable
hotspot\Portable Wi-Fi hotspot settings.
Touch • Configure Wi-Fi hotspot to change the network SSID or set
your network security.
Touch • Save.
Connecting to virtual private networks6.6
Virtual private networks (VPNs) allow you to connect to the resources
inside a secured local network, from outside that network. VPNs are
commonly deployed by corporations, schools, and other institutions so
that their users can access local network resources when not on campus,
or when connected to a wireless network.
To share your phone's data connection as a portable Wi-Fi hotspot
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\Tethering & portable
hotspot.
Mark\unmark the check box of • Portable Wi-Fi hotspot to activate/
deactivate this function.
85 86
To add a VPN
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\VPN settings\Add VPN.
Touch the type of VPN to add.•
In the screen that opens, follow the instructions from your network •
administrator to configure each component of the VPN settings.
Press • Menu key and touch Save.
The VPN is added to the list on the VPN settings screen.
To connect/disconnect to a VPN
To connect to a VPN:
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\VPN settings.
VPNs you have added are listed; touch the VPN you want to connect •
with.
In the dialog that opens, enter any requested credentials and touch •
Connect.
To disconnect:
Open the Notifications panel and touch the resulting notification for the •
VPN connection.
To edit/delete a VPN
To edit a VPN:
Press • Menu key from Home screen.
Touch • Settings\Wireless & networks\VPN settings.
VPNs you have added are listed; touch & hold the VPN you want to •
edit.
Touch • Edit network.
After finishing, press • Menu key and touch Save.
To delete:
Touch and hold the VPN you want to delete, in the dialog that opens, •
touch Delete network.
Touch • OK to confirm.
Configuring Internet (SIP) calling6.7
You can place/receive voice calls via the Internet when connected to a
Wi-Fi network, rather than via your mobile network. You should configure
a valid internet account before using this feature. Refer to section 3.1.1
Placing a call to learn more about placing an internet call.
To add an internet calling account
Press • Menu key from Home screen.
Touch • Settings\Call settings\Internet call\Use Internet calling.
Mark the checkbox to enable Internet calling.•
Touch • Accounts, then touch Add account tab.
In the screen that opens, follow the instructions from your internet •
calling service provider to configure the settings for your account.
When finished, press • Menu key and touch Save.
To edit/remove an internet calling account
To edit:
Press • Menu key from Home screen.
Touch • Settings\Call settings\Internet call\Accounts.
Accounts you have added are listed; touch the account you want to •
edit.
Edit your chosen settings. When finished, press Menu key and touch •
Save.
87 88
To remove:
Touch the account you want to remove.•
Touch • Remove account in the screen that opens.
Android Market
7
(1)
..........
To configure your phone to receive Internet calls
Receiving Internet incoming calls is off by default to reduce power
consumption.
Press • Menu key from Home screen.
Touch • Settings\Call settings\Internet call\Accounts\Receive
incoming calls.
Mark/Unmark the checkbox to activate/deactivate this function.•
Android Market is an online software store, where you can download and
install applications and games to your Android Powered Phone.
To open Android Market:
Touch Application tab from Home screen, and then touch • Market.
For the first time you access Android Market, a screen with terms of •
service pops up for your attention, touch Accept to continue.
Press Menu key, then touch Help to enter Android Market help page for
more information on this function.
Locate the item you want to download 7.1
and install
Android Market home page provides several ways to find applications. It
showcases applications and games in categorized listings, and a link to all
your downloads.
(1)
Depending on your country and operator.
89 90
Touch Apps or Games on Android Market screen to browse its contents,
and then select subcategory. Within each subcategory you can select to
view items sorted by Top paid, Top free, or Just in.
Touch to search in Android market.
Be especially cautious with applications that have access to many
functions or to a significant amount of your data. Once you touch
OK to continue, you are responsible for the results of using this
item on your phone.
To check the progress of the download, open the Notification panel. To •
stop the downloading of the item, touch the progress bar and Cancel
on the screen that opens.
After download and installation have finished, you will see a notification •
icon
on the status bar.
To open the application you have downloaded:
On Android Market screen, touch • My apps.
Touch the installed application in the list, then touch • Open.
To return to Android Market Home screen, do one of the following:
Touch the Market icon •
Press • Menu key to display options list, then touch Home.
to the top left of the screen.
Download and install7.2
To download & install:
Navigate to the item you want to download, and select to enter the •
details screen from which you can read its overall rating or comments,
view developer’s information, etc.
Press • Menu key and touch Security to preview the functions and data
the application can access on your phone if you install it.
Touch • Free.
91 92
To buy an application
On Android Market, some applications are labeled as free, while some of
them are to be paid for before downloading and installing.
Touch the application you want to buy.•
Touch the price below• Install.
When making your first purchase, you are prompted to log in to Google •
Checkout payment and billing service.
If your Google Checkout account has multiple credit card accounts, •
select one to proceed.
Select the Terms of service link and read the document. When finished, •
press Back key.
Mark the check box if you agree with the terms of service.•
Touch • Buy now at the bottom of the screen.
When finished, Android downloads the application.
To request a refund
If you are not satisfied with the application, you can ask for a refund within
24 hours of the purchase. Your credit card will not be charged and the
application will be removed. If you change your mind, you can install the
application again, but you will not be able to request a refund.
Touch • My apps in Android Market Home.
Touch the application that you want to uninstall.•
Touch • OK in the Refund dialog box. If the dialog box does not appear,
your trial period has expired.
In the survey form, select the answer that best matches your reason, •
and touch OK.
Manage your downloads7.3
After you downloaded and installed an application, the following further
operations are available for your selection.
View
On Android Market screen, press Menu key and touch My apps.
Uninstall
On Android Market screen, press Menu key and touch My apps. Touch
the application you want to uninstall to enter the details screen, touch
Uninstall, and finally touch OK to confirm.
Refund
On Android Market screen, press Menu key and touch My apps. Touch
the application you want to uninstall for a refund, touch Refund and finally
touch OK to confirm.
Update notification
On Android Market screen, press Menu key and touch Settings. Touch the
Notifications menu to select whether or not to be notified of updates,.
Rate
Open the details screen for an application, touch the stars
under My review, touch the number of stars to award and confirm by
touching OK.
Flag
You can report an inappropriate application to Android Market by flagging
it. Open the details screen for the application, scroll to the bottom
and touch Flag as inappropriate, enter the reason and finally touch
Submit.
93 94
Multimedia applications
8
Camera8.1 ........................................................
Your mobile phone is fitted with a Camera and Camcorder for taking
photos and shooting videos.
Before using Camera or Camcorder, please ensure that a microSD card
where all pictures and videos are stored is correctly installed. Also, be sure
to open the protective lens cover before use to avoid it affecting your
picture quality.
To access this function, touch Application tab from Home screen and then
touch Camera.
Settings
Advanced settings
Store location
White balance
Zoom
To take a picture
The screen acts as the viewfinder. First position the object or landscape
in the viewfinder, and touch
automatically saved.
icon to take the picture, which will be
Touch to view pictures or
play video you have taken.
Drag up or down to switch
between Camera mode and
Video mode.
Touch to take a picture or
record a video.
Zoom in/zoom out
Touch
in or out gradually. Touch the screen twice to zoom all the way in or out.
To shoot a video
Switch Camera mode to Video mode or access Camcorder directly from
the applications list. First position the object or landscape in the viewfinder,
and touch icon to start recording. Touch icon to stop shooting. The
video will be automatically saved.
icon to open the Zoom control and slide the scroll bar to zoom
Settings in framing mode8.1.1
Before taking a photo/shooting a video, you can adjust a number of settings
in framing mode.
Camera settings:
Settings• Touch to enter a scrolling list of settings: EV, Scene
mode, Color effect, etc.
Advanced •
settings
There are several other options to choose from such as Burst shot,
Antiflicker, etc.
Store location• Touch to turn on/off stored location information of
White balance• Touch to adjust color in different lights: Auto,
Zoom• Touch to open the Zoom control and slide the scroll
Capture mode Touch to set the capture mode to
Normal, Smile Shot or Panorama.
Face detection Touch to turn on/off face detection,
this detects faces and automatically
adjusts the focus.
pictures by using the phone's GPS.
Incandescent, Daylight, Fluorescent, Cloudy, etc.
bar to zoom in or out gradually.
95 96
Video/Camcorder settings:
Settings • Touch to enter a scrolling list of settings: EV, Scene
mode, Color effect, etc.
Advanced settings•
Microphone
Touch to turn on/off the microphone
when shooting a video.
Anti-flicker Touch to set frequency (50Hz or
60Hz).
White balance• Touch to adjust color in different lights: Auto,
Incandescent, Daylight, Fluorescent, Cloudy, etc.
Zoom• Touch to open the Zoom control and slide the
scroll bar to zoom in or out gradually.
Press Menu key in framing mode, the following options are available:
Gallery Touch to access Gallery.
Switch to camera/
Touch to switch between camera and video.
video
Switch Camera Touch to switch between front camera
(1)
and
back camera.
Gallery8.2 ..........................................................
Gallery acts as a media player for you to view photos and playback
videos.
To access this function, touch Application tab from Home screen, then
touch Gallery.
From this menu, you can access Camera for taking a picture or video.
Touch to open camera.
Pinch the album and spread it apart.
Slide left or right to view more albums.
(1)
Depending on your model.
97 98
To view a picture/play a video
Pictures and videos are displayed by albums in Gallery.
Touch and scroll the bar to switch.
This will change the album view from
grid to stack.
Drag left or right to scroll
through the album quickly.
Touch the picture/video directly to view or play it.•
You can also view previous or next pictures/videos by sliding left or •
right.
Working with pictures
You can work with pictures by rotating or cropping them, sharing them
with friends, setting them as contact ID or wallpaper, etc.
Locate the picture you want to work on, press Menu key from full-screen
picture view.
To crop a picture, touch a picture to view controls, press Menu key and
touch More\Crop. The cropping square appears in the middle of the
picture. Select the portion to crop, touch Save.
Batch operation
Gallery provides multi-select function, so that you can work with pictures/
videos in batches.
Open the main Gallery window, press Menu twice, and mark the checkbox
before the file you want to work on, then perform further actions, like
delete, share, etc.
99 100
YouTube8.3 ........................................................
YouTube is an online video-sharing service where the user can download,
share and view videos. It supports a streaming function that allows you to
start watching videos almost as soon as they begin downloading from the
Internet.
To access this function, touch Application tab from Home screen, then
touch YouTube.
As an online video service, your phone must have a network
connection to access YouTube.
Touch to search for a video.
Touch to shoot a video.
By pressing Menu key from YouTube screen, you can rate, share, label as
favourite, etc. For details about these features, please visit the YouTube
website: www.YouTube.com
Watch videos8.3.1
Touch a video to play it.
Touch video playing screen to display playback controls with which you
can pause, skip forward or backward, or drag the progress bar to the point
you want to watch.
To exit video playing screen, press Back key to return to video list.
Music8.4 .............................................................
Using this menu, you can play music files stored on the microSD card in
your phone. Music files can be downloaded from computer to microSD
card using a USB cable.
To access this function, touch Application tab from Home screen, then
touch Music.
You will find four libraries in which all songs are classified: Artists,
Albums, Songs, and Playlists. Touch a category and view the list.
With the help of Search key, you can easily search for songs you want to
play in libraries.
To delete a song, press Menu key from playback screen and then touch
Delete to remove it from the microSD card.
You can also set a song as a ringtone, press Menu key from playback screen
to display option menu, then touch Use as ringtone.
101 102
Playing music8.4.1
From any of the four library screens, touch a song to play it back.
Touch to play the current playlist in shuffle mode (tracks are played in random
order).
Touch to open the current playlist.
Touch to toggle repeat mode: Don't repeat, Repeat the playlist, or Repeat the
current track.
Touch to skip to the next track in the album, playlist, or shuffle.
Touch to pause/resume playback.
Touch to skip to the previous track in the album, playlist, or shuffle.
Touch to view lyrics
Adjust volume
To adjust the volume, you can press Volume up and Volume down key.
Using Party shuffle8.4.2
All songs will be displayed in order by default. When Party shuffle is
activated, some songs will be selected and played at random. Press Menu
key, then touch Party shuffle to turn on this function. To turn it off, press
Menu key again, then touch Party shuffle off.
Using Sound effects8.4.3
When Sound effects is activated, songs will be played using various different
filters preset by you. Press Menu key, then touch Sound effects to enter
settings screen. Mark Enable sound effects to turn on this function.
Touch sound effect name to set, and mark it to activate.
Working with playlists8.4.4
Playlists allow you to conveniently organize all the songs stored in the
card.
You can create a new playlist, add a song to the list, rearrange the order of
the list, and delete or rename a playlist.
To create a playlist
Press Menu key from playback screen to display the option menu, touch
Add to playlist, then touch New, enter the name and finally touch
Save.
To change the order of songs in a playlist
Enter a playlist, drag a song up or down to change the order within the
playlist.
To delete a song or a playlist
Locate the song or playlist you want to delete, touch and hold or press
Menu key from playback screen to display option menu, then touch
Delete.
To rename a playlist
Locate the playlist you want to rename, touch and hold to display option
menu, then touch Rename. When finished, touch Save.
103 104
Google Maps
9
....................
Get My Location9.1
Choose a data source to decide My Location9.1.1
Press Menu key from Home screen, touch Settings\Location.
Mark the check box of • Use wireless networks to set Wi-Fi and/or
mobile networks as My Location data source.
Or mark the check box of • Use GPS satellites to set GPS as My
Location data source. You can also mark GPS EPO assistance or A-GPS
to speed up the GPS location fix time.
Open Google Maps and view My Location9.1.2
Touch Application tab from Home screen, then touch Maps.
Touch
in search bar to identify your location.
The map will then center on a blue arrow with a blue circle around. Your
actual position is within the blue circle.
To zoom in and out of a map, touch the plus or minus side of the zoom
control , or you can also zoom in/out by double-tapping a
location on screen.
To clear the map history, press Menu key and touch Clear Map.
Search for a location9.2
While viewing a map, press • Menu key and touch Search, or you can
directly press Search key on keyboard to activate search function.
In the search box, enter an address, a city or a local business. •
Touch the search icon and in a while your search results will appear on •
the map highlighted by markers with letter labels.
You can touch a marker to open a balloon that contains a label. Touch
the balloon to open a screen with more handy information about the
location.
To move the map, drag the map with your finger.
105 106
Star a location9.3
Just like bookmarking a web address on the Internet, you can star any
position on the map for later use.
How to star (or unstar) a location9.3.1
Touch & hold a location on a map•
Touch the address rectangle that opens•
Touch the gray star at the top of the screen to star the location. (Or •
touch a gold star to unstar that location.)
View a list of starred items9.3.2
Press • Menu key from maps screen and touch My Places.
The list of your starred items and their addresses opens. •
Touch a location in the list to view it . •
Press Menu key and touch Refresh to update the list.
Get driving, public transport or walking 9.4
directions
Get suggested routes for your trip9.4.1
Press • Menu key from maps screen and touch Directions.
Touch enter bar or • to edit your start point by one of the following
methods: entering an address, using My Location, selecting a start point
on a map, selecting a starred item, selecting an address from your
contacts or using search history.
Do likewise for your end point. •
To reverse directions, press • Menu key and touch Reverse Start & End.
Then select a transport mode: driving by car, using public transport, or •
walking directions.
Finally touch • Get directions.
A couple of suggested routes will appear in a list. Touch any routes to •
view their respective detailed directions.
To get reverse directions for a route you’ve already made, simply open that
route’s directions window and select Reverse. No need to enter your
start point and end point again.
107 108
Preview suggested routes and decide on a route 9.4.2
more preferable or feasible to you
You can preview each turn in your route in Navigation, Satellite, and other
views.
Touch a left or right arrow to preview the next or previous leg of your •
route.
You can view turn-by-turn directions in a list by touching • , press Back
key to return to previous view.
When selecting a more preferable or feasible route, distance and time
will be the two most important factors for your evaluation. Distance and
estimated time will be displayed at the top of the directions screen.
Search for locations along your route9.4.3
Please refer to section 9.2 for detailed information.
View route progress and calculate estimated 9.4.4
arrival time
To view your route progress, pinpoint My Location, zoom out until the
whole route goes into one screen, with both finished and unfinished miles
in sight.
Start another Directions screen based on your current and intended
destination locations. Estimated arrival time will be shown in the results.
Please note that the estimated arrival time is not available for the public
transport mode.
View traffic conditions on your route9.4.5
At the lower-left corner of navigation view, a traffic light indicates the
overall traffic conditions on your route, next to the estimated time of
arrival at your destination. You can also view the traffic conditions on each
segment of your route.
Touch the traffic light at the lower left of the Navigation View. Your route
opens in Traffic View, with color coding to indicate the traffic along the way.
Touch the navigation icon to return to your current location in Navigation
View
Get an alternative route to your destination9.4.6
If traffic is slow on your current route, or if you just want to try a different
route, you can request an alternative route from Google Maps with turnby-turn Navigation service.
Press Menu key and touch Route information. Touch the alternative
route icon. An alternative route is drawn on the map.
Arrangement of Layers9.5
Layers allow you to view locations and additional information overlaid
on the map. You can add multiple layers or remove only certain layers so
you control exactly what information you want visible on the map at one
time.
To view multiple layers9.5.1
Touch • in the search bar
All available layers are listed (like Traffic, Satellite, Latitude, etc), select •
one to view.
109 110
To open Street View for a location9.5.2
Touch and hold a location to display a balloon with the address and a •
Street View thumbnail.
Touch the balloon and touch • Street view.
To clear the map9.5.3
After you get directions or search on a map, you can clear the markers/
layers that have been drawn: press Menu key on maps screen and touch
Clear Map.
Join Latitude to see your friends' locations 9.6
and share yours with them
With Google Latitude, you can:
see your friends' locations on a map or in a list.•
quickly contact your friends with a text message, instant message, or •
phone call.
you can share, set, hide your location, or sign out of Google Latitude.•
control who sees your location, and at what level of detail.•
add Latitude widget to home screen to see nearby friends at a glance.•
To join Latitude9.6.1
Press • Menu key from maps screen.
Touch • Join Latitude.
When you joined Latitude, the menu item changes to Latitude.
To open Latitude, press Menu key from maps screen, then touch Latitude.
How to invite friends to share their locations9.6.2
Press • Menu key from Latitude screen, touch Add friends.
Touch • Select from Contacts or Add via email address.
After selecting your chosen contacts touch • Add friends at the bottom
of the screen.
When finished, an invitation will be sent to the friends you have invited.
To respond to an invitation, you can select one of the following:
Accept and share •
back
Accept, but hide •
my location
Don’t accept• No locations can be shared between you and
You and your friend can share locations with
each other.
You can view your friend's location, but they can
not view yours.
your friend.
To view your friends' location9.6.3
You can view your friends' locations on a map or in a list.
Map view• When Google Maps is opened, your friends'
List view• Press Menu key from maps screen, then touch
locations will display with their photo icon for
identification.
Latitude. Your friends are displayed in a list.
111 112
To connect with your friends9.6.4
Select a contact, you can communicate with your friend and set privacy
options.
Show on map• Locate the friend's position on the map.
Chat using Google •
Talk
Send email• Send email to the friend.
Directions• Get directions to this friend's location.
Hide from •
this friend
Share only •
city level location
Remove• Remove this friend from your list and stop sharing
Send instant message to the friend.
Set to hide your location from this friend.
Set to share only locations at city level, but not
street level, etc.
information with him or her.
To control what you share9.6.5
You can control the information you want to share with your friends.
Press Menu key from maps screen, touch Latitude, touch your own name
and then touch Edit privacy settings.
The following options are available to choose from:
Detect your •
location
Set your location• Select a location on the map manually.
Do not update •
your location
Enable location •
history
Sign out of •
Latitude
Enable Latitude to detect your location automatically
when you move around.
Hide your location from all friends.
Location history won't be shared with others.
Deactivate Latitude and stop sharing.
113 114
10
Others
.................................
File Manager10.1 .................................................
To access this function, touch Application tab from Home screen, then
touch File Manager.
File Manager works with your SD card instead of your phone memory.
To use it, you have to install your SD card first. See page 15 for instructions
on inserting the SD card.
File Manager displays all data stored on the microSD card, including
applications, media files downloaded from Android Market, YouTube or
other locations; video, pictures or audios you have captured; other data
transferred via Bluetooth, USB cable, etc.
When you download an application from PC to microSD card, you can
locate the application on File Manager, then touch it to install it in your
phone.
File Manager allows you to perform and be really efficient with the
following common operations: create (sub) folder, open folder/file, view,
rename, copy, delete, play, share, etc.
Sound Recorder10.2 ...........................................
To access this function, touch Application tab from Home screen, then
touch Sound Recorder.
Sound Recorder allows you to record voice/sound for seconds/hours.
FM Radio10.3 ......................................................
Your phone is equipped with a radio
use the application as a traditional radio with saved channels or with
parallel visual information related to the radio program on the display if
you tune to stations that offer Visual Radio service.
To access this function, touch Application tab from Home screen, then
touch FM Radio.
To use it, you must plug in your headset, which works as an antenna
connected with your phone.
Touch to swith the audio
mode between loudspeaker
Touch to increase 0.1MHz
and headset.
Touch to go to previous saved channel
(1)
with RDS
Touch to decrease 0.1MHz
(2)
functionality. You can
Touch to play/stop
Touch to open and view
the saved channels list
Touch to add the current
station to favorites.
Touch to go to next saved
channel
(1)
The quality of the radio depends on the coverage of the radio station in that
particular area.
(2)
Depending on your network operator and market.
115 116
Available options:
(1)
Exit• Turn off the radio.
Search• Touch to search for all available stations
automatically.
(1)
RDS settings •
Mark the check box the enable the function
Battery Saver10.4 .............................................
To access this function, touch Application tab from Home screen, then
touch Battery Saver.
Battery Saver includes an accurate overview of battery usage and
provides an efficient way of power saving by utilizing a range of battery
settings and by killing non-essential tasks.
Setup Wizard 10.5 ............................................
To access this function, touch Application tab from Home screen, then
touch Setup Wizard.
Setup Wizard helps set up your phone in multiple ways: language, input
method, mobile data connection, account setup and synchronization,
system update, etc. This will also be performed the first time you power
on your phone.
Traffic Manager10.6 ..........................................
To access this function, touch Application tab from Home screen, then
touch Traffic Manager.
Traffic Manager helps check the data you have used, including general
calls and messages as well as applications, which will avoid extra fees from
your network operator.
Alcatel Help10.7 ...............................................
To access this function, touch Application tab from Home screen, then
touch Alcatel Help.
Alcatel Help provides help when you have questions or need assistance
when using the phone.
Other applications 10.8
The previous applications in this section are preinstalled to your phone.
To read a brief introduction of the preinstalled 3rd party applications,
please refer to the leaflet provided with the phone. You can also download
thousands more 3rd party applications by going to Android Market on
your phone.
(1)
.........................................
(1)
Depending on your network operator and market.
117 118
(1)
Application availability depends on country and operator.
11
To access this function, touch Application tab from Home screen, and touch
Settings on applications list, or you can also press Menu key from Home
screen and touch Settings.
Settings
.........................
SIM management11.1
Messaging
Set default SIM for sending a message.
Data connection
You can either set the data connection via SIM1/SIM2, or select Off to
prevent your phone from transmitting data on any mobile networks. This
is useful to avoid incurring significant data use charges on local carrier
mobile networks, particularly if you do not have a mobile data agreement
on one of the SIMs.
SIM information11.1.1
Mark the check box of the SIM card to enable this setting. Touch the SIM
name on the left to edit details.
Edit SIM name Touch to enter a SIM name.
Enter phone number Touch to set the phone number.
Set background color Touch to set background color for the SIM
Display numbers Touch to select the way numbers display.
card.
Default SIM11.1.2
Touch to set your preferred default SIM.
Voice call
Set default SIM for placing a voice call.
Video call
Check default SIM for placing a video call.
(1)
Depending on your model and network operator.
(1)
119 120
General settings11.1.3
Roaming
Data roaming If you don’t need to transmit data on other carriers’
Show roaming
reminder
mobile networks, unmark the check box to avoid
incurring significant roaming charges.
Set reminder: Once, Always, Never.
Wireless & networks11.2
Airplane mode11.2.1
Mark the check box of Airplane mode to simultaneously disable all
wireless connections including Wi-Fi, Bluetooth and more.
Wi-Fi11.2.2
Using Wi-Fi you can now surf the Internet without using your SIM card
whenever you are in range of a wireless network. The only thing you have
to do is to enter the Wi-Fi settings screen and configure an access point
to connect your phone to the wireless network.
For detailed instructions on using Wi-Fi, please refer to section 6.1.2
Wi-Fi.
Bluetooth 11.2.3
Bluetooth allows your phone to exchange data (videos, images, music and
more) over short distances with another Bluetooth supported device
(phone, computer, printer, headset, car kit and more).
For more information on Bluetooth, please refer to section 6.3 Connecting
to Bluetooth devices.
Tethering & portable hotspot11.2.4
This function allows you to share your phone's mobile data connection via
USB or as a portable Wi-Fi access point (Please refer to section 6.5).
VPN settings11.2.5
A mobile virtual private network (mobile VPN or mVPN) provides mobile
devices with access to network resources and software applications on
their home network, when they connect via other wireless or wired
networks. Mobile VPNs are used in environments where workers need to
keep application sessions open at all times, throughout the working day,
as the user connects via various wireless networks, encounters gaps in
coverage, or suspend-and-resumes their devices to preserve battery life. A
conventional VPN cannot survive such events because the network tunnel
is disrupted, causing applications to disconnect, time out, fail, or even the
computing device itself to crash.
For more information of VPN, please refer to section 6.6 Connecting to
virtual private networks.
Mobile networks11.2.6
Data usage
Touch to view how much data has been transmitted over a mobile network
in the current period for a particular SIM card. You can also reset the data
usage value.
Network Mode
You can select your preferred network with this menu.
Access Point Names
Touch to enter Access Point Names list, where you can check the data
connection you are using. You can also add/delete/edit an APN
(1)
. (refer
to section 6.1.1 GPRS/EDGE/3G)
Network operators
Touch to select a network operator.
GPRS transfer pref.11.2.7
You can connect to a GPRS service and GSM service (voice, SMS), but
using only one or the other at a given time. Mark the check box of GPRS
transfer pref. to prevent data transmission during a voice call.
(1)
Application availability depends on country and operator.
121 122
Call settings11.3
Use Call settings to configure normal phone call settings and other special
features offered by your carrier. You can also use Call settings to configure
the phone so that it can place outgoing calls only to a fixed set of phone
numbers.
Voice call11.3.1
Voicemail
Voicemail service• Opens a dialog where you can select your carrier’s
voicemail service or another service.
Voicemail settings• If you are using your carrier’s voicemail service,
this opens a dialog where you can enter the phone
number to use for listening to and managing your
voicemail. You can enter a comma (,) to insert a
pause into the number — for example, to add a
password after the phone number.
Call forwarding
Touch to configure how your calls are forwarded when you are busy,
unanswered or unreachable.
Call barring
Touch to configure Call barring settings. Mark the check box to activate the
call barring for outgoing and incoming calls.
Additional settings
Caller ID• Opens a dialog where you can set whether your
phone number is displayed when making calls.
Call waiting• Mark the check box to notify you of a new
incoming call.
123 124
Video call 11.3.2
Picture for replacing
local video
(1)
You can pick a picture from your collection to
display when Camera is unreachable.
Enable back camera Touch to enable switching between back or front
cameras during a call.
Peer video bigger
Touch to enable a bigger view of peer.
than local video
Outgoing video call Touch to display local video when you place a
call.
Incoming video call Touch to display local video when receiving an
incoming call.
Call forwarding Refer to section 11.3.1 Voice call
Call barring Refer to section 11.3.1 Voice call
Additional settings Refer to section 11.3.1 Voice call
Internet call11.3.3
For more information of Internet call, please refer to section 6.7
Configuring Internet (SIP) calling.
Other settings11.3.4
Fixed Dialing Numbers
Fixed Dialing Number (FDN) is a service mode of SIM, where outgoing
calls are restricted to a set of phone numbers. These numbers are added to
the FDN list. The most common practical application of FDN is for parents
to restrict the phone numbers to which their children can dial.
For security reasons, you’ll be prompted to enable FDN by entering SIM
PIN2 which is usually acquired from your service provider or SIM maker.
(1)
Depending on your model.
Call cost
Touch to view the Last call cost/Total cost/Max cost/Reset call cost/
Set currency and price per unit, modify or reset them.
Cell broadcast
Enable receipt of CB messages by marking the check box of Cell
broadcast.
You can access a series of adjustable CB settings by touching Cell
broadcast settings.
Minute reminder
Mark the check box to enable minute reminder at 50s of every minute
during a call.
Phone settings
If you want to reject a call with SMS, you might touch Phone settings to
edit default message or select to edit massage before sending.
TTY settings
TTY mode can be used by people who are deaf, have bad hearing or speech
impairments.
After connecting the cell phone and TTY machine it connects to a relay
service, which converts incoming speech to text for the person using the
TTY and converts outgoing text from the TTY machine to a spoken voice
for the person on the other end of the conversation.
Audio profiles11.4
Use the Audio profiles settings to configure ringtones for different events
and environments.
To revert to the default settings, press Menu key and touch Restore
defaults.
General11.4.1
To modify the sound settings within any profile, touch General to view
the following functions by scrolling up/down. When finished, mark the
check box on the right of the profile's name to activate the action.
Vibrate• Mark the check box to vibrate phone for incoming
Volume• Touch to set volume for incoming calls, alarm and
Voice call •
ringtone
Video call •
ringtone
Notification •
ringtone
Audible touch •
tones
Audible selection• Mark the check box to enable playing sound when
Screen lock sounds•
Haptic feedback• Mark the check box to activate vibration when
calls.
notifications.
Touch to set your default voice incoming call
ringtone.
Touch to set your default video incoming call
ringtone.
Touch to set your default notification ringtone.
Mark the check box to enable playing tones when
using dial pad.
making screen selection.
Mark the check box to enable sounds to play
when locking and unlocking the screen.
pressing soft keys and on certain UI interactions.
125 126
Silent11.4.2
This profile will silence all sounds except media & alarms.
Meeting11.4.3
When this is selected the phone will not ring or beep by default unless an
alarm has been set. A new event will cause it to vibrate.
Outdoor11.4.4
This profile is designed for outdoor users who require louder ringtones.
Display11.5
Auto-rotate •
screen
Animation• Touch to select whether to show some, all or no
Brightness• Touch to adjust the brightness of the screen.
Screen timeout• Touch to set screen timeout.
Mark the check box to activate automatic
orientation switch when rotating phone.
animations.
Location11.6
Use the Location settings to set your preferences for using and sharing
your location when your search for information and use location-aware
applications, such as Google Maps.
My Location11.6.1
Use wireless networks
Mark the check box to use information from Wi-Fi and mobile networks
to determine your approximate location, for use in Google Maps, when
you search, and so on. When you select this option, you’re asked whether
you consent to sharing your location anonymously with Google’s location
service.
Use GPS satellites
Check to use your phone’s global positioning system (GPS) satellite
receiver to pinpoint your location within an accuracy as close as several
meters (“street level”). The process of accessing the GPS satellite and
setting your phone's precise location for the first time will require up to
5 minutes. You will need to stand in a place with a clear view of the sky
and avoid moving. After this, GPS will only need 20-40 seconds to identify
your precise location.
GPS EPO assistance
Check to enable EPO (Extended Prediction Orbit) assistance. EPO is
one of the off-line server based A-GPS technologies. It supports up to 30
days satellite orbit prediction, which can be used to greatly improve user
experience by speeding up GPS Time To First Fix (TTFF).
127 128
EPO settings
Auto download• Mark the check box to permit applications to
EPO file info• Check download time, start time and expiry time
About EPO• Touch to learn more.
Touch Download at the bottom of the screen to download satellite
position data manually.
A-GPS/A-GPS settings
Check to enable A-GPS (assisted GPS), which improves the startup
performance, or time-to-first-fix (TTFF) of a GPS satellite-based positioning
system.
Disable after •
reboot
Network request• Select to allow network to request position.
Profile selector• Select a profile selector.
Mobile network• Check data connection status.
download data according to their own schedule.
for satellite position data.
Select to disable A-GPS capability after reboot.
Security11.6.2
Use the Security settings to define your usage preferences. You can also
configure settings that help secure your phone and its data.
Screen unlock11.6.3
Set up screen lock
None• Touch to disable screen unlock security.
Pattern• Touch to draw pattern to unlock screen.
PIN• Touch to enter a numeric PIN to unlock screen.
Password• Touch to enter a password to unlock screen.
SIM card lock11.6.4
Set up SIM card lock
Opens a screen where you can configure the PIN required to use the
phone, and where you can change the SIM PIN.
Passwords11.6.5
Visible passwords
Mark the check box to show password as you type.
Device administration11.6.6
Touch to add or remove device administrators.
129 130
Credential storage11.6.7
Use secure credentials
Mark the check box to allow applications to access your phone’s encrypted
store of secure certificates and related passwords and other credentials.
Credential storage is used to establish some kinds of VPN and Wi-Fi
connections. If you have not set a password for the credential storage, this
setting is dimmed.
Install from SD card
Touch to install encrypted certificates from the microSD card.
Set password
Touch to set or change a password for the credential storage (at least 8
characters).
Clear storage
Touch to clear credential storage of all contents and reset its password.
Applications11.7
You use the Applications settings to view details about the applications
installed on your phone, to manage their data and force them to stop, and
to set whether you want to permit installation of applications that you
obtain from web sites and email.
Unknown sources
Mark the check box to permit installation of applications that you obtain
from web sites, email, or other locations other than Android Market.
To protect your phone and personal data, download applications only from
trusted sources, such as Android Market.
Manage applications
Touch to manage and remove installed applications.
Running services
Touch to open a list of services—applications or parts of applications that
provide services to other applications, or that run even when their main
application isn’t running. Examples include the Android onscreen keyboard
and the small portion of Google Talk that always listens for incoming
messages. Above each service, one or more gray bars show what processes
the running service needs and how much memory they're using (how much
memory you would recover if you stopped the service). Depending on the
service, when you touch it in the list it either opens a dialog in which you
can stop it or opens its Settings screen.
Storage use
Touch to view available memory and the memory used by applications on
your phone.
Battery use
Touch to view the amount of power consumed by your phone. It also
shows which applications consume the most battery power. For more
information, refer to section 11.16 About phone.
131 132
Development
The Development screen contains settings that are useful for developing
Android applications. For full information, including documentation of the
Android applications and development tools, see the Android developer
web site (http://developer.android.com).
USB debugging:• mark the check box to permit debugging tools on a
computer to communicate with your phone via a USB connection.
Stay awake:• mark the check box to prevent the screen from dimming
and locking when the phone is connected to a charger or to a USB
device that provides power. Don’t use this setting with a static image on
the phone for long periods of time, or the screen may be marked with
that image.
Allow mock locations:• mark the check box to permit a development
tool on a computer to control where the phone believes it is located,
rather than using the phone’s own internal tools for this purpose.
Accounts & sync11.8
Use the Accounts & Sync settings to add, remove, and manage your Google
and other supported accounts. You also use these settings to control how
and whether all applications send, receive, and synchronize data on their
own schedules, and whether all applications can synchronize user data
automatically.
Gmail, Google Calendar, and other applications may also have their own
settings to control how they synchronize data; see the sections on those
applications for details.
General sync settings11.8.1
Background data
Mark the check box to permit applications to synchronize data in the
background, whether or not you are actively working in them. Unmarking
this setting can save battery power and lowers (but does not eliminate)
data use.
Auto-sync
Mark the check box to permit applications to synchronize data on their
own schedule. If you unmark this setting, you must touch an account in the
list on this screen, touch Sync now to synchronize data for that account.
Synchronizing data automatically is disabled if Background data is
unchecked. In that case, the Auto-sync checkbox is dimmed.
133 134
Manage accounts11.8.2
The rest of this screen lists the Google Accounts and other accounts
you’ve added to the phone. If you touch an account in this screen, its
account screen opens.
This screen contains different options, depending on the kind of account.
For Google Accounts, it lists the kinds of data you can synchronize to the
phone, with checkboxes so you can turn synchronizing on and off for each
kind. You can also touch Sync now to synchronize data. Press Menu key
and touch Remove account to remove the account along with all its data
(contacts, mail, settings, and so on).
Privacy11.9
You use the Privacy settings to manage your personal information.
Back up my data
Mark the check box to back up your phone’s settings and other application
data to Google Servers, with your Google Account. If you replace your
phone, the settings and data you’ve backed up are restored onto the new
phone the first time you sign in with your Google Account. If you mark this
option, a wide variety of settings and data are backed up, including your
Wi-Fi passwords, bookmarks, a list of the applications you’ve installed, the
words you’ve added to the dictionary used by the onscreen keyboard, and
most of the settings that you configure with the Settings application. If you
unmark this option, you stop backing up your settings, and any existing
backups are deleted from Google Servers.
Automatic restore
Mark the check box to restore your backed up settings or other data when
you reinstall an application.
Factory data reset
Erase all of your personal data from internal phone storage, including
information about your Google Account, any other accounts, your system
and application settings, and any downloaded applications. You can also
mark the Erase SD card check box to erase all the data on your microSD
card, such as music or photos. If you reset the phone in this way, you’re
prompted to re-enter the same kind of information as when you first
started Android.
When you are unable to power on your phone, there is another way to
perform a factory data reset by using hardware keys. Hold down Volume
up key and press Power key at same time until the screen lights up.
SD card & phone storage11.10
Use the microSD card & Phone Storage settings to monitor the total and
available space on your phone and on your microSD card; to manage your
microSD card; and if necessary, to reset the phone, erasing all of your
personal information.
SD card11.10.1
Total space/Available space
Lists the amount of space on any microSD card installed in your phone and
the amount you can use to store photos, videos, music, and other files.
Unmount SD card
Unmounts the microSD card from your phone so that you can format the
card or safely remove it when the phone is on. This setting is dimmed if
there is no microSD card installed, if you have already unmounted it, or if
you have mounted the microSD card on your computer.
135 136
Erase SD card
Permanently erases everything on a microSD card and prepares it for
use with your phone. You must unmount a microSD card before you can
format it.
Internal storage11.10.2
Available space
Display the amount of internal phone storage used by the operating
system, its components, applications (including those you downloaded), and
their permanent and temporary data.
If a warning message comes up saying that phone memory is limited,
you are required to free up space by deleting some unwanted
applications, downloaded files etc.
Language & keyboard11.11
Use the Language & keyboard settings to select the language for the text
on your phone and for configuring the onscreen keyboard, including words
that you’ve added to its dictionary.
Select language11.11.1
Touch to select language and region you want.
User dictionary 11.11.2
Touch to open a list of the words you’ve added to the dictionary. Touch
a word to edit or delete it. Press Menu key and touch Add to add a
word.
Android keyboard 11.11.3
For phones with physical keyboards, unmark to disable the onscreen
keyboard.
The Android keyboard settings apply to the onscreen keyboard that is
included with your phone. The correction and capitalization features affect
only the English version of the keyboard. Available options are as follows:
Vibrate on keypress •
Mark the check box to have the phone vibrate briefly each time you touch
a key on the onscreen keyboard.
Sound on keypress •
Mark the check box to play a brief sound each time you touch a key on
the onscreen keyboard.
Popup on keypress•
Touching a key causes a larger image of itself to pop up when this check
box is marked.
Touch to correct words•
Marking this check box will underline any word that is touched in a text
field, if the keyboard can suggest alternatives.
Auto-capitalization •
Mark the check box to have the onscreen keyboard automatically capitalize
the first letter of the first word after a period, the first word in a text field,
and each word in name fields.
Show settings key•
Touch to display or not the settings key.
Voice input•
Touch to display or not the Mic button on keyboard.
137 138
Input languages•
Touch to set input language.
Quick fixes•
Correct commonly typed mistakes.
Show suggestions •
Display suggested words while typing.
Auto-complete•
Spacebar and punctuation automatically insert highlighted word.
TouchPal keyboard11.11.4
The TouchPal Input will allow you input text easily. You can make changes
to the settings for easy input.
Available options are as follows:
Key press sound•
Touch to adjust volume of key press sound.
Key press vibration•
Touch to change the level of vibration.
Keypress popup•
Mark or unmark the check box to activate/deactivate the function.
Alternative symbols•
Mark the check box to enable multiple choice mode for each key.
Keyboard layout•
Touch to enter Keyboard layout settings. Mark/unmark the check box to
activate or deactivate functions such as Enable function bar, Enlarge
key board height, etc.
Smart input•
Touch to enter TouchPal Input settings. Mark/unmark the check box to
activate or deactivate functions such as Word prediction, Correct
mistyping, etc.
TouchPal Curve•
TouchPal Curve perfectly combines swiping with prediction. With Curve,
you may swipe only a part of the word and pause in the middle at anytime.
Touch to configure related settings.
Languages•
Touch to select the language you may use.
Dictionary management•
Manage user dictionary. You can import your contacts from phone
Contacts, update dictionaries from server, or Backup & restore the user
dictionary.
Help•
Touch related options to learn more about TouchPal.
Select input method11.11.5
Touch to open a dialog where you can select a default input method.
139 140
Voice input & output11.12
Voice recognizer settings11.12.1
Touch to set Google voice recognition items:
Language• Choose an input language
SafeSearch• Set Google Search safety range
Block offensive •
words
You use the Text-to-Speech settings to configure the Android text-tospeech synthesizer, for applications like TalkBack that can take advantage
of it.
If you don’t have speech synthesizer data installed, only the Install voice
data setting is available.
Listen to an example
Touch to play a brief sample of the speech synthesizer, using your current
settings.
Install voice data
If your phone does not have speech synthesizer data installed, connect
to Android Market and find yourself guided through the process of
downloading and installing the data. This setting is not available if the data
is already installed.
Mark the check box to hide recognized offensive
voice results
Text-to-speech settings 11.12.2
(1)
Always use my settings
Mark the check box to use the settings on this screen in place of speech
synthesizer settings available in other applications.
Default engine
Touch to open a dialog where you can select which text-to-speech
application you want to set as default.
Speech rate
Touch to open a dialog where you can select how quickly you want the
synthesizer to speak.
Language
Touch to open a dialog where you can select the language of the text you
want the synthesizer to read. This is particularly useful in combination with
Always Use My Settings, to ensure that text is spoken correctly in a variety
of applications.
Engines
Lists the engines installed on your phone.
(1)
Availability depending on your country and network operator.
141 142
Accessibility 11.13
You use the Accessibility settings to configure any accessibility plug-ins you
have installed on your phone.
Accessibility
Mark the check box to enable all installed accessibility plug-ins.
Power button ends call
Mark the check box to end a call by pressing Powe r key during the call.
(1)
Set time
Opens a dialog where you can set the phone’s time.
Use 24-hour format
Mark the check box to display the time using 24-hour clock format.
Select date format
Touch to open a dialog where you can select the format for displaying
dates.
Quick boot
Mark the check box to disable quick boot by pressing Powe r key.
Date & time11.14
Use Date & Time settings to customize your preferences for how date and
time are displayed.
Automatic
Mark the check box to use network-provided values. Or unmark to set
all values manually.
Set date
Touch to open a dialog where you can manually set the phone’s date.
Select time zone
Touch to open a dialog where you can set the phone’s time zone.
(1)
Availability depending on your country and network operator.
143 144
Schedule power on/off11.15
You can use Schedule power on/off to set your phone to power on/off.
Mark the check box to activate the action.
About phone11.16
Actually this contains information about a lot of things ranging from Legal
information, Model number, Firmware version, Baseband version, Kernel
version, Build number to those listed below:
System updates
System updates, or Firmware Upgrade Manager, gives you the option of
downloading a firmware upgrade over the air directly from your mobile
phone service provider. It ensures that you have the latest software
improvements to enhance the features and performance on your phone.
Check for update• Manually check for new firmware.
Auto-check •
intervals
Reminder• Set a reminder for an unfinished update.
Help• Touch to learn more.
The functions below may incur additional network charges
from your network operator. Extra fees may also be charged
in roaming areas. To ensure a more stable, faster speed, you are
strongly recommended to connect by Wi-Fi when you download
firmware.
Status
This contains the status of the Battery status, Battery level, SIM status, IMEI
information, Wi-Fi MAC address, Bluetooth address, Up time.
Battery use
Touch to open a list of the applications and operating system components
you have used since you last connected the phone to a power source,
sorted by the amount of power they have used. Touch an application in the
list to view details about its power use and, if available, touch a button to
open a settings or information screen for that component or application.
Legal information
Touch to view legal information.
System tutorial
Touch to launch Setup Wizad to learn more of your phone.
Set frequency for auto-checking or set manual
checking.
12
Making the most of your
phone ..................................
You can download software upgrade for free from the website: www.
alcatelonetouch.com.
Android Manager12.1
The Android Manager includes:
Contacts•
It allows you to back up contact entries so that you don't have to worry
about losing, breaking, switching phone or changing service providers.
Messages•
It frees you from painstakingly inputting text on the keypads. All of your
messages are easily accessible and well-organized.
Photos•
It allows you to easily import photos from PC or the handset and organize
them in different albums for better management.
Videos•
It allows you to insert video files from PC for playback and then upload
to handset folder.
Music•
It allows you to quickly search your favourites in PC, manage the ultimate
Library, and enjoy the easiest digital jukebox in your own mobile way.
145 146
Application •
It allows you to import downloaded mobile applications and have them
installed into your handset upon synchronization.
File•
It allows you to organize Handset files with just a few clicks and files on
the Handset can be at where you want them to be.
Sync•
It allows you to synchronize the Contacts and Calendar in Outlook/
Outlook Express and handset.
Supported Operating Systems
Windows XP/Vista/Windows 7.
One Touch Upgrade12.2
Using One Touch Upgrade tool you can update your phone’s software
from your PC.
Download One Touch Upgrade from ALCATEL website (www.
alcatelonetouch.com) and install it on your PC. Launch the tool and update
your phone by following the step by step instructions (refer to the User
Guide provided together with the tool).
Your phone’s software will now have the latest software.
All personal information will be permanently lost following the
update process. We recommend you backup your personal data
using Android Manager before upgrading.
Supported Operating Systems
Windows XP/Vista/Windows 7.
147 148
13
Your phone is warranted against any defect or malfunctioning which may
occur in conditions of normal use during the warranty period of twelve
(12) months
invoice.
Batteries
against any defect which may occur during the first six (6) months
the date of purchase as shown on your original invoice.
In case of any defect of your phone which prevents you from normal
use thereof, you must immediately inform your vendor and present your
phone with your proof of purchase.
If the defect is confirmed, your phone or part thereof will be either
replaced or repaired, as appropriate. Repaired phone and accessories
are entitled to a one (1) month warranty for the same defect. Repair or
replacement may be carried out using reconditioned components offering
equivalent functionality.
This warranty covers the cost of parts and labor but excludes any other
costs.
(1)
The warranty period may vary depending on your country.
(2)
The life of a rechargeable mobile phone battery in terms of conversation time
Telephone warranty
(1)
from the date of purchase as shown on your original
(2)
and accessories sold with your phone are also warranted
standby time, and total service life, will depend on the conditions of use and
network configuration. Batteries being considered expendable supplies, the
specifications state that you should obtain optimal performance for your phone
during the first six months after purchase and for approximately 200 more
recharges.
..........
(1)
from
This warranty shall not apply to defects to your phone and/or accessory
due to (without any limitation):
1) Non-compliance with the instructions for use or installation, or with
technical and safety standards applicable in the geographical area where
your phone is used,
2) Connection to any equipment not supplied or not recommended by
TCT Mobile Limited,
3) Modification or repair performed by individuals not authorised by TCT
Mobile Limited or its affiliates or your vendor,
4) Inclement weather, lightning, fire, humidity, infiltration of liquids
or foods, chemical products, download of files, crash, high voltage,
corrosion, oxidation…
Your phone will not be repaired in cases where labels or serial numbers
(IMEI) have been removed or altered.
There are no express warranties, whether written, oral or implied, other
than this printed limited warranty or the mandatory warranty provided by
your country or jurisdiction.
In no event shall TCT Mobile Limited or any of its affiliates be liable for
indirect, incidental or consequential damages of any nature whatsoever,
including but not limited commercial or financial loss or damage, loss of
data or loss of image to the full extent those damages can be disclaimed
by law.
Some countries/states do not allow the exclusion or limitation of indirect,
incidental or consequential damages, or limitation of the duration of
implied warranties, so the preceding limitations or exclusions may not
apply to you.
14
The latest generation of Alcatel GSM mobile phones offers a built-in
handsfree feature that allows you to use the telephone from a distance, placed
on a table for example. For those who prefer to keep their conversations
confidential, an earpiece is also available known as the headset.
Accessories
Standard charger UK charger
Battery USB cable
Stereo headset
Only use your telephone with the Alcatel batteries, chargers and
accessories in your box.
(1)
.....................
(1)
Pictures for reference only.
149 150
15
Before contacting the service centre, you are advised to follow the
instructions below:
You are advised to fully charge ( • ) the battery for optimal operation.
Avoid storing large amounts of data in your phone as this may affect its •
performance.
Use User Data Format and the One Touch Upgrade tool to perform phone •
formatting or software upgrading, (to reset User Data format, hold down
Volume up key while simultaneously pressing the Powe r key). ALL User
phone data: contacts, photos, messages and files, downloaded applications
like APK games will be lost permanently. It is strongly advised to fully backup
the phone data and profile via Android Manager before doing formatting and
upgrading.
and carry out the following checks:
My phone is frozen or cannot switch on
Check the battery contacts, remove and reinstall your battery, then turn your •
phone on
Check the battery power level, charge for at least 20 minutes•
If it still does not work, please use User Data Format to reset the phone•
My phone has not responded for several minutes
Restart your phone by pressing and holding the • Power key
Remove the battery and re-insert it, then restart the phone•
My phone turns off by itself
Check that your keypad is locked when you are not using your phone, and •
make sure Powe r key is not mis-contacted due to unlocking keypad.
Check the battery charge level•
Troubleshooting
.................
My phone cannot charge properly
Make sure you are using an Alcatel battery and the charger from the box•
Make sure your battery is inserted properly and clean the battery contact if •
it’s dirty. It must be inserted before plugging in the charger
Make sure that your battery is not completely discharged; if the battery power •
is empty for a long time, it may take around 20 minutes to display the battery
charger indicator on the screen.
Make sure charging is carried out under normal conditions (0°C to +40°C)•
When abroad, check that the voltage input is compatible•
My phone cannot connect to a network or “No service” is displayed
Try connecting in another location•
Verify the network coverage with your operator•
Check with your operator that your SIM card is valid•
Try selecting the available network(s) manually (see Page 68)•
Try connecting at a later time if the network is overloaded•
My phone cannot connect to the Internet
Check that the IMEI number (press *#06#) is the same as the one printed on •
your warranty card or box.
Make sure that the internet access service of your SIM card is available.•
Check your phone's Internet connecting settings•
Make sure you are in a place with network coverage•
Try connecting at a later time or another location•
Invalid SIM card
Make sure the SIM card has been correctly inserted (see Page 14)•
Make sure the chip on your SIM card is not damaged or scratched•
Make sure the service of your SIM card is available•
Unable to make outgoing calls
Make sure you have dialed a valid number and touch •
For international calls, check the country and area codes•
Make sure your phone is connected to a network, and the network is not •
overloaded or unavailable
Check your subscription status with your operator (credit, SIM card valid, •
etc.)
Make sure you have not barred outgoing calls •
Make sure that your phone is not in flight mode•
151 152
Unable to receive incoming calls
Make sure your phone is switched on and connected to a network (check for •
overloaded or unavailable network)
Check your subscription status with your operator (credit, SIM card valid, •
etc.)
Make sure you have not forwarded incoming calls •
Make sure that you have not barred certain calls•
Make sure that your phone is not in flight mode•
The caller’s name/number does not appear when a call is received
Check that you have subscribed to this service with your operator•
Your caller has concealed his/her name or number•
I cannot find my contacts
Make sure your SIM card is not broken•
Make sure your SIM card is inserted properly•
Import all contacts stored in SIM card to phone•
The sound quality of the calls is poor
You can adjust the volume during a call by pressing the • Volume key
Check the network strength •
Make sure that the receiver, connector or speaker on your phone is clean•
I am unable to use the features described in the manual
Check with your operator to make sure that your subscription includes this •
service
Make sure this feature does not require an Alcatel accessory•
When I select a number from my contacts, the number cannot be
dialed
Make sure that you have correctly recorded the number in your file•
Make sure that you have selected the country prefix when calling a foreign •
country
I am unable to add a contact in my contacts
Make sure that your SIM card contacts are not full; delete some files or save •
the files in the phone contacts (i.e. your professional or personal directories)
My callers are unable to leave messages on my voicemail
Contact your network operator to check service availability•
I cannot access my voicemail
Make sure your operator’s voicemail number is correctly entered in “• My
numbers”
Try later if the network is busy•
I am unable to send and receive MMS
Check your phone memory availability as it might be full•
Contact your network operator to check service availability and check MMS •
parameters (see Page 51)
Verify the server centre number or your MMS profile with your operator•
The server centre may be swamped, try again later•
SIM card PIN locked
Contact your network operator to obtain the PUK code (Personal •
Unblocking Key)
I am unable to connect my phone to my computer
Install Alcatel Android Manager first of all•
Check that your USB driver is installed properly•
Open the Notification panel to check if the Android Manager Agent has •
activated
Check that you have ticked the checkbox of USB debugging in • Settings\
Applications\Development\USB debugging
Check that your computer meets the requirements for Alcatel Android •
Manager Installation
Make sure that you’re using the right cable from the box.•
I am unable to download new files
Make sure there is sufficient phone memory for your download•
Select the microSD card as the location to store downloaded files•
Check your subscription status with your operator•
The phone cannot be detected by others via Bluetooth
Make sure that Bluetooth is turned on and your phone is visible to other •
users (see Page 81)
Make sure that the two phones are within Bluetooth’s detection range•
153 154
How to make your battery last longer
Make sure you follow the complete charge time (minimum 3 hours)•
After a partial charge, the battery level indicator may not be exact. Wait for at •
least 20 minutes after removing the charger to obtain an exact indication
Switch on the backlight upon request.•
Extend the email auto-check interval for as long as possible.•
Update news and weather information on manual demand, or increase their •
auto-check interval.
Exit background-running applications if they are not being used for a long time.•
Deactivate Bluetooth, Wi-Fi, or GPS when not in use.•
The phone becomes warm after prolonged calls, game playing,
internet surfing or running other complex applications
This heating is a normal consequence of the CPU handling excessive data. •
Ending above actions will make your phone return to normal temperature.
16
Processor Platform MTK6573
Platform Android™ 2.3
Memory ROM: 512 MB
Dimensions
(LxWxT)
Weight Around 123 grams with battery
Display 3.2-inch TFT-LCD touchscreen with 320×480
Network UMTS:
GPS Assisted GPS/Internal GPS antenna
Connectivity Bluetooth•
Camera 3.0 megapixel color camera
Specifications
RAM: 256 MB
112×58.6×12.1 mm
HVGA resolution
Dual-band 900/2100 MHz (one touch 918/one
touch 918D); 850/2100 MHz (one touch 918N)
GSM/GPRS/EDGE:
Quad-band 850/900/1800/1900 MHz
(Band frequency and data speed are operator
dependent.)
®
3.0 A2DP
®
: IEEE 802.11 b/g/n
Wi-Fi•
3.5 mm audio jack•
micro-USB•
155 156
Audio supported
formats
Video supported
formats
Battery Rechargeable Lithium-ion battery•
Expansion Slot microSD™ memory card
Special Features G-sensor•
Note Specifications are subject to change without prior notice.
AAC, AAC+, AAC Enhanced, WB AMR, MP3,
Midi
MPEG-4 (playback only),
H.263, H.264 (playback only)
Capacity: 1300 mAh•
(Availability of microSD card depends on
market)
Digital Compass•
Proximity sensor•
ALCATEL is a trademark of Alcatel-Lucent
and is used under license by
TCT Mobile Limited.
© Copyright 2011 TCT Mobile Limited
All rights reserved
TCT Mobile Limited reserves
the right to alter material
or technical specification
without prior notice.
English - CJA3210ALAAA
157 158
Loading...
