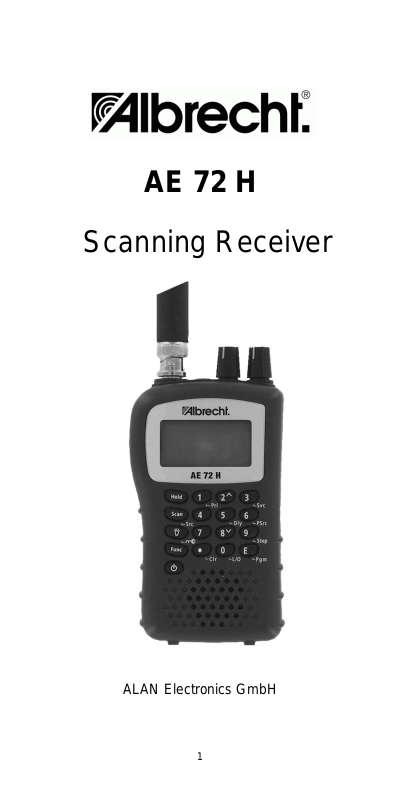

Albrecht AE72H User Guide

AE 72 H

Scanning Receiver

ALAN Electronics GmbH

AE72H Controls and Display

Antenna (See “Connecting the Antenna” on Page 12) Headphone Jack Squelch

Volume

Display

Power

Keypad

DC 6V Jack

Contents

AE72H Controls and Display............................. 2

Introduction................................ ............................ 4

Precautions................................ ............................ 4

Earphone Warning................................ ................ 4

Safety Warning...................................................... 4

Legal notes:................................ ........................... 4

Feature Highlights................................ ................. 6

About this Manual................................ .................. 7

Understanding Scanning....................................... 7

What is Scanning?................................ ................ 7

What is Searching?............................................... 7

Conventional Scanning................................ ......... 7

Simplex Operation................................ ................. 8

Repeater Operation................................ ............... 8

Where to obtain more Information........................ 8

Included with Your Scanner................................ .. 9

Setting Up Your Scanner ................................ ......9

Using Internal Batteries................................ ........... 9

Using Rechargeable Batteries................................ . 9

Using Non-Rechargeable Batteries ....................... 10

Using AC Power................................ .................. 11

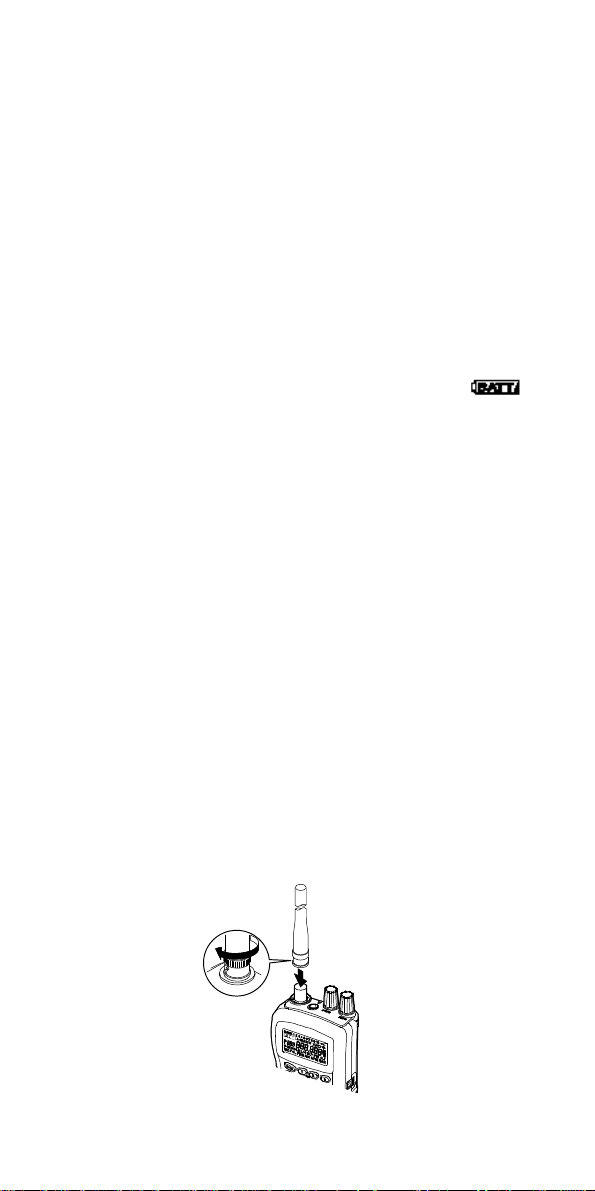

Connecting the Antenna...................................... 11

Connecting an Optional Antenna........................... 12

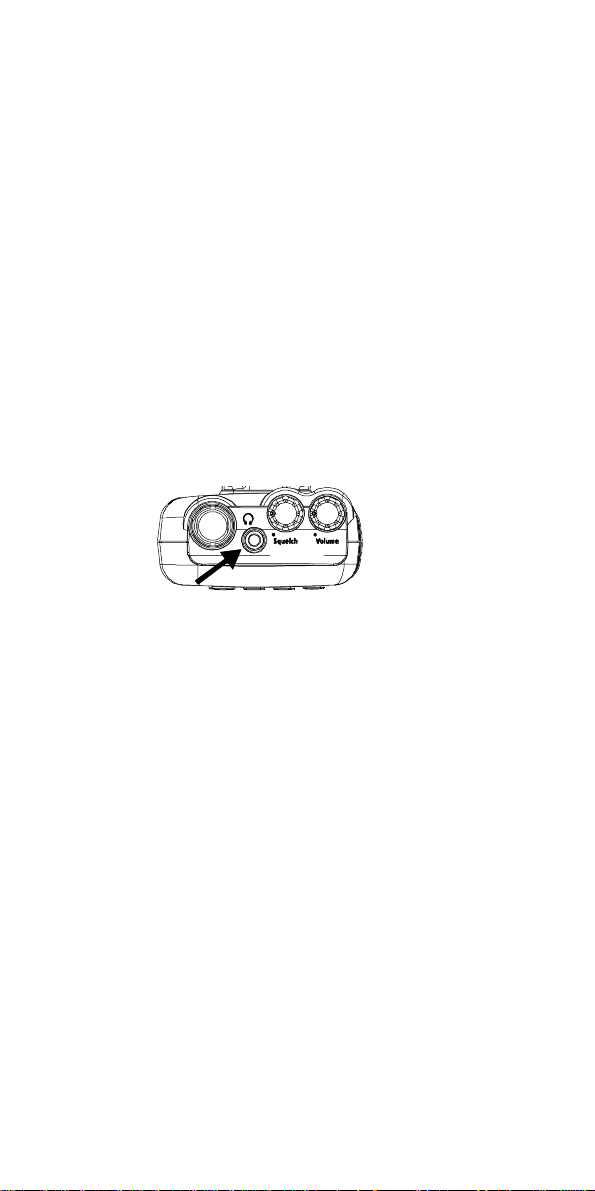

Connecting an Earphone/ ext. Speaker............. 12

Connecting an Extension Speaker ........................ 12

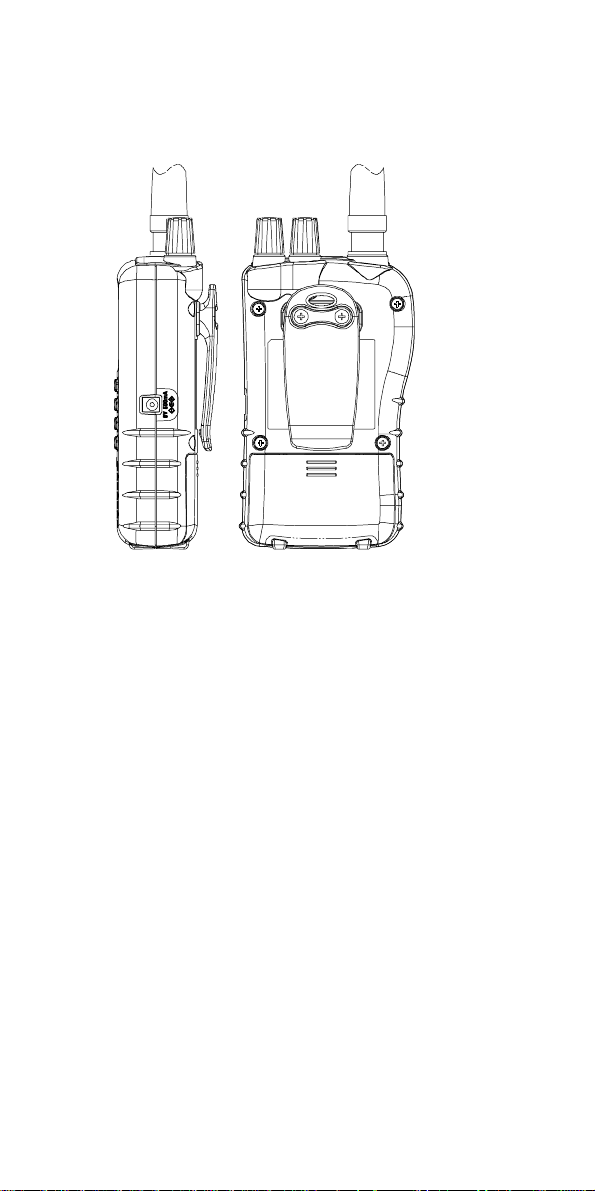

Attaching the Belt Clip................................ ......... 13

About Your Scanner................................ ............ 13

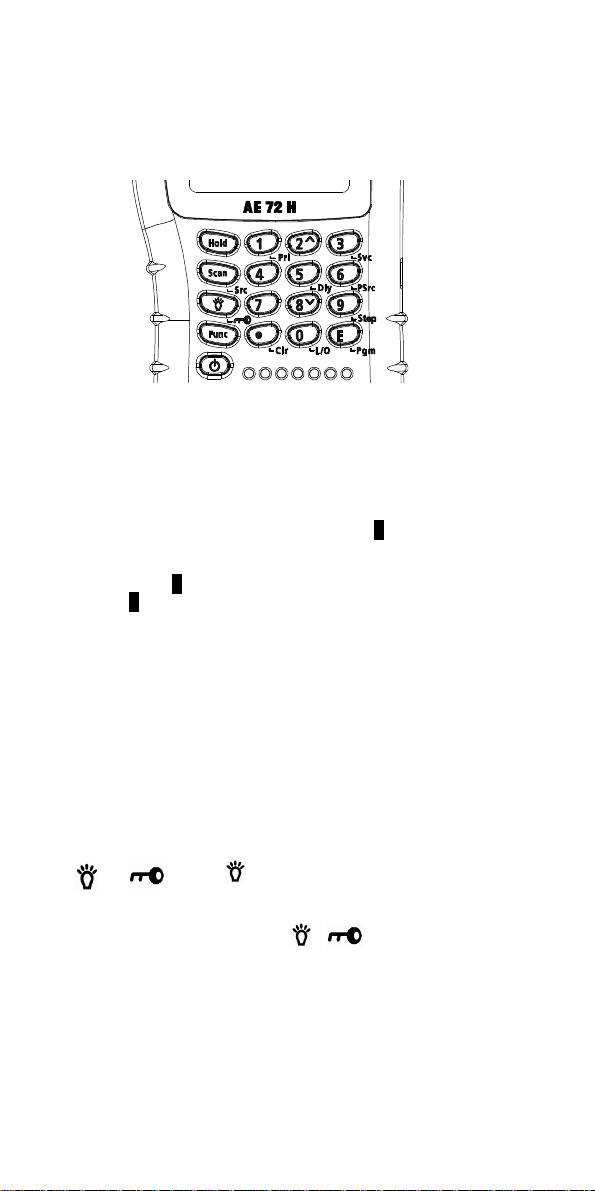

A Look at the Keypad................................ .......... 14

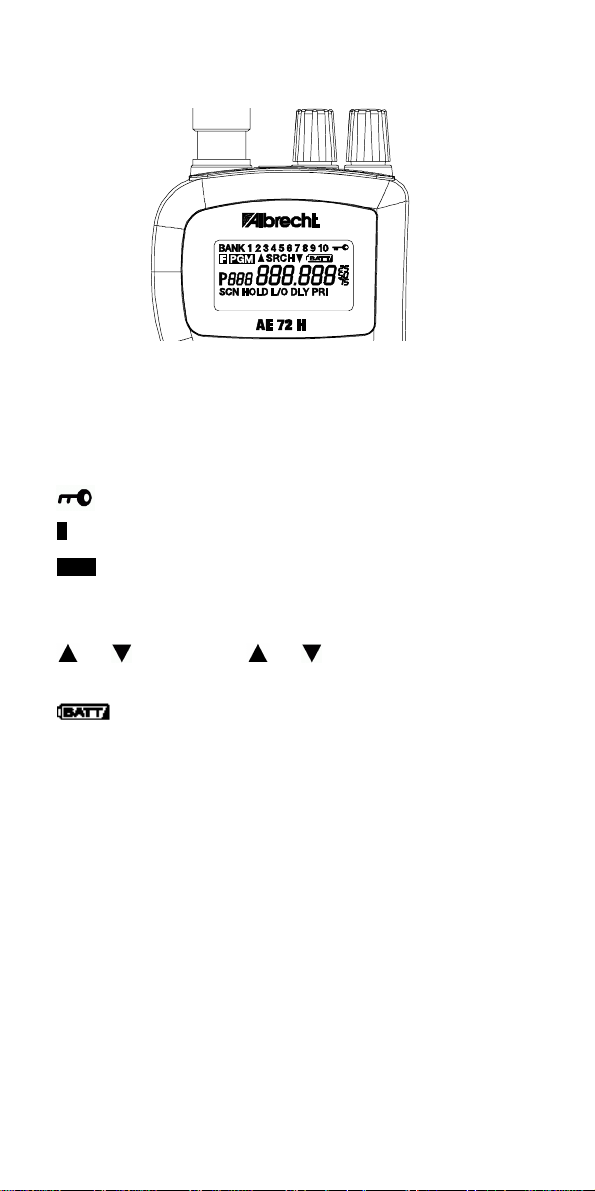

A Look at the Display................................ .......... 16

Understanding Banks................................ .......... 17

Operation................................ ............................. 17

Turning the scanner on and setting squelch...... 17

Storing known Frequencies into Channels........ 17

Searching for active Frequencies....................... 18

Service Search................................ .................... 18

Scanning the Stored Channels........................... 19

Manually Selecting a Channel............................ 19

Frequency Search................................ ............... 19

Chain Search Mode................................ ............ 20

Chain Search Hold Mode................................ .... 20

Storing Frequencies Found During Chain Search

into Channel Memory................................ .......... 20

Setting the Search Range................................... 21

Direct Entry Search................................ ............. 21

Direct Entry Search Hold Mode................................ 22

Search Skip Memory................................ ............. 23

Delay................................ ................................ .... 23

Turning Channel-Storage Banks On and Off..... 24

Locking Out Channels......................................... 24

Priority................................ ................................ .. 24

Using Keylock................................ ....................... 25

Using the Display Backlight................................ 25

Troubleshooting................................ ................... 25

Resetting the Scanner ................................ ........ 27

Care and Maintenance................................ ........ 27

Birdies................................ ................................ .. 28

Specifications....................................................... 29

European 2 years warranty................................. 30

Where to find service hints and documentation.30

Optional Accessories................................ ........... 31

CE-Declaration of Conformity............................. 32

Introduction

Thank you for purchasing an Albrecht AE72H handheld Scanner. The scanner is versatile, compact, and easy to use. You can program up to 100 frequencies into the scanner's memory. The scanner lets you scan transmissions and is preprogrammed with service banks for your convenience. You can quickly search those frequencies most commonly used by Air band and FM CB, without tedious and complicated programming. Use your scanner to monitor:

• Air band

• FM CB

as special search bands.

Precautions

Before you use this scanner, please read and observe the following.

Earphone Warning

Use only a genuine Albrecht earphone. An incorrect earphone may be hazardous to your hearing. Turn down volume before connecting the earphone and then adjust volume to suit.

Safety Warning

Albrecht does not declare this unit to be waterproof. To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture. Trademarks used throughout this manual are the property of their respective holders.

Legal notes:

Depending on national regulations, it can be restricted to listen to certain public or private radio services. All users are requested to gather the necessary informations about radio services and their protections and privacy. In some countries unauthorized monitoring of transmissions may be even regarded and prosecuted as a crime.

This table lists the frequency ranges, default frequency step,

469.9900

default mode (AM or FM), and type of transmissions you can hear for each range. The scanner has 2 Band Plans, which are useful for major regions in Europe. Band Plan 2 is optimized for Germany.

Frequency ranges Band Plan 1

Frequency Range MHz Steps Radio Service

25.0000 - 29.9950 5 kHz CB, 10 m

30.0000 - 79.9875 12.5 kHz VHF Low Band

80.0000 - 82.9900 10 kHz VHF Low Band

83.0000 - 87.2625 12.5 kHz VHF Low Band

108.0000 - 136.9875 12.5 kHz Air Band (old) can be switched with func + step to:

108.0000 - 136.9916 8.33 kHz Air Band (new)

138.0000 - 157.9875 12.5 kHz 2 m Band

158.0000 - 160.5900 10 kHz VHF High Band

160.6000 - 162.5875 12.5 kHz VHF High Band

162.6000 - 173.9900 10 kHz VHF High Band

406.0000 - 439.99375 6.25 kHz 70 cm Band

440.0000 - 465.9900 10 kHz UHF PMR Band

466.0000 -

10 kHz UHF PMR Band

470.0000 - 512.0000 6.25 kHz UHF “T” Band

Frequency ranges Band Plan 2

Frequency Range MHz Steps Radio Service

25.0000 - 84.0100 5 kHz CB, 10 m, 6m Bands

84.0150 - 87.2550 20 kHz 4 m Band BOS

108.0000 - 136.9875 12.5 kHz Air Band (old) can be switched with func + step to:

108.0000 - 136.9916 8.33 kHz Air Band (new)

137.0000 - 143.9950 5 kHz Military VHF radio

144.0000 - 145.9875 12.5 kHz 2m Amateur Band

146.0000 - 155.9900 10 kHz VHF PMR Band

156.0000 - 162.0250 12.5 kHz VHF Marine Band

162.0300 - 173.9900 10 kHz VHF PMR Band

406.0000 - 439.99375 6.25 kHz 70 cm Band

440.0000 - 449.99375 6.25 kHz PMR incl. PMR 446

450.0000 -

10 kHz UHF Band PMR

470.0000 - 512.0000 6.25 kHz UHF High Band

To switch the band plan between 1 and 2;

• Make sure the power is turned off.

• While holding down 0 key, turn on the scanner.

Note: Please carry out a memory initialization (Reset, see page 27 ) after band plan was changed.

Feature Highlights

Chain Search - lets you enter personal search bands in 10

locations and search all locations in a chain of frequency bands. Triple-Conversion Circuitry - virtually eliminates any

interference from IF (intermediate frequency) images, so you hear only the selected frequency.

Channel-Storage Banks - the scanner has 10 banks. You can store up to 10 frequencies into each bank (for a total of 100 frequencies), so you can more easily identify calls.

Two-Second Scan Delay - delays scanning for about 2 seconds before moving to another channel, so you can hear more replies that are made on the same channel.

Lock-Out Function - lets you set your scanner to skip over specified channels or frequencies when scanning or searching.

Priority Channels - lets you program one channel in each bank (10 in all) and then have the scanner check that channel every 2 seconds while it scans the bank, so you do not miss transmissions on those channels.

Two Service Banks - frequencies are preset in separate aircraft and FM CB, to make it easy to locate specific types of calls.

Key Lock - lets you lock the scanner's keys to help prevent accidental changes to the scanner's programming.

Direct Access - lets you directly access any channel. Display Backlight - makes the scanner easy to read in low-light

situations. Flexible Antenna with BNC Connector – provides adequate

reception in strong signal areas and is designed to help prevent antenna breakage. Or, you can connect an external antenna for better reception.

Memory Backup - keeps the frequencies stored in memory for an extended time if the scanner loses power.

Two Power Options - let you power the scanner using internal batteries or external AC power using the included AC adapter.

Key Confirmation Tones - the scanner sounds a tone when you perform an operation correctly, and an error tone if you make an error.

Battery Low Alert - warns you when battery power gets low.

About this Manual

The screen displays used in this manual are representations of what might appear when you use your scanner. Since what you see depends on the frequencies for your area and the settings you select, you might notice some differences between what is in this manual and what appears on your scanner. To get the most from this manual, review the contents to become familiar with the basic functions available. If you are new to scanning, be sure to read the next chapter for a quick background on the technology behind the hobby. The first thing you’ll need to do is install batteries in the scanner. Then you need to connect the included antenna to the scanner. See “Using Internal Batteries” on Page 9 and “Connecting the Antenna” on Page 11 if you need any help doing this.

Understanding Scanning

This section provides you with background on how scanning works. You don’t really need to know all of this to use your scanner, but some background knowledge will help you get the most from your AE72H.

What is Scanning?

Unlike standard AM or FM radio stations, most two way communications do not transmit continuously. Your AE72H scans programmed channels until it finds an active frequency, then stops on that frequency and remains on that channel as long as the transmission continues. When the transmission ends, the scanning cycle resumes until the scanner receives another transmission.

What is Searching?

The AE72H can search for active frequencies. This is different from scanning because you are searching for frequencies that have not been programmed into the scanner. When you select frequency bands to search, the scanner searches for any active frequency within the lower and upper limits you specify. When the scanner finds an active frequency, it stops on that frequency as long as the transmission lasts. If you think the frequency is interesting, you can program it into one of the banks. If not, you can continue to search.

Conventional Scanning

Conventional scanning is a relatively simple concept. Each group of users in a conventional system is assigned a single frequency (for simplex systems) or two frequencies (for repeater systems). Any time one of them transmits, their transmission always goes out on the same frequency. Up until the late 1980’s this was the primary way that radio systems operated. Even today, there are many 2-way radio users who operate using a conventional system:

• Aircraft

• Amateur radio

• PMR users

• Broadcast AM/FM/TV stations

• Many other business radio users

When you want to store a conventional system, all you need to know is the frequencies they operate on. When you are scanning a conventional system, the scanner stops very briefly on each channel to see if there is activity. If there isn’t, the scanner quickly moves to the next channel. If there is, then the scanner pauses on the transmission until it is over.

Simplex Operation

Simplex systems use a single frequency for both transmit and receive. Most radios using this type of operation are limited to line-of-sight operation. This type of radio is frequently used at construction job sites, and with inexpensive consumer radios such as PMR radios. The range is typically 1.5-12 km, depending upon the terrain and many other factors.

Repeater Operation

Repeater systems use two frequencies: one transmits from the radio to a central repeater; the other transmits from the repeater to other radios in the system. With a repe ater-based system, the repeater is located on top of a tall building or on a radio tower that provides great visibility to the area of operation. When a user transmits (on an input frequency), the signal is picked up by the repeater and retransmitted (on an output frequency). The user’s radios always listen for activity on the output frequency and transmit on the input frequency. Since the repeater is located very high, there is a very large line of sight. Typical repeater systems provide coverage out to about a 40 km radius from the repeater location.

Where to obtain more Information

By itself, this manual really only provides part of what you need to know to have fun scanning-how to program and use the scanner.

Information on the Internet

The Internet is a great source for current frequencies and information about scanning. Many web sites have lists of frequencies for your area. You can use a search engine to find and use them. Make a list of the agencies you want to listen to, then look up the frequencies and systems used by those agencies.

Included with Your Scanner

Note: If any of these items are missing or damaged, contact

your place of purchase.

・ Owner’s Manual ・ Scanner and Antenna ・ Belt Clip (with 2 screws) ・ Adapter ・ Battery set ( 2 pcs NiMH )

Setting Up Your Scanner

These guidelines will help you install and use your new scanner:

• If your scanner receives interference or electrical noise, move the scanner or its antenna away from the source.

• To improve the scanner’s reception, use an optional external antenna designed for multiband coverage. (You can purchase this type of antenna at a local electronics store). If the optional antenna has no cable, use 50 Ohm coaxial cable for lead-in. A mating plug might be necessary for the optional antennas.

• Use an optional mono earphone or mono headset with proper impedance for private listening. Read the precautions on the inside front cover of this Owners Manual.

• Do not use the scanner in high-moisture environments such as the kitchen or bathroom.

• Avoid placing the scanner in direct sunlight or near

Using Internal Batteries

You can power your scanner using the supplied rechargeable NiMH batteries ( 2 x AA).

Using Rechargeable Batteries

Before you use NiMH or NiCd batteries the first time, you must charge them. It may happen, that the first battery charging may not reach the full capacity, but the final capacity will be ok after at least 2-3 times charging.

The scanner has a built-in circuit that lets you recharge NiMH or NiCd batteries while they are in the scanner. To charge the batteries;

1. Make sure the power is turned off.

2. Slide the battery compartment cover.

3. Install two batteries in the compartment as indicated by the polarity symbols (+ and -) marked inside.

heating elements or vents.

The switch is factory preset to

NiMH battery and covered by a

sticker. Remove the sticker if You

want to use alkaline batteries

4. Replace the cover.

5. Connect the supplied AC adaptor to the scanner’s DC 6 V socket to charge the batteries at least for some hours before first time use.

Using Non-Rechargeable Batteries

You can also use two alkaline batteries to power your scanner. Before you use alkaline batteries, you must remove the sticker in the compartment and move the switch below the sticker to REG. ALK. BATT. position.

Notes:

• Use only fresh batteries of the required size and recommended type.

• Always remove old or weak batteries. Batteries can leak chemicals that destroy electronic circuits.

• Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of different capacities.
