Alarm Controls PS5-111, PS2-111, PS1-111, PN5-111, PN2-111 Installation
...

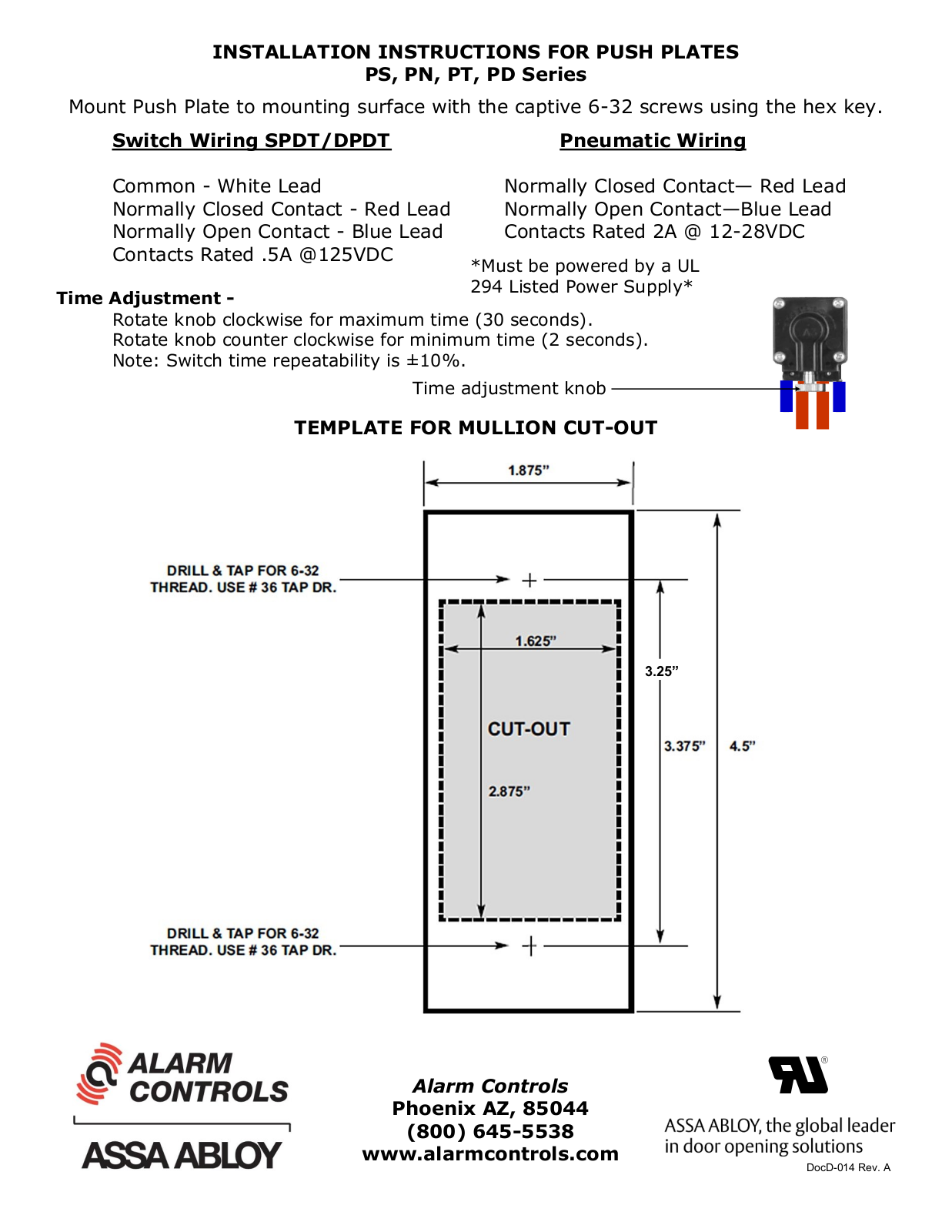

INSTALLATION INSTRUCTIONS FOR PUSH PLATES
PS, PN, PT, PD Series
Mount Push Plate to mounting surface with the captive 6-32 screws using the hex key.
Switch Wiring SPDT/DPDT Pneumatic Wiring
Common - White Lead Normally Closed Contact— Red Lead
Normally Closed Contact - Red Lead Normally Open Contact—Blue Lead
Normally Open Contact - Blue Lead Contacts Rated 2A @ 12-28VDC
Contacts Rated .5A @125VDC
Time Adjustment -
Rotate knob clockwise for maximum time (30 seconds).
Rotate knob counter clockwise for minimum time (2 seconds).
Note: Switch time repeatability is ±10%.
Time adjustment knob
*Must be powered by a UL
294 Listed Power Supply*
TEMPLATE FOR MULLION CUT-OUT
Alarm Controls
Phoenix AZ, 85044
(800) 645-5538
www.alarmcontrols.com
3.25”
DocD-014 Rev. A
