Alarm Controls AL-UT-1, UT-1 Installation Instructions

INSTALLATION INSTRUCTIONS

MODEL UT-1

UNIVERSAL TIMER

PROGRAMMABLE DIGITAL TIMER FOR ALL TIMING REQUIREMENTS

SIXTEEN ADJUSTABLE TIME RANGES
FOUR MODES OF OPERATION
RANGE FROM ONE SECOND TO ONE HOUR
TEMPERATURE RANGE -25C TO +70C
S.P.D.T. 12 AMP @ 28 VDC
NOISE IMMUNITY ON ALL INPUTS

MINIDIP SWITCH SELECTS RANGE AND MODE
DELAY ON OPERATE
DELAY ON RELEASE
ONE SHOT MODE
PULSING MODE
EXTREME ACCURACY AND REPEATABILITY

TIME SELECTION TABLE

RANGE

NUMBER

TIME SELECTOR

SWITCHES

ON = I OFF = O

RANGE

1 2 3 4

1 1S - 2M

2 3M - 5M

3 6M - 9M

4 10M - 13M

5 14M - 17M

6 18M - 22M

7 23M - 26M

8 27M - 30M

9 31M - 34M

10 35M - 38M

11 39M - 42M

O O O O

I O O O

O I O O

I I O O

O O I O

I O I O

O I I O

I I I O

O O O I

I O O I

O I O I

TIME

SPECIFICATIONS

VOLTAGE RANGE: 6 TO 18 VDC
CURRENT CONSUMPTION: 37 MA. MAXIMUM
TIME RANGE: 1 SECOND TO 1 HOUR
TEMPERATURE RANGE: -25C TO +70C
CONTACT RATING: 12 AMP. @ 28 VOLTS DC
MOUNTING: DOUBLE SIDED FOAM TAPE

MODE SELECTOR

SWITCHES

ON = I OFF = O

MODE

5 6

O O

I O

O I

I I

PROCEDURE FOR SETTING DELAY TIME

1. CONVERT THE REQUIRED DELAY TIME TO MINUITES.

2. SELECT RANGE NUMBER IN WHICH DELAY TIME FALLS.

3. POSITION THE TIME SELECTOR SWITCHES TO THE

INDICATED REQUIRED SETTINGS ON THE CHART.
POSITION THE MODE SELECTOR SWITCHES TO THE I I
SETTING.

PULSING

DELAY ON OPERATE

DELAY ON RELEASE

ONE SHOT

12 43M - 46M

13 47M - 50M

14 51M - 54M

15 55M - 58M

16 59M - 62M

ALARM CONTROLS CORPORATION

I I O I

O O I I

I O I I

O I I I

I I I I

19 BRANDYWINE DRIVE, DEER PARK, NY 11729

Alarm Controls
19 Brandywine Drive
Deer Park, New York 11729

800 645-5538

[phone]
www.alarmcontrols.com

4. CONNECT THE PROPER INPUT VOLTAGE, 6 TO 18 VDC.

5. START THE TIMER BY APPLYING THE TRIGGER INPUT.

6. THE TIMING LED WILL LIGHT. LED WILL GO OFF WHEN

TIMING HAS BEEN COMPLETED.

7. ADJUST THE TIME ADJUSTMENT POT TO THE DESIRED
TIME IF NECESSARY.

8. REPEAT STEPS 5 AND 6.

9. WHEN THE CORRECT TIME HAS BEEN OBTAINED SET

THE MODE SELECTOR SWITCHES TO THE DESIRED
MODE.

UT-1 UNIVERSAL TIMER

MODES OF OPERATION

DELAY ON OPERATE

THE DELAY TIME BEGINS WHEN THE TRIGGER VOLTAGE IS APPLIED. AT THE END OF THE DELAY TIME,
CONTACTS TRANSFER AND REMAIN IN THIS POSITION UNTIL TRIGGER VOLTAGE IS REMOVED.

DELAY ON RELEASE

THE CONTACTS TRANSFER IMMEDIATELY WHEN TRIGGER VOLTAGE IS APPLIED. THE DELAY BEGINS WITH
THE REMOVAL OF THE TRIGGER VOLTAGE. IF THE TRIGGER VOLTAGE IS NOT REMOVED, CONTACTS WILL
NOT TRANSFER.

ONE SHOT

A MOMENTARY OR SUSTAINED APPLICATION OF TRIGGER VOLTAGE WILL CAUSE THE CONTACTS TO
TRANSFER AND REMAIN UNTIL THE END OF THE DELAY PERIOD, AT WHITCH TIME CONTACTS WILL RE­TRANSFER.TRIGGER VOLTAGE DOES NOT HAVE TO BE REMOVED FOR THE CONTACTS TO RE-TRANSFER.

PULSING

CONTACTS WILL TRANSFER AND RE-TRANSFER WITH EQUAL OPERATE AND RELEASE TIME.

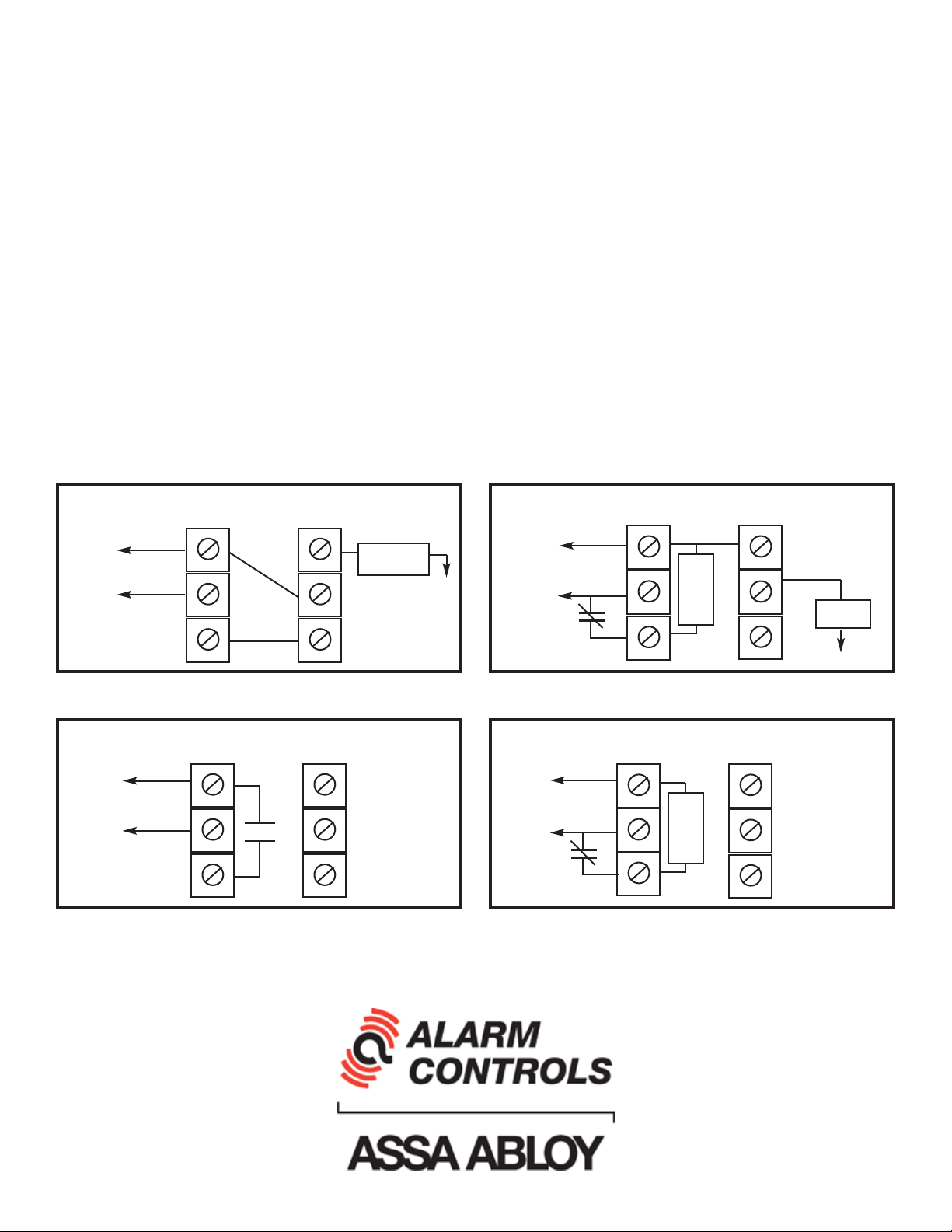

PULSING MODE

PWR

+

VOLTAGE

GND

-

TRIG IN

ONE SHOT MODE N/O TRIGGER

PWR

+

VOLTAGE

GND

N/O
SW.

-

TRIG IN

N/O

LAMP

SOUNDER

C

N/C

N/O

C

N/C

OR

DELAY ON OPERATE DOOR PROP ALARM

PWR

+

VOLTAGE

-

N
E
G

GND

-

N/C

DOOR

CONTACT

TRIG IN

1K

R
E
S

++

N/O

C

N/C

BUZZER

NEG

-

ONE SHOT MODE N/C TRIGGER

PWR

+

VOLTAGE

GND

-

N/C

SW.

TRIG IN

1K

R
E
S

N/O

C

N/C

ALARM CONTROLS CORPORATION

19 BRANDYWINE DRIVE, DEER PARK, NY 11729

800 645-5538 631 586-4220

EMAIL: [e-mail] WWW.ALARMCONTROLS.COM
