Model
AES-200
Electric Strike
Designed for medium-duty applications, the all-in-one
AES-200 offers dual voltage and field selectable fail
secure/fail safe operation. Deep latch cavity
accommodates cylindrical locksets with a 5/8" throw
in steel, wood or aluminum frames. Easy to install
and connect.
Specifications
l BHMA Grade 2,
1,000 lb. static strength
l Factory tested to
500,000 cycles
l Field selectable,
fail secure/fail safe
l Universal 12 through
24VAC or VDC input
l Horizontally adjustable
and pre-load capable
l Strike Depth 1-1/2"
with 5/8” throw
l Fully reversible for right
or left hand doors
l Built in buzzer, sounds
when voltage is applied

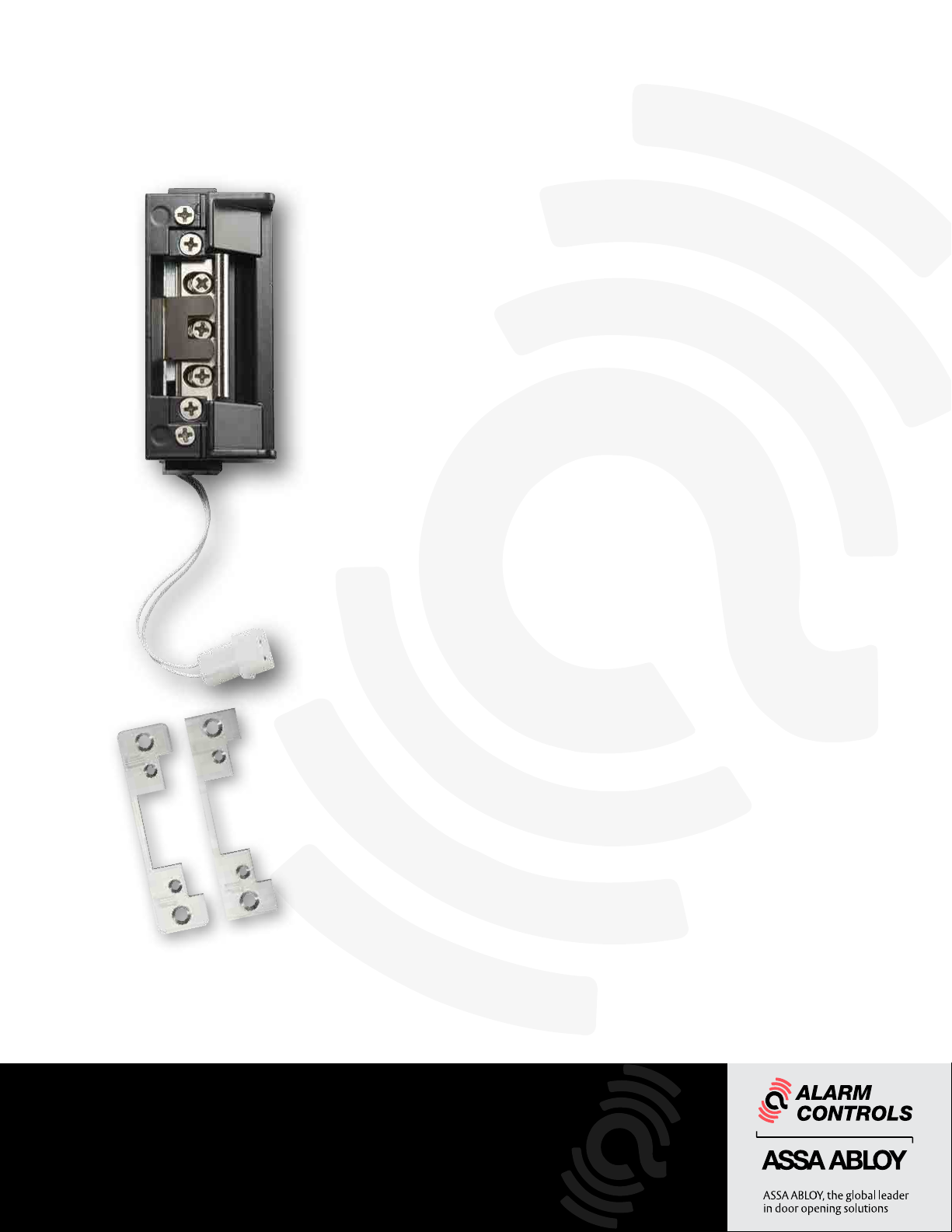

l Electric strike kit
includes:
– AES-200 strike body
– 4 7/8” round corner
faceplate
– 4 7/8” square corner
faceplate
l 7-15/16” round corner
faceplate available.
– Model number
STR00004
l Current draw:
12VAC @ 200mA,
24VAC @ 70mA
l Current draw:
12VDC @ 130mA,
24VDC @ 70mA
