ALARM CONTROLS CORPORATION

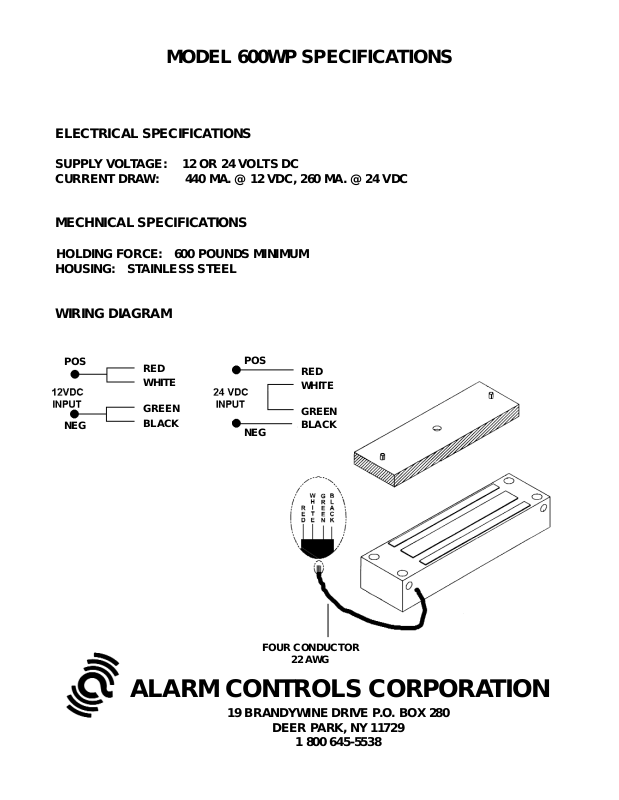

MODEL 600WP SPECIFICATIONS
19 BRANDYWINE DRIVE P.O. BOX 280
DEER PARK, NY 11729
1 800 645-5538
ELECTRICAL SPECIFICATIONS
SUPPLY VOLTAGE: 12 OR 24 VOLTS DC
CURRENT DRAW: 440 MA. @ 12 VDC, 260 MA. @ 24 VDC
MECHNICAL SPECIFICATIONS
HOLDING FORCE: 600 POUNDS MINIMUM
HOUSING: STAINLESS STEEL

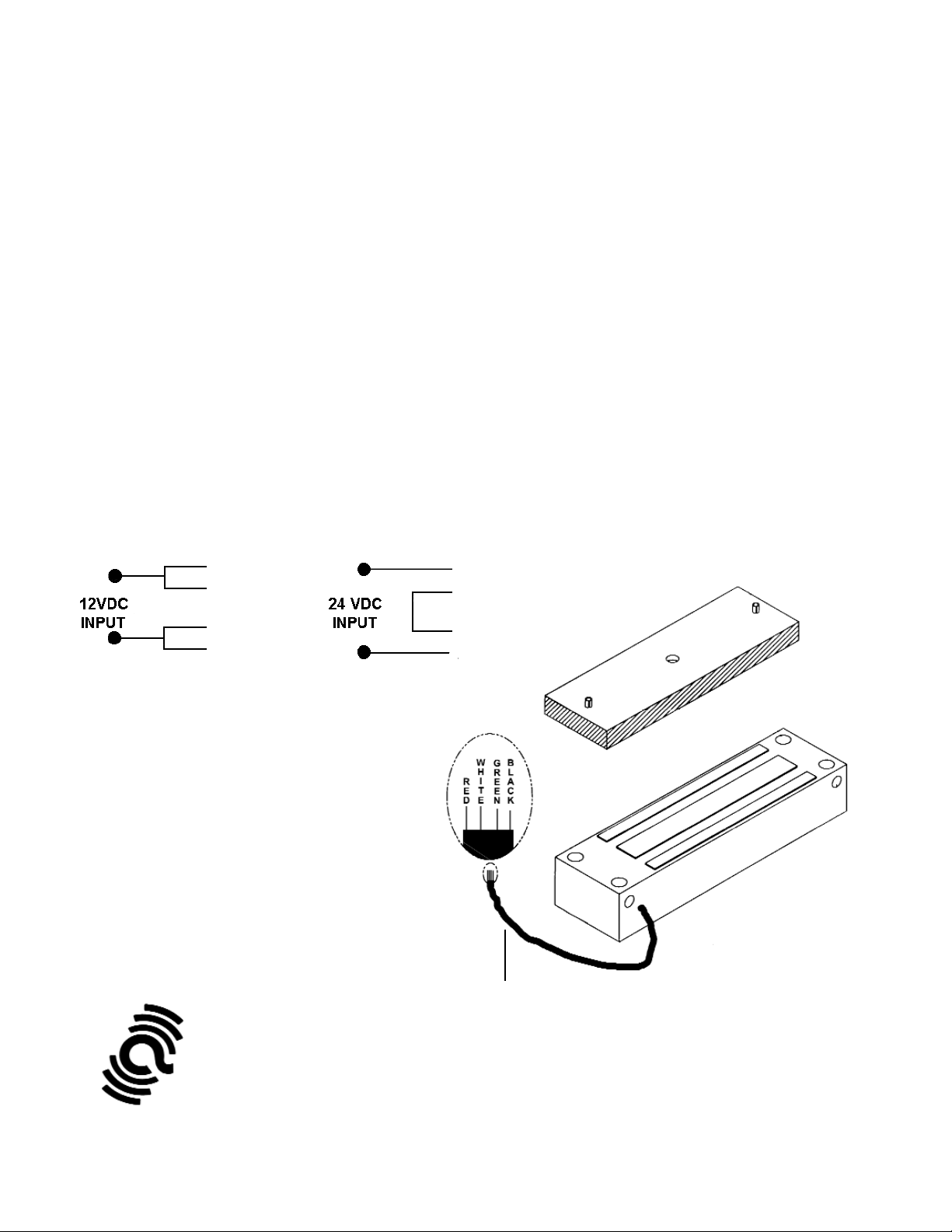

WIRING DIAGRAM
POS
NEG
NEG
POS
RED
WHITE
GREEN
BLACK
BLACK
RED
WHITE
GREEN
FOUR CONDUCTOR
22 AWG
Page 2

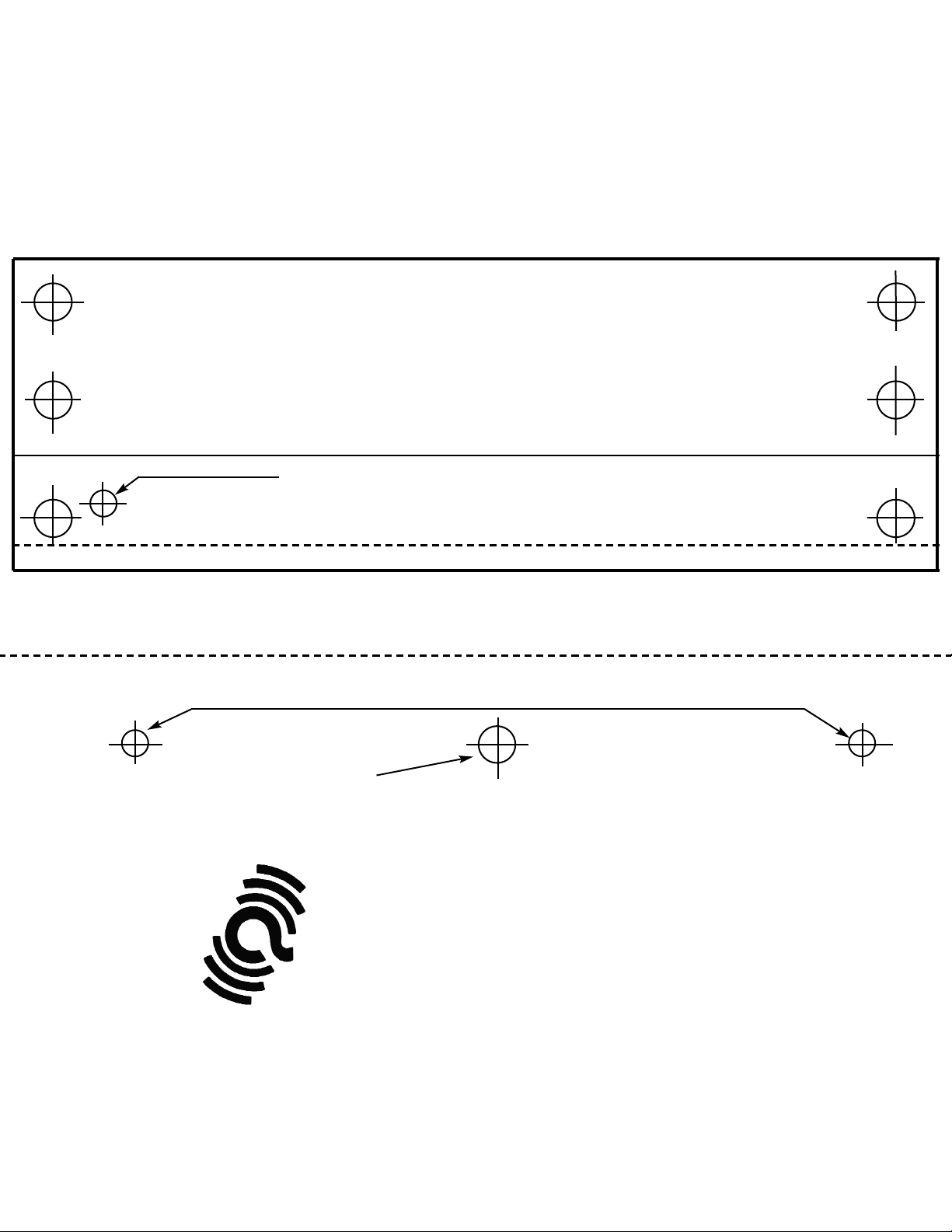

MODEL 600WP INSTALLATION TEMPLATE
POSITION 1
POSITION 2
POSITION 1 FOLD ON THIS DOTTED LINE
POSITION 2 FOLD ON THIS DOTTED LINE
1/4” DIA. ARMATURE GUIDE PIN HOLE 15/32” DEEP
DRILL 11/32” DIA. HOLE THRU DOOR
ALARM CONTROLS CORPORATION
DEER PARK, NEW YORK 11729
DRILL 1/4” DIA.HOLE FOR WIRE
Page 3

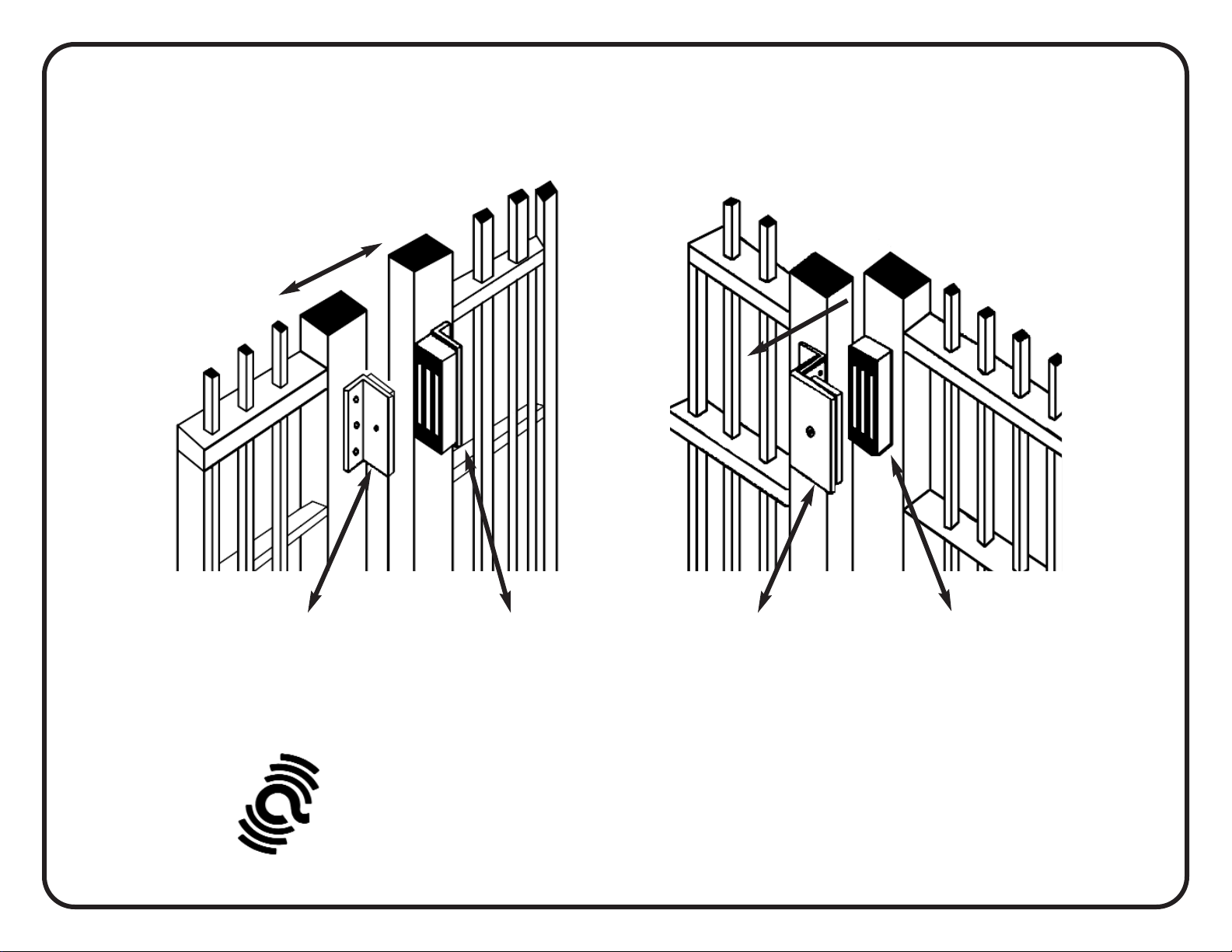

TYPICAL SLIDING GATE
INSTALLATION
TYPICAL SWINGING GATE
INSTALLATION
ALARM CONTROLS CORPORATION
19 BRANDYWINE DRIVE P.O. BOX 280
DEER PARK, NY 11729
1 800 645-5538
GATE LOCK INSTALLATION EXAMPLES
USE AM3370 BRACKET FOR MODEL 600WP
USE AM6370 BRACKET FOR MODEL 1200WP
CONSULT FACTORY FOR CUSTOM BRACKETS
ANGLE BRACKET
ATTACHES
ARMATURE TO
MOVING SECTION
OF GATE
ANGLE BRACKET
ATTACHES
MAGNET TO
STATIONARY
SECTION
OF GATE
ADJUSTABLE
Z BRACKET
ATTACHES
ARMATURE TO
MOVING SECTION
OF GATE
MAGNET
MOUNTS ON
STATIONARY
SECTION
OF GATE
