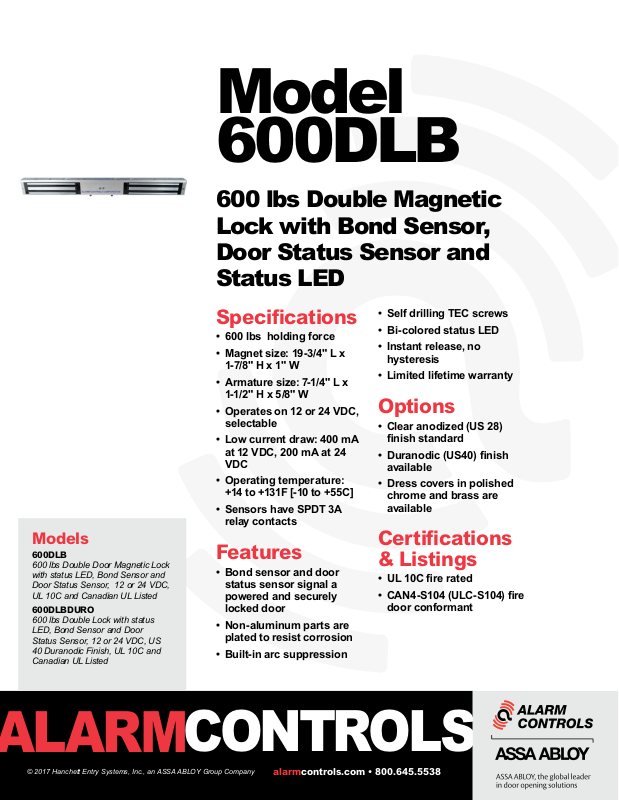

Alarm Controls 600DLB, 600DLBDURO Specsheet
Model
600DLB
600 lbs Double Magnetic
Lock with Bond Sensor,
Door Status Sensor and
Status LED
Models
600DLB
600 lbs Double Door Magnetic Lock
with status LED, Bond Sensor and
Door Status Sensor, 12 or 24 VDC,
UL 10C and Canadian UL Listed
600DLBDURO
600 lbs Double Lock with status
LED, Bond Sensor and Door
Status Sensor, 12 or 24 VDC, US
40 Duranodic Finish, UL 10C and
Canadian UL Listed
Specifications
• 600 lbs holding force
• Magnet size: 19-3/4" L x
1-7/8" H x 1" W
• Armature size: 7-1/4" L x
1-1/2" H x 5/8" W
• Operates on 12 or 24 VDC,
selectable
• Low current draw: 400 mA
at 12 VDC, 200 mA at 24
VDC
• Operating temperature:
+14 to +131F [-10 to +55C]
• Sensors have SPDT 3A
relay contacts
Features
• Bond sensor and door
status sensor signal a
powered and securely
locked door
• Non-aluminum parts are
plated to resist corrosion
• Built-in arc suppression
• Self drilling TEC screws
• Bi-colored status LED
• Instant release, no
hysteresis
• Limited lifetime warranty
Options
• Clear anodized (US 28)
finish standard
• Duranodic (US40) finish
available
• Dress covers in polished
chrome and brass are
available
Certifications
& Listings
• UL 10C fire rated
• CAN4-S104 (ULC-S104) fire
door conformant
CONTROLS
© 2017 Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company
alarmcontrols.com • 800.645.5538
