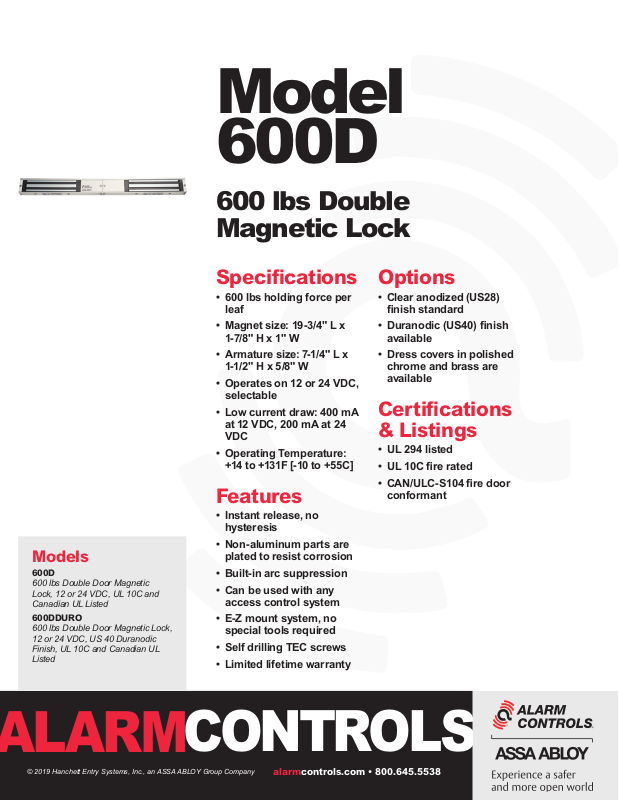

Alarm Controls 600D, 600DDURO Specsheet

Model
600D

600 lbs Double
Magnetic Lock

Models

600D

600 lbs Double Door Magnetic
Lock, 12 or 24 VDC, UL 10C and
Canadian UL Listed

600DDURO
600 lbs Double Door Magnetic Lock,
12 or 24 VDC, US 40 Duranodic
Finish, UL 10C and Canadian UL
Listed

Specifications

• 600 lbs holding force per
leaf

• Magnet size: 19-3/4" L x
1-7/8" H x 1" W

• Armature size: 7-1/4" L x
1-1/2" H x 5/8" W

• Operates on 12 or 24 VDC,
selectable

• Low current draw: 400 mA
at 12 VDC, 200 mA at 24
VDC

• Operating Temperature:
+14 to +131F [-10 to +55C]

Features

• Instant release, no
hysteresis

• Non-aluminum parts are
plated to resist corrosion

• Built-in arc suppression

• Can be used with any
access control system

• E-Z mount system, no
special tools required

• Self drilling TEC screws

• Limited lifetime warranty

Options

• Clear anodized (US28)
finish standard

• Duranodic (US40) finish
available

• Dress covers in polished
chrome and brass are
available

Certifications
& Listings

• UL 294 listed

• UL 10C fire rated

• CAN/ULC-S104 fire door
conformant

CONTROLS

© 2019 Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company

alarmcontrols.com • 800.645.5538
