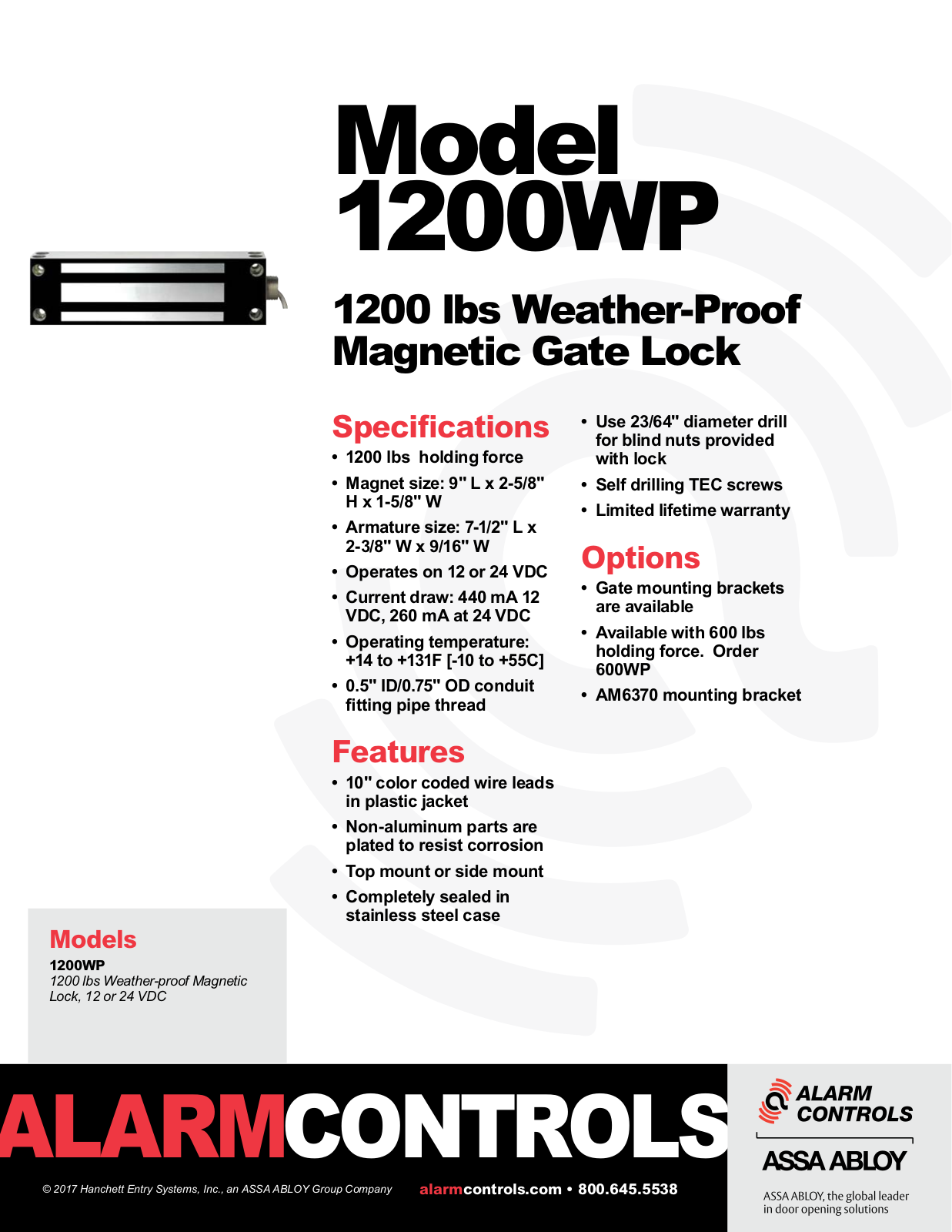

Alarm Controls 1200WP Specsheet
Model
1200WP
1200 lbs Weather-Proof
Magnetic Gate Lock
Models
1200WP
1200 lbs Weather-proof Magnetic
Lock, 12 or 24 VDC
Specifications
• 1200 lbs holding force
• Magnet size: 9" L x 2-5/8"
H x 1-5/8" W
• Armature size: 7-1/2" L x
2-3/8" W x 9/16" W
• Operates on 12 or 24 VDC
• Current draw: 440 mA 12
VDC, 260 mA at 24 VDC
• Operating temperature:
+14 to +131F [-10 to +55C]
• 0.5" ID/0.75" OD conduit
fitting pipe thread
Features
• 10" color coded wire leads
in plastic jacket
• Non-aluminum parts are
plated to resist corrosion
• Top mount or side mount
• Completely sealed in
stainless steel case
• Use 23/64" diameter drill
for blind nuts provided
with lock
• Self drilling TEC screws
• Limited lifetime warranty
Options
• Gate mounting brackets
are available
• Available with 600 lbs
holding force. Order
600WP
• AM6370 mounting bracket
CONTROLS
© 2017 Hanchett Entry Systems, Inc., an ASSA ABLOY Group Company
alarmcontrols.com • 800.645.5538
