Boom Arm Mower

Pub 12-08

Part No. 02986950P

PART'S MANUAL

An Operator's Manual was shipped with the equipment in the Manual Canister. This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment. If the Operator's Manual is not with the equipment, contact your dealer or Servis-Rhino (800446-5158) to obtain a Free copy before operating the equipment.

ALAMO INDUSTRIAL

1502 E. Walnut Seguin, Texas 78155 210-372-3551

Page 2

Page 3

TO THE OWNER/OPERATOR/DEALER

RED

002369

LOCK UP.

5. TRANSPORT SAFELY,

6. USE SMV, LIGHTS, &

REFLECTORS.

7. DO NOT OPERATE WITH MOWER OR WING RAISED.

8. DO NOT MOUNT OR DISMOUNT WHILE MOVING.

4. BLOCK UP SECURELY BEFORE WORKING UNDER.

3. USE SAFETY SHOES,HARD HAT, SAFETY GLASSES, SEAT BELTS, & ROPS.

2. NO RIDERS, NO CHILDREN

OPERATORS.

MANUAL

READ

Never mount or dismount a moving vehicle. Crushing from runover may cause injury or death.

Put tractor in park or set brake, disengage PTO, stop engine, remove key, and wait until noise of rotation has ceased

to prevent entanglement in rotating parts which may cause injury or death.

8. Before dismounting, secure flail mower in transport position or lower to ground.

7. Never operate with Flail Mower or Folding Section raised if passersby, bystandards or traffic are in the area to reduce possibility of injury or death from objects thrown by Blades under Shields or implement structure.

6. Make certain that SMV sign, Warning Lights, and Reflectors are clearly visible. Follow local traffic codes.

Install Restrictor in folding circuit to slow down lowering and unfolding if action is faster than is desirable.

5. Before transporting, put Lift Lever in detent or full-lift position. Install Transport Safety Devices securely on folding implements. Slowdown when turning and on hillsides.

4. Block up or support raised machine and all lifted components securely before putting hands or feet under or working underneath any lifted component to prevent crushing injury or death from sudden dropping or inadvertent operation of controls. Make certain that area is clear before lowering or folding.

3. Operate only with tractor having Roll-Over Protective Structure (ROPS) and with seatbelt fastened securely and snugly to prevent injury and possible death from falling off or tractor overturn. Personal Protective Equipment such as Hard Hat, Safety Glasses, Safety Shoes, and Ear Plugs are recommended.

2. Allow no children on or near implement of tractor. Allow no riders on tractor or implement. Falling off can cause serious injury or death from being runover by tractor or mower or contact with Flail Mower Blades.

Learn how to stop engine suddenly in an emergency. Be alert for passersby and especially children.

1. Study and understand Operator's Manuals, Safety Signs, and Instructional Decals for tractor & flail mower to prevent misuse, abuse, & accidents. Practice before operating mower in a confined area or near passersby.

FAILING TO FOLLOW SAFETY MESSAGES AND OPERATING INSTRUCTIONS CAN CAUSE SERIOUS BODILY INJURY OR EVEN DEATH TO OPERATOR AND OTHERS IN THE AREA.

DANGER

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.

Observe the rules of safety and common sense!

FAILING TO FOLLOW SAFETY MESSAGES AND OPERATING INSTRUCTIONS CAN CAUSE SERIOUS BODILY INJURY OR EVEN DEATH TO OPERATOR AND OTHERS IN THE AREA.

2. NO RIDERS, NO CHILDREN

3. USE SAFETY SHOES,HARD HAT, SAFETY GLASSES, SEAT BELTS, & ROPS.

4. BLOCK UP SECURELY BEFORE WORKING UNDER.

Learn how to stop engine suddenly in an emergency. Be alert for passersby and especially children.

5. Before transporting, put Lift Lever in detent or full-lift position. Install Transport Safety Devices securely on folding implements. Slowdown when turning and on hillsides.

Install Restrictor in folding circuit to slow down lowering and unfolding if action is faster than is desirable.

6. Make certain that SMV sign, Warning Lights, and Reflectors are clearly visible. Follow local traffic codes.

8. Before dismounting, secure flail mower in transport position or lower to ground. Put tractor in park or set brake, disengage PTO, stop engine, remove key, and wait until noise of rotation has ceased

to prevent entanglement in rotating parts which may cause injury or death.

Never mount or dismount a moving vehicle. Crushing from runover may cause injury or death.

5. TRANSPORT SAFELY,

6. USE SMV, LIGHTS, &

LOCK UP.

7. DO NOT OPERATE WITH MOWER OR WING RAISED.

8. DO NOT MOUNT OR DISMOUNT WHILE MOVING.

WARRANTY INFORMATION:

Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty Form that you retain. The use of "will-fit" parts will void your warranty and can cause catastrophic failure with possible injury or death.

Page 4

PARTS

SECTION

Parts Section – 1

Page 5

PARTS ORDERING GUIDE

The following instructions are offered to help eliminate needless delay and error in processing purchase orders for the equipment in this section.

1. The Parts Section is prepared in logical sequence and grouping of parts that belong to the basic machine featured in this manual. Part Numbers and Descriptions are given to help locate the parts and quantities required.

2. The Purchase Order must include the name and address of the person or organization ordering the parts, who should be charged, and if possible, the serial number of the machine for which the parts are ordered.

3. The Purchase Order must clearly list the quantity of each part, the complete and correct part number (be sure to include all periods), and the basic name of the part.

4. The Manufacturer reserves the right to substitute parts where applicable.

5. Some parts are unlisted items which are special production items not normally stocked and are subject to special handling. Request a quotation for such parts before sending a Purchase Order.

6. The Manufacturer reserves the right to change prices without prior notice.

NOTE: Please refer to The Safety Section in the front of this Manual for the proper

Part Number when ordering Replacement Safety Decals.

For maximum safety and to guarantee optimum product reliability, always use genuine Servis-Rhino Parts. The use of inferior replacement parts may cause premature or catastrophic failure which could result in serious injury or death. Direct any questions regarding parts to:

ALAMO INDUSTRIAL

1502 E. Walnut Seguin, Texas 78155 830-379-1480

Parts Section – 2

Page 6

PART NAME INDEX

50 IN ROTARY - BLADE BAR - HEAD ASY (SOLID MNT).................................................................................................................... 5

50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SOLID MNT).......................................................................................................... 7

50 IN ROTARY - BLADE BAR - HEAD ASY (SWIVEL MNT)............................................................................................................... 9

50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SWIVEL MNT).................................................................................................... 11

50 IN ROTARY - BLADE BAR ASY......................................................................................................................................................... 13

50 IN ROTARY - BLADE PAN - HEAD ASY (SOLID MNT)................................................................................................................. 15

50 IN ROTARY - BLADE PAN - HEAD SUB-ASY (SOLID MNT)........................................................................................................ 17

50 IN ROTARY - BLADE PAN - HEAD ASY (SWIVEL MNT).............................................................................................................. 19

50 IN ROTARY - BLADE PAN - HEAD SUB-ASY (SWIVEL MNT)..................................................................................................... 21

50 IN ROTARY - BLADE PAN ASY......................................................................................................................................................... 23

60 IN ROTARY - BLADE BAR ASY......................................................................................................................................................... 24

60 IN ROTARY - HEAD ASY (SOLID MNT)........................................................................................................................................... 25

60 IN ROTARY - HEAD SUB-ASY (SOLID MNT).................................................................................................................................. 27

60 IN ROTARY - HEAD ASY (SWIVEL MNT)....................................................................................................................................... 29

60 IN ROTARY - HEAD SUB-ASY (SWIVEL MNT).............................................................................................................................. 31

BOOM ASY - 18 FT BOOM (PART 1)...................................................................................................................................................... 33

BOOM ASY - 18 FT BOOM (PART 2)...................................................................................................................................................... 35

BOOM ASY - 22 FT BOOM (PART 1)...................................................................................................................................................... 37

BOOM ASY - 22 FT BOOM (PART 2)...................................................................................................................................................... 39

BOOM ASY - 25 FT BOOM (PART 1)...................................................................................................................................................... 41

BOOM ASY - 25 FT BOOM (PART 2)...................................................................................................................................................... 43

COMMON CRATE COMPONENTS - ELECTRO.................................................................................................................................... 45

COMMON CRATE COMPONENTS - MANUAL..................................................................................................................................... 47

DECALS - 18-22-25 FT BOOM.................................................................................................................................................................. 49

DECALS - 50 & 60 IN ROTARY HEAD................................................................................................................................................... 51

DECALS - HYD TANK AND PUMP......................................................................................................................................................... 53

DECALS - LEVER CONTROL.................................................................................................................................................................. 55

FILTER ASSEMBLY.................................................................................................................................................................................. 56

HIGH FRAME MOUNT ASY - 2WD......................................................................................................................................................... 57

HIGH FRAME MOUNT ASY - 4WD......................................................................................................................................................... 59

HOSE ROUTING - 18 FT BOOM............................................................................................................................................................... 61

HOSE ROUTING - 18 FT BOOM NOTES................................................................................................................................................. 62

HOSE ROUTING - 22 FT BOOM............................................................................................................................................................... 63

HOSE ROUTING - 22 FT BOOM NOTES................................................................................................................................................. 64

HOSE ROUTING - 25 FT BOOM............................................................................................................................................................... 65

HOSE ROUTING - 25 FT BOOM NOTES................................................................................................................................................. 66

HOSE ROUTING - ELECTRO HYDRAULIC KIT................................................................................................................................... 67

HOSE ROUTING - ELECTRO HYDRAULIC KIT NOTES..................................................................................................................... 68

HOSE ROUTING - MANUAL HYDRAULIC KIT.................................................................................................................................... 69

HOSE ROUTING - MANUAL HYDRAULIC KIT NOTES...................................................................................................................... 70

Page 7

PART NAME INDEX

HYDARULIC CYLINDER ASY - DIPPER 18 FT BOOM........................................................................................................................ 71

HYDARULIC CYLINDER ASY - DIPPER 22-25 FT BOOM.................................................................................................................. 72

HYDARULIC CYLINDER ASY - LIFT BOOM........................................................................................................................................ 73

HYDRAULIC CYLINDER ASY - HEAD SWIVEL.................................................................................................................................. 74

HYDRAULIC CYLINDER ASY - TILT.................................................................................................................................................... 75

HYDRAULIC OIL COOLER AND FAN ASY.......................................................................................................................................... 76

HYDRAULIC TANK SUB-ASY - ELECTRO/MANUAL........................................................................................................................ 77

HYDRAULIC TANK W/PUMP AND VALVE ASY - ELECTRO........................................................................................................... 79

HYDRAULIC TANK W/PUMP AND VALVE ASY - MANUAL............................................................................................................ 81

JOYSTICK CONSOLE ASY....................................................................................................................................................................... 83

PUMP ASY - SERVO CONTROLLED...................................................................................................................................................... 85

PUMP-TANK-VALVE COVER................................................................................................................................................................. 87

ROTARY - MOTOR ASY........................................................................................................................................................................... 89

ROTARY - SPINDLE ASY......................................................................................................................................................................... 91

VALVE ASSEMBLY - ELECTRO-HYDRAULIC VALVE..................................................................................................................... 93

WIRE HARNESS ELECT-HYD VALVE................................................................................................................................................... 95

Page 8

50 IN ROTARY - BLADE BAR - HEAD ASY (SOLID MNT)

Page 9

50 IN ROTARY - BLADE BAR - HEAD ASY (SOLID MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986211 1 ASY, 50" ROT, GEAR, BAR 1 02961480A 1 HYD CYLINDER 2BORE X 9-1/4 STROKE 2 02982914 1 WELDMENT, DOOR 3 02982915 1 ROD, HINGE 4 99338S 2 PIN ROLL 1/4 X 3/4 5 02982919 2 FLAP, 8 1/2 X 52 X 1/4 THK 6 02982918 1 BAR, HOLD DOWN, FLAP 7 02982920 2 FLAP, REAR 10 X 53 X 3/8 THK 8 02982921 1 BAR, CLAMP, REAR 9 00011100 36 FLATWASHER 3/8 STD 10 00023100 9 HHCS 3/8 X 1-1/2 NC PL GR5 11 00015800 32 LOCKNUT TLM 3/8 NC PLC 12 00007000 9 HHCS 3/8 NC 1-3/4 PL5 13 02981757 2 WELDMENT, PIN, HITCH POST 14 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW 15 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB 16 165020 2 PIN, COTTER 5/16 X 2-1/2 PL 17 651102 1 PIN-DRILLED 18 02976448 1 PIN - MACHINED HEAD 19 00755153 2 PIN, COTTER 3/16 X 1-1/2 PL 20 02968837 1 PLASTIC TIE, YELLOW & WHITE 21 02968836 1 PLASTIC TIE, YELLOW 22 02960018 2 ADP, HYD, ELBOW, 4MB-4MJ90 23 02968894 1 PLASTIC TIE, RED, 11LG 24 02968896 1 PLASTIC TIE, ORANGE, 11LG 25 02972949 2 BOLT, HHCS 3/8 NC 1-1/4 PL8 26 00012101 2 LOCKWASHER, 3/8" PL

Page 10

50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SOLID MNT)

Page 11

50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SOLID MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986211 1 ASY, 50" ROT, GEAR, BAR 1 00015800 32 LOCKNUT TLM 3/8 NC PLC 2 02891800 4 HHCS 1/2 NC 1-3/4 PL8 3 00019600 4 LOCKWASHER 1/2 HEAVY 4 02982907 2 SKID SHOE 5 02981411 1 WELDMENT, DECK 50" HEAD 6 02961038 1 GASKET 7 02982906 1 ASY, BLADE BAR W/BLADES 8 02964861 4 SHCS 3/4 NC 4" LG PL8 9 15B600 14 WASHER 3/8 SAE P 10 00003901 4 LOCKWASHER 3/4 HEAVY 11 00059700 14 FSCS 3/8 NC X 1-1/4 12 02968859A 1 ASSEMBLY, SPINDLE HOUSING-SPLINED 13 03200269 8 HHCS 3/4 NC 3 PL8 14 02892100 8 HHCS 3/4 NC X 1 3/4" LG 15 00037200 16 NUT 3/4 NC LOCKNUT 16 5312316 16 FLATWASHER 3/4 HARDENED 17 02986200 1 WELDMENT, HITCH POST 18 02962112 1 HYD MOTOR - CAST IRON SPLINED 19 00749101 2 SPLIT FLANGE KIT #24 20 00751842 1 ADP HYD ELBOW 24FL - 16MJ - 90 21 00749104 1 ADP HYD ELBOW 24FL - 16MJ - 45 22 02958858 1 #16MJ-16FJ TUBE 90°

Page 12

50 IN ROTARY - BLADE BAR - HEAD ASY (SWIVEL MNT)

Page 13

50 IN ROTARY - BLADE BAR - HEAD ASY (SWIVEL MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986213 1 ASY, 50" ROT,GEAR,BAR,SWIVEL 1 02961480A 1 HYD CYLINDER 2BORE X 9-1/4 STROKE 2 02982914 1 WELDMENT, DOOR 3 02982915 1 ROD, HINGE 4 99338S 2 PIN ROLL 1/4 X 3/4 5 02982919 2 FLAP, 8 1/2 X 52 X 1/4 THK 6 02982918 1 BAR, HOLD DOWN, FLAP 7 02982920 2 FLAP, REAR 10 X 53 X 3/8 THK 8 02982921 1 BAR, CLAMP, REAR 9 00011100 36 FLATWASHER 3/8 STD 10 00023100 9 HHCS 3/8 X 1-1/2 NC PL GR5 11 00015800 18 LOCKNUT TLM 3/8 NC PLC 12 00007000 9 HHCS 3/8 NC 1-3/4 PL5 13 02981315 1 CYLINDER, 2.5B X 1.5R X 14.38S 14 02981757 2 WELDMENT, PIN, HITCH POST 15 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW 16 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB 17 165020 2 PIN, COTTER 5/16 X 2-1/2 PL 18 651102 1 PIN-DRILLED 19 02976448 1 PIN - MACHINED HEAD 20 00755153 2 PIN, COTTER 3/16 X 1-1/2 PL 21 03200267 1 HHCS 3/4 NC 5 PL8 22 02963646 3 HHCS 3/4 NC 2-1/2 PL8 23 00037200 18 NUT 3/4 NC LOCKNUT 24 02968837 1 PLASTIC TIE, YELLOW & WHITE 25 02968836 1 PLASTIC TIE, YELLOW 26 02960018 2 ADP, HYD, ELBOW, 4MB-4MJ90 27 02968832 1 PLASTIC TIE, GREEN 28 02968833 1 PLASTIC TIE, GREEN & WHITE 29 03200762 2 ADP, HYD 6MB-4MJ 90 30 02968894 1 PLASTIC TIE, RED, 11LG 31 02968896 1 PLASTIC TIE, ORANGE, 11LG 32 02972949 2 BOLT, HHCS 3/8 NC 1-1/4 PL8 33 00012101 2 LOCKWASHER, 3/8" PL

Page 14

50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SWIVEL MNT)

Page 15

50 IN ROTARY - BLADE BAR - HEAD SUB-ASY (SWIVEL MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986213 1 ASY, 50" ROT,GEAR,BAR,SWIVEL 1 00015800 18 LOCKNUT TLM 3/8 NC PLC 2 02963646 3 HHCS 3/4 NC 2-1/2 PL8 3 00037200 18 NUT 3/4 NC LOCKNUT 4 02891800 4 HHCS 1/2 NC 1-3/4 PL8 5 00019600 4 LOCKWASHER 1/2 HEAVY 6 02982907 2 SKID SHOE 7 02981820 28 SHCS 1/2 NC X 1 1/2" LG PL8 8 02981318 1 SLEWING BEARING, 12 OD X 5.8 ID 9 02985319 1 WELDMENT, HITCH POST 10 02981411 1 WELDMENT, DECK 50" HEAD 11 02961038 1 GASKET 12 02982906 1 ASY, BLADE BAR W/BLADES 13 02981752 1 PLATE, HITCH POST BOTTOM, MAVERICK 14 02964861 4 SHCS 3/4 NC 4" LG PL8 15 15B600 14 WASHER 3/8 SAE P 16 00003901 4 LOCKWASHER 3/4 HEAVY 17 00059700 14 FSCS 3/8 NC X 1-1/4 18 02968859A 1 ASSEMBLY, SPINDLE HOUSING-SPLINED 19 02892100 6 HHCS 3/4 NC X 1 3/4" LG 20 5312316 18 FLATWASHER 3/4 HARDENED 21 03200269 8 HHCS 3/4 NC 3 PL8 22 02962112 1 HYD MOTOR - CAST IRON SPLINED 23 00749101 2 SPLIT FLANGE KIT #24 24 00751842 1 ADP HYD ELBOW 24FL - 16MJ - 90 25 00749104 1 ADP HYD ELBOW 24FL - 16MJ - 45 26 02984002 1 WLDMNT, STOP, SWIVEL 27 02958858 1 #16MJ-16FJ TUBE 90°

Page 16

50 IN ROTARY - BLADE BAR ASY

ITEM PART NO. QTY. DESCRIPTION

02982906 1 ASY, BLADE BAR W/BLADES 1 02982912 1 LEAF, MIDDLE, BLADE BAR 2 02982913 1 LEAF, BOTTOM, BLADE BAR 3 02962635 2 BLADE, CW ROTATION 4 02982934 1 WLDMT. TOP BLADE BAR 5 02782900 2 BOLT, BLADE 6 02957089 2 LOCKWASHER 1-1/8 PL STD 7 00020900 2 NUT, SLOTTED, HVY,1-1/8NF PL GR5 8 00023200 2 PIN, ROLL, 3/16X1-3/4 9 15C2000 4 WASHER, 1.375 X 2.50 X .165, HARDENED 10 02969235 2 HHCS, 1-1/4X3 PL GR8 11 02969236 2 HHCS, 1-1/4X2-1/4 PL GR8

Page 17

THIS PAGE INTENTIONAL LEFT BLANK

Page 18

50 IN ROTARY - BLADE PAN - HEAD ASY (SOLID MNT)

Page 19

50 IN ROTARY - BLADE PAN - HEAD ASY (SOLID MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986210 1 ASY, 50" ROT, GEAR, PAN 1 02961480A 1 HYD, CYLINDER 2B X 1R X 9-1/4S 2 02982914 1 WELDMENT, DOOR 3 02982915 1 ROD-HINGE 4 99338S 2 PIN ROLL 1/4 X 3/4 5 02982919 2 DEBRIS DEFLECTOR 6 02982918 1 FLAP HOLD DOWN BAR 7 02982920 2 REAR FLAP 10 X 53 X 3/8 THK 8 02982921 1 REAR CLAMP BAR 9 00011100 36 FLATWASHER 3/8 STD 10 00023100 11 HHCS 3/8 X 1-1/2 NC PL GR5 11 00015800 34 LOCKNUT TLM 3/8 NC PLC 12 00007000 9 HHCS 3/8 NC 1-3/4 PL5 13 02981315 1 CYLINDER, 2.5B X 1.5R X 14.38S 14 02981757 2 WELDMENT, PIN, HITCH POST 15 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW 16 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB 17 165020 2 PIN, COTTER 5/16 X 2-1/2 PL 18 651102 1 PIN-DRILLED 19 02976448 1 PIN - MACHINED HEAD 20 00755153 2 PIN, COTTER 3/16 X 1-1/2 PL 21 03200267 1 HHCS 3/4 NC 5 PL8 22 02963646 1 HHCS 3/4 NC 2-1/2 PL8 23 02968894 1 PLASTIC TIE, RED, 11LG 24 02968896 1 PLASTIC TIE, ORANGE, 11LG 25 02972949 2 BOLT, HHCS 3/8 NC 1-1/4 PL8 26 00012101 2 LOCKWASHER, 3/8" PL

Page 20

50 IN ROTARY - BLADE PAN - HEAD SUB-ASY (SOLID MNT)

Page 21

50 IN ROTARY - BLADE PAN - HEAD SUB-ASY (SOLID MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986210 1 ASY, 50" ROT, GEAR, PAN 1 00015800 32 LOCKNUT TLM 3/8 NC PLC 2 02891800 4 HHCS 1/2 NC 1-3/4 PL8 3 00019600 4 LOCKWASHER 1/2 HEAVY 4 02982907 2 SKID SHOE 5 02981411 1 WELDMENT, DECK 50" HEAD 6 02961038 1 GASKET 7 02964457 1 PAN ASSY 50" HEAD 8 02964861 4 SHCS 3/4 NC 4" LG PL8 9 15B600 14 WASHER 3/8 SAE P 10 00003901 4 LOCKWASHER 3/4 HEAVY 11 00059700 14 FSCS 3/8 NC X 1-1/4 12 02968859A 1 ASSEMBLY, SPINDLE HOUSING-SPLINED 13 03200269 8 HHCS 3/4 NC 3 PL8 14 02892100 8 HHCS 3/4 NC X 1 3/4" LG 15 00037200 16 NUT 3/4 NC LOCKNUT 16 5312316 16 FLATWASHER 3/4 HARDENED 17 02986200 1 WELDMENT, HITCH POST 18 02962112 1 HYD MOTOR - CAST IRON SPLINED 19 00749101 2 SPLIT FLANGE KIT #24 20 00751842 1 ADP HYD ELBOW 24FL - 16MJ - 90 21 00749104 1 ADP HYD ELBOW 24FL - 16MJ - 45 22 02958858 1 #16MJ-16FJ TUBE 90° 23 02984822 1 SPACER BLADE PAN 24 02972949 2 BOLT, HHCS 3/8 NC 1-1/4 PL8 25 00012101 2 LOCKWASHER, 3/8" PL

Page 22

50 IN ROTARY - BLADE PAN - HEAD ASY (SWIVEL MNT)

Page 23

50 IN ROTARY - BLADE PAN - HEAD ASY (SWIVEL MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986212 1 ASY, 50" ROT,GEAR,PAN,SWIVEL 1 02961480A 1 HYD CYLINDER 2BORE X 9-1/4 STROKE 2 02982914 1 WELDMENT, DOOR 3 02982915 1 ROD, HINGE 4 99338S 2 PIN ROLL 1/4 X 3/4 5 02982919 2 FLAP, 8 1/2 X 52 X 1/4 THK 6 02982918 1 BAR, HOLD DOWN, FLAP 7 02982920 2 FLAP, REAR 10 X 53 X 3/8 THK 8 02982921 1 BAR, CLAMP, REAR 9 00011100 36 FLATWASHER 3/8 STD 10 00023100 9 HHCS 3/8 X 1-1/2 NC PL GR5 11 00015800 18 LOCKNUT TLM 3/8 NC PLC 12 00007000 9 HHCS 3/8 NC 1-3/4 PL5 13 02981315 1 CYLINDER, 2.5B X 1.5R X 14.38S 14 02981757 2 WELDMENT, PIN, HITCH POST 15 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW 16 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB 17 165020 2 PIN, COTTER 5/16 X 2-1/2 PL 18 651102 1 PIN-DRILLED 19 02976448 1 PIN - MACHINED HEAD 20 00755153 2 PIN, COTTER 3/16 X 1-1/2 PL 21 03200267 1 HHCS 3/4 NC 5 PL8 22 02963646 3 HHCS 3/4 NC 2-1/2 PL8 23 00037200 18 NUT 3/4 NC LOCKNUT 24 02968837 1 PLASTIC TIE, YELLOW & WHITE 25 02968836 1 PLASTIC TIE, YELLOW 26 02960018 2 ADP, HYD, ELBOW, 4MB-4MJ90 27 02968832 1 PLASTIC TIE, GREEN 28 02968833 1 PLASTIC TIE, GREEN & WHITE 29 03200762 2 ADP, HYD 6MB-4MJ 90 30 02968894 1 PLASTIC TIE, RED, 11LG 31 02968896 1 PLASTIC TIE, ORANGE, 11LG 32 02972949 2 BOLT, HHCS 3/8 NC 1-1/4 PL8 33 00012101 2 LOCKWASHER, 3/8" PL

Page 24

50 IN ROTARY - BLADE PAN - HEAD SUB-ASY (SWIVEL MNT)

Page 25

50 IN ROTARY - BLADE PAN - HEAD SUB-ASY (SWIVEL MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986212 1 ASY, 50" ROT,GEAR,PAN,SWIVEL 1 00015800 18 LOCKNUT TLM 3/8 NC PLC 2 02963646 3 HHCS 3/4 NC 2-1/2 PL8 3 00037200 18 NUT 3/4 NC LOCKNUT 4 02891800 4 HHCS 1/2 NC 1-3/4 PL8 5 00019600 4 LOCKWASHER 1/2 HEAVY 6 02982907 2 SKID SHOE 7 02981820 28 SHCS 1/2 NC X 1 1/2" LG PL8 8 02981318 1 SLEWING BEARING, 12 OD X 5.8 ID 9 02985319 1 WELDMENT, HITCH POST 10 02981411 1 WELDMENT, DECK 50" HEAD 11 02961038 1 GASKET 12 02964457 1 PAN ASSY 50" HEAD 13 02981752 1 PLATE, HITCH POST BOTTOM, MAVERICK 14 02964861 4 SHCS 3/4 NC 4" LG PL8 15 15B600 14 WASHER 3/8 SAE P 16 00003901 4 LOCKWASHER 3/4 HEAVY 17 00059700 14 FSCS 3/8 NC X 1-1/4 18 02968859A 1 ASSEMBLY, SPINDLE HOUSING-SPLINED 19 02892100 6 HHCS 3/4 NC X 1 3/4" LG 20 5312316 18 FLATWASHER 3/4 HARDENED 21 03200269 8 HHCS 3/4 NC 3 PL8 22 02962112 1 HYD MOTOR - CAST IRON SPLINED 23 00749101 2 SPLIT FLANGE KIT #24 24 00751842 1 ADP HYD ELBOW 24FL - 16MJ - 90 25 00749104 1 ADP HYD ELBOW 24FL - 16MJ - 45 26 02984002 1 WLDMNT, STOP, SWIVEL 27 02958858 1 #16MJ-16FJ TUBE 90° 28 02984822 1 SPACER BLADE PAN 29 02972949 2 BOLT, HHCS 3/8 NC 1-1/4 PL8 30 00012101 2 LOCKWASHER, 3/8" PL

Page 26

50 IN ROTARY - BLADE PAN ASY

ITEM PART NO. QTY. DESCRIPTION

02964457 1 PAN ASSEMBLY 50 SAMURAI

02964804 1 PAN SUB ASSEMBLY 1 02964826 1 PAN,MACHINED 28.00 BC 2 02964828 1 SPIDER, MACHNED 28.00 BC 3 00755623 3 WASHER 2.200 OD1.218 1DX.250 4 00020900 3 NUT SLOT HVY 1-1/8 NF PL5 5 00023200 3 PIN ROLL 3/16X1-3/4 6 02964815 4 BUSHING, BLADE BOLT 7 02964954 3 KEY,5/16 SQ X 15/16 LONG 8 02965229 3 WASHER, 2-19/32 ID 5.0 OD 3/16 9 02964330 3 KEYED BLADE BOLT 10 02962722 1 BLADES-SET OF 3(50B/A HEAD) 11 7A16824 3 HHCS 1 NC 3 PL5 12 00748547 6 FLATWASHER 1-1/32 X 13 02964162 3 SPACER BLADE PAN WITH SPIDER 14 02030300 3 NUT TOPLOCK 1 NC PLB

Page 27

60 IN ROTARY - BLADE BAR ASY

ITEM PART NO. QTY. DESCRIPTION

02969230 1 BLADE BAR ASY, W/ BLADES 1 00020900 2 HEX SLOTTED NUT, HVY 1-1/8"-NF PL GR5 2 00023200 2 ROLL PIN, 3/16" X 1-3/4" 3 02969234 4 FLATWASHER, 1-1/4" HARDENED PL 4 02761500 1 BLADE SET, MATCHED SET OF TWO 5 02971387 1 LEAF BLADE BAR, TOP 6 02969232 1 LEAF BLADE BAR, MIDDLE 7 02969233 1 LEAF BLADE BAR, BOTTOM 8 02969235 2 BOLT, HEX HEAD 1-1/4"-NC X 3" PL GR8 9 02969236 2 BOLT, HEX HEAD 1-1/4"-NC X 2-1/4" PL GR8 10 02782900 2 BLADE BOLT, SHOULDERED 11 02957089 2 LOCKWASHER, 1-1/8" PL STD 12 00003901 4 LOCKWASHER, 3/4" PL HEAVY 13 02964861 4 BOLT, SOCKET HEAD 3/4"-NC X 4" PL GR8 14 02984572 1 BLADE BOLTS, NUTS, ROLLPIN KIT (INCLUDES 2 EACH OF ITEMS 1, 2, & 10)

Page 28

60 IN ROTARY - HEAD ASY (SOLID MNT)

Page 29

60 IN ROTARY - HEAD ASY (SOLID MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986203 1 ASY,60" ROT, GEAR, BAR 1 02971963 1 WELDMENT, DOOR 2 02967782 1 ROD-HINGE 3 99338S 2 PIN ROLL 1/4 X 3/4 4 02961480A 1 HYD CYLINDER 2BORE X 9-1/4 STROKE 5 02981757 2 WELDMENT, PIN, HITCH POST 6 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW 7 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB 8 165020 2 PIN, COTTER 5/16 X 2-1/2 PL 9 651102 1 PIN-DRILLED 10 02976448 1 PIN - MACHINED HEAD 11 00755153 2 PIN, COTTER 3/16 X 1-1/2 PL 12 02885700 2 REAR FLAP 10 X 63 X 3/8 THK 13 02885800 1 REAR CLAMP BAR 14 00759862 2 DEBRIS DEFLECTOR 15 00756875 1 FLAP HOLD DOWN BAR 16 00023100 11 HHCS 3/8 X 1-1/2 NC PL GR5 17 00011100 46 FLATWASHER 3/8 STD 18 00015800 37 LOCKNUT TLM 3/8 NC PLC 19 00007000 12 HHCS 3/8 NC 1-3/4 PL5 20 02960018 2 ADP, HYD, ELBOW, 4MB-4MJ90 21 02767500 1 MODIFIED 5/8 HAE WRENCH 22 02968836 1 PLASTIC TIE, YELLOW 23 02968837 1 PLASTIC TIE, YELLOW & WHITE 24 02968894 1 PLASTIC TIE, RED, 11LG 25 02968896 1 PLASTIC TIE, ORANGE, 11LG 26 02972949 2 BOLT, HHCS 3/8 NC 1-1/4 PL8 27 00012101 2 LOCKWASHER, 3/8" PL

Page 30

60 IN ROTARY - HEAD SUB-ASY (SOLID MNT)

Page 31

60 IN ROTARY - HEAD SUB-ASY (SOLID MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986203 1 ASY,60" ROT, GEAR, BAR 1 00015800 37 LOCKNUT TLM 3/8 NC PLC 2 00751842 1 ADP HYD ELBOW 24FL - 16MJ - 90 3 00749104 1 ADP HYD ELBOW 24FL - 16MJ - 45 4 02892100 8 HHCS 3/4 NC X 1 3/4" LG 5 00037200 16 NUT 3/4 NC LOCKNUT 6 00019600 4 LOCKWASHER 1/2 HEAVY 7 03200269 8 HHCS 3/4 NC 3 PL8 8 02962112 1 HYD GEAR MOTOR 5.73 CID 9 02891800 4 HHCS 1/2 NC 1-3/4 PL8 10 02961038 1 GASKET 11 15B600 14 WASHER 3/8 SAE P 12 00059700 14 FSCS 3/8 NC X 1-1/4 13 00003901 4 LOCKWASHER 3/4 HEAVY 14 02966899 2 SKID SHOE 15 02969230 1 ASY, BLADE BAR W/BLADES 16 02964861 4 SHCS 3/4 NC 4" LG PL8 17 02968859A 1 ASSEMBLY, SPINDLE HOUSING-SPLINED 18 5312316 16 FLATWASHER 3/4 HARDENED 19 02981410 1 WELDMENT,60" ROTARY,SWIVEL 20 02986200 1 WELDMENT, HITCH POST 21 00749101 2 SPLIT FLANGE KIT #24 22 02958858 1 #16MJ-16FJ TUBE 90°

Page 32

60 IN ROTARY - HEAD ASY (SWIVEL MNT)

Page 33

60 IN ROTARY - HEAD ASY (SWIVEL MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986190 1 ASY, 60" ROT,GEAR,BAR,SWIVEL 1 02971963 1 WELDMENT, DOOR 2 02967782 1 ROD-HINGE 3 99338S 2 PIN ROLL 1/4 X 3/4 4 02961480A 1 HYD CYLINDER 2BORE X 9-1/4 STROKE 5 02981757 2 WELDMENT, PIN, HITCH POST 6 02971702 2 FLATWASHER, 1-3/8 TYPE B PL NARROW 7 02971701 2 NUT, SLOTTED 1-3/8 12NF PLB 8 165020 2 PIN, COTTER 5/16 X 2-1/2 PL 9 651102 1 PIN-DRILLED 10 02976448 1 PIN - MACHINED HEAD 11 00755153 2 PIN, COTTER 3/16 X 1-1/2 PL 12 02885700 2 REAR FLAP 10 X 63 X 3/8 THK 13 02885800 1 REAR CLAMP BAR 14 00759862 2 DEBRIS DEFLECTOR 15 00756875 1 FLAP HOLD DOWN BAR 16 00023100 11 HHCS 3/8 X 1-1/2 NC PL GR5 17 00011100 46 FLATWASHER 3/8 STD 18 00015800 37 LOCKNUT TLM 3/8 NC PLC 19 00007000 12 HHCS 3/8 NC 1-3/4 PL5 20 02960018 2 ADP, HYD, ELBOW, 4MB-4MJ90 21 02767500 1 MODIFIED 5/8 HAE WRENCH 22 02968836 1 PLASTIC TIE, YELLOW 23 02968837 1 PLASTIC TIE, YELLOW & WHITE 24 02968894 1 PLASTIC TIE, RED, 11LG 25 02968896 1 PLASTIC TIE, ORANGE, 11LG 26 02963646 3 HHCS 3/4 NC 2-1/2 PL8 27 02981315 1 CYLINDER, 2.5B X 1.5R X 14.38S 28 02960916 1 HHCS 3/4 NC 5 PL8 29 03200762 2 ADP, HYD 6MB-4MJ 90 30 02968833 1 PLASTIC TIE, GREEN & WHITE 31 02968832 1 PLASTIC TIE, GREEN 32 02972949 2 BOLT, HHCS 3/8 NC 1-1/4 PL8 33 00012101 2 LOCKWASHER, 3/8" PL

Page 34

60 IN ROTARY - HEAD SUB-ASY (SWIVEL MNT)

Page 35

60 IN ROTARY - HEAD SUB-ASY (SWIVEL MNT)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986190 1 ASY, 60" ROT,GEAR,BAR,SWIVEL 1 00015800 37 LOCKNUT TLM 3/8 NC PLC 2 00751842 1 ADP HYD ELBOW 24FL - 16MJ - 90 3 00749104 1 ADP HYD ELBOW 24FL - 16MJ - 45 4 02892100 6 HHCS 3/4 NC X 1 3/4" LG 5 00037200 18 NUT 3/4 NC LOCKNUT 6 00019600 4 LOCKWASHER 1/2 HEAVY 7 03200269 8 HHCS 3/4 NC 3 PL8 8 02961747 1 HYD MOTOR, CAST IRON, SPLINED, M365 9 02891800 4 HHCS 1/2 NC 1-3/4 PL8 10 02961038 1 GASKET 11 15B600 14 WASHER 3/8 SAE P 12 00059700 14 FSCS 3/8 NC X 1-1/4 13 00003901 4 LOCKWASHER 3/4 HEAVY 14 02966899 2 SKID SHOE 15 02969230 1 ASY, BLADE BAR W/BLADES 16 02964861 4 SHCS 3/4 NC 4" LG PL8 17 02968859A 1 ASSEMBLY, SPINDLE HOUSING-SPLINED 18 5312316 16 FLATWASHER 3/4 HARDENED 19 02981410 1 WELDMENT,60" ROTARY,SWIVEL 20 02963646 3 HHCS 3/4 NC 2-1/2 PL8 21 00749101 2 SPLIT FLANGE KIT #24 22 02985319 1 WELDMENT, HITCH POST 23 02981752 1 PLATE, HITCH POST BOTTOM, MAVERICK 24 02981318 1 SLEWING BEARING, 12 OD X 5.8 ID 25 02981820 28 SHCS 1/2 NC X 1 1/2" LG PL8 26 02958858 1 #16MJ-16FJ TUBE 90° 27 02984002 1 WLDMNT, STOP, SWIVEL

Page 36

BOOM ASY - 18 FT BOOM (PART 1)

Page 37

BOOM ASY - 18 FT BOOM (PART 1)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986861 1 ASY, 18 SAMURAI 1 02986896 1 WELDMENT,18` LIFT 2 02983707 1 WELDMENT, DIPPER, 18` 3 02981279 1 CYLINDER, 4.0B X 2.25R X 24.63S 4 02984944 1 CYLINDER, 3.5B X 1.5R X 16.0S 5 02983320 1 CYL, 3.5B X 1.5R X 30.0S 6 02971751 1 PIN, 1-1/2 X 5-3/16 & 13/32 HOLE 7 02981294 1 WELDMENT, PIN, LIFT/ DIPPER 8 02982981 1 WELDMENT, CYLINDER PIN LONG, NEW BOOM 9 02981420 2 CONNEX BUSHING, 2 1/4 X 2 X 3 10 02981424 8 CONNEX BUSHING, 1 3/4 X 1 1/2 X 3 11 02981273 1 SPACER, PIN, DIPPER, MAVERICK 12 02981702 1 SLOTTED NUT, 1-1/2 NF 13 02984819 1 HYDRAULIC TUBE, #16 14 02984817 1 HYDRAULIC TUBE, #16 15 02985273 1 ASSEMBLY, TILT CYLINDER COVER 16 02965448 4 ADP, HYD 4MJ -4MJ BULKHEAD 17 02919600 4 CAP, HYD 4FJ 18 165020 1 PIN, COTTER 5/16 X 2-1/2 PL 19 63149100 3 ADP, HYD ELBOW 6MB-6MJ 90 20 00002700 3 FLATWASHER, 1/2 PL STD 21 02975436 1 HHCS 1/2 NC X 2 1/4 PL8 22 00001800 1 LOCKNUT TLM 1/2 NC PLB 23 00023100 3 HHCS 3/8 X 1-1/2 NC PL GR5 24 02970595 1 HHCS 3/8 NC 2-3/4 PL8 25 00015800 4 LOCKNUT TLM 3/8 NC PLC 26 001921 1 ADAPTER 6MJ - 6FJX 90 27 000941 1 GREASE ZERK 1/4-28 90 BOLT THD 28 00752670 8 GREASE FITTING 1/4-28 BOLT THD 29 02968835 1 PLASTIC TIE, ORANGE & WHITE 30 02968831 1 PLASTIC TIE, BLUE & WHITE 31 02968834 1 PLASTIC TIE, ORANGE 32 02968830 1 PLASTIC TIE, BLUE 33 02968829 1 PLASTIC TIE, RED & WHITE 34 02968828 1 PLASTIC TIE, RED 35 02968837 1 PLASTIC TIE, YELLOW & WHITE 36 02968836 1 PLASTIC TIE, YELLOW 37 02968894 4 PLASTIC TIE, RED, 11LG 38 02968896 4 PLASTIC TIE, ORANGE, 11LG 39 02968832 1 PLASTIC TIE, GREEN 40 02968833 1 PLASTIC TIE, GREEN & WHITE

Page 38

BOOM ASY - 18 FT BOOM (PART 2)

Page 39

BOOM ASY - 18 FT BOOM (PART 2)

Continued... ITEM PART NO. QTY. DESCRIPTION

42 02984821 1 COVER, LIFT TUBE COVER 43 02956918 2 CAP, 16 FJ 44 03200375 4 CLAMP, TUBE 1-POSTION 45 02985222 2 PLATE, LINKAGE 46 02986074 1 WELDMENT, LINKAGE 47 02985220 3 WELDMENT, PIN, LINKAGE 48 00011400 3 BOLT, HHCS 3/8 NC 1 PL5 49 00769258 3 RETAINING RING,1.5 SHAFT 50 02982979 2 WELDMENT, CYLINDER PIN, NEW BOOM 51 281324 2 CARB 1/2 - 13 X 3 52 00019600 2 LOCKWASHER 1/2 HEAVY 53 02983080 2 NUT, 1/2-13 ACORN 54 63161900 2 SPRING NUT 1/2 55 03101646 3 LOCKWASHER 3/8 56 02985978 1 PLATE, BULKHEAD 57 00002100 4 BOLT, HHCS 1/4" X 1/2" LG 58 00751846 3 ADP HYD STGHT 16MJ - 16MJ BULKHEAD 59 02976532 4 ADP, HYD, 4MJ-4FJX 45 60 02956851 1 ADP HYD ELBOW 16 MJ-16 JX 90 61 02742500 1 ADAPTER 16MJ - 16MJ 90 BULKHEAD

Page 40

BOOM ASY - 22 FT BOOM (PART 1)

Page 41

BOOM ASY - 22 FT BOOM (PART 1)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986401 1 ASY, 22 SAMURAI 1 02984850 1 WELDMENT, 22` LIFT 2 02985124 1 WELDMENT, 22` DIPPER 3 02981294 1 WELDMENT, PIN, LIFT/ DIPPER 4 02981279 1 CYLINDER, 4.0B X 2.25R X 24.63S 5 02982979 3 WELDMENT, CYLINDER PIN, NEW BOOM 6 02982980 1 WELDMENT, CYLINDER PIN SHORT, NEW BOOM 7 02981273 1 SPACER, PIN, DIPPER, MAVERICK 8 02981277 1 CYLINDER, 4.0B X 2.25R X 21.5S 9 02981702 1 SLOTTED NUT, 1-1/2 NF 10 63149100 3 ADP, HYD ELBOW 6MB-6MJ 90 11 02981420 4 CONNEX BUSHING, 2 1/4 X 2 X 3 12 02981424 8 CONNEX BUSHING, 1 3/4 X 1 1/2 X 3 13 02984853 1 HYDRAULIC TUBE, #16 14 02984855 1 HYDRAULIC TUBE, #16 15 02965448 4 ADP, HYD 4MJ -4MJ BULKHEAD 16 02919600 4 CAP, HYD 4FJ 17 00002700 5 FLATWASHER, 1/2 PL STD 18 02975436 1 HHCS 1/2 NC X 2 1/4 PL8 19 00001800 1 LOCKNUT TLM 1/2 NC PLB 20 02957042 1 HHCS 3/8NC 1-3/4 PL GR8 21 00023100 3 HHCS 3/8 X 1-1/2 NC PL GR5 22 00015800 4 LOCKNUT TLM 3/8 NC PLC 23 00752670 11 GREASE FITTING 1/4-28 BOLT THD 24 000941 1 GREASE ZERK 1/4-28 90 BOLT THD 25 02968835 1 PLASTIC TIE, ORANGE & WHITE 26 165020 1 PIN, COTTER 5/16 X 2-1/2 PL 27 02968834 1 PLASTIC TIE, ORANGE 28 02968831 1 PLASTIC TIE, BLUE & WHITE 29 02968830 1 PLASTIC TIE, BLUE 30 02968829 1 PLASTIC TIE, RED & WHITE 31 02968828 1 PLASTIC TIE, RED 32 02968837 1 PLASTIC TIE, YELLOW & WHITE 33 02968836 1 PLASTIC TIE, YELLOW 34 02968894 4 PLASTIC TIE, RED, 11LG 35 02968896 4 PLASTIC TIE, ORANGE, 11LG 36 001921 1 ADAPTER 6MJ - 6FJX 90 37 02968832 1 PLASTIC TIE, GREEN 38 02968833 1 PLASTIC TIE, GREEN & WHITE 40 03200375 8 CLAMP, TUBE 1-POSTION, 1" 41 02984856 1 COVER, LIFT TUBE COVER

Page 42

BOOM ASY - 22 FT BOOM (PART 2)

Page 43

BOOM ASY - 22 FT BOOM (PART 2)

Continued... ITEM PART NO. QTY. DESCRIPTION

42 02984857 1 COVER, LIFT TUBE COVER 43 02956918 2 CAP, 16 FJ 44 00011400 3 BOLT, HHCS 3/8 NC 1 PL5 45 00769258 3 RETAINING RING,1.5 SHAFT 46 02986074 1 WELDMENT, LINKAGE 47 02985220 3 WELDMENT, PIN, LINKAGE 48 02985222 2 PLATE, LINKAGE 49 02985273 1 ASSEMBLY, TILT CYLINDER COVER 50 02984944 1 CYLINDER, 3.5B X 1.5R X 16.0S 51 281324 4 CARB 1/2 - 13 X 3 52 00019600 4 LOCKWASHER 1/2 HEAVY 53 02983080 4 NUT, 1/2-13 ACORN 54 63161900 4 SPRING NUT 1/2 55 02966704 3 LOCKWASHER 3/8 56 00751846 3 ADP HYD STGHT 16MJ - 16MJ BULKHEAD 57 02742500 1 ADAPTER 16MJ - 16MJ 90 BULKHEAD 58 02956851 1 ADP HYD ELBOW 16 MJ-16 JX 90 59 02976532 4 ADP, HYD, 4MJ-4FJX 45 60 02985978 1 PLATE, BULKHEAD 61 00002100 4 BOLT, HHCS 1/4" X 1/2" LG

Page 44

BOOM ASY - 25 FT BOOM (PART 1)

Page 45

BOOM ASY - 25 FT BOOM (PART 1)

Continued... ITEM PART NO. QTY. DESCRIPTION

02986863 1 ASY, 25 SAMURAI 1 02986898 1 WELDMENT, 25` LIFT 2 02984895 1 WELDMENT, 25` DIPPER 3 02981279 1 CYLINDER, 4.0B X 2.25R X 24.63S 4 02981277 1 CYLINDER, 4.0B X 2.25R X 21.5S 5 02981420 2 CONNEX BUSHING, 2 1/4 X 2 X 3 6 02981424 8 CONNEX BUSHING, 1 3/4 X 1 1/2 X 3 7 02981294 1 WELDMENT, PIN, LIFT/ DIPPER 8 02981273 1 SPACER, PIN, DIPPER, MAVERICK 9 02981702 1 SLOTTED NUT, 1-1/2 NF 10 02982979 3 WELDMENT, CYLINDER PIN, NEW BOOM 11 02982980 1 WELDMENT, CYLINDER PIN SHORT, NEW BOOM 12 02965448 4 ADP, HYD 4MJ -4MJ BULKHEAD 13 02919600 4 CAP, HYD 4FJ 14 63149100 3 ADP, HYD ELBOW 6MB-6MJ 90 15 00002700 5 FLATWASHER, 1/2 PL STD 16 02975436 1 HHCS 1/2 NC X 2 1/4 PL8 17 00001800 1 LOCKNUT TLM 1/2 NC PLB 18 02957042 1 HHCS 3/8NC 1-3/4 PL GR8 19 00023100 3 HHCS 3/8 X 1-1/2 NC PL GR5 20 00015800 4 LOCKNUT TLM 3/8 NC PLC 21 000941 1 GREASE ZERK 1/4-28 90 BOLT THD 22 00752670 10 GREASE FITTING 1/4-28 BOLT THD 23 165020 1 PIN, COTTER 5/16 X 2-1/2 PL 24 02968835 1 PLASTIC TIE, ORANGE & WHITE 25 02968834 1 PLASTIC TIE, ORANGE 26 02968831 1 PLASTIC TIE, BLUE & WHITE 27 02968830 1 PLASTIC TIE, BLUE 28 02968828 1 PLASTIC TIE, RED 29 02968829 1 PLASTIC TIE, RED & WHITE 30 02968836 1 PLASTIC TIE, YELLOW 31 02968837 1 PLASTIC TIE, YELLOW & WHITE 32 02968894 4 PLASTIC TIE, RED, 11LG 33 02968896 4 PLASTIC TIE, ORANGE, 11LG 34 001921 1 ADAPTER 6MJ - 6FJX 90 35 02968832 1 PLASTIC TIE, GREEN 36 02968833 1 PLASTIC TIE, GREEN & WHITE 38 03200375 8 CLAMP, TUBE 1-POSTION 39 02984890 1 HYDRAULIC TUBE, #16 40 02984892 1 HYDRAULIC TUBE, #16 41 02984893 1 COVER, LIFT TUBE COVER

Page 46

BOOM ASY - 25 FT BOOM (PART 2)

Page 47

BOOM ASY - 25 FT BOOM (PART 2)

Continued... ITEM PART NO. QTY. DESCRIPTION

42 02984894 1 COVER, LIFT TUBE COVER 43 02956918 2 CAP, 16 FJ 44 02983080 4 NUT, 1/2-13 ACORN 45 00019600 4 LOCKWASHER 1/2 HEAVY 46 281324 4 CARB 1/2 - 13 X 3 47 63161900 4 SPRING NUT 1/2 48 02985222 2 PLATE, LINKAGE 49 02985220 3 WELDMENT, PIN, LINKAGE 50 00769258 3 RETAINING RING,1.5 SHAFT 51 02985273 1 ASSEMBLY, TILT CYLINDER COVER 52 02984944 1 CYLINDER, 3.5B X 1.5R X 16.0S 53 02986074 1 WELDMENT, LINKAGE 54 00011400 3 BOLT, HHCS 3/8 NC 1 PL5 55 03101646 3 LOCKWASHER 3/8 56 02976532 4 ADP, HYD, 4MJ-4FJX 45 57 00751846 3 ADP HYD STGHT 16MJ - 16MJ BULKHEAD 58 02956851 1 ADP HYD ELBOW 16 MJ-16 JX 90 59 02742500 1 ADAPTER 16MJ - 16MJ 90 BULKHEAD 60 02985978 1 PLATE, BULKHEAD 61 00002100 4 BOLT, HHCS 1/4" X 1/2" LG

Page 48

COMMON CRATE COMPONENTS - ELECTRO

Page 49

COMMON CRATE COMPONENTS - ELECTRO

Continued... ITEM PART NO. QTY. DESCRIPTION

002369 1 DECAL,DANGER-MULTI HAZARD

002508 1 DECAL,ALAMO LOGO (SQUARE)

00749101 1 SPLIT FLANGE KIT 1-1/2

00749508 2 PLUG 1/2-14 NPT

00776031 1 CANISTER, PARTS MANUAL

02090800 2 ADP HYD ELBOW 12MB-12MJ90

02753400 2 PLASTIC TIE 15 LG UV BLACK

02906100 1 HOSE #8 - 8FJX - 8FJX90- 32LG

02960409 2 ADP TUBE ELBOW 20MJ-20FJX 90°

02966639 8 BAR,MOUNT STRAP

02966641 4 BAR-MOUNT ANGLE

02966874 1 BOOT,CABLE

02970116 2 TUBE,FRAME MOUNTING

02975004 1 MOUNT TIE ROD

02981377 1 COOLER, OIL/AIR W/FAN

02981381 1 ASY, PUMP COVER

02981383 1 MOUNT, COOLER, RH

02981384 1 MOUNT, COOLER, LH

02981441 2 KNOB 3/8NC X 1-1/2 STUD

02981953 2 HANGER, FORMED, HOSE

02983212 1 HOSE #12-12FJX-12FJX90-30LG

02983489 1 DECAL, JOYSTICK CONTROL, AXTR

02984735 1 ASY, HARNESS, MACHETE

02986111 1 CABLE, PUMP COVER 36" LG

02986130 1 CABLE, MANUAL CANISTER, 24" LG

02986949 1 BOLT BAG ELECTROHYD BOOMS

02987499 1 PACKET, INST DWGS AND DECALS

02987521 1 ASY, TANK, ELECVALVE, SAMURAI

02987703 1 PLATE, AUXILARY VALVE

02987705 1 BAR,MOUNT STRAP 4-1/2"

02987817 1 BOOM TO FRAME HOSE BUNDLE

02975446C 1 ASSEMBLY JOYSTICK CONSOLE

02986950A 1 ASY, SAMURAI OPS & PARTS

02986950C 1 MAN,SAMURAI OPS

02986950CA 1 ASSEMBLY CANISTER MANUAL

Page 50

COMMON CRATE COMPONENTS - MANUAL

Page 51

COMMON CRATE COMPONENTS - MANUAL

Continued... ITEM PART NO. QTY. DESCRIPTION

00749101 1 SPLIT FLANGE KIT 1-1/2

00749508 2 PLUG 1/2-14 NPT

00776031 1 CANISTER, PARTS MANUAL

02090800 2 ADP HYD ELBOW 12MB-12MJ90

02753400 5 PLASTIC TIE 15 LG UV BLACK

02906100 1 HOSE #8 - 8FJX - 8FJX90- 32LG

02958858 2 ADP TUBE ELBOW 16MJ-16FJX 90DG

02959154 2 ADP HYD ELBOW 16MJ -16FJX 45

02962748 1 DECAL-ON-OFF SWITCH CUTTER VLV

02964028 1 SWITCH PUSH-PULL SPDT 10A@12V

02966639 6 BAR,MOUNT STRAP

02966874 1 BOOT,CABLE

02970116 2 TUBE,FRAME MOUNTING

02971274 5 KIT,CABLE CONNECTION-V20 VALVE

02975004 1 MOUNT TIE ROD

02981377 1 COOLER, OIL/AIR W/FAN

02981381 1 ASY, PUMP COVER

02981383 1 MOUNT, COOLER, RH

02981384 1 MOUNT, COOLER, LH

02981441 2 KNOB 3/8NC X 1-1/2 STUD

02981810 5 LEVER SHORT SNGL AXIS CONTROL

02981953 2 HANGER, FORMED, HOSE

02982922 1 WIRE HARENESS, MANUAL, AXTREME

02983212 1 HOSE #12-12FJX-12FJX90-30LG

02983408 1 DECAL, LEVER CONTROL, AXTREME

02986111 1 CABLE, PUMP COVER 36" LG

02986130 1 CABLE, MANUAL CANISTER, 24" LG

02986857 1 BOLT BAG, SAMURAI & M2

02987499 1 PACKET, INST DWGS AND DECALS

02987518 1 ASY, TANK, MAN VALVE, SAMURAI

02987703 1 PLATE, AUXILARY VALVE

02987705 1 BAR,MOUNT STRAP 4-1/2"

02987817 1 BOOM TO FRAME HOSE BUNDLE

02986950A 1 ASY, SAMURAI OPS & PARTS

02986950CA 1 ASSEMBLY CANISTER MANUAL

Page 52

DECALS - 18-22-25 FT BOOM

ITEM PART NO. QTY. DESCRIPTION

1 02962764 6 DECAL, PINCH POINT 2 02987466 2 SAMURAI 18` DECAL

02987467 2 SAMURAI 22` DECAL

02987468 2 SAMURAI 25` DECAL 3 02981987 1 DECAL, HOSE CONNECTION, MAVERICK 4 02986867 1 PLATE,S/N 18` SAMURAI

02986787 1 PLATE, S/N 22` SAMURAI

02986869 1 PLATE, S/N 25` SAMURAI 5 3710151 4 METAL TACK

Page 53

THIS PAGE INTENTIONAL LEFT BLANK

Page 54

DECALS - 50 & 60 IN ROTARY HEAD

Page 55

DECALS - 50 & 60 IN ROTARY HEAD

Continued... ITEM PART NO. QTY. DESCRIPTION

1 00757139 2 DECAL, LOGO (ALAMO BY T.K.) 2 00757140 1 DECAL, ALAMO INDUSTRIAL LOGO 3 00769736 1 DECAL, USE/REPAIR GUARDS 4 00769737 2 DECAL, BLADES THROWN OBJECTS 5 02925100 1 DECAL, REPLACEMENT PARTS 6 02967827 1 DECAL, MULTI HAZARD 7 02967867 1 DECAL, DANGER SAFETY SHIELD 8 2738332 1 DECAL, RED OBLONG REFLECTOR 9 2738333 1 DECAL, YELLOW OBLONG REFLECTOR 10 02986680 1 PLATE S/N 60", ROTARY, GEAR 11 3710151 4 METAL TACK 12 02970889 1 DECAL, 60 ROTARY

02982927 1 DECAL, 50 ROTARY

Page 56

DECALS - HYD TANK AND PUMP

Page 57

DECALS - HYD TANK AND PUMP

Continued... ITEM PART NO. QTY. DESCRIPTION

1 02987402 1 DECAL, ELECTRO VALVE LAYOUT M2 PVG32

02987520 1 DECAL, VALVE LAYOUT V20 MAN 2 02971943 1 DECAL, LOGO RECT CLEAR Y/W, 2 7/8 X 20 3 02965262 1 DECAL - WARNING - HOSE BURST 4 02971123 1 DECAL WARNING PRESS TANK 5 02982828 1 DECAL, TEMP RANGE 6 02982583 1 DO NOT WELD MAVERICK

Page 58

DECALS - LEVER CONTROL

ITEM PART NO. QTY. DESCRIPTION

1 02983408 1 DECAL, LEVER CONTROL, AXTREME

Page 59

FILTER ASSEMBLY

ITEM PART NO. QTY. DESCRIPTION

02964748 1 FILTER ASY 1 02961001 1 FILTER ELEMENT REPLACEMENT ONLY 2 02972678 1 SPRING, FILTER CARTRIDGE 3 02973782 1 VALVE, FILTER BYPASS 4 02978349 1 FILTER COVER 5 02978354 1 SEAL KIT 6 02978355 1 NUT AND BOLT KIT F/ TOP COVER

Page 60

HIGH FRAME MOUNT ASY - 2WD

Page 61

HIGH FRAME MOUNT ASY - 2WD

Continued... ITEM PART NO. QTY. DESCRIPTION

02978449 1 ASY HIGH FRAME 2WD 1 02978447 1 WELDMENT FRAME 2WD 2 02978000 1 SUB-ASY KINGPOST FRAME 3 02978461 1 WLDMT PIN 1-1/2 OD X 6-3/4 LG CHROMED 4 02975596 1 TUBE SPACER 3/4 OD X .51 ID X .31 LG 5 00013300 1 HHCS 1/2 NC 2 PL5 6 00002700 1 FLATWASHER 1/2 PL STD 7 00001800 1 LOCKNUT 1/2 NC PLB 8 02960521 8 HHCS 3/4 NC 2-3/4 PL8 9 00037200 8 LOCKNUT 3/4 NC PLC 10 5312316 16 WASHER 25/32 X 1-7/16 X 1/8 HARDENED 11 02968841 1 ASSEMBLY LIFT CYLINDER 12 00725746 1 DECAL SPANISH TRANSL 13 02742500 3 ELBOW 16MJ -16MJ90 BULKHEAD 14 02962765 1 DECAL MULTI-HAZZARD 15 02965262 1 DECAL HOSE BURST

Page 62

HIGH FRAME MOUNT ASY - 4WD

Page 63

HIGH FRAME MOUNT ASY - 4WD

Continued... ITEM PART NO. QTY. DESCRIPTION

02978450 1 ASY HIGH FRAME 4WD 1 02978448 1 WELDMENT FRAME 4WD 2 02978000 1 SUB-ASY KINGPOST FRAME 3 02978461 1 WLDMT PIN 1-1/2 OD X 6-3/4 LG CHROMED 4 02975596 1 TUBE SPACER 3/4 OD X .51 ID X .31 LG 5 00013300 1 HHCS 1/2 NC 2 PL5 6 00002700 1 FLATWASHER 1/2 PL STD 7 00001800 1 LOCKNUT 1/2 NC PLB 8 02960521 8 HHCS 3/4 NC 2-3/4 PL8 9 00037200 8 LOCKNUT 3/4 NC PLC 10 5312316 16 WASHER 25/32 X 1-7/16 X 1/8 HARDENED 11 02968841 1 ASSEMBLY LIFT CYLINDER 12 00725746 1 DECAL SPANISH TRANSL 13 02742500 3 ELBOW 16MJ -16MJ90 BULKHEAD 14 02962765 1 DECAL MULTI-HAZZARD 15 02965262 1 DECAL HOSE BURST

Page 64

HOSE ROUTING - 18 FT BOOM

Page 65

HOSE ROUTING - 18 FT BOOM NOTES

ITEM PART NO. QTY. DESCRIPTION

1 02983346 1 HOSE #6-6FJX-6MJ-61LG 2 02983347 1 HOSE #6-6FJX-6MJ-61LG 3 02983348 1 HOSE #4-4FJX-4MJ-61LG 4 02983349 1 HOSE #4-4FJX-4MJ-61LG 5 02983531 1 HOSE #4-4FJX-4MJ-61LG 6 02983532 1 HOSE #4-4FJX-4MJ-61LG 7 02983350 1 HOSE #6-6FJX-6MJ-124LG 8 02983351 1 HOSE #6-6FJX-6MJ-124LG 9 02983352 1 HOSE #4-4FJX-4MJ-116LG 10 02983353 1 HOSE #4-4FJX-4MJ-116LG 11 02983533 1 HOSE #4-4FJX-4MJ-116LG 12 02983534 1 HOSE #4-4FJX-4MJ-116LG 13 02984267 1 HOSE #6-6FJX-6MJ-36LG 14 02984268 1 HOSE #6-6FJX-6MJ-36LG 15 02984833 1 HOSE #16-16FJX-16FJX45-54LG 16 02984834 1 HOSE #16-16FJX-16FJX45-58-1/2 17 02986007 1 HOSE #16-16FJX-16FJX90-62-1/2 18 02986008 1 HOSE #16-16FJX-16FJX90-58-3/4 19 02961085 1 CORDURA SLEEVING-54 LG 20 02982334 1 CORDURA SLEEVE, 2.54ID, 10LG 21 02983079 1 SLEEVE 66" CORDURA 2.54 ID

Page 66

HOSE ROUTING - 22 FT BOOM

Page 67

HOSE ROUTING - 22 FT BOOM NOTES

ITEM PART NO. QTY. DESCRIPTION

1 02983188 1 HOSE #6-6FJX-6MJ-126LG 2 02983189 1 HOSE #6-6FJX-6MJ-126LG 3 02983190 1 HOSE #6-6FJX-6MJ-102LG 4 02983191 1 HOSE #6-6FJX-6MJ-102LG 5 02983192 1 HOSE #4-4FJX-4MJ-102LG 6 02983193 1 HOSE #4-4FJX-4MJ-102LG 7 02983505 1 HOSE #4-4FJX-4MJ-102LG 8 02983506 1 HOSE #4-4FJX-4MJ-102LG 9 02983194 1 HOSE #6-6FJX-6MJ-158LG 10 02983195 1 HOSE #6-6FJX-6MJ-158LG 11 02983196 1 HOSE #4-4FJX-4MJ-158LG 12 02983197 1 HOSE #4-4FJX-4MJ-158LG 13 02983501 1 HOSE #4-4FJX-4MJ-158LG 14 02983502 1 HOSE #4-4FJX-4MJ-158LG 15 02986107 1 HOSE #16-16FJX-16FJX-62LG 16 02986108 1 HOSE #16-16FJX-16FJX-62LG 17 02986001 1 HOSE #16-16FJX-16FJX90-88 18 02986002 1 HOSE #16-16FJX-16FJX90-83-5/8 19 02961085 1 CORDURA SLEEVING-54 LG 20 02982334 1 CORDURA SLEEVE, 2.54ID, 10LG 21 02983079 1 SLEEVE 66" CORDURA 2.54 ID

Page 68

HOSE ROUTING - 25 FT BOOM

Page 69

HOSE ROUTING - 25 FT BOOM NOTES

ITEM PART NO. QTY. DESCRIPTION

1 02983188 1 HOSE #6-6FJX-6MJ-126LG 2 02983189 1 HOSE #6-6FJX-6MJ-126LG 3 02983190 1 HOSE #6-6FJX-6MJ-102LG 4 02983191 1 HOSE #6-6FJX-6MJ-102LG 5 02983192 1 HOSE #4-4FJX-4MJ-102LG 6 02983193 1 HOSE #4-4FJX-4MJ-102LG 7 02983505 1 HOSE #4-4FJX-4MJ-102LG 8 02983506 1 HOSE #4-4FJX-4MJ-102LG 9 02983194 1 HOSE #6-6FJX-6MJ-158LG 11 02983196 1 HOSE #4-4FJX-4MJ-158LG 12 02983197 1 HOSE #4-4FJX-4MJ-158LG 13 02983501 1 HOSE #4-4FJX-4MJ-158LG 14 02983502 1 HOSE #4-4FJX-4MJ-158LG 15 02986107 1 HOSE #16-16FJX-16FJX-62LG 16 02986108 1 HOSE #16-16FJX-16FJX-62LG 17 02986001 1 HOSE #16-16FJX-16FJX90-88 18 02986002 1 HOSE #16-16FJX-16FJX90-83-5/8 19 02961085 1 CORDURA SLEEVING-54 LG 20 02982334 1 CORDURA SLEEVE, 2.54ID, 10LG 21 02983079 1 SLEEVE 66" CORDURA 2.54 ID

Page 70

HOSE ROUTING - ELECTRO HYDRAULIC KIT

Page 71

HOSE ROUTING - ELECTRO HYDRAULIC KIT NOTES

ITEM PART NO. QTY. DESCRIPTION

02906100 1 HOSE #8 - 8FJX - 8FJX90- 32LG

02975386 1 HOSE #20-20FJX -20FJX - 31LG

02983212 1 HOSE #12-12FJX-12FJX90-30LG

02983214 1 HOSE #12-12FJX-12FJX-16LG

Page 72

HOSE ROUTING - MANUAL HYDRAULIC KIT

Page 73

HOSE ROUTING - MANUAL HYDRAULIC KIT NOTES

ITEM PART NO. QTY. DESCRIPTION

02906100 1 HOSE #8 - 8FJX - 8FJX90- 32LG

02983485 1 HOSE #20-20FJX -20FJX90-16LG

02983212 1 HOSE #12-12FJX-12FJX90-30LG

02983214 1 HOSE #12-12FJX-12FJX-16LG

Page 74

HYDARULIC CYLINDER ASY - DIPPER 18 FT BOOM

ITEM PART NO. QTY. DESCRIPTION

02983320 1 CYLINDER, 3.5B X 1.5R X 30.0S 1 02987928 1 ASSEMBLY ROD 2 02987927 1 ASSY, BARREL

02987929 1 KIT, SEAL, DIPPER

Page 75

HYDARULIC CYLINDER ASY - DIPPER 22-25 FT BOOM

ITEM PART NO. QTY. DESCRIPTION

02981277 1 HYD CYL ASY, 4" BORE X 21.5" STROKE (22 & 25 FT BOOM) 1 02981925 1 BARREL WLDMT 2 02981926 1 ROD WLDMT 3 02982250 2 BUSHING, ROD END 1-1/2" LG 4 02982251 2 BUSHING, BARREL END 2" LG 5 02982068 1 SEAL KIT

Page 76

HYDARULIC CYLINDER ASY - LIFT BOOM

ITEM PART NO. QTY. DESCRIPTION

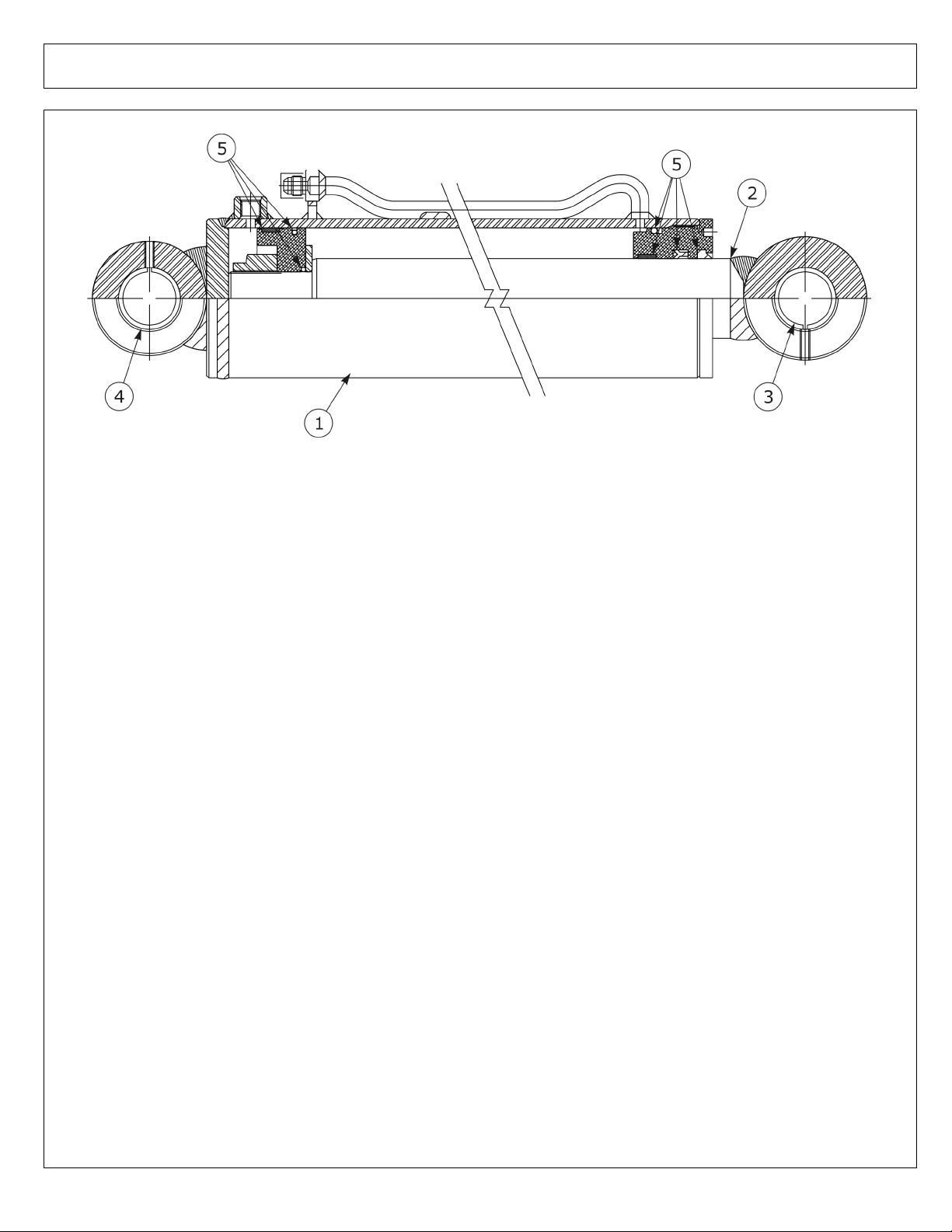

02981279 1 CYLINDER ASY, 4" BORE X 24.63" STROKE 1 02981929 1 BARREL WELDMENT 2 02981930 1 ROD WELDMENT 3 02982250 2 BUSHING, ROD END 1-1/2" LG 4 02982251 2 BUSHING, BARREL END 2" LG 5 02982068 1 SEAL KIT

Page 77

HYDRAULIC CYLINDER ASY - HEAD SWIVEL

ITEM PART NO. QTY. DESCRIPTION

02962112 1 HYD. MOTOR ASY, CAST IRON HSG. & SPLINED SHAFT 1 02961933 1 SNAP RING 2 * 1 O-RING (SEE ITEM 19 & 20) 3 02961932 1 RETAINER SEAL 4 * 2 SEAL (SEE ITEM 19 & 20) 5 02961926 1 MOUNTING FLANGE 6 02961940 1 PLUG HEX SKT HD 7 02961931 2 CHECK ASY. 8 * 4 SEAL END (SEE ITEM 19 & 20) 9 * 2 THRUST PLATES (SEE ITEM 20) 10 02962287 1 KIT GEAR SET 11 * 2 SQUARE SEAL (SEE ITEM 19 & 20) 12 02961924 4 PINS-DOWEL 13 02962288 1 HOUSING GEAR 14 02961927 1 PORTING FLANGE 15 02961917 4 WASHER 16 02962289 4 BOLT 17 * 4 SIADE SEAL, NOT SHOWN (SEE ITEM 19 & 20) 18 02962286 1 RETAINER SEAL 19 02962538 1 SEAL KIT, MINOR REBUILD KIT (ITEMS 2,4,8,11,17) 20 02961939 1 SEAL KIT, MAJOR REBUILD (ITEMS 2,4,8,9,11,17)

Page 78

HYDRAULIC CYLINDER ASY - TILT

ITEM PART NO. QTY. DESCRIPTION

02984944 1 CYLINDER, 3.5B X 1.75R X16S 1 02986266 1 BARREL WLD`MT 2 02986287 1 ROD WLD`MT 3 02982250 2 BUSHING ROD END 1-1/2" LG 4 02986288 1 SEAL KIT

Page 79

HYDRAULIC OIL COOLER AND FAN ASY

ITEM PART NO. QTY. DESCRIPTION

1 02981377 1 HYD OIL COOLER & ELECTRIC FAN ASY.

02981886 1 HEAT EXCHANGE CORE

02981887 1 HEAT EXCHANGE FAN

Page 80

HYDRAULIC TANK SUB-ASY - ELECTRO/MANUAL

Page 81

HYDRAULIC TANK SUB-ASY - ELECTRO/MANUAL

Continued... ITEM PART NO. QTY. DESCRIPTION

02982882 1 SUB-ASY HYDRAULIC TANK 1 02981389 1 TANK, WELDMENT, HYDRAULIC 2 02981413 1 WELDMENT, COVER, CLEANOUT 3 02964748 1 FILTER ASSEMBLY, MODIFIED 4 02982884 1 PIPE PLUG 2" 5 02979618 1 PIPE PLUG 1-1/4" 6 00012101 10 LOCKWASHER, 3/8" PL 7 00002000 10 HHCS 3/8 NC 3/4 PL5 8 02981400 1 O-RING, CLEANOUT SEAL 9 02968880 1 GAUGE, TEMP LEVEL INDICATOR 10 0221900 1 PIPE PLUG 3/4" 11 02963659 1 PLUG, MAGNETIC 1" NPT 12 00749508 1 PLUG 1/2" NPT 13 02981386 1 ASY, SHIELD FORMED 14 00753642 4 HHCS 3/8 NC 1-1/4 PL5 15 00015800 4 LOCKNUT TLM 3/8 NC PLC 16 00011100 4 FLATWASHER 3/8 STD 17 02982847 1 STRAINER, SUCTION 3 WITH 2 OUTLET 18 02982871 1 DRIVER SIDE COVER WELDMENT 19 02963662 1 GASKET, FILTER ASY, FIBER 20 02962963 1 DIAL INDICATOR - IN TANK FILTER 21 02960809 1 ADP, HYD STGHT 20MP-20MJ 22 02982990 1 HYD, ELBOW 32 MP - 24 MJ 90 23 02983078 1 NYLON BREATHER FILTER NY-4 24 02962864 4 WASHER, SEALING 3/8 25 00011400 4 BOLT, HHCS 3/8 NC 1 PL5 26 02983378 1 HHCS M10-P1.0-20MM

Page 82

HYDRAULIC TANK W/PUMP AND VALVE ASY - ELECTRO

Page 83

HYDRAULIC TANK W/PUMP AND VALVE ASY - ELECTRO

Continued... ITEM PART NO. QTY. DESCRIPTION

02987521 1 ASY, TANK, ELECVALVE, SAMURAI 1 02982882 1 ASY, TANK, HYDRAULIC 2 02981468 1 BRACKET, SHIPPING 3 02985600 1 FRT PUMP ASY - TANDEM 4 02985599 1 CUTTER BLOCK, AXTREME 28 5 02891800 2 HHCS 1/2 NC 1-3/4 PL8 6 02776600 2 HHCS 1/2 NC X 1 1/4 PL8 7 00001800 4 LOCKNUT TLM 1/2 NC PLB 8 00022200 4 LOCKWASHER 7/16 PL 9 00012101 4 LOCKWASHER, 3/8" PL 10 02970451 4 HHCS 7/16 NC 4-1/2 PL8 11 02972565 4 HHCS 3/8 NC 4-1/2 PL5 12 02090800 2 ADP, HYD ELBOW 12MB - 12MJ 90 13 02960807 1 ADP HYD STGHT 20MB-20MJ 14 02961098 2 20 MB - 20 MJ 90° 15 02161400 1 ADP, HYD ELBOW 12MB - 8MJ 90 16 00011400 4 BOLT, HHCS 3/8 NC 1 PL5 17 00015800 4 LOCKNUT TLM 3/8 NC PLC 18 02987522 1 ASY, VALVE & FITTINGS 19 02987402 1 DECAL, ELECTRO VALVE LAYOUT M2 PVG32 20 02971943 1 DECAL, LOGO RECT CLEAR Y/W, 2 7/8 X 20 21 02965262 1 DECAL - WARNING - HOSE BURST 22 02971123 1 DECAL WARNING PRESS TANK 23 02982828 1 DECAL, TEMP RANGE 24 02982583 1 DO NOT WELD MAVERICK 25 02983892 1 PLATE, ADP, PVG32 26 00023500 4 FLATWASHER 5/16, TYPE AW, ZP 27 00011700 4 LOCKWASHER 5/16 PL STD 28 10119000 4 HHCS 5/16 NC 1 PL5

Page 84

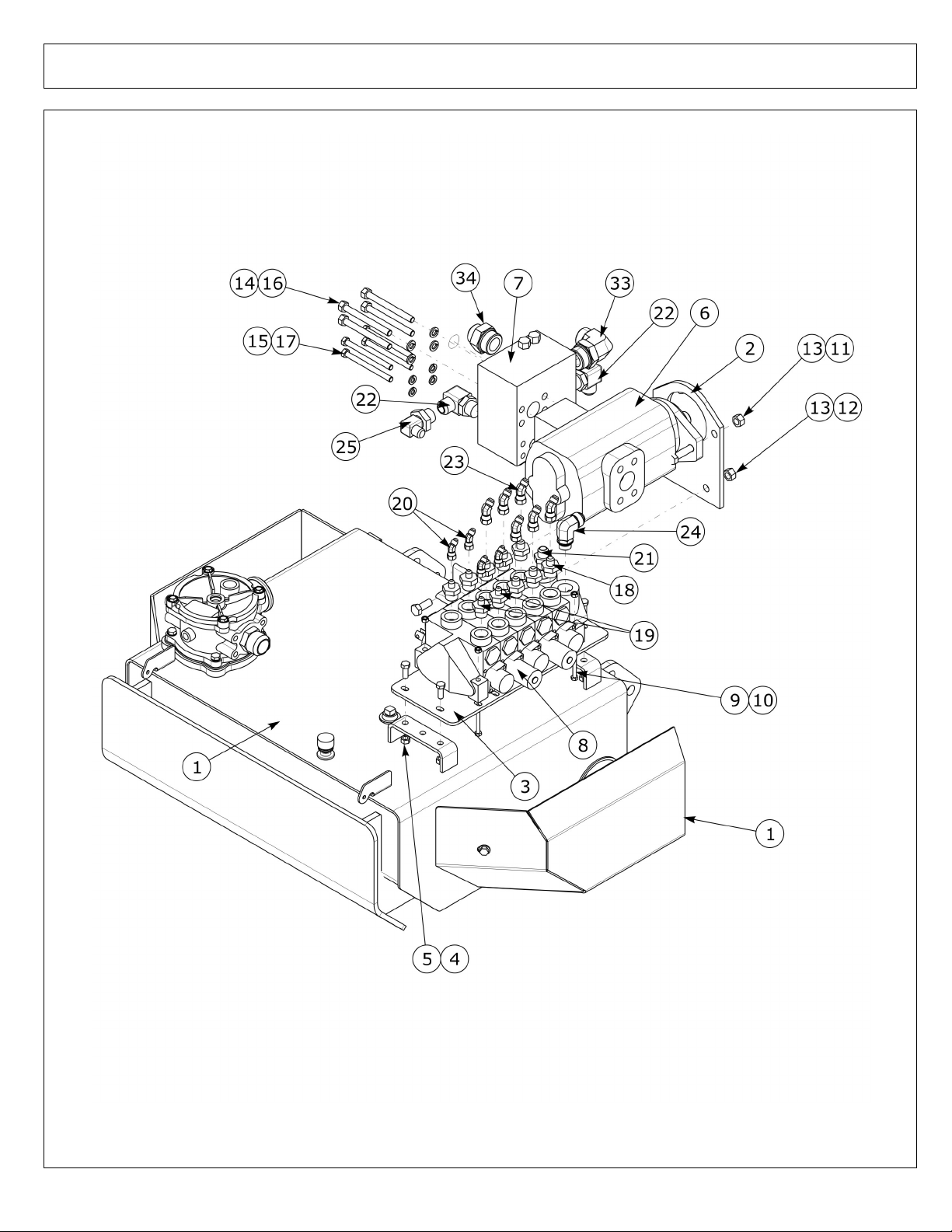

HYDRAULIC TANK W/PUMP AND VALVE ASY - MANUAL

Page 85

HYDRAULIC TANK W/PUMP AND VALVE ASY - MANUAL

Continued... ITEM PART NO. QTY. DESCRIPTION

02987518 1 ASY, TANK, MAN VALVE, SAMURAI 1 02982882 1 ASY, TANK, HYDRAULIC 2 02981468 1 BRACKET, SHIPPING 3 02987519 1 VALVE MOUNT PLATE 4 00011400 4 BOLT, HHCS 3/8 NC 1 PL5 5 00015800 4 LOCKNUT TLM 3/8 NC PLC 6 02985600 1 FRT PUMP ASY - TANDEM 7 02985599 1 CUTTER BLOCK, AXTREME 28 8 02987538 1 VALVE DIR CTRL 5-SPOOL 9 0461600 3 HHCS 1/4-20 NC X 2-1/4 PL5 10 02959924 3 NUT, TOPLOCK 1/4 NC PLB 11 02891800 2 HHCS 1/2 NC 1-3/4 PL8 12 02776600 2 HHCS 1/2 NC X 1 1/4 PL8 13 00001800 4 LOCKNUT TLM 1/2 NC PLB 14 00022200 4 LOCKWASHER 7/16 PL 15 00012101 4 LOCKWASHER, 3/8" PL 16 02970451 4 HHCS 7/16 NC 4-1/2 PL8 17 02972565 4 HHCS 3/8 NC 4-1/2 PL5 18 02972177 6 ADP, HYD ST 10MB - 6MJ 19 02972179 4 ADP, HYD ST 10MB - 4MJ 20 02976532 4 ADP, HYD, 4MJ-4FJX 45 21 02042300 1 ADP, HYD ST 10MB - 8MJ 22 02090800 2 ADP, HYD ELBOW 12MB - 12MJ 90 23 02976531 6 ADP HYD ELBOW 6MJ-6FJX 45 24 02983377 1 ADAPTER, 12MJ-10MB90 25 02161400 1 ADP, HYD ELBOW 12MB - 8MJ 90 26 02987520 1 DECAL, MANUAL VALVE LAYOUT SAM V20 27 02971943 1 DECAL, LOGO RECT CLEAR Y/W, 2 7/8 X 20 28 02965262 1 DECAL - WARNING - HOSE BURST 29 02971123 1 DECAL WARNING PRESS TANK 30 02982828 1 DECAL, TEMP RANGE 31 02982583 1 DO NOT WELD MAVERICK 32 02961098 1 20 MB - 20 MJ 90° 33 03200298 1 ADP 20MB-16MJ 90° 34 02961006 1 ADP 20MB-16MJ

Page 86

JOYSTICK CONSOLE ASY

Page 87

JOYSTICK CONSOLE ASY

Continued... ITEM PART NO. QTY. DESCRIPTION

02987829 1 JOYSTICK ASSEMBLY W/ COMPONENTS 1 02981020 1 LED RED 12VDC 2 02981021 1 DECAL JOYSTICK OPERATION CNSLE 3 02981022 2 SWITCH MOMNTRY PUSHBUTTON RED 3A 02983472 2 PUSH BOTTOM CAP RED 4 02981023 2 SWITCH MOMNTRY PUSHBUTTON BLK 4A 02983473 2 BOTTON COVER BLACK 5 02981024 1 SOCKET RELAY 6 02981025 1 RELAY SPDT 12VDC 20A 7 02981026 1 CIRCUIT BREAKER 10A PANEL MNT 8 02981027 1 BOOT CIRCUIT BREAKER COVER 9 02977642 1 CONNECTOR RECEPTACLE 9A 02977645 17 PIN, 16-18 AWG 9B 02977646 4 PIN, 12AWG 10 02977643 1 NUT, PANEL - 24 SHELL SIZE 11 02981028 1 SWITCH PUSH PULL 12 02981029 1 JOYSTICK ASSEMBLY 13 02981031 1 HANDLE ASSEMBLY 14 02981032 1 DECAL SWITCH OPERATION HANDLE 15 02981033 1 ASSEMBLY PUSHBUTTON FACE PLATE 16 02981030 1 SWITCH MOMENTARY PUSHBUTTON 17 02977644 1 LOCKWASHER - 24 SHELL SIZE 18 02977043 1 SWITCH ROCKER DPDT W/GREEN LED 19 02983475 1 POTENTIOMETER - SWING 20 02983476 2 POTENTIOMETER - LIFT & DIPPER 21 02983477 8 MACHINE SCREW #10-32 5/8 LG. 22 02983478 8 WASHER #10 NYLON 23 02963584 1 LOCKNUT 8-32 PL

02987905 1 TRIGGER SWITCH (NOT SHOWN)

Page 88

PUMP ASY - SERVO CONTROLLED

Page 89

PUMP ASY - SERVO CONTROLLED

Continued... ITEM PART NO. QTY. DESCRIPTION

02985600 1 FRT PUMP ASY-TANDEM 1 IN, 2 OUT 1 02961913 1 MOUNTING FLANGE 2 02962184 1 COVER FLANGE 3 02987934 1 HOUSING, GEAR, FRT PUMP ASY 4 02962186 1 GEAR HOUSING 5 02987935 1 HOUSING,CARRIER BRNG, FRT PUMP 6 02987936 1 SET, GEAR SHAFT, FRT PUMP ASY 7 02962188 1 GEAR SET 8 02962216 1 CONNECTOR SHAFT 9 02987937 4 STUD, FRT PUMP ASY 10 02987938 2 SCREW, DRIVE, FRT PUMP ASY 11 02962190 4 NUT 5/8 NC PLB 12 02979953 8 DOWEL PIN, PUMP, HYDRO 15/10 13 02987939 4 THRPL, FRT PUMP ASY 14 02961920 2 PLUG 15 02987940 4 SEAL, BACKUP, FRT PUMP ASY 16 02987941 4 SEAL, CHAN, FRT PUMP ASY 17 02980336 1 LIP SEAL FOR 02961474 MTR. 18 02987942 4 SEAL, SQ, R, FRT PUMP ASY 19 02961917 4 WASHER 20 02987943 1 KIT, REBUILD, MINOR, PUMP ASY 21 02987944 1 KIT, REBUILD, MAJOR, PUMP ASY

Page 90

PUMP-TANK-VALVE COVER

ITEM PART NO. QTY. DESCRIPTION

1 02981381 1 ASY, PUMP COVER

02981441 2 KNOB STUD, 3/8"-NC X 1-1/2"

02986111 3 CABLE, PUMP COVER

00001000 2 CABLE CLAMP

Page 91

THIS PAGE INTENTIONAL LEFT BLANK

Page 92

ROTARY - MOTOR ASY

Page 93

ROTARY - MOTOR ASY

Continued... ITEM PART NO. QTY. DESCRIPTION

Page 94

ROTARY - SPINDLE ASY

Page 95

ROTARY - SPINDLE ASY

Continued... ITEM PART NO. QTY. DESCRIPTION

02968859A 1 SPINDLE ASY 1 02967204 1 SPINDLE SHAFT, SPLINED 2 02967126 1 HOUSING, MACHINED SPINDLE 3 02967197 1 BEARING ASY, CUP & CONE, LOWER 4 02967196 1 BEARING ASY, CUP & CONE, UPPER 5 02909500 2 ADJUSTING NUT, 2.360-18 PITCH 6 02909600 1 TABBED LOCKWASHER, BEARING ADJUSTING NUT LOCK 7 02967198 1 SEAL 8 02959018 1 GREASE RELIEF FITTING, 1-5LBS 9 00003500 1 GREASE FITTING, 1/8" STRAIGHT

Page 96

VALVE ASSEMBLY - ELECTRO-HYDRAULIC VALVE

Page 97

VALVE ASSEMBLY - ELECTRO-HYDRAULIC VALVE

Continued... ITEM PART NO. QTY. DESCRIPTION

02987522 1 ASY, ELEC VALVE, SAMURAI 1 02971379 1 VALVE, PVG32 O-CTR 2 02090800 2 ADP, HYD ELBOW 12MB - 12MJ 90 3 02972179 2 ADP, HYD ST 10MB - 4MJ 4 02976532 2 ADP, HYD, 4MJ-4FJX 45 5 02972177 3 ADP, HYD ST 10MB - 6MJ 6 02972113 5 ADP, HYD 10MB - 8FB 7 02968850 5 ADP, HYD ST 8MB-6MJ 8 02975438 1 ADP, HYD STGHT 8FJX-8MB 9 00696800 1 ADP HYD STGHT 8MB-8MJ 90° 10 02969398 2 ORIFICE, .055 RESTRICTOR 11 02972209 1 ORIFICE, .063 RESTRICTOR 12 02972210 1 ORIFICE, .070 RESTRICTOR 13 02969399 1 ORIFICE, .040 RESTRICTOR 14 02976531 7 ADP HYD ELBOW 6MJ-6FJX 45 15 02972178 1 ADP, HYD ELBOW 12MB - 8MJ 90 16 02972208A 1 ASY, VALVE SOLENOID

Page 98

WIRE HARNESS ELECT-HYD VALVE

Page 99

WIRE HARNESS ELECT-HYD VALVE

Continued... ITEM PART NO. QTY. DESCRIPTION

02984735 1 ASY, HARNESS, SAMURAI

Samurai High Frame (12-08)

Page 100

Alamo SAMURAI 02986950P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
