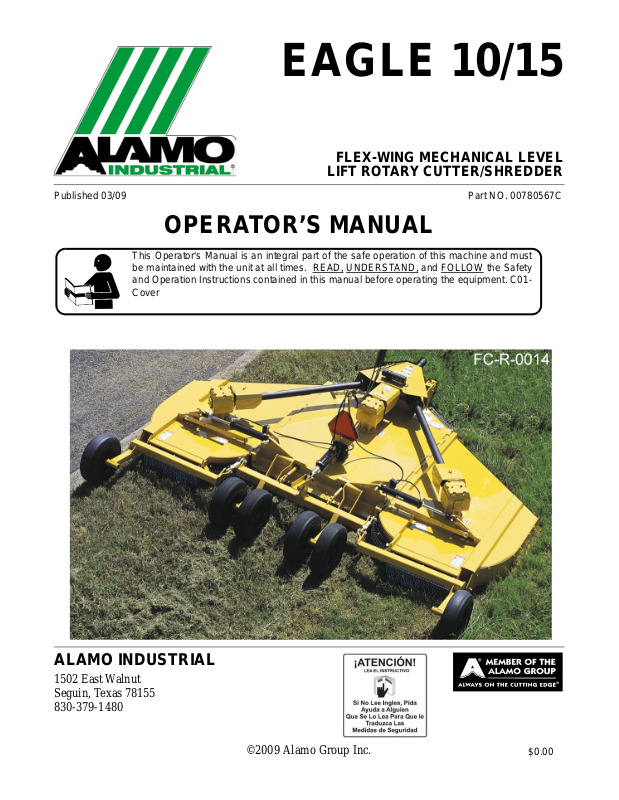

Page 1

EAGLE 10/15

FLEX-WING MECHANICAL LEVEL

LIFT ROTARY CUTTER/SHREDDER

Published 03/09 Part NO. 00780567C

OPERATOR’S MANUAL

This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, and Operation Instructions contained in this manual before operating the equipment. C01-

Cover

UNDERSTAND, and FOLLOW the Safety

ALAMO INDUSTRIAL

1502 East Walnut Seguin, Texas 78155 830-379-1480

$0.00

Page 2

To the Owner/Operator/Dealer

All implements with moving parts are potentially hazardous. There is no substitute for a cautio us, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. Observe the rules of safety and common sense!

WARRANTY INFORMATION: Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration

Form in full and return it to within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty Form that you retain.

Page 3

SAFETY SECTION ..............................................................................................................1-1

General Safety Instructions and Practices ... ... .... ... ... ... ... .......................................... ........................................ 1-2

Operator Safety Instructions and Practices ...................................................................................................... 1-3

Equipment Operation Safety Instructions and Practices .................................................................................. 1-6

Connecting or Disconnecting Implement Safety Instructions and Practices ................................................... 1-12

Transporting Safety Instructions and Practices .............................................................................................. 1-13

Maintenance and Service Safety Instructions and Practices .............. .......................................... ... ... ... ......... 1-15

Storage and Parking Safety Instructions and Practices ...... ... ... .......................................... ............................ 1-17

Concluding Safety Instructions and Practices ................................................................................................ 1-17

Decal Location ................................................................................................................................................ 1-18

Decal Description ............................................................................................................................................ 1-20

Federal Laws and Regulations ....................................................................................................................... 1-29

INTRODUCTION SECTION .................................................................................................2-1

ASSEMBLY SECTION ........................................................................................................3-1

DEALER SET-UP INSTRUCTIONS ................................................................................................................. 3-2

ASSEMBLY ...................................................................................................................................................... 3-2

CONNECTING DRIVELINE .............................................................................................................................. 3-5

DRIVELINE ATTACHMENT ............................................................................................................................. 3-5

TIRES AND WHEELS ...................................................................................................................................... 3-6

Driveline Clamp Cone Yoke Operating Instructions ......................................................................................... 3-9

OPERATION SECTION .......................................................................................................4-1

Standard Equipment and Specifications ........................................................................................................... 4-3

OPERATOR REQUIREMENTS ........................................................................................................................ 4-4

TRACTOR REQUIREMENTS ............................................... ... ....................................... ... ... .... ....................... 4-5

ROPS and Seat Belt .............................. ... ... ... .... ... ....................................... ... ... ... ... .... ... ................................. 4-5

Tractor Safety Devices ..................................................................................................................................... 4-5

Drawbar ............................................................................................................................................................ 4-6

Tractor Hydraulics ............................................................................................................................................. 4-6

Front End Weight .............................................................................................................................................. 4-7

Power Take Off (PTO) .................................... .................................................................................................. 4-7

Tire Spacing ...................................................................................................................................................... 4-8

GETTING ON AND OFF THE TRACTOR ........................................................................................................ 4-8

Boarding the Tractor ......................................................................................................................................... 4-8

Dismounting the Tractor ................................................................................................................................... 4-9

STARTING THE TRACTOR ........................ ... .... ...................................... .... ... ... ... ... .... ... ... ... .... ... .................. 4-10

CONNECTING THE MOWER TO THE TRACTOR ........................................................................................ 4-10

Connecting the Mower Tongue to the Tractor ................................................................................................ 4-11

Safety Tow Chain ........................ ... ... .... ... ... ... .... ... ... ....................................... ... ... ... .... ... ............................... 4-11

Connecting Mower Hydraulic Lines to the Tractor .......................................................................................... 4-12

SETTING THE MOWER ................................................................................................................................. 4-13

Setting Deck Height ........................................................................................................................................ 4-13

Setting Deck Pitch .......................................................................................................................................... 4-14

DRIVELINE ATTACHMENT ........................................................................................................................... 4-15

Driveline Length Check ................................................................................................................................... 4-15

Constant Velocity (CV) Driveline .................................................................................................................... 4-17

PRE-OPERATION INSPECTION AND SERVICE .......................................................................................... 4-18

Tractor Pre-Operation Inspection/Service ...................................................................................................... 4-19

Mower Pre-Operation Inspection/Service ....................................................................................................... 4-19

Cutting Component Inspection ....................................................................................................................... 4-23

Blade Bolt Inspection ...................................................................................................................................... 4-25

DRIVING THE TRACTOR AND IMPLEMENT ................................................................................................ 4-28

Starting the Tractor ................................... ... ... .... ... ... ... ... .... ...................................... .... .................................. 4-29

Page 4

Brake and Differential Lock Setting ................ .... ... ... ... ... .... ... ... ... .... ... ... ... .... ... ... ............................................ 4-29

Operating the Mower Wings ........................................................................................................................... 4-29

Driving the Tractor and Cutter ........................................................................................................................ 4-31

Crossing Ditches and Steep Inclines ............................................... ... ... ... .... ... ... ... ... .... ... ... ... .... ..................... 4-32

OPERATING THE TRACTOR AND IMPLEMENT .................................................... .... ... ... ... .... ... ... ... ... .... ... .. 4-33

Foreign Debris Hazards .................................................................................................................................. 4-34

Bystanders/Passersby Precautions ....................... ... ... ... .... ... ... .......................................... ............................ 4-34

Engaging the Power Take Off (PTO) .................. ............................................................. ............................... 4-35

PTO RPM and Ground Speed ........................................................................................................................ 4-36

Operating the Mower ...................................................................................................................................... 4-36

Shutting Down the Implement ................................... ............................. ............................. ............................ 4-40

DISCONNECTING THE MOWER FROM THE TRACTOR ............................................................................ 4-40

MOWER STORAGE ....................................................................................................................................... 4-42

TRANSPORTING THE TRACTOR AND IMPLEMENT .................................................................................. 4-42

Tire and Wheels .............................................................................................................................................. 4-44

Transporting on Public Roadways .................................................................................................................. 4-44

Hauling the Tractor and Implement ................................................................................................................ 4-46

TROUBLE SHOOTING GUIDE ...................................................................................................................... 4-48

MAINTENANCE SECTION ..................................................................................................5-1

Lubrication ........................................................................................................................................................ 5-2

WHEEL HUB ASSEMBLY ................................................................................................................................ 5-4

Tongue ...................................... .......................... ......................... .......................... ........................................... 5-4

CENTER & WING GEARBOXES ..................................................................................................................... 5-5

DIVIDER GEARBOX ........................................................................................................................................ 5-5

DRIVELINES .................................................................................................................................................... 5-6

MAIN CV DRIVELINE SAFETY SHIELD .......................................................................................................... 5-7

CAT IV WING DRIVELINE SHIELDS ............................................................................................................... 5-8

WING DRIVELINE CAT V ................................................................................................................................ 5-9

TO DISASSEMBLE UNIVERSAL JOINT ........................................................................................................ 5-11

TO REASSEMBLE UNIVERSAL JOINT ......................................................................................................... 5-12

BLADE SERVICING ........................................... ... ... ... ... .... ... ... ... .... ...................................... ......................... 5-14

BLADE SHARPENING .......................................... ... ... ... .... ... ... ... .... ... ............................................................ 5-15

BLADE REMOVAL ............... .... ... ... ... .... ... ... ... ....................................... ... .... ... ... ... ... ...................................... 5-15

BLADE CARRIER REMOVAL ............................................ ... ... ... .... ... ... ....................................... .................. 5-16

BLADE CARRIER INSPECTION .............................................. .......................................... ............................ 5-16

BLADE CARRIER INSTALLATION ....................................... ... ... .... ...................................... .... ... ... ............... 5-17

SLIP CLUTCHES ............ ... ... .... ...................................... .... ... ... ... .... ... ... ... .... ... ... ............................................ 5-17

TIRES AND WHEELS .................................................................................................................................... 5-17

SEASONAL CLUTCH MAINTENANCE .......................................................................................................... 5-18

HYDRAULIC HOSES ........................................ ............................................................................................ 5-18

SKID SHOES .................................................................................................................................................. 5-18

STORAGE ...................................................................................................................................................... 5-19

PROPER TORQUE FOR FASTENERS ......................................................................................................... 5-19

Gearbox Tools For Disassembly and Assembly ............................................................................................. 5-20

DISASSEMBLY OF DIVIDER GEARBOX (Trained Dealer Personnel Only) ................................................. 5-21

Assembly of Power Divider ............................................................................................................................. 5-24

RIGHT ANGLE GEARBOX (OUTBOARD) ASSEMBLY & DISASSEMBLY PROCEDURES ........................ 5-31

Page 5

In order to reduce accidents and enhance the safe operation of mowers, Alamo Industrial, in cooperation with other industry manufacturers has developed the AEM/FEMA Industrial and Agricultural Mower Safety Practices video and guide book.

The video will familiarize and instruct mower-tractor operators in safe practices when using industrial and agricultural mowing equipment. It is important that Every Mower Operator be educated in the operation of their mowing equipment and be able to recognize the potential hazards that can occur while operating a mower. This video, along with the mower operator ’s manual and the warning messages on the mower, will significantly assist in this important education.

Your Authorized Alamo Industrial Dealer may have shown this video and presented you a DVD Video when you purchased your mower. If you or any mower operator have not seen this video, Watch the Video, Read this Operator ’s Manual, and Complete the Video Guidebook before operating your new mower. If you do not understand any of the instructions included in the video or operator’s manual or if you have any questions concerning safety of operation, contact your supervisor, dealer or Alamo Indus- trial.

If you would like a VHS video tape of the video, please email AEMVideo@alamo-group.com or Fax AEM VHS Video at (830) 372-9529 or mail in a completed copy of the form on the back of this page to AEM VHS Video 1502 E Walnut Street, Seguin, TX 78155. and request the VHS video version. Please include your name, mailing address, mower model and serial number.

Every operator should be trained for each piece of equipment (Tractor and Mower), understand the intended use, and the potential hazards before operating the equipment.

Page 6

Alamo Industrial Division is willing to provide

one (1) AEM Mower Safety Practices Video

Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video

DVD Format – AEM/FEMA Mower Operator Safety Video

Mower Operator’s Manual

AEM Mower Operator’s Safety Manual

Requester Name Phone:

Requester Address:

City

State

Zip Code

Mower Model: Serial Number:

Date Purchased: Dealer Salesperson:

Dealership Name: Dealership Location:

Mail to:

AEM Video Services

1502 E Walnut street

Seguin, TX 78155

Or Fax to:

(830) 372-9529

Or Email to:

AEMVideo@alamo-group.com

Page 7

SAFETY SECTION

Safety Section 1-1

Page 8

SAFETY

General Safety Instructions and Practices

A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator . Most accident s ca n be avo ided by bein g aware of yo ur equipm ent, your surroun dings, and observing certain precautions. The first section of this manual includes a list of Safety Messages that, if followed, will help protect the operator and bystanders from injury or death. Read and understand these Safety Messages before assembling, operating or servicing this Implement. This equipment should only be operated by those persons who have read the manual, who are responsible and trained, and who know how to do so responsibly.

The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this manual and on decals which are attached to the equipment. The Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal Word are intended to warn the owner/operator of impending hazards and the degree of possible injury faced when operating this equipment.

SAFETY

Practice all usual and customary safe working precautions and above all---remember safety is up to YOU

. Only YOU can prevent serious injury or death from unsafe practices.

Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR VERY SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH OR SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR INJURY.

Identifies special instructions or procedures that, if not strictly observed, could result in damage to, or destruction of the machine, attachments or the environment.

NOTE: Identifies points of particular interest for more efficient and convenient operation or repair.

(SG-1)

READ, UNDERSTAND, and FOLLOW the following Safety Messages. Serious injury or death may occur unless care is taken to follow the warnings and instructions stated in the Safety Messages. Always use good common sense to avoid hazards.

Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad.

(SG-3)

(SG-2)

EAGLE 15 03/09 Safety Section 1-2

Page 9

SAFETY

til

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.

(SG-30)

(SG-31)

For your protection while operating or servicing equipment, wear relatively tight and belted clothing to avoid entanglement in moving parts. Tie up and protect long hair that could become entangled in machinery. Remove all jewelry including necklaces, rings and watches which can get caught in machinery or on corners or edges of the equipment. Serious injury can result from entanglement with the machinery.

Operator Safety Instructions and Practices

The rotating parts of this machine co ntinue to rot ate ev en after the PT O has been turned of f. The operator should remain in his seat for 60 seconds after the brake has been set, the PTO disengaged, the tractor turned off, and all evidence of rotation has ceased.

“Wait a minute...Save a life!”

Never crawl under a raised Implement supported solely by the Tractor 3-Point hitch. Release of the control lever or mechanical failure will result in the Implement falling and possible injury or death. Always securely block up the Implement before crawling underneath to perform repairs and service.

ever operate the Tractor or Implement un completely understand this Manual, the Tractor Operator’s Manual, and each of the Safety Messages found in the Manual or on the Tractor and Implement. Learn how to stop the tractor engine suddenly in an emergency. Never allow inexperienced or untrained personnel to operate the Tractor and Implement without supervision. Make sure the operator has fully read and understood the manuals prior to operation.

(SG-4)

(S3PT-19)

SAFETY

(SG-42)

(S3PT-10)

you have read an

The operator and all support personnel should wear hard hats, safety shoes, safety glasses, and proper hearing protection at all times for protection from injury including injury from items that may be thrown by the equipment.

(SG-16)

EAGLE 15 03/09 Safety Section 1-3

Page 10

SAFETY

ith th

Prol

PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS! Tractors with or without an Implement attached can often be noisy enough to cause permanent hearing loss. We recommend that you always wear hearing protection if the noise in the Operator’s position exceeds 80db. Noise over 85db over an extended period of time will cause severe hearing loss. Noise over 90db adjacent to the Operator over an extended period of time will cause permanent or total hearing loss. NOTE: Hearing loss from loud noise

[from tractors, chain saws, radios, a nd other such sources close to the ear] is cumulative over a lifetime without hope of natural recovery.

(SG-I7)

SAFETY

ways read carefully and comply fully w

e manufacturer’s instructions when handling oil, solvents, cleansers, and any other chemical agent.

(SG-22)

KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement and possible serious injury or death.

(SG-24)

Never allow children to play on or around T ractor or Imple ment. Children can slip or fa ll of f the Equipment and be injured or killed. Children can cause the Implement to shift or fall crushing themselves or others.

(SG-25)

NEVER use drugs or alcohol immediately before or while operating the Tractor and Implement. Drugs and alcohol will affect an operator’s alertness and coordination and therefore affect the operator’s ability to operate the equipment safely. Before operating the Tractor or Implement, an operator on prescription or over-the-counter medication must consult a medical professional regarding any side effects of the medication that would hinder their ability to operate the Equipment safely. NEVER knowingly allow anyone to operate this equipment when their alertness or coordination is impaired. Serious injury or death to the operator or others could result if the operator is under the influence of drugs or alcohol.

(SG-27)

onged operation may cause operator boredom and fatigue affecting safe operation. Take scheduled work breaks to help prevent these potentially impaired operating conditions. Never operate the Implement and Tractor in a fatigued or bored mental state which impairs proper and safe operation.

EAGLE 15 03/09 Safety Section 1-4

(SG-32)

Page 11

SAFETY

tti

se extreme caution when ge

ng onto the Implement to perform repairs, maintenance an when removing accumulated material. Only stand on solid flat surfaces to ensure good footing. Use a ladder or raised stand to access high spots which cannot be reached from ground level. Slipping and falling can cause serious injury or death.

(SG-33)

Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves and hose connections. Relieve hydraulic pressure before performing maintenance or repairs. Use gloves and eye protection when servicing hot components. Contact with a hot surface or fluid can cause serious injury from burns or scalding.

(SG-34)

DO NOT operate this Implement on a Tractor that is not properly maintained. Should a mechanical or Tractor control failure occur while operating, immediately shut down the Tractor and perform repairs before resuming operation. Serious injury and possible death could occur from not maintaining this Implement and Tractor in good operating condition.

(SG-36)

Avoid contact with hot surfaces of the engine or muffler. Use gloves and eye protection when servicing hot components. Contact with a hot surface or fluid can cause serious injury from burns or scalding.

(SG-38)

Do not put hands or feet under mower decks. Blade Contact can result in serious injury or even death. Stay away until all motion has stopped and the decks are securely blocked up.

(SGM-09)

SAFETY

Always keep a careful lookout and use extreme care when working around utility and municipal obstructions. Never allow the Mower to contact any utility, municipal, or other type structure. Clearly mark all mowing obstructions and consult local utility providers for a safe code of operation.

(SPU-5)

Do not operate the implement while wearing loose fitting clothing. Entanglement of th clothing with the rotating elements can result in serious injury or even death. Stay clear o all rotating elements at all times. (SSP-03)

EAGLE 15 03/09 Safety Section 1-5

Page 12

SAFETY

ldi

ill b

Repeated or substantial breathing of hazardous dusts, including crystalline silica, could cause fatal or serious respiratory disease including silicosis. Concrete, masonry, many types of rock, and various other materials contain silica sand. California lists respirable crystalline silica as a substance known to cause cancer. Operation of this equipment under certain conditions may generate airborne dust particles that could contain crystalline silica. In those conditions, personal protective equipment including an appropriate respirator must be used. If excessive dust is generated, a dust collection or suppression system should also be used during operation.

Equipment Operation Safety Instructions and Practices

(SG-41)

SAFETY

Never leave the Tractor and Implement unattended while the Implement is in the lifted position. Accidental operation of lifting lever or a hydraulic failure may cause sudden drop of unit with injury or death by crushing. To properly park the implement when disconnecting it from the tractor , lower the stan d and put the retaining pin securely in place, or pu t a secure support under the A-Frame. Lower the implement carefully to th e ground. Do no t put hands or feet under lifted components.

se extreme care when lowering or unfo

(S3PT-1)

ng the implement’s wings. Make sure no bystanders are close by or underneath the wings. Allow ample clearance around the implement when folding or unfolding the wings. Use extreme caution around buildings or overhead power lines.

(S3PT-05)

This Implement is wider than the Tractor. Be careful when operating or transporting this equipment to prevent the Implement from running into or striking s ign posts, guard rails, concrete abutments or other solid objects. Such an impact could cause the Implement and Tractor to pivot violently resulting in loss of steering control, serious injury, or even death. Never allow the Implement to contact obstacles.

e sure you have adequate knowledge of the property you w

(S3PT-12)

e working on. Take time to make yourself aware of any area underground lines or cables. Contact with buried lines o cable could result in serious injury or death. If in doubt about buried utility lines call 811 before digging or 1-800-258-0808.

(SBH-6)

Do not operate Mower if excessive vibration exists. Shut down PTO and the Tractor engine. Inspect the Mower to determ ine the source of the vibration. If Mower blades are missing or damaged replace them immediately. Do not operate the mower until the blades have been replaced and the Mower operates smoothly. Operating the Mower with excessive vibration can result in component failure and broken objects to be thrown outward at very high velocities. To reduce the possibility of property damage, serious injury , or even death, never allow the Mower to be operated with blades missing.

EAGLE 15 03/09 Safety Section 1-6

(SFL-4)

Page 13

SAFETY

Operate this Equipment only with a Tractor equipped with an approved rollover-protective system (ROPS). Always wear seat belts. Serious injury or even death could result from falling of f the tractor --particularly during a turnover when the operator could be pinned under the ROPS.

BEFORE leaving the tractor seat, always engage the brake and/or set the tractor transmission in parking gear, disengage the PTO, stop the engine, remove the key, and wait for all moving parts to stop. Place the tractor shift lever into a low range or parking gear to prevent the tractor from rolling. Never dismount a Tractor that is moving or while the engine is running. Operate the Tractor contr ols from the tractor seat only.

Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death.

(SG-7)

(SG-9)

(SG-10)

SAFETY

Never allow children to operate, ride on, or come close to the Tractor or Implement. Usually, 16-17 year-old children who are mature and responsible can operate the implement with adult supervision, if they have read and understand the Operator’s Manuals, been trained in proper operation of the tractor and Implement, and are physically large enough to reach and operate the controls easily.

(SG-11)

Do not mount or dismount the Tractor while the tractor is moving. Mount the Tractor only when the Tractor and all moving parts are completely stopped.

(SG-12)

Start tractor only when properly seated in the Tractor seat. Starting a tractor in gear can result in injury or death. Read the Tractor operators manual for proper starting instructions.

(SG-13)

EAGLE 15 03/09 Safety Section 1-7

Page 14

SAFETY

difficul

SAFETY

Do not operate this Equipment with hydraulic oil or fuel leaking. Oil and fuel are explosive and their presence could present a hazard. Do not check for leaks with your hand! High-pressure oil streams from breaks in the line could penetrate the skin and cause tissue damage including gangrene. To check for a hose leak, SHUT the unit ENGINE OFF and remove all hydraulic pressure. Wear oil imp ene trab le glo ves , safety glasses and use Cardboard to check for evidence of oil leaks. If you suspect a leak, REMOVE the HOSE and have it tested at a Dealer. If oil does penetrate the skin, have the injury treated immediately by a physician knowledgeable and skilled in this procedure.

Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health.

(SG-23)

Do not exceed the rated PTO speed for the Implement. Excessive PTO speeds can cause Implement driveline or blade failures resulting in serious injury or death.

(SG-15)

(SG-26)

Operate the Tractor and/or Implement control s only while properly seated in the Tractor seat with the seat belt securely fastened around you. Inadvertent movement of the Tractor or Implement may cause serious injury or death.

n case of mechanical

ty during operation, place the transmission in the par

(SG-29)

position, set the parking brake, shut down all power, including the PTO and the engine and remove the key. Wait until all rotating motion has stopped before dismounting.

(SG-39)

Do Not operate this equipment in areas where insects such as bees may attack you and/or cause you to lose control of th e equipment. If you must enter in such areas, use a tractor with an enclosed Cab and close the windows to prevent insects from entering. If a tractor cab is not available, wear suitable clothing including head, face, and hand protection to shield you from the insects. Attacking insects can cause you to lose control of the tractor, which can result in serious injury or death to yo u o r bystanders. Never dismount a moving tractor.

(SG-40)

Mow only in conditions where you have clear visibility in daylight or with adequate artificial lighting. Never mow in darkness or foggy conditions where you cannot clearly see at least 100 yards(90 m) in front and to the sides of the tractor and mower. Make sure that you can clearly see and identify passersby, steep slopes, ditches, drop-offs, overhead obstructions, power lines, debris and foreign objec ts. If you are unab le to clear ly see thes e type of ite ms discontinue mowing.

(SGM-1)

EAGLE 15 03/09 Safety Section 1-8

Page 15

SAFETY

Ext

M M

There are obvious and hidden potential hazards in the operation of this Mower. REMEMBER! This machine is often operated in heavy brush and in heavy weeds. The Blades of this Mower can throw objects if shields are not properly installed and maintained. Serious injury or even death may occur unless care is taken to insure the safety of the operator, bystanders, or passersby in the area. Do not operate this machine with anyone in the immediate area. Stop mowing if anyone is within 100 yards of mower.

(SGM-02)

The rotating parts of this machine have been designed and tested for rugged use. However, the blades could fail upon impact with heavy, solid objects such as metal guard rails and concrete structures. Such impact could cause the broken objects to be thrown outward at very high velocities. To reduce the possibility of property damage, serious injury, or even death, never allow the cutting blades to contact such obstacles.

(SGM-4)

reme care should be taken when operating near loose objects suc as gravel, rocks, wire, and other debris. Inspect the area before mowing. Foreign objects should be removed from the site to prevent machine damage and/or bodily injury or even death. Any objects that cannot be removed must be clearly mark ed and carefully a vo ide d b y th e operator. Stop mowing immediately if blades strike a foreign object. Repair all damage and make certain rotor or blade carrier is balanced before resuming mowing.

(SGM-05)

any varied objects, such as wire, cable, rope, or chains, can become entangled in the operating parts of the mower head. These items could then swing outside the housing at greater velocities than the blades. Such a situation is extremely hazardous and could result in serious injury or even death. Inspect the cutting area for such objects before mowing. Remove any like object from the site. Never allow the cutting blades to contact such items.

(SGM-06)

ow at the speed that you can safely operate and control the tractor and mower. The

correct mowing speed depends on terrain condition and grass type, density, and height of cut. Normal ground speed range is from 2 to 5 mph(3-8 kph). Use slow mowing speeds when operating on or near steep slopes, ditches, drop-offs, overhead obstructions, power lines, or when debris and foreign objects are to be avoided.

(SGM-07)

SAFETY

Avoid mowing in reverse direction when possible. Check to make sure there are no persons behind the mower and use extreme care when mowing in reverse. Mow only at a slow ground speed where you can safely operate and control the tractor and mower. Never mow an area that you have not inspected and removed debris or foreign material.

(SGM-08)

Do not mow with two machines in the same area except with Cab tractors with the windows closed.

(SGM-11)

EAGLE 15 03/09 Safety Section 1-9

Page 16

SAFETY

The M

ifi

Follow these guidelines to reduce the risk of equipment and grass fires while operating, servicing, and repairing the Mower and Tractor:

-Equip the Tractor with a fire extinguisher in an accesible location.

-Do Not operate the Mower on a Tractor with an underframe exhaust.

-Do Not smoke or have an open flame near the Mower and Tractor.

-Do Not drive into burning debris or freshly burnt areas.

-Ensure slip clutches are properly adjusted to prevent excessive slippage and plate heating.

-Never allow clippings or debris to collect near drivelines, slip clutches, and gearboxes. Periodically shut down the Tra ctor an d Mo we r and cl ean clip pings an d collected debris fro m the mower deck.

(SGM-12)

SAFETY

ower is designed for certain mowing applications and is rated to cut up to a spec size vegetation (see Mower Standard Equipment and Specifications). DO NOT use this mower to cut vegetation above the Mower’s rated capacity or to cut any type of nonvegetative material. Only operate this Mower on a properly sized and equipped Tractor. Operating this Mower in an application for which it is not designed and/or operating the Mower with the wrong size Tractor can cause Mower component damage and equipment failure resulting in possible serious injury or death.

Do not operate or pull the mower into standing water. When uplift or fan type mower blades contact water they can be severely deflected downward causing possible failure of blade resulting in serious boldly injury to the operator or by standers.

Use extreme caution when raising the Mower above ground level. Stop the Blades from turning when the Mower is raised and passersby are within 100 yards. Raising the Mower exposes the Cutting Blades which creates a potentially serious hazard and can cause serious injury by objects thrown from the Blades or by contact with the Blades.

(SGM-14)

(SGM-15)

(SPU-1)

EAGLE 15 03/09 Safety Section 1-10

Page 17

SAFETY

Rotary Mowers are capable under adverse conditions of throwing objects for great distances (300 feet or more) and causing serious injury or death. Follow safety messages carefully.

STOP MOWING IF PASSERSBY ARE WITHIN 100 YARDS UNLESS:

-Front and Rear Deflectors, Chain Guards, or Bands are installed and in good, workable condition;

-Mower sections or Wings are running close to and parallel to the ground without exposed Blades;

-Passersby are outside the existing thrown-object zone;

-All areas have been thoroughly inspected and all foreign material such as rocks, cans, glass, and general debris has been removed.

NOTE: Where there are grass and weeds high enough to hide debris that could be struck by the blades, the area should be: inspected and large debris removed, mowed at an intermediate height, inspected, closely with any remaining debris being removed, and mowed again at desired final height. (This will also reduce power required to mow, reduce wear and tear on the Mower drivetrain, spread cut material better, reduce streaking, and make the final cut more uniform).

(SRM-01)

Do Not attempt to raise or lower the implement wing unless the Implement tongue is securely attached to the Tractor drawbar. The Implement could tip over and cause equipment damage and possible ser ious injury or death. Raise or Lo wer the mower wing only while seated in the Tractor operator’s seat with the seat be lt securely fastened.

Do not turn so sharp or lift mower so high to produce a severe "knocking" of the Driveline which will cause accelerated wear and breakage of drive train components and could result in possible injury from the separated Driveline sections.

(SRM-04)

SAFETY

(SRM-2)

Do not let the Blades turn when the Mower Deck is raised for any reason, including clearance or for turning. Raising the Mower deck exposes the Cutting Blades which creates a potentially serious hazard and could cause serious injury or even death from objects thrown from the Blades.

(SRM-07)

DO NOT allow any person under a folded wing unless wing is securely locked up or supported. DO NOT approach the Implement unless the Tractor is turned off and all motion has ceased. Never work under the frame work, or any lifted component unless the implement is securely supported or blocked up. A sudden or inadvertent fall by any of these components could cause serious injury or even death.

EAGLE 15 03/09 Safety Section 1-11

(STI-03)

Page 18

SAFETY

PTO, it is i

Connecting or Disconnecting Implement Safety Instructions and Practices

DO NOT use a PTO adapter to attach a non-matching Implement driveline to a Tractor

PTO. Use of an adapter can double the operating speed of the Implement resulting in excessive vibration, thrown objects, and blade and implement failure. Adapter use will also change the working length of the driveline exposing unshielded driveline areas. Serious bodily injury and/or equipment failure can result from using a PTO adapter. Consult an authorized dealer for assistance if the Implement driveline does not match the Tractor PTO.

(S3PT-14)

Always shut the Tractor completely down, place the transmission in park, and set the parking brake before you or anyone else attempts to connect or disconnect the Implement and Tractor hitches.

(S3PT-15)

SAFETY

en attaching the Implement input driveline to the Tractor connecting yoke spring activated locking collar slides freely and the locking balls are seated securely in the groove on the Tractor PTO shaft. Push and pull the driveline back and forth several times to ensure it is securely attached. A driveline not attached correctly to the Tractor PTO shaft could come loose and result in personal injury and damage to the Implement.

(S3PT-17)

mportant that the

Before operating the Implement, check to make sure the Implement input driveline will not bottom out or become disengaged. Bottoming out occurs when the inner shaft penetrates the outer housing until the assembly beco mes solid-it c an shorten no m ore. Bottomin g out can cause serious damage to the Tractor PTO by pushing the PTO into the Tractor and through the support bearings or downward onto the PTO shaft, breaking it off. A broken driveline can cause personal injury.

Never unhitch without using the Tongue Jack. The Tongue is very heavy. Attempting to lift the Tongue without using the Tongue Jack could cause strains or other injury. Allowing the tongue to fall suddenly and unexpectedly could result in crushing injury. Use the Tongue Jack for lifting the Implement only. Overloading the Tongue Jack can cause failure with possible serious bodily injury or even death.

On a fully-assembled unit, do not remove the Wing Retaining Strap until hoses are attached to the tractor and the Wing Cylinders are filled with oil. Lower the Wings slowly and carefully. Keep bystanders away during operations.

(S3PT-18)

(STI-04)

(STI-05)

EAGLE 15 03/09 Safety Section 1-12

Page 19

SAFETY

Transporting Safety Instructions and Practices

Be particularly careful when transporting the Implement with the Tractor. Turn curves or go up hills only at a low speed and using a gradual steering angle. Rear mounted implements move the center of gravity to the rear and remove weight from the front wheels. Make certain, by adding front ballast, that at least 20% of the tractor’s weight is on the front wheels to prevent rearing up, loss of steering control or Tractor tip-over. Slow down on rough o uneven surfaces to prevent lo ss of steering control which could result in property damage or possible injury. Do not transport unless 3-Point lift lever is fully raised and in the latched transport position. Dropping implement in transport can cause serious damage to the tractor and/or Implement and possibly cause the operator or others to be injured or killed.

(S3PT-02)

Allow sufficient clearance for the Implement to swing outward while turning. Implements carried behind the Tractor will swing outside the tire path when making turns. Contacting a solid object while turning will cause equipment damage and possible injury.

Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in such a way as to be clea rly visible and legible. When transporti ng the Equipment use the Tractor flashing warning lights and follow all local traffic regulations.

(SG-6)

SAFETY

(S3PT-20)

EAGLE 15 03/09 Safety Section 1-13

Page 20

SAFETY

Only t

Transport only at speeds where you can maintain control of the equipment. Serious accidents and injuries can result from operating this

equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.

Before transporting the Tractor and Implement, determine the proper transport speeds for you and the equipment. Make sure you abide by the following rules:

Test the tractor at a slow speed and increase the speed slowly. Apply the Brakes smoothly to determine the stopping characteristics of the Tractor and Implement. As you increase the speed of the Tractor the stopping distance increases. Determine the maximum transport speed not to exceed 20 mph (30 kph) for transporting this equipment.

Test the equipment at a slow speed in turns. Increase the speed through the turn only after you determine that the equipment can be operated at a higher speed. Use extreme care and reduce your speed when turning sharply to prevent the tractor and implement from turning over. Determine the maximum turning speed for you and this equipment before

SAFETY

operating on roads or uneven ground. Only transport the Tractor and Implement at the speeds which allow you to properly control

the equipment. Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes

or worn tires. When operating down a hill or on wet or rain slick roads, the braking distance increases: use extreme care and reduce your speed. When operating in traffic always use the Tractor’s flashing warning lights and r educe your speed. Be aware of traf fic around you and watch out for the other guy.

(SG-19)

e particularly careful when transporting the Implement using the tractor. Turn curves or go up or down hills only at a low speed and at a gradual steering angle. Make certain that at least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow down on rough or uneven surfaces.

When the Wings are folded for transport, the center of gravity is raised and the possibility of overturn is increased. Drive slowly and use extreme caution when turning on hillsides. Overturning the Implement could cause the Implement to overturn the Tractor and vice versa resulting in serious injury or even death. Never fold wings on a hillside...the Implement may overturn.

ow the Implement behind a properly sized and equipped Tractor which exceeds the weight of the Implement by at least 20%. DO NOT tow the Implement behind a truc k or othe r type of ve hicle. N eve r tow the Implement and another Implement connected in tandem. Never tow the Implement at speeds over 20 MPH.

EAGLE 15 03/09 Safety Section 1-14

(STI-02)

(STI-01)

(STI-06)

Page 21

SAFETY

Secure the Implement for transport before traveling on public roads. For pull-type Implements, secure the center axle using cylind er stops or transport pin and properly attach a safety chain between the Implement and Tractor. Secure wings in upright position on folding Implements using wing transport locks.

Always keep a careful lookout and use extreme care when working around overhead obstructions and electrical power lines. The Implement wing can be over 10 feet high. Never allow the Implement wing to come within 10 feet of any power line.

Your driving vision may be reduced or impaired by the tractor, cab, or implement. Before driving on public roadways identify any limited vision areas, and make adjustments to your operating position, mirrors, and the implement transport position so that you can clearly see the area where you will be traveling, and any traffic that may approach you. Failure to maintain adequate vision of the public roadway and traffic can result in serious injury or even death.

(STI-10)

Maintenance and Service Safety Instructions and Practices

(STI-7)

(STI-8)

SAFETY

Make sure the PTO shield, integral driveline shields, and input shields are is installed when using PTO-driven equipment. Always replace any shield if it is damaged or missing.

(S3PT-8)

Relieve hydraulic pressure prior to doing any maintenance or repair work on the Implement. Place the Implement on the ground or securely blocked up, disengage the PTO, and turn off the tractor engine. Push and pull the Remote Cylinder lever in and out several times prior to starting any maintenance or repair work.

(S3PT-09)

Always disconnect the main PTO Driveline from the Tractor before performing service on the Implement. Never work on the Implement with the tractor PT O dr iveline connecte d and running. Rotating Parts, Blades or Drivelines could turn without warning and cause immediate entanglement, injury or death.

(S3PT-11)

Never interfere with factory-set hydraulic calibrations. Any change in calibration could cause a failure of the equipment and may result in injury.

(SBH-13)

Always maintain the safety signs in good readable condition. If th e safety signs are missing, damaged, or unreadable, obtain and install replacement safety signs immediately.

(SG-5)

EAGLE 15 03/09 Safety Section 1-15

Page 22

SAFETY

dli

SAFETY

Do not modify or alter this Implement. Do not permit anyone to modify or alter this Implement, any of its components or any Implement function.

Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up to prevent sudden or inadvertent falling which could cause serious injury or even death.

(SG-14)

Never attempt to lubricate, adjust, or remove material from the Implement while it is in motion or while tractor engine is running.

(SG-20)

Periodically inspect all moving parts for wear and replace when necessary with authorized service parts. Look for loose fasteners, worn or broken parts, and leaky or loose fittings. Make sure all pins have cotter pins and washers. Serious injury may occur from not maintaining this machine in good working order.

(SG-21)

(SG-8)

Perform service, repairs and lubrication according to the maintenance section. Ensure the unit is properly lubricated as specified in the lubrication schedule and all bolts and nuts are properly torqued. Failure to properly se rvice, repair and maintain this Implement in good operating condition could cause component failure and possible serious injury or even death.

(SG-35)

se caution and wear protective gloves when han

ng sharp objects such as blades, knives, and other cutting edges. Be alert to worn component surfaces which have sharp edges. Sharp surfaces can inflict severe laceration injuries if proper hand protection is not worn.

(SG-37)

All Safety Shields, Guards and Safety devices including (but not limited to) - the Deflectors, Chain Guards, Steel Guards, Gearbox Shields, PTO integral shields, and Retractable Door Shields should be used and maintained in good working condition. All safety devices should be inspected carefully at least daily for missing or broken components. Missing, broken, or worn items must be replaced at once to reduce the possibility of injury or death from thrown objects, entanglement, or blade contact.

(SGM-3)

EAGLE 15 03/09 Safety Section 1-16

Page 23

SAFETY

ill b

diti

likelihood of

Replace bent or broken blades with new blades. NEVER ATTEMPT TO STRAIGHTEN, WELD, OR WELD HARDFACING ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE WITH SUBSEQUENT FAILURE AND POSSIBLE SERIOUS INJURY FROM THROWN BLADES.

DO NOT weld or repair rotating mower components. Welds and other repairs may cause severe vibration and/or component failure resulting in part being thrown from the mower causing serious bodily injury. See your Authorized Dealer for proper repairs.

(SGM-10)

(SGM-13)

PARTS INFORMATION Alamo Industrial mowers use balanced and matched system components for blade carriers, blades, cuttershafts, knives, knife hangers, rollers, drivetrain components, and bearings. These parts are made and tested to Alamo Industrial specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit” parts may reduce mower performance, void mower warranties, and present a safety hazard. Use genuine Alamo Industrial mower parts for economy and safety.

(SPRM-1)

SEE YOUR ALAMO DEALER

e sure you have adequate knowledge of the property you w

e working on. Take time to make yourself aware of any area underground lines or cables. Contact with buried lines or cable could result in serious injury or death.

n wet con

ons where there is a

certain that this material is removed before traveling on public roadways.

(STL-1)

material collecting on the Implement, make

(STL-7)

Storage and Parking Safety Instructions and Practices

To prevent tipping of Implement when stored in folded position, use carrying wheels or adequate stands on center frame.

(S3PT-6)

Concluding Safety Instructions and Practices

SAFETY

In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Manuals. Pay close attention to the Safety Signs affixed to the Tractor and Equipment.

(SG-18)

EAGLE 15 03/09 Safety Section 1-17

Page 24

SAFETY

Decal Location

NOTE: Alamo Industrial supplies safety decals on this product to promote safe operation. Damage to the

decals may occur while in shipping, use, or reconditioning. Alamo Industrial cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply). Contact your Alamo Industrial dealer to order replacement decals

SAFETY

EAGLE 15 03/09 Safety Section 1-18

Page 25

SAFETY

ITEM PART NO. QTY TYPE DESCRIPTION

1. 00725746 1 PELIGRO Get Manual Translated

2. 00753840 2(1) DANGER Folding Wing, Thrown Objects

3. 00756004 1((3)) DANGER D/L Shield Missing, Do Not Oper.

4. 00756005 1((3)) DANGER Rotating D/L,Entanglement/all shield

5. 00769736 1 WARNING Use/Repair Shields & Guards

6. 00756059 1 DANGER Oil Leak Detection

7. 00769737 2(1) DANGER Cutting Blades, Thrown Objects

8. 00756494 1 DANGER Driveline Multi Hazards

9. 02925100 1 IMPORTANT Genuine Alamo Parts

10. 00749117 1 DANGER Multiple Hazard, Folding Rotary

11. 999403 0(1) DANGER Overturn of T wo-Section Flex

12. D103 [1] WARNING 540 RPM D114 [1] WARNING 1000 RPM

13. 03200347 *1 REFLECT SMV

14. 1458392 2 REFLECT Red Reflector

15. 1458393 1 REFLECT Amber Reflector

16. 00763613 1 INSTRUCT Slip Clutch Adjustment

17. 00763977 1 INSTRUCT Notice to Owner

18. D102 1 INSTRUCT Dbar-to-PTO distance & safety chain

19. D137 2 INSTRUCT CCW Blade Rotation

20. D138 1(0) INSTRUCT CW Blade Roation

21. 02960766 2 LOGO Alamo 4-7/8 x 6-1/2

22. 00757139 2 L.NAME Alamo Type 4-3/8 x 16-3/4

23. 00777394 1 WARNING Do Not Transport Above 20 MPH

24. EAGLE 15 [2] NAME Eagle 15 EAGLE 10 [2] NAME Eagle 10

25. nfs 1 SER PLATE Eagle

26. 00771283 1 INSTRUCT 5 Year Gearbox Warranty

27. 00776031 1 Canister, Operator’s Manual

28. 00759799C 1 Operator’s Manual

29. 10058000 3 Bolt

30. 00024100 6 Flatwasher

31. 02959924 3 Locknut

32. 00773723 1 PELIGRO Rotating Driveline Translation

33. 1006348 *6 WARNING Explosion Hazard

34. D482 **1 WARNING Jack - Maximum Capacity

Decal Sheets Center Section 00778873 ( ) For Two-Section Unit Only Divider Gearbox 00778871 (( )) Installed by Driveline Manufacturer Left and Right WIng 00778872 [ ] Use one or the other *Provided by Tractor Maunfacturer * Provided by Wheel Assembly Supplier

** Provided by Jack Manufacturer

SAFETY

EAGLE 15 03/09 Safety Section 1-19

Page 26

Decal Description

Peligro Translation, If you do not know how to read English, please find someone who knows how to read English.

P/N 00725746

DANGER! Stay clear when lowering or raising wings.

SAFETY

P/N 00753840

DANGER! Guard Missing, Do Not Operate. If you see this decal, Do Not Operate the mower until the shield has been replaced.

P/N 00756004

DANGER! Rotating Driveline Keep Away, Contact can cause death.

P/N 00756005

EAGLE 15 03/09 Safety Section 1-20

Page 27

SAFETY

WARNING! Maintain shields and deflectors in good condition. Failure to do so may lead to injury or even death.

P/N 00769736

WARNING! Never use your hand to check for oil leaks. Always use paper or cardboard.

P/N 00756059

DANGER! Keep Away Thrown Objects. Inspect the area before mowing for potential mower

hazards. Remove or avoid all foreign objects such as wire, cable, metal objects, and all other foreign material. Foreign material can be thrown from the mower and cause serious bodily injury to the operator and passerby. Do Not let rotating blades contact solid objects like rocks, posts, curbs or guard rails. Operate only if all Guards, Deflectors are in place and in good condition. Do Not operate with Mower or Wing raised off the ground. Stop mowing if Passersby enter the area of thrown objects. (See Operator’s Manual) Stay away from rotating blades. Keep hands and feet away from rotating blades. Do Not approach mower until all motion has stopped.

P/N 00769737

SAFETY

EAGLE 15 03/09 Safety Section 1-21

Page 28

DANGER! Make certain that drivelines are correct length and are securely attached.

P/N 00756494

IMPORTANT - Use only Genuine Ala mo Industrial replacement parts.

SAFETY

P/N 02925100

WARNING! Jack - Maximum Capacity 3,200 lbs. Side Load 2,000 lbs.

P/N D482

WARNING! Explosion Hazard - Release all air pressure in tire before loosening bolts.

P/N 1006348

EAGLE 15 03/09 Safety Section 1-22

Page 29

Multi Hazard Decal Sheet

SAFETY

P/N 00749117

SAFETY

EAGLE 15 03/09 Safety Section 1-23

Page 30

DANGER! Keep everyone clear when lifting, folding, and working under raised components. Block securely before working under mower. Install Weight Box and Weight (Min. of 700lbs) before operating to prevent turnin g ove r the cent er se ction which can cause SERIOUS BODILY INJURY or DEATH. Without weight, Do not fold wing. Attach transport strap securely to prevent inadvertent dropping from the transport position and possible CRUSHING INJURY OR DEATH.

P/N 999403

WARNING! Avoid Bodily Injury, Use 540RPM PTO Speed Only.

SAFETY

P/N D103

WARNING! Avoid Bodily Injury, Use 1000 RPM PTO Speed Only.

P/N D114

Slow Moving Vehicle Decal. Keep SMV reflector clean and visible. DO NOT transport or operate without the SMV.

P/N 03200347

EAGLE 15 03/09 Safety Section 1-24

Page 31

SAFETY

Red Reflector. Keep reflectors clean and visible.

P/N 1458392

Amber Reflector. Keep reflectors clean and visible.

P/N 1458393

Operator's Manual (with repair parts) and warranty was attached to this implement during final inspection.

SAFETY

P/N 00763977

IMPORTANT! Required For Jackshaft Unit. Suggested for standard shaft.

P/N D102

EAGLE 15 03/09 Safety Section 1-25

Page 32

Blade Rotation Counter Clockwise.

P/N D137

Blade Rotation Clockwise.

SAFETY

P/N D138

NAME LOGO - Alamo Industrial

P/N 02960766

Name LOGO - Alamo Industrial

P/N 00757139

EAGLE 15 03/09 Safety Section 1-26

Page 33

SAFETY

WARNING! DO NOT transport at speeds higher than 20 mph. Only transport behind a properly sized and equipped tractor.

P/N 00777394

NAME LOGO - EAGLE 15

EAGLE 15

NAME LOGO - EAGLE 10

SAFETY

EAGLE 10

INFORMATION - 5 Year Gearbox Warranty

P/N 00771283

EAGLE 15 03/09 Safety Section 1-27

Page 34

Read Operator’s Manual! The operator’s manual is located inside this canister. If the manual is missing order one from your dealer.

P/N 00776031

PELIGRO! Spanish Translation for Driveline Safety

SAFETY

P/N 00773723

EAGLE 15 03/09 Safety Section 1-28

Page 35

SAFETY

Federal Laws and Regulations

This section is intended to explain in broad terms th e concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such.

Employer-Employee Operator Regulations

U.S. Public Law 91-596 (The Williams-Steiger Occupational and Health Act of 1970) OSHA

This Act Seeks:

“...to assure so far as possible every working man and woman in the nation safe and healthful working conditions and to preserve our human resources...”

DUTIES

Sec. 5 (a) Each employer(1) shall furnish to each of his employees employment and a place of employment which are free from

recognized hazards that are causing or are likely to cause death or serious physical harm to his employees; (2) shall comply with occupational safety and health standards promulgated under this Act. (b) Each employee shall comply with occupational safety and health standards and all rules, regulations and

orders issued pursuant to this Act which are applicable to his own actions and conduct.

OSHA Regulations

OSHA regulations state in part: “At the time of initial assignment and at least annually thereafter, the employer shall instruct every employee in the safe operation and servicing of all equipment with which the employee is, or will be involved.”

Employer Responsibilities:

SAFETY

To ensure employee safety during Tractor and Implement operation, it is the employer’s responsibility to:

1. Train the employee in the proper and safe operation of the Tractor and Implement.

2. Require that the employee read and fully understand the Tractor and Implement Operator’s manual.

3. Permit only qualified and properly trained employees to operate the Tractor and Implement.

4. Maintain the Tractor and Implement in a safe operational condition and maintain all shields and guards on the equipment.

5. Ensure the Tractor is equipped with a functional ROPS and seat belt and require that the employee ope rator securely fasten the safety belt and operate with the ROPS in the raised position at all times.

6. Forbid the employee operator to carry additional riders on the Tractor or Implement.

7. Provide the required tools to maintain the Tractor and Implement in a good safe working condition and provide the necessary support devices to secure the equipment safely while performing repairs and service.

8. Require that the employee operator stop operation if bystanders or passersby come within 25 feet.

Child Labor Under 16 Years of Age

Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102.)

EAGLE 15 03/09 Safety Section 1-29

Page 36

Page 37

Page 38

Page 39

Page 40

Page 41

Page 42

Page 43

Page 44

Page 45

Page 46

Page 47

Page 48

Page 49

Page 50

Page 51

Page 52

Page 53

Page 54

Page 55

Page 56

Page 57

Page 58

Page 59

Page 60

Page 61

Page 62

Page 63

Page 64

Page 65

Page 66

Page 67

Page 68

Page 69

Page 70

Page 71

Page 72

Page 73

Page 74

Page 75

Page 76

Page 77

Page 78

Page 79

Page 80

Page 81

INTRODUCTION SECTION

Introduction Section 2-1

Page 82

INTRODUCTION

This Rotary Cutter is designed with care and built with quality materials by skilled workers. Proper assembly, maintenance, and operating practices, as described in this manual, will help the owner/operator get years of satisfactory service from the machine.

The purpose of this manual is to familiarize, instruct, and train. The Assembly Section instructs the owner/ operator in the correct assembly of the Mower using standard and optional equipment.

Careful use and timely service save extensive repairs and costly downtime losses. The Operation and Maintenance Sections of the manual train the owner/operator how to work the Mower correctly and attend to appropriate maintenance. The Trouble Shooting Guide helps diagnose difficulties with mower and offers solution to the problems.

Safety is of primary importance to the owner/ope rato r and to the manufacturer. The first section of this manual includes a list of Safety Messages, that, if followed, will help protect the operator and bystanders from injury or death. Many of the Safety Messages will be repeated throughout the manual. The owner/operator/dealer should know these Safety Messages before assembly and be aware of the hazards of operating this blade during assembly, use, and maintenance. The Safety Alert Symbol combined with a Signal Word, as seen below, is intended to warn the owner/operator of impe nding hazards and the degre e of possible injury faced

INTRODUCTION

when operating this machine. Alamo Industrial typically offers three types of shielding to protect the operator, passerby, livestock, and

property from thrown objects... deflectors, single chain guards, and double chainguards. Shielding should be selected based on the intended use of the mower. Double chainguards or deflectors should be used for highway, right-of-way, parks or greenbelt mowing or all other mowing where human dwellings, vehicles, or livestock could be within 300 feet of the mower. Chainguards are more durable, provide a longer service life and require less maintenance and replacement than deflectors. Single chainguards may be sufficient for agriculture and other mower use only where passersby or property are not within 300 feet of the mower during operation.

No shielding is 100% effective in preventing thrown objects. The possibility of injury and property damage from this hazard can be substantially reduce by selecting proper shielding, maintaining the mower and shielding in good operational condition, inspecting the area for foreign debris before mowing, operating the mower at a minimum cutting height of 4”, and keeping persons at a minimum distance of 300 feet from the mower at all times during operation.

NOTE: Identifies points of particular interest for more efficient and convenient operation or repair.

EAGLE 15 03/09 Introduction Section 2-2

Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR VERY SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH OR SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR INJURY.

Identifies special instructions or procedures that, if not strictly observed, could result in damage to, or destruction of the machine, atta ch me n ts or the en vir on m en t.

Page 83

INTRODUCTION

Your medium-duty Cutter is designed primarily for weed, grass, and brush to 3" diameter. With proper maintenance as described in this manual, your Cutter will provide you with years of dependable service with a minimum of repairs.

It is recommended that all operators of this implement read this manual or be instructed of its contents as to safety, proper operation, and maintenance before beginning operation.

Your Cutter has been assembled for operation with a tractor PTO input speed of either 540 or 1000 RPM. Should you desire to change PTO input speed, contact your local Alamo Industrial dealer who will assist you in performing the necessary modifications. This machine is recommended for use with tractors rated 50 HP (37kW) for 540 and 1000 RPM drive.

When ordering parts for the Gearboxes and the Drivelines, be sure to specify the serial number. The serial number is located outside of the right Tongue attaching Plate on the center Mainframe section.

Chain Guards are extra equipment. D eflectors, Driveline I ntegral Shields, and G earbox Shields are s tandard equipment and are to be used at all times.

To place the w arranty into effect, fill out the warranty card in full, giving all the requested information, and mail promptly. Be sure to give the serial number of this Cutter.

EAGLE 15 03/09 Introduction Section 2-3

Page 84

INTRODUCTION

Attention Owner/Operator

BEFORE OPERATING THIS MACHINE:

1. Carefully read the Operator’s Manual, completely understand the Safety Messages and instructions, and know how to operate correctly both the tractor and implement.

2. Fill out the Warranty Card in full. Be sure to answer all questions, including the Serial Number of the implement. Mail within 30 days of delivery date of this implement.

NOTE: Warranties are honored only if completed “Owner Registration and Warranty” forms are received by Alamo Group within thirty days of delivery of the implement.

3. Record the Blade Mod el and Serial Numbers on the Warranty page at the front o f the Operator ’s Manual. Keep this as part of the permanent maintenance file for the implement..

INTRODUCTION

EAGLE 15 03/09 Introduction Section 2-4

Page 85

ASSEMBLY SECTION

Assembly Section 3-1

Page 86

ASSEMBLY

DEALER SET-UP INSTRUCTIONS

The mower as received from the factory is virtually completely assembled and requires minimum time to complete assembly ready for sale.

On a fully assembled unit, do not release the Wing Retaining Strap until the hoses are attached to the tractor and the Wing Cylinders are filled with oil. Always keep bystanders away while raising and lowering the wings

To lower the wings, hook the hydraulic hoses to the tractor. From the Operators Seat use the tractor hydraulic control levers to fill wing cylinders with oil. Keep coworkers and bystanders away from the implement while filling. For implements with the wings in the raised or transport position, filling the cylinders should raise the wings slightly and loosen the wing retaining lock. DO NOT release the wing Transport Bar/Latch if there is a force on the lock. Use tractor hydraulic control levers to lower the wing(s). Continue to hold the control lever until both wings are down and the wing cylinders are fully retracted or extended. Continue to cycle the cylinders several times by raising and lowering the wings fully to remove any trapped air. If there is sponginess during the raising cycle, this may indicate that

ASSEMBLY

air is entrapped in the hydraulic circuit. Continue to cycle the cylinders until all sponginess is removed.

The implement wings should lower slowly when they are allowed to float down and are not powered down. This is a safety feature built into the system. If the wings fall rapidly, have the cylinders repaired before operating the implement.

Asm-0002

ASSEMBLY

Select a suitable work area large enough to allow for lowering of the wings. Use extreme caution when connecting the mower to the tractor . The mower shou ld be securely r esting at ground level or se tting on blocks. Keep hands and feet from under the mower deck and clear of pinch points between the tractor hitch arms and mower pins.

1. Use the implement jack to raise the implement tongue until it is even with the tractor drawbar. Insert the jack into the jack adapter in the implement tongue and swivel it so that it is vertical. Follow the instructions on the jack. Install the jack retaining pin. Measure the heigh t of the tractor drawbar an d raise the implement tongue to the same height.

EAGLE 15 02/08 Assembly Section 3-2

Page 87

ASSEMBLY

2. Make sure the tractor PTO is the correct speed and shaft size for the implement. Ensure the drawbar is extended the proper distance from the Tractor PTO shaft for desired PTO speed; 540 PTO is 14” and for 1000 PTO speed the distance is 16”

3. Carefully back tractor to mower. Do not allow coworkers or bystanders between the tractor and the implement while backing. When dismounting the tractor ALWAYS shut down the tractor, disengage the PTO, and set the parking brake before dismounting.

4. Install the retaining bolt through tongue clevis and tractor drawbar. The implement tongue is very heavy. Make any height adjustments using the implement jack. Place two 1” flatwashers (1) positioned under top lip of tongue clevis and to the top of drawbar. Insert a 1” diameter grade 5 or 8 bolt (2) through clevis and drawbar and retain in position with a 1” locknut (3). Tighten the locknut securely but do n ot overtighten, which could spring or break the clevis. NOTE: NEVER attach mower to the tractor with a pin not having a

nut.

5. Install the implement tow chain to a secure location on the tractor.

6. Attach proper hydraulic couplers to imple ment hose ends . Insert the wing h ose quick disconn ect couplers into tractor hydraulic remotes.

7. Mount tractor, fasten your seatbelt and start engine. From the operators seat use the tractor hydraulic control levers to fill wing cylinders with oil. Filling the cylinders should retract the wings slightly to their minimum closed width. Continue to apply pressure to cylinders for at least 10 seconds to assure they have filled with fluid.

Keep coworkers and bystanders away from the implement while filling.

ASSEMBLY

8. Remove retaining bracket from end yoke of main driveline. Remove main driveline from mower and place on ground or hard surface.

Figure AsmP-R-0120

EAGLE 15 02/08 Assembly Section 3-3

Page 88

9. Make sure the wing Transport Bars/Latches are locked in the position to hold the wings vertical before removing shipping stra p. Figure AsmP-

R-0118

ASSEMBLY

10. Stand between the wings of the implement and remove nuts holding the shipping strap in place and remove strap.

ASSEMBLY

Do not stand outside of the wing to remove the shipping strap, if the wing fell it could kill you. Make sure no bystanders are under the wing or in the area where the wing could fall.

Reinstall nut and flatwasher to retain side skirt.

11. Filling the cylinders with oil should raise the wings slightly and loosen the wing Transport Bars/Latches retaining pin. NOTE: DO NOT

release the wing Transport Bar/Latch if there is a force on the pin. If there is a force holding the

Transport Bar/Latch in place, use the tractor hydraulic control levers while in the tractor seat to raise the wings until the force is relieved. Release the Transport Bar/Latch and secure in the storage location. Figure AsmP-R-0119

12. From the tractor seat use the tractor hydraulic control levers to lower the wing(s).

EAGLE 15 02/08 Assembly Section 3-4

Page 89

ASSEMBLY

PTO, it is i

Keep coworkers and bystanders away from the implement while filling.

13. Continue to hold the control lever until both wing s are down an d the wing cylinders are fully extended. Continue to cycle the cylinders several times by raising and lowering the wings fully to remove any trapped air. If there is sponginess during the raising cycle, this may indicate that air is trapped in the hydraulic circuit. Continue to cycle the cylinders until all sponginess is removed.

14. Test to make sure the wings lower slowly when they are allowed to float down and are not powered down. This is a safety feature built into the system. If the wings fall rapidly, have the hydraulic system or cylinders repaired before operating the implement.

CONNECTING DRIVELINE

DO NOT use a PTO adapter to attach a non-matching Implement driveline to a Tractor

(S3PT-14)

ASSEMBLY

(S3PT-17)

DRIVELINE ATTACHMENT

The driveline yoke and tractor PTO shaft must be dirt free and greased for attachment.

To connect the mower driveline to the tractor PTO output shaft, pull the driveline yoke collar back and align the grooves and splines of the yoke with those of the PTO shaft. Push the driveline yoke onto the PTO shaft, release the locking collar, and position the yoke until the locking collar balls are seated onto the PTO shaft. Push and pull the driveline back and forth several times to ensure a secure attachment. OPS-R-0003_I

mportant that the

Many of the equipment components are HEAVY (60 lbs or greater) and Special Lifting Procedures are recommended. Use lifting assistance such as mechanical assistance, two people, and proper lifting techniques when connecting or installing the driveshaft to reduce

EAGLE 15 02/08 Assembly Section 3-5

Page 90

ASSEMBLY

the possibility of back injuries.

1. Remove taper pin from main driveline implement connection yoke and insert onto power divider gearbox shaft. Insert pin and tighten to 75 ft. lbs.

ASSEMBLY

2. Inner center axle dual tire assemblies are shipped bolted on wing mount tubes. Remove transport bars from wings and lower each wing so that inner tire and hub assembly can be removed and installed on center axle. NOTE: It will be necessary to raise each side of center axle slightly so inner dual tires can be

installed.

3. Install gearbox vents or vent dipsticks if not installed.Check all gearbox lube levels.

TIRES AND WHEELS

Before installing any tires and wheels make certain the Cutter is jacked up high enough and is securely supported. When installing laminated or airplane tires, be sure the flat side of the lug nut is against the wheel. There are only three types of tires that can be used on this cutter DO NOT USE ANY OTHER TYPE OF TIRE OR WHEEL, such as automotive tires and rims. DO NOT EXCEED THE MAXIMUM SPEED FOR EACH TYPE OF TIRE. As excessive speed can cause damage to the machine, tire, and wheel.

When installing Laminated Tires and Wheels note the dire ction of travel and the curvature of rubber segments in the tire and install as shown in Figure Asm-R-0127. Do not exceed 20 M.P.H. on Laminated Tires. When removing Airplane Tires, let all of the air ou t of the ti re before removing lug nut s or wheel bolt s or nut s. Remo ve valve core to make certain that there is no air pressure left in tube before separating wheel halves to dismount tires. DO NOT LOOSEN WHEEL CLAMP BOLTS BEFORE PRESSURE IS REMOVED FROM TUBE AND TIRE TO PREVENT EXPLOSIVE SEPERATION OF WHEEL HALVES WITH POSSIBLE SERIOUS BODILY INJURY. Do not exceed 20 M.P.H. on Airplane or Rib Implement Tires.

Maximum airplane tire inflation pressure is 50 PSI, minimum inflation pressure is 20 PSI. Inflate ribbed

EAGLE 15 02/08 Assembly Section 3-6

Page 91

ASSEMBLY

implement tires to manufacturer rated PSI as shown on the tire sidewall.

ASSEMBLY

EAGLE 15 02/08 Assembly Section 3-7

Page 92

ASSEMBLY

Lubricate the PTO drivelines and wheel hubs according to the lu brica tion info rmation found in the Mainte nance Section.

EAGLE 15 02/08 Assembly Section 3-8

Page 93

ASSEMBLY

Driveline Clamp Cone Yoke Operating Instructions

Loosen the yoke clamp cone with a 11/16” (17mm) wrench and remove the cone from yoke. Slide yoke

onto the shaft and align hole for clamping cone with annular groove of gearbox shaft. Reinstall cone and tighten (75 lb-ft torque). Push and pull the driveline to ensure it is securely attached to the shaft. Regularly check the driveline yoke to ensure a tight connection. To remove the yoke, remove the connecting cone and pull yoke off the shaft. If the cone cannot be easily removed by hand, drive it out from the other side using a hammer and punch.

NOTE: The clamping cone is serviced only as a complete assembly. Do not attempt to disassemble the clamping cone.

Mower is now assembled and ready for pre-delivery checks.

ASSEMBLY

EAGLE 15 02/08 Assembly Section 3-9

Page 94

Page 95

OPERATION SECTION

Operation Section 4-1

Page 96

OPERATION

EAGLE 10/ 15 ROTARY MOWER

OPERATION INSTRUCTIONS

Alamo Industrial EAGLE 10/15 rotary mowers are manufactured with quality material by skilled workers. These mowers are designed to cut grass, weeds, crop stalks, small brush and other vegetative material up to 3-1/2” diameter. The mower is equipped with protective deflectors and/or chain guards to prevent objects being thrown from the mower by the blades, however, no shielding is 100% effective. All shields, guards, deflectors, and chains equipped on the unit must be maintained on the mower in good operational condition.

It is the operator’s responsibility to be knowledgeable of all potential operating hazards and to take every reasonable precaution to ensure oneself, others, animals, and property are not injured or damaged by the mower, tractor, or a thrown object. Do not operate the mower if passersby, pets, livestock, or property are within 300 feet of the unit.

This section of the Operator’s Manual is designed to familiarize, instruct, and educate safe and proper mower use to the operator. Pictures contained in this section are intended to be used as a visual aid to assist in explaining the operation of a flex-wing rotary mower and are not necessarily of a EAGLE 10/15 cutter. Some pictures may show shields removed for picture clarity. NEVER OPERATE this implement without all shields in place and in good operational condition. The operator must be familiar with the mower and tractor operation

OPERATION

and all associated safety practices before operating the mower and tractor. Proper operation of the mower, as detailed in this manual, will help ensure years of safe and satisfactory use of the mower.

READ AND UNDERSTAND THE ENTIRE OPERATING INSTRUCTIONS AND SAFETY SECTION OF THIS MANUAL AND THE TRACTOR MANUAL BEFORE ATTEMPTING TO USE THE TRACTOR AND IMPLEMENT. If you do not understand any of the instructions, contact your nearest authorized dealer for a

full explanation. Pay close attention to all safety signs and safety messages contained in this manual and those affixed to the implement and tractor. OPS-U- 0001

READ, UNDERSTAND, and FOLLOW death may occur unless care is taken to follow the warnings and instructions stated in the Safety Messages. Always use good common sense to avoid hazards.

Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad.

the following Safety Messages. Serious injury or

(SG-2)

(SG-3)

EAGLE 15 03/09 Operation Section 4-2

Page 97

OPERATION

1. Standard Equipment and Specifications

EAGLE 10 EAGLE 15

Cutting Width 126” 180” Transport Width 88” 96” Overall Width 133” 186” Overall Lenth 183” 183” Cutting Height 1-1/2” -14-1/2” 1-1/2” - 14-1/2” Hitch 3-Pt Hitch, Pull HD Clevis Blade Overlap 6” 6” Blade Carrier Pan Pan HP Required(Min.) 50 HP 50 HP **Gearbox Rating: Power Divider 235 HP 235 HP Center Wing 205 HP 205 HP Gearbox Limited Warranty 5 year 5 year Output Shaft Diameter 2-3/8” Blade Tip Speed: Center 540 RPM 16,286 FPM 16,286 FPM 1000 RPM 16,380 FPM Wings 540 RPM 16,415 FPM 16,415 FPM 1000 RPM 17,137 FPM Cutting Capacity(Max.) 3-1/2” 3-1/2” Driveline Size: Main,44R or CV CAT 5 CAT 5 Wings CAT 4 or 5 CAT 4 or 5 Driveline Limited Warranty 2 Year 2 Year Deck Thickness 7 Ga. 7 Ga. Side Skirts: Replaceable 1/4” x 10-1/2” 1/4”x10-1/2” Replaceable Skid Shoes Standard Standard Wing Flex 90° up, 22° Down 90° up, 22° Down Safety Deflectors Standard Standard Tractor Static Vertical Drawbar Load Rating (Min.)2100 lbs. 2100 lbs.

*Safety Deflectors are standard equipment. Single and double chain guards are available as extra equipment at extra cost. Alamo Industrial recommends mowers be equ ipped with deflec tors or dou ble chain gua rds for all mowing purposes. Single chain guards may be used for agriculture purposes only and are specifically not recommended for highway, right-of-way, parks or greenbelt mowing.

OPERATION

**Ratings based on actual field performanc e .

EXTRA EQUIPMENT OPTIONAL EQUIPMENT

Open or Closed Center Three-Spool Valve Front & Rear Single or Double Chain Guards Valve Bracket 540 or 1000 RPM Winch and Stand CAT 4 or CAT 5 Wing Driveline Heavy Duty Updraft Blades CAT 5 Constant Velocity Main Driveline with 1-3/4” Auxiliary Spindle Kit Laminated, Foam-filled used Airplane tire and wheel

Used Airplane tire and wheel 15” Wheel or Implement tire and wheel

EAGLE 15 03/09 Operation Section 4-3

Page 98

OPERATION

2. OPERATOR REQUIREMENTS

Safe operation of the unit is the responsibility of a qualified operator. A qualified operator has read and understands the implement and tractor Operator’s Manuals and is experienced in implement and tractor operation and all associated safety practices. In addition to the safety messages contained in this manual, safety signs are affixed to the implement and tractor. If any part of the operation and safe use of this equipment is not completely understood, consult an authorized dealer for a complete explanation.

If the operator cannot read the manuals for themselves or does not completely und erst and the operation of th e equipment, it is the responsibility of the supervisor to read and explain the manuals, safety practices, and operating instructions to the operator.

Safe operation of equipment requires that the operator wear approved Personal Protective Equipment (PPE) for the job conditions when attaching, operating, servicing, and repairing the equipment. PPE is designed to provide operator protection and includes the following safety wear:

PERSONAL PROTECTIVE EQUIPMENT (PPE)

• Protective Eye Glasses, Goggles, or Face

OPERATION

Shield

•Hard Hat

• Steel Toe Safety Footwear

• Gloves

• Hearing Protection

• Close Fitting Clothing

• Respirator or Filter Mask (depends on operating conditions) OPS-U- 0002

EAGLE 15 03/09 Operation Section 4-4

(SG-27)

Page 99

OPERATION

3. TRACTOR REQUIREMENTS

The tractor used to operate the mower must have the power capacity to lift, pull, and operate the Power Take Off (PTO) at the mower’s rated speed while traveling at a ground speed between 2 and 5 MPH. Operating the mower with a tractor that does not meet the following requirements may cause tractor or mower damage and be a potential danger to the operator and passersby.

T ractor Requirements and Capabilities

• ASAE approved Roll-Over Protective Structure (ROPS) or ROPS cab and seat belt.

• Tractor Safety Devices ....................Slow Moving Vehicle (SMV) emblem, lighting,

PTO master shield

• Tractor Horsepower -Minimum ........Eagle 10 40HP; Eagle 15 50HP

• -Maximum ........................................540 RPM Unit-100 HP; 1000 RPM Unit 140 HP

• Drawbar............................................ Set length according to operating speed of the mower and driveline

type, rated to carry weight of the mower, safety chain attachment point

• Tongue Weight....... ... ... .... ... ... ....... ... 2100 lbs.

• Hydraulics ........................................Minimum of 1 hydraulic port (extra 3-spool valve required). Minimum

2 ports, 3 ports recommended if additional,3-spool control valve is not used.

• Front End Weights............................As needed to maintain 20% weight on front axle

• Power Take Off ................................Operating speed and shaft size depends on operating speed and

driveline type of the mower.

• Tire Wheel Spacing ..........................Set tires minimum width of 60” from inside to inside of tires.

3.1 ROPS and Seat Belt

The tractor must be equipped with a Roll-Over-Protective-Structure (ROPS) (tractor cab or roll-bar) and seat belt to protect the operator from falling off the tractor, especially during a roll over where the driver could be crushed and killed. Only operate the tractor with the ROPS in the raised position and seat belt fastened. Tractor model not equipped with a ROPS and seat belt should have these life saving features installed by an authorized dealer. OPS-U- 0003

OPERATION

(SG-7)

3.2 Tractor Safety Devices

If transporting or operating the tractor and implement nea r a public roadway, the tractor must be equipped with proper warning lighting and a Slow Moving Vehicle (SMV) emblem which are clearly visible from the rear of the unit. Lights and a SMV emblem must be equipped directly on implements if the visibility of the tractor warning signals are obscured.

Maintain all manufacturer equipped safety shields and guards. Always replace shields and guards that were removed for access to connect, service, or repair the tractor or implement. Never operate the tractor PTO with the PTO master shield missing or in the raised position. OPS-U- 0004

Tractor Horsepower

EAGLE 15 03/09 Operation Section 4-5

Page 100

OPERATION

The horsepower required to operate the mower depends on several operating factors including the vegetation to be cut, terrain condition, operator experience, condition of the mower and tractor, and others. For most mowing conditions, the Eagle 10 mower requires a tractor with a minimum of 40 HP and the Eagle15 mower requires a tractor with a minimum of 50 HP. Operating the mower with a tractor that does not have adequate power may damage the tractor engine. Exceeding 100 HP for a 540 RPM drive and 140 HP for a 1000 RPM drive may cause mower damage by overpowering the unit in heavy cutting conditions.

3.3 Drawbar

Constant Velocity and Standard Driveline.

Position the length of the drawbar from the end of the tractor PTO shaft to the drawbar hitch hole according to the operating speed of the mower. If the mower is a 540 RPM unit, position the drawbar length from shaft end to hitch hole at 14”. For 1000 RPM mowers, set the drawbar length at 16” for 21 spline 1-3/8” mowers and at 20” for 1-3/4” 20 spline mowers.

OPERATION

Pintle Hook Hitch-Optional Equipment

Drawbar length must be modified to obtain dimension "A" (CV Driveline = 17" ± 2", Standard Driveline = 19” ± 2" ).

3.4 Tractor Hydraulics

The mower center section and each wing are positioned with hydraulic cylinders that are operated by the tractor hydraulic pump. The tractor must ha ve a minimum of 2 hydr aulic control valve s devoted to the mo wer unless the tractor is fitted with a 3-spool control valve (extra equipment).

A 3-spool control valve is required if the trac tor is equipp ed with a single va lve and is recom mended for tho se with two valves so that the center section and each wing can be controlled independent of one another. Refer to the Assembly Section of this manual for properly equip ping the tractor with a 3 -spool co ntrol valve. Tractors equipped with three hydraulic ports can position the center section and each wing independently with no extra equipment. If the tractor is equipped with only two hydraulic ports and a 3-spool control valve is not used, the wings cannot be operated independently and will raise and lower at different speeds.

EAGLE 15 03/09 Operation Section 4-6

Alamo EAGLE 10, EAGLE 15 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

EAGLE 10/15

FLEX-WING MECHANICAL LEVEL

LIFT ROTARY CUTTER/SHREDDER

OPERATOR’S MANUAL

ALAMO INDUSTRIAL

To the Owner/Operator/Dealer

Table Of Contents

Alamo Industrial Division is willing to provide

one (1) AEM Mower Safety Practices Video

SAFETY SECTION

General Safety Instructions and Practices

Operator Safety Instructions and Practices

Equipment Operation Safety Instructions and Practices

Connecting or Disconnecting Implement Safety Instructions and Practices

Transporting Safety Instructions and Practices

Maintenance and Service Safety Instructions and Practices

Storage and Parking Safety Instructions and Practices

Concluding Safety Instructions and Practices

Decal Location

1. 00725746 1 PELIGRO Get Manual Translated

2. 00753840 2(1) DANGER Folding Wing, Thrown Objects

3. 00756004 1((3)) DANGER D/L Shield Missing, Do Not Oper.

4. 00756005 1((3)) DANGER Rotating D/L,Entanglement/all shield

5. 00769736 1 WARNING Use/Repair Shields & Guards

6. 00756059 1 DANGER Oil Leak Detection

7. 00769737 2(1) DANGER Cutting Blades, Thrown Objects

8. 00756494 1 DANGER Driveline Multi Hazards

9. 02925100 1 IMPORTANT Genuine Alamo Parts

10. 00749117 1 DANGER Multiple Hazard, Folding Rotary

11. 999403 0(1) DANGER Overturn of T wo-Section Flex

12. D103 [1] WARNING 540 RPM D114 [1] WARNING 1000 RPM

13. 03200347 *1 REFLECT SMV

14. 1458392 2 REFLECT Red Reflector

15. 1458393 1 REFLECT Amber Reflector

16. 00763613 1 INSTRUCT Slip Clutch Adjustment

17. 00763977 1 INSTRUCT Notice to Owner

18. D102 1 INSTRUCT Dbar-to-PTO distance & safety chain

19. D137 2 INSTRUCT CCW Blade Rotation

20. D138 1(0) INSTRUCT CW Blade Roation

21. 02960766 2 LOGO Alamo 4-7/8 x 6-1/2

22. 00757139 2 L.NAME Alamo Type 4-3/8 x 16-3/4

23. 00777394 1 WARNING Do Not Transport Above 20 MPH

24. EAGLE 15 [2] NAME Eagle 15 EAGLE 10 [2] NAME Eagle 10

25. nfs 1 SER PLATE Eagle

26. 00771283 1 INSTRUCT 5 Year Gearbox Warranty

27. 00776031 1 Canister, Operator’s Manual

28. 00759799C 1 Operator’s Manual

29. 10058000 3 Bolt

30. 00024100 6 Flatwasher

31. 02959924 3 Locknut

32. 00773723 1 PELIGRO Rotating Driveline Translation

33. 1006348 *6 WARNING Explosion Hazard

34. D482 **1 WARNING Jack - Maximum Capacity

Decal Description

Federal Laws and Regulations

INTRODUCTION SECTION

ASSEMBLY SECTION

ASSEMBLY

DEALER SET-UP INSTRUCTIONS

2. Make sure the tractor PTO is the correct speed and shaft size for the implement. Ensure the drawbar is extended the proper distance from the Tractor PTO shaft for desired PTO speed; 540 PTO is 14” and for 1000 PTO speed the distance is 16”

5. Install the implement tow chain to a secure location on the tractor.

6. Attach proper hydraulic couplers to imple ment hose ends . Insert the wing h ose quick disconn ect couplers into tractor hydraulic remotes.

10. Stand between the wings of the implement and remove nuts holding the shipping strap in place and remove strap.

12. From the tractor seat use the tractor hydraulic control levers to lower the wing(s).

CONNECTING DRIVELINE

DRIVELINE ATTACHMENT

1. Remove taper pin from main driveline implement connection yoke and insert onto power divider gearbox shaft. Insert pin and tighten to 75 ft. lbs.

3. Install gearbox vents or vent dipsticks if not installed.Check all gearbox lube levels.

TIRES AND WHEELS

Driveline Clamp Cone Yoke Operating Instructions

OPERATION SECTION

EAGLE 10/ 15 ROTARY MOWER

OPERATION INSTRUCTIONS

1. Standard Equipment and Specifications

EAGLE 10 EAGLE 15

EXTRA EQUIPMENT OPTIONAL EQUIPMENT
