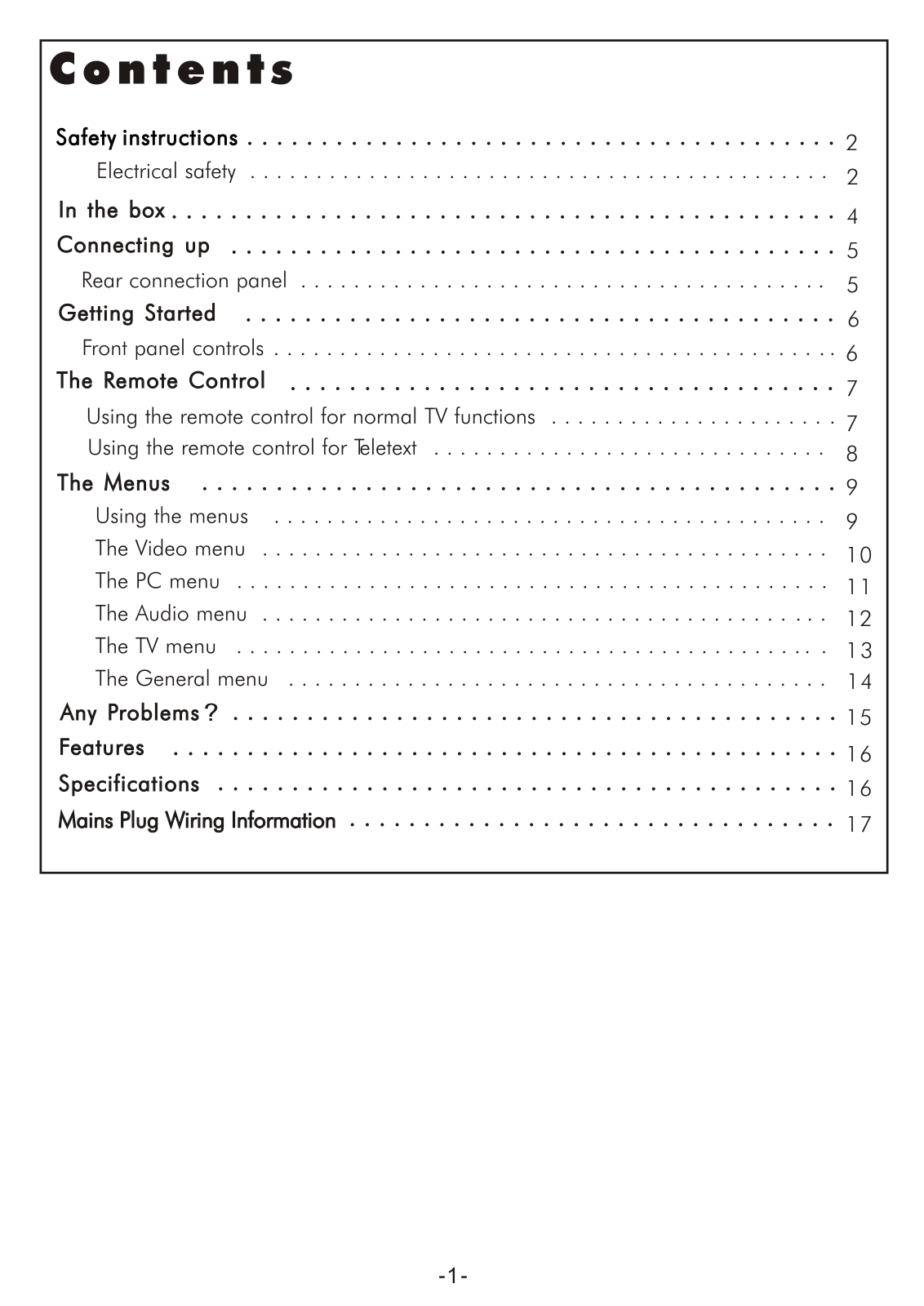

AT1503LCD
Safety instructionsSafety instructions
?
Mains Plug Wiring InformationMains Plug Wiring Information
2
2
4
5
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
16
17
-1 -

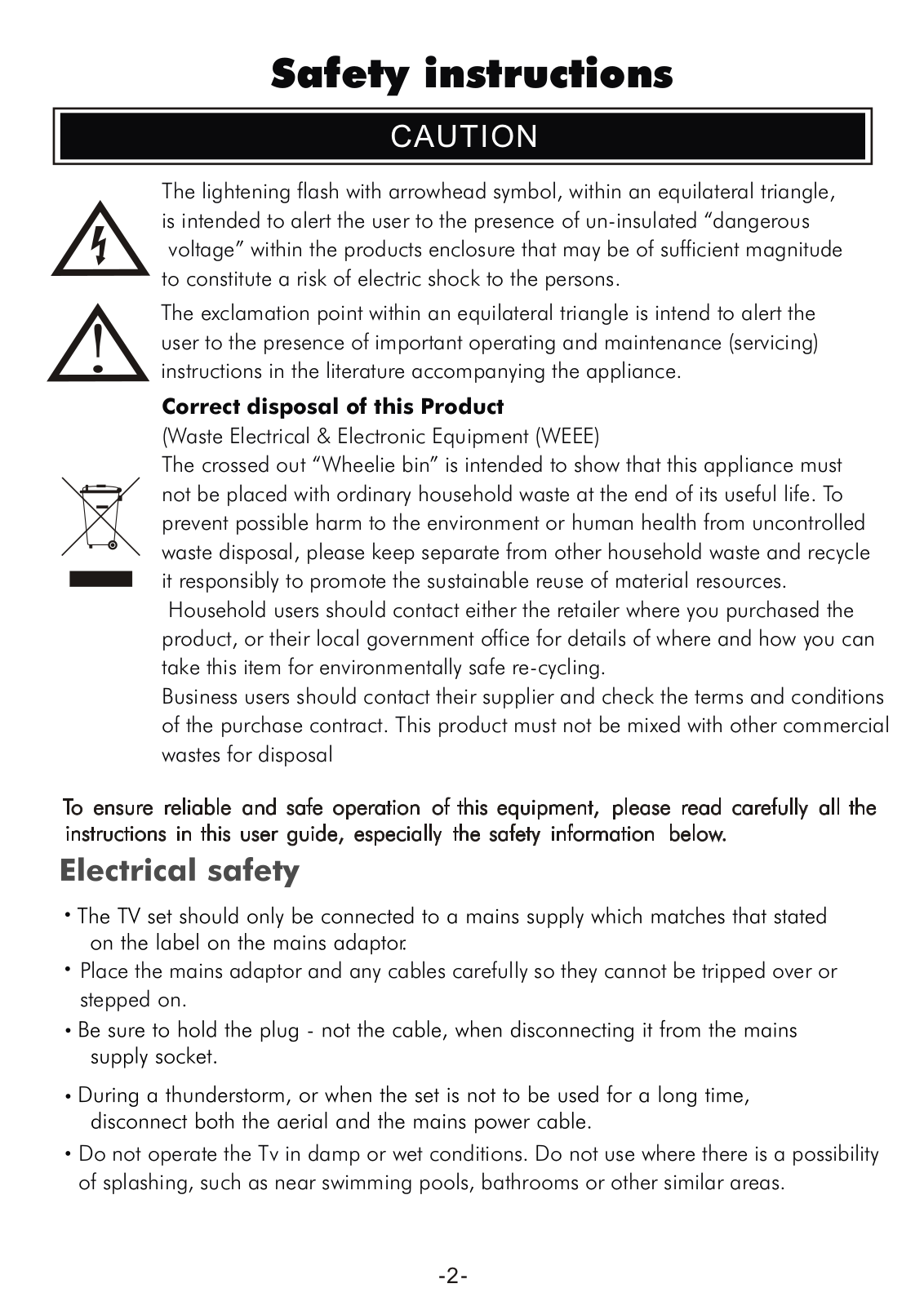

Safety instructions
CAUTION
The lightening flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
The crossed out “Wheelie bin” is intended to show that this appliance must
not be placed with ordinary household waste at the end of its useful life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please keep separate from other household waste and recycle
it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where you purchased the
product, or their local government office for details of where and how you can
take this item for environmentally safe re-cycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product must not be mixed with other commercial
wastes for disposal
Place the mains adaptor and any cables carefully so they cannot be tripped over or
stepped on.
Do not operate the Tv in damp or wet conditions. Do not use where there is a possibility
of splashing, such as near swimming pools, bathrooms or other similar areas.
-2 -

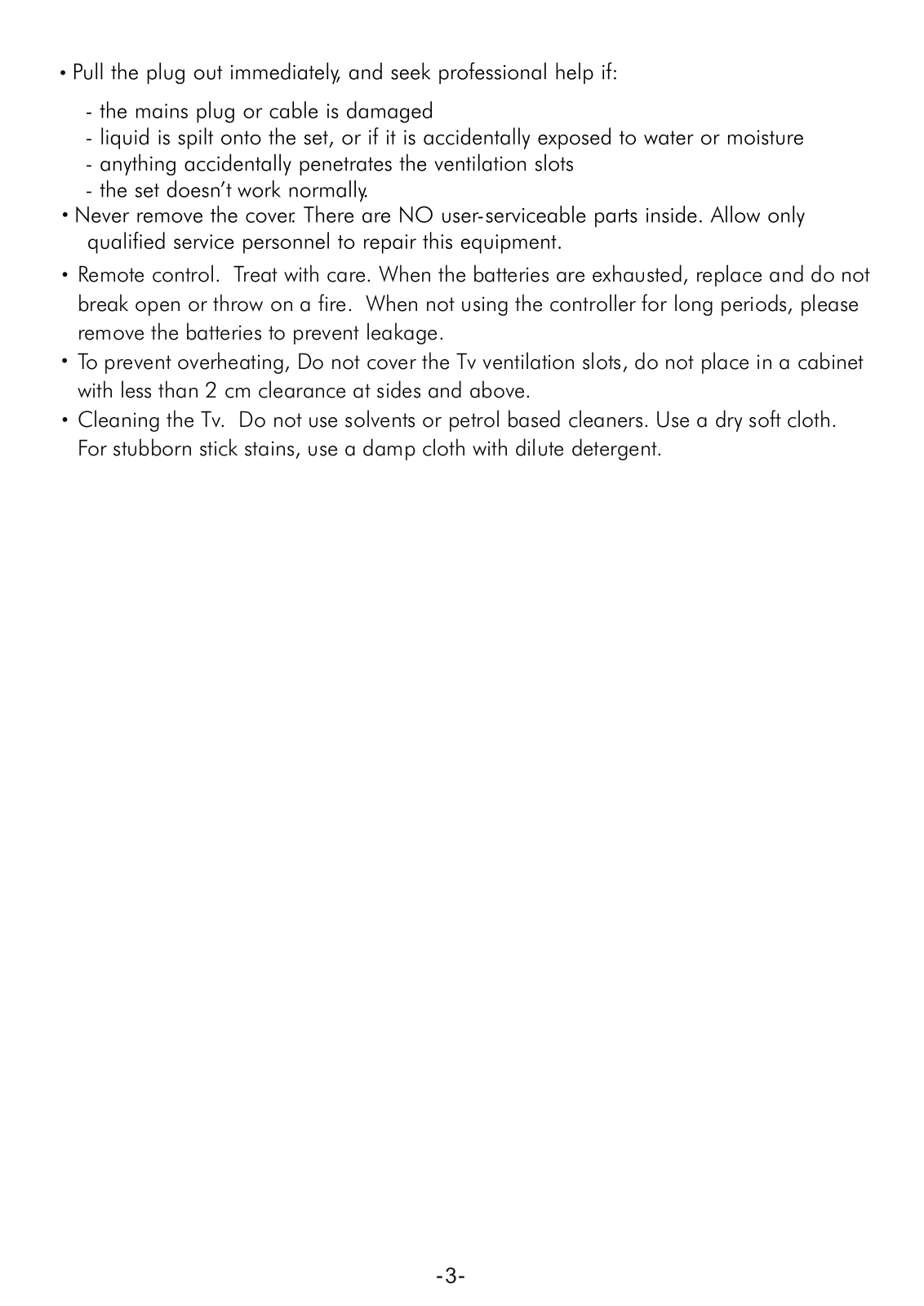

Remote control. Treat with care. When the batteries are exhausted, replace and do not
break open or throw on a fire. When not using the controller for long periods, please
remove the batteries to prevent leakage.
To prevent overheating, Do not cover the Tv ventilation slots, do not place in a cabinet
with less than 2 cm clearance at sides and above.
Cleaning the Tv. Do not use solvents or petrol based cleaners. Use a dry soft cloth.
For stubborn stick stains, use a damp cloth with dilute detergent.
-3 -

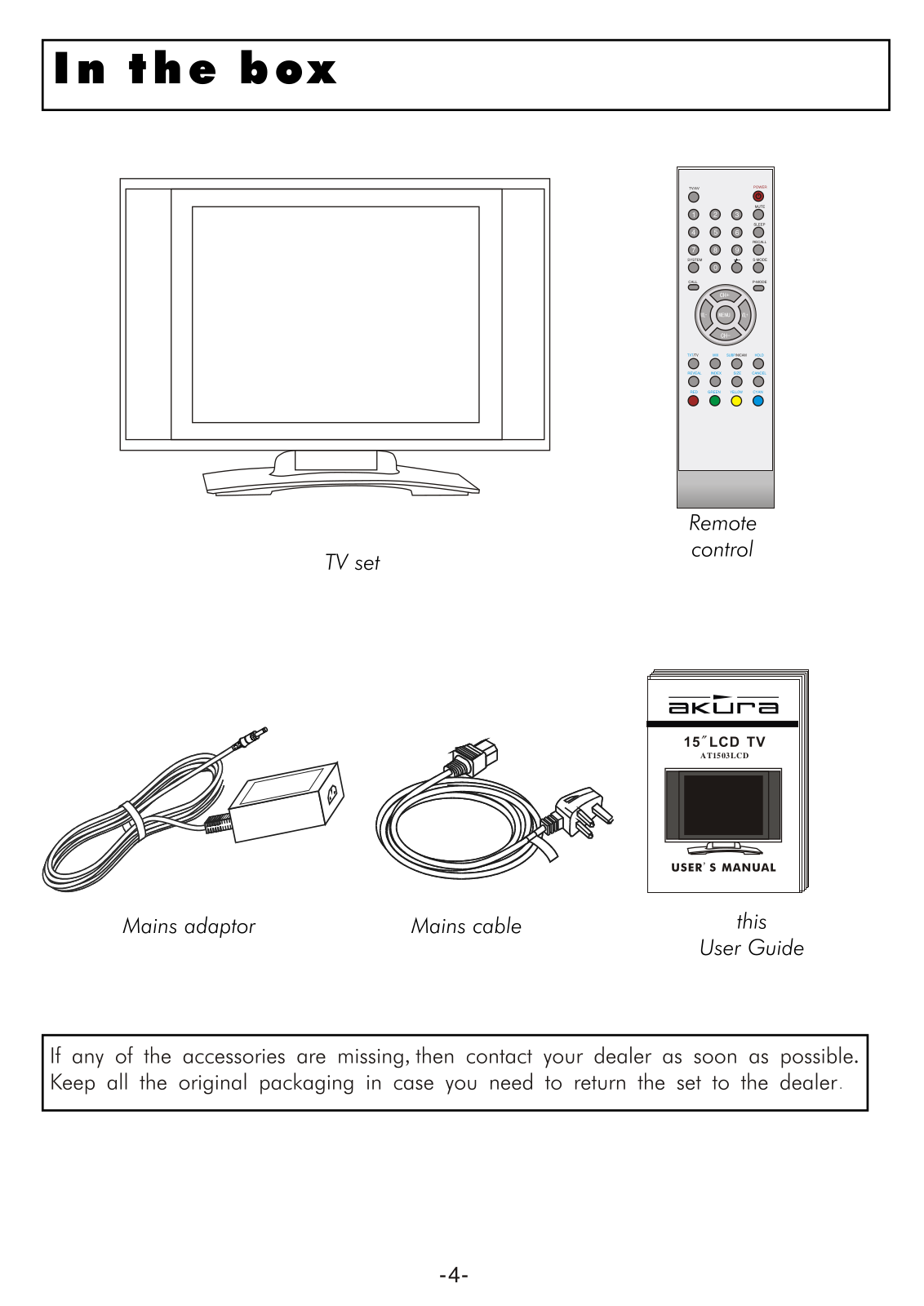

-4 -
20 "L CD T V
20 "L CD T V
20 "L CD T V
TL -20 08T P
TL -20 08T P
TL -20 08T P
AT15 03LCD
US ER' S MAN UAL
US ER' S MAN UAL
US ER' S MAN UAL

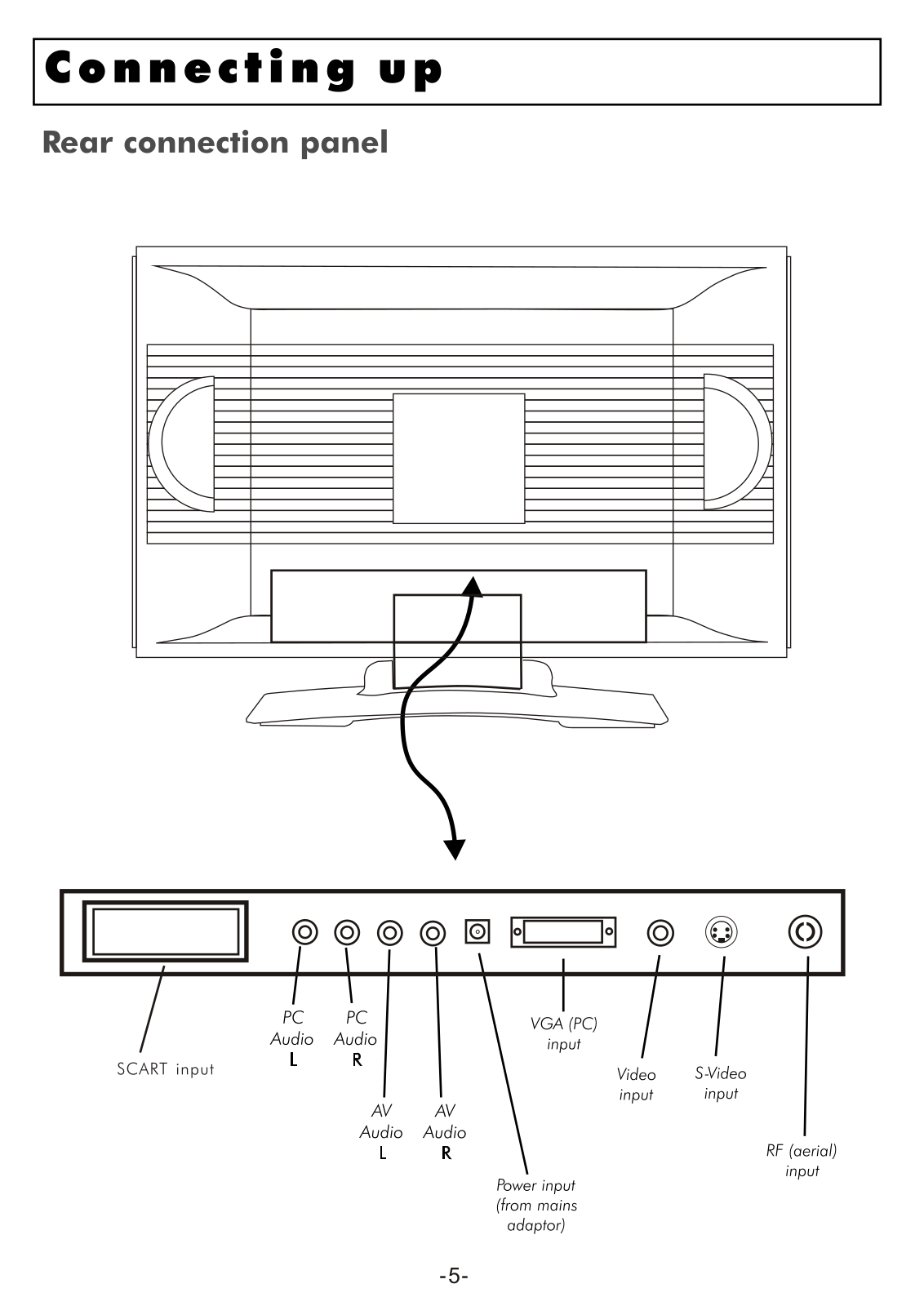

-5 -

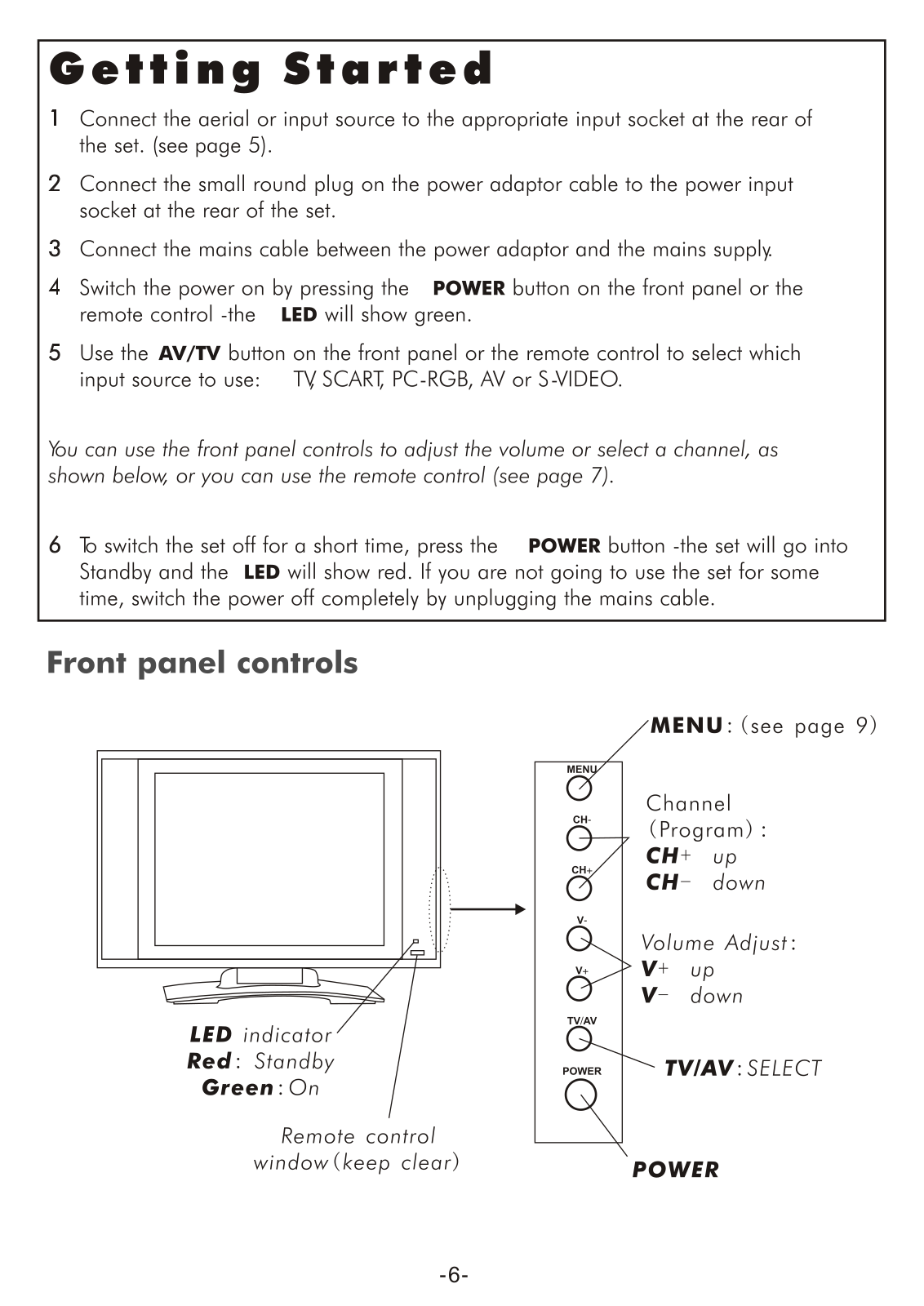

-6 -

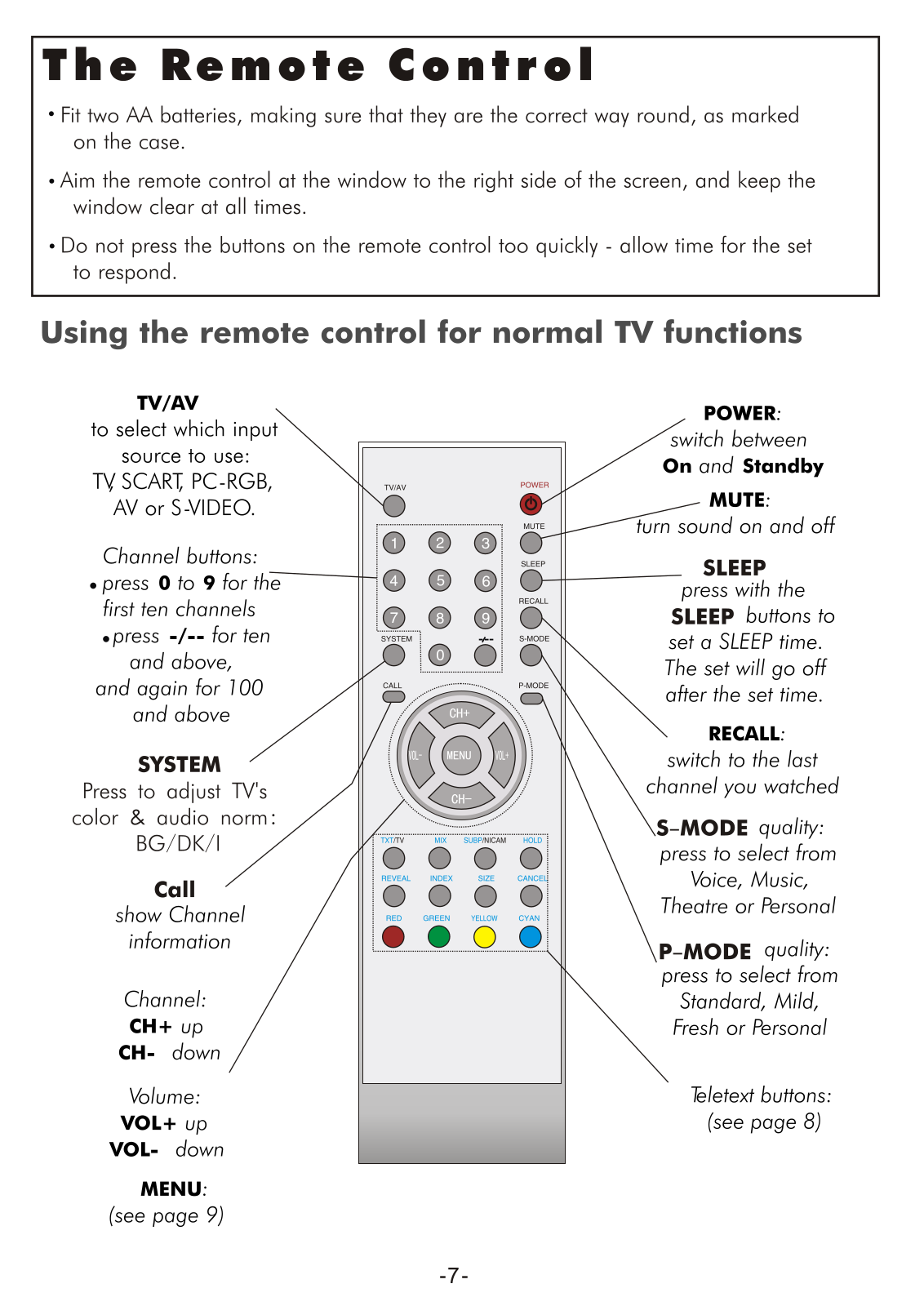

-7 -

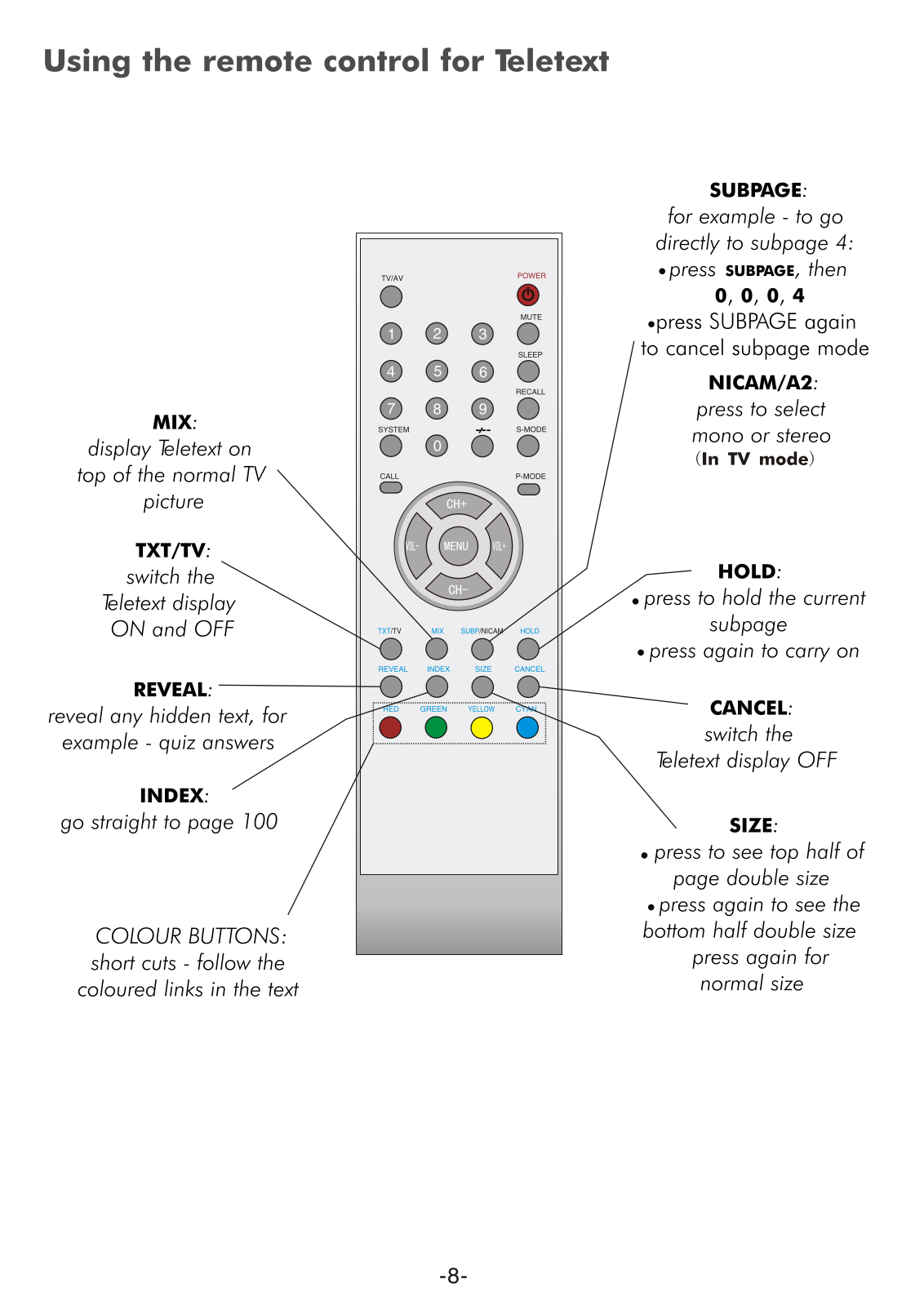

-8 -

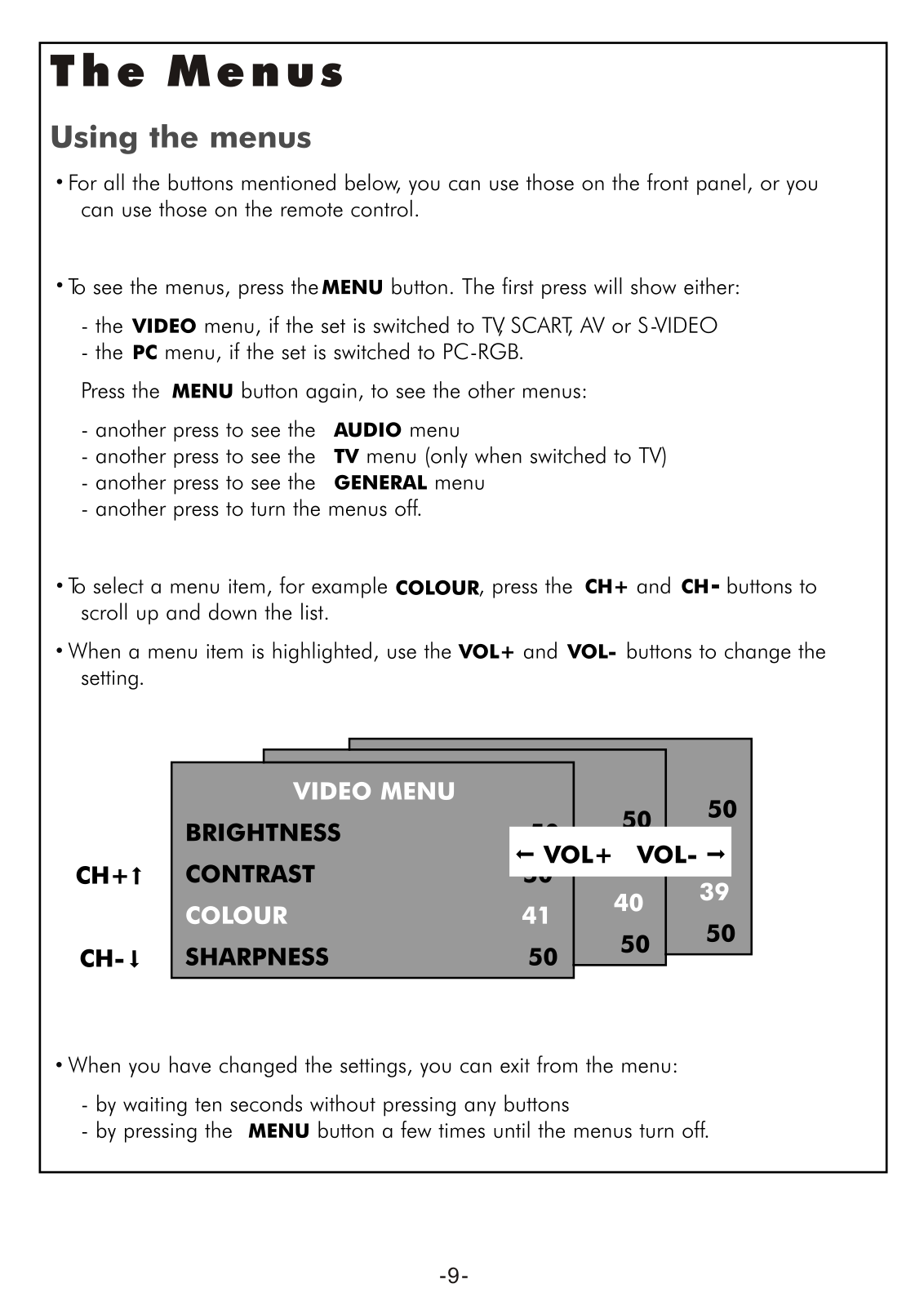

-9 -

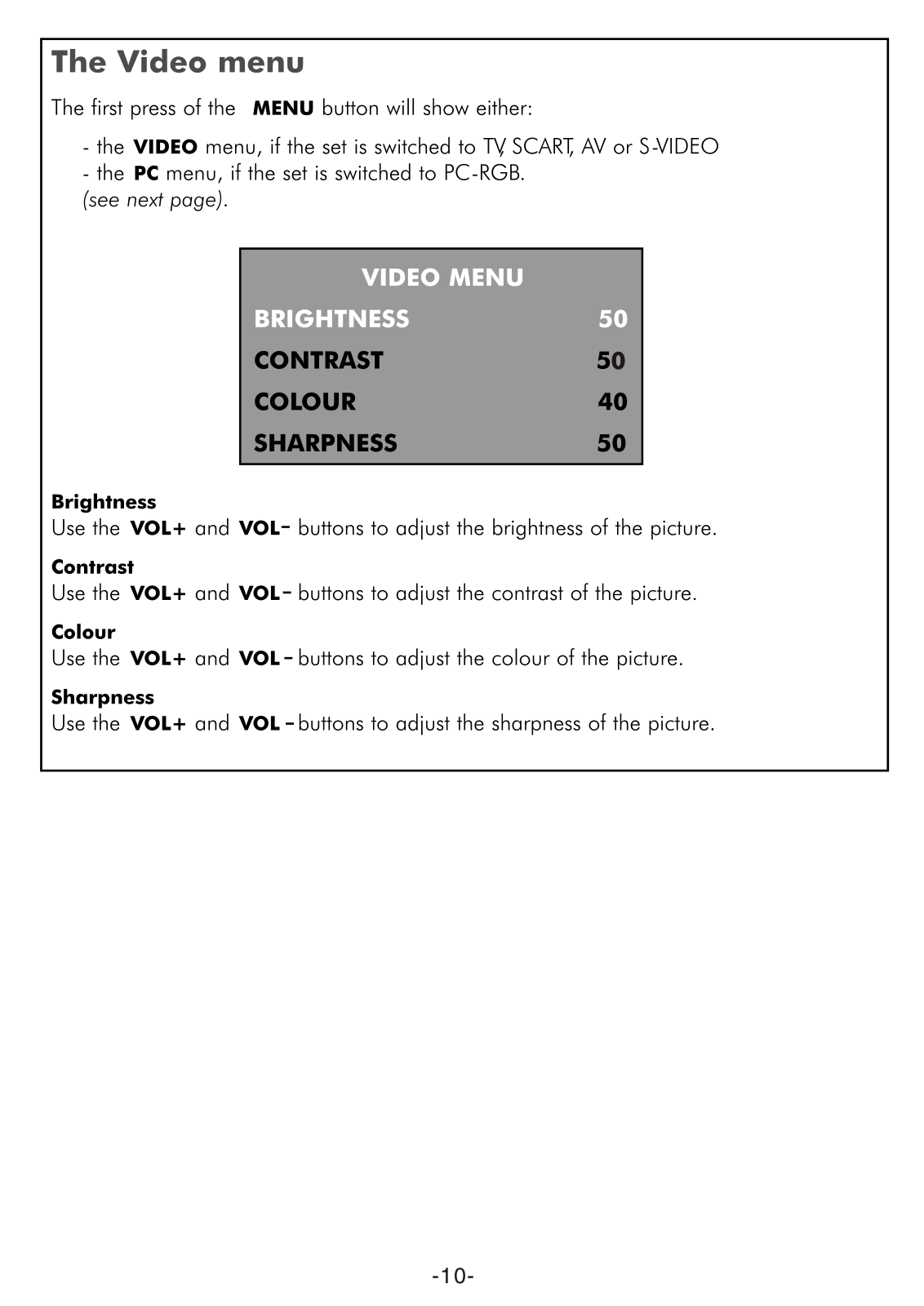

-1 0-

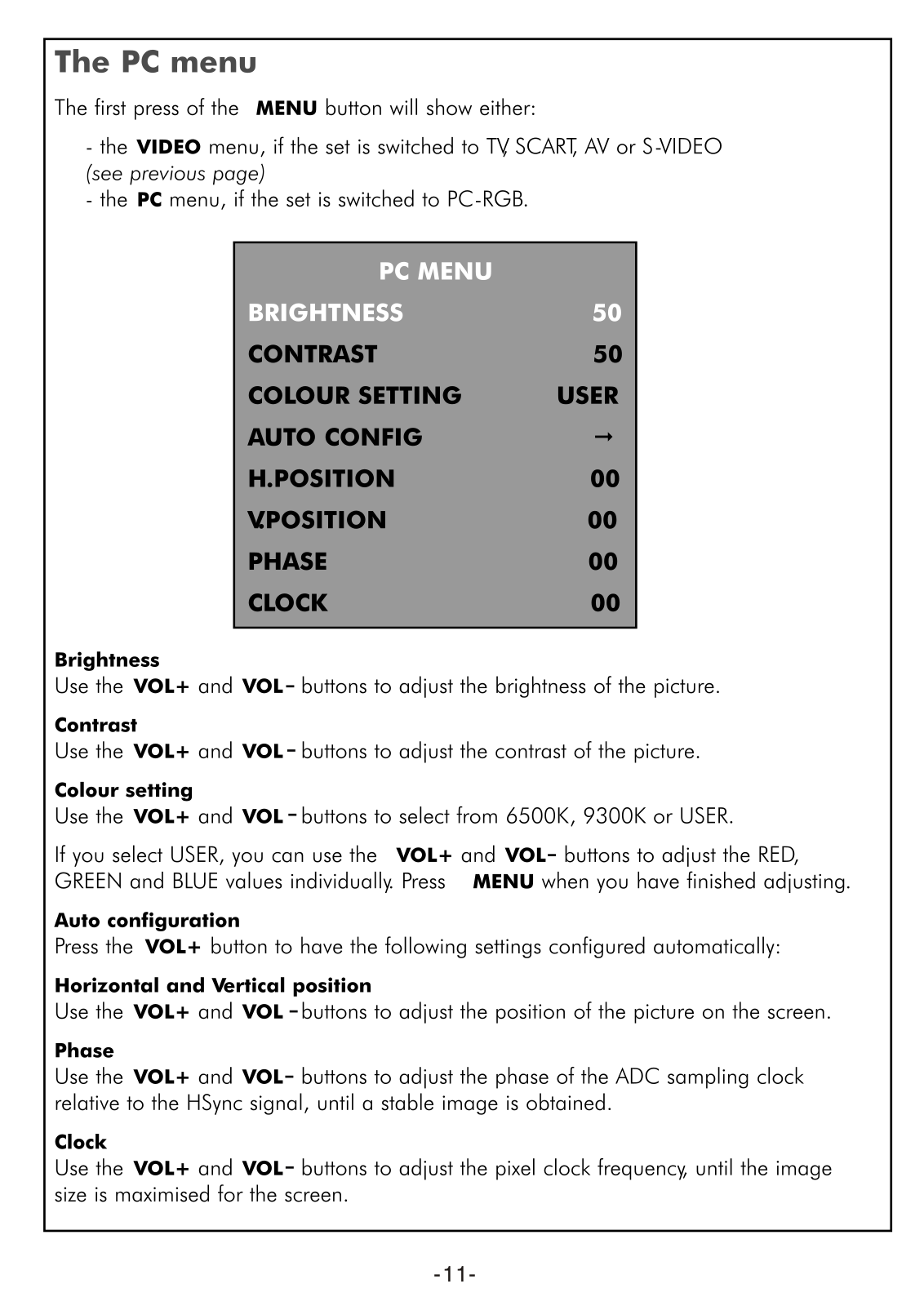

-1 1-

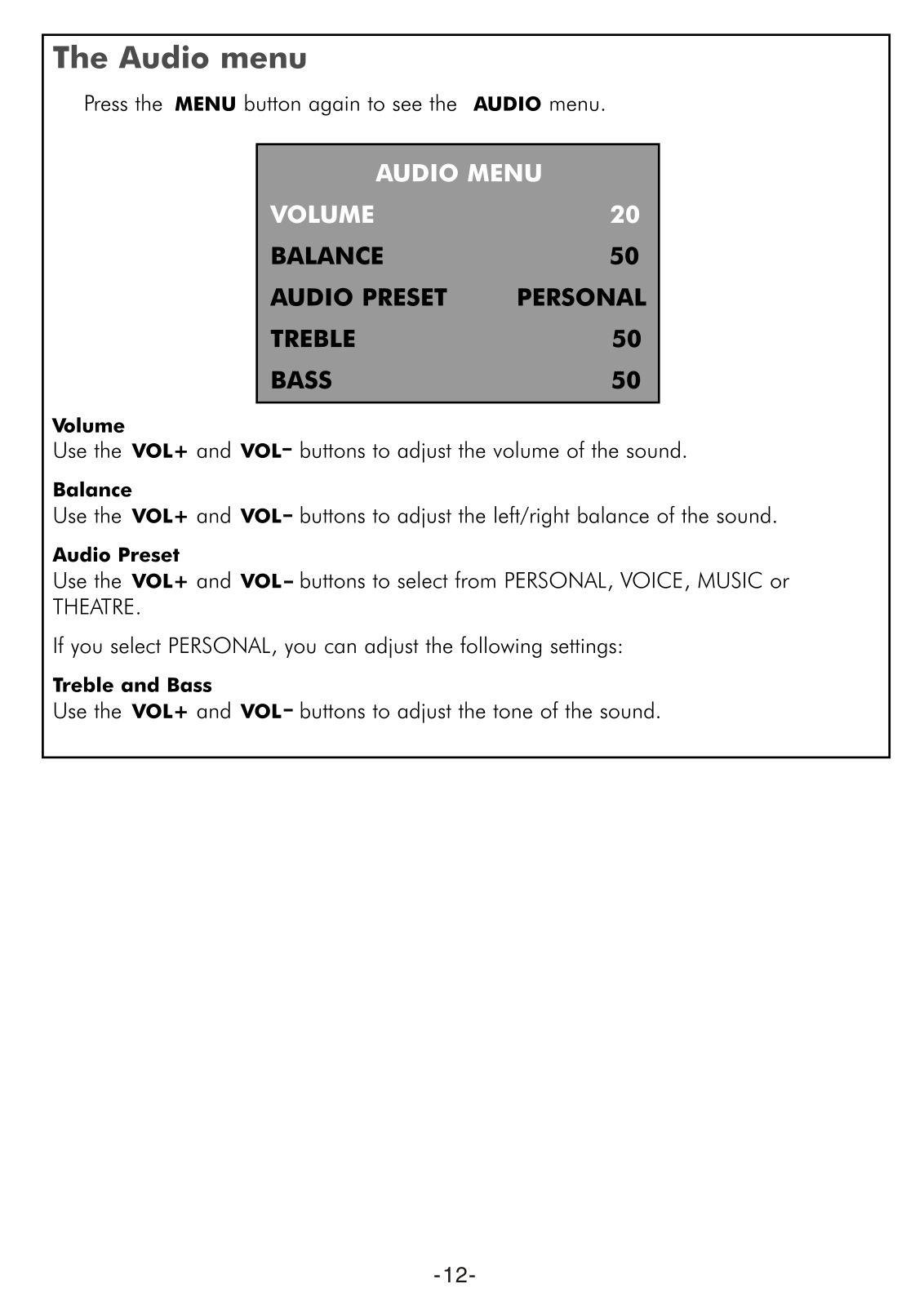

-1 2-

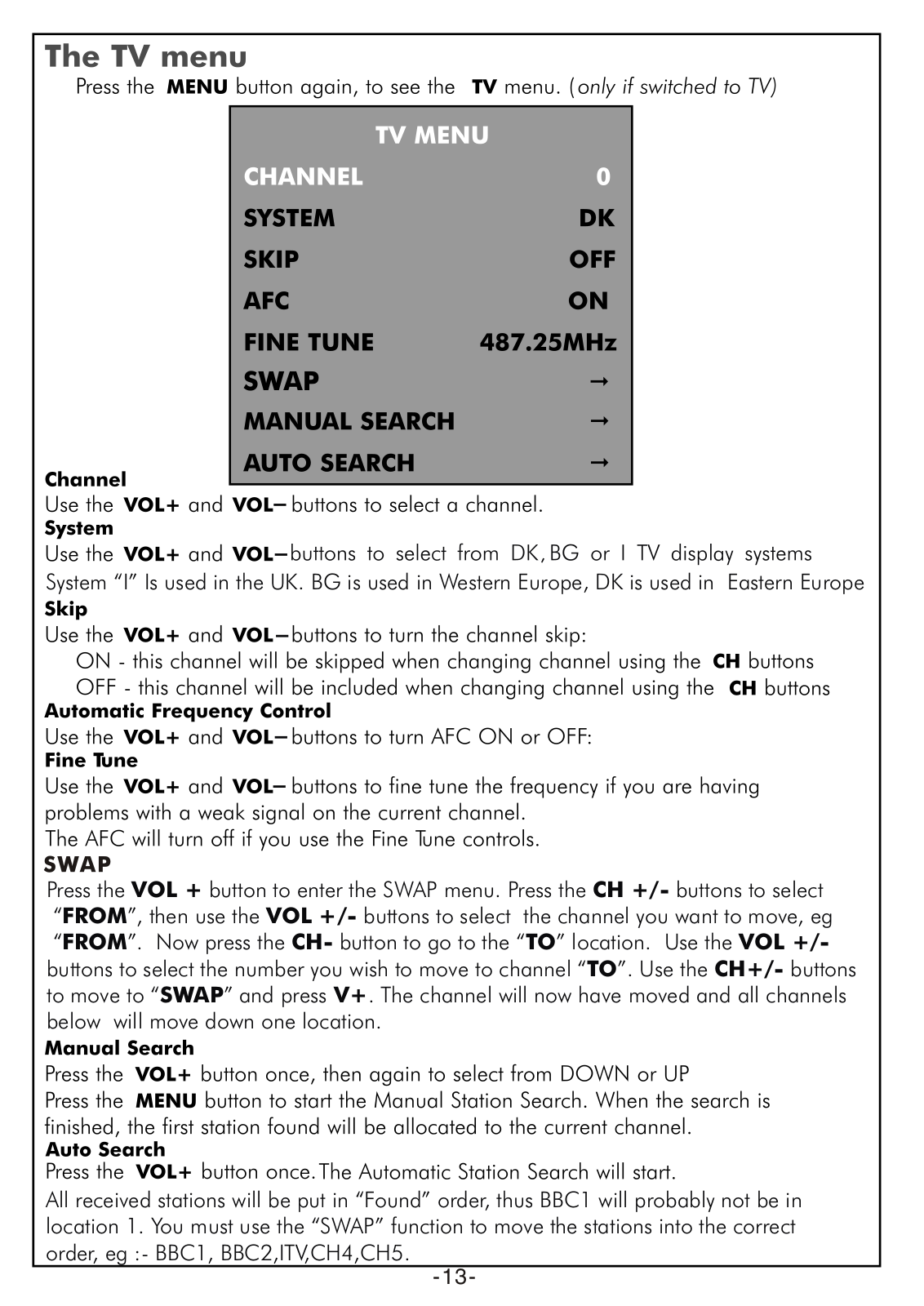

System “I” Is used in the UK. BG is used in Western Europe, DK is used in Eastern Europe
Press the VOL + button to enter the SWAP menu. Press the CH +/- buttons to select
“FROM”, then use the VOL +/- buttons to select the channel you want to move, eg
“FROM”. Now press the CH- button to go to the “TO” location. Use the VOL +/-
buttons to select the number you wish to move to channel “TO”. Use the CH+/- buttons
to move to “SWAP” and press V+. The channel will now have moved and all channels
below will move down one location.
All received stations will be put in “Found” order, thus BBC1 will probably not be in
location 1. You must use the “SWAP” function to move the stations into the correct
order, eg :- BBC1, BBC2,ITV,CH4,CH5.
-1 3-

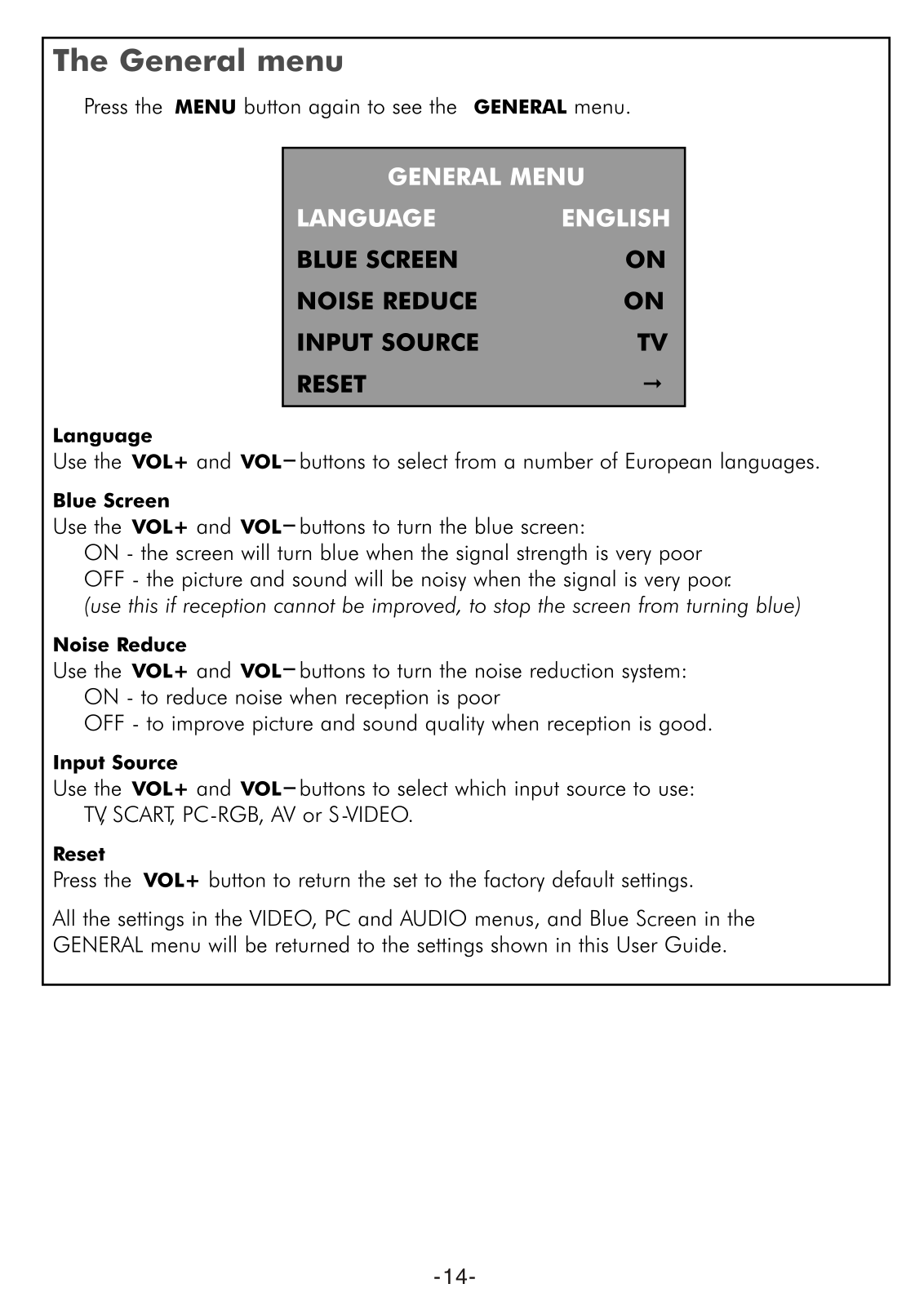

-1 4-

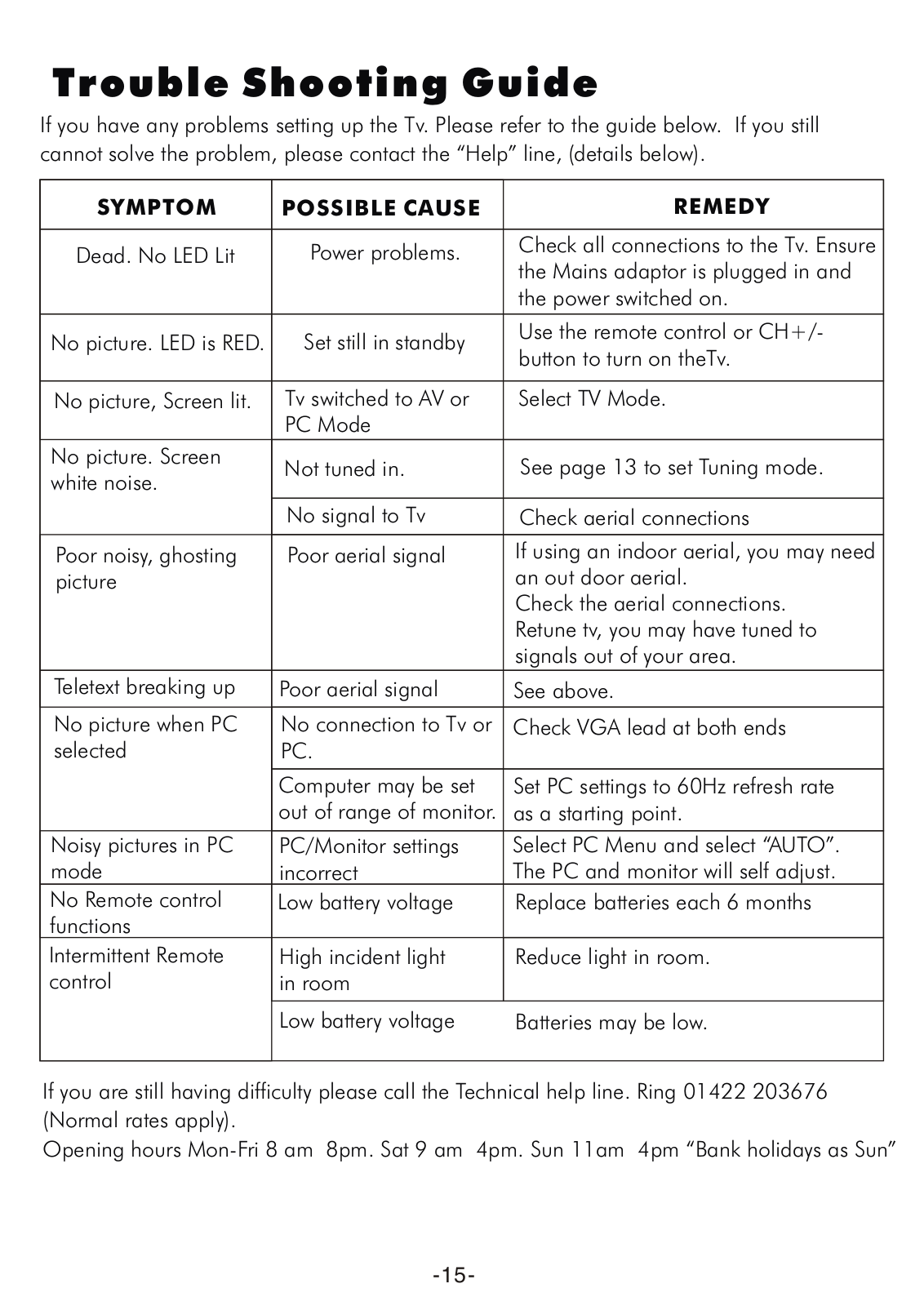

Trouble Shooting Guide
If you have any problems setting up the Tv. Please refer to the guide below. If you still
cannot solve the problem, please contact the “Help” line, (details below).
SY MPTO M
Dead. No LED Lit
No picture. LED is RED.
No picture, Screen lit.
No picture. Screen
white noise.
Poor noisy, ghosting
Teletext breaking up
No picture when PC
selected
Noisy pictures in PC
mode
No Remote control
functions
Intermittent Remote
control
PO SSIBLE CAUSE
Power problems.
Set still in standby
Tv switched to AV or
PC Mode
Not tuned in.
No signal to Tv
Poor aerial signal
Poor aerial signal
No connection to Tv or
PC.
Computer may be set
out of range of monitor.
PC/Monitor settings
incorrect
Low battery voltage
High incident light
in room
RE MEDY
Check all connections to the Tv. Ensure
the Mains adaptor is plugged in and
the power switched on.
Use the remote control or CH+/button to turn on theTv.
Select TV Mode.
See page 13 to set Tuning mode.
Check aerial connections
If using an indoor aerial, you may need
an out door aerial.
Check the aerial connections.
Retune tv, you may have tuned to
signals out of your area.
See above.
Check VGA lead at both ends
Set PC settings to 60Hz refresh rate
as a starting point.
Select PC Menu and select “AUTO”.
The PC and monitor will self adjust.
Replace batteries each 6 months
Reduce light in room.
Low battery voltage
If you are still having difficulty please call the Technical help line. Ring 01422 203676
(Normal rates apply).
Opening hours Mon-Fri 8 am 8pm. Sat 9 am 4pm. Sun 11am 4pm “Bank holidays as Sun”
-1 5-

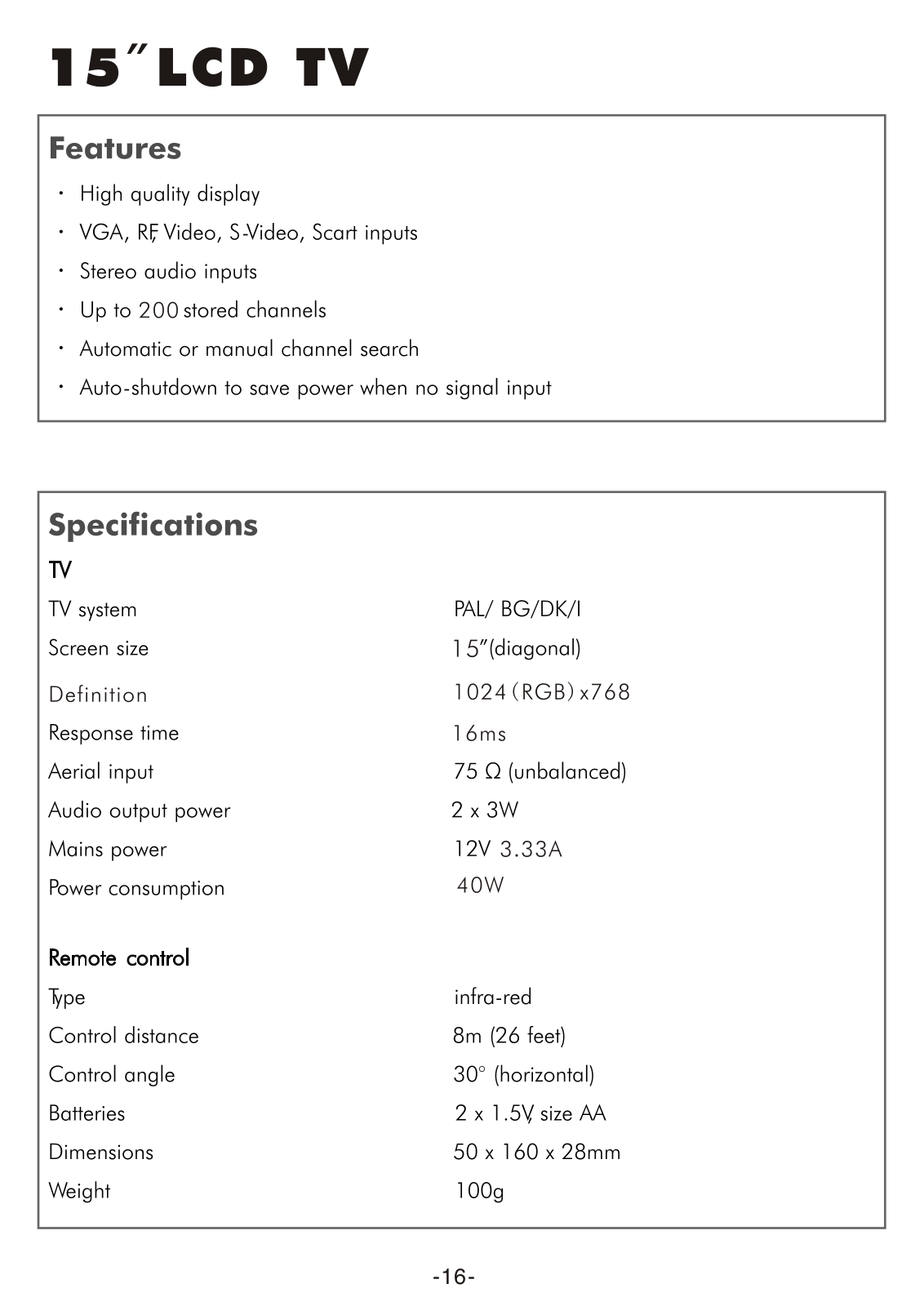

Batteries may be low.
-1 6-

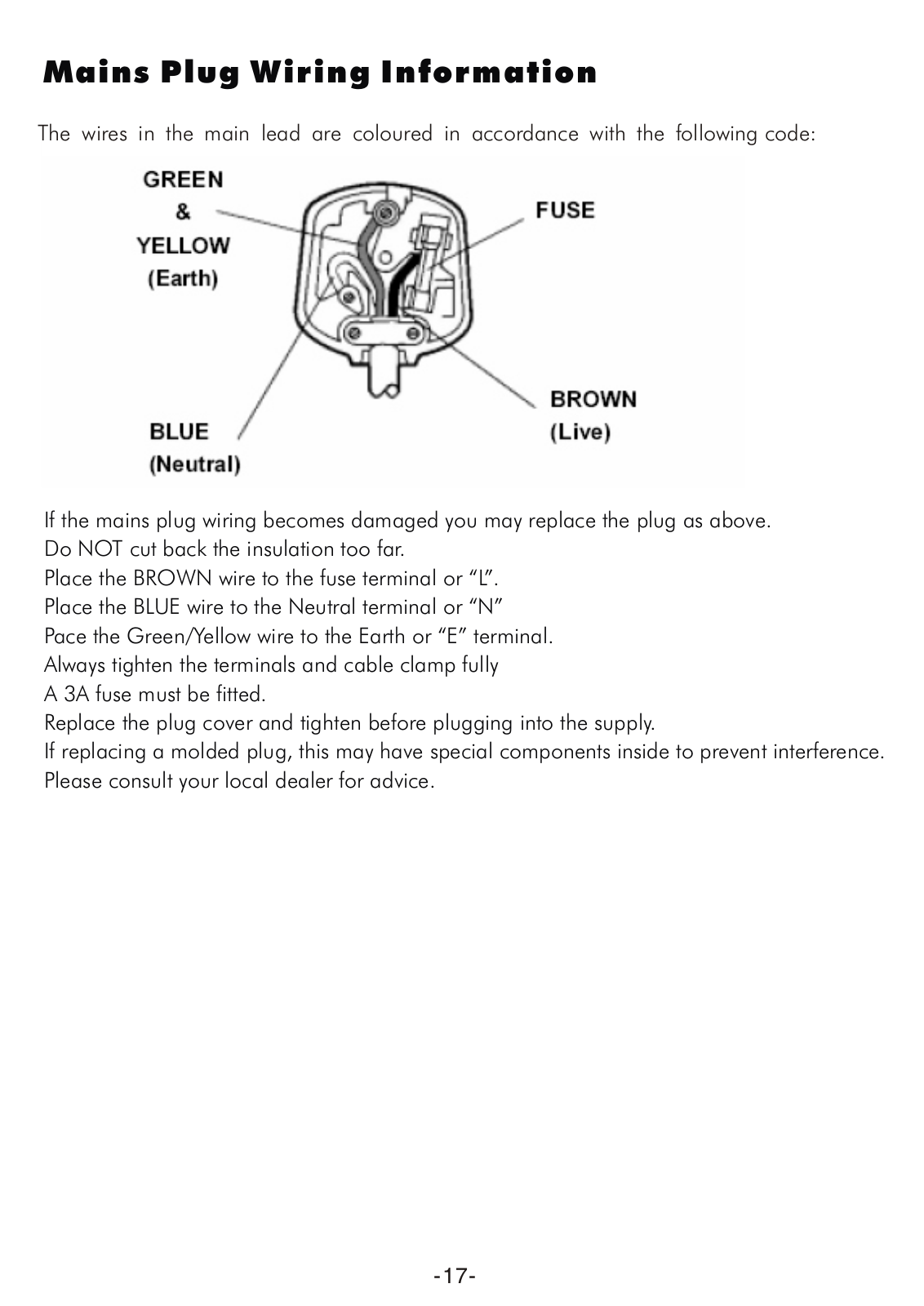

Mains Plug Wiring Information
The wires in the main lead are coloured in accordance with the following code:
If the mains plug wiring becomes damaged you may replace the plug as above.
Do NOT cut back the insulation too far.
Place the BROWN wire to the fuse terminal or “L”.
Place the BLUE wire to the Neutral terminal or “N”
Pace the Green/Yellow wire to the Earth or “E” terminal.
Always tighten the terminals and cable clamp fully
A 3A fuse must be fitted.
Replace the plug cover and tighten before plugging into the supply.
If replacing a molded plug, this may have special components inside to prevent interference.
Please consult your local dealer for advice.
-1 7-
