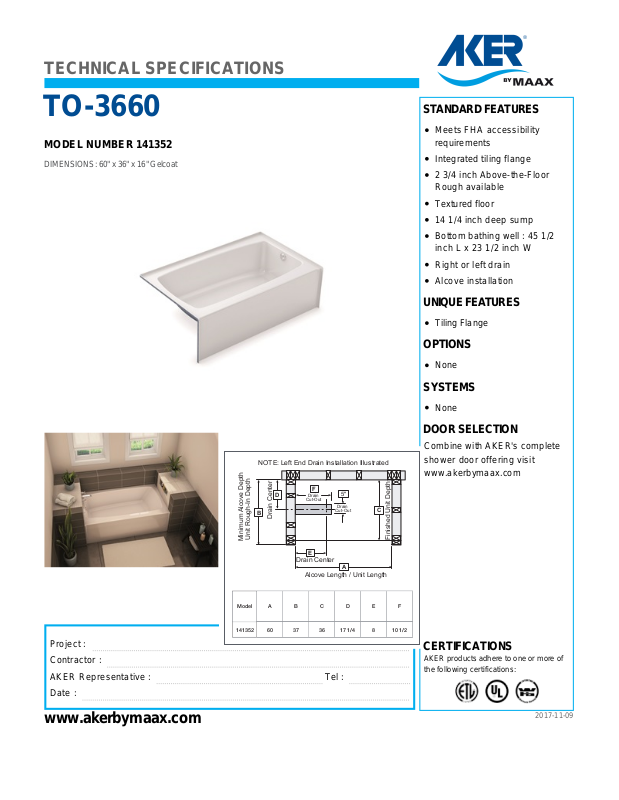

TECHNICAL SPECIFICATIONS

TO-3660

MODEL NUMBER 141352

DIMENSIONS: 60" x 36" x 16" Gelcoat

Project :
Contractor :
AKER Representative : Tel :
Date :

www.akerbymaax.com

2017-11-09

STANDARD FEATURES

Meets FHA accessibility
requirements

Integrated tiling flange
2 3/4 inch Above-the-Floor

Rough available
Textured floor
14 1/4 inch deep sump
Bottom bathing well : 45 1/2

inch L x 23 1/2 inch W
Right or left drain
Alcove installation

UNIQUE FEATURES

Tiling Flange

OPTIONS

None

SYSTEMS

None

DOOR SELECTION

Combine with AKER's complete
shower door offering visit
www.akerbymaax.com

CERTIFICATIONS

AKER products adhere to one or more of
the following certifications:

Model

141352

A B C D

E

F

60 37 36 17 1/4 8 10 1/2

Finished Unit Depth

Minimum Alcove Depth

Unit Rough-In Depth

Drain Center

Drain Center

Alcove Length / Unit Length

Drain

Cut-Out

B

C

D

Drain

Cut-Out

5"

E

A

F

NOTE: Left End Drain Installation Illustrated

2017-11-09

TECHNICAL DRAWINGS

TECHNICAL SPECIFICATIONS

TO-3660

MODEL NUMBER 141352

All dimensions are approximate. Structure measurements
must be verified against the unit to ensure proper fit.

60"

37"

1"

8"

17 1/4"

Overflow

2 3/8"

Drain

2"

55 1/4"

46 5/8"

24 5/8" 28 3/8"

1"

17 3/4" AFR

Drain Clearance AFR 2 7/8"

16"

1 1/8"

Overflow 15 3/8"

30

14 1/4"

Sump
