Aker Plastics 141351 User Manual

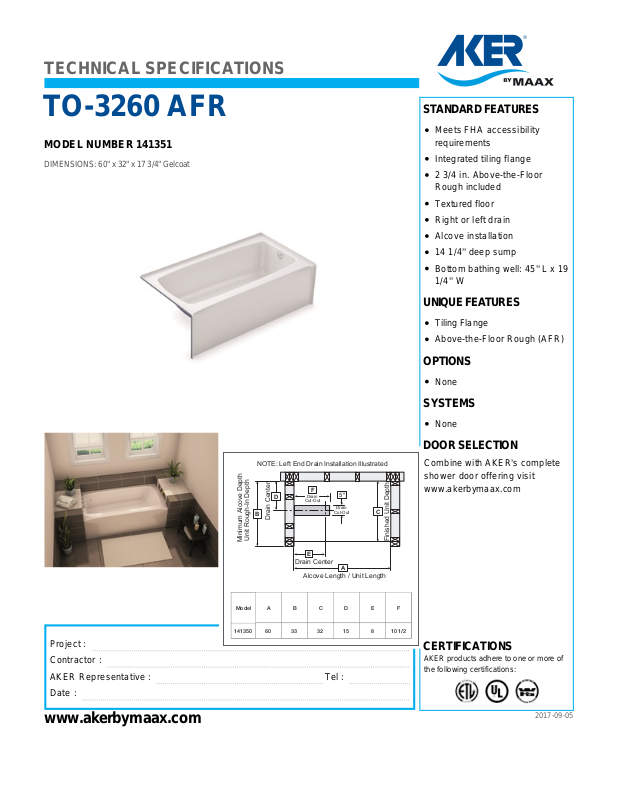

TECHNICAL SPECIFICATIONS

TO-3260 AFR

MODEL NUMBER 141351

DIMENSIONS: 60" x 32" x 17 3/4" Gelcoat

Project :
Contractor :
AKER Representative : Tel :
Date :

www.akerbymaax.com

2017-09-05

STANDARD FEATURES

Meets FHA accessibility
requirements

Integrated tiling flange
2 3/4 in. Above-the-Floor

Rough included
Textured floor
Right or left drain
Alcove installation
14 1/4'' deep sump
Bottom bathing well: 45'' L x 19

1/4'' W

UNIQUE FEATURES

Tiling Flange
Above-the-Floor Rough (AFR)

OPTIONS

None

SYSTEMS

None

DOOR SELECTION

Combine with AKER's complete
shower door offering visit
www.akerbymaax.com

CERTIFICATIONS

AKER products adhere to one or more of
the following certifications:

Model

141350

A B C D

E

F

60 33 32 15 8 10 1/2

Finished Unit Depth

Minimum Alcove Depth

Unit Rough-In Depth

Drain Center

Drain Center

Alcove Length / Unit Length

Drain

Cut-Out

B

C

D

Drain

Cut-Out

5"

E

A

F

NOTE: Left End Drain Installation Illustrated

2017-09-05

TECHNICAL DRAWINGS

TECHNICAL SPECIFICATIONS

TO-3260 AFR

MODEL NUMBER 141351

All dimensions are approximate. Structure measurements
must be verified against the unit to ensure proper fit.

60"

33"

1"

8"

15"

Drain

2"

Overflow

2 3/8"

55 1/4"

46 5/8"

20 3/4" 24 3/8"

1"

17 3/4" AFR

Drain Clearance AFR 2 7/8"

16"

1 1/8"

Overflow 15 3/8"

30

14 1/4"

Sump
