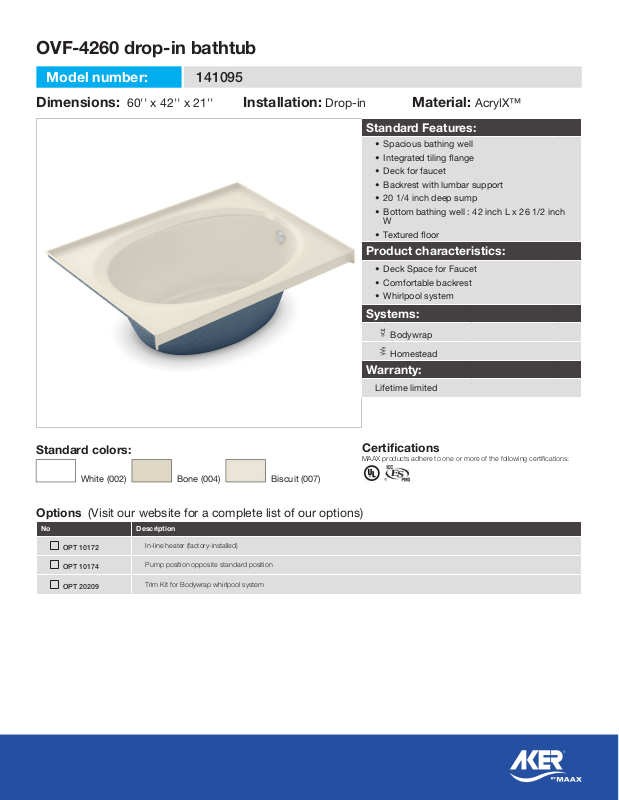

OVF-4260 drop-in bathtub
OVF-4260 drop-in bathtub
Model number:
141095
Project:
Contractor:
Representative:
Date:
Tel:
PRODUCT NUMBER
DRAIN L/R
SYSTEM
COLOR
Model number:
Dimensions: 60'' x 42'' x 21''
141095
Installation: Drop-in Material: AcrylX™
Standard Features:
• Spacious bathing well
• Integrated tiling ange
• Deck for faucet
• Backrest with lumbar support
• 20 1/4 inch deep sump
• Bottom bathing well : 42 inch L x 26 1/2 inch
W
• Textured oor
Product characteristics:
• Deck Space for Faucet
• Comfortable backrest
• Whirlpool system
Systems:
Bodywrap
Homestead
Warranty:
Standard colors:
White (002) Bone (004) Biscuit (007)
Options (Visit our website for a complete list of our options)
No Description
OPT 10172
OPT 10174
OPT 20209
In-line heater (factory-installed)
Pump position opposite standard position
Trim Kit for Bodywrap whirlpool system
Lifetime limited
Certifications
MAAX products adhere to one or more of the following certifications:
OVF-4260 drop-in bathtub
Model number:
141095
Dimensions: 60'' x 42'' x 21''
Suction Fitting
21"
Standard
Pump
Position
On / Off
Switch
43 1/2"
1 1/2"
1 1/2"
42"
21"
21"
22 1/2"
17 1/4"
10"
Fiberglass Base
Jets
50"
Nailing Flange
60"
Installation: Drop-in Material: AcrylX™
Dimensions:
60 x 42 x 21 in.
(1524 x 1067 x 533 mm)
Water capacity:
84 gallons - 318 liters
Weight:
85 lbs - 2.4 kg
Bathing well:
42 X 26 1/2 in.
(1067 X 673 mm)
Deep sump height:
18 in. - 457 mm
Deck width:
1 1/2"
1 1/2"
42"
43 1/2"
21"
22 1/2"
Suction Fitting
21"
21"
10"
17 1/4"
Fiberglass Base
Jets
60"
Air Control
Flow Adjustment
50"
Nailing Flange
Standard
Pump
Position
On / Off
Switch
Air Control
6-jet Homestead Collection OVF-4260
HMS (illustrated)
All dimensions are approximate. Structure measurements
must be verified against the unit to ensure proper fit.
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
8-jet Bodywrap System OVF-4260
BWS (illustrated)
5 in. - 127 mm
Drain location:
Left
Right
