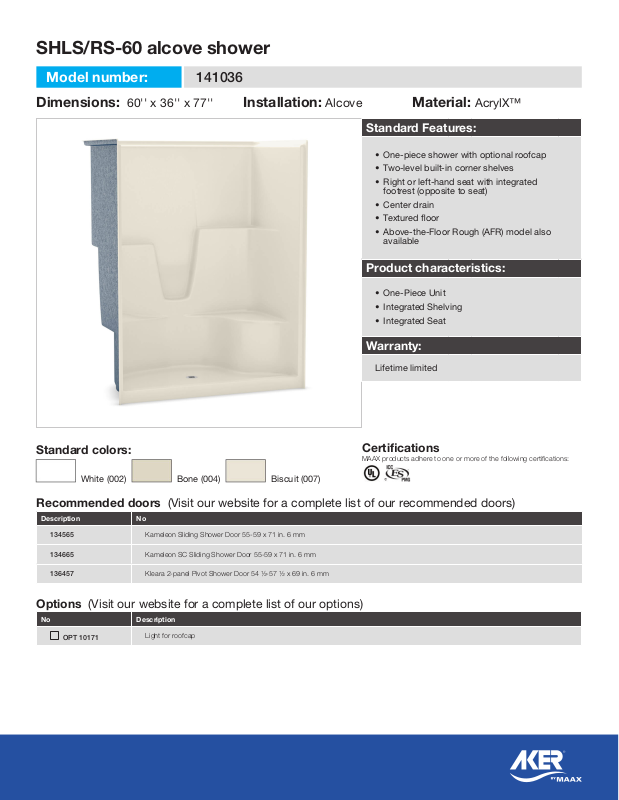

SHLS/RS-60 alcove shower
SHLS/RS-60 alcove shower
Model number:
141036
Project:
Contractor:
Representative:
Date:
Tel:
PRODUCT NUMBER
DRAIN L/R
SYSTEM
COLOR
Model number:
Dimensions: 60'' x 36'' x 77''
141036
Installation: Alcove Material: AcrylX™
Standard Features:
• One-piece shower with optional roofcap
• Two-level built-in corner shelves
• Right or left-hand seat with integrated
footrest (opposite to seat)
• Center drain
• Textured oor
• Above-the-Floor Rough (AFR) model also
available
Product characteristics:
• One-Piece Unit
• Integrated Shelving
• Integrated Seat
Warranty:
Lifetime limited
Standard colors:
White (002) Bone (004) Biscuit (007)
Certifications
MAAX products adhere to one or more of the following certifications:
Recommended doors (Visit our website for a complete list of our recommended doors)
Description No
134565 Kameleon Sliding Shower Door 55-59 x 71 in. 6 mm
134665 Kameleon SC Sliding Shower Door 55-59 x 71 in. 6 mm
136457 Kleara 2-panel Pivot Shower Door 54 ½-57 ½ x 69 in. 6 mm
Options (Visit our website for a complete list of our options)
No Description
OPT 10171
Light for roofcap
SHLS/RS-60 alcove shower
Model number:
141036
Dimensions: 60'' x 36'' x 77''
1 1/2"
18 1/2"
1 1/2"
Installation: Alcove Material: AcrylX™
SHRS-60 (Shown)
SHLS-60
78"
71 1/2"
76 1/2"
5"
36"
37 1/2"
Ø3 3/8"
Elevated Shelves
41 1/4"
60"
30"
Drain
57 1/2"
Right
Corner
Seat
46"
17 3/4"
2" AFR
1 1/4"
Dimensions:
60 x 36 x 76 1/2 in.
(1524 x 914 x 1943 mm)
Weight:
126 lbs - 57 kg
Shape:
Rectangular
Pieces:
1
Drain location:
Left seat, center drain
Right seat, center drain
All dimensions are approximate. Structure measurements
must be veried against the unit to ensure proper t.
