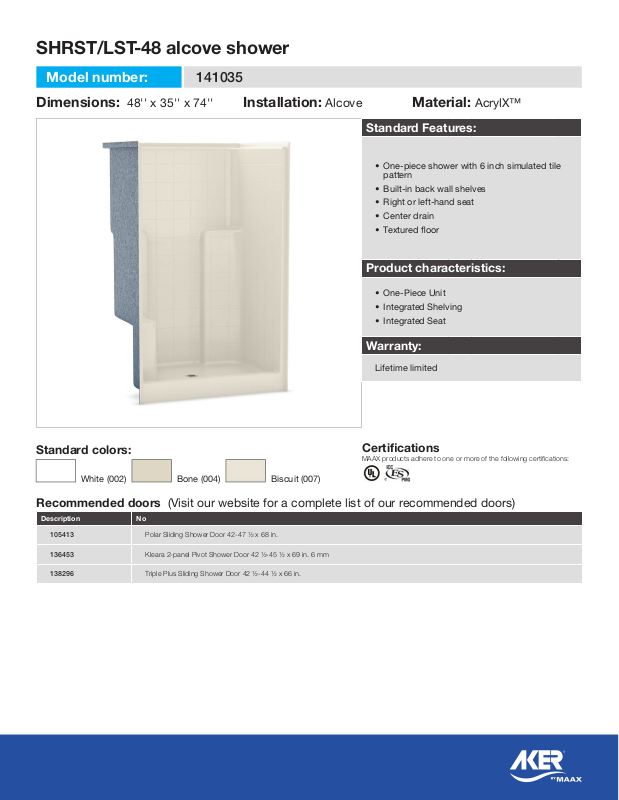

SHRST/LST-48 alcove shower
SHRST/LST-48 alcove shower
Model number:
141035
Project:
Contractor:
Representative:
Date:
Tel:
PRODUCT NUMBER
DRAIN L/R
SYSTEM
COLOR
Model number:
Dimensions: 48'' x 35'' x 74''
141035
Installation: Alcove Material: AcrylX™
Standard Features:
• One-piece shower with 6 inch simulated tile
pattern
• Built-in back wall shelves
• Right or left-hand seat
• Center drain
• Textured oor
Product characteristics:
• One-Piece Unit
• Integrated Shelving
• Integrated Seat
Warranty:
Lifetime limited
Standard colors:
White (002) Bone (004) Biscuit (007)
Certifications
MAAX products adhere to one or more of the following certifications:
Recommended doors (Visit our website for a complete list of our recommended doors)
Description No
105413 Polar Sliding Shower Door 42-47 ½ x 68 in.
136453 Kleara 2-panel Pivot Shower Door 42 ½-45 ½ x 69 in. 6 mm
138296 Triple Plus Sliding Shower Door 42 ½-44 ½ x 66 in.
SHRST/LST-48 alcove shower
Model number:
141035
Dimensions: 48'' x 35'' x 74''
18 1/2"
5 1/2"
Installation: Alcove Material: AcrylX™
Dimensions:
48 x 35 x 73 3/4 in.
69"
18 1/2"
3"
9"
44 3/4"
24"
44 3/4"
48"
+
75 1/2"
47 3/4"
17 1/4"
32"
36"
(1219 x 889 x 1873 mm)
Weight:
106 lbs - 48 kg
Shape:
Rectangular
Pieces:
1
Drain location:
Left seat, center drain
Right seat, center drain
Project:
Contractor:
Representative:
Date:
Tel:
Notes:
All dimensions are approximate. Structure measurements
must be veried against the unit to ensure proper t.
