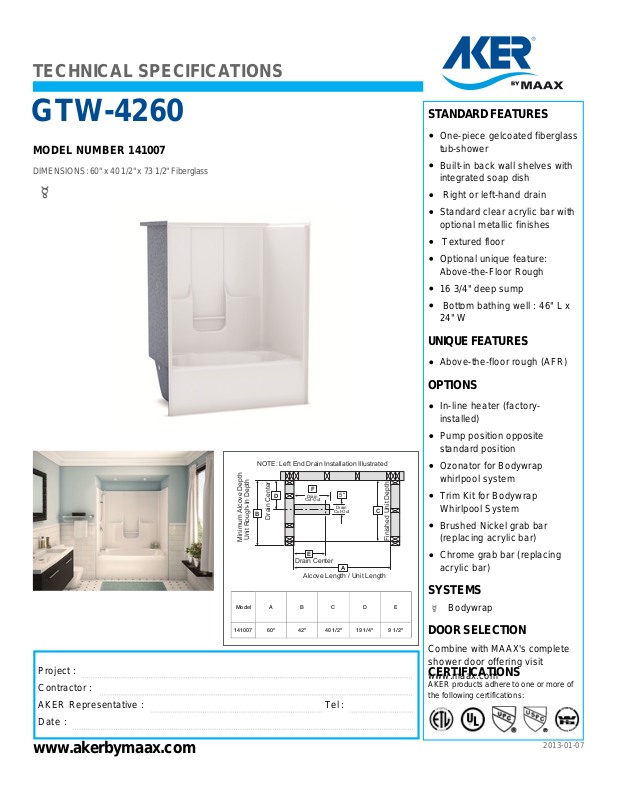

Aker Plastics 141007 User Manual

TECHNICAL SPECIFICATIONS

GTW-4260

MODEL NUMBER 141007

DIMENSIONS: 60" x 40 1/2" x 73 1/2" Fiberglass

Project :
Contractor :
AKER Representative : Tel :
Date :

www.akerbymaax.com

2013-01-07

STANDARD FEATURES

One-piece gelcoated fiberglass
tub-shower

Built-in back wall shelves with
integrated soap dish

Right or left-hand drain
Standard clear acrylic bar with

optional metallic finishes
Textured floor
Optional unique feature:

Above-the-Floor Rough
16 3/4" deep sump
Bottom bathing well : 46" L x

24" W

UNIQUE FEATURES

Above-the-floor rough (AFR)

OPTIONS

In-line heater (factory­installed)

Pump position opposite
standard position

Ozonator for Bodywrap
whirlpool system

Trim Kit for Bodywrap
Whirlpool System

Brushed Nickel grab bar
(replacing acrylic bar)

Chrome grab bar (replacing
acrylic bar)

SYSTEMS

Bodywrap

DOOR SELECTION

Combine with MAAX's complete
shower door offering visit
www.maax.com

CERTIFICATIONS

AKER products adhere to one or more of
the following certifications:

Model

141007

A B C D

E

60" 42" 40 1/2" 19 1/4" 9 1/2"

Finished Unit Depth

Minimum Alcove Depth

Unit Rough-In Depth

Drain Center

Drain Center

Alcove Length / Unit Length

Drain

Cut-Out

B

C

D

Drain

Cut-Out

5"

E

A

F

NOTE: Left End Drain Installation Illustrated

2013-01-07

TECHNICAL DRAWINGS

TECHNICAL SPECIFICATIONS

GTW-4260

MODEL NUMBER 141007

All dimensions are approximate. Structure measurements
must be veried against the unit to ensure proper t.

Standard Pump Position

Suction Fitting

Air Control

Air Control Micro Switch

Flow Adjustment

Jet

Jet

Jet

Jet

Foot Massage Jets

Micro Back Jets

2”

Pump Extends
Beyond Tub Edge

42"

60"

50 1/2"

Ø2 1/2" Overow

Ø2" Drain

40 1/2"

1 1/2"

9 1/2"

19 1/4"21 1/4"

54 7/8"

2 9/16"

2 9/16"

Elevated Shelves

Soap Ledge

Bar

14 1/2"

1 1/2"

75"

17 3/4"

55 3/4"

60"

3/8"

20 1/2" AFR

3 1/8" Drain Clearance AFR

+ 2 3/4" For AFR
