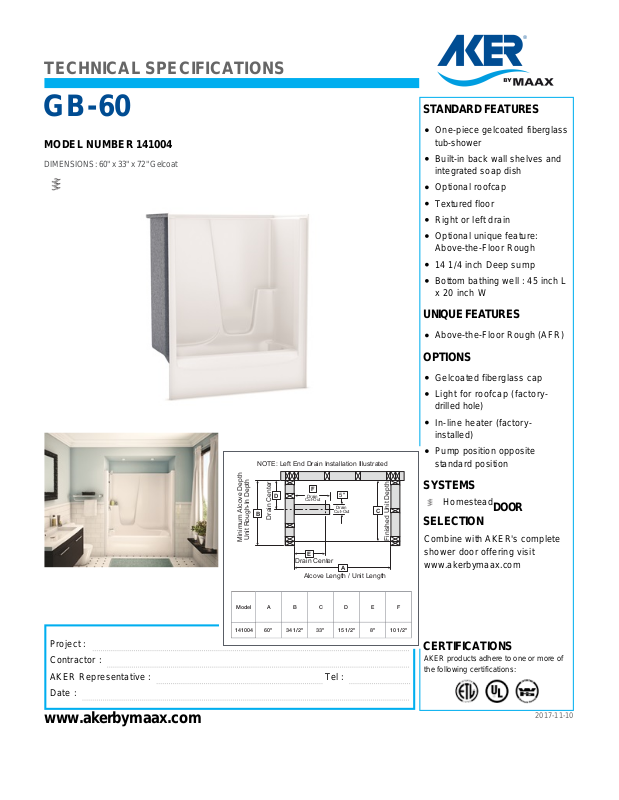

TECHNICAL SPECIFICATIONS

GB-60

MODEL NUMBER 141004

DIMENSIONS: 60" x 33" x 72" Gelcoat

Project :
Contractor :
AKER Representative : Tel :
Date :

www.akerbymaax.com

Homestead

2017-11-10

STANDARD FEATURES

One-piece gelcoated fiberglass
tub-shower

Built-in back wall shelves and
integrated soap dish

Optional roofcap
Textured floor
Right or left drain
Optional unique feature:

Above-the-Floor Rough
14 1/4 inch Deep sump
Bottom bathing well : 45 inch L

x 20 inch W

UNIQUE FEATURES

Above-the-Floor Rough (AFR)

OPTIONS

Gelcoated fiberglass cap
Light for roofcap (factory-

drilled hole)
In-line heater (factory-

installed)
Pump position opposite

standard position

SYSTEMS

DOOR

SELECTION

Combine with AKER's complete
shower door offering visit
www.akerbymaax.com

CERTIFICATIONS

AKER products adhere to one or more of
the following certifications:

Model

141004

A B C D

E

F

60" 34 1/2" 33" 15 1/2" 8" 10 1/2"

Finished Unit Depth

Minimum Alcove Depth

Unit Rough-In Depth

Drain Center

Drain Center

Alcove Length / Unit Length

Drain

Cut-Out

B

C

D

Drain

Cut-Out

5"

E

A

F

NOTE: Left End Drain Installation Illustrated

2017-11-10

TECHNICAL DRAWINGS

TECHNICAL SPECIFICATIONS

GB-60

MODEL NUMBER 141004

All dimensions are approximate. Structure measurements

Standard Pump Position

Jets

Suction Fitting

2”

60"

1 1/2"

73 1/2"

16" 56"

13"

Elevated Shelf

Soap Ledge

60"

3 3/16"3 3/16"

1 1/2"

34 1/2"

33"

15 1/2"

17 1/2"

8"

53 5/8"

Ø 2" Drain

Pump Extends Beyond Tub Edge

1"

2 3/4"

Drain Clearance AFR

17 3/4" AFR

52"

+ 1 3/4" For AFR
