Akai GX-77 User Manual
Specifications and Main Features
- Track System features: four-track, two-channel stereophonic system
- Allowed reel type bubble: a reel with a maximum size of 7 inches
- Heads include the following attributes:
- a record head type of gx x two
- enabling playback head type of gx x two
- erase head x two
- Motors: X 1 fg servo d.c motor for the capstan drive, 2 for the reel drive d.c motor
- Tape Speed includes:
- 19 cm/sec +0.8% (7-1/2 ips)
- 9.5 cm/sec +1.0% (3-3/4 ips)
- Wow & Flutter are comprised of three layers:
- 0.03 percentage WRMS and 0.07 Percentage DIN 45500 < (dash straight sign) at nineteen cm/sec
- 0.04 Percent WRMS And 0.1 % DIN 45500 < (dash straight sign) at 9.5 cm/sec are less than
- Tape Winding Time spent was 80 sec utilizing a tape which 370 m in length: 1,200 feet
- Frequency Response features
- 25 to 33,000 hz dB (--20 VU) at rate of 19 cm / sec+3
- 25 to 26,000 h +3 dB (0VU)
- At 9.5cm/sec 25-25,000hz+3db(-20VU)
- 25 to 15,000hz +3db(0VU)
- At 19cm/sec DIN 45500 The S to N R, measurement is64 > decibels.
- Less than the following values at a distance of 19cm/sec 0.5 percent
- Input:
- Microphone needed impedance of 600ohms: needed microphone- input
- Line: (resistive input 47kohms) 70mV fed in=output, required in=output
- Output features:
Input:
- Required loading impedance is 2.0V with greater than 20k ohms.
- Input voltage at an impedance of 10k ohms is recorded to be 2V which is at 0VU.
- The output voltage is inputed at a 20kohms and is required to be 0.3V while the input phone is set to 1.3mW at 8ohms.
Other Factors Asmeasured Are Adhering To These Parameters:
- The weight of the device is noted to be 17KG at a 0 power factor.
- If calibrated in other parts of the world the voltage can be set at a range of 110 to 240 at a power of 50 to 60Hz.
- Dimensions of the equipment are estimated at 440 227 264 mm roughly equivalent to 17.3 8.9 9.6 inches.
Additional Attachments Come Along With The Device:
- 2 Empty reels along with a Sensing Tab kit are provided with an operator manual and conecting cables.
Frequently asked questions about the device features and their functionality:

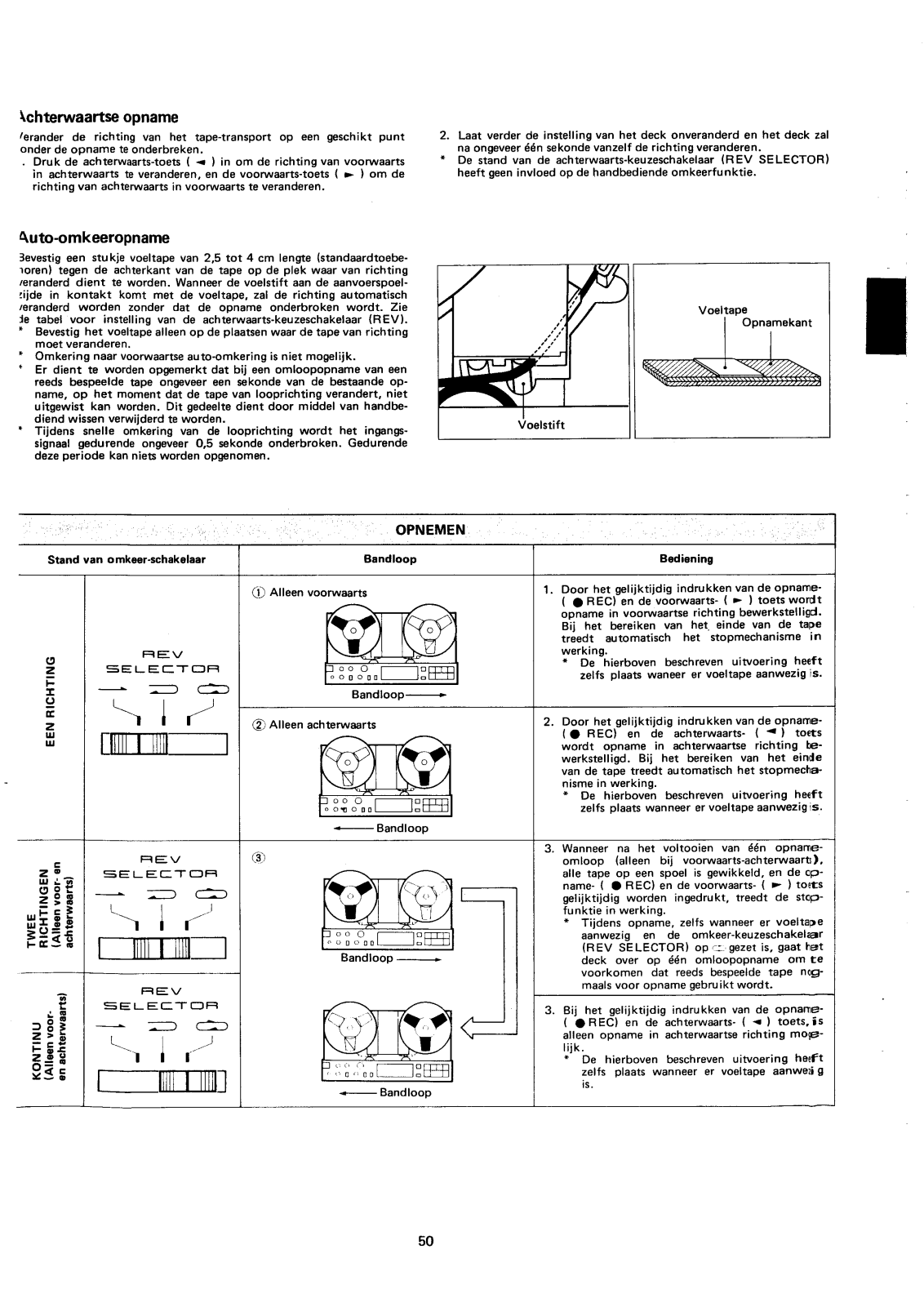

- The functionality of the device is enhanced by incorporating a tape that helps automate its reverse feature.

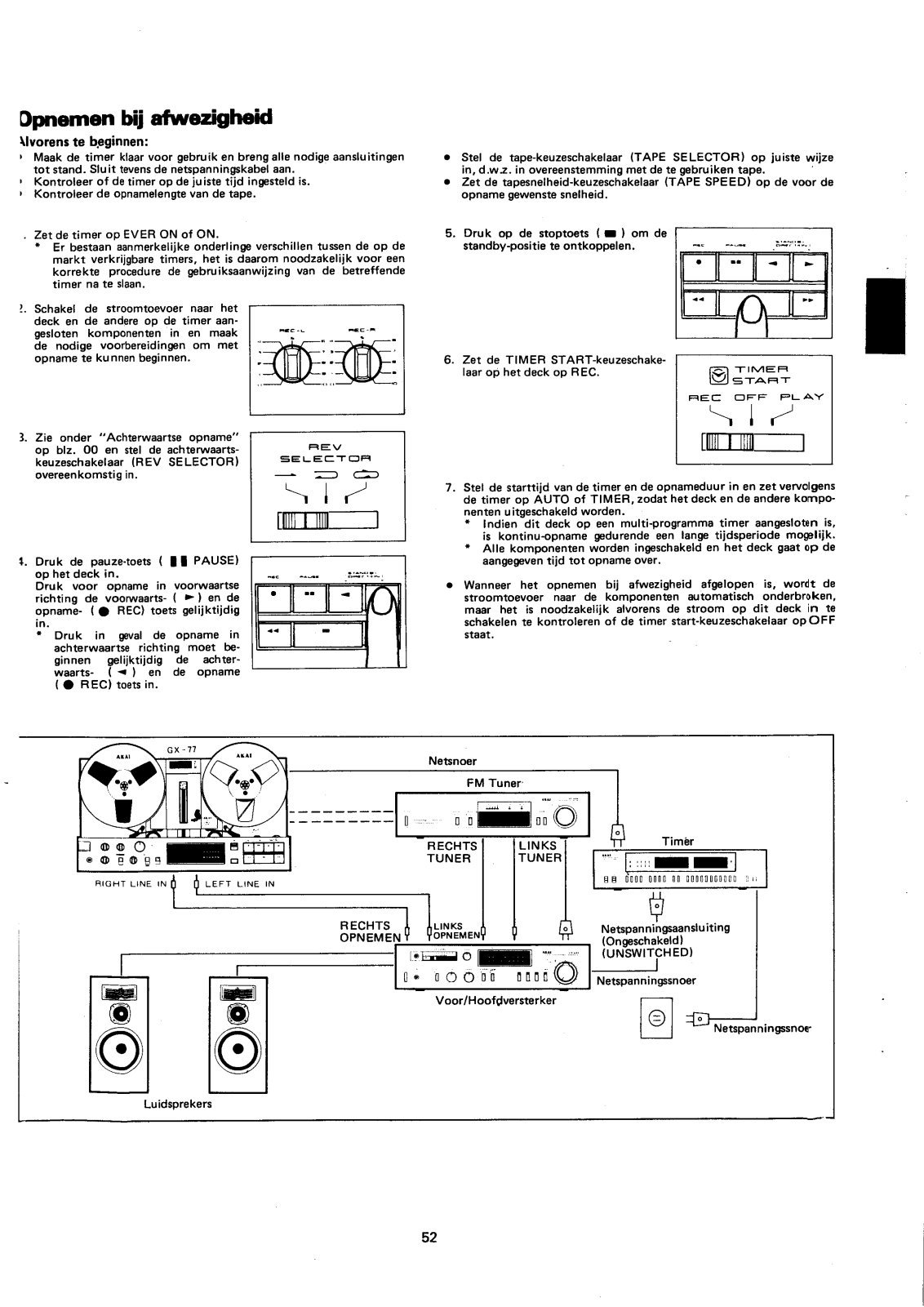

- The TIMER START selector aids in accurate recording when set to OFF.
Frequently Asked Questions

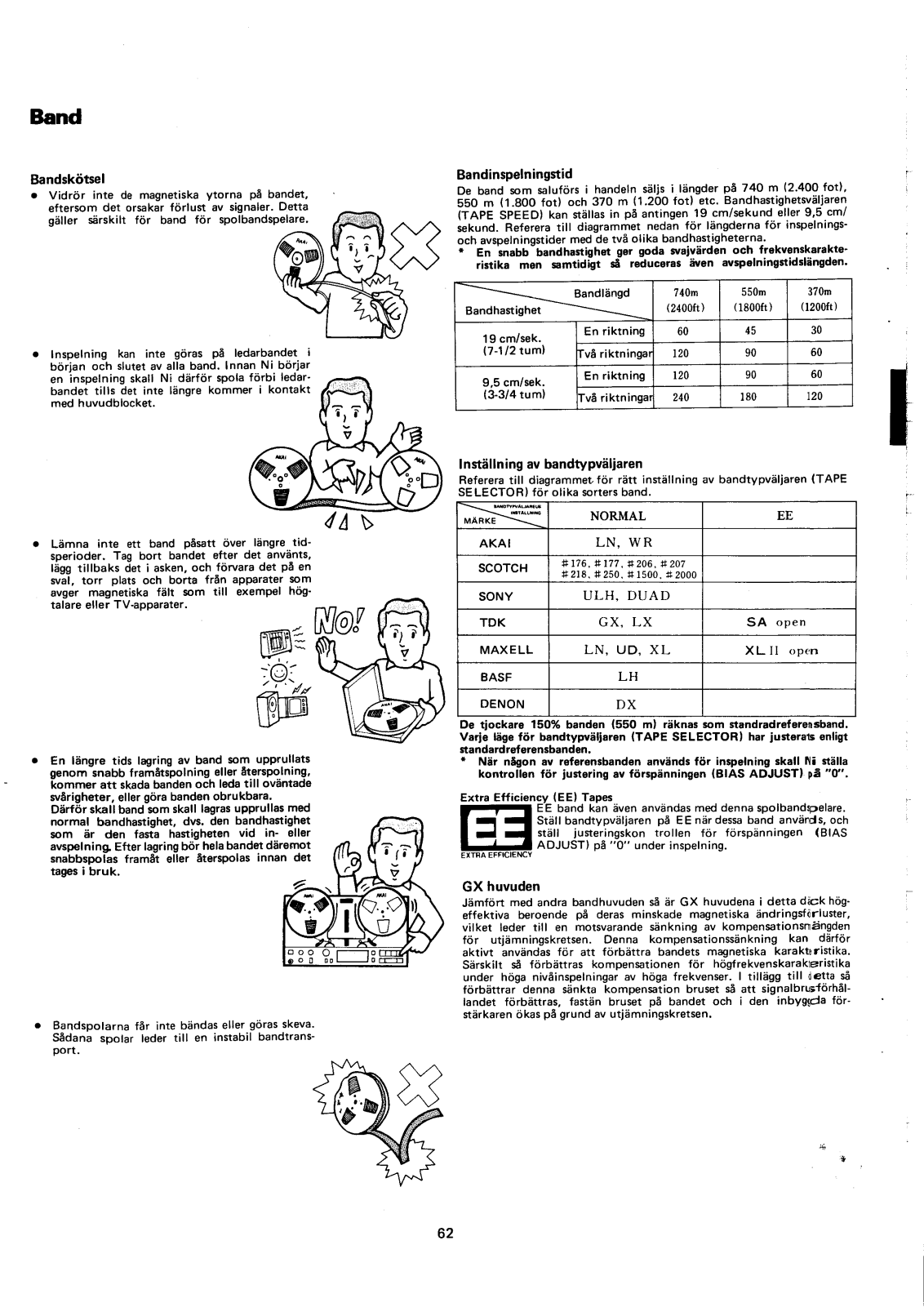

Q: What kind of tapes does the device support?
A: This device will work with many forms of tapes, such as Normal, EE (which means Extra Efficiency), as well as with the brands like AKAI, SONY, TDK, and MAXELL among many others.
Q: Can you explain to me what I should do so that I can set the tape speed?
A: Tape speed may be set at 19 cm/sec or 9.5 cm/sec by using the TAPE SPEED selector on the apparatus.
Q: How to troubleshoot poor playback quality?
A: The causes of the poor playback quality may dirty playback heads, old tapes, or using the tape selector’s wrong settings. Clean the heads, use new tapes, and set the correct settings, and it will work usually after that.
Q: But is there some way where I can record without sound disturbance and in a quiet manner?
A: The deck comes with a PAUSE command as most sophisticated decks will and this will let you stop tape travel during recording or play back temporarily while it is being paused and thereby reduce sound disturbance.
Q: how and where should I find replacement parts or any other accessories?
A: Akai dealers who are appointed as well as many other sites selling electronic components will often have replacement parts and accessories for sale.
