AJA RD5AD User Manual

RD5AD

2-channel

Component/Composite

Analog to SDI Converter

R-series Card Module

User Manual

October 25, 2003 P/N 101644-00

2

Trademarks

AJA, Io, and Kona are trademarks of AJA Video, Inc. All other trademarks are the property of their
respective holders.

Notice

Copyright © 2003 AJA Video, Inc. All rights reserved. All information in this manual is subject to
change without notice. No part of the document may be reproduced or transmitted in any form,
or by any means, electronic or mechanical, including photocopying or recording, without the
express written permission of AJA Inc.

FCC Emission Information

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by AJA Video can effect emission compliance
and could void the user’s authority to operate this equipment.

Contacting Support

Limited Warranty

To contact AJA Video for sales or support, use any of the following methods:

443 Crown Point Circle, Grass Valley, CA. 95945 USA

Telephone: [phone] or +1.530.274.2048
Fax: [phone]

Web: http://www.aja.com
Support Email: [e-mail]
Sales Email: [e-mail]

When calling for support, have all information on the product (serial number etc.) at hand prior to
calling.

AJA Video warrants that this product will be free from defects in materials and workmanship for a period of five years

from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will
either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the
defective product.

In order to obtain service under this warranty, you the Customer, must notify AJA Video of the defect before the expiration
of the warranty period and make suitable arrangements for the performance of service. The Customer shall be responsible
for packaging and shipping the defective product to a designated service center nominated by AJA Video, with shipping
charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within
the country in which the AJA Video service center is located. Customer shall be responsible for paying all shipping charges,
insurance, duties, taxes, and any other charges for products returned to any other locations.

This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate
maintenance and care. AJA Video shall not be obligated to furnish service under this warranty a) to repair damage resulting
from attempts by personnel other than AJA Video representatives to install, repair or service the product, b) to repair
damage resulting from improper use or connection to incompatible equipment, c) to repair any damage or malfunction
caused by the use of non-AJA Video parts or supplies, or d) to service a product that has been modified or integrated with
other products when the effect of such a modification or integration increases the time or difficulty of servicing the
product.

THIS WARRANTY IS GIVEN BY AJA VIDEO IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED. AJA VIDEO AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AJA VIDEO’S RESPONSIBILITY TO
REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE WHOLE AND EXCLUSIVE REMEDY PROVIDED TO
THE CUSTOMER FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
IRRESPECTIVE OF WHETHER AJA VIDEO OR THE VENDOR HAS ADVANCE NOTICE OF THE
POSSIBILITY OF SUCH DAMAGES.

•

•

•

•

•

•

•

•

•

Introduction

Features

User

Controls

AJA RD5AD 2-Channel Analog to SDI Converter User Manual — Introduction

The AJA Video RDSAD is a dual-channel universal video A/D converter. The
RD5AD supports 2 completely separate channels of analog to SDI conversion and is
useful for video/key or video/video applications. Both channels can be independently
configured for YPbPr (SMPTE, EBU-N10), Betacam, RGB, composite or Y/C (S­Video) inputs. The RDSAD automatically configures NTSC (525 line) or PAL (625
line) analog inputs to 525 or 625 line 4:2:2 component serial digital output on each
channel. The full dynamic range of input video values below black and above white
are not clipped. In the NTSC mode, the removal of the 7.5 IRE pedestal can be
disabled by an external dipswitch selection.

Note:

Operation without use of a TBC is not recommended for VTRs, laser disks, DVDs,
etc.

A Time Base Corrected (TBC) source is required on the RD5AD inputs.

1

3

LEDs

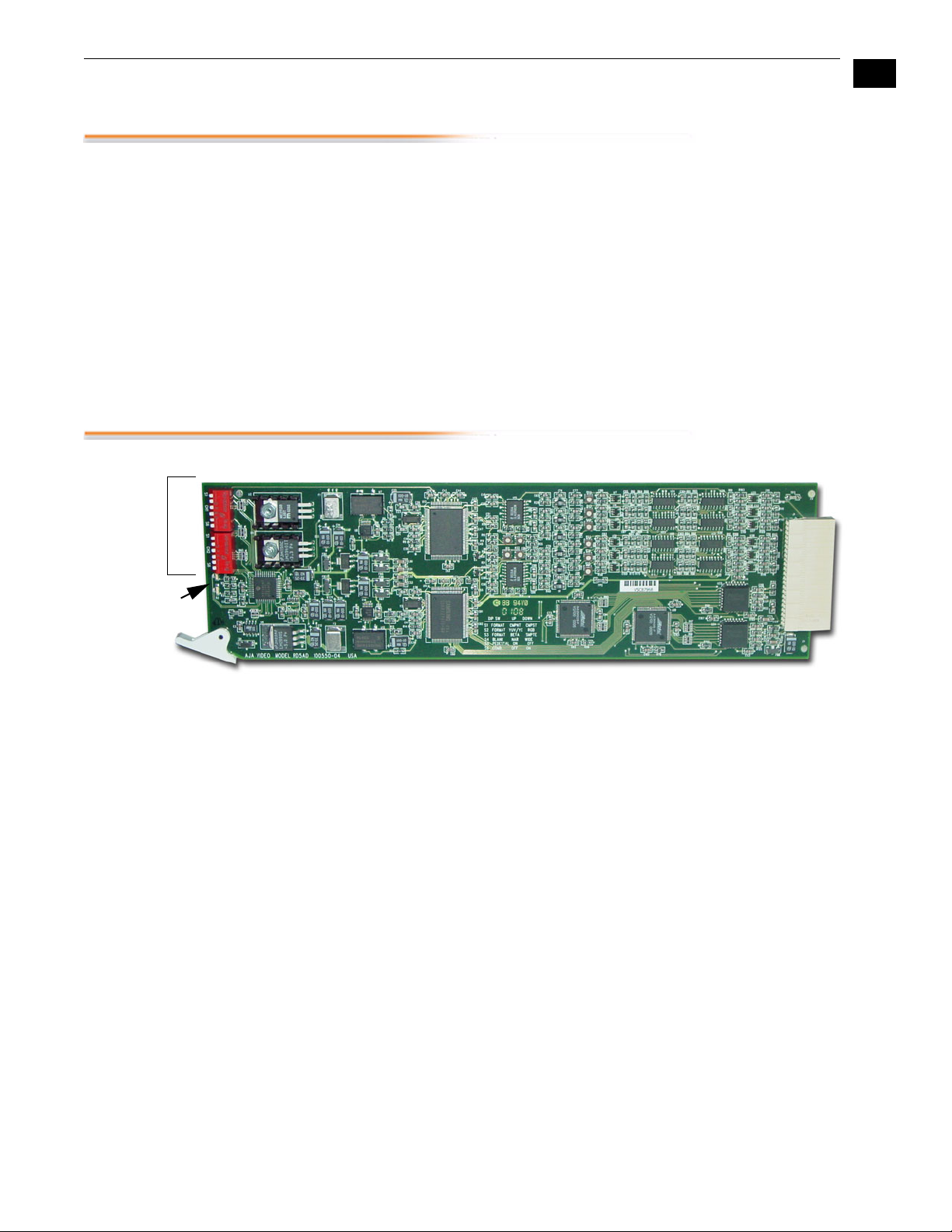

RD5AD Card Module, Side View

• Low-Cost Universal A/D Conversion

Two separate A/D channels

Component or composite analog inputs: YPbPr, EBU-N10, Betacam, RGB,
NTSC/PAL, or S-Video

SDI outputs, SMPTE 259M

Automatic NTSC/PAL selection

Adaptive 3-line comb filter

Separate User Controls for each channel

Controls provided for format, pedestal, and H/V blanking

+/- 0.25 db to 5 MHz frequency response, 2x oversampling

Compatible with AJA FR1/FR2 and Leitch 6800 Series Frames

4

Dipswitches

LEDs

I/O Connections

User Controls

Serial Out

Channel 1

Serial Out
Channel 2

Channel 1

J8

J9

R/Pr/C
Channel 2

R/Pr/C

J6

J7

Channel 1

J4

J5

B/Pb
Channel 2

FR1 Frame Layout

RD5AD Rear Panel

B/Pb

J2

J3

G/Y/Comp
Channel 1

not

used

J1

G/Y/Comp
Channel 2

G/Y/Comp
Channel 1

B/Pb

Channel 1

R/Pr/C

Channel 1

Serial Out
Channel 1

FR2 Frame Layout

RD5AD Rear Panel

not used

J1

G/Y/Comp

J2

Channel 2

J3

B/Pb

J4

Channel 2

J5

R/Pr/C

J6

Channel 2

J7

J8

Serial Out

J9

Channel 2

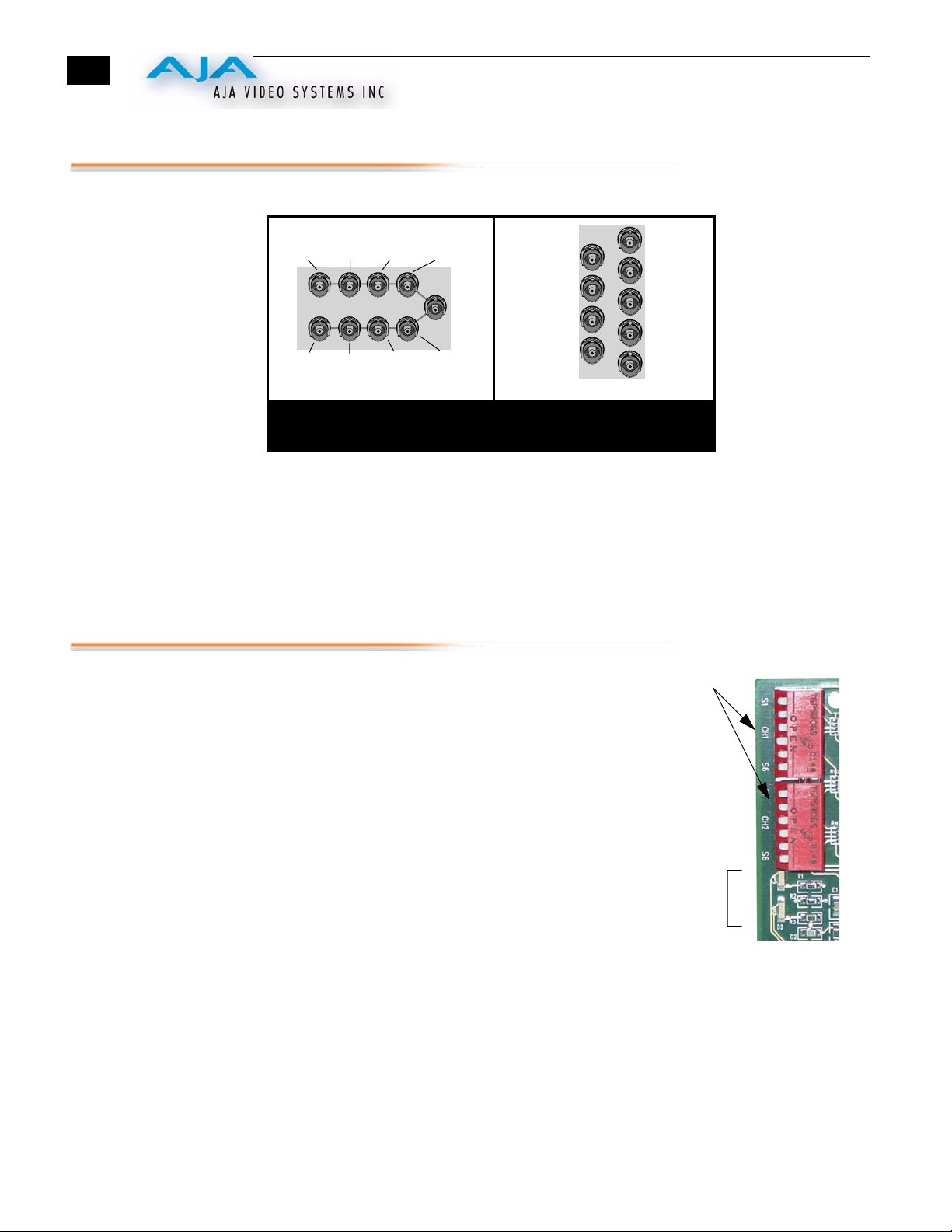

FR1 and FR2 BNC Connector Assignments, RD5AD Card Module

When the RD5AD module is installed in an AJA FR1 or FR2 frame, a corresponding
group of 9 BNCs on the rear panel then provide I/O for the module. The illustration
above shows the connector assignments for both the FR1 and FR2 when used with the
RD5AD.

The user interface for the RD5AD includes two
dipswitches, a six-position for control of Channel 1 and
another for control of Channel 2. Two LEDs provide status
indication showing whether video is present at a respective
channel. The following table under “ Control Functions”
shows what each of the dipswitch positions perform. Both
dipswitches function identically for their respective
channels. The channel number is marked on the front of
the circuit card next to each dipswitch.

1.

2.

3.

4.

Control Functions

AJA RD5AD 2-Channel Analog to SDI Converter User Manual — Installation

Switch
Position

S1 Input Selection: ON (Down) = Composite

S2 Input Selection: ON (Down) = RGB— if SW1 is up the Input will beRGB

S3 Input Selection: ON (Down) = SMPTE/EBU-N10 Levels

S4 Blanking: ON (Down) = Wide:

Functions (applies to dipswitches for both channels)

OFF (Up) = Component

if SW1 is down Input will be Composite
OFF (Up) = YUV/YC—if SW1 is up Input will be YUV
if SW1 is down Input will be YC

OFF (Up) = BETACAM 525 levels

line 20, field 1; line 20, field 2 (525 line)
line 23, field 1; line 336, field 2 (625 line)
Horizontal (active video line duration)
ITU-R/SMPTE (710 pixels NTSC, 702 pixels PAL)

5

1

Installation

OFF (Up) = Narrow: Vertical
(line numbers indicate where video starts)
line 13, field 1; line 12, field 2 (525 line)
line 10, field 1; line 322, field 2 (625 line)
Horizontal (active video line durations)
ITU-R.470 (720 pixels PAL/NTSC)

S5 Pedestal: ON (Down) = No Pedestal

OFF (Up) = Remove Pedestal

S6 Comb Filter: ON (Down) = Comb Filter On (enabled with composite input only)

OFF (Up) = Comb filter Off (Notch filter used for composite input)

Typically, RD5AD installation consists of the following:

disconnect power from the frame (remove line cord)

remove the FR1/FR2 front panel

install RD5AD card module

apply power to the frame by connecting a north american-style power cord from the
frame to mains power (90 to 260 VAC)

Instructions for removing the frame front door for module installation is discussed in the

FR1/FR2 User Manual.

6

Specifications

Item Specification

Input Format: SMPTE, EBU N-10, RGB, BETACAM, NTSC, PAL, Y/C (S Video)

Output Return Loss: 15 db to 300 Mhz

FrequencyResponse: +/-0.25 db to 5 Mhz (Y)

Delay: With Comb Filter OFF: 1.3 usec

+/-0.25 db to 2.5Mhz (Chroma - Component, RGB)
+/-0.25 db to 1.3Mhz (Chroma- Composite)

With Comb Filter ON: l line + 1.3usec

Digital Adjustments: Output Gain: +/- 10%

Offset: +/- 10%
Saturation: +/- 10%

K factor: <1% 2T (Y)

Diff. Gain: <1.5%

Diff. Phase: <1.5 degree

Y/C delay: l0 ns max

A/D Converters: 8 bits

Signal Path: 8 bits

Input level adjustment: +/-10%

Power Consumption: +6.5V 5.7W

-6.5V 0.5 W
