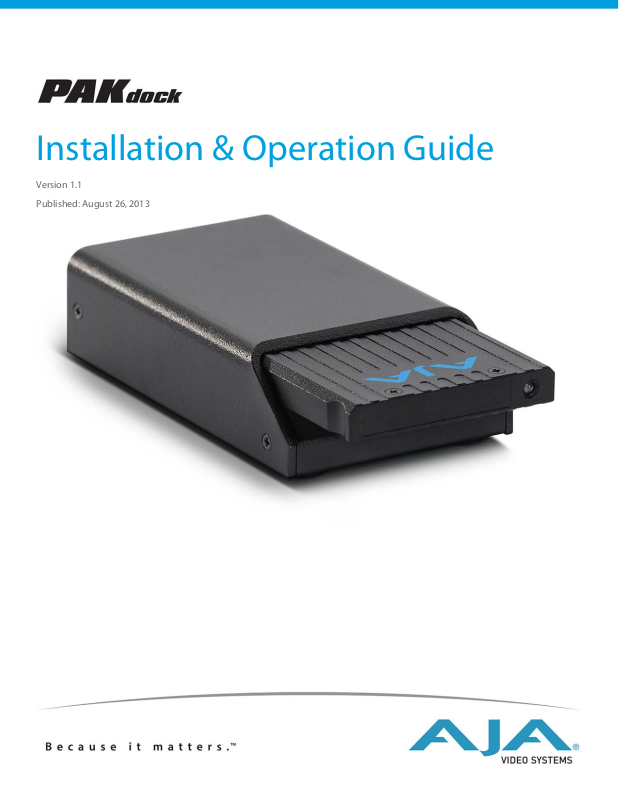

AJA Pak Dock User Manual

Installation & Operation Guide

Version 1.1

Published: August 26, 2013

Notices

Trademarks

Copyright

Contacting Support

Tel ep hon e: +1.800.251.4224 or +1.530.271.3190

Web: http://www.aja.com

AJA®, KONA®, Ki Pro®, KUMO® and XENA® are registered trademarks of AJA Video, Inc.,
Ki Pro Mini™, Io Express™, Io HD
AirPort, Apple, the Apple logo, AppleShare, AppleTalk, FireWire, iPod, iPod Touch, Mac,
and Macintosh are registered trademarks of Apple Computer, Inc. Final Cut Pro,
QuickTime and the QuickTime Logo are trademarks of Apple Computer, Inc. Avid, Avid
Media Composer and Avid DNxHD are trademarks of Avid Technology, Inc. All other
trademarks are the property of their respective holders.

Copyright © 2013 AJA Video, Inc. All rights reserved. All information in this manual is
subject to change without notice. No part of the document may be reproduced or
transmitted in any form, or by any means, electronic or mechanical, including
photocopying or recording, without the express written permission of AJA Inc.

When calling for support, have all information at hand prior to calling.

To contact AJA Video for sales or support, use any of the following methods:

™

, Io™ and “Work. Flow.” are trademarks of AJA Video, Inc.

Support Email: support@.aja.com

Sales Email: [e-mail]

Pak Dock v1.1 www.aja.com

2

AJA Pak Dock

Overview

This brief guide describes the AJA Pak Dock. The AJA Pak Dock is a media reader for use
with AJA Pak solid state media. AJA Pak media is used with the AJA Ki Pro Quad tapeless
video recorder. The Pak Dock may be connected to a host computer by either a
Thunderbolt or USB 3.0 cable connection. Both connection types provide high speed
data transfer capabilities.

Figure 1. Pak Dock (left) and Pak (right)

Features

What’s In The Box?

NOTE: A cable for connecting the Pak Dock to the host computer is not included and must be

The AJA Pak Dock features a single slot for the insertion of AJA Pak media. The dock
features Thunderbolt and USB 3.0 connectors as well as a rugged, industrial-strength
case making it suitable for studio or field use.

When you unpack your product you’ll find the following components:

•AJA Pak Dock unit

• AC power supply

Please save all packaging in case you need to ship the product in the future.

supplied by the user. You may use either a Thunderbolt or USB 3.0 cable (A Male to Micro B
Male).
