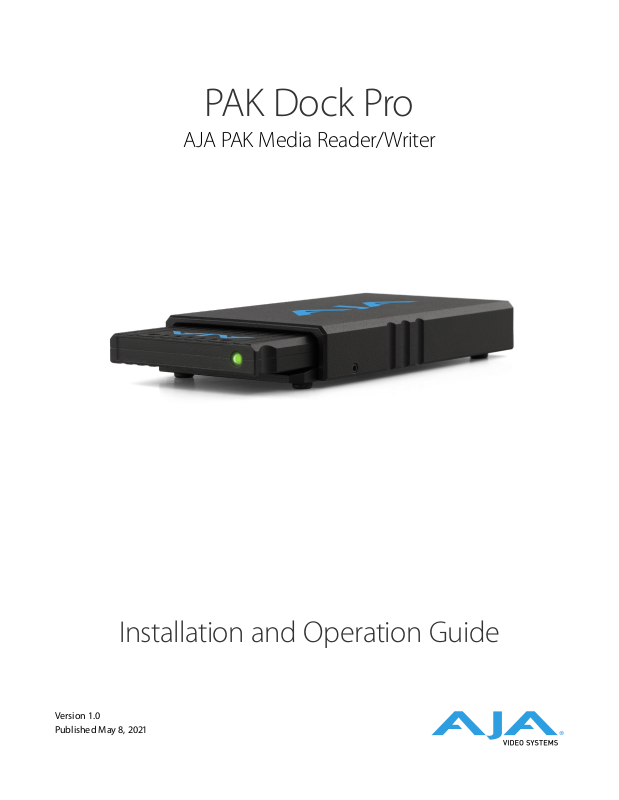

PAK Dock Pro

AJA PAK Media Reader/Writer

Installation and Operation Guide

Version 1.0
Published May 8, 2021

Notices

Trademarks

Copyright

AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc.
for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for
use with recorder, router, software and camera products. Because it matters.™ is a
trademark of AJA Video Systems, Inc. for use with camera products.

Corvid Ultra®, lo®, Ki Pro®, KONA®, KUMO®, ROI® and T-Tap® are registered trademarks of
AJA Video Systems, Inc.

AJA Control Room™, KiStor™, Science of the Beautiful™, TruScale™, V2Analog™ and
V2Digital™ are trademarks of AJA Video Systems, Inc.

All other trademarks are the property of their respective owners.

Copyright © 2021 AJA Video Systems, Inc. All rights reserved. All information in
this manual is subject to change without notice. No part of the document may be
reproduced or transmitted in any form, or by any means, electronic or mechanical,
including photocopying or recording, without the express written permission of AJA
Video Systems, Inc.

Contacting AJA Support

When calling for support, have all information at hand prior to calling. To contact AJA
for sales or support, use any of the following methods:

Telephone [phone]

FAX [phone]

Web https://www.aja.com

Support Email [email protected]

Sales Email [email protected]

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 2 www.aja.com

Contents

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Contacting AJA Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 1 – PAK Dock Pro. . . . . . . . . . . . . . . . . . . . . . . . . . .4

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

AJA PAK Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

What’s In The Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PAK Dock Pro Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . 5

Formatting PAK Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Inserting Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Unmounting Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Disconnecting the PAK Dock Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Appendix A – Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

PAK Dock Pro Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Appendix B – Safety and Compliance . . . . . . . . . . . . . . . . . . . 9

Warranty and Liability Information . . . . . . . . . . . . . . . . . . . .16

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 3 www.aja.com

Chapter 1 – PAK Dock Pro

Introduction

AJA's PAK Dock Pro is a media reader/writer that works with AJA's PAK Media.
PAK Dock Pro attaches to a host computer using a USB 3.2 Gen2 cable
connection. Because PAK Dock Pro is bus powered, no other connections are
required for operation.

PAK Media is used by AJA's Ki Pro Ultra 12G tapeless video recorders, as well
as AJA's legacy Ki Pro Ultra, Ki Pro Ultra Plus, and Ki Pro Quad recorders. Files
recorded onto PAK Media by any of these video recorder models can also be read
by PAK Dock Pro.

Features

• Compact and rugged industrial-strength case, suitable for studio or field use

• Single front slot for the insertion of AJA PAK Media

• Compatible with all AJA PAK Media for convenient file transfers

• USB 3.2 Gen2 for transfer speeds up to 10Gbps

• Actual transfer speed dependent on the type of PAK Media

• Reversible USB Type-C connector for quick and easy connection

• Bus powered

• USB cables included

Figure 1. PAK Dock Pro Front View with PAK Media Inserted

Figure 2. PAK Dock Pro Rear View

USB-C Port

Power LED

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 4 www.aja.com

Figure 3. PAK Dock Pro Front View with Empty Media Slot

Insert PAK Media Into

AJA PAK Media

AJA's Ki Pro Ultra 12G video recorder lets you record edit-friendly 4K, 2K, or HD
files directly to removable AJA PAK Media. Once removed from the Ki Pro Ultra
12G, the PAK Media can be inserted in the PAK Dock Pro, allowing you to rapidly
transfer files that can be used immediately in your non-linear editing system.

NOTE: When you order your PAK Media you can choose the formatting, either HFS+ or

ExFAT.

AJA PAK Dock Pro

Front Media Slot

AJA PAK Media

AJA PAK Options

Installation

What’s In The Box?

The PAK 256, PAK 512, PAK 1000, and PAK 2000 options are high-capacity Solid
State Drives encased in a protective housing with rugged connection engineered
to handle the rigors of repeated use in the field.

NOTE: The newer PAK 256 and PAK 512 (R1 and above), and the PAK 1000 and PAK 2000

media support recording all formats and frame rates up to and including 4K/
UltraHD 50, 59.94,60 at ProRes 422 (HQ). Legacy PAK 256(R0) and PAK 512(R0)
media have slightly lower capabilities, and are able to record up to 4K/UltraHD

30.

When you unpack your product you’ll find the following components:

• AJA PAK Dock Pro Unit

• USB 3.2 Gen2 cable - Type-A to Type-C

• USB 3.2 Gen2 cable - Type-C to Type-C

Please save all packaging in case you need to ship the product in the future.

PAK Dock Pro Installation Procedure

1. Unpack and place the PAK Dock Pro on a flat, stable surface near your host
computer.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 5 www.aja.com

2. Connect the PAK Dock Pro to your host computer using one of the supplied
USB 3.2 Gen2 cables.

Formatting PAK Media

PAK Media is available pre-formatted either as HFS+ (native to the macOS file
system) or ExFAT (suitable for PCs).

Re-formatting PAK Media is best accomplished using your Ki Pro video recorder,
as that creates the correct directory structure for playback and recording (a
root folder named "AJA"). Refer to your AJA Ki Pro recorder's documentation for
detailed formatting instructions.

PAK Media can also be directly formatted using a computer, by mounting the
media in your connected PAK Dock Pro and using standard computer media
formatting procedures, but you will need to manually create an AJA folder at the
root of the drive.

NOTE: To use PAK Media which is formatted as HFS+ in a Windows OS computer, a third

party HFS+ application such as Mediafour's MacDrive is required.

Valid Transfer Files

Valid media files must have video formats and frame rates supported by your Ki
Pro recorder model, be it full raster or proxy, and if audio is included it must be
24-bit 48kHz. Files copied to PAK Media that do not meet these criteria may not
appear in your Ki Pro recorder's web UI or front panel UI when you review clips.

Media files should only be transferred to and from the "AJA" folder on PAK Media.
Files located elsewhere on that PAK Media, even if they are valid, will not appear
in your Ki Pro recorder's web UI or front panel UI.

Operation

Inserting Media

Unmounting Procedure

To properly insert media into the PAK Dock Pro, orient the media so that the side
with the AJA logo is facing you and the logo is inverted. Then place the connector
end of the media into the PAK Dock Pro slot. Push the PAK Media all the way into
the slot gently, but firmly, until you feel the connector seat solidly.

Once the PAK Media is inserted into the PAK Dock Pro, your operating system
should mount the PAK Media the same as any other external volume or disk drive.
Depending upon your operating system version, you may see a disk icon appear
on the desktop or within the operating system file manager.

After the PAK Media is mounted by your host computer's operating system, you
can copy files from and to the PAK Media. You may also delete files from the
PAK Media. You may copy virtually any file to the PAK Media outside of the “AJA”
folder.

To add files to the PAK Media for playback on your AJA Ki Pro recorder, you must
properly encode the files as QuickTime and place them in the “AJA” folder on the
PAK Media.

To remove PAK Media from your operating system, use the methods typically
used for gracefully un-mounting/ejecting any type of removable media.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 6 www.aja.com

Disconnecting the PAK Dock Pro

Before disconnecting the PAK Dock Pro, be sure to first un-mount/eject the media
using the proper procedure as noted earlier for your operating system.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 7 www.aja.com

Appendix A – Tech Specs

PAK Dock Pro Tech Specs

File Transfers

• Compatible with all AJA PAK media

User Interface

• USB 3.2 Gen2 for transfer speeds up to 10Gbps*

• Reversible USB Type-C connector

• Bus powered

* Actual transfer speed is dependent on the PAK media used

Size (w x d x h)

• 4.4" x 2.4" x 0.6" (110 x 60 x 15 mm)

Weight

• 0.4 lb (0.2 kg), no PAK media inserted

Power

Environment

• Approx. 0.5W when idle, no PAK media inserted

• Safe Operating Temperature Range: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% noncondensing

• Operating Altitude: <3,000 meters (<10,000 feet)

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 8 www.aja.com

Appendix B – Safety and Compliance

Federal Communications Commission (FCC) Compliance Notices

Class B Interference Statement

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

Canadian ICES Statement

Canadian Department of Communications Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio-noise emissions
from a digital apparatus as set out in the Radio Interference Regulations of the
Canadian Department of Communications. This Class B digital apparatus complies
with Canadian ICES-003.

Règlement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique respecte les limites de bruits radioélectriques visant les
appareils numériques de classe B prescrites dans le Règlement sur le brouillage
radioélectrique du ministère des Communications du Canada. Cet appareil
numérique de la Classe B est conforme à la norme NMB-003 du Canada.

European Union and European Free Trade Association (EFTA)
Regulatory Compliance

This equipment may be operated in the countries that comprise the member
countries of the European Union and the European Free Trade Association. These
countries, listed in the following paragraph, are referred to as The European
Community throughout this document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA,
LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL,
ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND,
LICHTENSTEIN, NORWAY, SWITZERLAND

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 9 www.aja.com

Declaration of Conformity

Marking by this symbol indicates compliance with the Essential Requirements of
the EMC Directive of the European Union 2014/30/EU.

This equipment meets the following conformance standards:

This equipment meets the following conformance standards:

Safety

EN 62368-1: 2014 + A11 (T-Mark License),

IEC 62368-1: 2014 (CB Scheme Report/Certificates)

Additional licenses issued for specific countries available on request.

Emissions

EN 55032: 2015 + A11: 2020, CISPR 32: 2015

Immunity

EN 55103-2: 2009

EN 61000-4-2: 2009, EN 61000-4-3: 2006+A1: 2008+A2: 2010,

EN 61000-4-4: 2012, EN 61000-4-6: 2013

Environments: E2, E3 and E4

The product is also licensed for additional country specific standards as required
for the International Marketplace.

Warning! This is a Class B product. In a domestic environment, this product

may cause radio interference, in which case, the user may be required to take
appropriate measures.

Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse B. In Wohnbereichen

können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen
Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.

Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce

produit risque de créer des interférences radioélectriques, il appartiendra alors à
l?utilisateur de prendre les mesures spécifiques appropriées.

Recycling Notice

This symbol on the product or its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment
at the time of disposal will help conserve natural resources and ensure that
it is recycled in a manner that protects human health and the environment.
For more information about where you can drop off your waste for recycling,
please contact your local authority, or where you purchased your product.

Korea KCC Compliance Statement

ꩡ 끞 녅 껽 驩 ꓭ

넩 韥韥鱉 꽺ꓩ끞 쀍陲꾅꫑ ꩡ끞뼕 ꑞ놶냱ꈑ 놶뼞ꫦ뵾閵ꌱ ꗐ냵 韥韥ꈑ꫑ 閵뇊

끞 쀍陲꾅꫑ ꩡ끞뼍鱉 陲끥 놹볁閹ꫢ넍 끥ꇙ閵 넽걪鱽鲙.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 10 www.aja.com

Taiwan Compliance Statement

This is a Class B product based on the standard of the Bureau of Standards,
Metrology and Inspection (BSMI) CNS 13438, Class B. In a domestic environment
this product may cause radio interference in which case the user may be required
to take adequate measures.

Japan Compliance Statement

This is a Class B product based on the standard of the VCCI Council (VCCI32:2016).
If this is used near a radio or television receiver in a domestic environment, it
may cause radio interference. Install and use the equipment according to the
instruction manual.

Translated Warning and Caution Messages

The following caution statements, warning conventions, and warning messages
apply to this product and manual.

Warning! Read and follow all warning notices and instructions marked on the

product or included in the documentation.

Avertissement! Lisez et conformez-vous à tous les avis et instructions

d'avertissement indiqués sur le produit ou dans la documentation.

Warnung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf

dem Produkt angebracht oder in der Dokumentation enthalten sind.

¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el

producto o incluidas en la documentación.

Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos

na documentação.

Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o

inclusi nella documentazione.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 11 www.aja.com

Warning! Do not use this device near water and clean only with a dry cloth.
Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement

avec un tissu sec.

Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem

trockenen Tuch säubern.

¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con

un paño seco.

Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano

seco.

Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un

panno asciutto.

Warning! Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

Avertissement! Ne bloquez aucune ouverture de ventilation. Suivez les

instructions du fabricant lors de l'installation.

Warnung! Die Lüftungsöffnungen dürfen nicht blockiert werden. Nur gemäß den

Anweisungen des Herstellers installieren.

¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de

acuerdo con las instrucciones del fabricante.

Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as

instruções do fabricante.

Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le

istruzioni del fornitore.

Warning! Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

Avertissement! N'installez pas l'appareil près d'une source de chaleur telle que des

radiateurs, des bouches d'air de chauffage, des fourneaux ou d'autres appareils
(amplificateurs compris) qui produisent de la chaleur.

Warnung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern,

Öfen oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern)
aufstellen.

¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros

de calor, estufas u otros aparatos (incluidos amplificadores) que generan calor.

Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas

de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam
calor.

Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria

calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore

Warning! Only use attachments and accessories specified and/or sold by the

manufacturer.

Avertissement! Utilisez seulement les attaches et accessoires spécifiés et/ou

vendus par le fabricant.

Warnung! Verwenden Sie nur Zusatzgeräte und Zubehör angegeben und / oder

verkauft wurde durch den Hersteller.

¡Advertencia! Utilice solamente los accesorios y conexiones especificados y/o

vendidos por el fabricante.

Aviso! Utilize apenas equipamentos/acessórios especificados e/ou vendidos pelo

fabricante.

Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal

produttore.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 12 www.aja.com

Warning! Refer all servicing to qualified service personnel. Servicing is required

when the device has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the device,
the device has been exposed to rain or moisture, does not operate normally, or
has been dropped.

Avertissement! Référez-vous au personnel de service qualifié pour tout entretien.

L'entretien est exigé quand l'appareil a été endommagé de quelque manière
que ce soit, par exemple lorsque le cordon d'alimentation ou la prise sont
endommagés, que du liquide a été versé ou des objets sont tombés dans
l'appareil, que l'appareil a été exposé à la pluie ou à l'humidité, ne fonctionne pas
normalement ou est tombé.

Warnung! Das Gerät sollte nur von qualifizierten Fachkräften gewartet werden.

Eine Wartung ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde,
wie bei beschädigtem Netzkabel oder Netzstecker, falls Flüssigkeiten oder
Objekte in das Gerät gelangen, das Gerät Regen oder Feuchtigkeit ausgesetzt
wurde, nicht ordnungsgemäß funktioniert oder fallen gelassen wurde.

¡Advertencia! Consulte al personal calificado por cuestiones de reparación. El

servicio de reparación se requiere cuando el dispositivo ha recibido cualquier
tipo de daño, por ejemplo cable o espigas dañadas, se ha derramado líquido o
se han caído objetos dentro del dispositivo, el dispositivo ha sido expuesto a la
lluvia o humedad, o no funciona de modo normal, o se ha caído.

Aviso! Remeta todos os serviços de manutenção para o pessoal de assistência

qualificado. A prestação de serviços de manutenção é exigida quando o
dispositivo foi danificado mediante qualquer forma, como um cabo de
alimentação ou ficha que se encontra danificado/a, quando foi derramado
líquido ou caíram objectos sobre o dispositivo, quando o dispositivo foi exposto
à chuva ou à humidade, quando não funciona normalmente ou quando foi
deixado cair.

Avviso! Fare riferimento al personale qualificato per tutti gli interventi di assistenza.

L'assistenza è necessaria quando il dispositivo è stato danneggiato in qualche
modo, ad esempio se il cavo di alimentazione o la spina sono danneggiati, è
stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel
dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona
correttamente o è caduto

Warning! Do not open the chassis. There are no user-serviceable parts inside.

Opening the chassis will void the warranty unless performed by an AJA service
center or licensed facility.

Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis

ne peut être réparé par l’utilisateur. La garantie sera annulée si le châssis est
ouvert par toute autre personne qu’un technicien d’un centre de service ou d’un
établissement agréé AJA.

Warnung! Öffnen Sie das Gehäuse nicht. Keine der Geräteteile können vom

Benutzer gewartet werden. Durch das Öffnen des Gehäuses wird die Garantie
hinfällig, es sei denn, solche Wartungsarbeiten werden in einem AJA-Service­Center oder einem lizenzierten Betrieb vorgenommen.

¡Advertencia! No abra el chasis. El interior no contiene piezas reparables por el

usuario. El abrir el chasis anulará la garantía a menos que se lo haga en un centro
de servicio AJA o en un local autorizado.

Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita

manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura
seja realizada por uma central de serviços da AJA ou por um local autorizado.

Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili

dall’utente. L’apertura dello chassis invaliderà la garanzia se non viene effettuata
da un centro ufficiale o autorizzato AJA.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 13 www.aja.com

NOTE: The messages below apply only to the host computer that the PAK Dock Pro is

connected to.

Warning! Since the Mains plug is used as the disconnection for the device, it must

remain readily accessible and operable.

Avertissement! Puisque la prise principale est utilisée pour débrancher l'appareil,

elle doit rester aisément accessible et fonctionnelle.

Warnung! Da der Netzstecker als Trennvorrichtung dient, muss er stets zugänglich

und funktionsfähig sein.

¡Advertencia! Puesto que el enchufe de la red eléctrica se utiliza como dispositivo

de desconexión, debe seguir siendo fácilmente accesible y operable.

Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo,

esta deve manter-se prontamente acessível e funcional.

Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di

sconnessione, deve rimane prontamente accessibile e operabile.

Warning! Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the device.

Avertissement! Protégez le cordon d'alimentation pour que l'on ne marche

pas dessus ou qu'on le pince, en particulier au niveau des prises mâles, des
réceptacles de convenance, et à l'endroit où il sort de l'appareil.

Warnung! Vermeiden Sie, dass auf das Netzkabel getreten oder das Kabel geknickt

wird, insbesondere an den Steckern, den Steckdosen und am Kabelausgang am
Gerät.

¡Advertencia! Proteja el cable de energía para que no se le pise ni apriete, en

especial cerca del enchufe, los receptáculos de conveniencia y el punto del que
salen del equipo.

Aviso! Proteja o cabo de alimentação de ser pisado ou de ser comprimido

particularmente nas fichas, em tomadas de parede de conveniência e no ponto
de onde sai do dispositivo.

Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra

e che non venga schiacciato soprattutto in corrispondenza delle spine e del
punto in cui esce dal dispositivo.

Warning! Unplug this device during lightning storms or when unused for long

periods of time.

Avertissement! Débranchez cet appareil pendant les orages avec éclairsou s'il est

inutilisé pendant de longues périodes.

Warnung! Das Gerät ist bei Gewitterstürmen oder wenn es über lange Zeiträume

ungenutzt bleibt vom Netz zu trennen.

¡Advertencia! Desenchufe este dispositivo durante tormentas eléctricas o cuando

no se lo utilice por largos periodos del tiempo.

Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é

utilizado durante longos períodos de tempo.

Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal

produttore, quali il treppiedi e l'esoscheletro.

Warning! Disconnect the external AC power supply line cord(s) from the mains

power before moving the unit.

Avertissement! Retirez le ou les cordons d’alimentation en CA de la source

d’alimentation principale lorsque vous déplacez l’appareil.

Warnung! Trennen Sie die Wechselstrom-Versorgungskabel vom Netzstrom, bevor

Sie das Gerät verschieben.

¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los

cable(s) de la fuente de alimentación CA tipo brick.

Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover

a unidade.

Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 14 www.aja.com

Warning! Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.

Avertissement! La sécurité de la prise polarisée ou de la prise de type mise à la

terre ne doit en aucun cas être empêchée de fonctionner. Une prise polarisée
a deux broches, l'une étant plus large que l'autre. Une prise de type mise à la
terre a deux broches et une troisième broche pour la mise à la terre. La broche
large ou la troisième broche sont fournies pour votre sécurité. Si la prise
fournie ne s'insère pas dans votre prise femelle, consultez un électricien pour le
remplacement de la prise femelle obsolète.

Warnung! Der Sicherheitszweck des gepolten bzw. Schukosteckers ist zu

berücksichtigen. Ein gepolter Stecker verfügt über zwei Pole, von denen einer
breiter als der andere ist. Ein Schukostecker verfügt neben den zwei Polen noch
über einen dritten Pol zur Erdung. Der breite Pol bzw. der Erdungspol dienen der
Sicherheit. Wenn der zur Verfügung gestellte Stecker nicht in Ihren Anschluss
passt, konsultieren Sie einen Elektriker, um den veralteten Anschluss zu ersetzen.

¡Advertencia! No eche por tierra la finalidad del tipo de enchufe polarizado con

conexión a tierra. Un enchufe polarizado tiene dos espigas, una más ancha
que la otra. Un enchufe con conexión a tierra tiene dos espigas iguales y una
tercera espiga que sirve para la conexión a tierra. La expiga ancha, o la tercera
espiga, sirven para su seguridad. Si el enchufe suministrado no encaja en el
tomacorriente, consulte con un electricista para reemplazar el tomacorriente
obsoleto.

Aviso! Não anule a finalidade da segurança da ficha polarizada ou do tipo ligação

terra. Uma ficha polarizada tem duas lâminas sendo uma mais larga do que
a outra. Uma ficha do tipo de ligação à terra tem duas lâminas e um terceiro
terminal de ligação à terra. A lâmina larga ou o terceiro terminal são fornecidos
para sua segurança. Se a ficha fornecida não couber na sua tomada, consulte um
electricista para a substituição da tomada obsoleta.

Avviso! Non compromettere la sicurezza della spina polarizzata o con messa a

terra. Una spina polarizzata ha due spinotti, di cui uno più largo. Una spina con
messa a terra ha due spinotti e un terzo polo per la messa a terra. Lo spinotto
largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non
si inserisce nella presa di corrente, contattare un elettricista per la sostituzione
della presa obsoleta.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 15 www.aja.com

Warranty and Liability Information

Limited Warranty on Hardware

AJA Video Systems, Inc. (AJA Video) warrants that the hardware product, not
including storage modules or software components, will be free from defects in
materials and workmanship for a period of three years from the date of purchase. AJA
Video warrants that the storage modules provided as part of the hardware product
will be free from defects in materials and workmanship for a period of one year from
the date of purchase. AJA Video provides a separate software warranty as part of the
license agreement applicable to software components.

If the Customer brings a valid claim under this limited warranty for a hardware
product or storage module (hereafter, a “product”) during the applicable warranty
period, AJA Video will, at its sole option and as the Customer’s sole remedy for breach
of the above warranty, provide one of the following remedies:

• Repair or facilitate the repair the product within a reasonable period of time, free
of charge for parts and labor.

• Replace the product with a direct replacement or with a product that performs
substantially the same function as the original product.

• Issue a refund of the original purchase price less depreciation to be determined
based on the age of the product at the time remedy is sought under this limited
warranty.

To obtain service under this warranty, the Customer must notify AJA Video of the
defect before expiration of the warranty period and make suitable arrangements for
the performance of service by contacting AJA Video support through the channels
set forth on the support contacts web page at https://www.aja.com/support.
Except as stated, the Customer shall bear all shipping, packing, insurance and other
costs, excluding parts and labor, to effectuate repair. Customer shall pack and ship
the defective product to a service center designated by AJA Video, with shipping
charges prepaid. AJA Video shall pay to return the product to Customer, but only
if to a location within the country in which the AJA Video service center is located.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR
LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF A CONSUMER, SO SOME OR ALL
OF THE TERMS OF THIS PARAGRAPH MAY NOT APPLY TO YOU.

Limitation of Liability

Under no circumstances shall AJA video BE LIABLE IN ANY WAY FOR ANY LOST,
CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS,
OR FOR ANY THIRD PARTY CLAIM, IN CONNECTION WITH THE PRODUCT, WHETHER
RESULTING FROM DEFECTS IN THE PRODUCT, SOFTWARE OR HARDWARE FAILURE,
OR ANY OTHER CAUSE WHATSOEVER, EVEN IF AJA VIDEO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. AJA VIDEO’S LIABILITY IN CONNECTION WITH THE
PRODUCT SHALL UNDER NO CIRCUMSTANCES EXCEED THE PURCHASE PRICE PAID
FOR THE PRODUCT. The foregoing limitations apply even if any remedy set forth in
this LIMITED WARRANTY fails of its essential purpose. SOME JURISDICTIONS DO NOT
ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH
MAY NOT APPLY TO YOU.

Governing Law and Language; Your Rights

This limited warranty is the only warranty provided by AJA Video on the hardware
product. It supersedes all prior or contemporaneous understandings regarding such
subject matter. No amendment to or modification of this warranty will be binding
unless in writing and signed by AJA Video. The laws of the State of California, USA
will govern this warranty and any dispute arising from it. Any translation of this
Agreement is intended for convenience and to meet local requirements and in the
event of a dispute between the English and any non-English versions, the English
version of this warranty will govern. This limited warranty gives you specific legal
rights and you may have other rights that vary from jurisdiction to jurisdiction, some
of which are noted above.

PAK Dock Pro AJA PAK Media Reader/Writer v1.0 16 www.aja.com
