AJA Video OG-ROI-DVI Users Guide

OG-ROI Series

Region of Interest Converters

DVI, HDMI, SDI to SDI Scalers

Installation and Operation Guide

Version 1.8
Published March 2, 2021

Notices

Trademarks

Copyright

AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc.
for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for
use with recorder, router, software and camera products. Because it matters.™ is a
trademark of AJA Video Systems, Inc. for use with camera products.

Corvid Ultra®, lo®, Ki Pro®, KONA®, KUMO®, ROI® and T-Tap® are registered trademarks of
AJA Video Systems, Inc.

AJA Control Room™, KiStor™, Science of the Beautiful™, TruScale™, V2Analog™ and
V2Digital™ are trademarks of AJA Video Systems, Inc.

All other trademarks are the property of their respective owners.

Copyright © 2021 AJA Video Systems, Inc. All rights reserved. All information in
this manual is subject to change without notice. No part of the document may be
reproduced or transmitted in any form, or by any means, electronic or mechanical,
including photocopying or recording, without the express written permission of AJA
Video Systems, Inc.

Contacting AJA Support

When calling for support, have all information at hand prior to calling. To contact AJA
for sales or support, use any of the following methods:

Telephone [phone]

FAX [phone]

Web https://www.aja.com

Support Email [email protected]

Sales Email [email protected]

OG-ROI Series openGear card v1.8 2 www.aja.com

Contents

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Contacting AJA Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chapter 1 – Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Video Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Audio Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

HDCP Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Pixel Clock Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

OG-ROI Processing Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

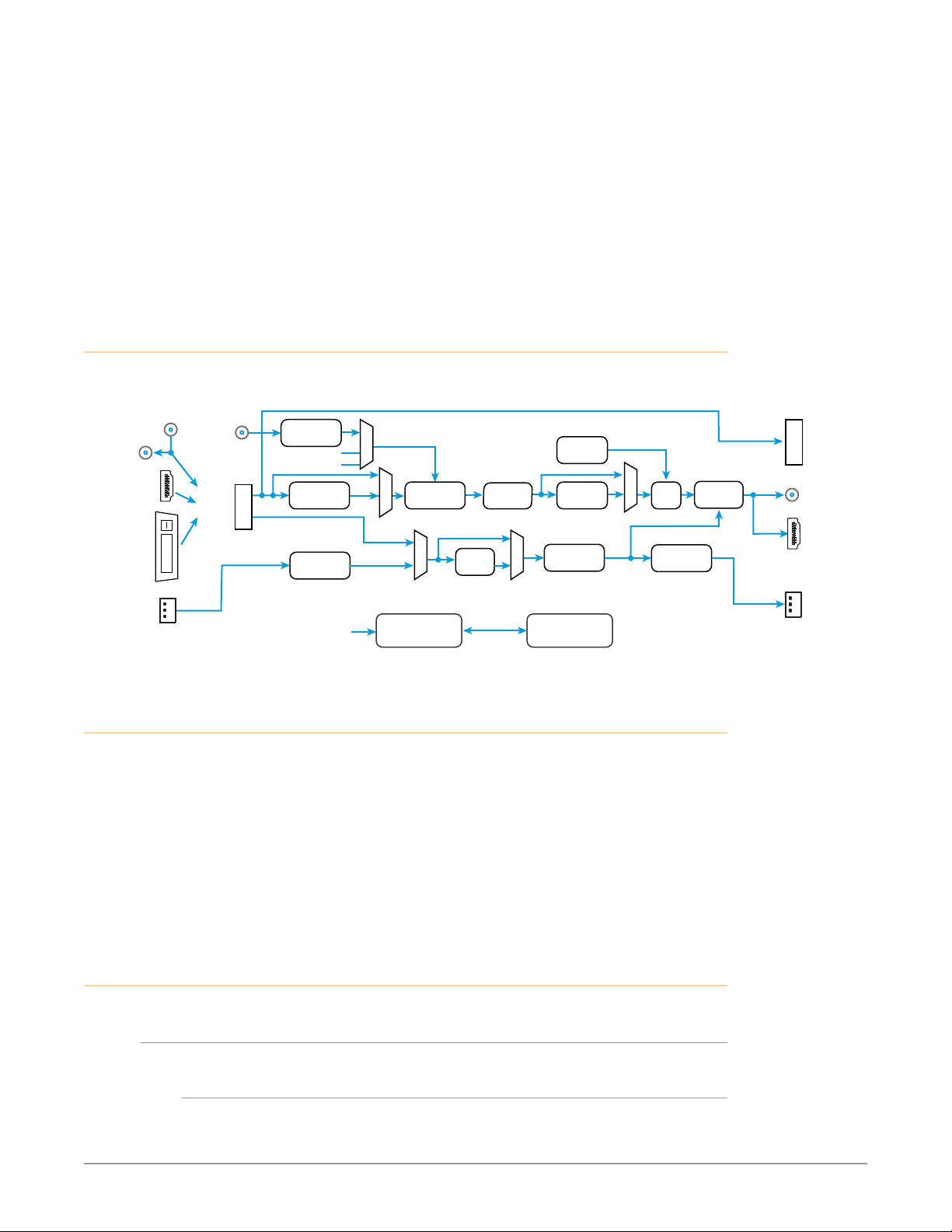

Simplied Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

openGear and AJA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

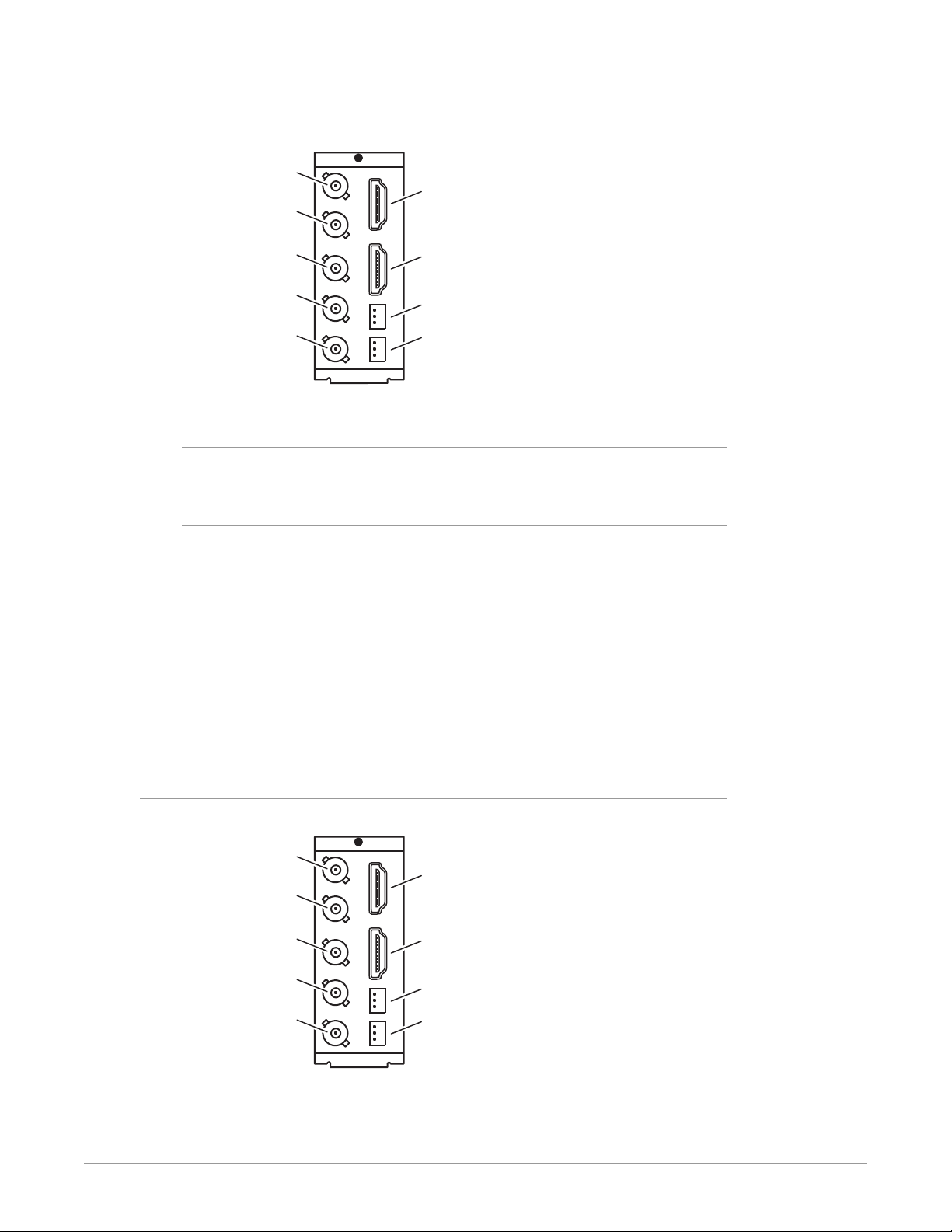

I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

All ROI Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

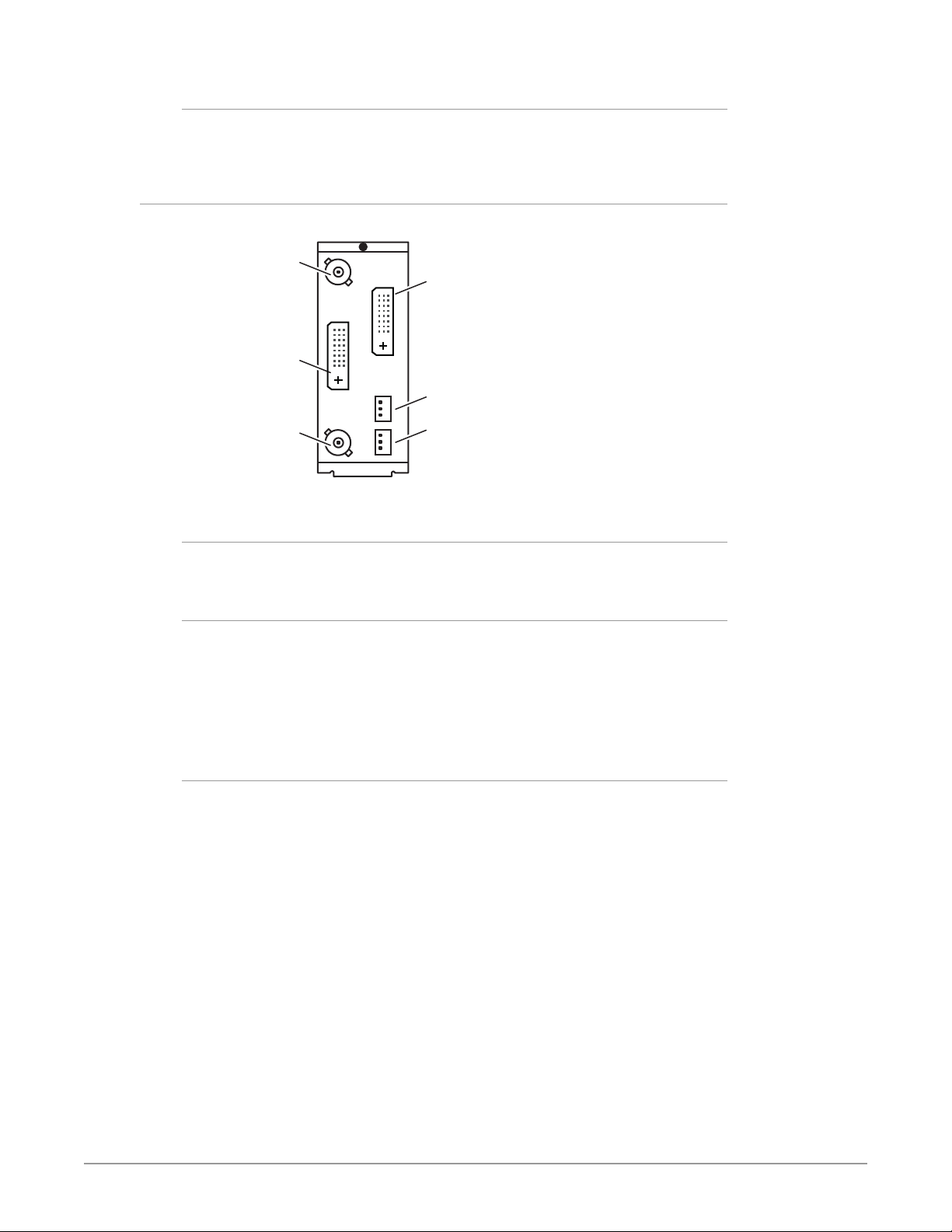

OG-ROI-DVI Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

OG-ROI-HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

OG-ROI-SDI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

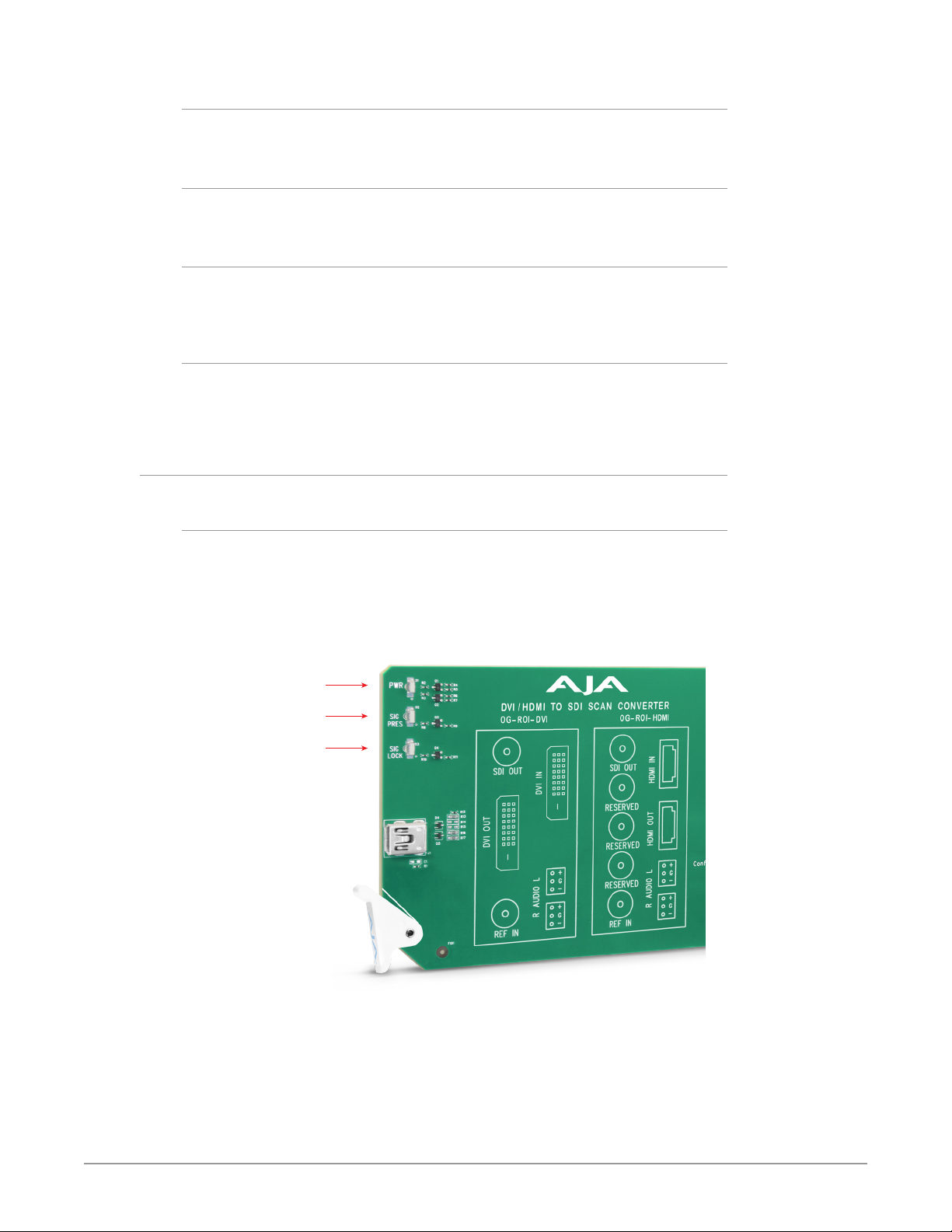

Signal Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

DashBoard Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Rear OG-ROI Series Card Installation. . . . . . . . . . . . . . . . . . . . . . . . . 13

Front OG-ROI Series Card Installation . . . . . . . . . . . . . . . . . . . . . . . . 14

Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

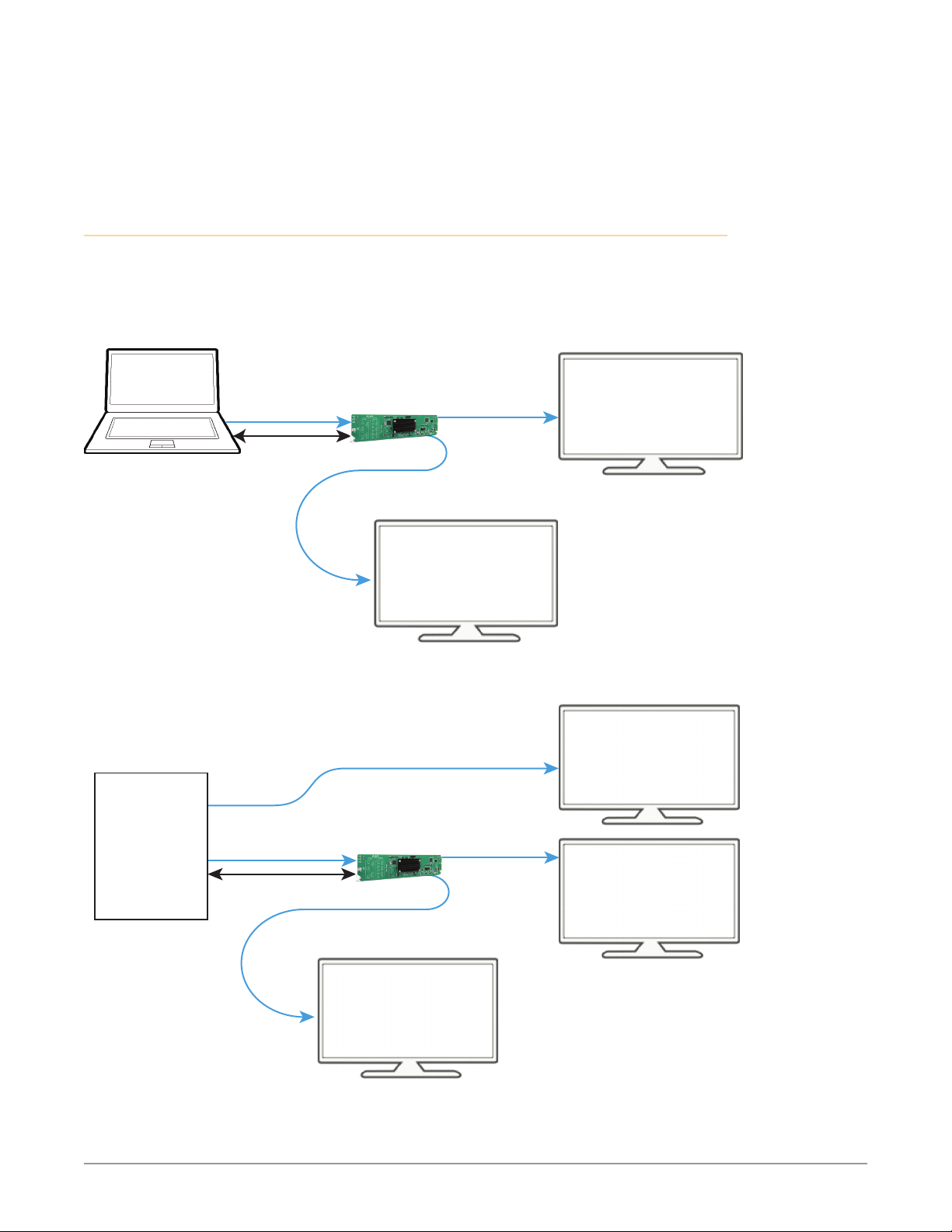

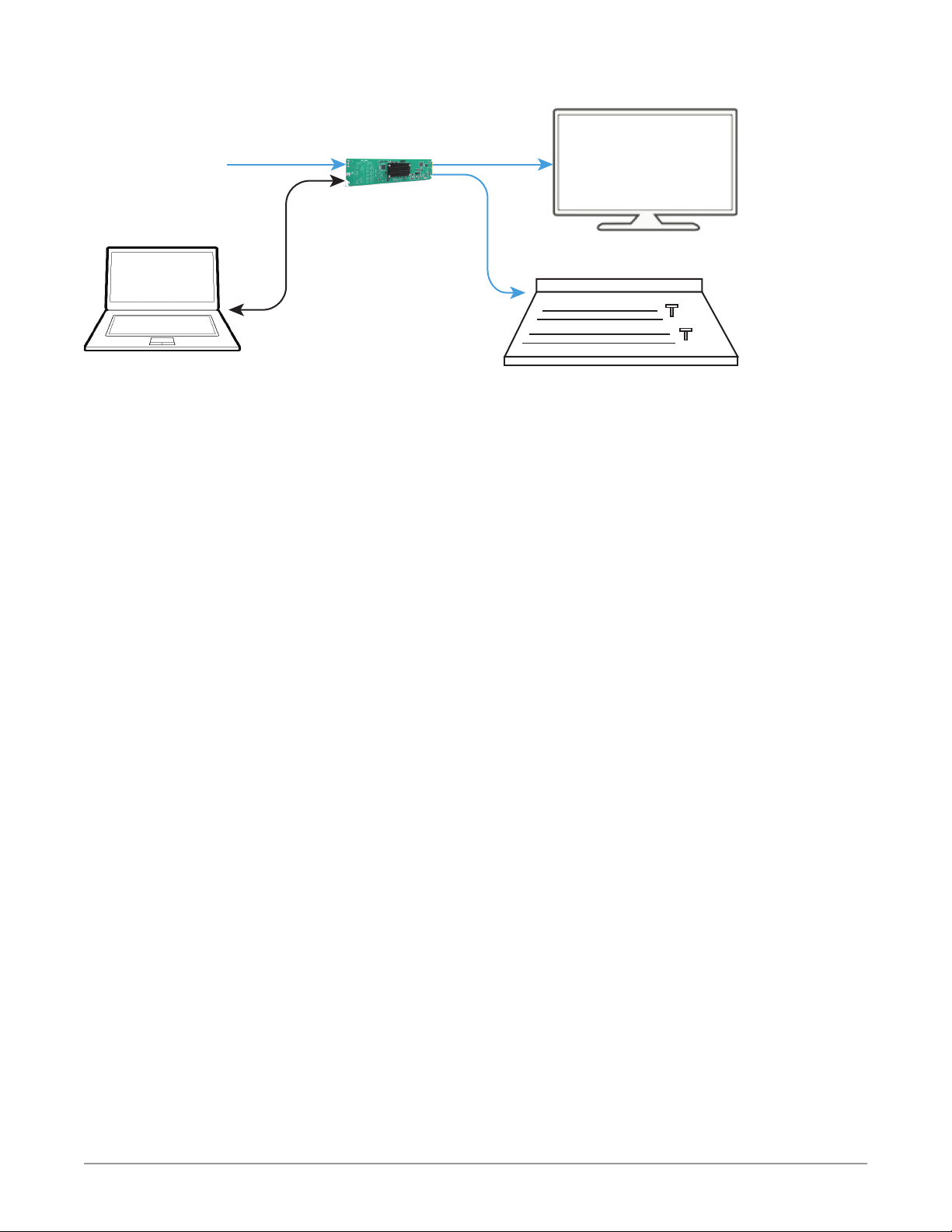

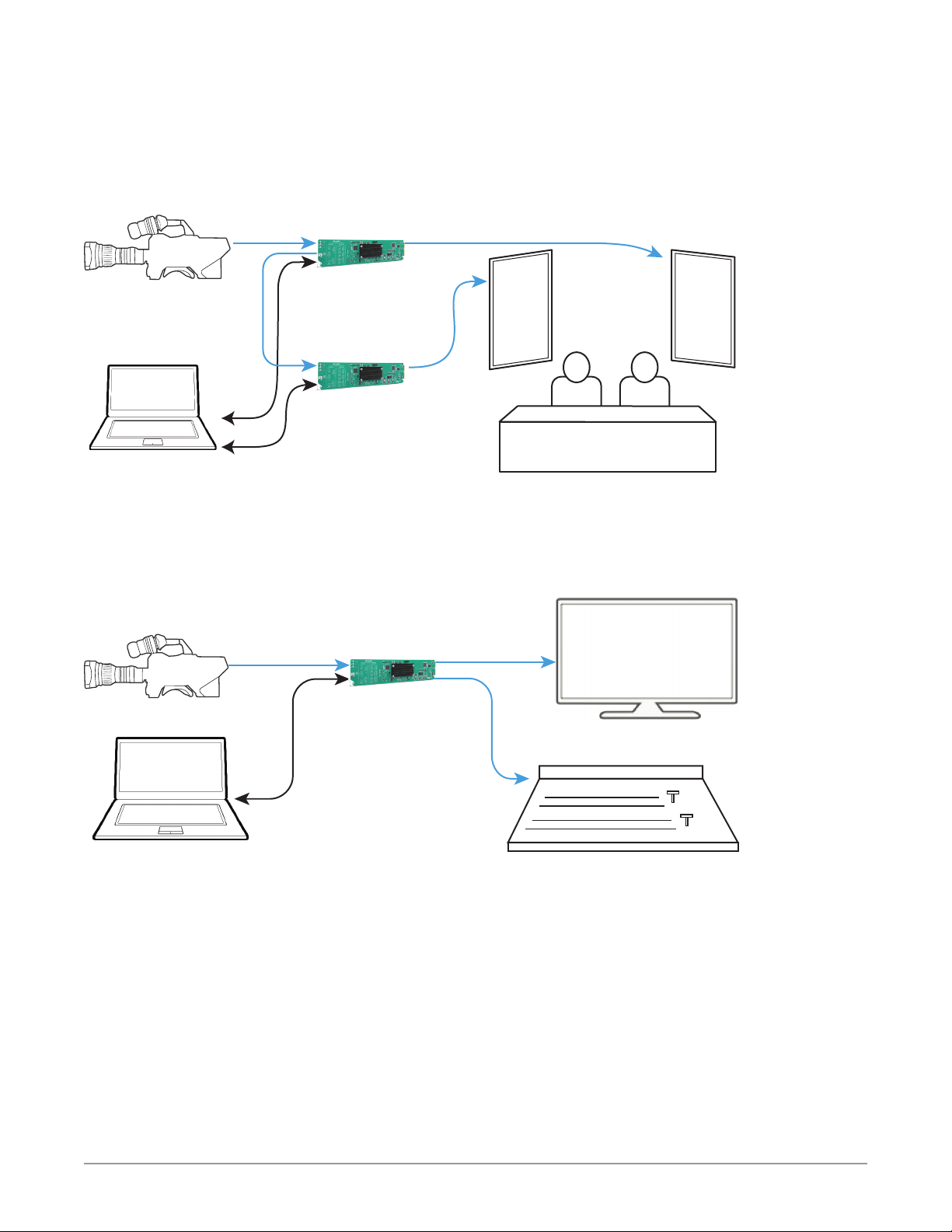

Typical ROI Congurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chapter 2 – Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Using the DashBoard Control System. . . . . . . . . . . . . . . . . . . . . . . . . . 20

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

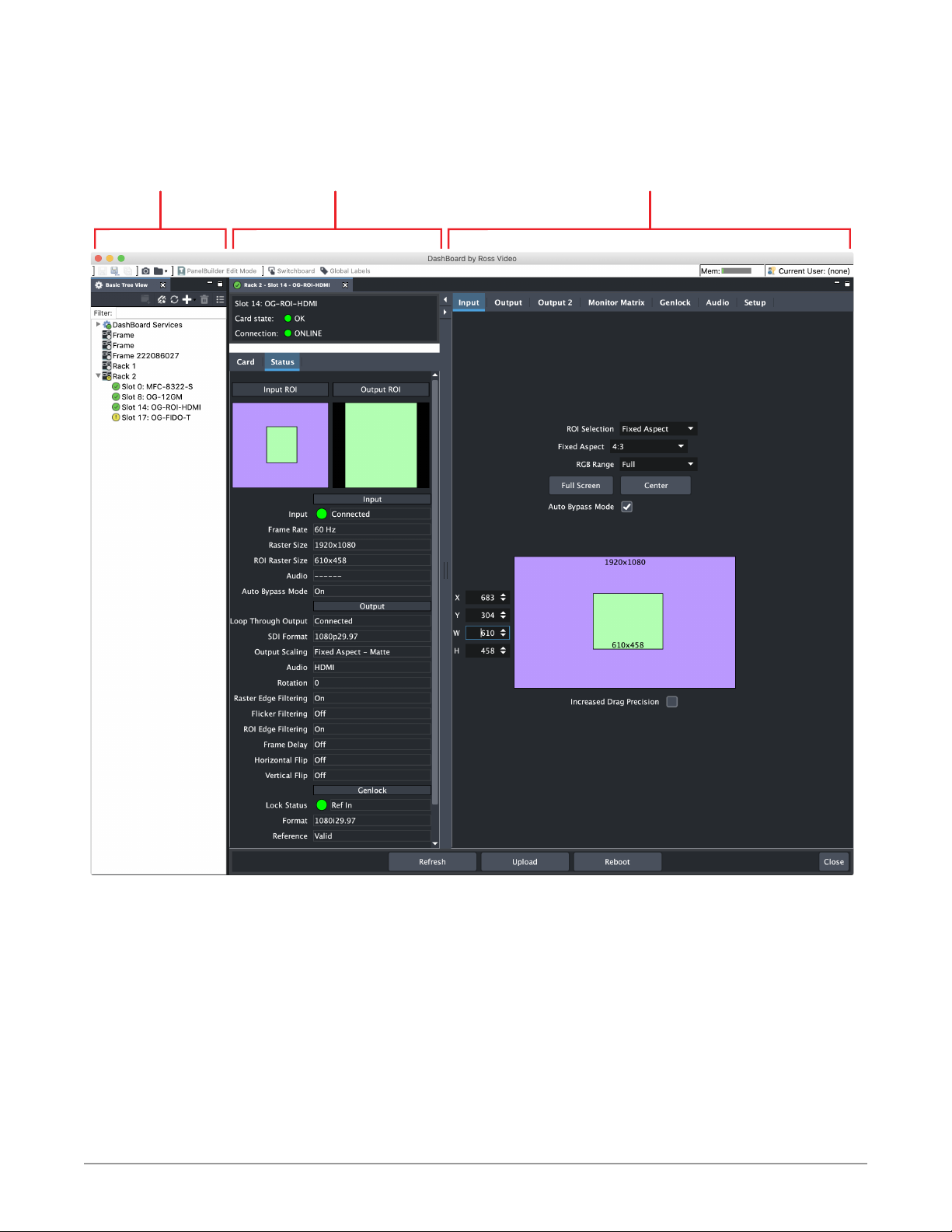

Control Interface Basic Components . . . . . . . . . . . . . . . . . . . . . . . . 20

Input Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Click and Drag Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

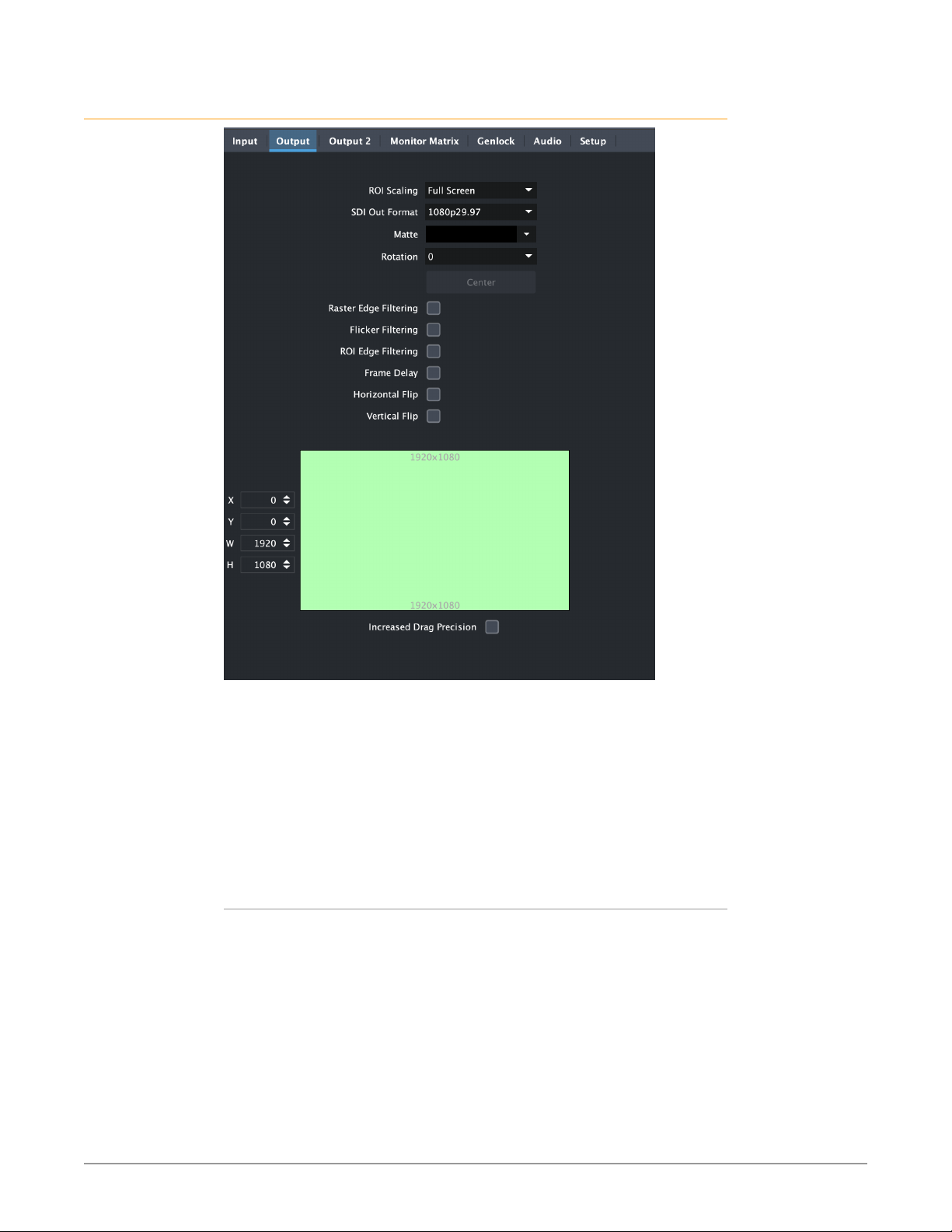

Output Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

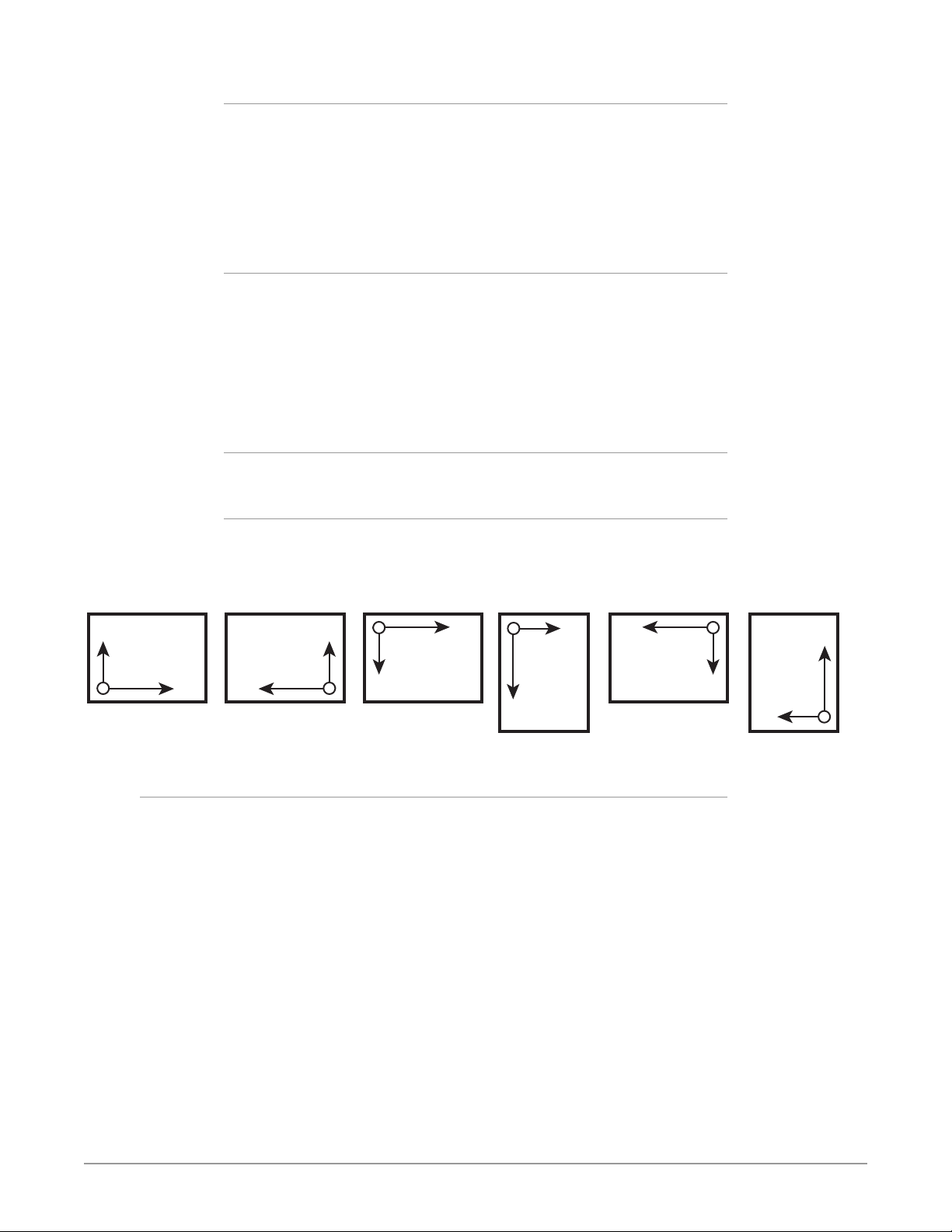

About the Rotation, Flip, and Frame Delay Controls . . . . . . . . . . . . . . . 27

Output 2 Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

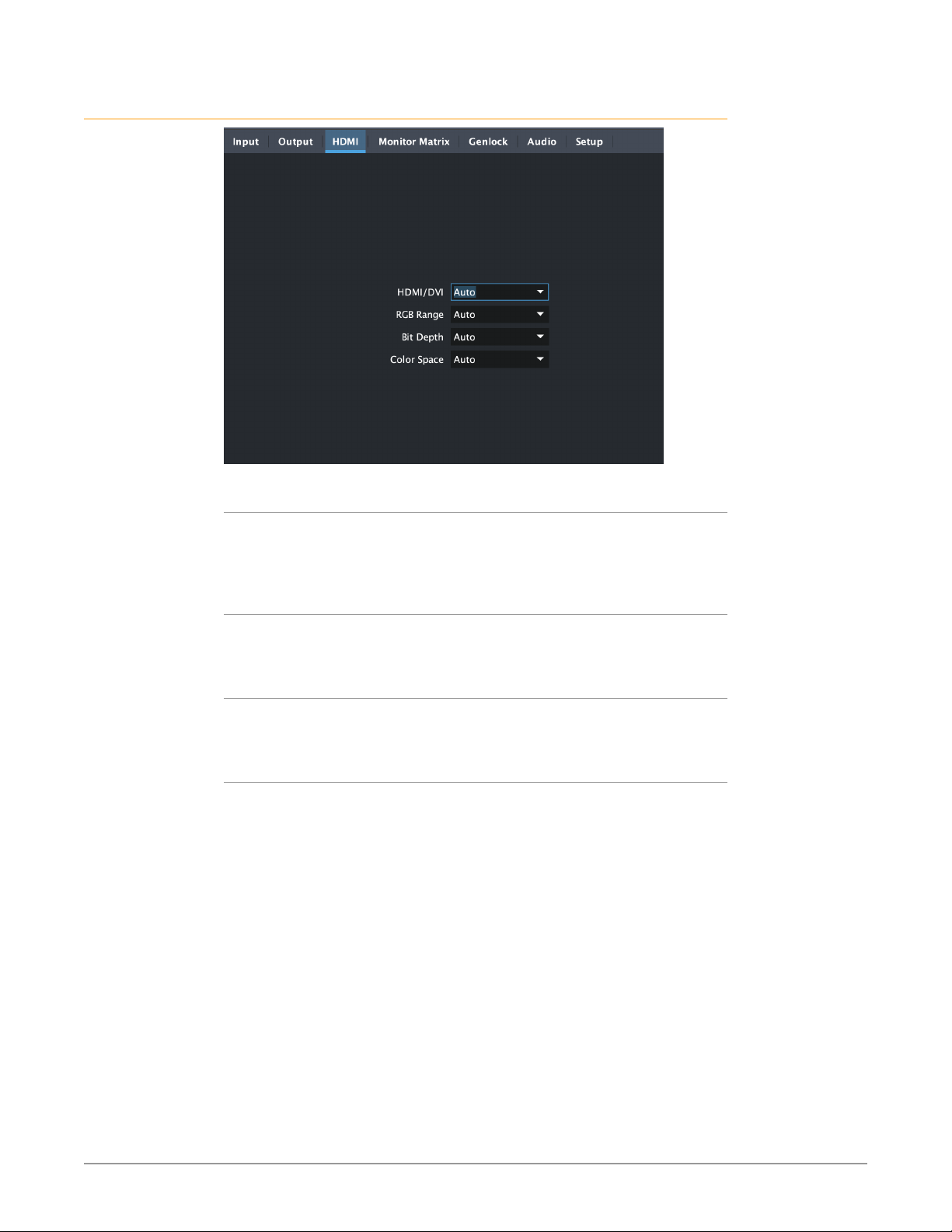

HDMI Screen (OG-ROI-SDI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

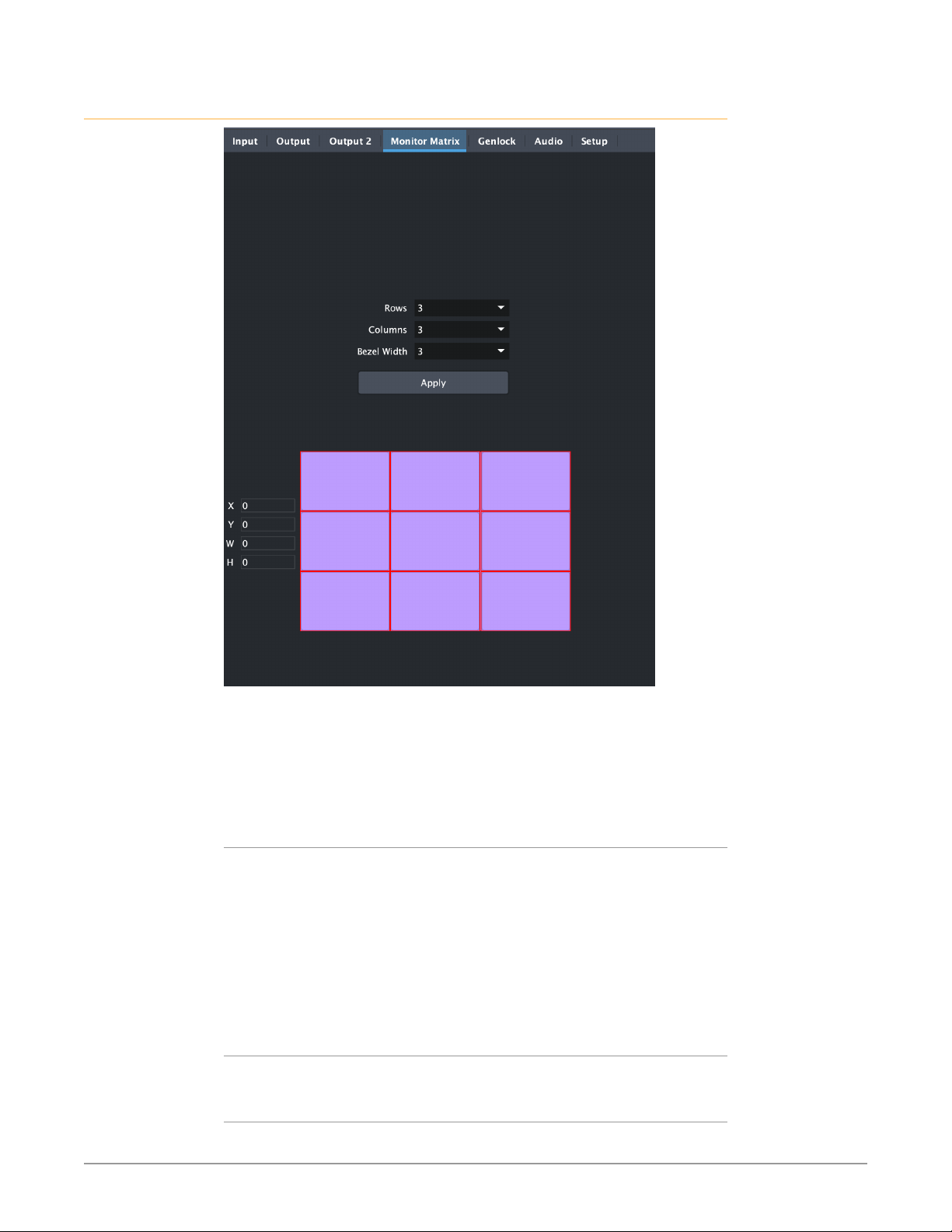

Monitor Matrix Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

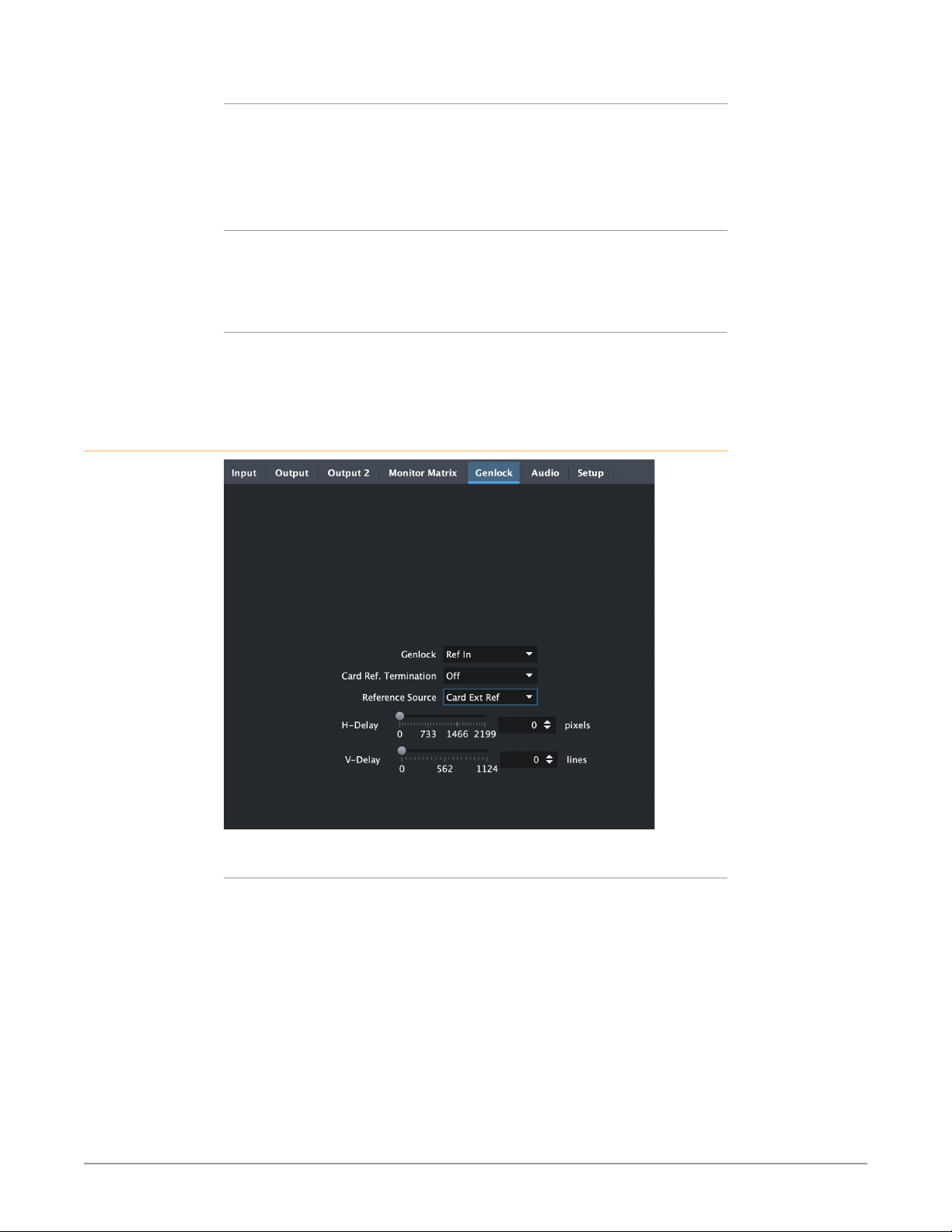

Genlock Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Audio Screen (OG-ROI-HDMI/DVI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

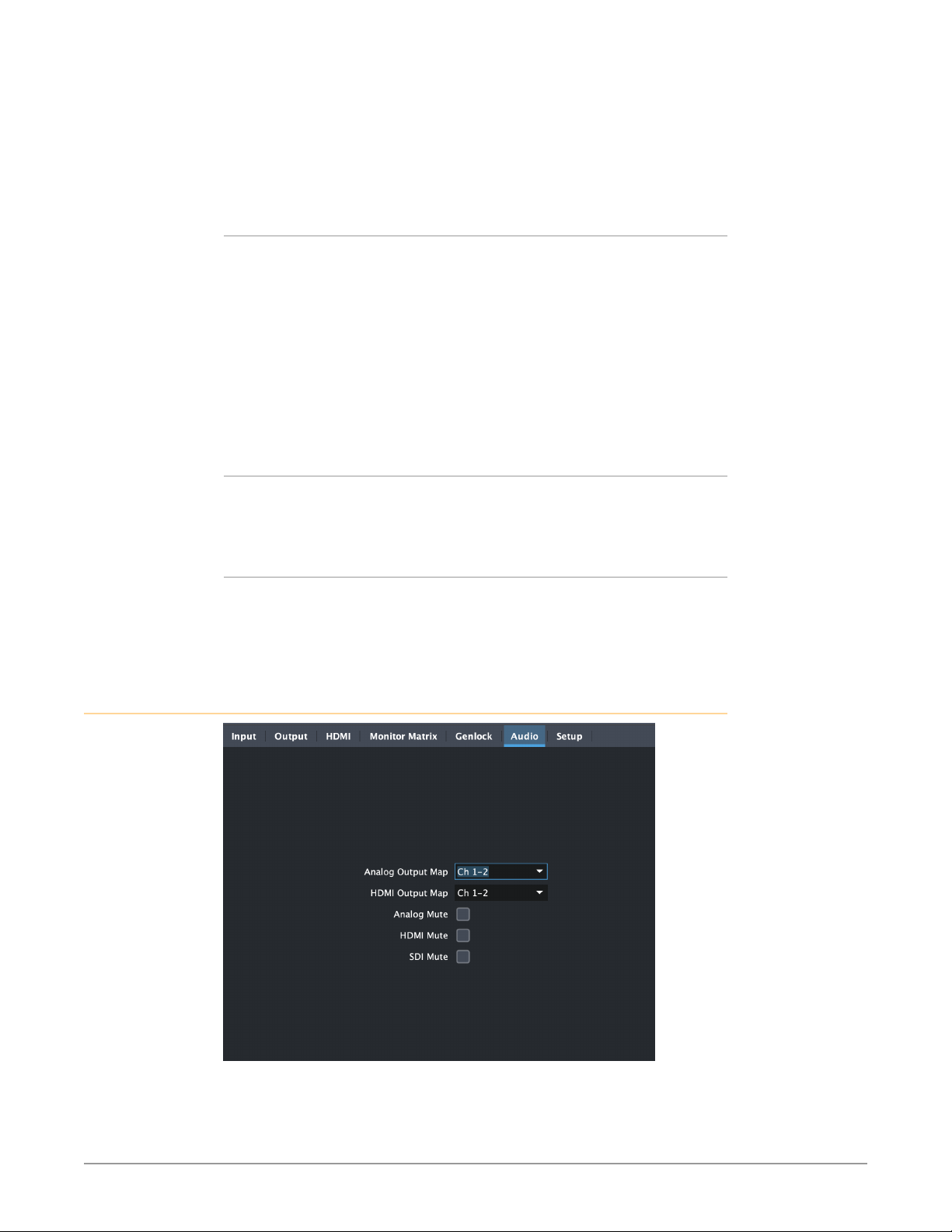

Audio Screen (OG-ROI-SDI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

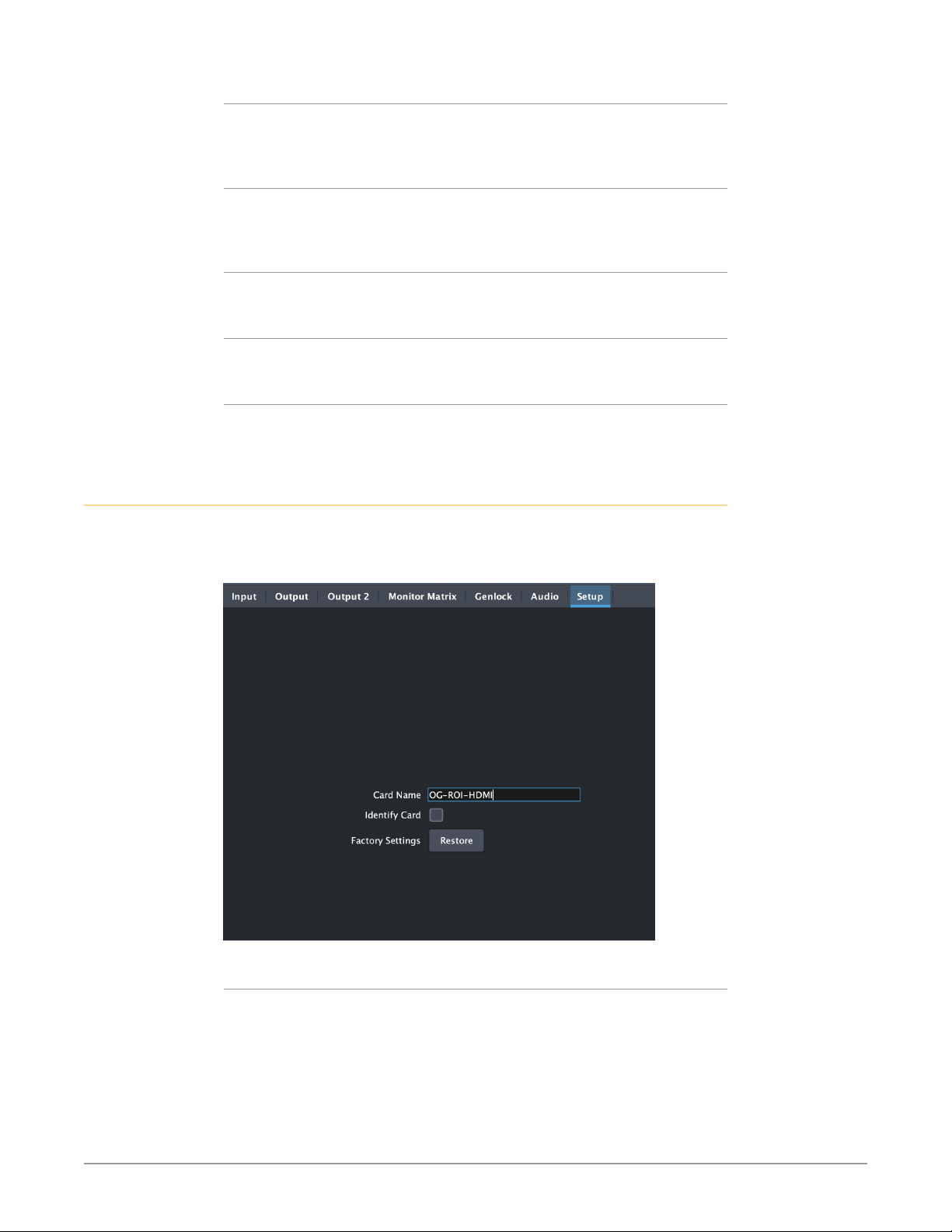

Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

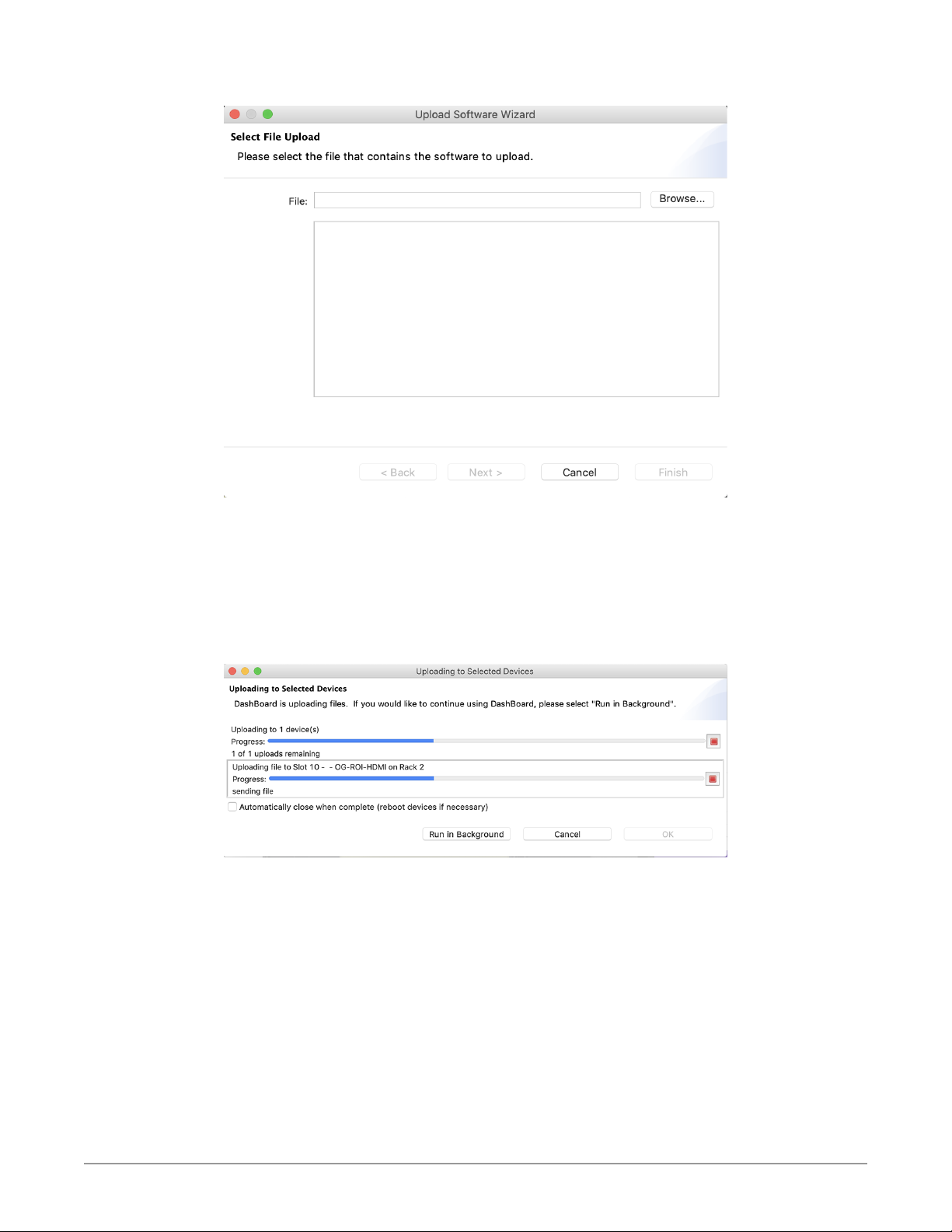

Upload Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Rebooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Appendix A – Specications . . . . . . . . . . . . . . . . . . . . . . . . 41

OG-ROI-DVI Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

OG-ROI-HDMI Tech Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

OG-ROI-SDI Tech Specs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Appendix B – Safety and Compliance . . . . . . . . . . . . . . . . . .46

OG-ROI Series openGear card v1.8 3 www.aja.com

Warranty and Liability Information . . . . . . . . . . . . . . . . . . . .56

Limited Warranty on Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Limitation of Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Governing Law and Language; Your Rights . . . . . . . . . . . . . . . . . . . . . . 56

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

OG-ROI Series openGear card v1.8 4 www.aja.com

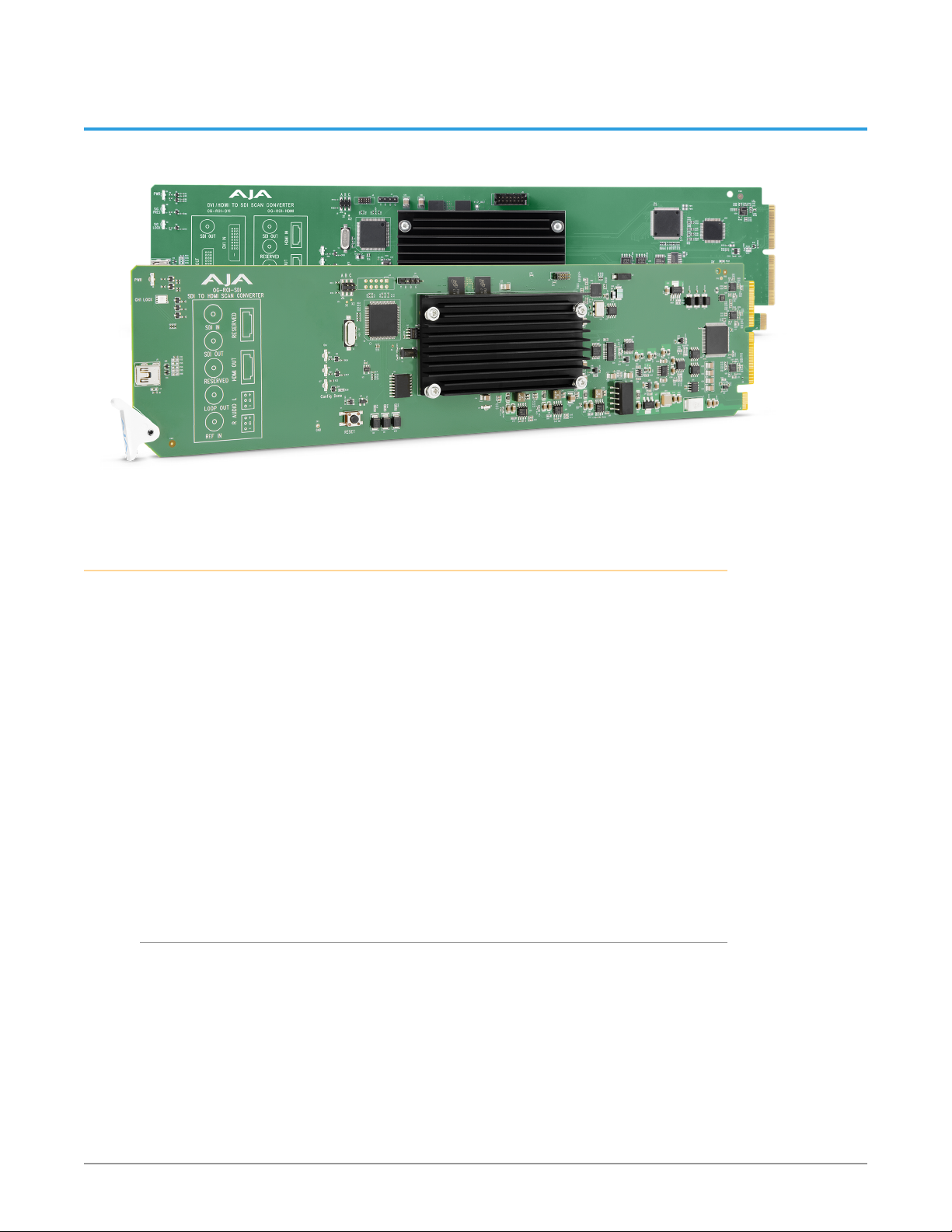

Chapter 1 – Introduction

Overview

Video Processing

AJA’s OG-ROI family of scalers/scan converters provide exceptionally high quality
conversion of computer and video signals in an openGear form factor. The OG­ROI models offer Region of Interest (ROI) support allowing DVI, HDMI and SDI
input signals to be scaled and converted to an SDI output. The OG-ROI-SDI model
also provides a scaled HDMI output. With incredible image scaling, extensive
aspect ratio and frame rate conversion, OG-ROI fulfills the need to scale computer
and video to a desired resolution, all in realtime.

The three models of OG-ROI openGear cards available are:

• OG-ROI-DVI

• OG-ROI-HDMI

• OG-ROI-SDI

Designed for use in high-density openGear 2RU frames, including AJA’s OG-X­FR 2RU frame, the OG-ROI Series is capable of communicating with Ross Video’s
DashBoard Control System. DashBoard runs on Windows®, macOS®, and Linux®,
providing convenient, industry-standard configuration, monitoring and control of
the openGear architecture over a PC or local network.

In default mode, the OG-ROI-DVI and OG-ROI-HDMI models automatically detect
the input signal format and convert it to the SDI (and HDMI, for the OG-ROI-SDI)
output video format. Their respective DVI and HDMI outputs pass the signal
through without any processing, maintaining the incoming signal aspect ratio.

For the OG-ROI-SDI, the incoming signal is passed to the SDI Loop Through
Output, without any processing, maintaining the incoming signal aspect ratio.
The processed signal goes to both the HDMI output and the SDI output.

OG-ROI Series openGear card v1.8 5 www.aja.com

In Auto mode, if there is a difference in aspect ratio relative to the input and
output format, the unused area is filled with a user-configurable matte color. For
example, a 720p input will matte with a 625i output and vice versa, due to their
different aspect ratios of 16:9 and 4:3, respectively. However, a 720p input will not
matte with a 1080p output as they both have a 16:9 aspect ratio.

Audio Handling

OG-ROI-DVI, OG-ROI-HDMI

Analog audio from the host can be input via 3-pin analog audio connectors
and mapped to the embedded SDI output stream. Alternatively, when an HDMI
input signal is present, the HDMI input's embedded audio can be mapped to the
embedded SDI output stream.

The OG-ROI-DVI model can receive both DVI and HDMI protocol input, and
accepts audio if it is embedded in an HDMI signal. However, the DVI protocol does
not carry audio, so if the OG-ROI-DVI is receiving DVI input, only analog audio can
be embedded to the output.

OG-ROI-SDI

Digital audio embedded in the SDI input is carried through to both the SDI output
and the HDMI output. Analog audio can be output through the 3-pin analog
audio connectors (2 channels). Digital audio can be embedded through the SDI
output as 24-bit, 8 channel, and/or through the HDMI output as 24-bit, 2 channel
or 8 channel.

HDCP Protection

The OG-ROI honors HDCP, and will not allow an HDCP link. If the input content is
HDCP protected, no source video will be displayed on the OG-ROI’s DVI pass­through connector, or on the OG-ROI’s SDI output.

Features

OG-ROI-DVI

• Converts DVI input to 3G, HD, or SD-SDI output

OG-ROI-HDMI

• Converts HDMI input to 3G, HD, or SD-SDI output

OG-ROI-SDI

• Extracts 3G-SDI input and outputs to 3G, HD, SD-SDI and/or HDMI

All OG-ROI Models

• openGear compatible card (requires 2 slots, rear card included)

• Use with openGear 2RU frames

• Controlled by DashBoard network control software

• High quality scaling and scan conversion

• User-adjustable “region of interest,” separate controls for input and output

OG-ROI Series openGear card v1.8 6 www.aja.com

• 4:3/16:9 conversion modes supported

• Frame-rate conversion

• Automatic configuration to input video raster and frame rate

• SDI output configurable to most common SD, HD and 3G formats (1080p 60
max)

• Edge filtering control

• Rotation, Horizontal and Vertical flip controls

• Monitor Matrix setup controls

• Frame delay control

• Rear card external reference input select

• OG frame reference input 1 select

• OG frame reference input 2 select

• Rear card reference input 75 ohm termination select

• Adjustable Horizontal and Vertical video delay from sync input

• Audio input via 3-pin analog audio connectors or 8-channel embedded (OG­ROI-DVI and OG-ROI-HDMI)

• Audio output via 3-pin analog audio connector (OG-ROI-SDI)

• Embedded SDI audio out (up to 8 channels)

• 5-year warranty

Pixel rates are limited to a 165 MHz maximum rate.

Pixel Clock Rate

The source video pixel clock is a combination of the video resolution and its
vertical rate. Some sources can generate pixel clock rates that exceed the
capabilities of the OG-ROI-DVI and OG-ROI-HDMI converters. It may not be
obvious what the resulting pixel clock will be for a particular resolution or vertical
rate.

NOTE: This topic does not apply to the OG-ROI-SDI since it accepts only SMPTE SDI rates

on the input.

For example, when a downstream sink device is connected to the OG-ROI output
monitor connector, the source and sink could potentially negotiate a display
format (using EDID) that is beyond the capability of OG-ROI’s video processing
circuitry.

When this error occurs, an “Exceeds max rate” yellow alarm message will be
displayed on the DashBoard user interface, and the OG-ROI will generate a full
screen red matte on the SDI output. A downstream DVI/HDMI/SDI monitor will
still display the incoming video.

Possible solutions include:

• Disconnect the downstream device (for example, a computer monitor) from
the OG-ROI. Once disconnected, OG-ROI will negotiate directly with the
source to generate a video resolution that is within the OG-ROI’s processing
capability.

• Reconfigure the source signal to a resolution that OG-ROI supports.

OG-ROI Processing Capabilities

The OG-ROI models utilize a powerful scaling processor, however, some specific
combinations of input and output OG-ROI selections, de-interlacing, and 180°
rotations or flips can exceed the processing capacity of the OG-ROI cards.

OG-ROI Series openGear card v1.8 7 www.aja.com

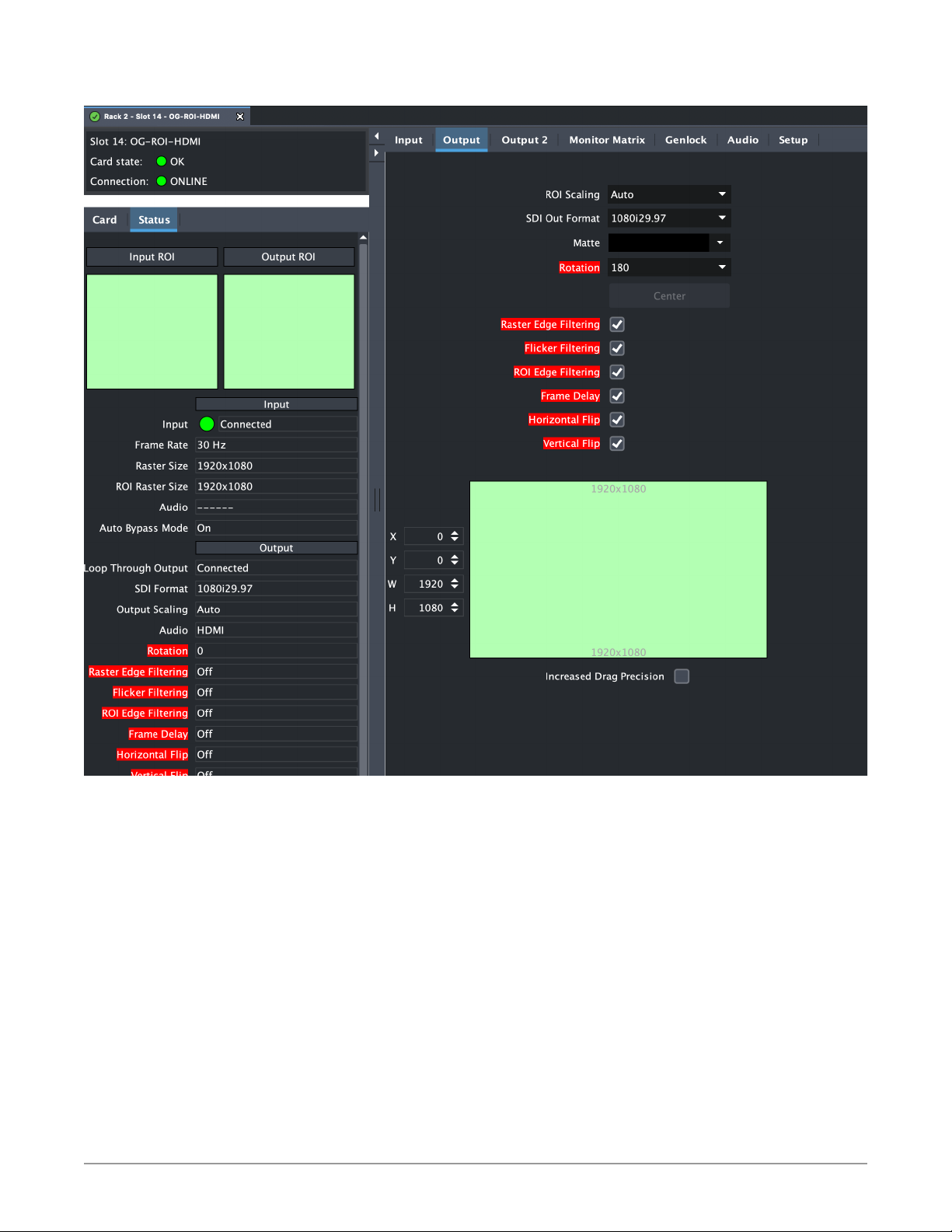

In these cases, a “Processing Limit Exceeded” red error message is displayed on
the DashBoard user interface, and the OG-ROI will automatically turn off certain
features in order to process the picture. These features that have been turned off
will be reported and will be in red. For an example, see "Processing Limit Exceeded"

on page 29.

Possible solutions include:

• Reduce the size of the Region of Interest selections; input OG-ROI, output OG­ROI, or a combination of both.

• Turn off 180 degree rotation and/or H and V flips, or frame delay.

• Use a progressive rather than interlace input signal.

Simplified Block Diagram

Figure 1. OG-ROI Converter/Scaler, Simplified Block Diagram

OG-ROI Model
Input Connectors:

OG-ROI-SDI

3G-SDI

SDI

Loop Out

OG-ROI-HDMI

HDMI

OG-ROI-DVI

DVI-D

HDMI/DVI Only

3-Pin Analog

Audio Input

Connectors (2)

OG Card

Reference

Input

HDMI/

DVI/SDI

Video

Input

Sync Stripper

Input

Free Run

Audio ADC

Additional Reference

Inputs (2)

Pass-Thru Path

Matte Gen

InterlacerFRC/GenlockDeinterlacer KeyerROI Scaler

8 CH

SRC

OG Frame Network Computer

2 Slots per Card

Ethernet

Audio Delay

DashBoard

Control

Audio DAC

Embedder

OG-ROI Model
Output Connectors:

HDMI/DVI/
Model Video
Output

HDMI/DVI/SDI
Model Video
Output

SDI Model
Additional
HDMI Processed
Video Output

SDI Only
3-Pin Analog
Audio Output
Connectors (2)

openGear and AJA

openGear is an open-architecture, modular frame system designed by Ross
Video and supported by a diverse range of terminal equipment manufacturers,
including AJA. Ross Video manufactures the frames, power supplies and network
cards for openGear. AJA is a reseller of the openGear frames.

AJA Video is a leading manufacturer of video interface technologies, converters,
digital video recording solutions and professional cameras, bringing high­quality, cost-effective products to the professional, broadcast and post­production markets. AJA products, including openGear cards, are designed and
manufactured at our facilities in Grass Valley, California.

I/O Connections

All ROI Models

SDI Video Output

The SDI output BNC delivers the processed output signal which has scaling,
region of interest, converted raster, converted frame rate, and embedded audio.

OG-ROI Series openGear card v1.8 8 www.aja.com

Reference Video Input

The Reference BNC accepts an Output timing reference signal. The reference can
be SD Blackburst or HD tri-level sync.

OG-ROI-DVI Connectors

Figure 2. I/O Connections for the OG-ROI-DVI Converter/Scaler

SDI Output

BNC (J1)

DVI Output

Reference

Input

BNC (J2)

DVI Input

Analog Audio
Input L

Analog Audio
Input R

DVI Input

Connects to your Computer or single-link source device.

DVI Output

This is a pass-through unprocessed DVI output for use on a second computer
monitor.

NOTE: To connect an HDMI video signal to a DVI connector, or vice versa, you can use a

passive HDMI-to-DVI adapter, or use a cable adapter with an HDMI connector on
one end and a DVI connector on the other (user-supplied).

Analog Audio Input

Two 3-pin analog audio connectors accept two channels of analog audio which
can be embedded into the SDI output as determined by the audio configuration
set using DashBoard.

OG-ROI Series openGear card v1.8 9 www.aja.com

OG-ROI-HDMI

Figure 3. I/O Connections for the OG-ROI-HDMI Converter/Scaler

SDI Output

BNC (J1)

(inactive)

HDMI Input

(inactive)

(inactive)

Reference

Input

BNC (J5)

HDMI Output

Analog Audio
Input L

Analog Audio
Input R

HDMI Input

Connects to your computer or single-link source device.

HDMI Output

This is a pass-through unprocessed HDMI output for use on a second computer
monitor.

NOTE: To connect an HDMI video signal to a DVI connector, or vice versa, you can use a

passive HDMI-to-DVI adapter, or use a cable adapter with an HDMI connector on
one end and a DVI connector on the other (user-supplied).

Analog Audio Input

Two 3-pin analog audio connectors accept two channels of analog audio which
can be embedded into the SDI output as determined by the audio configuration
set using DashBoard.

OG-ROI-SDI

Figure 4. I/O Connections for the OG-ROI-SDI Converter/Scaler

SDI Input

BNC (J1)

SDI Output

BNC (J2)

Reserved

Loop Out

BNC

Reference

Input BNC

OG-ROI Series openGear card v1.8 10 www.aja.com

Reserved

HDMI Output

Analog Audio
Output L

Analog Audio
Output R

SDI Video Input

Connects to a single-link SDI source device.

SDI Loop Output

The SDI Loop Output provides a copy of the SDI Input signal. It is not processed.

HDMI Output

This is a copy of the processed SDI output signal for driving a display or device
with an HDMI input.

Analog Audio Output

Two 3-pin analog audio connectors output two channels of analog audio
disembedded from the incoming SDI, as determined by the audio configuration
set using DashBoard.

Signal Indicators

OG-ROI-DVI/HDMI Card

Located at the upper front area of the OG-ROI-DVI/HDMI card, the LEDs shown in

Figure 5 below indicate the status of the card's power, signal presence and signal

lock.

Figure 5. LED lights on OG-ROI-DVI/HDMI card

Power/Alarm LED

Signal Present LED

Signal Locked LED

Power LED

The Power LED indicates the state of the card as displayed in DashBoard. It can be
green, yellow or red.

• Green: no DashBoard card state alarm is present.

• Yellow: a yellow DashBoard card state alarm is present. See DashBoard for
more information.

OG-ROI Series openGear card v1.8 11 www.aja.com

• Red: a red DashBoard card state alarm is present. See DashBoard for more
information.

Signal Present LED

The Signal Present LED can be green or off.

• Green: incoming signal has been identified and acquired.

• Off: no signal is detected.

Signal Lock LED

The Signal Locked LED can be green or off.

• Green: incoming signal is locked. Note that in DashBoard, the Status tab shows
what signal you are locked to (HDMI, Reference Input, or Free Run).

• Off: no reference is present.

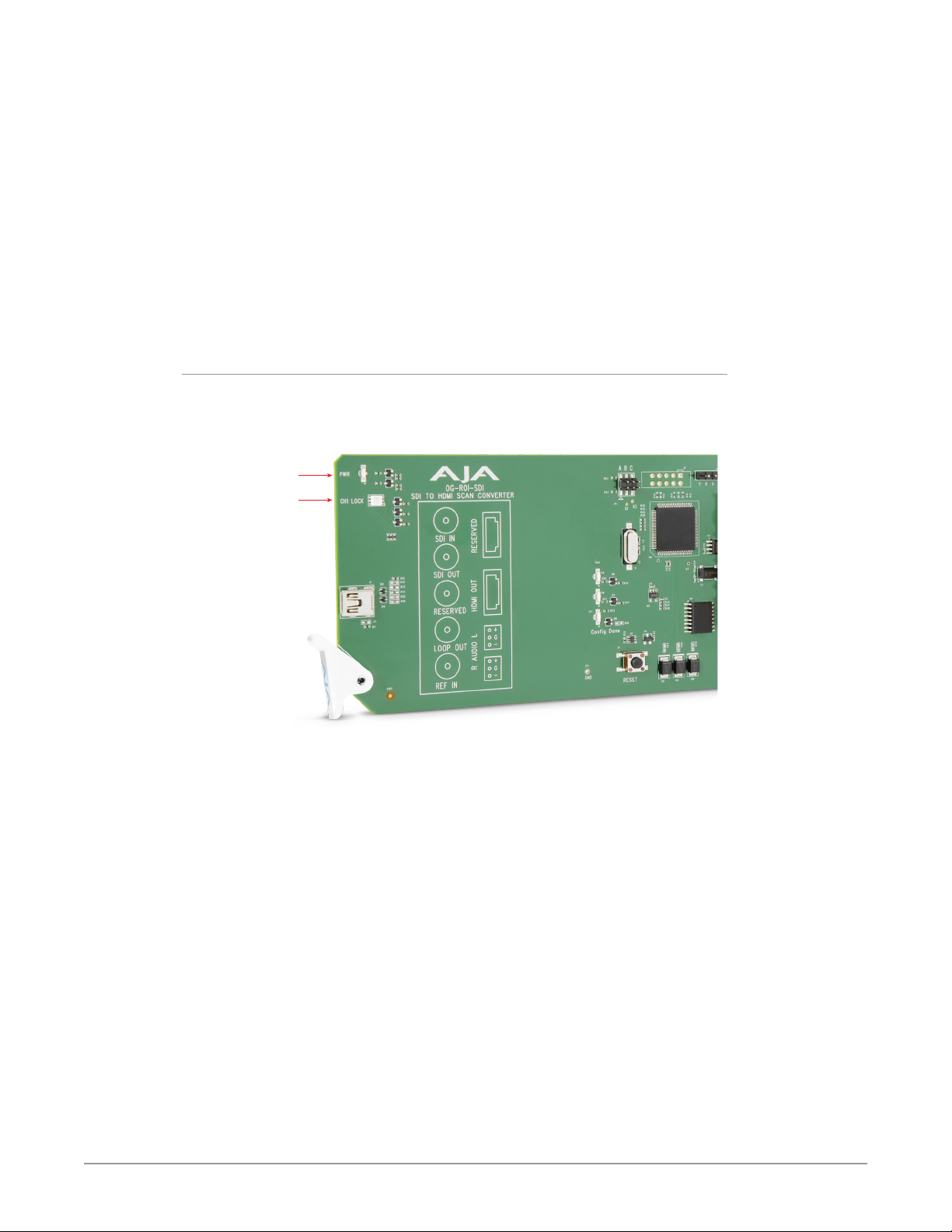

OG-ROI-SDI Card

Located at the upper front area of the OG-ROI-SDI card, the LEDs shown in Figure

6 below indicate the status of the card's power and signal lock.

Figure 6. LED lights on OG-ROI-SDI card

PowerAlarm LED

Channel 1

Locked LED

Power LED

The Power LED indicates the state of the card as displayed in DashBoard. It can be
green, yellow or red.

• Green: no DashBoard card state alarm is present.

• Yellow: a yellow DashBoard card state alarm is present. See DashBoard for
more information.

• Red: a red DashBoard card state alarm is present. See DashBoard for more
information.

Signal Lock LED

The Signal Lock LED has four states:

• Off: Not locked to an input signal

• Green: Locked to 270 Mb input signal

• Red: Locked to 1.5Gb input signal

• Amber: Locked to 3Gb input signal

OG-ROI Series openGear card v1.8 12 www.aja.com

DashBoard Control System

IM PORTA NT: DashBoard version 8.5.1 or later is required to support the OG-ROI cards.

The DashBoard Control System, created by Ross Video, provides a control
interface between Windows, macOS and Linux computers and the cards installed
in an openGear frame. DashBoard operates through TCP/IP communication
and requires an Ethernet connection between the controlling computer and an
openGear frame.

Details for acquiring and using the DashBoard Control System are provided in

"Using the DashBoard Control System" on page 20.

Parts List

Quantity Description

1 OG-ROI Series Front Card in ESD bag

1 DVI / HDMI / BNC Rear Card

2 WECO mating connectors, part number

107654-00

Installation

Summary

Unpacking

Installing an OG-ROI Series card into an OG-X-FR or OG-3-FR openGear frame
consists of the following steps:

• Install the Rear Panel onto the back of the frame corresponding to the slot pair
you will be using for the OG-ROI Series card.

• Insert the OG-ROI Series card into the frame in the right (even numbered) slot
of the pair.

• Connect the BNC and audio cabling to the Rear Panel.

ESD Susceptibility - Static discharge can cause serious damage to sensitive

semiconductor devices. Avoid handling circuit boards in high static
environments such as carpeted areas, and when wearing synthetic fiber
clothing. Always exercise proper grounding precautions when working on circuit
boards and related equipment.

Unpack each openGear product you received from the shipping container and
ensure that all items are included. If any items are missing or damaged, contact
your sales representative or AJA directly.

Rear OG-ROI Series Card Installation

1. Ensure that the frame is properly installed.

2. Locate the card frame slot on the rear of the openGear frame into which you
wish to install the openGear card.

NOTE: An OG-ROI Series card occupies two slots in the frame.

3. Using a Phillips screwdriver, unscrew the top screw from the desired blank
rear plate and remove the rear plate.

OG-ROI Series openGear card v1.8 13 www.aja.com

4. Seat the bottom of the Rear Card in the seating slot at the base of the frame
back plane.

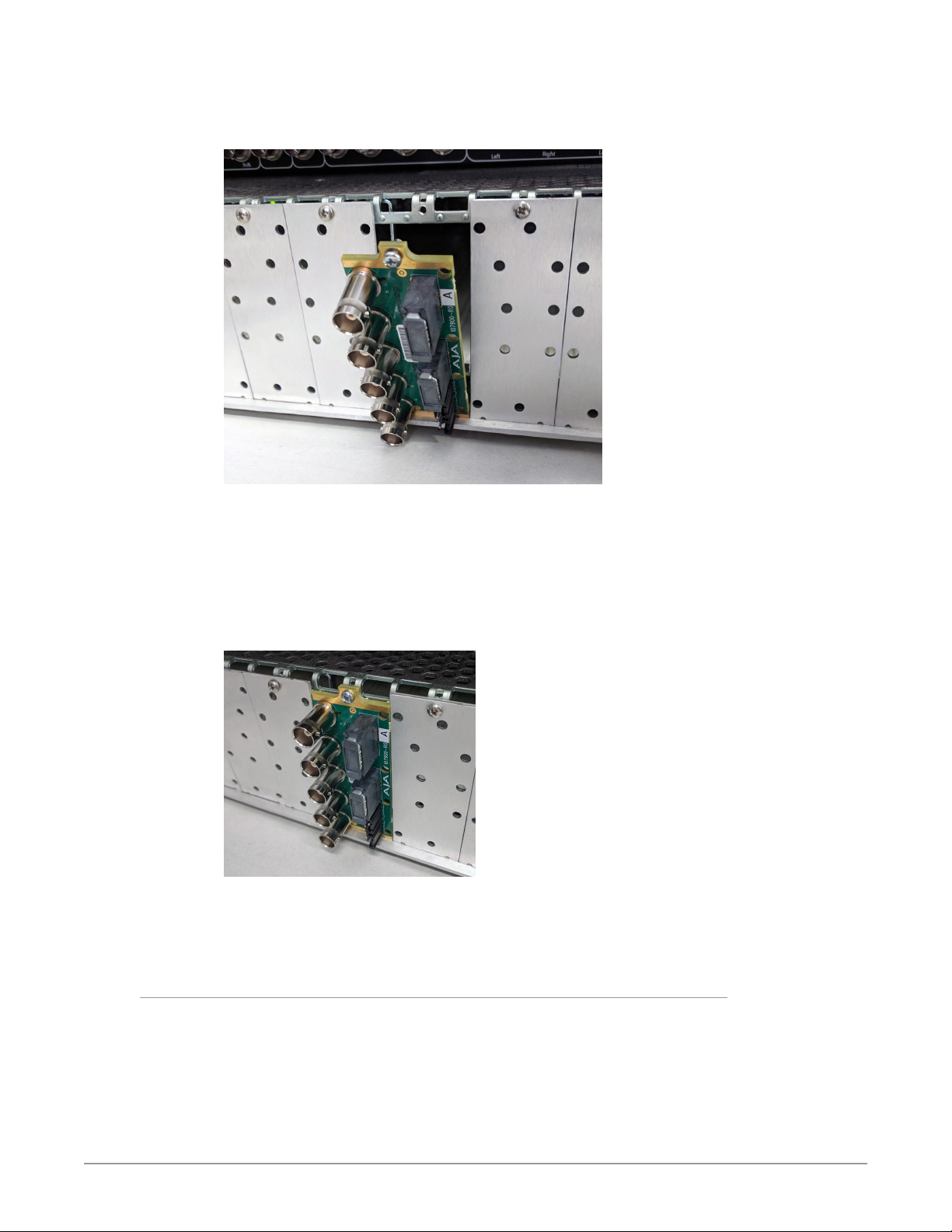

Figure 7. Rear Card Inserting Into Frame Seating Slot

5. Align the top screw of the Rear Card with the screw hole on the top edge of
the frame back plane.

6. Ensure the Rear Card aligns with the desired card slot before tightening the
screw.

7. Using a Phillips screwdriver, fasten the Rear Card to the frame back plane.
Do not over tighten.

Figure 8. Rear Card Inserted Into Frame Seating Slot

8. Ensure proper frame cooling and ventilation by having all rear frame slots
covered with rear modules or blank metal plates if plates are not pre­installed.

Front OG-ROI Series Card Installation

1. Open the openGear frame door as follows:

A. Gently pull the side door tabs towards the center of the door, releasing the

door from the frame.

B. Using both hands, pull the door towards you. The door extender arms

prevent the door from falling.

2. Locate the Rear Card you installed as described above. The interior slot
number is dependent on the slot combinations into which you installed the

OG-ROI Series openGear card v1.8 14 www.aja.com

Rear Card. This allows adequate spacing to avoid damaging the card, the
cards installed in the neighboring slots, or both.

3. Hold the card by the edges and carefully align the card edges with the rails
inside the frame. The slots are numbered starting from the left-most slot
when facing the frame front.

IM PORTA NT: OG-ROI Series cards are installed into the right (even numbered) slot of the

pair in order to connect with the rear panel.

4. Fully insert the card into the frame until the card is properly seated in the
Rear Card. There are two stages to inserting the card:

A. After you feel the card's first click, its position in the frame will resemble the

photograph below in Figure 9.

B. Next, press against the white plastic tab again until you feel the second

click. The card's position will resemble the photograph below in Figure 10.

WARN ING: Some cards require more pressure than others to be fully inserted.

Make sure that the plastic tab at the bottom of the front edge of the card is
completely upright. If it is tilting forward, the card is not yet fully inserted.

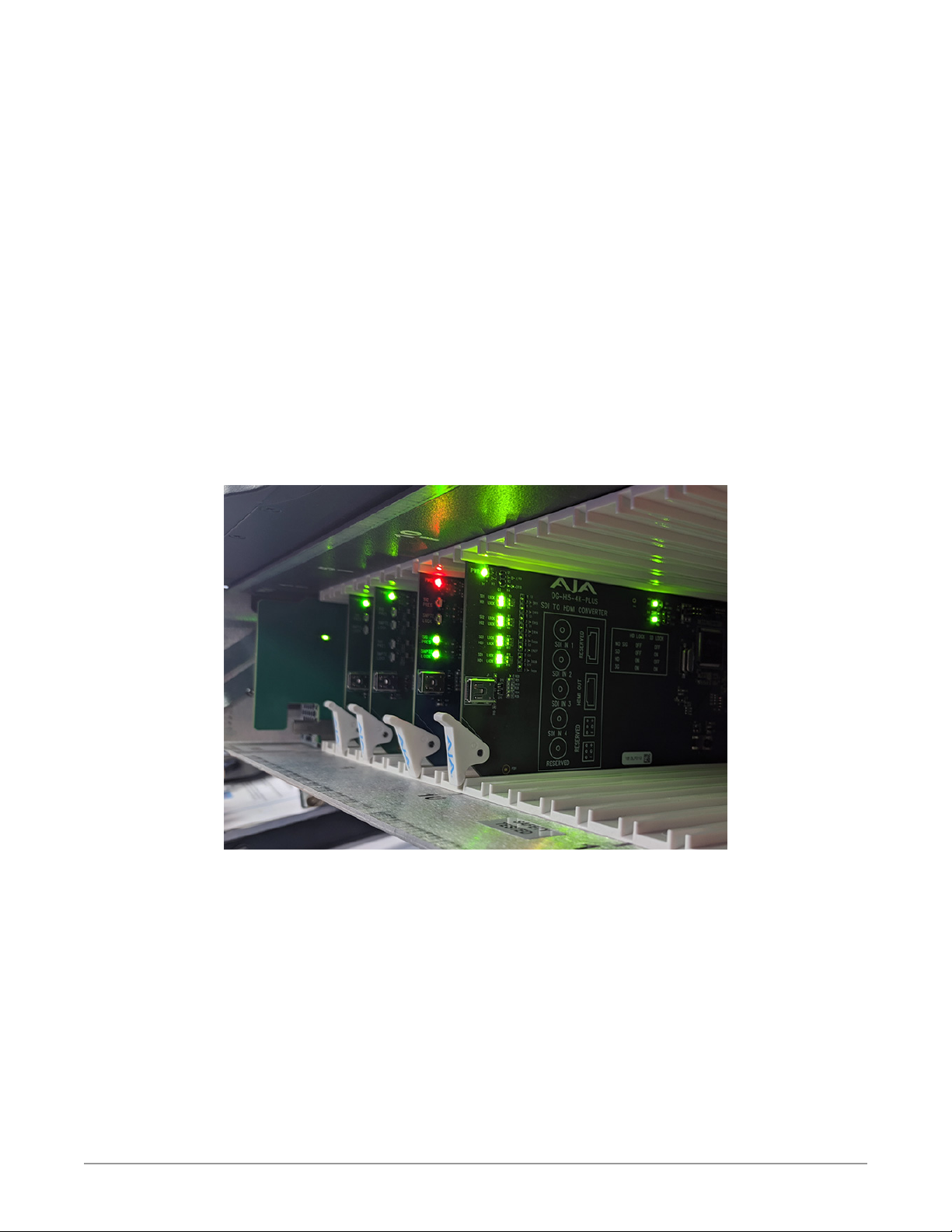

Figure 9. The card on the right is already fully inserted. The card to its left

(second from the right) is not yet fully inserted, as indicated by the white
plastic tab tilting forward.

OG-ROI Series openGear card v1.8 15 www.aja.com

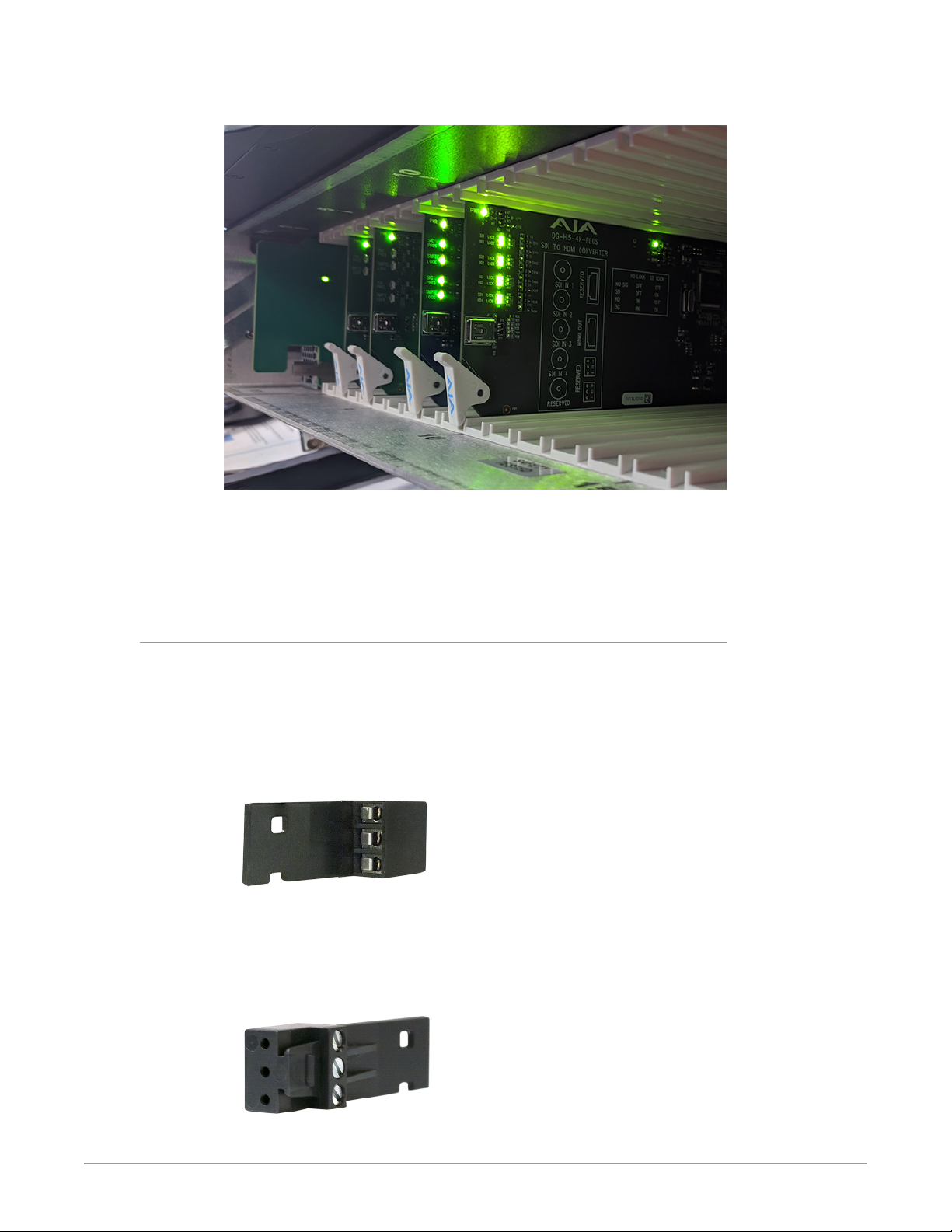

Figure 10. The white plastic tab for the card second from the right is now

upright. All cards are shown fully inserted.

Cabling

5. Close the frame door as follows:

A. Slide the door into the frame.

B. Pull and release the door tabs to ensure the frame door is securely locked

to the frame.

Refer to "I/O Connections" on page 8 to identify the input and output signal
connectors.

Two WECO audio mating connectors are included with each OG-ROI Series card.

1. Insert connecting audio wires into their corresponding holes from the rear
(Figure 11).

Figure 11. Rear view of the WECO mating audio connector

2. Tighten the screws on the other side of the audio mating connector (Figure

12).

Figure 12. Front view of the WECO mating audio connector showing the

tightening screws

OG-ROI Series openGear card v1.8 16 www.aja.com

3. After you have secured the wiring for each WECO mating audio connector,
connect them to the audio output connectors on the rear panel of the
OG-ROI Series card.

4. Add tie wraps around the audio connectors for strain relief.

Typical ROI Configurations

Two typical configurations for using the OG-ROI for scaling of desktop region­of-interest computer-sourced video are illustrated in the following two figures.
In these configurations, the pass-through monitor is used to view the subject
desktop video.

Figure 13. OG-ROI with Laptop Computer, System Interconnect Diagram

HDMI/DVI

Ethernet

Source Computer

w/ DashBoard

OG-ROI

SDI Output

HDMI/DVI

Computer Desktop

Monitor

(ROI Pass-through)

Source Computer

Tower

w/ DashBoard

Monitor 1 Out

Monitor 2 Out

Video

Monitor

Figure 14. OG-ROI with Tower Computer & Two Monitors, System Interconnect

Diagram

Computer Desktop

Monitor

Computer

2nd Desktop

HDMI/DVI

Ethernet

HDMI/DVI

OG-ROI

HDMI/DVI

Monitor

SDI Output

(ROI Pass-through)

Video

Monitor

OG-ROI Series openGear card v1.8 17 www.aja.com

A third example (Figure 15) illustrates use of the OG-ROI Rotation feature to
send selected areas of a SDI signal to portrait mounted on-set monitors at full
resolution. Each monitor uses one OG-ROI converter, accomplishing the task at a
much lower cost than dedicating DVE channels for rotation and resizing.

Figure 15. OG-ROI Rotation with Portrait Mounted On-Set Monitors

Digital Video

SDI Loop-Through

Computer

w/ DashBoard

Digital Video

- Input ROI Selection: 9x16 Fixed Aspect

Camera

SDI

OG-ROI A

- Output ROI Out Scaling: Full Screen Rotated 90 Degrees

HDMI Output

Portrait

B

HDMI Monitors

Built Into Set

Region

HDMI Output

OG-ROI B

Ethernet

A fourth example below illustrates sending HDMI digital video from a camera to
an OG-ROI to allow region of interest video input to a video switcher.

Figure 16. OG-ROI-HDMI with Video Camera to Switcher Interconnect

Diagram

Camera

HDMI

OG-ROI

HDMI

Computer Desktop

Monitor

(ROI Pass-through)

Region

A

Computer

w/ DashBoard

SDI

Output

Ethernet

Video Switcher

In a parallel configuration as Figure 16, Figure 17 below shows a basic
configuration of the OG-ROI-SDI being used to send a 3G-SDI digital video signal
to allow region of interest video input to a video switcher. You can use methods
for adjusting the region of interest selection described in the section for the

"Input Screen" on page 22 with the processed 3G-SDI output signal feeding a

monitor.

OG-ROI Series openGear card v1.8 18 www.aja.com

Figure 17. OG-ROI-SDI with SDI Source to Switcher Interconnect Diagram

3G-SDI Source

Computer

w/ DashBoard

Ethernet

OG-ROI

HDMI/DVI

SDI

Output

HDMI/DVI Monitor

Video Switcher

OG-ROI Series openGear card v1.8 19 www.aja.com

Chapter 2 – Operation

IM PORTA NT: Once you have configured the OG-ROI card using DashBoard, and as long

as the input format remains the same, the settings will persist when the frame
is disconnected from a controlling computer (in stand-alone mode). If you
anticipate that the input format may change, and if the current configuration
settings wouldn't make sense for a different input format, you can enable Auto
Bypass Mode (Auto Bypass Mode checkbox is selected from the Input tab). When
enabled, Auto Bypass Mode forces the OG-ROI card to use Auto in all applicable
settings when the input format changes. When the original input format is
re-connected, the OG-ROI will exit Auto Bypass Mode and restore all previously
configured settings for that format.

Using the DashBoard Control System

The DashBoard Control System, created by Ross Video, is available as a free
download from the openGear DashBoard Software Download webpage:

https://www.opengear.tv/frame-and-control/control-system/download/

Ross Video offers comprehensive documentation that covers the extensive
capabilities of the DashBoard Control System:

https://www.rossvideo.com/support/product-documentation/dashboard/

This manual addresses only those essential aspects of the DashBoard Control
System needed to control the OG-ROI Series cards.

Requirements

The DashBoard Control System requires the following components:

• openGear frame with a Frame Controller card

• Ethernet connection betweeen the controlling computer and the openGear
frame

NOTE: The openGear frame ships from AJA with the MFC-8322-S Frame Controller card

for controlling the new AJA DashBoard cards. The openGear frame also supports
the MFC-0G3-N Advanced Networking Frame Controller card, which can be used
to control compatible OG cards.

IM PORTA NT: DashBoard version 8.5.1 or later is required to support the OG-ROI cards.

DashBoard automatically discovers openGear and DashBoard Connect devices,
such as openGear frames and cards that are present and accessible on your
network.

Control Interface Basic Components

The basic components of the DashBoard Control System user interface consist of
the basic tree view of frames and cards, the card information and status panel,
and the parameter controls panel. These elements are shown below in Figure 18

on page 21

The basic tree view of frames and cards shows the frames and cards that are
discoverable by DashBoard on your network.

The card information and status panel, shown in the middle panel, display the
basic status of the card currently selected in DashBoard.

OG-ROI Series openGear card v1.8 20 www.aja.com

The parameter controls panel shows the tabs and parameters that the selected
card has available for configuration and control.

Figure 18. Main Sections of the DashBoard User Interface

Basic Tree View of

Frames and Cards

Card Information

and Status

Parameter

Controls

OG-ROI Series openGear card v1.8 21 www.aja.com

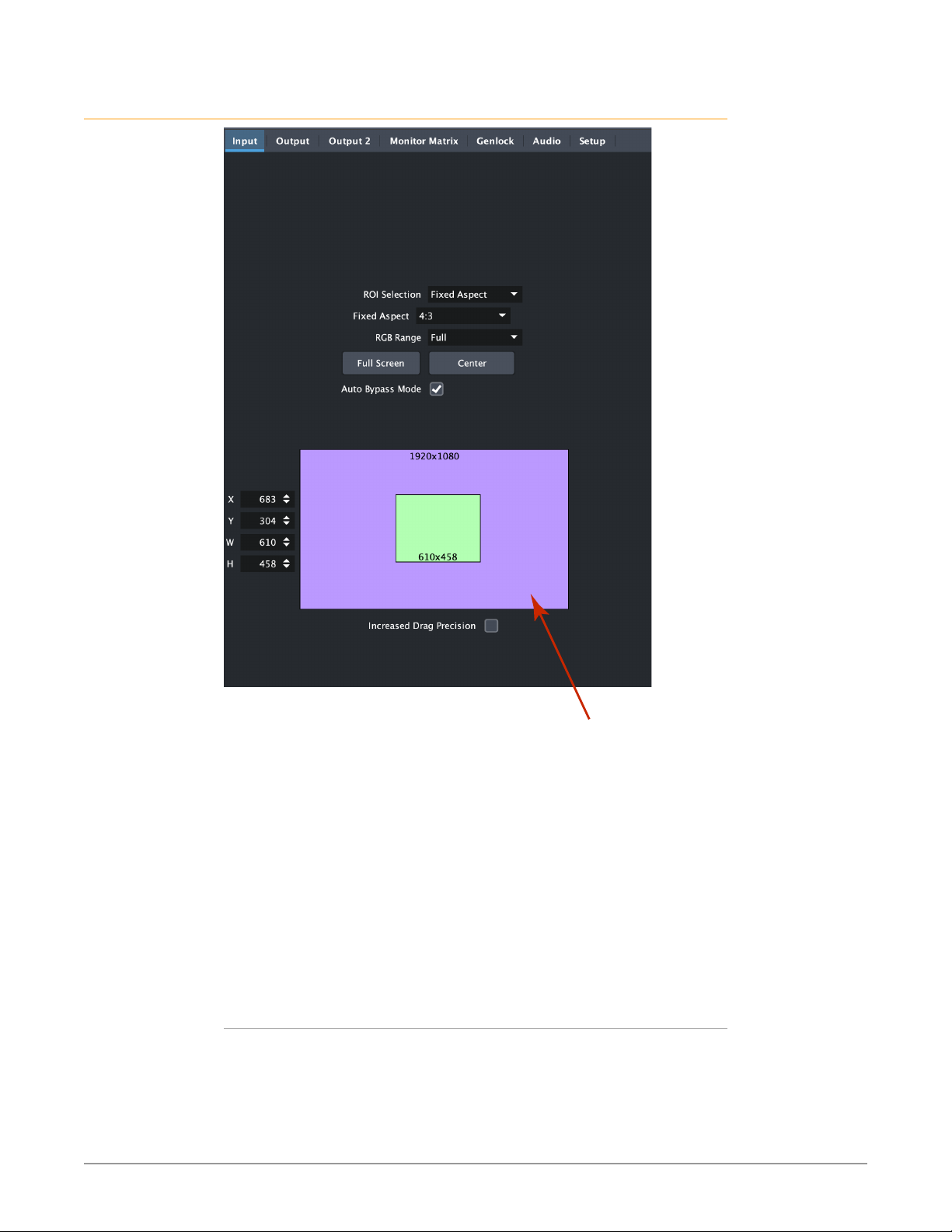

Input Screen

Proxy Screen

Click on the Input tab to view and make changes to the converter’s input region­of-interest settings.

An input signal is required before the Input menu configuration controls are
available. When no input signal is present, the OG-ROI unit grays out the Input
menu controls.

The Proxy Screen shows the current region of interest setting in green with the
selection pixel size at the bottom and the input pixel size at the top. Various
controls are also available on the left.

NOTE: The adjustments made on the green proxy screens are live and can be viewed

on the SDI output.

NOTE: Portions of this screen are grayed out if no input signal is present.

ROI Selection

Using this pulldown menu you can choose a selection mode:

Auto - Selects the entire signal detected at the input to the ROI (default setting).

Scales the input region-of-interest as large as possible to fit into the SDI
output region while maintaining the incoming aspect ratio. Matte may result if
the input’s aspect ratio does not match the SDI out aspect ratio.

OG-ROI Series openGear card v1.8 22 www.aja.com

NOTE: Auto selections in the Input screen and the Output screen are linked. Selecting

Auto from one screen will also select Auto in the other screen.

Variable - Allows user-adjustable selection of all or a portion of the input signal.

When you select Variable as the selection type, you can choose the region-of­interest selection in three ways with no constraints:

• Use the X,Y coordinates and W,H (width, height) size fields. Within these

fields, you can enter values (if they are valid) or use your keyboard arrow
keys to increment one pixel/line at a time for fine adjustment.

• If configuring a multiple monitor matrix, you can use the Monitor Matrix

screen to select the ROI and, when applied, will fill the X, Y, W, and H fields
with the correct values. See "Monitor Matrix Screen" on page 32.

• Drag the edges of the image representation (green proxy screen) at the

right of the selection pane. See "Click and Drag Options" on page 24.

Fixed Aspect - Opens a ROI Fixed Aspect drop-down menu allowing fixed

aspect input region-of-interest selection. In this mode, the size of the selected
region-of-interest can change but the aspect ratio is held constant:

• 4:3 (SD aspect ratio)

• 16:9 (HD aspect ratio)

• 3:4 (useful for presentation on vertically oriented monitors)

• 9:16 (useful for presentation on vertically oriented monitors)

NOTE: Pixel aspect ratio (PAR) is accounted for in fixed aspect mode. The storage aspect

ratio will change based on the input's PAR to achieve a display aspect ratio
equivalent to your configured settings.

Fixed Size - Opens a ROI Fixed Size drop-down menu allowing fixed size input

region-of-interest selection. In this mode, the region-of-interest selection can
change position on the input screen but the size cannot be changed. These
settings allow you to easily select standard video sizes for region-of-interest.

• DV

• NTSC

• PAL

• 720HD

• 1080HD

SDI Out - Forces the region-of-interest to have the same aspect ratio as the

current SDI Out Format setting.

RGB Range Menu (not applicable to OG-ROI-SDI)

The RGB Range pulldown menu allows you to select either Full range (0-1023) or
SMPTE range (typically 64-940) for RGB color input.

Full Screen Button

Click the Full Screen button to set the region-of-interest to the full input raster
size.

Center Button

If you choose anything other than a full-sized image (Auto) in the ROI Select
menu, you will have complete control of where the region of interest selection
is placed. To quickly and precisely center the region-of-interest, click the Center
button.

OG-ROI Series openGear card v1.8 23 www.aja.com

Auto Bypass Mode

Once you have configured the OG-ROI card using DashBoard, and as long as
the input format remains the same, the settings will persist when the frame is
disconnected from a controlling computer (in stand-alone mode).

If you anticipate that the input format may change, and if the current
configuration settings wouldn't make sense for a different input format, you can
enable Auto Bypass Mode (Auto Bypass Mode checkbox is selected from the
Input tab). When enabled, Auto Bypass Mode forces the OG-ROI card to use Auto
in all applicable settings when the input format changes.

When the original input format is re-connected, the OG-ROI will exit Auto Bypass
Mode and restore all previously configured settings for that format.

Click and Drag Options

When using the drag method for region-of-interest placement or resizing, you
can use the Increased Drag Precision functionality for precise adjustments.

Increased Drag Precision

For more control, select the Increased Drag Precision checkbox. While dragging
the image, you will notice that the selection changes in a more gradual pixel-by­pixel manner regardless of your drag speed.

Arrow Keys

You can use the keyboard arrows to increment size and placement of a variable
region-of-interest selection one pixel at a time in X, Y, H, W fields. (The up/down
arrow keys can also be used to step through some menu selections.)

OG-ROI Series openGear card v1.8 24 www.aja.com

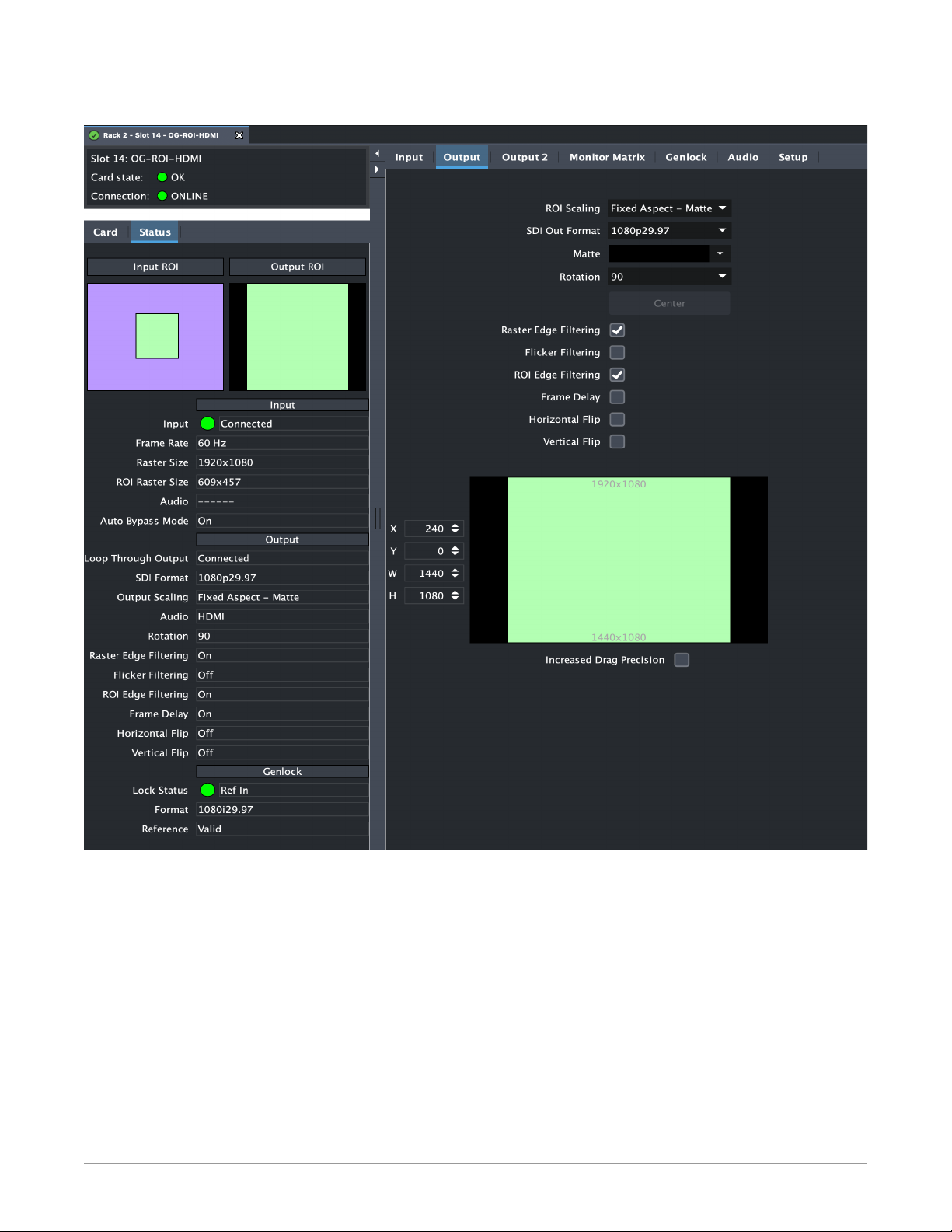

Output Screen

Click on the Output Tab to adjust the following parameters.

NOTE: Portions of this screen are grayed out if no input signal is present.

NOTE: Some sources can generate pixel clock rates that exceed the capabilities of

the ROI. If the incoming video’s pixel clock rate is too high, the ROI converter
will generate a full screen red matte on the SDI output to indicate this error
condition. DashBoard will also display an “Exceeds max rate” error message.
A downstream HDMI/DVI/SDI monitor will still display the incoming video. See

"Pixel Clock Rate" on page 7 and "OG-ROI Processing Capabilities" on page
7 for potential solutions.

ROI Out Scaling

Use the ROI Out Scaling pulldown menu to select one of the following:

Auto - Automatically scales region-of-interest to maximum size with fixed aspect

ratio defined by input format (default setting).

NOTE: Auto selections in the Output screen and the Input screen are linked. Selecting

Auto from one screen will also select Auto in the other screen.

Fixed Aspect - Matte - Scales region-of-interest to maximum size to fit output

region while maintaining aspect ratio. Matting may occur if aspect ratio of
input format and output format do not match.

Full Screen - Scales region-of-interest to maximum size to fit output geometry.

This may change aspect ratio of the image. No matting will occur.

OG-ROI Series openGear card v1.8 25 www.aja.com

None – Crop/Matte - No scaling occurs to region-of-interest. It is always centered

on the output, and the area displayed is selected using the placement controls
in the Input menu.

Variable - Allows user to arbitrarily change position and scaling of region-of-

interest as it is placed into the output region.

SDI Output Format

The pulldown menu offers a full range of SDI Video Formats for output. For the
complete list, see "Appendix A Specifications" on page 41. The format selection is
reported in the DashBoard graphic depicting the SDI Output.

Matte Background

Click the Matte button to pull up the matte color panel that offers various modes
of background color selection.

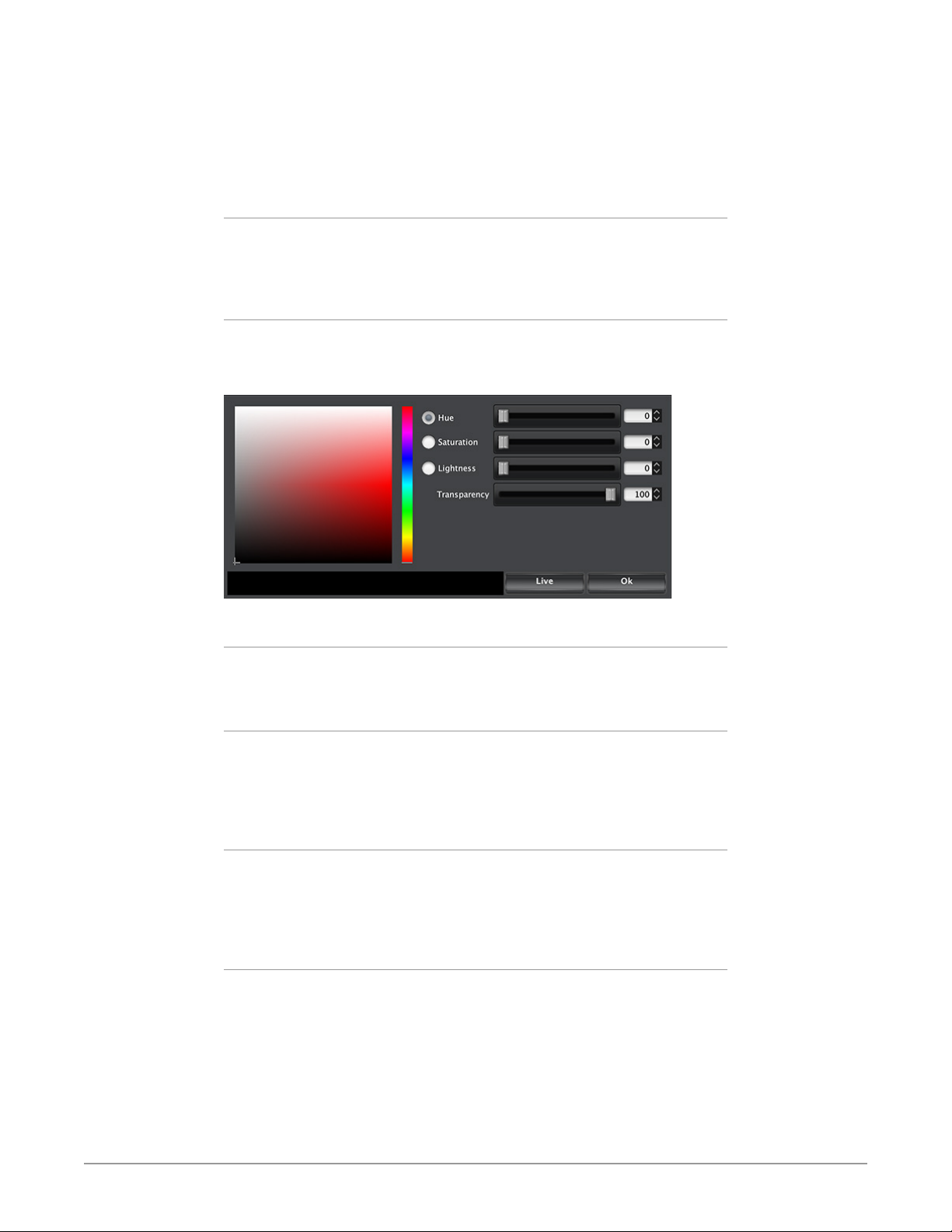

Figure 19. Matte Color Selection Panel

Center Button

After a screen region-of-interest has been defined, click the Center button to
quickly center the image.

Raster Edge Filtering Checkbox

You can disable edge filtering with this control. The filtering is applied to the left
and right edge pixels of the raster. This is useful if you are using four OG-ROIs
to drive a 4K monitor matrix. Disabling edge filtering on all four OG-ROIs can
eliminate the vertical line that would occur in that situation. Default setting is On.

Flicker Filtering Checkbox

You can enable flicker filtering with this control. This can be useful where vertical
detail (horizontal lines) may strobe with the refresh rate of the display. Flicker
filtering can help with interlaced outputs, and when a detailed image is scaled
down into a smaller area. Default setting is Off.

ROI Edge Filtering Checkbox

Similar to Raster Edge Filtering above, but the filtering is applied to the left and
right sides of the Region of Interest portion of that OG-ROI's output. Default
setting is On.

NOTE: The following Rotation, Frame Delay, and Flip controls interact with each other.

If the OG-ROI’s video processing circuit is unable to perform the processing, the
actual Off state of each control is reported in red. See "About the Rotation, Flip,

and Frame Delay Controls" on page 27 for more information.

OG-ROI Series openGear card v1.8 26 www.aja.com

Rotation

Opens a drop down menu for selecting of a clockwise rotation setting (see Figure

21 on page 28):

• 0° (no rotation, default setting)

• 90°

• 180°

• 270°

Frame Delay

Turns Frame Delay On or Off. One frame of delay is automatically applied
whenever Rotate or Flip is active. The current frame delay state (On or Off) is
reported.

NOTE: Turning Frame Delay On can be useful if you are using two ROIs

simultaneously, flipping or rotating only one of their outputs. Because a frame
delay is always applied to the flipped or rotated output, turning on the other
ROI’s Frame Delay restores their relative timing.

Horizontal Flip

Flips the output horizontally (left to right, and right to left, see Figure 20).

Vertical Flip

Flips the output vertically (top to bottom and bottom to top, see Figure 20).

Figure 20. Flip and Rotation Illustration

Original

(0 Degree, no Flip) 90 Degree RotationHorizontal Flip Vertical Flip 180 Degree Rotation 270 Degree Rotation







About the Rotation, Flip, and Frame Delay Controls

Rotation and Flip image processing requires one frame of video delay. Whenever
a rotation or flip occurs a frame delay is automatically applied, and the Frame
Delay On status is reported, even if the checkbox isn’t selected (see Figure 21).

OG-ROI Series openGear card v1.8 27 www.aja.com

Figure 21. Frame Delay Automatically On with Rotation even if the checkbox isn’t

selected

The Rotation, Flip, and Delay controls all report their current statuses. Some
specific combinations of input and output selections and 180° rotations or
flips involving 1920 x 1080i input video can exceed the processing capacity of
the OG-ROI Series. In these unusual cases, a Processing Limit Exceeded yellow
warning alarm is displayed on the UI, and the actual current settings for Rotation,
Frame Delay, and Flip are reported in red (see Figure 22). Note, however, that
parameters using their default values will not be highlighted in red.

OG-ROI Series openGear card v1.8 28 www.aja.com

Figure 22. Processing Limit Exceeded

Possible workarounds for this error condition include:

• Select an input source format that is not 1920x1080i.

• Reduce the size of the input or output region of interest.

• Deselect 180° rotation if on.

OG-ROI Series openGear card v1.8 29 www.aja.com

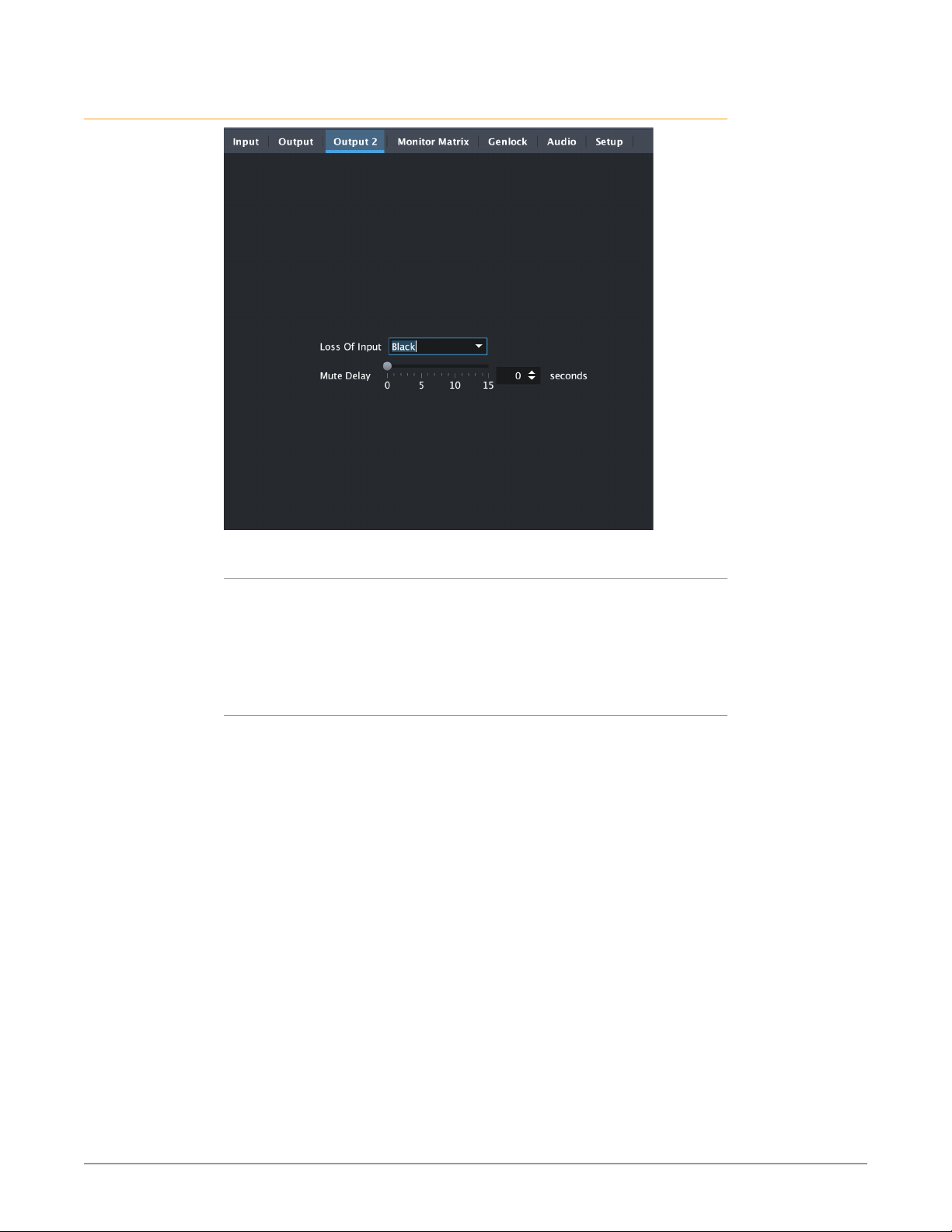

Output 2 Screen

Loss of Input

This parameter lets you control ROI output behavior if the input signal is lost.
Selecting Black outputs black video under those circumstances. Selecting Mute
will output no-video content (no signal). This can be used in conjunction with
a downstream signal loss capability that would not have been triggered with a
black signal.

Mute Delay

If Mute is selected from the Loss of Input control above, you can set a time delay
(0-15 seconds) for how long the switch to no signal occurs. The last good frame of
video is displayed during that delay time.

OG-ROI Series openGear card v1.8 30 www.aja.com

HDMI Screen (OG-ROI-SDI)

HDMI/DVI

Choose Auto, HDMI, or DVI. When DVI is selected, any audio signals present are
not passed. Choosing “Auto” automatically selects the output mode based on the
attached device’s capabilities.

RGB Range

Choose Auto, SMPTE or Full. Choosing “Auto” automatically selects the RGB
output color range setting.

Bit Depth

Choose from Auto, 8-bit, or 10-bit. Choosing “Auto” automatically selects the bit
depth based on the input video and the attached device’s capabilities.

Color Space

Selects the desired HDMI output video format. Choose from the following:

• Auto - selects the video format based on the input video and the attached
device’s capabilities.

• 4:2:2 YCbCr

• 4:4:4 RGB

• 4:4:4 YCbCr

OG-ROI Series openGear card v1.8 31 www.aja.com

Monitor Matrix Screen

The Monitor Matrix screen offers a calculator that lets you easily define Input
Region of Interest dimensions suitable for a multiple monitor matrix display.
Typically a monitor matrix is a horizontal and vertical stacking of monitors, with
a physical bezel distance separating the edges of the displays from each other.
Dedicating one ROI to feed each monitor, and sending the same input video to all
the ROIs, makes it possible to display that video so it spans across all the monitors.

Monitor Matrix Representation

A representation of the monitor matrix is shown in the Proxy Screen on the lower
right. Clicking selects the area of the monitor at that location in the matrix. When
row and column values are entered, a graphical representation of a matrix will
be displayed. A default monitor position will be shown as yellow. A new monitor
position can be selected by moving the mouse cursor over the desired position
and selecting it. The Input Region of Interest position (X,Y) and size (W,H) values
will then be automatically calculated. When Apply is clicked, the monitor position
rectangle will turn green. When a non-zero Bezel Width is entered, the bezel
border around that area is colored red.

Rows

Select the number of rows in the monitor matrix. Select from 1 to 20.

Columns

Select the number of columns in the monitor matrix. Select from 1 to 20.

OG-ROI Series openGear card v1.8 32 www.aja.com

Bezel Width

Select the bezel width of the display. This width will be used in calculating the
Input Region of Interest.

Note that adjoining displays could have a different bezel width and require a
different value entered on the ROI driving that monitor.

X, Y, W, H

The currently calculated Input Region of Interest position (X,Y) and size (W,H) are
displayed here. These values are grayed out and cannot be adjusted. Once the
values are applied, they can be adjusted on the Input tab.

Apply

Click on the Apply button to transfer the current Input Region of Interest
dimensions to the Input screen.

Genlock Screen

Genlock

The Genlock control offers the following options:

• Auto – use Ref Input if present, then Input signal if valid, then free-run

• HDMI – Lock to the HDMI/DVI Input (if valid video rate)

• Ref In – Lock to the Video Reference input

• Free-run – Lock to internal clock

NOTE: When HDMI is selected, OG-ROI can lock to input formats that have a SMPTE

raster and frame rate and are within 50 ppm of the SDI output format.

NOTE: The actual resultant Genlock status is reported in the Status tab.

OG-ROI Series openGear card v1.8 33 www.aja.com

Card Ref Termination

Whether you turn this control On or Off depends on the configuration of
your equipment, and whether or not the incoming reference signal is already
terminated. The Ext Ref input impedance is 75 ohms.

For proper operation the input Reference signal must be stable and properly
terminated using a 75-ohm terminator on the last piece of downstream
equipment to which the Ref Video is connected.

On - Turn on if you have an unterminated incoming reference signal. This will

provide 75 Ohm signal termination.

Off - Turn off (default) if the incoming reference signal is already terminated.

Reference Source

Select which source you want to use for Reference. Choose from the following:

Free Run - The OG-ROI Series will lock to its internal clock as the reference source.

Card Ext Ref - The OG-ROI Series will use the incoming reference source

connected to the Reference Input BNC on the rear panel of the card.

OG Frame Ref 1 - The OG-ROI Series will use the incoming reference source

connected to the openGear frame’s Reference 1 Input BNC on the rear of the
frame.

OG Frame Ref 2 - The OG-ROI Series will use the incoming reference source

connected to the openGear frame’s Reference 2 Input BNC on the rear of the
frame.

H-Delay and V-Delay

These controls let you adjust H and V delay from the sync input by dragging the
slider or entering values in the windows on the right. Horizontal delay is entered
in pixels, while Vertical delay is entered in lines.

NOTE: H and V delay adjustments are only available when the SDI Out Format is

compatible with the current sync input reference.

Audio Screen (OG-ROI-HDMI/DVI)

OG-ROI Series openGear card v1.8 34 www.aja.com

In default mode, the OG-ROI passes up to eight channels of embedded audio
from the video input to the video output.

NOTE: The OG-ROI-DVI model can receive both DVI and HDMI protocol input, and

accepts audio if it is embedded in an HDMI signal. However, the DVI protocol
does not carry audio, so if the ROI-DVI is receiving DVI input, only analog audio
can be embedded to the output.

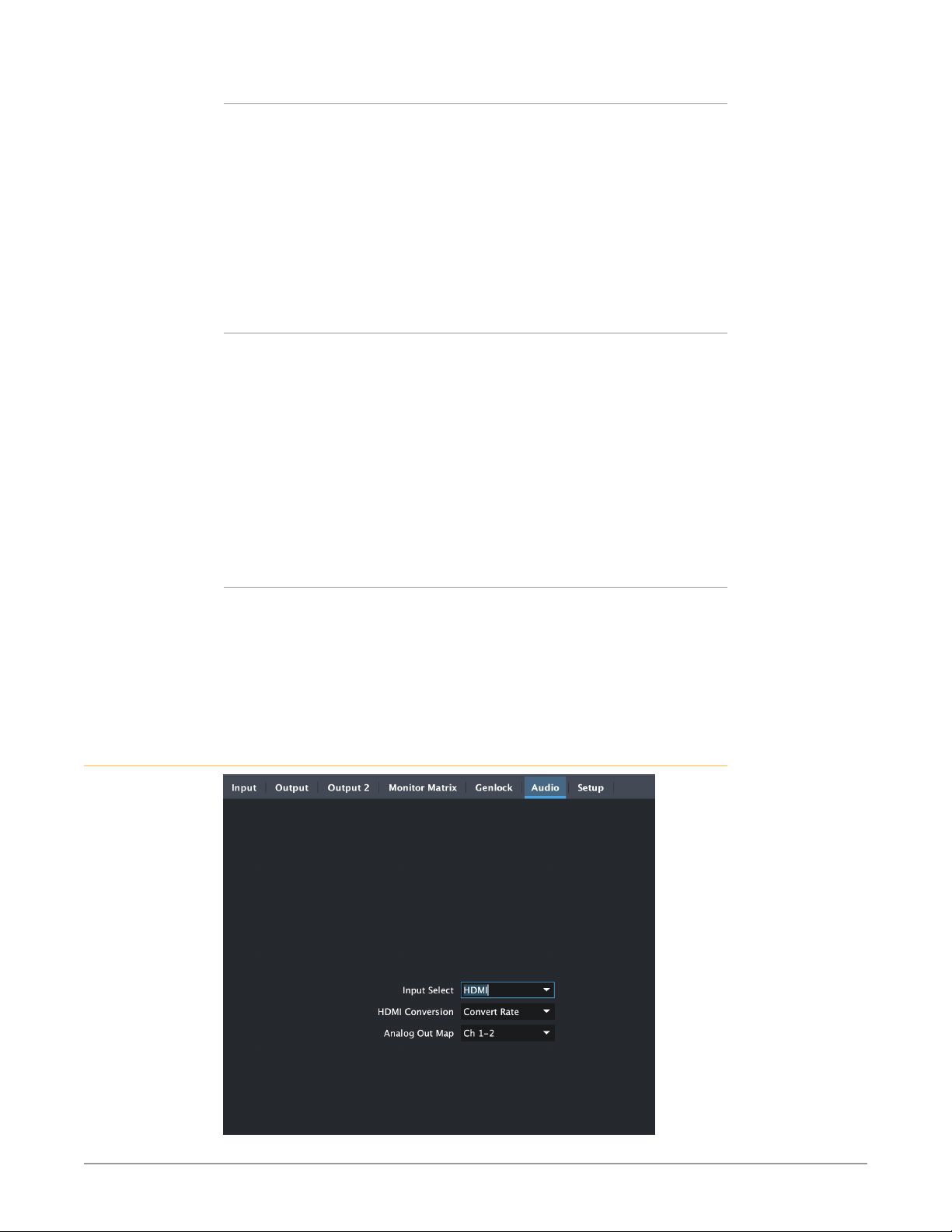

Input Select

Use this control to select which input audio to pass to the SDI output.

• HDMI - This selection passes the HDMI incoming audio to the SDI output (up
to 8 channels).

• Analog- This selection passes only the Analog audio input for inclusion into
the SDI audio stream. In this case, you can use the Analog Out Map pulldown
menu to select the specific channel pair you want to carry the signal.

• Analog + HDMI - This selection causes the Analog audio input to replace
one pair of the HDMI audio channels on the SDI output. The analog audio is
inserted on the channels defined by the Analog Out Map pulldown.

• None - No audio is output (mute) on the SDI output.

HDMI Conversion

The Convert Rate button enables OG-ROI Series to convert incoming HDMI audio
between 32 kHz to 96 kHz to 48 kHz (the SDI native audio standard). If you don’t
want to convert, choose Pass Through.

Analog Out Map

This control selects which two SDI embedded audio channels receive the
incoming L R analog audio when Input Select is set to Analog or Analog + HDMI.
Choose from Ch1-2, Ch 3-4, Ch 5-6, or Ch 7-8.

Audio Screen (OG-ROI-SDI)

OG-ROI Series openGear card v1.8 35 www.aja.com

Analog Output Map

This control selects which two SDI embedded audio channels go to the two 3-pin
Analog Audio Outputs. Choose from Ch1-2, Ch 3-4, Ch 5-6, or Ch 7-8.

HDMI Output Map

This control selects which two SDI embedded audio channels go to the HDMI
Output. Choose from Ch1-2, Ch 3-4, Ch 5-6, Ch 7-8, or Ch 1-8.

Analog Mute

Select the checkbox to mute the audio on the Analog Audio Outputs.

HDMI Mute

Select the checkbox to mute the audio on the HDMI Output.

SDI Mute

Select the checkbox to mute the audio on the SDI Output.

Setup Screen

Click on the Setup tab to view and make changes to the card name, configure the
reference source, or to restore card settings to factory default values.

Figure 23. OG-ROI Series Setup Tab Screen in DashBoard

Card Name

By default, this field is pre-populated with the card name of the card you have
installed—OG-ROI-HDMI, OG-ROI-DVI, or OG-ROI-SDI. You can change or
customize the card name by editing the text in the Card Name field. The card
name controls the name of the card that appears in the DashBoard tree view.

OG-ROI Series openGear card v1.8 36 www.aja.com

Identify Card

Click the checkbox to turn on Identify Card. This is especially useful when working
with numerous cards and frames and you need a simple method for identifying a
specific card. Click the checkbox again to turn Identify Card off.

On - Turn on if you need to identify the card. When on, the PWR LED located at

the front top edge of the card will blink on and off with an orange/green color.

Off - Turn off (default) if you do not need to physically identify the card. When

Identify Card is off, the PWR LED light follows the state of the card as shown in
the DashBoard tree view.

• Green Icon = Green LED

• Yellow icon = yellow power LED

• Red Icon = Red LED

Factory Settings

If you would like to revert the card settings to factory default values, click
Restore. A confirmation window displays.

Select Yes to restore to factory settings. Select No to cancel.

Upload Screen

To Upload New Software

1. Check the AJA website for new software for your OG-ROI Series. If new
software is found, download it and uncompress the file archive (zip).

2. Click the Upload button in the lower panel of the DashBoard Control System
to open the Upload Software Wizard.

OG-ROI Series openGear card v1.8 37 www.aja.com

Figure 24. OG-ROI Series Upload Software Wizard window in DashBoard

3. From the Upload Software Wizard window, select Browse.

4. Navigate to the location of the downloaded .bin le containing the software
update. Select the .bin le, then select Open. The Upload Software Wizard
window displays characteristics of the selected le for uploading.

5. Click Finish. The Uploading to Selected Devices window displays with a
progress bar.

Figure 25. OG-ROI Series Uploading to Selected Devices window in DashBoard

6. When the progress bar indicates that the uploading is nished and status
indicates “Complete,” click OK.

7. To verify the version of software or rmware currently installed on your
card, select the Card tab from the center panel of DashBoard.

OG-ROI Series openGear card v1.8 38 www.aja.com

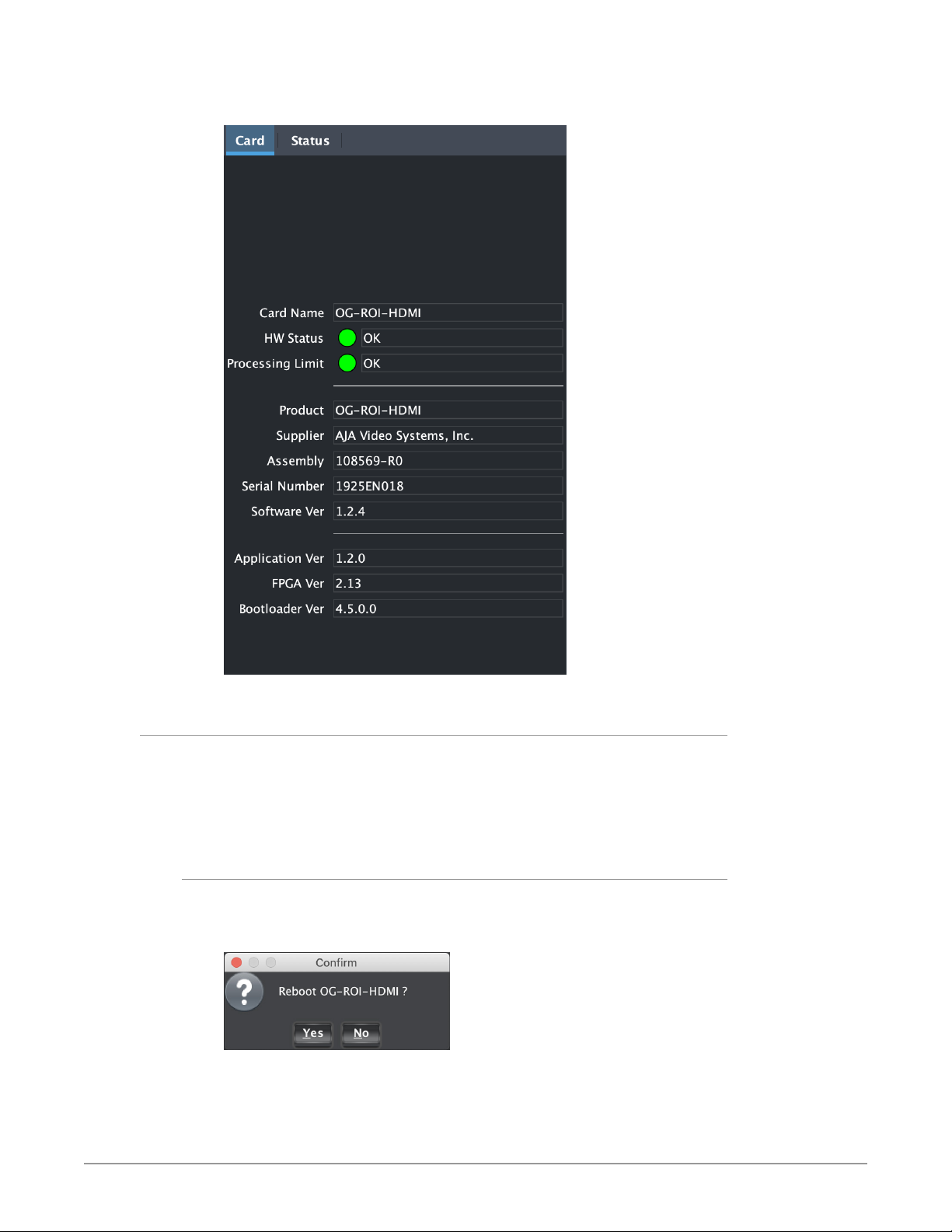

Figure 26. OG-ROI Series Card Tab Screen in DashBoard indicating the

currently installed software version.

Rebooting

Rebooting is a standard function built in to the DashBoard Control System, and
should only be performed if the board has become unresponsive.

WARN ING: During a reboot, any embedding or disembedding operations will be

briefly interrupted, but will be restored once the reboot has completed.

To Reboot the OG-ROI Series

1. Click the Reboot button in the lower panel of DashBoard. The reboot
confirmation message displays.

Figure 27. Reboot confirmation window

2. Click Ye s. The message “Loading data, please wait. Refreshing device data”
displays for a moment. The card will be oine for a few seconds, and any
current scan conversion operations will be interrupted.

OG-ROI Series openGear card v1.8 39 www.aja.com

3. Following a Reboot operation, the board conguration will return to the
settings that were in place at the time of rebooting.

OG-ROI Series openGear card v1.8 40 www.aja.com

Appendix A – Specifications

OG-ROI-DVI Tech Specs

Video Input Formats

• Computer Signals:

• WUXGA (1920 x 1200) 60 Hz max

• VGA (640 x 480) minimum

• Video Signals:

• (HD) 1920 x 1080i 50, 59.94

• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• (HD) 1280 x 720p 50, 59.94, 60

• (SD) 625i, 525i

• (SD) 580p, 480p

NOTE: Frame rates limited by the 165 MHz max pixel rate of the DVI receiver.

Video Output Formats

• (HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1
(4:2:2 10-bit YCbCr)

• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

• (HD) 1920 x 1080i 50, 59.94, 60

• (HD) 1280 x 720p 50, 59.94, 60

• (SD) 625i 25

• (SD) 525i 29.97

Color Range

• Full

• SMPTE

Reference Source

• Free Run

• Card Ext Ref

• OG Frame Ref 1

• OG Frame Ref 2

Reference Input

• Supported reference video inputs include

• 1080i tri-level sync

• 1080p tri-level sync

• 720p tri-level sync

• 625i Color Black

• 525i Color Black

• 75-ohm terminating

Video Input

• 1x DVI input connector (with embedded audio, up to 8 channels)

OG-ROI Series openGear card v1.8 41 www.aja.com

Video Outputs

• DVI

• SDI

Audio Inputs

• 2-channel Balanced analog audio inputs, 2x 3-Pin terminal block connectors

• DVI embedded audio, 24-bit, 8-channel

Audio Output

• SDI embedded audio, 24-bit, 2-channel or 8-channel

User Interface

• openGear DashBoard network control software via Windows, macOS or Linux

Size

• openGear standard form factor, front slot and rear card. Two slots required for

Weight

• 0.5 lb (0.3 kg)

• 1x DVI loop through connector (with embedded audio, up to 8-channels)

• 3G-SDI, SMPTE-259/292/424, 1x BNC

each card

Power

• openGear frame compatible, 12.0 watts max per card

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% noncondensing

• Operating Altitude: <3,000 meters (<10,000 feet)

OG-ROI-HDMI Tech Specs

Video Input Formats

• Computer Signals:

• WUXGA (1920 x 1200) 60 Hz max

• VGA (640 x 480) minimum

• Video Signals:

• (HD) 1920 x 1080i 50, 59.94

• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• (HD) 1280 x 720p 50, 59.94, 60

• (SD) 625i, 525i

• (SD) 580p, 480p

NOTE: Frame rates limited by the 165 MHz max pixel rate of the HDMI receiver.

OG-ROI Series openGear card v1.8 42 www.aja.com

Video Output Formats

• (HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1
(4:2:2 10-bit YCbCr)

• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

• (HD) 1920 x 1080i 50, 59.94, 60

• (HD) 1280 x 720p 50, 59.94, 60

• (SD) 625i 25

• (SD) 525i 29.97

Color Range

• Full

• SMPTE

Reference Source

• Free Run

• Card Ext Ref

• OG Frame Ref 1

• OG Frame Ref 2

Reference Input

• Supported reference video inputs include

• 1080i tri-level sync

• 1080p tri-level sync

• 720p tri-level sync

• 625i Color Black

• 525i Color Black

• 75-ohm terminating

Video Input

• 1x HDMI input connector (with embedded audio, up to 8 channels)

Video Outputs

• HDMI

• SDI

HDCP

• ROI does not encode the HDMI output with HDCP encryption

• ROI does not accept HDCP input

Audio Inputs

• 2-channel Balanced analog audio inputs, 2x 3-Pin terminal block connectors

• HDMI embedded audio, 24-bit, 8-channel

Audio Output

• SDI embedded audio, 24-bit, 2-channel or 8-channel

User Interface

• openGear DashBoard network control software via Windows, macOS or Linux

• 1x HDMI loop through connector (with embedded audio, up to 8 channels)

• 3G-SDI, SMPTE-259/292/424, 1x BNC

OG-ROI Series openGear card v1.8 43 www.aja.com

Size

• openGear standard form factor, front slot and rear card. Two slots required for
each card

Weight

• 0.5 lb (0.3 kg)

Power

• openGear frame compatible, 12.0 watts max per card

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% noncondensing

• Operating Altitude: <3,000 meters (<10,000 feet)

OG-ROI-SDI Tech Specs

Video Input Formats

• Video Signals:

• (HD) 1920x1080i 50, 59.94

• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• (HD) 1280x720p 50, 59.94, 60

• (SD) 625i, 50

• (SD) 525i, 59.94

Video Output Formats

• (HD) 1920x1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2
10-bit YCbCr)

• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30

• (HD) 1920x1080i 50, 59.94, 60

• (HD) 1280x720p 50, 59.94, 60

• (SD) 625i 50

• (SD) 525i 59.94

Color Range

• Full

• SMPTE

Reference Source

• Free Run

• Ext Ref

Reference Input

• Supported reference video inputs include:

• 1080i tri-level sync

• 1080p tri-level sync

• 720p tri-level sync

• 625i Color Black

• 525i Color Black

• 75 ohm terminating

OG-ROI Series openGear card v1.8 44 www.aja.com

Video Input

• 1x 3G-SDI BNC, SMPTE-259/292/424

Video Outputs

• 1x 3G-SDI BNC, loop through

• 1x 3G-SDI BNC, SMPTE-259/292/424

• 1x HDMI Type A, HDMI v1.4

Audio I/O

• 24-bit, 16-channel embedded SDI audio input

• 24-bit, 16-channel embedded SDI audio output

• 24-bit, 8-channel HDMI audio output

• Balanced analog audio outputs, 2x 3-Pin terminal block connectors

User Interface

• openGear DashBoard network control software via Windows, macOS or Linux

Size

• openGear standard form factor, front slot and rear card. Two slots required for
each card.

Weight

Power

Environment

• 0.5 lb (0.3 kg)

• openGear frame compatible, 7.0 watts max per card

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)

• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

• Operating Relative Humidity: 10-90% noncondensing

• Operating Altitude: <3,000 meters (<10,000 feet)

OG-ROI Series openGear card v1.8 45 www.aja.com

Appendix B – Safety and Compliance

Federal Communications Commission (FCC) Compli­ance Notices

Class A Interference Statement

This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

Canadian ICES Statement

Canadian Department of Communications Radio Interference Regulations

This digital apparatus does not exceed the Class A limits for radio-noise emissions
from a digital apparatus as set out in the Radio Interference Regulations of
the Canadian Department of Communications. This Class A digital apparatus
complies with Canadian ICES-003.

Règlement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique respecte les limites de bruits radioélectriques visant les
appareils numériques de classe A prescrites dans le Règlement sur le brouillage
radioélectrique du ministère des Communications du Canada. Cet appareil
numérique de la Classe A est conforme à la norme NMB-003 du Canada.

OG-ROI Series openGear card v1.8 46 www.aja.com

European Union and European Free Trade
Associa tion (EFTA) Regulatory Compliance

This equipment may be operated in the countries that comprise the member
countries of the European Union and the European Free Trade Association. These
countries, listed in the following paragraph, are referred to as The European
Community throughout this document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA,
FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA,
LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL,
ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND,
LICHTENSTEIN, NORWAY, SWITZERLAND

Declaration of Conformity

Marking by this symbol indicates compliance with the Essential Requirements of
the EMC Directive of the European Union 2014/30/EU.

This equipment meets the following conformance standards:

Safety

EN 60065: 2002 + A1: 2006 + A11: 2008 + A2: 2010 + A12: 2011 (GS License)

IEC 60065: 2001 + A1: 2005 + A2: 2010 (CB Scheme Report/Certicate)

EN 62368-1: 2014 + A11 (T-Mark License)

IEC 62368-1: 2014 (CB Scheme Certicate)

Additional licenses issued for specic countries available on request.

Emissions

EN 55032: 2012 + AC: 2013, CISPR 32: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013

Immunity

EN 55103-2: 2009, EN 61000-4-2: 2009, EN 61000-4-3: 2006+ A1: 2008 + A2: 2010,

EN 61000-4-4: 2012, EN 61000-4-5: 2014/A1: 2017, EN 61000-4-6: 2013,

EN 61000-4-11: 2020

Environments: E2, E3 and E4
The product is also licensed for additional country specific standards as required

for the International Marketplace.

Warning! This is a Class A product. In a domestic environment, this product

may cause radio interference, in which case, the user may be required to take
appropriate measures.

Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen

können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen
Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.

Attention! Ceci est un produit de Classe A. Dans un environnement domestique,

ce produit risque de créer des interférences radioélectriques, il appartiendra
alors à l?utilisateur de prendre les mesures spécifiques appropriées..

OG-ROI Series openGear card v1.8 47 www.aja.com

Recycling Notice

This symbol on the product or its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment
at the time of disposal will help conserve natural resources and ensure that
it is recycled in a manner that protects human health and the environment.
For more information about where you can drop off your waste for recycling,
please contact your local authority, or where you purchased your product.

Korean KCC Compliance Statement

ꩡ 끞 녅 껽 驩 ꓭ

넩 韥韥鱉 꽺ꓩ끞 쀍陲꾅꫑ ꩡ끞뼕 ꑞ놶냱ꈑ 놶뼞ꫦ뵾閵ꌱ ꗐ냵 韥韥ꈑ꫑ 閵뇊

끞 쀍陲꾅꫑ ꩡ끞뼍鱉 陲끥 놹볁閹ꫢ넍 끥ꇙ閵 넽걪鱽鲙.

Taiwan Compliance Statement

This is a Class A product based on the standard of the Bureau of Standards,
Metrology and Inspection (BSMI) CNS 13438, Class A. In a domestic environment
this product may cause radio interference in which case the user may be required
to take adequate measures.

Japanese Compliance Statement

This is a Class A product based on the standard of the VCCI Council (VCCI-32:

2016). If this equipment is used in a domestic environment, radio interference
may occur, in which case, the user may be required to take corrective actions.

Translated Warning and Caution Messages

The following caution statements, warning conventions, and warning messages
apply to this product and manual.

OG-ROI Series openGear card v1.8 48 www.aja.com

Before Operation Please Read These Instructions

Warning! Read and follow all warning notices and instructions marked on the

product or included in the documentation.

Avertissement! Lisez et conformez-vous à tous les avis et instructions

d'avertissement indiqués sur le produit ou dans la documentation.

Warnung! Lesen und befolgen Sie die Warnhinweise und Anweisungen, die auf

dem Produkt angebracht oder in der Dokumentation enthalten sind.

¡Advertencia! Lea y siga todas las instrucciones y advertencias marcadas en el

producto o incluidas en la documentación.

Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos

na documentação.

Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o

inclusi nella documentazione.

Warning! Do not use this device near water and clean only with a dry cloth.
Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement

avec un tissu sec..

Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem

trockenen Tuch säubern.

¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con

un paño seco.

Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano

seco.

Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un

panno asciutto.

Warning! Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

Avertissement! Ne bloquez aucune ouverture de ventilation. Suivez les

instructions du fabricant lors de l'installation.

Warnung! Die Lüftungsöffnungen dürfen nicht blockiert werden. Nur gemäß den

Anweisungen des Herstellers installieren.

¡Advertencia! No bloquee ninguna de las aberturas de la ventilación. Instale de

acuerdo con las instrucciones del fabricante.

Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as

instruções do fabricante.

Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le

istruzioni del fornitore.

OG-ROI Series openGear card v1.8 49 www.aja.com

Warning! Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

Avertissement! N'installez pas l'appareil près d'une source de chaleur telle que des

radiateurs, des bouches d'air de chauffage, des fourneaux ou d'autres appareils
(amplificateurs compris) qui produisent de la chaleur.

Warnung! Nicht in der Nähe von Wärmequellen wie Heizkörpern, Heizregistern,

Öfen oder anderen Wärme erzeugenden Geräten (einschließlich Verstärkern)
aufstellen.

¡Advertencia! No instale cerca de fuentes de calor tales como radiadores, registros

de calor, estufas u otros aparatos (incluidos amplificadores) que generan calor.

Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas

de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam
calor.

Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria

calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore

Warning! Refer all servicing to qualified service personnel. Servicing is required

when the device has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the device,
the device has been exposed to rain or moisture, does not operate normally, or
has been dropped.

Avertissement! Référez-vous au personnel de service qualifié pour tout entretien.

L'entretien est exigé quand l'appareil a été endommagé de quelque manière
que ce soit, par exemple lorsque le cordon d'alimentation ou la prise sont
endommagés, que du liquide a été versé ou des objets sont tombés dans
l'appareil, que l'appareil a été exposé à la pluie ou à l'humidité, ne fonctionne pas
normalement ou est tombé.

Warnung! Das Gerät sollte nur von qualifizierten Fachkräften gewartet werden.

Eine Wartung ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde,
wie bei beschädigtem Netzkabel oder Netzstecker, falls Flüssigkeiten oder
Objekte in das Gerät gelangen, das Gerät Regen oder Feuchtigkeit ausgesetzt
wurde, nicht ordnungsgemäß funktioniert oder fallen gelassen wurde.

¡Advertencia! Consulte al personal calificado por cuestiones de reparación. El

servicio de reparación se requiere cuando el dispositivo ha recibido cualquier
tipo de daño, por ejemplo cable o espigas dañadas, se ha derramado líquido o
se han caído objetos dentro del dispositivo, el dispositivo ha sido expuesto a la
lluvia o humedad, o no funciona de modo normal, o se ha caído.

Aviso! Remeta todos os serviços de manutenção para o pessoal de assistência

qualificado. A prestação de serviços de manutenção é exigida quando o
dispositivo foi danificado mediante qualquer forma, como um cabo de
alimentação ou ficha que se encontra danificado/a, quando foi derramado
líquido ou caíram objectos sobre o dispositivo, quando o dispositivo foi exposto
à chuva ou à humidade, quando não funciona normalmente ou quando foi
deixado cair.

Avviso! Fare riferimento al personale qualificato per tutti gli interventi di assistenza.

L'assistenza è necessaria quando il dispositivo è stato danneggiato in qualche
modo, ad esempio se il cavo di alimentazione o la spina sono danneggiati, è
stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel
dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona
correttamente o è caduto

Warning! Disconnect the external AC power supply line cord(s) from the mains

power before moving the unit.

Avertissement! Retirez le ou les cordons d’alimentation en CA de la source

d’alimentation principale lorsque vous déplacez l’appareil.

Warnung! Trennen Sie die Wechselstrom-Versorgungskabel vom Netzstrom, bevor

Sie das Gerät verschieben.

¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los

cable(s) de la fuente de alimentación CA tipo brick.

Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover

a unidade.

Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità.

OG-ROI Series openGear card v1.8 50 www.aja.com

Hazard! High Voltage. This situation or condition can cause injury due to electric

shock.

Avertissement! Tension élevée. Cette situation ou condition peut causer des

blessures dues à un choc électrique.

Warnung! Hochspannung. Diese Situation oder Bedingung kann zu Verletzungen

durch Stromschlag führen.

¡Advertencia! Alto voltaje . Esta situación o condición puede causar lesiones

debidas a una descarga eléctrica.

Aviso! Alta Tensão . Esta situação ou condição pode causar danos devido a

choques elétricos.

Avviso! Alta tensione. Questa situazione o condizione può causare lesioni a causa

di scosse elettriche.

Warning! Only use attachments and accessories specified and/or sold by the

manufacturer.

Avertissement! Utilisez seulement les attaches et accessoires spécifiés et/ou

vendus par le fabricant.

Warnung! Verwenden Sie nur Zusatzgeräte und Zubehör angegeben und / oder

verkauft wurde durch den Hersteller.

¡Advertencia! Utilice solamente los accesorios y conexiones especificados y/o

vendidos por el fabricante.

Aviso! Utilize apenas equipamentos/acessórios especificados e/ou vendidos pelo

fabricante.

Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal

produttore.

OG-ROI Series openGear card v1.8 51 www.aja.com

Warning! Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.

Avertissement! La sécurité de la prise polarisée ou de la prise de type mise à la

terre ne doit en aucun cas être empêchée de fonctionner. Une prise polarisée
a deux broches, l'une étant plus large que l'autre. Une prise de type mise à la
terre a deux broches et une troisième broche pour la mise à la terre. La broche
large ou la troisième broche sont fournies pour votre sécurité. Si la prise
fournie ne s'insère pas dans votre prise femelle, consultez un électricien pour le
remplacement de la prise femelle obsolète.

Warnung! Der Sicherheitszweck des gepolten bzw. Schukosteckers ist zu

berücksichtigen. Ein gepolter Stecker verfügt über zwei Pole, von denen einer
breiter als der andere ist. Ein Schukostecker verfügt neben den zwei Polen noch
über einen dritten Pol zur Erdung. Der breite Pol bzw. der Erdungspol dienen der
Sicherheit. Wenn der zur Verfügung gestellte Stecker nicht in Ihren Anschluss
passt, konsultieren Sie einen Elektriker, um den veralteten Anschluss zu ersetzen.

¡Advertencia! No eche por tierra la finalidad del tipo de enchufe polarizado con

conexión a tierra. Un enchufe polarizado tiene dos espigas, una más ancha
que la otra. Un enchufe con conexión a tierra tiene dos espigas iguales y una
tercera espiga que sirve para la conexión a tierra. La expiga ancha, o la tercera
espiga, sirven para su seguridad. Si el enchufe suministrado no encaja en el
tomacorriente, consulte con un electricista para reemplazar el tomacorriente
obsoleto.

Aviso! Não anule a finalidade da segurança da ficha polarizada ou do tipo ligação

terra. Uma ficha polarizada tem duas lâminas sendo uma mais larga do que
a outra. Uma ficha do tipo de ligação à terra tem duas lâminas e um terceiro
terminal de ligação à terra. A lâmina larga ou o terceiro terminal são fornecidos
para sua segurança. Se a ficha fornecida não couber na sua tomada, consulte um
electricista para a substituição da tomada obsoleta.

Avviso! Non compromettere la sicurezza della spina polarizzata o con messa a

terra. Una spina polarizzata ha due spinotti, di cui uno più largo. Una spina con
messa a terra ha due spinotti e un terzo polo per la messa a terra. Lo spinotto
largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non
si inserisce nella presa di corrente, contattare un elettricista per la sostituzione
della presa obsoleta.

Warning! Since the Mains plug is used as the disconnection for the device, it must

remain readily accessible and operable.

Avertissement! Puisque la prise principale est utilisée pour débrancher l'appareil,

elle doit rester aisément accessible et fonctionnelle.

Warnung! Da der Netzstecker als Trennvorrichtung dient, muss er stets zugänglich

und funktionsfähig sein.

¡Advertencia! Puesto que el enchufe de la red eléctrica se utiliza como dispositivo

de desconexión, debe seguir siendo fácilmente accesible y operable.

Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo,

esta deve manter-se prontamente acessível e funcional.

Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di

sconnessione, deve rimane prontamente accessibile e operabile.

OG-ROI Series openGear card v1.8 52 www.aja.com

Warning! Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the device.

Avertissement! Protégez le cordon d'alimentation pour que l'on ne marche

pas dessus ou qu'on le pince, en particulier au niveau des prises mâles, des
réceptacles de convenance, et à l'endroit où il sort de l'appareil.

Warnung! Vermeiden Sie, dass auf das Netzkabel getreten oder das Kabel geknickt

wird, insbesondere an den Steckern, den Steckdosen und am Kabelausgang am
Gerät.

¡Advertencia! Proteja el cable de energía para que no se le pise ni apriete, en

especial cerca del enchufe, los receptáculos de conveniencia y el punto del que
salen del equipo.

Aviso! Proteja o cabo de alimentação de ser pisado ou de ser comprimido

particularmente nas fichas, em tomadas de parede de conveniência e no ponto
de onde sai do dispositivo.

Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra

e che non venga schiacciato soprattutto in corrispondenza delle spine e del
punto in cui esce dal dispositivo.

Warning! Unplug this device during lightning storms or when unused for long

periods of time.

Avertissement! Débranchez cet appareil pendant les orages avec éclairsou s'il est

inutilisé pendant de longues périodes.

Warnung! Das Gerät ist bei Gewitterstürmen oder wenn es über lange Zeiträume

ungenutzt bleibt vom Netz zu trennen.

¡Advertencia! Desenchufe este dispositivo durante tormentas eléctricas o cuando

no se lo utilice por largos periodos del tiempo.

Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é

utilizado durante longos períodos de tempo.

Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal

produttore, quali il treppiedi e l'esoscheletro.

Warning! Ensure Mains Power is disconnected before installing the OG-ROI Series

modules into the frame, or installing and removing options. If a Mains switch
is not provided, the power cord(s) of this equipment provide the means of
disconnection. The socket outlet must be installed near the equipment and must
be easily accessible.

Avertissement ! Avant d'installer des modules OG-ROI Series dans la structure,

ainsi qu'avant d'installer ou d'enlever des options, assurez-vous d'avoir
déconnecté l'alimentation électrique. S'il n'y a pas d'interrupteur électrique, il
faut débrancher les câbles électriques de l'équipement. La prise électrique doit
être située à proximité de l'équipement et doit être aisément accessible.

Achtung! Sicherstellen, dass die Netzleitung entkoppelt ist, bevor die

OG-ROI Series Module in das Gestell eingebaut oder Wahlteile eingebaut bzw.
ausgebaut werden. Wenn kein Netzschalter vorgesehen ist, dient das bzw.
dienen die Netzkabel dieser Vorrichtung als Entkopplungsmittel. Die Steckdose
muss in der Nähe der Vorrichtung installiert und leicht zugänglich sein.

Avvertenza. Accertarsi che l'alimentazione di rete sia scollegata prima di installare

i moduli OG-ROI Series nel frame o di installare e rimuovere componenti
opzionali. Se non è presente un interruttore di accensione/spegnimento, occorre
scollegare il cavo (o i cavi) di alimentazione di questo apparecchio dalla presa
di corrente. La presa di corrente deve essere situata presso l'apparecchio e
facilmente accessibile.

Aviso! Certifique-se que a fonte principal de energia elétrica está desconectada

antes de instalar os módulos OG-ROI Series no bastidor ou antes de instalar
e remover opções. Se o interruptor principal não existir, o cabo elétrico deste
equipamento proporciona o meio de desconexão. A tomada elétrica deverá ser
instalada perto do equipamento e deverá ser de fácil acesso.

¡Advertencia! Asegúrese que la red de alimentación está desconectada antes de

instalar los módulos OG-ROI Series en el marco, o la instalación y extracción de
opciones. Si no se proporciona un conmutador de red, el cable de alimentación
de este equipo proporciona los medios de desconexión. El zócalo tomacorriente
debe estar instalado cerca del equipo y debe ser fácilmente accesible.

OG-ROI Series openGear card v1.8 53 www.aja.com

Warning! Dual Power Cord Notice—please read this. To reduce the risk of electrical

shock, disconnect both power cords before servicing equipment.

Avertissement ! Avis concernant la double alimentation électrique—à lire

soigneusement. Pour éviter tout risque d'électrocution, débranchez les deux
câbles électriques avant d'intervenir sur l'équipement.

Achtung! Hinweis auf Doppel-Netzkabel-bitte lesen. Um das Risiko eines

Elektroschocks zu verringern, müssen beide Netzkabel ausgestöpselt werden,
bevor die Vorrichtung gewartet wird.

Avvertenza. Avviso concernente il cavo di alimentazione doppio - leggere

attentamente. Per ridurre il rischio di elettrocuzione, scollegare entrambi i cavi
di alimentazione prima di eseguire la manutenzione o riparazioni di questo
apparecchio.

Aviso! Aviso de Cabo Elétrico Duplo - por favor, leia isto. Para reduzir o risco

de choque elétrico, desconecte ambos os cabos elétricos antes de fazer
manutenção ao equipamento.

¡Advertencia! Aviso del doble cable de alimentación - leer esto por favor.

Para reducir el riesgo de descarga eléctrica, desconecte ambos cables de
alimentación antes de dar servicio al equipo.

Caution! The OG-X-FR front fan door is heavy. Remove with Caution.
Attention! La porte du ventilateur avant OG-X-FR est lourd. Retirer avec

précaution.

Achtung! Die OG-X-FR -Frontlüfter Tür ist schwer. Bitte vorsichtig entfernen.
¡Precaución! LLa puerta del ventilador frontal OG-X-FR es pesado. Extraer con

precaución.

Atenção! A porta do ventilador frontal OG-X-FR é pesado. Remova com cuidado.
Attenzione! La porta ventola anteriore OG-X-FR è pesante. Rimuovere con cautela.

Warning! Do not open the chassis. There are no user-serviceable parts inside.

Opening the chassis will void the warranty unless performed by an AJA service
center or licensed facility.

Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis

ne peut être réparé par l’utilisateur. La garantie sera annulée si le châssis est
ouvert par toute autre personne qu’un technicien d’un centre de service ou d’un
établissement agréé AJA.

Warnung! Öffnen Sie das Gehäuse nicht. Keine der Geräteteile können vom

Benutzer gewartet werden. Durch das Öffnen des Gehäuses wird die Garantie
hinfällig, es sei denn, solche Wartungsarbeiten werden in einem AJA-Service­Center oder einem lizenzierten Betrieb vorgenommen.

¡Advertencia! No abra el chasis. El interior no contiene piezas reparables por el

usuario. El abrir el chasis anulará la garantía a menos que se lo haga en un centro
de servicio AJA o en un local autorizado.

Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita

manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura
seja realizada por uma central de serviços da AJA ou por um local autorizado.

Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili

dall’utente. L’apertura dello chassis invaliderà la garanzia se non viene effettuata
da un centro ufficiale o autorizzato AJA.

OG-ROI Series openGear card v1.8 54 www.aja.com

Caution! To meet safety regulations for leakage current, connect the dual power

supplies to separate branch circuits.

¡Advertencia! Para cumplir con las normas de seguridad para la corriente de fuga,

conecte las dos fuentes de alimentación para circuitos derivados diferentes.

Attention! Pour répondre aux mesures de sécurité concernant le courant de

fuite, raccorder les sources d'alimentation doubles à des circuits de dérivation
distincts.

Warnung! Zur Erfüllung der Sicherheitsbestimmungen bezüglich Reststrom

schließen Sie bitte die zwei Netzteile an unterschiedlichen Abzweigleitungen an.

Cuidado! Para atender aos regulamentos de segurança para correntes de fuga,

conecte as fontes duplas a circuitos elétricos separados.

Attenzione! Per soddisfare le norme di sicurezza sulla corrente di perdita,

collegare i doppi alimentatori a circuiti derivati separati.

OG-ROI Series openGear card v1.8 55 www.aja.com

Warranty and Liability Information

Limited Warranty on Hardware

AJA Video Systems, Inc. (AJA Video) warrants that the hardware product,
not including software components, will be free from defects in materials
and workmanship for a period of five years from the date of purchase. AJA
Video provides a separate software warranty as part of the license agreement
applicable to software components.

If the Customer brings a valid claim under this limited warranty for a hardware
product (hereafter, a “product”) during the applicable warranty period, AJA Video
will, at its sole option and as the Customer’s sole remedy for breach of the above
warranty, provide one of the following remedies:

• Repair or facilitate the repair the product within a reasonable period of time,
free of charge for parts and labor.

• Replace the product with a direct replacement or with a product that
performs substantially the same function as the original product.

• Issue a refund of the original purchase price less depreciation to be
determined based on the age of the product at the time remedy is sought
under this limited warranty.

To obtain service under this warranty, the Customer must notify AJA Video of the
defect before expiration of the warranty period and make suitable arrangements
for the performance of service by contacting AJA Video support through the
channels set forth on the support contacts web page at https://www.aja.com/
support. Except as stated, the Customer shall bear all shipping, packing, insurance
and other costs, excluding parts and labor, to effectuate repair. Customer shall
pack and ship the defective product to a service center designated by AJA Video,
with shipping charges prepaid. AJA Video shall pay to return the product to
Customer, but only if to a location within the country in which the AJA Video
service center is located. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION
OF IMPLIED WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS
OF A CONSUMER, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH MAY NOT
APPLY TO YOU.

Limitation of Liability

Under no circumstances shall AJA video BE LIABLE IN ANY WAY FOR ANY LOST,
CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS,
OR FOR ANY THIRD PARTY CLAIM, IN CONNECTION WITH THE PRODUCT, WHETHER
RESULTING FROM DEFECTS IN THE PRODUCT, SOFTWARE OR HARDWARE FAILURE,
OR ANY OTHER CAUSE WHATSOEVER, EVEN IF AJA VIDEO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. AJA VIDEO’S LIABILITY IN CONNECTION WITH THE
PRODUCT SHALL UNDER NO CIRCUMSTANCES EXCEED THE PURCHASE PRICE PAID
FOR THE PRODUCT. The foregoing limitations apply even if any remedy set forth in
this LIMITED WARRANTY fails of its essential purpose. SOME JURISDICTIONS DO NOT
ALLOW THE LIMITATION OF LIABILITY FOR PERSONAL INJURY, OR OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH
MAY NOT APPLY TO YOU.

Governing Law and Language; Your Rights

This limited warranty is the only warranty provided by AJA Video on the hardware
product. It supersedes all prior or contemporaneous understandings regarding such
subject matter. No amendment to or modification of this warranty will be binding
unless in writing and signed by AJA Video. The laws of the State of California, USA
will govern this warranty and any dispute arising from it. Any translation of this

OG-ROI Series openGear card v1.8 56 www.aja.com

Agreement is intended for convenience and to meet local requirements and in the
event of a dispute between the English and any non-English versions, the English
version of this warranty will govern. This limited warranty gives you specific legal
rights and you may have other rights that vary from jurisdiction to jurisdiction, some
of which are noted above.

OG-ROI Series openGear card v1.8 57 www.aja.com

Index

A

AJA Support 2
Analog Audio Input 9
Analog Audio Output 11
Analog Out Map 35
Apply Button 33
Audio Screen 34, 35
Auto Bypass Mode 23

B

Bezel Width 33
Block Diagram 8

C

Camera Video to Switcher 18
Center Button 23, 26

D

DashBoard Control Application

Audio 34, 35
Genlock 33
Input 22
Monitor Matrix 32
Output 25

DashBoard Control System 13

documentation 20
downloading 20
Rebooting 39
Requirements 20
Setup Tab Screen 36
Uploading New Software 37

Using 20
DVI Input 9
DVI Output 9

E

Edge Filtering Button

Raster Edge Filtering Button 26
Exceeds Max Rate 25

Solution 7

F

Features 6
Flicker Filtering Button 26
Flip

Illustration 27

Interaction with Rotation and

Frame Delay 27

Frame Delay 27

Interaction with Rotation and

Flip 27

Full Screen Button 23

G

Genlock Control

OG-ROI-DVI 33

OG-ROI-HDMI 33
OG-ROI-SDI 33

Genlock Screen 33

H

HDCP Protection 6
H-Delay and V-Delay 34
HDMI Conversion

ROI-DVI 35

ROI-HDMI 35
HDMI Output 10, 11
HDMI-to-DVI Adapter 9, 10
HDMI Video Input 9, 10
Horizontal Flip 27

I

Input Screen 22
Input Select

ROI-DVI 35

ROI-HDMI 35
Installation 13

Cabling 16

Front Card Installation 14

Rear Card Installation 13

WECO audio mating connectors

16

I/O Connections 8

M

Matte Background 26
Monitor Matrix

Representation 32

Screen 32

O

OG-ROI Configurations 17
OG-ROI-DVI 6, 9

Connectors 9

Genlock Control 33

HDMI Conversion 35

Input Select 35

Signal Indicators 11
OG-ROI Features 6
OG-ROI-HDMI 6, 10

Connectors 10

Genlock Control 33

HDMI Conversion 35

Input Select 35

Signal Indicators 11
OG-ROI Out Scaling

Output Scaling 25
OG-ROI Overview 5
OG-ROI-SDI 6, 10

Audio Screen 35

Connectors 10

Genlock Control 33

Signal Indicators 12

OG-ROI Selection 22

Click and Drag Options 24
openGear and AJA 8
Output Screen 25
Overview 5

P

Pixel Clock Rate 7
Processing Limit Exceeded

Message 28

Resolving 29

R

Red Matte 25

Solution 7
Red SDI Output 25
Reference Video Input 9
RGB Range Menu 23
ROI Edge Filtering Checkbox

Edge Filtering Checkbox 26
Rotation 27

Illustration 27

Interaction with Flip and Frame

Delay 27
Rotation with Portrait Monitors 18
Rows 32

S

SDI Output Format 26
SDI Video Input 11
SDI Video Output 8
Signal Indicators 11
Simplified Block Diagram 8
System Interconnect Diagrams 17

T

Technical Support 2

V

Vertical Flip 27

X

X, Y, W, H 33

OG-ROI Series openGear card v1.8 58 www.aja.com
