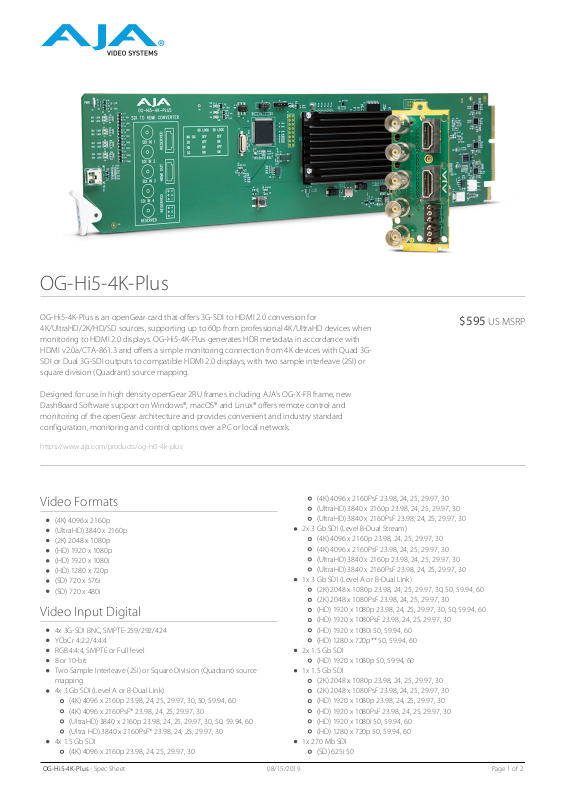

AJA OG-HI5-4K-PLUS Specifications

OG-Hi5-4K-Plus

OG-Hi5-4K-Plus is an openGear card that offers 3G-SDI to HDMI 2.0 conversion for
4K/UltraHD/2K/HD/SD sources, supporting up to 60p from professional 4K/UltraHD devices when
monitoring to HDMI 2.0 displays. OG-Hi5-4K-Plus generates HDR metadata in accordance with
HDMI v2.0a/CTA-861.3 and offers a simple monitoring connection from 4K devices with Quad 3G­SDI or Dual 3G-SDI outputs to compatible HDMI 2.0 displays, with two sample interleave (2SI) or
square division (Quadrant) source mapping.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new
DashBoard Software support on Windows®, macOS® and Linux® offers remote control and
monitoring of the openGear architecture and provides convenient and industry standard
configuration, monitoring and control options over a PC or local network.

https://www.aja.com/products/og-hi5-4k-plus

Video Formats

(4K) 4096 x 2160p
(UltraHD) 3840 x 2160p
(2K) 2048 x 1080p
(HD) 1920 x 1080p
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 576i
(SD) 720 x 480i

Video Input Digital

4x 3G-SDI BNC, SMPTE-259/292/424
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
8 or 10-bit
Two Sample Interleave (2SI) or Square Division (Quadrant) source
mapping
4x 3 Gb SDI (Level A or B-Dual Link)

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30

4x 1.5 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30

(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

2x 3 Gb SDI (Level B-Dual Stream)

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

1x 3 Gb SDI (Level A or B-Dual Link)

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p** 50, 59.94, 60

2x 1.5 Gb SDI

(HD) 1920 x 1080p 50, 59.94, 60

1x 1.5 Gb SDI

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60

1x 270 Mb SDI

(SD) 625i 50

$595 US MSRP

OG-Hi5-4K-Plus - Spec Sheet

08/15/2019 Page 1 of 2

(SD) 525i 59.94

*PsF is Level B-Dual Link
**1280 x 720p is Level A Only

Video Output Digital

1 x HDMI Type A connector*, HDMI v2.0
YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or Full level
8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 720 x 576i 50
(SD) 720 x 480i 59.94

*If a connected monitor doesn’t support HDMI protocol the unit
automatically switches to DVI protocol (which does not pass audio)

Audio Input Digital

SDI embedded audio, 24-bit, 8-Channel

Audio Output Digital

HDMI embedded audio, 24-bit, 8-Channel

Audio I/O

8-Channel embedded SDI audio input
8-Channel HDMI audio output

User Controls

openGear DashBoard network control software via Windows, macOS or
Linux

Size (w x d x h)

openGear standard form factor, front slot and rear card. Two slots
required for each card.

Weight

0.5 lb (0.3 kg)

Power

openGear frame compatible, 12.0 watts max per card

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

OG-Hi5-4K-Plus - Spec Sheet

08/15/2019 Page 2 of 2
